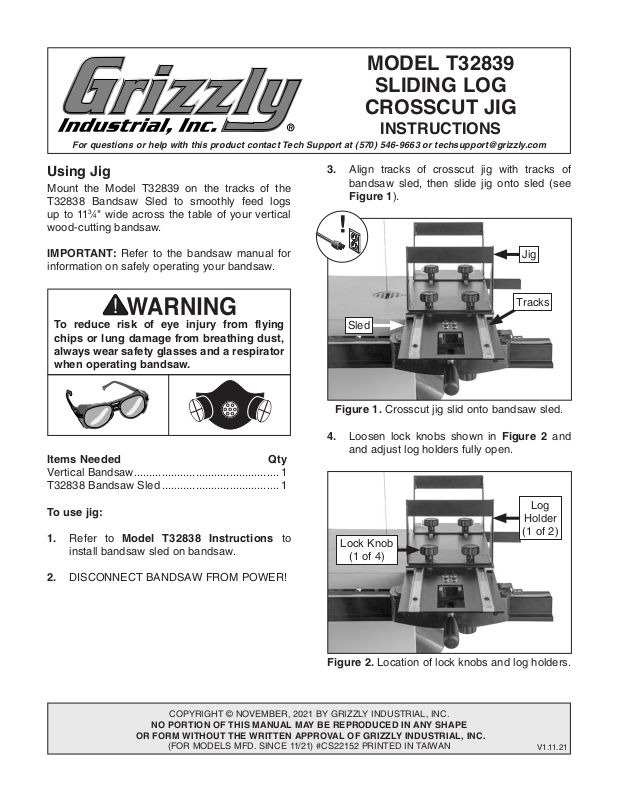

Page 1
MODEL T32839
SLIDING LOG
CROSSCUT JIG
INSTRUCTIONS
For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Using Jig
Mount the Model T32839 on the tracks of the
T32838 Bandsaw Sled to smoothly feed logs
up to 11
wood-cutting bandsaw.
IMPORTANT: Refer to the bandsaw manual for
information on safely operating your bandsaw.
To reduce risk of eye injury from flying
chips or lung damage from breathing dust,
always wear safety glasses and a respirator
when operating bandsaw.
Items Needed Qty
Vertical Bandsaw ............................................... 1
T32838 Bandsaw Sled
3
⁄4" wide across the table of your vertical
...................................... 1
3. Align tracks of crosscut jig with tracks of
bandsaw sled, then slide jig onto sled (see
Figure 1).
Jig
Tracks
Sled
Figure 1. Crosscut jig slid onto bandsaw sled.
4. Loosen lock knobs shown in Figure 2 and
and adjust log holders fully open.
To use jig:
Refer to Model T32838 Instructions to
1.
install bandsaw sled on bandsaw.
DISCONNECT BANDSAW FROM POWER!
2.
COPYRIGHT © NOVEMBER, 2021 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
(FOR MODELS MFD. SINCE 11/21) #CS22152 PRINTED IN TAIWAN
Log
Holder
(1 of 2)
Lock Knob
(1 of 4)
Figure 2. Location of lock knobs and log holders.
V1.11.21
Page 2
5. Rest workpiece between log holders and
align bandsaw blade with intended line of cut
(see Figure 3).
Adjust log holders until workpiece is secure,
6.
then tighten lock knobs (see Figure 3).
Bandsaw Blade
Center of Gravity
Figure 4. Example of center of gravity.
Lock Knob
(1 of 4)
Figure 3. Workpiece secured in log holders.
If workpiece center of gravity (see Figure
4) extends too far right, jig can easily tip
off of bandsaw sled. Body parts could
be pulled into moving blade or pinched/
crushed if caught under falling workpiece. If
jig is not firmly seated on bandsaw sled, use
roller table (or other method of workpiece
support) or cut down workpiece to more
manageable length.
7. Connect bandsaw to power, turn bandsaw
ON, then slide jig forward on sled to feed
workpiece through blade and to complete cut.
-2-
Model T32838 (Mfd. Since 11/21)
Page 3
T32839 Parts Breakdown & List
Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here
are available for purchase. Call (800) 523 - 4777 or visit our online parts store at www.grizzly.com to check for availability.
REF PART # DES CRIPTION REF PART # DES CRIPTION
4
2
1
3
6
5
1 PT32839001 CROSSCUT TAB LE 4 PT32839004 KNOB M8-1.25, 12-LOBE, D39
2 PT32839002 LOG HOLDER 5 PT32839005 TRACK
3 PT32839003 CARRIAGE BOLT M8-1.25 X 15 6 PT32839006 BUTTON HD CAP S CR M5-. 8 X 10
Model T32838 (Mfd. Since 11/ 21)
BUY PARTS ONLINE AT GRIZZLY.COM!
Scan QR code to visit our Parts Store.
-3-
