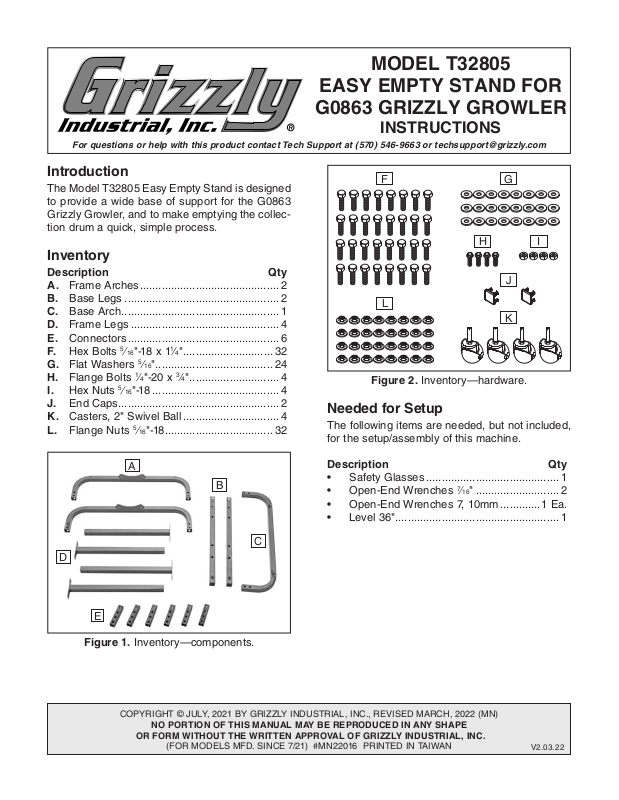

MODEL T32805
EASY EMPTY STAND FOR
G0863 GRIZZLY GROWLER
INSTRUCTIONS
For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction
The Model T32805 Easy Empty Stand is designed
to provide a wide base of support for the G0863
Grizzly Growler, and to make emptying the collection drum a quick, simple process.
Inventory
Description Qty
A. Frame Arches ............................................. 2
. Base Legs .................................................. 2
B
Base Arch ................................................... 1
C.
. Frame Legs ................................................ 4
D
. Connectors ................................................. 6
E
. Hex Bolts 5⁄16"-18 x 11⁄4" ............................. 32
F
. Flat Washers 5⁄16" ...................................... 24
G
. Flange Bolts 1⁄4"-20 x 3⁄4" ............................. 4
H
. Hex Nuts 5⁄16"-18 ......................................... 4
I
. End Caps .................................................... 2
J
. Casters, 2" Swivel Ball ............................... 4
K
. Flange Nuts 5⁄16"-18 ................................... 32
L
A
B
F G
H
J
L
K
Figure 2. Inventory—hardware.
I
Needed for Setup
The following items are needed, but not included,
for the setup/assembly of this machine.
Description Qty
• Safety Glasses ........................................... 1
• Open-End Wrenches 7⁄16" ........................... 2
• Open-End Wrenches 7, 10mm .............1 Ea.
• Level 36" ..................................................... 1
D
E
Figure 1. Inventory—components.
COPYRIGHT © JULY, 2021 BY GRIZZLY INDUSTRIAL, INC., REVISED MARCH, 2022 (MN)
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
(FOR MODELS MFD. SINCE 7/21) #MN22016 PRINTED IN TAIWAN
C
V2.03.22
Wear safety glasses during
the entire setup process!
Assembly
1. Locate base arch (see Figure 3) and install
(2) connectors.
Base Arch
Connectors
Figure 3. Connectors installed in base arch.
2. Align two holes in each connector with two
holes in base arch (see Figure 4) and secure
with (4)
washers, and
tighten for now.
5
⁄16"-18 x 1 1⁄4" hex bolts, 5⁄16" flat
5
⁄16"-18 flange nuts. Only hand-
x 4
Base Leg (1 of 2)
End Cap (1 of 2)
Figure 5. Base legs attached to base arch.
5.
Install (1) 5⁄16"-18 hex nut on each of (4)
caster wheels, then install wheels on base,
as shown in Figure 6.
Caster
Wheels
Base Arch
x 4
Connectors
Figure 4. Connectors in base arch fastened in
place.
3.
Attach (2) base legs to base arch (see Figure
5) with (4)
washers, and
5
⁄16"-18 x 1 1⁄4" hex bolts, 5⁄16" flat
5
⁄16"-18 flange nuts. Only hand-
tighten for now.
Install (1) end cap in the end of each base leg
4.
(see Figure 5).
Figure 6. Caster wheels installed on base.
6. Position base rightside up, and adjust wheels
until base sits level and does not rock. When
satisfied, tighten hex nuts against base to
secure position.
Locate (1) frame arch (see Figure 7) and
7.
install (2) connectors. Funnel bracket should
be facing up, as shown below.
Frame Arch
Funnel Bracket
Connectors
-2-
Figure 7. Connectors installed in frame arch.
T32805 Easy Empty Stand (Mfd. 7/21+)
8. Align two holes in each connector with two
holes in frame arch (see Figure 8) and
5
secure with (4)
flat washers, and
⁄16"-18 x 1 1⁄4" hex bolts, 5⁄16"
5
⁄16"-18 flange nuts. Only
hand-tighten for now.
Frame Arch
11.
Install (2) assembled frames on base (see
Figure 10) with (8) 5⁄16"-18 x 1 1⁄4" hex bolts
5
⁄16"-18 flange nuts. Only hand-tighten for
and
now.
Note: Assembled frames must be installed
with funnel brackets facing each other, as
shown in Figure 10.
x 4
Connectors
Figure 8. Connectors in frame arch fastened in
place.
9.
Attach (2) frame legs to frame arch (see
Figure 9) with (4) 5⁄16"-18 x 1 1⁄4" hex bolts, 5⁄16"
5
flat washers, and
⁄16"-18 flange nuts. Only
hand-tighten for now.
x 4
x 8
Funnel
Bracket
(1 of 2)
Assembled
Frame
(1 of 2)
Figure 10. Assembled frames installed on base.
Perform Steps 1–3 in the G0863 Owner's
Manual, then perform Steps 12–14 shown below.
12.
Align holes in G0863 cyclone funnel with
holes in collection drum lid and position under
funnel brackets (see Figure 11)
Cyclone
Funnel
Brackets
Frame
Legs
Figure 9. Frame legs attached to frame arch.
Repeat Steps 7–9 with (1) frame arch, (2)
10.
frame legs, and (2) connectors.
T32805 Easy Empty Stand (Mfd. 7/21+)
Drum
Lid
Figure 11. G0863 cyclone funnel and collection
drum lid positioned on stand.
-3-
Attach G0863 cyclone funnel and drum lid to
7
11
9
13
REF PART # DES CRIP TION
We do our best to stock replacement parts when
possible, but we cannot guarantee that all parts
shown are available for purchase. Call (800) 523-
4777
to check for
availability.
13.
funnel brackets (see Figure 12) with (4) 1⁄4"-
3
20 x
1
⁄4" flange bolts, included here, and (2)
⁄4"-20 x 1⁄2" flange bolts and (6) 1⁄4"-20 flange
nuts included with G0863 Grizzly Growler.
T32805 Parts Breakdown & List
5
3
x 4
x 2
Figure 12. Funnel and drum lid attached to brackets.
14. Tighten all fasteners installed in Steps 2–13.
15. Position G0863 collection drum under drum
lid, hook drum latches on lid tabs, and press
latches down to secure (see Figure 13).
Latch
(1 of 2)
Drum
Drum
Lid
Figure 13. Collection drum secured against lid.
13
4
2
12
6
1
8
10
1 PT32805001 BASE LEG
2 PT32805002 FRAME LEG
3 PT32805003 FRAME A RCH
4 PT32805004 BASE ARCH
5 PT32805005 CONNECTO R
6 PT32805006 FLANGE NUT 5/16-18
7 PT32805007 HEX BOLT 5/16-18 X 1-1/4
8 PT32805008 SQUARE PLUG 1"
9 PT32805009 CASTER 2" SWIVEL BALL
10 PT32805010 HEX NUT 5/16-18
11 PT32805011 FLAT WASHER 5/16
12 PT32805012 TOUCH-UP P AINT, GRI ZZL Y GREEN
13 PT32805013 FLANGE BOLT 1/4-20 X 3/4
To complete the Assembly of the G0863 Grizzly
Growler, perform Steps 5–11 in the Owner's
Manual.
-4-
BUY PARTS ONLINE AT GRIZZLY.COM!
Scan QR code to visit our Parts Store.
or visit www.grizzly.com/parts
T32805 Easy Empty Stand (Mfd. 7/21+)
