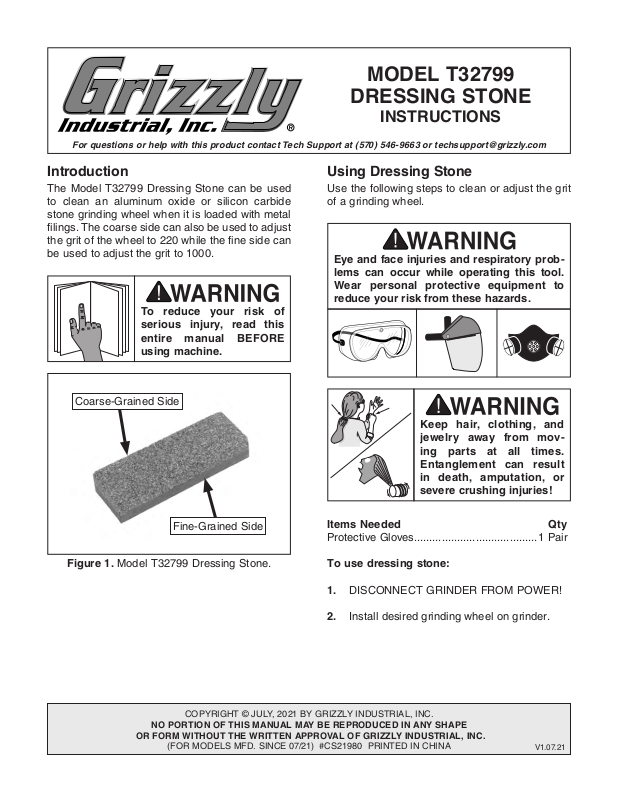

Grizzly T32799 User guide

MODEL T32799

To reduce your risk of
serious injury, read this
entire manual BEFORE

Wear personal protective equipment to

Keep hair, clothing, and

ing parts at all times.
Entanglement can result
in death, amputation, or

DRESSING STONE

INSTRUCTIONS

For questions or help with this product contact Tech Support at [phone] or [e-mail]

Introduction

The Model T32799 Dressing Stone can be used
to clean an aluminum oxide or silicon carbide
stone grinding wheel when it is loaded with metal
filings. The coarse side can also be used to adjust
the grit of the wheel to 220 while the fine side can
be used to adjust the grit to 1000.

using machine.

Coarse-Grained Side

Using Dressing Stone

Use the following steps to clean or adjust the grit
of a grinding wheel.

Eye and face injuries and respiratory prob­lems can occur while operating this tool.

reduce your risk from these hazards.

jewelry away from mov-

Fine-Grained Side

Figure 1. Model T32799 Dressing Stone.

NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

COPYRIGHT © JULY, 2021 BY GRIZZLY INDUSTRIAL, INC.

(FOR MODELS MFD. SINCE 07/21) #CS21980 PRINTED IN CHINA

severe crushing injuries!

Items Needed Qty

Protective Gloves........................................ 1 Pair

To use dressing stone:

DISCONNECT GRINDER FROM POWER!

1.

2. Install desired grinding wheel on grinder.

V1.07.21

3. Adjust tool rest on grinder as determined by
the set up of your grinder and as described
below:

— For slow-speed grinders like the one

shown in Figure 2, adjust tool rest about

1

⁄2" away from grinding wheel so that
when dressing stone is applied, it will be
pressed against wheel rotation.

1

⁄2" of Clearance

1

⁄8" of Clearance

Figure 4. Example of high-speed grinder flat tool

rest adjusted correctly.

4. Connect grinder to power and turn machine
ON.

Carefully place stone against tool rest (if

5.

present) and lower it onto grinding wheel
against wheel rotation (see Figure 5).

Figure 2. Example of slow-speed grinder support

tool rest adjusted correctly.

— For slow-speed and high-speed grinders

like the ones shown in Figures 3–4, adjust

1

tool rest within

⁄8" of grinding wheel and so
that when dressing stone is applied, it will
be pressed against wheel rotation.

1

⁄8" of

Clearance

Figure 3. Example of slow-speed grinder flat tool

rest adjusted correctly.

Tool Rest

Grinding

Wheel

Stone

Figure 5. Example of Model T32799 in use.

— If cleaning 220-grit wheel or changing

grit to 220, place coarse-grained surface
against wheel.

— If cleaning 1000-grit wheel or changing

grit to 1000, place fine-grained surface
against wheel.

Press stone against grinding wheel for

6.

approximately 20 seconds or until desired
results are achieved.

-2-

Turn machine OFF.

7.

Model T32799 (Mfd. Since 07/21)
