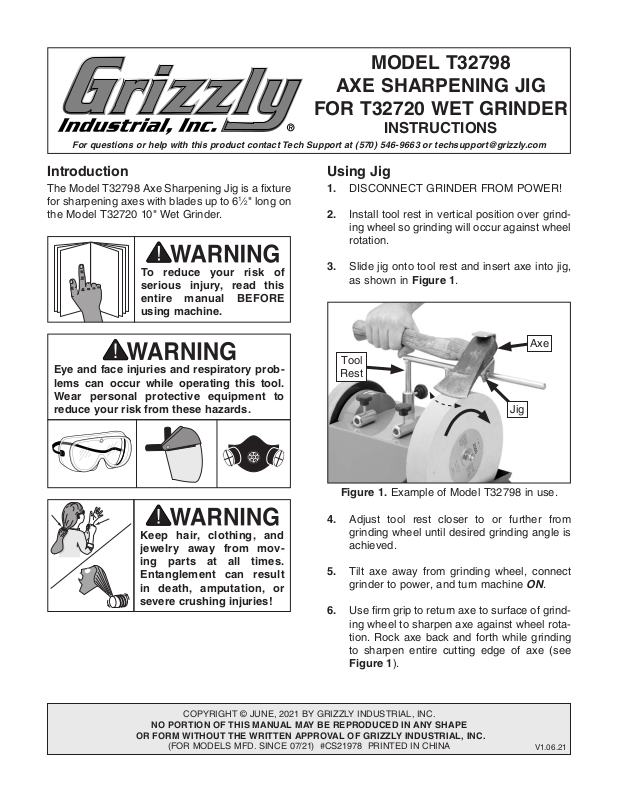

MODEL T32798
To reduce your risk of
serious injury, read this
entire manual BEFORE
Wear personal protective equipment to
Keep hair, clothing, and
ing parts at all times.
Entanglement can result
in death, amputation, or
AXE SHARPENING JIG
FOR T32720 WET GRINDER
INSTRUCTIONS
For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction
The Model T32798 Axe Sharpening Jig is a fixture
for sharpening axes with blades up to 6
the Model T32720 10" Wet Grinder.
using machine.
Eye and face injuries and respiratory problems can occur while operating this tool.
reduce your risk from these hazards.
1
⁄2 " long on
Using Jig
1. DISCONNECT GRINDER FROM POWER!
2. Install tool rest in vertical position over grind-
ing wheel so grinding will occur against wheel
rotation.
Slide jig onto tool rest and insert axe into jig,
3.
as shown in Figure 1.
Axe
Tool
Rest
Jig
jewelry away from mov-
severe crushing injuries!
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
COPYRIGHT © JUNE, 2021 BY GRIZZLY INDUSTRIAL, INC.
(FOR MODELS MFD. SINCE 07/21) #CS21978 PRINTED IN CHINA
Figure 1. Example of Model T32798 in use.
4. Adjust tool rest closer to or further from
grinding wheel until desired grinding angle is
achieved.
Tilt axe away from grinding wheel, connect
5.
grinder to power, and turn machine ON.
Use firm grip to return axe to surface of grind-
6.
ing wheel to sharpen axe against wheel rotation. Rock axe back and forth while grinding
to sharpen entire cutting edge of axe (see
Figure 1).
V1.0 6.21
