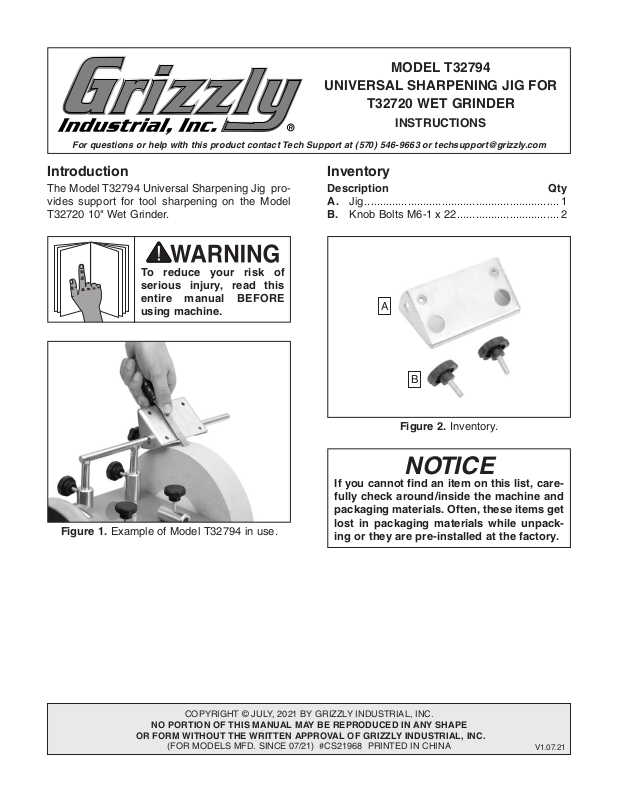

Page 1
MODEL T32794
To reduce your risk of
serious injury, read this
entire manual BEFORE
UNIVERSAL SHARPENING JIG FOR
T32720 WET GRINDER
INSTRUCTIONS
For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction
The Model T32794 Universal Sharpening Jig provides support for tool sharpening on the Model
T32720 10" Wet Grinder.
using machine.
Inventory
Description Qty
A. Jig ............................................................... 1
Knob Bolts M6-1 x 22 ................................. 2
B.
A
B
Figure 2. Inventory.
Figure 1. Example of Model T32794 in use.
COPYRIGHT © JULY, 2021 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
(FOR MODELS MFD. SINCE 07/21) #CS21968 PRINTED IN CHINA
NOTICE
If you cannot find an item on this list, carefully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpacking or they are pre-installed at the factory.
V1.07.21
Page 2
Using Jig
Wear personal protective equipment to
Keep hair, clothing, and
ing parts at all times.
Entanglement can result
in death, amputation, or
Attach the jig to the tool rest on your Model
T32720 10" Wet Grinder to sharpen chisels and
other tools.
Slide jig onto tool rest and install (2) M6-1 x
3.
22 knob bolts (see Figure 3).
Note: Leave knob bolts loose enough to
move jig until directed to tighten in Step 5.
Eye and face injuries and respiratory problems can occur while operating this tool.
reduce your risk from these hazards.
jewelry away from mov-
severe crushing injuries!
To use jig:
DISCONNECT GRINDER FROM POWER!
1.
Jig
x 2
Tool Rest
Figure 3. Example of grinding chisel with jig.
Adjust tool rest closer to or further from grind-
4.
ing wheel and tilt jig until desired grinding
angle is achieved.
Tighten knob bolts to secure jig position on
5.
tool rest.
Connect grinder to power, and turn machine
6.
ON.
2. Install tool rest (refer to Grinding Wheel
Rotation on Page 23 of Model T32720 own-
er's manual to determine best way to install
tool rest for your operation).
-2-
Rest workpiece against jig (see Figure 3),
7.
then use firm grip to guide it against surface
of grinding wheel to perform operation. Move
workpiece back and forth across surface of
wheel while grinding to prevent excessive or
uneven wheel wear.
Model T32794 (Mfd. Since 07/21)
