Grizzly T32793 User guide

MODEL T32793

To reduce your risk of
serious injury, read this
entire manual BEFORE

WOOD TURNING SHARPENING

JIG FOR T32720 WET GRINDER

INSTRUCTIONS

For questions or help with this product contact Tech Support at [phone] or [e-mail]

Introduction

The Model T32793 Wood Turning Sharpening
Jig is designed to sharpen beveled and hollowed
chisels on the T32720 10" Wet Grinder.

using machine.

Inventory

Description Qty

A. Jig ............................................................... 1

Chisel Pin ................................................... 1

B.

Chisel Clamp .............................................. 1

C.

Jig Holder ................................................... 1

D.

Hex Bolt M8-1.25 x 12 ................................ 1

E.

B

C

A

D

E

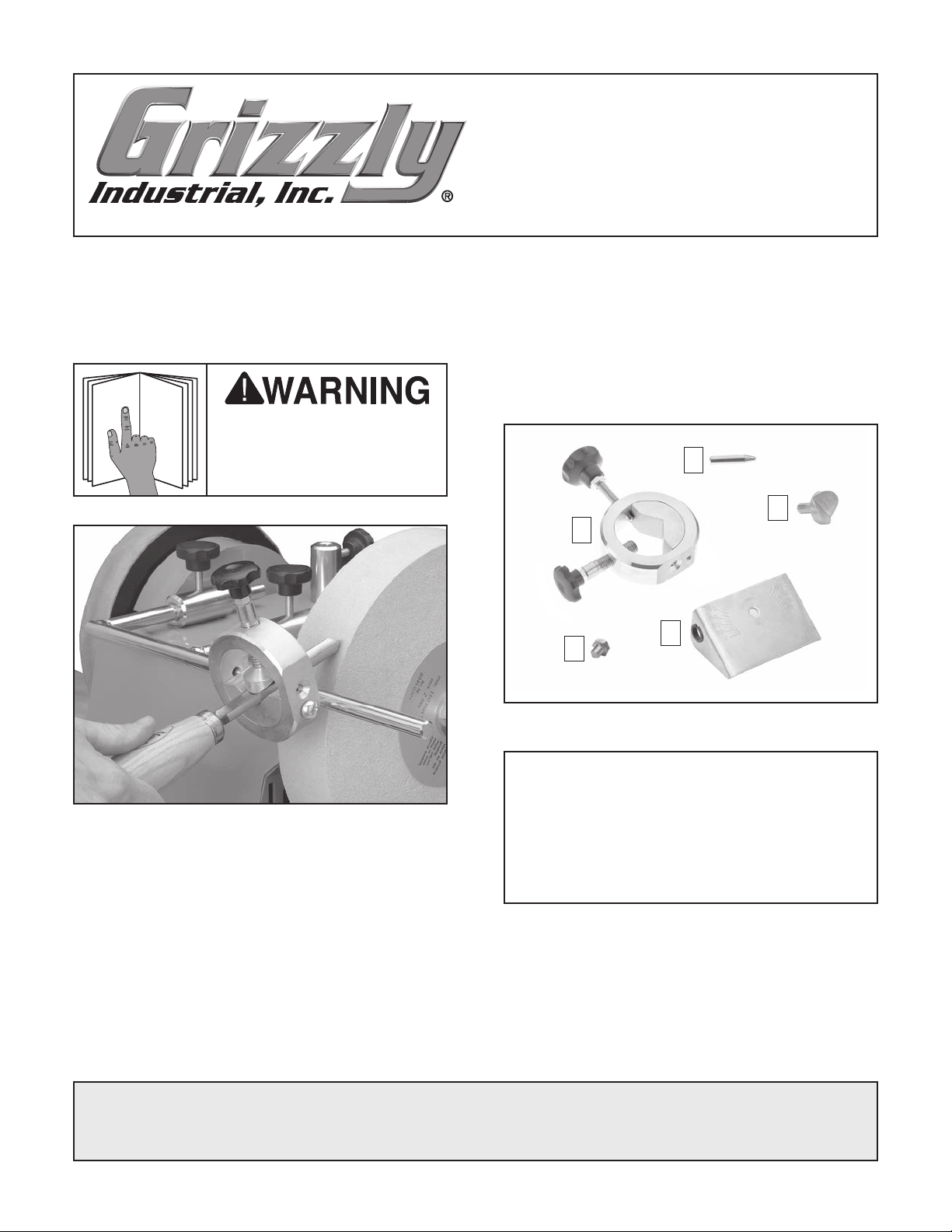

Figure 1. Example of Model T32793 in use.

COPYRIGHT © JUNE, 2021 BY GRIZZLY INDUSTRIAL, INC.

NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

(FOR MODELS MFD. SINCE 07/21) #CS21963 PRINTED IN CHINA

Figure 2. Inventory.

NOTICE

If you cannot find an item on this list, care­fully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpack­ing or they are pre-installed at the factory.

V1.0 6.21

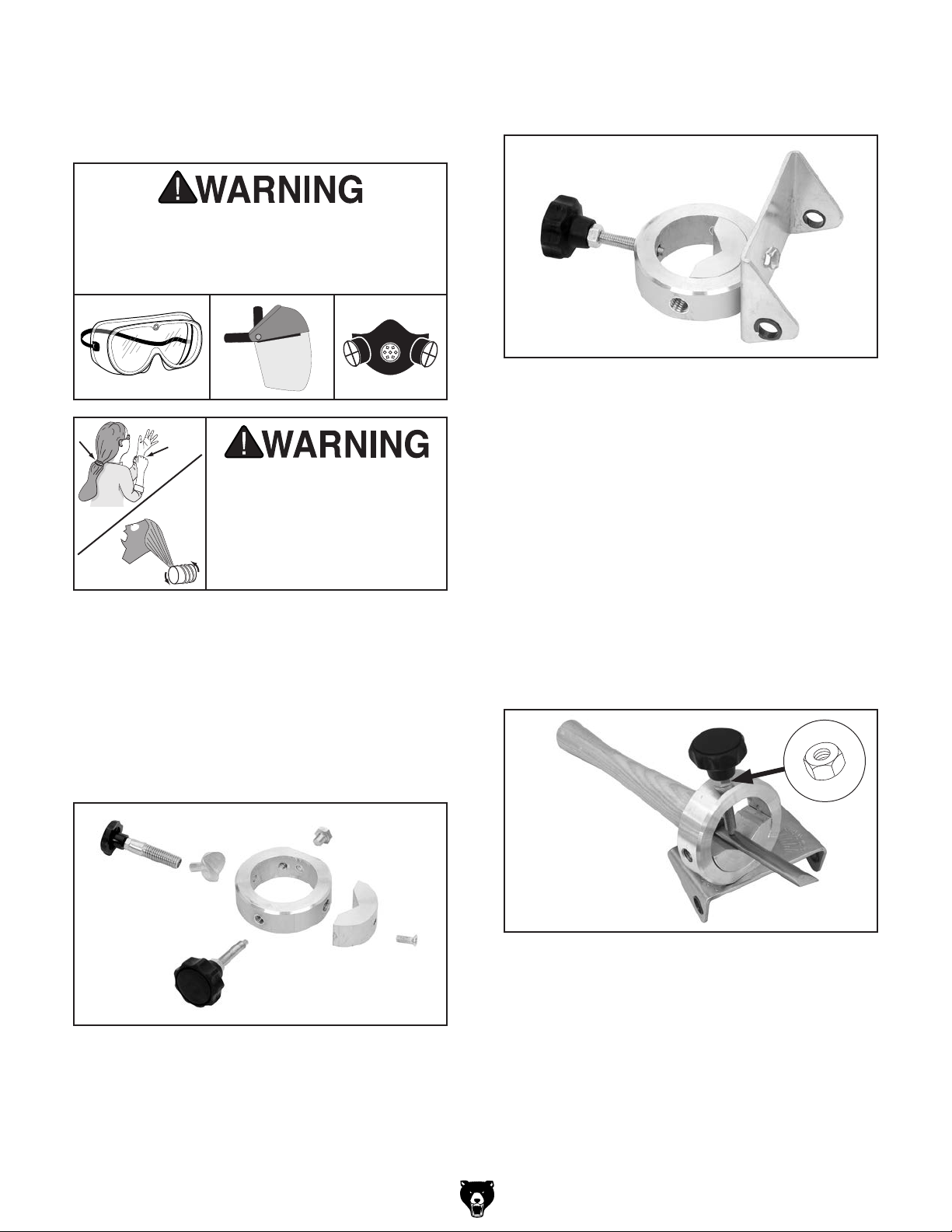

Sharpening Beveled Chisels

Wear personal protective equipment to

Keep hair, clothing, and

ing parts at all times.
Entanglement can result
in death, amputation, or

Attach the jig holder to the jig to grind beveled
chisels.

Eye and face injuries and respiratory prob­lems can occur while operating this tool.

reduce your risk from these hazards.

jewelry away from mov-

Assemble jig and jig holder, as shown in

2.
Figure 4.

Figure 4. Jig assembled for beveled chisels.

3.

DISCONNECT GRINDER FROM POWER!

4. Install tool rest (refer to Grinding Wheel
Rotation on Page 23 of Model T32720 own-

er's manual to determine best way to install
tool rest for your operation).

severe crushing injuries!

Items Needed Qty

Wrench or Socket 13mm ................................... 1

Phillips Head Screwdriver #2

To sharpen beveled chisels:

Completely disassemble jig, as shown in

1.
Figure 3.

............................ 1

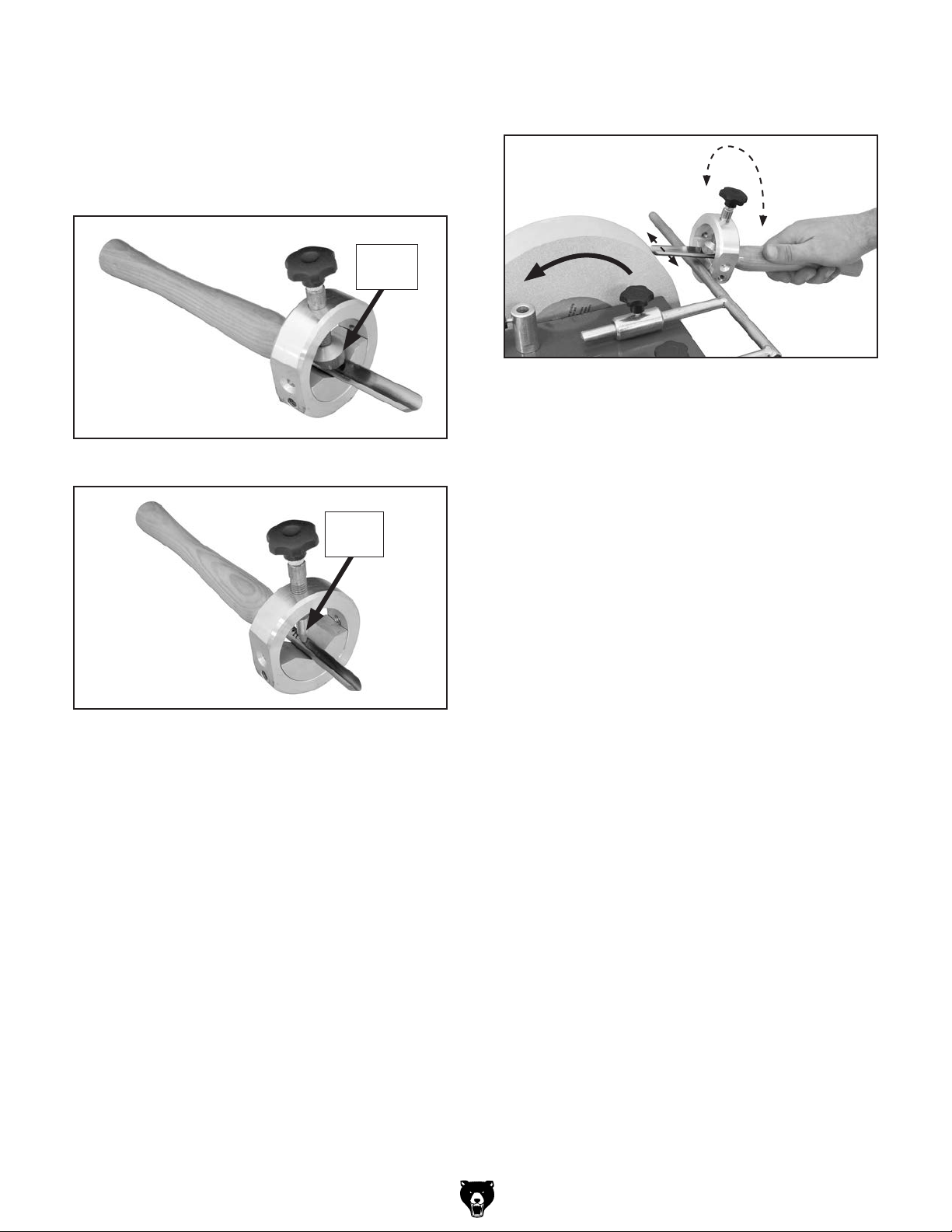

Use knob to clamp chisel (bevel-side down)

5.

in jig, as shown in Figure 5. Exact clamping
method may vary slightly depending on your
chisel.

Note: Remove hex nut on knob to extend

length of knob bolt if needed (see Figure 5).

Figure 5. 2-sided beveled chisel clamped in jig.

Figure 3. Jig disassembled.

-2-

Model T32793 (Mfd. Since 07/21)

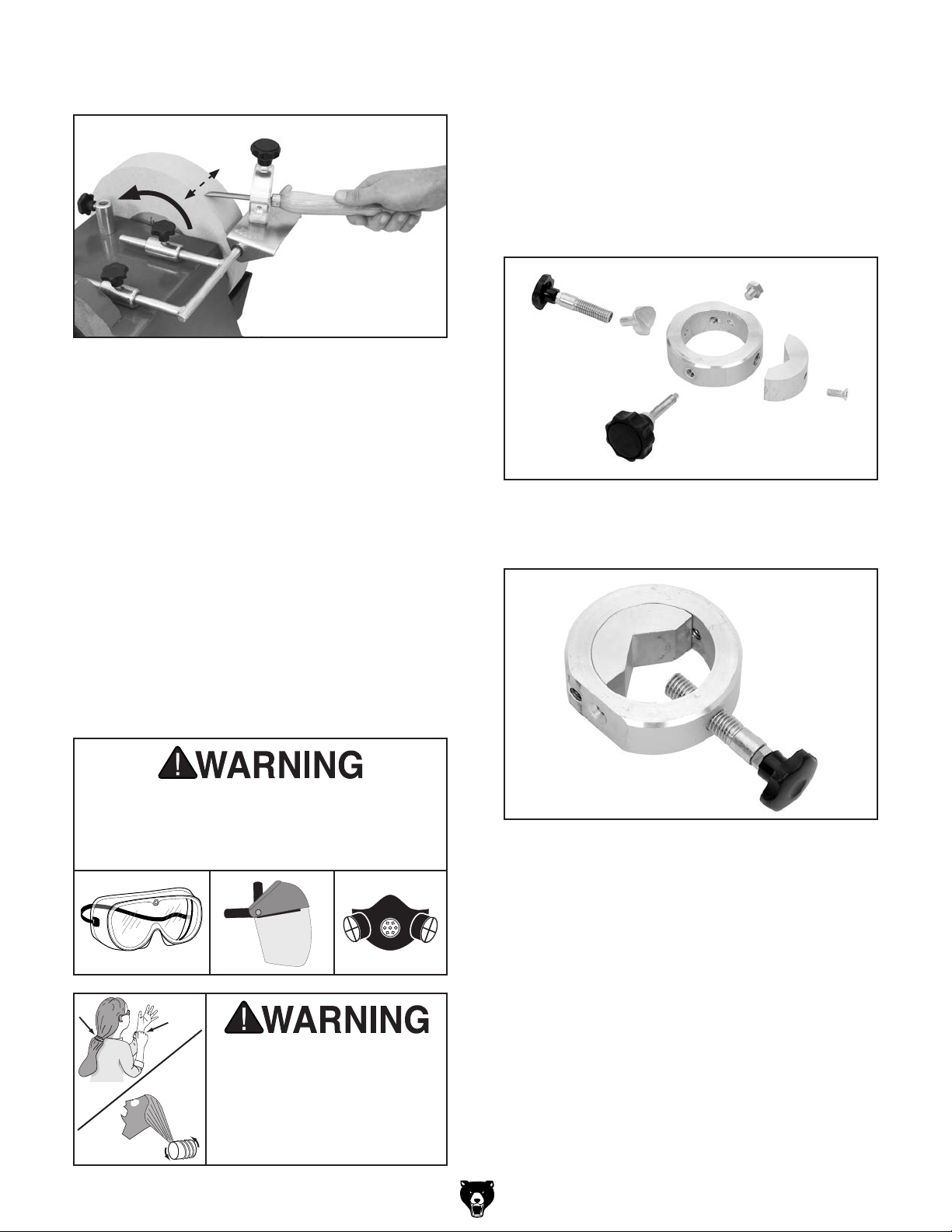

6. Install jig on tool rest as shown in Figure 6.

Wear personal protective equipment to

Keep hair, clothing, and

ing parts at all times.
Entanglement can result
in death, amputation, or

Figure 6. Example of grinding beveled chisel.

Adjust tool rest closer to or further from

7.

grinding wheel until desired grinding angle is
achieved.

Tilt chisel away from grinding wheel, connect

8.

grinder to power, and turn machine ON.

Items Needed Qty

Wrench or Socket 13mm ................................... 1

Phillips Head Screwdriver #2

To sharpen hollow chisels:

Completely disassemble jig, as shown in

1.
Figure 7.

Figure 7. Jig disassembled.

............................ 1

Use firm grip to return chisel to surface of

9.

grinding wheel to perform operation. Move
chisel back and forth across surface of wheel
while grinding to prevent excessive or uneven
wheel wear (see Figure 6).

Sharpening Hollow Chisels

Use the chisel pin or chisel clamp to secure a hol­low chisel in the jig for grinding.

Eye and face injuries and respiratory prob­lems can occur while operating this tool.

reduce your risk from these hazards.

Assemble jig, as shown in Figure 8.

2.

Figure 8. Jig assembled for hollow chisels.

3.

DISCONNECT GRINDER FROM POWER!

4. Install tool rest (refer to Grinding Wheel
Rotation on Page 23 of Model T32720 own-

er's manual to determine best way to install
tool rest for your operation).

jewelry away from mov-

Model T32793 (Mfd. Since 07/21)

severe crushing injuries!

-3-

Use knob to clamp chisel (bevel-side down)

5.

in jig with either chisel clamp or chisel pin
(see Figures 9–10). No single clamping
method works best for all chisels, and only
trial-and-error with each specific tool will give
best clamping orientation.

Chisel
Clamp

Figure 9. Wide chisel secured with chisel clamp.

Chisel

Pin

6. Support jig against tool rest, as shown in
Figure 11.

Figure 11. Example of grinding hollow chisel.

7. Adjust tool rest closer to or further from

grinding wheel until desired grinding angle is
achieved.

Tilt chisel away from grinding wheel, connect

8.

grinder to power, and turn machine ON.

Use firm grip to return chisel to surface of

9.

grinding wheel to perform operation. Move
chisel back and forth across surface of
wheel while grinding to prevent excessive or
uneven wheel wear and rotate chisel to grind
entire edge (see Figure 11).

Figure 10. Narrow chisel secured with chisel pin.

-4-
