Grizzly T32734 User guide

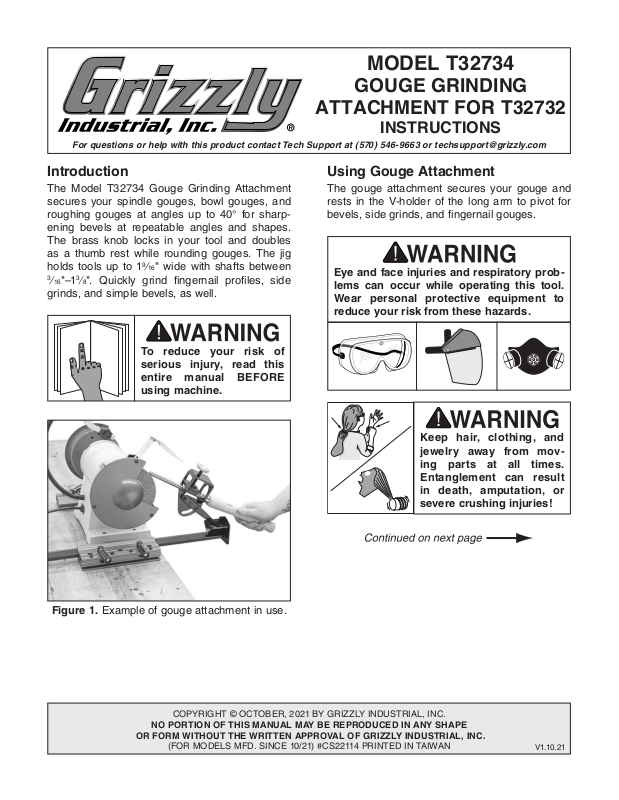

MODEL T32734

Wear personal protective equipment to

Keep hair, clothing, and

ing parts at all times.
Entanglement can result
in death, amputation, or

To reduce your risk of
serious injury, read this
entire manual BEFORE

GOUGE GRINDING

ATTACHMENT FOR T32732

INSTRUCTIONS

For questions or help with this product contact Tech Support at [phone] or [e-mail]

Introduction

The Model T32734 Gouge Grinding Attachment
secures your spindle gouges, bowl gouges, and
roughing gouges at angles up to 40° for sharp­ening bevels at repeatable angles and shapes.
The brass knob locks in your tool and doubles
as a thumb rest while rounding gouges. The jig
holds tools up to 1

3

⁄16"–13⁄8". Quickly grind fingernail profiles, side

grinds, and simple bevels, as well.

9

⁄16" wide with shafts between

using machine.

Using Gouge Attachment

The gouge attachment secures your gouge and
rests in the V-holder of the long arm to pivot for
bevels, side grinds, and fingernail gouges.

Eye and face injuries and respiratory prob­lems can occur while operating this tool.

reduce your risk from these hazards.

jewelry away from mov-

Figure 1. Example of gouge attachment in use.

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

COPYRIGHT © OCTOBER, 2021 BY GRIZZLY INDUSTRIAL, INC.

NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

(FOR MODELS MFD. SINCE 10/21) #CS22114 PRINTED IN TAIWAN

severe crushing injuries!

V1.10.21

To use gouge attachment:

DISCONNECT GRINDER FROM POWER!

1.

2. Secure gouge in gouge attachment by tight-

ening thumb screw shown in Figure 2.

Thumb Screw

Gouge

Gouge

Attachment

Figure 2. Gouge secured in gouge attachment.

Rest gouge attachment arm in V-holder and

3.

adjust long arm until gouge bevel contacts
grinding wheel (see Figure 3).

Gouge Attachment

4. Loosen wing nut shown in Figure 4, adjust
attachment arm angle to match bevel angle
against grinding wheel, then tighten wing nut
to secure.

Attachment

Arm

Figure 4. Gouge installed in attachment and

positioned against grinding wheel.

5.

Tilt tool away from grinding wheel, connect

grinder to power, and turn machine ON.

Use firm grip to return tool to surface of grind-

6.

ing wheel to perform grinding operation (see
Figure 5). Pivot and move attachment to fol­low gouge profile.

V-Holder

Figure 3. Gouge attachment resting in V-holder.

-2-

Figure 5. Gouge attachment in use.

IMPORTANT: Refer to grinder manual or instruc-

tions for information on safely operating your
grinder.

Model T32734 (Mfd. Since 10/21)
