Grizzly T32717 User guide

MODEL T32717

ELECTRIC PIPE AND TUBE

NOTCHER w/STAND

OWNER'S MANUAL

(For models manufactured since 07/21)

COPYRIGHT © JULY, 2021 BY GRIZZLY INDUSTRIAL, INC.

WARNING : NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#CS21936 PRINTED IN CHINA

V1. 0 7. 21

This manual provides critical safety instructions on the proper setup,
operation, maintenance, and service of this machine/tool. Save this
document, refer to it often, and use it to instruct other operators.

Failure to read, understand and follow the instructions in this manual
may result in fire or serious personal injury—including amputation,
electrocution, or death.

The owner of this machine/tool is solely responsible for its safe use.
This responsibility includes but is not limited to proper installation in
a safe environment, personnel training and usage authorization,
proper inspection and maintenance, manual availability and compre­hension, application of safety devices, cutting/sanding/grinding tool
integrity, and the usage of personal protective equipment.

The manufacturer will not be held liable for injury or property damage
from negligence, improper training, machine modifications or misuse.

Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State
of California to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
Work in a well ventilated area, and work with approved safety equip­ment, such as those dust masks that are specially designed to filter
out microscopic particles.

Table of Contents

INTRODUCTION ............................................................................................................................... 2

Contact Info
Manual Accuracy
Identification
Controls & Components
Machine Data Sheet

................................................................................................................................ 2

........................................................................................................................ 2

............................................................................................................................... 3

............................................................................................................. 4

................................................................................................................... 5

SECTION 1: SAFETY

Safety Instructions for Machinery
Additional Safety for Electric Pipe and Tube Notchers

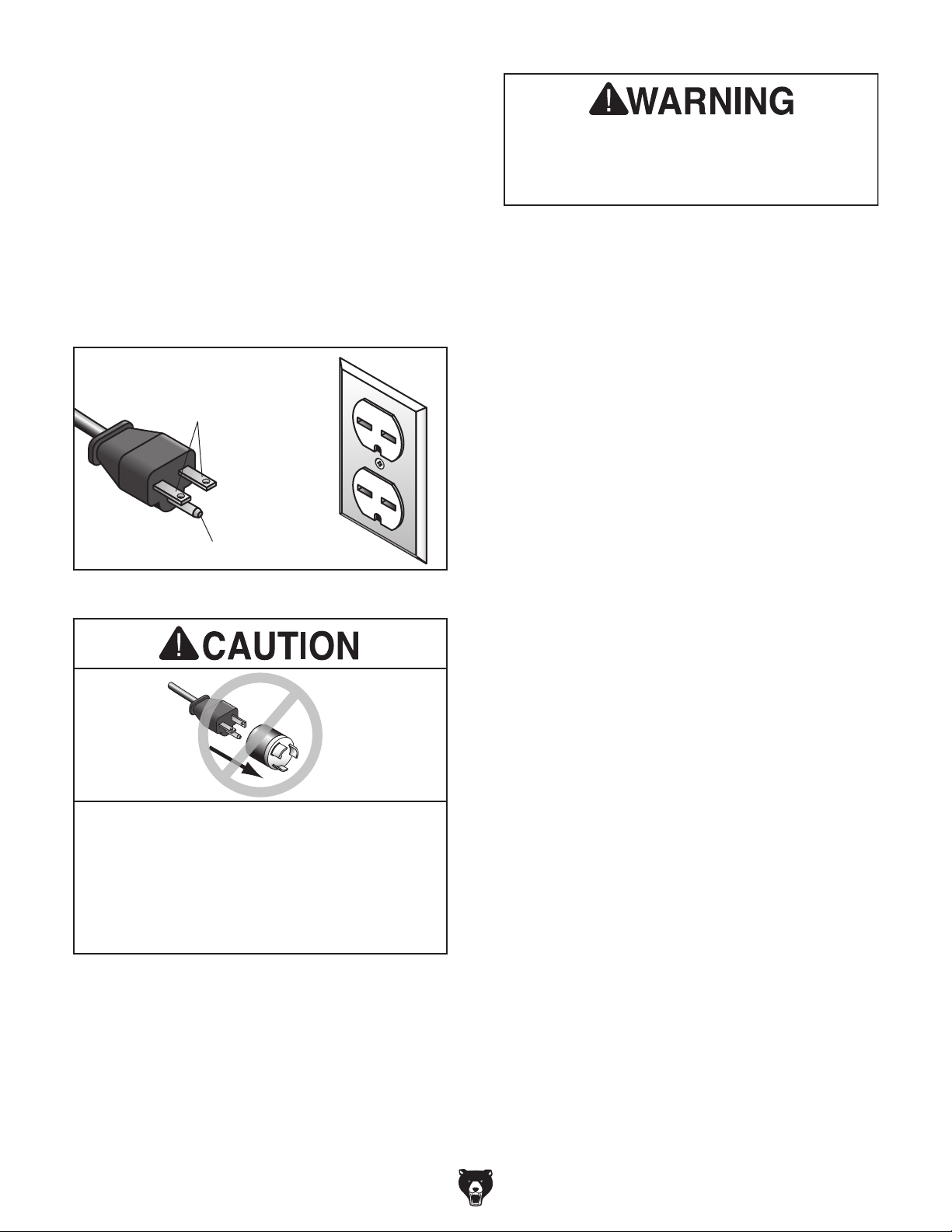

SECTION 2: POWER SUPPLY

SECTION 3: SETUP

Unpacking
Needed for Setup

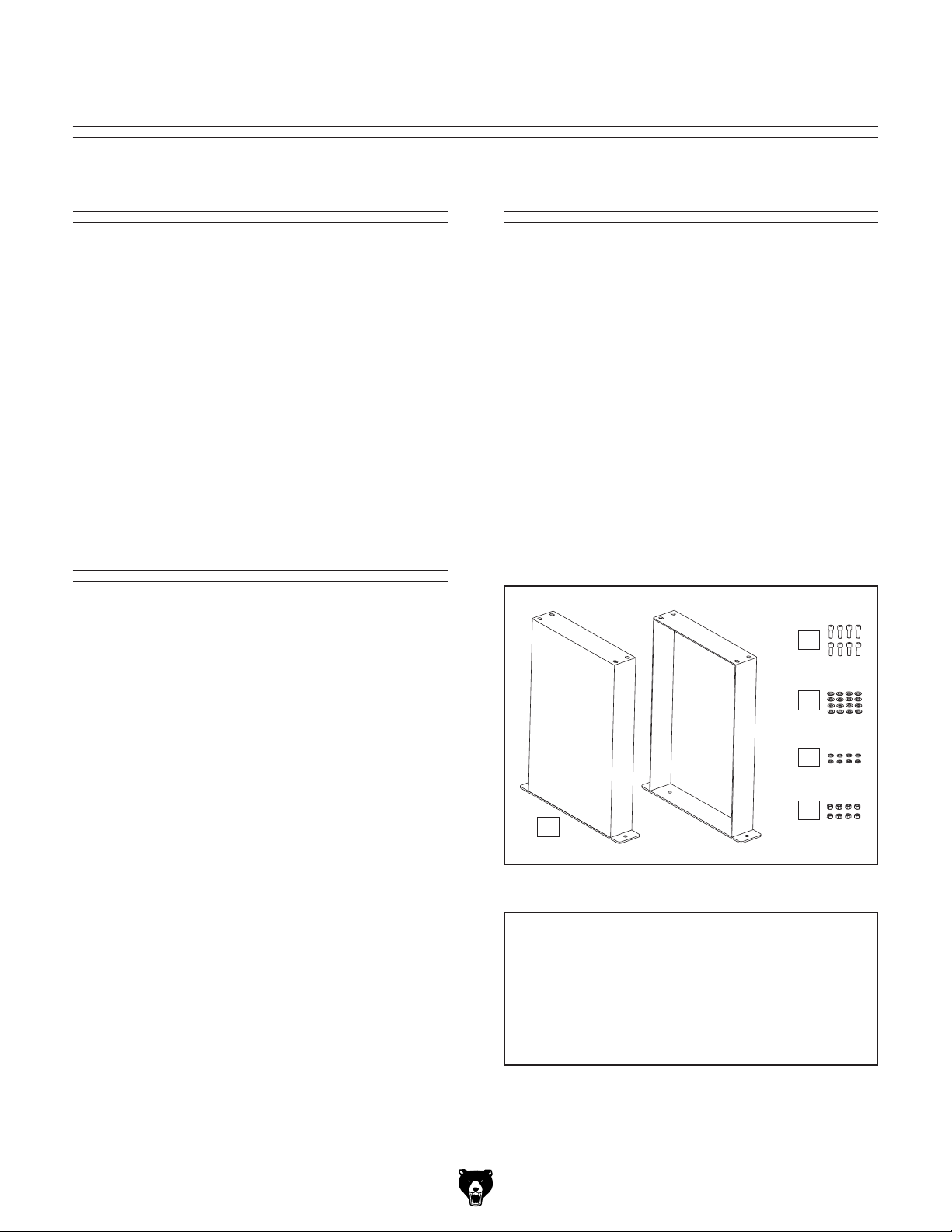

Inventory

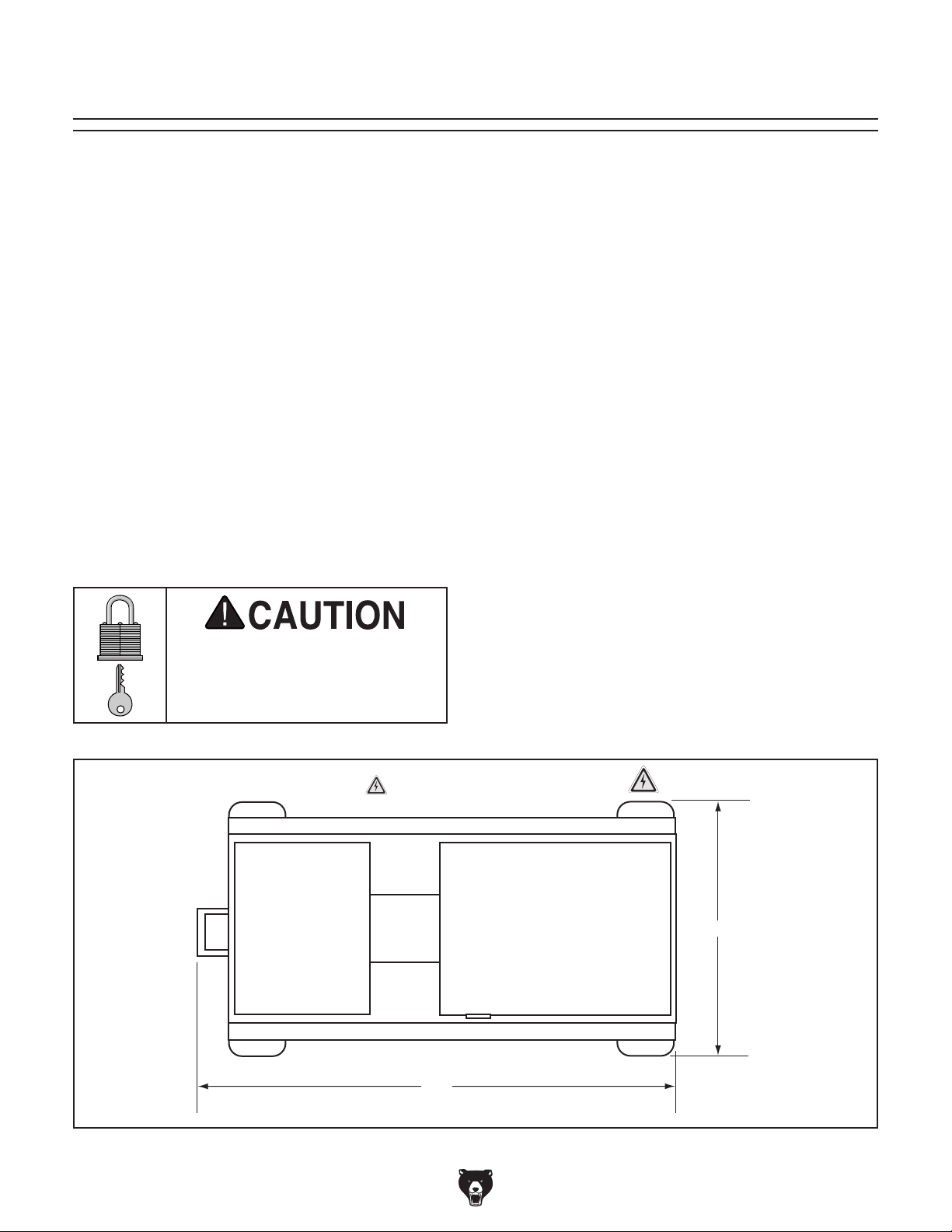

Site Considerations
Assembly

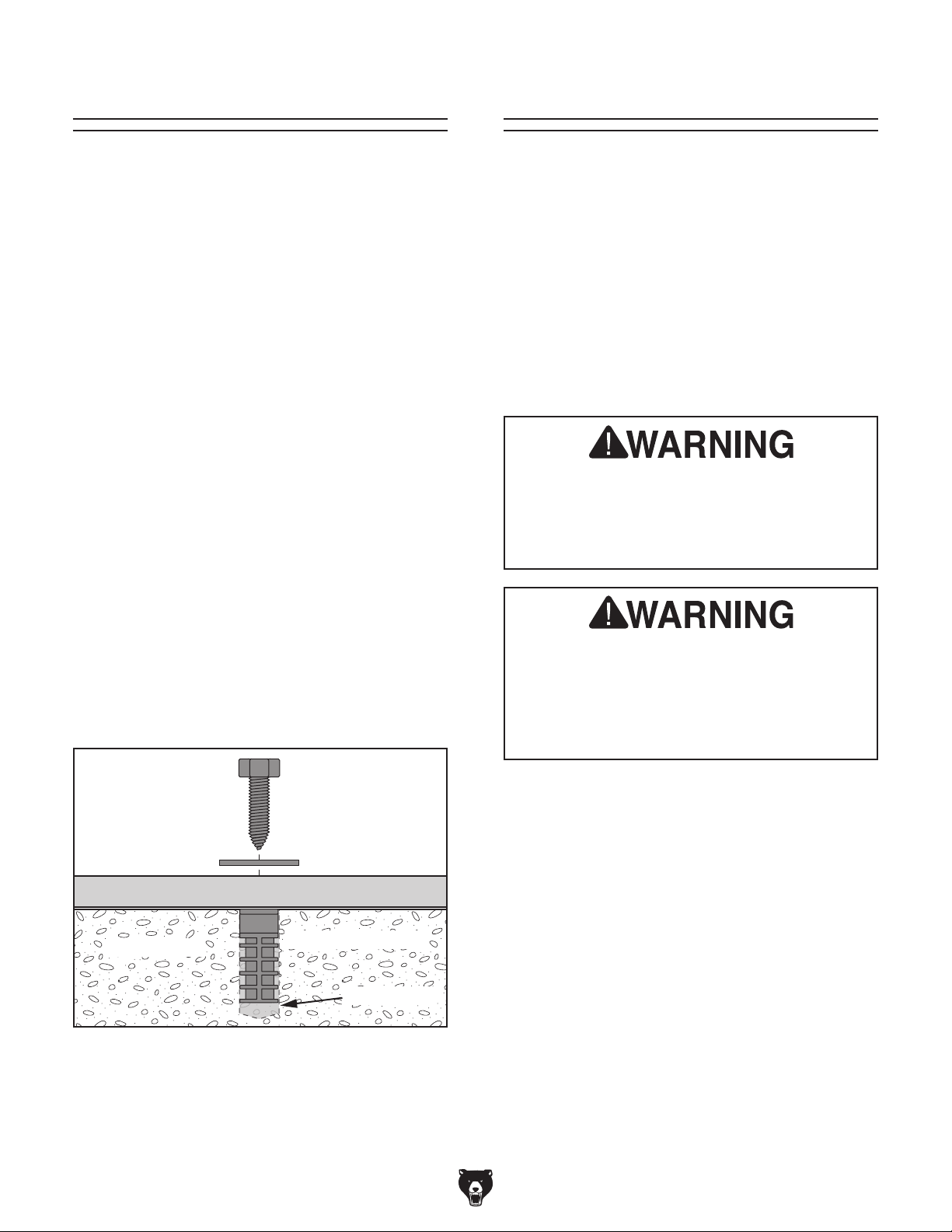

Anchoring to Floor
Test Run

SECTION 4: OPERATIONS

Operation Overview.................................................................................................................. 15

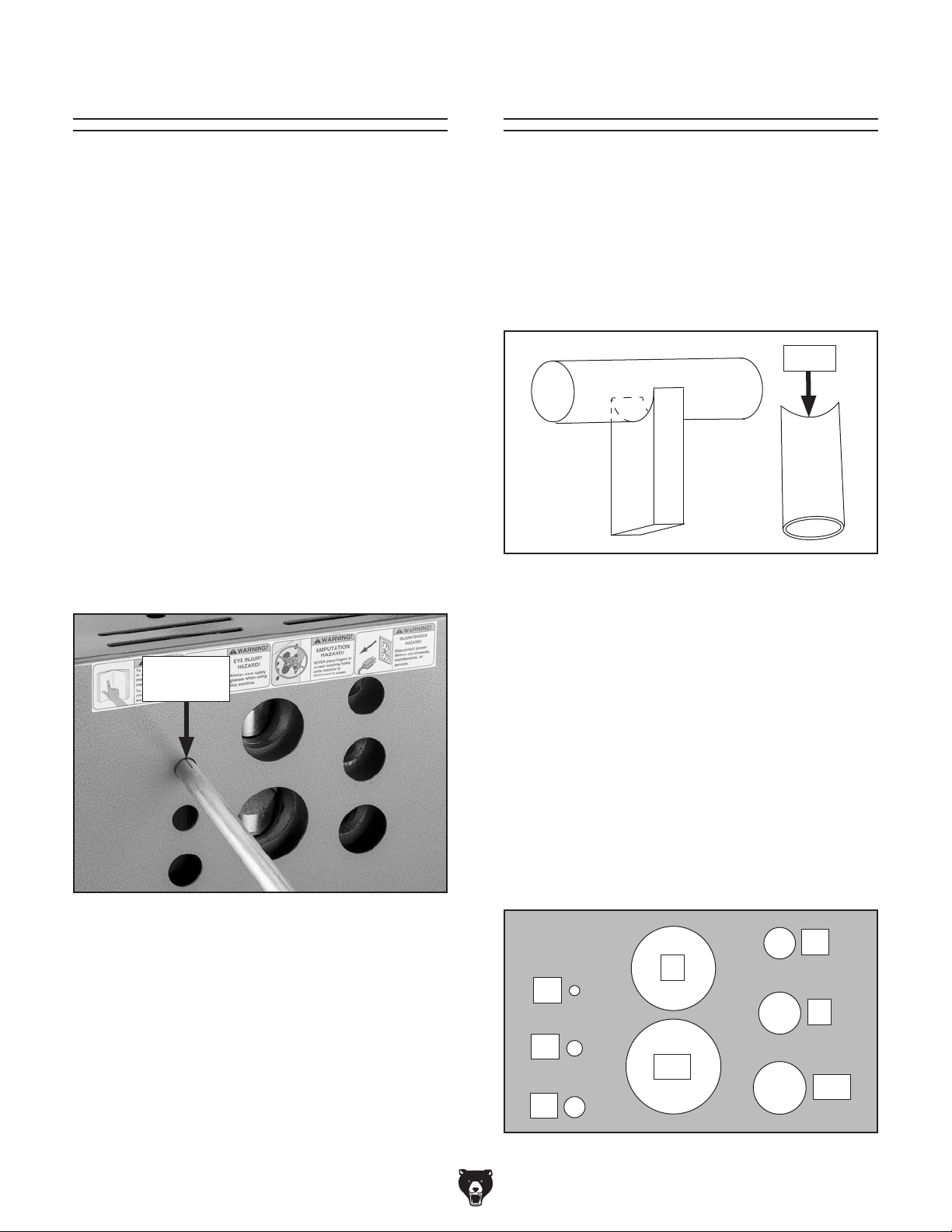

Notching Tips
Cutting Notches

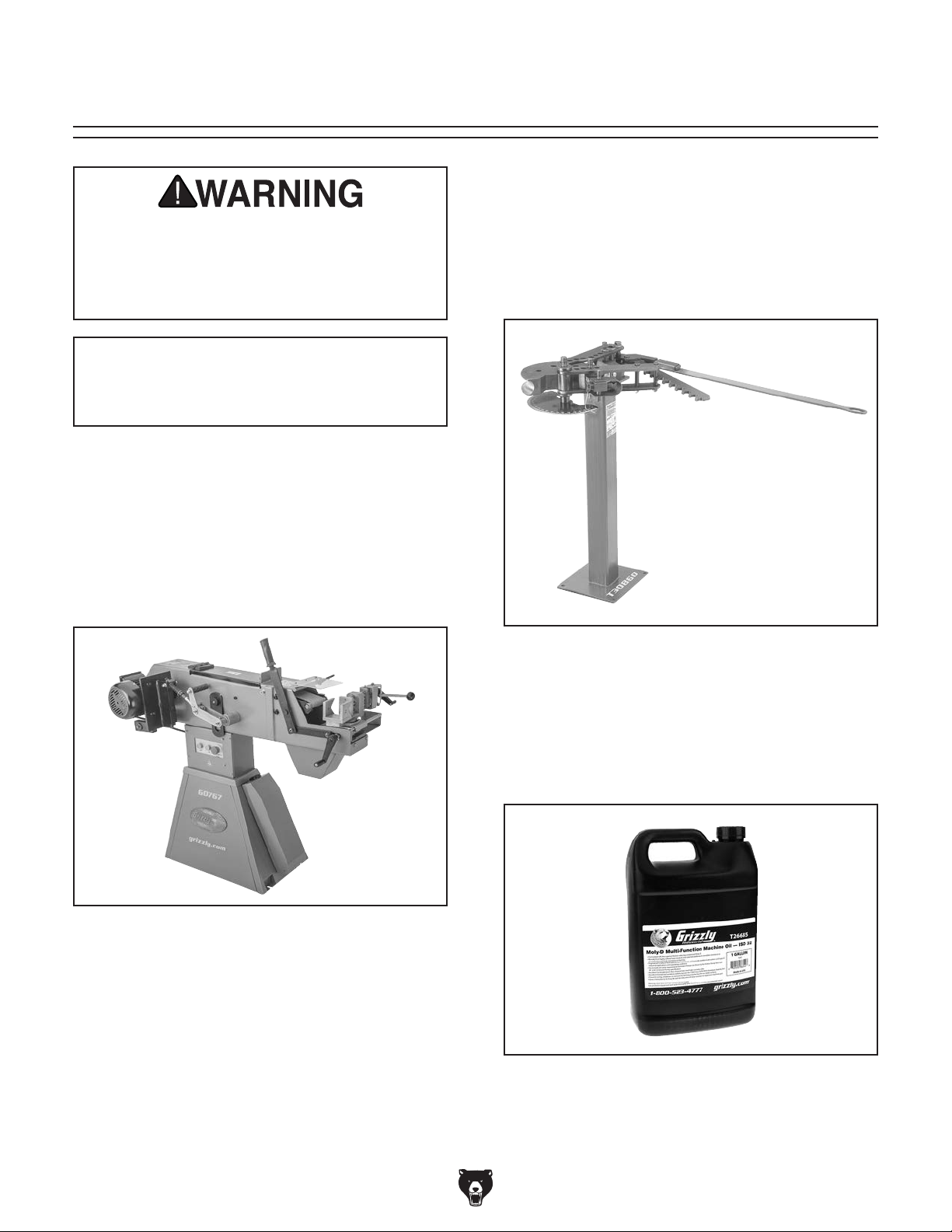

SECTION 5: ACCESSORIES

SECTION 6: MAINTENANCE......................................................................................................... 19

Schedule
Cleaning

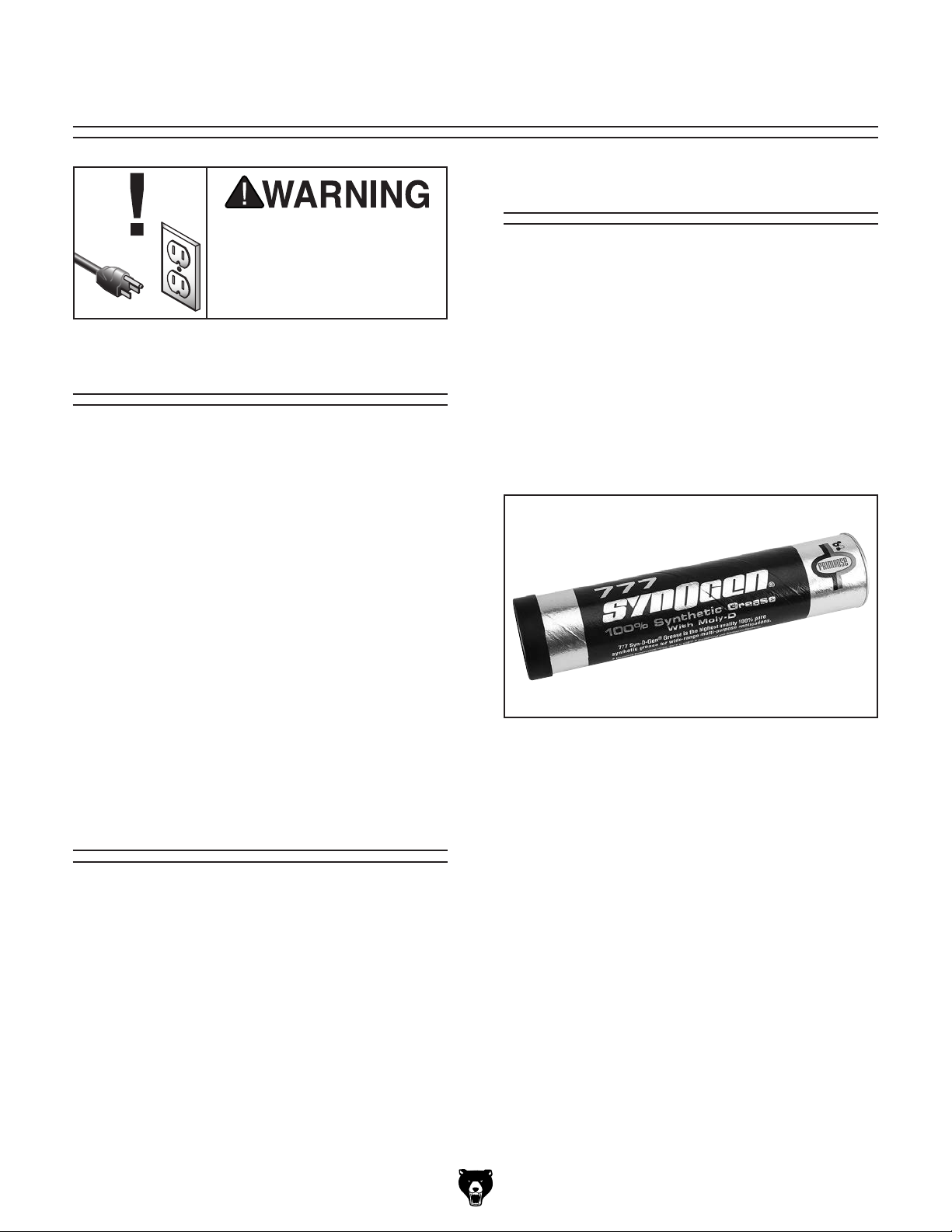

Lubrication

................................................................................................................................ 11

................................................................................................................................... 11

.................................................................................................................................. 13

................................................................................................................................... 14

.................................................................................................................................. 19

................................................................................................................................... 19

................................................................................................................................ 19

....................................................................................................................... 6

............................................................................................... 6

.............................................................. 8

........................................................................................................ 9

....................................................................................................................... 11

..................................................................................................................... 11

.................................................................................................................. 12

.................................................................................................................... 14

........................................................................................................... 15

........................................................................................................................... 16

........................................................................................................................ 16

......................................................................................................... 18

SECTION 7: SERVICE

Troubleshooting

SECTION 8: WIRING

Wiring Safety Instructions

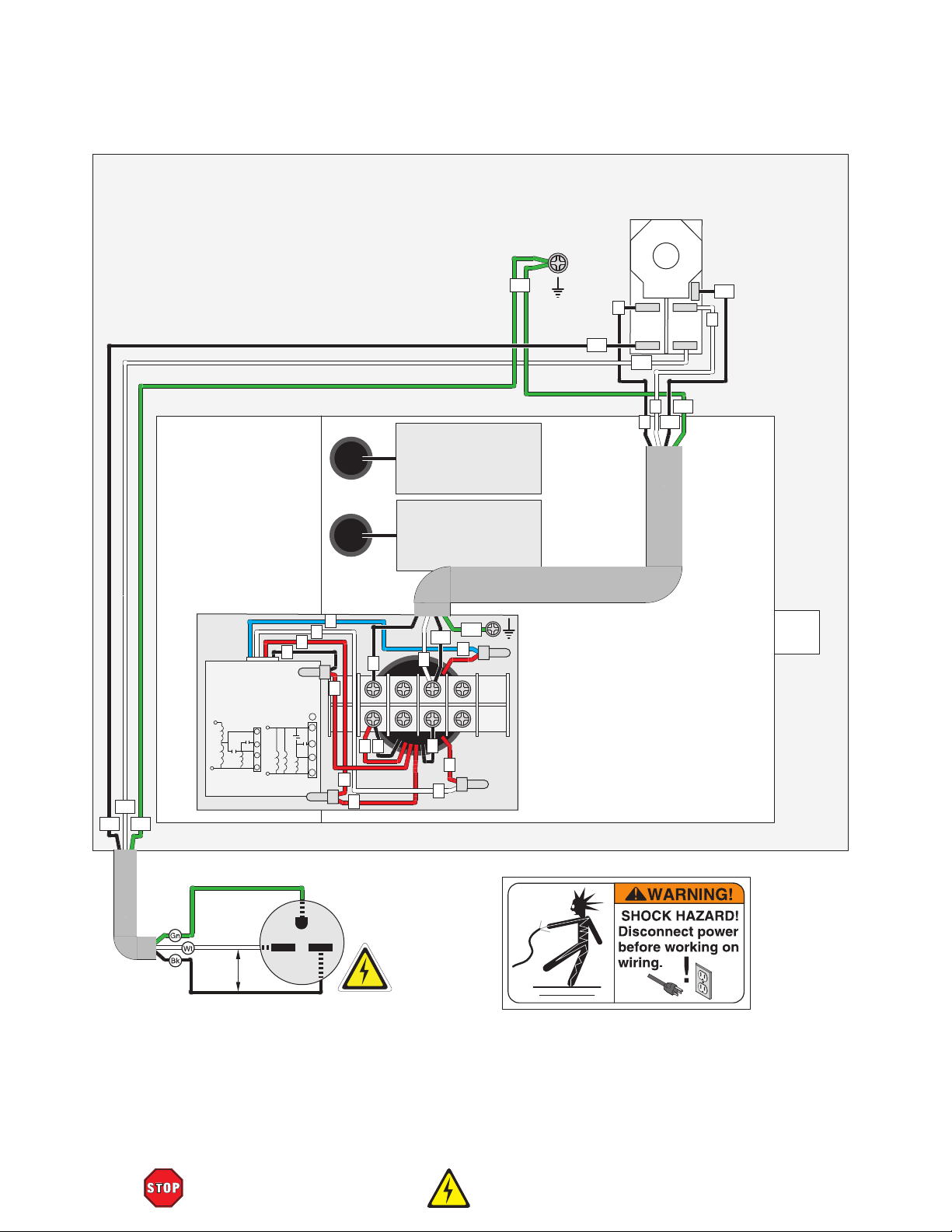

Wiring Diagram
Electrical Component Photos

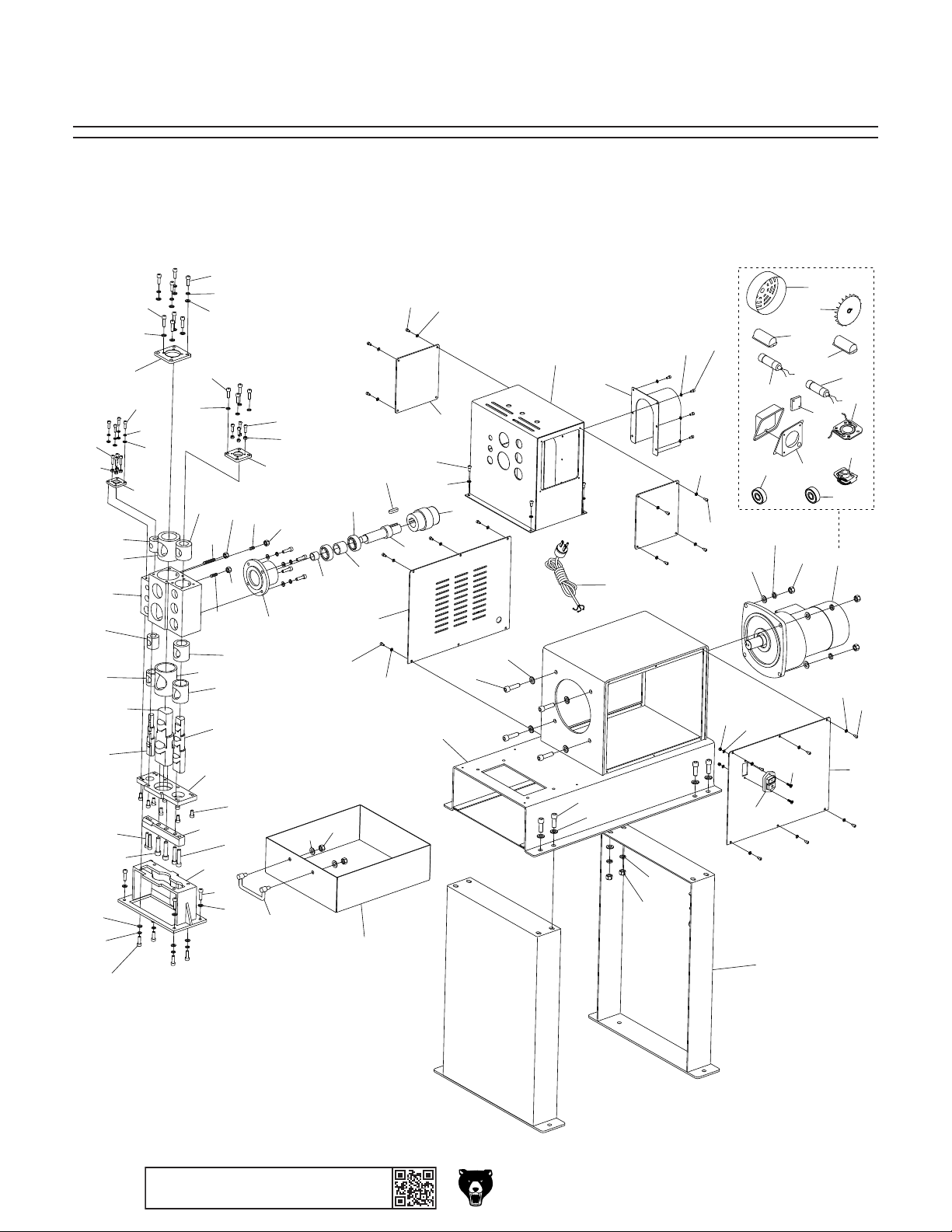

SECTION 9: PARTS

.......................................................................................................................................... 26

Main

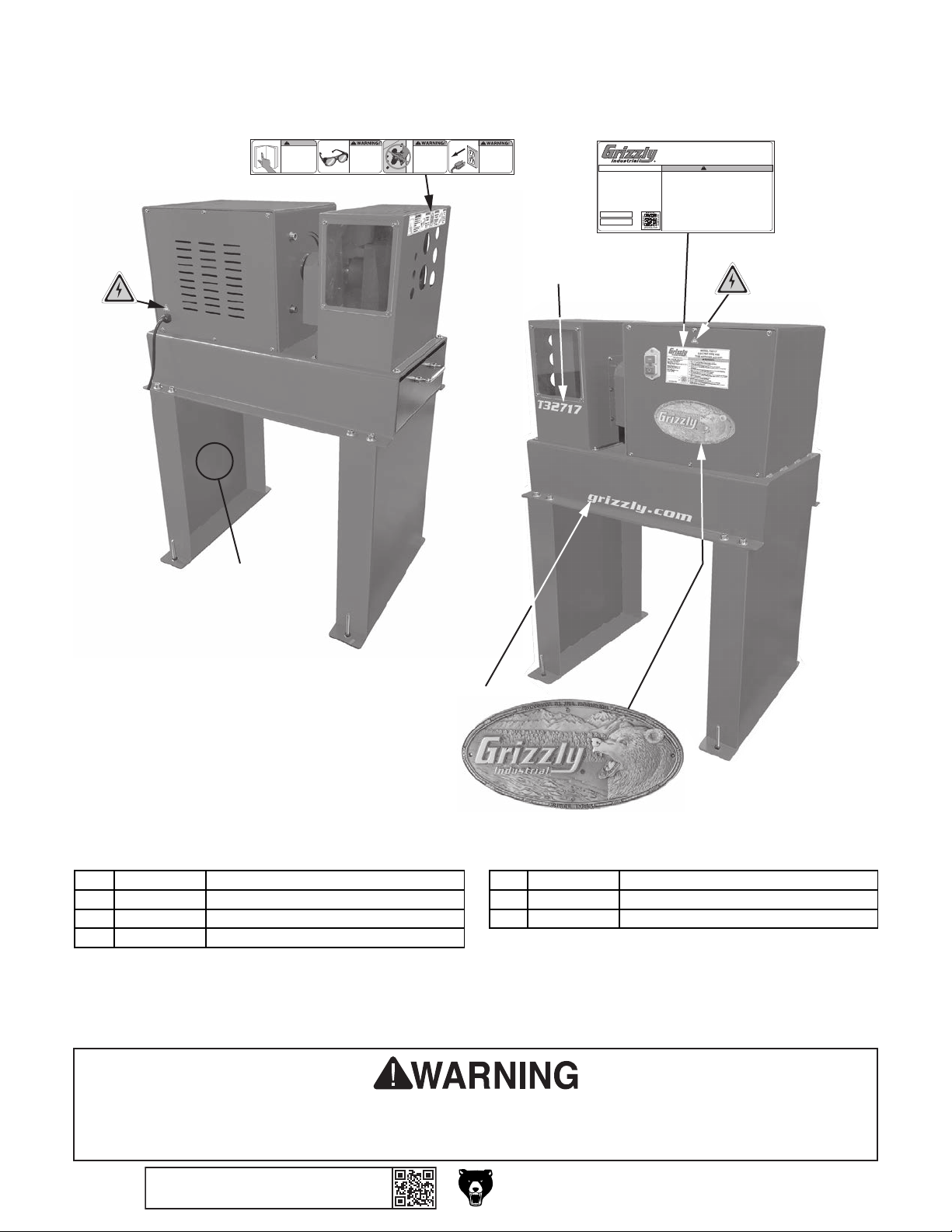

Labels & Cosmetics

WARRANTY & RETURNS

................................................................................................................... 21

........................................................................................................................ 21

...................................................................................................................... 23

........................................................................................................................ 24

....................................................................................................................... 26

................................................................................................................. 28

........................................................................................................ 23

................................................................................................... 25

............................................................................................................. 29

We stand behind our machines! If you have ques­tions or need help, contact us with the information
below. Before contacting, make sure you get the

serial number

from the

machine ID label. This will help us help you faster.

We want your feedback on this manual. What did
you like about it? Where could it be improved?
Please take a few minutes to give us feedback.

Email: [e-mail]

We are proud to provide a high-quality owner’s
manual with your new machine!

We

instruc­tions, specifications, drawings, and photographs
in this manual. Sometimes we make mistakes, but
our policy of continuous improvement also means
that

you receive is

slightly different than shown in the manual

If you find this to be the case, and the difference
between the manual and machine leaves you
confused or unsure about something

check our

website for an updated version. W

current

manuals and

on our web-

site at

Alternatively, you can call our Technical Support
for help. Before calling, make sure you write
down the

serial number
from the machine ID label (see below). This
information is required for us to provide proper
tech support, and it helps us determine if updated
documentation is available for your machine.

INTRODUCTION

Contact Info

and manufacture date

Grizzly Technical Support

1815 W. Battlefield
Springfield, MO 65807
Phone: [phone]

Email: [e-mail]

Grizzly Documentation Manager

P.O. Box 2069

Bellingham, WA 98227-2069

Manual Accuracy

made every effort to be exact with the

sometimes the machine

.

,

e post

manual updates for free

www.grizzly.com.

manufacture date and

Manufacture Date

Serial Number

-2-

Model T32717 (Mfd. Since 07/21)

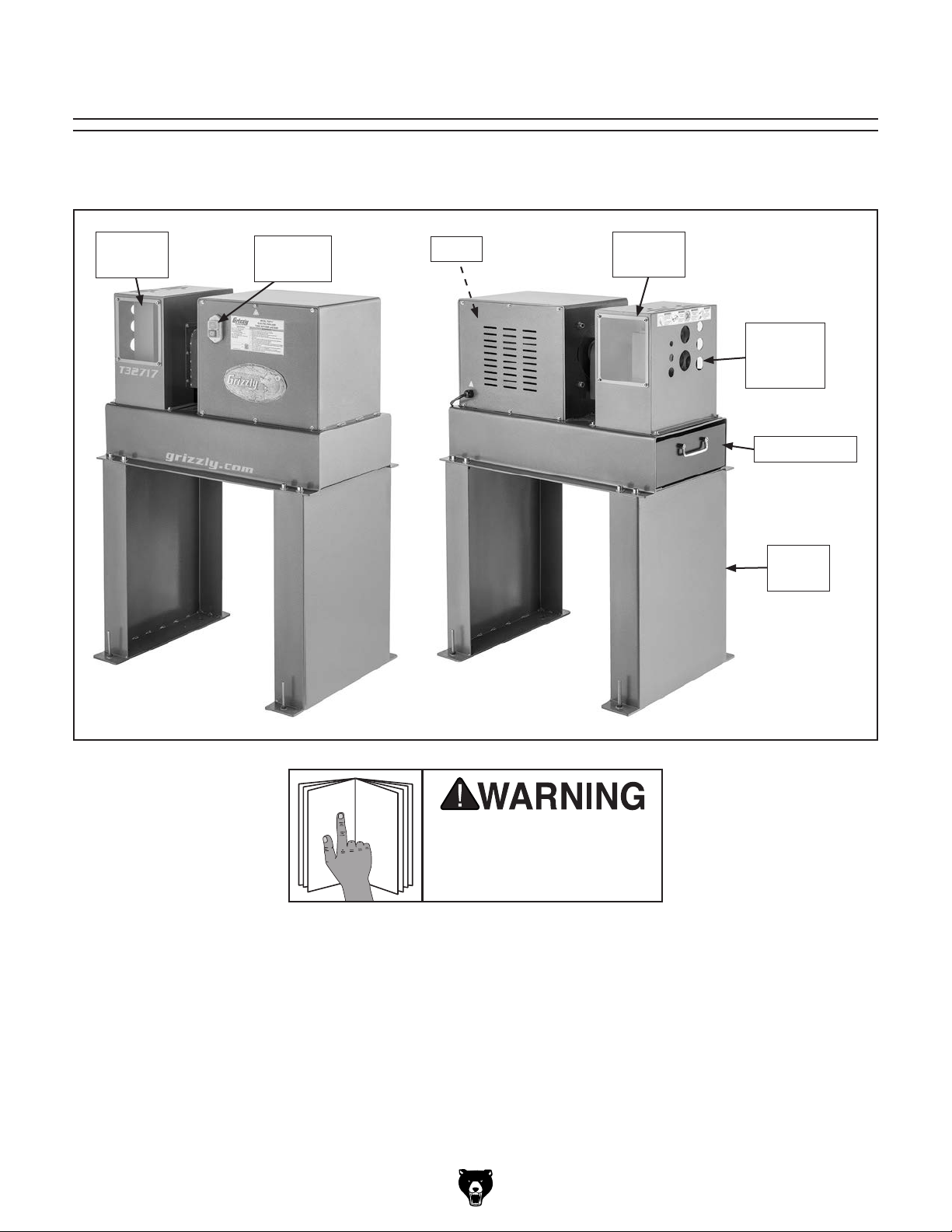

Identification

To reduce your risk of
serious injury, read this
entire manual BEFORE

Become familiar with the names and locations of the controls and features shown below to better understand
the instructions in this manual.

Viewing
Window

ON/OFF

Buttons

Motor

Viewing
Window

Notching

Hole

(1 of 8)

Chip Drawer

Leg

(1 of 2)

Model T32717 (Mfd. Since 07/21)

using machine.

-3-

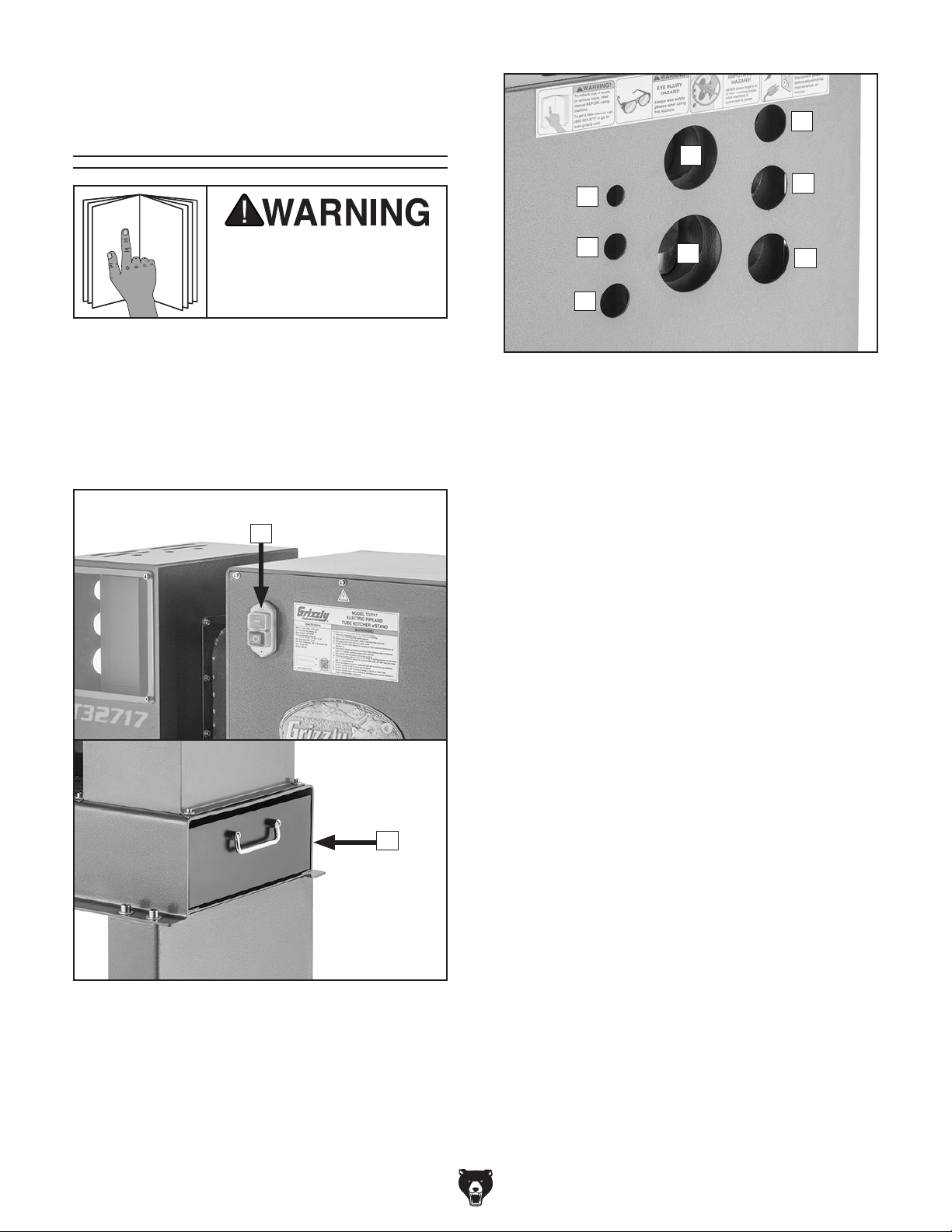

Controls &

To reduce your risk of
serious injury, read this
entire manual BEFORE

Components

H

F

using machine.

Refer to the following figures and descriptions to
become familiar with the basic controls and com­ponents of this machine. Understanding these
items and how they work will help you understand
the rest of the manual and minimize your risk of
injury when operating this machine.

A

C

I

D

G

J

E

Figure 2. Notching hole locations.

C. 1⁄4" Notching Hole: Notches pipes/tubes with

1

nominal diameter of

⁄4" and up to 1⁄8" wall

thickness (1" schedule 40).

3

⁄8" Notching Hole: Notches pipes/tubes with

D.

nominal diameter of

3

⁄8" and up to 1⁄8" wall

thickness (1" schedule 40).

1

⁄2" Notching Hole: Notches pipes/tubes with

E.

nominal diameter of

1

⁄2" and up to 1⁄8" wall

thickness (1" schedule 40).

B

Figure 1. Controls.

A. ON/OFF Buttons: Turns notcher ON and

OFF when pressed.

B. Chip Drawer: Catches notching chips and

cut off pieces and is removable for easy
emptying.

-4-

F. 2" Notching Hole: Notches pipes/tubes with

1

nominal diameter of 2" and up to

⁄8" wall

thickness (1" schedule 40).

1

G. 2

⁄4" Notching Hole: Notches pipes/tubes

1

with nominal diameter of 2

⁄4" and up to 1⁄8"

wall thickness (1" schedule 40).

3

⁄4" Notching Hole: Notches pipes/tubes with

H.

nominal diameter of

3

⁄4" and up to 1⁄8" wall

thickness (1" schedule 40).

I. 1" Notching Hole: Notches pipes/tubes with

1

nominal diameter of 1" and up to

⁄8" wall

thickness (1" schedule 40).

J. 11⁄4" Notching Hole: Notches pipes/tubes

1

with nominal diameter of 1

⁄4" and up to 1⁄8"

wall thickness (1" schedule 40).

Model T32717 (Mfd. Since 07/21)

Machine Data Sheet

Customer Service #: [phone] · To Order Call: [phone] · Fax #: [phone]

MODEL T32717

ELECTRIC PIPE AND TUBE NOTCHER W/STAND

Product Dimensions:

Weight ............................................................................................................................................................................ 386 lbs.

Width (side-to-side) x Depth (front-to-back) x Height ..................................................................................33 x 22-1/2 x 48 in.

Footprint (Length x Width) ...................................................................................................................................30 x 22-1/2 in.

Shipping Dimensions:

Type ........................................................................................................................................................................ Wood Crate

Content .......................................................................................................................................................................... Machine

Weight ............................................................................................................................................................................ 452 lbs.

Length x Width x Height .....................................................................................................................................36 x 27 x 30 in.

Must Ship Upright .................................................................................................................................................................Yes

Electrical:

Power Requirement ........................................................................................................................ 220V, Single-Phase, 60 Hz

Full-Load Current Rating ........................................................................................................................................................ 8A

Minimum Circuit Size ........................................................................................................................................................... 15A

Connection Type ..................................................................................................................................................... Cord & Plug

Power Cord Included ............................................................................................................................................................Yes

Power Cord Length ............................................................................................................................................................90 in.

Power Cord Gauge .......................................................................................................................................................16 AWG

Plug Included ........................................................................................................................................................................Yes

Included Plug Type ..............................................................................................................................................................6-15

Switch Type ............................................................................................................................................ON/OFF Push Buttons

Motor:

Main

Horsepower ......................................................................................................................................................................1.5 HP

Phase .................................................................................................................................................................... Single-Phase

Amps ...................................................................................................................................................................................... 8A

Speed .........................................................................................................................................................................1650 RPM

Type .........................................................................................................................................................TEFC Capacitor-Start

Power Transfer ...................................................................................................................................................................Gear

Bearings ............................................................................................................................. Shielded & Permanently Lubricated

Centrifugal Switch/Contacts Type ...................................................................................................................................Internal

Main Specifications:

Operation Information

Nominal Diameter Capacity ...................................................................................1/4, 3/8, 1/2, 3/4, 1, 1-1/4, 2, 2-1/4 in.

Maximum Notch Size ...........................................................................................................................................2-1/4 in.

Maximum Wall Thickness ............................................................................................................1/8 in. (1" Schedule 40)

Suitable Materials ...................................................................................................Carbon Steel, Non-Ferrous Materials

Notch Angle ...........................................................................................................................................................90 deg.

Gear Oil Capacity ....................................................................................................................................................2.1 qt.

Model T32717 (Mfd. Since 07/21)

-5-

SECTION 1: SAFETY

For Your Own Safety, Read Instruction

Manual Before Operating This Machine

The purpose of safety symbols is to attract your attention to possible hazardous conditions.
This manual uses a series of symbols and signal words intended to convey the level of impor­tance of the safety messages. The progression of symbols is described below. Remember that
safety messages by themselves do not eliminate danger and are not a substitute for proper
accident prevention measures. Always use common sense and good judgment.

Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury. It may also be used to alert
against unsafe practices.

Alerts the user to useful information about proper operation of the

NOTICE

machine to avoid machine damage.

Safety Instructions for Machinery

OWNER’S MANUAL. Read and understand this

owner’s manual BEFORE using machine.

TRAINED OPERATORS ONLY. Untrained oper­ators have a higher risk of being hurt or killed.
Only allow trained/supervised people to use this
machine. When machine is not being used, dis­connect power, remove switch keys, or lock-out
machine to prevent unauthorized use—especially
around children. Make your workshop kid proof!

DANGEROUS ENVIRONMENTS. Do not use
machinery in areas that are wet, cluttered, or have
poor lighting. Operating machinery in these areas
greatly increases the risk of accidents and injury.

MENTAL ALERTNESS REQUIRED. Full mental
alertness is required for safe operation of machin­ery. Never operate under the influence of drugs or
alcohol, when tired, or when distracted.

ELECTRICAL EQUIPMENT INJURY RISKS.
You can be shocked, burned, or killed by touching
live electrical components or improperly grounded
machinery. To reduce this risk, only allow qualified
service personnel to do electrical installation or
repair work, and always disconnect power before
accessing or exposing electrical equipment.

DISCONNECT POWER FIRST.
nect machine from power supply BEFORE mak­ing adjustments, changing tooling, or servicing
machine. This prevents an injury risk from unin­tended startup or contact with live electrical com­ponents.

EYE PROTECTION. Always wear ANSI-approved
safety glasses or a face shield when operating or
observing machinery to reduce the risk of eye
injury or blindness from flying particles. Everyday
eyeglasses are NOT approved safety glasses.

Always discon-

-6-

Model T32717 (Mfd. Since 07/21)

WEARING PROPER APPAREL. Do not wear
clothing, apparel or jewelry that can become
entangled in moving parts. Always tie back or
cover long hair. Wear non-slip footwear to reduce
risk of slipping and losing control or accidentally
contacting cutting tool or moving parts.

HAZARDOUS DUST. Dust created by machinery
operations may cause cancer, birth defects, or
long-term respiratory damage. Be aware of dust
hazards associated with each workpiece mate­rial. Always wear a NIOSH-approved respirator to
reduce your risk.

HEARING PROTECTION. Always wear hear­ing protection when operating or observing loud
machinery. Extended exposure to this noise
without hearing protection can cause permanent
hearing loss.

REMOVE ADJUSTING TOOLS. Tools left on
machinery can become dangerous projectiles
upon startup. Never leave chuck keys, wrenches,
or any other tools on machine. Always verify
removal before starting!

USE CORRECT TOOL FOR THE JOB. Only use
this tool for its intended purpose—do not force
it or an attachment to do a job for which it was
not designed. Never make unapproved modifica­tions—modifying tool or using it differently than
intended may result in malfunction or mechanical
failure that can lead to personal injury or death!

AWKWARD POSITIONS. Keep proper footing
and balance at all times when operating machine.
Do not overreach! Avoid awkward hand positions
that make workpiece control difficult or increase
the risk of accidental injury.

CHILDREN & BYSTANDERS. Keep children and
bystanders at a safe distance from the work area.
Stop using machine if they become a distraction.

GUARDS & COVERS. Guards and covers reduce
accidental contact with moving parts or flying
debris. Make sure they are properly installed,
undamaged, and working correctly BEFORE
operating machine.

FORCING MACHINERY. Do not force machine.
It will do the job safer and better at the rate for
which it was designed.

NEVER STAND ON MACHINE. Serious injury
may occur if machine is tipped or if the cutting
tool is unintentionally contacted.

STABLE MACHINE. Unexpected movement dur­ing operation greatly increases risk of injury or
loss of control. Before starting, verify machine is
stable and mobile base (if used) is locked.

USE RECOMMENDED ACCESSORIES. Consult
this owner’s manual or the manufacturer for rec­ommended accessories. Using improper acces­sories will increase the risk of serious injury.

UNATTENDED OPERATION. To reduce the
risk of accidental injury, turn machine OFF and
ensure all moving parts completely stop before
walking away. Never leave machine running
while unattended.

MAINTAIN WITH CARE. Follow all maintenance
instructions and lubrication schedules to keep
machine in good working condition. A machine
that is improperly maintained could malfunction,
leading to serious personal injury or death.

DAMAGED PARTS. Regularly inspect machine
for damaged, loose, or mis-adjusted parts—or
any condition that could affect safe operation.
Immediately repair/replace BEFORE operating
machine. For your own safety, DO NOT operate
machine with damaged parts!

MAINTAIN POWER CORDS. When disconnect­ing cord-connected machines from power, grab
and pull the plug—NOT the cord. Pulling the cord
may damage the wires inside. Do not handle
cord/plug with wet hands. Avoid cord damage by
keeping it away from heated surfaces, high traffic
areas, harsh chemicals, and wet/damp locations.

EXPERIENCING DIFFICULTIES. If at any time
you experience difficulties performing the intend­ed operation, stop using the machine! Contact our
Technical Support at [phone].

Model T32717 (Mfd. Since 07/21)

-7-

Additional Safety for

Electric Pipe & Tube Notchers

Notching dies are sharp and can easily amputate fingers or other body parts inserted into
notching holes. Workpieces can jerk or move suddenly when being notched and strike operator
or bystanders. Severe cuts can occur to hands/fingers when contacting sharp workpiece
edges. To reduce your risk of these hazards when operating this machine, completely heed and
understand the following:

AMPUTATION HAZARD. Keep hands/fingers

away from notching holes while machine is con­nected to power. A finger inserted between dies
can easily be pinched, crushed, or amputated if
notcher is turned ON.

PROTECTION AGAINST SHARP EDGES. Sharp
edges on cut metal workpieces can easily cause
lacerations while handling. Wear leather gloves to
help protect your hands when handling workpieces,
and always chamfer and deburr sharp workpiece
edges. Wear steel-toed shoes to protect feet if
workpiece is dropped.

WORKPIECE SUPPORT. Always support
workpiece when performing notching operation.
Failure to do so can apply excessive force to dies
that they are not designed to bear. Avoid awkward
body and hand positions where a sudden slip or
jerk could cause your hand or body to fall into work
area or sharp workpiece edge.

GUARDS. Guards and covers protect against
entanglement or flying objects. Always ensure they
are properly installed while machine is running.

CLEARING METAL REMNANTS. Metal scraps
can be razor sharp. Avoid clearing them by hand
with compressed air or with a rag. Use a brush or
vacuum instead.

USE FOR INTENDED PURPOSE. This machine
is designed for notching tubes and pipes made
of carbon steel or non-ferrous materials. DO NOT
use it to notch other materials or materials that
exceed capacities of machine (refer to Machine
Data Sheet). Cutting incorrect materials can pro­duce unexpected results, which increases risk
of injury, and may result in damage to machine.
Exceeding machine capacities may eject danger­ous metal debris at operator or bystanders, or
cause machine damage.

Like all machinery there is potential danger
when operating this machine. Accidents
are frequently caused by lack of familiarity
or failure to pay attention. Use this machine
with respect and caution to decrease the
risk of operator injury. If normal safety pre­cautions are overlooked or ignored, seri­ous personal injury may occur.

-8-

No list of safety guidelines can be com­plete. Every shop environment is different.
Always consider safety first, as it applies
to your individual working conditions. Use
this and other machinery with caution and
respect. Failure to do so could result in
serious personal injury, damage to equip­ment, or poor work results.

Model T32717 (Mfd. Since 07/21)

SECTION 2: POWER SUPPLY

Before installing the machine, consider the avail­ability and proximity of the required power supply
circuit. If an existing circuit does not meet the
requirements for this machine, a new circuit must
be installed. To minimize the risk of electrocution,
fire, or equipment damage, installation work and
electrical wiring must be done by an electrician or
qualified service personnel in accordance with all
applicable codes and standards.

or equipment damage
may occur if machine is
not properly grounded
and connected to power

The full-load current rating is the amperage a
machine draws at 100% of the rated output power.
On machines with multiple motors, this is the
amperage drawn by the largest motor or sum of all
motors and electrical devices that might operate
at one time during normal operations.

The full-load current is not the maximum amount
of amps that the machine will draw. If the machine
is overloaded, it will draw additional amps beyond
the full-load rating.

If the machine is overloaded for a sufficient length
of time, damage, overheating, or fire may result—
especially if connected to an undersized circuit.
To reduce the risk of these hazards, avoid over­loading the machine during operation and make
sure it is connected to a power supply circuit that
meets the specified circuit requirements.

For your own safety and protection of

Note: Circuit requirements in this manual apply to

a dedicated circuit—where only one machine will
be running on the circuit at a time. If machine will
be connected to a shared circuit where multiple
machines may be running at the same time, con­sult an electrician or qualified service personnel to
ensure circuit is properly sized for safe operation.

A power supply circuit includes all electrical
equipment between the breaker box or fuse panel
in the building and the machine. The power sup­ply circuit used for this machine must be sized to
safely handle the full-load current drawn from the
machine for an extended period of time. (If this
machine is connected to a circuit protected by
fuses, use a time delay fuse marked D.)

This machine is prewired to operate on a power
supply circuit that has a verified ground and meets
the following requirements:

Availability

Electrocution, fire, shock,

supply.

Full-Load Current Rating

Circuit Information

property, consult an electrician if you are
unsure about wiring practices or electrical
codes in your area.

Full-Load Current Rating at 220V ....... 8 Amps

Model T32717 (Mfd. Since 07/21)

Circuit Requirements

Nominal Voltage .........20 8V, 220V, 230V, 2 4 0V

..........................................................60 Hz

Cycle
Phase
Power Supply Circuit
Plug/Receptacle

........................................... Single-Phase

......................... 15 Amps

............................. NEMA 6 -15

-9-

Improper connection of the equipment-grounding
wire can result in a risk of electric shock. The
wire with green insulation (with or without yellow
stripes) is the equipment-grounding wire. If repair
or replacement of the power cord or plug is nec­essary, do not connect the equipment-grounding
wire to a live (current carrying) terminal.

Check with a qualified electrician or service per­sonnel if you do not understand these grounding
requirements, or if you are in doubt about whether
the tool is properly grounded. If you ever notice
that a cord or plug is damaged or worn, discon­nect it from power, and immediately replace it with
a new one.

We do not recommend using an extension cord
with this machine.
cord, only use it if absolutely necessary and only
on a temporary basis.

Extension cords cause voltage drop, which can
damage electrical components and shorten motor
life. Voltage drop increases as the extension cord
size gets longer and the gauge size gets smaller
(higher gauge numbers indicate smaller sizes).

Any extension cord used with this machine must
be in good condition and contain a ground wire
and matching plug/receptacle. Additionally, it must
meet the following size requirements:

Grounding Requirements

This machine MUST be grounded. In the event
of certain malfunctions or breakdowns, grounding
reduces the risk of electric shock by providing a
path of least resistance for electric current.

This machine is equipped with a power cord that
has an equipment-grounding wire and a grounding
plug. Only insert plug into a matching receptacle
(outlet) that is properly installed and grounded in
accordance with all local codes and ordinances.
DO NOT modify the provided plug!

No adapter should be used with plug. If

process. DO NOT connect to power until

GROUNDED

6-15 RECEPTACLE

Current Carrying Prongs

6-15 PLUG

Serious injury could occur if you connect
machine to power before completing setup

instructed later in this manual.

Grounding Pin

Figure 3. Typical 6-15 plug and receptacle.

plug does not fit available receptacle, or if
machine must be reconnected for use on a
different type of circuit, reconnection must
be performed by an electrician or qualified
service personnel, and it must comply with
all local codes and ordinances.

-10 -

Extension Cords

If you must use an extension

Minimum Gauge Size ...........................14 AWG

Maximum Length (Shorter is Better).......50 ft.

Model T32717 (Mfd. Since 07/21)

SECTION 3: SETUP

The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.

If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.

This machine was carefully packaged for safe
transport. When unpacking, separate all enclosed
items from packaging materials and inspect them
for shipping damage.

,

please

at [phone].

IMPORTANT:

you are completely satisfied with the machine and
have resolved any issues between Grizzly or the
shipping agent. You MUST have the original pack-

aging to file a freight claim. It is also extremely
helpful if you need to return your machine later.

Unpacking

If items are damaged

call us immediately

Save all packaging materials until

Needed for Setup

The following items are needed, but not included,
for the setup/assembly of this machine.

Inventory

Box Contents (Figure 4) Qty

A. Machine (Not Shown) ................................. 1

B. Legs ............................................................ 2

C. Cap Screws M12-1.75 x 35 ......................... 8

D. Flat Washers 12mm ................................. 16

E. Lock Washers 12mm .................................. 8

F. Hex Nuts M12-1.75 ..................................... 8

C

Description Qty

• Forklift (or Additional People for Lifting) ..... 1

• Safety Glasses (Per Person) ...............1 Pair

• Hex Wrench 10mm ..................................... 1

• Wrench or Socket 18mm ............................ 1

• Mounting Hardware .................... As Needed

Model T32717 (Mfd. Since 07/21)

D

E

F

B

Figure 4. T32717 inventory.

NOTICE

If you cannot find an item on this list, care­fully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpack­ing or they are pre-installed at the factory.

-11-

Site Considerations

Weight Load

Refer to the
of your machine. Make sure that the surface upon
which the machine is placed will bear the weight
of the machine, additional equipment that may be
installed on the machine, and the heaviest work­piece that will be used. Additionally, consider the
weight of the operator and any dynamic loading
that may occur when operating the machine.

Space Allocation

Consider the largest size of workpiece that will
be processed through this machine and provide
enough space around the machine for adequate
operator material handling or the installation of
auxiliary equipment. With permanent installations,
leave enough space around the machine to open
or remove doors/covers as required by the main­tenance and service described in this manual.

See below for required space allocation.

Physical Environment

Extreme conditions for this type of machinery are

Place this machine near an existing power source.

other hazards. Make sure to leave enough space

Shadows, glare, or strobe effects that may distract
or impede the operator must be eliminated.

Machine Data Sheet for the weight

Children or untrained people
may be seriously injured by
this machine. Only install in an
access restricted location.

The physical environment where the machine is
operated is important for safe operation and lon­gevity of machine components. For best results,
operate this machine in a dry environment that is
free from excessive moisture, hazardous chemi­cals, airborne abrasives, or extreme conditions.

generally those where the ambient temperature
range exceeds 41°–104°F; the relative humidity
range exceeds 20%–95% (non-condensing); or
the environment is subject to vibration, shocks,
or bumps.

Electrical Installation

Make sure all power cords are protected from
traffic, material handling, moisture, chemicals, or

around machine to disconnect power supply or
apply a lockout/tagout device, if required.

Lighting

=

Electrical Connection

Lighting around the machine must be adequate
enough that operations can be performed safely.

Figure 5. Minimum working clearances.

-12-

22½"

33"

Model T32717 (Mfd. Since 07/21)

Assembly

The machine must be fully assembled before it
can be operated. Before beginning the assembly
process, refer to
all
goes smoothly, first clean any
ered or coated in heavy-duty rust preventative (if
applicable).

Needed for Setup and gather

listed items. To ensure the assembly process

parts that are cov-

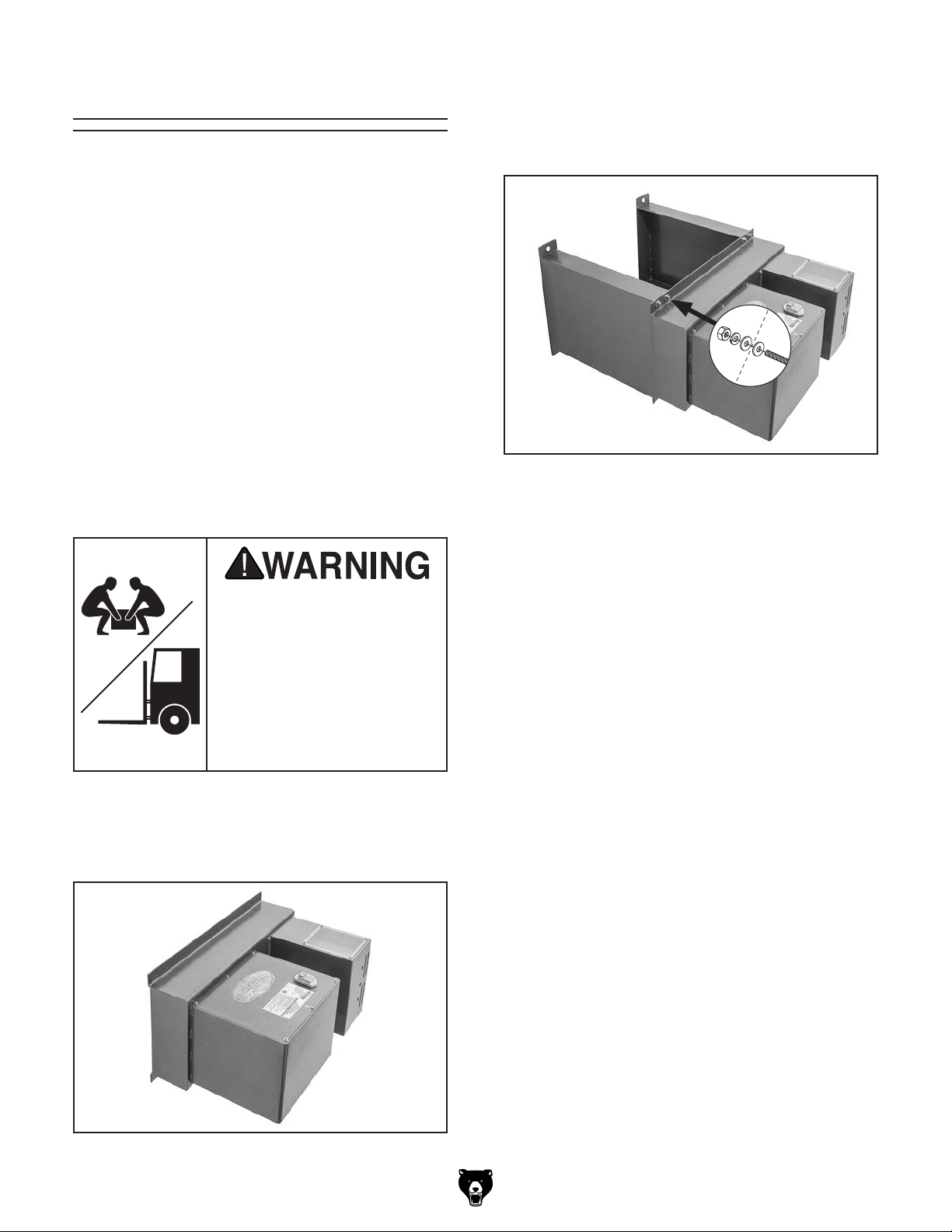

To assemble machine:

1.

Place shipping crate near installation

location, then remove crate top and sides and
set small items aside.

2. Unbolt machine from shipping pallet.

3. Place crate top on ground near machine to

protect machine in next step.

5.

Attach (2) legs, as shown in Figure 7, with

(8) M12-1.75 x 35 cap screws, (16) 12mm
flat washers, (8) 12mm lock washers, and (8)
M12-1.75 hex nuts.

x 8

Figure 7. Legs attached to machine.

6.

Use forklift or lifting assistants to lift machine

onto legs, then move machine to desired
location.

HEAVY LIF T!
Straining or crushing injury
may occur from improperly
lifting machine or some of
its parts. To reduce this risk,
get help from other people
and use a forklift (or other
lifting equipment) rated for
weight of this machine.

With help from assistants, move machine off

4.

of pallet and onto crate top, and orient it so
ON/OFF buttons face up (see Figure 6).

Secure machine to floor by proceeding to

7.
Anchoring to Floor on Page 14.

Figure 6. Machine positioned for assembly.

Model T32717 (Mfd. Since 07/21)

-13-

Anchoring to Floor

Anchoring machinery to the floor prevents tipping
or shifting and reduces vibration that may occur
during operation, resulting in a machine that runs
slightly quieter and feels more solid.

If the machine will be installed in a commercial or
workplace setting, or if it is permanently connect­ed (hardwired) to the power supply, local codes
may require that it be anchored to the floor.

If not required by any local codes, fastening the
machine to the floor is an optional step. If you
choose not to do this with your machine, we rec­ommend placing it on machine mounts, as these
provide an easy method for leveling and they have
vibration-absorbing pads.

Lag shield anchors with lag screws (see below)
are a popular way to anchor machinery to a con­crete floor, because the anchors sit flush with the
floor surface, making it easy to unbolt and move
the machine later, if needed. However, anytime
local codes apply, you MUST follow the anchoring
methodology specified by the code.

Once assembly is complete, test run the machine
to ensure it is properly connected to power and
safety components are functioning correctly.

If you find an unusual problem during the test run,
immediately stop the machine, disconnect it from
power, and fix the problem BEFORE operating the
machine again. The

table in the

SERVICE section of this manual can help.

DO NOT start machine until all preceding
setup instructions have been performed.
Operating an improperly set up machine

Serious injury or death can result from

Number of Mounting Holes ............................ 4

Diameter of Mounting Hardware

Anchoring to Concrete Floors

.................3⁄8"

Test Run

Troubleshooting

The Test Run consists of verifying the following: 1)
The motor powers up and runs correctly.

using this machine BEFORE understanding
its controls and related safety information.
DO NOT operate, or allow others to operate,
machine until the information is understood.

Machine Base

Concrete

Figure 8. Popular method for anchoring

machinery to a concrete floor.

-14-

Lag Screw

Flat Washer

Lag Shield Anchor

Drilled Hole

may result in malfunction or unexpect­ed results that can lead to serious injury,
death, or machine/property damage.

To test run machine:

1. Clear all setup tools away from machine.

2. Connect machine to power supply.

3. Press ON (–) button to turn machine ON,

verify motor operation, and then press OFF
(O) button to turn machine OFF.

The motor should run smoothly and without

unusual problems or noises.

Model T32717 (Mfd. Since 07/21)

SECTION 4: OPERATIONS

The purpose of this overview is to provide the nov­ice machine operator with a basic understanding
of how the machine is used during operation, so
the

discussed later

in this manual

Due to the generic nature of this overview, it is
not intended to be an instructional guide. To learn
more about specific operations, read this entire
manual,

training from experienced
machine operators
outside of this manual by reading "how-to" books,
trade magazines, or websites.

To reduce your risk of
serious injury, read this
entire manual BEFORE

Operation Overview

machine controls/components

are easier to understand.

seek additional

, and do additional research

If you are not experienced with this type
of machine, WE STRONGLY RECOMMEND
that you seek additional training outside of
this manual. Read books/magazines or get
formal training before beginning any proj­ects. Regardless of the content in this sec­tion, Grizzly Industrial will not be held liable
for accidents caused by lack of training.

To complete a typical operation, the operator
does the following:

1. Examines workpiece to make sure diam-

eter and thickness are within capacities of
machine.

using machine.

ALWAYS wear protective equipment to
reduce the risk of injury from flying cut off
pieces and sharp metal when operating.

Cleans workpiece where it will contact dies to

2.

ensure cut is neat.

Determines smallest hole workpiece will fit

3.

into.

Lubricates dies.

4.

5. Connects machine to power.

6. Puts on personal protective equipment.

7. Turns machine ON.

Inserts workpiece into appropriate hole and

8.

makes first notch, supporting workpiece dur­ing entire operation.

Rotates workpiece 180° to notch opposite

9.

side, then removes it from notching hole.

Turns machine OFF.

10.

Model T32717 (Mfd. Since 07/21)

-15-

Notching Tips

Cutting Notches

See below for some helpful tips to keep your
machine performing its best and to obtain the best
notching results.

• Only notch one workpiece at a time.

• Smooth material will notch more easily than
rough or dirty material. Clean/deburr material
before inserting into the machine.

• If the notching dies do not return to the open
position after operation, there may be a cut
off piece stuck in the way. Disconnect the
machine from power before removing the
guards and cut off piece.

• Find and mark a straight "center" line paral­lel to the workpiece edges (see Figure 9) on
either side of the workpiece to achieve even
notches. Align this line to the top of the notch­ing hole for each operation so the second
notch will align with the first.

Cutting a notch in a tube or pipe consists of pre­paring the workpiece, lubricating the notching
dies, determining the size of notching hole need­ed for the operation, and making two identical
cuts, one on either side of the workpiece. Once
a pipe or tube has been notched, the notched
edges can be tightly welded or otherwise joined
to another workpiece.

Notch

Figure 10. Example of notched workpieces

ready to be joined.

"Center"

Line Mark

Figure 9. Example of workpiece center line

aligned to top of notching hole.

• Lubricate the notching dies every 10–12 cuts
during continuous use.

• Empty the chip drawer periodically to keep
cut off pieces from accumulating and lodging
in notching mechanisms.

Items Needed Qty

File/Sandpaper (or Deburring Tool) ... As Needed

Light Machine Oil............................... As Needed

To cut notch:

DISCONNECT MACHINE FROM POWER!

1.

2. Clean and deburr workpiece where it will con-

tact dies.

Determine smallest notching hole workpiece

3.

will fit into (see Figure 11).

3

⁄4"

2"

1

⁄4"

1"

3

⁄8"

21⁄4"

1

⁄2"

11⁄4"

-16 -

Figure 11. Location and size of notching holes.

Model T32717 (Mfd. Since 07/21)

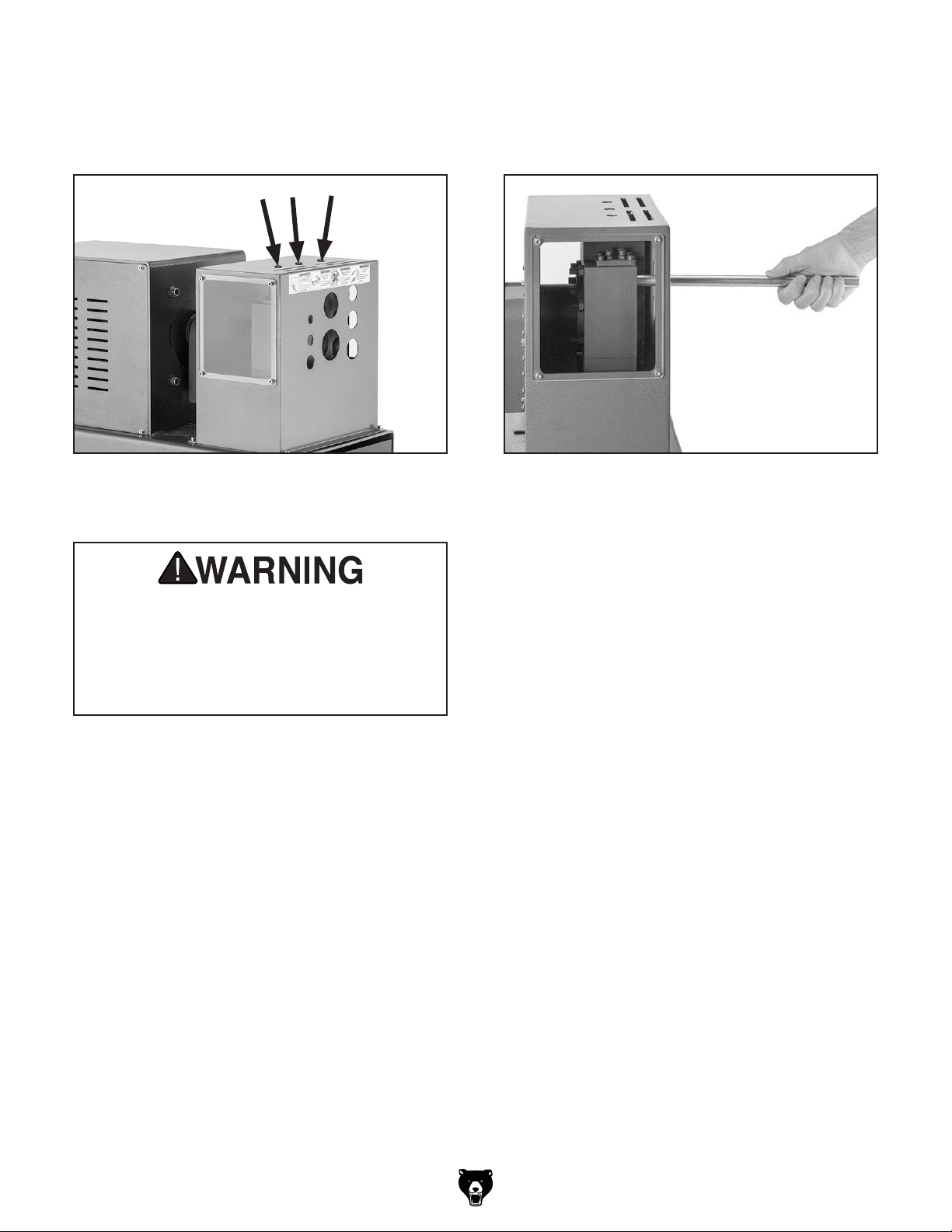

Lubricate dies by dripping 1-2 drops of light

4.

machine oil (see Page 18 for an example)
into each hole at top of notch housing (see
Figure 12).

Insert workpiece into hole determined in Step

7.
3 and support workpiece so it is perpendicu-

lar to dies (see Figure 13). Wait for machine
to perform first notch.

Figure 12. Location of die lubrication holes.

5. Connect machine to power.

Fingers, hands, etc. can be amputated
or pinched by notcher dies if guards are
removed or appendages are inserted into
notching holes. Only operate with guards
and always keep appendages out of notching
holes while machine is connected to power.

6. Turn machine ON and allow machine to run

for a few minutes to distribute lubricant from

Step 4 over and inside dies.

Figure 13. Example of workpiece inserted

perpendicular to dies for operation.

8. Rotate workpiece 180° and wait for machine
to perform second notch, then remove
workpiece from notching hole.

Examine workpiece for neat notch.

9.

— If all edges of notch are even then opera-

tion is complete. Turn machine OFF.

— If all edges of notch are not even, repeat

notching operation until they are, then turn
machine OFF.

Model T32717 (Mfd. Since 07/21)

-17-

ACCESSORIES

Installing unapproved accessories may

order online at www.grizzly.com or call 1-800-523-4777

SECTION 5: ACCESSORIES

cause machine to malfunction, resulting in
serious personal injury or machine damage.
To reduce this risk, only install accessories
recommended for this machine by Grizzly.

NOTICE

Refer to our website or latest catalog for
additional recommended accessories.

G0767—4" x 79" Abrasive Tube Notcher

This machine is designed to quickly notch or cope
the ends of metal tubing so two pieces of tubing
can be welded together with clean, strong joints. It
is an ideal machine for production work with fenc­ing, gates, roll cages, bicycle frames, strainless
steel piping, or any other type of tubing work that
requires joining multiple pieces together.

T30860—Mandrel Tube Bender

This tube bender provides a stable and durable
platform for tube bending that is quick to set up
and easy to use. Manual tube benders can be
used with minimal training to provide accurate
and consistent bends with a variety of tubing ma­terials including steel, copper, and aluminum.

Figure 14. Model G0767 4" x 47" Abrasive Tube

Notcher.

Figure 15. Model T30860 Mandrel Tube Bender.

T26685—Moly-D Multi-Function Machine Oil

Formulated with the superior friction-reducing
compound Moly-D, this ISO 32 multi-function oil
blended from highly refined base stock oils and
selected additived to provide an oil suitable for a
wide variety of applications. 1 gallon size.

Figure 16. Model T26685 Moly-D Multi-Function

Machine Oil.

-18-

Model T32717 (Mfd. Since 07/21)

SECTION 6: MAINTENANCE

To reduce risk of shock or
accidental startup, always
disconnect machine from
power before adjustments,

maintenance, or service.

Schedule

For optimum performance from this machine, this
maintenance schedule must be strictly followed.

Ongoing

To minimize your risk of injury and maintain proper
machine operation, shut down the machine imme­diately if you ever observe any of the items below,
and fix the problem before continuing operations:

Lubrication

Lubricate these components weekly to keep the
Model T32717 notching smoothly. See below for
a recommended lubrication product.

T26419—Syn-O-Gen Synthetic NLGI#2 Grease

Formulated with 100% pure synthesized hydrocar­bon basestocks that are compounded with special
thickeners and additives to make Syn-O-Gen
non-melt, tacky, and water resistant. Extremely
low pour point, extremely high temperature oxida­tion, and thermal stability produce a grease that is
unmatched in performance.

• Loose mounting bolts.

• Worn or damaged wires.
Any other unsafe condition.

•

Weekly Maintenance

• Clean machine.

• Clean dies.

• Lubricate die contact areas/eccentric shaft.

Cleaning

Cleaning the Model T32717 is relatively easy.
Vacuum excess metal chips and wipe up any
remaining pieces with a brush. Avoid using your
hands or a rag to clean since sharp metal pieces
can easily cut skin and through fabric. Remove,
empty, and clean the inside of the chip drawer.

Figure 17. Model T26419 Syn-O-Gen Synthetic

Grease.

Items Needed Qty

Safety Glasses ...........................................1 Pair

Hex Wrench 5mm

Protective Gloves........................................1 Pair

Cleaner/Degreaser
Stiff Brush

T26419 (or NLGI#2 Grease Equiv.).... As Needed

Disposable Rags

.......................................................... 1

.............................................. 1

............................ As Needed

............................... As Needed

Dies

Lubrication Type ... T26419 or NLGI#2 Equivalent
Lubrication Amount
Lubrication Frequency

..............................1–2 Dabs

..............................Weekly

Model T32717 (Mfd. Since 07/21)

-19 -

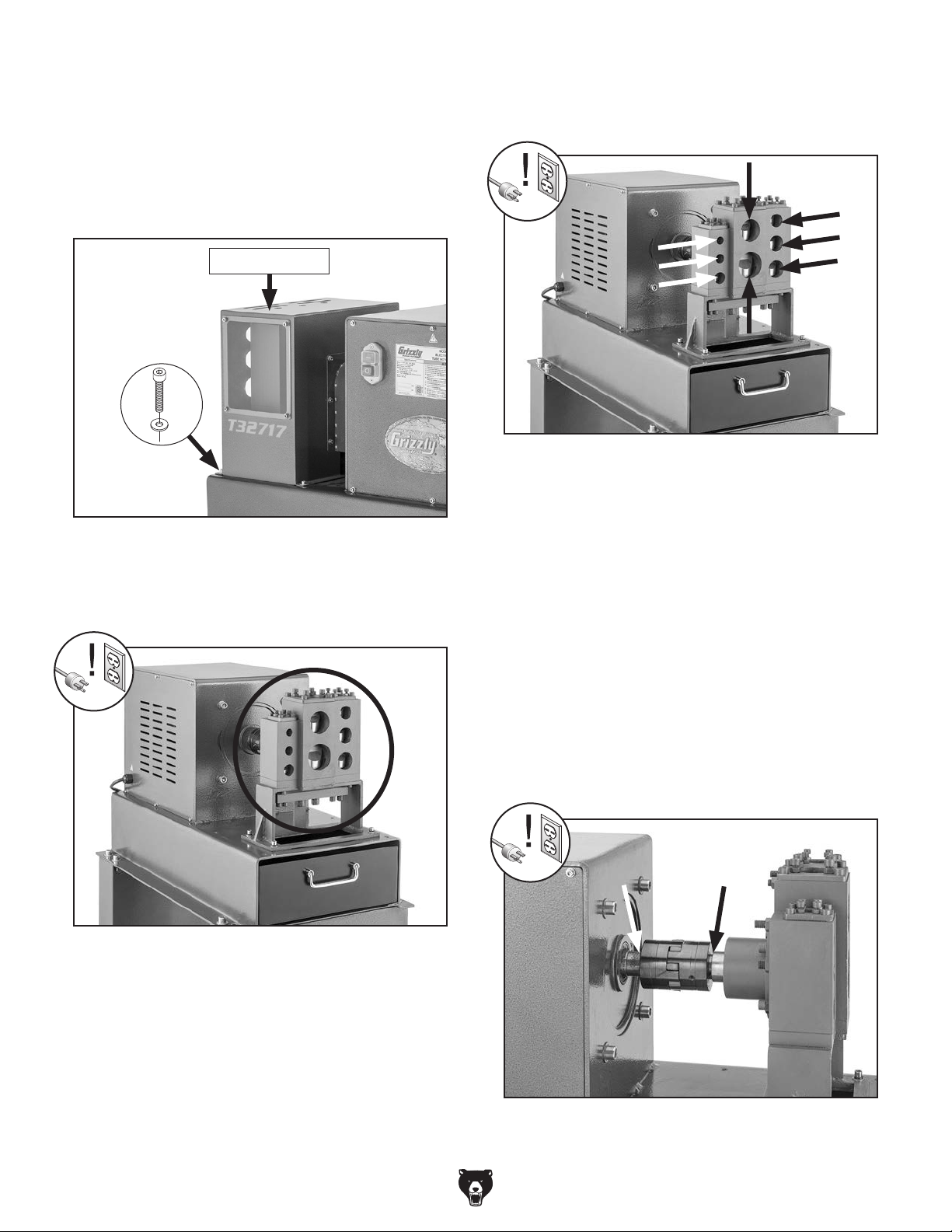

To lubricate dies:

1.

DISCONNECT MACHINE FROM POWER!

2. Remove (4) M6-1 x 12 cap screws, (4) 6mm

flat washers, and notch housing shown in
Figure 18.

Notch Housing

x 4

Figure 18. Notch housing removal components.

While wearing protective gloves, use brush

3.

and cleaner/degreaser to clean in and around
notching holes (see Figure 19).

4. Apply a few dabs of NLGI#2 grease to clean
stiff brush and insert brush into notching
holes to lubricate dies (see Figure 20).

Figure 20. Areas to lubricate.

Eccentric Shaft

Lubrication Type ... T26419 or NLGI#2 Equivalent
Lubrication Amount
Lubrication Frequency

To lubricate eccentric shaft:

..............................1–2 Dabs

..............................Weekly

Figure 19. Area to clean.

DISCONNECT MACHINE FROM POWER!

1.

2. Remove (4) M6-1 x 12 cap screws, (4) 6mm

flat washers, and notch housing shown in
Figure 18.

Apply a few dabs of NLGI#2 grease to both

3.

ends of eccentric shaft (see Figure 21).

-20-

Figure 21. Location of eccentric shaft ends.

Model T32717 (Mfd. Since 07/21)

Review the troubleshooting procedures in this section if a problem develops with your machine. If you need

the

serial number and manufacture date of your machine before calling.

SECTION 7: SERVICE

replacement parts or additional help with a procedure, call our Technical Support. Note: Please gather

Troubleshooting

Motor & Electrical

Symptom Possible Cause Possible Solution

Machine does
not start, or
power supply
breaker
immediately
trips after
startup.

Machine
stalls or is
underpowered.

1. Incorrect power supply voltage or circuit size.

2. Power supply circuit breaker tripped or fuse
blown.

3. Motor wires connected incorrectly.

4. Start capacitor at fault.

5. Electronic start switch at fault.

6. Centrifugal switch adjustment/contact points
at fault.

7. Wiring broken, disconnected, or corroded.

8. ON/OFF switch at fault.

9. Motor or motor bearings at fault.

1. Dies need lubrication.

2. Wrong workpiece material or machine
capacities are exceeded.

3. Cut off piece is jamming dies.

4. Motor wires connected incorrectly.

5. Machine undersized for task.

6. Motor overheated.

7. Run capacitor at fault.

8. Extension cord too long.

9. Electronic start switch at fault.

10. Centrifugal switch/contact points at fault.

11. Motor or motor bearings at fault.

1. Ensure correct power supply voltage and circuit size.

2. Ensure circuit is free of shorts. Reset circuit breaker or
replace fuse.

3. Correct motor wiring connections (Page 24).

4. Test/replace if at fault.

5. Test/replace if at fault.

6. Adjust centrifugal switch/clean contact points. Replace
either if at fault.

7. Fix broken wires or disconnected/corroded
connections.

8. Replace switch.

9. Replace motor.

1. Lubricate dies (Pages 17 & 19).

2. Use correct type/size of workpiece.

3. Disconnect machine from power, remove notch
housing, and remove cut off piece.

4. Correct motor wiring connections (Page 24).

5. Reduce depth of cut/perform operation more than
once, ensure notching dies are sufficiently lubricated.

6. Clean motor, let cool, and reduce workload.

7. Test/replace if at fault.

8. Move machine closer to power supply; use shorter
extension cord.

9. Test/replace if at fault.

10. Adjust centrifugal switch/clean contact points. Replace
either if at fault.

11. Replace motor.

Model T32717 (Mfd. Since 07/21)

-21-

Motor & Electrical (Cont.)

Symptom Possible Cause Possible Solution

Machine has
vibration or
noisy operation.

1. Motor or component loose.

2. Leg fasteners loose.

3. Motor mount loose/broken.

4. Motor fan rubbing on fan cover.

5. Die damaged or dull.

6. Centrifugal switch at fault.

7. Motor bearings at fault.

1. Replace damaged or missing bolts/nuts or tighten if
loose.

2. Tighten leg fasteners to stabilize machine.

3. Tighten/replace.

4. Fix/replace fan cover; replace loose/damaged fan.

5. Carefully remove and hone or replace dies. If honing,
avoid changing die diameter and creating larger space
for cut off pieces to get caught in.

6. Test/replace if at fault.

7. Test by rotating shaft; rotational grinding/loose shaft
requires bearing replacement.

Operation

Symptom Possible Cause Possible Solution

Dies have
heavy
resistance
when notching
workpiece.

Notch is not
consistent
across
workpiece.

Dies jam or
stick.

1. Machine capacities are exceeded.

2. Dies need lubrication.

3. Dies are dull or have burrs.

1. Depth of cut is too large.

2. Machine capacities are exceeded.

3. Dies are dull or have burrs.

1. Cut off piece is jamming dies.

2. Dies need lubrication.

3. Dies are dull or have burrs.

1. Use material within capacity ratings of machine
(Page 5).

2. Lubricate dies (Pages 17 & 19).

3. Carefully remove and hone or replace dies. If honing,
avoid changing die diameter and creating larger space
for cut off pieces to get caught in.

1. Perform same notching operation more than once.

2. Use material within capacity ratings of machine.

3. Carefully remove and hone or replace dies. If honing,
avoid changing die diameter and creating larger space
for cut off pieces to get caught in.

1. Disconnect machine from power, remove notch
housing, and remove cut off piece.

2. Lubricate dies (Pages 17 & 19).

3. Carefully remove and hone or replace dies. If honing,
avoid changing die diameter and creating larger space
for cut off pieces to get caught in.

-22-

Model T32717 (Mfd. Since 07/21)

These pages are current at the time of printing. However, in the spirit of improvement, we may make chang­es to the electrical systems of future machines. Compare the manufacture date of your machine to the one

number and manufacture date of your

machine before calling. This information can be found on the main machine label.

machine

SECTION 8: WIRING

stated in this manual, and study this section carefully.

If there are differences between your machine and what is shown in this section, call Technical Support at
[phone] for assistance BEFORE making any changes to the wiring on your machine. An updated
wiring diagram may be available. Note: Please gather the serial

Wiring Safety Instructions

SHOCK HAZARD. Working on wiring that is con-

nected to a power source is extremely dangerous.
Touching electrified parts will result in personal
injury including but not limited to severe burns,
electrocution, or death. Disconnect the power
from the machine before servicing electrical com­ponents!

MODIFICATIONS. Modifying the wiring beyond
what is shown in the diagram may lead to unpre­dictable results, including serious injury or fire.
This includes the installation of unapproved after­market parts.

WIRE CONNECTIONS. All connections must
be tight to prevent wires from loosening during
machine operation. Double-check all wires dis­connected or connected during any wiring task to
ensure tight connections.

CIRCUIT REQUIREMENTS. You MUST follow
the requirements at the beginning of this manual
when connecting your machine to a power source.

WIRE/COMPONENT DAMAGE. Damaged wires
or components increase the risk of serious per­sonal injury, fire, or machine damage. If you notice
that any wires or components are damaged while
performing a wiring task, replace those wires or
components.

MOTOR WIRING. The motor wiring shown in
these diagrams is current at the time of printing
but may not match your machine. If you find this
to be the case, use the wiring diagram inside the
motor junction box.

CAPACITORS/INVERTERS. Some capacitors
and power inverters store an electrical charge for
up to 10 minutes after being disconnected from
the power source. To reduce the risk of being
shocked, wait at least this long before working on
capacitors.

EXPERIENCING DIFFICULTIES. If you are expe­riencing difficulties understanding the information
included in this section, contact our Technical
Support at [phone].

The photos and diagrams
included in this section are
best viewed in color. You
can view these pages in
color at www.grizzly.com.

Model T32717 (Mfd. Since 07/21)

-23-

Ground

Wiring Diagram

MOTOR ENCLOSURE

MAG ON/OFF Switch

KEDU

KJD17B

L1

L2

PE

Electronic

Start Switch

ESS1-41

AC 220V

CS

CF

PE

1

L1

14
13

A1

24
23

A1

4

L2

220V Motor

4

PE

1

A1

Run Capacitor
40uF 450VAC

Start Capacitor
400uF 275VAC

3

4

2

1

1

PE

A1

3

4

1

S

2

3

4

1

2

CF

AC 110V

3

CS

4

1

5

1

2

2

4

4

4

-24-

Ground

G

Hot

220

VAC

Hot

6-15 Plug

READ ELECTRICAL SAFETY

ON PAGE 23!

Model T32717 (Mfd. Since 07/21)

Electrical Component Photos

Figure 22. ON/OFF switch. Figure 23. Run capacitor.

Figure 24. Motor junction box and start capacitor.

Model T32717 (Mfd. Since 07/21)

READ ELECTRICAL SAFETY

ON PAGE 23!

-25-

SECTION 9: PARTS

We do our best to stock replacement parts when possible, but we cannot guarantee that all parts shown
are available for purchase. Call [phone] or visit www.grizzly.com/parts to check for availability.

Main

47

48

14

12

11

13

1

49

41

43

20

28

2

29

26

42

41

22

10

67

67

21

27

46

48

24

17

67

5

16

57

49

41

9

46

45

44

25

8

3

18

34

55

56

57

4

58

44

19

56

31

7

53

51

30

32

65

56

56

57

57

64

6-4

6-11

51

63

52

62

6-2

6-3

6-5

6-8

54

6-1

6-6

6-9

6-7

6-10

6-12

6

56

57

33

37

38

39

41

42

43

-26-

15

40

23

49

41

36

BUY PARTS ONLINE AT GRIZZLY.COM!

Scan QR code to visit our Parts Store.

66

67

35

60

51

52

54

61

59

Model T32717 (Mfd. Since 07/21)

REF PART # DES CRIPTION REF PART # DES CRIPTION

Main Parts List

1 PT32717001 NOTCH BODY 28 PT32717028 SET SCREW M10-1.5 X 50 DOG-PT
2 PT32717002 EXTERNAL BLADE 2-1/4" 29 PT32717029 SET SCREW M10-1.5 X 40 DOG-PT
3 PT32717003 INTERNAL BLADE 2", 2-1/4" 30 PT32717030 NOTCH HOUSING
4 PT32717004 ECCENTRI C SHAFT 31 PT32717031 PLEXIGLASS WINDOW
5 PT32717005 SPACER 20 X 25 X 20 32 PT32717032 ECCENTRI C SHAFT COV ER
6 PT32717006 MOTOR 1.4HP 220V 1-PH 33 PT32717033 BASE PANEL (FRONT)
6-1 PT32717006-1 MOTOR FAN COVER 34 PT32717034 BASE PANEL (REAR)
6-2 PT32717006-2 MOTOR FAN 35 PT32717035 CHIP DRAWER
6-3 PT32717006-3 S CAPACITOR COVER 36 PT32717036 CHIP DRAWER HANDLE
6-4 PT32717006-4 S CAPACITOR 400M 275V 2 X 4 37 PT32717037 CAP SCREW M8-1.25 X 16
6-5 PT32717006-5 R CAPACITOR COVER 38 PT32717038 CAP SCREW M8-1.25 X 45
6-6 PT32717006-6 R CAPACITOR 40M 450V 2 X 3-3/4 39 PT32717039 CAP SCREW M12-1.75 X 50
6-7 PT32717006-7 ELECTRI C CENT SWI TCH ES S1-41 40 PT32717040 CAP SCREW M10-1.5 X 50
6-8 PT32717006-8 MOTOR J UNCTI ON B OX 41 PT32717041 FLAT WASHER 8MM

6-9 PT32717006-9 CONTACT PLA TE CPT 6 MM 42 PT32717042 LOCK WASHER 8MM
6-10 PT32717006-10 CENTRIFUGAL SWITCH 3/4 1650 RPM 43 PT32717043 CAP SCREW M8-1.25 X 25
6-11 PT32717006-11 BALL BEARING 6304ZZ (FRONT) 44 PT32717044 FLAT WASHE R 6MM
6-12 PT32717006-12 BALL BEARING 6304ZZ (REAR) 45 PT32717045 LOCK WASHER 6MM
7 PT32717007 ECCENTRI C SHAFT CONNECTOR 46 PT32717046 CAP SCREW M6-1 X 20
8 PT32717008 EXTERNAL BLADE 2" 47 PT32717047 CAP SCREW M6-1 X 25
9 PT32717009 TOP PLATE (CENTER) 48 PT32717048 HEX NUT M6-1
10 PT32717010 INTERNAL BLADE 3/4", 1", 1-1/4" 49 PT32717049 CAP SCREW M8-1.25 X 30
11 PT32717011 INTERNAL BLADE 1/4", 3/ 8", 1/2" 51 PT32717051 FLAT WASHER 12MM
12 PT32717012 EXTERNAL BLADE 1/2" 52 PT32717052 LOCK WASHER 12MM
13 PT32717013 EXTERNAL BLADE 1/4" 53 PT32717053 CAP SCREW M12-1.75 X 45
14 PT32717014 EXTERNAL BLADE 3/8" 54 PT32717054 HEX NUT M12-1.75
15 PT32717015 INTERNAL BLADE BASE 55 PT32717055 KEY 10 X 10 X 35 RE
16 PT32717016 BEARING SEAT 56 PT32717056 FLAT WASHER 5MM
17 PT32717017 BALL BEARING 6206-2RS 57 PT32717057 CAP SCREW M5-.8 X 10
18 PT32717018 SPACER 30 X 37 X 30 58 PT32717058 CAP SCREW M6-1 X 12
19 PT32717019 BASE 59 PT32717059 LEG
20 PT32717020 EXTERNAL BLADE 2" 60 PT32717060 CAP SCREW M12-1.75 X 35
21 PT32717021 EXTERNAL BLADE 1" 61 PT32717061 MAG ON/OFF SWI TCH KE DU KJ D17B
22 PT32717022 EXTERNAL BLADE 1-1/4" 62 PT32717062 FLAT HD SCR M4-. 7 X 16
23 PT32717023 SUPPORT BLOCK 63 PT32717063 FLAT WASHER 4MM
24 PT32717024 TOP PLATE (RIGHT) 64 PT32717064 HEX NUT M4- . 7
25 PT32717025 TOP PLATE (LEFT) 65 PT32717065 POWER CORD 16G 3W 90" 6-15P
26 PT32717026 BOTTOM PLATE 66 PT32717066 FLAT WASHER 10MM
27 PT32717027 SET SCREW M10-1.5 X 25 DOG-PT 67 PT32717067 HEX NUT M10-1. 5

Model T32717 (Mfd. Since 07/21)

BUY PARTS ONLINE AT GRIZZLY.COM!

Scan QR code to visit our Parts Store.

-27-

Labels & Cosmetics

REF PART # DES CRIPTIO N REF PART # DESCRIP TION

101

107

WARNING!

To reduce risk of death
or serious injury, read
manual BEFORE using
machine.

To get a new manual, call
[phone] or go to
www.grizzly.com.

EYE INJURY

HAZARD!

Always wear safety
glasses when using
this machine.

102

AMPUTATION

HAZARD!

NEVER place fingers in
or near notching holes
while machine is
connected to power.

INJURY/SHOCK

HAZARD!

Disconnect power
before adjustments,
maintenance, or
service.

Specifications

Motor: 1.5 HP, 220V, 1-Ph, 60 Hz

Full-Load Current Rating: 8A
Motor Speed: 1650 RPM
Nominal Diameter Capacity:

1/4, 3/8, 1/2, 3/4, 1,1-1/4, 2, 2-1/4"
Max. Notching Size: 2-1/4"
Max. Wall Thickness: 1/8" (1” Schedule 40)
Notch Angle: 90º
Weight: 386 lbs.

Date

S/N

Mfd. for Grizzly in China

103

T32717

104

MODEL T32717

ELECTRIC PIPE AND

TUBE NOTCHER w/STAND

WARNING!

To reduce risk of serious injury while using this machine:

1. Read and understand owner’s manual before operating.

2. Always wear ANSI-approved safety glasses.

3. Always keep hands and fingers clear of notching holes and dies.

4. Only plug power cord into a grounded outlet.

5. DO NOT exceed rated capacity of machine or notch materials machine is not

intended for.

6. Wear leather gloves and steel-toed shoes when handling metal workpieces.
Deburr or chamfer workpiece edges after notching.

7. Only operate with all guards and covers in place.

8. Disconnect power before adjusting, servicing, or clearing jammed cut-off pieces.

9. Always use a brush or vacuum to remove metal chips; DO NOT use your hands,

rags, or compressed air.

10. Ensure workpiece is properly supported and will not shift during operation.

11. DO NOT expose to rain or use in wet locations.

12. DO NOT operate under influence of drugs or alcohol or when tired.

13. Prevent unauthorized use by children or untrained users; restrict access or
disable machine when unattended.

101

grizzly.com

106

105

101 PT32717101 ELECTRICITY LABEL 105 PT32717105 GRIZZLY NAMEPLATE SMALL
102 PT32717102 COMBO WARNING LABEL 106 PT32717106 GRIZZLY.COM LABEL
103 PT32717103 MODEL NUMBER LABEL 107 PT32717107 TO UCH-UP PAI NT, GRI ZZLY GREE N
104 PT32717104 MACHINE ID LABEL

Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes
off or becomes unreadable, the owner of this machine MUST replace it in the original location
before resuming operations. For replacements, contact [phone] or www.grizzly.com.

-28-

BUY PARTS ONLINE AT GRIZZLY.COM!

Scan QR code to visit our Parts Store.

Model T32717 (Mfd. Since 07/21)

WARRANTY & RETURNS

Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from
the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse,
negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty
and any and all warranties that may be implied by law, including any merchantability or fitness, for any par­ticular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent
that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants.
In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and
any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.

We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special,
or consequential damages arising from the use of our products.

The manufacturers reserve the right to change specifications at any time because they constantly strive to
achieve better quality equipment. We make every effort to ensure that our products meet high quality and
durability standards and we hope you never need to use this warranty.

In the event you need to use this warranty, contact us by mail or phone and give us all the details. We will
then issue you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of
the carton. We will not accept any item back without this number. Proof of purchase must accompany the
merchandise.

Please feel free to write or call us if you have any questions about the machine or the manual.

Thank you again for your business and continued support. We hope to serve you again soon.

To
you can
applicable information for

take advantage of this warranty, you must register it at https://www.grizzly.com/forms/warranty, or

scan the QR code below to be automatically directed to our warranty registration page. Enter all

the product.

WARRANTY
