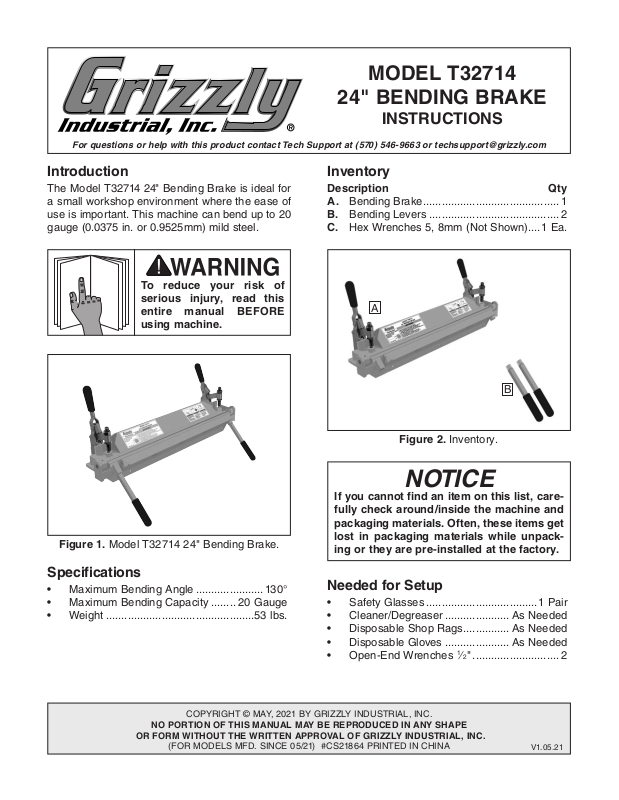

Page 1
MODEL T32714
To reduce your risk of
serious injury, read this
entire manual BEFORE
24" BENDING BRAKE
INSTRUCTIONS
For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction
The Model T32714 24" Bending Brake is ideal for
a small workshop environment where the ease of
use is important. This machine can bend up to 20
gauge (0.0375 in. or 0.9525mm) mild steel.
using machine.
Inventory
Description Qty
A. Bending Brake ............................................ 1
Bending Levers .......................................... 2
B.
C. Hex Wrenches 5, 8mm (Not Shown) ....1 Ea.
A
B
Figure 2. Inventory.
Figure 1. Model T32714 24" Bending Brake.
Specifications
• Maximum Bending Angle ...................... 130°
• Maximum Bending Capacity ........ 20 Gauge
• Weight ................................................53 lbs.
COPYRIGHT © MAY, 2021 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
(FOR MODELS MFD. SINCE 05/21) #CS21864 PRINTED IN CHINA
NOTICE
If you cannot find an item on this list, carefully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpacking or they are pre-installed at the factory.
Needed for Setup
• Safety Glasses ....................................1 Pair
• Cleaner/Degreaser ..................... As Needed
• Disposable Shop Rags ............... As Needed
• Disposable Gloves ..................... As Needed
• Open-End Wrenches 1⁄2 " ............................ 2
V1.05.21
Page 2
Another option is a "direct mount" (see example
below) where the machine is secured directly to
the workbench with lag screws and washers.
The base of this machine has mounting holes
that allow it to be fastened to a workbench or
other mounting surface to prevent it from moving
during operation and causing accidental injury or
damage.
The strongest mounting option is a "Through
Mount" (see example below) where holes are
drilled all the way through the workbench—and
hex bolts, washers, and hex nuts are used to
secure the machine in place.
Cleanup
The unpainted surfaces of your machine are
coated with a heavy-duty rust preventative that
prevents corrosion during shipment and storage.
This rust preventative works extremely well, but it
will take a little time to clean.
Be patient and do a thorough job cleaning your
machine. The time you spend doing this now will
give you a better appreciation for the proper care
of your machine's unpainted surfaces.
There are many ways to remove this rust preventative, but the following steps work well in a wide
variety of situations. Always follow the manufacturer’s instructions with any cleaning product you
use and make sure you work in a well-ventilated
area to minimize exposure to toxic fumes.
Before cleaning, gather the following:
• Disposable rags
• Cleaner/degreaser (WD•40 works well)
• Safety glasses & disposable gloves
• Plastic paint scraper (optional)
Workbench Mounting
Number of Mounting Holes ............................ 4
Dia. of Mounting Hardware Needed
Hex
Bolt
Flat Washer
Machine Base
..........5⁄16"
Basic steps for removing rust preventative:
Put on safety glasses.
1.
2. Coat the rust preventative with a liberal
amount of cleaner/degreaser, then let it soak
for 5–10 minutes.
Wipe off the surfaces. If your cleaner/
3.
degreaser is effective, the rust preventative
will wipe off easily. If you have a plastic paint
scraper, scrape off as much as you can first,
then wipe off the rest with the rag.
Repeat Steps 2–3 as necessary until clean,
4.
then coat all unpainted surfaces with a quality
metal protectant to prevent rust.
NOTICE
Avoid harsh solvents like acetone or brake
parts cleaner that may damage painted surfaces. Always test on a small, inconspicuous location first.
Workbench
Flat Washer
Lock Washer
Hex Nut

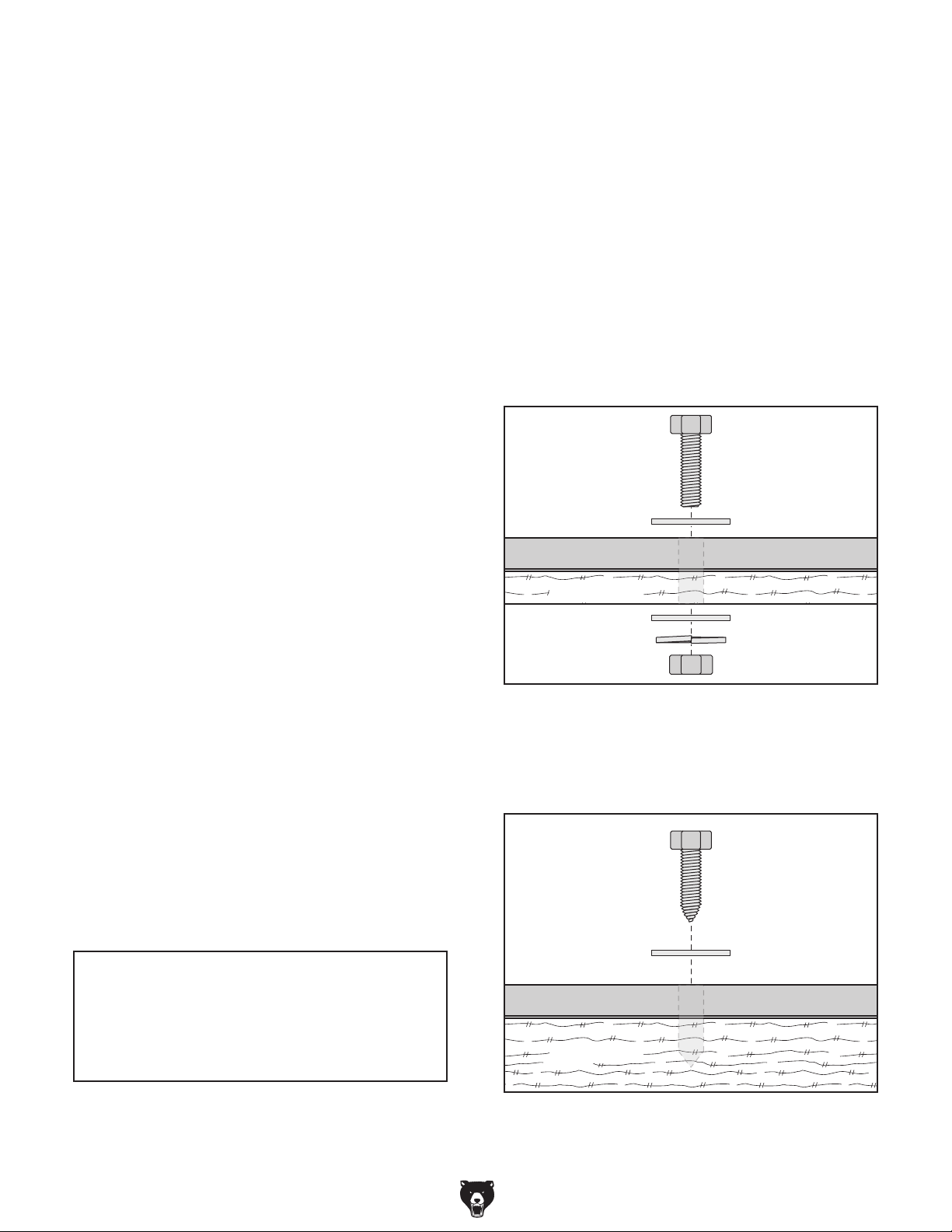

Figure 3. "Through Mount" setup.
Lag Screw
Flat Washer
Machine Base
Workbench
-2-
Figure 4. "Direct Mount" setup.
Model T32714 (Mfd. Since 05/21)
Page 3
Assembly
The machine must be fully assembled before it
can be operated. Before beginning the assembly
process, first clean any parts that are covered or
coated in rust preventative.
To assemble machine:

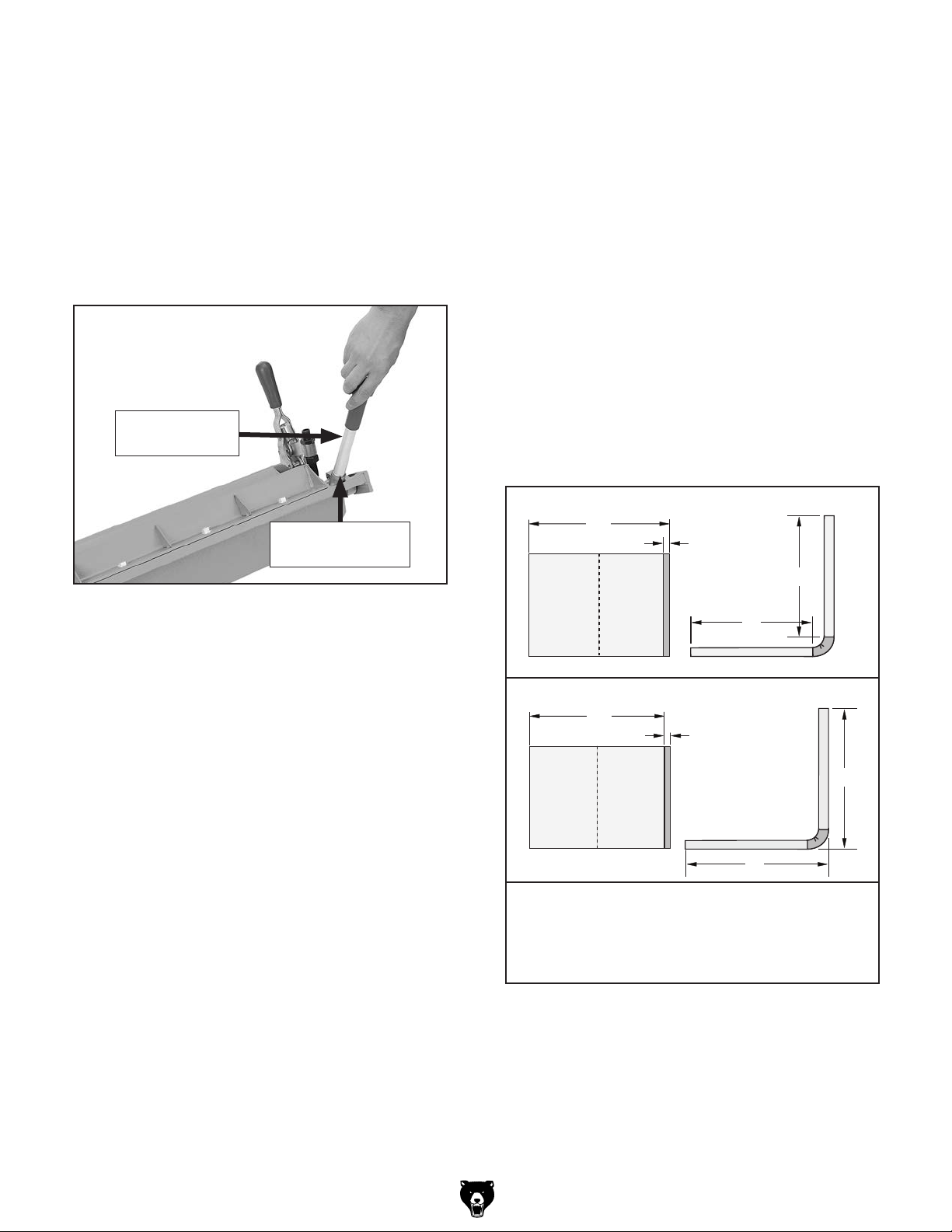

Bend Allowance
When a bend is made in sheet metal, the inside
surface of the bend compresses and the outside
surface stretches. To bend metal objects accurately, you need to consider the length of each
bend, especially when more than one bend is
required. This is called bend allowance.
Thread (2) bending levers into breaker bar
1.
holes (see Figure 5).
Bending Lever
(1 of 2)
Breaker Bar Hole
(1 of 2)
Figure 5. Installing bending lever.
The bend allowance is added to the sum of the
outside dimensions of the workpiece flat surfaces
to obtain the overall length and width of the blank
needed to make a particular part.
Exact allowances can only be obtained by trial
due to differences in sheet metal hardness, how
the workpiece is positioned, and difficulties in
making an exact bend radius. Formulas for calculating the bend allowance can be found in metalworking handbooks or the internet.
Inside Measurements: L
L
t
a b
Bend Line
Top View Side View
Outside Measurements: Lt = (a + b) – BD
L
t
= (a + b) + BA
t
BA
a
BD
b
BA
Model T32714 (Mfd. Since 05/21)
b
a b
Bend Line
Top View
Lt = Total workpiece length before bending
a = Required finished height
b = Required finished length
BA = Bend allowance
BD = Bend deduction
Side View
a
BD
Figure 6. Bend allowance measurements.
-3-
Page 4

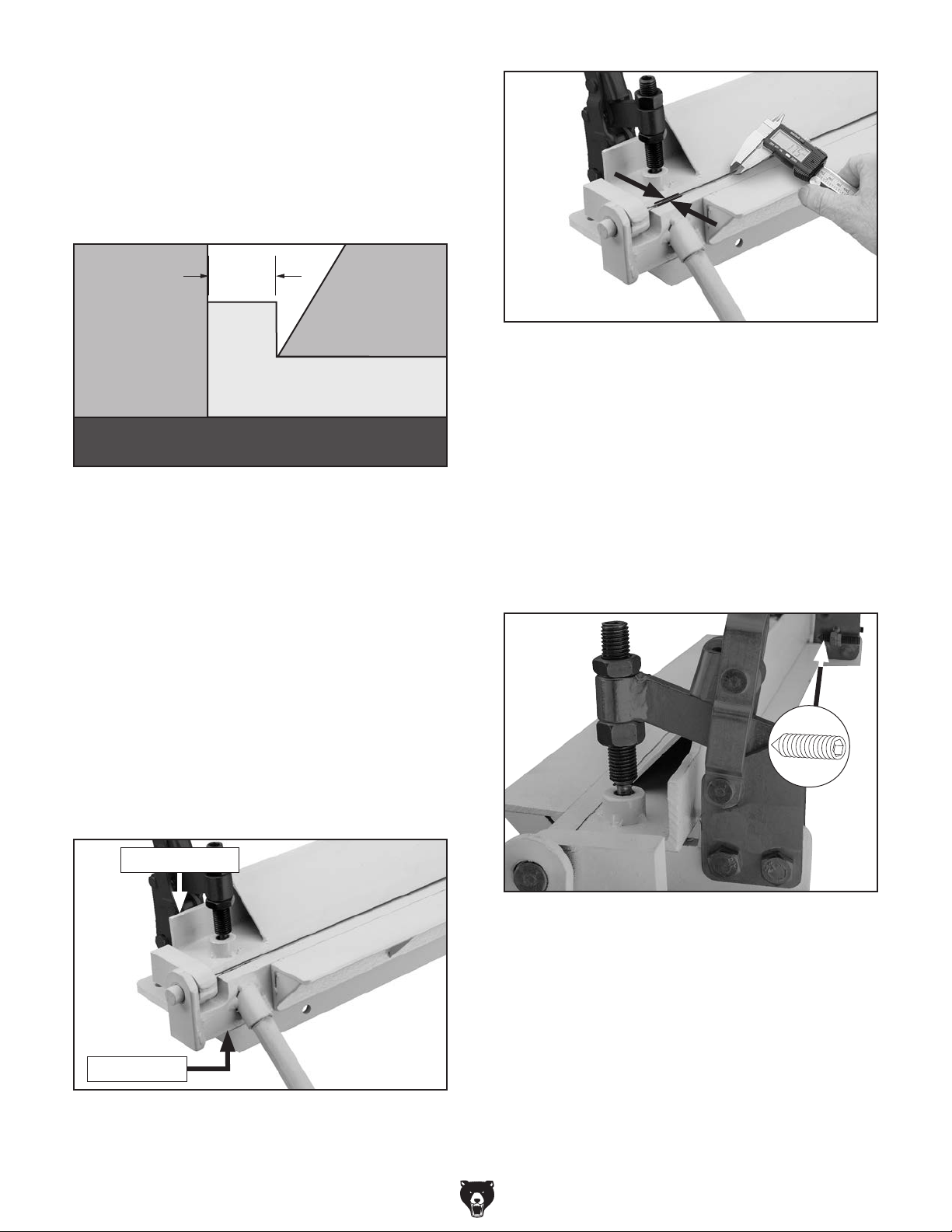

Adjusting Setback
Setback is the required distance between the
breaker bar and the clamping leaf to properly
make the bend (see Figure 7). A number of factors determine the correct setback distance, such
as bend allowance, bend radius, and material
thickness.
Setback
Clamping
Leaf
Figure 9. Example of measuring setback.
Breaker
Bar
Workpiece
Machine
Figure 7. Identification of setback.
There are many sources to help you calculate the
correct setback for your operation, such as metalworking handbooks, the internet, or experienced
sheet metal workers.
Tools Needed Qty
Calipers ............................................................. 1
Hex Wrench 5mm
.............................................. 1
To adjust setback:
. Use calipers to measure distance between
1
both ends of clamping leaf and where
workpiece will contact breaker bar (see
Figures 8–9).
— If distances measured in Step 1 are equal
and correct for operation, no adjustment is
required.
— If distances measured in Step 1 are not
equal or not correct for operation, proceed
to Step 2.
. On side(s) of clamping leaf that need(s) set-
2
back adjustment, adjust set screw shown in
Figure 10.
Clamping Leaf
Breaker Bar
Figure 8. Location of clamping leaf and breaker
bar.
-4-
Figure 10. Setback adjustment set screw
location.
— Tighten set screw to reduce setback.
— Loosen set screw to increase setback.
3. Repeat Steps 1–2 until setback is equal on
both sides of clamping leaf and correct for
operation.
Model T32714 (Mfd. Since 05/21)
Page 5

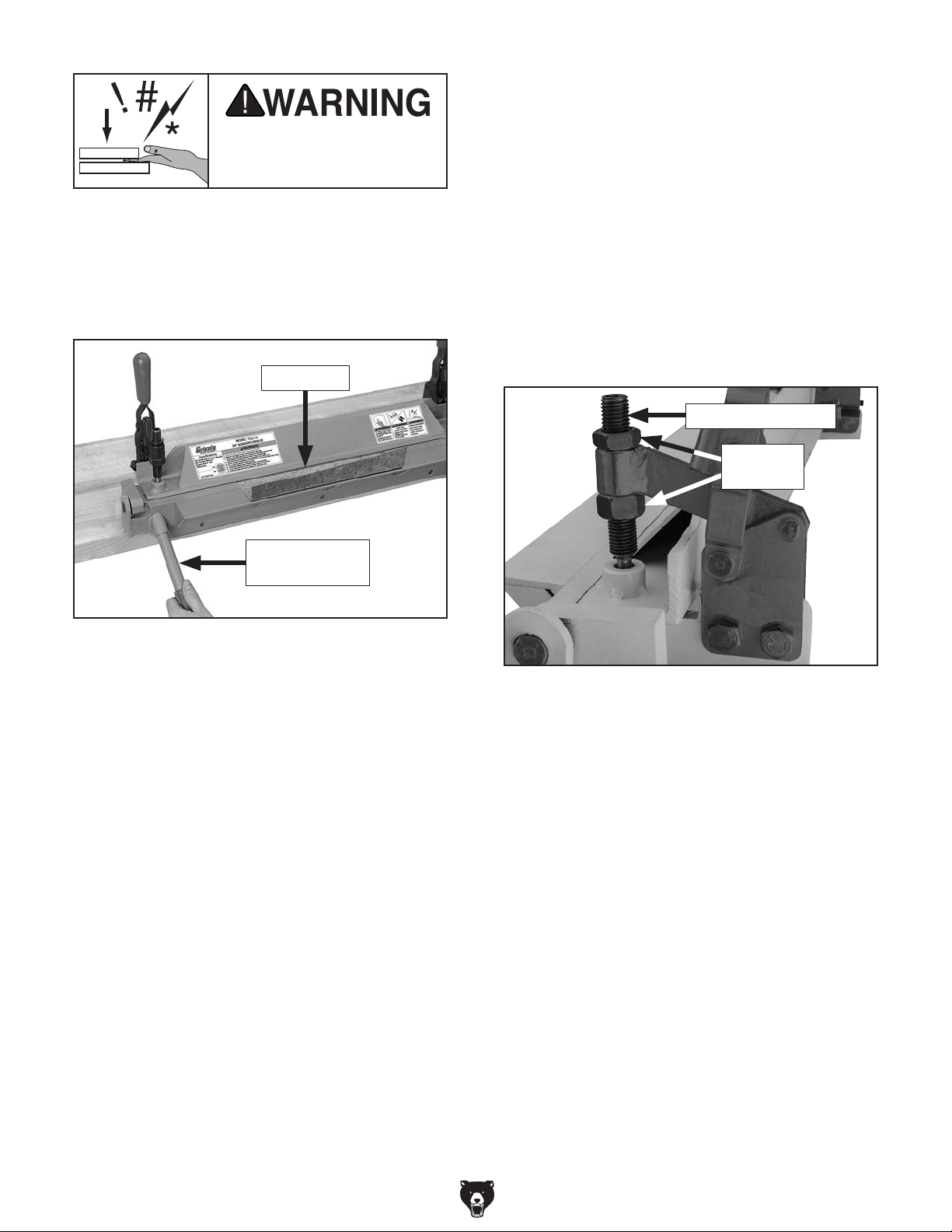

Typical Bending Operation
Eye injury hazard! Always
wear safety glasses when
Use the following steps to perform a typical bend
on a workpiece.
Tip: During a bending operation, workpiece scor-
ing may occur. To avoid these marks, keep both
the clamping leaf and the bending leaf free of
burrs, and adhere a strip of tape on the workpiece
over the area that will be bent.
Release both clamps by pushing handles
2.
away from you (see Figure 11).
Clamping Leaf
using this machine.
Do not operate unless machine has been
securely clamped or mounted to workbench.
Failure to secure machine before use could
result in crushing injuries.
Only bend stock that falls within bending
capacity of this machine. Stock thicker than
20 gauge will damage machine when bent.
Items Needed Qty
Masking Tape .................................... As Needed
Marker/Pencil
Protractor
To perform bending operation:
..................................................... 1
........................................................... 1
Clamp Handle
(1 of 2)
Figure 11. Example of clamps in open position.
3. Place workpiece on breaker bar, under
clamping leaf.
Pull clamping handles forward to clamp work-
4.
piece under clamping leaf (see Figure 12).
Note: Mark from Step 1 should line up with
front edge of clamping leaf (see Figure 12).
Breaker Bar
Tape and mark workpiece with location of
1.
desired bend.
Model T32714 (Mfd. Since 05/21)
Mark from
Step 1
Figure 12. Example of workpiece clamped under
clamping leaf.
— If workpiece is too thick or thin to be
securely clamped, refer to Adjusting
Clamps on Page 6 to adjust them before
proceeding.
-5-
Page 6
Crushing hazard! Always
keep hands clear when
using this machine.
With workpiece secured by clamping leaf,
5.
lift bending levers to bend workpiece (see
Figure 13).
Adjusting Clamps
If changing to a different workpiece thickness, the
clamps will likely need to be adjusted to securely
clamp the workpiece.
Items Needed Qty
Hex Wrench 8mm .............................................. 1
Open-End Wrench 24mm
To adjust clamps:
.................................. 1
Tip: Use protractor to measure bend angle.
Workpiece
Bending Lever
(1 of 2)
Figure 13. Example of workpiece ready for
bending operation.
6.
Open clamps and clamping leaf and remove
workpiece.
Use 8mm hex wrench to keep clamp adjust
1.
stud from turning and adjust hex nuts shown
in Figure 14.
Clamp Adjust Stud
Adjusting
Hex Nuts
Figure 14. Clamp adjusting components.
— Turn nuts clockwise for thinner workpiece.
-6-
— Turn nuts counterclockwise for thicker
workpiece.
Repeat adjustment from Step 1 on second
2.
clamp, taking care to adjust both the same
amount.
Model T32714 (Mfd. Since 05/21)
Page 7

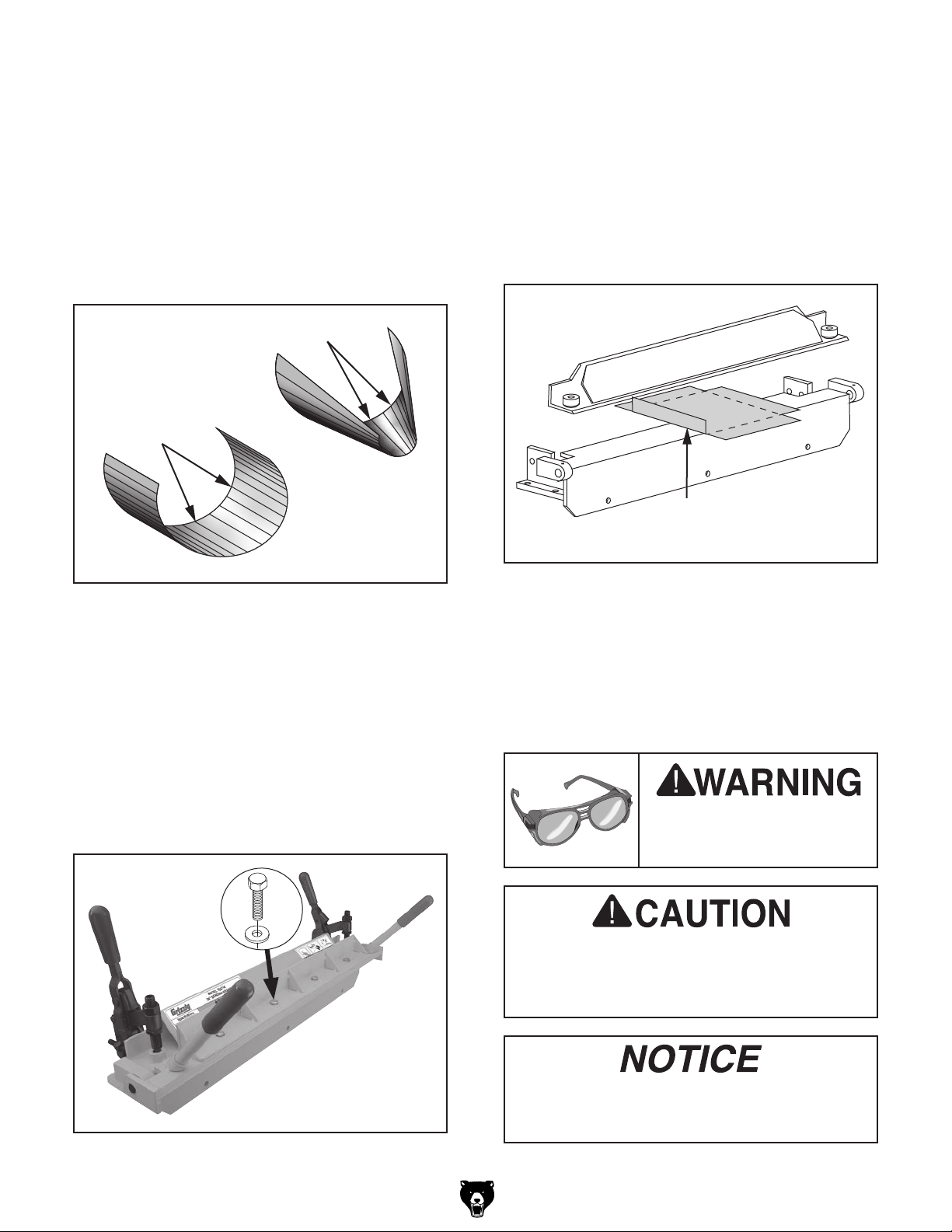

Radius Bending
Eye injury hazard! Always
Radius bending is most commonly used to make
cylinders and cones, both of which are formed by
making a series of small, closely-spaced bends in
the workpiece.
For cylinders, the bends are evenly spaced and
parallel to the workpiece edges while cones have
a series of uneven bends that are not parallel to
the edges (see Figure 15).
Uneven Bends
Even Bends

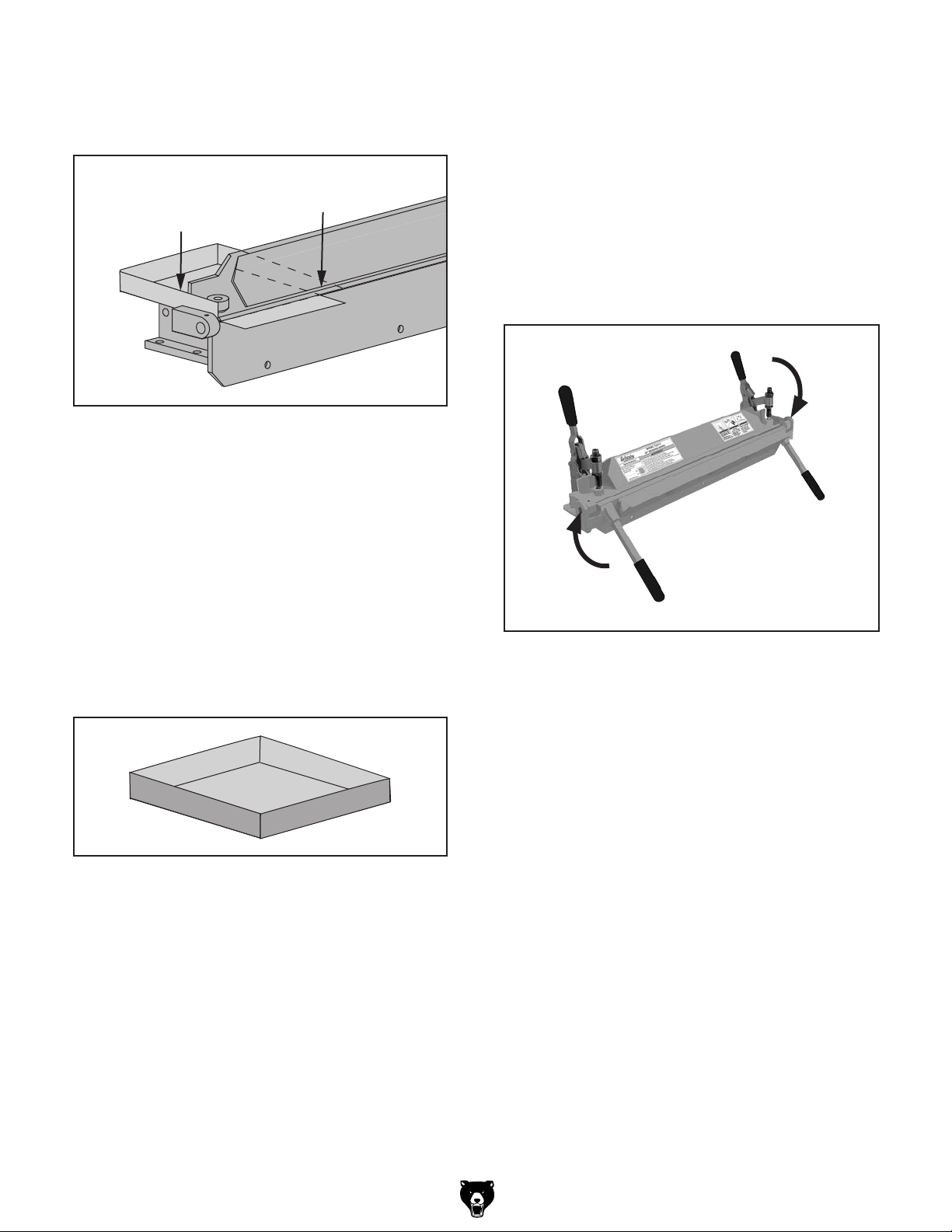

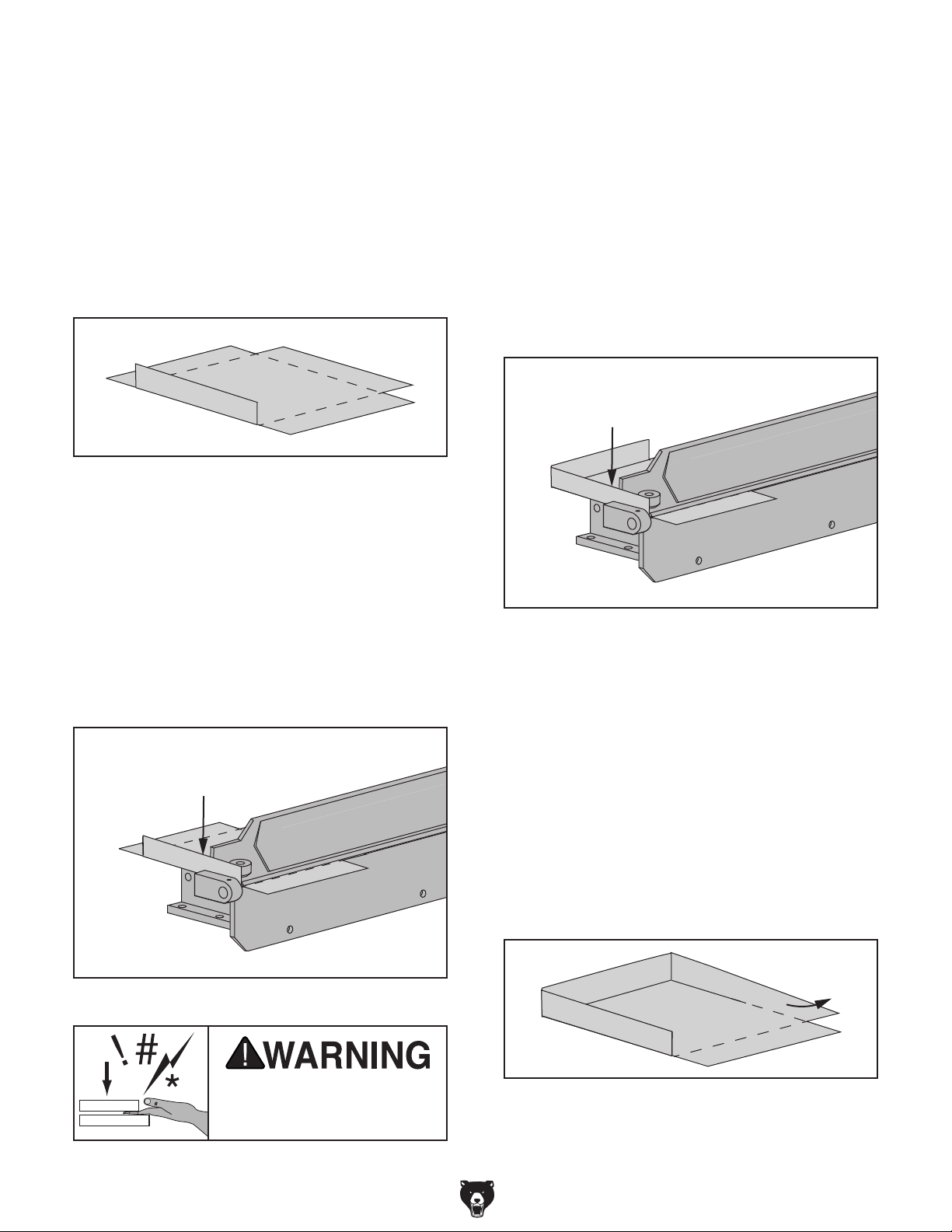

Pan & Box Bending
When bending a piece of flat metal into a box,
you will need to make multiple bends on the same
workpiece. While you will use the same procedure
as described in Typical Bending Operation on
Page 5, you will also need to consider the clearance needed to clamp and bend the remaining
sides of the workpiece without interfering with
your first bend (see Figure 17).
1st Bend
Interferes
!
Figure 15. A typical cylinder and cone.
Use this information as well as the steps listed in
Typical Bending Operation beginning on Page
5 to radius bend.
If you cannot get your bends close enough
together for your operation, remove the fasteners
shown in Figure 16 to remove the bending leaf
from the breaker bar. Removing the bending leaf
will decrease the overall bending capacity but will
also allow for very tight tolerances.
x 4
Figure 17. No clamping clearance for first bend.
Use the following steps to bend a four-sided pan
or box and provide the necessary clearance for
subsequent bends.
Note: The Model T32714 is only capable of bend-
ing pans/boxes that have 90 degree angles.
wear safety glasses when
using this machine.
Do not operate unless machine has been
securely clamped or mounted to workbench.
Failure to secure machine before use could
result in crushing injuries.
Figure 16. Location of bending leaf fasteners.
Model T32714 (Mfd. Since 05/21)
Only bend stock that falls within bending
capacity of this machine. Bending stock
thicker than 20 gauge will damage machine.
-7-
Page 8
Items Needed Qty
Crushing hazard! Always
keep hands clear when
Masking Tape .................................... As Needed
Marker/Pencil
Protractor or Machinist's Square
Scrap Wood Block
..................................................... 1
....................... 1
............................................. 1
To perform pan and box bending:
Follow Steps 1–6 of Typical Bending
1.
Operation beginning on Page 5 to perform
first bend (see Figure 18).
Figure 18. Typical workpiece after first bend.
Rotate workpiece 90 degrees clockwise to
2.
tape and mark workpiece with location of
second bend.
5. With workpiece secured by clamping leaf, lift
bending levers to perform second bend.
Open clamps and clamping leaf and remove
6.
workpiece.
Rotate workpiece 90 degrees clockwise to
7.
tape and mark workpiece with location of
third bend.
Place workpiece on breaker bar, under
8.
clamping leaf, so second bend falls outside
of clamping area (see Figure 20).
2nd Bend Outside
of Clamping Area
Place workpiece on breaker bar, under clamp-
3.
ing leaf, so first bend falls outside of clamping
area (see Figure 19).
Pull clamping handles forward to clamp work-
4.
piece under clamping leaf (see Figure 19).
1st Bend Outside
of Clamping Area
Figure 19. Clamping clearance for first bend.
Figure 20. Clamping clearance for second bend.
9.
With workpiece secured by clamping leaf, lift
bending levers to perform third bend.
Open clamps and clamping leaf and remove
10.
workpiece.
Rotate workpiece 90 degrees clockwise to
11.
tape and mark workpiece with location of final
bend.
Tap corner of first bend with scrap wood
12.
block to temporarily flatten for final bend (see
Figure 21).
-8-
using this machine.
Figure 21. Typical workpiece ready for final
bend.
Model T32714 (Mfd. Since 05/21)
Page 9
Place workpiece on breaker bar, under
13.
clamping leaf, so third bend falls outside of
clamping area (see Figure 22).
Tapped Corner
3rd Bend Outside
of Clamping Area
Clamped
Figure 22. Clamping clearance for final bend.
Note: Tapped corner from Step 12 must be
flat enough that workpiece can be clamped in
next step.
Lubrication
When lubricating this machine, first clean the
components. This step is critical because grime
and dust build up on lubricated components,
which makes them hard to move. Simply adding
more lubricant will not result in smooth moving
parts.
Lubricate the pivot points indicated in Figure 24
with a few drops of light machine oil whenever you
notice resistance when bending.
With workpiece secured by clamping leaf, lift
14.
bending levers to perform final bend.
Open clamps and clamping leaf and remove
15.
workpiece.
Tap corner from Step 12 back into place (see
16.
Figure 23).
Figure 23. Typical finished box.
Figure 24. Location of pivot points.
Model T32714 (Mfd. Since 05/21)
-9-
Page 10
1
20

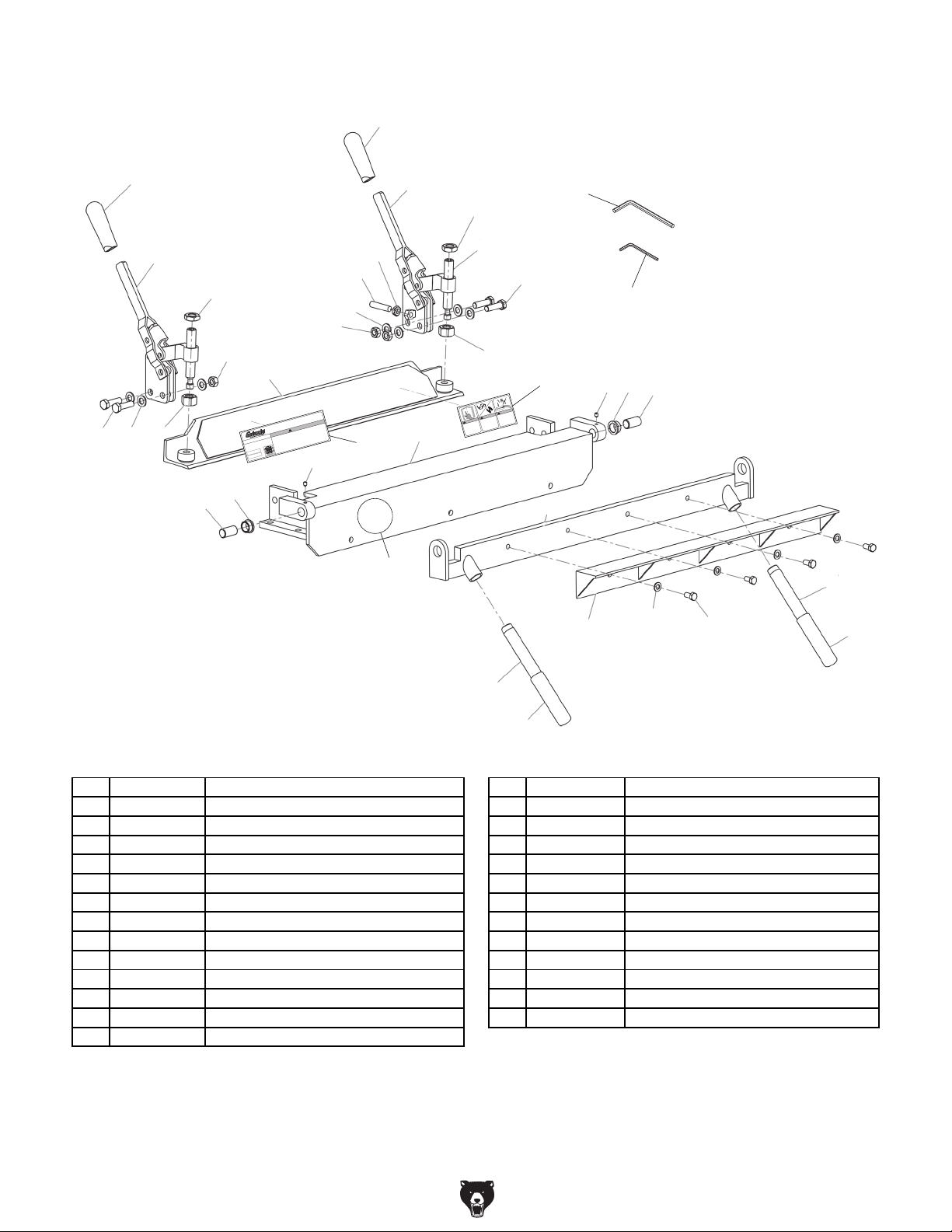

Parts Breakdown & List
REF P ART # DES CRIPTION REF P ART # DES CRIPTION
Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here
are available for purchase. Call (800) 523 - 4777 or visit our online parts store at www.grizzly.com to check for availability.
1
7
23
3
21
11
2
3
6
8
4
24
5
5
10
MODEL T32714
24" BENDING BRAKE
4
9
6
14
13
Specifications
Max. Bending Capacity: 20 Ga. Mild Steel
Max. Workpiece Width: 24"
Bending Range: 0°–135º
Weight: 55 lbs.
Mfd. for Grizzly in China
To reduce the risk of serious injury when using machine:
1. Read and understand owner’s manual before operating.
2. Always wear ANSI-approved eye protection and protective gloves when
handling sheet metal. Chamfer and deburr sharp metal edges.
3. Securely mount machine to stable workbench or stand before use.
4. Do not exceed rated capacity or bend material machine is not intended to bend.
5. Do not use breaker bar to gain leverage.
6. Keep hands/fingers clear of clamping area when operating.
Date
7. Do not operate under influence of drugs, alcohol or when tired.
8. Prevent unauthorized use by children or untrained users.
S/N
WARNING!
12
25
15
27
WARNING!
To reduce risk of death
or serious injury, read
manual BEFORE using
machine.
To get a new manual,
call (800) 523-4777 or
go to www.grizzly.com.
WARNING!
INJURY HAZARD!
Always wear safety
glasses and
protective gloves
when using.
9
26
WARNING!
PINCH HAZARD!
Keep hands away
EYE/HAND
from clamp area
when clamping or
bending.
12
14
13
16
17
18
22
19
20
17
1 PT32714001 CLAMP HANDLE GRIP 15 PT32714015 BODY
2 PT32714002 SET SCREW M10-1. 5 X 50 CONE-PT 16 PT32714016 BREAKER BAR
3 PT32714003 HEX NUT M16-2 THI N 17 PT32714017 BENDING LEVER
4 PT32714004 HEX BOLT M10-1.5 X 35 18 PT32714018 BENDING LEAF
5 PT32714005 HEX NUT M10-1. 5 19 PT32714019 HEX BOLT M8-1.25 X 16
6 PT32714006 FLAT WASHER 10MM 20 PT32714020 LEVER HANDLE GRI P
7 PT32714007 CLAMP (R) 21 PT32714021 CLAMP (L)
8 PT32714008 CLAMP STUD M16-2 X 90 22 PT32714022 FLAT WASHER 8MM
9 PT32714009 HEX NUT M16-2 23 PT32714023 HEX WRENCH 8MM
10 PT32714010 CLAMPING LEAF 24 PT32714024 HEX WRENCH 5MM
11 PT32714011 HE X NUT M10 -1.5 THIN 25 PT32714025 MACHINE ID LABEL
12 PT32714012 SET SCREW M6-1 X 8 26 PT32714026 COMBO WARNI NG LABEL
13 PT32714013 PI VOT PIN 27 PT32714027 TOUCH-UP PAI NT, GRI ZZLY GREEN
14 PT32714014 B USHI NG
-10 -
Model T32714 (Mfd. Since 05/21)
Page 11
WARRANTY & RETURNS
Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from
the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse,
negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty
and any and all warranties that may be implied by law, including any merchantability or fitness, for any particular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent
that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants.
In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and
any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.
We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special,
or consequential damages arising from the use of our products.
The manufacturers reserve the right to change specifications at any time because they constantly strive to
achieve better quality equipment. We make every effort to ensure that our products meet high quality and
durability standards and we hope you never need to use this warranty.
In the event you need to use this warranty, contact us by mail or phone and give us all the details. We will
then issue you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of
the carton. We will not accept any item back without this number. Proof of purchase must accompany the
merchandise.
Please feel free to write or call us if you have any questions about the machine or the manual.
Thank you again for your business and continued support. We hope to serve you again soon.
To
you can
applicable information for
take advantage of this warranty, you must register it at https://www.grizzly.com/forms/warranty, or
scan the QR code below to be automatically directed to our warranty registration page. Enter all
the product.
WARRANTY
Page 12
Loading...
