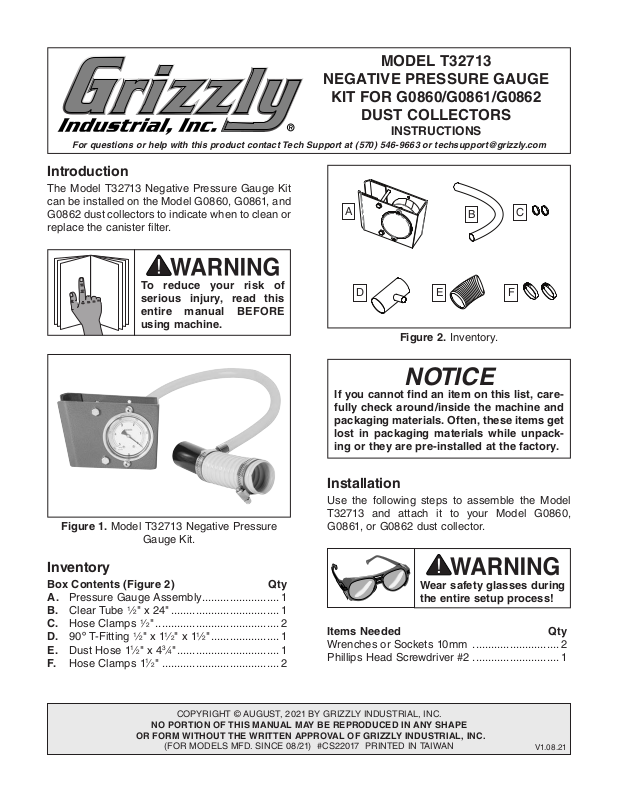

Grizzly T32713 User guide

MODEL T32713

To reduce your risk of
serious injury, read this
entire manual BEFORE

NEGATIVE PRESSURE GAUGE

KIT FOR G0860/G0861/G0862

DUST COLLECTORS

INSTRUCTIONS

For questions or help with this product contact Tech Support at [phone] or [e-mail]

Introduction

The Model T32713 Negative Pressure Gauge Kit
can be installed on the Model G0860, G0861, and
G0862 dust collectors to indicate when to clean or
replace the canister filter.

using machine.

A

D E F

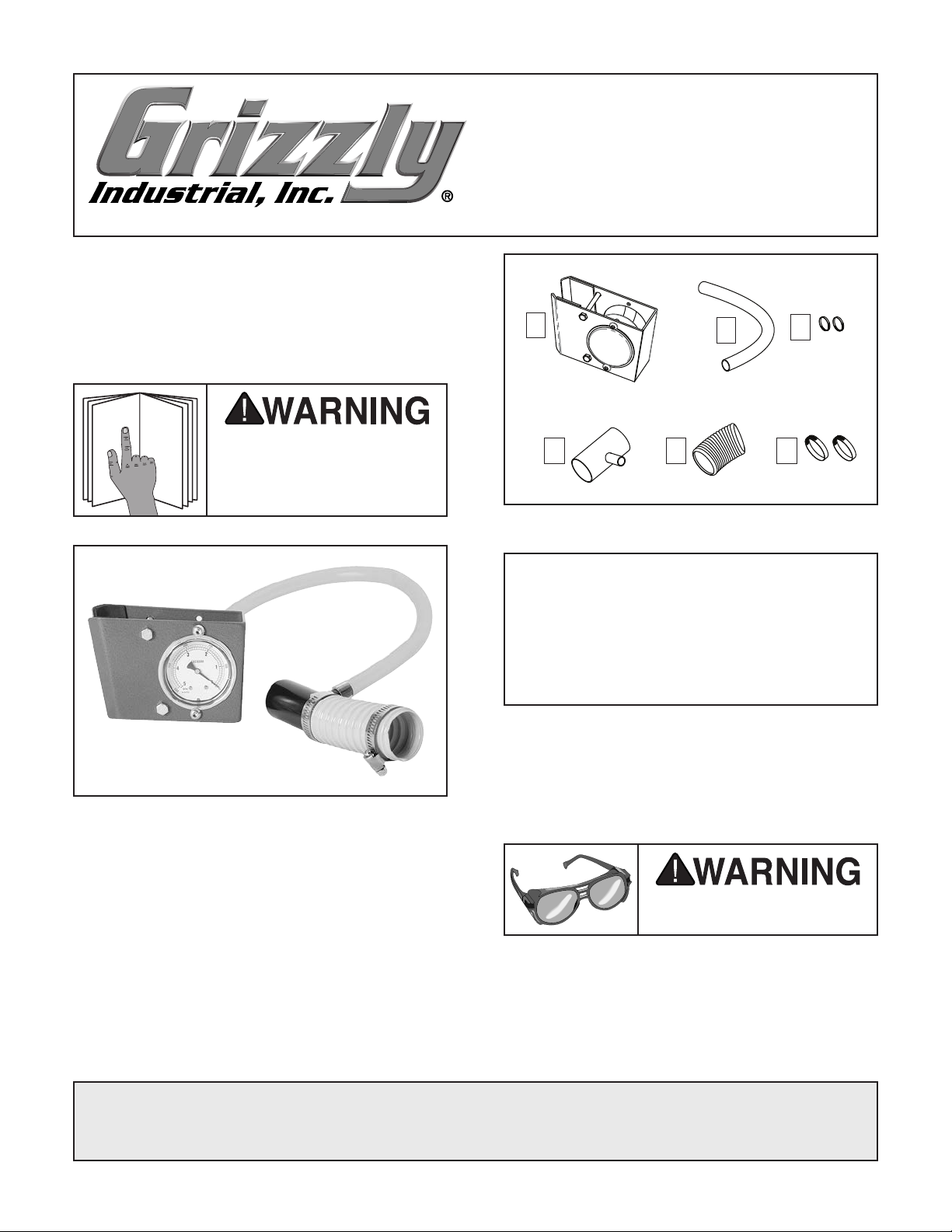

Figure 2. Inventory.

B

C

Figure 1. Model T32713 Negative Pressure

Gauge Kit.

Inventory

Box Contents (Figure 2) Qty

A. Pressure Gauge Assembly ......................... 1

Clear Tube 1⁄2 " x 24" ................................... 1

B.

Hose Clamps 1⁄2 " ........................................ 2

C.

90º T-Fitting 1⁄2 " x 11⁄2 " x 11⁄2 " ...................... 1

D.

Dust Hose 11⁄2 " x 43⁄4" ................................. 1

E.

Hose Clamps 11⁄2 " ...................................... 2

F.

NOTICE

If you cannot find an item on this list, care­fully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpack­ing or they are pre-installed at the factory.

Installation

Use the following steps to assemble the Model
T32713 and attach it to your Model G0860,
G0861, or G0862 dust collector.

Wear safety glasses during
the entire setup process!

Items Needed Qty

Wrenches or Sockets 10mm ............................ 2

Phillips Head Screwdriver #2

............................ 1

COPYRIGHT © AUGUST, 2021 BY GRIZZLY INDUSTRIAL, INC.

NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

(FOR MODELS MFD. SINCE 08/21) #CS22017 PRINTED IN TAIWAN

V1.0 8.21

To install negative pressure gauge:

DISCONNECT DUST COLLECTOR FROM

1.

POWER!

Place (2) 1⁄2 " hose clamps around clear tube,

2.

then slide one end of tube over port on back
of pressure gauge (see Figure 3).

Pressure Gauge

Hose Clamp

Assembly

Place (2) 11⁄2 " hose clamps around dust

4.

hose, then slide one end of hose over (1) 1
port on T-fitting (see Figure 5).

Dust Hose

T-Fitting

Hose Clamp

1

⁄2 "

Clear Tube

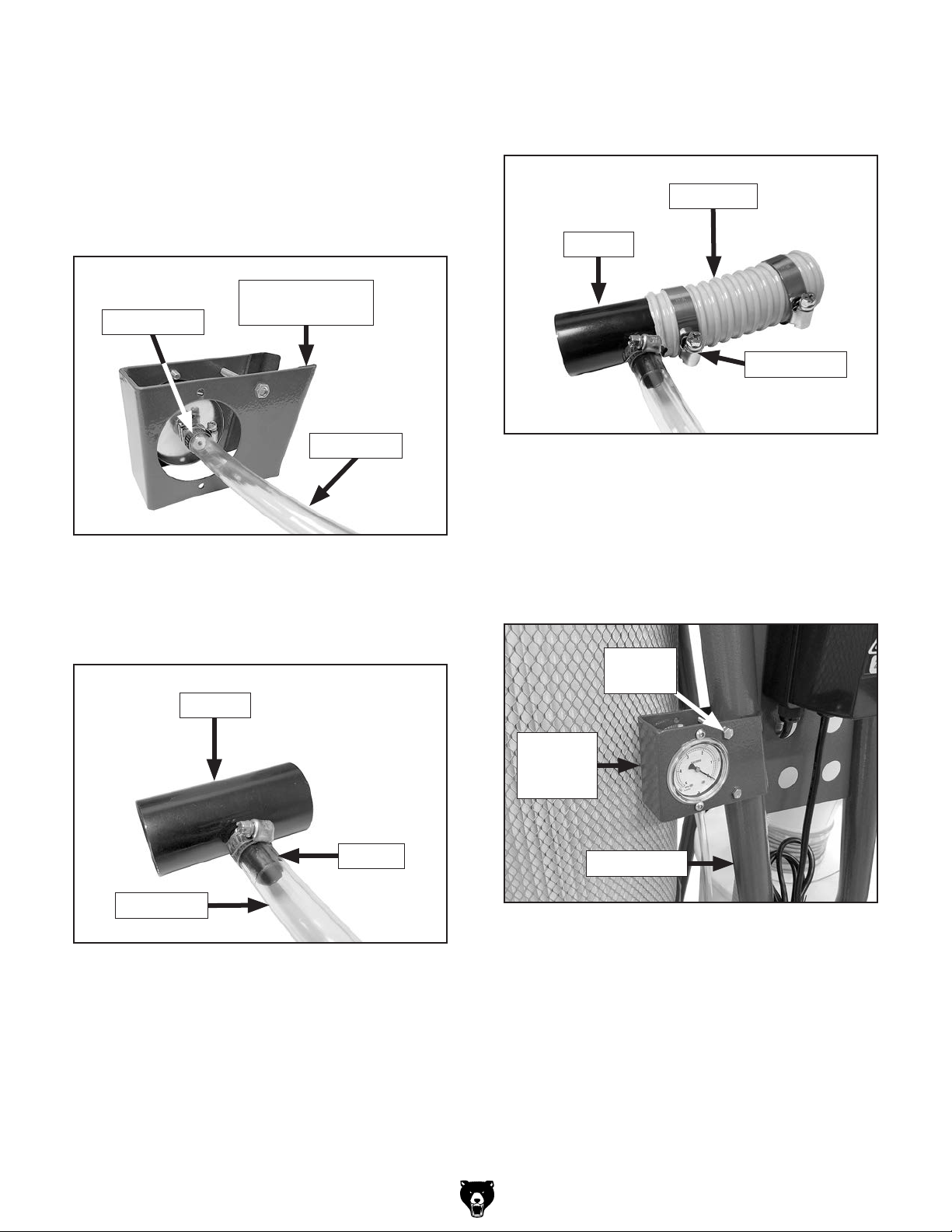

Figure 3. Clear tube placed over pressure gauge

port.

Slide other end of clear tube over 1⁄2 " port on

3.

T-fitting (see Figure 4).

T-Fitting

1

⁄2 " Port

Figure 5. Dust hose placed over T-fitting port.

Remove (2) flange nuts from hex bolts on

5.

pressure gauge assembly (see Figure 6).

Spread jaws of pressure gauge mount just

6.

enough to slide mount over support leg near
magnetic switch, as shown in Figure 6.

Hex Bolt

(1 of 2)

Pressure

Gauge

Mount

Support Leg

Clear Tube

Figure 4. Clear tube placed over T-fitting port.

-2-

Figure 6. Pressure gauge mount placed on

support leg (G0861 shown).

Note: Position of pressure gauge mount

on support leg will differ from machine to
machine. Place mount near port on intake
barrel where pressure gauge will be visible
during operations.

Model T32713 (Mfd. Since 08/21)

7. Loosen hose clamp securing vacuum hose to
intake barrel port and remove hose from port
(see Figure 7).

Intake Barrel

Port

Vacuum

Hose

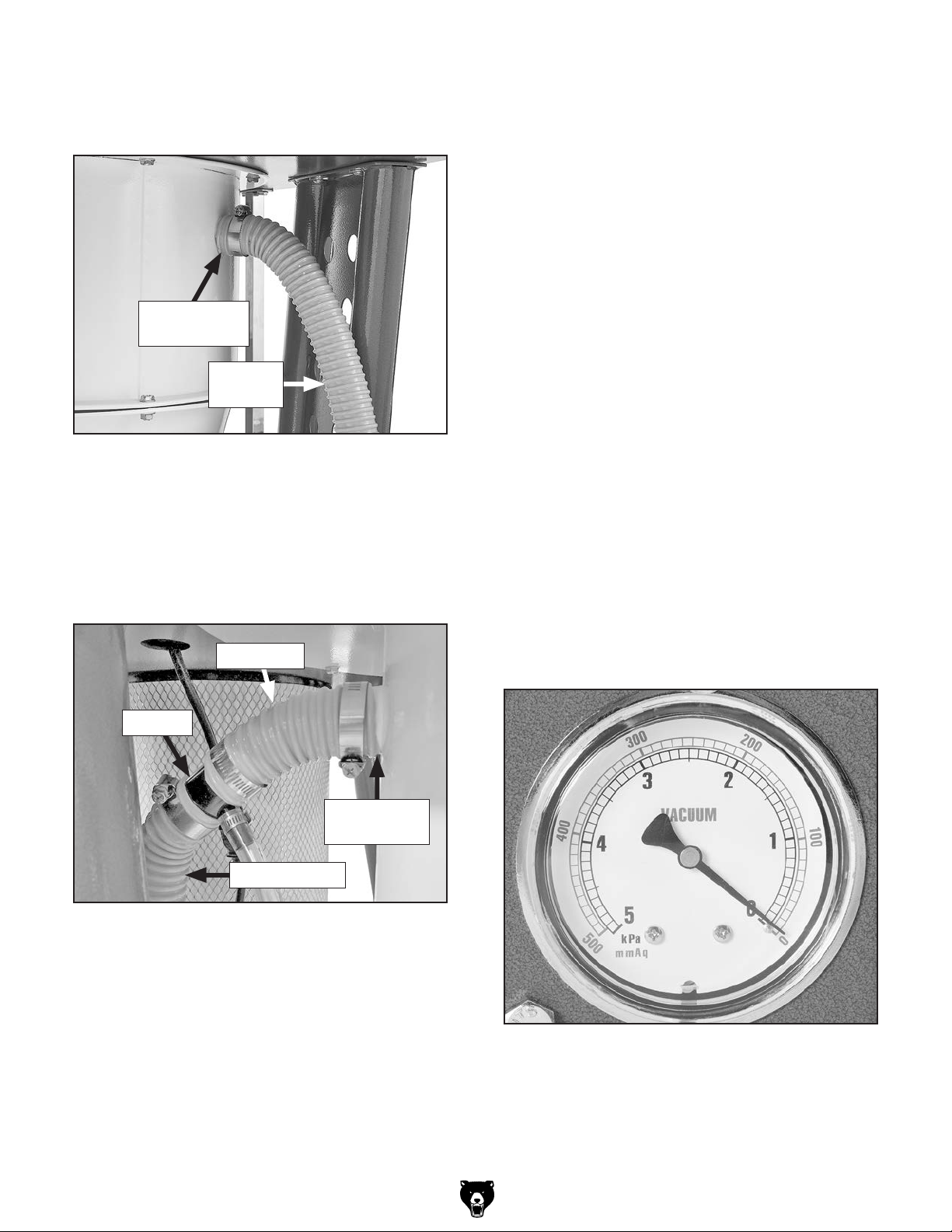

Figure 7. Vacuum hose attached to intake barrel

port.

8.

Slide other end of dust hose from Step 4 over

intake barrel port (see Figure 8).

Slide vacuum hose over other port on T-fitting

9.

(see Figure 8).

Dust Hose

Cover intake dust ports and turn dust collec-

13.

tor ON. Pressure gauge should indicate at
least 200mmAq or 2kPa.

— If gauge indicates at least 200mmAq or

2kPa, negative pressure kit has been
installed correctly and filter is operating
efficiently.

— If gauge indicates less than 200mmAq

or 2kPa, confirm all hose and tube con­nections are tight and there are no kinks
that disrupt air flow. If gauge still indicates
less than 200mmAq, refer to Reading
Pressure Gauge to service filter as
required.

Reading Pressure Gauge

The Model G0860, G0861, and G0862 use a
handle and internal paddles to remove the dust
buildup from the filter. The negative pressure
gauge will help determine when a more thorough
cleaning is needed and whether the filter should
be replaced.

If the operating pressure on the pressure gauge
drops below 200mmAq or 2kPa (see Figure 9),
remove and clean the filter, as described in the
Owner's Manual.

T-Fitting

Intake Barrel

Port

Vacuum Hose

Figure 8. Dust hose placed over intake barrel

port and vacuum hose over T-fitting port.

10.

Adjust and orient hoses and clear tube as

needed to eliminate any kinks, then tighten
all (5) hose clamps to secure connections.

Slide pressure gauge mount to position where

11.

it is easy to read, and secure in place with (2)
flange nuts removed in Step 5.

Connect dust collector to power.

12.

Figure 9. Pressure gauge values.

If the operating pressure drops below 150mmAq
or 1.5kPa, and cleaning does not improve perfor­mance, replace the filter.

Model T32713 (Mfd. Since 08/21)

-3-

8

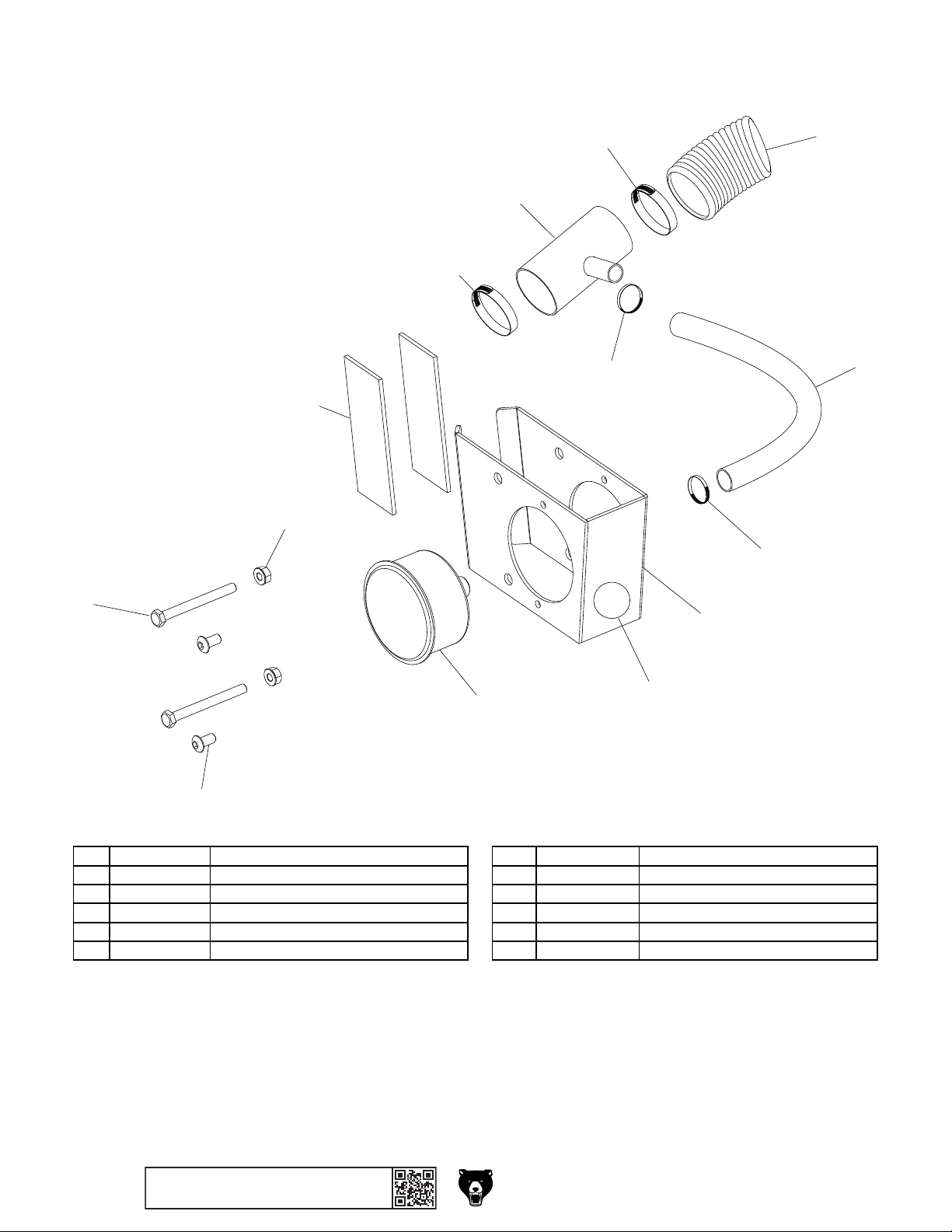

T32713 Parts Breakdown & List

REF P ART # DES CRIP TION REF PART # DES CRIP TION

Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here
are available for purchase. Call [phone] or visit our online parts store at www.grizzly.com to check for availability.

9

10

2

9

5

7

11

6

5

4

1

3

1 PT32713001 PRESSURE GAUGE MOUNT 7 PT32713007 CLEAR TUBE 1/2" X 24"
2 PT32713002 T-FITTI NG 90-DEG 1/ 2" X 1-1/2" X 1-1/2" 8 PT32713008 BUTTON HD CAP SCR 1/ 4-20 X 1/2
3 PT32713003 NEGATIVE PRESSURE GAUGE 9 PT32713009 HOSE CLAMP 1-1/2"
4 PT32713004 HEX BOLT 1/4-20 X 2-1/2 10 PT32713010 DUST HOSE 1-1/2" X 4-3/4"
5 PT32713005 HOSE CLAMP 1/2" 11 PT32713011 FOAM 35 X 95 X 3MM
6 PT32713006 FLANGE NUT 1/4-20 12 PT32713012 TOUCH-UP PA I NT, GRIZZLY GRE EN

12

-4-

BUY PARTS ONLINE AT GRIZZLY.CO M!

Scan QR code to visit our Parts Store.

Model T32713 (Mfd. Since 08/21)
