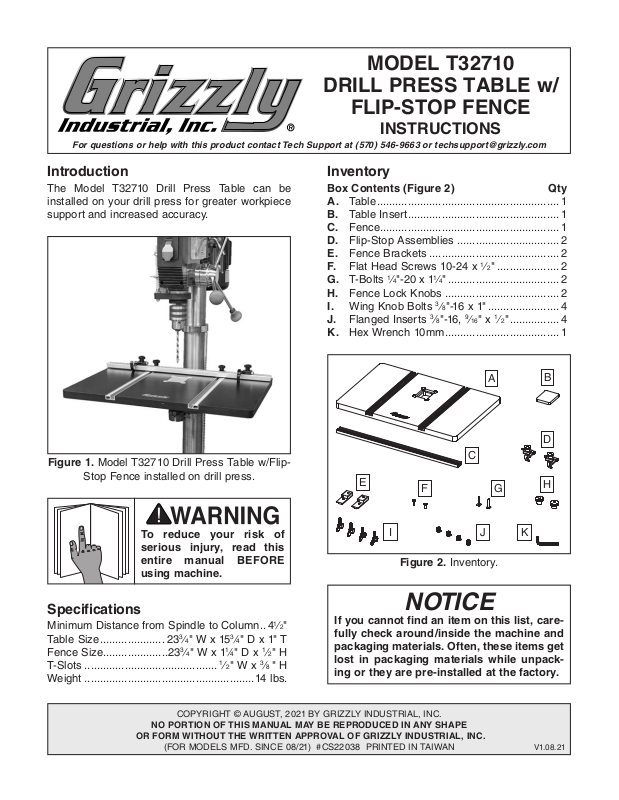

Grizzly T32710 User guide

MODEL T32710

To reduce your risk of
serious injury, read this
entire manual BEFORE

DRILL PRESS TABLE w/

FLIP-STOP FENCE

INSTRUCTIONS

For questions or help with this product contact Tech Support at [phone] or [e-mail]

Introduction

The Model T32710 Drill Press Table can be
installed on your drill press for greater workpiece
support and increased accuracy.

Figure 1. Model T32710 Drill Press Table w/Flip-

Stop Fence installed on drill press.

Inventory

Box Contents (Figure 2) Qty

A. Table ........................................................... 1

Table Insert ................................................. 1

B.

Fence.......................................................... 1

C.

Flip-Stop Assemblies ................................. 2

D.

Fence Brackets .......................................... 2

E.

Flat Head Screws 10-24 x 1⁄2 " .................... 2

F.

T-Bol t s

G.

Fence Lock Knobs ..................................... 2

H.

Wing Knob Bolts

I.

Flanged Inserts

J.

Hex Wrench 10mm ..................................... 1

K.

1

⁄4"-20 x 11⁄4" .................................... 2

3

⁄8"-16 x 1" ....................... 4

3

⁄8"-16, 9⁄16" x 1⁄2 " ................ 4

A

C

E

F

G

B

D

H

using machine.

Specifications

Minimum Distance from Spindle to Column . . 41⁄2 "
Table Size
Fence Size
T-Slots
Weight

..................... 233⁄4" W x 153⁄4" D x 1" T

.....................233⁄4" W x 11⁄4" D x 1⁄2 " H

...........................................1⁄2 " W x 3⁄8 " H

.......................................................14 lbs.

COPYRIGHT © AUGUST, 2021 BY GRIZZLY INDUSTRIAL, INC.

NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

(FOR MODELS MFD. SINCE 08/21) #CS22038 PRINTED IN TAIWAN

I

Figure 2. Inventory.

J K

NOTICE

If you cannot find an item on this list, care­fully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpack­ing or they are pre-installed at the factory.

V1.0 8.21

Through-Slot Installation

Use the following steps to install the Model
T32710 on your through-slot drill press table like
the one shown in Figure 3.

Figure 3. Example of through-slot drill press

table.

Remove table insert, flip-stops, and fence

3.

from Model T32710 table and place table
upside down on workbench or table (see

Figure 4).

Figure 4. Model T32710 table ready for

installation.

4.

Remove drill press table from drill press and

place it facedown on top of Model T32710
table.

Wear safety glasses during
the entire setup process!

Items Needed Qty

File/Deburring Tool ............................................ 1

Drill Press
Cleaner/Degreaser
Shop Rags
Pencil
Drill Bit

.......................................................... 1

............................ As Needed

......................................... As Needed

................................................................. 1

1

⁄2 " ......................................................... 1

To install on through-slot table:

DISCONNECT MACHINE FROM POWER!

1.

2. File down any nicks or burrs in drill press

table and clean surface.

Line up center of drill press table with cen-

5.

ter of Model T32710 table insert hole (see
Figure 5).

Drill Press

Table

Table Insert

Hole

Figure 5. Drill press table centered on Model

T32710 table.

-2-

Model T32710 (Mfd. Since 08/21)

6. Check if any pre-installed inserts in Model
T32710 are visible through slots in drill press
table (see Figure 6). A circular drill press
table may need to be rotated.

Pre-Installed Inserts

Drill Press
Table Slot

Figure 6. Model T32710 inserts viewed through

drill press table slots.

To reduce risk of eye or face injury from
flying chips, always wear approved safety
glasses and a face shield when operating a
drill press or drill.

Drill (4) 1⁄2 " diameter, 1⁄2 " deep holes at loca-

8.

tions marked in Step 7.

Install (4) 3⁄8"-16, 9⁄16" x 1⁄2 " flanged inserts in

9.

holes so they are flush with table surface (see

Figure 8).

— If at least (2) inserts are visible through

drill press table holes when tables are

3

centered, install

⁄8"-16 x 1" knob bolts in
all visible inserts to secure Model T32710
table to drill press table (see Figure 7). If
desired, use Steps 7–10 to install addi-
tional inserts for added stability, otherwise
proceed to Step 11.

Knob Bolt

Drill Press

Table

T32710 Table

Flanged

Insert

Mounting

Hole

Figure 8. Flanged inserts installed in mounting

holes.

10.

Use (4) 3⁄8"-16 x 1" knob bolts to secure

Model T32710 table to drill press table (see
Figure 7).

Install drill press table on drill press.

11.

Figure 7. Model T32710 table secured to drill

press table with knob bolts.

— If at least (2) inserts are not visible through

drill press table slots when tables are cen­tered, proceed to Step 7.

Mark (4) mounting locations through drill

7.

press table slots. Marks should not interfere
with pre-installed inserts or table insert hole.

Model T32710 (Mfd. Since 08/21)

-3-

T-Slot Installation

Use the following steps to install the Model
T32710 on a T-slot drill press table like the ones
shown in Figure 9.

2. File down any nicks or burrs in drill press
table and clean surface.

Adjust drill press table so it is centered under

3.

headstock.

Remove table insert, flip-stops, and fence

4.
from Model T32710 table (see Figure 10).

Figure 10. Model T32710 table ready for

installation.

Figure 9. Examples of T-slot drill press tables.

Because T-slots vary in size, you will need to
obtain (4) T-nuts that fit your drill press table
T-slots and (4) matching bolts that are 1" long.

Wear safety glasses during
the entire setup process!

Items Needed Qty

File/Deburring Tool ............................................ 1

Drill Press
Cleaner/Degreaser
Shop Rags
Plywood 23
Pencil
Drill Bits
T-Nut s
Mounting Bolts (1" Length)

.......................................................... 1

............................ As Needed

......................................... As Needed

3

⁄4" x 153⁄4" x 3⁄4" ............................... 1

................................................................. 1

9

⁄16", 1⁄2 ", Bits for Countersinking ....1 Ea.

................................................................ 4

................................ 4

Stack Model T32710 table on 233⁄4" x 153⁄4"

5.

3

⁄4" plywood and place both on drill press

x
table.

Install drill bit in drill press and adjust Model

6.

T32710 table and plywood together until bit
aligns with center of table insert hole (see
Figure 11).

Drill Bit

Table Insert

Figure 11. Using drill bit to center Model T32710

table.

To install on T-slot table:

DISCONNECT MACHINE FROM POWER!

1.

-4-

Model T32710 (Mfd. Since 08/21)

7. Remove Model T32710 and use T-slots in
drill press table to mark (4) mounting hole
locations on plywood (see Figure 12).

Plywood

T-Slot

Figure 12. Drill press table mounting holes

marked on plywood.

Marked Mounting Hole

Location (1 of 4)

Note: Drilling these holes is a two-step

process. Drill first holes all the way through
board with a diameter slightly larger than
shaft of mounting screw or bolt. Drill second
holes halfway through board with a diameter
slightly larger than screw head. Drill these
second holes deep enough that screw heads
will be well below surface of board.

Attach plywood to drill press table with (4)

9.

bolts and T-nuts, as shown in Figure 14.

x 4

To reduce risk of eye or face injury from
flying chips, always wear approved safety
glasses and a face shield when operating a
drill press or drill.

Drill countersunk mounting holes at locations

8.

marked in Step 7 (see Figure 13).

Drill Press

Table

Figure 14. Plywood attached to drill press table.

10.

Remove drill press table from drill press and

place it facedown on plywood on workbench
or table (see Figure 15).

Mark and drill (4) 9⁄16" mounting holes through

11.

plywood around edges of drill press table
(see Figure 15).

Drill Press

Plywood

Plywood

Table

Figure 13. Countersunk mounting holes drilled in

plywood.

Model T32710 (Mfd. Since 08/21)

Figure 15. Model T32710 table mounting hole

locations on plywood.

-5-

12. Place Model T32710 table upside down and
under plywood.

Line up edges of plywood with Model T32710

13.

table and use holes drilled in Step 11 to mark

1

and drill

⁄2 " diameter, 1⁄2 " deep mounting

holes in Model T32710 table (see Figure 16).

Plywood

Use (4) 3⁄8"-16 x 1" knob bolts to secure Model

15.

T32710 table to plywood (see Figure 18).

Knob Bolts

Plywood

T32710 Table

Model T32710

Table

Figure 16. Model T32710 table mounting hole

locations.

14.

Install (4) 3⁄8"-16, 9⁄16" x 1⁄2 " flanged inserts in

holes so they are flush with table surface (see
Figure 17).

Flanged

Insert

Mounting

Hole

Figure 18. Model T32710 table secured to

plywood with knob bolts.

Install drill press table on drill press.

16.

Installing Fence

1. Insert (1) 1⁄4"-20 x 11⁄4" T-bolt through hole in

each fence bracket and secure with (1) fence
lock knob (see Figure 19).

Secure each fence bracket to fence using (1)

2.

10-24 x 1⁄2 " flat head screw (see Figure 19).

Insert T-bolts into T-slots on table (see

3.
Figure 19).

Fence Lock Knob

Fence

Bracket

x 2

Figure 17. Flanged inserts installed in mounting

holes.

-6-

Fence

Table

T-Bolt

Figure 19. Assembling fence locks on fence.

Model T32710 (Mfd. Since 08/21)

Installing Flip-Stops

1. Loosen flip-stop lock knob and insert flip-stop
T-bolt into T-slot on fence (see Figure 20).

Operation Tips

Pivot flip-stop to side of fence that workpiece

2.

will contact, then adjust flip-stop position
along fence (see Figure 20).

Flip-Stop

Lock Knob

Flip-Stop

Figure 20. Flip-stop adjustment components.

Tighten flip-stop lock knob to secure.

3.

T-Slot

To reduce risk of eye or face injury from
flying chips, always wear approved safety
glasses and a face shield when operating a
drill press.

• Periodically verify that the knob bolts used to
attach the Model T32710 to the drill press table
are snug.

• To avoid drilling in the table, make sure that the
drill press depth stop and drill bit alignment are
correct.

• Use the table only in dry environments.

• Wipe down workpieces to ensure they are free
of debris that may scratch the table.

Adjusting Fence

1. Loosen (2) fence lock knobs shown in
Figure 21.

Fence

Lock Knobs

Figure 21. Location of fence lock knobs.

2. Adjust fence to desired position, then tighten

fence lock knobs to secure.

• The table insert can be removed from the table
if you need to perform a through-drilling opera­tion, but it will also minimize tear-out if left in
place.

Maintenance

• To avoid condensation and rust forming on
your drill press table, do not leave the Model
T32710 mounted on the drill press table for
long periods of time.

• Clean the Model T32710 by vacuuming out
T-slots when finished and wiping down table
and fence with any good household glass
cleaner.

Model T32710 (Mfd. Since 08/21)

-7-

T32710 Parts Breakdown & List

REF PART # DES CRIPTION REF PART # DE SCRIP TI ON

Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here

(8 00) 523 - 4777

www.grizzly.com

12

9

8

2

6

3

10

5

7

13

14

1

4

18

16

17

1 PT32710001 T-BOLT 1/4-20 X 1-1/4 10 PT32710010 FENCE BRACKET
2 PT32710002 KNOB 1/4-20, 8-LOBE, D1-1/2 11 PT32710011 TABLE
3 PT32710003 FLIP-STOP BRACKET 12 PT32710012 T-TRACK 400MM
4 PT32710004 FLIP-STOP 13 PT32710013 TABLE I NSERT
5 PT32710005 CAP SCREW M6-1 X 50 14 PT32710014 TABLE SCALE
6 PT32710006 LOCK NUT M6-1 16 PT32710016 FLANGED TAP INSERT 3/8-16, 9/16 X 1/2
7 PT32710007 FLAT HD SCR 10-24 X 1/2 17 PT32710017 KNOB BOLT 3/8-16 X 1, D1, WING
8 PT32710008 T-TRACK 6 04MM 18 PT32710018 HEX WRENCH 1 0MM
9 PT32710009 FENCE SCALE

are available for purchase. Call

or visit our online parts store at

11

to check for availability.

-8-

BUY PARTS ONLINE AT GRIZZLY.C OM !

Scan QR code to visit our Parts Store.

Model T32710 (Mfd. Since 08/21)
