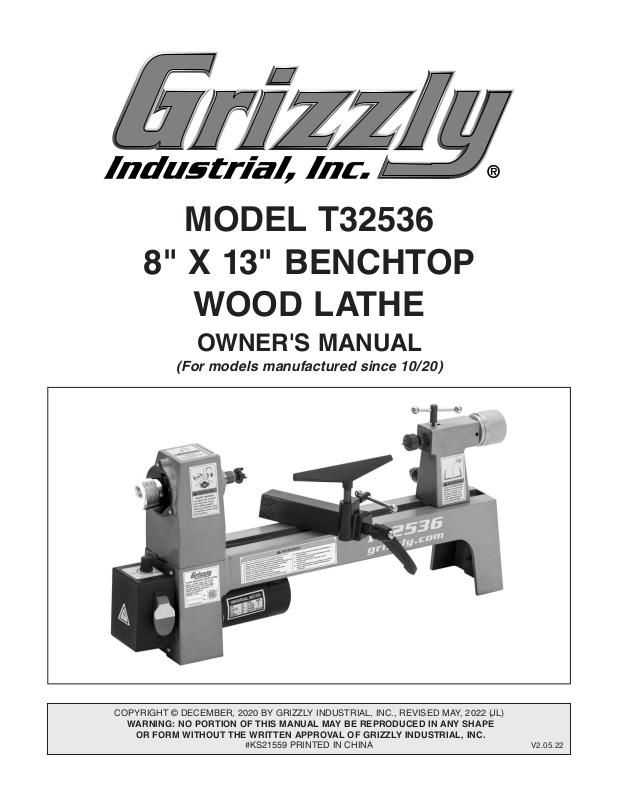

Grizzly T32536 User guide

MODEL T32536

8" X 13" BENCHTOP

WOOD LATHE

OWNER'S MANUAL

(For models manufactured since 10/20)

COPYRIGHT © DECEMBER, 2020 BY GRIZZLY INDUSTRIAL, INC., REVISED MAY, 2022 (JL)

WARNING : NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#KS21559 PRINTED IN CHINA

V2.05.22

This manual provides critical safety instructions on the proper setup,
operation, maintenance, and service of this machine/tool. Save this
document, refer to it often, and use it to instruct other operators.

Failure to read, understand and follow the instructions in this manual
may result in fire or serious personal injury—including amputation,
electrocution, or death.

The owner of this machine/tool is solely responsible for its safe use.
This responsibility includes but is not limited to proper installation in
a safe environment, personnel training and usage authorization,
proper inspection and maintenance, manual availability and compre­hension, application of safety devices, cutting/sanding/grinding tool
integrity, and the usage of personal protective equipment.

The manufacturer will not be held liable for injury or property damage
from negligence, improper training, machine modifications or misuse.

Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State
of California to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
Work in a well ventilated area, and work with approved safety equip­ment, such as those dust masks that are specially designed to filter
out microscopic particles.

Table of Contents

INTRODUCTION ............................................... 2

Contact Info.................................................... 2

Manual Accuracy
Identification
Controls & Components
Glossary of Terms
Machine Data Sheet

SECTION 1: SAFETY

Safety Instructions for Machinery
Additional Safety for Wood Lathes

SECTION 2: POWER SUPPLY

SECTION 3: SETUP

Unpacking
Needed for Setup
Inventory
Cleanup
Site Considerations
Bench Mounting
Assembly
Test Run

SECTION 4: OPERATIONS

Operation Overview

Workpiece Inspection................................... 18

Adjusting Tailstock
Adjusting Tool Rest
Installing/Removing Headstock Center
Installing/Removing Tailstock Center
Installing/Removing Faceplate
Adjusting Spindle Speed
Spindle Turning
Faceplate Turning
Sanding/Finishing
Selecting Turning Tools

.................................................... 13

...................................................... 13

........................................................ 14

..................................................... 15

...................................................... 16

........................................... 2

................................................... 3

................................. 4

......................................... 5

...................................... 6

....................................... 8

.................. 8

.............. 10

...................... 11

....................................... 13

......................................... 13

...................................... 14

........................................... 15

........................... 17

..................................... 17

....................................... 18

...................................... 19

........ 20

.......... 21

..................... 22

.............................. 23

............................................ 24

........................................ 26

........................................ 27

............................... 28

SECTION 5: ACCESSORIES

SECTION 6: MAINTENANCE

Schedule
Cleaning & Protecting
Lubrication

SECTION 7: SERVICE

Troubleshooting

Tensioning & Replacing Belt........................ 34

Aligning Pulleys............................................ 35

Replacing Fuse
Replacing Brushes

SECTION 8: WIRING

Wiring Safety Instructions
Wiring Diagram

SECTION 9: PARTS

Main

WARRANTY & RETURNS

...................................................... 31

................................................... 31

................................... 32

........................................... 32

............................................ 36

....................................... 36

...................................... 37

............................................ 38

....................................... 39

............................................................. 39

......................... 29

......................... 31

.................................. 31

............................ 37

............................. 41

We stand behind our machines! If you have ques­tions or need help, contact us with the information
below. Before contacting, make sure you get the

serial number

machine ID label. This will help us help you faster.

We want your feedback on this manual. What did
you like about it? Where could it be improved?
Please take a few minutes to give us feedback.

Email: [e-mail]

We are proud to provide a high-quality owner’s
manual with your new machine!

We

instruc­tions, specifications, drawings, and photographs
in this manual. Sometimes we make mistakes, but
our policy of continuous improvement also means
that

you receive is

slightly different than shown in the manual

If you find this to be the case, and the difference
between the manual and machine leaves you
confused or unsure about something

check our

website for an updated version. W

current

manuals and

on our web-

site at

Alternatively, you can call our Technical Support
for help. Before calling, make sure you write
down the

serial number
from the machine ID label (see below). This
information is required for us to provide proper
tech support, and it helps us determine if updated
documentation is available for your machine.

INTRODUCTION

Contact Info

and manufacture date from the

Grizzly Technical Support

1815 W. Battlefield
Springfield, MO 65807
Phone: [phone]

Email: [e-mail]

Grizzly Documentation Manager

P.O. Box 2069

Bellingham, WA 98227-2069

Manual Accuracy

made every effort to be exact with the

sometimes the machine

.

,

e post

manual updates for free

www.grizzly.com.

manufacture date and

Manufacture Date

Serial Number

-2-

Model T32536 (Mfd. Since 10/20)

Identification

Become familiar with the names and locations of the controls and features shown below to better understand
the instructions in this manual.

Quill

Tool RestSpindle

Headstock

Tool Rest

Base

Spindle

Adjustment

Knob

Spindle

Speed Dial

Quill

Lock Handle

Quill

Adjustment Knob

Tailstock

Lock Lever

Tool Rest

Lock Handle

Bed

Motor

ON/OFF Paddle Switch

w/Disabling Key

For Your Own Safety Read Instruction Manual Before
Operating Lathe

a) Wear eye protection.
b) DO NOT wear gloves, necktie, or loose clothing.
c) Tighten all locks before operating.
d) Rotate workpiece by hand before applying power.
e) Rough out workpiece before installing on faceplate.
f) DO NOT mount split workpiece or one containing knot.
g) Use lowest speed when starting new workpiece.

Tool Rest Base

Lock Lever

Model T32536 (Mfd. Since 10/20)

-3-

To reduce your risk of
serious injury, read this
entire manual BEFORE

Controls &

Components

using machine.

Refer to Figures 1–3 and the following descrip-
tions to become familiar with the basic controls of
this machine.

A

B

E

D

Figure 2. Tailstock components.

Quill Adjustment Knob: Moves quill toward

D.

or away from spindle.

Quill Lock Handle: Secures quill in position.

E.

Quill: Holds centers or tooling. Can be

F.

moved toward and away from spindle.

Tailstock Lock Lever: Secures tailstock in

G.

position along bed.

F

G

C

Figure 1. Headstock components.

Spindle Adjustment Knob: Allows hand

A.

rotation of spindle to check clearances before
powering up lathe.

Spindle Speed Dial: Controls spindle speed.

B.

Always turn dial to lowest setting before start­ing lathe.

ON/OFF Paddle Switch w/Disabling Key:

C.

Turns lathe motor ON and OFF. Remove
yellow disabling key to prevent unauthorized
operation of machine.

H

I

J

Figure 3. Tool rest controls.

H. Tool Rest: Provides stable platform for cut-

ting tools.

Tool Rest Lock Handle: Secures tool rest in

I.

position.

Tool Rest Base (Banjo) Lock Lever:

J.

Secures tool rest base in position along bed.

-4-

Model T32536 (Mfd. Since 10/20)

Glossary of Terms

The following is a list of common definitions, terms and phrases used throughout this manual as they relate
to this lathe and woodworking in general. Become familiar with these terms for assembling, adjusting or
operating this machine. Your safety is VERY important to us at Grizzly!

Bed: The long, rail-like metal base to which

the tailstock, tool base, and headstock are
attached.

Chuck: A mechanical device that attaches to the

spindle and holds the workpiece.

Faceplate: The metal disc that threads onto the

headstock spindle.

Faceplate Turning: Turning situation in which

the grain of the turning stock is at right angles
to the lathe bed axis.

Backing Block: A sacrificial piece of wood glued

to the base of the workpiece and screwed to
the faceplate. Often used to prevent mount­ing marks from appearing on the completed
workpiece.

Headstock: The cast metal box to which the

motor is attached and contains the spindle,
bearings, belts, and electrical components for
operating the lathe.

Offset Turning: A turning situation where the

center of the workpiece is offset at various
stages of the work to produce different shapes.

Outboard Turning: Turning of workpiece with

the headstock situated at the far end of the
lathe so the work done is not over the bed of
the lathe.

Roughing Out: Taking stock from square billet

to round blank.

Spindle: This term has two meanings. First, it

refers to the threaded shaft in the headstock
to which the faceplate is attached. Second, it
refers to any work that is spindle-turned.

Spindle-Turning: Work performed where the

grain and length of the workpiece are parallel
to the axis of the bed.

Swing: The capacity of the lathe, measured

by doubling the distance from the bed to the
spindle center.

Tailstock: The metal component at the opposite

end of the bed from the headstock containing a
quill and live or dead centers. It maintains pres­sure on the spindle-turned workpiece.

Tool Base: The movable metal fixture attached

to the bed upon which the tool rest is fixed.

Tool Rest: The adjustable metal arm upon which

the tool rests during a turning operation.

Way: One of the metal rails that make up the bed

of the lathe.

Model T32536 (Mfd. Since 10/20)

-5-

Machine Data Sheet

MACHINE DATA

SHEET

Customer Service #: [phone] · To Order Call: [phone] · Fax #: [phone]

MODEL T32536 8" X 13" BENCHTOP WOOD LATHE

Product Dimensions:

Weight................................................................................................................................................................ 41 lbs.

Width (side-to-side) x Depth (front-to-back) x Height..................................................................... 29 x 10-1/2 x 13 in.

Footprint (Length x Width)................................................................................................................. 23-1/2 x 5-1/2 in.

Shipping Dimensions:

Type..................................................................................................................................................... Cardboard Box

Content........................................................................................................................................................... Machine

Weight................................................................................................................................................................ 52 lbs.

Length x Width x Height......................................................................................................................... 30 x 15 x 8 in.

Must Ship Upright................................................................................................................................................... Yes

Electrical:

Power Requirement........................................................................................................... 120V, Single-Phase, 60 Hz

Full-Load Current Rating....................................................................................................................................... 3.2A

Minimum Circuit Size.............................................................................................................................................. 15A

Connection Type....................................................................................................................................... Cord & Plug

Power Cord Included.............................................................................................................................................. Yes

Power Cord Length.............................................................................................................................................. 72 in.

Power Cord Gauge......................................................................................................................................... 18 AWG

Plug Included.......................................................................................................................................................... Yes

Included Plug Type................................................................................................................................................ 5-15

Switch Type.................................................................................................. Paddle Safety Switch w/Removable Key

Motors:

Main

Horsepower............................................................................................................................................. 1/3 HP

Phase............................................................................................................................................ Single-Phase

Amps.............................................................................................................................................................. 4A

Speed................................................................................................................................................ 4600 RPM

Type..................................................................................................................................................... Universal

Power Transfer ............................................................................................................................................ Belt

Bearings..................................................................................................... Shielded & Permanently Lubricated

Main Specifications:

Operation Information

Swing Over Bed........................................................................................................................................... 8 in.

Swing Over Tool Rest Base......................................................................................................................... 5 in.

Distance Between Centers........................................................................................................................ 13 in.

Max. Distance Tool Rest to Spindle Center........................................................................................... 2-3/4 in.

No of Spindle Speeds............................................................................................................................ Variable

Spindle Speed Range.............................................................................................................. 750 - 3200 RPM

Floor to Center Height........................................................................................................................... 9-3/4 in.

-6-

Model T32536 (Mfd. Since 10/20)

Spindle Information

Spindle Taper............................................................................................................................................ MT#1

Spindle Thread Size....................................................................................................................... 3/4" x 16 TPI

Spindle Thread Direction.................................................................................................................. Right Hand

Spindle Bore......................................................................................................................................... 0.394 in.

Type of Included Spindle Center................................................................................................................. Spur

Tool Rest Information

Tool Rest Width............................................................................................................................... 4-1/2 & 7 in.

Tool Rest Post Diameter.......................................................................................................................... 12mm

Tool Rest Post Length........................................................................................................................... 1-3/8 in.

Tool Rest Base Height........................................................................................................................... 2-3/8 in.

Tailstock Information

Tailstock Quill Travel............................................................................................................................. 1-3/8 in.

Tailstock Taper.......................................................................................................................................... MT#1

Type of Included Tailstock Center............................................................................................................... Live

Construction

Bed.......................................................................................................................... Precision-Ground Cast Iron

Frame...................................................................................................................................... Cast Iron & Steel

Headstock............................................................................................................................... Cast Iron & Steel

Tailstock.................................................................................................................................. Cast Iron & Steel

Paint Type/Finish.................................................................................................................................... Enamel

Other Related Information

Bed Width.............................................................................................................................................. 5-1/8 in.

Faceplate Size....................................................................................................................................... 5-3/4 in.

Other Specifications:

Country of Origin ................................................................................................................................................ China

Warranty ........................................................................................................................................................... 1 Year

Approximate Assembly & Setup Time ........................................................................................................ 15 Minutes

Serial Number Location ................................................................................................................... Machine ID Label

ISO 9001 Factory .................................................................................................................................................. Yes

Features:

Paddle Safety Switch w/Removable Key
Variable-Speed Spindle
Precision-Ground Cast Iron Bed
Right Hand Spindle 3/4" x 16 TPI

Accessories Included:

Hex Wrenches 3, 5mm
Open-End Wrench 19/27mm
Open-End Wrenches 24.5, 32mm
(2) Tool Rests: 4-1/2" & 7"
Faceplate 5-3/4"
MT#1 Spur Center
MT#1 Live Center
Knockout Tool

Model T32536 (Mfd. Since 10/20)

-7-

SECTION 1: SAFETY

For Your Own Safety, Read Instruction

Manual Before Operating This Machine

The purpose of safety symbols is to attract your attention to possible hazardous conditions.
This manual uses a series of symbols and signal words intended to convey the level of impor­tance of the safety messages. The progression of symbols is described below. Remember that
safety messages by themselves do not eliminate danger and are not a substitute for proper
accident prevention measures. Always use common sense and good judgment.

Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury. It may also be used to alert
against unsafe practices.

Alerts the user to useful information about proper operation of the

NOTICE

machine to avoid machine damage.

Safety Instructions for Machinery

OWNER’S MANUAL. Read and understand this

owner’s manual BEFORE using machine.

TRAINED OPERATORS ONLY. Untrained oper­ators have a higher risk of being hurt or killed.
Only allow trained/supervised people to use this
machine. When machine is not being used, dis­connect power, remove switch keys, or lock-out
machine to prevent unauthorized use—especially
around children. Make your workshop kid proof!

DANGEROUS ENVIRONMENTS. Do not use
machinery in areas that are wet, cluttered, or have
poor lighting. Operating machinery in these areas
greatly increases the risk of accidents and injury.

MENTAL ALERTNESS REQUIRED. Full mental
alertness is required for safe operation of machin­ery. Never operate under the influence of drugs or
alcohol, when tired, or when distracted.

ELECTRICAL EQUIPMENT INJURY RISKS.
You can be shocked, burned, or killed by touching
live electrical components or improperly grounded
machinery. To reduce this risk, only allow qualified
service personnel to do electrical installation or
repair work, and always disconnect power before
accessing or exposing electrical equipment.

DISCONNECT POWER FIRST.
nect machine from power supply BEFORE mak­ing adjustments, changing tooling, or servicing
machine. This prevents an injury risk from unin­tended startup or contact with live electrical com­ponents.

EYE PROTECTION. Always wear ANSI-approved
safety glasses or a face shield when operating or
observing machinery to reduce the risk of eye
injury or blindness from flying particles. Everyday
eyeglasses are NOT approved safety glasses.

Always discon-

-8-

Model T32536 (Mfd. Since 10/20)

WEARING PROPER APPAREL. Do not wear
clothing, apparel or jewelry that can become
entangled in moving parts. Always tie back or
cover long hair. Wear non-slip footwear to reduce
risk of slipping and losing control or accidentally
contacting cutting tool or moving parts.

HAZARDOUS DUST. Dust created by machinery
operations may cause cancer, birth defects, or
long-term respiratory damage. Be aware of dust
hazards associated with each workpiece mate­rial. Always wear a NIOSH-approved respirator to
reduce your risk.

HEARING PROTECTION. Always wear hear­ing protection when operating or observing loud
machinery. Extended exposure to this noise
without hearing protection can cause permanent
hearing loss.

REMOVE ADJUSTING TOOLS. Tools left on
machinery can become dangerous projectiles
upon startup. Never leave chuck keys, wrenches,
or any other tools on machine. Always verify
removal before starting!

USE CORRECT TOOL FOR THE JOB. Only use
this tool for its intended purpose—do not force
it or an attachment to do a job for which it was
not designed. Never make unapproved modifica­tions—modifying tool or using it differently than
intended may result in malfunction or mechanical
failure that can lead to personal injury or death!

AWKWARD POSITIONS. Keep proper footing
and balance at all times when operating machine.
Do not overreach! Avoid awkward hand positions
that make workpiece control difficult or increase
the risk of accidental injury.

CHILDREN & BYSTANDERS. Keep children and
bystanders at a safe distance from the work area.
Stop using machine if they become a distraction.

GUARDS & COVERS. Guards and covers reduce
accidental contact with moving parts or flying
debris. Make sure they are properly installed,
undamaged, and working correctly BEFORE
operating machine.

FORCING MACHINERY. Do not force machine.
It will do the job safer and better at the rate for
which it was designed.

NEVER STAND ON MACHINE. Serious injury
may occur if machine is tipped or if the cutting
tool is unintentionally contacted.

STABLE MACHINE. Unexpected movement dur­ing operation greatly increases risk of injury or
loss of control. Before starting, verify machine is
stable and mobile base (if used) is locked.

USE RECOMMENDED ACCESSORIES. Consult
this owner’s manual or the manufacturer for rec­ommended accessories. Using improper acces­sories will increase the risk of serious injury.

UNATTENDED OPERATION. To reduce the
risk of accidental injury, turn machine OFF and
ensure all moving parts completely stop before
walking away. Never leave machine running
while unattended.

MAINTAIN WITH CARE. Follow all maintenance
instructions and lubrication schedules to keep
machine in good working condition. A machine
that is improperly maintained could malfunction,
leading to serious personal injury or death.

DAMAGED PARTS. Regularly inspect machine
for damaged, loose, or mis-adjusted parts—or
any condition that could affect safe operation.
Immediately repair/replace BEFORE operating
machine. For your own safety, DO NOT operate
machine with damaged parts!

MAINTAIN POWER CORDS. When disconnect­ing cord-connected machines from power, grab
and pull the plug—NOT the cord. Pulling the cord
may damage the wires inside. Do not handle
cord/plug with wet hands. Avoid cord damage by
keeping it away from heated surfaces, high traffic
areas, harsh chemicals, and wet/damp locations.

EXPERIENCING DIFFICULTIES. If at any time
you experience difficulties performing the intend­ed operation, stop using the machine! Contact our
Technical Support at [phone].

Model T32536 (Mfd. Since 10/20)

-9-

Additional Safety for Wood Lathes

Serious injury or death can occur from getting entangled in, crushed between, or struck
by rotating parts on a lathe! Rotating workpieces can come loose and strike operator or
bystanders with deadly force if they are improperly secured, rotated too fast, or are not strong
enough for the rotational forces required for turning. Improper tool setup or usage can cause
tool kickback or grabbing, resulting in impact injury or entanglement. To reduce the risk of
operator (or bystander) injury or death, anyone operating this machine MUST completely heed
the hazards and warnings below.

VERIFY WORKPIECE INTEGRITY. Verify each

workpiece is free of knots, splits, nails, or foreign
material to ensure it can safely rotate on spindle
without breaking apart or causing tool kickback.

PROPERLY PREPARE WORKPIECE.
Before mounting, cut off waste portions to
balance workpiece for safe rotation and removal
of large edges that can catch on tooling.

SECURE LOCKS. Verify tool rest, headstock,
and tailstock are secure before turning lathe ON.

SECURE WORKPIECE. Use proven setup tech­niques and always verify workpiece (and centers/
tooling holding workpiece) are well-secured before
starting lathe. Only use high-quality fasteners with
non-tapered heads for faceplate attachment.

ADJUST TOOL SUPPORT. An improperly sup­ported tool may be grabbed or ejected. Adjust tool
rest approximately

1

⁄8" above workpiece center line to provide proper
support for turning tool. Firmly hold turning tool
with both hands against tool rest.

1

⁄4" away from workpiece and

WEAR PROPER PPE. Always wear a face shield
and safety glasses when operating lathe. Do not
wear gloves, necktie or loose clothing. Keep long
hair away from rotating spindle.

USE CORRECT SPEEDS. Select correct spindle
speed for workpiece size, type, shape, and
condition. Use low speeds when roughing or when
turning large, long, or non-concentric workpieces.
Allow spindle to reach full speed before turning.

AVOID TOOL KICKBACK. This occurs when
turning tool is grabbed or ejected from workpiece
with great force. Commonly caused by poor
workpiece selection/preparation, improper tool
usage, or improper machine setup or tool rest
adjustment.

SAFELY PERFORM ROUGHING. Use correct
tool. Take light cuts, use low speeds, and firmly
support tool with both hands.

USE SHARP TOOLS. Sharp tools cut with
less resistance than dull tools. Using dull tools
increases the risk of tool kickback or grabbing.

REMOVE ADJUSTMENT TOOLS. Remove all
chuck keys, wrenches, and adjustment tools
before turning lathe ON. These items can become
deadly projectiles when spindle is started.

CHECK CLEARANCES. Before starting spindle,
verify workpiece has adequate clearance by
hand-rotating it through its entire range of motion.

TEST NEW SETUPS. Test each new setup by
starting spindle rotation at lowest speed and
standing to side of lathe until workpiece reaches
full speed and you can verify safe rotation.

-10 -

SAFELY STOPPING ROTATION. Always allow
rotating workpiece to stop on its own. Never put
hands or another object on workpiece to stop it.

SAFELY MEASURE WORKPIECE. Only mea­sure mounted workpiece after it has completely
stopped. Trying to measure a spinning workpiece
increases entanglement risk.

SANDING/POLISHING. To reduce entanglement
risk, remove tool rest before sanding. Never
completely wrap sandpaper around workpiece.

Model T32536 (Mfd. Since 10/20)

or equipment damage
may occur if machine is
not properly grounded
and connected to power

Before installing the machine, consider the avail­ability and proximity of the required power supply
circuit. If an existing circuit does not meet the
requirements for this machine, a new circuit must
be installed. To minimize the risk of electrocution,
fire, or equipment damage, installation work and
electrical wiring must be done by an electrician or
qualified service personnel in accordance with all
applicable codes and standards.

The full-load current rating is the amperage a
machine draws at 100% of the rated output power.
On machines with multiple motors, this is the
amperage drawn by the largest motor or sum of all
motors and electrical devices that might operate
at one time during normal operations.

The full-load current is not the maximum amount
of amps that the machine will draw. If the machine
is overloaded, it will draw additional amps beyond
the full-load rating.

If the machine is overloaded for a sufficient length
of time, damage, overheating, or fire may result—
especially if connected to an undersized circuit.
To reduce the risk of these hazards, avoid over­loading the machine during operation and make
sure it is connected to a power supply circuit that
meets the specified circuit requirements.

For your own safety and protection of

Note: Circuit requirements in this manual apply to

a dedicated circuit—where only one machine will
be running on the circuit at a time. If machine will
be connected to a shared circuit where multiple
machines may be running at the same time, con­sult an electrician or qualified service personnel to
ensure circuit is properly sized for safe operation.

A power supply circuit includes all electrical
equipment between the breaker box or fuse panel
in the building and the machine. The power sup­ply circuit used for this machine must be sized to
safely handle the full-load current drawn from the
machine for an extended period of time. (If this
machine is connected to a circuit protected by
fuses, use a time delay fuse marked D.)

This machine is prewired to operate on a power
supply circuit that has a verified ground and meets
the following requirements:

process. DO NOT connect to power until

SECTION 2: POWER SUPPLY

Availability

Electrocution, fire, shock,

Serious injury could occur if you connect
machine to power before completing setup

instructed later in this manual.

120V Circuit Requirements

Nominal Voltage .................... 110V, 115V, 120V

..........................................................60 Hz

Cycle
Phase
Power Supply Circuit

........................................... Single-Phase

......................... 15 Amps

supply.

Full-Load Current Rating

Full-Load Current Rating at 120V ....3.2 Amps

Model T32536 (Mfd. Since 10/20)

property, consult an electrician if you are
unsure about wiring practices or electrical
codes in your area.

-11-

This machine MUST be grounded. In the event
of certain malfunctions or breakdowns, grounding
reduces the risk of electric shock by providing a
path of least resistance for electric current.

it will not fit the outlet, have a qualified
electrician install the proper outlet with a

Improper connection of the equipment-grounding
wire can result in a risk of electric shock. The
wire with green insulation (with or without yellow
stripes) is the equipment-grounding wire. If repair
or replacement of the power cord or plug is nec­essary, do not connect the equipment-grounding
wire to a live (current carrying) terminal.

Check with a qualified electrician or service per­sonnel if you do not understand these grounding
requirements, or if you are in doubt about whether
the tool is properly grounded. If you ever notice
that a cord or plug is damaged or worn, discon­nect it from power, and immediately replace it with
a new one.

We do not recommend using an extension cord
with this machine.
cord, only use it if absolutely necessary and only
on a temporary basis.

Extension cords cause voltage drop, which can
damage electrical components and shorten motor
life. Voltage drop increases as the extension cord
size gets longer and the gauge size gets smaller
(higher gauge numbers indicate smaller sizes).

Any extension cord used with this machine must
be in good condition and contain a ground wire
and matching plug/receptacle. Additionally, it must
meet the following size requirements:

Grounding & Plug Requirements

This machine is equipped with a power cord that
has an equipment-grounding wire and a grounding
plug. Only insert plug into a matching receptacle
(outlet) that is properly installed and grounded in
accordance with all local codes and ordinances.
DO NOT modify the provided plug!

GROUNDED

5-15 RECEPTACLE

Grounding Pin

5-15 PLUG

Extension Cords

If you must use an extension

Neutral Hot

Figure 4. Typical 5-15 plug and receptacle.

SHOCK HAZARD!
Two-prong outlets do not meet the grounding
requirements for this machine. Do not modify
or use an adapter on the plug provided—if

verified ground.

-12-

Minimum Gauge Size ...........................16 AWG

Maximum Length (Shorter is Better).......50 ft.

Model T32536 (Mfd. Since 10/20)

The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.

If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.

This machine was carefully packaged for safe
transport. When unpacking, separate all enclosed
items from packaging materials and inspect them
for shipping damage.

,

please

at [phone].

IMPORTANT:

you are completely satisfied with the machine and
have resolved any issues between Grizzly or the
shipping agent. You MUST have the original pack-

aging to file a freight claim. It is also extremely
helpful if you need to return your machine later.

SECTION 3: SETUP

Unpacking

If items are damaged

call us immediately

Save all packaging materials until

Needed for Setup

The following items are needed, but not included,
for the setup/assembly of this machine.

Description Qty

• Additional Person for Lifting ....................... 1

• Safety Glasses (for each person) ............... 1

• Gloves ................................................. 1 Pair

• Phillips Head Screwdriver #2 ..................... 1

• Clean Shop Rags ....................... As Needed

• Cleaner/Degreaser ..................... As Needed

• Metal Lubricant ........................... As Needed

Inventory

Box 1 (Figure 5) Qty
A. Lathe Assembly (not shown)

—Tool Rest Base (mounted) ...................... 1

—Tailstock (mounted)

Faceplate 53⁄4" ............................................ 1

B.

Tool Rest 4

C.

Tool Rest 7" ................................................ 1

D.

Lock Levers ................................................ 2

E.

Knockout Tool ............................................. 1

F.

Spur Center ................................................ 1

G.

Live Center ................................................. 1

H.

Lock Handle M6-1 x 28 (Tool Rest) ............ 1

I.

Lock Handle M6-1 x 18 (Quill) .................... 1

J.

Hex Wrenches 3, 5mm ..........................1 Ea

K.

Open-End Wrench 19/27mm ...................... 1

L.

Open-End Wrench 32mm .......................... 1

M.

Open-End Offset Wrench 24.5mm ............. 1

N.

1

⁄2 " ............................................. 1

B

C

................................. 1

E

This machine is heavy. DO
NOT over-exert yourself
while unpacking or moving
machine—get assistance.

If you cannot find an item on this list, care­fully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpack­ing or they are pre-installed at the factory.

Model T32536 (Mfd. Since 10/20)

NOTICE

F G

K

Figure 5. Inventory components.

L

H

D

I

J

M

N

-13-

The unpainted surfaces of your machine are
coated with a heavy-duty rust preventative that
prevents corrosion during shipment and storage.
This rust preventative works extremely well, but it
will take a little time to clean.

Be patient and do a thorough job cleaning your
machine. The time you spend doing this now will
give you a better appreciation for the proper care
of your machine's unpainted surfaces.

There are many ways to remove this rust preven­tative, but the following steps work well in a wide
variety of situations. Always follow the manufac­turer’s instructions with any cleaning product you
use and make sure you work in a well-ventilated
area to minimize exposure to toxic fumes.

Before cleaning, gather the following:

• Disposable rags

• Cleaner/degreaser (WD•40 works well)

• Safety glasses & disposable gloves

• Plastic paint scraper (optional)

Basic steps for removing rust preventative:

1.

2. Coat the rust preventative with a liberal

amount of cleaner/degreaser, then let it soak

3.

scrape off as much as you can first, then wipe

4.

then coat all unpainted surfaces with a quality

or disable start switch or

Refer to the Machine Data Sheet for the weight
and footprint specifications of your machine.
Some workbenches may require additional rein­forcement to support the weight of the machine
and workpiece materials.

Consider anticipated workpiece sizes and addi­tional space needed for auxiliary stands, work
tables, or other machinery when establishing a
location for this machine in the shop. Below is
the minimum amount of space needed for the

Cleanup Site Considerations

Put on safety glasses.

Workbench Load

Placement Location

29"

101/2"

Figure 6. Minimum working clearances.

for 5–10 minutes.

Wipe off the surfaces. If your cleaner/degreas-

er is effective, the rust preventative will wipe
off easily. If you have a plastic paint scraper,

off the rest with the rag.

Repeat Steps 2–3 as necessary until clean,

metal protectant to prevent rust.

NOTICE

Avoid harsh solvents like acetone or brake
parts cleaner that may damage painted sur­faces. Always test on a small, inconspicu­ous location first.

-14-

Children and visitors may be
seriously injured if unsuper­vised around this machine.
Lock entrances to the shop

power connection to prevent
unsupervised use.

Model T32536 (Mfd. Since 10/20)

Bench Mounting

The base of this machine has mounting holes
that allow it to be fastened to a workbench or
other mounting surface to prevent it from moving
during operation and causing accidental injury or
damage.

The strongest mounting option is a "Through
Mount" (see example below) where holes are
drilled all the way through the workbench—and
hex bolts and washers are used to secure the
machine in place.

The machine must be fully assembled before it
can be operated. Before beginning the assembly
process, refer to

and gather

all

To ensure the assembly process

goes smoothly, first clean any

cov­ered or coated in heavy-duty rust preventative (if
applicable).

Quill Lock

Handle

Number of Mounting Holes
Dia. of Mounting Hardware Needed

Machine Base

Workbench

............................ 3

Flat Washer

Hex
Bolt

........8mm

Tailstock

Lock Lever

Figure 7. Hardware installed in tailstock.

2. Install tool rest base lock lever and M6-1 x 28

tool rest lock handle (see Figure 8).

Tool Rest Lock Handle

Figure 1. "Through Mount" setup.

Assembly

listed items.

To assemble machine:

Install tailstock lock lever and M6-1 X 18 quill

1.
lock handle (see Figure 7).

Model T32536 (Mfd. Since 10/20)

Needed for Setup

parts that are

Tool Rest Base Lock Lever

Figure 8. Hardware installed in tool rest base.

3. Insert tool rest into tool rest base and tighten

tool rest lock handle (see Figure 9).

Note: Unless workpiece clearance is an

issue, always install the larger of the (2) tool
rests included with this machine to give your­self more room to work.

Tool Rest

Figure 9. Tool rest installed in tool rest base.

Tool Rest Lock Handle

-15-

Once assembly is complete, test run the machine
to ensure it is properly connected to power and
safety components are functioning correctly.

If you find an unusual problem during the test run,
immediately stop the machine, disconnect it from
power, and fix the problem BEFORE operating the
machine again. The

table in the

SERVICE section of this manual can help.

setup instructions have been performed.
Operating an improperly set up machine

Serious injury or death can result from

Test Run

Troubleshooting

4. Verify machine is operating correctly by mov-

ing ON/OFF paddle switch up, then slowly
turning spindle speed dial clockwise.

— When operating correctly, machine runs

smoothly with little or no vibration or rub­bing noises.

— Investigate and correct strange or unusu-

al noises or vibrations before operat­ing machine further. Always disconnect
machine from power when investigating or
correcting potential problems.

The test run consists of verifying the following:

1) The motor powers up and runs correctly, and

2) the safety disabling mechanism on the switch

works correctly.

using this machine BEFORE understanding
its controls and related safety information.
DO NOT operate, or allow others to operate,
machine until the information is understood.

DO NOT start machine until all preceding

may result in malfunction or unexpect­ed results that can lead to serious injury,
death, or machine/property damage.

Turn spindle speed dial all the way counter-

5.

clockwise.

Turn machine OFF.

6.

Remove switch disabling key (see Figure 10).

7.

Figure 10. Removing switch disabling key from

paddle switch.

Try to start machine with paddle switch.

8.

To test run machine:

Clear all setup tools away from machine.

1.

2. Turn spindle speed dial all the way counter-

clockwise to help prevent accidental start-up.

Connect machine to power supply.

3.

-16 -

— If machine does not start, switch disabling

feature is working correctly.

— If machine does start, immediately discon-

nect power to machine. Switch disabling
feature is not working correctly. Call Tech
Support for help.

Congratulations! The Test Run is complete.

Model T32536 (Mfd. Since 10/20)

To reduce your risk of
serious injury, read this
entire manual BEFORE

The purpose of this overview is to provide the nov­ice machine operator with a basic understanding
of how the machine is used during operation, so
the

discussed later

in this manual

Due to the generic nature of this overview, it is
not intended to be an instructional guide. To learn
more about specific operations, read this entire
manual,

training from experienced
machine operators
outside of this manual by reading "how-to" books,
trade magazines, or websites.

SECTION 4: OPERATIONS

Operation Overview

To complete a typical operation, the operator
does the following:

Examines workpiece to make sure it is suit-

1.

able for turning. No extreme bows, knots, or
cracks are present.

machine controls/components

are easier to understand.

seek additional

, and do additional research

using machine.

Eye injuries or respiratory problems can
occur while operating this machine. Wear
personal protective equipment to reduce
your risk from these hazards.

Prepares and trims workpiece with a bandsaw

2.

or table saw to make it roughly concentric.

Installs workpiece between centers, or attach-

3.

es it to faceplate or chuck.

Adjusts tool rest according to type of opera-

4.

tion, and sets minimum clearance between
workpiece and lip of tool rest to

Rotates workpiece by hand to verify spindle

5.

and workpiece rotate freely through full range
of motion.

Verifies spindle speed dial is turned all the

6.

way counterclockwise (lowest speed) so
spindle does not start in high speed.

Puts on ANSI-approved safety glasses, face

7.

shield, and respirator.

Turns lathe ON, adjusts lathe speed as appro-

8.

priate for workpiece, and carefully begins
turning operation, keeping chisel against tool
rest entire time it is cutting.

1

⁄4" gap.

If you are not experienced with this type
of machine, WE STRONGLY RECOMMEND
that you seek additional training outside of
this manual. Read books/magazines or get
formal training before beginning any proj­ects. Regardless of the content in this sec­tion, Grizzly Industrial will not be held liable
for accidents caused by lack of training.

Model T32536 (Mfd. Since 10/20)

Turns lathe OFF when cutting operation is

9.

complete.

-17-

Workpiece Inspection

Adjusting Tailstock

Some workpieces are not safe to turn or may
require modification before they are safe to turn.

Before turning, inspect all workpieces for the
following:

• Workpiece Type:
This machine is intended for turning natural

wood products. Never attempt to turn any
composite wood materials, plastics, metal,
stone, or rubber workpieces; turning these
materials can lead to machine damage or
severe injury.

• Foreign Objects:
Nails, staples, dirt, rocks and other foreign

objects are often embedded in wood. While
cutting, these objects can become dislodged
and hit the operator, cause tool grab, or break
the turning tool, which might then fly apart.
Always visually inspect your workpiece for
these items. If they can't be removed, DO
NOT turn the workpiece.

The tailstock is equipped with a cam-action
clamping system to secure it to the lathe bed.
When the lever is tightened, a locking plate lifts up
underneath the bed and secures the tailstock in
place. The tailstock can be positioned anywhere
along the lathe bed.

Always operate lathe with tailstock firmly
locked to bed. Serious personal injury may
occur if tailstock moves during operation.

To position tailstock along length of bed:

1. Loosen tailstock lock lever and move tailstock
to desired position along bed (see Figure 11).

• Large/Loose Knots:
Loose knots can become dislodged during

the turning operation. Large knots can cause
a workpiece to completely break in half
during turning and cause machine damage
and injury. Never turn workpieces that have
large/loose knots.

• Excessive Warping:
Workpieces with excessive bowing or twist-

ing are unstable and unbalanced. Never turn
these workpieces at high speed, or instability
will be magnified and the workpiece can be
ejected from the lathe causing injury. Only
turn concentric workpieces!

• Wet or "Green" Stock: Turning wood with
a moisture content over 20% can cause
increased wear on tooling.

Tailstock

Lock Lever

Figure 11. Location of tailstock lock lever.

2. Retighten tailstock lock lever to secure

tailstock to bed.

Note: Clamping hex nut underneath tailstock

(see Figure 12) requires occasional adjust­ing to ensure proper clamping of tailstock to
bed. Turn this hex nut in small increments to
fine-tune clamping pressure as needed.

Tailstock

Clamp Nut

-18-

Figure 12. Location of tailstock clamp nut.

Model T32536 (Mfd. Since 10/20)

Adjusting Tool Rest

The tool rest assembly consists of two compo­nents: the tool rest base (or banjo) and the tool
rest. The tool rest base moves forward/backward
and along the length of the lathe bed. The tool
rest rotates and moves up and down in the tool
rest base. Locks for both components allow you to
secure the tool rest in position after making these
adjustments.

When adjusting the tool rest, position it as close
as possible to the workpiece without actually
touching it. This maximizes support where the
cutting occurs and minimizes leverage, reducing
the risk of injury if a "catch" occurs. Adjust the
tool rest as necessary during operations when the
workpiece diameter decreases.

To adjust tool rest:

1. Loosen tool rest base lock lever and move

tool rest assembly to desired position on
lathe bed, as shown in Figure 13.

Note: To maximize support, the tool rest

base should always be locked on both sides
of the bed. Never pull the tool rest so far back
that it is only secured on one side.

Tool
Rest

Tool Rest Lock Handle

Many woodturners typically set the height of the
tool rest
workpiece, depending on their height, the type
of tool they're using, and the type of operation
they're performing.

As a rule of thumb: For most (spindle) turning
operations, the cutting tool should contact the
workpiece slightly above centerline. For most
inside (bowl) turning operations, the cutting tool
should contact the workpiece slightly below
centerline.

Keeping all these factors in mind, your main goal
when adjusting the tool rest should be providing
maximum support for the type of tool being used,
in a position that is safe and comfortable for you.

Improperly supported or positioned cutting
tools can "catch" on workpiece, ejecting
tool from your hands with great force. To
reduce this risk, always ensure tool rest is
properly positioned for each type of opera­tion, cutting tool is firmly supported against
tool rest BEFORE cutting, and cutting tool
is properly positioned to cut at the correct
angle for tool and operation type.

1

⁄8" above or below the centerline of the

Tool Rest Base Lock Lever

Figure 13. Tool rest controls.

Retighten tool rest base lock lever to secure

2.

tool rest assembly in position.

Note: The clamping hex nut underneath the

tool rest base will require occasional adjust­ing to ensure proper clamping pressure of
the tool rest assembly to the bed. Turn this
hex nut in small increments to fine tune the
clamping pressure as needed.

Always operate lathe with tool rest assem­bly firmly locked in position. Otherwise,
serious personal injury may occur by tool
being pulled from operator's hands.

3. Loosen tool rest lock handle (see Figure 13).

Position tool rest in desired location.

4.

Retighten tool rest lock handle to secure tool

5.

rest in position.

Model T32536 (Mfd. Since 10/20)

-19 -

Installing/Removing

Headstock Center

The included spur center installs in the headstock
spindle with an MT#1 tapered fit.

Items Needed Qty

Knockout Tool .................................................... 1

Heavy Leather Gloves
Clean Rags

........................................ As Needed

Installing Headstock Center

1. DISCONNECT MACHINE FROM POWER!

Make sure mating surfaces of center and

2.

spindle are free of debris and oily substances
before inserting center to ensure a good fit
and reduce runout.

3. Insert tapered end of center into spindle, and
push it in with a quick, firm motion, as shown
in Figure 14.

................................1 Pair

Removing Headstock Center

1. DISCONNECT MACHINE FROM POWER!

2. Hold a clean rag under spindle or wear leath-

er glove to catch center when you remove it.

Insert knockout tool through outboard end of

3.

spindle and firmly tap back of center, catch­ing it as it falls, as shown in Figure 15.

Knockout Tool

Figure 15. Removing headstock center with

knockout tool.

Spur

Center

CenterHeadstock

Spindle

Figure 14. Installing center in headstock spindle.

4. Make sure center is securely installed by

attempting to pull it out by hand. A properly
installed center will not pull out easily.

-20-

Model T32536 (Mfd. Since 10/20)

Installing/Removing

Tailstock Center

The included live center installs into the tailstock
quill with an MT#1 tapered fit.

Items Needed Qty

Heavy Leather Gloves ................................ 1 Pair

Clean Rags

Installing Tailstock Center

1. Loosen quill-lock handle, and rotate quill

adjustment knob until quill extends about 1",
as shown in Figure 16.

........................................ As Needed

Make sure set screw (see Figure 17) is

5.

aligned with quill keyway to ensure center
and quill will not freely rotate under load.

Secure quill in place by retightening quill-lock

6.

handle.

Quill Lock Handle

Set

Screw

Keyway

Quill Lock

Handle

Center

Figure 16. Tailstock center installed in quill.

2. Make sure mating surfaces of center and

quill are free of debris and oily substances
before inserting center to ensure a good fit
and reduce runout.

Firmly insert tapered end of center into

3.

tailstock quill, as shown in Figure 16.

Make sure center is securely installed by

4.

attempting to pull it out by hand—a properly
installed center will not pull out easily.

Quill Adjustment Knob

Quill

Quill

Figure 17. Tailstock quill alignment slot.

Removing Tailstock Center

1. Loosen quill-lock handle.

2. Hold a clean rag under spindle or wear a

glove to catch center when you remove it.

Rotate quill adjustment knob

3.

counterclockwise—tailstock quill will retract
back into quill, causing center to be forced
out. If necessary, use knockout tool to remove
center.

Tailstock quill must ALWAYS be locked in
place during lathe operation. Before tight­ening quill lock handle, set screw in front
of handle must be properly aligned with
quill keyway. Otherwise, workpiece can be
thrown from lathe, causing serious personal
injury or death.

Model T32536 (Mfd. Since 10/20)

-21-

Installing/Removing

Faceplate

These instructions cover installing and removing
the faceplate. To mount a workpiece to your face­plate, refer to Faceplate Turning on Page 26.

Tools Needed Qty

Open-End Wrench 19/27mm ............................. 1

Knockout Tool

.................................................... 1

Removing Faceplate

1. DISCONNECT MACHINE FROM POWER!

Put open end of wrench over flats behind

2.

faceplate. While holding spindle in place with
knockout rod, turn wrench counterclockwise
until faceplate is removed (see Figure 18).

Note: If spur center is installed, it will be

removed during this process.

Installing Faceplate

1. DISCONNECT MACHINE FROM POWER!

2. While holding spindle in place, thread face-

plate clockwise onto spindle shaft until secure
against shoulder on spindle shaft.

Insert knockout tool into one hole on spindle,

3.

then tighten faceplate with open-end wrench
(see Figure 18).

Faceplate

To prevent faceplate and workpiece sepa­rating from spindle during operation, head­stock faceplate MUST be firmly threaded
onto spindle. If these instructions are not
properly performed, serious personal injury
could occur.

Figure 18. Installing faceplate on spindle.

-22-

Model T32536 (Mfd. Since 10/20)

Adjusting Spindle

Speed

The Model T32536 utilizes a spindle speed dial
(see Figure 19) that allows for on-the-fly spindle
speed changes from 750 to 3200 RPM. Rotate the
spindle speed dial clockwise to increase speed
and counterclockwise to decrease speed.

Spindle

Speed Dial

Figure 19. Location of spindle speed dial.

Always start lathe with spindle speed dial
set at slowest speed setting, and then
choose correct spindle speed for your oper­ation. Starting lathe at highest speed, or too
fast of spindle speed may lead to workpiece
breaking loose or being thrown from lathe
at a high rate of speed, causing fatal or
severe impact injuries.

Refer to the speed recommendations chart in
Figure 20 to choose the appropriate RPM for your
operation.

Diameter
of Work-

piece

Under 2" 1520 3000 3200

2–4" 760 1600 2480

4–6" 510 1080 1650

6–8" 380 810 1240

8–10" 300 650 1000

10–12" 255 540 830

12–14" 220 460 710

Roughing

RPM

General

Cutting

RPM

Finishing

RPM

Figure 20. General speed recommendations for

workpiece diameters.

Model T32536 (Mfd. Since 10/20)

-23-

Spindle Turning

Spindle turning is the operation performed when
a workpiece is mounted between centers in the
headstock and tailstock, as shown in Figure 21.
Bowls, table legs, tool handles, and candlesticks
are typical projects where this operation is used.

To set up a spindle turning operation:

Find center point of both ends of your

1.

workpiece by drawing diagonal lines from
corner to corner across end of workpiece, as
shown in Figure 22.

Workpiece

Pencil Lines

Marked Diagonally

Across Corners

Workpiece

Center

Figure 22. Workpiece marked diagonally from

corner to corner to determine the center.

Figure 21. Example of typical spindle turning

operation.

Damage to your eyes and lungs could result
from using this machine without proper pro­tective gear. Always wear safety glasses, a
face shield, and a respirator when operating
this machine.

Tools Needed Qty

Precision Ruler .................................................. 1

Wood Mallet....................................................... 1

Drill Bit
Tablesaw/Bandsaw

1

⁄4" .......................................................... 1

............................................ 1

Make a center mark by using a wood mallet

2.

and tapping point of spur center into center of
workpiece on both ends.

Drill a 1⁄4" deep hole at center mark on end of

3.

the workpiece to be mounted on headstock
spur center.

To help embed spur center into workpiece,

4.

cut 1⁄8" deep saw kerfs in headstock end of
workpiece along diagonal lines marked in
Step 1.

If your workpiece is over 2" x 2", cut cor-

5.

ners off workpiece lengthwise to make turn­ing safer and easier when roughing out
workpiece (see Figure 23).

-24-

Corners

Removed

Figure 23. Corners of workpiece removed.

Model T32536 (Mfd. Since 10/20)

Workpiece

Center

6. Drive spur center into end center mark of
workpiece with a wood mallet to embed it at

1

least

⁄4" into workpiece (see Figure 24).

¼"

Figure 24. Spur center properly embedded.

With workpiece still attached, insert spur cen-

7.
ter into headstock spindle (refer to Installing/
Removing Headstock Center on Page 20

for additional instructions).

12.

Before beginning lathe operation, rotate

workpiece by hand to ensure there is safe
clearance on all sides.

Keep lathe tool resting on tool rest the
ENTIRE time it is in contact with workpiece
or when preparing to make contact between
lathe tool and workpiece. Otherwise, spin­ning workpiece could force lathe tool out
of your hands or entangle your hands with
workpiece. Failure to heed this warning
could result in serious personal injury.

Spindle Turning Tips:

• When turning the lathe ON, stand away from
the path of the spinning workpiece until the
spindle reaches full speed and you can verify
that the workpiece will not come loose.

Note: Use tool rest to support opposite end of

workpiece so that workpiece and spur center
do not separate during installation.

Install live center into tailstock quill and tight-

8.

en quill-lock handle to lock quill in position
(refer to Page 21 for additional instructions).

Slide tailstock toward workpiece until point of

9.

live center touches workpiece center mark,
then lock tailstock in this position.

Loosen quill-lock handle and rotate quill

10.

adjustment knob to push live center into

1

workpiece at least

⁄4".

DO NOT press the workpiece too firmly with
the tailstock or the bearings will bind and
overheat. DO NOT adjust the tailstock too
loosely or the workpiece will spin off the
lathe. Use good judgment and care, other­wise serious impact injuries could result
from the workpiece being ejected at high
rates of speed.

• Use the slowest speed when starting and
stopping the lathe to help prevent accidental
startup at high speeds.

• Select the right speed for the size of workpiece
that you are turning (refer to Figure 20 on
Page 23).

• Keep the turning tool on the tool rest the
ENTIRE time that it is in contact with the
workpiece.

• Learn the correct techniques for each tool
you will use. If you are unsure about how to
use the lathe tools, read books or magazines
about lathe techniques, and seek training
from experienced and knowledgeable lathe
users.

Eye injuries or respiratory problems can
occur while operating this machine. Wear
personal protective equipment to reduce
your risk from these hazards.

Properly adjust tool rest to workpiece (see

11.
Adjusting Tool Rest on Page 19).

Model T32536 (Mfd. Since 10/20)

-25-

Faceplate Turning

Faceplate turning is when a workpiece is mounted
to the faceplate, which is then mounted to the
headstock spindle, as shown in Figure 25. This
type of turning is usually done with open-faced
workpieces such as bowls or plates.

Figure 25. Typical faceplate turning operation.

Mounting Workpiece on Faceplate

Items Needed Qty

Precision Ruler .................................................. 1

Wood Screws

Drill ................................................................... 1

Tablesaw/Bandsaw

.................................................... 1

............................................ 1

Center faceplate on workpiece and attach it

2.
with wood screws (see Figure 26).

Figure 26. Example of attaching faceplate to

workpiece.

NOTICE

Only use screws with non-tapered heads
(see Figure 27) to attach faceplate to the
workpiece. Screws with tapered heads can
split faceplate or snap off during operation.

Correct Incorrect

To mount workpiece on faceplate:

1. Mark workpiece center in same manner as

described in Spindle Turning (see Page 24).

Note: Cut off corners of workpiece to make it

as close to "round" as possible, as described
in Spindle Turning, Step 5 (see Page 24).

Figure 27. Correct and incorrect screw types.

Thread and secure faceplate onto headstock

3.
spindle (refer to Installing Faceplate on
Page 22).

— If wood screws cannot be placed in

workpiece, faceplate can be mounted to a
backing block attached to workpiece (see

Mounting Workpiece on Backing Block

on next page).

-26-

Model T32536 (Mfd. Since 10/20)

Mounting Workpiece on Backing
Block

Items Needed Qty

Piece of Scrap Wood......................................... 1

Precision Ruler
Drill Bit
Glue
Clamp

To mount workpiece on backing block:

1.

Note: Faces of backing block must be flat and

2.

1

⁄4" .......................................................... 1

................................................... As Needed

................................................................ 1

Make backing block from a suitable size

piece of scrap wood.

parallel with each other, or uneven surfaces
will cause workpiece to spin eccentrically,
causing unnecessary vibration and runout. It
is best to mount backing block to faceplate
and turn other surface flat prior to mounting.

Locate and mark center of workpiece and

backing block.

.................................................. 1

Sanding/Finishing

After the turning operations are complete, the
workpiece can be sanded and finished (see

Figure 28) before removing it from the lathe.

Figure 28. Example of typical sanding operation.

Drill a 1⁄4" hole through center of backing block.

3.

4. Look through hole in backing block to line

up center with workpiece, and then glue and
clamp backing block to workpiece.

Note: Allow glue to cure according to manu-

facturer's instructions.

5. Follow Steps 1–3 under Mounting
Workpiece on Faceplate (see Page 26) to

attach backing block to faceplate.

Note: Whenever sanding or finishing, move the
tool rest holder out of the way to increase per­sonal safety and gain adequate working room.

Sandpaper

Workpiece

Wrapping sandpa­per completely around
workpiece could pull
your hands into mov­ing workpiece and may
cause serious injury.
Never wrap sandpa­per or finishing materi­als completely around
workpiece.

Model T32536 (Mfd. Since 10/20)

-27-

Selecting Turning

Tools

Lathe tools come in a variety of shapes and sizes,
and usually fall into five major categories.

• Gouges—Mainly used for rough cutting,
detail cutting, and cove profiles. The rough
gouge is a hollow, double-ground tool with
a round nose, and the detail gouge is a hol­low, double-ground tool with either a round or
pointed nose.

• Scrapers—Typically used where access for
other tools is limited, such as hollowing oper­ations. This is a flat, double-ground tool that
comes in a variety of profiles (round nose,
spear point, square nose, etc.) to match
many different contours.

Figure 31. Example of a round nose scraper.

• Parting Tools—Used for sizing and cut­ting off work. This is a flat tool with a sharp
pointed nose that may be single- or double­ground.

Figure 29. Example of a gouge.

• Skew Chisel—A very versatile tool that can
be used for planing, squaring, V-cutting,
beading, and parting off. The skew chisel is
flat, double-ground with one side higher than
the other (usually at an angle of 20°–40°).

Figure 30. Example of a skew chisel.

Figure 32. Example of a parting tool.

• Specialty Tools—These are the unique,
special function tools to aid in hollowing, bowl
making, cutting profiles, etc. The Swan Neck
Hollowing Tool shown on Page 29 is a good
example of a speciality tool.

-28-

Model T32536 (Mfd. Since 10/20)

Installing unapproved accessories may

order online at www.grizzly.com or call 1-800-523-4777

SECTION 5: ACCESSORIES

cause machine to malfunction, resulting in
serious personal injury or machine damage.
To reduce this risk, only install accessories
recommended for this machine by Grizzly.

NOTICE

Refer to our website or latest catalog for
additional recommended accessories.

T25535—Turning Wood Book

The appeal of woodturning is simple: with only
a few hand tools and a lathe, remarkable results
can be quickly achieved, including beautiful bowls,
boxes in the round, lamp bases, and furniture
parts. For over 20 years, woodturners have been
turning to Richard Raffan for expert advice and
inspiration.

H6542—Robert Sorby HSS 8-Pc. Turning Set

This 8-pc. HSS Turning Tool Set includes
Roughing Gouge,
Bowl Gouge,
Side Cut Scraper, 1" Square Scraper, and
Round Scraper. Overall lengths are 16" to 19".

Figure 34. Model H6542 Robert Sorby 8-Pc.

H0507—20" Swan Neck Hollowing Tool
H0508—24" Swan Neck Hollowing Tool

An excellent choice for blind turning or undercut­ting where reach is restricted. H0507 is designed
for end-grain use while H0508 (with a more sub­stantial steel cross section) is designed for both
end-grain and side-grain (bowl) use.

1

⁄4" and 1⁄2 " Spindle Gouge, 3⁄8"

3

⁄4" Standard Skew, 3⁄16" Diamond

Turning Set.

3

1

⁄4"

⁄2 "

Figure 33. T25535 Turning Wood Book.

Figure 35. Swan neck hollowing tools.

Model T32536 (Mfd. Since 10/20)

-29-

order online at www.grizzly.com or call 1-800-523-4777

H7940—HSS Lathe Chisels, 3-Pc. Set

Ideal for bowl turning and detail work. Each chisel
measures roughly 16" long, with 10" ash handles,
and the high-speed steel blades measure a

7

⁄32" thick! The set includes one round, one

full
curved, and one 90° corner chisel. Chisel set is
protected in a fitted wooden box.

Figure 36. Model H7940 Lathe Chisel 3-Pc. Set.

D3640 —Tool Table Plus

The Tool Table Plus was designed in response
to customer requests for a slightly wider and
taller table to accommodate small planers, wood
lathes, sanders and a variety of other bench-top

1

machines. The butcher block finish table is 1

⁄4"
thick and measures 14" x 40". The total height of
the tool table is 33".

T25802—Woodworking Calipers, 5-Pc. Set

Includes compass, straight dividers, inside cali­pers, outside calipers, and inside/outside calipers.
Perfect for woodturning and general layout work.

Figure 37. Model T25802 Woodworking Calipers

5-Pc. Set.

Figure 38. Model D3640 - Tool Table Plus.

D3098—Center Finder

Find the center of round or square stock for
lathe turning. One side locates a diagonal line
on square stock up to 8" x 8", and the other side

1

locates a diagonal line on round stock up to 4

⁄2 "
in diameter. Marking two opposite diagonal lines
determines the center point.

Figure 39. Model D3098 Center Finder.

-30-

Model T32536 (Mfd. Since 10/20)

accidental startup, always
disconnect machine from

SECTION 6: MAINTENANCE

Cleaning &

To reduce risk of shock or

power before adjustments,
maintenance, or service.

Schedule

For optimum performance from this machine, this
maintenance schedule must be strictly followed.

Ongoing

To maintain a low risk of injury and proper
machine operation, if you ever observe any of the
items below, shut down the machine immediately
and fix the problem before continuing operations:

• Loose faceplate or mounting bolts.

• Damaged center or tooling.
Worn or damaged wires.

•

• Loose machine components.

• Any other unsafe condition.

Protecting

Cleaning this lathe is relatively easy. Vacuum
excess wood chips and sawdust, and wipe off the
remaining dust with a dry cloth. If any resin has
built up, use a resin-dissolving cleaner to remove it.

Protect the unpainted cast-iron surfaces by wip­ing them clean after every use—this ensures
moisture from wood dust does not remain on
bare metal surfaces. Keep surfaces rust-free with
regular applications of products like G96
Treatment, SLIPIT

®

, or Boeshield® T-9.

®

Gun

Daily

Clean off dust buildup.

•
Clean and lubricate lathe bed, spindle, and

•

quill.

Monthly

• Belt tension, damage, or wear.

Model T32536 (Mfd. Since 10/20)

Figure 40. Assorted rust-prevention products.

Lubrication

All bearings on this lathe are lubricated and
sealed at the factory, and do not need additional
lubrication.

Wipe a lightly oiled shop rag on the outside of the
headstock spindle. DO NOT allow any oil to get on
the inside mating surfaces of the spindle.

Use the tailstock adjustment knob to extend the
quill out to the furthest position and apply a thin
coat of white lithium grease to the outside of the
quill. DO NOT allow any oil or grease to get on the
inside mating surfaces of the quill.

-31-

Review the troubleshooting procedures in this section if a problem develops with your machine. If you need

the

serial number and manufacture date of your machine before calling.

SECTION 7: SERVICE

replacement parts or additional help with a procedure, call our Technical Support. Note: Please gather

Troubleshooting

Motor & Electrical

Symptom Possible Cause Possible Solution

Machine does not
start, or power­supply fuse/breaker
trips immediately
after startup.

Machine stalls or is
underpowered.

Machine has
vibration or noisy
operation.

1. Switch disabling key removed.

2. Blown fuse.

3. Incorrect power supply voltage or circuit
size.

4. Power supply circuit breaker tripped or fuse
blown.

5. Wiring broken, disconnected, or corroded.

6. Spindle speed dial at fault.

7. ON/OFF switch at fault.

8. Motor brushes worn out.

9. Circuit board at fault.

10. Motor or motor bearings at fault.

1. Machine undersized for task.

2. Workpiece material not suitable for
machine.

3. Feed rate/cutting speed too fast.

4. Belt slipping.

5. Pulley slipping on shaft.

6. Spindle speed dial at fault.

7. Motor brushes worn out.

8. Circuit board at fault.

9. Motor or motor bearings at fault.

1. Motor or component loose.

2. Machine sits unevenly on workbench.

3. Belt worn, loose, pulleys misaligned or belt
slapping cover.

4. Pulley loose.

5. Motor fan rubbing on fan cover.

6. Motor mount loose/broken.

7. Workpiece/faceplate at fault.

8. Motor bearings at fault.

1. Install disabling key.

2. Replace fuse/ensure no shorts (Page 36).

3. Ensure correct power supply voltage and circuit
size.

4. Ensure circuit is sized correctly and free of shorts.
Reset circuit breaker or replace fuse.

5. Fix broken wires or disconnected/corroded
connections.

6. Test/replace if at fault.

7. Replace switch.

8. Remove/replace brushes (Page 36).

9. Inspect/replace if at fault.

10. Replace motor.

1. Use sharp chisels; reduce feed rate/depth of cut.

2. Only cut wood/ensure moisture is below 20%.

3. Decrease feed rate/cutting speed (Page 23).

4. Tension/replace belt; ensure pulley is aligned
properly (Page 35); belt is clean and not damaged.

5. Tighten/replace loose pulley/shaft.

6. Test/replace if at fault.

7. Remove/replace brushes (Page 36).

8. Inspect/replace if at fault.

9. Replace motor.

1. Inspect/replace damaged bolts/nuts, and retighten
with thread-locking fluid.

2. Adjust feet.

3. Inspect/replace belt (Page 34). Realign pulleys if
necessary (Page 35).

4. Realign/replace shaft, pulley, set screw, and key.

5. Fix/replace fan cover; replace loose/damaged fan.

6. Tighten/replace.

7. Center workpiece in chuck/faceplate; reduce RPM;
replace defective chuck.

8. Test by rotating shaft; rotational grinding/loose shaft
requires bearing replacement.

-32-

Model T32536 (Mfd. Since 10/20)

Wood Lathe Operation

Symptom Possible Cause Possible Solution

Bad surface finish. 1. Dull tooling or wrong tool used for task.

2. Tool height is not 1⁄8" above spindle
centerline.

3. Spindle speed is wrong.

Excessive vibration
upon startup
(when workpiece is
installed).

Chisel grabs or digs
into workpiece.

Tailstock moves
under load.

Spindle lacks
turning power or
starts up slowly.

Quill will not move
forward when knob
is turned.

1. Workpiece is mounted incorrectly.

2. Workpiece warped, out of round, or flawed.

3. Machine sits unevenly on workbench.

4. Spindle speed too fast for workpiece.

5. Workpiece hitting stationary object.

6. Tailstock or tool rest not securely clamped
to lathe bed.

7. Belt pulley is not properly aligned.

8. Motor mount loose/broken.

9. Belt worn, loose, pulleys misaligned or belt
slapping cover.

10. Spindle bearings at fault.

1. Wrong chisel/tool being used.

2. Chisel/tool too dull.

3. Tool rest height not set correctly.

4. Tool rest is set too far from workpiece.

1. Tailstock mounting bolt/hex nut is loose.

2. Bed or clamping surface is excessively oily
or greasy.

1. Belt is slipping.

2. Pulley loose.

3. Workpiece too heavy for spindle.

1. Keyway is not aligned with quill lock lever. 1. Align quill keyway and quill lock lever and slightly

1. Sharpen tooling, select correct tool for operation.

2. Adjust tool rest so tool is 1⁄8" above spindle
centerline.

3. Adjust for appropriate spindle speed (Page 23).

1. Remount workpiece, making sure that centers are
embedded in true center of workpiece.

2. Cut workpiece to be concentric, or use a different
workpiece.

3. Adjust feet.

4. Reduce spindle speed (Page 23).

5. Stop lathe and fix interference problem.

6. Check lock levers and tighten if necessary (Pages
18–19).

7. Align belt pulley (Page 35).

8. Tighten/replace.

9. Inspect/replace belt (Page 34). Realign pulleys if
necessary (Page 35).

10. Test by rotating shaft; rotational grinding/loose shaft
requires bearing replacement.

1. Use correct chisel/tool.

2. Sharpen or replace chisel/tool.

3. Correct tool rest height (Page 19).

4. Move tool rest closer to workpiece.

1. Tighten mounting bolt/hex nut.

2. Clean bed or clamping surface to remove excess
oil/grease.

1. Tighten/adjust belt (Page 34).

2. Tighten pulley set screw; re-align/replace shaft,
pulley set screw, and key.

3. Remove excess material before remounting; use
lighter workpiece.

tighten lever to engage keyway (Page 21).

Model T32536 (Mfd. Since 10/20)

-33-

Tensioning &

Replacing Belt

3. Remove outboard spindle plate by remov-

ing (3) M4-.7 x 8 Phillips head screws, then
remove spindle adjustment knob, as shown
in Figure 42.

The drive belt stretches as the lathe is used.
Most of the stretching will occur during the first
16 hours, but may continue with further use. If the
lathe loses power while making a cut, the belt may
be slipping and need tensioning. If the belt shows
signs of excessive wear or damage, replace it.

Tools Needed Qty

Phillips Head Screwdriver #2 ............................ 1

Hex Wrench 5mm
Open-End Wrench 32mm
Open-End Offset Wrench 24.5mm

.............................................. 1

.................................. 1

.................... 1

Tensioning Belt

1. DISCONNECT MACHINE FROM POWER!

2. Loosen (2) M6-1 x 1 cap screws on motor

mounting plate (see Figure 41).

Outboard

Spindle

Plate

Spindle

Adjustment

Knob

Figure 42. Location of outboard spindle plate

and spindle adjustment knob.

Apply downward pressure on motor assem-

4.

bly to properly tension drive belt, then re­tighten cap screws on motor mounting plate.

Note: When properly tensioned, belt should

deflect about
applied to belt mid-way between upper and
lower pulley (see Figure 43).

1

⁄8" when moderate pressure is

Mounting Plate

Figure 41. Location of motor mounting plate.

Cap Screw

(1 of 2)

— If there is more than 1⁄8" deflection repeat

the tensioning procedure until it is correct.
If tension cannot be achieved replace belt.

Pulley

1

⁄8"

Deflection

Pulley

Figure 43. Testing for 1⁄8" belt deflection.

5. Re-install spindle adjustment knob, then re-

install outboard spindle plate using (3) M4-.7
x 8 Phillips head screws.

-34-

Model T32536 (Mfd. Since 10/20)

Replacing Belt

1. DISCONNECT MACHINE FROM POWER!

Aligning Pulleys

2. Loosen (2) M6-1 x 1 cap screws on motor

mounting plate (see Figure 41 on Page 34).

Lift motor assembly all the way up, then

3.

re-tighten both motor mounting plate cap
screws—this will hold motor in place while
you change belt position.

Remove outboard spindle plate by remov-

4.

ing (3) M4-.7 x 8 Phillips head screws, then
remove spindle adjustment knob, as shown
in Figure 42 on Page 34).

Roll belt off spindle pulley, then pull belt off

5.

motor pulley and through bottom of lathe.

Tip: This step may be easier to accomplish

by gently rolling machine onto its back.

Install new belt by performing Step 5 in

6.

reverse.

7. Loosen motor mounting plate cap screws and
apply downward pressure on motor assembly
to properly tension drive belt, then re-tighten
cap screws on motor mounting plate.

The motor and spindle pulleys are aligned at the
factory and should not require any adjustment. If
they become misaligned over time, it is important
that they be re-aligned in order to extend belt
life and maximize the transfer of power from the
motor to the spindle.

Tools Needed Qty

Phillips Head Screwdriver #2 ............................ 1

Hex Wrench 3mm
Open-End Wrench 32mm
Open-End Offset Wrench 24.5mm

To align motor and spindle pulleys:

1.

DISCONNECT MACHINE FROM POWER!

2. Remove outboard spindle plate and spindle
adjustment knob (see Figure 44).

Outboard

Spindle

Plate

.............................................. 1

.................................. 1

.................... 1

Note: When properly tensioned, belt should

deflect about
applied to belt mid-way between upper and
lower pulley (see Figure 43 on Page 34).

— If there is more than 1⁄8" deflection repeat

the tensioning procedure until it is correct.
If tension cannot be achieved replace belt.

Ensure belt is fully seated on pulley, then roll

8.

machine upright, if necessary.

9. Re-install spindle adjustment knob, then re­install outboard spindle plate using (3) M4-.7
x 8 Phillips head screws.

1

⁄8" when moderate pressure is

Spindle

Adjustment

Knob

Figure 44. Location of outboard spindle plate

and spindle adjustment knob.

3. Loosen M6-1 x 8 set screw on spindle pulley.

4. Slide spindle pulley into alignment with motor

pulley.

Note: When pulleys are properly aligned,

there should be no unusual or pulsing sounds
coming from the belt.

Tighten set screw on spindle pulley.

5.

6. Install spindle adjustment knob and outboard

spindle plate.

Model T32536 (Mfd. Since 10/20)

-35-

Replacing BrushesReplacing Fuse

This machine features an onboard fuse designed
to protect sensitive electrical parts in the event
of electrical overload. If the fuse has blown, the
motor will not start.

To verify the condition of the fuse, remove it from
the switch box and hold it up to the light. If the
element is broken, the fuse is blown and must be
replaced.

Items Needed Qty

Phillips Head Screwdriver #2 ............................ 1

Fuse (PN PT32536059)

To replace fuse:

1. DISCONNECT MACHINE FROM POWER!

2. Remove fuse holder on back of switch box

(see Figure 45).

..................................... 1

This machine is equipped with a univer­sal motor that uses a pair of carbon brush­es to transmit power. These brushes are
considered to be regular "wear items" or
"consumables" that will eventually need to be
replaced. The frequency of this replacement is
directly related to how much the motor is used
and how hard it is pushed. These brushes are not
covered under warranty.

Replace both brushes at the same time if the
motor no longer reaches full power, operates
inconsistently, or when the brushes measure less

1

⁄4" long (new brushes are 5⁄8" long).

than

If your machine is used frequently, we recom­mend keeping a set of these replacement brushes
on-hand to avoid any downtime.

Items Needed Qty

Flat Head Screwdriver 1⁄4" .................................. 1

Precision Ruler
Motor Brushes (PN: PT32536041-1)

.................................................. 1

.................. 2

Fuse

Holder

Figure 45. Location of fuse holder.

3. Remove old fuse from holder and install new

fuse.

4. Re-install fuse holder in switch box.

To replace motor brushes:

1. DISCONNECT MACHINE FROM POWER!

2. Unscrew and remove brush caps (refer to
Figure 46) and worn brushes from motor.

Brush Cap

(1 of 2)

Figure 46. Location of motor brushes.

3. Replace both motor brushes and re-install

brush caps.

-36-

Model T32536 (Mfd. Since 10/20)

These pages are current at the time of printing. However, in the spirit of improvement, we may make chang­es to the electrical systems of future machines. Compare the manufacture date of your machine to the one

number and manufacture date of your

machine before calling. This information can be found on the main machine label.

SECTION 8: WIRING

stated in this manual, and study this section carefully.

If there are differences between your machine and what is shown in this section, call Technical Support at
[phone] for assistance BEFORE making any changes to the wiring on your machine. An updated
wiring diagram may be available. Note: Please gather the serial

Wiring Safety Instructions

SHOCK HAZARD. Working on wiring that is con-

nected to a power source is extremely dangerous.
Touching electrified parts will result in personal
injury including but not limited to severe burns,
electrocution, or death. Disconnect the power
from the machine before servicing electrical com­ponents!

MODIFICATIONS. Modifying the wiring beyond
what is shown in the diagram may lead to unpre­dictable results, including serious injury or fire.
This includes the installation of unapproved after­market parts.

WIRE CONNECTIONS. All connections must
be tight to prevent wires from loosening during
machine operation. Double-check all wires dis­connected or connected during any wiring task to
ensure tight connections.

CIRCUIT REQUIREMENTS. You MUST follow
the requirements at the beginning of this manual
when connecting your machine to a power source.

WIRE/COMPONENT DAMAGE. Damaged wires
or components increase the risk of serious per­sonal injury, fire, or machine damage. If you notice
that any wires or components are damaged while
performing a wiring task, replace those wires or
components.

MOTOR WIRING. The motor wiring shown in
these diagrams is current at the time of printing
but may not match your machine. If you find this
to be the case, use the wiring diagram inside the
motor junction box.

CAPACITORS/INVERTERS. Some capacitors
and power inverters store an electrical charge for
up to 10 minutes after being disconnected from
the power source. To reduce the risk of being
shocked, wait at least this long before working on
capacitors.

EXPERIENCING DIFFICULTIES. If you are expe­riencing difficulties understanding the information
included in this section, contact our Technical
Support at [phone].

The photos and diagrams
included in this section are
best viewed in color. You
can view these pages in
color at www.grizzly.com.

Model T32536 (Mfd. Since 10/20)

-37-

110 VAC

Wiring Diagram

PADDLE SWITCH

KEDU HY18 20A

Figure 47. Switch box wiring.

1

2

Ground

5

4

WARNING!

SHOCK HAZARD!

Disconnect power
before working on
wiring!

Neutral

Hot

Ground

5-15 Plug

N

N1

CIRCUIT

BOARD

FUSE 10A

L

+

OUT

–

VR

120V MOTOR

VARIABLE SPEED DIAL

Ground

-38-

READ ELECTRICAL SAFETY

ON PAGE 37!

Model T32536 (Mfd. Since 10/20)

7

16

72

73

SECTION 9: PARTS

We do our best to stock replacement parts when possible, but we cannot guarantee that all parts shown
are available for purchase. Call [phone] or visit www.grizzly.com/parts to check for availability.

Main

74

28

78

37

25

104

59

35

27

103

36

26

60

31

64

47

65

30

8

77

58

23

100

38

22

101

109

105

32

21

33

20

106

18

19

107

108

17

9

15

1

43

10

44

46

14

11

50

49

76

5

4

102

51

52

24

3

50A

79

73

48

54

68-1

68-2

6V2

2

45

24

68

71

70

75

34

40

Model T32536 (Mfd. Since 10/20)

62

61

BUY PARTS ONLINE AT GRIZZLY.COM !

Scan QR code to visit our Parts Store.

41

39

41-1

41-2

-39-

REF PART # DES CRIPTION REF PART # DES CRIPTION

1 PT32536001 LATHE BED 44 PT32536044 TOOL REST BASE
2 PT32536002 RETAINING PLATE 45 PT32536045 TOOL REST CLAMP BOLT M8-1.25 X 32
3 PT32536003 PHLP HD SCR M5-.8 X 8 46 PT32536046 CLAMP BLOCK
4 PT32536004 SET SCREW M6-1 X 8 DOG-PT 47 PT32536047 LOCK WASHER 8MM
5 PT32536005 TAILSTOCK ADJUSTMENT KNOB 48 PT32536048 SLEEVE
6V2 PT32536006V2 TAILSTOCK BODY V2.04. 21 49 PT32536049 ECCENTRI C ROD
7 PT32536007 T-LOCK KNOB BOLT M6-1 X 18 50 PT32536050 TOOL REST 7"
8 PT32536008 CAP SCREW M8-1.25 X 50 50A PT32536050A TOOL REST 4-1/2"
9 PT32536009 LEVER BUSHING 51 PT32536051 TAILSTOCK CLAMP BOLT M8-1.25 X 32
10 PT32536010 ECCENTRI C AX I S 52 PT32536052 CLAMP BLOCK
11 PT32536011 TAILSTOCK QUILL 54 PT32536054 LOCK LEVER
14 PT32536014 LIVE CENTER MT#1 58 PT32536058 PADDLE SWITCH KEDU HY18 20A
15 PT32536015 SPUR CE NTER MT#1 59 PT32536059 FUSE 10A
16 PT32536016 LOCK LEVER 60 PT32536060 SPINDLE SPEED DIAL W/POTENTIOMETER
17 PT32536017 FACEPLATE 5-3/4" 61 PT32536061 FLA T WASHE R 6MM
18 PT32536018 HEADSTOCK SPINDLE 62 PT32536062 LOCK WASHER 6MM
19 PT32536019 BALL BEARING 6004-2RS 64 PT32536064 PHLP HD SCR M4-.7 X 10
20 PT32536020 I NT RE TAI NI NG RI NG 42MM 65 PT32536065 CABLE CLAMP
21 PT32536021 I NT RE TAI NI NG RI NG 42MM 68 PT32536068 KNOCK-OUT TOOL ASSEMBLY
22 PT32536022 BALL BEARING 6004ZZ 68-1 PT32536068-1 KNOCK-OUT TOOL ROD
23 PT32536023 HEADS TOCK 68-2 PT32536068-2 KNOCK-OUT TOOL END BALL
24 PT32536024 LOCK NUT M8-1.25 70 PT32536070 HEX WRENCH 3MM
25 PT32536025 KNOB 3/4-16 LH, D42, ROUND KD 71 PT32536071 HEX WRENCH 5MM
26 PT32536026 HEADSTOCK SPINDLE NUT 72 PT32536072 FLAT HD S CR M5-. 8 X 1 0
27 PT32536027 OUTBOARD SPINDLE PLATE 73 PT32536073 ROLL PIN 4 X 16
28 PT32536028 PHLP HD SCR M4-.7 X 8 74 PT32536074 STRAIN RELIEF TYPE-1 3/8"
30 PT32536030 SET SCREW M6-1 X 8 75 PT32536075 WRENCH 19 X 27MM OPEN-ENDS
31 PT32536031 DRIVE PULLEY 76 PT32536076 SET SCREW M6-1 X 12
32 PT32536032 BELT K-516 77 PT32536077 WRENCH 3 2MM OP EN-E ND
33 PT32536033 SET SCREW M6-1 X 10 78 PT32536078 WRENCH 24.5MM OP EN-E ND OFFSET
34 PT32536034 MOTOR PULLEY 79 PT32536079 T-LOCK KNOB BOLT M6-1 X 28
35 PT32536035 POWER CORD 18G 3W 72" 5-15P 100 PT32536100 DISCONNECT 110V LABEL
36 PT32536036 CI RCUI T BO ARD W/ BOX 101 PT32536101 EYE/EAR/LUNG HAZARD LABEL
37 PT32536037 PHLP HD SCR M4-.7 X 10 102 PT32536102 READ MANUAL LABEL
38 PT32536038 CAP SCREW M8-1. 25 X 25 103 PT32536103 SPINDLE SPEED LABEL
39 PT32536039 CAP SCREW M6-1 X 20 104 PT32536104 ELECTRICITY LABEL
40 PT32536040 MOTOR MO UNTI NG PLA TE 105 PT32536105 MACHINE ID LABEL
41 PT32536041 MOTOR 1/3HP 120V 1-PH 106 PT32536106 MACHI NE WARNI NG L ABE L
41-1 PT32536041-1 CARBON BRUSH (2-PC SET) 107 PT32536107 MODEL NUMBER LABEL
41-2 PT32536041-2 BRUSH CAP 108 PT32536108 GRIZZLY.COM LABEL
43 PT32536043 EXT RE TAI NI NG RI NG 10MM 109 PT32536109 TOUCH-UP PAINT, GRIZZLY GREEN

Main Parts List

-40-

BUY PARTS ONLINE AT GRIZZLY.COM !

Scan QR code to visit our Parts Store.

Model T32536 (Mfd. Since 10/20)

WARRANTY & RETURNS

Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from
the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse,
negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty
and any and all warranties that may be implied by law, including any merchantability or fitness, for any par­ticular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent
that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants.
In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and
any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.

We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special,
or consequential damages arising from the use of our products.

The manufacturers reserve the right to change specifications at any time because they constantly strive to
achieve better quality equipment. We make every effort to ensure that our products meet high quality and
durability standards and we hope you never need to use this warranty.

In the event you need to use this warranty, contact us by mail or phone and give us all the details. We will
then issue you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of
the carton. We will not accept any item back without this number. Proof of purchase must accompany the
merchandise.

Please feel free to write or call us if you have any questions about the machine or the manual.

Thank you again for your business and continued support. We hope to serve you again soon.

To
you can
applicable information for

take advantage of this warranty, you must register it at https://www.grizzly.com/forms/warranty, or

scan the QR code below to be automatically directed to our warranty registration page. Enter all

the product.

WARRANTY
