MODEL T32459

2" X 42" KNIFE-MAKING

BELT SANDER/GRINDER

OWNER'S MANUAL

(For models manufactured since 12/23)

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#CS22595 PRINTED IN CHINA

***Keep for Future Reference***

V2.04.24

This manual provides critical safety instructions on the proper setup, operation, maintenance, and service of this machine/tool. Save this document, refer to it often, and use it to instruct other operators.

Failure to read, understand and follow the instructions in this manual may result in fire or serious personal injury—including amputation, electrocution, or death.

The owner of this machine/tool is solely responsible for its safe use. This responsibility includes but is not limited to proper installation in a safe environment, personnel training and usage authorization, proper inspection and maintenance, manual availability and comprehension, application of safety devices, cutting/sanding/grinding tool integrity, and the usage of personal protective equipment.

The manufacturer will not be held liable for injury or property damage from negligence, improper training, machine modifications or misuse.

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: Work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

Table of Contents

INTRODUCTION ............................................................................................................................... 2

Contact Info Manual Accuracy Identification Controls & Components Machine Data Sheet

.................................................................................................................................2

.........................................................................................................................2

................................................................................................................................3

..............................................................................................................4

....................................................................................................................5

SECTION 1: SAFETY

Safety Instructions for Machinery Additional Safety for Metal Belt Grinders

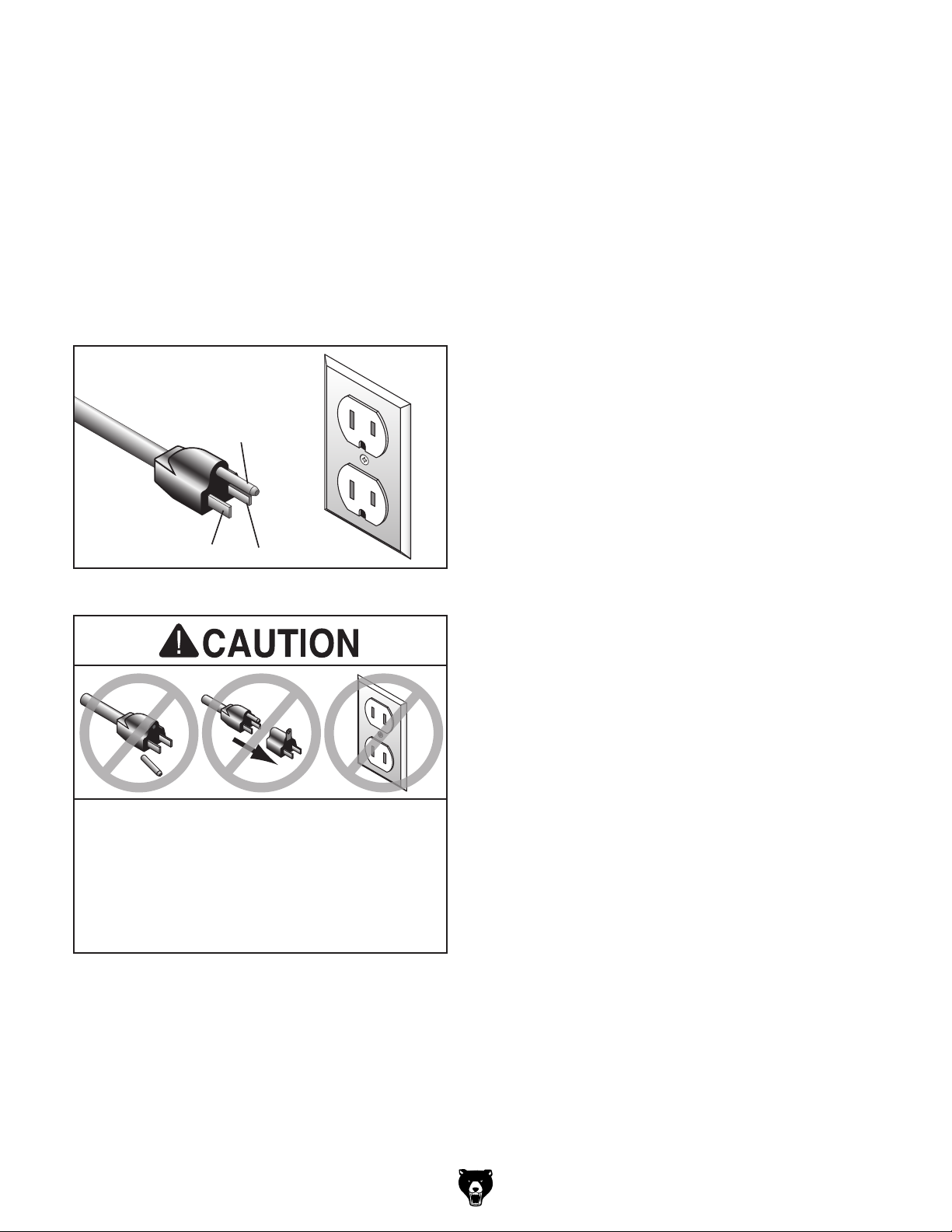

SECTION 2: POWER SUPPLY

SECTION 3: SETUP

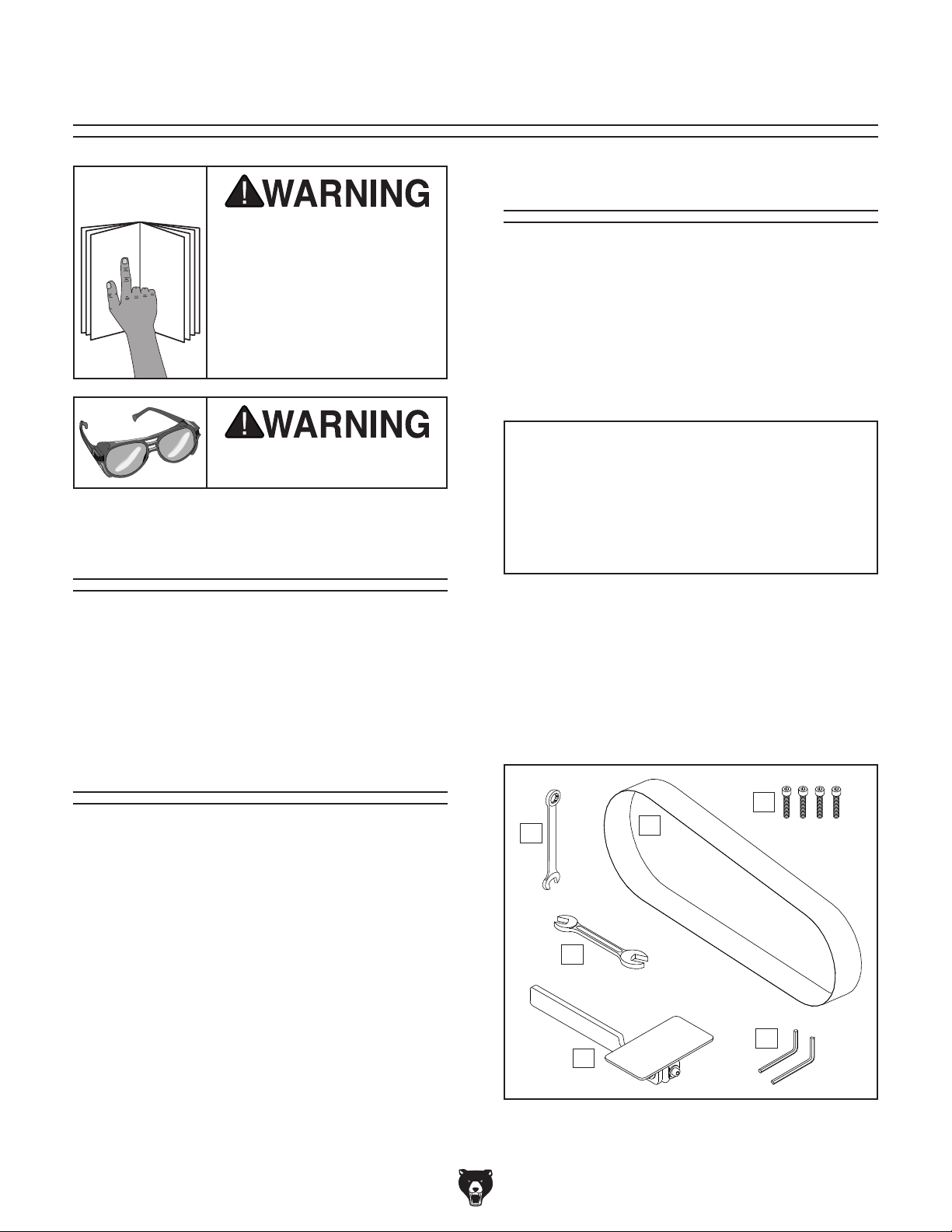

Needed for Setup Unpacking Inventory Site Considerations Assembly Test Run

SECTION 4: OPERATIONS

Operation Overview Workpiece Inspection Grinding Tips

Choosing Grinding Belts ...........................................................................................................20

Adjusting Frame Tilt Adjusting Platen Tilt Installing/Changing Belt Pre-Tracking Belt Checking/Adjusting Belt Tracking Adjusting Tool Rest Flat Grinding Slack Belt Grinding

.................................................................................................................................12

....................................................................................................................................12

...................................................................................................................................13

....................................................................................................................................15

....................................................................................................................... 7

................................................................................................7

....................................................................................9

...................................................................................................... 10

....................................................................................................................... 12

......................................................................................................................12

...................................................................................................................13

............................................................................................................ 18

..................................................................................................................18

................................................................................................................19

.............................................................................................................................19

..................................................................................................................20

...................................................................................................................21

............................................................................................................22

.......................................................................................................................23

..............................................................................................24

...................................................................................................................25

..............................................................................................................................27

....................................................................................................................28

SECTION 5: ACCESSORIES

SECTION 6: MAINTENANCE

Schedule Cleaning Lubrication

SECTION 7: SERVICE

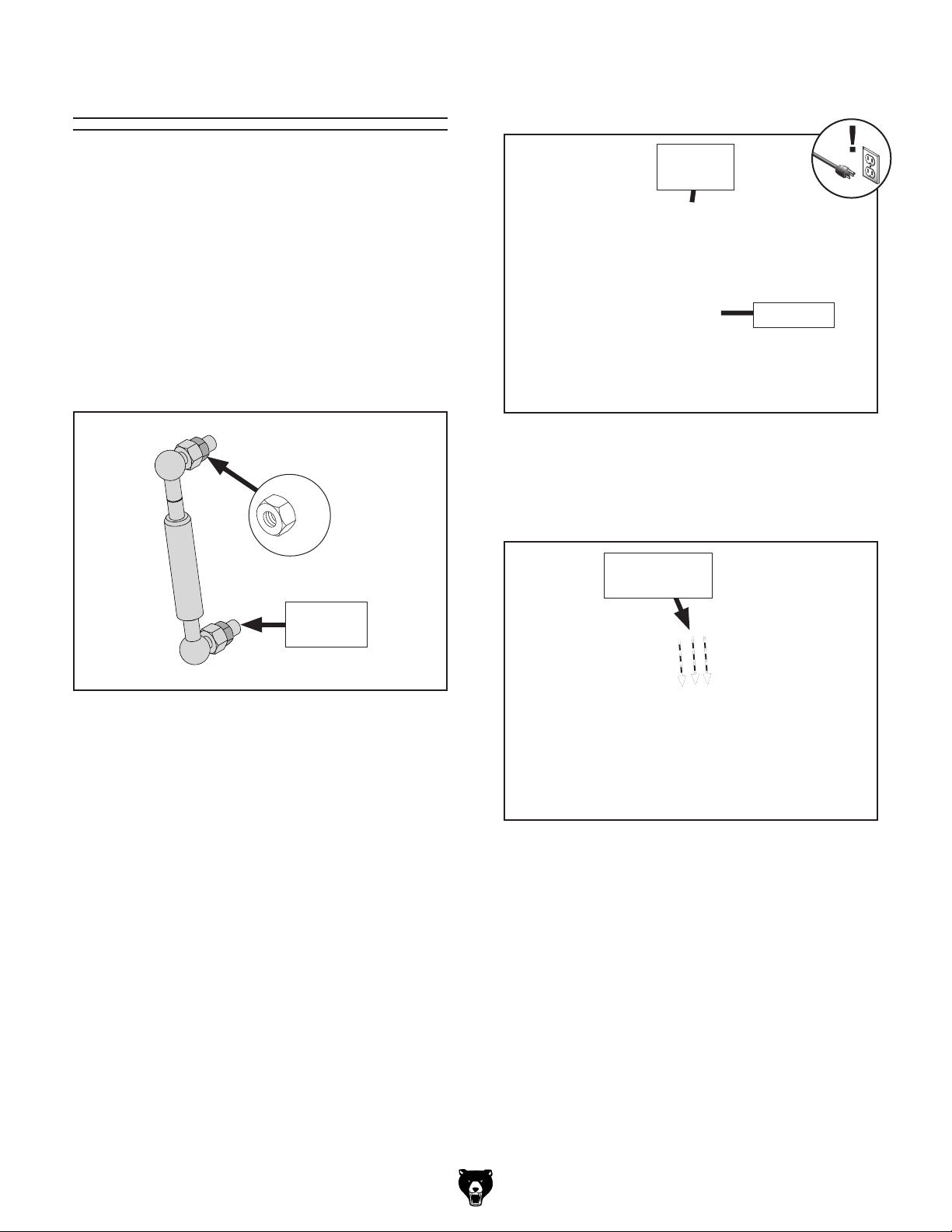

Troubleshooting Adjusting Platen to Wheels Replacing Gas Strut

SECTION 8: WIRING

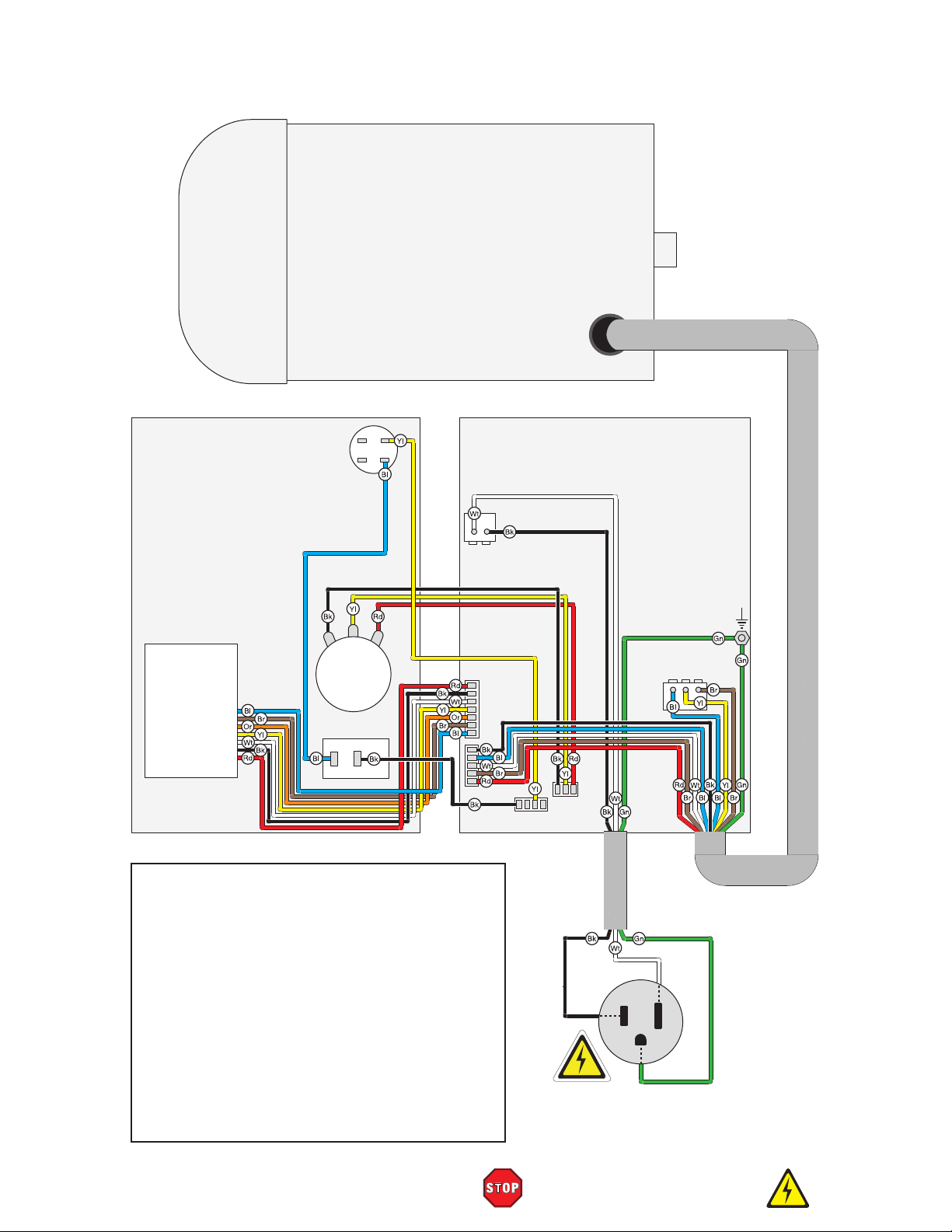

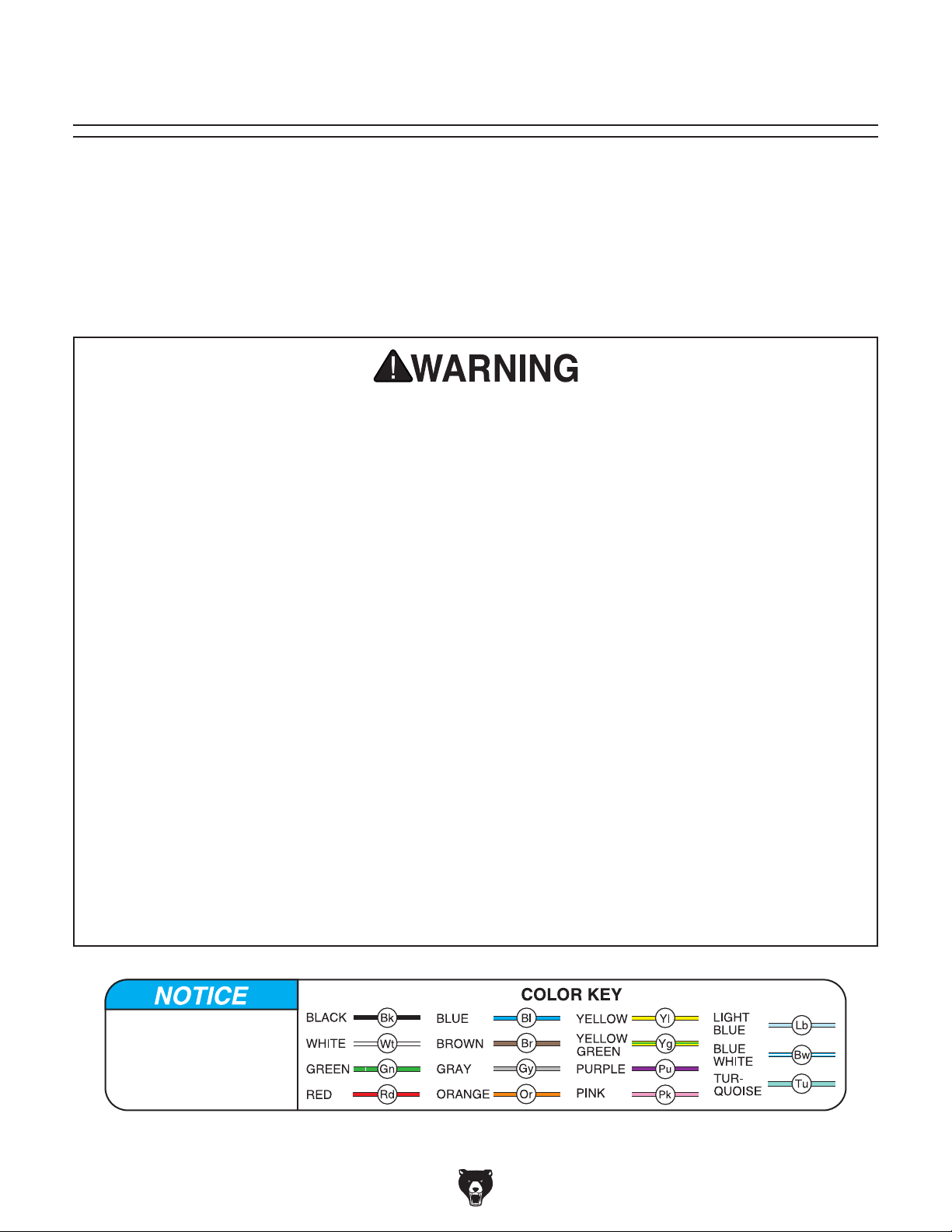

Wiring Safety Instructions Wiring Diagram

SECTION 9: PARTS

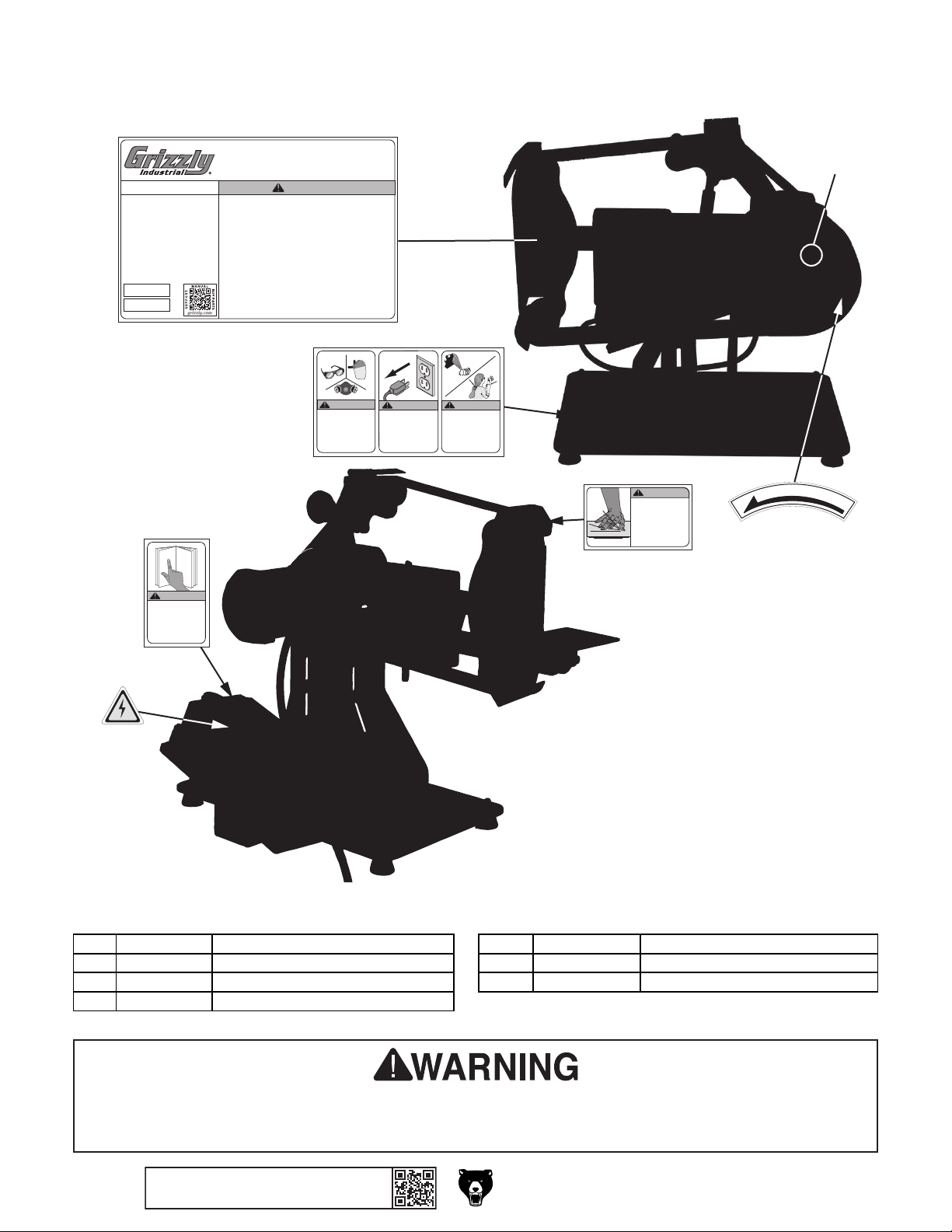

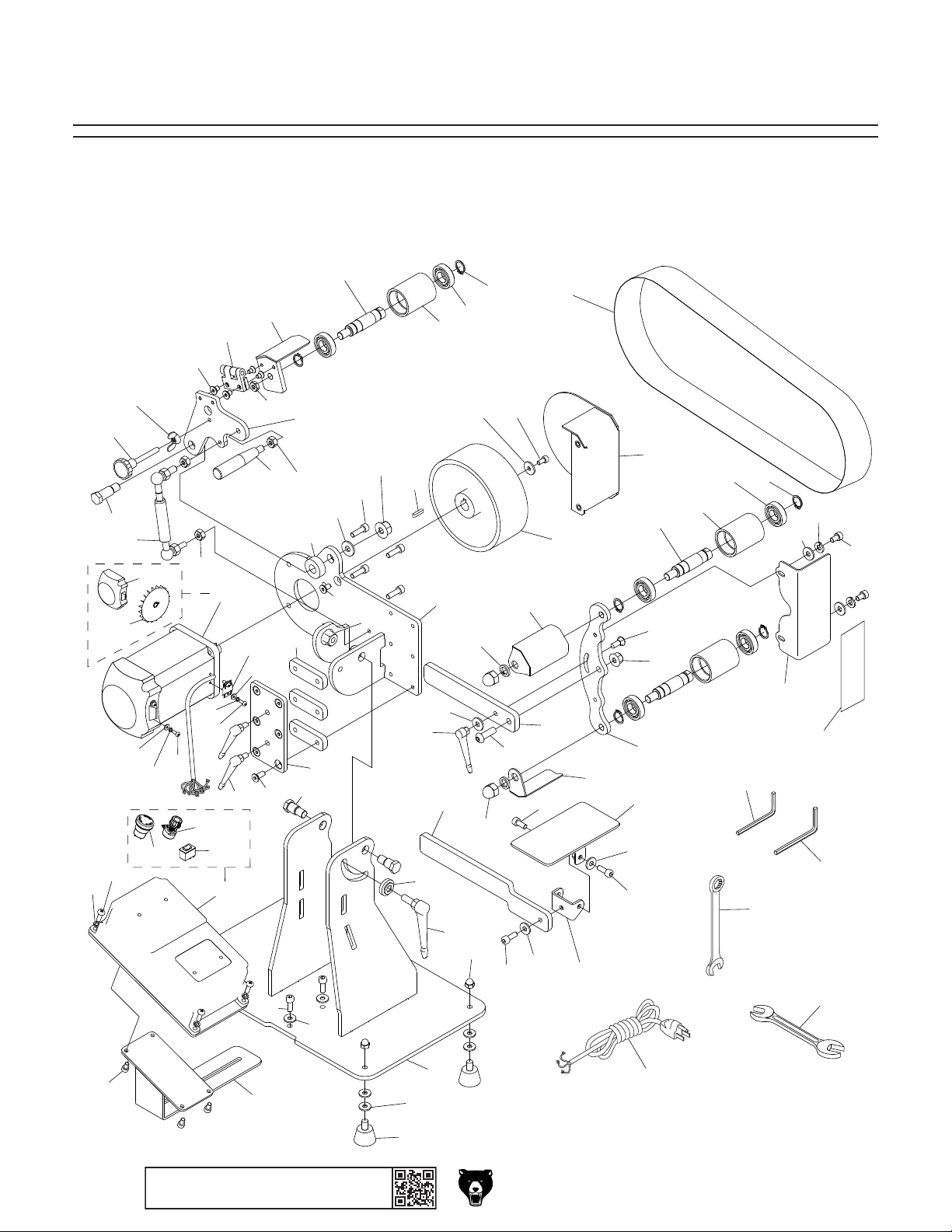

Main Labels & Cosmetics

WARRANTY & RETURNS

...................................................................................................................................31

....................................................................................................................................31

.................................................................................................................................31

................................................................................................................... 32

.........................................................................................................................32

..................................................................................................................35

...................................................................................................................... 36

.........................................................................................................................37

....................................................................................................................... 38

...........................................................................................................................................38

..................................................................................................................40

.............................................................................................................. 41

......................................................................................................... 29

........................................................................................................ 31

.......................................................................................................34

.........................................................................................................36

We stand behind our machines! If you have questions or need help, contact us with the information below. Before contacting, make sure you get the

serial number

from the

machine ID label. This will help us help you faster.

We want your feedback on this manual. What did you like about it? Where could it be improved? Please take a few minutes to give us feedback.

Email: manuals@grizzly.com

We are proud to provide a high-quality owner’s manual with your new machine!

instructions, specifications, drawings, and photographs in this manual. Sometimes we make mistakes, but our policy of continuous improvement also means that

you receive is

slightly different than shown in the manual

If you find this to be the case, and the difference between the manual and machine leaves you confused or unsure about something

check our

website for an updated version. W

current

manuals and

on our web-

site at

Alternatively, you can call our Technical Support for help. Before calling, make sure you write down the

serial number

from the machine ID label (see below). This information is required for us to provide proper tech support, and it helps us determine if updated documentation is available for your machine.

INTRODUCTION

Contact Info

and manufacture date

Grizzly Technical Support

1815 W. Battlefield

Springfield, MO 65807

Phone: (570) 546-9663

Email: techsupport@grizzly.com

Grizzly Documentation Manager

P.O. Box 2069

Bellingham, WA 98227-2069

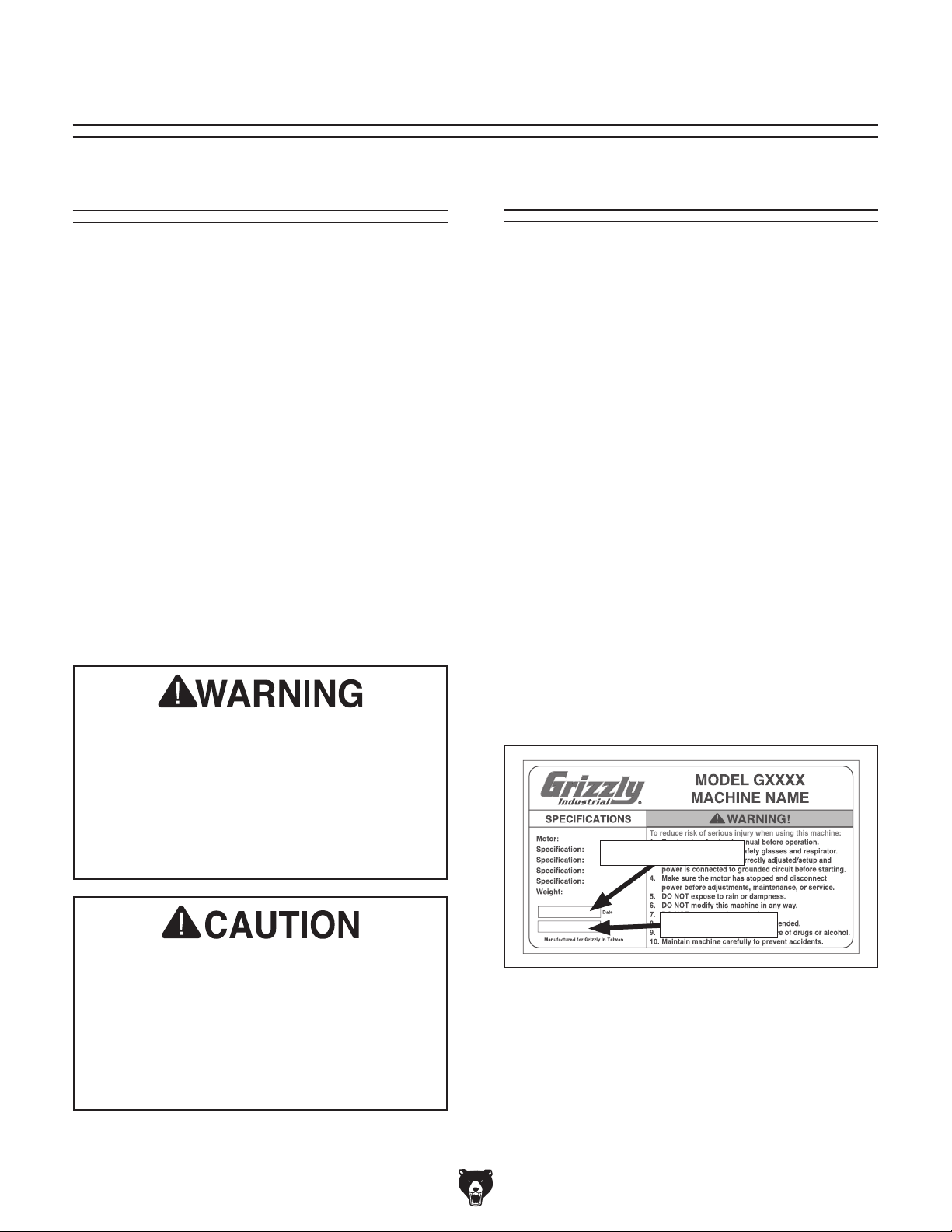

Manual Accuracy

made every effort to be exact with the

sometimes the machine

e post

manual updates for free

www.grizzly.com.

manufacture date and

Like all machinery there is potential danger when operating this machine. Accidents are frequently caused by lack of familiarity or failure to pay attention. Use this machine with respect and caution to decrease the risk of operator injury. If normal safety precautions are overlooked or ignored, serious personal injury may occur.

No list of safety guidelines can be complete. Every shop environment is different. Always consider safety first, as it applies to your individual working conditions. Use this and other machinery with caution and respect. Failure to do so could result in serious personal injury, damage to equipment, or poor work results.

Manufacture Date

Serial Number

-2-

Model T32459 (Mfd. Since 12/23)

Identification

Become familiar with the names and locations of the controls and features shown below to better understand the instructions in this manual.

A. Belt Tracking Knob B. Belt Tension Handle C. Abrasive Belt D. Platen E. Tool Rest F. Tool Rest Lock Handle G. Motor Speed Digital Readout

H. ON/OFF Switch I. Variable-Speed Dial J. EMERGENCY STOP Button K. Motor L. Frame Tilt Lock Handle M. Platen Lock Handle N. Platen Tilt Lock Handle

For Your Own Safety Read Instruction Manual Before Operating Sander

a) Wear eye protection. b) Support workpiece with tool rest. c) Maintain 1⁄16 in. maximum clearance between tool rest and abrasive belt.

Model T32459 (Mfd. Since 12/23)

-3-

Controls &

To reduce your risk of serious injury, read this entire manual BEFORE

Components

using machine.

Refer to these figures and descriptions to become familiar with the basic controls and components of this machine. Understanding these controls will help you understand the manual and minimize your risk of injury when operating this machine.

Grinding Components

Figure 1. Platen and tool rest components.

Figure 2. Additional adjustment components.

F. Belt Tracking Knob: Fine-tunes belt tracking

along platen and wheels.

G. Belt Tension Handle: Compresses gas strut

to release belt tension.

H. Frame Tilt Lock Handle: Loosen to adjust

frame angle and tighten to secure.

Power Controls

Note: The handles on this machine are adjustable. If movement of handle is obstructed, pull handle away from handle shaft to reposition it as needed.

A. Platen Lock Handle: Loosen to adjust platen

position and tighten to secure.

B. Platen Tilt Lock Handle: Loosen to adjust

platen angle and tighten to secure.

C. Platen: Provides flat surface belt support.

D. Tool Rest: Supports workpiece.

E. Tool Rest Lock Handle: Loosen to remove

tool rest or adjust tool rest position relative to platen and tighten to secure.

-4-

Figure 3. Power controls.

I. EMERGENCY STOP Button: Turns machine

OFF when pressed. Twist clockwise to reset.

J. Motor Speed Digital Readout: Displays cur-

rent motor speed at 100 RPM intervals.

K. ON/OFF Switch: Turns machine ON and

OFF.

L. Variable-Speed Dial: Rotates to adjust motor

and belt speed.

Model T32459 (Mfd. Since 12/23)

Machine Data Sheet

MACHINE DATA

SHEET

Customer Service #: (570) 546-9663 · To Order Call: (800) 523-4777 · Fax #: (800) 438-5901

MODEL T32459 2" X 42" KNIFE MAKING BELT

2" X 42" KNIFE-MAKING BELT SANDER/GRINDER

Product Dimensions:

Weight................................................................................................................................................................ 38 lbs.

Width (side-to-side) x Depth (front-to-back) x Height..................................................................... 15-1/2 x 19 x 18 in.

Footprint (Length x Width)....................................................................................................................... 14 x 9-1/2 in.

Shipping Dimensions:

Type..................................................................................................................................................... Cardboard Box

Content........................................................................................................................................................... Machine

Weight................................................................................................................................................................ 42 lbs.

Length x Width x Height....................................................................................................................... 16 x 11 x 15 in.

Must Ship Upright................................................................................................................................................... Yes

Electrical:

Power Requirement........................................................................................................... 110V, Single-Phase, 60 Hz

Full-Load Current Rating....................................................................................................................................... 7.8A

Minimum Circuit Size.............................................................................................................................................. 15A

Connection Type....................................................................................................................................... Cord & Plug

Power Cord Included.............................................................................................................................................. Yes

Power Cord Length.............................................................................................................................................. 72 in.

Power Cord Gauge......................................................................................................................................... 16 AWG

Plug Included.......................................................................................................................................................... Yes

Included Plug Type................................................................................................................................................ 5-15

Switch Type............................................................................................................................. Rocker ON/OFF Switch

MODEL T32459

SANDER/GRINDER

Motors:

Main

Horsepower............................................................................................................................................. 3/4 HP

Phase............................................................................................................................................ Single-Phase

Amps........................................................................................................................................................... 7.8A

Speed....................................................................................................................................... 100 - 3200 RPM

Type.............................................................................................................................................. Brushless DC

Power Transfer ......................................................................................................................................... Direct

Bearings..................................................................................................... Shielded & Permanently Lubricated

Model T32459 (Mfd. Since 12/23)

-5-

Belt Sander Info

Sanding Belt Width...................................................................................................................................... 2 in.

Sanding Belt Length.................................................................................................................................. 42 in.

Sanding Belt Speed.................................................................................................................. 131 - 4189 FPM

Sanding Belt Tilt................................................................................................................................ 0 - 90 deg.

Table Length.......................................................................................................................................... 4-7/8 in.

Table Width........................................................................................................................................... 2-1/2 in.

Table Thickness........................................................................................................................................ 1/8 in.

Table Tilt.......................................................................................................................... Left 5, Right 120 deg.

Drive Wheel Diameter.................................................................................................................................. 5 in.

Drive Wheel Width....................................................................................................................................... 2 in.

Belt Tension Release Type......................................................................................................... Quick-Release

Platen Type.............................................................................................................................. Graphite-Coated

Platen Length........................................................................................................................................ 5-1/2 in.

Platen Width.......................................................................................................................................... 2-1/4 in.

Idler Wheel Diameter............................................................................................................................. 1-1/2 in.

Idler Wheel Width........................................................................................................................................ 2 in.

Construction

Base........................................................................................................................................................... Steel

Frame......................................................................................................................................................... Steel

Paint/Finish................................................................................................................................ Powder Coated

Other Specifications:

Country of Origin ................................................................................................................................................ China

Warranty ........................................................................................................................................................... 1 Year

Approximate Assembly & Setup Time ........................................................................................................ 15 Minutes

Serial Number Location ................................................................................................................... Machine ID Label

Features:

2" x 42" 120-Grit Silicon Carbide Belt Included Frame Pivots 90 Deg. for Vertical or Horizontal Grinding Platen Tilts 30 Deg. Left/Right on Frame Tool Rest Adjusts for Vertical and Horizontal Grinding Gas Strut Quick-Release Belt Tension Variable-Speed Motor and Belt Speed Graphite-Coated Platen Aluminum Drive and Idler Wheels

Accessories Included:

Combo Wrench 10mm Open-End Wrench 12 x 14mm Hex Wrenches 1/8", 3/16"

-6-

Model T32459 (Mfd. Since 12/23)

SECTION 1: SAFETY

For Your Own Safety, Read Instruction

Manual Before Operating This Machine

The purpose of safety symbols is to attract your attention to possible hazardous conditions. This manual uses a series of symbols and signal words intended to convey the level of importance of the safety messages. The progression of symbols is described below. Remember that safety messages by themselves do not eliminate danger and are not a substitute for proper accident prevention measures. Always use common sense and good judgment.

Indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, MAY result in minor or moderate injury. It may also be used to alert against unsafe practices.

Alerts the user to useful information about proper operation of the

NOTICE

machine to avoid machine damage.

Safety Instructions for Machinery

OWNER’S MANUAL. Read and understand this

owner’smanualBEFOREusingmachine.

TRAINED OPERATORS ONLY. Untrained operators have a higher risk of being hurt or killed. Only allow trained/supervised people to use this machine. When machine is not being used, disconnect power, remove switch keys, or lock-out machine to prevent unauthorized use—especially around children. Make your workshop kid proof!

DANGEROUS ENVIRONMENTS. Do not use machinery in areas that are wet, cluttered, or have poor lighting. Operating machinery in these areas greatly increases the risk of accidents and injury.

MENTAL ALERTNESS REQUIRED. Full mental alertness is required for safe operation of machinery. Never operate under the influence of drugs or alcohol, when tired, or when distracted.

ELECTRICAL EQUIPMENT INJURY RISKS. You can be shocked, burned, or killed by touching live electrical components or improperly grounded machinery. To reduce this risk, only allow qualified service personnel to do electrical installation or repair work, and always disconnect power before accessing or exposing electrical equipment.

DISCONNECT POWER FIRST. nect machine from power supply BEFORE making adjustments, changing tooling, or servicing machine. This prevents an injury risk from unintended startup or contact with live electrical components.

EYE PROTECTION. Always wear ANSI-approved safety glasses or a face shield when operating or observing machinery to reduce the risk of eye injury or blindness from flying particles. Everyday eyeglasses are NOT approved safety glasses.

Always discon-

Model T32459 (Mfd. Since 12/23)

-7-

may damage the wires inside. Do not handle

WEARING PROPER APPAREL. Do not wear loose clothing, gloves, neckties, or jewelry that can become entangled in moving parts. Always tie back or cover long hair. Wear non-slip footwear to reduce risk of slipping and losing control or accidentally contacting cutting tool or moving parts.

HAZARDOUS DUST. Dust created by machinery operations may cause cancer, birth defects, or long-term respiratory damage. Be aware of dust hazards associated with each workpiece material. Always wear a NIOSH-approved respirator to reduce your risk.

HEARING PROTECTION. Always wear hearing protection when operating or observing loud machinery. Extended exposure to this noise without hearing protection can cause permanent hearing loss.

REMOVE ADJUSTING TOOLS. Tools left on machinery can become dangerous projectiles upon startup. Never leave chuck keys, wrenches, or any other tools on machine. Always verify removal before starting!

USE CORRECT TOOL FOR THE JOB. Only use this tool for its intended purpose—do not force it or an attachment to do a job for which it was not designed. Never make unapproved modifications—modifying tool or using it differently than intended may result in malfunction or mechanical failure that can lead to personal injury or death!

AWKWARD POSITIONS. Keep proper footing and balance at all times when operating machine. Do not overreach! Avoid awkward hand positions that make workpiece control difficult or increase the risk of accidental injury.

CHILDREN & BYSTANDERS. Keep children and bystanders at a safe distance from the work area. Stop using machine if they become a distraction.

GUARDS & COVERS. Guards and covers reduce accidental contact with moving parts or flying debris. Make sure they are properly installed, undamaged, and working correctly BEFORE operating machine.

FORCING MACHINERY. Do not force machine. It will do the job safer and better at the rate for which it was designed.

NEVER STAND ON MACHINE. Serious injury may occur if machine is tipped or if the cutting tool is unintentionally contacted.

STABLE MACHINE. Unexpected movement during operation greatly increases risk of injury or loss of control. Before starting, verify machine is stable and mobile base (if used) is locked.

USE RECOMMENDED ACCESSORIES. Consult

thisowner’smanualorthemanufacturerforrec-

ommended accessories. Using improper accessories will increase the risk of serious injury.

UNATTENDED OPERATION. To reduce the risk of accidental injury, turn machine OFF and ensure all moving parts completely stop before walking away. Never leave machine running while unattended.

MAINTAIN WITH CARE. Follow all maintenance instructions and lubrication schedules to keep machine in good working condition. A machine that is improperly maintained could malfunction, leading to serious personal injury or death.

DAMAGED PARTS. Regularly inspect machine for damaged, loose, or mis-adjusted parts—or any condition that could affect safe operation. Immediately repair/replace BEFORE operating machine. For your own safety, DO NOT operate machine with damaged parts!

MAINTAIN POWER CORDS. When disconnecting cord-connected machines from power, grab and pull the plug—NOT the cord. Pulling the cord

cord/plug with wet hands. Avoid cord damage by keeping it away from heated surfaces, high traffic areas, harsh chemicals, and wet/damp locations.

EXPERIENCING DIFFICULTIES. If at any time you experience difficulties performing the intended operation, stop using the machine! Contact our Technical Support at (570) 546-9663.

-8-

Model T32459 (Mfd. Since 12/23)

Additional Safety for Metal Belt Grinders

Serious injury or death can occur from fingers, clothing, jewelry, or hair getting pinched/entangled in rotating belt or other moving components. Abrasion injuries can occur from touching moving abrasive belt with bare skin. Workpieces or ground-off particles thrown by abrasive belt can strike operator or bystanders, causing impact injuries or blindness. Long-term respiratory damage can occur from using grinder without wearing a respirator. To reduce the risk of these hazards, operator or bystanders MUST completely heed the hazards and warnings below.

IN-RUNNING NIP POINTS. The gap between

moving abrasive belt and rest/support creates a pinch point for fingers or workpieces; the larger this gap is, the greater the risk of fingers or workpieces getting caught in it. Minimize the risk of pinch and crush injuries by adjusting rest/support to no more

⁄16 " away from belt.

than

GRINDING DUST. Grinding creates large amounts of airborne dust particles that can cause eye injury or respiratory illness. Reduce your risk by always wearing approved eye and respiratory protection when using grinder.

ABRASIVE CONDITION. Worn or damaged abrasive belts can fly apart and throw debris, or aggressively grab workpiece, causing injury from operator loss of workpiece control. Always inspect belt before operation and replace if worn or damaged.

HOT WORKPIECES. Grinding friction will cause workpiece to quickly get hot, causing burns to the

Wear apron if grinding for an extended time.

skin. Do not touch freshly ground surfaces or nearby areas without first cooling them or allowing them to cool.

MINIMUM STOCK DIMENSION. Small workpieces can be aggressively pulled from your hands, causing contact with belt surface. Always use a jig or other holding device when grinding small workpieces, and keep hands and fingers at least 2" away from abrasive surface.

FLAMMABLE MATERIALS. Grinding metal will cause sparks. Make sure there are no flammable or combustible materials near machine.

ABRASIVE DIRECTION. Feeding workpiece incorrectly can cause it to be thrown from machine, striking operator or bystanders, or causing hands to slip into moving belt. To reduce these risks, only grind against direction of abrasive belt travel, ensure workpiece is properly supported, and avoid introducing sharp edges into moving belt on the leading side of the workpiece.

PROTECTING HANDS. Rotating belt can remove skin quickly. Always keep hands away from moving belt during operation. Do not wear gloves while grinding. Stop machine before cleaning dust from work area and protect hands because pieces can be sharp.

WORKPIECE INTEGRITY & SUPPORT. Grinding fragile workpieces can result in loss of control, resulting in abrasion injuries, pinch/impact injuries, or damage to abrasive belt. Only grind solid workpieces that can withstand power grinding forces. Properly support workpiece; avoid grinding workpieces without flat bottom surfaces unless some type of jig is used to maintain support and control when grinding force is applied. Always grind with workpiece firmly against rest or another support device, if feasible.

Model T32459 (Mfd. Since 12/23)

FEEDING WORKPIECE. Forcefully jamming workpiece into abrasive surface could cause it to be grabbed aggressively, pulling hands into abrasive surface. Firmly grasp workpiece in both hands and ease it into belt using light pressure.

AVOIDING ENTANGLEMENT. Becoming entangled in moving parts can cause severe injury or death. Keep all guards in place and closed; DO NOT wear loose clothing, gloves, or jewelry; and tie back long hair.

-9-

SECTION 2: POWER SUPPLY

Before installing the machine, consider the availability and proximity of the required power supply circuit. If an existing circuit does not meet the requirements for this machine, a new circuit must be installed. To minimize the risk of electrocution, fire, or equipment damage, installation work and electrical wiring must be done by an electrician or qualified service personnel in accordance with all applicable codes and standards.

or equipment damage may occur if machine is not properly grounded and connected to power

The full-load current rating is the amperage a machine draws at 100% of the rated output power. On machines with multiple motors, this is the amperage drawn by the largest motor or sum of all motors and electrical devices that might operate at one time during normal operations.

The full-load current is not the maximum amount of amps that the machine will draw. If the machine is overloaded, it will draw additional amps beyond the full-load rating.

If the machine is overloaded for a sufficient length of time, damage, overheating, or fire may result— especially if connected to an undersized circuit. To reduce the risk of these hazards, avoid overloading the machine during operation and make sure it is connected to a power supply circuit that meets the specified circuit requirements.

For your own safety and protection of

Note: Circuit requirements in this manual apply to

a dedicated circuit—where only one machine will be running on the circuit at a time. If machine will be connected to a shared circuit where multiple machines may be running at the same time, consult an electrician or qualified service personnel to ensure circuit is properly sized for safe operation.

A power supply circuit includes all electrical equipment between the breaker box or fuse panel in the building and the machine. The power supply circuit used for this machine must be sized to safely handle the full-load current drawn from the machine for an extended period of time. (If this machine is connected to a circuit protected by fuses, use a time delay fuse marked D.)

This machine is prewired to operate on a power supply circuit that has a verified ground and meets the following requirements:

Availability

Electrocution, fire, shock,

Serious injury could occur if you connect machine to power before completing setup process. DO NOT connect to power until instructed later in this manual.

110V Circuit Requirements

Nominal Voltage .................... 110V, 115V, 120V

..........................................................60 Hz

Cycle Phase Power Supply Circuit Plug/Receptacle

........................................... Single-Phase

......................... 15 Amps

............................. NEMA 5-15

supply.

Full-Load Current Rating

Full-Load Current Rating at 110V .... 7.8 Amps

-10-

property, consult an electrician if you are unsure about wiring practices or electrical codes in your area.

Model T32459 (Mfd. Since 12/23)

Improper connection of the equipment-grounding wire can result in a risk of electric shock. The wire with green insulation (with or without yellow stripes) is the equipment-grounding wire. If repair or replacement of the power cord or plug is necessary, do not connect the equipment-grounding wire to a live (current carrying) terminal.

Check with a qualified electrician or service personnel if you do not understand these grounding requirements, or if you are in doubt about whether the tool is properly grounded. If you ever notice that a cord or plug is damaged or worn, disconnect it from power, and immediately replace it with

We do not recommend using an extension cord with this machine. If you must use an extension cord, only use it if absolutely necessary and only on a temporary basis.

Extension cords cause voltage drop, which can damage electrical components and shorten motor life. Voltage drop increases as the extension cord size gets longer and the gauge size gets smaller (higher gauge numbers indicate smaller sizes).

Any extension cord used with this machine must be in good condition and contain a ground wire and matching plug/receptacle. Additionally, it must meet the following size requirements:

Grounding & Plug Requirements

Two-prong outlets do not meet the grounding requirements for this machine.

provided—if it will not fit the outlet, have a

This machine MUST be grounded. In the event of certain malfunctions or breakdowns, grounding reduces the risk of electric shock by providing a path of least resistance for electric current.

This machine is equipped with a power cord that has an equipment-grounding wire and a grounding plug. Only insert plug into a matching receptacle (outlet) that is properly installed and grounded in accordance with all local codes and ordinances. DO NOT modify the provided plug!

GROUNDED

5-15 RECEPTACLE

Grounding Pin

5-15 PLUG

Extension Cords

Neutral Hot

Figure 4. Typical 5-15 plug and receptacle.

SHOCK HAZARD!

Do not modify or use an adapter on the plug

qualified electrician install the proper outlet with a verified ground.

Model T32459 (Mfd. Since 12/23)

Minimum Gauge Size ........................... 16 AWG

Maximum Length (Shorter is Better)

.......50 ft.

-11-

SECTION 3: SETUP

This machine was carefully packaged for safe transport. When unpacking, separate all enclosed items from packaging materials and inspect them for shipping damage.

please

IMPORTANT: Save all packaging materials until you are completely satisfied with the machine and have resolved any issues between Grizzly or the shipping agent. You MUST have the original pack-

aging to file a freight claim. It is also extremely helpful if you need to return your machine later.

The following is a list of items shipped with your machine. Before beginning setup, lay these items out and inventory them.

If any non-proprietary parts are missing (e.g. a nut or a washer), we will gladly replace them; or for the sake of expediency, replacements can be obtained at your local hardware store.

The following items are needed, but not included, for the setup/assembly of this machine.

This machine presents serious injury hazards to untrained users. Read through this entire manual to become familiar with the controls and operations before starting the machine!

Inventory

Wear safety glasses during the entire setup process!

Needed for Setup

Description Qty

• Safety Glasses (for each person) .......... 1 Pr.

Unpacking

If items are damaged

call us immediately at (570) 546-9663.

NOTICE

If you cannot find an item on this list, carefully check around/inside the machine and packaging materials. Often, these items get lost in packaging materials while unpacking or they are pre-installed at the factory.

Loose Items (Figure 5

A. Combo Wrench 10mm ............................... 1

B. Abrasive Belt 2" x 42" 120-Grit .................. 1

C. Cap Screws M5-.8 x 8 ................................ 4

D. Open-End Wrench 12 x 14mm ................... 1

E. To ol Re st .................................................... 1

F Hex Wrenches 1⁄8", 3⁄16 " .........................1 Ea.

) Qty

-12-

Figure 5. Loose items.

Model T32459 (Mfd. Since 12/23)

or disable start switch or

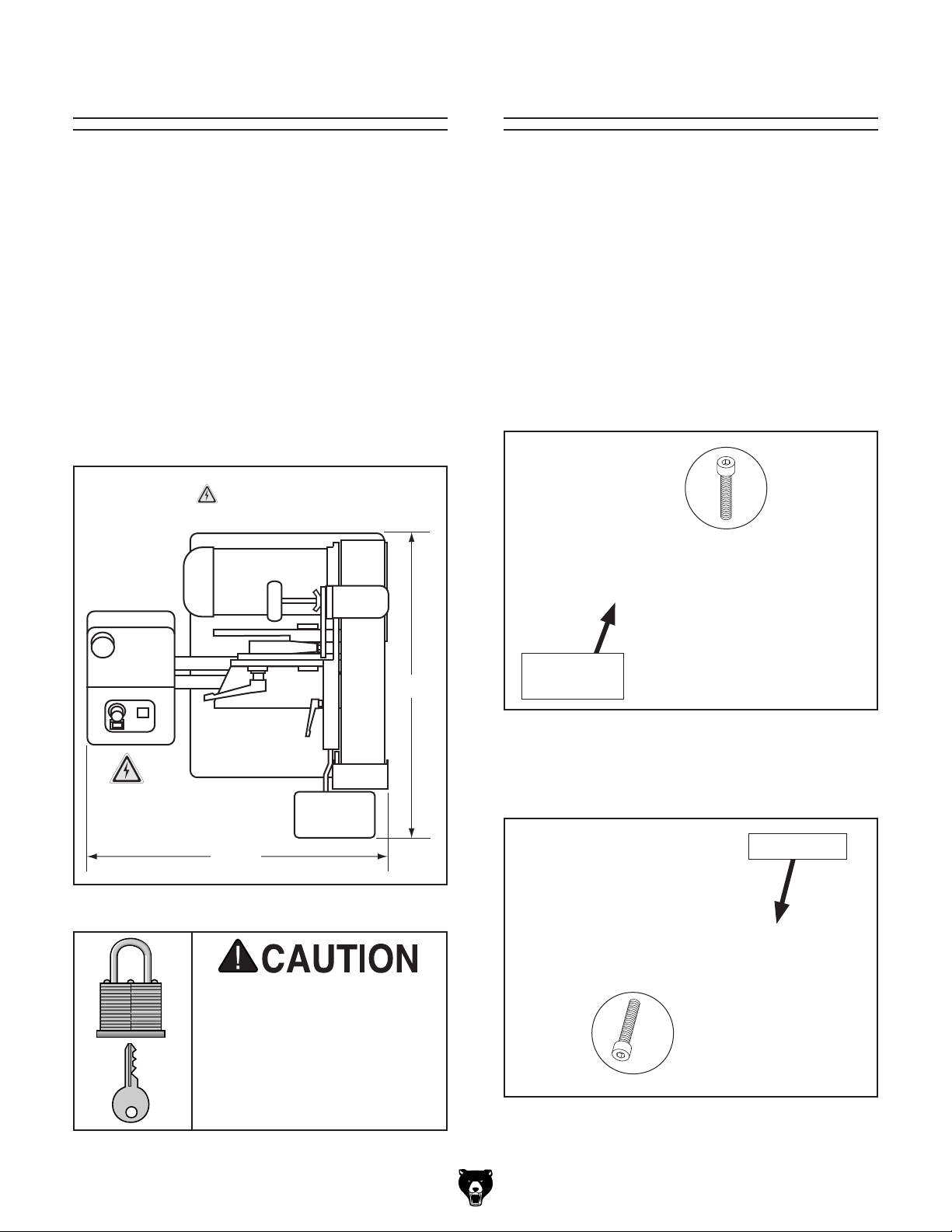

Site Considerations

Refer to the Machine Data Sheet for the weight and footprint specifications of your machine. Some workbenches may require additional reinforcement to support the weight of the machine and workpiece materials.

Consider anticipated workpiece sizes and additional space needed for auxiliary stands, work tables, or other machinery when establishing a location for this machine in the shop. Below is the minimum amount of space needed for the machine.

The machine must be fully assembled before it can be operated. Before beginning the assembly process, refer to

and gather

all

To ensure the assembly process

goes smoothly, first clean any

covered or coated in heavy-duty rust preventative (if applicable).

Workbench Load

Assembly

Needed for Setup

listed items.

parts that are

Placement Location

Electrical

Connection

19"

To assemble machine:

Loosen (2) control box mount cap screws,

fully extend control box mount from machine base, then tighten screws (see Figure 7).

x 2

Control Box

Mount

Figure 7. Control box mount fully extended.

15½"

Figure 6. Minimum working clearances.

Children and visitors may be seriously injured if unsupervised around this machine. Lock entrances to the shop

Model T32459 (Mfd. Since 12/23)

power connection to prevent unsupervised use.

2. Attach control box to mount with (4) M5-.8 x 8

cap screws (see Figure 8).

Control Box

x 4

Figure 8. Control box attached to mount.

-13-

3. Loosen frame tilt lock handle and tilt machine frame to vertical position, as shown in Figure 9, then tighten frame tilt lock handle to secure.

Loosen platen lock handle (see Figure 9).

Remove platen assembly from machine

frame (see Figure 9).

Platen Lock

Frame Tilt

Lock Handle

Handle

Platen

Assembly

Push belt tension handle (see Figure 11)

toward frame tilt lock handle to compress gas strut.

Belt Tension

Handle

Figure 11. Direction to push belt tension handle.

While holding belt tension handle to keep gas

strut compressed, install abrasive belt around wheels, being sure arrows on belt match belt rotation arrow on machine (see Figure 12).

Figure 9. Frame tilted to vertical position.

Flip platen assembly so abrasion injury label

faces up, then install assembly in machine frame (see Figure 10).

Abrasion

Injury Label

Figure 10. Platen assembly flipped and installed

correctly.

Belt

Wheel

(1 of 4)

Figure 12. Abrasive belt installed around wheels.

Rotation

Arrow

-14-

Model T32459 (Mfd. Since 12/23)

9. Without releasing belt tension handle, move

Once assembly is complete, test run the machine to ensure it is properly connected to power and safety components are functioning correctly.

If you find an unusual problem during the test run, immediately stop the machine, disconnect it from power, and fix the problem BEFORE operating the machine again. The

table in the

SERVICE section of this manual can help.

DO NOT start machine until all preceding setup instructions have been performed. Operating an improperly set up machine

Serious injury or death can result from

platen assembly as far forward as you can without stretching belt (see Figure 13), and tighten platen lock handle.

Platen

Assembly

Figure 13. Pulling platen assembly forward.

Center belt on wheels, then slowly release

10.

belt tension handle to tension belt. Confirm that gas strut on tension assembly expands to tension belt when belt tension handle is released.

— If strut is already fully extended, or if lock

nut shown in Figure 14 is too tight, gas strut will not expand to properly tension belt. Loosen lock nut, if necessary, and repeat Steps 9–10 to correct tension before proceeding to Test Run.

Test Run

Troubleshooting

The Test Run consists of verifying the following: 1) The belt tracks properly and will not come off the wheels during initial startup, 2) the motor powers up and runs correctly, and 3) the EMERGENCY STOP button works correctly.

using this machine BEFORE understanding its controls and related safety information. DO NOT operate, or allow others to operate, machine until the information is understood.

Figure 14. Location of tension assembly lock

nut.

Model T32459 (Mfd. Since 12/23)

may result in malfunction or unexpected results that can lead to serious injury, death, or machine/property damage.

To test run machine:

1. Clear all setup tools away from machine.

2. Tie back loose clothing and long hair to pro-

tect yourself from getting caught in moving belt when you start machine.

-15-

3. Loosen wing nut shown in Figure 15.

Standing in front of machine, push belt mul-

tiple times along platen so it moves in direction of operation (see Figure 15), then watch how belt tracks on wheels.

Press EMERGENCY STOP button in (see

6. Figure 16).

Move ON/OFF switch to OFF position (see

7. Figure 16).

Turn variable-speed dial all the way counter-

clockwise (see Figure 16).

Belt

Tracking

Knob

EMERGENCY

STOP Button

Variable-Speed

Dial

ON/OFF

Switch

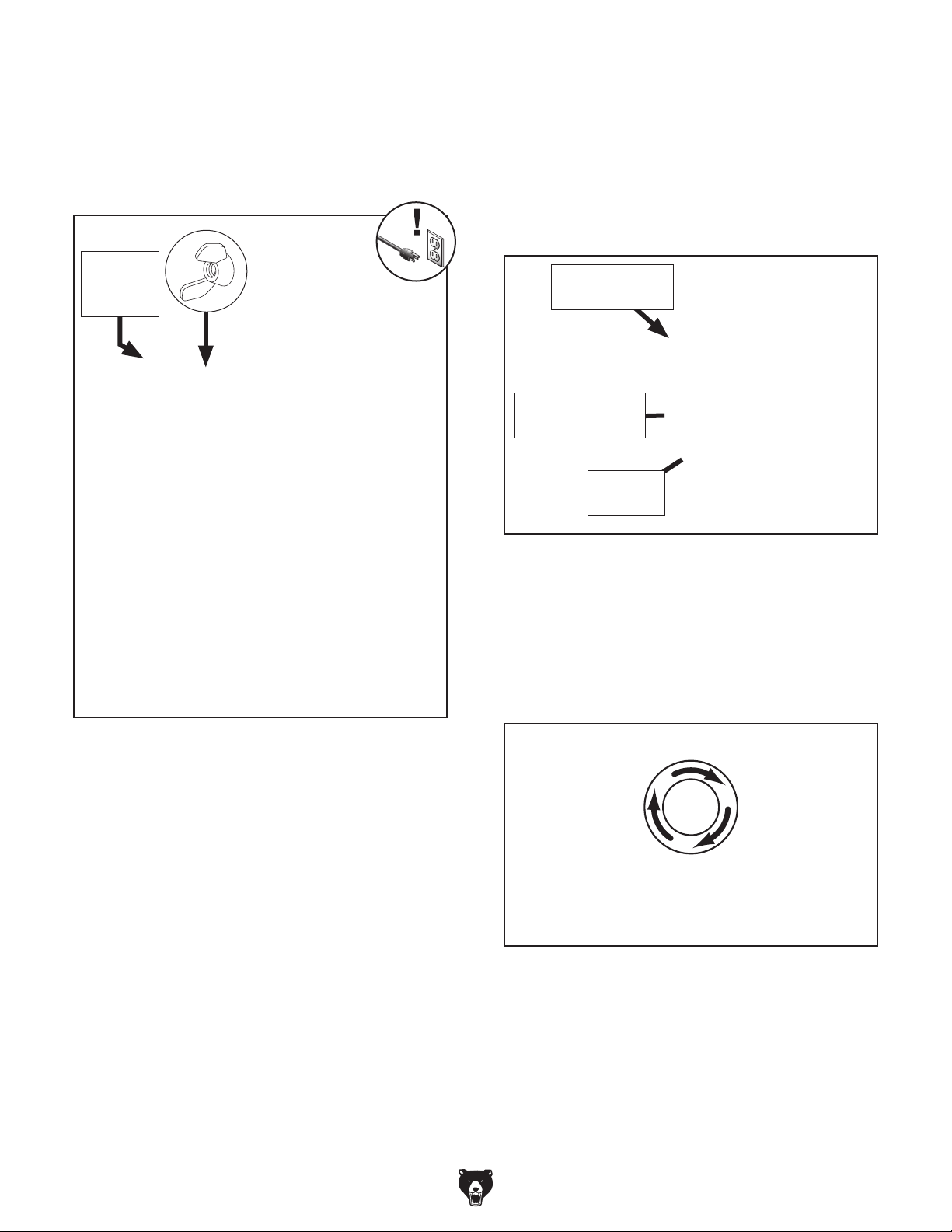

Figure 16. Location of power controls.

9. Connect machine to power. Motor speed digi-

tal readout will illuminate.

Twist EMERGENCY STOP button clockwise

10.

until it springs out (see Figure 17). This resets button so machine can start.

Figure 15. Belt tracking components.

— If belt tracks centered on wheels, proceed

to Step 6.

— If belt does not track centered on wheels,

proceed to Step 5.

Use belt tracking knob (see Figure 15) to

adjust belt tracking while continuing to rotate belt by hand to check adjustment.

— Turn knob clockwise to move belt left on

wheels and platen, and turn knob counter- clockwise to move belt right.

EMERGENCY STOP

Button

Figure 17. Resetting EMERGENCY STOP

button.

-16-

Model T32459 (Mfd. Since 12/23)

11. Move ON/OFF switch to ON position, slow-

ly turn variable-speed dial clockwise just enough to start machine, verify belt is tracking correctly in center of platen and wheels, and fine-tune tracking with belt tracking knob as necessary while machine is running.

. Once belt tracks centered on wheels, slowly

turn variable-speed dial back and forth to test variable-speed function.

Motor should run smoothly and without

unusual problems or noises, and belt MUST rotate in same direction as belt rotation arrow on machine (see Figure 18).

Belt

Rotation

Arrow

— If machine does not start, safety feature

of EMERGENCY STOP button is working correctly. Proceed to Step 15.

— If machine does start, immediately turn it

OFF and disconnect power. Safety feature of EMERGENCY STOP button is NOT working properly and must be replaced before further using machine.

DISCONNECT MACHINE FROM POWER!

15.

16. Adjust wing nut on belt tracking knob without

moving knob so it contacts frame to secure tracking setting.

. Loosen tool rest lock handle, install tool

rest, adjust it so there is no more than

⁄16"

between rest and belt, then tighten handle to secure (see Figure 19).

Figure 18. Location of belt rotation arrow.

— If motor runs smoothly and belt rotates in

correct direction, proceed to Step 13.

— If motor does not run smoothly, or belt does

not rotate in correct direction, turn machine OFF and disconnect power. Contact Technical Service before proceeding.

Press EMERGENCY STOP button to turn

13.

machine OFF.

WITHOUT resetting EMERGENCY STOP

14.

button, try to start machine with ON/OFF switch and variable-speed dial. Machine should not start.

Tool Rest

Lock Handle

Figure 19. Tool rest installed on machine.

Congratulations! Test Run is complete.

Model T32459 (Mfd. Since 12/23)

-17-

SECTION 4: OPERATIONS

The purpose of this overview is to provide the novice machine operator with a basic understanding of how the machine is used during operation, so the

discussed

later in this manual

Due to the generic nature of this overview, it is not intended to be an instructional guide. To learn more about specific operations, read this entire manual,

training from experienced machine operators, and do additional research outside of this manual by reading "how-to" books, trade magazines, or websites.

To reduce your risk of serious injury, read this entire manual BEFORE

Keep hair, clothing, and

ing parts at all times. Entanglement can result in death, amputation, or

Operation Overview

machine controls/components

are easier to understand.

seek additional

If you are not experienced with this type of machine, WE STRONGLY RECOMMEND that you seek additional training outside of this manual. Read books/magazines or get formal training before beginning any projects. Regardless of the content in this section, Grizzly Industrial will not be held liable for accidents caused by lack of training.

To complete a typical operation, the operator does the following:

Examines workpiece to make sure it is suit-

able for grinding (i.e., strong enough to be ground, etc.).

using machine.

Eye and face injuries and respiratory problems can occur while operating this tool. Wear personal protective equipment to reduce your risk from these hazards.

-18-

jewelry away from mov-

severe crushing injuries!

Inspects and installs belt with appropriate grit

for operation.

Determines if operation requires parallel or

perpendicular grinding and adjusts frame tilt as necessary.

Adjusts platen tilt as desired.

5. Installs and adjusts tool rest to support

workpiece, if feasible for operation, then adjusts tool rest to allow maximum ance between rest and belt.

Ties back loose hair and clothing, and puts

on safety glasses, respirator, and face shield. Takes all other required safety precautions.

Starts machine and adjusts belt speed as

desired.

Holds workpiece firmly with both hands, sup-

ports it with fixtures as well as the operation and setup allows, pushes workpiece into belt, and moves it to different locations to wear abrasive belt evenly and prevent it from overheating.

Stops machine when operation is complete.

Model T32459 (Mfd. Since 12/23)

⁄16" clear-

Workpiece Inspection

Some workpieces are not suitable for grinding on a grinder. Before grinding, inspect all

workpieces for the following:

• Flammable Workpiece: Workpieces with

unstable chemical elements (like magnesium) may catch fire or create explosion hazards when introduced to the heat and friction of grinding. Be aware of the material composition of workpieces you intend to use and avoid grinding different metals and alloys on the same belt in case two different materials create a dangerous chemical reaction.

• Soft Workpiece: Workpieces that are made

of aluminum, brass, lead, and other nonferrous metals will load up in the belt. Grinding plastics, rubber, fiberglass, or other soft materials can also cause the same problem. Always use the recommended belt for the material.

• Flexible/Unstable Workpiece: Grinding on

the side or the ends of cable, chain, or round workpieces creates the hazard of workpiece twist or grab, leading to contact with the belt. This hazard must be avoided.

• Wood Workpiece: Never grind wood on

this machine. Wood dust and shavings are extremely flammable and hot metal sparks will ignite them. A belt that has been used to sand wood creates a flame and explosion hazard when the hot sparks created by grinding metal are introduced.

Grinding Tips

• Extend the life of the abrasive belt by regularly using an abrasive surface cleaner. Change a belt when cleaning is no longer effective.

• As a rule-of-thumb, grind with progressively higher grit numbers. A higher grit will achieve a finer finish.

• Hold workpiece securely with both hands and do not wear gloves. Use tool rest and jigs whenever possible to support workpiece. Do not force workpiece against belt.

• Never grind magnesium. Once shaved or powdered, it is highly flammable, and a magnesium fire is difficult to put out.

• Remember that grinding metal often produces sparks. DO NOT grind metal near flammable materials, and be aware of the area around the machine the sparks will reach.

• Use full width of belt by moving the workpiece back-and-forth across the belt.

• Make sure belt guards/covers are secured during operation.

• The workpiece will get hot as you continue to grind. Cool the workpiece frequently by quenching in water or another approved solution.

• Wear the proper protective clothing. Prepare for particles to be expelled from the grinder at high speeds. Wear safety glasses, face shield, dust mask, earplugs, leather apron, and heavy leather boots.

Model T32459 (Mfd. Since 12/23)

Moving belt can cause serious personal injury if it comes in contact with fingers, hands, or other body parts. Always support workpiece against tool rest when grinding if possible. Use extreme care to provide a safe distance between belt and any body part.

-19-

Choosing

Grinding Belts

This machine uses a 2" x 42" belt. Below is a chart that groups abrasives into different classes, and shows which grits fall into each class.

Depending on the material, some belts also come with different backing material. For grinding, cloth backing is the most common and has various weights. The "weight" of the cloth backing refers to the flexibility of the belt, and you will want to use a belt with flexibility tailored to your workpiece and application. The chart below illustrates common cloth weights and their flexibility/uses.

Grit Class

24–60 Extra Coarse

60 –120 Coarse

120–180 Medium

180+ Fine

The general rule of thumb is to grind a workpiece with progressively higher grit numbers. Avoid skipping grits; the larger the grit increase, the harder it will be to remove the scratches from the previous grit.

Ultimately, the type of metal you use and your stage of finish will determine the best grit types to install on your grinder.

Belts are also made with different materials, and your workpiece and intended operation will determine which belt material will produce the best results for you. The chart below illustrates some common belt materials and the situations that they are most effective.

Belt Weight Description

J-Weight Flexible. Good for contour

sanding/grinding.

X-Weight Medium flexibility. Strong. For

all-purpose sanding/grinding.

Y-Weight Least flexible. Very strong. Good

for heavy stock removal. Often waterproof and tear resistent.

Adjusting Frame Tilt

The Model T32459 frame can be positioned from 0°–90°, depending on your operation. With the frame at a vertical angle (see Figure 20), it is easier to perform grinds perpendicular to the belt (i.e., with a workpiece flat against the tool rest in

Figure 20).

Belt Material Operation

Aluminum Oxide Finishing. Ferrous metals.

Zirconia Alumina Finishing; wet or dry

grinding. Ferrous metals, some steels.

Ceramic Aggressive grinding;

deburring. Heat-sensitive metals.

Silicon Carbide Cutting; stock removal; wet

or dry grinding. Cast iron, steel, non-ferrous metals.

-20-

Figure 20. Frame angled to 0° for perpendicular

grinding.

Model T32459 (Mfd. Since 12/23)

With the frame at a horizontal angle (see Figure

21), it is easier to perform grinds parallel to the

belt (i.e., with a workpiece flat against the tool rest in Figure 21).

Figure 21. Frame angled to 90° for parallel

grinding.

Adjusting Platen Tilt

Tilt the platen forward or backward up to 30° (or left or right when the frame is at a horizontal angle), if necessary for your operation (see

Figures 23–24).

To adjust frame tilt:

DISCONNECT MACHINE FROM POWER!

2. Loosen frame tilt lock handle (see Figure

22), adjust frame tilt as desired, then tighten

handle to secure.

Frame Tilt

Lock

Handle

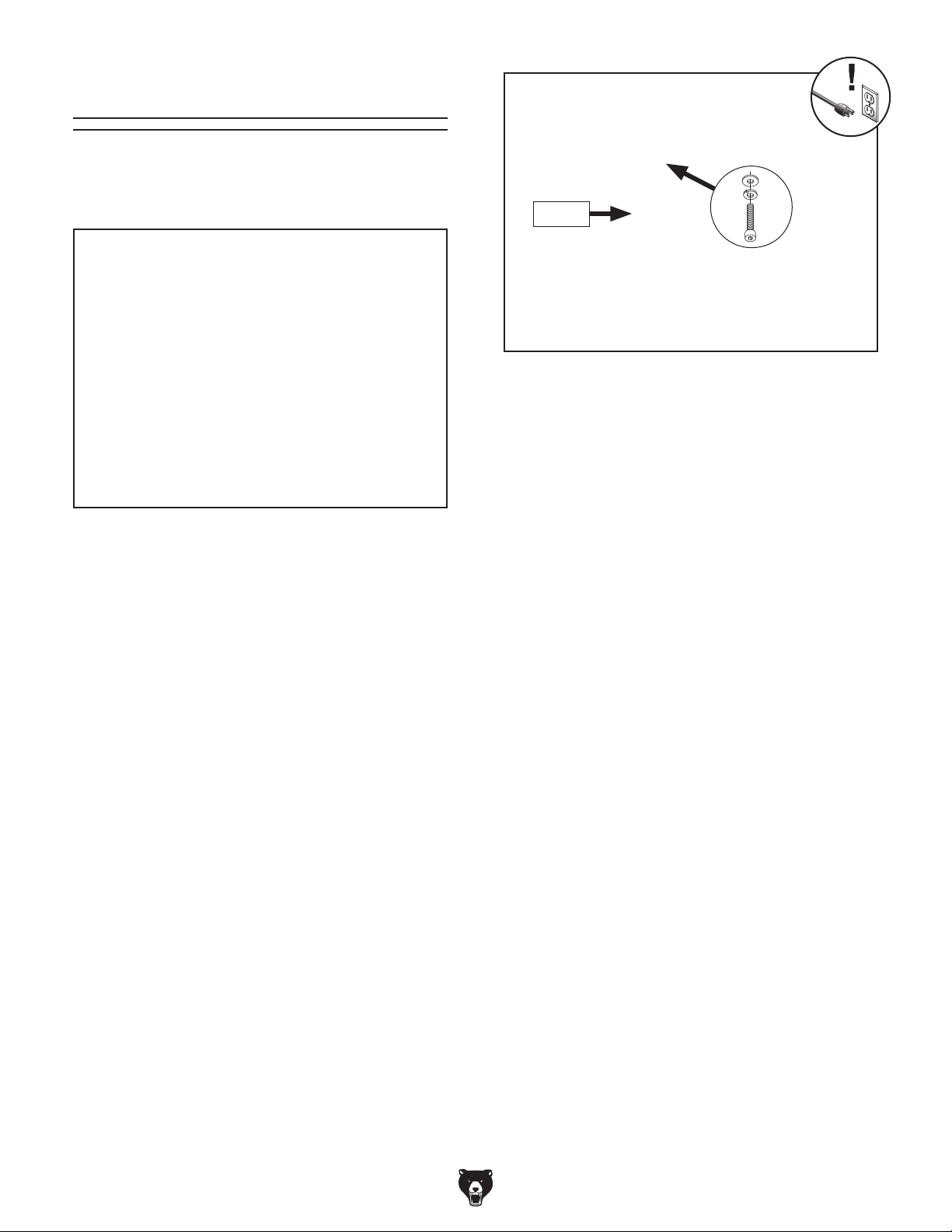

Figure 22. Location of frame tilt lock handle.

Figure 23. Platen tilted backward with frame at

vertical angle.

Figure 24. Platen tilted left with frame at

horizontal angle.

Tool Needed Qty

Wr en ch 17mm ................................................... 1

To adjust platen tilt:

3. If tool rest can be installed for your operation,

refer to Adjusting Tool Rest on Page 25 to adjust tool rest tilt to match new frame position and to prepare tool rest for desired operation.

Model T32459 (Mfd. Since 12/23)

DISCONNECT MACHINE FROM POWER!

2. Loosen tool rest lock handle (see Figure 25),

so you can move it as needed during next step.

-21-

3. Loosen platen tilt lock handle (see Figure

25), adjust platen tilt as desired, then tighten

handle to secure.

Installing/Changing

Belt

Platen Tilt

Lock Handle

Tool Rest

Lock Handle

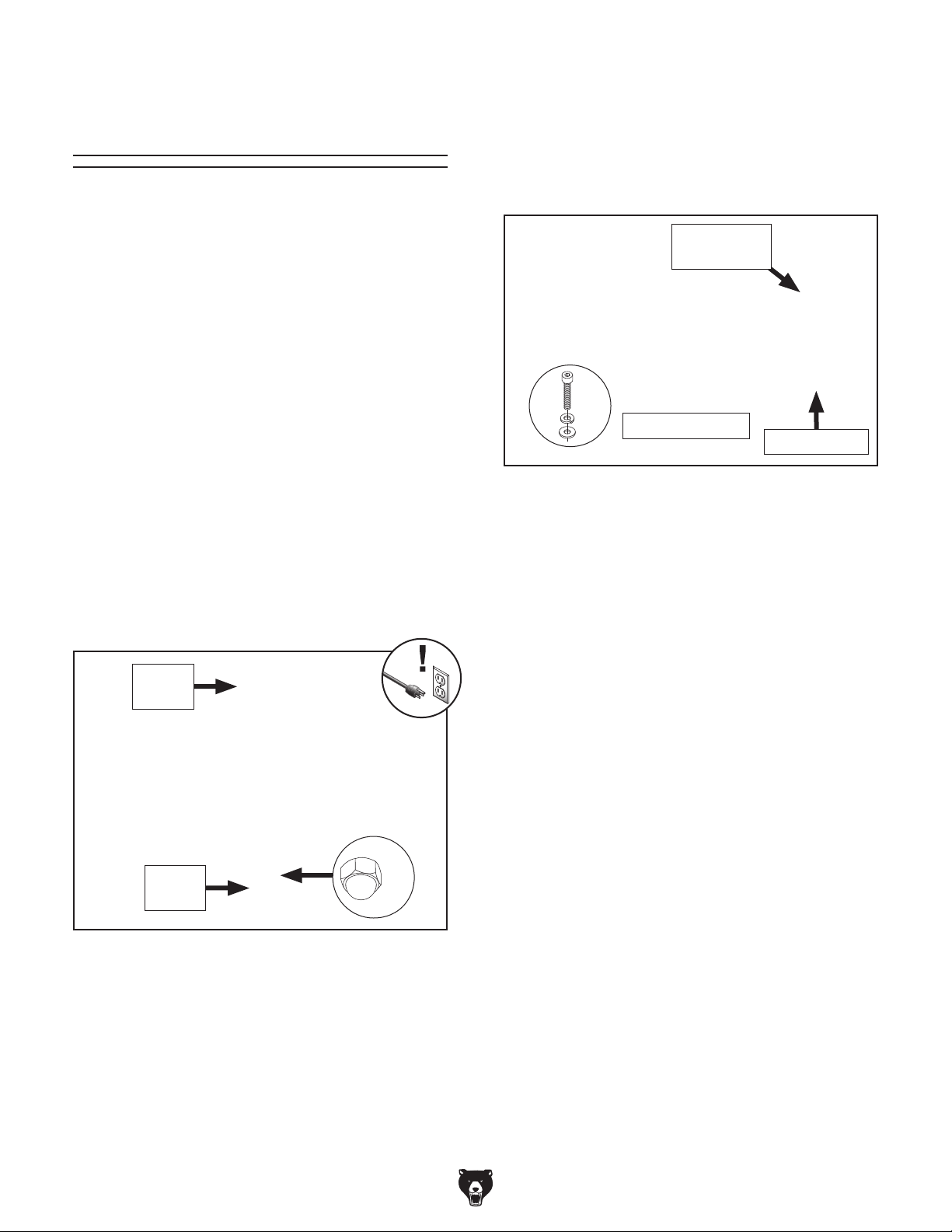

Figure 25. Location of tool rest lock handle and

platen tilt lock handle.

When adjusting platen tilt, you MUST adjust wheel covers or machine may be damaged when it is turned ON.

Loosen acorn nuts on wheel covers shown

in Figure 26, adjust covers so they are not contacting belt, then tighten nuts to secure.

The belt should be changed whenever there is a noticeable change in quality/performance. You will also need to change grit sizes depending on whether you are performing quick material removal or would like a finer finish.

Required Belt Size................................2" x 42"

Item Needed Qty

Replacement Belt .............................................. 1

To install/change belt:

DISCONNECT MACHINE FROM POWER!

2. Adjust frame tilt so platen is vertical (refer to Adjusting Frame Tilt on Page 20).

Loosen platen lock handle (see Figure 27).

Push belt tension handle toward frame tilt

lock handle (see Figure 27) to compress gas strut and release belt tension.

Belt Tension Handle

Platen Lock

Handle

Wheel Cover

x 2

Wheel Cover

Figure 26. Location of wheel covers and acorn

nuts.

If tool rest can be installed for operation, refer

to Adjusting Tool Rest on Page 25 to adjust tool rest swivel and clearance to match platen position. If tool rest cannot be safely installed for operation, remove it.

-22-

Frame Tilt

Lock Handle

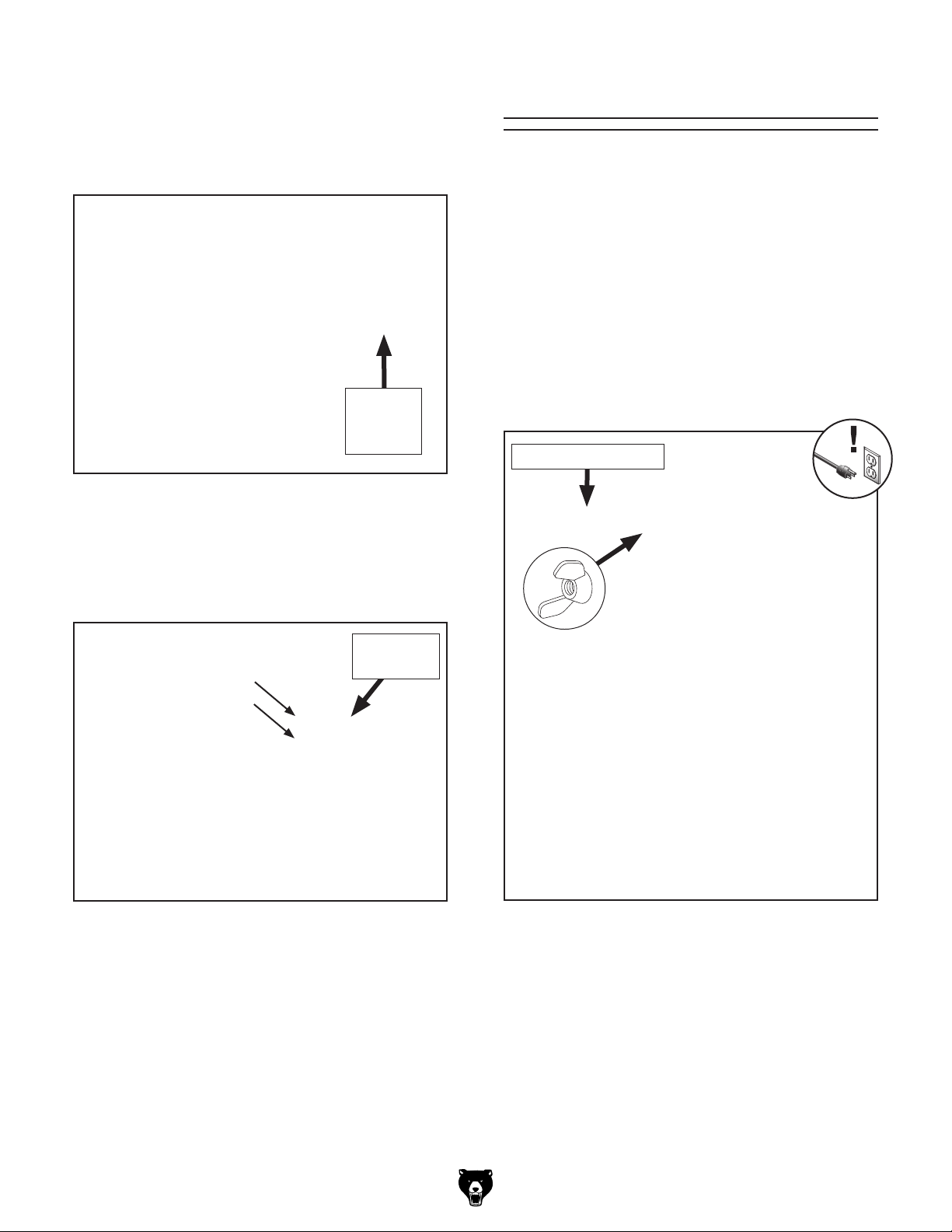

Figure 27. Location of platen lock handle, belt

tension handle, and frame tilt lock handle.

Model T32459 (Mfd. Since 12/23)

While holding belt tension handle to keep

gas strut compressed, remove old belt from wheels and replace with new one, being sure arrows on belt match belt rotation arrow on machine (see Figure 28).

Belt

Rotation

Arrow

Figure 28. Location of belt rotation arrow.

Without releasing belt tension handle, move

platen assembly as far forward as you can without stretching belt (see Figure 29), then tighten platen lock handle.

Pre-Tracking Belt

You must perform the following procedure after installing a new belt to ensure that the belt does not come off the wheels or get jammed against the belt frame.

To pre-track belt:

DISCONNECT MACHINE FROM POWER!

2. Install desired belt as described in Installing/ Changing Belt on Page 22.

Loosen wing nut shown in Figure 30.

Belt Tracking Knob

Platen

Assembly

Figure 29. Pulling platen assembly forward.

Center belt on wheels and platen, then slowly

release belt tension handle to tension belt. Confirm that gas strut on tension assembly expands to tension belt when handle is released.

Belt MUST be pre-tracked before connecting

8. machine to power. Proceed to Pre-Tracking Belt.

Figure 30. Belt tracking components.

Tip: Loosen tool rest lock handle to remove

tool rest assembly while tracking belt for unobstructed view of platen and wheels.

Model T32459 (Mfd. Since 12/23)

-23-

4. Standing in front of machine, push grinding belt multiple times along platen, so it moves in direction of operation (see Figure 31), then watch how belt tracks on wheels.

Figure 31. Direction of belt during operation.

— If belt tracks centered on wheels, proceed

to Step 6.

Checking/Adjusting

Belt Tracking

The purpose of belt tracking is to make sure the belt stays centered on the wheels during opera- tions. The belt tracking needs to be checked any time you change or replace the belt.

You must perform the following procedure after installing a belt to ensure that the belt does not come off the wheels or get jammed against the machine frame.

To check/adjust belt tracking:

Install desired belt as described in Installing/

1. Changing Belt on Page 22.

Pre-track belt as described in Pre-Tracking

2. Belt on Page 23.

— If belt does not track centered on wheels,

proceed to Step 5.

Use belt tracking knob to adjust belt track-

ing while continuing to rotate belt by hand to check adjustment.

— Turn knob clockwise to move belt left on

wheels and platen (see Figure 30 on

Page 23) and turn knob counterclockwise to move belt right.

Proceed to Checking/Adjusting Belt

6. Tracking.

Connect machine to power, turn it ON, verify

belt is tracking correctly in center of platen and wheels, and fine-tune tracking with belt tracking knob as necessary while machine is running.

DISCONNECT MACHINE FROM POWER!

5. Once belt tracks centered on wheels, tighten

wing nut on belt tracking knob.

. Loosen tool rest lock handle, install and

adjust tool rest so there is no more than

between rest and belt, then tighten handle to secure (see Figure 32).

Tool Rest

⁄16"

-24-

Tool Rest

Lock Handle

Figure 32. Location of tool rest and tool rest lock

handle.

Model T32459 (Mfd. Since 12/23)

Adjusting Tool Rest

The tool rest should be used whenever it can feasibly be installed to help support the workpiece. Once installed, it can be tilted from 5° left to 120° right, can be swiveled on its base, and can adjust toward and away from the machine frame. These adjustments allow for angled workpieces and for the rest to be adjusted square to the platen regardless of how the frame and platen are adjusted.

When grinding very thin workpieces, a common practice when producing knife bevels, the workpiece can be drawn into the gap between the tool rest and the belt. If a workpiece is too thin to be safely supported by the tool rest, consider researching freehand belt grinding techniques or using a different method to grind your workpiece.

Adjusting Tool Rest Swivel While Frame is Vertical

When the machine frame is vertical, the tool rest swivel can be adjusted for an angled workpiece (see Figure 34).

Figure 34. Example of tool rest swivel adjusted

for workpiece angle.

Tool Needed Qty

Hex Wrench 3⁄16 " ................................................ 1

Tool rest must always be adjusted within

⁄16" of belt to reduce risk of fingers or

workpiece being drawn into gap.

Adjusting Tool Rest Angle

Tool Needed Qty

Hex Wrench 3⁄16 " ................................................ 1

To adjust tool rest angle:

DISCONNECT MACHINE FROM POWER!

2. Loosen cap screw shown in Figure 33, adjust

tool rest to desired angle, then tighten cap

screw to secure (see Figure 33).

Tool Rest

To adjust swivel while frame is vertical:

1. DISCONNECT MACHINE FROM POWER!

2. Loosen tool rest lock handle (see Figure 35),

so you can move it as needed during next step.

Loosen cap screw shown in Figure 35, swiv-

el tool rest to match workpiece angle, then tighten cap screw to secure.

Figure 33. Location of tool rest angle cap screw.

Model T32459 (Mfd. Since 12/23)

Tool Rest

Lock Handle

Figure 35. Location of tool rest lock handle and

swivel cap screw.

4. Refer to Adjusting Tool Rest Clearance on Page 26.

-25-

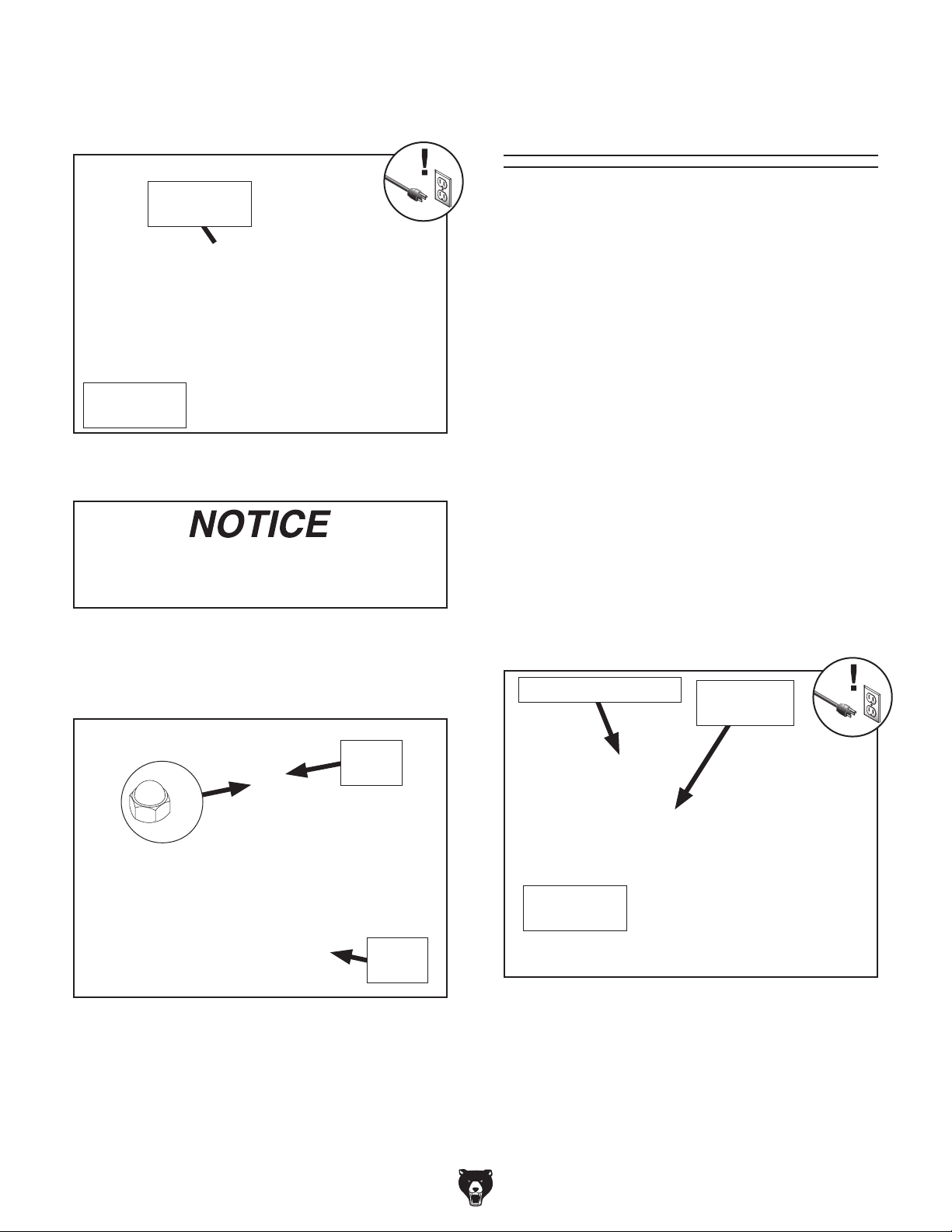

Adjusting Tool Rest Swivel While Frame is Horizontal

When the machine frame is horizontal, to use the tool rest as a table, you MUST adjust the tool rest swivel in order to align the rest's full edge within

⁄16 " of the belt (see Figure 36).

Note: If front wheel cover prevents you from

adjusting tool rest within

⁄16" of belt, loosen

acorn nut on wheel cover (see Figure 38), adjust cover out of the way, then tighten acorn nut.

Wheel

Cover

Figure 36. Example of tool rest swivel adjusted

to match platen tilt.

Tool Needed Qty

Hex Wrench 3⁄16 " ................................................ 1

To adjust swivel while frame is horizontal:

1. DISCONNECT MACHINE FROM POWER!

2. Loosen cap screw shown in Figure 37, swiv-

el tool rest to match platen angle, then tighten

cap screw to secure.

Figure 38. Location wheel cover acorn nut.

Adjusting Tool Rest Clearance

Adjust the tool rest clearance whenever the belt has been replaced, the tool rest has been removed, or the platen tilt has been adjusted.

To adjust tool rest clearance:

DISCONNECT MACHINE FROM POWER!

2. Loosen tool rest lock handle, adjust tool rest

so there is no more than

and belt (see Figure 39), then tighten handle to secure.

⁄16" between rest

Maximum

⁄16" Gap

Figure 37. Location of swivel cap screw.

3. Refer to Adjusting Tool Rest Clearance.

-26-

Tool Rest

Lock Handle

Figure 39. Tool rest clearance adjustment

controls.

Model T32459 (Mfd. Since 12/23)

Flat Grinding

Flat grinding operations are performed directly on the belt against the platen. Refer to Figure 40 for an example of flat grinding.

Figure 40. Properly grinding workpiece face.

To flat grind:

Connect machine to power, turn it ON, and

allow motor to reach desired speed.

2. Position workpiece on tool rest, if installed.

Use both hands to maintain control of

workpiece, as shown in Figure 40, and slowly feed it into moving belt with light, even pressure. DO NOT force workpiece against belt.

Note: There are many different techniques

for using belt to grind and sharpen knives. Whichever one you use, make sure that you hold knife firmly and ease it into belt without excessive pressure to ensure safe operation.

This setup is good for material removal and creating profiles. Regardless of your workpiece, always use two hands to control the workpiece and use the tool rest to support it, if feasible.

Model T32459 (Mfd. Since 12/23)

-27-

Slack Belt Grinding

Slack belt grinding operations are performed directly on the belt with the platen removed (see

Figure 41).

Figure 41. Example of slack belt grinding.

When a workpiece is fed into the belt without a flat platen behind it, the belt can better conform to curved contours.

Tool Needed Qty

Hex Wrench 3⁄16 " ................................................ 1

To slack belt grind:

DISCONNECT MACHINE FROM POWER!

Platen

Figure 42. Location of platen and fasteners.

Connect machine to power, turn it ON, and

allow motor to reach desired speed.

4. Position workpiece on tool rest, if installed.

Use both hands to maintain control of

workpiece, as shown in Figure 41, and slowly feed it into moving belt with light, even pressure. DO NOT force workpiece against belt. Move workpiece to different locations to wear abrasive belt evenly and to prevent it from overheating.

When slack grinding is complete, install plat-

en and refer to Adjusting Platen to Wheels on Page 34 to adjust platen correctly to resume flat grinding operations.

x 2

2. Remove (2) cap screws, lock washers, and flat washers shown in Figure 42 to remove platen.

-28-

Model T32459 (Mfd. Since 12/23)

SECTION 5: ACCESSORIES

Installing unapproved accessories may

order online at www.grizzly.com or call 1-800-523-4777

cause machine to malfunction, resulting in serious personal injury or machine damage. To reduce this risk, only install accessories recommended for this machine by Grizzly.

NOTICE

Refer to our website or latest catalog for additional recommended accessories.

Grizzly Belts

These tough, silicon carbide belts come in a variety of grits.

T33771—2" x 42" 60-Grit, 10-Pk. T33772—2" x 42" 80-Grit, 10-Pk. T33773—2" x 42" 120-Grit, 10-Pk. T33774—2" x 42" 180-Grit, 10-Pk. T33775—2" x 42" 220-Grit, 10-Pk. T33776—2" x 42" 400-Grit, 10 -Pk. T33777—2" x 42" 600-Grit, 10-Pk.

T30024—Powered Respirator Kit

Breathing metal dust could cause severe respiratory illnesses. This kit is a lightweight, comfortable, and easy-to-carry device for protecting the airway from small particulates.

Figure 44. T30024 Powered Respirator Kit.

T26685—ISO 32 Moly-D Machine Oil, 1 Gal.

Moly-D oils are some of the best we've found for maintaining the critical components of machinery because they tend to resist run-off and maintain their lubricity under a variety of conditions.

Figure 43. Grizzly belts.

Figure 45. T26685 ISO 32 Moly-D Machine Oil.

Model T32459 (Mfd. Since 12/23)

-29-

order online at www.grizzly.com or call 1-800-523-4777

T32720—10" Variable-Speed Wet Sharpener

The 220-grit aluminum oxide grinding wheel is specially made for wet sharpening and runs through a water bath to prevent residue buildup on the grinding wheel and keep tools cool while sharpening. The leather stropping wheel helps remove burrs and hones to a final razor edge.

Figure 46. T32720 10" Variable-Speed Wet

Sharpener.

T21578—12" Bevel Edge Straight Edge

This 12" Bevel Edge Straight Edge is made from hardened steel and ground and lapped for straightness and parallelism. Features satin chrome finish, true right angles for all edges, and bevel edge

with scale. Accuracy: 0.001". Resolution:

⁄64".

T10456—Heavy-Duty Anti-Fatigue Mat 3' x 5'

This Heavy-Duty Anti-Fatigue Mat features beveled edges and no-slip tread for safety and comfort. Open-hole design allows liquid to drain through, so it's perfect for wet or oily conditions.

Measures 3' wide x 5' long x

⁄8" thick.

Figure 48. Model T10456 Anti-Fatigue Mat.

D2056—Tool Table

Flared legs and adjustable rubber feet ensure stability and reduce machine vibration. Butcher block

finish table top measures 13" x 23" x 1". 30

⁄2 "

height, 21" x 32" footprint, and 700 lb. capacity!

Figure 47. T21578 12" Bevel Edge Straight

Edge.

-30-

Figure 49. D2056 Tool Table.

Model T32459 (Mfd. Since 12/23)

SECTION 6: MAINTENANCE

To reduce risk of shock or accidental startup, always disconnect machine from

power before adjustments, maintenance, or service.

Schedule

For optimum performance from this machine, this maintenance schedule must be strictly followed.

Ongoing

To minimize your risk of injury and maintain proper machine operation, shut down the machine immediately if you ever observe any of the items below, and fix the problem before continuing operations:

Cleaning

Cleaning the Model T32459 is relatively easy. Vacuum excess shavings, and wipe off any remaining dust with a dry cloth. Never use compressed air to blow away dust as airborne particles may be combustible.

Lubrication

The bearings are sealed and permanently lubricated; they require no lubrication. The only parts that require lubrication are the frame pivots bolts and belt tension pivot bolt (see Figure 50).

• Loose mounting bolts.

• Worn or damaged belt.

Worn or damaged wires.

•

Any other unsafe condition.

•

Daily Maintenance

• Clean any shavings and dust from between platen and belt.

Weekly Maintenance

• Sweep surrounding dust and shavings.

• Clean/vacuum dust off motor.

Monthly Check

• Lubricate frame and tension assembly pivot bolts.

Belt

Tension

Pivot Bolt

Frame

Pivot Bolts

Figure 50. Locations of pivot bolts.

Apply two drops of an ISO 32 oil like the one shown in Figure 45 on Page 29 monthly to each pivot bolt. Adjust the frame through its full tilting range and release and apply belt tension to distribute the oil.

Model T32459 (Mfd. Since 12/23)

-31-

Review the troubleshooting procedures in this section if a problem develops with your machine. If you need replacement parts or additional help with a procedure, call our Technical Support.

the

serial number and manufacture date of your machine before calling.

SECTION 7: SERVICE

Troubleshooting

Motor & Electrical

Symptom Possible Cause Possible Solution

Machine does not start, or power supply breaker immediately trips after startup.

Machine stalls or is underpowered.

Motor speed will not display, adjust, or is inconsistent.

Machine has vibration or noisy operation.

1. EMERGENCY STOP button depressed/at fault.

2. Incorrect power supply voltage or circuit size.

3. Motor speed potentiometer at fault.

4. Power supply circuit breaker tripped or fuse blown.

5. Wiring broken, disconnected, or corroded.

6. ON/OFF switch at fault.

7. Control box circuit board at fault.

8. Motor or motor bearings at fault.

1. Excessive workpiece pressure.

2. Wrong workpiece material (metal).

3. Control box circuit board at fault.

4. Motor speed potentiometer at fault.

5. Machine undersized for task.

6. Motor overheated.

7. Extension cord too long.

8. Motor or motor bearings at fault.

1. Variable-speed dial stripped.

2. Wiring broken, disconnected, or corroded.

3. Motor speed potentiometer at fault.

4. Motor speed digital readout circuit board at fault.

1. Motor or component loose.

2. Stand feet not adjusted properly or loose.

3. Drive wheel hex bolt missing or loose.

4. Motor fan rubbing on fan cover.

5. Motor bearings at fault.

1. Rotate EMERGENCY STOP button head to reset. Replace if at fault.

2. Ensure correct power supply voltage and circuit size (Page 10).

3. Test/replace if at fault.

4. Ensure circuit is free of shorts. Reset circuit breaker or replace fuse.

5. Fix broken wires or disconnected/corroded connections (Page 36).

6. Replace switch.

7. Inspect/replace if at fault.

8. Replace motor.

1. Reduce workpiece pressure against belt.

2. Use correct type/size of metal.

3. Inspect/replace if at fault.

4. Test/replace if at fault.

5. Clean/replace belt (Page 22); reduce feed rate/ sanding depth.

6. Clean motor, let cool, and reduce workload.

7. Move machine closer to power supply; use shorter extension cord.

8. Replace motor.

1. Replace dial.

2. Fix broken wires or disconnected/corroded connections (Page 36).

3. Test/replace if at fault.

4. Inspect/replace if at fault.

1. Replace damaged or missing bolts/nuts or tighten if loose.

2. Adjust stand feet to stabilize machine or tighten if loose.

3. Inspect drive wheel. Replace or tighten if necessary.

4. Fix/replace fan cover; replace loose/damaged fan.

5. Test by rotating shaft; rotational grinding/loose shaft requires bearing replacement.

Note: Please gather

-32-

Model T32459 (Mfd. Since 12/23)

Operation

Symptom Possible Cause Possible Solution

Belt slaps or vibrates excessively.

Belt does not track correctly.

Belt slips during use.

Poor, nonaggressive grinding results.

Excessive belt replacement.

Deep grooves or scores in workpiece.

Belt clogs quickly.

Abrasive grit rubs off belt easily.

Workpiece surface not square when platen/tool rest tilt is set to 0°.

Workpiece frequently gets pulled out of your hand.

1. Belt not tensioned properly during installation.

2. Belt tracking needs adjustment.

3. Broken/defective belt.

4. Idler or drive wheel is loose.

5. Gas strut is worn/at fault.

1. Belt not tensioned properly during installation.

2. Belt tracking needs adjustment.

3. Belt tension assembly lock nut is too tight or too loose.

4. Belt damaged, worn, or misshapen.

5. Idler or drive wheel is worn.

6. Gas strut is worn/at fault.

1. Belt not tensioned properly during installation.

2. Excessive workpiece pressure.

3. Gas strut is worn/at fault.

1. Belt clogged/worn.

2. Usingtooneofbeltgrit.

1. Not using full width of abrasive surface.

2. Excessive workpiece pressure.

1. Excessive belt speed.

2. Using too coarse of belt grit.

3. Excessive workpiece pressure.

4. Workpiece held still for too long.

5. Graphite pad on platen damaged.

1. Excessive belt speed.

2. Worn belt.

3. Excessive workpiece pressure.

4. Usingtooneofbeltgrit.

5. Workpiece material is prone to belt-clogging, such as soft aluminum.

1. Belt stored in incorrect environment.

2. Belt has been folded or crushed.

3. Belt is too old.

1. Tool rest not perpendicular to platen. 1. Use machinist square to adjust tool rest tilt/swivel so it

1. Not supporting workpiece properly.

2. Starting workpiece on a leading corner.

1. Adjust platen forward while belt tension handle and gas strut are fully compressed, lock platen, then release handle.

2. Adjust belt tracking (Page 24).

3. Replace belt (Page 22).

4. Tighten idler or drive wheel.

5. Replace gas strut.

1. Adjust platen forward while belt tension handle and gas strut are fully compressed, lock platen, then release handle.

2. Adjust belt tracking (Page 24).

3. Adjust belt tension assembly lock nut (see Figure 14 on Page 15) so gas strut can tension belt correctly.

4. Replace belt (Page 22).

5. Replace wheel.

6. Replace gas strut.

1. Adjust platen forward while belt tension handle and gas strut are fully compressed, lock platen, then release handle.

2. Reduce workpiece pressure against belt.

3. Replace gas strut.

1. Clean/replace belt (Page 22).

2. Use coarser grit belt (Page 20).

1. Move workpiece back and forth across abrasive surface.

2. Reduce workpiece pressure against belt.

1. Decrease belt speed.

2. Usenergritbelt(Page 20).

3. Reduce workpiece pressure against belt.

4. Move workpiece back and forth across abrasive surface.

5. Replace graphite pad.

1. Decrease belt speed.

2. Replace belt (Page 22).

3. Reduce workpiece pressure against belt.

4. Use coarser grit belt (Page 20).

5. Reduce feed pressure. User coarser grit belt (Page 20).

1. Replace belt (Page 22); store belt in cool, dry area.

2. Replace belt (Page 22).Storebeltat;donotbend or fold belt.

3. Use new belt (Page 22).

is perpendicular to platen.

1. Use tool rest to support workpiece (Page 25).

2. Start workpiece on a trailing corner.

Model T32459 (Mfd. Since 12/23)

-33-

Adjusting

Platen to Wheels

The platen should extend about 1⁄8" forward from the two front idler wheels in order to produce flat and square grinds. Due to the force and abrasives of grinding, the platen wears as it is used, so you will occasionally need to adjust the platen forward in order for grinds to maintain this adjustment.

Tools Needed Qty

Hex Wrench 3⁄16 " ................................................ 1

Wr en ch 17mm Straightedge 12"

To adjust platen to wheels:

DISCONNECT MACHINE FROM POWER!

2. Remove tool rest and belt.

Loosen acorn nuts on front wheel covers

shown in Figure 51, and adjust covers back so you can place straightedge against platen and wheels in following steps.

................................................... 1

................................................ 1

4. Tilt frame so platen is horizontal.

5. Place straightedge across platen graphite

and idler wheels, as shown in Figure 52, and measure distance between each idler wheel and straightedge.

Idler Wheel

(1 of 2)

x 2

Platen Graphite

Straightedge

Figure 52. Checking distance between platen

graphite and idler wheels.

— If each idler wheel is approximately 1⁄8"

from straightedge, platen does not need to be adjusted. Proceed to Step 7.

— If each idler wheel is not approximately 1⁄8"

from straightedge, proceed to Step 6.

Wheel

Cover

Wheel Cover

Figure 51. Wheel covers adjusted back and

away from platen.

x 2

Loosen (2) cap screws shown in Figure 52,

adjust platen so each idler wheel is about from straightedge, then tighten screws.

Adjust wheel covers back to their original

position and tighten acorn nuts to secure.

⁄8"

-34-

Model T32459 (Mfd. Since 12/23)

Replacing Gas Strut

6. Thread new gas strut ball studs into frame

holes, as shown in Figure 54.

The gas strut will eventually wear and will no longer provide enough tension to keep the belt safely tracking on the wheels.

Items Needed Qty

Open-End Wrenches 10, 12mm ..................1 Ea.

Replacement Gas Strut (#PT32459012)

To replace gas strut:

On new gas strut, thread (2) hex nuts all the

way onto ball studs, as shown in Figure 53.

x 2

............ 1

Ball Stud

(1 of 2)

Gas Strut

Figure 54. Location of gas strut ball studs.

7. Push belt tension handle (see Figure 55)

toward frame tilt lock handle to test gas strut compression.

Belt Tension

Handle

Ball Stud

(1 of 2)

Figure 53. Hex nuts threaded all the way onto

ball studs.

DISCONNECT MACHINE FROM POWER!

3. Remove tool rest and belt.

Adjust frame tilt so platen is vertical (refer to

4. Adjusting Frame Tilt on Page 20).

Turn gas strut ball studs counterclockwise to

5. remove old gas strut (see Figure 54).

Figure 55. Direction to push belt tension handle.

Adjust hex nuts from Step 1 without turning

ball studs until they contact machine frame to secure.

Model T32459 (Mfd. Since 12/23)

-35-

These pages are current at the time of printing. However, in the spirit of improvement, we may make changes to the electrical systems of future machines. Compare the manufacture date of your machine to the one stated in this manual, and study this section carefully.

If there are differences between your machine and what is shown in this section, call Technical Support at (570) 546-9663 for assistance BEFORE making any changes to the wiring on your machine. An updated wiring diagram may be available.

number and manufacture date of your

machine before calling. This information can be found on the main machine label.

SECTION 8: WIRING

Note: Please gather the serial

Wiring Safety Instructions

SHOCK HAZARD. Working on wiring that is con-

nected to a power source is extremely dangerous. Touching electrified parts will result in personal injury including but not limited to severe burns, electrocution, or death. Disconnect the power from the machine before servicing electrical components!

MODIFICATIONS. Modifying the wiring beyond what is shown in the diagram may lead to unpredictable results, including serious injury or fire. This includes the installation of unapproved aftermarket parts.

WIRE CONNECTIONS. All connections must be tight to prevent wires from loosening during machine operation. Double-check all wires disconnected or connected during any wiring task to ensure tight connections.

CIRCUIT REQUIREMENTS. You MUST follow the requirements at the beginning of this manual when connecting your machine to a power source.

WIRE/COMPONENT DAMAGE. Damaged wires or components increase the risk of serious personal injury, fire, or machine damage. If you notice that any wires or components are damaged while performing a wiring task, replace those wires or components.

MOTOR WIRING. The motor wiring shown in these diagrams is current at the time of printing but may not match your machine. If you find this to be the case, use the wiring diagram inside the motor junction box.

CAPACITORS/INVERTERS. Some capacitors and power inverters store an electrical charge for up to 10 minutes after being disconnected from the power source. To reduce the risk of being shocked, wait at least this long before working on capacitors.

EXPERIENCING DIFFICULTIES. If you are experiencing difficulties understanding the information included in this section, contact our Technical Support at (570) 546-9663.

The photos and diagrams included in this section are best viewed in color. You can view these pages in color at www.grizzly.com.

-36-

Model T32459 (Mfd. Since 12/23)

Wiring Diagram

MOTOR 110V

CONTROL BOX COVER

Motor

Speed

DRO

EMERGENCY

STOP Button

GK AF1652-11Z

NO NC

Potentiometer

WTH118-2W

4.7K

ON/OFF Switch

KCD1

1a11b

CONTROL BOX

GND

Figure 56. Control box wiring.

Model T32459 (Mfd. Since 12/23)

Neutral

Hot

Ground

110 VAC

5-15 Plug

READ ELECTRICAL SAFETY

ON PAGE 36!

-37-

SECTION 9: PARTS

We do our best to stock replacement parts when possible, but we cannot guarantee that all parts shown are available for purchase. Call (800) 523-4777 or visit www.grizzly.com/parts to check for availability.

Main

14-2

14-1

17-1

17-2

17-3

37-1

-38-

BUY PARTS ONLI NE AT GRIZZLY.COM!

Scan QR code to visit our Parts Store.

Model T32459 (Mfd. Since 12/23)

38 PT32459038 BELT 2" X 42" 120-GRIT

Main Parts List

REF P ART # DES CRIPTION REF PART # DESCRIP TION

1 PT32459001 EXT RETA I NI NG RI NG 15MM 39 PT32459039 CAP SCREW M6-1 X 10 2 PT32459002 BALL BEARING 6002-2RS 40 PT32459040 CARRIAGE BOLT M6-1 X 16 3 PT32459003 IDLER WHEEL 41 PT32459041 LOCK NUT M8-1.25 4 PT32459004 IDLER WHEEL SHAFT 42 PT32459042 PLATEN WHEEL COVER UPPER 5 PT32459005 TENSION WHEEL COVER 43 PT32459043 LOCK WASHER 10MM 6 PT32459006 HINGE 44 PT32459044 PLATEN ADJUSTMENT BAR 7 PT32459007 FLAT HD CAP SCR M5-. 8 X 8 45 PT32459045 BUTTON HD CAP SCR M8-1.25 X 25 8 PT32459008 TENSION PLATE 46 PT32459046 ADJUSTABLE HANDLE M6-1, 60L 9 PT32459009 WING NUT M6 -1 47 PT32459047 COVER PLATE 10 PT32459010 KNOB BOLT M6-1 X 58, 7-LOBE, D40 48 PT32459048 SUPPORT BAR 11 PT32459011 SHOULDER BOLT M10-1.5 X 13, 12 X 22 49 PT32459049 BODY 12 PT32459012 GAS STRUT W/BALL STUD M6-1 50 PT32459050 SPACER 12.3 X 24 X 9.5 13 PT32459013 HEX NUT M6 -1 51 PT32459051 LOCK NUT M10-1.5 14 PT32459014 MOTOR 3/4HP 110V 1-PH 52 PT32459052 CAP SCREW M6-1 X 20 14-1 PT32459014-1 MOTOR FAN CO VER 53 PT32459053 DRIVE WHEEL 5" 14-2 PT32459014-2 MOTOR FAN 54 PT32459054 DRIVE WHEEL COVER 15 PT32459015 FLAT HD CA P SCR M6 -1 X 2 0 55 PT32459055 CAP SCREW M5-.8 X 16 16 PT32459016 ADJUSTABLE HANDLE M6-1 X 10, 50L 56 PT32459056 FLAT WASHER 5.3 X 25 X 2 17 PT32459017 CONTROL BOX 57 PT32459057 FIXED HANDLE 16 X 70, M8-1.25 X 12 17-1 PT32459017-1 EMERGENCY STOP BUTTON GK AF1652-11Z 58 PT32459058 FLAT WAS HER 6MM 17-2 PT32459017-2 POTENTIOMETER 4.7K WTH118-2W 59 PT32459059 POWER CORD 16G 3W 72" 5-15P 17-3 PT32459017-3 ON/ O FF SWI TCH KCD1 61 PT32459061 WRENCH 10 MM COMBO 18 PT32459018 PHLP HD SCR M5-.8 X 16 62 PT32459062 WRENCH 12 X 14MM OPEN-ENDS 19 PT32459019 LOCK WASHER 5MM 63 PT32459063 HEX WRE NCH 1/ 8" 20 PT32459020 CONTROL BOX MOUNT 64 PT32459064 HEX WRE NCH 3/ 16" 21 PT32459021 CAP SCREW M5-.8 X 8 65 PT32459065 FLAT WAS HER 6MM 22 PT32459022 FOOT M6 -1 X 14 66 PT32459066 FLAT WAS HER 6MM 23 PT32459023 CAP SCREW M6-1 X 16 67 PT32459067 LOCK WASHER 6MM 24 PT32459024 BASE 68 PT32459068 FLAT WA SHER 6 MM 25 PT32459025 SHOULDER BOLT M10-1.5 X 13, 12 X 12 69 PT32459069 FLAT WA SHER 1 0MM 26 PT32459026 BUSHING 8.5 X 20.3 X 7.7 70 PT32459070 HEX NUT M8 -1. 25 27 PT32459027 ADJUSTABLE HANDLE M8-1.25 X 20, 60L 71 PT32459071 KEY 5 X 5 X 20 28 PT32459028 ACORN NUT M6 -1 72 PT32459072 LOCK NUT M8-1.25 29 PT32459029 FLAT WA SHER 6 MM 73 PT32459073 CAP SCREW M6-1 X 10 30 PT32459030 TOOL REST ADJUSTMENT BAR 74 PT32459074 FLAT WA SHER 6 MM 32 PT32459032 TOOL REST MOUNTING BRACKET 75 PT32459075 FLAT HD CA P SCR M6- 1 X 1 6 33 PT32459033 TOOL REST 76 PT32459076 CORD ROUTER 34 PT32459034 ACORN NUT M1 0-1 . 5 77 PT32459077 PHLP HD SCR M4-.7 X 8 35 PT32459035 PLATEN WHEEL COVER LOWER 78 PT32459078 FLAT WA SHER 4 MM 36 PT32459036 PLA TEN FRAME 79 PT32459079 LOCK WASHER 4MM 37 PT32459037 PLATEN 80 PT32459080 PHLP HD SCR M4-.7 X 10 37-1 PT32459037-1 GRAPHITE PAD 2" X 5-1/4" 81 PT32459081 HEX NUT M1 0-1 . 5 THI N

Model T32459 (Mfd. Since 12/23)

BUY PARTS ONLI NE AT GRIZZLY.COM!

Scan QR code to visit our Parts Store.

-39-

107V2

Specifications

104 PT32459104 ELECTRICITY LABEL

Motor: 3/4 HP, 110V, Single-Phase, 60 Hz Full-Load Current Rating: 7.8A Sanding Belt Size: 2" x 42" Sanding Belt Speed: 131–4189 FPM Sanding Belt Tilt: 0º–90º Platen Tilt: Left 30º, Right 30º Table Tilt: Left 5º, Right 120º Drive Wheel Diameter: 5" Platen Size: 5-1/2" x 2-1/4" Weight: 38 lbs.

Date

Mfd. for Grizzly in China

S/N

Labels & Cosmetics

MODEL T32459

2" X 42" KNIFE-MAKING

BELT SANDER/GRINDER

To reduce risk of serious personal injury when using this machine:

1. Read and understand owner’s manual before operating.

2. Always wear approved eye protection and respirator.

3. Only plug power cord into a grounded outlet.

4. Support workpiece with tool rest.

5. Never grind stock smaller than 7" long and 1/32" wide.

6. Maintain 1/16" maximum clearance between tool rest and sandpaper.

7. Never touch moving sandpaper or reach over moving sanding belt.

8. Always grind in accordance with directional arrows on machine.

9. Make sure machine is properly assembled, adjusted, and stable before operating. Only operate with all guards in place.

10. Never grind pointed stock with point facing into belt rotation, and never force workpiece into grinding surface.

11. Do not grind in flammable environment or near combustibles.

12. Only remove jammed pieces when sandpaper is stopped.

13. Disconnect power before changing sandpaper, adjusting, or servicing.

14. Do not wear loose clothing, gloves, jewelry, or other articles that can get entangled. Tie back long hair and roll up sleeves.

15. Do not expose to rain or use in damp locations.

16. Do not operate under influence of drugs or alcohol, or when tired.

17. Prevent unauthorized use by children or untrained users.

WARNING!

106

103

104

105

WARNING!

To reduce risk of death or serious injury, read manual BEFORE using machine. To get a new manual, call (800) 523-4777 or go to www.grizzly.com.

WARNING!

EYE/LUNG

INJURY HAZARD! Always wear ANSIapproved safety glasses, face shield, and respirator when using this machine.

WARNING!

INJURY/SHOCK

HAZARD! Disconnect power before adjustments, maintenance, or service.

WARNING!

ENTANGLEMENT

HAZARD! Tie back long hair, roll up long sleeves, and remove loose clothing, jewelry, or gloves to prevent getting caught in moving parts.

101

WARNING!

HAZARD!

DO NOT touch moving sanding belt, or personal injury may occur!

INJURY

102

REF P ART # DES CRIPTIO N REF PART # DESCRIP TION

101 PT32459101 ABRASION INJURY LABEL 105 PT32459105 READ MANUAL LABEL 102 PT32459102 BELT ROTATION LABEL 106 PT32459106 TOUCH-UP PAINT, GRIZZLY GREEN 103 PT32459103 COMBO WARNING LABEL 107V2 PT32459107V2 MACHINE ID LABEL V2.12.23

Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes off or becomes unreadable, the owner of this machine MUST replace it in the original location before resuming operations. For replacements, contact (800) 523-4777 or www.grizzly.com.

-40-

BUY PARTS ONLI NE AT GRIZZLY.COM!

Scan QR code to visit our Parts Store.

Model T32459 (Mfd. Since 12/23)

WARRANTY & RETURNS

Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse,

negligence,accidents,repairsoralterationsorlackofmaintenance.ThisisGrizzly’ssolewrittenwarranty

and any and all warranties that may be implied by law, including any merchantability or fitness, for any particular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants.

InnoeventshallGrizzly’sliabilityunderthiswarrantyexceedthepurchasepricepaidfortheproductand

any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.

We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special, or consequential damages arising from the use of our products.

The manufacturers reserve the right to change specifications at any time because they constantly strive to achieve better quality equipment. We make every effort to ensure that our products meet high quality and durability standards and we hope you never need to use this warranty.

In the event you need to use this warranty, contact us by mail or phone and give us all the details. We will

thenissue youa“Return Number,’’which must beclearly postedon theoutsideas wellas the insideof

the carton. We will not accept any item back without this number. Proof of purchase must accompany the merchandise.

Please feel free to write or call us if you have any questions about the machine or the manual.

Thank you again for your business and continued support. We hope to serve you again soon.

For further information about the

scan the QR

code below

to be automatically directed to our warranty page.

warranty, visit https://www.grizzly.com/forms/warranty or

WARRANTY
