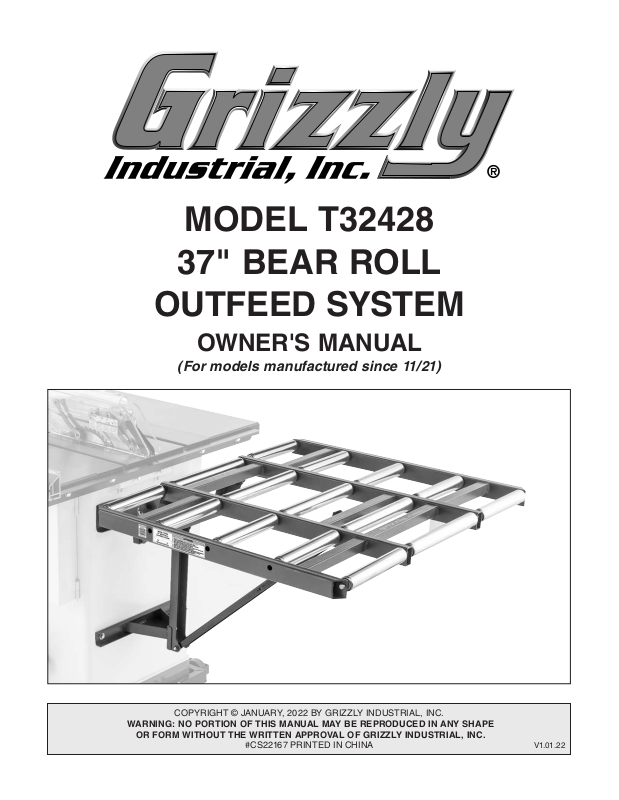

MODEL T32428
37" BEAR ROLL
OUTFEED SYSTEM
OWNER'S MANUAL
(For models manufactured since 11/21)
COPYRIGHT © JANUARY, 2022 BY GRIZZLY INDUSTRIAL, INC.
WARNING : NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#CS22167 PRINTED IN CHINA
V1.01.22
This manual provides critical safety instructions on the proper setup,
operation, maintenance, and service of this machine/tool. Save this
document, refer to it often, and use it to instruct other operators.
Failure to read, understand and follow the instructions in this manual
may result in fire or serious personal injury—including amputation,
electrocution, or death.
The owner of this machine/tool is solely responsible for its safe use.
This responsibility includes but is not limited to proper installation in
a safe environment, personnel training and usage authorization,
proper inspection and maintenance, manual availability and comprehension, application of safety devices, cutting/sanding/grinding tool
integrity, and the usage of personal protective equipment.
The manufacturer will not be held liable for injury or property damage
from negligence, improper training, machine modifications or misuse.
Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State
of California to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement and other masonry products.
• Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
Work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter
out microscopic particles.
Table of Contents
INTRODUCTION ............................................... 2
Contact Info.................................................... 2
Manual Accuracy ........................................... 2
SECTION 1: SAFETY ....................................... 3
Safety Instructions for Machinery .................. 3
SECTION 2: SETUP ......................................... 5
Needed for Setup ........................................... 5
Unpacking ...................................................... 5
Inventory ........................................................ 6

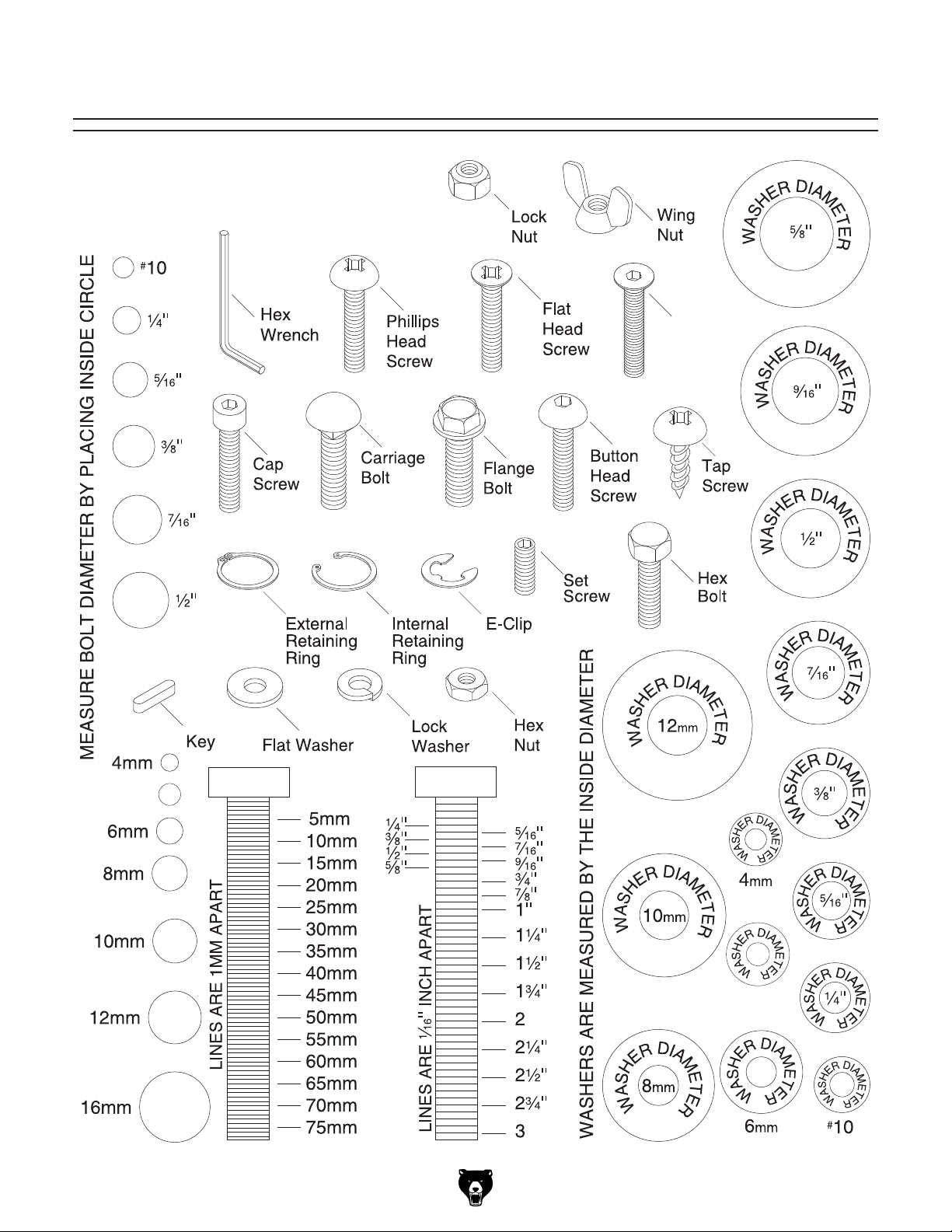

Hardware Recognition Chart ......................... 7
Site Considerations ........................................ 8
Mounting ........................................................ 9
SECTION 3: OPERATIONS ........................... 13
Operation Overview ..................................... 13
Adjusting Cams ............................................ 14
Raising/Lowering Roller System .................. 15
SECTION 4: MAINTENANCE ......................... 16
Schedule ...................................................... 16
Cleaning & Protecting .................................. 16
Lubrication ................................................... 16
SECTION 5: SERVICE ................................... 17
Troubleshooting ........................................... 17
SECTION 6: PARTS ....................................... 18
Main ............................................................. 18
Labels & Cosmetics ..................................... 20
WARRANTY & RETURNS ............................. 21
IMPORTANT NOTICE!
Table Saw Modifications Required for Installation
The Model T32428 can be installed on a wide range of cabinet-type table saw brands and sizes.
Installation usually requires permanent modification to your table saw or its parts. This modification may
include cutting, grinding, drilling, and tapping threads in metal surfaces. Read the following to determine
which type of modification may be required for your saw:
• If your table saw does not have mounting holes that match those in the Model T32428, you will need
to drill new holes in the cabinet.
• The low voltage controller box on some Delta Unisaws may need to be lowered a few inches to
create clearance for the roller system.
CAUTION: For your own safety and protection of property, consult an electrician if you are
unsure about wiring practices or electrical codes required for moving a low voltage controller box.
Before beginning any modification to your table saw or its parts, read the entire assembly section in this
manual to make sure the person making the modification is capable of performing the required tasks,
and to make sure the Model T32428 will fit your saw.
Specifications
Main Specifications
Table Size ................................................................................................................................. 36-1/2 x 31 in.
Weight ................................................................................................................................................... 48 lbs.
Construction
Rollers ...........................................................................................................................Chrome, Ball Bearing
Frame ........................................................................................................................................ Formed Steel
Paint Type/Finish ................................................................................................................................. Enamel
We stand behind our machines! If you have questions or need help, contact us with the information
below. Before contacting, make sure you get the
serial number
from the
machine ID label. This will help us help you faster.
We want your feedback on this manual. What did
you like about it? Where could it be improved?
Please take a few minutes to give us feedback.
Email: manuals@grizzly.com
We are proud to provide a high-quality owner’s
manual with your new machine!
We
instructions, specifications, drawings, and photographs
in this manual. Sometimes we make mistakes, but
our policy of continuous improvement also means
that
you receive is
slightly different than shown in the manual
If you find this to be the case, and the difference
between the manual and machine leaves you
confused or unsure about something
check our
website for an updated version. W
current
manuals and
on our web-
site at
Alternatively, you can call our Technical Support
for help. Before calling, make sure you write
down the
serial number
from the machine ID label (see below). This
information is required for us to provide proper
tech support, and it helps us determine if updated
documentation is available for your machine.
INTRODUCTION
Contact Info
and manufacture date
Grizzly Technical Support
1815 W. Battlefield
Springfield, MO 65807
Phone: (570) 546-9663
Email: techsupport@grizzly.com
Grizzly Documentation Manager
P.O. Box 2069
Bellingham, WA 98227-2069
Manual Accuracy
made every effort to be exact with the
sometimes the machine
.
,
e post
manual updates for free
www.grizzly.com.
manufacture date and
Like all machinery there is potential danger
when operating this equipment. Accidents
are frequently caused by lack of familiarity
or failure to pay attention. Use this machine
with respect and caution to decrease the
risk of operator injury. If normal safety precautions are overlooked or ignored, serious personal injury may occur.
No list of safety guidelines can be complete. Every shop environment is different.
Always consider safety first, as it applies
to your individual working conditions. Use
this equipment and machinery with caution
and respect. Failure to do so could result in
serious personal injury, damage to equipment, or poor work results.
Manufacture Date
Serial Number
-2-
Model T32428 (Mfd. Since 11/21)
SECTION 1: SAFETY
For Your Own Safety, Read Instruction
Manual Before Operating This Machine
The purpose of safety symbols is to attract your attention to possible hazardous conditions.
This manual uses a series of symbols and signal words intended to convey the level of importance of the safety messages. The progression of symbols is described below. Remember that
safety messages by themselves do not eliminate danger and are not a substitute for proper
accident prevention measures. Always use common sense and good judgment.
Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury. It may also be used to alert
against unsafe practices.
Alerts the user to useful information about proper operation of the
NOTICE
machine to avoid machine damage.
Safety Instructions for Machinery
OWNER’S MANUAL. Read and understand this
owner’s manual BEFORE using machine.
TRAINED OPERATORS ONLY. Untrained operators have a higher risk of being hurt or killed.
Only allow trained/supervised people to use this
machine. When machine is not being used, disconnect power, remove switch keys, or lock-out
machine to prevent unauthorized use—especially
around children. Make your workshop kid proof!
DANGEROUS ENVIRONMENTS. Do not use
machinery in areas that are wet, cluttered, or have
poor lighting. Operating machinery in these areas
greatly increases the risk of accidents and injury.
MENTAL ALERTNESS REQUIRED. Full mental
alertness is required for safe operation of machinery. Never operate under the influence of drugs or
alcohol, when tired, or when distracted.
ELECTRICAL EQUIPMENT INJURY RISKS.
You can be shocked, burned, or killed by touching
live electrical components or improperly grounded
machinery. To reduce this risk, only allow qualified
service personnel to do electrical installation or
repair work, and always disconnect power before
accessing or exposing electrical equipment.
DISCONNECT POWER FIRST.
nect machine from power supply BEFORE making adjustments, changing tooling, or servicing
machine. This prevents an injury risk from unintended startup or contact with live electrical components.
EYE PROTECTION. Always wear ANSI-approved
safety glasses or a face shield when operating or
observing machinery to reduce the risk of eye
injury or blindness from flying particles. Everyday
eyeglasses are NOT approved safety glasses.
Always discon-
Model T32428 (Mfd. Since 11/21)
-3-
WEARING PROPER APPAREL. Do not wear
clothing, apparel or jewelry that can become
entangled in moving parts. Always tie back or
cover long hair. Wear non-slip footwear to reduce
risk of slipping and losing control or accidentally
contacting cutting tool or moving parts.
HAZARDOUS DUST. Dust created by machinery
operations may cause cancer, birth defects, or
long-term respiratory damage. Be aware of dust
hazards associated with each workpiece material. Always wear a NIOSH-approved respirator to
reduce your risk.
HEARING PROTECTION. Always wear hearing protection when operating or observing loud
machinery. Extended exposure to this noise
without hearing protection can cause permanent
hearing loss.
REMOVE ADJUSTING TOOLS. Tools left on
machinery can become dangerous projectiles
upon startup. Never leave chuck keys, wrenches,
or any other tools on machine. Always verify
removal before starting!
USE CORRECT TOOL FOR THE JOB. Only use
this tool for its intended purpose—do not force
it or an attachment to do a job for which it was
not designed. Never make unapproved modifications—modifying tool or using it differently than
intended may result in malfunction or mechanical
failure that can lead to personal injury or death!
AWKWARD POSITIONS. Keep proper footing
and balance at all times when operating machine.
Do not overreach! Avoid awkward hand positions
that make workpiece control difficult or increase
the risk of accidental injury.
CHILDREN & BYSTANDERS. Keep children and
bystanders at a safe distance from the work area.
Stop using machine if they become a distraction.
GUARDS & COVERS. Guards and covers reduce
accidental contact with moving parts or flying
debris. Make sure they are properly installed,
undamaged, and working correctly BEFORE
operating machine.
FORCING MACHINERY. Do not force machine.
It will do the job safer and better at the rate for
which it was designed.
NEVER STAND ON MACHINE. Serious injury
may occur if machine is tipped or if the cutting
tool is unintentionally contacted.
STABLE MACHINE. Unexpected movement during operation greatly increases risk of injury or
loss of control. Before starting, verify machine is
stable and mobile base (if used) is locked.
USE RECOMMENDED ACCESSORIES. Consult
this owner’s manual or the manufacturer for recommended accessories. Using improper accessories will increase the risk of serious injury.
UNATTENDED OPERATION. To reduce the
risk of accidental injury, turn machine OFF and
ensure all moving parts completely stop before
walking away. Never leave machine running
while unattended.
MAINTAIN WITH CARE. Follow all maintenance
instructions and lubrication schedules to keep
machine in good working condition. A machine
that is improperly maintained could malfunction,
leading to serious personal injury or death.
DAMAGED PARTS. Regularly inspect machine
for damaged, loose, or mis-adjusted parts—or
any condition that could affect safe operation.
Immediately repair/replace BEFORE operating
machine. For your own safety, DO NOT operate
machine with damaged parts!
MAINTAIN POWER CORDS. When disconnecting cord-connected machines from power, grab
and pull the plug—NOT the cord. Pulling the cord
may damage the wires inside. Do not handle
cord/plug with wet hands. Avoid cord damage by
keeping it away from heated surfaces, high traffic
areas, harsh chemicals, and wet/damp locations.
EXPERIENCING DIFFICULTIES. If at any time
you experience difficulties performing the intended operation, stop using the machine! Contact our
Technical Support at (570) 546-9663.
-4-
Model T32428 (Mfd. Since 11/21)
SECTION 2: SETUP
Lifting heavy machinery
or parts without proper
assistance or equipment
injuries, crushing injuries,
Needed for Setup
This equipment presents
serious injury hazards
to untrained users. Read
through this entire manual
to become familiar with the
controls and operations
before using equipment!
Wear safety glasses during
the entire setup process!
The following items are needed, but not included,
for the setup/assembly of this equipment.
Description Qty
• Safety Glasses (for Each Person) .............. 1
• Tap e ............................................ As Needed
• Framing Square .......................................... 1
• Machinist's Square 6" ................................. 1
• Steel Hammer ............................................ 1
• Center Punch ............................................. 1
• Hand Drill .................................................... 1
• Drill Bit 11⁄32" ................................................ 1
• Another Person .......................................... 1
• Open-End Wrenches 13mm ....................... 2
• Straightedge 4' ........................................... 1
may result in strains, back
or property damage.
Unpacking
This equipment was carefully packaged for safe
transport. When unpacking, separate all enclosed
items from packaging materials and inspect them
for shipping damage. If items are damaged,
please call us immediately at (570) 546-9663.
IMPORTANT: Save all packaging materials until
you are completely satisfied with the equipment
and have resolved any issues between Grizzly or
the shipping agent. You MUST have the original
packaging to file a freight claim. It is also extremely
helpful if you need to return your equipment later.
Model T32428 (Mfd. Since 11/21)
-5-
Inventory
The following is a list of items shipped with the
roller system. Before beginning setup, lay these
items out and inventory them.
If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.
NOTICE
If you cannot find an item on this list,
carefully check around/inside the equipment and packaging materials. Often, these
items get lost in packaging materials while
unpacking or they are pre-installed at the
factory.
Inventory (Figures 1–
A. Roller System ............................................. 1
B. Mounting Stud Pads M8-1.25 ..................... 2
C. Hex Bolts M8-1.25 x 25 .............................. 4
D. Lock Washers 8mm.................................... 4
E. Hex Nuts M8-1.25 ....................................... 4
F. Flat Washers 8mm ..................................... 6
G. Mounting Template (Not Shown) ................ 1
2) Qty
A
Figure 1. Roller system.
B
C
-6-
D
F
Figure 2. Loose inventory.
Model T32428 (Mfd. Since 11/21)
E
Hardware Recognition Chart
USE THIS CHART TO MATCH UP
HARDWARE DURING THE INVENTORY
AND ASSEMBLY PROCESS.
Flat
Head
Cap
Screw
5mm
Model T32428 (Mfd. Since 11/21)
5mm
-7-
Site Considerations
Physical Environment
The physical environment where a machine is
operated is important for safe operation and longevity of components. For best results, use this
equipment in a dry environment that is free from
excessive moisture, hazardous chemicals, airborne abrasives, or extreme conditions. Extreme
conditions for this type of equipment are generally those where the ambient temperature range
is outside 41°–104°F; the relative humidity range
is outside 20–95% (non-condensing); or the environment is subject to vibration, shocks, or bumps.
Space Allocation
Consider the largest size of workpiece that will
be processed with this equipment and provide
enough space around the machine and roller
system for adequate operator material handling or
the installation of auxiliary equipment. With permanent installations, leave enough space around
the table saw to open or remove doors/covers
as required by the maintenance and service
described in its manual. See below for required
space allocation for this roller system.
Weight Load
Refer to the Machine Data Sheet for the weight
of your table saw. Make sure that the surface
upon which the machine is placed will bear the
weight of the machine, additional equipment that
may be installed on the machine, and the heaviest
workpiece that will be used. Additionally, consider
the weight of the operator and any dynamic loading that may occur when operating the machine.
Lighting
Lighting around the machine must be adequate
enough that operations can be performed safely.
Shadows, glare, or strobe effects that may distract
or impede the operator must be eliminated.
Children or untrained people
may be seriously injured by
table saw. Only install in an
access restricted location.
36½"
40" (From Saw Cabinet)
Figure 3. Minimum working clearances.
-8-
Model T32428 (Mfd. Since 11/21)
Mounting
Lifting heavy machinery
or parts without proper
assistance or equipment
injuries, crushing injuries,
Remove mounting template and drill (4) 11⁄32"
4.
holes at locations marked in Step 3 (see
Figure 5).
The mounting process typically requires modification of your table saw. Be sure to read the
Important Notice on Page 1.
To make the process easier, we strongly recommend that you have another person to help you.
Before beginning the mounting process, refer to
Needed for Setup and gather all listed items.
To mount system:
DISCONNECT SAW FROM POWER!
1.
2. Tape mounting template to table saw cabinet
rear (see Figure 4). Baseline must be parallel
1
with and 4
⁄2 " from table surface.
Tip: Drill pilot holes using smaller bit before
11
enlarging to
Open cabinet access panel or door to insert
5.
⁄32 for best results.
(2) M8-1.25 mounting stud pads through
holes (see Figure 5).
Mounting Stud
Pads
Figure 5. Mounting stud pads inserted.
41⁄2 "
Baseline
Figure 4. Mounting template taped to table
1
saw cabinet rear with baseline 4
⁄2" below table
surface.
3. Use center punch to mark (4) mounting holes
indicated on mounting template.
Note: If table saw has no cabinet access
panel or door, you may need to turn machine
on its side and access holes from underneath
machine.
may result in strains, back
or property damage.
Model T32428 (Mfd. Since 11/21)
-9-
6. With help from another person, attach roller
system to mounting stud pads with (2) M8-1.25
x 25 hex bolts, (4) 8mm lock washers, (4)
8mm flat washers, and (2) M8-1.25 hex nuts
(see Figure 6). Finger-tighten for now.
x 2
Roller
System
8.
Extend straightedge off of saw table surface
to highest rollers (see Figure 8).
Highest Roller
(1 of 3)
Straightedge
Figure 8. Using straightedge to check roller
frame position.
Figure 6. Roller system attached to cabinet.
7. Loosen (2) cam lock knobs, adjust roller sys-
tem until lock knobs are in UP position (see
Figure 7), then tighten lock knobs.
Cam Lock Knob
(1 of 2)
Figure 7. Cam lock knobs in UP position.
9. Adjust roller system until three highest rollers
are parallel with table surface, then tighten
hardware from Step 6.
10.
Lift roller frame to straighten folding support
arm and extend roller frame (see Figure 9).
Figure 9. Extending roller frame.
-10 -
Model T32428 (Mfd. Since 11/21)
11. Loosen (4) hex nuts shown in Figure 10.
x 4
13. With straightedge extended over saw table
and outermost rollers (see Figure 12), adjust
hex bolt shown in Figure 11 until outermost
rollers are parallel with table surface, then
tighten hex nuts from Step 11 to secure
position.
Outermost Rollers
Figure 10. Location of adjustment plate hex
nuts.
12. Loosen jam nut shown in Figure 11.
Figure 11. Location of roller frame adjustment
hex bolt and jam nut.
Straightedge
Figure 12. Straightedge extended to outermost
rollers.
Mark and drill 11⁄32" mounting holes at loca-
14.
tions shown in Figure 13.
— If there is not a dust port or other fixture
in cabinet preventing this step, proceed to
Step 16.
— If there is a dust port or other fixture in
cabinet preventing this step, proceed to
Step 15.
Model T32428 (Mfd. Since 11/21)
Figure 13. Location of lower mounting holes.
-11-
15. Remove (2) hex nuts, lock washers, flat
washers, and hex bolts shown in Figure 14,
move support bracket up or down to holes in
mounting beam where it has the necessary
clearance, install with hex nuts, lock washers, flat washers, and hex bolts, then repeat
Step 14.
Mounting Beam
Support
Bracket

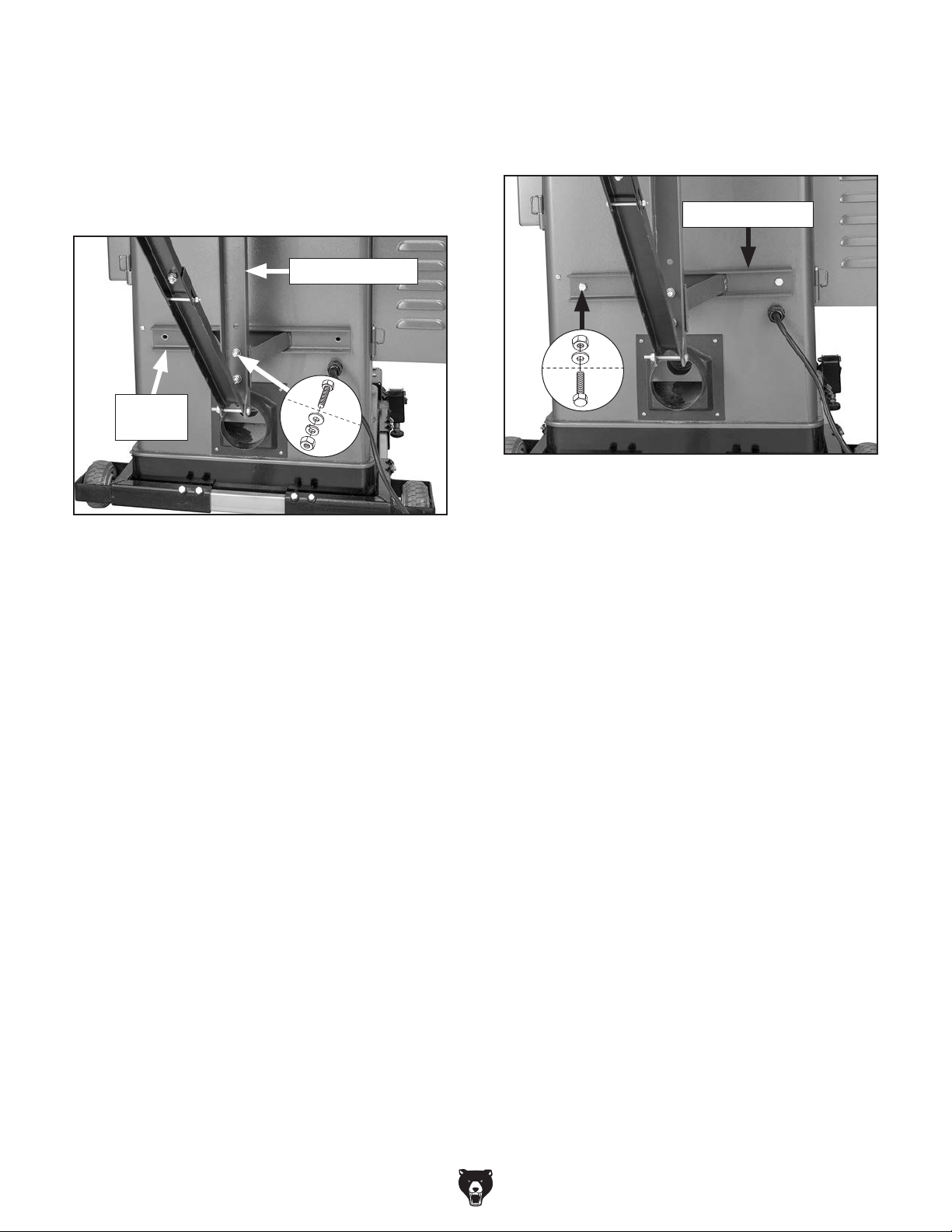

Figure 14. Location of support bracket and
fasteners.
x 2
16. Secure support bracket to cabinet through
holes drilled in Step 14 with (2) M8-1.25 x 25
hex bolts, 8mm flat washers, and M8-1.25
hex nuts (see Figure 15).
Support Bracket
x 2
Figure 15. Lower portion of mounting arm
secured to cabinet.
-12-
Model T32428 (Mfd. Since 11/21)
SECTION 3: OPERATIONS
Operation Overview
To complete a typical operation, the operator
does the following:
The purpose of this overview is to provide the novice machine operator with a basic understanding
of how the equipment is used during operation,
so the controls/components discussed later in this
manual are easier to understand.
Due to the generic nature of this overview, it is
not intended to be an instructional guide. To learn
more about specific operations, refer to the table
saw manual for information on safely operating
your table saw, read this entire manual, seek
additional training from experienced machine
operators, and do additional research outside
of this manual by reading "how-to" books, trade
magazines, or websites.
To reduce your risk of
serious injury, read this
entire manual BEFORE
using roller system.
1. Examines workpiece to make sure it is suit-
able for cutting.
Adjusts blade tilt, if necessary, to correct
2.
angle for desired cut.
Adjusts blade height approximately 1⁄4" higher
3.
than thickness of workpiece.
Adjusts fence to desired width of cut, then
4.
locks it in place.
Adjusts roller system cams as needed for
5.
operation.
Checks roller system for proper support
6.
and to make sure the workpiece can safely
pass all the way through the blade without
interference.
Puts on safety glasses, respirator, and hear-
7.
ing protection, and locates push sticks/blocks
if needed.
Eye injuries, respiratory problems, or hearing loss can occur while operating table
saw. Wear personal protective equipment
to reduce your risk from these hazards.
Dynamic forces involved with processing
large/heavy workpieces may cause
unsecured roller system to shift during
cutting operations, which could result
in kickback injuries. To reduce this risk,
properly secure roller tables to outfeed side
of machine.
Starts dust collection system, then starts
8.
saw.
Feeds workpiece all the way through blade
9.
while maintaining firm pressure on workpiece
against table and fence, and keeping hands
and fingers out of blade path and away from
blade.
Stops machine immediately after cut is
10.
complete.
Model T32428 (Mfd. Since 11/21)
-13-
Adjusting Cams
The cams on the Model T32428 have two positions: UP and DOWN.
The UP position aligns the rollers with the surface
of the table saw table (see Figure 16). This position cannot be used with fixtures in the miter slot
of the table, as these will contact the roller system
as the workpiece exits the outfeed side of the
machine.
Rollers Aligned with
Table Surface
Loosen the cam lock knob on either side of the
roller system, move lock knobs to the position
indicated on the cam labels (see Figure 18), then
tighten the lock knobs.
Figure 16. Cams in UP position.
The DOWN position gives extra clearance to
allow for a miter gauge or other sliding fixture (see
Figure 17).
Rollers Slightly Below
Table Surface
Figure 17. Cams in DOWN position.
Figure 18. Cam lock knob positions.
-14-
Model T32428 (Mfd. Since 11/21)
Raising/Lowering
Roller System
The roller system should be lowered whenever it
is not needed for outfeed support to prevent overreaching and to save space.
Keep fingers away from hinge points to
prevent pinch injuries.
Raising Roller System
To raise the roller system, simply grip the outermost rollers or roller frame, then lift the frame until
the folding support arm locks in place.
Lowering Roller System
To lower the roller system, grip the outermost rollers or the roller frame. Slightly lift the frame and
push the hinge point on the folding support arm
with your foot. This will unlock the frame so it can
be lowered.
Figure 20. Lowering roller system.
Figure 19. Raising roller system.
Model T32428 (Mfd. Since 11/21)
-15-
SECTION 4: MAINTENANCE
To reduce risk of shock or
accidental startup, always
disconnect machine from
power before adjustments,
maintenance, or service.
Schedule
For optimum performance from this equipment,
this maintenance schedule must be strictly
followed.
Ongoing
To minimize your risk of injury and maintain proper
operation, stop use of equipment immediately if
you ever observe any of the items below, and fix
the problem before continuing operations:
• Loose mounting bolts.
• Damaged rollers.
Any other unsafe condition.
•
Lubrication
Keep hinge and pivot points and roller axles lubricated for smooth operation and long life of your
equipment.
Items Needed Qty
Mineral Spirits .................................... As Needed
Wire Brushes
Shop Rags
T26685 or ISO 32 Equivalent
Hinge & Pivot Points
Oi l Typ e .................T26685 or ISO 32 Equivalent
Oil Amount
Lubrication Frequency
Use a rag to clean any built-up resin or dust from
hinge and pivot points (see Figure 21) before
applying a few drops of lubricant to these locations. Lower and raise roller system a couple
times to distribute the lubricant.
..................................... As Needed
......................................... As Needed
............ As Needed
....................................... 1 or 2 Drops
.............................Monthly
Weekly Maintenance
• Clean rollers and hinge points.
Monthly Maintenance
• Clean roller frame, support bracket, and
mounting beam.
• Lubricate rollers and hinge points.
Cleaning &
Protecting
Cleaning the Model T32428 is relatively easy.
Vacuum excess wood chips and sawdust, and
wipe off the remaining dust with a dry cloth. If any
resin has built up, use a resin dissolving cleaner
to remove it.
-16 -
Pivot Point
Hinge Point
Pivot Point
Figure 21. Location of hinge and pivot points.
Roller Axles
Oi l Typ e .................T26685 or ISO 32 Equivalent
Oil Amount
Lubrication Frequency
Clean each roller with mineral spirits before applying a drop of lubricant at each roller axle.
................................................ 1 Drop
.............................Monthly
Model T32428 (Mfd. Since 11/21)
SECTION 5: SERVICE
Review the troubleshooting procedures in this section if a problem develops with your equipment. If you
need replacement parts or additional help with a procedure, call our Technical Support. Note: Please
gather the serial number and manufacture date of your equipment before calling.
Troubleshooting
Operations
Symptom Possible Cause Possible Solution
Roller will not
turn smoothly.
Roller system
will not lower.
Rollers are
not parallel
with table saw
surface.
1. Roller axle requires lubrication.
2. Bearing inside roller has failed.
1. Hinge and pivot point require lubrication.
2. Folding support arm fasteners are too tight.
1. Roller frame adjustment plate is adjusted
incorrectly.
1. Clean and lubricate roller axle (Page 16).
2. Replace roller.
1. Clean and lubricate hinge and pivot points (Page 16).
2. Loosen fasteners.
1. Adjust roller frame adjustment plate (Page 11).
Model T32428 (Mfd. Since 11/21)
-17-
13
14
SECTION 6: PARTS
We do our best to stock replacement parts when possible, but we cannot guarantee that all parts shown
are available for purchase. Call (800) 523-4777 or visit www.grizzly.com/parts to check for availability.
Main
7
8
5
12
11
10
15
9
9
6
9
20
21
3
2
19
8
17
6
16
21
9
18
4
10
11
13
8
12
9
11
8
1
-18-
BUY PARTS ONLINE AT GRIZZLY.COM !
Scan QR code to visit our Parts Store.
Model T32428 (Mfd. Since 11/21)
Main Parts List
REF PART # DES CRIPTION REF PART # DES CRIPTION
1 PT32428001 ROLLER FRA ME 12 PT32428012 KNOB BOLT M8-1.25 X 20, 5-LOBE, D38
2 PT32428002 ROLLER 9-1/2" 13 PT32428013 SHOULDER SCREW M8-1.25 X 6, 10 X 4
3 PT32428003 ROLLER 9" 14 PT32428014 CAM
4 PT32428004 ROLLER 12-1/2" 15 PT32428015 MOUNTI NG S TUD PAD M8 -1. 25
5 PT32428005 ROLLER FRA ME ADJ USTME NT PLATE 16 PT32428016 SUPPORT BRACKET
6 PT32428006 HEX BOLT M8-1.25 X 55 17 PT32428017 MOUNTI NG B EAM
7 PT32428007 CARRIAGE BOLT M8-1.25 X 25 18 PT32428018 FOLDING SUPPORT ARM ASSEMBLY
8 PT32428008 HEX BOLT M8-1.25 X 25 19 PT32428019 HEX BOLT M4-.7 X 50
9 PT32428009 HEX NUT M8-1 . 2 5 20 PT32428020 LOCK NUT M4- . 7
10 PT32428010 LOCK WASHER 8MM 21 PT32428021 LOCK NUT M8-1.25
11 PT32428011 FLAT WASHE R 8MM
Model T32428 (Mfd. Since 11/21)
BUY PARTS ONLINE AT GRIZZLY.COM !
Scan QR code to visit our Parts Store.
-19 -
DOWN
Labels & Cosmetics
101
T32428
UP
102
MODEL T32428
37" BEAR ROLL
OUTFEED SYSTEM
Date
Manufactured for Grizzly in China
To reduce risk of serious injury when using this roller system:
1. Read and understand owner’s manual before using.
2. Always wear ANSI-approved eye protection and a respirator.
3. Avoid pinch points when folding roller system.
4. Do not wear loose clothing, gloves, jewelry, or other items that can get
entangled. Tie back long hair and roll up sleeves.
5. Before starting, ensure machine is stable, and system is firmly mounted.
SN
6. Make sure power is disconnected before adjusting roller system.
7. Plan cuts so workpieces always remain supported.
WARNING!
103
PINCH HAZARD!
Keep hands away from
hinge areas when
folding roller system.
109
104
105
DOWN
T32428
UP
106
108
grizzly.com
107
REF PART # DES CRIPTION REF PART # DES CRIPTION
101 PT32428101 LEFT CAM LABEL 106 PT32428106 RIGHT CAM LABEL
102 PT32428102 QR CODE LABEL 107 PT32428107 GRIZZLY.COM LABEL
103 PT32428103 MACHINE ID LABEL 108 PT32428108 TOUCH- UP PA I NT, GRI ZZLY G REEN
104 PT32428104 TOUCH-UP P AI NT, G RI ZZLY BLA CK 109 PT32428109 PI NCH HAZA RD LAB EL
105 PT32428105 MODEL NUMBER LABEL
Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes
off or becomes unreadable, the owner of this equipment MUST replace it in the original location
before resuming operations. For replacements, contact (800) 523-4777 or www.grizzly.com.
-20-
BUY PARTS ONLINE AT GRIZZLY.COM !
Scan QR code to visit our Parts Store.
Model T32428 (Mfd. Since 11/21)
WARRANTY & RETURNS
Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from
the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse,
negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty
and any and all warranties that may be implied by law, including any merchantability or fitness, for any particular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent
that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants.
In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and
any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.
We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special,
or consequential damages arising from the use of our products.
The manufacturers reserve the right to change specifications at any time because they constantly strive to
achieve better quality equipment. We make every effort to ensure that our products meet high quality and
durability standards and we hope you never need to use this warranty.
In the event you need to use this warranty, contact us by mail or phone and give us all the details. We will
then issue you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of
the carton. We will not accept any item back without this number. Proof of purchase must accompany the
merchandise.
Please feel free to write or call us if you have any questions about the machine or the manual.
Thank you again for your business and continued support. We hope to serve you again soon.
To
you can
applicable information for
take advantage of this warranty, you must register it at https://www.grizzly.com/forms/warranty, or
scan the QR code below to be automatically directed to our warranty registration page. Enter all
the product.
WARRANTY
Loading...
