Page 1

MODEL T32336

4-GALLON OIL-FREE QUIET

SERIES AIR COMPRESSOR

OWNER'S MANUAL

(For models manufactured since 05/22)

WARNING : NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#CS22202 PRINTED IN CHINA

***Keep for Future Reference***

V2.04.22

Page 2

This manual provides critical safety instructions on the proper setup, operation, maintenance, and service of this machine/tool. Save this document, refer to it often, and use it to instruct other operators.

Failure to read, understand and follow the instructions in this manual may result in fire or serious personal injury—including amputation, electrocution, or death.

The owner of this machine/tool is solely responsible for its safe use. This responsibility includes but is not limited to proper installation in a safe environment, personnel training and usage authorization, proper inspection and maintenance, manual availability and comprehension, application of safety devices, cutting/sanding/grinding tool integrity, and the usage of personal protective equipment.

The manufacturer will not be held liable for injury or property damage from negligence, improper training, machine modifications or misuse.

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: Work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

Page 3

Table of Contents

INTRODUCTION ............................................................................................................................... 2

Contact Info Manual Accuracy Identification Controls & Components Machine Data Sheet

................................................................................................................................ 2

........................................................................................................................ 2

............................................................................................................................... 3

............................................................................................................. 4

................................................................................................................... 6

SECTION 1: SAFETY

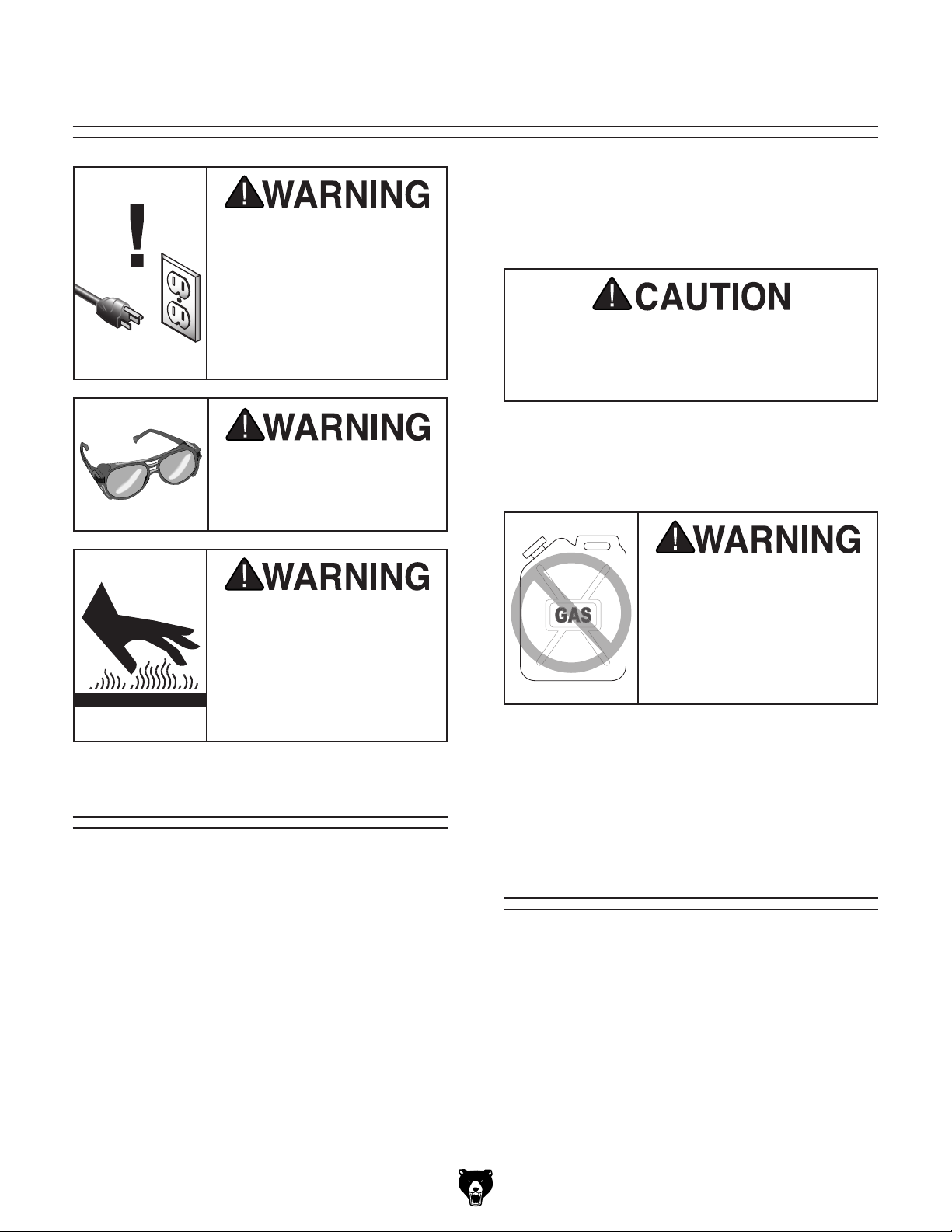

Safety Instructions for Machinery Additional Safety for Air Compressors

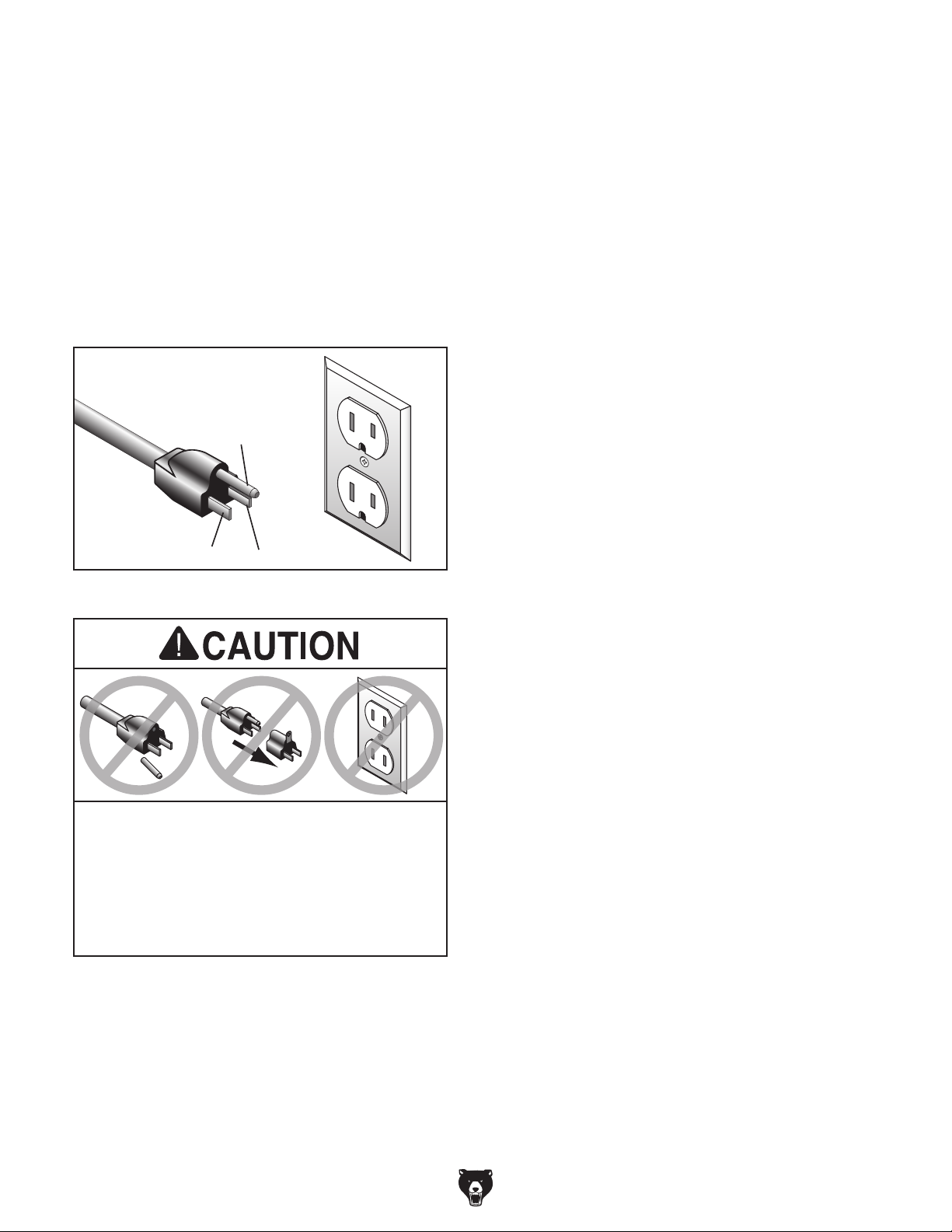

SECTION 2: POWER SUPPLY

SECTION 3: SETUP

Unpacking Needed for Setup Inventory Site Considerations Assembly Test Run

SECTION 4: OPERATIONS

Operation Overview.................................................................................................................. 17

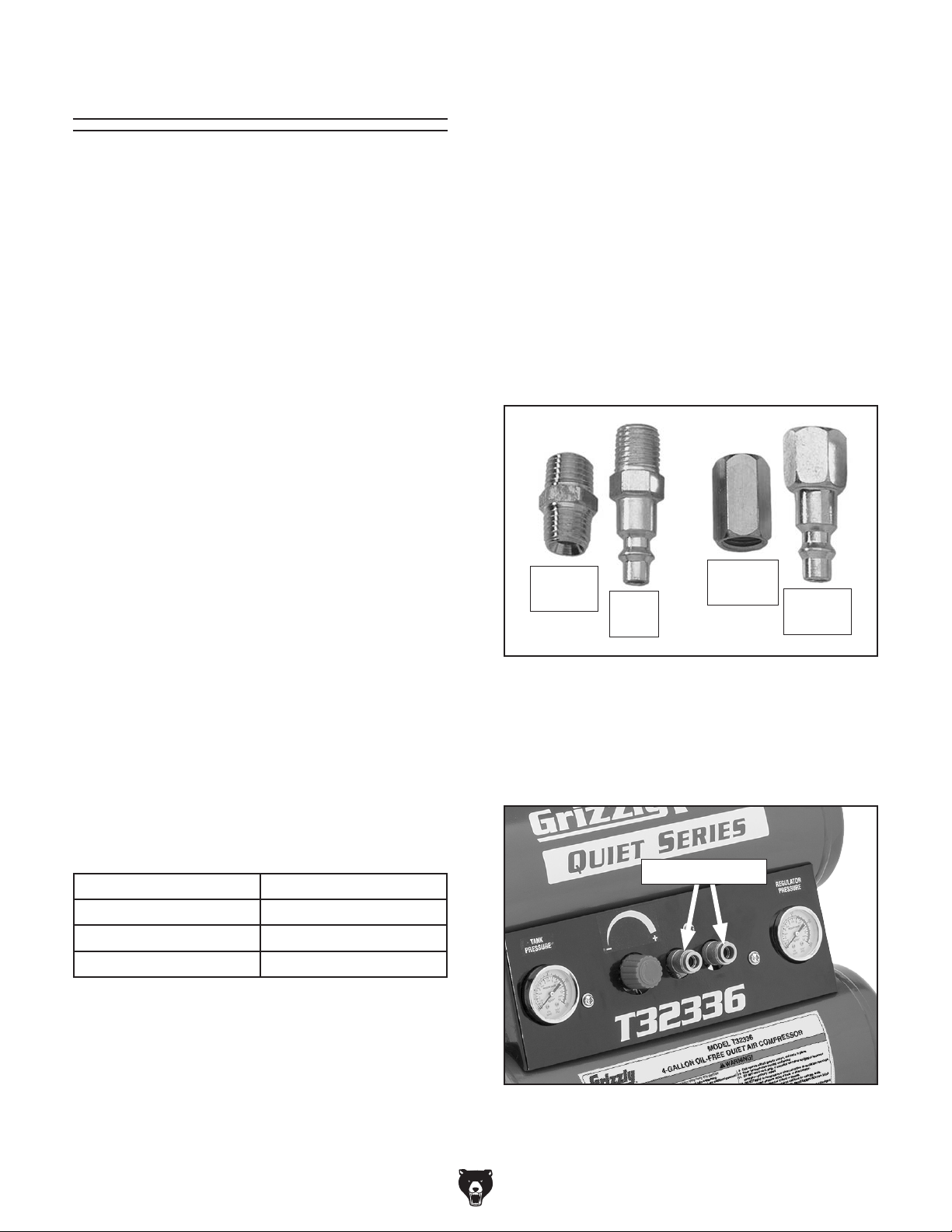

Choosing Air Hose Connecting Air Tool

SECTION 5: ACCESSORIES

SECTION 6: MAINTENANCE......................................................................................................... 23

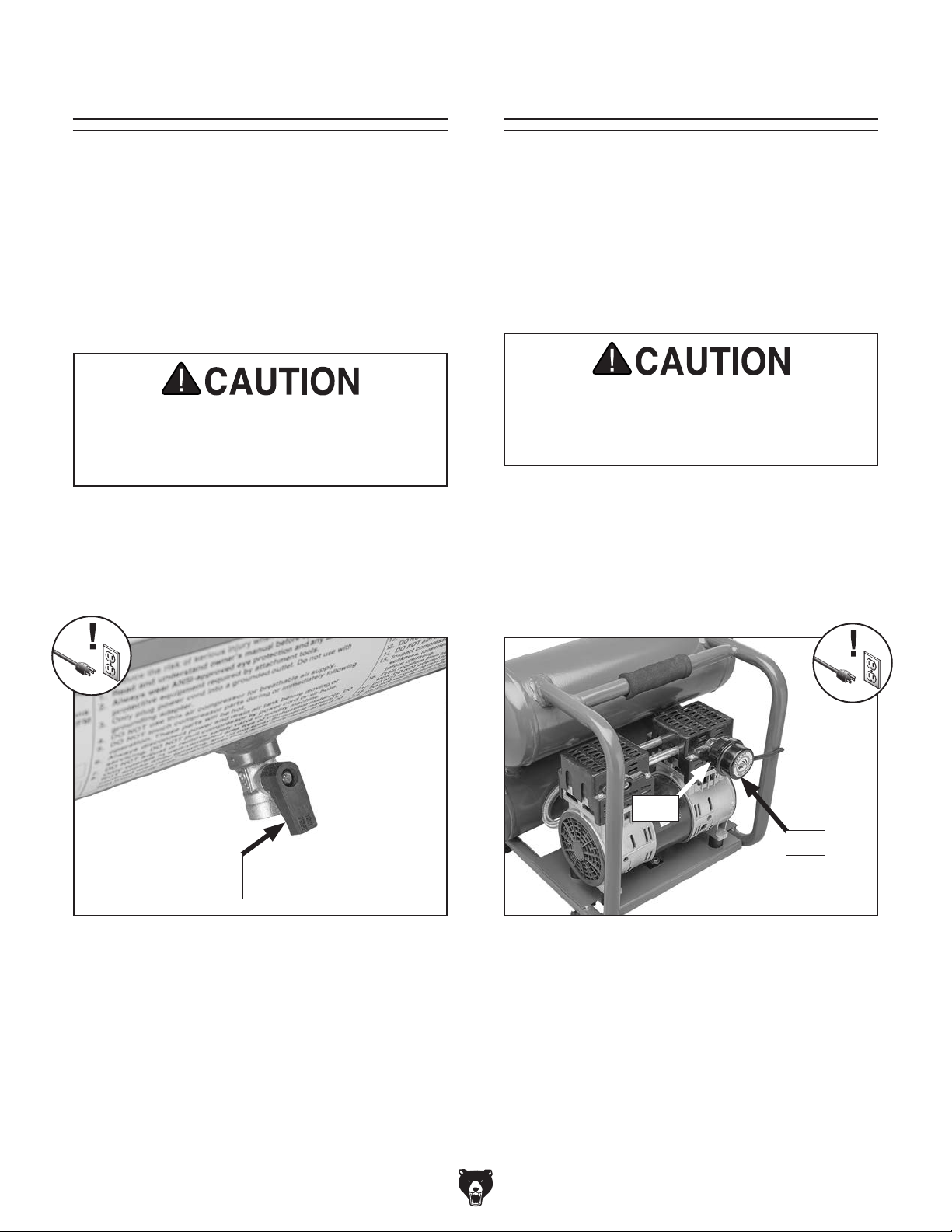

Schedule Lubrication Draining Tanks Checking Air Filter Machine Storage Checking for Leaks

................................................................................................................................ 13

................................................................................................................................... 13

.................................................................................................................................. 14

................................................................................................................................... 15

.................................................................................................................................. 23

................................................................................................................................ 23

....................................................................................................................... 8

............................................................................................... 8

..................................................................................... 10

...................................................................................................... 11

....................................................................................................................... 13

..................................................................................................................... 13

.................................................................................................................. 14

........................................................................................................... 17

................................................................................................................... 18

.................................................................................................................. 19

......................................................................................................... 21

......................................................................................................................... 24

.................................................................................................................... 24

...................................................................................................................... 25

.................................................................................................................. 26

SECTION 7: SERVICE

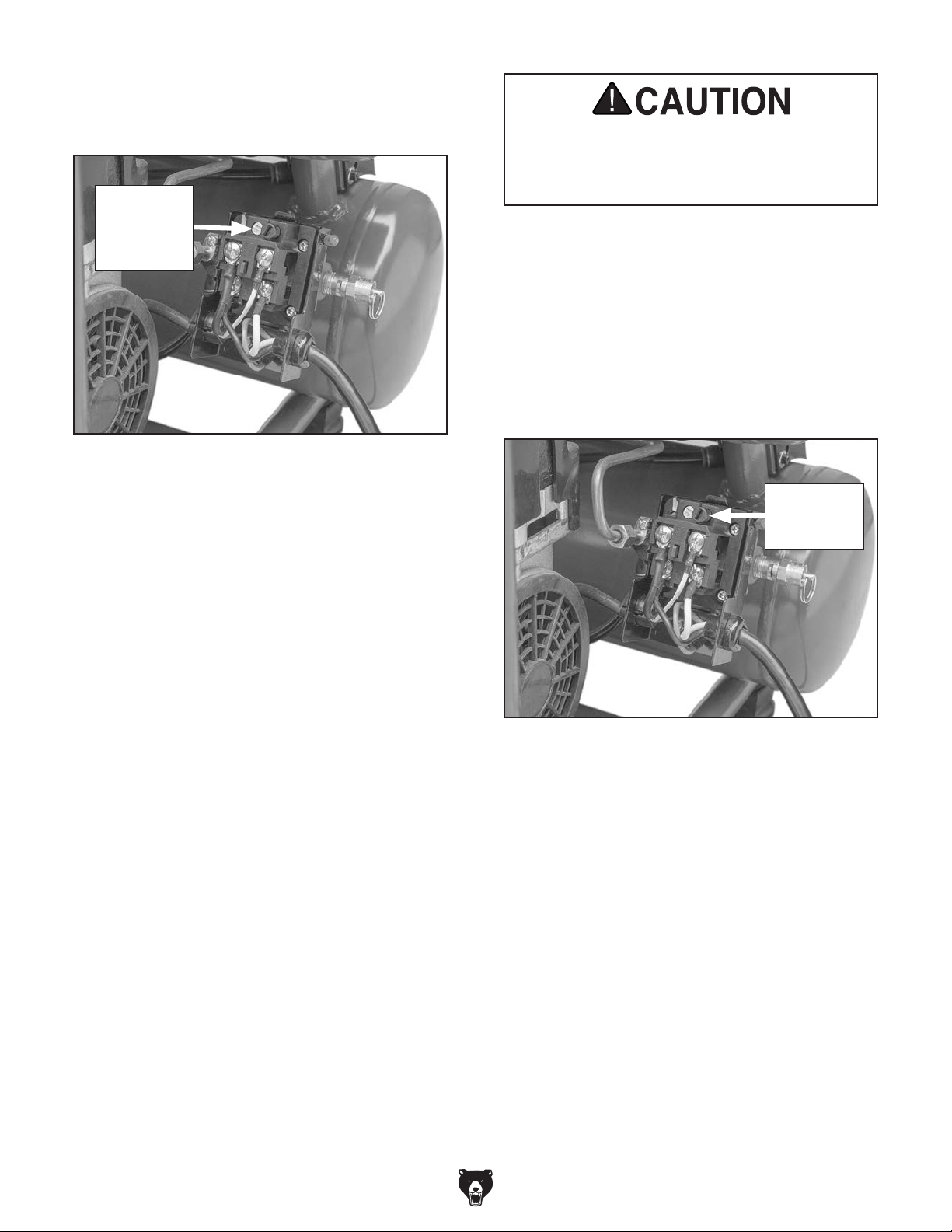

Troubleshooting Inspecting Check Valve Adjusting Cut-In/Cut-Out Settings

SECTION 8: WIRING

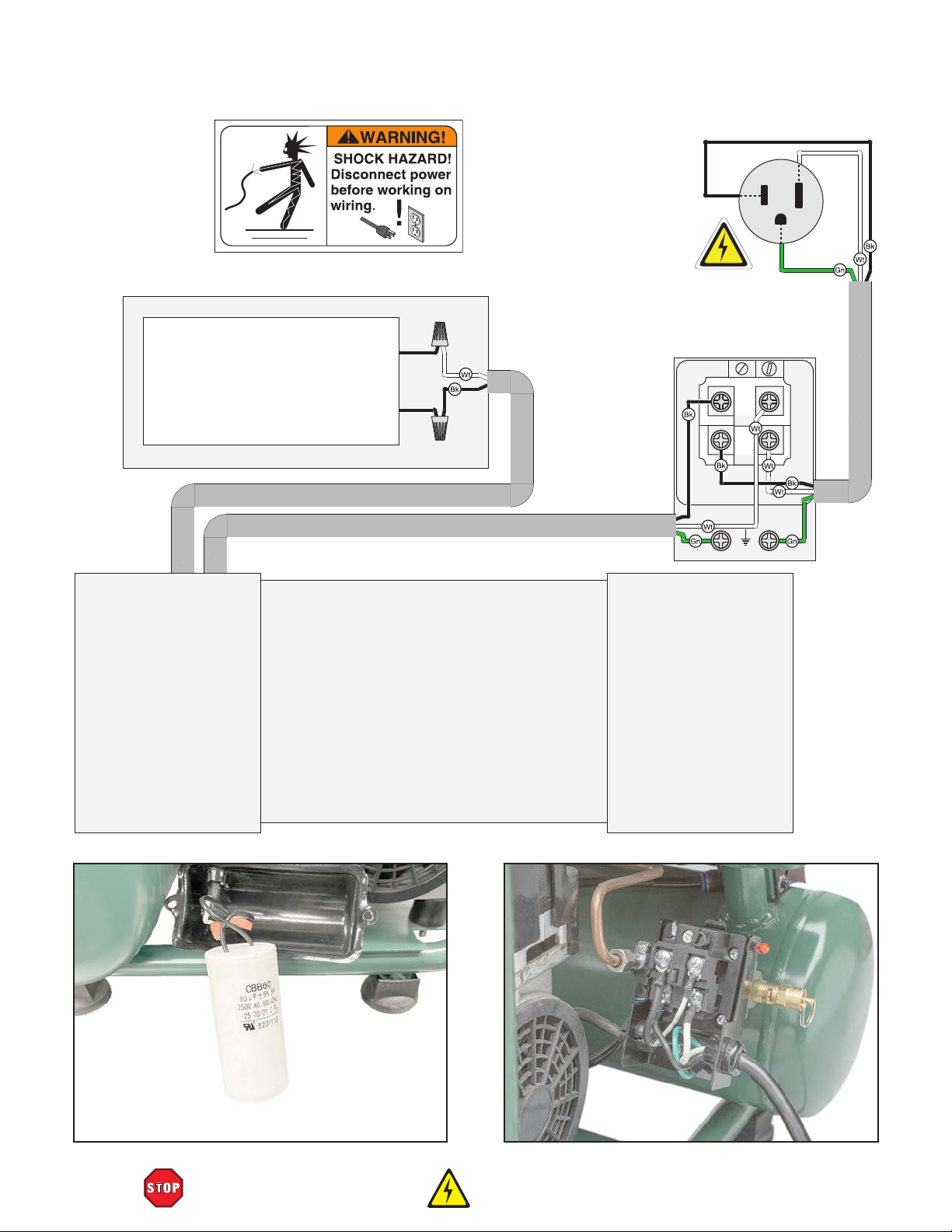

Wiring Safety Instructions Wiring Diagram

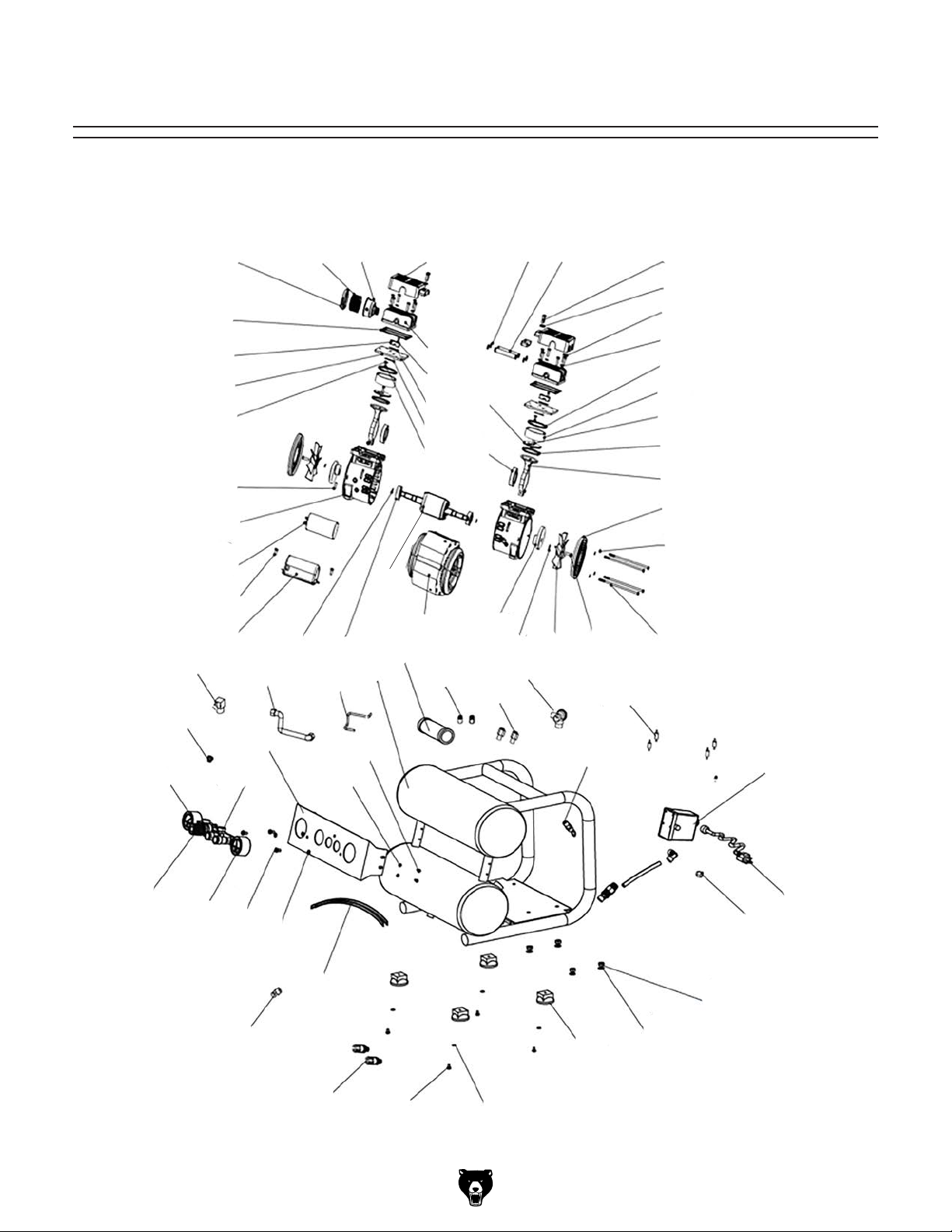

SECTION 9: PARTS

.......................................................................................................................................... 35

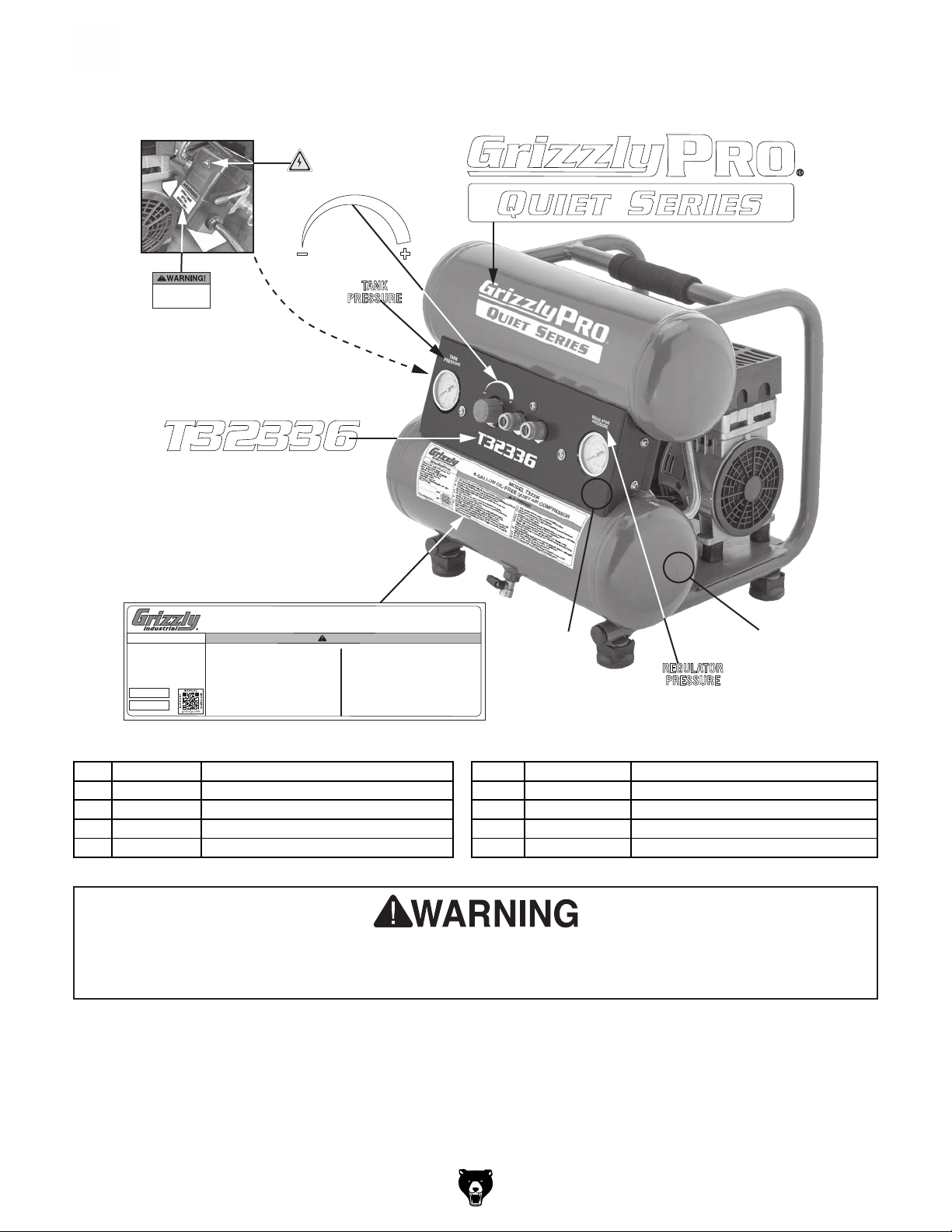

Main Labels & Cosmetics

................................................................................................................... 27

........................................................................................................................ 27

...................................................................................................................... 33

........................................................................................................................ 34

....................................................................................................................... 35

................................................................................................................. 37

............................................................................................................ 30

............................................................................................ 31

........................................................................................................ 33

Page 4

We stand behind our machines! If you have questions or need help, contact us with the information below. Before contacting, make sure you get the

serial number

from the

machine ID label. This will help us help you faster.

We want your feedback on this manual. What did you like about it? Where could it be improved? Please take a few minutes to give us feedback.

Email: manuals@grizzly.com

We are proud to provide a high-quality owner’s manual with your new machine!

instructions, specifications, drawings, and photographs in this manual. Sometimes we make mistakes, but our policy of continuous improvement also means that

you receive is

slightly different than shown in the manual

If you find this to be the case, and the difference between the manual and machine leaves you confused or unsure about something

check our

website for an updated version. W

current

manuals and

on our web-

site at

Alternatively, you can call our Technical Support for help. Before calling, make sure you write down the

serial number from the machine ID label (see below). This information is required for us to provide proper tech support, and it helps us determine if updated documentation is available for your machine.

INTRODUCTION

Contact Info

and manufacture date

Grizzly Technical Support

1815 W. Battlefield Springfield, MO 65807 Phone: (570) 546-9663

Email: techsupport@grizzly.com

Grizzly Documentation Manager

P.O. Box 2069

Bellingham, WA 98227-2069

Manual Accuracy

made every effort to be exact with the

sometimes the machine

e post

manual updates for free

www.grizzly.com.

manufacture date and

Manufacture Date

Serial Number

-2-

Model T32336 (Mfd. Since 05/22)

Page 5

To reduce your risk of serious injury, read this entire manual BEFORE

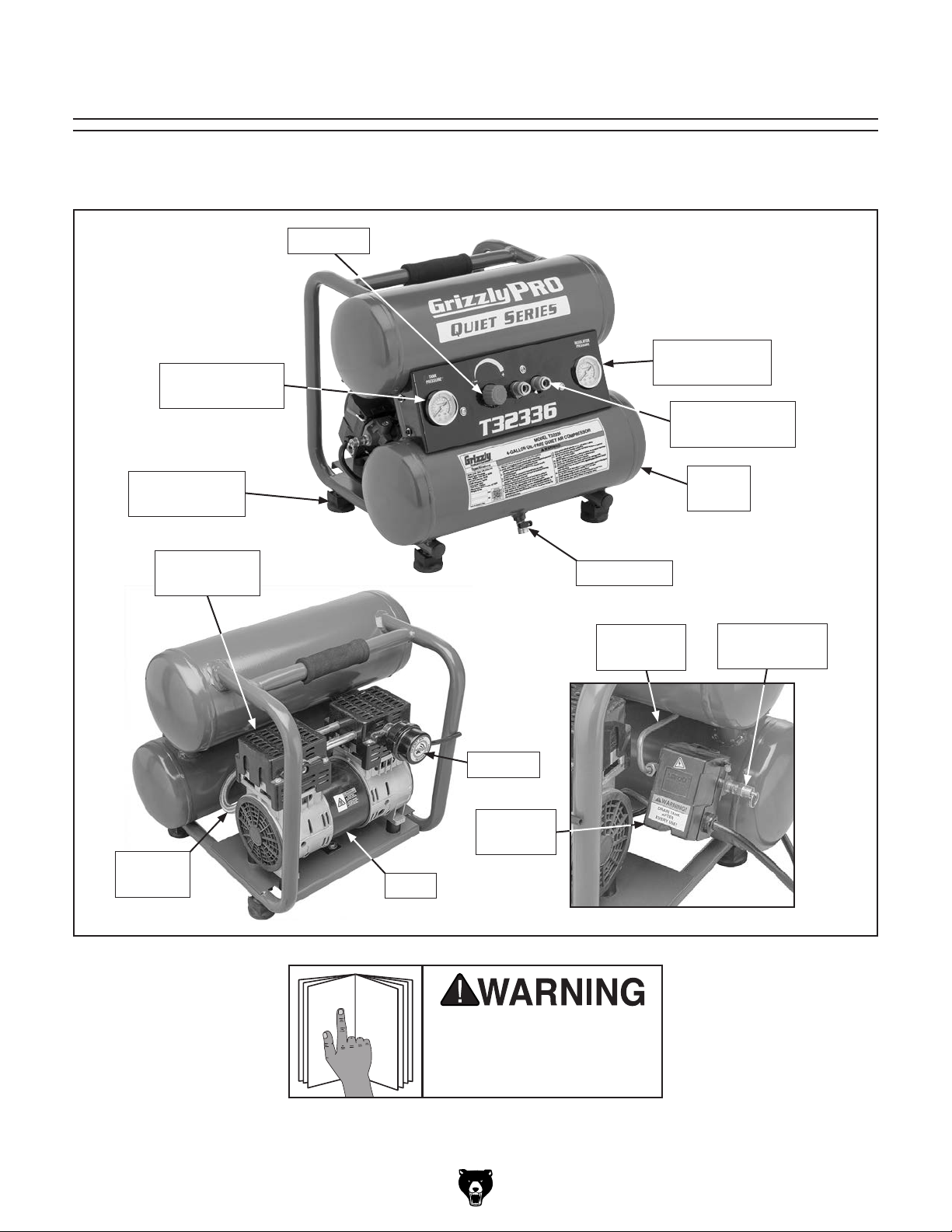

Identification

Become familiar with the names and locations of the controls and features shown below to better understand the instructions in this manual.

Regulator

Line Pressure

Tank Pressure

Gauge

Quick-Connect

Port (1 of 2)

Machine Foot

(1 of 4)

Compressor

Pump

Exhaust

Tube

Motor

Air Filter

Pressure

Switch

Drain Valve

Discharge

Line

Tank

(1 of 2)

Safety Relief

Valve

Model T32336 (Mfd. Since 05/22)

using machine.

-3-

Page 6

Controls &

To reduce your risk of serious injury, read this entire manual BEFORE

Air Input

Components

using machine.

Like all machinery there is potential danger when operating this machine. Accidents are frequently caused by lack of familiarity or failure to pay attention. Use this machine with respect and caution to decrease the risk of operator injury. If normal safety precautions are overlooked or ignored, serious personal injury may occur.

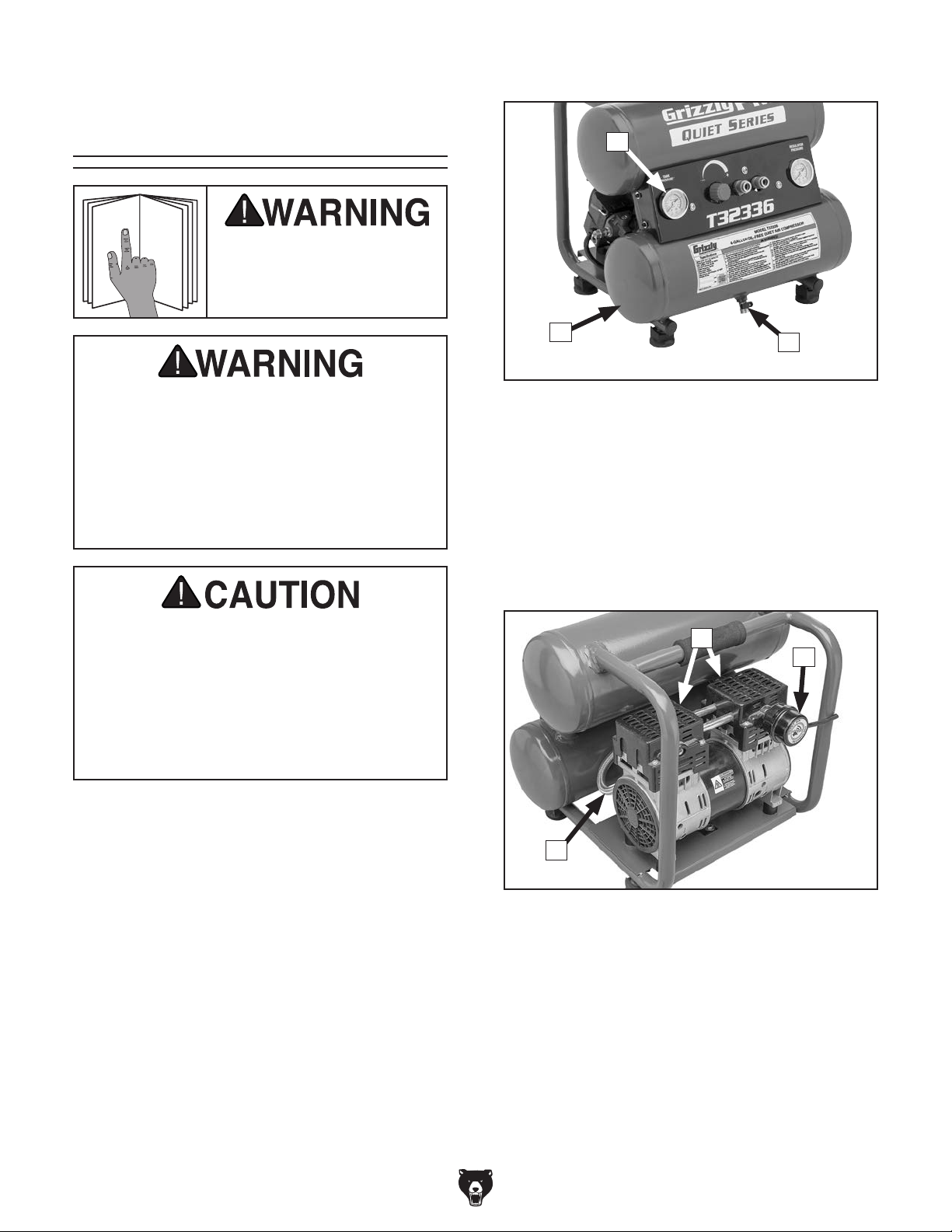

Figure 1. Front air input components.

A. Tank Pressure Gauge: Indicates pressure

of air in tanks.

B. Drain Valve: Drains built-up moisture from

tanks when ball valve is opened.

C. Tank (1 of 2): Holds up to 2 gallons of pres-

surized air.

No list of safety guidelines can be complete. Every shop environment is different. Always consider safety first, as it applies to your individual working conditions. Use this and other machinery with caution and respect. Failure to do so could result in serious personal injury, damage to equipment, or poor work results.

Refer to the following figures and descriptions to become familiar with the basic controls and components of this machine. Understanding these items and how they work will help you understand the rest of the manual and minimize your risk of injury when operating this machine.

Figure 2. Rear air input components.

D. Dual Compressor Pump: Uses piston to

draw in and compress air before transferring air to tanks.

E. Air Filter: Cleans air entering compressor

pump.

-4-

F. Exhaust Tube: Transfers compressed air

from pump to tanks.

Model T32336 (Mfd. Since 05/22)

Page 7

Automatic Pressurization

Air Output/Delivery

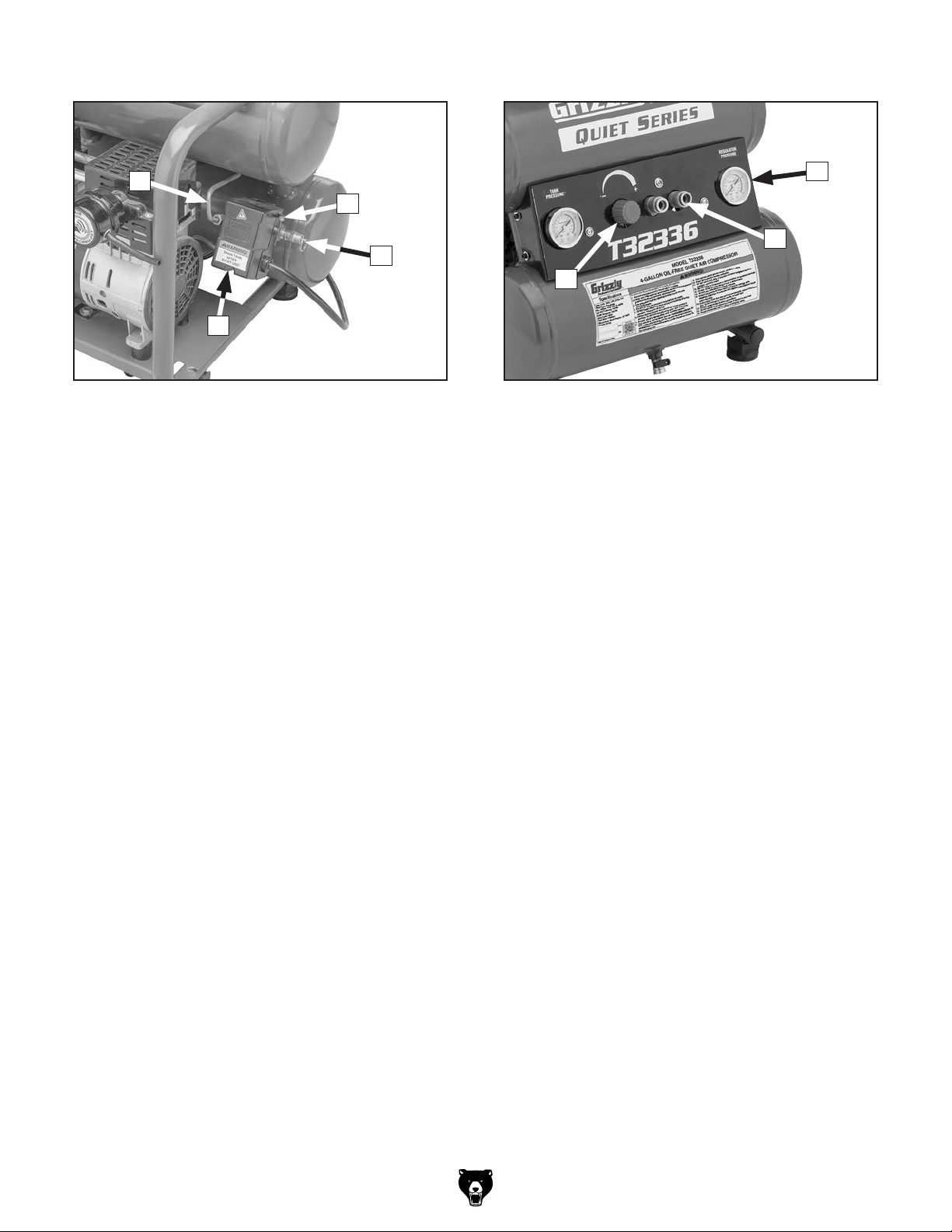

Figure 3. Pressurization components.

G. Discharge Line: Releases air from compres-

sor pump and outlet line when tank pressure exceeds 135 PSI (cut-out pressure).

H. Pressure Switch Lever: Toggles pressure

switch between OFF and AUTO modes. Machine is OFF in OFF mode and will continue to pressurize when in AUTO mode.

I. Safety Relief Valve: Pops open to release

tank pressure in the event that pressure switch fails to stop motor at cut-out pressure.

Figure 4. Air output components.

K. Regulator Knob: Adjusts pressure of air

delivery to quick-connect ports. Turn clockwise to increase pressure and counterclockwise to decrease pressure.

L. Quick-Connect Port (1 of 2): Secures and

releases air hose when pressed in.

M. Line Pressure Gauge: Indicates pressure of

air at quick-connect ports.

J. Pressure Switch: Turns motor ON when

tank pressure drops below 105 PSI (cut-in pressure) and switch is in AUTO position. Switch contains pressure relief valve that will activate discharge line when tank pressure exceeds 135 PSI (cut-out pressure) or pressure switch is turned OFF.

Model T32336 (Mfd. Since 05/22)

-5-

Page 8

Machine Data Sheet

Customer Service #: (570) 546-9663 · To Order Call: (800) 523-4777 · Fax #: (800) 438-5901

MODEL T32336

4-GALLON OIL-FREE QUIET AIR COMPRESSOR

Product Dimensions:

Weight .............................................................................................................................................................................. 53 lbs.

Width (side-to-side) x Depth (front-to-back) x Height ..................................................................................18 x 17 x 17-1/2 in.

Footprint (Length x Width) ...................................................................................................................................15 x 12-1/2 in.

Shipping Dimensions:

Type ................................................................................................................................................................... Cardboard Box

Content .......................................................................................................................................................................... Machine

Weight .............................................................................................................................................................................. 60 lbs.

Length x Width x Height .....................................................................................................................................19 x 18 x 19 in.

Electrical:

Power Requirement ........................................................................................................................ 120V, Single-Phase, 60 Hz

Full-Load Current Rating ...................................................................................................................................................... 11A

Minimum Circuit Size ........................................................................................................................................................... 15A

Connection Type ..................................................................................................................................................... Cord & Plug

Power Cord Included ............................................................................................................................................................Yes

Power Cord Length ............................................................................................................................................................72 in.

Power Cord Gauge .......................................................................................................................................................14 AWG

Plug Included ........................................................................................................................................................................Yes

Included Plug Type ..............................................................................................................................................................5-15

Switch Type ......................................................................................................................................................Pressure Switch

Motor:

Main

Horsepower .........................................................................................................................................................................2 HP

Phase .................................................................................................................................................................... Single-Phase

Amps .................................................................................................................................................................................... 11A

Speed .........................................................................................................................................................................1725 RPM

Type ............................................................................................................................................................................. Induction

Power Transfer ................................................................................................................................................................. Direct

Bearings ............................................................................................................................. Shielded & Permanently Lubricated

Main Specifications:

Operation Information

Compressor Style ..............................................................................................................................................Horizontal

Pump Type ...................................................................................................................................................... One-Stage

Max. Airflow/Delivery (at 40 PSI) ..................................................................................................................... 5.2 SCFM

Max. Airflow/Delivery (at 90 PSI) ..................................................................................................................... 4.5 SCFM

Cut-Out Pressure .................................................................................................................................................135 PSI

Cut-In Pressure ....................................................................................................................................................105 PSI

Duty Cycle ................................................................................................................................................................50/50

Tank Size ..................................................................................................................................... 4 Gallons (Twin Stack)

Number of Cylinders ........................................................................................................................................................2

Pump Lubrication .................................................................................................................................................Oil-Free

Drain Valve Type ...............................................................................................................................................Ball-Valve

Roll Cage .....................................................................................................................................................................Yes

Regulator .....................................................................................................................................................................Yes

-6-

Model T32336 (Mfd. Since 05/22)

Page 9

Output Port Information

Quick-Coupler

NPT

Steel

Brass-Coated

Steel

Enamel

Other Specifications:

China

Year

Label

Features:

Construction Information

Country of Origin ...............................................................................................................................................................

Warranty ........................................................................................................................................................................... 1

Serial Number Location ................................................................................................................................................ ID

Sound Rating ............................................................................................................................................................... 65-67 dB

Sound Rating of Under 67 dB Oil-Free Lubrication 4-Gallon Twin-Stack with Maximum Airflow of 4.5 SCFM at 90 PSI Ball-Valve Drain Control Durable Roll Cage with Rubber Feet for Protected Portability Included Air Regulator for Airflow Adjustment Two Quick-Coupler Hose Connections Internal PTC Overload Protection

Connection Type ........................................................................................................................................

Connection Size ................................................................................................................................................. 1/4"

Number of Connections ...................................................................................................................................................

Hose Included ..............................................................................................................................................................

Tank ...........................................................................................................................................................................

Valves ..........................................................................................................................................................

Cage/Frame ...............................................................................................................................................................

Paint Type/Finish ...................................................................................................................................................

Model T32336 (Mfd. Since 05/22)

-7-

Page 10

SECTION 1: SAFETY

For Your Own Safety, Read Instruction

Manual Before Operating This Machine

The purpose of safety symbols is to attract your attention to possible hazardous conditions. This manual uses a series of symbols and signal words intended to convey the level of importance of the safety messages. The progression of symbols is described below. Remember that safety messages by themselves do not eliminate danger and are not a substitute for proper accident prevention measures. Always use common sense and good judgment.

Indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, MAY result in minor or moderate injury. It may also be used to alert against unsafe practices.

Alerts the user to useful information about proper operation of the

NOTICE

machine to avoid machine damage.

Safety Instructions for Machinery

OWNER’S MANUAL. Read and understand this

owner’s manual BEFORE using machine.

TRAINED OPERATORS ONLY. Untrained operators have a higher risk of being hurt or killed. Only allow trained/supervised people to use this machine. When machine is not being used, disconnect power, remove switch keys, or lock-out machine to prevent unauthorized use—especially around children. Make your workshop kid proof!

DANGEROUS ENVIRONMENTS. Do not use machinery in areas that are wet, cluttered, or have poor lighting. Operating machinery in these areas greatly increases the risk of accidents and injury.

MENTAL ALERTNESS REQUIRED. Full mental alertness is required for safe operation of machinery. Never operate under the influence of drugs or alcohol, when tired, or when distracted.

ELECTRICAL EQUIPMENT INJURY RISKS. You can be shocked, burned, or killed by touching live electrical components or improperly grounded machinery. To reduce this risk, only allow qualified service personnel to do electrical installation or repair work, and always disconnect power before accessing or exposing electrical equipment.

DISCONNECT POWER FIRST. nect machine from power supply BEFORE making adjustments, changing tooling, or servicing machine. This prevents an injury risk from unintended startup or contact with live electrical components.

EYE PROTECTION. Always wear ANSI-approved safety glasses or a face shield when operating or observing machinery to reduce the risk of eye injury or blindness from flying particles. Everyday eyeglasses are NOT approved safety glasses.

Always discon-

-8-

Model T32336 (Mfd. Since 05/22)

Page 11

WEARING PROPER APPAREL. Do not wear clothing, apparel or jewelry that can become entangled in moving parts. Always tie back or cover long hair. Wear non-slip footwear to reduce risk of slipping and losing control or accidentally contacting cutting tool or moving parts.

HAZARDOUS DUST. Dust created by machinery operations may cause cancer, birth defects, or long-term respiratory damage. Be aware of dust hazards associated with each workpiece material. Always wear a NIOSH-approved respirator to reduce your risk.

HEARING PROTECTION. Always wear hearing protection when operating or observing loud machinery. Extended exposure to this noise without hearing protection can cause permanent hearing loss.

REMOVE ADJUSTING TOOLS. Tools left on machinery can become dangerous projectiles upon startup. Never leave chuck keys, wrenches, or any other tools on machine. Always verify removal before starting!

USE CORRECT TOOL FOR THE JOB. Only use this tool for its intended purpose—do not force it or an attachment to do a job for which it was not designed. Never make unapproved modifications—modifying tool or using it differently than intended may result in malfunction or mechanical failure that can lead to personal injury or death!

AWKWARD POSITIONS. Keep proper footing and balance at all times when operating machine. Do not overreach! Avoid awkward hand positions that make workpiece control difficult or increase the risk of accidental injury.

CHILDREN & BYSTANDERS. Keep children and bystanders at a safe distance from the work area. Stop using machine if they become a distraction.

GUARDS & COVERS. Guards and covers reduce accidental contact with moving parts or flying debris. Make sure they are properly installed, undamaged, and working correctly BEFORE operating machine.

FORCING MACHINERY. Do not force machine. It will do the job safer and better at the rate for which it was designed.

NEVER STAND ON MACHINE. Serious injury may occur if machine is tipped or if the cutting tool is unintentionally contacted.

STABLE MACHINE. Unexpected movement during operation greatly increases risk of injury or loss of control. Before starting, verify machine is stable and mobile base (if used) is locked.

USE RECOMMENDED ACCESSORIES. Consult this owner’s manual or the manufacturer for recommended accessories. Using improper accessories will increase the risk of serious injury.

UNATTENDED OPERATION. To reduce the risk of accidental injury, turn machine OFF and ensure all moving parts completely stop before walking away. Never leave machine running while unattended.

MAINTAIN WITH CARE. Follow all maintenance instructions and lubrication schedules to keep machine in good working condition. A machine that is improperly maintained could malfunction, leading to serious personal injury or death.

DAMAGED PARTS. Regularly inspect machine for damaged, loose, or mis-adjusted parts—or any condition that could affect safe operation. Immediately repair/replace BEFORE operating machine. For your own safety, DO NOT operate machine with damaged parts!

MAINTAIN POWER CORDS. When disconnecting cord-connected machines from power, grab and pull the plug—NOT the cord. Pulling the cord may damage the wires inside. Do not handle cord/plug with wet hands. Avoid cord damage by keeping it away from heated surfaces, high traffic areas, harsh chemicals, and wet/damp locations.

EXPERIENCING DIFFICULTIES. If at any time you experience difficulties performing the intended operation, stop using the machine! Contact our Technical Support at (570) 546-9663.

Model T32336 (Mfd. Since 05/22)

-9-

Page 12

Additional Safety for Air Compressors

Serious impact injury or death can occur from bursting tank, attachment tool, distribution line, or hose. Contact with hot compressor parts can result in burns. Operating this tool in an environment without proper ventilation or near combustible materials can lead to explosions or fires. Eyes and other soft tissues can be easily injured by air streams and debris projected by compressed air or attachment tools. To reduce the risk of these hazards, operator and bystanders MUST completely heed hazards and warnings below.

TANK INTEGRITY. Inspect tank, attachment

tools, pump, air lines, and valves for rust, damage, weakness, leaks, looseness, or excessive wear and repair/replace damaged components before operating. Replace a damaged tank immediately. DO NOT attempt to weld on, modify, or repair tank. Modifying tank can affect tank integrity and cause tank to burst.

ATTACHM ENT TOO LS. Always wear ANSIapproved eye protection and any additional personal protective equipment required by attachment tools. Pneumatic tools can propel objects and debris at high speeds or even explode. Never use damaged tools—they are even more likely to rupture. DO NOT exceed pressure ratings of tools or attachments as lines and seals may burst. Use proper air hose for tool and confirm air hose is long enough to reach work area without stretching. Do not carry attachment tool with hand on trigger to reduce risk of accidental firing. Always relieve outlet air line and hose before attaching/removing tools. Disconnect hose or tool from compressor when not in use.

MODIFICATIONS. DO NOT adjust or remove safety relief valve, pressure switch, or otherwise modify machine. Do not install shut-off valve between compressor pump and tank. Check, safety, and pressure valves are adjusted at factory for correct tolerances and abilities of compressor and are designed to keep tank and other components from bursting.

INTENDED USE. DO NOT use compressed air as breathable air supply and DO NOT aim compressed air or air tools at body parts or people. Compressed air can injure or propel debris into eyes or other soft tissues. Do not use compressor to inflate low-pressure objects that are likely to burst (like children’s toys).

DAILY MAINTENANCE. Test safety relief valve daily to dislodge any blockages and confirm it is working correctly. Drain moisture from tank daily to prevent internal corrosion that could weaken tank.

DISTRIBUTION LINES. Use only stainless steel, copper, or aluminum for air delivery/distribution lines. NEVER use PVC because it cannot withstand the pressure, heat, condensation, and oils of compressed air and may shatter, creating dangerous shrapnel.

VENTILATION. Only operate in well-ventilated environment that is less than 100°F and keep compressor at least 18 inches from nearest wall. DO NOT obstruct airflow to air filters and ventilation openings. Regularly check and change air filters to avoid buildup of impurities and reduce risk of fire.

COMBUSTION. Compressor motor, pressure switch, and some pneumatic attachment tools often produce sparks. Only operate compressor in area free of combustible materials to prevent fires and explosions. When spraying, locate air compressor at least 20 feet from spray area, do not smoke, and do not spray flammable material in confined area near flame/compressor. Turn compressor OFF when unattended. Motor could overheat and create fire hazard.

HOT PARTS. Discharge line and other compressor pump parts heat up during operation. Do not touch these parts during or immediately following operation to prevent burns.

MOVING AND SERVICING. Disconnect power, allow compressor to cool, bleed air from system, and disconnect attachment tools and hoses before moving or servicing to prevent impact injuries, soft tissue injuries, and burns.

-10 -

Model T32336 (Mfd. Since 05/22)

Page 13

SECTION 2: POWER SUPPLY

Before installing the machine, consider the availability and proximity of the required power supply circuit. If an existing circuit does not meet the requirements for this machine, a new circuit must be installed. To minimize the risk of electrocution, fire, or equipment damage, installation work and electrical wiring must be done by an electrician or qualified service personnel in accordance with all applicable codes and standards.

or equipment damage may occur if machine is not properly grounded and connected to power

The full-load current rating is the amperage a machine draws at 100% of the rated output power. On machines with multiple motors, this is the amperage drawn by the largest motor or sum of all motors and electrical devices that might operate at one time during normal operations.

The full-load current is not the maximum amount of amps that the machine will draw. If the machine is overloaded, it will draw additional amps beyond the full-load rating.

If the machine is overloaded for a sufficient length of time, damage, overheating, or fire may result— especially if connected to an undersized circuit. To reduce the risk of these hazards, avoid overloading the machine during operation and make sure it is connected to a power supply circuit that meets the specified circuit requirements.

For your own safety and protection of

Note: Circuit requirements in this manual apply to

a dedicated circuit—where only one machine will be running on the circuit at a time. If machine will be connected to a shared circuit where multiple machines may be running at the same time, consult an electrician or qualified service personnel to ensure circuit is properly sized for safe operation.

A power supply circuit includes all electrical equipment between the breaker box or fuse panel in the building and the machine. The power supply circuit used for this machine must be sized to safely handle the full-load current drawn from the machine for an extended period of time. (If this machine is connected to a circuit protected by fuses, use a time delay fuse marked D.)

This machine is prewired to operate on a power supply circuit that has a verified ground and meets the following requirements:

process. DO NOT connect to power until

Availability

Electrocution, fire, shock,

Serious injury could occur if you connect machine to power before completing setup

instructed later in this manual.

120V Circuit Requirements

Nominal Voltage .................... 110V, 115V, 120V

..........................................................60 Hz

Cycle Phase Power Supply Circuit

........................................... Single-Phase

......................... 15 Amps

supply.

Full-Load Current Rating

Full-Load Current Rating at 120V ..... 11 Amps

Model T32336 (Mfd. Since 05/22)

property, consult an electrician if you are unsure about wiring practices or electrical codes in your area.

-11-

Page 14

Improper connection of the equipment-grounding wire can result in a risk of electric shock. The wire with green insulation (with or without yellow stripes) is the equipment-grounding wire. If repair or replacement of the power cord or plug is necessary, do not connect the equipment-grounding wire to a live (current carrying) terminal.

Check with a qualified electrician or service personnel if you do not understand these grounding requirements, or if you are in doubt about whether the tool is properly grounded. If you ever notice that a cord or plug is damaged or worn, disconnect it from power, and immediately replace it with a new one.

We do not recommend using an extension cord with this machine. cord, only use it if absolutely necessary and only on a temporary basis.

Extension cords cause voltage drop, which can damage electrical components and shorten motor life. Voltage drop increases as the extension cord size gets longer and the gauge size gets smaller (higher gauge numbers indicate smaller sizes).

Any extension cord used with this machine must be in good condition and contain a ground wire and matching plug/receptacle. Additionally, it must meet the following size requirements:

Grounding & Plug Requirements

it will not fit the outlet, have a qualified electrician install the proper outlet with a

This machine MUST be grounded. In the event of certain malfunctions or breakdowns, grounding reduces the risk of electric shock by providing a path of least resistance for electric current.

This machine is equipped with a power cord that has an equipment-grounding wire and a grounding plug. Only insert plug into a matching receptacle (outlet) that is properly installed and grounded in accordance with all local codes and ordinances. DO NOT modify the provided plug!

GROUNDED

5-15 RECEPTACLE

Grounding Pin

5-15 PLUG

Extension Cords

If you must use an extension

Neutral Hot

Figure 5. Typical 5-15 plug and receptacle.

SHOCK HAZARD! Two-prong outlets do not meet the grounding requirements for this machine. Do not modify or use an adapter on the plug provided—if

verified ground.

-12-

Minimum Gauge Size ...........................14 AWG

Maximum Length (Shorter is Better).......50 ft.

Model T32336 (Mfd. Since 05/22)

Page 15

SECTION 3: SETUP

The following is a list of items shipped with your machine. Before beginning setup, lay these items out and inventory them.

If any non-proprietary parts are missing (e.g. a nut or a washer), we will gladly replace them; or for the sake of expediency, replacements can be obtained at your local hardware store.

This machine was carefully packaged for safe transport. When unpacking, separate all enclosed items from packaging materials and inspect them for shipping damage.

please

at (570) 546-9663.

IMPORTANT:

you are completely satisfied with the machine and have resolved any issues between Grizzly or the shipping agent. You MUST have the original pack-

aging to file a freight claim. It is also extremely helpful if you need to return your machine later.

Unpacking

If items are damaged

call us immediately

Save all packaging materials until

Needed for Setup

The following items are needed, but not included, for the setup/assembly of this machine.

Inventory

Inventory (Figure 6) Qty

A. Air Compressor .......................................... 1

B. Air Filter Assembly ..................................... 1

Description Qty

• Safety Glasses ........................................... 1

• Hearing Protection ...................................... 1

This machine presents serious injury hazards to untrained users. Read through this entire manual to become familiar with the controls and operations before starting the machine!

Model T32336 (Mfd. Since 05/22)

Wear safety glasses during the entire setup process!

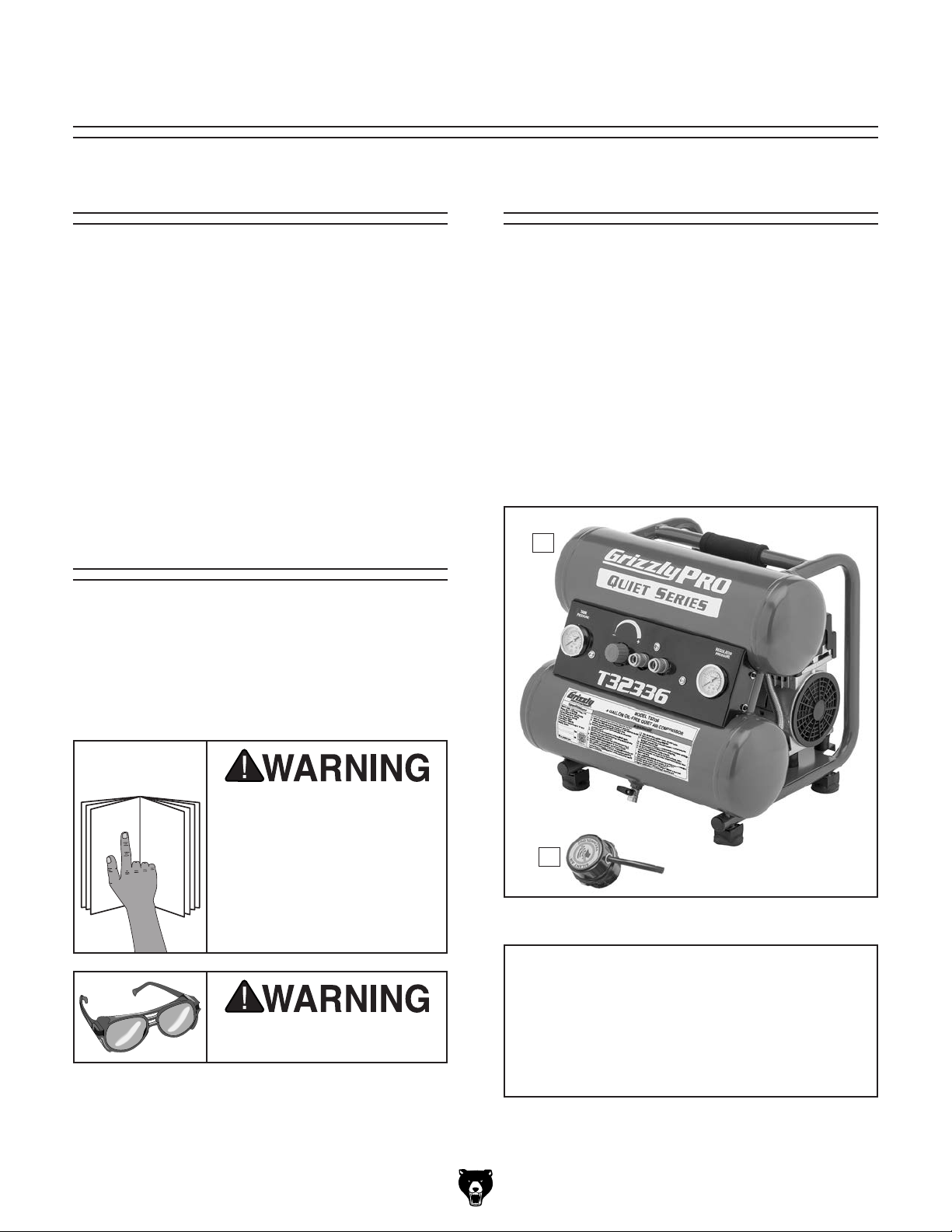

Figure 6. Inventory.

NOTICE

If you cannot find an item on this list, carefully check around/inside the machine and packaging materials. Often, these items get lost in packaging materials while unpacking or they are pre-installed at the factory.

-13-

Page 16

or disable start switch or

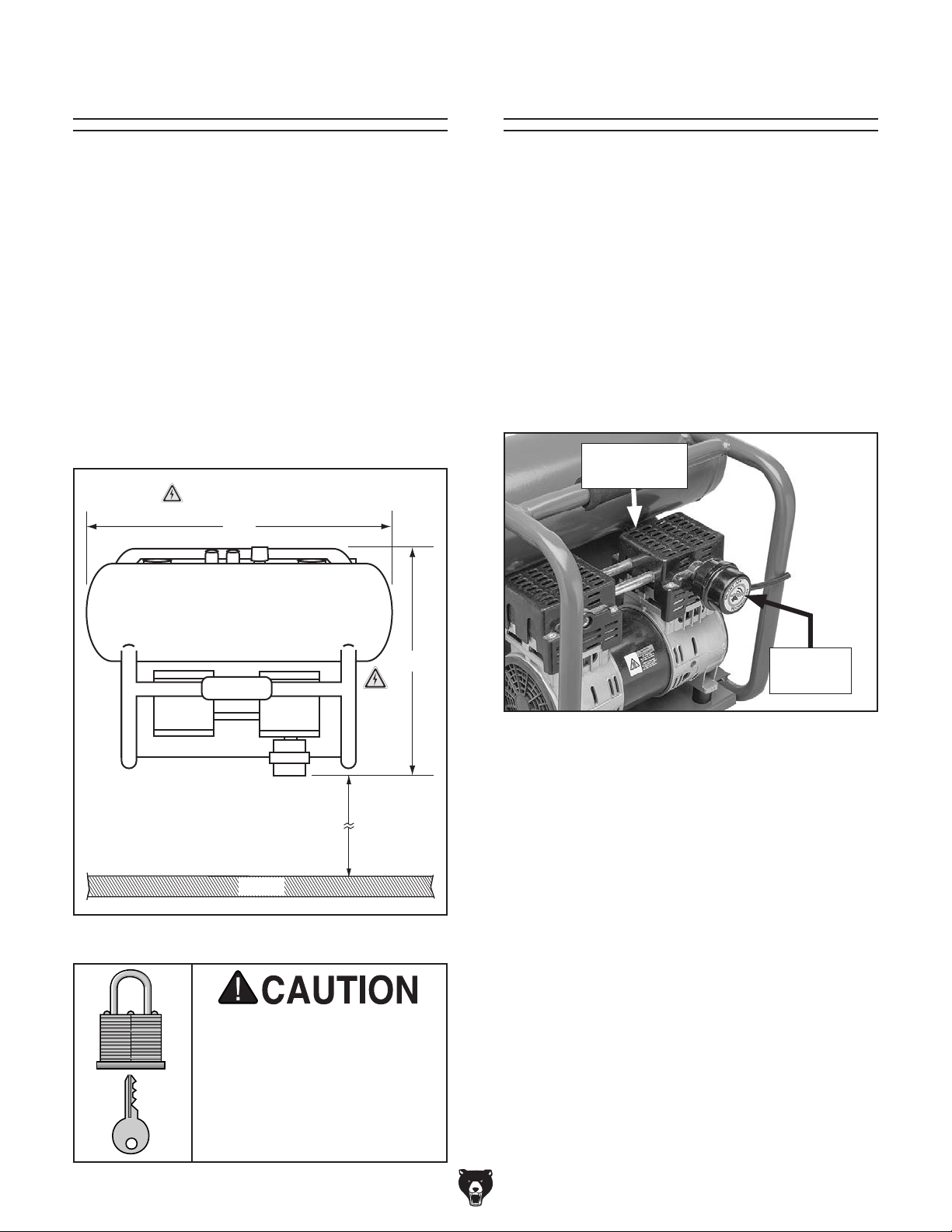

Site Considerations

Refer to the Machine Data Sheet for the weight and footprint specifications of your machine. Some workbenches may require additional reinforcement to support the weight of the machine and workpiece materials.

Consider anticipated workpiece sizes and additional space needed for auxiliary stands, work tables, or other machinery when establishing a location for this machine in the shop. Below is the minimum amount of space needed for the

The machine must be fully assembled before it can be operated. Before beginning the assembly process, refer to

and gather all goes smoothly, first clean any

covered or coated in heavy-duty rust preventative (if applicable).

Workbench Load

Assembly

Needed for Setup

listed items. To ensure the assembly process

parts that are

Placement Location

Electrical Connection

18"

17"

To assemble machine:

Thread air filter assembly clockwise into

compressor pump (see Figure 8) and hand tighten.

Compressor

Pump

Air Filter

Assembly

Figure 8. Air filter assembly installed on

compressor pump.

Min. 18"

from

Obstructions

Wall

Figure 7. Minimum working clearances.

Children and visitors may be seriously injured if unsupervised around this machine. Lock entrances to the shop

-14-

power connection to prevent unsupervised use.

Model T32336 (Mfd. Since 05/22)

Page 17

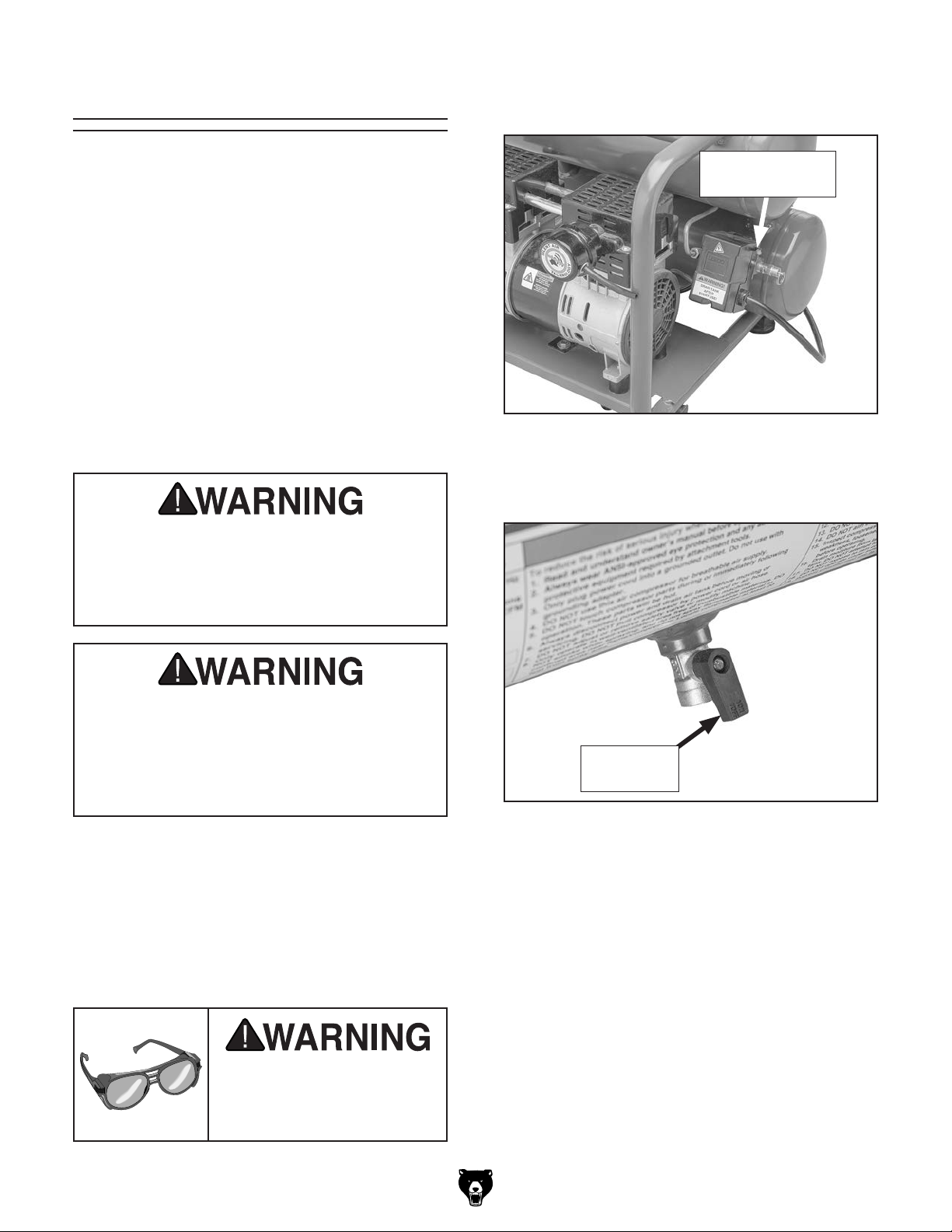

Test Run

Once assembly is complete, test run the machine to ensure it is properly connected to power and safety components are functioning correctly.

If you find an unusual problem during the test run, immediately stop the machine, disconnect it from power, and fix the problem BEFORE operating the machine again. The

table in the

SERVICE section of this manual can help.

DO NOT start machine until all preceding setup instructions have been performed. Operating an improperly set up machine

ed results that can lead to serious injury,

Serious injury or death can result from

Troubleshooting

The Test Run consists of verifying the following:

1) The motor powers up and runs correctly, 2) the motor and pump turn OFF when the cut-out pressure is reached, and 3) the safety relief valve works correctly.

3. Move pressure switch lever to OFF position (see Figure 9).

Pressure Switch

Lever

Figure 9. Location of pressure switch lever.

Turn drain valve handle to open position (see

Figure 10).

using this machine BEFORE understanding its controls and related safety information. DO NOT operate, or allow others to operate, machine until the information is understood.

may result in malfunction or unexpect-

death, or machine/property damage.

To test run machine:

1. Clear all setup tools away from machine.

2. Locate machine in well-ventilated area at

least 18 inches from nearest wall or any obstructions.

Drain Valve

Handle

Figure 10. Drain valve handle in open position.

Connect machine to power supply.

6. Move pressure switch lever to AUTO position to turn machine ON and verify motor operation.

Motor should run smoothly and without

unusual problems or noises.

Model T32336 (Mfd. Since 05/22)

Eye injury hazard! Always wear safety glasses when handling pressurized air system.

-15-

Page 18

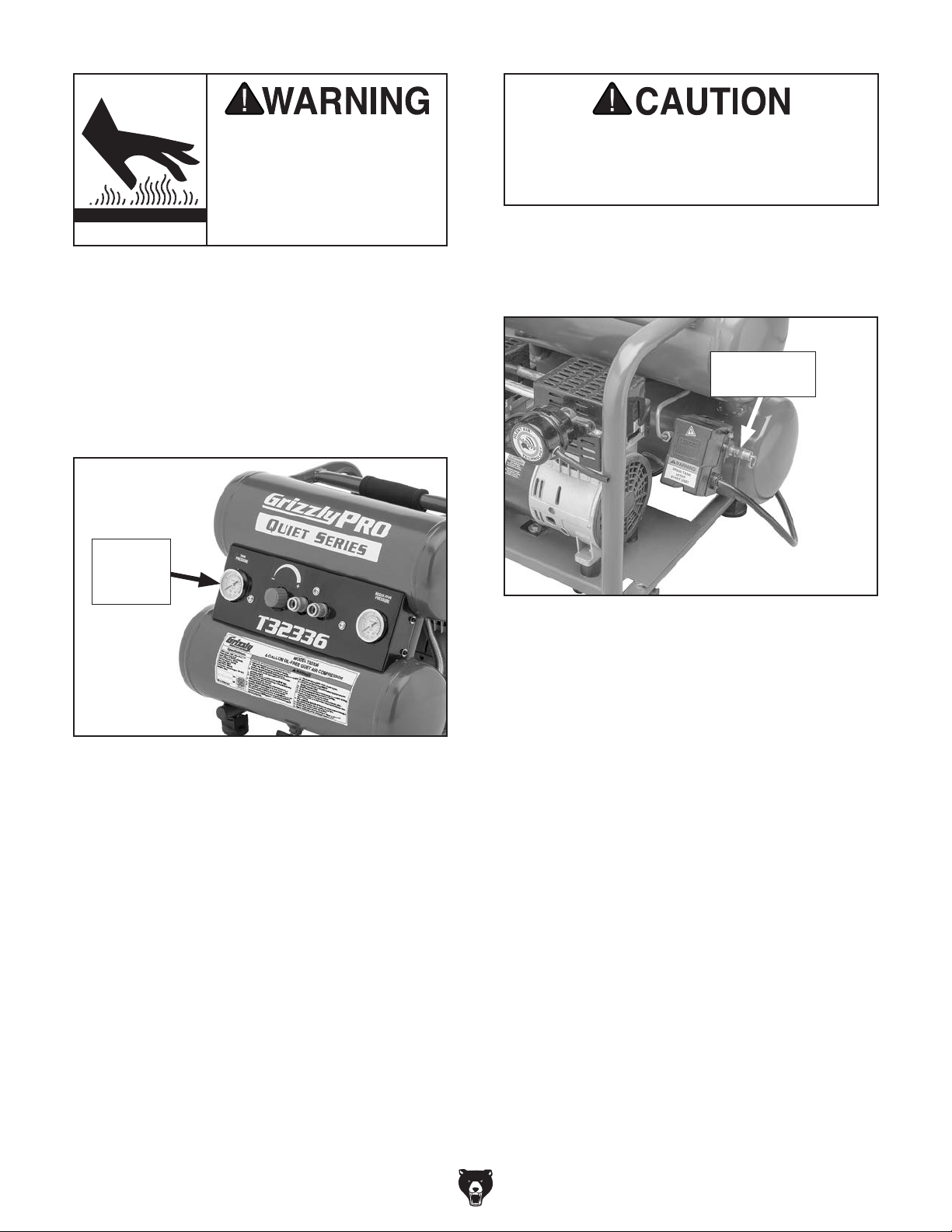

Do not touch compressor head or discharge line during use or immediately after compressor is active. These hot parts may cause burns.

7. After running compressor for 15 minutes,

move pressure switch to OFF position to turn machine OFF.

Turn drain valve handle to closed position.

9. Turn machine ON and observe tank pressure

gauge (see Figure 11) while tanks fill.

Tank

Pressure

Gauge

Releasing air through safety relief valve can be extremely loud. Protect hearing with ANSI-approved hearing protection in following step.

Turn machine OFF and slowly pull safety

10.

relief valve ring to bleed pressure from tanks (see Figure 12).

Safety Relief

Valve

Figure 12. Location of safety relief valve.

Figure 11. Location of tank pressure gauge.

— If motor and pump turn OFF when tank

pressure reaches 135 PSI, then safety feature of check valve is working correctly. Proceed to Step 10.

— If motor and pump do not turn OFF when

tank pressure reaches 135 PSI, then immediately turn OFF machine and disconnect it from power. Safety feature of check valve is NOT working properly and must be replaced before further using machine.

— If safety relieve valve bleeds pressure

from tanks, and air stops leaking when pressure is released, then safety feature of safety relief valve is working correctly. Proceed to Step 11.

— If safety relief valve is stuck or leaks after

releasing pressure, immediately turn OFF machine and disconnect it from power. Safety relief valve must be replaced before further using machine.

Open drain valve to drain moisture from

11.

tanks.

Congratulations! Test Run is complete.

-16 -

Model T32336 (Mfd. Since 05/22)

Page 19

SECTION 4: OPERATIONS

The purpose of this overview is to provide the novice machine operator with a basic understanding of how the machine is used during operation, so the

discussed later

in this manual

Due to the generic nature of this overview, it is not intended to be an instructional guide. To learn more about specific operations, read this entire manual,

training from experienced machine operators outside of this manual by reading "how-to" books, trade magazines, or websites.

To reduce your risk of serious injury, read this entire manual BEFORE

Eye injury hazard! Always wear safety glasses when

Operation Overview

3. Turns regulator knob all the way counter-

clockwise.

Puts on any additional personal protective

equipment required by operation and attachment tool.

machine controls/components

are easier to understand.

seek additional

, and do additional research

using machine.

using this machine.

Connects machine to power and turns it ON.

Allows machine to run until cut-out pressure

has been reached and tanks are full.

Turns regulator knob clockwise until line

pressure gauge displays pressure lower than or equal to air tool rating.

Connects air hose to quick-connect coupler.

9. Connects attachment air tool to air hose.

10. While being careful not to create a tripping

hazard with hose, performs operation.

Turns machine OFF and disconnects it from

11.

power.

Uses safety relief valve to reduce tank pres-

12.

sure to less than 10 PSI.

Disconnects attachment tool from hose.

13.

14. Disconnects hose from compressor.

Do not touch compressor head or discharge line during use or immediately after compressor is active. These hot parts may cause

To complete a typical operation, the operator does the following:

Puts on safety glasses.

2. Pulls safety valve ring to test valve and clear

any obstructions.

Model T32336 (Mfd. Since 05/22)

burns.

15. Opens drain valve to drain any condensation

from tanks.

Closes drain valve.

16.

If you are not experienced with this type of machine, WE STRONGLY RECOMMEND that you seek additional training outside of this manual. Read books/magazines or get formal training before beginning any projects. Regardless of the content in this section, Grizzly Industrial will not be held liable for accidents caused by lack of training.

-17-

Page 20

Choosing Air Hose

There are many options when it comes to hoses. The most important aspects for an air compressor are going to be length, diameter, and fittings. The material of the hose is also an important consideration, but this will depend more on your application and preference.

Length

Consider your applications before deciding on a hose length. Longer hoses, or hose connections to extend hose length, can increase your mobility, but will probably result in some pressure loss.

If your work area will be small, you may be able to use a shorter hose without having to move the compressor or stretch the hose. Never pull the hose to move the compressor or put any unnecessary stress on the hose, valves, fittings, or tanks.

Fittings

Many hoses come with fittings installed. The simplest option is to find a hose with two fittings: one that matches the compressor output port, and one that matches your intended attachment tool. If the hose does not match the port, a coupler may be needed.

You will need to determine the size of the fittings and whether they are male or female (see Figure 14). A male fitting can only attach to a female fitting, and vice versa. There are also a number of coupler/plug styles on the market, so be sure the two match or you will likely not have an airtight connection.

An air compressor becomes very hot during operation, and the pressure switch and motor often produce sparks. Some applications, like spraying or sanding, involve flammable material that create a fire or combustion hazard when they are performed too close to a compressor. The hose length must allow for the air compressor to remain at least 20 feet away from the operation.

Diameter

A larger inner diameter will allow for higher airflow delivery. Refer to Airflow Delivery (CFM) on Page 19 for more information. The higher CFM a tool requires, the larger the inner diameter of the hose will need to be (see Figure 13).

Airflow Delivery Required ID

0–3 CFM

3.1–5.9 CFM

6+ CFM

Figure 13. Recommended hose inner diameters.

⁄4" (3mm)

⁄4"–3⁄8" (3mm–10mm)

⁄8"+ (10mm+)

Male

Coupler

Male

Plug

Female Coupler

Female

Plug

Figure 14. Example of male and female fittings.

The outlet ports on the T32336 are

⁄4" NPT

female quick-couplers (see Figure 15), so you will

need a

⁄4" NPT male plug attached to the hose

for each port.

Quick-Couplers

-18-

Figure 15. Location of quick-coupler outlet ports.

Model T32336 (Mfd. Since 05/22)

Page 21

Connecting Air Tool

There are various air tools that can be connected to your air compressor by means of an air hose, and the setup will vary little across tools, but there are a couple things to keep in mind before connecting a tool or hose.

Operating Pressure (Pounds/Inch

Your second consideration should be the recommended or required operating pressure of your tool. An air tool recommended for 70 PSI should never be connected to a hose or system set to higher than that operating pressure, as the tool or valves could burst. A regulator allows tools with a lower rating than the system to still be attached, because the line can be adjusted to a safe level.

)

Airflow Delivery (CFM)

The first consideration when choosing an air tool is whether or not the air delivery is compatible with your compressor. Smaller compressors, capable of less than 5 CFM, only supply enough pressure for smaller air tools like nailers, staplers, chippers, chisels, grinders, sanders, tire inflators, and paint sprayers. Air hammers, impact wrenches, impact hammers, and blow guns will probably require a larger compressor capable of 10-110 CFM.

Duty Cycle

The duty cycle of your compressor will also have an effect on how efficient the airflow delivery is. Refer to Figure 16 for some common duty cycles and what they mean.

Compressor can be used for up to half

50/50

60/40

75/25

85/15

100

of its cycle (spends same amount of time resting as it does working).

Compressor can be used for up to 60% of its cycle; spends 40% of time resting.

Compressor can be used for up to 75% of its cycle; spends 25% of time resting.

Compressor can be used for up to 85% of its cycle; spends 15% of time resting.

Compressor does not need to rest. Engine/motor has a cooling component allowing for constant air delivery.

Figure 16. Common duty cycles.

The Model T32336 has a regulator and pressure gauge for controlling and observing line pressure.

Connecting Air Tool

Use the following steps as a guide for attaching an air tool. As there are a wide variety of tool and hose options, your connections may differ slightly from this simple outline.

Items Needed Qty

Air Tool (Rated for 90 PSI or Less) ................... 1

Air Hose Additional Connection Fittings

Always wear personal protective equipment required by air tool you are using. Pneumatic grinders, sanders, paint sprayers, etc., require a respirator to protect against long-term respiratory damage. Prolonged exposure to tools with high sound ratings can result in hearing loss without the use of hearing protection.

............................................................. 1

........... As Needed

Eye injury hazard! Always wear safety glasses when handling pressurized air system.

Compressing air produces a lot of heat, so the pump and motor require some resting time in order to cool down. The "cycle" of an air compressor refers to how long it takes for the compressor to be used and subsequently cooled. The duty cycle dictates what percentage of the cycle you can spend using air before it must rest.

Model T32336 (Mfd. Since 05/22)

-19 -

Page 22

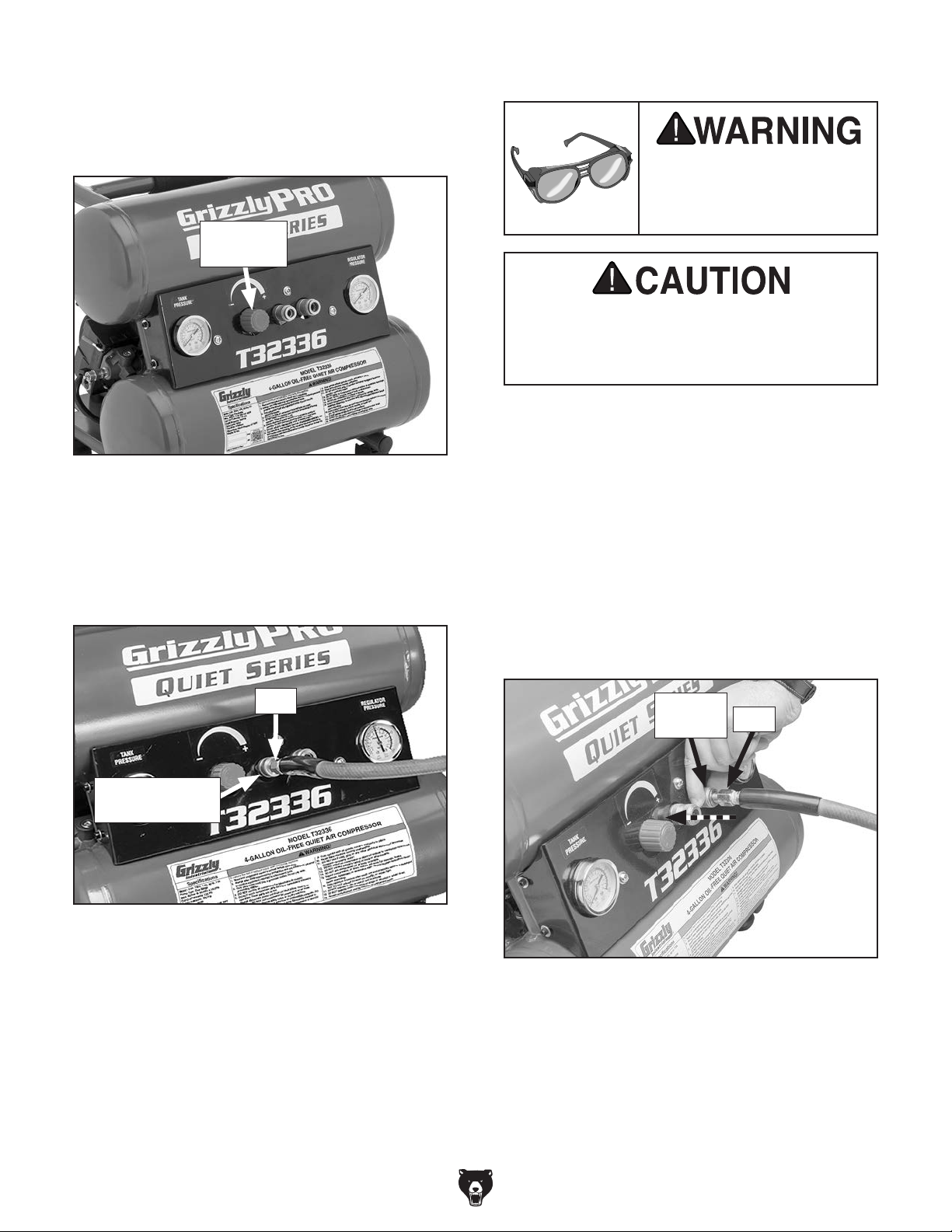

To connect air tool:

Turn regulator knob (see Figure 17) all the

way counterclockwise.

Regulator

Knob

Figure 17. Location of regulator knob.

Disconnecting Air Tool

Eye injury hazard! Always wear safety glasses when handling pressurized air system.

Pressurized air escaping through valves/ fittings can be extremely loud. Protect hearing with ANSI-approved hearing protection in following steps.

To disconnect air tool:

Turn regulator knob (see Figure 17) all the

way counterclockwise.

2. Insert air hose male plug into quick-connect coupler (see Figure 18).

Note: When plug is fully seated, coupler will

automatically lock it in place.

Plug

Quick-Connect

Coupler

Figure 18. Plug inserted into coupler.

Connect other end of hose to air tool.

Note: Refer to air tool instructions for speci-

fications, method of connection, and proper use of tool.

Disconnect air tool from hose.

3. Push coupler sleeve toward compressor to release hose plug (see Figure 19).

Note: Air will escape when connection is bro-

ken if tanks are still pressurized.

Coupler

Sleeve

Figure 19. Pushing coupler sleeve to release

plug.

Plug

-20-

Model T32336 (Mfd. Since 05/22)

Page 23

ACCESSORIES

Installing unapproved accessories may

order online at www.grizzly.com or call 1-800-523-4777

SECTION 5: ACCESSORIES

cause machine to malfunction, resulting in serious personal injury or machine damage. To reduce this risk, only install accessories recommended for this machine by Grizzly.

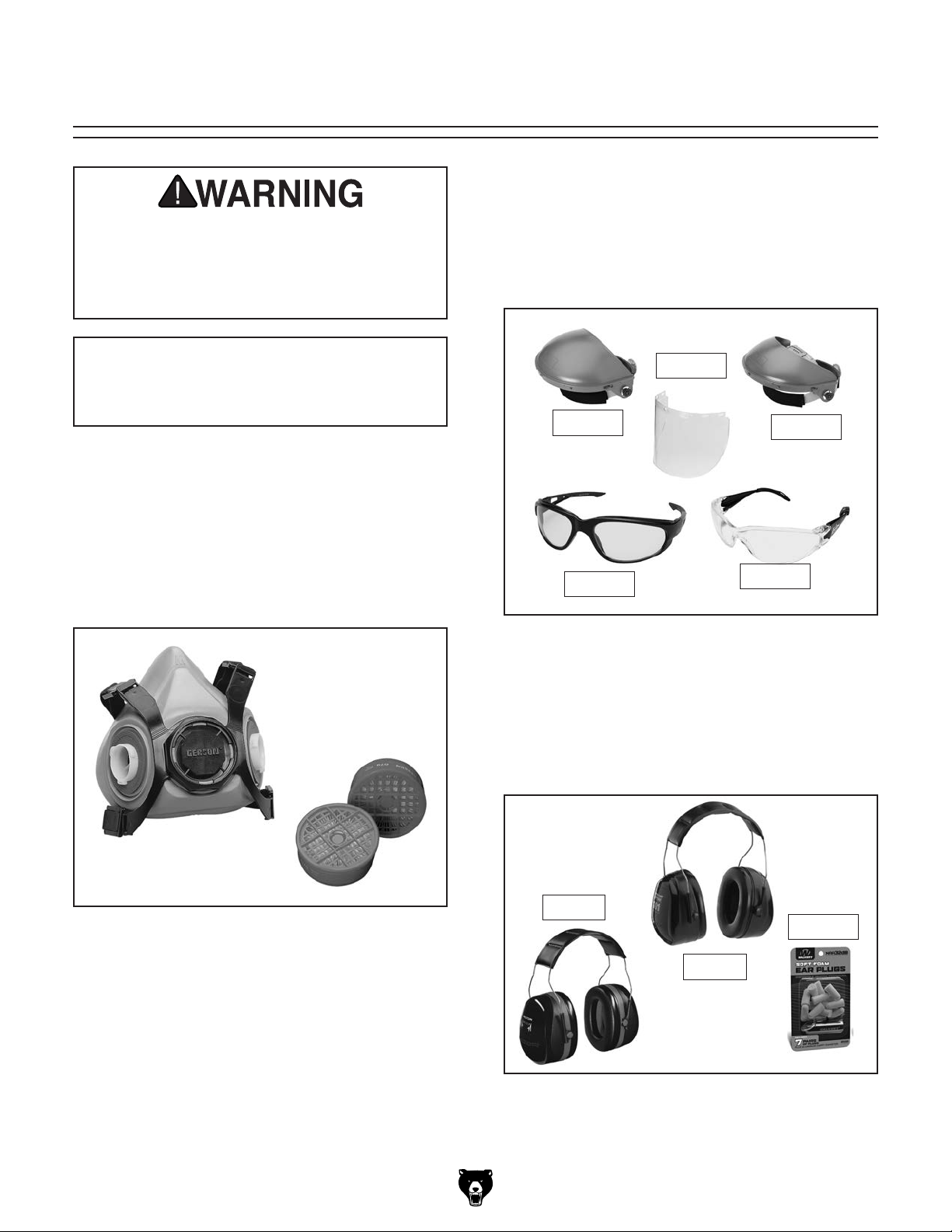

Basic Eye Protection

T20501—Face Shield Crown Protector 4" T20502—Face Shield Crown Protector 7" T20503—Face Shield Window T20451—“Kirova” Clear Safety Glasses T20456—DAKURA Safety Glasses, Black/Clear

NOTICE

Refer to our website or latest catalog for additional recommended accessories.

H2499—Small Half-Mask Respirator H3631—Medium Half-Mask Respirator H3632—Large Half-Mask Respirator H3635—Cartridge Filter Pair P100

Wood dust has been linked to nasal cancer and severe respiratory illnesses. If you work around dust everyday, a half-mask respirator can be a lifesaver. Also compatible with safety glasses!

T20503

T20501

T20456

Figure 21. Assortment of basic eye protection.

H4978—Deluxe Earmuffs - 27dB H4979—Twin Cup Hearing Protector - 29dB T31617—Foam Earplugs, 7-pairs - 32dB

Protect yourself comfortably with hearing protection. Especially important if you or employees operate for hours at a time.

T20502

T20451

Figure 20. Half-mask respirator with disposable

H4979

cartridge filters.

H4978

Figure 22. Hearing protection.

Model T32336 (Mfd. Since 05/22)

T31617

-21-

Page 24

order online at www.grizzly.com or call 1-800-523-4777

H7664—Nailer/Stapler Kit

This nail gun/staple gun shoots

brads and

⁄8"–15⁄8" 18-gauge staples with 1⁄4"

⁄8"–2" 18-gauge

crown. Features a view window that tells you when to reload, trigger mode, adjustable depth stop, rubberized grip, and adjustable exhaust port. It has an operating pressure of 60–100 PSI and

⁄4" NPT air hookup.

T28648—

⁄8" x 50' Red Goodyear Rubber Air

Hose

This hose has a weather, oil, and solvent-resistant

outer coating; solid brass

⁄4" NPT end fittings; spiral synthetic yarn reinforcement; and a maximum operating pressure of 250 PSI.

Figure 25. T28648 3⁄8" x 50' Red Goodyear

Rubber Air Hose.

Figure 23. H7664 Nailer/Stapler Kit.

H5527—18-Gauge Brad Nailer Kit

This 18-gauge nail gun accepts up to 100 5⁄8"–2" brads, operates on 60–100 PSI, features a 360 degree adjustable exhaust, only weighs 3.5 lbs.,

and has a

⁄4" NPT air inlet. Includes a case.

G8110—

⁄4" x 50' PVC Air Hose

Oil, kink, abrasion, ozone, and weather resistant.

This PVC air hose is rated to 200 PSI.

⁄4" NPT.

Made in the USA.

Figure 26. G 8110 1⁄4" x 50' PVC Air Hose.

Figure 24. H5527 18-Gauge Brad Nailer Kit.

-22-

Model T32336 (Mfd. Since 05/22)

Page 25

SECTION 6: MAINTENANCE

Daily Maintenance

• Open drain valve to drain any condensation.

Compressor will turn ON automatically when pressure switch is set to AUTO. To reduce risk of shock/ accidental startup, always disconnect machine from power before adjustments, maintenance, or service.

Eye injury hazard! Always wear safety glasses when maintaining pressurized air system.

• Test function of safety relief valve and clear

any obstructions.

Releasing air through safety relief valve or drain valve can be extremely loud. Protect hearing with ANSI-approved hearing protection when testing/draining valves.

Weekly Maintenance

• Check air filter.

• Clean/vacuum dust buildup off compressor.

Do not touch compressor head or discharge line during use or immediately after compressor is active. These hot parts may cause burns. Allow compressor to cool before handling.

Schedule

For optimum performance from this machine, this maintenance schedule must be strictly followed.

Ongoing

To minimize your risk of injury and maintain proper machine operation, shut down the machine immediately if you ever observe any of the items below, and fix the problem before continuing operations:

• Damaged safety relief valve, pressure switch, or drain valve.

Worn or damaged wires, cords, and plugs.

•

Tank rust/corrosion.

•

Any other unsafe condition.

•

Do not use flammable cleanser to clean machine. Compressor components often produce sparks that could ignite once machine is connected to power and turned ON.

Semi-Annual Maintenance

• Check hoses/connections for leaks. If soapy water at suspected leak creates bubbles, air is escaping. Repair or replace affected parts.

Lubrication

The Model T32336 is an oil-free air compressor, so no lubrication is necessary. Refer to the instructions of any attached air tools to determine if they require air line lubrication before they are connected.

Model T32336 (Mfd. Since 05/22)

-23-

Page 26

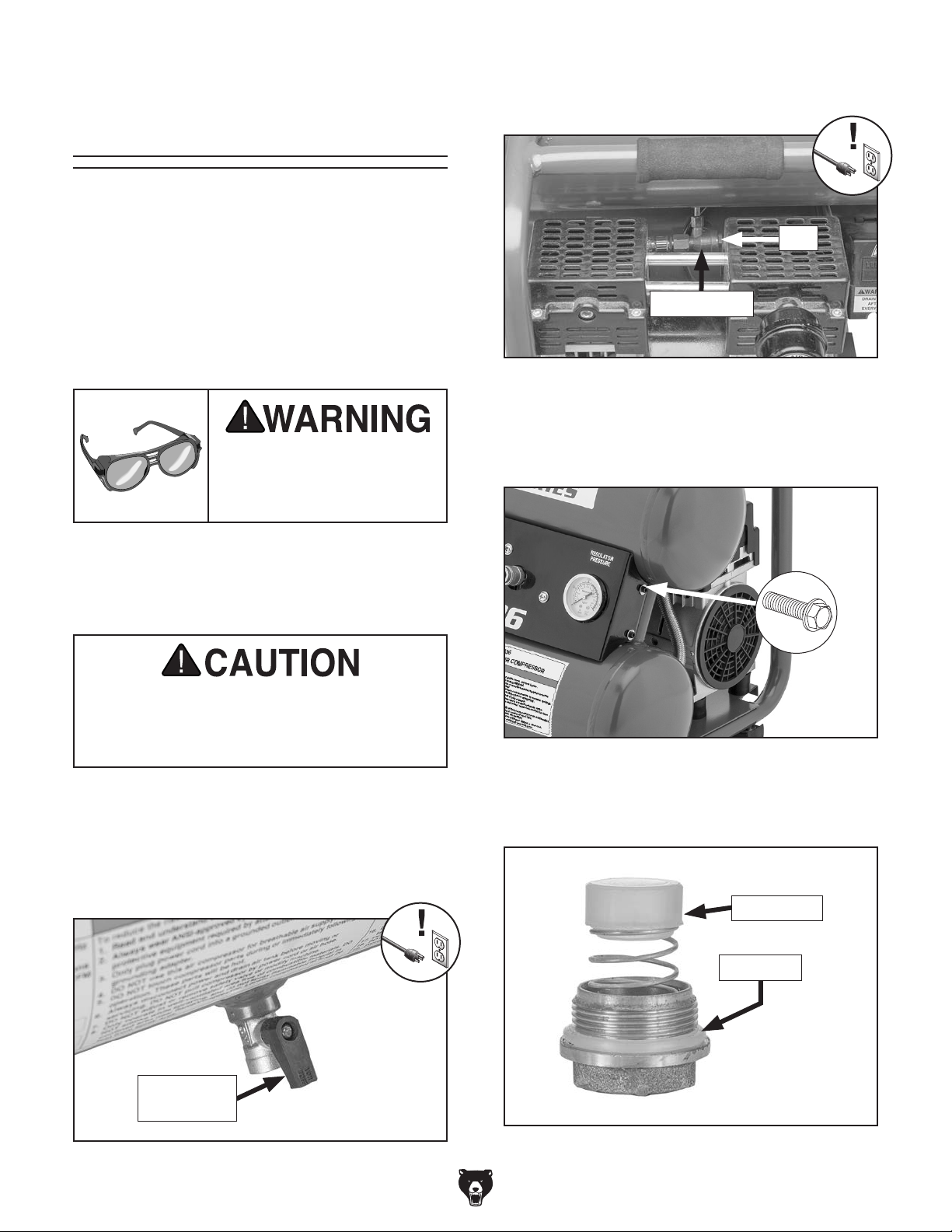

Draining Tanks

Checking Air Filter

Some water may accumulate in the tanks depending on usage and humidity. Drain water from the tanks daily to increase the lifespan of the compressor and air tools and to prevent tank corrosion.

To drain tanks:

DISCONNECT MACHINE FROM POWER!

Releasing air through safety relief valve can be extremely loud. Protect hearing with ANSI-approved hearing protection in following step.

2. Use safety relief valve to reduce tank pres-

sure to less than 10 PSI.

Open drain valve (see Figure 27) to drain

condensation from tanks.

The air filter helps prevent impurities and dust from entering the compressor and reduces noise. A dirty filter will result in a less efficient system and could become a fire hazard.

To check air filter:

DISCONNECT MACHINE FROM POWER!

Releasing air through safety relief valve can be extremely loud. Protect hearing with ANSI-approved hearing protection in following step.

2. Use safety relief valve to reduce tank pres-

sure to less than 10 PSI.

While holding base of filter assembly in place,

turn filter cap counterclockwise to remove cap (see Figure 28).

-24-

Drain Valve

Handle

Figure 27. Drain valve handle open.

Base

Cap

Figure 28. Air filter assembly components.

— If filter is fairly clean and there has not

been a drop in efficiency of compressor, replace cap. No replacement is required.

— If filter is dirty or clogged, or there has

been a drop in efficiency of compressor, replace cap. Proceed to Step 4.

Replace old filter with new filter element (refer

4. to Part #2 in Parts beginning on Page 35).

Model T32336 (Mfd. Since 05/22)

Page 27

Machine Storage

All machinery will develop serious rust problems and corrosion damage if it is not properly prepared for storage. Use the steps in this section to ensure that your machine remains in good condition.

To bring machine out of storage, perform the Test

Run beginning on Page 15.

Eye injury hazard! Always wear safety glasses when handling pressurized air system.

To prepare machine for storage:

1. DISCONNECT MACHINE FROM POWER!

Releasing air through safety relief valve can be extremely loud. Protect hearing with ANSI-approved hearing protection while performing following step.

2. Use safety relief valve to reduce tank pres-

sure to less than 10 PSI.

Open drain valve to drain any condensation

from tanks.

Disconnect air tool and hose from machine.

Items Needed Qty

Cleaner/Degreaser ............................ As Needed

.................................................. As Needed

Rags Tarp or Plastic Sheet

T23951—Blue Tarp 8' x 10'

Made of woven polyethylene, these tarps are weather and tear resistant. They have UV lamination, heat-sealed seams, grommets, and reinforced edging with strong poly rope inside the hem on all four sides.

......................................... 1

5. Clean machine.

Do not use a flammable cleanser to clean machine. Compressor components often produce sparks that could ignite once machine is connected to power and turned ON.

Cover machine with tarp or plastic sheet that

will keep out dust and resist liquid or moisture. If machine will be stored in/near direct sunlight, use cover that will block UV rays.

Figure 29. T23951 Blue Tarp 8' x 10'.

Model T32336 (Mfd. Since 05/22)

-25-

Page 28

Checking for Leaks

Air leaks will cause low air output and increase the time the compressor must run.

Fixing Leaks

Item Needed Qty

Wire Brush ......................................................... 1

Thread Sealing Tape or Pipe Dope

To fix leaks:

... As Needed

Checking for Leaks

1. Disconnect tool and hose from compressor.

2. Turn ON compressor and allow tanks to fill

until cut-out pressure is reached (135 PSI).

DISCONNECT MACHINE FROM POWER!

4. Listen for sound of air to find possible leak.

— If you do not hear air escaping, and pres-

sure in tanks does not change, there is no leak.

— If you do hear air escaping, or pressure in

tanks drops even with safety relief valve and drain valve closed, proceed to Step 5.

Spray suspected air leak with soap and water

solution and look for air bubbles.

— If bubbles do not form, repeat at different

location.

DISCONNECT MACHINE FROM POWER!

Releasing air through safety relief valve can be extremely loud. Protect hearing with ANSI-approved hearing protection while performing following step.

2. Use safety relief valve to reduce tank pres-

sure to less than 10 PSI.

Open drain valve to relieve any remaining air.

4. Remove fitting or valve that is leaking.

5. Clean threads, apply thread sealing tape or

pipe dope to threads, then re-install part.

Note: If a fitting or valve continues to leak

after preceding steps, replace part.

— If bubbles do form, proceed to Fixing

Leaks.

-26-

Model T32336 (Mfd. Since 05/22)

Page 29

Review the troubleshooting procedures in this section if a problem develops with your machine. If you need

the

serial number and manufacture date of your machine before calling.

SECTION 7: SERVICE

replacement parts or additional help with a procedure, call our Technical Support. Note: Please gather

Troubleshooting

Motor & Electrical

Symptom Possible Cause Possible Solution

Machine does not start, or power supply breaker immediately trips after startup.

Machine stalls or is underpowered.

1. Tanks already pressurized.

2. Internal overload tripped.

3. Incorrect power supply voltage or circuit size.

4. Pressure switch cut-in/cut-out settings have been adjusted incorrectly.

5. Power supply circuit breaker tripped or fuse blown.

6. Tripped thermal overload in motor, compressor is exceeding its duty cycle.

7. Wiring broken, disconnected, or corroded.

8. Check valve components are dirty/damaged.

9. Pressure switch at fault.

10. Internal overload at fault.

11. Motor or motor bearings at fault.

1. Air ﬁlter dirty/clogged.

2. Pump/motor have restricted airﬂow.

3. Pressure switch cut-in/cut-out settings have been adjusted incorrectly.

4. Motor overheated, tripping internal overload; compressor is exceeding its duty cycle.

5. Run capacitor at fault.

6. Extension cord too long.

7. Check valve components are dirty/damaged.

8. Motor or motor bearings at fault.

9. Worn valves or rings/compressor pump at fault.

1. Motor will not start if tanks are fully pressurized.

2. Disconnect machine from power, allow pump to cool, then resume operations.

3. Ensure correct power supply and circuit size (Page 11).

4. Adjust settings (Page 31). Do not exceed cut-in/cutout pressures listed on data sheet (Page 6) or inside pressure switch.

5. Ensure circuit is free of shorts. Reset circuit breaker or replace fuse.

6. Reduce load on compressor and allow longer cool down periods.

7. Fix broken wires or disconnected/corroded connections.

8. Clean/replace check valve components (Page 30).

9. Turn compressor OFF, disconnect from power, and empty tanks. DO NOT USE until switch is replaced.

10. Replace pump.

11. Replace motor.

1. Replace air ﬁlter (Page 24).

2. Clean cylinder ﬁns, motor fan, and vent area.

3. Adjust settings (Page 31). Do not exceed cut-in/cutout pressures listed on data sheet (Page 6) or inside pressure switch.

4. Reduce load on compressor and allow longer cool down periods. Clean motor, let cool, and reduce workload.

5. Test/repair/replace.

6. Move machine closer to power supply; use shorter extension cord.

7. Clean/replace check valve components (Page 30).

8. Replace motor.

9. Rebuild/replace.

Model T32336 (Mfd. Since 05/22)

-27-

Page 30

Motor & Electrical (Cont.)

Symptom Possible Cause Possible Solution

Machine has vibration or noisy operation.

Motor runs continuously.

Pressure relief valve stays open and motor will not stop running.

1. Motor or component loose.

2. Machine feet loose.

3. Motor fan rubbing on fan cover.

4. Motor bearings at fault.

5. Compressor pump at fault.

1. Machine is undersized.

2. Regulator needs to be adjusted for lower airﬂow delivery.

3. Air leak in tanks or delivery pipes.

4. Pressure switch at fault.

1. Pressure switch cut-in/cut-out settings have been adjusted incorrectly.

2. Pressure switch at fault, unit is trying to overpressurize tanks.

3. Pressure relief valve at fault/relieving pressure too early.

1. Replace damaged or missing bolts/nuts or tighten if loose.

2. Tighten screws.

3. Fix/replace fan cover; replace loose/damaged fan.

4. Test by rotating shaft; rotational grinding/loose shaft requires bearing replacement.

5. Compressor piston rod/bearings/crankshaft is worn. Rebuild or replace pump.

1. Use a smaller attachment tool or a larger air compressor.

2. Turn regulator knob counterclockwise to decrease line PSI.

3. Check air tanks, pipes, and all connections for leaks (Page 26). Do not attempt to repair leaking/damaged tank, only replace.

4. Turn compressor OFF, disconnect from power, and empty tanks. DO NOT USE until switch is replaced.

1. Adjust settings (Page 31). Do not exceed cut-in/cutout pressures listed on data sheet (Page 6) or inside pressure switch.

2. Turn compressor OFF, disconnect from power, and empty tanks. DO NOT USE until switch is replaced.

3. Replace.

Operation

Symptom Possible Cause Possible Solution

Air leaks from pressure switch.

Low pressure in tanks, or tank pressure drops after compressor is turned OFF.

Compressor knocking.

1. Check valve components are dirty/damaged.

2. Pressure switch at fault.

1. Drain valve is open.

2. Air ﬁlter dirty/clogged.

3. Regulator needs to be adjusted for lower airﬂow delivery.

4. Pressure switch cut-in/cut-out settings have been adjusted incorrectly.

5. Air leak in tanks or delivery pipes.

6. Check valve components are dirty/damaged.

7. Pressure relief valve releasing below 135 PSI.

8. Gasket(s) leaking.

9. Worn pump piston rings.

1. Air ﬁlter dirty/clogged.

2. Piston assembly loose.

1. Clean/replace check valve components (Page 30).

2. Turn compressor OFF, disconnect from power, and empty tanks. DO NOT USE until switch is replaced.

1. Close drain valve.

2. Replace air ﬁlter (Page 24).

3. Turn regulator knob counterclockwise to decrease line PSI.

4. Adjust settings (Page 31). Do not exceed cut-in/cutout pressures listed on data sheet (Page 6) or inside pressure switch.

5. Check air tanks, pipes, and all connections for leaks (Page 26). Do not attempt to repair leaking/damaged tank, only replace.

6. Clean/replace check valve components (Page 30).

7. Replace pressure relief valve.

8. Check gaskets on cylinder head assemblies, repair or replace as needed.

9. Inspect and replace pump piston rings.

1. Replace air ﬁlter (Page 24).

2. Inspect and repair piston and connecting rod.

-28-

Model T32336 (Mfd. Since 05/22)

Page 31

Operation (Cont.)

Symptom Possible Cause Possible Solution

Compressor does not build air pressure, or does not reach full pressure.

Air leaks from air ﬁlter.

Air tools have oily discharge.

Air tools have watery discharge or get cold and freeze up with ice during use.

Air tool has low supply pressure but compressor has sufﬁcient air pressure.

Safety relief valve leaks.

Delivered air is dirty or has excessive moisture.

1. Drain valve is open.

2. Tanks need to be drained.

3. Air ﬁlter dirty/clogged.

4. Air leak in tanks or delivery pipes.

5. Check valve components are dirty/damaged.

6. Reed valve(s) not sealing.

7. Head gasket or valve body gasket leaking.

8. Worn pump piston rings.

9. Broken crankshaft or connecting rod.

1. Check valve components are dirty/damaged.

2. Reed valve(s) not sealing.

1. Tanks need to be drained.

2. In-line oiler is out of adjustment (if used).

3. In-line ﬁlter is damaged or missing (if used).

4. Compressor pump is at fault.

1. Tanks need to be drained.

2. In-line water separator is full (if used).

3. Ambient environment has too much humidity.

1. Air hose is too long.

2. Regulator needs to be adjusted for higher airﬂow delivery.

3. Machine is undersized.

4. In-line ﬁlter is damaged or clogged (if used).

5. In-line water separator is full (if used).

6. Pressure switch cut-in/cut-out settings have been adjusted incorrectly.

7. Air leaks in hose.

8. Regulator at fault.

9. Pressure gauge(s) at fault.

1. Pressure switch cut-in/cut-out settings have been adjusted incorrectly.

2. Safety relief valve at fault.

3. Pressure switch at fault.

1. Tanks need to be drained.

2. Delivery pipes are dirty (if used).

1. Close drain valve.

2. Open drain valve to drain condensation, then close.

3. Replace air ﬁlter (Page 24).

4. Check air tanks, pipes, and all connections for leaks (Page 26). Do not attempt to repair leaking/damaged tank, only replace.

5. Clean/replace check valve components (Page 30).

6. Remove cylinder head and replace reed valve(s).

7. Remove cylinder head and replace gasket(s).

8. Inspect and replace pump piston rings.

9. Replace or rebuild compressor pump.

1. Clean/replace check valve components (Page 30).

2. Remove cylinder head and replace reed valve(s).

1. Open drain valve to drain condensation.

2. Adjust in-line oiler drip ratio or use correct viscosity oil.

3. Replace ﬁlter or in-line ﬁlter assembly.

4. Worn compressor piston, rings, or valves. Rebuild or replace pump.

1. Open drain valve to drain condensation.

2. Drain water separator.

3. Install in-line air dryer and water separator.

1. Use shorter hose.

2. Turn regulator knob clockwise to increase line PSI. DO NOT exceed pressure rating of attached tool.

3. Use a smaller attachment tool or a larger air compressor.

4. Replace ﬁlter or in-line ﬁlter assembly.

5. Drain water separator.

6. Adjust settings (Page 31). Do not exceed cut-in/cutout pressures listed on data sheet (Page 6) or inside pressure switch.

7. Check air hoses and all connections for leaks (Page 26).

8. Inspect regulator for leaks. Replace if at fault.

9. Replace pressure gauge(s).

1. Adjust settings (Page 31). Do not exceed cut-in/cutout pressures listed on data sheet (Page 6) or inside pressure switch.

2. Test/replace.

3. Turn compressor OFF, disconnect from power, and empty tanks. DO NOT USE until switch is replaced.

1. Open drain valve to drain condensation.

2. Remove delivery pipes, clean out and replace.

Model T32336 (Mfd. Since 05/22)

-29-

Page 32

Inspecting

Check Valve

The check valve pushes the compressed air into the tanks and prevents it from flowing back toward the pump. The diaphragm in the check valve can become damaged, twisted, or dirty and cause the valve to leak or prevent the compressor from pressurizing.

Tool Needed Qty

Wrench or Socket 19mm ................................... 1

Eye injury hazard! Always wear safety glasses when handling pressurized air system.

4. Remove cap, shown in Figure 31, from check

valve.

Cap

Check Valve

Figure 31. Location of check valve cap.

Note: If you remove (4) bolts/screws shown

in Figure 32 and remove control panel, it may be easier to access cap from front.

To inspect check valve:

DISCONNECT MACHINE FROM POWER!

Releasing air through safety relief valve can be extremely loud. Protect hearing with ANSI-approved hearing protection while performing following step.

Use safety relief valve to reduce tank pres-

sure to less than 10 PSI.

Open drain valve to release any remaining air

(see Figure 30).

x 4

Figure 32. Location of control panel fasteners.

Inspect seal ring and diaphragm (see Figure

33) for damage and dirt.

Diaphragm

Seal Ring

-30-

Drain Valve

Handle

Figure 33. Check valve components.

Figure 30. Drain valve handle open.

Model T32336 (Mfd. Since 05/22)

Page 33

Replace any damaged parts and clean any

dirt from diaphragm and seal ring.

Re-install check valve and cap.

Adjusting Cut-In/Cut-Out Settings

If the minimum and maximum tank pressure settings both have to be raised or lowered at the same time, then follow these steps.

IMPORTANT: Make sure diaphragm presses

squarely against discharge line and exhaust tube opening.

Note: Do not add thread sealant or thread

sealing tape to cap threads. Seal ring provides sufficient sealing.

Install control panel with fasteners if it was

removed.

Adjusting Cut-In/

Cut-Out Settings

The pressure switch ensures the compressor will turn ON when the tank pressure drops to approximately 105 PSI (cut-in pressure), and will turn OFF when the tank pressure reaches 135 PSI (cut-out pressure). Should the pressure switch fail to turn OFF the machine, the safety relief valve will open shortly after the pressure exceeds 135 PSI and prevent over-pressurization.

To adjust cut-in/cut-out settings:

Operate compressor and record cut-in and

cut-out pressures.

DISCONNECT MACHINE FROM POWER!

Releasing air through safety relief valve can be extremely loud. Protect hearing with ANSI-approved hearing protection while performing following step.

3. Use safety relief valve to reduce tank pres-

sure to less than 10 PSI.

Remove Phillips head screw shown in

4. Figure 34 to remove pressure switch cover.

Pressure Switch

Cover

Tools Needed Qty

Phillips Head Screwdriver #2 ............................ 1

Flat Head Screwdriver

Cut-in and cut-out settings have been factory set at proper PSI range. Only adjust pressure switch settings if compressor is cutting-in or cutting-out at incorrect pressures. Tanks could burst if filled with more pressure than it is designed for.

⁄4" .................................. 1

Eye injury hazard! Always wear safety glasses when handling pressurized air system.

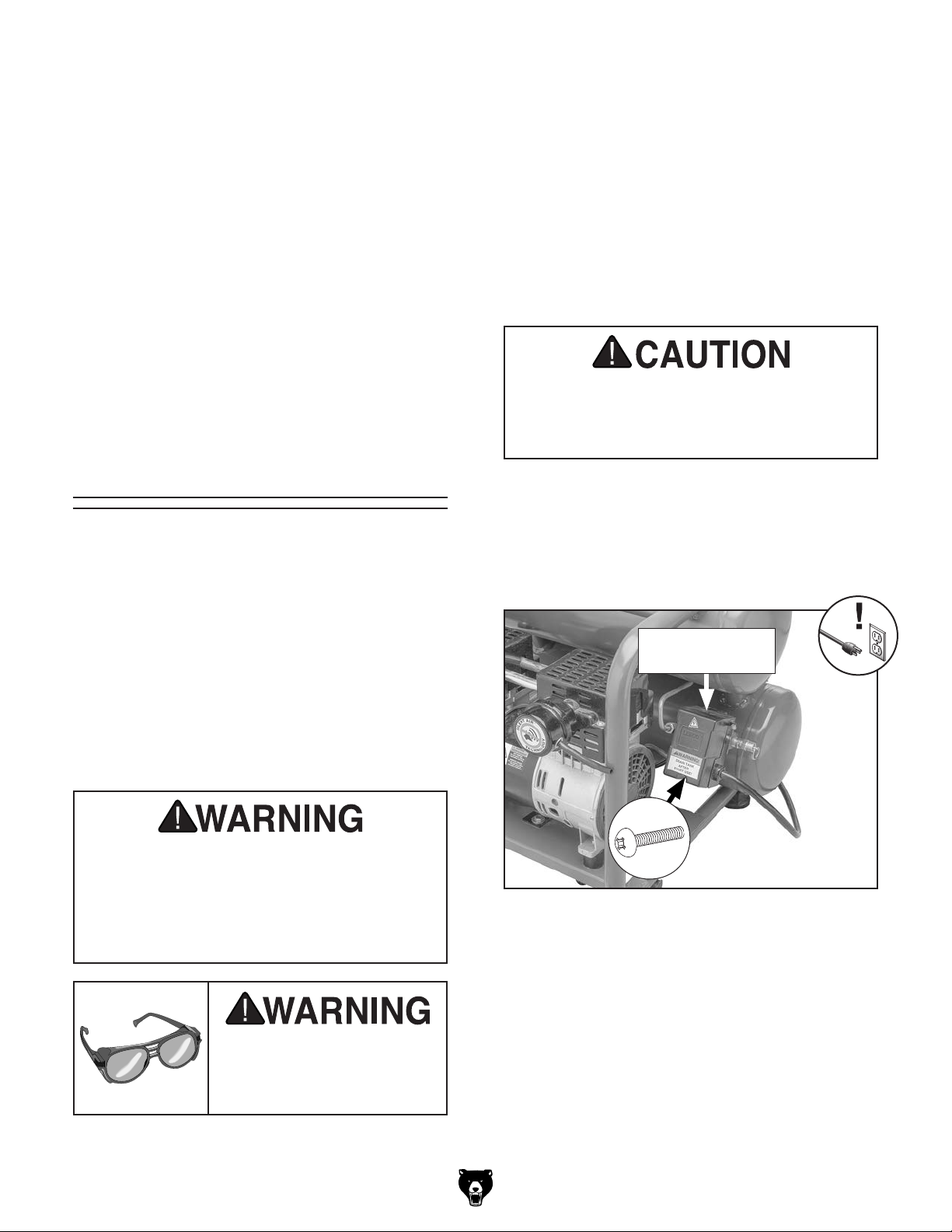

Figure 34. Location of pressure switch cover

Phillips head screw.

Model T32336 (Mfd. Since 05/22)

-31-

Page 34

5. Adjust screw shown in Figure 35 to change minimum and maximum tank pressure settings.

Cut-In/

Cut-Out

Adjustment

Screw

Figure 35. Location of cut-in/cut-out adjustment

screw.

Releasing air through safety relief valve can be extremely loud. Protect hearing with ANSI-approved hearing protection while performing following step.

3. Relieve tank pressure through safety relief

valve.

Remove Phillips head screw shown in

4. Figure 34 on Page 31 to remove pressure

switch cover.

Adjust screw shown in Figure 36 to change

maximum tank pressure setting.

— Turn screw half turn clockwise to increase

both settings.

— Turn screw half turn counterclockwise to

decrease both settings.

Install pressure switch cover.

7. Connect machine to power, start compres-

sor, and cycle compressor through cut-in/ cut-out pressures. If compressor does not automatically turn OFF at 135 PSI, turn machine OFF before pressure reaches 140 PSI. Adjust pressure switch settings until cutout pressure is 135 PSI or lower.

Adjusting Only Cut-Out Setting

If only the maximum tank pressure setting needs to be adjusted, then follow these steps. Keep in mind that the allowable pressure differential between cut-in pressure and cut-out pressure must be kept between 30–40 PSI. Exceeding this range can cause the compressor to overheat.

To adjust cut-in/cut-out settings:

Operate compressor and record cut-in and

cut-out pressures.

Cut-Out

Adjustment

Screw

Figure 36. Location of cut-out only adjustment

screw.

— Turn screw half turn clockwise to increase

tank pressure.

— Turn screw half turn counterclockwise to

decrease tank pressure.

Install pressure switch cover.

7. Connect machine to power, start compres-

DISCONNECT MACHINE FROM POWER!

-32-

Model T32336 (Mfd. Since 05/22)

Page 35

These pages are current at the time of printing. However, in the spirit of improvement, we may make changes to the electrical systems of future machines. Compare the manufacture date of your machine to the one

number and manufacture date of your

machine before calling. This information can be found on the main machine label.

machine

SECTION 8: WIRING

stated in this manual, and study this section carefully.

If there are differences between your machine and what is shown in this section, call Technical Support at (570) 546-9663 for assistance BEFORE making any changes to the wiring on your machine. An updated wiring diagram may be available. Note: Please gather the serial

Wiring Safety Instructions

SHOCK HAZARD. Working on wiring that is con-

nected to a power source is extremely dangerous. Touching electrified parts will result in personal injury including but not limited to severe burns, electrocution, or death. Disconnect the power from the machine before servicing electrical components!

MODIFICATIONS. Modifying the wiring beyond what is shown in the diagram may lead to unpredictable results, including serious injury or fire. This includes the installation of unapproved aftermarket parts.

WIRE CONNECTIONS. All connections must be tight to prevent wires from loosening during machine operation. Double-check all wires disconnected or connected during any wiring task to ensure tight connections.

CIRCUIT REQUIREMENTS. You MUST follow the requirements at the beginning of this manual when connecting your machine to a power source.

WIRE/COMPONENT DAMAGE. Damaged wires or components increase the risk of serious personal injury, fire, or machine damage. If you notice that any wires or components are damaged while performing a wiring task, replace those wires or components.

MOTOR WIRING. The motor wiring shown in these diagrams is current at the time of printing but may not match your machine. If you find this to be the case, use the wiring diagram inside the motor junction box.

CAPACITORS/INVERTERS. Some capacitors and power inverters store an electrical charge for up to 10 minutes after being disconnected from the power source. To reduce the risk of being shocked, wait at least this long before working on capacitors.

EXPERIENCING DIFFICULTIES. If you are experiencing difficulties understanding the information included in this section, contact our Technical Support at (570) 546-9663.

The photos and diagrams included in this section are best viewed in color. You can view these pages in color at www.grizzly.com.

Model T32336 (Mfd. Since 05/22)

-33-

Page 36

5-15 Plug

Wiring Diagram

Neutral

Hot

Ground

120 VAC

PRESSURE SWITCH

LEFOO LF10-4H

Run Capacitor

CBB60 80uF 250V

MOTOR

LINE

GND

MOTOR 120V

-34-

READ ELECTRICAL SAFETY

ON PAGE 33!

Figure 38. Pressure switch wiring.Figure 37. Run capacitor wiring.

Model T32336 (Mfd. Since 05/22)

Page 37

SECTION 9: PARTS

To order parts, contact MEGA by phone at (832) 415-6995 or email at CS@megacompressor.com.

Main

Model T32336 (Mfd. Since 05/22)

-35-

Page 38

REF DE S CRIPT I ON QTY REF DE S CRIPT I ON QTY

Main Parts List

1 FILTER COVER 1 40 PHLP HD SCR M4-.7 X 10 2 2 FILTER ELEMENT 1 41 CAPACITOR COVER 1 3 FILTER BASE 1 42 CRANK LOCK BOLT M8-1.25 4 4 PHLP HD SCR M5-.8 X 25 8 43 LOCK WASHER 5MM 4 5 FLAT WASHE R 5MM 8 44 GASKET 12 7 O-RING 8.5 X 2 4 45 POWER CORD 14G 3W 72" 5-15P 1 8 CONNECTI NG TUBE 2 46 SEALI NG NUT M11 1

9 SHROUD 2 47 PIPE 1 10 HEX BOLT M5-.8 X 50 12 48 SAFETY VALVE 1 11 CYLI NDE R HEAD 2 49 LINE PRESSURE GAUGE 1 12 RUBBER MAT 2 50 MA NI FO LD 2 13 HEX BOLT M6-1 X 16 2 51 FLARE NUT 3/8-24 1 14 LOCK BLOCK 2 52 PRESSURE SWITCH LEFOO LF10-4H 1 15 UPPER VALVE PLATE 2 53 PHLP HD SCR M5-.8 X 12 4 16 VALVE DISC 2 54 REGULATOR 1 17 LOWER VALVE PLATE 2 55 UNIVERSAL COUPLER 1/4" NPT 2 18 BUMPER 2 56 BALL DRAIN VALVE 1 19 HEX BOLT M4-.7 X 8 2 57 PHLP HD SCR M5-.8 X 25 4 20 O-RING 68 X 2.5 2 58 FLAT WA SHER 5 MM 4 21 CYLI NDE R 2 59 RUBBER FOOT 4

22 HEX BOLT M6-1 X 16 2 60 TANK ASSEMBLY 1 23 PRESSURE PLATE 2 61 L OCK NUT M6 -1 4 24 PI STON RI NG 2 62 FENDER WASHE R 6MM 4 25 CONNECTI NG ROD 2 63 PHLP HD SCR M5-.8 X 35 3 26 BALL BEARING 6203ZZ 2 64 VIBRATION DAMPENER 4 28 CRANKCASE 2 65 HA NDLE G RI P 1 29 HEX BOLT M5-.8 X 165 4 66 CHECK VALVE 1 30 FAN COVER 2 67 RELEASE TUBE 1 31 TAP SCREW M3 X 12 4 68 TANK PRESSURE GAUGE 1 32 FAN 2 69 DI SCHARG E TUBE 1 33 LOCK BLOCK 2 70 CONTROL PANEL 1 34 ECCENTRI C B EARI NG 2 71 CABLE CLIP 2 35 STATOR 1 72 ELBOW FI TTING 1 36 ROTOR 1 73 PLUG 2 37 BALL BEARING 6908ZZ 2 74 FLAT WA SHER 5 MM 4 38 EXT RETAI NING RI NG 1 4MM 2 75 PHLP HD SCR M5-.8 X 12 1 39 R CAPACITOR 80M 250V 1-5/8 X 3-1/2 1

-36-

Model T32336 (Mfd. Since 05/22)

Page 39

104

Labels & Cosmetics

REF PART # DES CRIPTION REF PART # DES CRIPTION

102

103

DRAIN TANK

AFTER

EVERY USE!

101

109

T32336

Specifications

Motor: 2 HP, 120V, 1-Ph, 60 Hz, 11A Pump Type: One-Stage Max. Airflow @ 90 PSI: 4.5 SCFM Cut-Out Pressure: 135 PSI Cut-In Pressure: 105 PSI Duty Cycle: 50/50 Tank Size: 4 Gallons Connection: Quick-Coupler, 1/4" NPT Weight: 53 lbs.

Date

S/N

Mfd. for Grizzly in China

4-GALLON OIL-FREE QUIET AIR COMPRESSOR

To reduce the risk of serious injury when using this machine:

1. Read and understand owner’s manual before operating.

2. Always wear ANSI-approved eye protection and any additional personal protective equipment required by attachment tools.

3. Only plug power cord into a grounded outlet. Do not use with grounding adapter.

4. DO NOT use this air compressor for breathable air supply.

5. DO NOT touch compressor parts during or immediately following operation. These parts will be hot.

6. Always disconnect power and drain air tank before moving or servicing. DO NOT pull compressor by power cord or air hose.

7. DO NOT adjust or remove safety valve or modify machine.

8. Only operate in well-ventilated area free of combustible materials. DO NOT smoke while spraying, and do not spray flammable material in confined area near flame/compressor. Locate compressor at least 20 feet from spray area.

108V2

MODEL T32336

110

TANK

PRESSURE

WARNING!

9. Only operate with all guards, covers, and parts in place.

10. Never leave machine running unattended.

11. DO NOT use if cord, plug, or any other electrical equipment becomes damaged—promptly repair!

12. DO NOT stand on compressor or obstruct airflow to ventilation openings.

13. DO NOT exceed pressure rating of tools or attachments.

14. DO NOT aim compressed air at body or people.

15. Inspect compressor, air lines, valves, and tank for damage, leaks, weakness, looseness, or excessive wear. Repair/replace defective items before operating.

16. Drain moisture from tank after each use and promptly replace a damaged tank. DO NOT attempt to weld on, modify, or repair tank.

17. DO NOT expose to rain or use in wet locations.

18. DO NOT operate under influence of drugs or alcohol or when tired.

19. Prevent unauthorized use by children or untrained users.

107

105

REGULATOR

PRESSURE

106

101 PT32336101 DRAIN TANK LABEL 106 PT32336106 REGULATOR PRESSURE LABEL 102 PT32336102 ELECTRICITY LABEL 107 PT32336107 TOUCH-UP P AI NT, GRI ZZL Y BL ACK 103 PT32336103 REGULATOR LABEL 108V2 PT32336108V2 MACHINE ID LABEL V2.05.22 104 PT32336104 GRIZZLY PRO LABEL 109 PT32336109 MODEL NUMBER LABEL 105 PT32336105 TOUCH-UP PAI NT, GRI ZZLY G REEN 110 PT32336110 TANK PRESSURE LABEL

Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes off or becomes unreadable, the owner of this machine MUST replace it in the original location before resuming operations. For replacements, contact (800) 523-4777 or www.grizzly.com.

Model T32336 (Mfd. Since 05/22)

-37-

Page 40
