Grizzly T32305 User guide

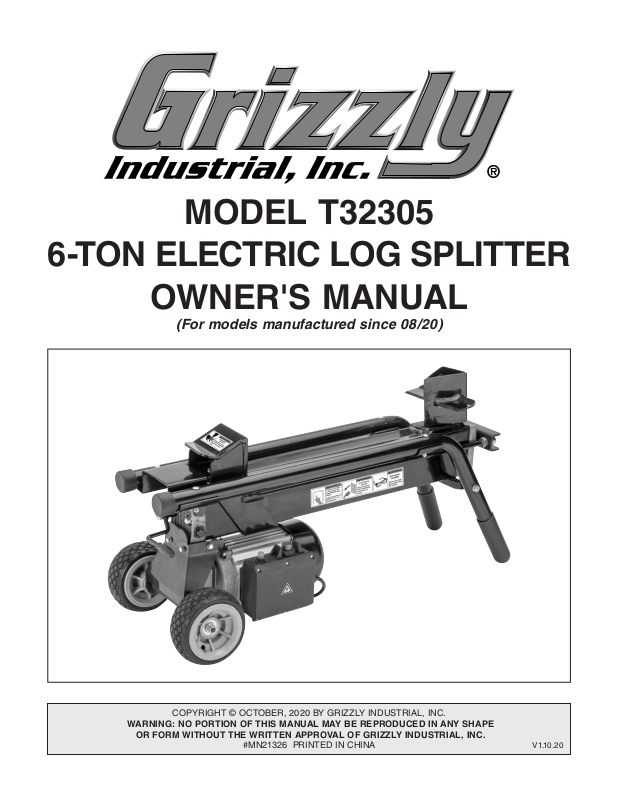

MODEL T32305

6-TON ELECTRIC LOG SPLITTER

OWNER'S MANUAL

(For models manufactured since 08/20)

COPYRIGHT © OCTOBER, 2020 BY GRIZZLY INDUSTRIAL, INC.

WARNING : NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#MN21326 PRINTED IN CHINA

V1.1 0.20

This manual provides critical safety instructions on the proper setup,
operation, maintenance, and service of this machine/tool. Save this
document, refer to it often, and use it to instruct other operators.

Failure to read, understand and follow the instructions in this manual
may result in fire or serious personal injury—including amputation,
electrocution, or death.

The owner of this machine/tool is solely responsible for its safe use.
This responsibility includes but is not limited to proper installation in
a safe environment, personnel training and usage authorization,
proper inspection and maintenance, manual availability and compre­hension, application of safety devices, cutting/sanding/grinding tool
integrity, and the usage of personal protective equipment.

The manufacturer will not be held liable for injury or property damage
from negligence, improper training, machine modifications or misuse.

Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State
of California to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
Work in a well ventilated area, and work with approved safety equip­ment, such as those dust masks that are specially designed to filter
out microscopic particles.

Table of Contents

INTRODUCTION ............................................................................................................................... 2

Contact Info
Manual Accuracy
Identification
Controls & Components
Machine Data Sheet

................................................................................................................................ 2

........................................................................................................................ 2

............................................................................................................................... 3

............................................................................................................. 4

................................................................................................................... 5

SECTION 1: SAFETY

Safety Instructions for Machinery
Additional Safety for Log Splitters

SECTION 2: POWER SUPPLY

SECTION 3: SETUP

Needed for Setup
Unpacking
Jobsite Considerations
Lifting & Moving
Assembly
Test Run

SECTION 4: OPERATIONS

Operation Overview.................................................................................................................. 15

Using Hydraulic Control Lever
Splitting Logs
Removing Stuck Log

SECTION 5: ACCESSORIES

SECTION 6: MAINTENANCE......................................................................................................... 20

Schedule
Cleaning
Lubrication
Checking/Adding/Changing Hydraulic Fluid
Splitting Wedge

................................................................................................................................ 12

.................................................................................................................................. 13

................................................................................................................................... 14

.................................................................................................................................. 20

................................................................................................................................... 20

................................................................................................................................ 20

....................................................................................................................... 7

............................................................................................... 7

.............................................................................................. 9

...................................................................................................... 10

....................................................................................................................... 12

..................................................................................................................... 12

............................................................................................................. 13

........................................................................................................................ 13

........................................................................................................... 15

................................................................................................. 16

............................................................................................................................ 16

................................................................................................................ 17

......................................................................................................... 18

............................................................................. 21

........................................................................................................................ 22

SECTION 7: SERVICE

Troubleshooting

SECTION 8: WIRING

Wiring Safety Instructions

Wiring Diagram......................................................................................................................... 26

Electrical Components

SECTION 9: PARTS

.......................................................................................................................................... 27

Main
Labels & Cosmetics

SECTION 10: HYDRAULIC SCHEMATIC

WARRANTY & RETURNS

................................................................................................................... 23

........................................................................................................................ 23

...................................................................................................................... 25

........................................................................................................ 25

............................................................................................................. 26

....................................................................................................................... 27

................................................................................................................. 29

..................................................................................... 30

............................................................................................................. 31

We stand behind our machines! If you have ques­tions or need help, contact us with the information
below. Before contacting, make sure you get the

serial number

from the

machine ID label. This will help us help you faster.

We want your feedback on this manual. What did
you like about it? Where could it be improved?
Please take a few minutes to give us feedback.

Email: [e-mail]

We are proud to provide a high-quality owner’s
manual with your new machine!

We

instruc­tions, specifications, drawings, and photographs
in this manual. Sometimes we make mistakes, but
our policy of continuous improvement also means
that

you receive is

slightly different than shown in the manual

If you find this to be the case, and the difference
between the manual and machine leaves you
confused or unsure about something

check our

website for an updated version. W

current

manuals and

on our web-

site at

Alternatively, you can call our Technical Support
for help. Before calling, make sure you write down
the

from
the machine ID label (see below). This information
is required for us to provide proper tech support,
and it helps us determine if updated documenta­tion is available for your machine.

INTRODUCTION

Contact Info

and manufacture date

Grizzly Technical Support

1815 W. Battlefield
Springfield, MO 65807
Phone: [phone]

Email: [e-mail]

Grizzly Documentation Manager

P.O. Box 2069

Bellingham, WA 98227-2069

Manual Accuracy

made every effort to be exact with the

sometimes the machine

.

,

e post

manual updates for free

www.grizzly.com.

Manufacture Date and Serial Number

Manufacture Date

Serial Number

-2-

Model T32305 (Mfd. Since 08/20)

Identification

To reduce your risk of
serious injury, read this
entire manual BEFORE

Become familiar with the names and locations of the controls and features shown below to better understand
the instructions in this manual.

Air Bleed

Screw

Hydraulic Ram Log Table

Hydraulic

Control Lever

Hydraulic

Control

Valve

Pressure

Release

Circuit

Breaker

Reset

Button

Hydraulic Fluid Tank

Plug w/Dipstick

Splitting

Wedge

Transport

Handle

Hydraulic

Fluid Tank

Electric Motor

ON Button

Model T32305 (Mfd. Since 08/20)

using machine.

-3-

Controls &

To reduce your risk of
serious injury, read this
entire manual BEFORE

Components

using machine.

Refer to the following figures and descriptions to
become familiar with the basic controls and com­ponents of this machine. Understanding these
items and how they work will help you understand
the rest of the manual and stay safe when operat­ing this machine.

A B

D. Circuit Breaker Reset Button: Circuit

breaker trips if motor draws excessive current
and overheats. Push to reset circuit breaker
after allowing machine to cool down.

E. Hydraulic Control Valve Pressure Release:

Slowly loosen hex bolt to release pressure
inside hydraulic control valve if hydraulic ram
does not return to start position.

F. Hydraulic Control Lever: Push down

to activate hydraulic ram. Hydraulic
control lever and ON button must be pushed
and held simultaneously to activate hydraulic
ram.

H

G

F

C

E D

Figure 1. Controls and components—rear.

A. Hydraulic Ram: Drives logs into splitting

wedge. Delivers 6 tons of ram force.

B. Log Table: Supports logs during log splitting

operations.

C. ON Button: When pushed and held,

starts and runs motor to pressurize
hydraulic fluid. ON button and hydraulic
control lever must be held simultaneously to
activate hydraulic ram.

J

Figure 2. Controls and components—front.

G. Air Bleed Screw: Loosen screw slowly to

release air inside hydraulic cylinder.

Splitting Wedge: Stationary high-carbon

H.

steel wedge that splits logs.

I. Hydraulic Fluid Tank: Holds 3.6 quarts of

ISO 32 or equivalent hydraulic fluid.

Hydraulic Fluid Tank Plug w/Dipstick:

J.

Remove to check fluid level and add/change
hydraulic fluid.

I

-4-

Model T32305 (Mfd. Since 08/20)

Machine Data Sheet

machine data sheet

Customer Service #: [phone] · To Order Call: [phone] · Fax #: [phone]

MODEL T32305

6-TON ELECTRIC LOG SPLITTER

Product Dimensions:

Weight .............................................................................................................................................................................. 95

(side-to-side) x Depth (front-to-back) x Height ........................................................................................37 x 14 x 18 in.

Width
Footprint

Shipping Dimensions:

Type

Content .......................................................................................................................................................................... Machine

Weight ............................................................................................................................................................................ 102

Length
Must

(Length x Width)

................................................................................................................................................................... Cardboard Box

x

Width x Height

Ship Upright

.................................................................................................................................................................Yes

.........................................................................................................................................37 x 14

.....................................................................................................................................40 x 13 x 20

lbs.

in.

lbs.

in.

Electrical:

Requirement

Power
Full-Load
Minimum
Connection
Power
Power
Power
Plug
Included

Switch Type ............................................................................................................................................................ Push Button

Motors:

Main

Horsepower .........................................................................................................................................................................2

Phase

Amps .................................................................................................................................................................................... 15A

Speed .........................................................................................................................................................................3450

Type
Power
Bearings

Hydraulic Information:

Hydraulic
Maximum
Hydraulic
Hydraulic

Current Rating

Circuit Size

Type

Cord Included ............................................................................................................................................................Yes

Cord Length
Cord Gauge

Included

Plug Type ...............................................................................................................................

.................................................................................................................................................................... Single-Phase

......................................................................................................................................... TEFC

Transfer

............................................................................................................................. Shielded &

Cylinder Size (Width x Length)

Pump Pressure
Tank Capacity
Fluid Type

........................................................................................................................ 120V,

...................................................................................................................................................... 15A

........................................................................................................................................................... 20A

..................................................................................................................................................... Cord &

............................................................................................................................................................ 75

....................................................................................................................................................... 14

........................................................................................................................................................................Yes

........................................................................................................................................................Direct

....................................................................................................... 4-3/4 x

............................................................................................................................................ 3000

...................................................................................................................................................3.6

......................................................................................................................................ISO 32

Single-Phase, 60 Hz

...............................5-15

Capacitor-Start Induction

Permanently Lubricated

Plug

in.

AWG

HP

RPM

Drive

28-3/4 in.

PSI

qt.

Equivalent

Main Specifications:

Operation Information

Force (Tonnage Rating) ...........................................................................................................................6 Tons

Splitting
Max.
Cycle
Max.
Automatic
Splitter

Log Dimensions (Length x Diameter)

.....................................................................................................................................................24

Time

Stroke Length ............................................................................................................................................15-3/8 in.

Cylinder Return

Wedge Height

................................................................................................................................................4

Model T32305 (Mfd. Since 08/20)

...................................................................................................... 20 x 10

..........................................................................................................................................Yes

in.

Seconds

in.

-5-

Construction Information

Splitter Wedge ..............................................................................................................................................Carbon Steel

Other Specifications:

Features:

Axle ............................................................................................................................................................................Steel

Bed ............................................................................................................................................................................Steel

Stand .........................................................................................................................................................................Steel

Cradle

Log

Country of Origin ............................................................................................................................................................... China

Warranty ........................................................................................................................................................................... 1

Serial

Number Location

Assembly

Automatic Cylinder Return
20"L x
6-Ton
Two-Handed
Carbon-Steel
Steel
Built-In
Includes

Time

10"D Log Capacity

Splitter Ram Pressure

Frame

Heavy-Duty Wheels for Mobility

4-Way Cross Wedge for Splitting Kindling

.................................................................................................................................................................Steel

................................................................................................................................................ ID

......................................................................................................................................................... 15

Operation Keeps Hands Clear of Action While Operating

Splitter Wedge

Year

Label

Minutes

-6-

Model T32305 (Mfd. Since 08/20)

SECTION 1: SAFETY

For Your Own Safety, Read Instruction

Manual Before Operating This Machine

The purpose of safety symbols is to attract your attention to possible hazardous conditions.
This manual uses a series of symbols and signal words intended to convey the level of impor­tance of the safety messages. The progression of symbols is described below. Remember that
safety messages by themselves do not eliminate danger and are not a substitute for proper
accident prevention measures. Always use common sense and good judgment.

Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury. It may also be used to alert
against unsafe practices.

Alerts the user to useful information about proper operation of the

NOTICE

machine to avoid machine damage.

Safety Instructions for Machinery

OWNER’S MANUAL. Read and understand this

owner’s manual BEFORE using machine.

TRAINED OPERATORS ONLY. Untrained oper­ators have a higher risk of being hurt or killed.
Only allow trained/supervised people to use this
machine. When machine is not being used, dis­connect power, remove switch keys, or lock-out
machine to prevent unauthorized use—especially
around children. Make your workshop kid proof!

DANGEROUS ENVIRONMENTS. Do not use
machinery in areas that are wet, cluttered, or have
poor lighting. Operating machinery in these areas
greatly increases the risk of accidents and injury.

MENTAL ALERTNESS REQUIRED. Full mental
alertness is required for safe operation of machin­ery. Never operate under the influence of drugs or
alcohol, when tired, or when distracted.

ELECTRICAL EQUIPMENT INJURY RISKS.
You can be shocked, burned, or killed by touching
live electrical components or improperly grounded
machinery. To reduce this risk, only allow qualified
service personnel to do electrical installation or
repair work, and always disconnect power before
accessing or exposing electrical equipment.

DISCONNECT POWER FIRST.
nect machine from power supply BEFORE mak­ing adjustments, changing tooling, or servicing
machine. This prevents an injury risk from unin­tended startup or contact with live electrical com­ponents.

EYE PROTECTION. Always wear ANSI-approved
safety glasses or a face shield when operating or
observing machinery to reduce the risk of eye
injury or blindness from flying particles. Everyday
eyeglasses are NOT approved safety glasses.

Always discon-

Model T32305 (Mfd. Since 08/20)

-7-

WEARING PROPER APPAREL. Do not wear
clothing, apparel or jewelry that can become
entangled in moving parts. Always tie back or
cover long hair. Wear non-slip footwear to reduce
risk of slipping and losing control or accidentally
contacting cutting tool or moving parts.

HAZARDOUS DUST. Dust created by machinery
operations may cause cancer, birth defects, or
long-term respiratory damage. Be aware of dust
hazards associated with each workpiece mate­rial. Always wear a NIOSH-approved respirator to
reduce your risk.

HEARING PROTECTION. Always wear hear­ing protection when operating or observing loud
machinery. Extended exposure to this noise
without hearing protection can cause permanent
hearing loss.

REMOVE ADJUSTING TOOLS. Tools left on
machinery can become dangerous projectiles
upon startup. Never leave chuck keys, wrenches,
or any other tools on machine. Always verify
removal before starting!

USE CORRECT TOOL FOR THE JOB. Only use
this tool for its intended purpose—do not force
it or an attachment to do a job for which it was
not designed. Never make unapproved modifica­tions—modifying tool or using it differently than
intended may result in malfunction or mechanical
failure that can lead to personal injury or death!

AWKWARD POSITIONS. Keep proper footing
and balance at all times when operating machine.
Do not overreach! Avoid awkward hand positions
that make workpiece control difficult or increase
the risk of accidental injury.

CHILDREN & BYSTANDERS. Keep children and
bystanders at a safe distance from the work area.
Stop using machine if they become a distraction.

GUARDS & COVERS. Guards and covers reduce
accidental contact with moving parts or flying
debris. Make sure they are properly installed,
undamaged, and working correctly BEFORE
operating machine.

FORCING MACHINERY. Do not force machine.
It will do the job safer and better at the rate for
which it was designed.

NEVER STAND ON MACHINE. Serious injury
may occur if machine is tipped or if the cutting
tool is unintentionally contacted.

STABLE MACHINE. Unexpected movement dur­ing operation greatly increases risk of injury or
loss of control. Before starting, verify machine is
stable and mobile base (if used) is locked.

USE RECOMMENDED ACCESSORIES. Consult
this owner’s manual or the manufacturer for rec­ommended accessories. Using improper acces­sories will increase the risk of serious injury.

UNATTENDED OPERATION. To reduce the
risk of accidental injury, turn machine OFF and
ensure all moving parts completely stop before
walking away. Never leave machine running
while unattended.

MAINTAIN WITH CARE. Follow all maintenance
instructions and lubrication schedules to keep
machine in good working condition. A machine
that is improperly maintained could malfunction,
leading to serious personal injury or death.

DAMAGED PARTS. Regularly inspect machine
for damaged, loose, or mis-adjusted parts—or
any condition that could affect safe operation.
Immediately repair/replace BEFORE operating
machine. For your own safety, DO NOT operate
machine with damaged parts!

MAINTAIN POWER CORDS. When disconnect­ing cord-connected machines from power, grab
and pull the plug—NOT the cord. Pulling the cord
may damage the wires inside. Do not handle
cord/plug with wet hands. Avoid cord damage by
keeping it away from heated surfaces, high traffic
areas, harsh chemicals, and wet/damp locations.

EXPERIENCING DIFFICULTIES. If at any time
you experience difficulties performing the intend­ed operation, stop using the machine! Contact our
Technical Support at [phone].

-8-

Model T32305 (Mfd. Since 08/20)

Additional Safety for Log Splitters

Serious crushing injury can occur from getting hands or fingers caught between logs and
hydraulic ram/splitting wedge during operation. Pieces of logs can be ejected by log splitter
and strike operator or bystanders, resulting in impact injury, eye injury, or blindness. Death can
result from getting accidentally injected with hydraulic fluid. To minimize risk of injury, anyone
operating this machine MUST completely heed hazards and warnings below.

SUPPORTING LOGS. Never use hands or any

part of your body to support a log when activat­ing hydraulic ram. Avoid getting hands or fingers
caught between logs and hydraulic ram and
splitting wedge. Failure to follow these
instructions can result in serious crushing injuries.

CORRECT USAGE. Never split wood across
grain, or use log splitter to split concrete blocks
or rocks, or to bend metal. Never attempt to split
more than one log at a time. Doing so may cause
logs to fly off log splitter with great force, resulting
in serious impact injuries.

WORKPIECE SELECTION. Logs with extensive
knotting may be difficult or impossible to split.
Making repeated attempts to split an unsuitable
log will increase risk of operator or bystanders
getting hit by ejected pieces of logs.

PROTECTING CHILDREN. Keep children away
from log splitter at all times! It is not a toy. Never
allow any child to climb or ride on log splitter.

MACHINE LOCATION. Always use log
splitter on a level and stable surface, and block
wheels to prevent rolling. NEVER leave log
splitter unattended and always store it in a locked
location.

FLUID INJECTION. Fluid pressures
developed from this machine may be high enough
to penetrate your skin and enter your bloodstream.
Hydraulic fluid injected into your bloodstream is a
medical emergency. If not treated immediately,
this blood poisoning could result in an aggressive
infection, amputation, or death. Keep body parts
away from any high-pressure hydraulic leak.

TROUBLESHOOTING. If you suspect a hydraulic
leak, DO NOT use your hands or fingers to locate
it. Instead, keep your skin at least 12" away from
potential leaking areas and move a strip of card­board to where leak may exist and watch to see
if hydraulic oil is sprayed onto cardboard. Some
high-pressure streams can be almost invisible to
the naked eye.

Like all machinery there is potential danger
when operating this machine. Accidents
are frequently caused by lack of familiarity
or failure to pay attention. Use this machine
with respect and caution to decrease the
risk of operator injury. If normal safety
precautions are overlooked or ignored,
serious personal injury may occur.

Model T32305 (Mfd. Since 08/20)

No list of safety guidelines can be
complete. Every shop environment is
different. Always consider safety first,
as it applies to your individual working
conditions. Use this and other machinery
with caution and respect. Failure to do
so could result in serious personal injury,
damage to equipment, or poor work results.

-9-

SECTION 2: POWER SUPPLY

Before installing the machine, consider the avail­ability and proximity of the required power supply
circuit. If an existing circuit does not meet the
requirements for this machine, a new circuit must
be installed. To minimize the risk of electrocution,
fire, or equipment damage, installation work and
electrical wiring must be done by an electrician or
qualified service personnel in accordance with all
applicable codes and standards.

or equipment damage

not properly grounded

The full-load current rating is the amperage a
machine draws at 100% of the rated output power.
On machines with multiple motors, this is the
amperage drawn by the largest motor or sum of all
motors and electrical devices that might operate
at one time during normal operations.

The full-load current is not the maximum amount
of amps that the machine will draw. If the machine
is overloaded, it will draw additional amps beyond
the full-load rating.

If the machine is overloaded for a sufficient length
of time, damage, overheating, or fire may result—
especially if connected to an undersized circuit.
To reduce the risk of these hazards, avoid over­loading the machine during operation and make
sure it is connected to a power supply circuit that
meets the specified circuit requirements.

For your own safety and protection of

Note: Circuit requirements in this manual apply to

a dedicated circuit—where only one machine will
be running on the circuit at a time. If machine will
be connected to a shared circuit where multiple
machines may be running at the same time, con­sult an electrician or qualified service personnel to
ensure circuit is properly sized for safe operation.

A power supply circuit includes all electrical
equipment between the breaker box or fuse panel
in the building and the machine. The power sup­ply circuit used for this machine must be sized to
safely handle the full-load current drawn from the
machine for an extended period of time. (If this
machine is connected to a circuit protected by
fuses, use a time delay fuse marked D.)

This machine is prewired to operate on a power
supply circuit that has a verified ground and meets
the following requirements:

process. DO NOT connect to power until

power supply

Availability

Electrocution, fire, shock,

may occur if machine is

and connected to power
supply.

Serious injury could occur if you connect
machine to power before completing setup

instructed later in this manual.

120V Circuit Requirements

Nominal Voltage .................... 110V, 115 V, 120V

..........................................................60 Hz

Cycle
Phase
Power Supply Circuit

........................................... Single-Phase

......................... 20 Amps

Full-Load Current Rating

Full-Load Current Rating at 120V ..... 15 Amps

-10 -

property, consult an electrician if you are
unsure about wiring practices or electrical
codes in your area.

Model T32305 (Mfd. Since 08/20)

Improper connection of the equipment-grounding
wire can result in a risk of electric shock. The
wire with green insulation (with or without yellow
stripes) is the equipment-grounding wire. If repair
or replacement of the power cord or plug is nec­essary, do not connect the equipment-grounding
wire to a live (current carrying) terminal.

Check with a qualified electrician or service per­sonnel if you do not understand these grounding
requirements, or if you are in doubt about whether
the tool is properly grounded. If you ever notice
that a cord or plug is damaged or worn, discon­nect it from power, and immediately replace it with
a new one.

Grounding & Plug Requirements

it will not fit the outlet, have a qualified
electrician install the proper outlet with a

This machine MUST be grounded. In the event
of certain malfunctions or breakdowns, grounding
reduces the risk of electric shock by providing a
path of least resistance for electric current.

This machine is equipped with a power cord that
has an equipment-grounding wire and a grounding
plug. Only insert plug into a matching receptacle
(outlet) that is properly installed and grounded in
accordance with all local codes and ordinances.
DO NOT modify the provided plug!

GROUNDED

5-15 RECEPTACLE

Grounding Pin

5-15 PLUG

Extension Cords

Extension cords cause voltage drop, which can
damage electrical components and shorten motor
life. Voltage drop increases as the extension cord
size gets longer and the gauge size gets smaller
(higher gauge numbers indicate smaller sizes).

Neutral Hot

Figure 3. Typical 5-15 plug and receptacle.

SHOCK HAZARD!
Two-prong outlets do not meet the grounding
requirements for this machine. Do not modify
or use an adapter on the plug provided—if

verified ground.

Model T32305 (Mfd. Since 08/20)

Any extension cord used with this machine must
be in good condition and contain a ground wire
and matching plug/receptacle. Additionally, it must
meet the following size requirements:

Minimum Gauge Size ...........................12 AWG

Maximum Length (Shorter is Better).......50 ft.

-11-

SECTION 3: SETUP

The following items are needed, but not included,
for the setup/assembly of this machine.

This machine was carefully packaged for safe
transport. When unpacking, separate all enclosed
items from packaging materials and inspect them
for shipping damage.

,

please

IMPORTANT:

you are completely satisfied with the machine and
have resolved any issues between Grizzly or the
shipping agent. You MUST have the original pack-

aging to file a freight claim. It is also extremely
helpful if you need to return your machine later.

Needed for Setup

This machine presents
serious injury hazards
to untrained users. Read
through this entire manu­al to become familiar with
the controls and opera­tions before starting the
machine!

Wear safety glasses and
gloves during entire setup
process!

Description Qty

• Additional Person ....................................... 1

• Safety Glasses (for each person) ........1 Pair

• Latex Gloves (for each person) ...........1 Pair

• Hex Wrench 6mm ....................................... 1

• Funnel (Small) ............................................ 1

• Clean Rag .................................................. 1

• Shop Rags .................................. As Needed

• Hydraulic Fluid, ISO 32 or Equivalent ..... 3.6 Qt

Unpacking

This machine is heavy.
Get help whenever
moving the machine
between jobsites or
lifting it to an elevated
work surface.

If items are damaged

call us immediately at [phone].

Save all packaging materials until

-12-

Model T32305 (Mfd. Since 08/20)

Site Considerations

Children and visitors may

unsupervised around this

To move and lift log splitter:

. DISCONNECT MACHINE FROM POWER!

1

Work Location

Always use the log splitter in a well-lit area and on
a flat, stable work surface. At minimum, your work
area must safely support the combined weight of
the log splitter and the heaviest log you intend to
split.

Work Clearances

Allow enough room on all sides to move logs to
and from the log splitter. Refer to the Machine
Data Sheet on Page 5 for the dimensions of your
log split ter.

be seriously injured if

machine. Lock entrances to
storage location and unplug
power connection to prevent
unsupervised use.

. Close air bleed screw (see Figure 4) by turn-

2

ing it clockwise until it stops. This prevents
hydraulic fluid from leaking out.

. To move log splitter, raise front end of

3

machine by transport handles (see Figure 4)
and pull log splitter to new location.

. To lift log splitter, get an assistant to help you.

4

Use transport handles (see Figure 4) and
support rear end of machine. DO NOT lift log
splitter by hydraulic control lever.

Air Bleed

Screw

Transport

Handles

Lifting & Moving

The wheels on the Model T32305 make it
possible for one person to move the log splitter
short distances; however, we suggest that you get
assistance whenever lifting it.

This machine is heavy.
Get help whenever
moving the machine
between jobsites or
lifting it to an elevated
work surface.

Figure 4. Location of air bleed screw and

transport handles.

Assembly

The Model T32305 is shipped from the
factory fully assembled. Before running the
log splitter, you MUST fill the hydraulic fluid
tank to the required level with hydraulic fluid
(refer to Checking/Adding Hydraulic Fluid on
Page 21). Remove the shipping tag from the
hydraulic control lever after adding hydraulic fluid.

Damage caused by running this machine
without hydraulic fluid will not be covered
under warranty.

Model T32305 (Mfd. Since 08/20)

-13-

Test Run

DO NOT start machine until all preceding
setup instructions have been performed.
Operating an improperly set up machine

ed results that can lead to serious injury,

Serious injury or death can result from

To test run log splitter:

1. Clear all setup tools away from machine.

The Test Run verifies that the machine operates
properly prior to regular operation.

If you find an unusual problem during the test run,
immediately stop the machine, disconnect it from
power, and fix the problem BEFORE operating the
machine again. The Troubleshooting table in the
SERVICE section of this manual can help.

The Test Run consists of verifying the following:

1) The motor powers up and runs correctly, and

2) the hydraulic ram automatically returns to start
position.

using this machine BEFORE understanding
its controls and related safety information.
DO NOT operate, or allow others to operate,
machine until the information is understood.

2. Make sure hydraulic fluid tank is filled to
required fluid level (refer to Checking/
Adding Hydraulic Fluid on Page 21). DO

NOT operate log splitter without first filling
hydraulic fluid tank!

Connect log splitter to power supply.

3.

4. Turn air bleed screw clockwise until it stops,

then turn it counterclockwise two full turns.

. Press and hold ON button, then push and

5

hold hydraulic control lever down. Hydraulic
ram should move forward, stopping about 4
from splitting wedge.

Note: For your safety, both ON button and

hydraulic control lever must be engaged to
start hydraulic ram moving forward.

When hydraulic ram stops moving forward,

release both ON button and hydraulic control
lever. Motor will stop running and hydraulic
ram will return to start position.

"

may result in malfunction or unexpect-

death, or machine/property damage.

HYDRAULIC INJECTION

HAZARD
Hydraulic fluid leaks can be
under sufficient pressure
to penetrate your skin and
enter your bloodstream. If
fluid is injected into any
part of your body, it is a
medical emergency and
may, if not treated immedi­ately, result in severe infec­tion, permanent disability,
or even death.

If log splitter operates as described above,

—

then it is working properly and Test Run is
complete.

If log splitter does not operate as described

—

above, or if it vibrates excessively or
makes unusual noises, stop using log
splitter immediately, disconnect it from
power supply and refer to Troubleshooting
on Page 23. If you still cannot resolve the
problem, call Tech Support for help.

-14-

Model T32305 (Mfd. Since 08/20)

SECTION 4: OPERATIONS

The purpose of this overview is to provide the nov­ice machine operator with a basic understanding
of how the machine is used during operation, so
the

discussed later

in this manual

Due to the generic nature of this overview, it is
not intended to be an instructional guide. To learn
more about specific operations, read this entire
manual,

training from experienced
machine operators
outside of this manual by reading "how-to" books,
trade magazines, or websites.

To reduce your risk of
serious injury, read this
entire manual BEFORE

Operation Overview

machine controls/components

are easier to understand.

seek additional

, and do additional research

To complete a typical operation, the operator
does the following:

DISCONNECTS MACHINE FROM POWER!

1.

Checks that hydraulic tank is filled with

2.

proper amount of fluid.

Places log splitter on flat, stable work surface

3.

and makes sure work area is well lit and clear
of tripping hazards.

Puts on safety glasses, leather work gloves,

4.

and leather work boots.

Connects machine to power.

5.

Places log lengthwise on table, against

6.

hydraulic ram.

using machine.

Bodily injury could result from using this
machine. Always wear safety glasses,
heavy-duty leather work gloves, and leather
work boots when operating this machine.

Model T32305 (Mfd. Since 08/20)

Loose hair and cloth­ing could get caught in
machinery and cause
serious personal injury.
Keep loose clothing and
long hair away from mov­ing machinery.

Presses and holds ON button, then pushes

7.

and holds hydraulic control lever down to
drive log into splitting wedge.

When ram stops moving forward, releases

8.

ON button and hydraulic control lever.

Waits for hydraulic ram to automatically

9.

return to start position.

Repeats Steps 6–9 as needed for remaining

10.

logs, then disconnects machine from power.

If you are not experienced with this type
of machine, WE STRONGLY RECOMMEND
that you seek additional training outside of
this manual. Read books/magazines or get
formal training before beginning any proj­ects. Regardless of the content in this sec­tion, Grizzly Industrial will not be held liable
for accidents caused by lack of training.

-15-

Using Hydraulic

Control Lever

When you press and hold the ON button, the
electric motor pressurizes the hydraulic fluid with­in the hydraulic tank. When you push and hold the
hydraulic control lever down, the pressurized fluid
moves the hydraulic ram forward, driving the log
into the splitting wedge. To operate the log splitter,
you must activate both controls simultaneously
(see Figure 5).

Hydraulic

Control Lever

ON Button

DO NOT attempt to split a log against the
grain by placing it sideways on the table.
Doing so may cause logs to fly off splitter
with great force, resulting in serious injury
or death.

Always use the log splitter in a well-lit area and on
a flat, stable work surface. Also, make sure work
area is clear of logs that may become tripping
hazards while using the machine.

Locate the log splitter as close as possible to the
logs you will split. Refer to Extension Cords on
Page 11 for the minimum gauge and maximum
length of extension cord you can use with this log
splitter.

To split a log:

. Turn air bleed screw clockwise until it stops,

1

then turn it counterclockwise two full turns.

Figure 5. Location of log splitter controls.

Splitting Logs

This log splitter is ONLY designed
to split wood with the direction of the
grain. DO NOT attempt to split or crush
wood against the grain, or crush brick,
concrete blocks, or rock. If you do, you will
damage the machine, void the warranty, and
possibly severely injure or kill bystanders
or yourself.

Put on safety glasses, leather work gloves,

2.

and leather work boots.

. Place log lengthwise on table, against face of

3

hydraulic ram (see Figure 6).

Log Table Hydraulic Ram

Figure 6. Log correctly placed on log table.

-16 -

Model T32305 (Mfd. Since 08/20)

4. Press and hold ON button, then push and hold
hydraulic control lever down. Hydraulic ram
will drive log into splitting wedge. When
hydraulic ram stops, immediately release
both ON button and hydraulic control lever.

. Clear pieces of split wood away from log

5

splitter.

Items Needed Qty

Wooden Wedge ............................................. 1–2

To safely remove a stuck log:

. With hydraulic ram in start position, set a

1

wooden wedge flat side down on log table
with narrow end pointing under log, as shown
in Figure 7.

NOTICE

DO NOT continue to hold controls in ON
position after hydraulic ram stops. Doing
so will damage the hydraulic system.

Removing Stuck Log

Occasionally, logs will not split and become
stuck on the splitting wedge. When this happens,
DO NOT try to remove it by hand or by kicking it.
This can result in personal injury and damage the
log splitter.

Never use your hands to remove a stuck
log, as hydraulic ram could crush hands
and fingers during accidental startup.
Always use a wooden wedge to remove
a stuck log. If log is still stuck, turn log
splitter OFF and use a hammer and crow
bar to remove stuck log.

Wooden

Wedge

Figure 7. Wedge positioned to clear a jam.

Note: A piece of split wood set crossways on

log table makes a good wedge, but it must be
thin enough to slide under end of jammed log.

2. Start splitter to push wedge under jammed
log until log lifts off splitting wedge.

Note: If first wedge does not free log, repeat

process with a second wedge until log is free.

Stuck Log

Model T32305 (Mfd. Since 08/20)

-17-

SECTION 5: ACCESSORIES

Installing unapproved accessories may

order online at www.grizzly.com or call 1-800-523-4777

cause machine to malfunction, resulting in
serious personal injury or machine damage.
To reduce this risk, only install accessories
recommended for this machine by Grizzly.

T21273 —Golden Cowhide Gloves
T21272—Golden Pigskin Gloves
T20692—Deluxe Soft Goatskin Gloves

Grizzly offers a wide selection of synthetic and
leather gloves for all-day comfort in a variety of
working conditions.

T21273

NOTICE

Refer to our website or latest catalog for
additional recommended accessories.

Basic Eye Protection

T20501—Face Shield Crown Protector 4"
T20502—Face Shield Crown Protector 7"
T20503—Face Shield Window
T20451—“Kirova” Clear Safety Glasses
T20452—“Kirova” Anti-Reflective S. Glasses
T20456—DAKURA Safety Glasses, Black/Clear

T20502

T20503

T20452

T20451

T21272

T20692

Figure 9. Assortment of gloves.

T26685—ISO 32 Moly-D Machine Oil, 1 Gal.
T23963—ISO 32 Moly-D Machine Oil, 5 Gal.

Moly-D oils are some of the best we've found for
maintaining the critical components of machinery
because they tend to resist run-off and maintain
their lubricity under a variety of conditions. Buy in
bulk and save with 5-gallon quantities.

T20456

Figure 8. Assortment of basic eye protection.

T26685 T23963

Figure 10. ISO 32 machine oil.

-18-

Model T32305 (Mfd. Since 08/20)

T10278—Chainsaw Filing Guide

order online at www.grizzly.com or call 1-800-523-4777

Get the most out of your chainsaw with a properly
filed saw chain. This Chainsaw Filing Guide is
easy to use—requires no chain removal from the
saw. No guesswork involved—angle settings,
depths and file heights are dial set. Designed
to handle all saw chains. Accepts all chainsaw
file sizes (not included). Great for fast, on-site
sharpening!

H7617—High Pressure Oil Can, 5 Oz. w/Flex
Nozzle

Whether you're lubricating cutting tools or
maintaining machinery in top operating condition,
you'll appreciate this high pressure oil can. Holds
5 ounces of oil and has a trigger activated, high
pressure pump.

Figure 13. H7617 High Pressure Oil Can.

Figure 11. T10278 Chainsaw Filing Guide.

H0771—Folding Side Garden Wagon

A rugged, heavy-duty garden wagon with sides
that fold down when the locking pins are removed.
Pneumatic tires help absorb bumps. Includes
hitch attachment for a garden tractor. Steering
handle is padded for comfort. Platform size is 48"
x 24". Maximum capacity 700 lbs.

T22389—Stanley

TM

10" Bastard File

This 10" bastard file features double cut flat
bastard pattern for moderate removal of material
on flat surfaces and high carbon steel for sharp­ness retention and improved cutting performance.
Ideal for woodworking and sharpening tools.

Figure 14. T22389 10" Bastard File.

Figure 12. H0771 Folding Side Garden Wagon.

Model T32305 (Mfd. Since 08/20)

-19 -

SECTION 6: MAINTENANCE

To reduce risk of shock or
accidental startup, always
disconnect machine from
power before adjustments,

Lubrication

Clean off the hydraulic ram track (see

Figure 15) with a clean rag and apply light

maintenance, or service.

machine oil for smooth operation. Move the
hydraulic ram through its full range of motion
several times to evenly distribute oil.

Schedule

For optimum performance from this machine, this
maintenance schedule must be strictly followed.

Ongoing

To minimize your risk of injury and maintain proper
machine operation, shut down the machine imme­diately if you ever observe any of the items below,
and fix the problem before continuing operations:

• Low hydraulic fluid level.

• Dry hydraulic ram.

• Leaking hydraulic fluid.
Loose hardware.

•
Any other unsafe or abnormal condition.

•

Every 150 Hours of Use

• Change hydraulic fluid.

Item(s) Needed Qty

Clean Rag ......................................................... 1

Oil: T26685 or ISO 32 equivalent

Hydraulic Ram Track

Figure 15. Location of hydraulic ram track.

...... As Needed

Cleaning

For optimum performance from your log splitter,
clean it with a brush after every use and wipe it
down occasionally with a rag.

-20-

Model T32305 (Mfd. Since 08/20)

Checking/Adding/

3. Use transport handles to position log splitter

vertically.

Changing Hydraulic

Fluid

The hydraulic fluid level should be checked before
each use of the Model T32305.

Replace the fluid after every 150 hours of
operation, if it smells burnt, or if it is contaminated
by water. Water contamination can build up over
time and can be identified as a tan discoloration
in the fluid.

Hot Fluid! Do not remove hydraulic fluid tank
plug just after using log splitter. You could be
severely burned by hot hydraulic fluid
escaping from tank. Allow log splitter to
cool sufficiently before removing plug.

Remove hydraulic fluid tank plug (see

4.
Figure 16) and wipe dipstick with clean rag.

Hydraulic

Fluid Tank

Plug

Figure 16. Log splitter positioned for fluid check.

5. Re-install plug, remove it, then check oil level

on dipstick.

Wear safety goggles when
servicing hydraulic system
to reduce risk of getting
hydraulic fluid in your eyes.

Item(s) Needed Qty

Hex Wrench 6mm .............................................. 1

Safety Glasses
Latex or Nitrile Gloves
Clean Rag
Shop Rags
Funnel (Small)
Drain Pan
Hydraulic Fluid: ISO 32 or equivalent

Check Add Hydraulic Fluid

........................................... 1 Pair

................................1 Pair

......................................................... 1

......................................... As Needed

................................................... 1

........................................................... 1

... up to 3.6 Qt

Checking/Adding Hydraulic Fluid

DISCONNECT MACHINE FROM POWER!

1.

2. Put on safety glasses and latex or nitrile

gloves.

— If fluid level is between high and low marks

on dipstick (see Figure 17), proceed to
Step 6.

— If fluid level is below low mark on dipstick

(see Figure 17), add required amount of
hydraulic fluid.

— If fluid level is above high mark on dipstick

(see Figure 17), drain required amount of
hydraulic fluid.

Proper Hydraulic

Oil Level

Low Mark High Mark

Figure 17. Proper hydraulic fluid level on

dipstick.

Model T32305 (Mfd. Since 08/20)

6. Re-install plug.

-21-

Change Hydraulic Fluid

Changing Hydraulic Fluid

1. DISCONNECT MACHINE FROM POWER!

2. Put on safety glasses and latex gloves.

Place drain pan under hydraulic fluid tank

3.

plug.

Turn air bleed screw counterclockwise two

4.

full turns (see Figure 18).

Remove hydraulic fluid tank plug, as shown

5.

in Figure 18, and raise motor end of splitter
to ensure hydraulic tank drains completely.

Air Bleed

Screw

Splitting Wedge

To reduce risk of serious
cuts, always wear leather
gloves when sharpening
splitting wedge.

During the life of your log splitter, you will need
to sharpen the splitting wedge periodically. When
sharpening the wedge, keep in mind that if you
try to sharpen it too much (like a knife blade),
you will greatly reduce the life of the wedge by
always sharpening it. However, if you allow the
point to become very dull or bullnosed, your log
splitter will have to overwork to split logs, which
will decrease the lifespan of the splitter. The
optimum point is somewhere between. Refer to
Figure 19 for a general idea.

Hydraulic Fluid

Tank Plug

Figure 18. Location of components to drain

hydraulic fluid tank.

6.

When tank is empty, turn air bleed screw

clockwise until it stops.

Use transport handle to position log splitter

7.

vertically (see Figure 16 on Page 21).

. Fill tank with 3.6 quarts of hydraulic fluid and

8

re-install plug.

Check hydraulic fluid level.

9.

IMPORTANT: Be sure to dispose of old

hydraulic fluid according to federal, state, and
fluid manufacturer's requirements.

Wedge Too Sharp

Wedge Too Dull

-22-

Wedge Just Right

Figure 19. Wedge points.

Model T32305 (Mfd. Since 08/20)

Review the troubleshooting procedures in this section if a problem develops with your machine. If you need

the

serial number and manufacture date of your machine before calling.

SECTION 7: SERVICE

replacement parts or additional help with a procedure, call our Technical Support. Note: Please gather

troubleshooting

Troubleshooting

Motor & Electrical

Symptom Possible Cause Possible Solution

Machine does not
start, or power
supply fuse/breaker
trips immediately
after startup.

Machine stalls or is
underpowered.

Machine has
vibration or noisy
operation.

1. Machine circuit breaker tripped.

2. Power supply circuit breaker tripped/fuse
blown.

3. Wiring broken, disconnected, or corroded.

4. ON button or circuit breaker button at fault.

5. Start capacitor at fault.

6. Motor or motor bearings at fault.

1. Log exceeds splitter capacity.

2. Log improperly positioned on bed, or
attempting to split log across grain.

3. Splitting wedge dull.

4. Log unsuitable for splitting.

5. Motor overheated, tripping machine circuit
breaker.

6. Extension cord too long.

7. Motor or motor bearings at fault.

1. Motor or component loose.

2. Motor fan rubbing on fan cover.

1. Clean motor/let cool, and reduce workload. Reset
breaker.

2. Ensure circuit is free of shorts. Reset circuit breaker
or replace fuse.

3. Fix broken wires or disconnected/corroded
connections.

4. Replace ON or circuit breaker button.

5. Test/replace if at fault.

6. Replace motor.

1. Adhere to maximum log dimensions (Page 5).

2. Position log lengthwise on bed; Split logs with
grain—not across it. (Page 5).

3. Sharpen splitting wedge (Page 22).

4. Avoid splitting logs with twisted grain, numerous
knots, or high moisture content.

5. Clean motor/let cool, and reduce workload. Reset
breaker.

6. Move machine closer to power supply; use shorter
extension cord.

7. Replace motor.

1. Replace missing bolts/nuts or tighten if loose. Use
thread-locking fluid if necessary.

2. Fix/replace fan cover; replace loose/damaged fan.

Model T32305 (Mfd. Since 08/20)

-23-

Operation

Symptom Possible Cause Possible Solution

Hydraulic ram
moves forward and
backward slowly, or
does not move in
either direction.

Hydraulic ram
moves forward
slowly or stalls, but
retracts correctly.

Hydraulic ram
retracts slowly or
not at all, but moves
forward correctly.

Splitter will not split
wood or splits it too
slowly.

Hydraulic fluid
leaking from
hydraulic cylinder
or other points on
machine.

Hydraulic fluid
burnt or has tan
discoloration.

1. Hydraulic fluid tank empty or low.

2. Air in hydraulic system.

3. Hydraulic control lever at fault.

4. Hydraulic control valve at fault.

5. Damaged hydraulic ram piston seals.

1. Log exceeds splitter capacity.

2. Splitting wedge dull; log unsuitable for
splitting.

3. Hydraulic control lever at fault.

4. Hydraulic fluid too low or contaminated.

5. Hydraulic control valve at fault.

6. Damaged hydraulic ram piston seals.

1. Hydraulic control lever at fault.

2. Hydraulic control valve at fault.

3. Damaged hydraulic ram piston seals.

1. Log improperly positioned on bed.

2. Splitting wood against grain.

3. Air in hydraulic system.

4. Splitting wedge dull.

1. Air bleed screw opened too much.

2. Air in hydraulic system.

3. Oil plug not fully tightened.

4. Hydraulic control valve pressure release
hex bolt not fully tightened.

5. Hydraulic control valve seals worn/
damaged.

1. Hydraulic fluid old or contaminated with
water.

1. Fill tank to required level (Page 21).

2. Bleed air out of hydraulic system (Page 4).

3. Replace/repair bent/broken lever.

4. Release pressure in hydraulic control valve
(Page 4); replace hydraulic control valve and flush/
service hydraulic system (Page 22).

5. Replace ram assembly and flush/service hydraulic
system (Page 22).

1. Adhere to maximum log dimensions (Page 5).

2. Sharpen splitting wedge (Page 22); avoid splitting
logs with twisted grain, numerous knots, or high
moisture content.

3. Replace/repair bent/broken lever.

4. Fill tank to required level (Page 21); change
hydraulic fluid (Page 22).

5. Release hydraulic pressure in control valve
(Page 4); replace hydraulic control valve and flush/
service hydraulic system (Page 22).

6. Replace ram assembly and flush/service hydraulic
system (Page 22).

1. Replace/repair bent/broken lever.

2. Release pressure in hydraulic control valve
(Page 4); replace hydraulic control valve and flush/
service hydraulic system (Page 22).

3. Replace ram assembly and flush/service hydraulic
system (Page 22).

1. Position log lengthwise on bed; adhere to maximum
log dimensions (Page 5).

2. Split wood with grain instead of against grain.

3. Bleed air out of hydraulic system (Page 4).

4. Sharpen splitting wedge (Page 22).

1. Fully tighten air bleed screw, then open it two full
turns.

2. Bleed air out of hydraulic system (Page 4).

3. Fully tighten oil plug (Page 21).

4. Fully tighten hydraulic control valve pressure
release hex bolt (Page 4).

5. Replace hydraulic control valve and flush/service
hydraulic system (Page 22).

1. Change hydraulic fluid (Page 22).

-24-

Model T32305 (Mfd. Since 08/20)

These pages are current at the time of printing. However, in the spirit of improvement, we may make chang­es to the electrical systems of future machines. Compare the manufacture date of your machine to the one

number and manufacture date of your

machine before calling. This information can be found on the main machine label.

SECTION 8: WIRING

wiring safety page

stated in this manual, and study this section carefully.

If there are differences between your machine and what is shown in this section, call Technical Support at
[phone] for assistance BEFORE making any changes to the wiring on your machine. An updated
wiring diagram may be available. Note: Please gather the serial

Wiring Safety Instructions

SHOCK HAZARD. Working on wiring that is con-

nected to a power source is extremely dangerous.
Touching electrified parts will result in personal
injury including but not limited to severe burns,
electrocution, or death. Disconnect the power
from the machine before servicing electrical com­ponents!

MODIFICATIONS. Modifying the wiring beyond
what is shown in the diagram may lead to unpre­dictable results, including serious injury or fire.
This includes the installation of unapproved after­market parts.

WIRE CONNECTIONS. All connections must
be tight to prevent wires from loosening during
machine operation. Double-check all wires dis­connected or connected during any wiring task to
ensure tight connections.

CIRCUIT REQUIREMENTS. You MUST follow
the requirements at the beginning of this manual
when connecting your machine to a power source.

WIRE/COMPONENT DAMAGE. Damaged wires
or components increase the risk of serious per­sonal injury, fire, or machine damage. If you notice
that any wires or components are damaged while
performing a wiring task, replace those wires or
components.

MOTOR WIRING. The motor wiring shown in
these diagrams is current at the time of printing
but may not match your machine. If you find this
to be the case, use the wiring diagram inside the
motor junction box.

CAPACITORS/INVERTERS. Some capacitors
and power inverters store an electrical charge for
up to 10 minutes after being disconnected from
the power source. To reduce the risk of being
shocked, wait at least this long before working on
capacitors.

EXPERIENCING DIFFICULTIES. If you are expe­riencing difficulties understanding the information
included in this section, contact our Technical
Support at [phone].

The photos and diagrams
included in this section are
best viewed in color. You
can view these pages in
color at www.grizzly.com.

Model T32305 (Mfd. Since 08/20)

-25-

Wiring Diagram

120 VAC

5-15 Plug

Neutral

Hot

Ground

CIRCUIT

BREAKER

Wokema

W66

20A 125V

Line Load

GND

Start Capacitor
70uF 250VAC

ON/OFF
SWITCH

Kedu

HY57B

18A 125V

Electrical Components

-26-

Figure 20. Electrical box.

READ ELECTRICAL SAFETY

ON PAGE 25!

Model T32305 (Mfd. Since 08/20)

SECTION 9: PARTS

We do our best to stock replacement parts when possible, but we cannot guarantee that all parts shown
are available for purchase. Call [phone] or visit www.grizzly.com/parts to check for availability.

102-2

Main

34

39

35

32

40

41
42

33

11

15

24

71

93

25

10

75

95

94

23

74

72

8
7

9

6
5

4

101

89

17

18

27

90

69

20

9

26

72

18

91

11

17
16

14

98

70

9

92

73

12

13

12

87

88

62

84

83

81

80

61

43
44

36

60

37

37

59

58

45

27

27

2

57

26

82

37

56

46

85

55

38

27

28

47

23

54

48

62

49

24

86

63

23

53

52

25

65

24

25

51

50

31

64

25

66

24

30

25

24

67

25

29

68

23

24

22

21

19

23

28

76

97

71

2
3

96

1

100

77

74

25

78

24
64

1-1

1-4 1-5 1-6 1-7

102

102-3

76

24

25

78

1-2

99

102-1

18

23

79

17

1-3

REF P ART # DES CRIP TION REF P ART # DES CRIP TION

1 PT32305001 MOTOR 2HP 120V 1-PH 10 PT32305010 GEAR HOUSING PLATE
1-1 PT32305001-1 MOTOR FAN COVER 11 PT32305011 FLAT WASHER 10MM
1-2 PT32305001-2 MOTOR FAN 12 PT32305012 GEAR
1-3 PT32305001-3 S CAPACITOR 70M 250VAC 13 PT32305013 GEAR SHAFT
1-4 PT32305001-4 CONTACT PLATE 14 PT32305014 STEEL BALL 2.5MM
1-5 PT32305001-5 CENTRIFUGAL S WI TCH 15 PT32305015 ROLL PIN 2.5 X 4
1-6 PT32305001-6 BALL BEARING 6203ZZ (FRONT) 16 PT32305016 HEX BOLT M8-1.25 X 30
1-7 PT32305001-7 BALL BEARING 6203ZZ (REAR) 17 PT32305017 LOCK WASHER 8MM
2 PT32305002 HEX NUT M6- 1 18 PT32305018 FLAT WAS HER 8MM
3 PT32305003 RUBBER FO OT (MOTOR) 19 PT32305019 HEX BOLT M8-1.25 X 55
4 PT32305004 RUBBER FO OT (RI GHT) 20 PT32305020 SHAFT
5 PT32305005 PHLP HD SCR M6-1 X 12 21 PT32305021 COVER
6 PT32305006 RUBBER FO OT (LEFT) 22 PT32305022 O-RING 10 X 2.65G
7 PT32305007 HEX NUT M8- 1.25 23 PT32305023 HEX BOLT M6-1 X 12
8 PT32305008 STOP BOLT M8-1.25 X 16 24 PT32305024 LOCK WASHER 6MM
9 PT32305009 BUSHI NG 25 PT32305025 FLAT WAS HER 6MM

Model T32305 (Mfd. Since 08/20)

BUY PARTS ONLINE AT GRIZZLY.CO M!

Scan QR code to visit our Parts Store.

-27-

Parts List Main (Cont.)

REF P ART # DES CRIP TION RE F PART # DE SCRIPTIO N

26 PT32305026 LOCK NUT M10-1.5 66 PT32305066 HYDRAULIC SLIDE PLATE (UPPER)
27 PT32305027 FLAT WASHER 10MM 67 PT32305067 PUSH ROD
28 PT32305028 WHEE L 68 PT32305068 FACEPLATE
29 PT32305029 AXLE 69 PT32305069 FLAT HD SCR M4 -. 7 X 6
30 PT32305030 ROLL PIN 3.2 X 20 70 PT32305070 HYDRAULIC SLIDE PLATE (LOWER)
31 PT32305031 AXLE MOUNTING BRACKET 71 PT32305071 HEX NUT M14-2
32 PT32305032 HEX HEAD BARREL NUT M10-1.5 X 32 72 PT32305072 RUBBER CAP
33 PT32305033 KNOB M8-1.25, D20, TAPERED 73 PT32305073 WORK TABLE GUARD
34 PT32305034 HYDRAULIC CONTROL LEVER 74 PT32305074 BACK BRACKET
35 PT32305035 ACO RN NUT M10 -1. 5 75 PT32305075 BEAM
36 PT32305036 HEX NUT M10 -1. 5 76 PT32305076 CARRIAGE BOLT M6-1 X 50
37 PT32305037 LOCK WASHER 10MM 77 PT32305077 WORK TABLE GUARD
38 PT32305038 O-RING 9.5 X 2.65 78 PT32305078 RUBBER HA NDLE
39 PT32305039 PLASTIC COVER 79 PT32305079 HEX BOLT M8-1.25 X 50
40 PT32305040 SET SCREW M6-1 X 20 80 PT32305080 HYDRAULI C CY LINDER
41 PT32305041 HEX NUT M6- 1 81 PT32305081 PI STON RING 58 X 52.5 X 4
42 PT32305042 BUS HI NG 82 PT32305082 O-RING 43.7 x 3.55
43 PT32305043 O-RING 4.87 X 1.8 83 PT32305083 PISTON
44 PT32305044 SHA FT 84 PT32305084 STUD-UDE M10-1.5 X 793,16, 28
45 PT32305045 COMPRESSION SPRING 85 PT32305085 STUD-UDE M10-1.5 X 793, 16, 28
46 PT32305046 CONE VALVE 86 PT32305086 COMPRESSION SPRING
47 PT32305047 OIL VALVE 87 PT32305087 FRONT COVE R
48 PT32305048 COUPLING NUT M14-2 X 14 88 PT32305088 O-RING 3.6 X 1.8
49 PT32305049 O-RING 11.8 X 2.2 89 PT32305089 WING BOLT M4-.7 X 12
50 PT32305050 FLANGE BOLT M14-2 X 36 90 PT32305090 O-RING 30 X 2.65
51 PT32305051 HEX BOLT M14-2 X 40 91 PT32305091 FLAT WASHER 30 X 38 X 5
52 PT32305052 FLAT WASHER 16MM COPPER 92 PT32305092 DIP STICK 321MM
53 PT32305053 O-RING 14 X 1.8 93 PT32305093 O-RING 11.8 X 2.65
54 PT32305054 COMPRESSION SPRING 94 PT32305094 KNOB BOLT M14-2 X 20, 6-LOBE, D42
55 PT32305055 FRONT CO VE R 95 PT32305095 PISTON ROD
56 PT32305056 VALVE SLEEVE 96 PT32305096 LOCK NUT M1 4- 2
57 PT32305057 O-RING 11.2 X 1.8 97 PT32305097 POWER CORD 14G 3W 72" 5-15P
58 PT32305058 VALVE CORE ROD 98 PT32305098 STRAIN RELIEF TYPE-1 M20
59 PT32305059 O-RING 5.6 X 1.8 99 PT32305099 ON BUTTON KEDU HY57B 18A 125V
60 PT32305060 COMPRESSION SPRING 100 PT32305100 CIRCUIT BREAKER WOKEMA W66 20A 125V
61 PT32305061 E-CLIP 8MM 101 PT32305101 4-WAY CROSS WEDGE
62 PT32305062 GASKET 102 PT32305102 ELECTRICAL BOX
63 PT32305063 O-RING 48.7 X 3.55 102-1 PT32305102-1 ELECTRI CAL BOX COVER
64 PT32305064 LO CK NUT M6 -1 102-2 PT32305102-2 TAP SCREW M4 X 14
65 PT32305065 FRONT B RACK ET 102-3 PT32305102-3 GASKET

-28-

BUY PARTS ONLINE AT GRIZZLY.CO M!

Scan QR code to visit our Parts Store.

Model T32305 (Mfd. Since 08/20)

Labels & Cosmetics

REF PART # DESCRI PTION REF PART # DES CRIP TION

201 PT32305201 FLUID CAPACITY LABEL 205 PT32305205 ELECTRICITY LABEL
202 PT32305202 MACHINE ID LABEL 206 PT32305206 CHECK HYDRAULI C FL UI D LABEL
203 PT32305203 COMBO WARNING LABEL 207 PT32305207 AMPUTATION HAZARD LABEL
204 PT32305204 TOUCH-UP P AINT, GRI ZZLY BL ACK

Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes
off or becomes unreadable, the owner of this machine MUST replace it in the original location
before resuming operations. For replacements, contact [phone] or www.grizzly.com.

Model T32305 (Mfd. Since 08/20)

BUY PARTS ONLINE AT GRIZZLY.CO M!

Scan QR code to visit our Parts Store.

-29-

SECTION 10: HYDRAULIC SCHEMATIC

Before servicing hydraulic system always
disconnect motor from power, and depres­surize hydraulic system by moving
control lever back and fourth a few times.
Ignoring this warning can lead to hydrau­lic fluid penetrating your skin and enter­ing your bloodstream. This blood poison­ing could result in an agressive infection,
amputation, or death.

This diagram is only provided as a refer­ence to help you identify hydraulic sys­tem components. Seek assistance from a
professional hydraulic technician whenever
servicing or repairing the hydraulic system.

Cylinder

Ram

-30-

Tank

Tank

Pressure

Relief Valve

Pump

Tank

Control

Valve

Motor

Model T32305 (Mfd. Since 08/20)

WARRANTY & RETURNS

Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from
the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse,
negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty
and any and all warranties that may be implied by law, including any merchantability or fitness, for any par­ticular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent
that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants.
In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and
any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.

We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special,
or consequential damages arising from the use of our products.

The manufacturers reserve the right to change specifications at any time because they constantly strive to
achieve better quality equipment. We make every effort to ensure that our products meet high quality and
durability standards and we hope you never need to use this warranty.

In the event you need to use this warranty, contact us by mail or phone and give us all the details. We will
then issue you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of
the carton. We will not accept any item back without this number. Proof of purchase must accompany the
merchandise.

Please feel free to write or call us if you have any questions about the machine or the manual.

Thank you again for your business and continued support. We hope to serve you again soon.

To

warranty-card

registration page

take advantage of this warranty, you must register it at https://www.grizzly.com/secureforms/

, or you can scan the QR code below to be automatically directed to our warranty

. Enter all applicable information for the product.

WARRANTY
