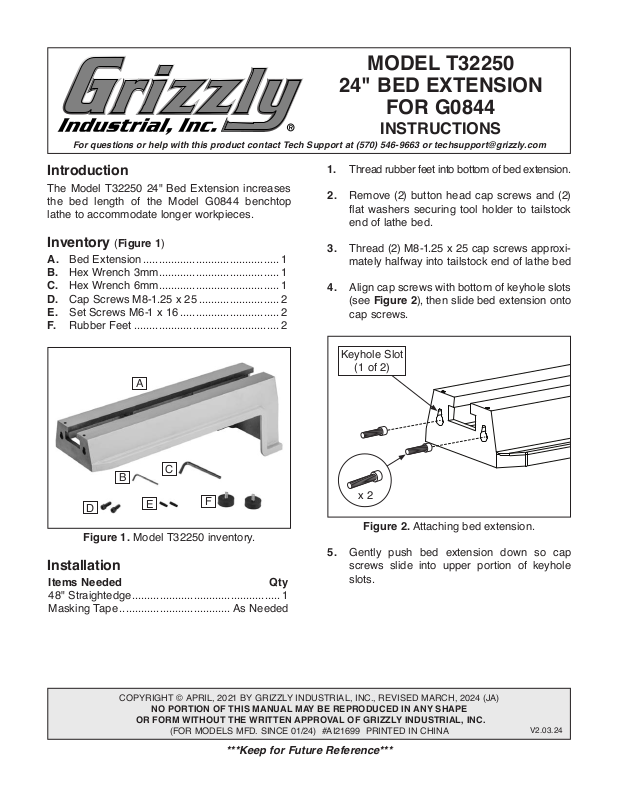

Page 1
MODEL T32250
24" BED EXTENSION
FOR G0844
INSTRUCTIONS
For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction
The Model T32250 24" Bed Extension increases
the bed length of the Model G0844 benchtop
lathe to accommodate longer workpieces.
Inventory (Figure 1)
A. Bed Extension ............................................ 1
B. Hex Wrench 3mm ....................................... 1
C. Hex Wrench 6mm ....................................... 1
D. Cap Screws M8-1.25 x 25 .......................... 2
E. Set Screws M6-1 x 16 ................................ 2
F. Rubber Feet ............................................... 2
A
1. Thread rubber feet into bottom of bed extension.
2. Remove (2) button head cap screws and (2)
flat washers securing tool holder to tailstock
end of lathe bed.
Thread (2) M8-1.25 x 25 cap screws approxi-
3.
mately halfway into tailstock end of lathe bed
Align cap screws with bottom of keyhole slots
4.
(see Figure 2), then slide bed extension onto
cap screws.
Keyhole Slot
(1 of 2)
B
D
Figure 1. Model T32250 inventory.
C
E
F
Installation
Items Needed Qty
48" Straightedge ................................................ 1
Masking Tape
.................................... As Needed
COPYRIGHT © APRIL, 2021 BY GRIZZLY INDUSTRIAL, INC., REVISED MARCH, 2024 (JA)
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
(FOR MODELS MFD. SINCE 01/24) #AI21699 PRINTED IN CHINA
***Keep for Future Reference***
x 2
Figure 2. Attaching bed extension.
5. Gently push bed extension down so cap
screws slide into upper portion of keyhole
slots.
V2.03.24
Page 2
Thread set screws (see Figure 3) into top of
6.
bed extension, then tighten or loosen set screws
to fine tune bed extension height.
— If bed extension sits below surface of
lathe bed, rotate set screws clockwise
to raise bed extension until edge of bed
extension is flush with lathe bed (see
Figure 3), then adjust bed extension feet
to level bed surface.
x 2
Bed Extension
— If bed extension is skewed left or right,
use a vertical strip of masking tape along
corresponding edge of lathe bed to make
bed extension parallel with lathe bed (see
Figure 5).
Masking Tape
Bed Extension
Lathe
Lathe
Figure 3. Raising bed extension.
— If bed extension sits above surface of
lathe bed, rotate set screws counterclockwise to lower bed extension until edge of
bed extension is flush with lathe bed (see
Figure 4), then adjust bed extension feet to
level bed surface.
x 2
Bed Extension
Lathe
Figure 5. Shimming bed extension left.
Fully tighten cap screws installed in Step 3.
7.
Loosen tailstock lock lever, and slide tailstock
8.
over length of bed extension and lathe bed.
— If tailstock catches where lathe and bed
extension meet, loosen cap screws and
repeat Step 6 until it slides smoothly.
Place straightedge over bed extension and
9.
lathe bed to verify they are parallel and aligned.
Attach tool holder to bed extension with (2)
10.
button head cap screws and flat washers
removed in Step 2.
Refer to Model G0844 manual for instructions on
operating lathe.
If you need help with your new bed extension, call
our Tech Support at: (570) 546-9663.
-2-
Figure 4. Lowering bed extension.
T32250 24" Bed Extension (Mfd. Since 01/24)
Page 3
T32250 Parts Breakdown & List
5 PT32250005 FOOT M8-1.25 X 18 8 PT32250008 HEX WRENCH 3MM
6
4
7
REF PART # DES CRIPTI ON REF PART # DES CRIPTI ON
1V2 PT32250002V2 BED EXTENSION 24" V2.01.24 6 PT32250006 SET SCREW M6-1 X 16
4 PT32250004 CAP SCREW M8-1.25 X 25 7 PT32250007 HEX WRENCH 6MM
1
8
5
T32250 24" Bed Extension (Mfd. Since 01/24)
BUY PARTS ONLI NE AT GRIZZLY.COM!
Scan QR code to visit our Parts Store.
-3-
