Grizzly T32005 User guide

Page 1
MODEL T32005
MINI BENCHTOP CUT-OFF SAW
OWNER'S MANUAL
(for models manufactured since 04/20)
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
COPYRIGHT © APRIL, 2020 BY GRIZZLY INDUSTRIAL, INC.
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#AI20914 PRINTED IN CHINA
Page 2
This manual provides critical safety instructions on the proper setup, operation, maintenance, and service of this machine/tool. Save this document, refer to it often, and use it to instruct other operators.
Failure to read, understand and follow the instructions in this manual may result in fire or serious personal injury—including amputation, electrocution, or death.
The owner of this machine/tool is solely responsible for its safe use. This responsibility includes but is not limited to proper installation in a safe environment, personnel training and usage authorization, proper inspection and maintenance, manual availability and compre­hension, application of safety devices, cutting/sanding/grinding tool integrity, and the usage of personal protective equipment.
The manufacturer will not be held liable for injury or property damage from negligence, improper training, machine modifications or misuse.
Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement and other masonry products.
• Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: Work in a well ventilated area, and work with approved safety equip­ment, such as those dust masks that are specially designed to filter out microscopic particles.
Page 3
Table of Contents
SECTION 1: SAFETY .......................................................................................................2
Additional Safety for Cut-Off Saws .............................................................................4
SECTION 2: INTRODUCTION .........................................................................................5
Foreword .....................................................................................................................5
Controls & Components .............................................................................................7
SECTION 3: POWER SUPPLY ........................................................................................8
SECTION 4: SETUP .......................................................................................................10
Unpacking .................................................................................................................10
Inventory ...................................................................................................................10
Mounting ...................................................................................................................11
Test Run ...................................................................................................................12
SECTION 5: OPERATIONS ...........................................................................................13
Operation Overview ..................................................................................................13
Changing Blade ........................................................................................................14
Securing Workpiece ..................................................................................................15
Cutting ......................................................................................................................15
SECTION 6: ACCESSORIES .........................................................................................16
SECTION 7: MAINTENANCE ........................................................................................17
Schedule ...................................................................................................................17
Cleaning ....................................................................................................................17
SECTION 8: SERVICE ...................................................................................................18
Troubleshooting ........................................................................................................18
Replacing Timing Belt ...............................................................................................19
WARRANTY ...................................................................................................................21
Page 4

SECTION 1: SAFETY

For Your Own Safety Read Instruction Manual
Before Operating This Power Tool
The purpose of safety symbols is to attract your attention to possible hazard­ous conditions. This manual uses a series of symbols and signal words which are intended to convey the level of importance of the safety messages. The progression of symbols is described below. Remember that safety messages by themselves do not eliminate danger and are not a substitute for proper accident prevention measures.
Indicates an imminent hazardous situation which, if not avoided, WILL result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided, COULD result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided, MAY result in minor or moderate injury. It may also be used to alert against unsafe practices.
NOTICE
This symbol is used to alert the user to useful infor­mation about proper operation of the equipment.
Safety Instructions for Power Tools
OWNER’S MANUAL. Read and under-
stand this owner’s manual BEFORE using machine.
TRAINED OPERATORS ONLY. Untrained operators have a higher risk of being hurt or killed. Only allow trained/supervised people to use this power tool. When tool is not being used, disconnect power, and store in out-of-reach location to prevent unauthorized use—especially around children. Make workshop kid proof!
DANGEROUS ENVIRONMENTS. Do not use tools in areas that are wet, cluttered, or have poor lighting. Operating tools in these areas greatly increases risk of acci­dents and injury.
MENTAL ALERTNESS REQUIRED. Full mental alertness is required for safe oper­ation of power tools. Never operate under the influence of drugs or alcohol, when tired, or when distracted.
DISCONNECT POWER FIRST. Always disconnect tool from power supply BEFORE making adjustments, changing tooling, or ser vicing machine. This pre­vents an injury risk from uninten ded start up or contact with live electrical components.
EYE PROTECTION. Always wear ANSI­approved safety glasses or a face shield when operating or observing machinery to reduce the risk of eye injury or blindness from flying particles. Everyday eyeglasses are not approved safety glasses.
Model T32005 (Mfd. Since 04/20)-2-
Page 5
ELECTRICAL SAFETY. Tool plug must
If at
match outlet. Double-insulated tools have a polarized plug (one blade is wider than the other), which must be plugged into a polarized outlet. Never modify plug. Do not use adapter for grounded tools. Use a ground fault circuit interrupter if opera­tion is unavoidable in damp locations. Avoid touching grounded surfaces when operating tool.
WEARING PROPER APPAREL. Do not wear clothing, apparel or jewelry that can become entangled in moving parts. Always tie back or cover long hair. Wear non-slip footwear to avoid accidental slips, which could cause loss of workpiece control. Wear hard hat as needed.
HAZARDOUS DUST. Dust created while using tools may cause cancer, birth defects, or long-term respiratory damage. Be aware of dust hazards associated with each workpiece material, always wear a NIOSH-approved respirator, and con­nect tool to an appropriate dust collection device to reduce your risk.
HEARING PROTECTION. Always wear hearing protection when operating or observing loud machinery. Extended exposure to this noise without hearing protection can cause permanent hearing loss.
REMOVE ADJUSTING TOOLS. Never leave adjustment tools, chuck keys, wrenches, etc. in or on tool—especially near moving parts. Verify removal before starting!
INTENDED USAGE. Only use tool for its intended purpose. Never modify or alter tool for a purpose not intended by the manufacturer or serious injury or death may result!
AWKWARD POSITIONS. Keep proper footing and balance at all times when operating tool. Do not overreach! Avoid awkward hand positions that make tool control difficult or increase the risk of accidental injury.
SAFE HANDLING. Firmly grip tool. To avoid accidental firing, do not keep finger on switch or trigger while carrying.
FORCING TOOLS.. Use right tool for job, and do not force it. It will do job safer and better at rate for which it was designed.
SECURING WORKPIECE. When required, use clamps or vises to secure workpiece. This protects hands and frees both of them to operate tool.
GUARDS & COVERS. Guards and cov­ers reduce accidental contact with mov­ing parts or flying debris. Ensure they are properly installed, undamaged, and working correctly.
CHILDREN & BYSTANDERS. Keep chil­dren and bystanders at a safe distance from the work area. Stop using tool if they become a distraction.
USE RECOMMENDED ACCESSORIES. Consult this manual or manufacturer for recommended accessories. Using improper accessories will increase risk of serious injury.
MAINTAIN WITH CARE. Keep cutting tool edges sharp and clean. Follow all maintenance instructions and lubrication schedules to keep tool in good work­ing condition. A tool that is improperly maintained could malfunction, leading to serious personal injury or death. Only have tool serviced by qualified service­personnel using matching replacement parts.
CHECK DAMAGED PARTS. Regularly inspect tool for any condition that may affect safe operation. Immediately repair or replace damaged or mis-adjusted parts before operating tool.
MAINTAIN POWER CORDS. When dis­connecting cord-connected tools from power, grab and pull the plug—NOT the cord. Carrying or pulling the cord may damage wires inside. Do not handle cord/ plug with wet hands. Avoid cord damage by keeping it away from heated surfaces, high traffic areas, harsh chemicals, sharp edges, moving parts, and wet/damp loca­tions. Damaged cords increase risk of electrocution.
UNATTENDED OPERATION. Never leave tool running while unattended. Turn tool OFF and ensure all moving parts completely stop before walking away.
EXPERIENCING DIFFICULTIES.
any time you experience difficulties per­forming the intended operation, stop using the machine! Contact our Technical Support at (570) 546-9663.
Model T32005 (Mfd. Since 04/20) -3-
Page 6

Additional Safety for Cut-Off Saws

Serious cuts, amputation, or death can occur from contact with rotating saw blade during operation. Workpieces, broken blades, or flying particles thrown by blade can blind or strike operators or bystanders with deadly force. To reduce the risk of these hazards, operator and bystanders MUST completely heed the hazards and warnings below.
HAND & BODY POSITIONING. Keep
hands at least 4" from spinning saw blade and out of blade path when cutting. Only operate at front of tool. Never reach behind or around blade and never support the workpiece cross handed.
WORKPIECE SUPPORT. Always keep workpiece stationary, flat, and firmly held against table when cutting to avoid loss of control. Secure workpieces with clamps whenever possible. Do not perform any operation “freehand.” Only cut one workpiece at a time—do not cut stacks.
DULL/ DAMAGED SAW BLADES. Dull blades require more effort to perform cuts. Broken saw blade teeth can become deadly projectiles. Do not operate with damaged, cracked, or badly worn blades. Inspect for damage before each use.
BLADE GUARD. Make sure blade guard is installed, working correctly, and used for all cuts. Promptly repair or replace if damaged. Re-install immediately after servicing saw blade.
CHANGING BLADES. Accidental startup while changing saw blade can result in serious injury. Always disconnect power before changing blades and wear gloves to protect hands. Do not use blades with different diameters or arbor hole shapes/ sizes. Always ensure blade is oriented with marked blade rotation direction.
SAW OPERATION. Ensure saw is placed on level, firm work surface before use and clear all tools, wood scraps, etc., as debris can be thrown at high speeds. Always allow blade to reach full speed before contacting workpiece. When cut is finished, allow blade to completely stop before removing from workpiece. DO NOT stop with hand or workpiece.
JAMMED OR CUT-O FF PIECES. To avoid risk of injury due to blade con­tact, turn saw OFF and allow blade to completely stop before removing cut-off pieces. Unplug saw before working to free jammed pieces. Never use your hands to move cut-off pieces away from blade while saw is running. Do not use stop blocks that may wedge cut-off pieces against saw blade.
No list of safety guidelines can be complete. Every shop environment is different. Always consider safety first, as it applies to your individual working conditions. Use this and other machinery with caution and respect. Failure to do so could result in serious personal injury, damage to equipment or poor work results.
Model T32005 (Mfd. Since 04/20)-4-
Page 7

SECTION 2: INTRODUCTION

Foreword Contact Info

We are proud to offer this manual with your new cut-off saw! We've made every effort to be exact with the instructions, specifications, drawings, and photographs of the cut-off saw we used when writing this manual. However, sometimes we still make an occasional mistake.
Also, owing to our policy of continuous improvement, your cut-off saw may not exactly match the manual. If you find this to be the case, and the difference between the manual and cut-off saw leaves you in doubt, check our website for the latest manual update or call technical support for help.
For your convenience, we post all avail­able manuals and manual updates for free on our website at www.grizzly.com. Any updates to your model of tool will be reflected in these documents as soon as they are complete.
We stand behind our tools. If you have any service questions, parts requests or general questions about the tool, please call or write us at the location listed below.
Grizzly Technical Support
1815 W. Battlefield
Springfield, MO 65807
Phone: (570) 546 -9663
E-Mail: techsupport@grizzly.com
We want your feedback on this manual. If you can take the time, please email or write to us at the address below and tell us how we did:
Grizzly Industrial, Inc.
C/O Technical Documentation Manager
P.O. Box 2069
Bellingham, WA 98227-2069
Email: manuals@grizzly.com
Model T32005 (Mfd. Since 04/20) -5-
Page 8
Customer Service #: (570) 546-9663 · To Order Call: (800) 523-4777 · Fax #: (800) 438-5901
Construction
MODEL T32005
MINI BENCHTOP CUT-OFF SAW
Product Dimensions:
Weight .........................................................................................................................................................................3-3/4 lbs.
Width (side-to-side) x Depth (front-to-back) x Height .......................................................................... 5-1/2 x 9-1/2 x 6-1/2 in.
Footprint (Length x Width) .................................................................................................................................5-1/2 x 5-1/2 in.
Shipping Dimensions:
Type ....................................................................................................................................................................Cardboard Box
Content.......................................................................................................................................................................... Machine
Weight ................................................................................................................................................................................4 lbs.
Length x Width x Height.........................................................................................................................................10 x 6 x 5 in.
Must Ship Upright ..................................................................................................................................................................No
Electrical:
Power Requirement .........................................................................................................................110V, Single-Phase, 60 Hz
Full-Load Current Rating......................................................................................................................................................0.9A
Minimum Circuit Size ............................................................................................................................................................15A
Connection Type ..................................................................................................................................................... Cord & Plug
Power Cord Included ............................................................................................................................................................Ye s
Power Cord Length ............................................................................................................................................................72 in.
Power Cord Gauge ....................................................................................................................................................... 18 AWG
Plug Included ........................................................................................................................................................................Yes
Included Plug Type ..............................................................................................................................................................1-15
Switch Type ........................................................................................................................................................ON/OFF Switch
Motor:
Main
Horsepower ..........................................................................................................................................................1/10 HP
Phase .......................................................................................................................................................... Single-Phase
Amps ..........................................................................................................................................................................0.9A
Speed ...............................................................................................................................................................6000 RPM
Type ..............................................................................................................................................................Universal DC
Power Transfer ............................................................................................................................................................ Belt
Bearings ...................................................................................................................Shielded & Permanently Lubricated
Main Specifications:
Operation Information
Blade Size ..................................................................................................................................................................2 in.
Blade Speed ..................................................................................................................................................... 8800 RPM
Arbor Size .................................................................................................................................................................8 mm
Cutting Capacities
Angle Cuts ....................................................................................................................................................... 0 - 45 deg.
Vise Jaw Depth .......................................................................................................................................................7/8 in.
Vise Jaw Height .......................................................................................................................................................3/8 in.
Max. Capacity .......................................................................................................................................................... 3/8 in.
Other Specifications:
Table Construction ............................................................................................................................................. Aluminum
Body Construction .................................................................................................................................................. Plastic
Saw Wheel Guard .................................................................................................................................................. Plastic
Country of Origin ............................................................................................................................................................... China
Warranty ............................................................................................................................................................................1 Year
Serial Number Location ................................................................................................................................................ ID Label
ISO 9001 Factory .................................................................................................................................................................. Yes
Model T32005 (Mfd. Since 04/20)-6-
Page 9

Controls & Components

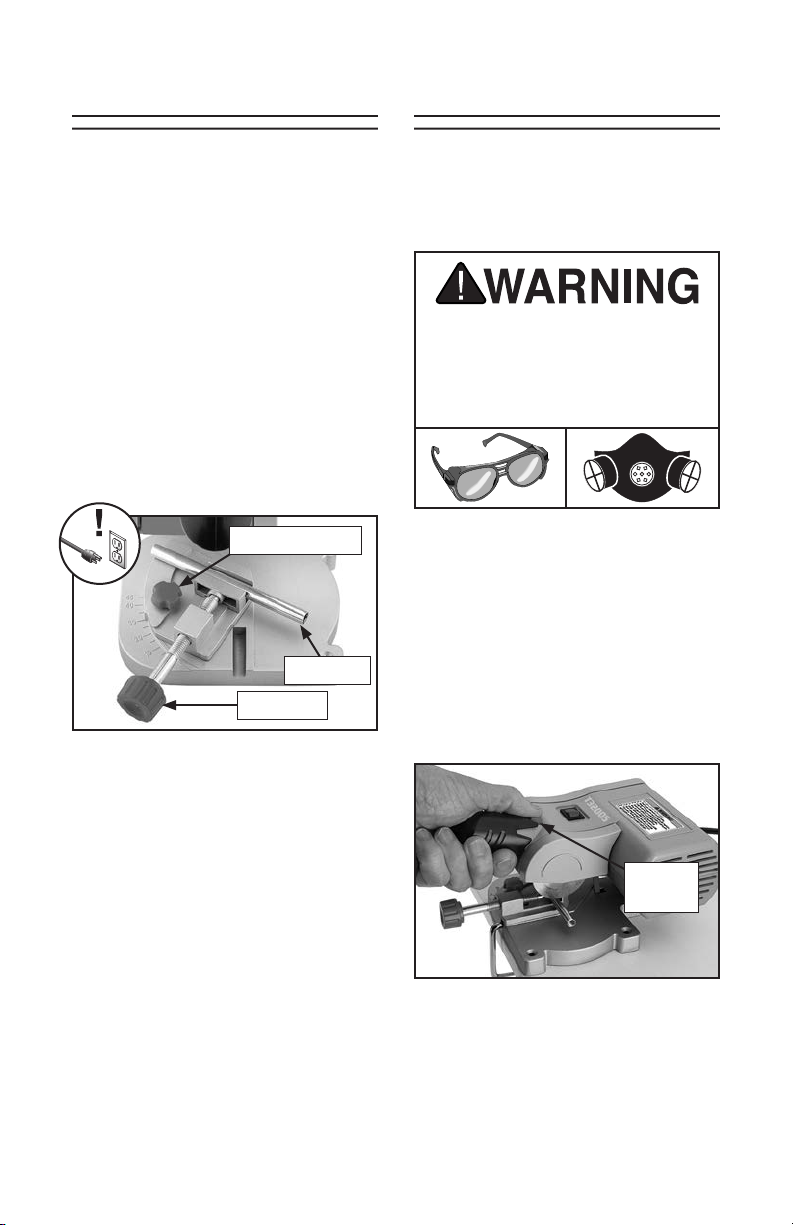

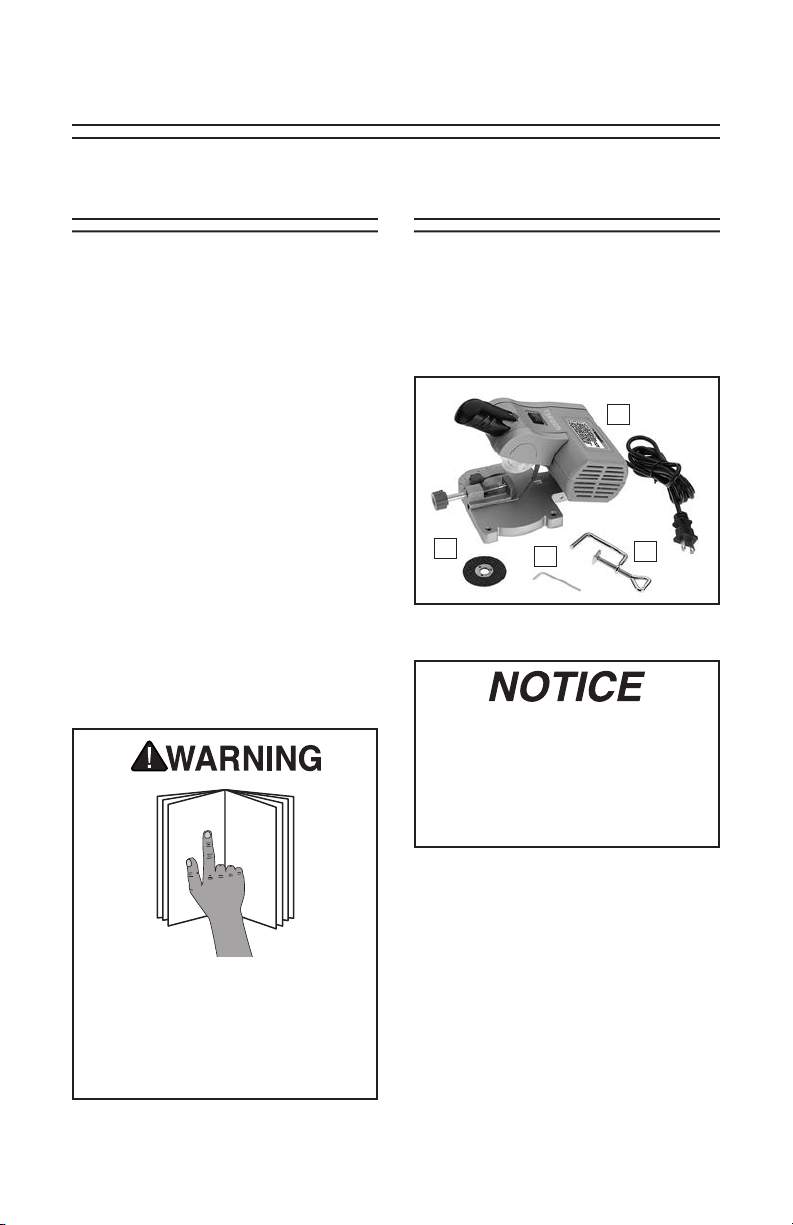

Refer to the following figure and descriptions to become familiar with the basic controls and components of this tool. Understanding these items and how they work will help you understand the rest of the manual and minimize your risk of injury when operating this tool.
ON/OFF
Lever
Vise Miter
Clamp
Vise
Screw
Power Switch: Toggles tool power ON (I) and OFF (O).
Blade Guard: Protects user from blade and catches sawdust and swarf.
Workpiece Vise: Secures workpiece dur­ing operations. Pivots in table to set angle of cut between 0– 45°.
Vise Screw: Clamps workpiece in vise.
Power Switch
Blade Guard
Workpiece
Vise
Like all tools there is potential danger when operating this tool. Accidents are frequently caused by lack of familiarity or failure to pay attention. Use this tool with respect and caution to decrease the risk of operator injury. If normal safety pre­cautions are overlooked or ignored, serious personal injury may occur.
Vise Miter Clamp: Secures miter angle.
ON/OFF Lever: Press lever while power
switch is in ON position to start saw. Saw cannot be lowered unless lever is pressed in.
Model T32005 (Mfd. Since 04/20) -7-
Page 10

SECTION 3: POWER SUPPLY

Availability
Before installing the machine, consider the availability and proximity of the required power supply circuit. If an existing circuit does not meet the requirements for this machine, a new circuit must be installed. To minimize the risk of electrocution, fire, or equipment damage, installation work and electrical wiring must be done by an electrician or qualified service personnel in accordance with all applicable codes and standards.

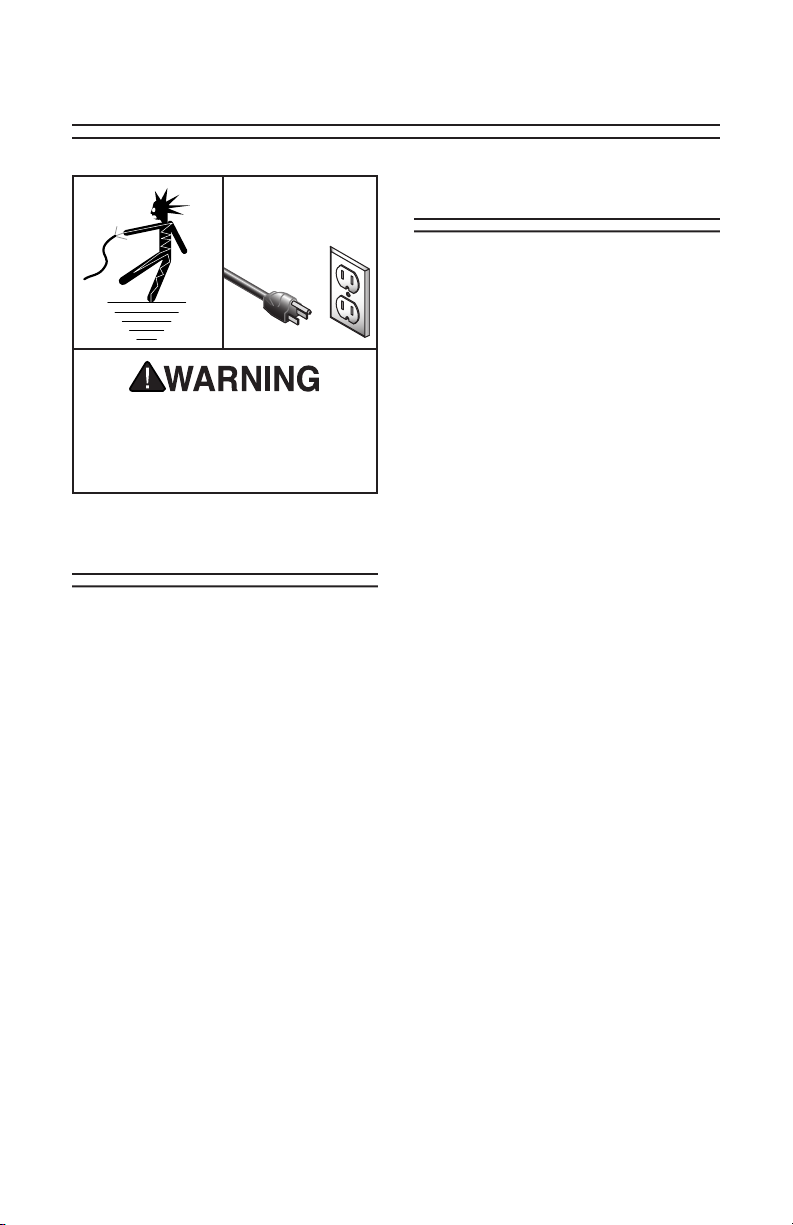

Electrocution, shock, fire or damage to equipment may occur if tool is not properly grounded and connected to power supply.
Full-Load Current Rating
The full-load current rating is the amper­age a machine draws at 100% of the rated output power. On machines with multiple motors, this is the amperage drawn by the largest motor or sum of all motors and electrical devices that might operate at one time during normal operations.
Full-Load Current Rating .....................0.9A
The full-load current is not the maximum amount of amps that the machine will draw. If the machine is overloaded, it will draw additional amps beyond the full-load rating. If the machine is overloaded for a sufficient length of time, damage, overheating, or fire may result—especially if connected to an undersized circuit. To reduce the risk of these hazards, avoid overloading the machine dur­ing operation and make sure it is connected to a power supply circuit that meets the requirements in the following section.
Serious injury could occur if you connect tool to power before com­pleting setup process. DO NOT con­nect to power until instructed later in this manual.
110V Circuit Requirements
This machine is prewired to operate on a power supply cir cuit that has a verified ground and meets the following requirements:
Voltage ..........................110V, 115V, 120V
Cycle .................................................60 Hz
Phase ...................................Single-Phase
Power Supply Circuit ................ 15 Amps
A power supply circuit includes all electri­cal equipment between the breaker box or fuse panel in the building and the machine. The power supply circuit used for this machine must be sized to safely handle the full-load current drawn from the machine for an extended period of time. (If this machine is connected to a circuit protected by fuses, use a time delay fuse marked D.)
For your own safety and protection of property, consult an electrician if you are unsure about wiring prac­tices or electrical codes in your area.
Note: The circuit requirements listed in
this manual apply to a dedicated circuit— where only one machine will be running at a time. If this machine will be connected to a shared circuit where multiple machines will be running at the same time, consult a qualified electrician to ensure that the circuit is properly sized for safe operation.
Model T32005 (Mfd. Since 04/20)-8-
Page 11
Polarized Plug Extension Cords
To reduce the risk of electric shock, this equipment has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a quali­fied electrician to install the proper outlet. Do not change the plug in any way.
When ser vicing use only identical replace­ment parts.
5-15 Receptacle
1-15 Plug
Hot
Neutral
Figure 1. Typical 1-15 plug and
receptacle.
When using extension cords, make sure the cords are rated for outdoor use. Outdoor use cords are marked with a "W-A" or a "W" to signify their rating. Always check to make sure that the exten­sion cords are in good working order and free of any type of damage, such as exposed wires, cuts, creased bends, or missing prongs.
Extension cords cause voltage drop, which may damage electrical components and shorten motor life. Voltage drop increases as the extension cord size gets longer and the gauge size gets smaller (higher gauge numbers indicate smaller sizes. When using extension cords, always choose the shortest cord possible, with the greatest­sized gauge.
Below is a list of minimum gauge sizes needed for running this tool at different lengths:
25 Feet .......................................... 16AWG
50 Feet .......................................... 14AWG
100 Feet ........................................ 12AWG
Over 100 Feet ........... Not Recommended
Model T32005 (Mfd. Since 04/20) -9-
Page 12

SECTION 4: SETUP

Unpacking Inventory

You r tool was carefully packaged for safe transportation. Remove the packag­ing materials from around your tool and inspect it. If you discover the tool is dam­aged, please immediately call Customer
Service at (570) 546-9663 for advice.
Save the containers and all packing mate­rials for possible inspection by the car­rier or its agent. Otherwise, filing a freight claim can be difficult.
When you are completely satisfied with the condition of your shipment, inventory the contents.
If any non-proprietary parts are missing (e.g., a nut or a washer), we will gladly replace them; or for the sake of expedi­ency, replacements can be obtained at your local hardware store.
Inventory (Figure 2
A. Cut-Off Saw .......................................1
B. Hold-Down Clamp .............................. 1
C. Hex Wrench 2.5mm ........................... 1
D. 2" Grinding Blade ...............................1
D
Figure 2. Inventory.
If you cannot find an item on this list, carefully check around/inside the tool and packaging materials. Often, these items get lost in pack­aging materials while unpacking or they are pre-installed at the factory.
) Qty
A
C
B
This cut-off saw presents serious injury hazards to untrained users. Read through this entire manual to become familiar with the controls and operations before starting the tool!
Model T32005 (Mfd. Since 04/20)-10-
Page 13

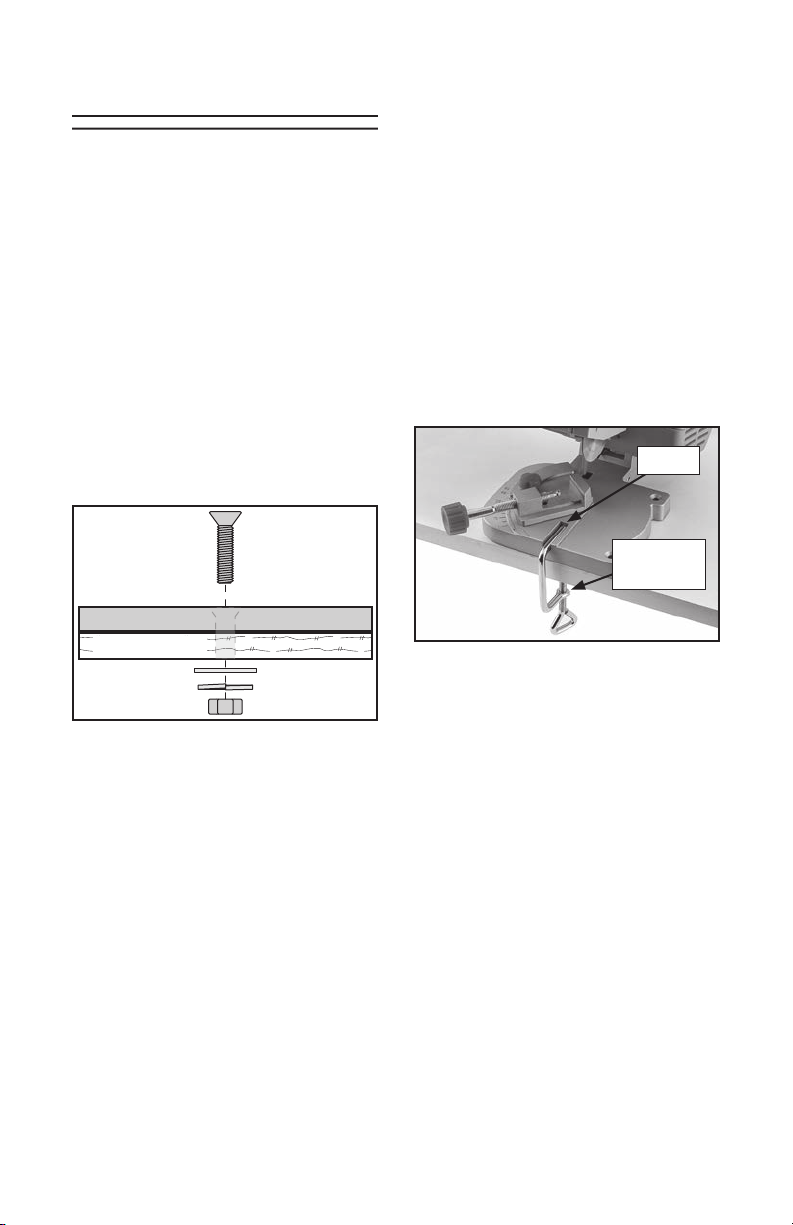

Mounting

The Model T32005 must be secured to prevent it moving during operation and causing accidental injury or damage. The table has mounting holes that allow the saw to be fastened to a workbench, and a table clamp is included for when mounting is not an option.
Using Table Clamp
If the cut-off saw is being used in a non­permanent location, or if drilling into the workbench is not an option, the table clamp can be used. Always ensure the tool is secure before making any cut. If the table clamp alone does not secure the saw, do not perform the operation.
To secure saw with table clamp:
Through Mounting
The strongest mounting option is a "Through Mount" (see below) where holes are drilled all the way through the work­bench—and flat head screws, washers, and hex nuts are used to secure the tool in place.
Flat Head
Screw
Tool
Workbench
Lock Washer
Figure 3. Example of through mounting.
Materials Needed Qty
Flat Hd Screws 8-32 ................................. 4
Hex Nuts 8-32 ........................................... 4
Lock Washers #8 ...................................... 4
Flat Washers #8 ....................................... 4
Phillips Screwdriver #2 ............................. 1
Hand Drill .................................................. 1
Drill Bit #8 ................................................. 1
Flat Washer
Hex Nut
1. Place saw at edge of workbench.
2. Place top bar of clamp in groove on top
of saw table (see Figure 4).
Groove
Hold-Down
Clamp
Figure 4. Table clamp holding cut-off saw
in place.
Tighten clamp. Ensure saw does not
3.
slide or rotate on table when pushed with moderate pressure.
IMPORTANT: If saw cannot be
secured with one clamp, try clamping it to a different surface or with a second clamp, or through-mount the saw. Do not operate the saw unsecured.
To through mount the saw:
1.
Use saw table as a template to drill (4)
holes in workbench.
2. Mount saw to workbench with (4) flat head screws, flat washers, lock wash­ers, and hex nuts.
Model T32005 (Mfd. Since 04/20) -11-
Page 14

Test Run

To test run tool:
1. Clear away all setup/adjustment tools.
Once assembly is complete, test run the tool to ensure it is properly connected to power and safety components are working properly.
If you find an unusual problem during the test run, immediately stop the tool, discon­nect it from power, and fix the problem BEFORE operating the tool again. The Troubleshooting table in the SERVICE section of this manual can help.
The test run consists of verifying the fol­lowing: 1) The motor powers up and runs correctly.
DO NOT start tool until all preced­ing setup instructions have been performed. Operating an improperly set up tool may result in malfunc­tion or unexpected results that can lead to serious injury, death, or tool/ property damage.
2. Verify blade is properly installed (see Changing Blade on Page 14).
3. Connect tool to power supply.
4. While firmly holding handle, press
and hold ON/OFF lever. Motor should run smoothly and without unusual problems or noises.
5. Release ON/OFF lever. Motor should immediately stop running.
Serious injury or death can result from using tool BEFORE under­standing its controls and related safety information. DO NOT oper­ate, or allow others to operate, tool until information is understood.
Model T32005 (Mfd. Since 04/20)-12-
Page 15

SECTION 5: OPERATIONS

To reduce your risk of serious injury, read this entire manual BEFORE using tool.
Due to the generic nature of this overview, it is not intended to be an instructional guide. To learn more about specific opera­tions, read this entire manual, seek addi­tional training from experienced operators, and do additional research outside this manual by reading "how-to" books, trade magazines, or websites.
To reduce risk of eye injury from flying chips or lung damage from breathing dust, always wear safety glasses and a respirator when oper­ating this tool.
If you are not experienced with this type of tool, WE STRONGLY REC­OMMEND that you seek additional training outside of this manual. Read books/magazines or get for­mal training before beginning any projects. Regardless of the content in this section, Grizzly Industrial will not be held liable for accidents caused by lack of training.

Operation Overview

To complete a typical operation, the operator does the following:
1. Examines workpiece to make sure it is
suitable for cutting.
2. Adjusts vise angle and secures workpiece in vise.
3. Puts on safety glasses and respirator.
4. Switches power ON, then holds ON/
OFF lever to start saw and allows blade to reach full speed before contacting workpiece.
5. While keeping hands and fingers away from blade, pushes handle down to cut the workpiece.
6. Releases ON/OFF lever and waits for blade to stop, lifts handle so blade is not contacting workpiece, then switch­es power OFF.
7. Removes workpiece from vise.
The purpose of this overview is to provide the novice operator with a basic under­standing of how the tool is used during operation, so the tool controls/components discussed later in this manual are easier to understand.
Model T32005 (Mfd. Since 04/20) -13-
Page 16

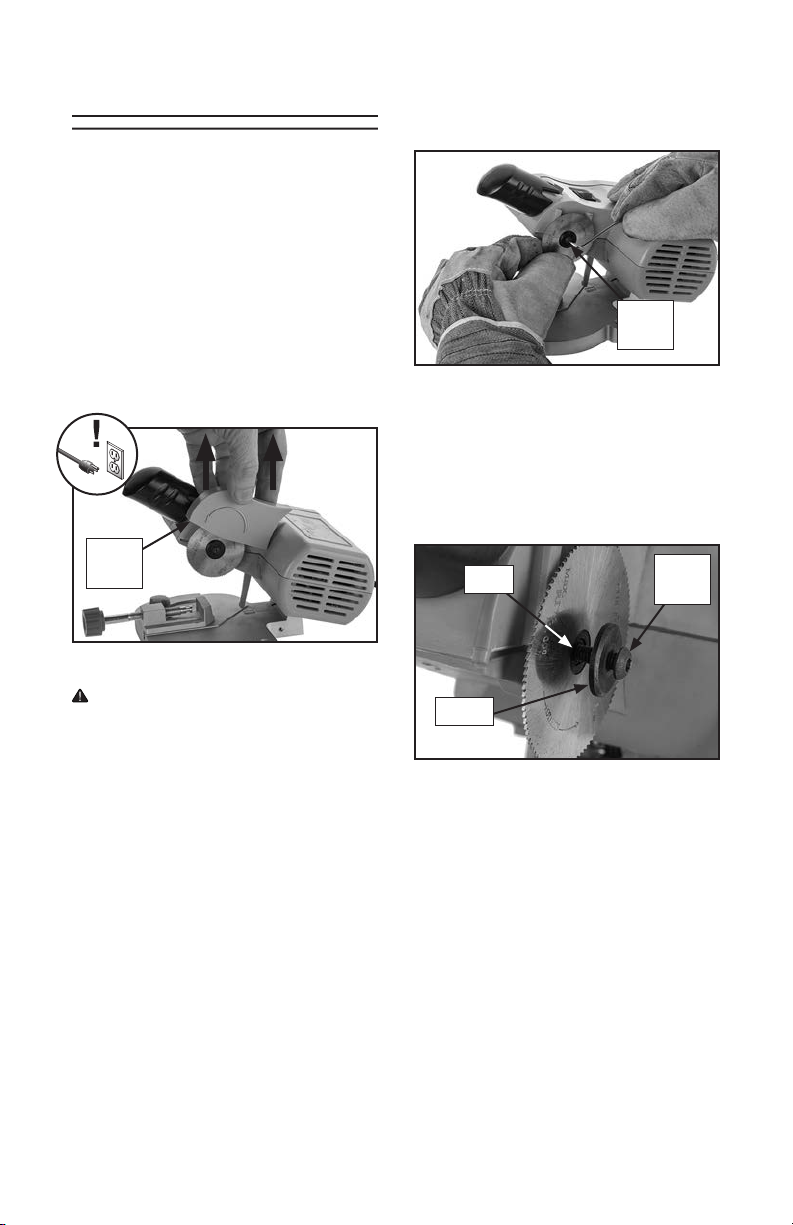

Changing Blade

The blade is secured to the arbor with an arbor screw and flange.
Tools Needed Qty
Hex Wrench 2.5mm .................................. 1
To change blade:
1. DISCONNECT TOOL FROM POWER!
3.
Hold blade in place and remove arbor
screw with 2.5mm hex wrench (see Figure 6).
Arbor
Screw
2. Pull blade guard straight up to remove it (see Figure 5).
Blade
Guard
Figure 5. Removing blade guard.
CAUTION: Saw blades are sharp and
can cut even while tool is OFF. Wear gloves to protect your hands while han­dling and installing the blade.
Figure 6. Holding blade in place to
remove arbor screw.
4. Place new blade on arbor in correct orientation (see Figure 7). If blade has rotational arrow, align blade arrow with arrow on saw.
Arbor
Flange
Figure 7. Blade on arbor with arbor screw
and flange.
5. Hold blade in place and tighten arbor screw with 2.5mm hex wrench.
6. Attach blade guard by pushing down until it snaps in place.
Arbor
Screw
Model T32005 (Mfd. Since 04/20)-14-
Page 17

Securing Workpiece Cutting

Workpieces must be secured wi th the bu ilt­in vise. Unsecured workpieces increase the risk of injury due to kickback or loss of control.
To secure workpiece:
1. DISCONNECT TOOL FROM POWER!
2. Loosen vise miter clamp, set miter
angle, then tighten vise miter clamp (see Figure 8).
3. Loosen vise until workpiece fits between vise jaws, then tighten vise until workpiece is secure (see Figure 8).
Vise Miter Clamp
Workpiece
Vise Screw
Figure 8. Workpiece vise controls.
The Model T32005 can cut wood or metal workpieces 3⁄8 " thick or small­er. Always ensure the correct blade is used for the material being cut.
To reduce risk of eye injury from flying chips or lung damage from breathing dust, always wear safety glasses and a respirator when oper­ating this tool.
To cut workpiece :
1. Ensure workpiece is secure in vise.
2. Press power switch to I position to turn
tool ON.
3. Fully press ON/OFF lever (see Figure
9). Once saw blade comes to full
speed, lower blade into workpiece.
ON/OFF
Lever
Figure 9. ON/OFF lever during cut.
Wait for blade to come to a complete
4.
stop, raise blade, then press power switch to O position to turn tool OFF.
5. Remove workpiece from vise.
Model T32005 (Mfd. Since 04/20) -15-
Page 18

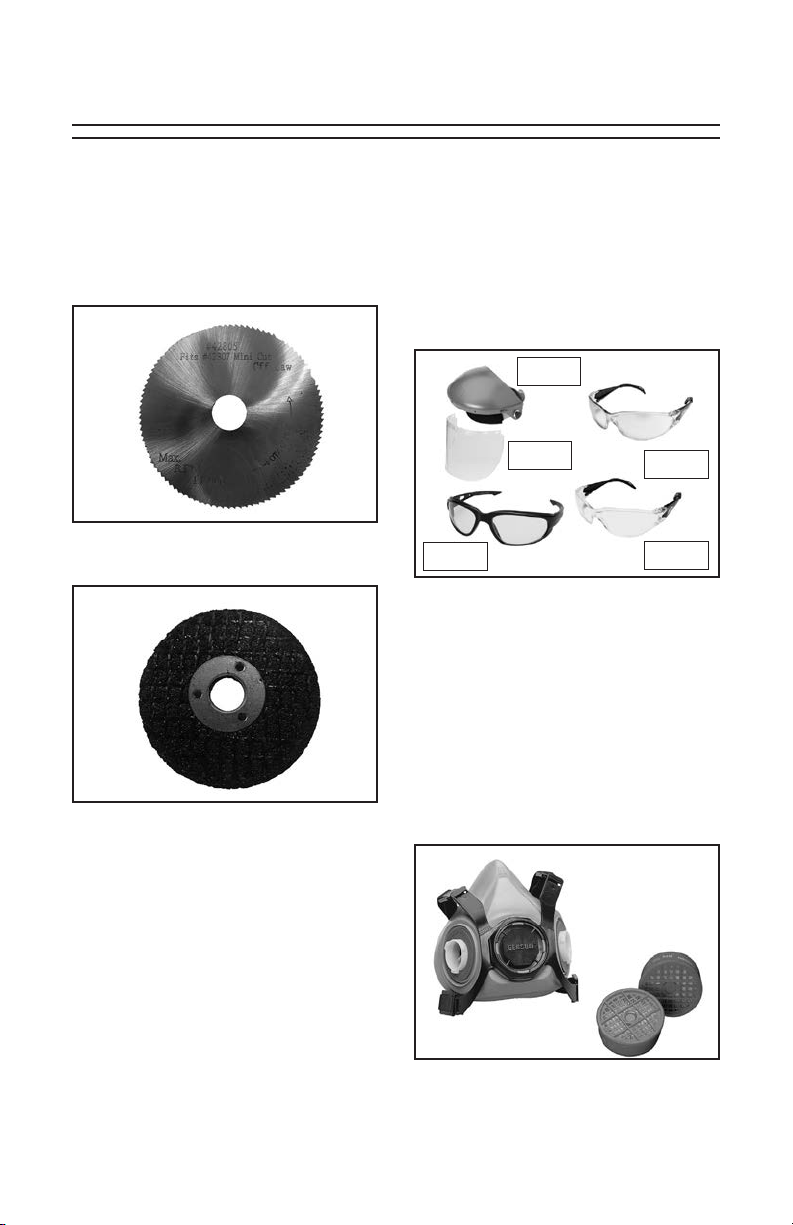

SECTION 6: ACCESSORIES

order online at www.grizzly.com or call 1-800-523-4777
Replacement Blades
T32024—2" 100T Blade for T32005 T32025—2" Cut-Off Blade for T32005
2" blades for cutting wood or metal with the T32005 Mini Benchtop Cut-Off Saw.
Figure 10. T32024 2" 100T Blade for
T32005.
Figure 11. T32025 2" Cut-Off Blade for
T32005.
Basic Eye Protection
T20501—Face Shield Crown Protector 4" T20502—Face Shield Crown Protector 7" T20503—Face Shield Window T20451—"Kirova" Clear Safety Glasses T20452—"Kirova" Anti-Reflective Glasses T20456—DAKURA Safety Glasses
T20502
T20503
T20456
Figure 12. Basic eye protection.
H2499—Small Half-Mask Respirator H3631—Medium Half-Mask Respirator H3632—Large Half-Mask Respirator H3635—Cartridge Filter Pair P100
Wood dust has been linked to nasal can­cer and severe respiratory illnesses. If you work around dust everyday, a half-mask respirator can be a lifesaver. Also compat­ible with safety glasses!
T20452
T20451
Figure 13. Half-mask respirator with
disposable cartridge filters.
Model T32005 (Mfd. Since 04/20)-16-
Page 19

SECTION 7: MAINTENANCE

!

Cleaning

Cleaning the Model T32005 is relatively easy. After each use, clear all dust from tool with a vacuum or dry brush. Never blow off the tool with compressed air, as this could force dust/chips more deeply into the motor vents.
Always DISCONNECT POWER before servicing, adjusting, or doing maintenance to reduce the risk of accidental injury or electrocution.

Schedule

For optimum performance from this tool, routinely check the condition of the following items and repair or replace as necessary.
• Loose mounting bolts.
• Damaged saw blade.
• Damaged timing belt.
• Cracked or broken parts.
• Worn or damaged wires.
• Any other unsafe condition.
Monthly Check
• Timing belt tension, damage, or wear.
Model T32005 (Mfd. Since 04/20) -17-
Page 20

SECTION 8: SERVICE

Troubleshooting

Symptom Possible Cause Solution
Tool does not start, or power supply breaker immedi­ately trips after startup.
Tool stalls or is underpowered.
Tool has vibration or noisy operation.
Workpiece binds or burns when per­forming cut.
1. Incorrect power supply voltage or circuit size.
2. Wiring broken, disconnected, or corroded.
3. ON/OFF switch at fault.
1. Workpiece material not suit­able for tool.
2. Workpiece or vise loose.
3. Dull blade.
4. Cutting blade installed back­wards.
5. Improper blade for cut type.
6. Machine undersized for task.
1. Workpiece or vise loose.
2. Incorrectly mounted to work­bench.
3. Timing belt worn or loose.
4. Blade damaged or installed incorrectly.
1. Workpiece or vise loose.
2. Warped or bent workpiece.
3. Blade damaged or installed incorrectly.
4. Excessive feed rate.
5. Glazed cutting wheel.
1. Ensure correct power sup­ply voltage and circuit size.
2. Fix broken wires or discon­nected/corroded connec­tions.
3. Replace switch.
1. Only cut wood and soft metal.
2. Secure workpiece in vise/ tighten vise angle clamp (Page 15).
3. Use sharp blade.
4. Install blade in correct direc­tion.
5. Select proper blade for cut type.
6. Use correct blade for workpiece; reduce feed rate.
1. Secure workpiece in vise/ tighten vise angle clamp (Page 15).
2. Tighten mounting hardware (Page 11).
3. Inspect/replace belt (Page
19).
4. Replace bent/dull blade or re-install (Page 14).
1. Secure workpiece in vise/ tighten vise angle clamp (Page 15).
2. Use straight workpiece.
3. Replace bent/dull blade or re-install (Page 14).
4. Apply steady, slow pressure to cutting head to perform cut.
5. Replace cutting wheel.
Model T32005 (Mfd. Since 04/20)-18-
Page 21

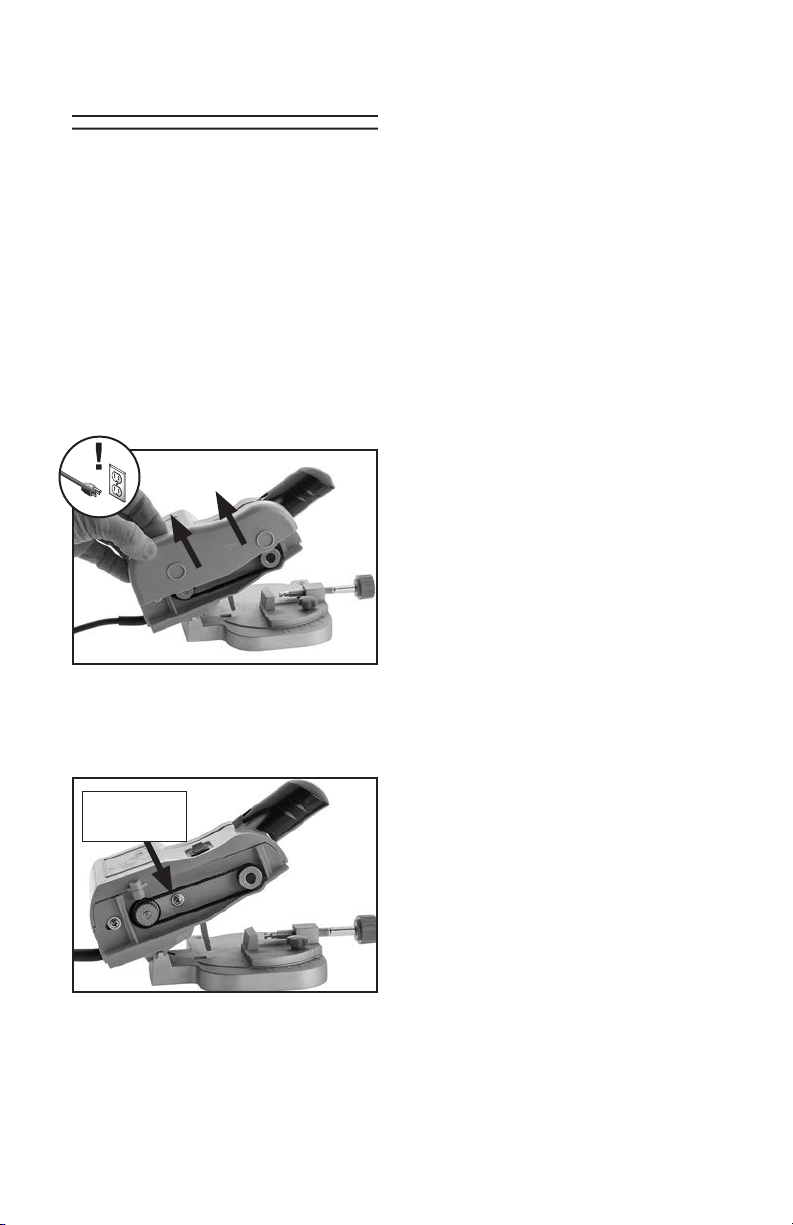

Replacing Timing Belt

4. Slide timing belt forward to remove it
from drive sprockets.
If the timing belt is loose or worn it can be removed and replaced.
Tools Needed Qty.
Phillips Screwdriver #2 ............................. 1
Timing Belt (PT32005001) ........................ 1
To replace timing belt:
1. DISCONNECT TOOL FROM POWER!
2. Pull up on belt cover to remove it (see Figure 14).
Figure 14. Removing timing belt cover.
5. Slide new belt over front drive sprocket,
then stretch it over rear drive sprocket.
6. Tighten belt tension screw to tension timing belt.
7. Rotate timing belt and make sure it is centered on sprockets.
8. Press down on timing belt to check ten­sion.
— If belt deflects more than 1⁄4", repeat
Step 6.
— If belt deflects 1⁄4" or less, proceed
to Step 9.
9. Push belt cover in place over timing belt.
3.
Loosen belt tension screw to release
timing belt tension (see Figure 15).
Belt Tension
Screw
Figure 15. Belt tension screw location.
Model T32005 (Mfd. Since 04/20) -19-
Page 22
Model T32005 (Mfd. Since 04/20)-20-
Page 23

WARRANTY

Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty and any and all warranties that may be implied by law, including any merchantability or fitness, for any par­ticular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants. In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.
We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special, or consequential damages arising from the use of our products.
The manufacturers reserve the right to change specifications at any time because they constantly strive to achieve better quality equipment. We make every effort to ensure that our products meet high quality and durability standards and we hope you never need to use this warranty.
In the event you need to use this warranty, contact us by mail or phone and give us all the details. We will then issue you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of the carton. We will not accept any item back without this number. Proof of purchase must accompany the merchandise.
Please feel free to write or call us if you have any questions about the machine or the manual.
Thank you again for your business and continued support. We hope to serve you again soon.
To
warranty-card
registration page
take advantage of this warranty, you must register it at https://www.grizzly.com/secureforms/
, or you can scan the QR code below to be automatically directed to our warranty
. Enter all applicable information for the product.
WARRANTY
Model T32005 (Mfd. Since 04/20) -21-
Page 24
Loading...
