Grizzly T32004 User guide

MODEL T32004

3/4 HP VARIABLE-SPEED

MINI BENCHTOP BUFFER

OWNER'S MANUAL

(For models manufactured since 02/20)

COPYRIGHT © MAY, 2020 BY GRIZZLY INDUSTRIAL, INC.

WARNING : NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#CS20952 PRINTED IN CHINA

V1.0 5.20

This manual provides critical safety instructions on the proper setup,
operation, maintenance, and service of this machine/tool. Save this
document, refer to it often, and use it to instruct other operators.

Failure to read, understand and follow the instructions in this manual
may result in fire or serious personal injury—including amputation,
electrocution, or death.

The owner of this machine/tool is solely responsible for its safe use.
This responsibility includes but is not limited to proper installation in
a safe environment, personnel training and usage authorization,
proper inspection and maintenance, manual availability and compre­hension, application of safety devices, cutting/sanding/grinding tool
integrity, and the usage of personal protective equipment.

The manufacturer will not be held liable for injury or property damage
from negligence, improper training, machine modifications or misuse.

Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State
of California to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
Work in a well ventilated area, and work with approved safety equip­ment, such as those dust masks that are specially designed to filter
out microscopic particles.

Table of Contents

INTRODUCTION ............................................................................................................................... 2

Contact Info
Manual Accuracy
Identification
Controls & Components
Machine Data Sheet

................................................................................................................................ 2

........................................................................................................................ 2

............................................................................................................................... 3

............................................................................................................. 4

................................................................................................................... 5

SECTION 1: SAFETY

Safety Instructions for Machinery

Additional Safety for Buffers....................................................................................................... 9

SECTION 2: POWER SUPPLY

SECTION 3: SETUP

Needed for Setup
Unpacking
Inventory
Site Considerations
Bench Mounting
Assembly
Test Run

SECTION 4: OPERATIONS

Buffing
Installing/Removing Buffing Wheel
Selecting Buffing Compounds
Loading Compound

SECTION 5: ACCESSORIES

SECTION 6: MAINTENANCE......................................................................................................... 22

Schedule
Cleaning
Lubrication

................................................................................................................................ 12

................................................................................................................................... 12

.................................................................................................................................. 14

................................................................................................................................... 15

...................................................................................................................................... 17

.................................................................................................................................. 22

................................................................................................................................... 22

................................................................................................................................ 22

....................................................................................................................... 7

............................................................................................... 7

...................................................................................................... 10

....................................................................................................................... 12

..................................................................................................................... 12

.................................................................................................................. 13

....................................................................................................................... 13

........................................................................................................... 16

.......................................................................................... 18

.................................................................................................. 19

.................................................................................................................. 19

......................................................................................................... 20

SECTION 7: SERVICE

Troubleshooting
Replacing Motor Brushes

SECTION 8: WIRING

Wiring Safety Instructions
Wiring Diagram

SECTION 9: PARTS

.......................................................................................................................................... 27

Main
Labels & Cosmetics

WARRANTY & RETURNS

................................................................................................................... 23

........................................................................................................................ 23

...................................................................................................................... 25

........................................................................................................................ 26

....................................................................................................................... 27

................................................................................................................. 28

......................................................................................................... 24

........................................................................................................ 25

............................................................................................................. 29

We stand behind our machines! If you have ques­tions or need help, contact us with the information
below. Before contacting, make sure you get the

serial number

machine ID label. This will help us help you faster.

We want your feedback on this manual. What did
you like about it? Where could it be improved?
Please take a few minutes to give us feedback.

Email: [e-mail]

We are proud to provide a high-quality owner’s
manual with your new machine!

We

instruc­tions, specifications, drawings, and photographs
in this manual. Sometimes we make mistakes, but
our policy of continuous improvement also means
that

you receive is

slightly different than shown in the manual

If you find this to be the case, and the difference
between the manual and machine leaves you
confused or unsure about something

check our

website for an updated version. W

current

manuals and

on our web-

site at

Alternatively, you can call our Technical Support
for help. Before calling, make sure you write
down the

serial number
from the machine ID label (see below). This
information is required for us to provide proper
tech support, and it helps us determine if updated
documentation is available for your machine.

INTRODUCTION

Contact Info

and manufacture date from the

Grizzly Technical Support

1815 W. Battlefield
Springfield, MO 65807
Phone: [phone]

Email: [e-mail]

Grizzly Documentation Manager

P.O. Box 2069

Bellingham, WA 98227-2069

Manual Accuracy

made every effort to be exact with the

sometimes the machine

.

,

e post

manual updates for free

www.grizzly.com.

manufacture date and

Manufacture Date

Serial Number

-2-

Model T32004 (Mfd. Since 02/20)

Identification

To reduce your risk of
serious injury, read this
entire manual BEFORE

Become familiar with the names and locations of the controls and features shown below to better understand
the instructions in this manual.

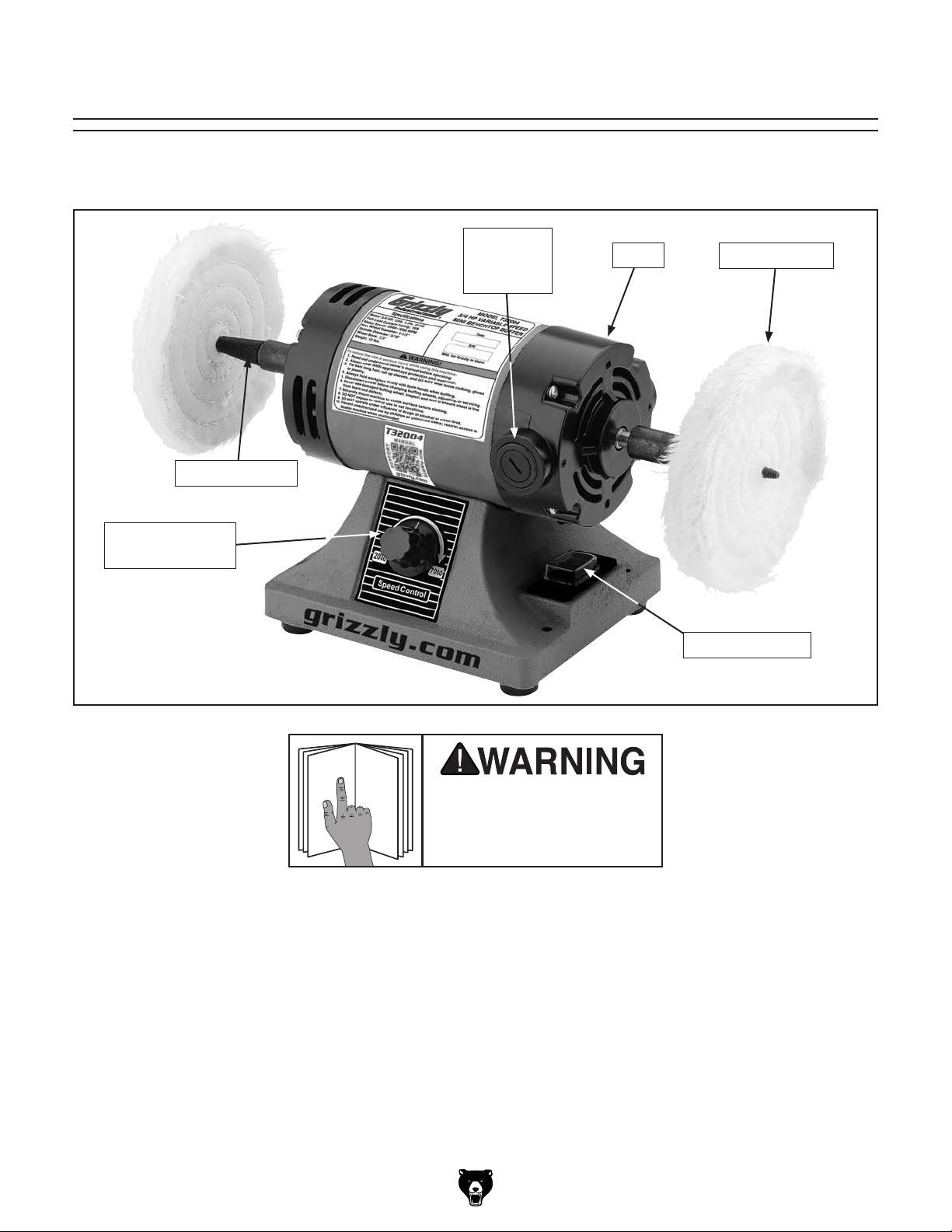

Spindle Sleeve

Variable-Speed

Dial

Motor

Brush Cap

(1 of 2)

Motor

Buffing Wheel

ON/OFF Switch

Model T32004 (Mfd. Since 02/20)

using machine.

-3-

Controls &

To reduce your risk of
serious injury, read this
entire manual BEFORE

Components

Electrical Components

C

using machine.

Refer to the following figures and descriptions to
become familiar with the basic controls and com­ponents of this machine. Understanding these
items and how they work will help you understand
the rest of the manual and minimize your risk of
injury when operating this machine.

Buffing Wheel Components

B

A

E

Figure 2. Electrical components.

C. Brush Cap: Holds motor brush and provides

easy access for replacement.

ON/OFF Switch: Press ON button (I) to turn

D.

motor ON. Press OFF button (O) to turn
motor OFF.

Variable-Speed Dial: Rotates clockwise to

E.

increase buffing wheels up to 7000 RPM, and
rotates counterclockwise to decrease buffing
wheels down to 2000 RPM.

D

Figure 1. Buffing wheel components.

Buffing Wheel: Spins to buff workpiece.

A.

Can be replaced with different buffing/pol­ishing wheels for different operations and
compounds.

Spindle Sleeve: Secures and spins buffing

B.

wheels. Accepts wheels up to 8" diameter
with up to a

-4-

3

⁄8" wheel bore.

Model T32004 (Mfd. Since 02/20)

Machine Data Sheet

MACHINE DATA

SHEET

Customer Service #: [phone] · To Order Call: [phone] · Fax #: [phone]

MODEL T32004 3/4 HP VARIABLE‐SPEED MINI BENCHTOP

BUFFER

Product Dimensions:

Weight................................................................................................................................................................ 12 lbs.

Width (side-to-side) x Depth (front-to-back) x Height................................................................... 13-1/2 x 5-1/2 x 7 in.

Footprint (Length x Width)................................................................................................................................ 6 x 5 in.

Shipping Dimensions:

Type............................................................................................................................................................. Cardboard

Content........................................................................................................................................................... Machine

Weight................................................................................................................................................................ 13 lbs.

Length x Width x Height....................................................................................................................... 19 x 12 x 14 in.

Electrical:

Power Requirement........................................................................................................... 120V, Single-Phase, 60 Hz

Full-Load Current Rating........................................................................................................................................ 10A

Minimum Circuit Size.............................................................................................................................................. 15A

Connection Type....................................................................................................................................... Cord & Plug

Power Cord Included.............................................................................................................................................. Yes

Power Cord Length................................................................................................................................................. 6 ft.

Power Cord Gauge......................................................................................................................................... 18 AWG

Plug Included.......................................................................................................................................................... Yes

Included Plug Type.................................................................................................................................... NEMA 5-15

Switch Type........................................................................................ ON/OFF Rocker Switch w/Variable-Speed Dial

Motors:

Main

Horsepower............................................................................................................................................. 3/4 HP

Phase............................................................................................................................................ Single-Phase

Amps............................................................................................................................................................ 10A

Speed..................................................................................................................................... 2000 - 7000 RPM

Type............................................................................................................................................ Universal (DC)

Power Transfer ......................................................................................................................................... Direct

Bearings..................................................................................................... Shielded & Permanently Lubricated

Main Specifications:

Operation Info

Maximum Wheel Diameter.......................................................................................................................... 8 in.

Maximum Wheel Thickness......................................................................................................................... 2 in.

Maximum Wheel Bore.............................................................................................................................. 3/8 in.

Model T32004 (Mfd. Since 02/20)

-5-

Spindle

Spindle Speed........................................................................................................................ 2000 - 7000 RPM

Spindle Diameter......................................................................................................................... 8mm (5/16 in.)

Spindle Thread Pitch................................................................................................................................ 20 TPI

Spindle Length (Usable).............................................................................................................................. 1 in.

Tapered Spindle Sleeve Length (Threaded)................................................................................................ 2 in.

Tapered Spindle Sleeve Length (Overall).................................................................................................... 3 in.

Tapered Spindle Sleeve Diameter.................................................................................................. 1/16 - 1/2 in.

Tapered Spindle Sleeve Thread Pitch..................................................................................................... 20 TPI

Right Spindle Thread Direction.................................................................................................... Right-Handed

Left Spindle Thread Direction......................................................................................................... Left-Handed

Construction

Base..................................................................................................................................................... Cast Iron

Paint/Finish............................................................................................................................................. Enamel

Other Specifications:

Country of Origin ................................................................................................................................................ China

Warranty ........................................................................................................................................................... 1 Year

Approximate Assembly & Setup Time .......................................................................................................... 5 Minutes

Serial Number Location ................................................................................................................... Machine ID Label

ISO 9001 Factory .................................................................................................................................................. Yes

Features:

Cast Iron Base
Dual Cotton Buffing Wheels
Two Tapered Spindle Sleeves
Variable-Speed Dial

Accessories Included:

Hex Wrench 2mm

-6-

Model T32004 (Mfd. Since 02/20)

SECTION 1: SAFETY

For Your Own Safety, Read Instruction

Manual Before Operating This Machine

The purpose of safety symbols is to attract your attention to possible hazardous conditions.
This manual uses a series of symbols and signal words intended to convey the level of impor­tance of the safety messages. The progression of symbols is described below. Remember that
safety messages by themselves do not eliminate danger and are not a substitute for proper
accident prevention measures. Always use common sense and good judgment.

Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury. It may also be used to alert
against unsafe practices.

Alerts the user to useful information about proper operation of the

NOTICE

machine to avoid machine damage.

Safety Instructions for Machinery

OWNER’S MANUAL. Read and understand this

owner’s manual BEFORE using machine.

TRAINED OPERATORS ONLY. Untrained oper­ators have a higher risk of being hurt or killed.
Only allow trained/supervised people to use this
machine. When machine is not being used, dis­connect power, remove switch keys, or lock-out
machine to prevent unauthorized use—especially
around children. Make your workshop kid proof!

DANGEROUS ENVIRONMENTS. Do not use
machinery in areas that are wet, cluttered, or have
poor lighting. Operating machinery in these areas
greatly increases the risk of accidents and injury.

MENTAL ALERTNESS REQUIRED. Full mental
alertness is required for safe operation of machin­ery. Never operate under the influence of drugs or
alcohol, when tired, or when distracted.

ELECTRICAL EQUIPMENT INJURY RISKS.
You can be shocked, burned, or killed by touching
live electrical components or improperly grounded
machinery. To reduce this risk, only allow qualified
service personnel to do electrical installation or
repair work, and always disconnect power before
accessing or exposing electrical equipment.

DISCONNECT POWER FIRST.
nect machine from power supply BEFORE mak­ing adjustments, changing tooling, or servicing
machine. This prevents an injury risk from unin­tended startup or contact with live electrical com­ponents.

EYE PROTECTION. Always wear ANSI-approved
safety glasses or a face shield when operating or
observing machinery to reduce the risk of eye
injury or blindness from flying particles. Everyday
eyeglasses are NOT approved safety glasses.

Always discon-

Model T32004 (Mfd. Since 02/20)

-7-

WEARING PROPER APPAREL. Do not wear
clothing, apparel or jewelry that can become
entangled in moving parts. Always tie back or
cover long hair. Wear non-slip footwear to reduce
risk of slipping and losing control or accidentally
contacting cutting tool or moving parts.

HAZARDOUS DUST. Dust created by machinery
operations may cause cancer, birth defects, or
long-term respiratory damage. Be aware of dust
hazards associated with each workpiece mate­rial. Always wear a NIOSH-approved respirator to
reduce your risk.

HEARING PROTECTION. Always wear hear­ing protection when operating or observing loud
machinery. Extended exposure to this noise
without hearing protection can cause permanent
hearing loss.

REMOVE ADJUSTING TOOLS. Tools left on
machinery can become dangerous projectiles
upon startup. Never leave chuck keys, wrenches,
or any other tools on machine. Always verify
removal before starting!

USE CORRECT TOOL FOR THE JOB. Only use
this tool for its intended purpose—do not force
it or an attachment to do a job for which it was
not designed. Never make unapproved modifica­tions—modifying tool or using it differently than
intended may result in malfunction or mechanical
failure that can lead to personal injury or death!

AWKWARD POSITIONS. Keep proper footing
and balance at all times when operating machine.
Do not overreach! Avoid awkward hand positions
that make workpiece control difficult or increase
the risk of accidental injury.

CHILDREN & BYSTANDERS. Keep children and
bystanders at a safe distance from the work area.
Stop using machine if they become a distraction.

GUARDS & COVERS. Guards and covers reduce
accidental contact with moving parts or flying
debris. Make sure they are properly installed,
undamaged, and working correctly BEFORE
operating machine.

FORCING MACHINERY. Do not force machine.
It will do the job safer and better at the rate for
which it was designed.

NEVER STAND ON MACHINE. Serious injury
may occur if machine is tipped or if the cutting
tool is unintentionally contacted.

STABLE MACHINE. Unexpected movement dur­ing operation greatly increases risk of injury or
loss of control. Before starting, verify machine is
stable and mobile base (if used) is locked.

USE RECOMMENDED ACCESSORIES. Consult
this owner’s manual or the manufacturer for rec­ommended accessories. Using improper acces­sories will increase the risk of serious injury.

UNATTENDED OPERATION. To reduce the
risk of accidental injury, turn machine OFF and
ensure all moving parts completely stop before
walking away. Never leave machine running
while unattended.

MAINTAIN WITH CARE. Follow all maintenance
instructions and lubrication schedules to keep
machine in good working condition. A machine
that is improperly maintained could malfunction,
leading to serious personal injury or death.

DAMAGED PARTS. Regularly inspect machine
for damaged, loose, or mis-adjusted parts—or
any condition that could affect safe operation.
Immediately repair/replace BEFORE operating
machine. For your own safety, DO NOT operate
machine with damaged parts!

MAINTAIN POWER CORDS. When disconnect­ing cord-connected machines from power, grab
and pull the plug—NOT the cord. Pulling the cord
may damage the wires inside. Do not handle
cord/plug with wet hands. Avoid cord damage by
keeping it away from heated surfaces, high traffic
areas, harsh chemicals, and wet/damp locations.

EXPERIENCING DIFFICULTIES. If at any time
you experience difficulties performing the intend­ed operation, stop using the machine! Contact our
Technical Support at [phone].

-8-

Model T32004 (Mfd. Since 02/20)

Additional Safety for Buffers

Entanglement/amputation injuries can occur from being caught in moving parts or in-running
pinch points. Buffing wheel can easily remove skin. To minimize risk of getting hurt or killed,
anyone operating machine MUST completely heed hazards and warnings below.

WORKPIECE SELECTION. Always inspect the

condition of your workpiece. DO NOT buff pieces
with loose knots, large splinters, sharp edges, and
DO NOT buff knives, cable, chain or other poten­tially dangerous objects that may be grabbed by
the buffing wheel and thrown at the operator.

EYE/FACE/LUNG PROTECTION. Always wear
eye protection or a face shield and a heavy
leather apron when operating the buffer. Wear a
dust mask to protect your lungs from microscopic
particulates. Particulates may cause allergies or
long-term respiratory health problems.

MOUNTING TO BENCH/STAND. An unsecured
buffer may become dangerously out of control
during operation. Make sure buffer is FIRMLY
secured to a bench/stand before use.

WORKPIECE CONTROL. If you cannot hold
small workpieces securely, do not buff them with
this machine. Secure them with clamps or similar
jigs or use a different buffer.

AVOIDING ENTANGLEMENT. Becoming entan­gled in moving parts can cause severe injury or
death. Keep all guards and covers in place; DO
NOT wear loose clothing, gloves, or jewelry; and
tie back long hair.

OPERATOR POSITION. Do not stand directly in
front of the buffer wheel when turning the machine
ON, or when buffing. Do not buff material at the
rear of the machine.

HAND/WHEEL CONTACT. Do not allow your
hands to come into contact with the buffing wheel.
Abrasive accessories can remove skin fast. Keep
a firm grip on the workpiece and position your
hands at a safe distance away when buffing.
Avoid wearing gloves as they may get caught in
the buffing wheel and cause entanglement inju­ries.

CORRECT ACCESSORIES AND USE. The buf­fer is only designed for buffing and polishing.
Never exceed the maximum speed listed on each
buffing/polishing wheel.

WORKPIECE FEED. Allow the wheel to reach
full speed, then slowly ease the workpiece into
the buffing wheel, holding it in front of and
slightly below the wheel center. Do not place
the workpiece on the top or sides of the buffing
wheel and do not place an edge or corner of
the workpiece against the buffing wheel, or jam
it against the wheel. The workpiece may eject
toward the operator or be torn from the operator’s
hands, causing serious personal injury.

Like all machinery there is potential danger
when operating this machine. Accidents are
frequently caused by lack of familiarity or
failure to pay attention. Use this machine
with respect and caution to decrease the
risk of operator injury. If normal safety pre­cautions are overlooked or ignored, serious
personal injury may occur.

Model T32004 (Mfd. Since 02/20)

No list of safety guidelines can be complete.
Every shop environment is different. Always
consider safety first, as it applies to your
individual working conditions. Use this and
other machinery with caution and respect.
Failure to do so could result in serious per­sonal injury, damage to equipment, or poor
work results.

-9-

SECTION 2: POWER SUPPLY

Before installing the machine, consider the avail­ability and proximity of the required power supply
circuit. If an existing circuit does not meet the
requirements for this machine, a new circuit must
be installed. To minimize the risk of electrocution,
fire, or equipment damage, installation work and
electrical wiring must be done by an electrician or
qualified service personnel in accordance with all
applicable codes and standards.

or equipment damage
may occur if machine is
not properly grounded
and connected to power

The full-load current rating is the amperage a
machine draws at 100% of the rated output power.
On machines with multiple motors, this is the
amperage drawn by the largest motor or sum of all
motors and electrical devices that might operate
at one time during normal operations.

The full-load current is not the maximum amount
of amps that the machine will draw. If the machine
is overloaded, it will draw additional amps beyond
the full-load rating.

If the machine is overloaded for a sufficient length
of time, damage, overheating, or fire may result—
especially if connected to an undersized circuit.
To reduce the risk of these hazards, avoid over­loading the machine during operation and make
sure it is connected to a power supply circuit that
meets the specified circuit requirements.

For your own safety and protection of

Note: Circuit requirements in this manual apply to

a dedicated circuit—where only one machine will
be running on the circuit at a time. If machine will
be connected to a shared circuit where multiple
machines may be running at the same time, con­sult an electrician or qualified service personnel to
ensure circuit is properly sized for safe operation.

A power supply circuit includes all electrical
equipment between the breaker box or fuse panel
in the building and the machine. The power sup­ply circuit used for this machine must be sized to
safely handle the full-load current drawn from the
machine for an extended period of time. (If this
machine is connected to a circuit protected by
fuses, use a time delay fuse marked D.)

This machine is prewired to operate on a power
supply circuit that has a verified ground and meets
the following requirements:

process. DO NOT connect to power until

Availability

Electrocution, fire, shock,

Serious injury could occur if you connect
machine to power before completing setup

instructed later in this manual.

120V Circuit Requirements

Nominal Voltage .................... 110V, 115V, 120V

..........................................................60 Hz

Cycle
Phase
Power Supply Circuit

........................................... Single-Phase

......................... 15 Amps

supply.

Full-Load Current Rating

Full-Load Current Rating at 120V ..... 10 Amps

-10 -

property, consult an electrician if you are
unsure about wiring practices or electrical
codes in your area.

Model T32004 (Mfd. Since 02/20)

Improper connection of the equipment-grounding
wire can result in a risk of electric shock. The
wire with green insulation (with or without yellow
stripes) is the equipment-grounding wire. If repair
or replacement of the power cord or plug is nec­essary, do not connect the equipment-grounding
wire to a live (current carrying) terminal.

Check with a qualified electrician or service per­sonnel if you do not understand these grounding
requirements, or if you are in doubt about whether
the tool is properly grounded. If you ever notice
that a cord or plug is damaged or worn, discon­nect it from power, and immediately replace it with
a new one.

We do not recommend using an extension cord
with this machine.
cord, only use it if absolutely necessary and only
on a temporary basis.

Extension cords cause voltage drop, which can
damage electrical components and shorten motor
life. Voltage drop increases as the extension cord
size gets longer and the gauge size gets smaller
(higher gauge numbers indicate smaller sizes).

Any extension cord used with this machine must
be in good condition and contain a ground wire
and matching plug/receptacle. Additionally, it must
meet the following size requirements:

Grounding & Plug Requirements

it will not fit the outlet, have a qualified
electrician install the proper outlet with a

This machine MUST be grounded. In the event
of certain malfunctions or breakdowns, grounding
reduces the risk of electric shock by providing a
path of least resistance for electric current.

This machine is equipped with a power cord that
has an equipment-grounding wire and a grounding
plug. Only insert plug into a matching receptacle
(outlet) that is properly installed and grounded in
accordance with all local codes and ordinances.
DO NOT modify the provided plug!

GROUNDED

5-15 RECEPTACLE

Grounding Pin

5-15 PLUG

Extension Cords

If you must use an extension

Neutral Hot

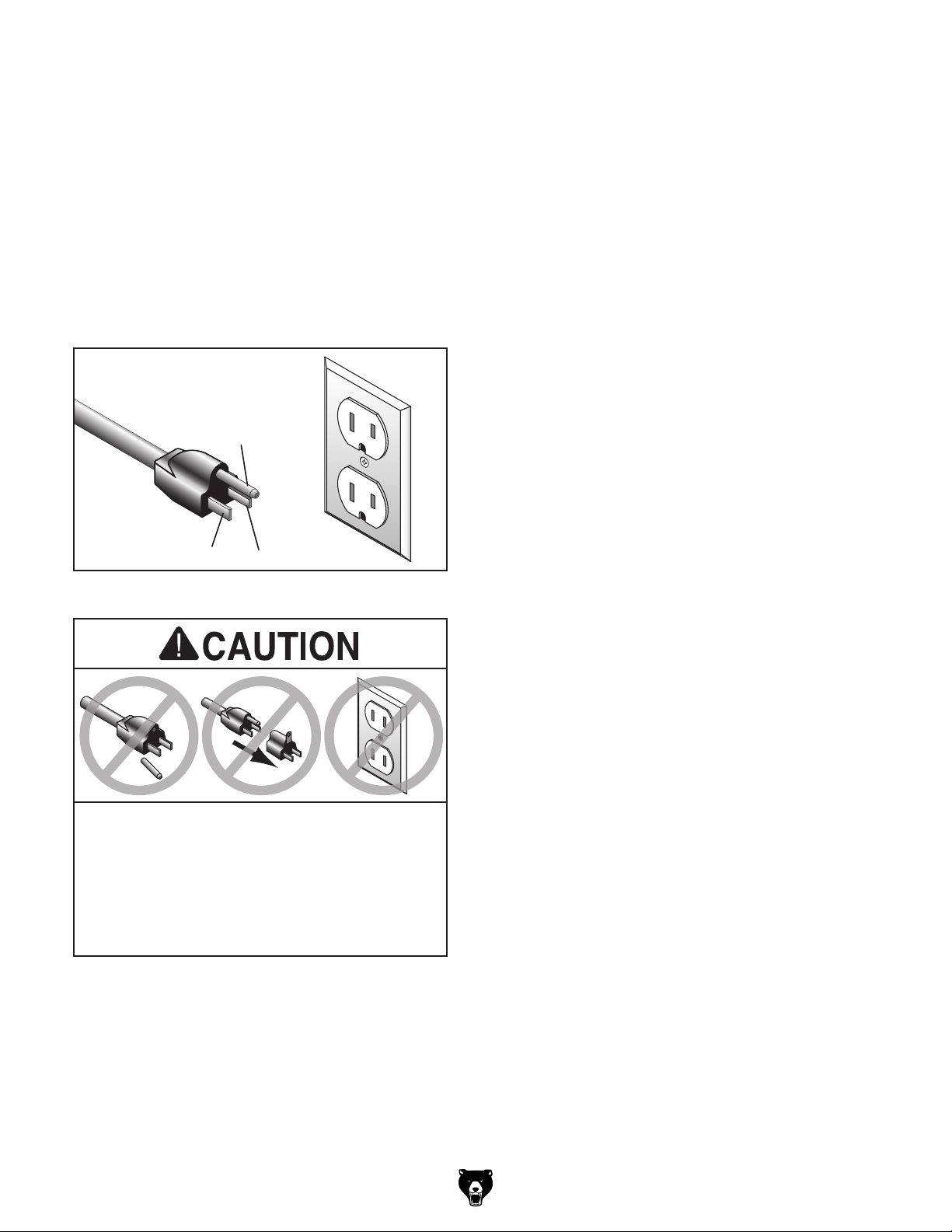

Figure 3. Typical 5-15 plug and receptacle.

SHOCK HAZARD!
Two-prong outlets do not meet the grounding
requirements for this machine. Do not modify
or use an adapter on the plug provided—if

verified ground.

Model T32004 (Mfd. Since 02/20)

Minimum Gauge Size ...........................16 AWG

Maximum Length (Shorter is Better).......50 ft.

-11-

The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.

If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.

SECTION 3: SETUP

This machine was carefully packaged for safe
transport. When unpacking, separate all enclosed
items from packaging materials and inspect them
for shipping damage.

,

please

at [phone].

IMPORTANT:

you are completely satisfied with the machine and
have resolved any issues between Grizzly or the
shipping agent. You MUST have the original pack-

aging to file a freight claim. It is also extremely
helpful if you need to return your machine later.

The following items are needed, but not included,
for the setup/assembly of this machine.

This machine presents
serious injury hazards
to untrained users. Read
through this entire manu­al to become familiar with
the controls and opera­tions before starting the
machine!

Inventory

Wear safety glasses during
the entire setup process!

Needed for Setup

Description Qty

• Safety Glasses ........................................... 1

Unpacking

If items are damaged

call us immediately

NOTICE

If you cannot find an item on this list, care­fully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpack­ing or they are pre-installed at the factory.

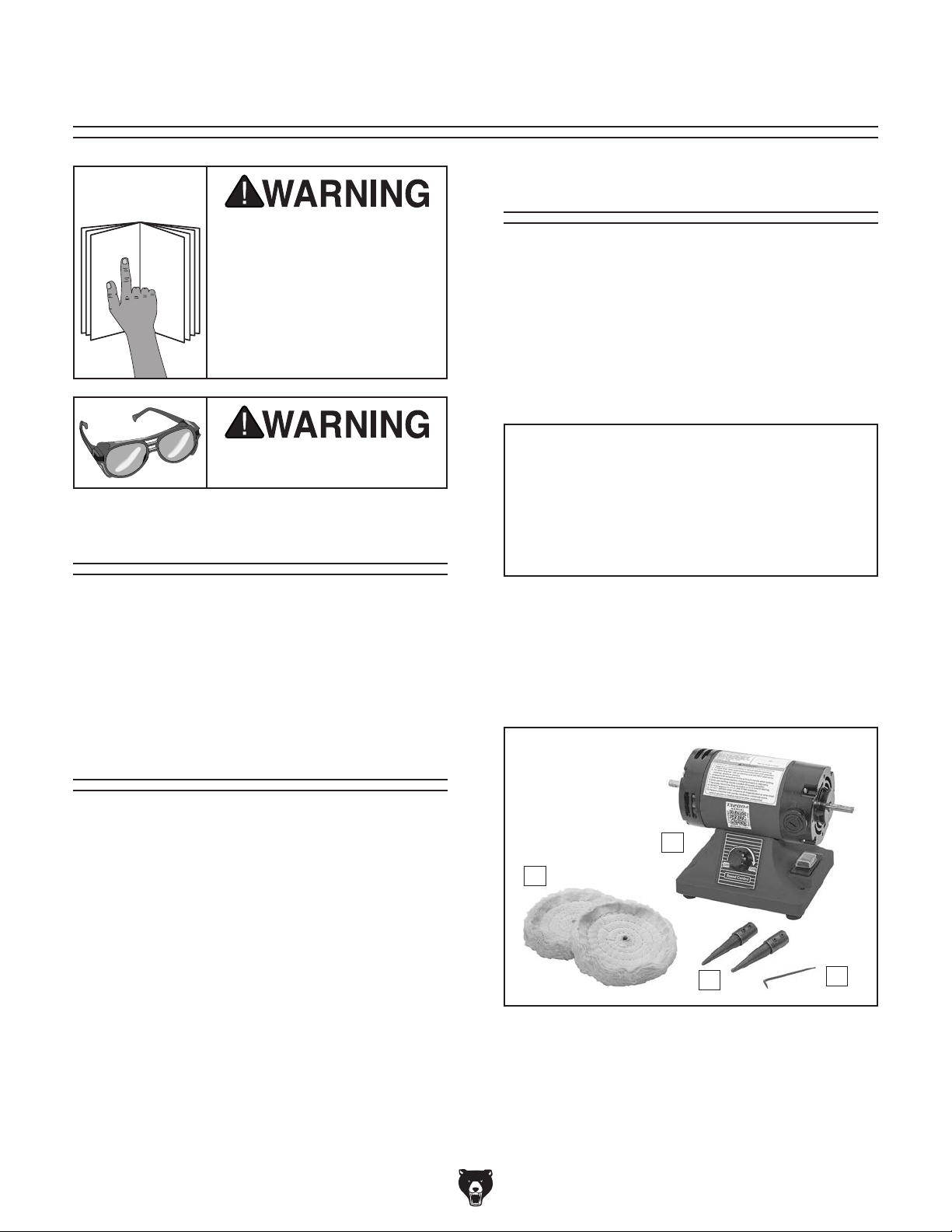

Box 1 (Figure 4) Qty

A. Buffing Wheels ........................................... 2

B. Buffer .......................................................... 1

C. Tapered Spindle Sleeves ........................... 2

D. Hex Wrench 2mm ....................................... 1

B

A

Save all packaging materials until

-12-

C

Figure 4. Loose inventory.

Model T32004 (Mfd. Since 02/20)

D

Site Considerations

vised around this machine.

or disable start switch or

Refer to the Machine Data Sheet for the weight
and footprint specifications of your machine.
Some workbenches may require additional rein­forcement to support the weight of the machine
and workpiece materials.

Consider anticipated workpiece sizes and addi­tional space needed for auxiliary stands, work
tables, or other machinery when establishing a
location for this machine in the shop. Below is
the minimum amount of space needed for the

Another option is a "direct mount" (see example
below) where the machine is secured directly to
the workbench with lag screws and washers.

The base of this machine has mounting holes
that allow it to be fastened to a workbench or
other mounting surface to prevent it from moving
during operation and causing accidental injury or
damage.

The strongest mounting option is a "Through
Mount" (see example below) where holes are
drilled all the way through the workbench—and
hex bolts, washers, and hex nuts are used to
secure the machine in place.

Bench Mounting

Workbench Load

Placement Location

5½"

Number of Mounting Holes
Dia. of Mounting Hardware Needed

Machine Base

............................ 4

Hex
Bolt

Flat Washer

.......... #10

13½"

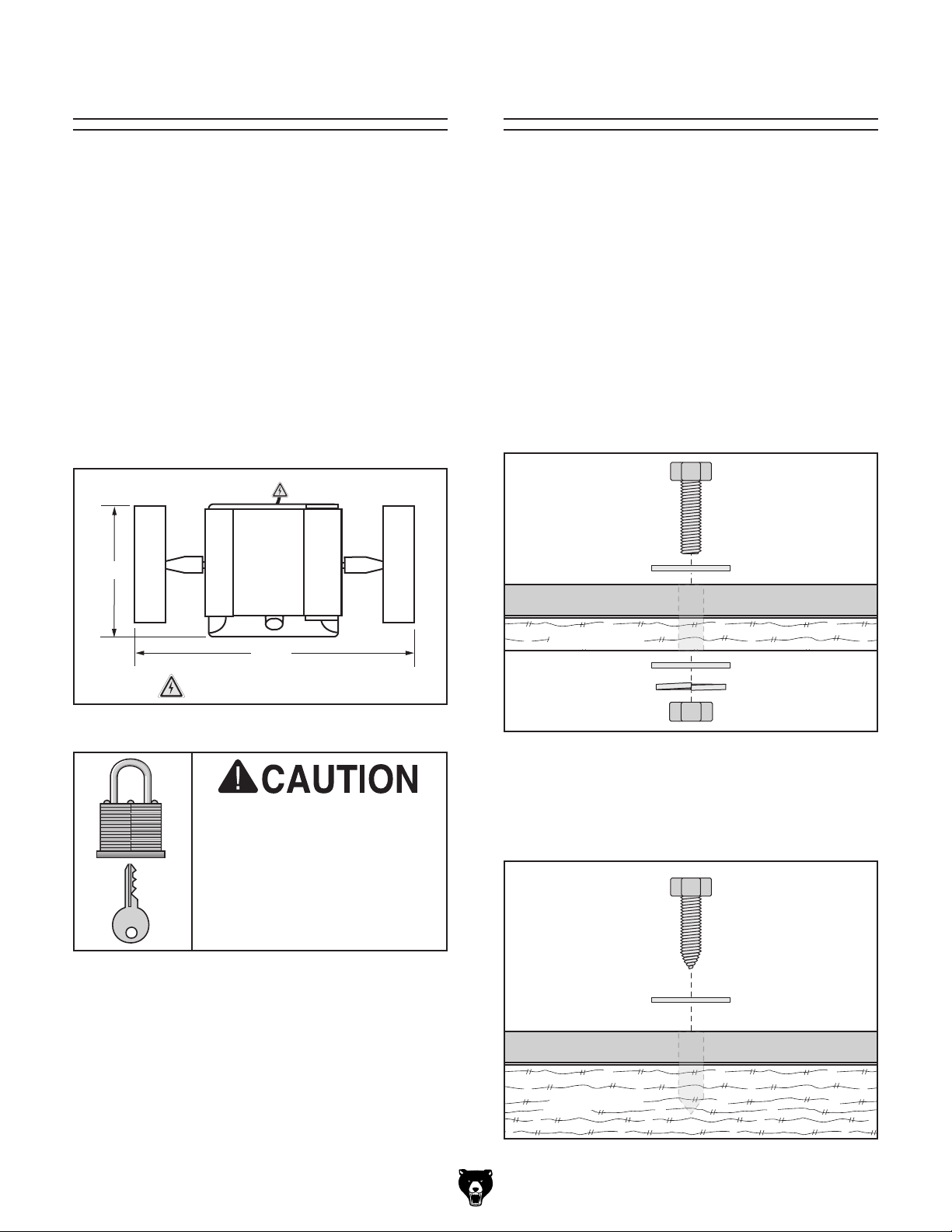

= Electrical Connection

Figure 5. Minimum working clearances.

Children and visitors may be
seriously injured if unsuper-

Lock entrances to the shop

power connection to prevent
unsupervised use.

Workbench

Flat Washer

Lock Washer

Hex Nut

Figure 6. "Through Mount" setup.

Lag Screw

Flat Washer

Machine Base

Model T32004 (Mfd. Since 02/20)

Workbench

Figure 7. "Direct Mount" setup.

-13-

Assembly

The machine must be fully assembled before it
can be operated. Before beginning the assembly
process, refer to

and gather

all

To ensure the assembly process

goes smoothly, first clean any

cov­ered or coated in heavy-duty rust preventative (if
applicable).

Note: Pre-installed set screws in spindle

sleeves should line up with flats on spindle
(see Figure 9).

Needed for Setup

listed items.

parts that are

There is a range of options when it comes to buff­ing and polishing wheels, but two 4
ton wheels are included with the Model T32004.

To assemble machine:

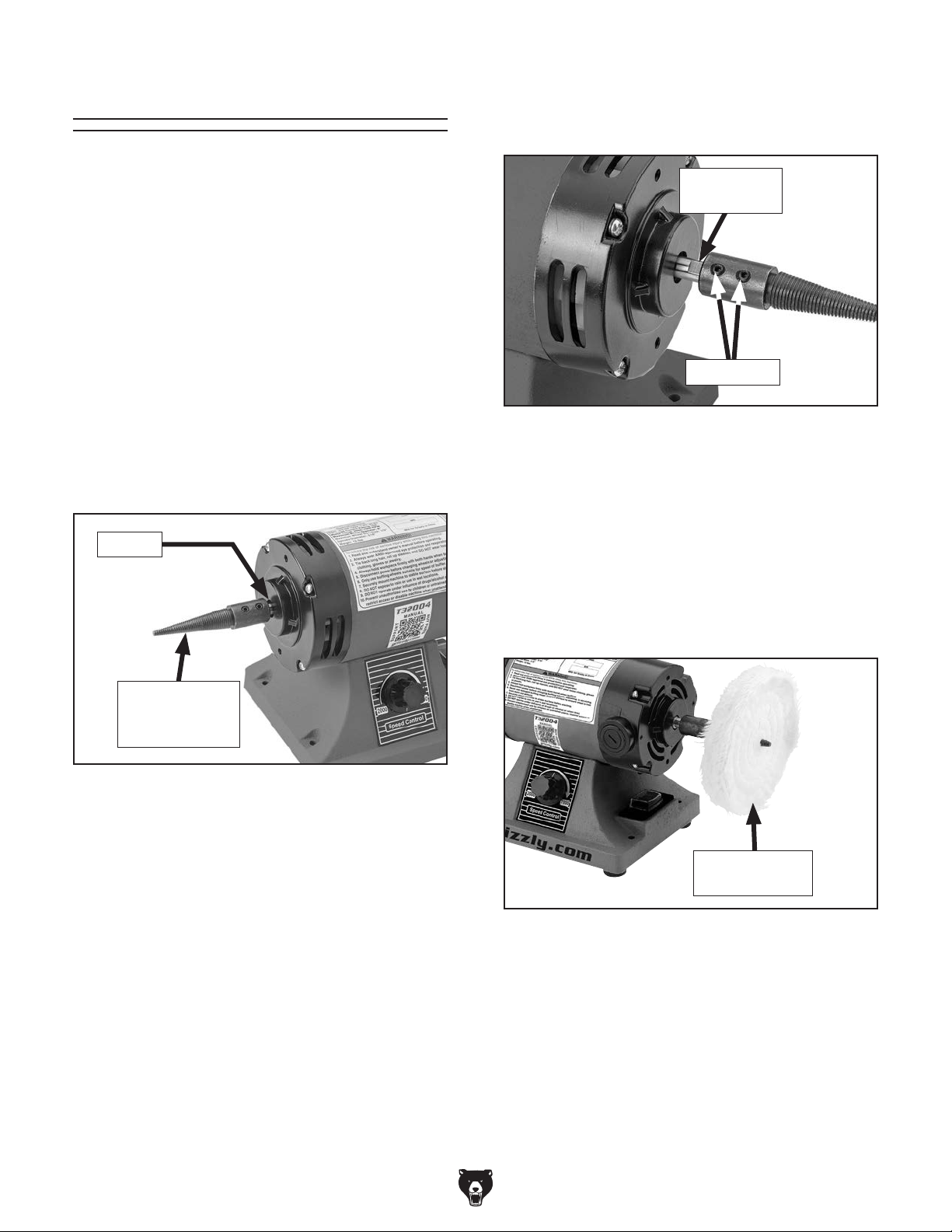

Place (1) tapered spindle sleeve on each

1.

spindle shaft on each side of buffer (see
Figure 8).

Spindle

1

⁄2", 50-ply cot-

Spindle Flat

(1 of 2)

Set Screws

Figure 9. Set screws aligned with spindle flat.

Tighten (2) pre-installed set screws on each

2.

sleeve to secure sleeves on spindle shaft.

Note: Sleeve is not correctly installed if

spindle flat is visible. Sleeve should cover
entire spindle flat on each side.

3. Thread a buffing wheel onto either tapered
spindle sleeve (see Figure 10).

Tapered

Spindle Sleeve

(1 of 2)

Figure 8. Tapered spindle sleeves on spindle.

-14-

Buffing Wheel

(1 of 2)

Figure 10. Buffing wheels threaded onto tapered

spindle sleeves.

Note: Left spindle sleeve has left-hand

threads so buffing wheel threads counter­clockwise onto sleeve.

Model T32004 (Mfd. Since 02/20)

Test Run

Once assembly is complete, test run the machine
to ensure it is properly connected to power and
safety components are functioning correctly.

If you find an unusual problem during the test run,
immediately stop the machine, disconnect it from
power, and fix the problem BEFORE operating the
machine again. The

table in the

SERVICE section of this manual can help.

setup instructions have been performed.
Operating an improperly set up machine

Serious injury or death can result from

Troubleshooting

The Test Run consists of verifying the following: 1)
The motor powers up and runs correctly.

using this machine BEFORE understanding
its controls and related safety information.
DO NOT operate, or allow others to operate,
machine until the information is understood.

To test run machine:

1. Clear all setup tools away from machine.

Press OFF button (O) and turn spindle

2.

speed dial all the way counterclockwise (see
Figure 11) to ensure machine does not
unexpectedly start in highest speed.

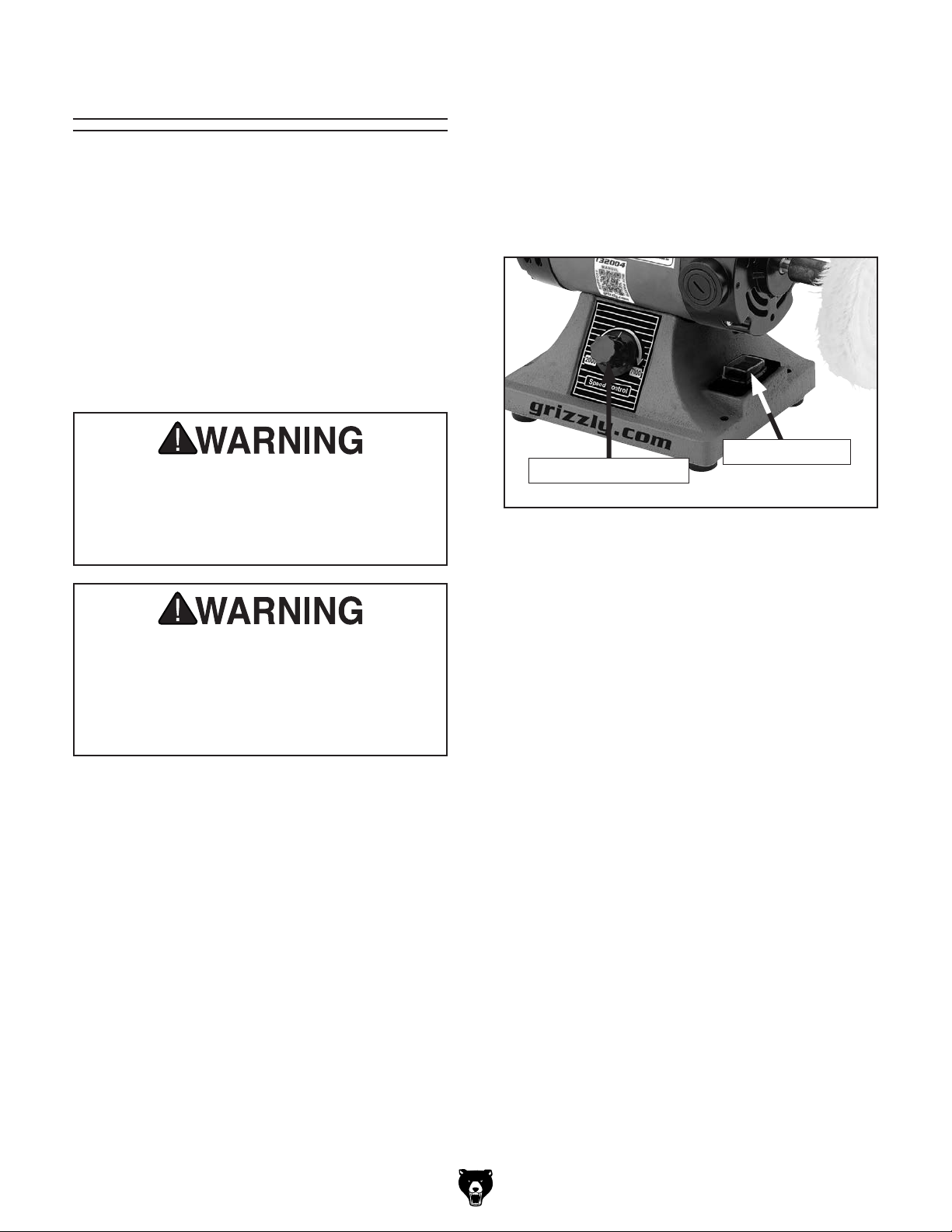

ON/OFF Switch

Variable-Speed Dial

Figure 11. ON/OFF switch and variable-speed

dial locations.

DO NOT start machine until all preceding

may result in malfunction or unexpect­ed results that can lead to serious injury,
death, or machine/property damage.

Connect machine to power supply.

3.

4. Press ON button (I) to turn machine ON.

Verify motor operation by slowly turning

5.

spindle speed dial clockwise. Rotate dial
back and forth to test variable-speed func­tion. Motor should run smoothly and without
unusual problems or noises.

— If motor does not run smoothly, imme-

diately turn machine OFF and discon­nect power. Refer to Troubleshooting on
Page 23 before operating.

Turn spindle speed dial all the way counter-

6.

clockwise to ensure machine does not unex­pectedly start in highest speed, then press
OFF button to turn machine OFF.

Congratulations! Test run is complete.

Model T32004 (Mfd. Since 02/20)

-15-

SECTION 4: OPERATIONS

To reduce your risk of
serious injury, read this
entire manual BEFORE

Wear personal protective equipment to

To complete a typical operation, the operator
does the following:

Cleans and examines workpiece to make

1.

sure it is suitable for buffing.

using machine.

Eye and face injuries and respiratory prob­lems can occur while operating this tool.

reduce your risk from these hazards.

If you are not experienced with this type
of machine, WE STRONGLY RECOMMEND
that you seek additional training outside of
this manual. Read books/magazines or get
formal training before beginning any proj­ects. Regardless of the content in this sec­tion, Grizzly Industrial will not be held liable
for accidents caused by lack of training.

Selects appropriate polishing compound.

2.

3. Ensures that variable-speed dial is turned all

the way counterclockwise in OFF position,
and connects buffer to power.

Puts on personal protective equipment.

4.

5. Stands aside, starts machine, adjusts speed,

then applies polishing compound and gradu­ally feeds workpiece into wheel.

Stops machine once buffing operation is

6.

complete.

-16 -

Model T32004 (Mfd. Since 02/20)

Buffing

Below are some quick tips for getting the most
out of your buffing wheels. Remember, there is no
substitute for experience. Learning how to hold
the workpiece, how much pressure to apply, how
to move the workpiece against the wheel, and
how much compound to use requires a certain
amount of trial-and-error.

• Thoroughly clean all parts you plan to buff.
Dirt, oil, rust, paint, or other film must be
removed chemically or with water. Make sure
to dry off parts with a rag after cleaning.

• Keep buffing wheels raked out before each
use and when buildup gets heavy during use.
Raking means to clean buffing wheels with
a wheel rake to remove built-up compounds
and metal particles. ALWAYS use light pres­sure when raking wheels!

• Do not mix two different compounds on same
wheel. For best results, use a separate wheel
for each compound.

• Always use an upward stroke with heavy to
moderate pressure for cutting. Use a down­ward stroke with light pressure for polishing
(see Figure 13).

• Apply buffing compounds in small amounts
at a time. Apply paste-type compounds with
a wand or directly to the part. For wax-based
polishing stick-type compounds, press com­pound on the wheel for a couple of seconds
while machine is running. Avoid using too
much compound.

• Put your workpiece under wheel when you
are loading compound on the buffing wheel.
This way, you will catch any compound that
would normally be wasted on floor.

• To begin buffing, slowly feed workpiece into
buffing wheel workpiece contact zone (see
Figure 12). Contacting workpiece on areas
outside of the correct area may flip workpiece
out of your hands. Hold workpiece tightly at
all times while buffing. Placing one hand near
contact point will give you better control.

n

o

i

(Right Side View)

FRONT

W

t

a

t

o

R

l

e

e

h

TOP

n

W

o

i

t

a

t

o

R

l

e

e

h

(Right Side View)

Polishing Stroke

(Downward)

n

o

i

t

a

t

o

R

l

e

e

h

W

Cutting Stroke

(Upward)

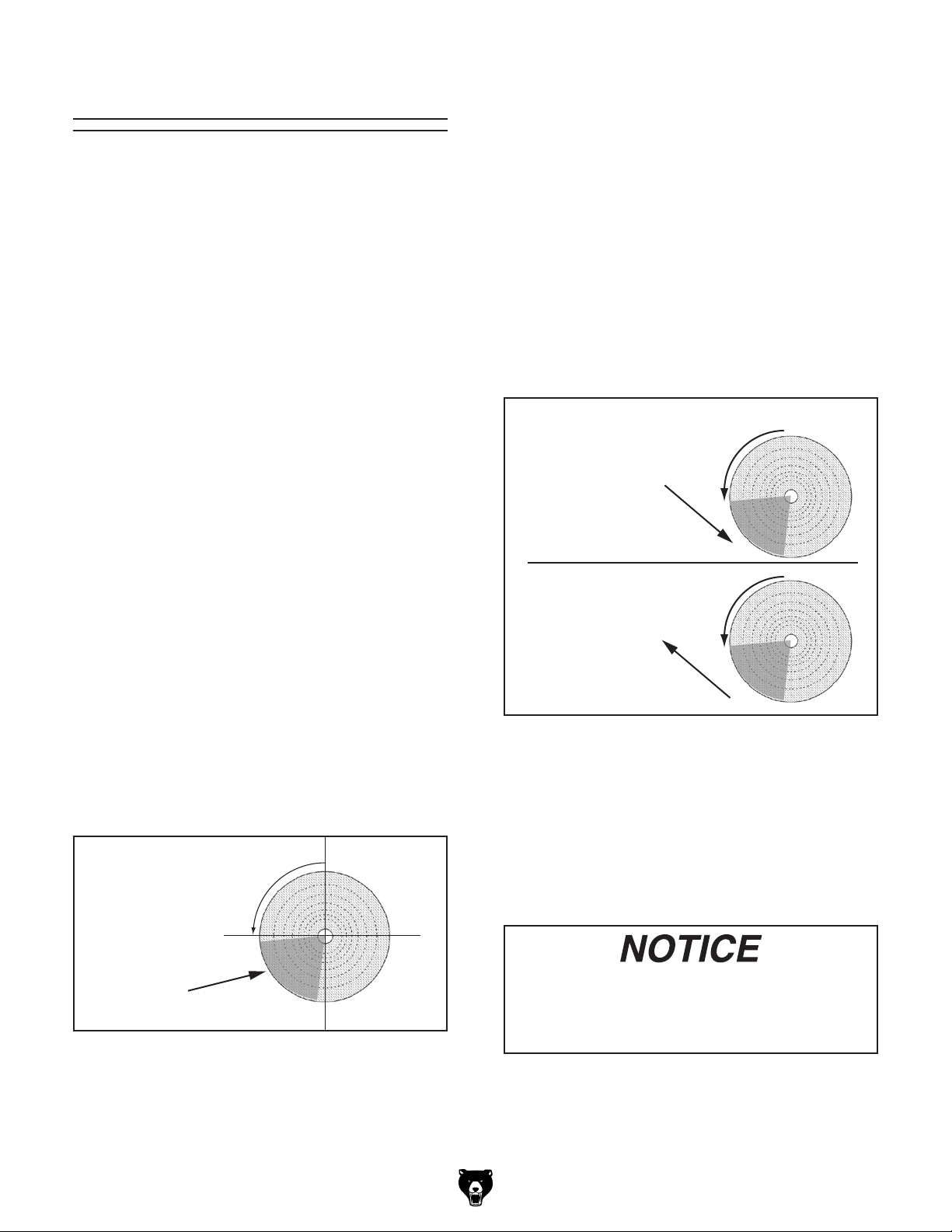

Figure 13. Cutting and polishing strokes.

• Wear safety equipment when buffing. If buffer
forces workpiece out of your hand, be pre­pared for it to come flying at you! Wear safety
glasses or a face shield and a heavy leather
apron. Also, wear a dust mask to protect your
lungs from microscopic particulate that will be
flying off wheel.

Workpiece

contact here

Figure 12. Workpiece contact zone.

Model T32004 (Mfd. Since 02/20)

BOTTOM

Use caution when polishing plated metals;
there is a chance that thinly-plated materials
could be damaged. Light pressure is all that
is needed for quality work.

-17-

Selecting

Installing/Removing

Buffing Wheels

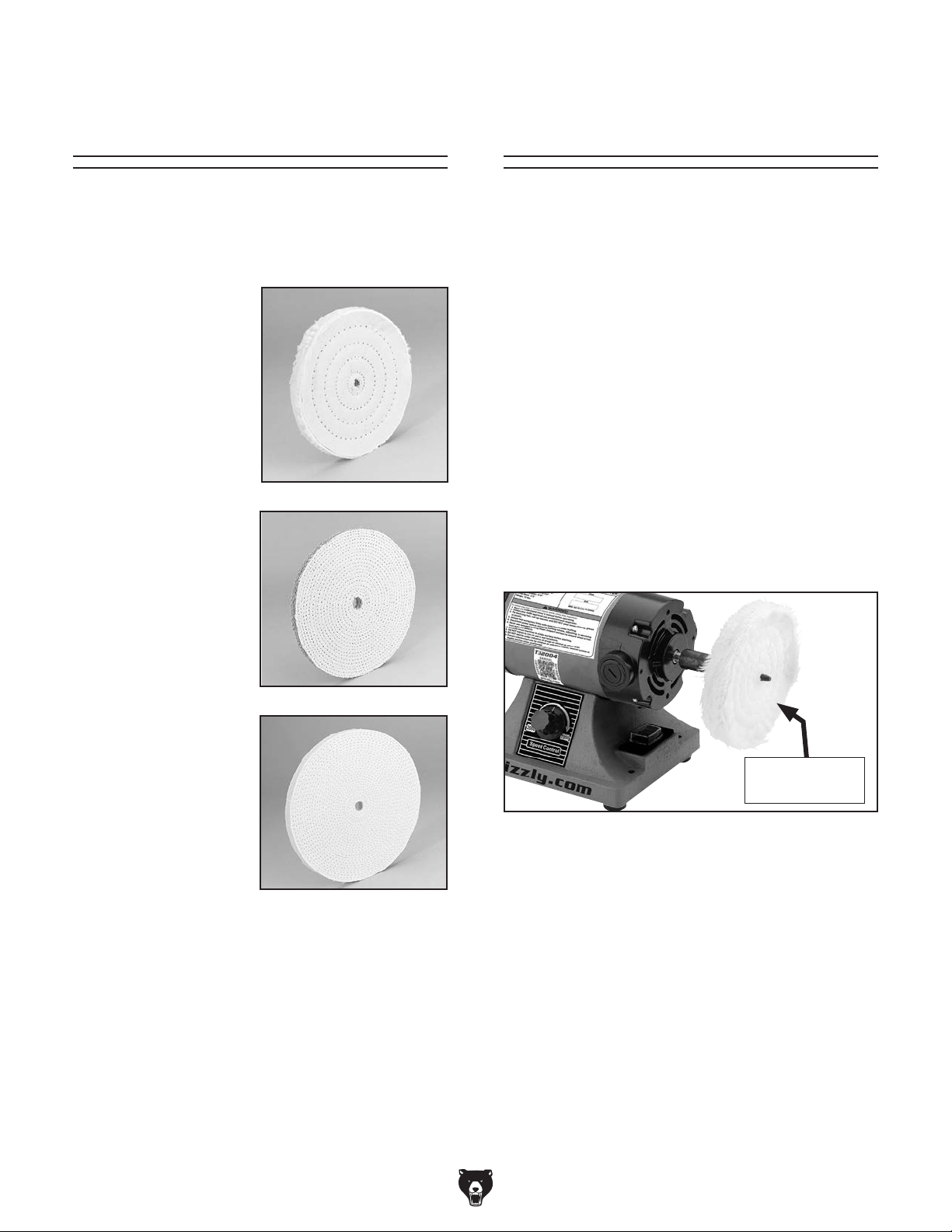

Buffing wheels are available for most types of
metals and for different stages in the buffing pro­cess. Below are pictures and descriptions of com­mon wheel types:

Loose Muslin

Soft feather-edged
muslin stitched togeth­er near the center
leaves the outer edge
to provide a wide angle,
fine polishing surface.
Perfect for polishing
stainless steel, chrome,
gold or silver.

Laminated Sisal

Designed for rough
cutting, sisal works
well with various steels,
copper, aluminum,
and brass to remove
scratches and prepare
the piece for polishing.

Buffing Wheel

The tapered spindle sleeves on each end of the
spindle make it easy to swap out different buffing
wheels for different projects. Their tapered deisgn
also allows for a range of bore thicknesses, espe­cially useful for polishing wheels that may break
down after lots of polishing use. If the bore of a
wheel wears and becomes larger, simply install it
farther onto the spindle sleeve.

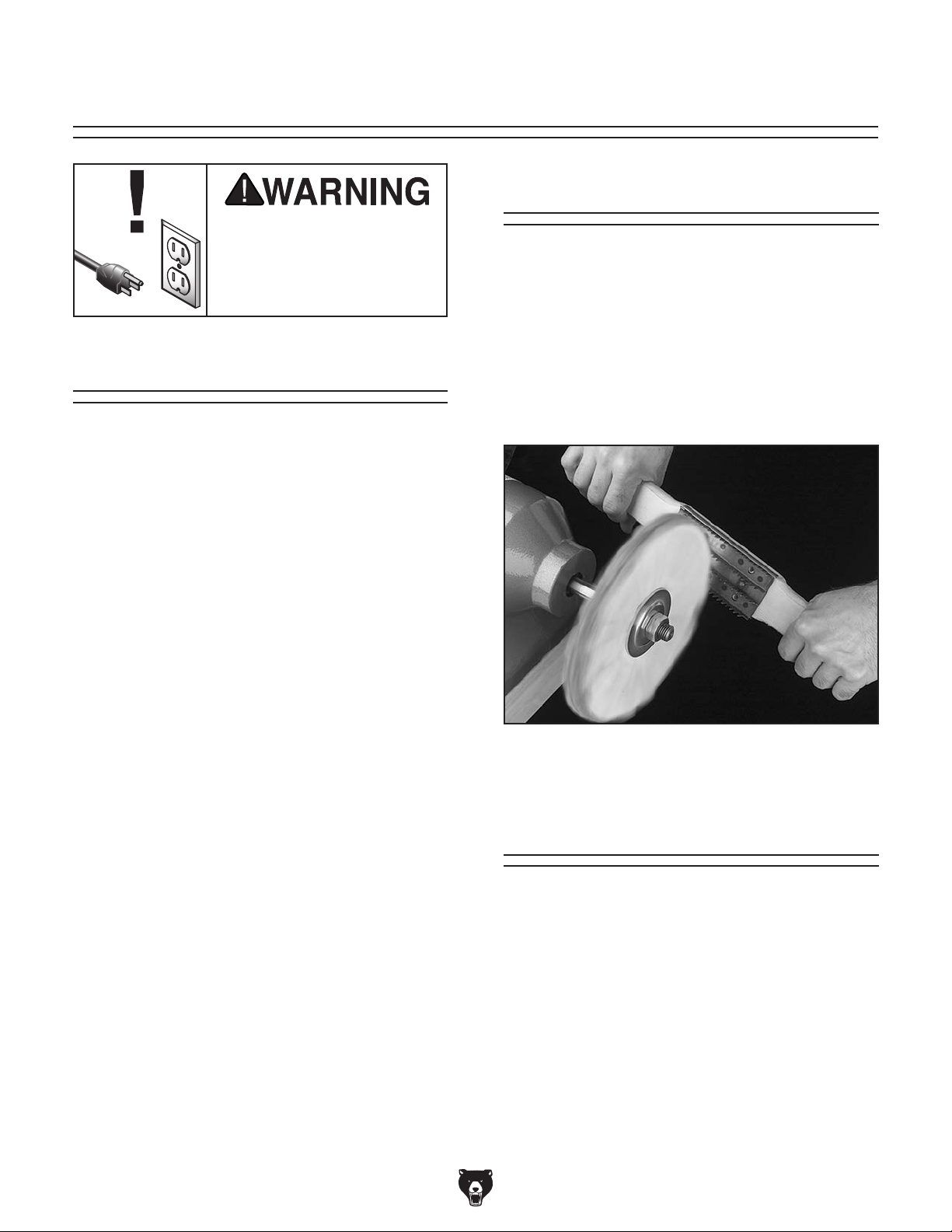

To install/remove buffing wheel:

1. DISCONNECT MACHINE FROM POWER!

2. Remove buffing wheels by holding shaft sta-

tionary and turning left wheel clockwise off of
shaft and right wheel counterclockwise.

3. Thread a buffing wheel onto either tapered
spindle sleeve (see Figure 14).

Spiral Sewn

Consist of layers of
100% unbleached cot­ton sheeting that are
spiral sewn
Works well for initial
polish on brass, stain­less steel, aluminum,
bronze and cast iron.

1

⁄8" apart.

Buffing Wheel

(1 of 2)

Figure 14. Buffing wheel threaded onto tapered

spindle sleeve.

Note: Left spindle sleeve has left-hand

threads so buffing wheel threads counter­clockwise onto sleeve.

-18-

Model T32004 (Mfd. Since 02/20)

Selecting Buffing

Compounds

Most colors of abrasives have similar applica­tions, but always check with the manufacturer of
your particular compound.

Loading Compound

Select a buffing compound and buffing wheel that
is suitable for the workpiece and each sequence
of the buffing or polishing operation.

To load compound on wheels:

Grizzly offers the following compounds:

Red Rouge — Made for fine polishing on brass
and gold. Provides an excellent shine when used
with the loose muslin buffing wheel.

Green (Extra Fine) — Great for extra-fine pol­ishing on most metals to bring out that mirror fin­ish. Works best with loose muslin and spiral
sewn buffing wheels.

White — Great for ivory, plastic and resins when
used successively with the soft spiral sewn and
soft airway buffing wheels.

Black — Designed to be used with sisal and air­way hard buffing wheels, this compound is per­fect for the initial rough cut on stainless steel and
iron.

Tripoli — A true middle-of-the-road abrasive,
Tripoli provides an excellent medium cut for
brass, aluminum and zinc alloy.

Green (Fine) — Slightly more abrasive than the
extra-fine green, this green compound is great
for a medium-to-fine polish with most softer
metals.

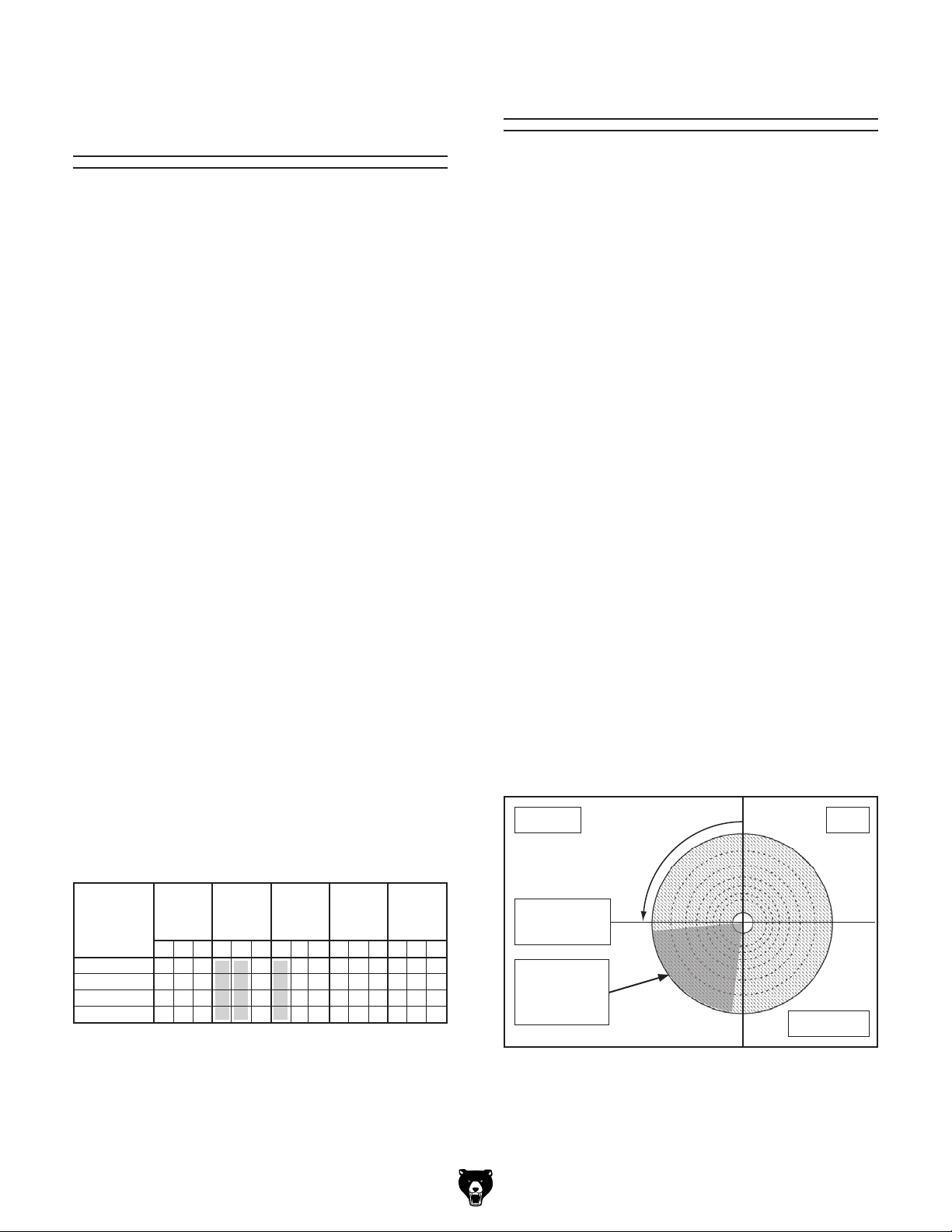

Buffing Compound Sequence Key

Plastics

Soft

Compound
Type

Tripoli
Dark Rouge

White Rouge

Black Rouge

Buffing Sequence: R = Rough F= Final Cut, Initial Polish P = Final Polish

Metals

R F P R F P R F P R F P R F P

X

X

Thin

Plating

Gold

Silver

X

Chrome
& Nickel

Plate

X

Copper

Brass

Aluminum

X

X X

Iron

Steel

Stainless

Steel

XX X

X X

Select buffing wheel suitable for workpiece

1.
(refer to Selecting Buffing Wheels on Page

18). Follow directions on Page 18 to install

wheel.

Select buffing compound suitable to material

2. (refer to Selecting Buffing Compounds and Buffing Compound Sequence Key).

Note: Make sure buffing wheel is free of any

compound used in prior buffing operation.
Clean with a buffing wheel rake if necessary
(see Cleaning on Page 22).

Put on safety glasses, face shield, and respi-

3.

rator, then connect machine to power.

Stand to side of buffer wheel and turn

4.

machine ON. Allow buffer wheel to reach full
speed.

5. Apply buffing compound to rotating face of
wheel, as shown in Figure 15. Only hold
compound to wheel for 2–5 seconds. The
buffer is now ready for buffing/polishing.

FRONT

i

t

a

t

o

R

l

e

e

h

TOP

n

o

W

Right Front

Side View

Only Apply
Compound

Here

BOTTOM

Model T32004 (Mfd. Since 02/20)

Figure 15. Location where buffing compound

should contact wheel.

Turn machine OFF when operation is

6.

complete.

-19 -

ACCESSORIES

Installing unapproved accessories may

order online at www.grizzly.com or call 1-800-523-4777

SECTION 5: ACCESSORIES

cause machine to malfunction, resulting in
serious personal injury or machine damage.
To reduce this risk, only install accessories
recommended for this machine by Grizzly.

NOTICE

Refer to our website or latest catalog for
additional recommended accessories.

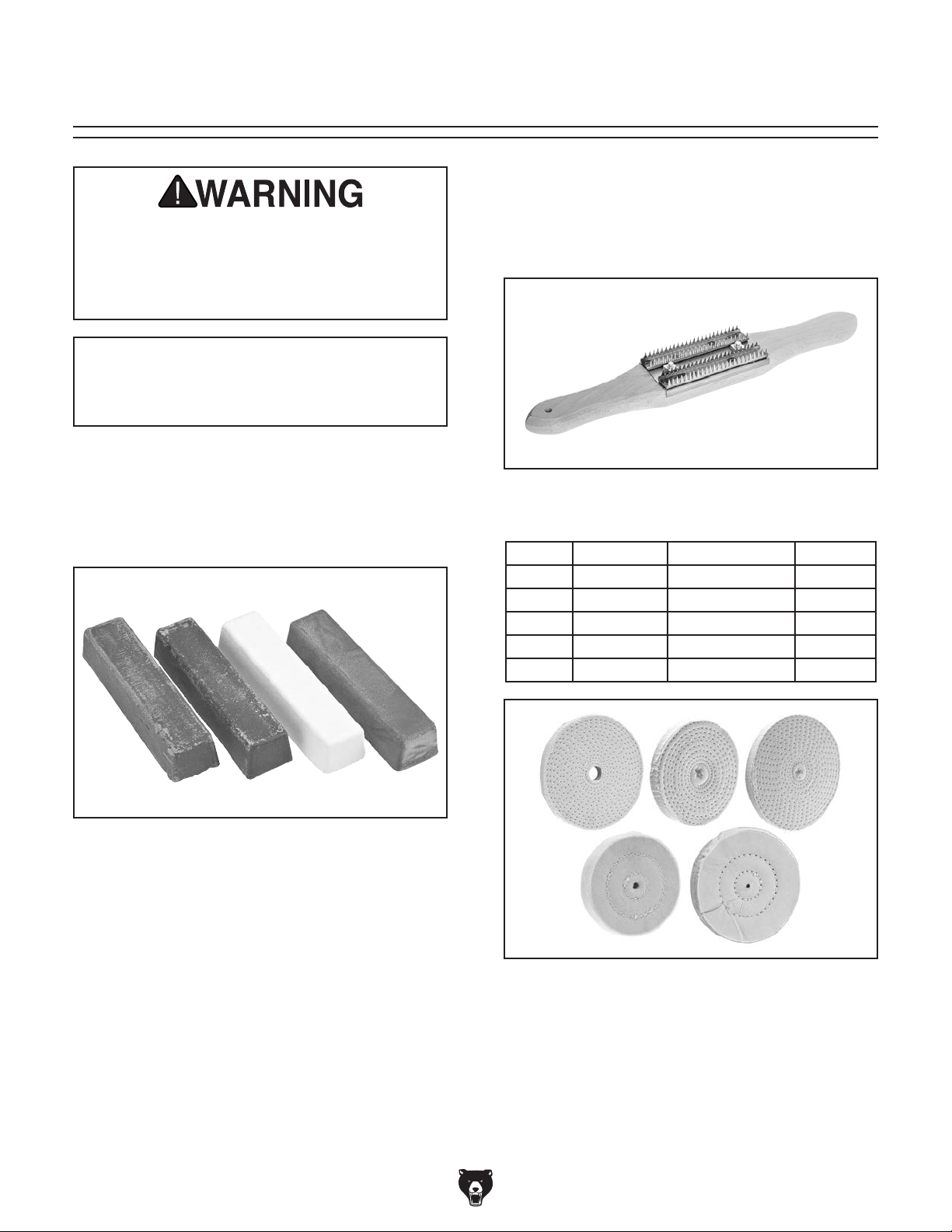

G2582—Buffing Compound Set

Set includes one 5 oz. bar of each of the follow­ing compounds: Black Emery Cake, Tripoli Brown
rouge, White Rouge & Red Rouge. Low cost –
must have! Due to their nature, colors may vary.

H4383—Buffing Wheel Rake with Handle
H4384—Replacement Rake

Great for removing dried compound from buffing
wheels. Simply guide the rake across the spinning
buffing wheel.

Figure 17. Buffing wheel rake with handle.

Buffing Wheels

MODEL TYPE SIZE MAX RPM

D2494

D2509

D2495

D2510

D2511

Spiral Sewn 3" x 40 Ply x

Muslin 3" x 40 Ply x

Spiral Sewn 4" x 40 Ply x

Muslin 4" x 40 Ply x

Muslin 5" x 40 Ply x

1

⁄4" 5,000

1

⁄4" 5,000

1

⁄4" 5,000

1

⁄4" 5,000

1

⁄4" 5,000

Figure 16. Model G2582 Buffing Compound Set.

Figure 18. Replacement buffing wheels.

-20-

Model T32004 (Mfd. Since 02/20)

order online at www.grizzly.com or call 1-800-523-4777

Basic Eye Protection

T32323—Woodturners Face Shield
T32401—EDGE Brazeau Safety Glasses, Clear
T32402—EDGE Khor G2 Safety Glasses, Tint
T32404—EDGE Mazeno Safety Glasses, Clear

T32323 T32401

T32402

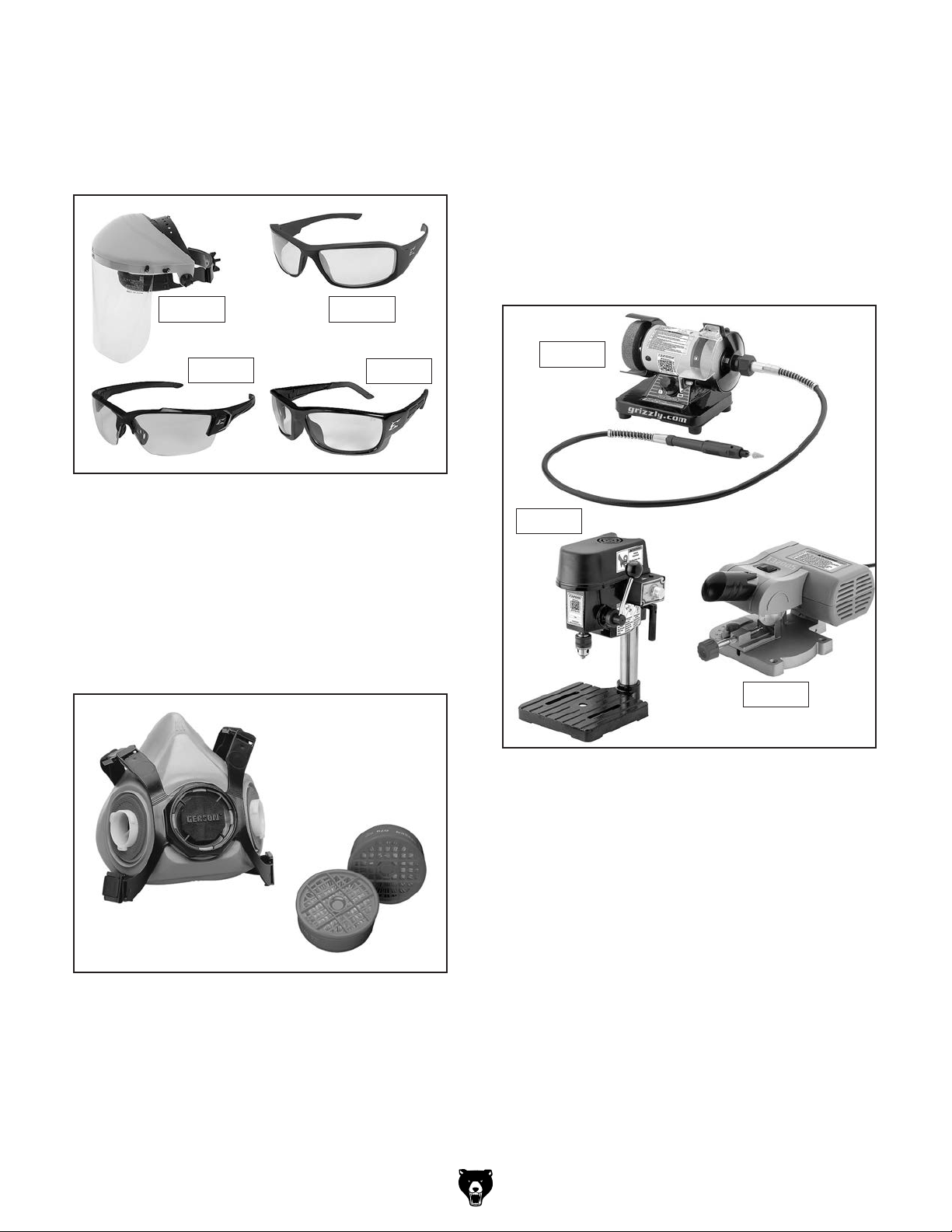

Figure 19. Assortment of basic eye protection.

T32404

T32002—3" Variable-Speed Mini Benchtop
Grinder/Buffer with Rotary Shaft
T32005—2" Mini Benchtop Cut-Off Saw
T32006—Variable-Speed Mini Benchtop Drill
Press

Sometimes smaller is better, and that's defi­nitely the case with our lineup of pint-sized hobby
machines. Whether you're into making doll furni­ture, model train sets, jewelry, or custom ammuni­tion, these space saving, lightweight machines
are just what you need for your delicate work.

T32002

H2499—Small Half-Mask Respirator
H3631—Medium Half-Mask Respirator
H3632—Large Half-Mask Respirator
H3635—Cartridge Filter Pair P100

Wood dust has been linked to nasal cancer and
severe respiratory illnesses. If you work around­dust everyday, a half-mask respirator can be a
lifesaver. Also compatible with safety glasses!

T32006

T32005

Figure 21. Grizzly hobby machines.

Figure 20. Half-mask respirator with disposable

cartridge filters.

Model T32004 (Mfd. Since 02/20)

-21-

SECTION 6: MAINTENANCE

accidental startup, always
disconnect machine from

To reduce risk of shock or

power before adjustments,
maintenance, or service.

Schedule

For optimum performance from this machine, this
maintenance schedule must be strictly followed.

Ongoing

To minimize your risk of injury and maintain proper
machine operation, shut down the machine imme­diately if you ever observe any of the items below,
and fix the problem before continuing operations:

Cleaning

Cleaning the Model T32004 is relatively easy.
Vacuum excess debris and wipe off the remaining
dust with a dry cloth. Wipe down spindle with a
non-staining lubricant after cleaning.

To clean buffing wheels, use a buffing wheel rake
to remove dried compound. Guide the rake across
the spinning buffing wheel using light pressure, as
shown in Figure 22.

• Loose mounting bolts.

• Damaged spindle shaft.
Damaged buffing wheels.

•
Worn or damaged wires.

•
Any other unsafe condition.

•

Weekly Maintenance

• Worn or damaged cord.

• Worn ON/OFF switch.

Monthly Check

• Clean/vacuum dust buildup off motor.

Figure 22. Removing compound from buffing

wheel with buffing wheel rake.

Lubrication

The bearings inside the Model T32004 are sealed
and permanently lubricated. Simply leave them
alone unless they need replacing.

-22-

Model T32004 (Mfd. Since 02/20)

Review the troubleshooting procedures in this section if a problem develops with your machine. If you need

the

serial number and manufacture date of your machine before calling.

SECTION 7: SERVICE

replacement parts or additional help with a procedure, call our Technical Support. Note: Please gather

Troubleshooting

Motor & Electrical

Symptom Possible Cause Possible Solution

Machine does not
start, or power­supply fuse/breaker
trips after startup.

Machine stalls or is
underpowered.

Machine has
vibration or noisy
operation.

1. Power supply circuit breaker tripped or fuse
blown.

2. Wiring broken, disconnected, or corroded.

3. Motor brushes at fault.

4. ON/OFF switch at fault.

5. Circuit board at fault.

6. Motor at fault.

1. Machine undersized for task.

2. Buffing wheel too large/wide.

3. Motor brushes at fault.

4. Motor overheated.

5. Circuit board at fault.

6. Motor or motor bearings at fault.

1. Buffing wheel loose or worn.

2. Tapered spindle sleeves dislodged.

3. Machine incorrectly mounted to workbench.

4. Motor or component loose.

5. Motor shaft bent.

6. Motor or motor bearings at fault.

1. Ensure circuit is sized correctly and free of shorts.
Reset circuit breaker or replace fuse.

2. Fix broken or disconnected wires (Page 26).

3. Remove/replace brushes (Page 24).

4. Replace.

5. Replace.

6. Test/repair/replace.

1. Use new buffing wheel; reduce feed rate.

2. Only use wheels rated for capabilities of machine.

3. Remove/replace brushes (Page 24).

4. Clean motor, let cool, and reduce workload.

5. Inspect and replace if at fault.

6. Test by rotating shaft; rotational grinding/loose shaft
requires bearing replacement.

1. Replace buffing wheel (Page 20).

2. Reattach spindle sleeves (Page 14).

3. Adjust feet, shim, or tighten mounting hardware.

4. Replace damaged bolts/nuts or tighten if loose.

5. Test with dial indicator and replace motor.

6. Test by rotating shaft; rotational grinding/loose shaft
requires bearing replacement.

Operation

Symptom Possible Cause Possible Solution

Machine slows when

operating.

Poor results from
buffing/polishing
operation.

Model T32004 (Mfd. Since 02/20)

1. Operator using too much pressure.

2. RPM too low.

1. Workpiece contains residue or
contaminants.

2. Contaminated buffing compounds on
wheel.

3. Wrong buffing compound for material.

4. Workpiece not held firmly.

5. Incorrect stroke for buffing compound/
wheel/material.

6. Incorrect type of buffing wheel for material.

1. Use less pressure when buffing.

2. Increase buffing wheel RPM.

1. Dirt, oil, rust, paint, or other film must be removed
chemically or with water. Dry parts before buffing.

2. DO NOT mix different compounds on same wheel.
Use separate wheel for each compound. Remove
dried compound with buffing wheel rake (Page 22).

3. Use correct buffing compound (Page 19).

4. Use a holding device to firmly retain workpiece.

5. Use upward stroke with heavy pressure for cutting;
use downward stroke with light pressure for
polishing.

6. Use correct buffing wheel for material (Page 18).

-23-

Replacing

Motor Brushes

This machine is equipped with a universal motor
that uses two carbon brushes to transmit electri­cal current inside the motor.

These brushes are considered to be regular
"wear items" or "consumables" that will need to
be replaced during the life of the motor. The fre­quency of required replacement is related to how
much the motor is used and how hard it is pushed.

To replace motor brushes:

1. DISCONNECT MACHINE FROM POWER!

2.

Remove brush caps, brush springs, and worn

brushes from motor (see Figure 23).

Replace both carbon brushes at the same time
when the motor no longer reaches full power,
or when the brushes measure less than
(new brushes are

Items Needed Qty

Flat Head Screwdriver #2 .................................. 1

Carbon Brushes (PN PT32004008)

5

⁄8" long).

...........1 Pair

1

⁄2" long

Cap

(1 of 2)

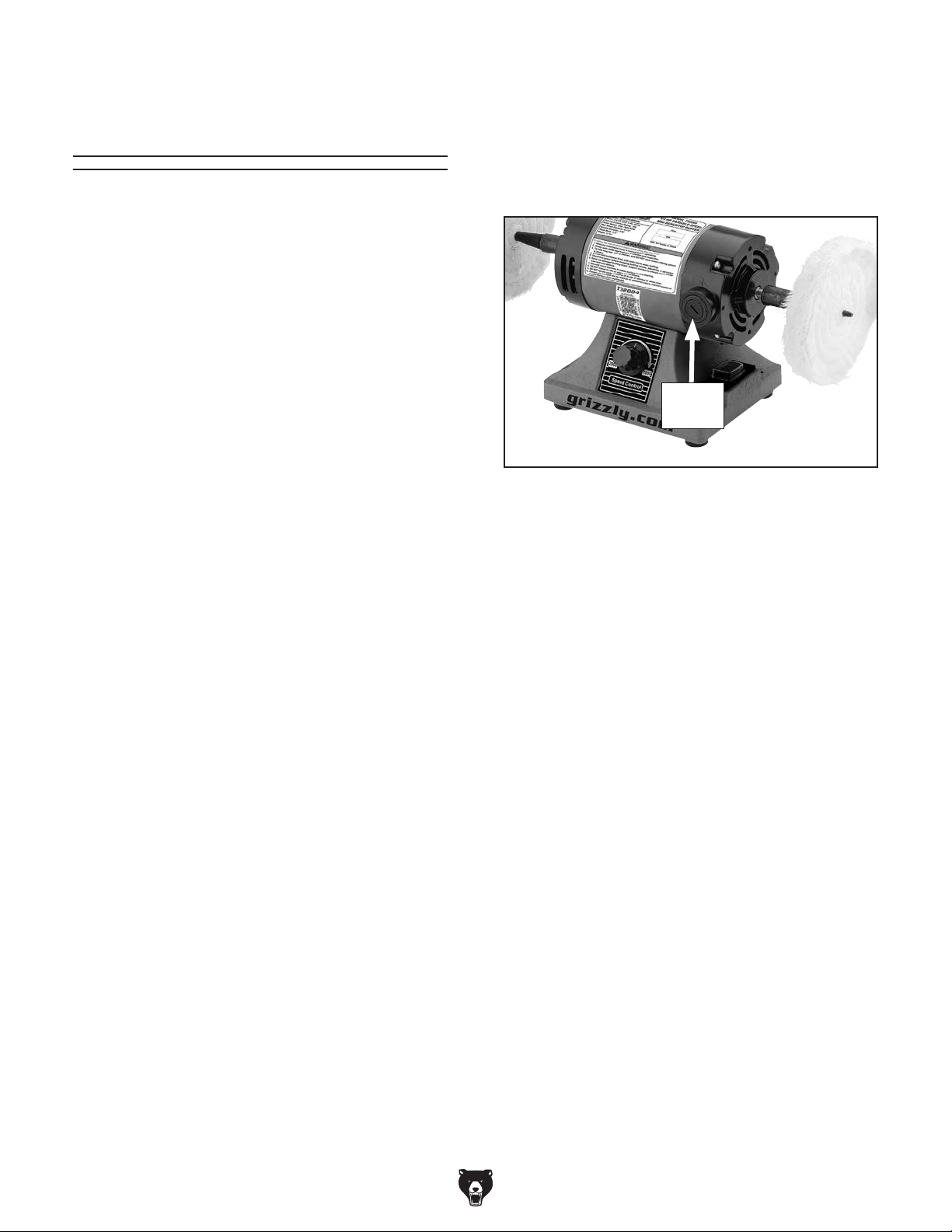

Figure 23. Location of motor brushes.

3. Replace both motor brushes and re-install

with springs and brush caps.

-24-

Model T32004 (Mfd. Since 02/20)

These pages are current at the time of printing. However, in the spirit of improvement, we may make chang­es to the electrical systems of future machines. Compare the manufacture date of your machine to the one

number and manufacture date of your

machine before calling. This information can be found on the main machine label.

machine

SECTION 8: WIRING

stated in this manual, and study this section carefully.

If there are differences between your machine and what is shown in this section, call Technical Support at
[phone] for assistance BEFORE making any changes to the wiring on your machine. An updated
wiring diagram may be available. Note: Please gather the serial

Wiring Safety Instructions

SHOCK HAZARD. Working on wiring that is con-

nected to a power source is extremely dangerous.
Touching electrified parts will result in personal
injury including but not limited to severe burns,
electrocution, or death. Disconnect the power
from the machine before servicing electrical com­ponents!

MODIFICATIONS. Modifying the wiring beyond
what is shown in the diagram may lead to unpre­dictable results, including serious injury or fire.
This includes the installation of unapproved after­market parts.

WIRE CONNECTIONS. All connections must
be tight to prevent wires from loosening during
machine operation. Double-check all wires dis­connected or connected during any wiring task to
ensure tight connections.

CIRCUIT REQUIREMENTS. You MUST follow
the requirements at the beginning of this manual
when connecting your machine to a power source.

WIRE/COMPONENT DAMAGE. Damaged wires
or components increase the risk of serious per­sonal injury, fire, or machine damage. If you notice
that any wires or components are damaged while
performing a wiring task, replace those wires or
components.

MOTOR WIRING. The motor wiring shown in
these diagrams is current at the time of printing
but may not match your machine. If you find this
to be the case, use the wiring diagram inside the
motor junction box.

CAPACITORS/INVERTERS. Some capacitors
and power inverters store an electrical charge for
up to 10 minutes after being disconnected from
the power source. To reduce the risk of being
shocked, wait at least this long before working on
capacitors.

EXPERIENCING DIFFICULTIES. If you are expe­riencing difficulties understanding the information
included in this section, contact our Technical
Support at [phone].

The photos and diagrams
included in this section are
best viewed in color. You
can view these pages in
color at www.grizzly.com.

Model T32004 (Mfd. Since 02/20)

-25-

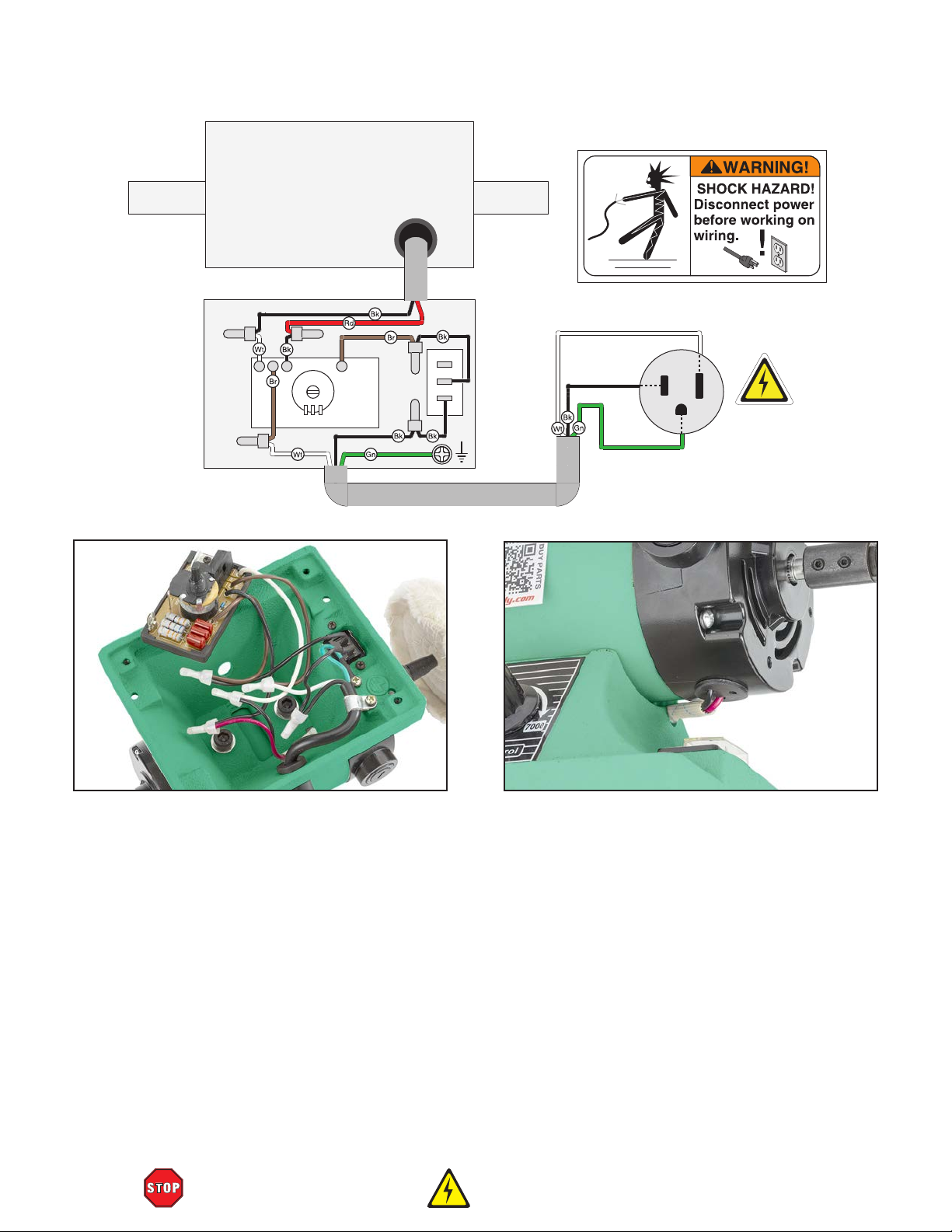

MOTOR

120V

XD-DC1110-2

BASE

(viewed from bottom)

Wiring Diagram

B500K

o

i

t

n

e

t

o

P

m

e

t

e

r

Circuit
Board

3
2
1

ON/OFF

Switch

10A 250V

Neutral

Hot

120 VAC

5-15 Plug

Ground

Figure 24. Circuit board and switches.

-26-

READ ELECTRICAL SAFETY

ON PAGE 25!

Figure 25. Motor wiring.

Model T32004 (Mfd. Since 02/20)

SECTION 9: PARTS

We do our best to stock replacement parts when possible, but we cannot guarantee that all parts shown
are available for purchase. Call [phone] or visit www.grizzly.com/parts to check for availability.

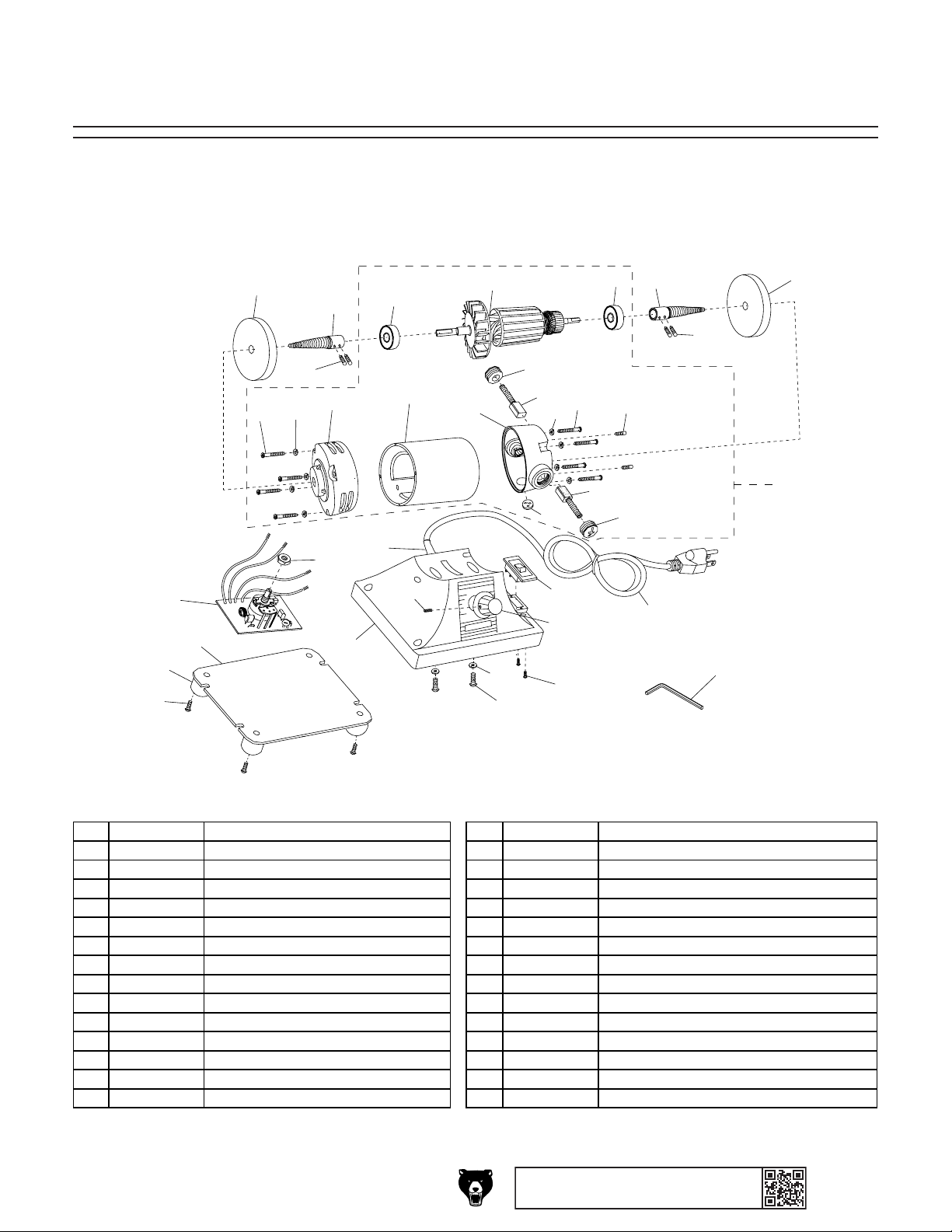

Main

23

24

21

22

4

6

3

3

9

15

29

10

5

28

20

9

8

7

25

8

16

17

18

19

1

2

3

12

25

7

27

14

4

11

13

26

1

11A

REF PART # DESCRIPTION REF PART # DESCRIPTION

1 PT32004001 BUFFING WHEEL 4-1/2" X 1/2" X 5/16" 15 PT32004015 POWER CORD 18G 3W 72" 5-15P
2 PT32004002 TAPERED SPINDLE SLEEVE (LH) 16 PT32004016 GROMMET 20 X 6 3-HOLE
3 PT32004003 SET SCREW M4-.7 X 8 17 PT32004017 ROCKER SWITCH 10A 250V KASO XW-601
4 PT32004004 BALL BEARING 608ZZ 18 PT32004018 VARIABLE-SPEED DIAL
5 PT32004005 ROTOR 19 PT32004019 TAP SCREW M3.5 X 12
6 PT32004006 TAPERED SPINDLE SLEEVE (RH) 20 PT32004020 CAP SCREW M8-1.25 X 15
7 PT32004007 PHLP HD SCR M4-.7 X 30 21 PT32004021 CIRCUIT BOARD XD-DC1110-2
8 PT32004008 MOTOR BRUSH (1 PAIR) 22 PT32004022 BASE BOTTOM
9 PT32004009 BRUSH CAP 23 PT32004023 RUBBER FOOT
10 PT32004010 MOTOR COVER (RH) 24 PT32004024 PHLP HD SCR M4-.7 X 12
11 PT32004011 MOTOR STATOR 25 PT32004025 LOCK WASHER 4MM
11A PT32004011A MOTOR ASSEMBLY 26 PT32004026 SET SCREW M4-.7 X 5 SLOTTED
12 PT32004012 MOTOR COVER (LH) 27 PT32004027 SPEED DIAL HEX NUT M9
13 PT32004013 POWER CORD SHEATH 28 PT32004028 FLAT WASHER 8MM
14 PT32004014 BASE 29 PT32004029 HEX WRENCH 2MM

Model T32004 (Mfd. Since 02/20)

BUY PARTS ONLINE AT GRIZZLY.C OM !

Scan QR code to visit our Parts Store.

-27-

102

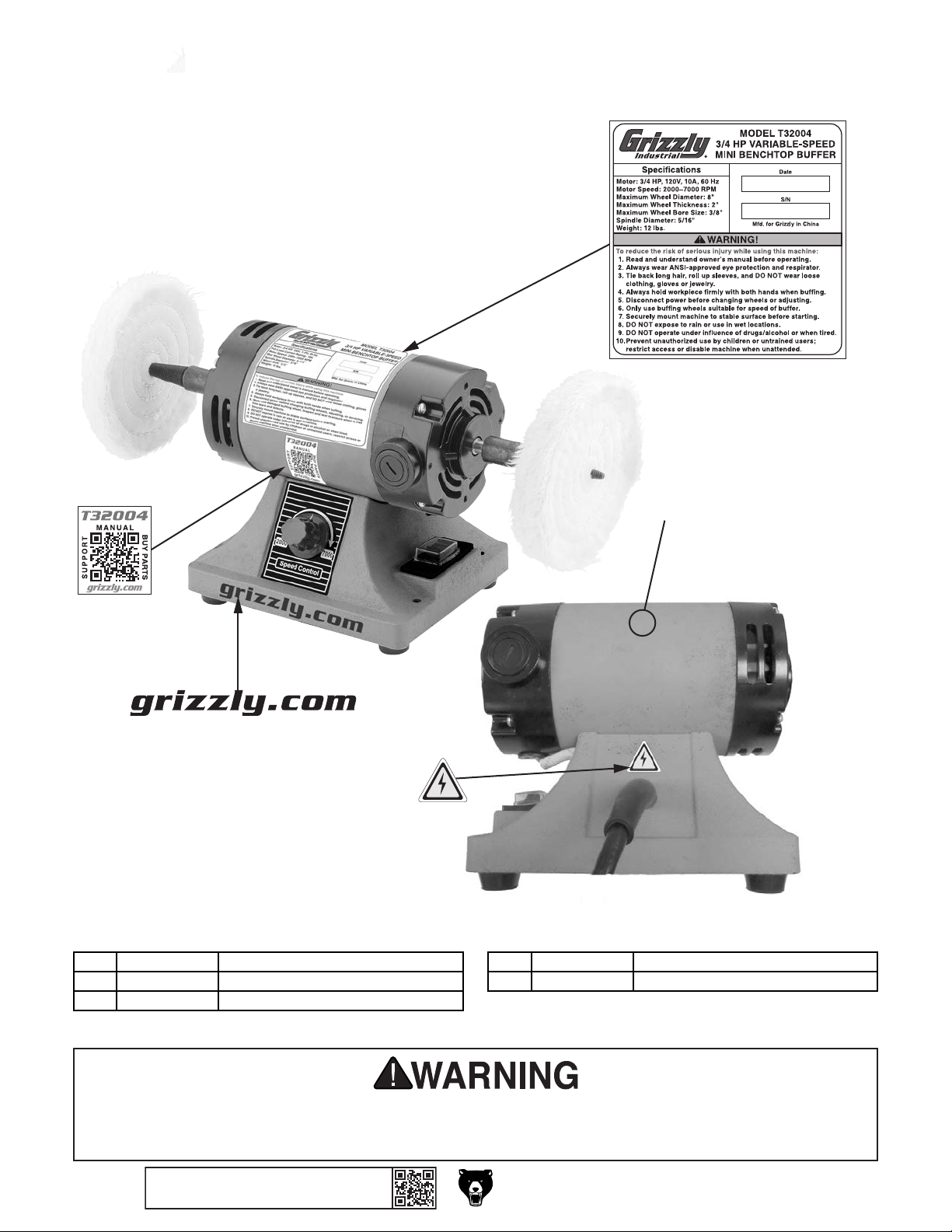

Labels & Cosmetics

101

105

103

104

REF PART # DESCRIPTION REF PART # DESCRIPTION

101 PT32004101 MACHINE ID LABEL 104 PT32004104 ELECTRICITY LABEL
102 PT32004102 QR CODE LABEL 105 PT32004105 TOUCH-UP PAINT, GRIZZLY GREEN
103 PT32004103 GRIZZLY.COM LABEL

Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes
off or becomes unreadable, the owner of this machine MUST replace it in the original location
before resuming operations. For replacements, contact [phone] or www.grizzly.com.

-28-

BUY PARTS ONLINE AT GRIZZLY.C OM !

Scan QR code to visit our Parts Store.

Model T32004 (Mfd. Since 02/20)

WARRANTY & RETURNS

Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from
the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse,
negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty
and any and all warranties that may be implied by law, including any merchantability or fitness, for any par­ticular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent
that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants.
In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and
any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.

We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special,
or consequential damages arising from the use of our products.

The manufacturers reserve the right to change specifications at any time because they constantly strive to
achieve better quality equipment. We make every effort to ensure that our products meet high quality and
durability standards and we hope you never need to use this warranty.

In the event you need to use this warranty, contact us by mail or phone and give us all the details. We will
then issue you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of
the carton. We will not accept any item back without this number. Proof of purchase must accompany the
merchandise.

Please feel free to write or call us if you have any questions about the machine or the manual.

Thank you again for your business and continued support. We hope to serve you again soon.

To
you can
applicable information for

take advantage of this warranty, you must register it at https://www.grizzly.com/forms/warranty, or

scan the QR code below to be automatically directed to our warranty registration page. Enter all

the product.

WARRANTY
