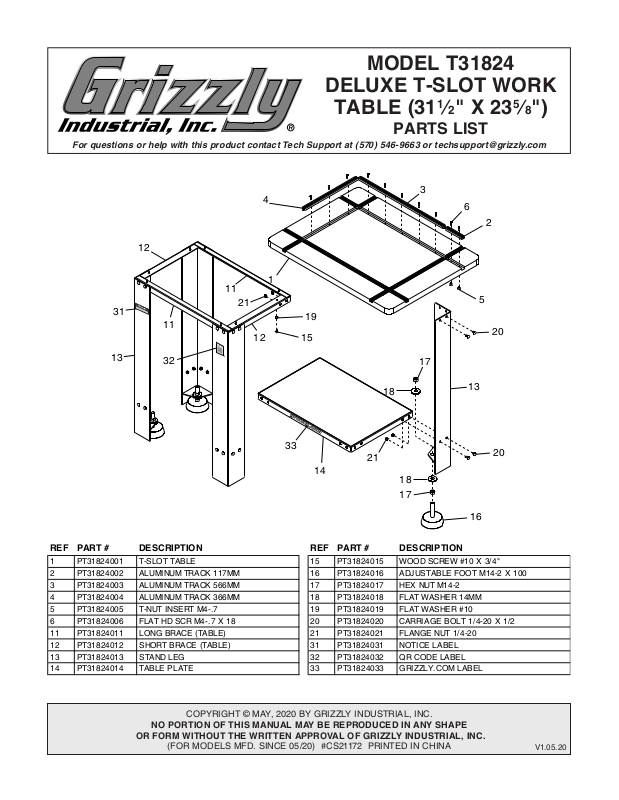

Page 1
MODEL T31824
DELUXE T-SLOT WORK
TABLE (311⁄2" X 235⁄8")
PARTS LIST
For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
3
4
12
6
2
11
1
5
20
13
20
31
13
NOTICE
DO NOT exceed maximum
weight capacity of XXX lbs.
11
32
21
19
T31824
12
15
17
18
gri z zly .com
33
21
14
18
17
16
REF PART # DES CRIP TION REF PART # DES CRIP TION
1 PT31824001 T-SLOT TABLE 15 PT31824015 WOOD SCREW #10 X 3/4"
2 PT31824002 ALUMI NUM TRACK 11 7MM 16 PT31824016 ADJUSTABLE FOOT M14-2 X 100
3 PT31824003 ALUMI NUM TRACK 56 6MM 17 PT31824017 HEX NUT M14-2
4 PT31824004 ALUMI NUM TRACK 36 6MM 18 PT31824018 FLAT WASHER 14MM
5 PT31824005 T-NUT I NS ERT M4 -.7 19 PT31824019 FLAT WASHER #10
6 PT31824006 FLAT HD SCR M4-. 7 X 18 20 PT31824020 CARRIAGE BOLT 1/4-20 X 1/2
11 PT31824011 LONG BRACE (TABLE) 21 PT31824021 FLANGE NUT 1/4-20
12 PT31824012 SHORT BRACE (TABLE) 31 PT31824031 NOTICE LABEL
13 PT31824013 STAND LEG 32 PT31824032 QR CODE LABEL
14 PT31824014 TABLE PLATE 33 PT31824033 GRIZZLY.COM LABEL
COPYRIGHT © MAY, 2020 BY GRIZZLY INDUSTRIAL, INC.
