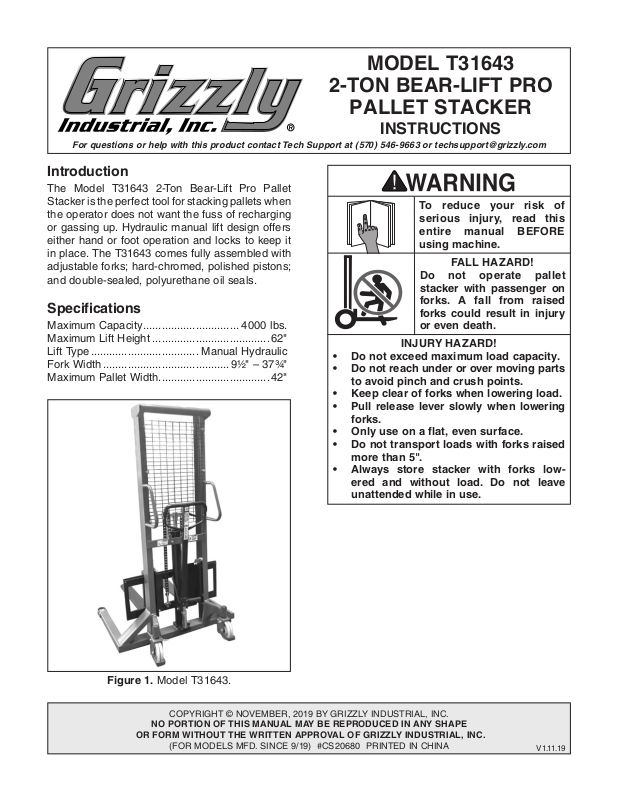

Page 1

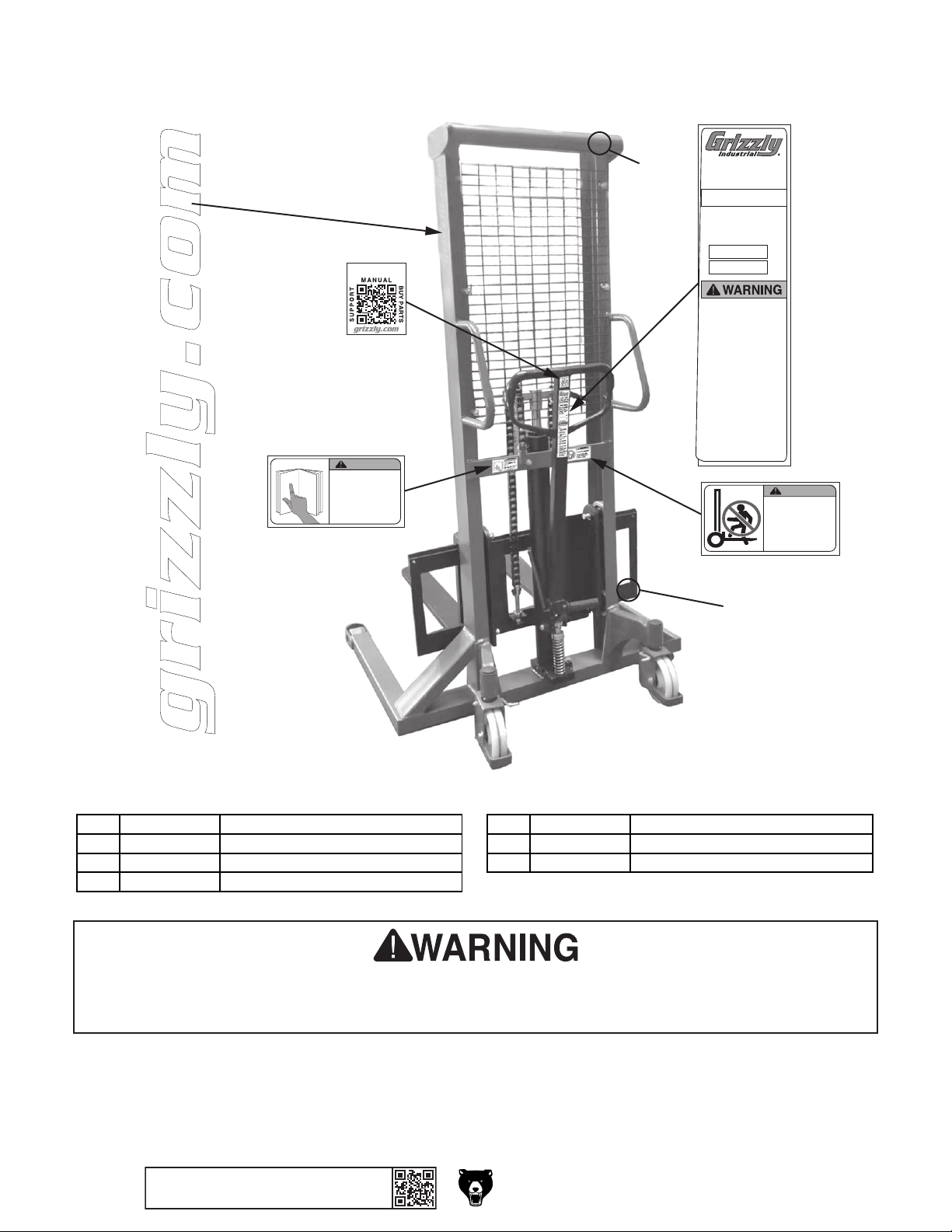

MODEL T31643
2-TON BEAR-LIFT PRO
PALLET STACKER
INSTRUCTIONS
For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction
The Model T31643 2-Ton Bear-Lift Pro Pallet
Stacker is the perfect tool for stacking pallets when
the operator does not want the fuss of recharging
or gassing up. Hydraulic manual lift design offers
either hand or foot operation and locks to keep it
in place. The T31643 comes fully assembled with
adjustable forks; hard-chromed, polished pistons;
and double-sealed, polyurethane oil seals.
Specifications
Maximum Capacity ............................... 4000 lbs.
Maximum Lift Height
Lif t Ty pe
Fork Width
Maximum Pallet Width
................................... Manual Hydraulic
......................................... 9½" – 37¾"
......................................62"
....................................42"
• Do not exceed maximum load capacity.
• Do not reach under or over moving parts
to avoid pinch and crush points.
• Keep clear of forks when lowering load.
• Pull release lever slowly when lowering
forks.
• Only use on a flat, even surface.
• Do not transport loads with forks raised
more than 5".
• Always store stacker with forks lowered and without load. Do not leave
unattended while in use.
To reduce your risk of
serious injury, read this
entire manual BEFORE
using machine.
FALL HAZARD!
Do not operate pallet
stacker with passenger on
forks. A fall from raised
forks could result in injury
or even death.
INJURY HAZARD!
Figure 1. Model T31643.
COPYRIGHT © NOVEMBER, 2019 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
(FOR MODELS MFD. SINCE 9/19) #CS20680 PRINTED IN CHINA
V1.11.19
Page 2
Identification
A. Forks: Adjust to desired width to support and
lift pallet.
Stacker Handles: Used to maneuver stacker.
B.
Lift Control Lever: Controls manual lift sys-
C.
tem.
Operation
Using the lift control lever shown in Figure 3, the
pallet stacker forks can be raised, lowered, or
placed in the neutral position for moving.
Lower
Hand Lift Handle: Controls hydraulic lift by
D.
hand.
Foot Lift Handle: Controls hydraulic lift by
E.
foot.
Brakes: Secure wheels.
F.
B
C
A
D
E
Neutral
Lift
Figure 3. Handle lever positions.
Lift Position: When lever is in lift position, either
hand or foot lift handle can be pumped to lift forks.
Lower Position: Drops forks. Pull lever up
SL OW LY to begin lowering forks. Avoid pulling
lever up quickly or load will drop suddenly.
Neutral Position: Place handle in this position
to move load. In neutral position, pump and lift
mechanism are disengaged so that handle can
move up and down freely while operator moves
st acker.
To use pallet stacker:
1. Move pallet stacker to desired location using
stacker handles, then engage back wheel
brakes (see Figure 4).
-2-
F

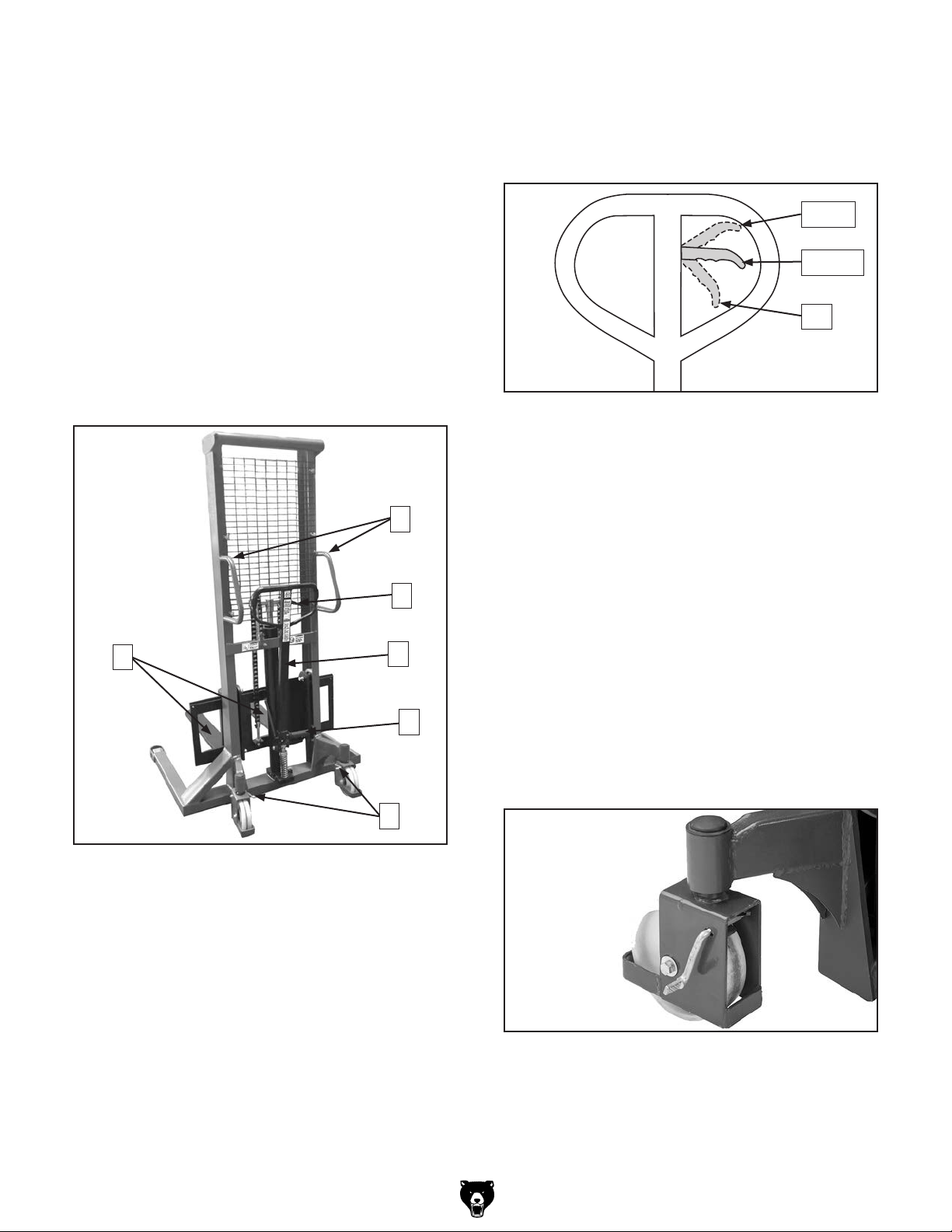

Figure 2. Stacker components.
Figure 4. Wheel brake in locked position.
IMPORTANT: Always engage brake when adjust-
ing forks and when stacker is not being moved
from one location to another.
Model T31643 (Mfd. 9/19)
Page 3

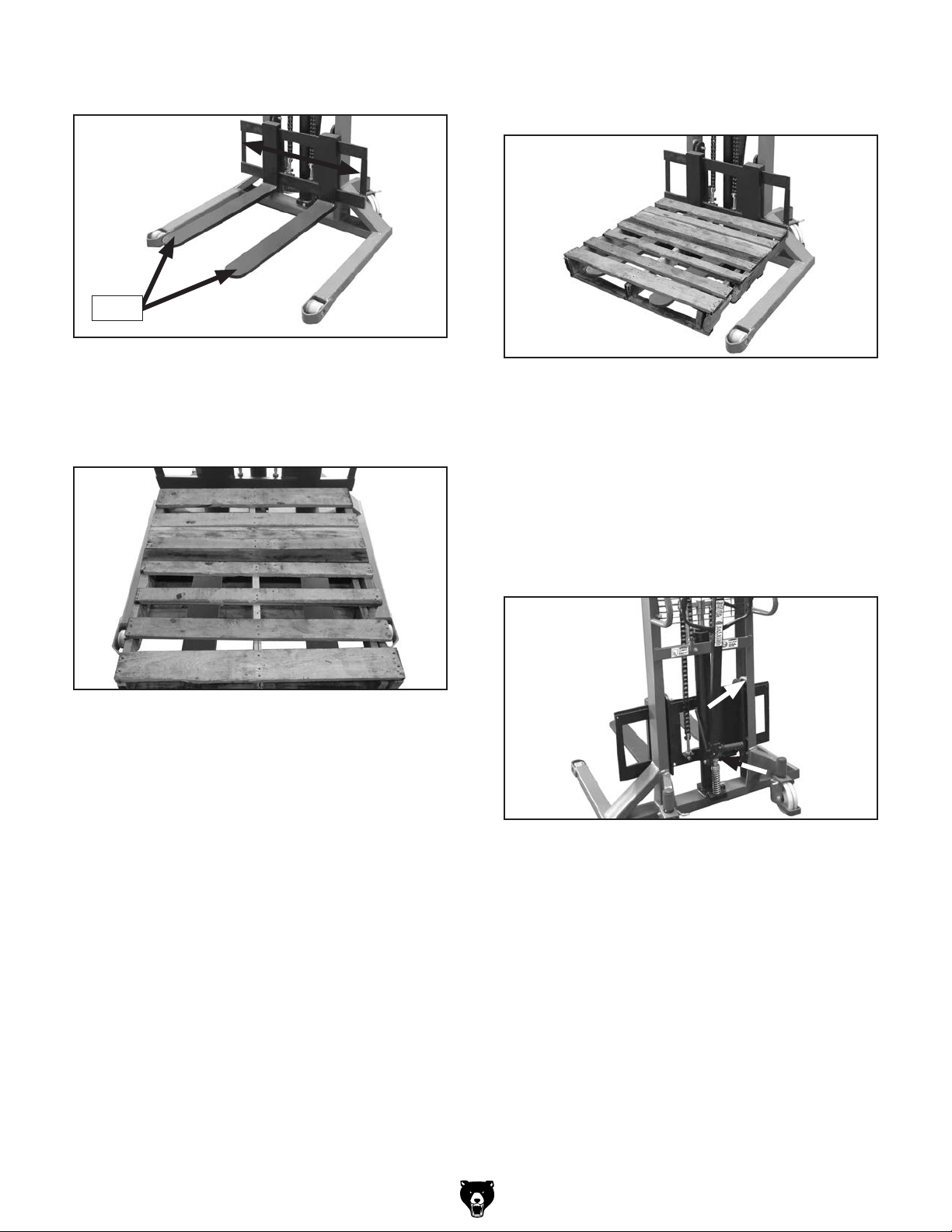

2. Adjust forks to desired width (see Figure 5).
Forks
Figure 5. Adjustable forks.
3. Lower forks, disengage brakes, and insert
forks under pallet where weight will be centered and equally distributed (see Figure 6).
Lift forks just enough to clear front casters
4.
(see Figure 7).
Figure 7. Front casters cleared for transport.
Transport and lift pallet as needed.
5.
Lubrication
The front and rear wheels are attached with permanently sealed ball bearings, so they require
no lubrication, but we recommend adding a few
drops of SAE 10W-30 oil every three months to
each rotating point shown in Figure 8.
Figure 6. Forks under pallet.
Figure 8. Lubrication locations.
If fork width becomes difficult to adjust, you can
wax fork rail for ease of movement.
Model T31643 (Mfd. 9/19)
-3-
Page 4

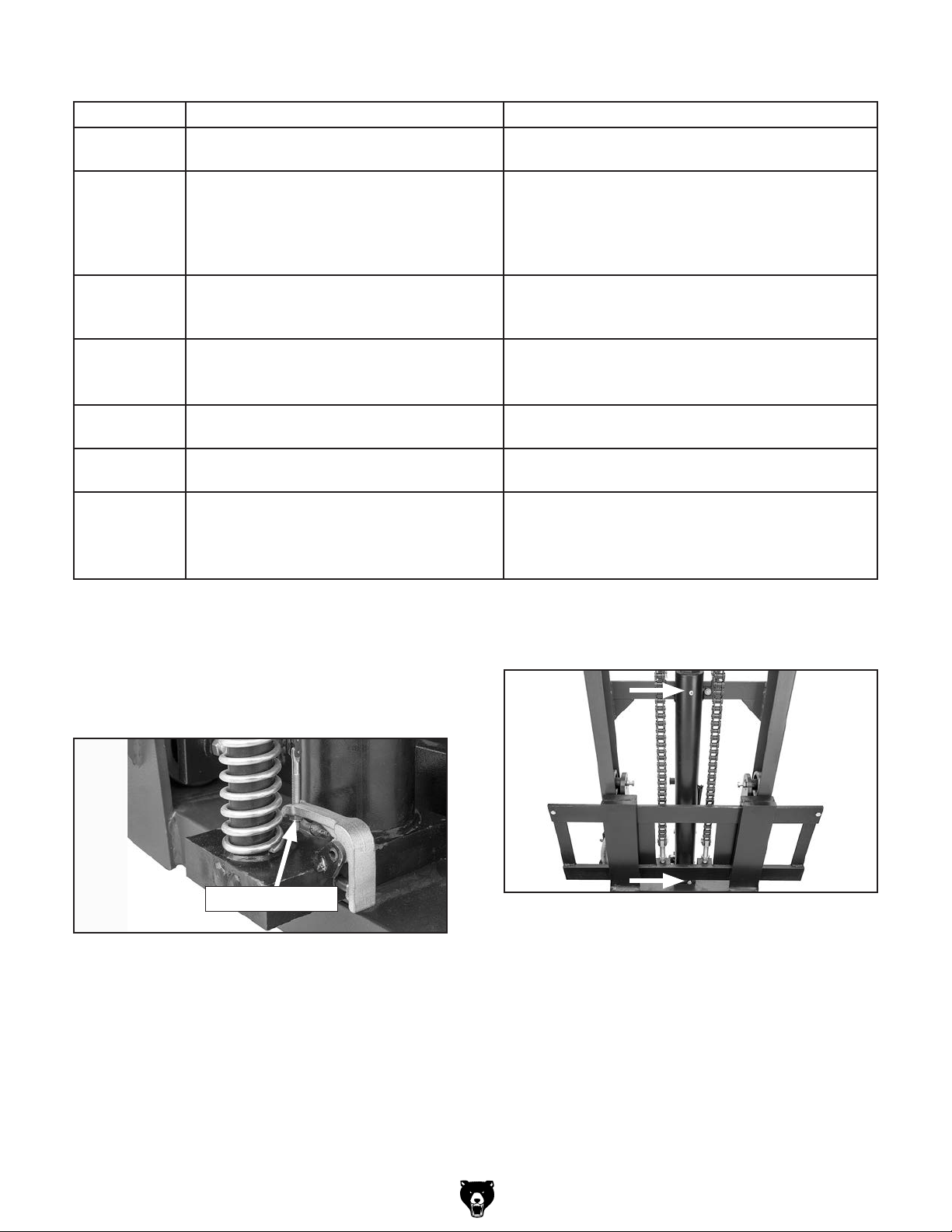

Troubleshooting
Symptom Possible Cause Possible Solution
Forks will not lift
to max height.
Forks do not lift. 1. Hydraulic oil low/contaminated.
Forks do not
lower.
Forks lower by
themselves.
Forks lower too
sl owly.
Forks lower too
quickly.
Oil leaks. 1. Relief valve damaged.
1. Hydraulic oil low. 1. Fill pump assembly with hydraulic oil.
1. Fill pump assembly with hydraulic oil. If necessary,
drain old/contaminated oil and replace.
2. Too much hydraulic oil in pump assembly/air
in hydraulic system.
3. Pump valve nut too tight.
1. Lifting components jammed with debris.
2. Pump valve nut too loose.
3. Lifting components bent/damaged.
1. Impurities in relief valve/hydraulic oil.
2. Relief valve faulty/damaged.
3. Seals worn/damaged.
1. Pump valve nut misadjusted. 1. Tighten pump valve nut.
1. Pump valve nut misadjusted. 1. Loosen pump valve nut.
2. Oil fill plug gasket damaged.
3. Seals worn/damaged.
4. Cracked/worn/damaged parts.
2. Pump off extra hydraulic oil/air.
3. Loosen pump valve nut.
1. Inspect mechanism, clear debris.
2. Tighten pump valve nut.
3. Inspect/replace damaged lifting components.
1. Clean relief valve/change hydraulic oil.
2. Inspect/replace.
3. Inspect/replace.
1. Inspect/replace.
2. Inspect/replace.
3. Inspect/replace.
4. Inspect/replace.
Adjusting Pump Valve Nut
Pump valve nut on the back of the hydraulic cylinder controls how open the pump valve is (see
Figure 9). If the nut is too loose, the forks will not
lower correctly, and if too tight, they won't lift.
Pump Valve Nut
Figure 9. Pump valve nut location.
Changing Hydraulic Oil
Hydraulic oil in the cylinder may need to be added
periodically after prolonged use or if it leaks
noticeably. We recommend ISO 32 or 46 grade
hydraulic oil.
To add hydraulic oil:
1. Lower forks completely.
Remove both hydraulic cylinder plugs (see
2.
Figure 10) and allow oil to drain completely.
Figure 10. Hydraulic cylinder plug locations.
3. Replace lower plug and add replacement oil
to upper fill hole until level reaches bottom of
hole.
. Without replacing fill plug, pump one lift
4
handle 10–15 times to expel any trapped air.
. Replace fill plug and clean up any hydraulic
5
oil residue. Old oil can be stored in a sealable
metal or thick plastic container and recycled
at a recycling center near you.
-4-
Model T31643 (Mfd. 9/19)
Page 5
30
31
33
32
A
E
B
A
M
M
A
112

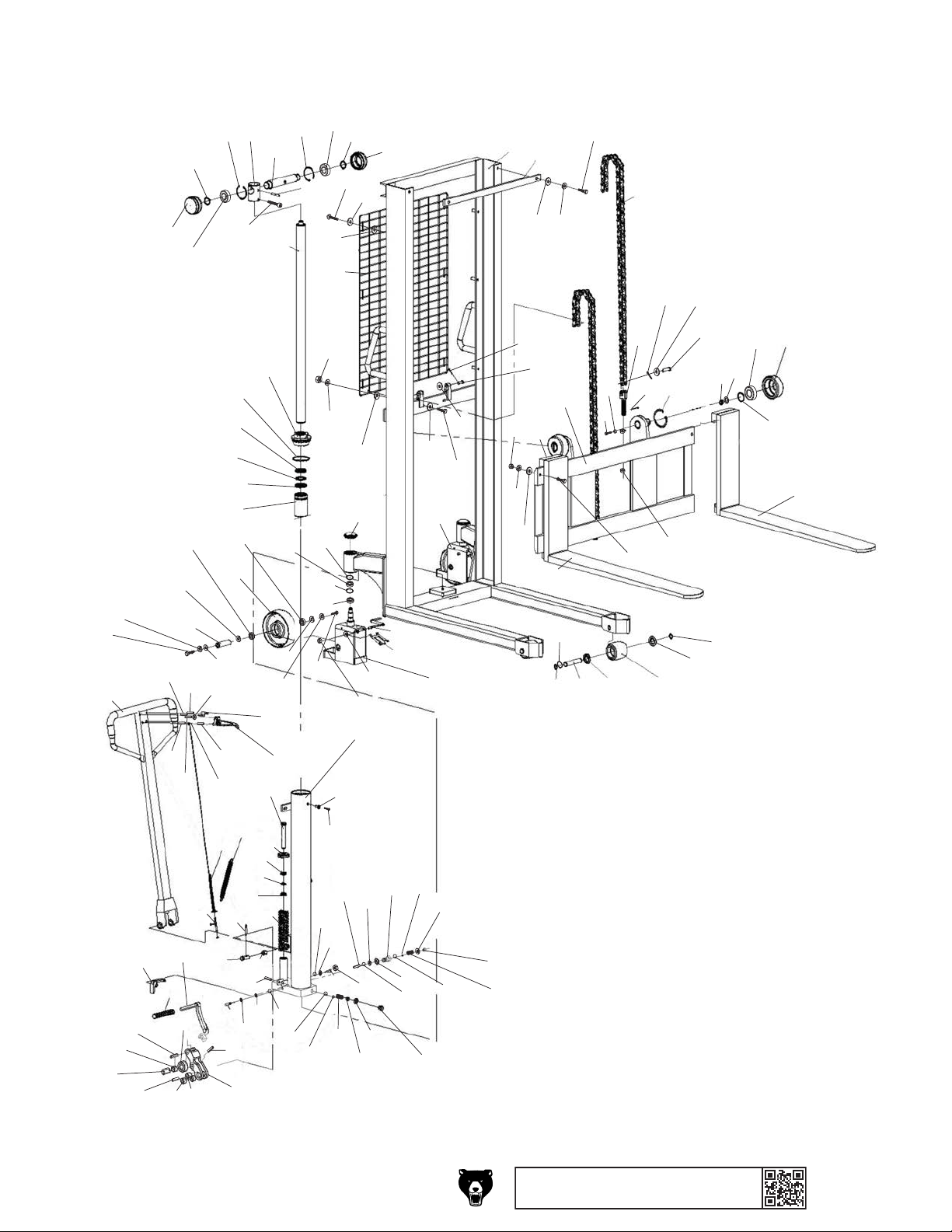

T31643 Parts Breakdown
33
34
32
36
N
I
G
R
6
2
0
5
-
2
R
S
M
O
Y
200
35
N
I
G
R
A
6
E
2
0
B
5
A
-
2
M
R
M
S
A
M
O
Y
23
22
24
31
23
30
21
18
20
17
19
37
38
27
275
274
251
276
60
61
266
278
59
62
102
103
104
105
106
277
115
64
65
63
266
101
N
I
G
R
A
6
2
E
0
B
5
A
-
2
M
R
M
S
A
M
O
Y
276
58
96
266
275
57
265
267
268
N
I
G
R
A
6
2
E
0
B
5
A
-
2
M
R
M
S
A
M
O
Y
274
26
111
99
272
285
A
M
M
O
M
Y
A
B
E
A
R
I
N
G
6
2
0
5
-
S
2
R
A
M
M
O
M
Y
A
B
E
A
R
I
N
G
6
2
0
5
-
S
2
R
273
100
272
269
270
272
271
279
27
25
13
14
18
28
29
1
11
43
12
46
16
2
3
44
40
15
41
45
4
42
44
39
7
43
9
8
5
N
I
G
R
A
6
E
2
0
B
5
A
-
2
M
R
M
S
A
M
O
Y
6
10
97
98
95
94
93
92
83
76
86
84
85
82
88
87
89
47
77
51
48
90
49
91
50
55
56
78
79
80
81
286
Model T31643 (Mfd. Since 9/19)
114
52
75
53
54
107
74
113
109
108
73
68
72
70
110
67
71
66
69
BUY PARTS ONLINE AT GRIZZLY.CO M!
Scan QR code to visit our Parts Store.
-5-
