Grizzly T31639 User guide

MODEL T31639

ROUTER TABLE

DUST COLLECTION ENCLOSURE

OWNER'S MANUAL

(For models manufactured since 4/20)

Router Table

Not Included

COPYRIGHT © MAY, 2020 BY GRIZZLY INDUSTRIAL, INC.

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#MN21099 PRINTED IN TAIWA N

V1.0 5.20

This manual provides critical safety instructions on the proper setup,
operation, maintenance, and service of this machine/tool. Save this
document, refer to it often, and use it to instruct other operators.

Failure to read, understand and follow the instructions in this manual
may result in fire or serious personal injury—including amputation,
electrocution, or death.

The owner of this machine/tool is solely responsible for its safe use.
This responsibility includes but is not limited to proper installation in
a safe environment, personnel training and usage authorization,
proper inspection and maintenance, manual availability and compre­hension, application of safety devices, cutting/sanding/grinding tool
integrity, and the usage of personal protective equipment.

The manufacturer will not be held liable for injury or property damage
from negligence, improper training, machine modifications or misuse.

Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State
of California to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
Work in a well ventilated area, and work with approved safety equip­ment, such as those dust masks that are specially designed to filter
out microscopic particles.

Table of Contents

INTRODUCTION ............................................................................................................................... 2

Contact Info
Manual Accuracy
Identification
Controls & Components

................................................................................................................................ 2

........................................................................................................................ 2

............................................................................................................................... 3

............................................................................................................. 4

SECTION 1: SAFETY

Safety Instructions for Machinery

SECTION 2: POWER SUPPLY

SECTION 3: SETUP

Unpacking
Needed for Setup
Inventory
Assembly
Connecting Power Cords
Dust Collection
Test Run

SECTION 4: WIRING

Wiring Safety Instructions

Wiring Diagram......................................................................................................................... 15

SECTION 5: PARTS

Main

WARRANTY & RETURNS

.................................................................................................................................. 9

................................................................................................................................... 10

.................................................................................................................................. 10

................................................................................................................................... 12

.......................................................................................................................................... 16

....................................................................................................................... 5

............................................................................................... 5

........................................................................................................ 7

......................................................................................................................... 9

....................................................................................................................... 9

......................................................................................................... 11

......................................................................................................................... 12

...................................................................................................................... 14

........................................................................................................ 14

....................................................................................................................... 16

............................................................................................................. 17

We stand behind our machines! If you have ques­tions or need help, contact us with the information
below. Before contacting, make sure you get the

serial number

from the

machine ID label. This will help us help you faster.

We want your feedback on this manual. What did
you like about it? Where could it be improved?
Please take a few minutes to give us feedback.

Email: [e-mail]

We are proud to provide a high-quality owner’s
manual with your new machine!

We

instruc­tions, specifications, drawings, and photographs
in this manual. Sometimes we make mistakes, but
our policy of continuous improvement also means
that

you receive is

slightly different than shown in the manual

If you find this to be the case, and the difference
between the manual and machine leaves you
confused or unsure about something

check our

website for an updated version. W

current

manuals and

on our web-

site at

Alternatively, you can call our Technical Support
for help. Before calling, make sure you write down
the

from
the machine ID label (see below). This information
is required for us to provide proper tech support,
and it helps us determine if updated documenta­tion is available for your machine.

INTRODUCTION

Contact Info

and manufacture date

Grizzly Technical Support

1815 W. Battlefield
Springfield, MO 65807
Phone: [phone]

Email: [e-mail]

Grizzly Documentation Manager

P.O. Box 2069

Bellingham, WA 98227-2069

Manual Accuracy

made every effort to be exact with the

sometimes the machine

.

,

e post

manual updates for free

www.grizzly.com.

Manufacture Date and Serial Number

Manufacture Date

Serial Number

-2-

Model T31639 (Mfd. Since 04/20)

Identification

To reduce your risk of
serious injury, read this
entire manual BEFORE

Become familiar with the names and locations of the controls and features shown below to better understand
the instructions in this manual.

Switch

Box

Dust

Enclosure

ON/OFF

Paddle Switch

Power Cord

using machine.

Dust Hose

Dust Port 4"

Model T31639 (Mfd. Since 04/20)

-3-

Controls &

To reduce your risk of
serious injury, read this
entire manual BEFORE

Components

using machine.

D

Refer to the following figures and descriptions to
become familiar with the basic controls and com­ponents of this machine. Understanding these
items and how they work will help you understand
the rest of the manual and minimize your risk of
injury when operating this machine.

C

A

B

E

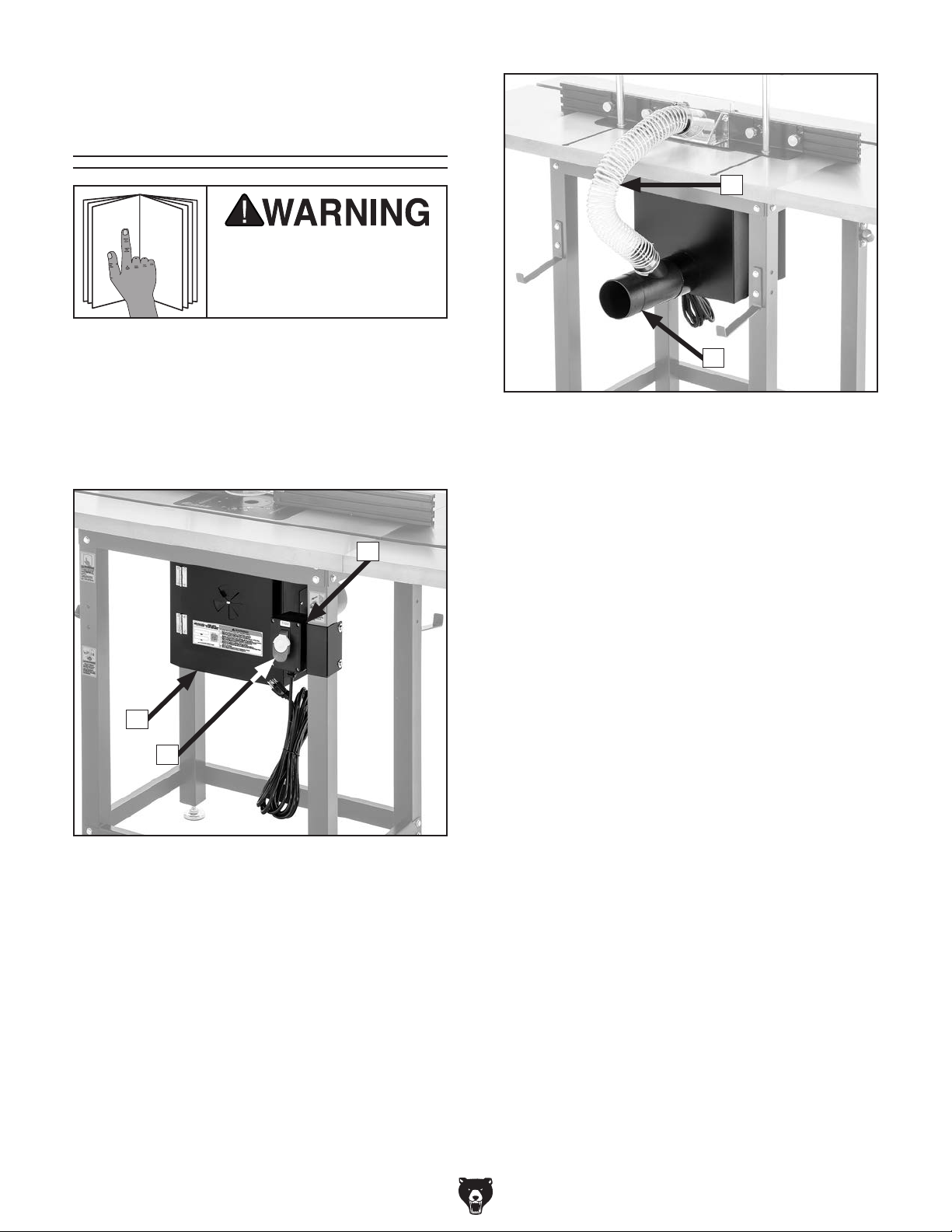

Figure 2. Dust enclosure components (rear).

D. Dust Hose. Connects included dust port to

2 1⁄2" outlet on user's router table fence.

E. Dust Port. 4" dust port connects to user's

dust-collection system.

Figure 1. Dust enclosure controls and

components (front).

A. Dust Enclosure. Bolts to underside of router

table to capture saw dust during operations.

B. ON/OFF Paddle Switch. Turns router ON

and OFF. Remove key to disable switch.

C. Switch Box. Houses 110V electrical outlet,

paddle switch, and power cord connection.

-4-

Model T31639 (Mfd. Since 04/20)

SECTION 1: SAFETY

For Your Own Safety, Read Instruction

Manual Before Operating This Machine

The purpose of safety symbols is to attract your attention to possible hazardous conditions.
This manual uses a series of symbols and signal words intended to convey the level of impor­tance of the safety messages. The progression of symbols is described below. Remember that
safety messages by themselves do not eliminate danger and are not a substitute for proper
accident prevention measures. Always use common sense and good judgment.

Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury. It may also be used to alert
against unsafe practices.

Alerts the user to useful information about proper operation of the

NOTICE

machine to avoid machine damage.

Safety Instructions for Machinery

OWNER’S MANUAL. Read and understand this

owner’s manual BEFORE using machine.

TRAINED OPERATORS ONLY. Untrained oper­ators have a higher risk of being hurt or killed.
Only allow trained/supervised people to use this
machine. When machine is not being used, dis­connect power, remove switch keys, or lock-out
machine to prevent unauthorized use—especially
around children. Make your workshop kid proof!

DANGEROUS ENVIRONMENTS. Do not use
machinery in areas that are wet, cluttered, or have
poor lighting. Operating machinery in these areas
greatly increases the risk of accidents and injury.

MENTAL ALERTNESS REQUIRED. Full mental
alertness is required for safe operation of machin­ery. Never operate under the influence of drugs or
alcohol, when tired, or when distracted.

ELECTRICAL EQUIPMENT INJURY RISKS.
You can be shocked, burned, or killed by touching
live electrical components or improperly grounded
machinery. To reduce this risk, only allow qualified
service personnel to do electrical installation or
repair work, and always disconnect power before
accessing or exposing electrical equipment.

DISCONNECT POWER FIRST.
nect machine from power supply BEFORE mak­ing adjustments, changing tooling, or servicing
machine. This prevents an injury risk from unin­tended startup or contact with live electrical com­ponents.

EYE PROTECTION. Always wear ANSI-approved
safety glasses or a face shield when operating or
observing machinery to reduce the risk of eye
injury or blindness from flying particles. Everyday
eyeglasses are NOT approved safety glasses.

Always discon-

Model T31639 (Mfd. Since 04/20)

-5-

WEARING PROPER APPAREL. Do not wear
clothing, apparel or jewelry that can become
entangled in moving parts. Always tie back or
cover long hair. Wear non-slip footwear to reduce
risk of slipping and losing control or accidentally
contacting cutting tool or moving parts.

HAZARDOUS DUST. Dust created by machinery
operations may cause cancer, birth defects, or
long-term respiratory damage. Be aware of dust
hazards associated with each workpiece mate­rial. Always wear a NIOSH-approved respirator to
reduce your risk.

HEARING PROTECTION. Always wear hear­ing protection when operating or observing loud
machinery. Extended exposure to this noise
without hearing protection can cause permanent
hearing loss.

REMOVE ADJUSTING TOOLS. Tools left on
machinery can become dangerous projectiles
upon startup. Never leave chuck keys, wrenches,
or any other tools on machine. Always verify
removal before starting!

USE CORRECT TOOL FOR THE JOB. Only use
this tool for its intended purpose—do not force
it or an attachment to do a job for which it was
not designed. Never make unapproved modifica­tions—modifying tool or using it differently than
intended may result in malfunction or mechanical
failure that can lead to personal injury or death!

AWKWARD POSITIONS. Keep proper footing
and balance at all times when operating machine.
Do not overreach! Avoid awkward hand positions
that make workpiece control difficult or increase
the risk of accidental injury.

CHILDREN & BYSTANDERS. Keep children and
bystanders at a safe distance from the work area.
Stop using machine if they become a distraction.

GUARDS & COVERS. Guards and covers reduce
accidental contact with moving parts or flying
debris. Make sure they are properly installed,
undamaged, and working correctly BEFORE
operating machine.

FORCING MACHINERY. Do not force machine.
It will do the job safer and better at the rate for
which it was designed.

NEVER STAND ON MACHINE. Serious injury
may occur if machine is tipped or if the cutting
tool is unintentionally contacted.

STABLE MACHINE. Unexpected movement dur­ing operation greatly increases risk of injury or
loss of control. Before starting, verify machine is
stable and mobile base (if used) is locked.

USE RECOMMENDED ACCESSORIES. Consult
this owner’s manual or the manufacturer for rec­ommended accessories. Using improper acces­sories will increase the risk of serious injury.

UNATTENDED OPERATION. To reduce the
risk of accidental injury, turn machine OFF and
ensure all moving parts completely stop before
walking away. Never leave machine running
while unattended.

MAINTAIN WITH CARE. Follow all maintenance
instructions and lubrication schedules to keep
machine in good working condition. A machine
that is improperly maintained could malfunction,
leading to serious personal injury or death.

DAMAGED PARTS. Regularly inspect machine
for damaged, loose, or mis-adjusted parts—or
any condition that could affect safe operation.
Immediately repair/replace BEFORE operating
machine. For your own safety, DO NOT operate
machine with damaged parts!

MAINTAIN POWER CORDS. When disconnect­ing cord-connected machines from power, grab
and pull the plug—NOT the cord. Pulling the cord
may damage the wires inside. Do not handle
cord/plug with wet hands. Avoid cord damage by
keeping it away from heated surfaces, high traffic
areas, harsh chemicals, and wet/damp locations.

EXPERIENCING DIFFICULTIES. If at any time
you experience difficulties performing the intend­ed operation, stop using the machine! Contact our
Technical Support at [phone].

-6-

Model T31639 (Mfd. Since 04/20)

SECTION 2: POWER SUPPLY

For your own safety and protection of

Note: Circuit requirements in this manual apply to

a dedicated circuit—where only one machine will
be running on the circuit at a time. If machine will
be connected to a shared circuit where multiple
machines may be running at the same time, con­sult an electrician or qualified service personnel to
ensure circuit is properly sized for safe operation.

A power supply circuit includes all electrical
equipment between the breaker box or fuse panel
in the building and the machine. The power sup­ply circuit used for this machine must be sized to
safely handle the full-load current drawn from the
machine for an extended period of time. (If this
machine is connected to a circuit protected by
fuses, use a time delay fuse marked D.)

This machine is prewired to operate on a power
supply circuit that has a verified ground and meets
the following requirements:

Before installing the machine, consider the avail­ability and proximity of the required power supply
circuit. If an existing circuit does not meet the
requirements for this machine, a new circuit must
be installed. To minimize the risk of electrocution,
fire, or equipment damage, installation work and
electrical wiring must be done by an electrician or
qualified service personnel in accordance with all
applicable codes and standards.

or equipment damage

not properly grounded

Availability

Electrocution, fire, shock,

may occur if machine is

and connected to power
supply.

Serious injury could occur if you connect
machine to power before completing setup
process. DO NOT connect to power until
instructed later in this manual.

110V Circuit Requirements

Nominal Voltage .................... 110V, 115V, 120V

..........................................................60 Hz

Cycle
Phase
Power Supply Circuit

........................................... Single-Phase

......................... 15 Amps

property, consult an electrician if you are
unsure about wiring practices or electrical
codes in your area.

Model T31639 (Mfd. Since 04/20)

-7-

Improper connection of the equipment-grounding
wire can result in a risk of electric shock. The
wire with green insulation (with or without yellow
stripes) is the equipment-grounding wire. If repair
or replacement of the power cord or plug is nec­essary, do not connect the equipment-grounding
wire to a live (current carrying) terminal.

Check with a qualified electrician or service per­sonnel if you do not understand these grounding
requirements, or if you are in doubt about whether
the tool is properly grounded. If you ever notice
that a cord or plug is damaged or worn, discon­nect it from power, and immediately replace it with
a new one.

We do not recommend using an extension cord
with this machine.
cord, only use it if absolutely necessary and only
on a temporary basis.

Extension cords cause voltage drop, which can
damage electrical components and shorten motor
life. Voltage drop increases as the extension cord
size gets longer and the gauge size gets smaller
(higher gauge numbers indicate smaller sizes).

Any extension cord used with this machine must
be in good condition and contain a ground wire
and matching plug/receptacle. Additionally, it must
meet the following size requirements:

Grounding & Plug Requirements

it will not fit the outlet, have a qualified
electrician install the proper outlet with a

This machine MUST be grounded. In the event
of certain malfunctions or breakdowns, grounding
reduces the risk of electric shock by providing a
path of least resistance for electric current.

This machine is equipped with a power cord that
has an equipment-grounding wire and a grounding
plug. Only insert plug into a matching receptacle
(outlet) that is properly installed and grounded in
accordance with all local codes and ordinances.
DO NOT modify the provided plug!

GROUNDED

5-15 RECEPTACLE

Grounding Pin

5-15 PLUG

Neutral Hot

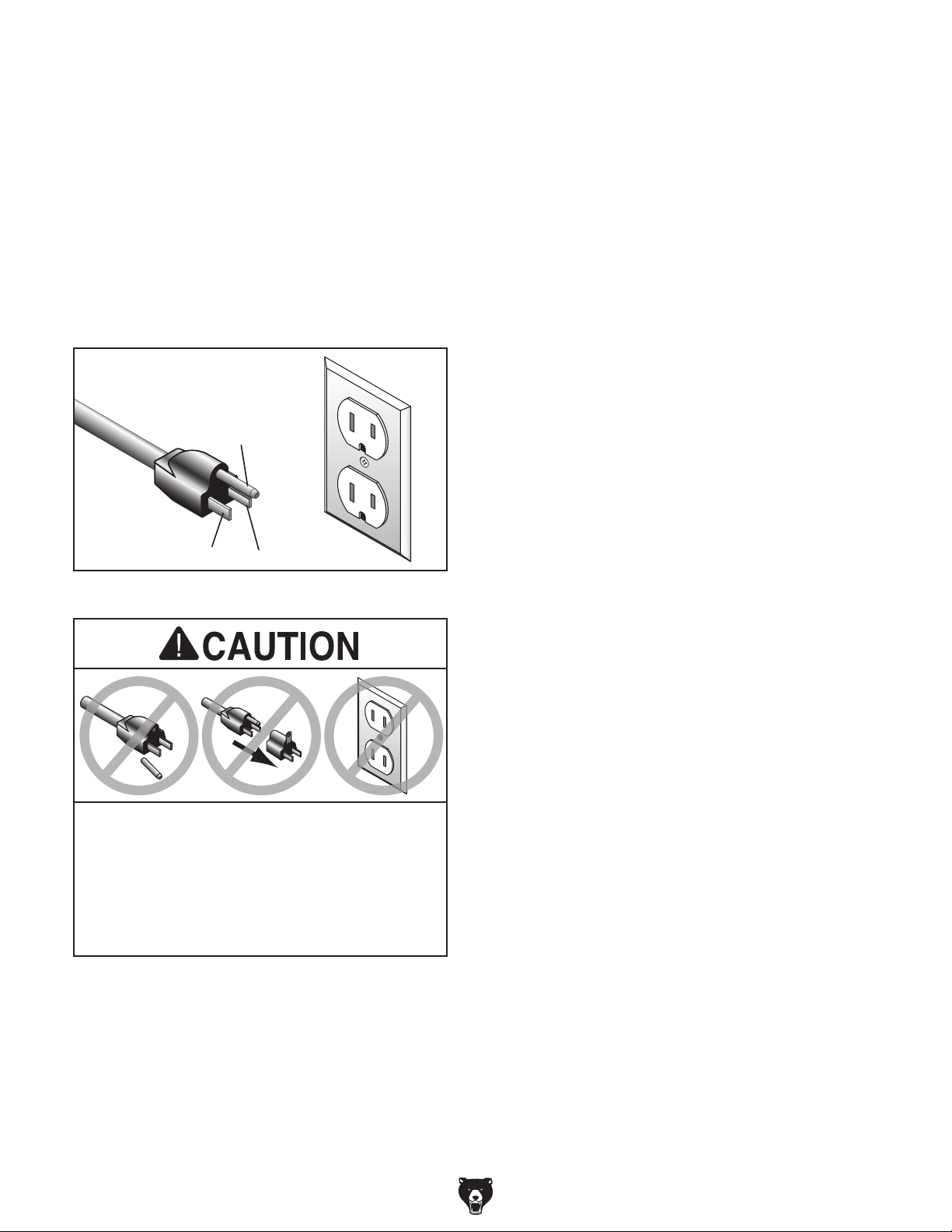

Figure 3. Typical 5-15 plug and receptacle.

Connecting to ON/OFF Paddle Switch

The Model T31639 includes a switch box equipped
with an ON/OFF paddle switch, a 110V recep­tacle, and a power cord with a 5-15 plug. The
router power cord connects to the 110V recep­tacle in the switch box, and the switch box power
cord connects to a 110V power supply circuit.
See Connecting Power Cords on Page 11 for
detailed information about connecting a router to
the Model T31639.

SHOCK HAZARD!
Two-prong outlets do not meet the grounding
requirements for this machine. Do not modify
or use an adapter on the plug provided—if

verified ground.

-8-

Extension Cords

If you must use an extension

Minimum Gauge Size ...........................14 AWG

Maximum Length (Shorter is Better).......50 ft.

Model T31639 (Mfd. Since 04/20)

SECTION 3: SETUP

This machine was carefully packaged for safe
transport. When unpacking, separate all enclosed
items from packaging materials and inspect them
for shipping damage.

,

please

IMPORTANT:

you are completely satisfied with the machine and
have resolved any issues between Grizzly or the
shipping agent. You MUST have the original pack-

aging to file a freight claim. It is also extremely
helpful if you need to return your machine later.

This machine presents
serious injury hazards
to untrained users. Read
through this entire manu­al to become familiar with
the controls and opera­tions before starting the
machine!

Wear safety glasses during
the entire setup process!

call us immediately at [phone].

Needed for Setup

Unpacking

If items are damaged

Save all packaging materials until

The following items are needed, but not included,
for the setup/assembly of this machine.

Description Qty

• Phillips Head Screwdriver #1...................... 1

• Open-End Wrench or Socket 12mm .......... 1

• Rags ........................................... As Needed

Model T31639 (Mfd. Since 04/20)

-9-

Inventory

The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.

If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.

The machine must be fully assembled before it
can be operated. Before beginning the assembly
process, refer to

and gather
all
goes smoothly, first clean any

cov­ered or coated in heavy-duty rust preventative (if
applicable).

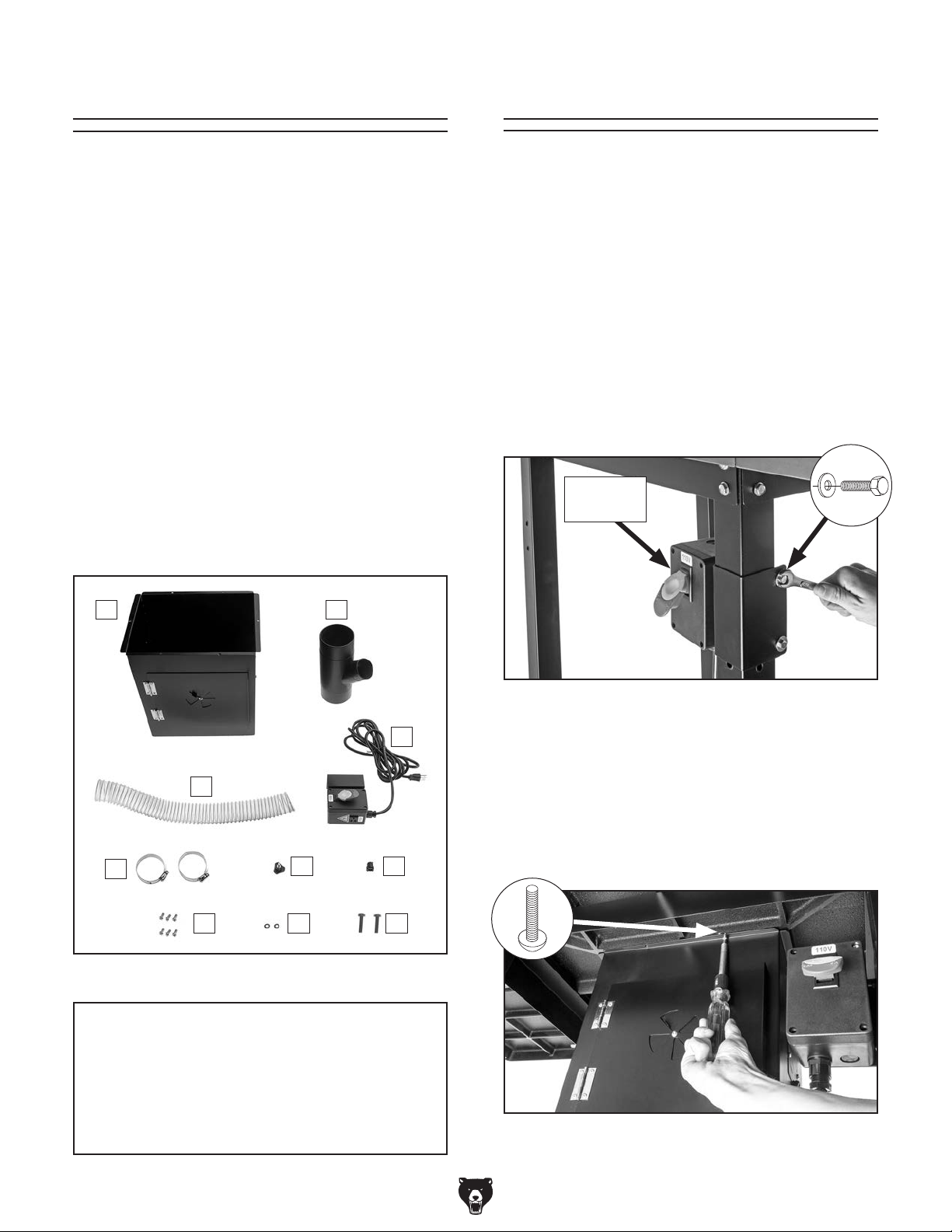

Box Contents (Figure 4) Qty

A. Dust Enclosure ........................................... 1

B. Y-Fitting 4" x 4" x 21⁄2 " ................................ 1

C. Switch Box .................................................. 1

D. Dust Hose 21⁄2 " x 28" .................................. 1

E. Strain Relief 1⁄2 " .......................................... 1

F. Star Knob 1⁄4"-20 x 1⁄2 " ................................ 1

. Hose Clamps 3" ......................................... 2

G

Hex Bolts 1⁄4"-20 x 21⁄2 " ............................... 2

H.

Flat Washers 1⁄4" ......................................... 2

I.

Phillips Head Screws 10-24 x 3⁄8" ............... 6

J.

Assembly

Needed for Setup

listed items. To ensure the assembly process

parts that are

To install switch box and dust enclosure:

1. Attach switch box (see Figure 5) to leg of

your router table stand with pre-installed
clamp and (2)

1

⁄4" flat washers.

Electrical

Box

1

⁄4" -20 x 21⁄2" hex bolts and (2)

x 2

A

D

G

Figure 4. Inventory.

B

NOTICE

If you cannot find an item on this list, care­fully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpack­ing or they are pre-installed at the factory.

-10 -

Figure 5. Example of attaching switch box to a

stand.

C

Install dust enclosure (see Figure 6) under-

2.

neath your router table with (6) 10-24 x
Phillips head screws.

Note: The vent should be facing the front of

EF

HIJ

your table.

x 6

Figure 6. Example of attaching dust enclosure to

your table.

Model T31639 (Mfd. Since 04/20)

3

⁄8"

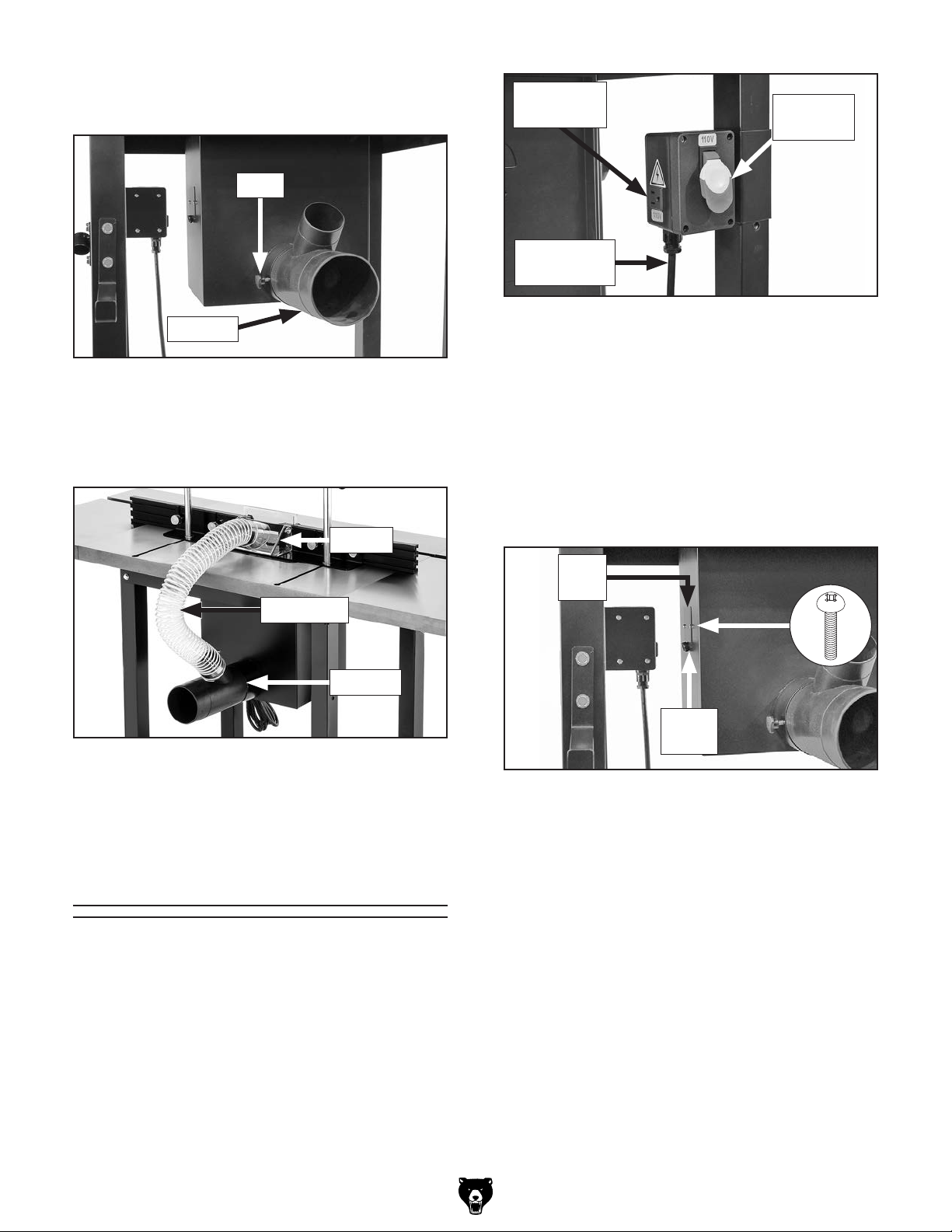

3. Install Y-fitting (see Figure 7) on dust port
and secure with (1)

Y-Fitting

1

⁄4" -20 x 1⁄2" knob.

Knob

110V

Receptacle

Switch Box

Power Cord

Figure 9. Location of ON/OFF switch and 110V

receptacle.

ON/OFF

Switch

Figure 7. Y-fitting attached to dust port.

4. Attach 2 1⁄2" dust hose (see Figure 8) on

Y-fitting and the dust shroud on your router
table fence. Secure with 2 1⁄2" hose clamps.

Shroud

Dust Hose

Y-Fitting

Figure 8. Example of dust hose connecting

Y-fitting and fence dust shroud.

To connect router and router table to power:

Ensure paddle switch is set to OFF position.

1.

Loosen (2) 10-24 x 3⁄8" Phillips head screws

2.

(see Figure 10) securing side door on dust

enclosure, and feed router power cord
through opening.

Side

Door

x 2

Strain
Relief

Figure 10. Location of dust enclosure side door.

Connecting

Power Cords

The Model T31639 includes a switch box with a
110V receptacle and an ON/OFF paddle switch
(see Figure 9). The router power cord can be
plugged into the 110V receptacle, and the power
cord on the switch box can be plugged into a 110V
outlet. This allows you to start and stop your rout­er without having to reach into the dust enclosure
for the router ON/OFF switch.

Model T31639 (Mfd. Since 04/20)

3. Plug router power cord into 110V receptacle
on switch box.

. Plug switch box power cord into matching

4

power supply outlet.

. Install 1⁄2" strain relief (see Figure 10) on

5

router power cord where it emerges from dust
enclosure side door and secure by tightening
screws.

-11-

Dust Collection

DO NOT start machine until all preceding
setup instructions have been performed.
Operating an improperly set up machine

Serious injury or death can result from

This machine creates a lot of wood chips/
dust during operation. Breathing airborne
dust on a regular basis can result in perma­nent respiratory illness. Reduce your risk
by wearing a respirator and capturing the
dust with a dust-collection system.

Recommended CFM at Dust Port: 400 CFM

Do not confuse this CFM recommendation with
the rating of the dust collector. To determine the
CFM at the dust port, you must consider these
variables: (1) CFM rating of the dust collector,
(2) hose type and length between the dust col­lector and the machine, (3) number of branches
or wyes, and (4) amount of other open lines
throughout the system. Explaining how to cal­culate these variables is beyond the scope of
this manual. Consult an expert or purchase a
good dust collection "how-to" book.

Test Run

Once assembly is complete, test run the machine
to ensure it is properly connected to power and
safety components are functioning correctly.

If you find an unusual problem during the test run,
immediately stop the machine, disconnect it from
power, and fix the problem BEFORE operating the
machine again.

The Test Run consists of verifying the following:

1) The router powers up and runs correctly, and

2) the switch disabling key disables the switch

properly.

using this machine BEFORE understanding
its controls and related safety information.
DO NOT operate, or allow others to operate,
machine until the information is understood.

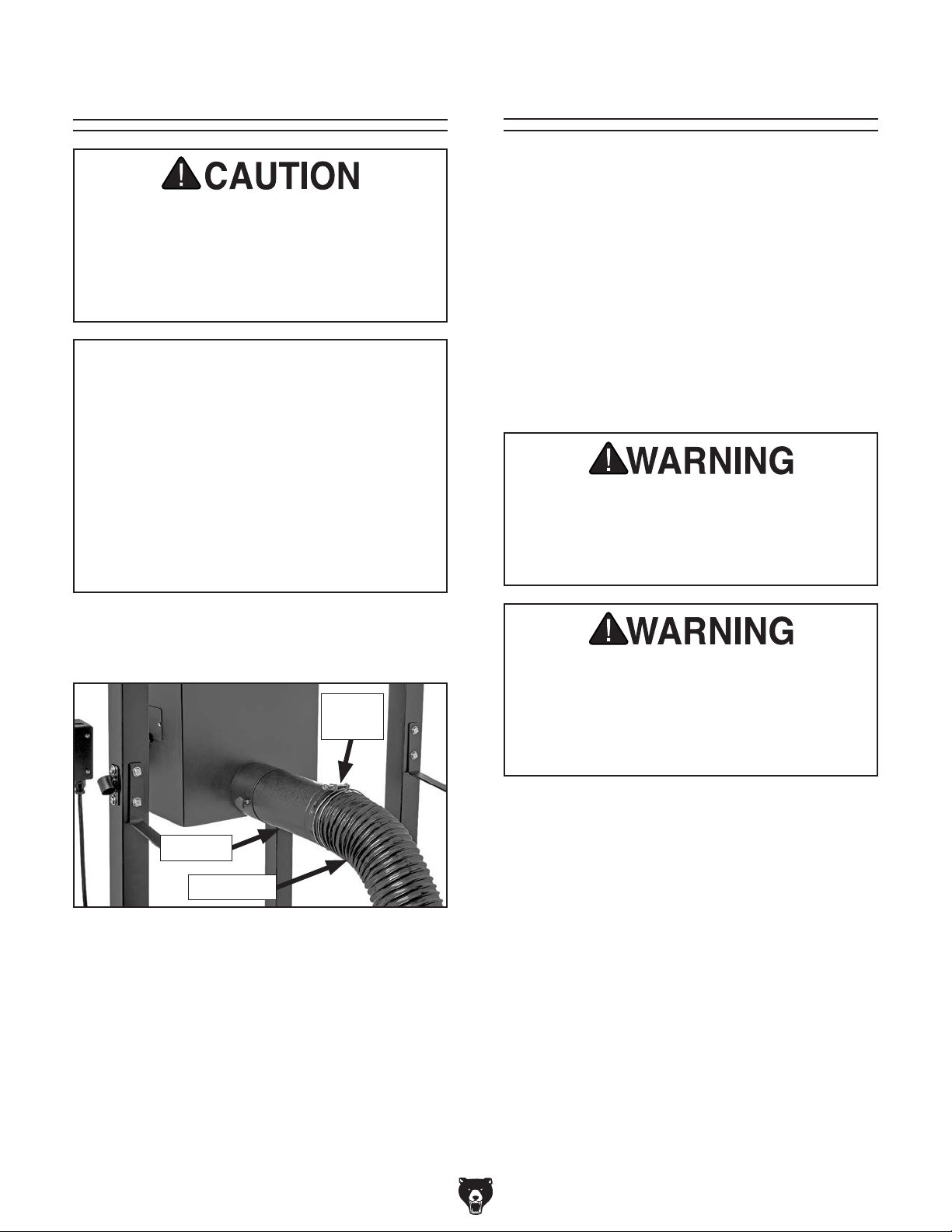

1. Fit a 4" dust hose over dust port (see Figure

11), and secure with wire hose clamp.

Hose

Clamp

Y-Fitting

Dust Hose

Figure 11. Example of 4" dust hose connected

Y-fitting.

2.

Tug hose to make sure it does not come off. A

tight fit is necessary for proper performance.

may result in malfunction or unexpect­ed results that can lead to serious injury,
death, or machine/property damage.

-12-

Model T31639 (Mfd. Since 04/20)

To test run router table:

Clear all setup tools away from router table.

1.

2. Make sure paddle switch is set to OFF

position.

Make sure router power cord is plugged into

3.

110V receptacle in switch box.

Connect router table power cord to power

4.

supply.

Reach into dust enclosure and turn router

5.

ON.

Using paddle switch, turn router table ON,

6.

verify router powers up, and then turn router
table OFF.

7. Remove switch-disabling key, as shown in
Figure 12.

Try to start router with paddle switch. The

8.

router should not start.

— If router does not start, switch disabling

feature is working as designed.

— If router does start, immediately stop rout-

er. The switch disabling feature is not work­ing correctly. This safety feature must work
properly before proceeding with regular
operations.

Re-install switch-disabling key in paddle

9.

switch.

Congratulations! The test run is complete.

The router table is ready for operation.

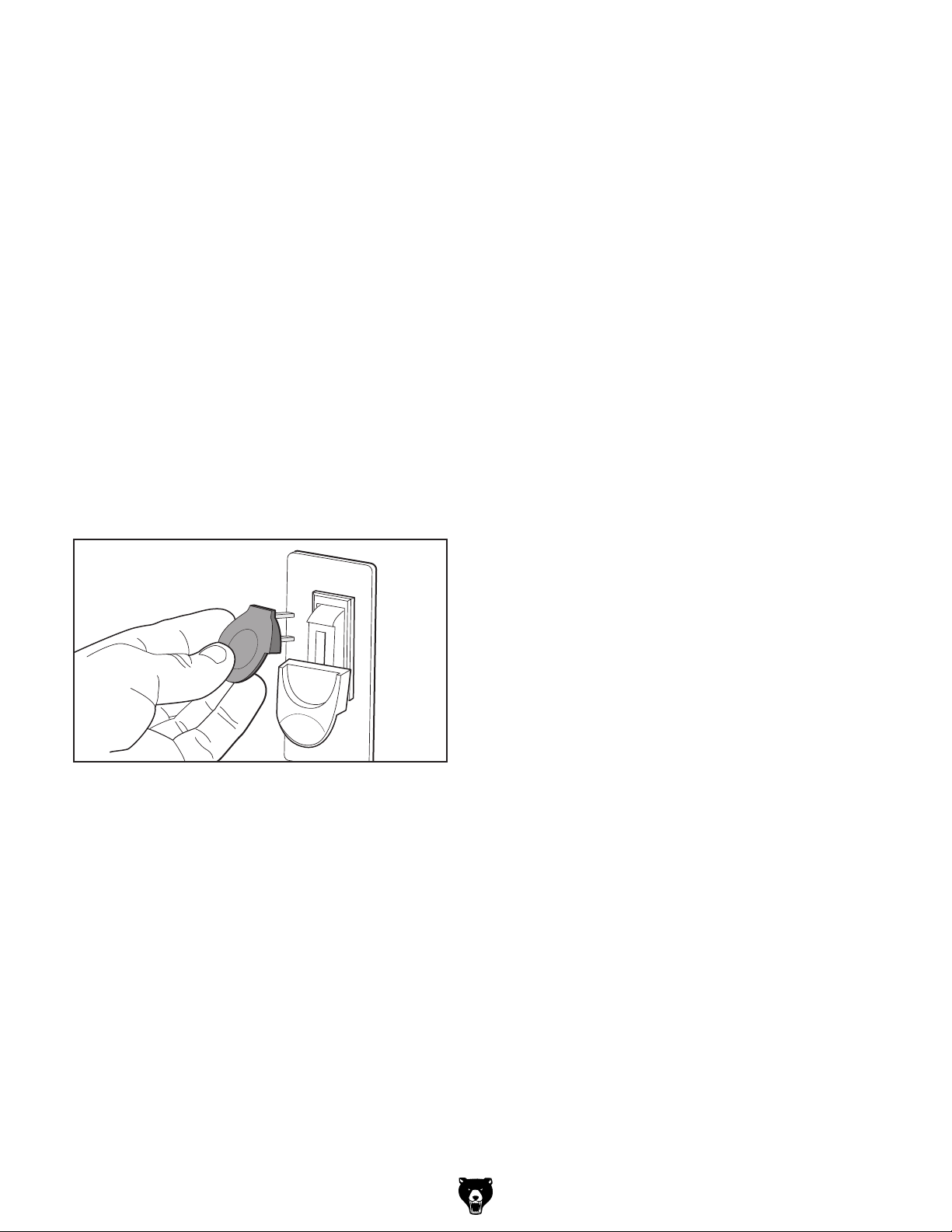

Figure 12. Removing switch key from paddle

switch.

Model T31639 (Mfd. Since 04/20)

-13-

These pages are current at the time of printing. However, in the spirit of improvement, we may make chang­es to the electrical systems of future machines. Compare the manufacture date of your machine to the one

number and manufacture date of your

machine before calling. This information can be found on the main machine label.

SECTION 4: WIRING

stated in this manual, and study this section carefully.

If there are differences between your machine and what is shown in this section, call Technical Support at
[phone] for assistance BEFORE making any changes to the wiring on your machine. An updated
wiring diagram may be available. Note: Please gather the serial

Wiring Safety Instructions

SHOCK HAZARD. Working on wiring that is con-

nected to a power source is extremely dangerous.
Touching electrified parts will result in personal
injury including but not limited to severe burns,
electrocution, or death. Disconnect the power
from the machine before servicing electrical com­ponents!

MODIFICATIONS. Modifying the wiring beyond
what is shown in the diagram may lead to unpre­dictable results, including serious injury or fire.
This includes the installation of unapproved after­market parts.

WIRE CONNECTIONS. All connections must
be tight to prevent wires from loosening during
machine operation. Double-check all wires dis­connected or connected during any wiring task to
ensure tight connections.

CIRCUIT REQUIREMENTS. You MUST follow
the requirements at the beginning of this manual
when connecting your machine to a power source.

WIRE/COMPONENT DAMAGE. Damaged wires
or components increase the risk of serious per­sonal injury, fire, or machine damage. If you notice
that any wires or components are damaged while
performing a wiring task, replace those wires or
components.

MOTOR WIRING. The motor wiring shown in
these diagrams is current at the time of printing
but may not match your machine. If you find this
to be the case, use the wiring diagram inside the
motor junction box.

CAPACITORS/INVERTERS. Some capacitors
and power inverters store an electrical charge for
up to 10 minutes after being disconnected from
the power source. To reduce the risk of being
shocked, wait at least this long before working on
capacitors.

EXPERIENCING DIFFICULTIES. If you are expe­riencing difficulties understanding the information
included in this section, contact our Technical
Support at [phone].

The photos and diagrams
included in this section are
best viewed in color. You
can view these pages in
color at www.grizzly.com.

-14-

Model T31639 (Mfd. Since 04/20)

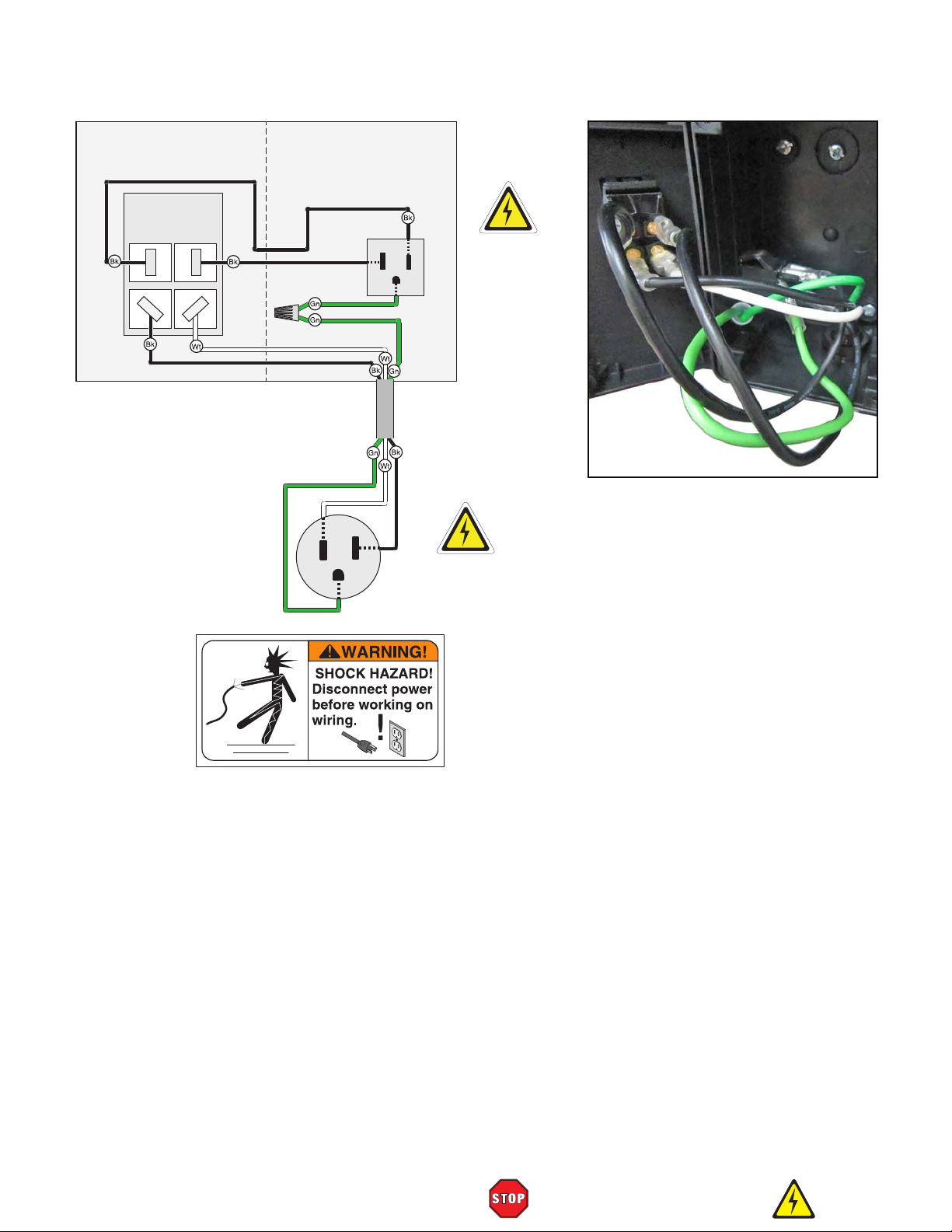

ON/OFF PADDLE SWITCH

J1708W2 125V

Wiring Diagram

Hot

Neutral

Ground

110 VAC

5-15

Receptacle

Ground

Neutral

Figure 13. ON/OFF switch and 110V

outlet wiring.

Hot

110 VAC

5-15 Plug

Model T31639 (Mfd. Since 04/20)

READ ELECTRICAL SAFETY

ON PAGE 14 !

-15-

SECTION 5: PARTS

We do our best to stock replacement parts when possible, but we cannot guarantee that all parts shown
are available for purchase. Call [phone] or visit www.grizzly.com/parts to check for availability.

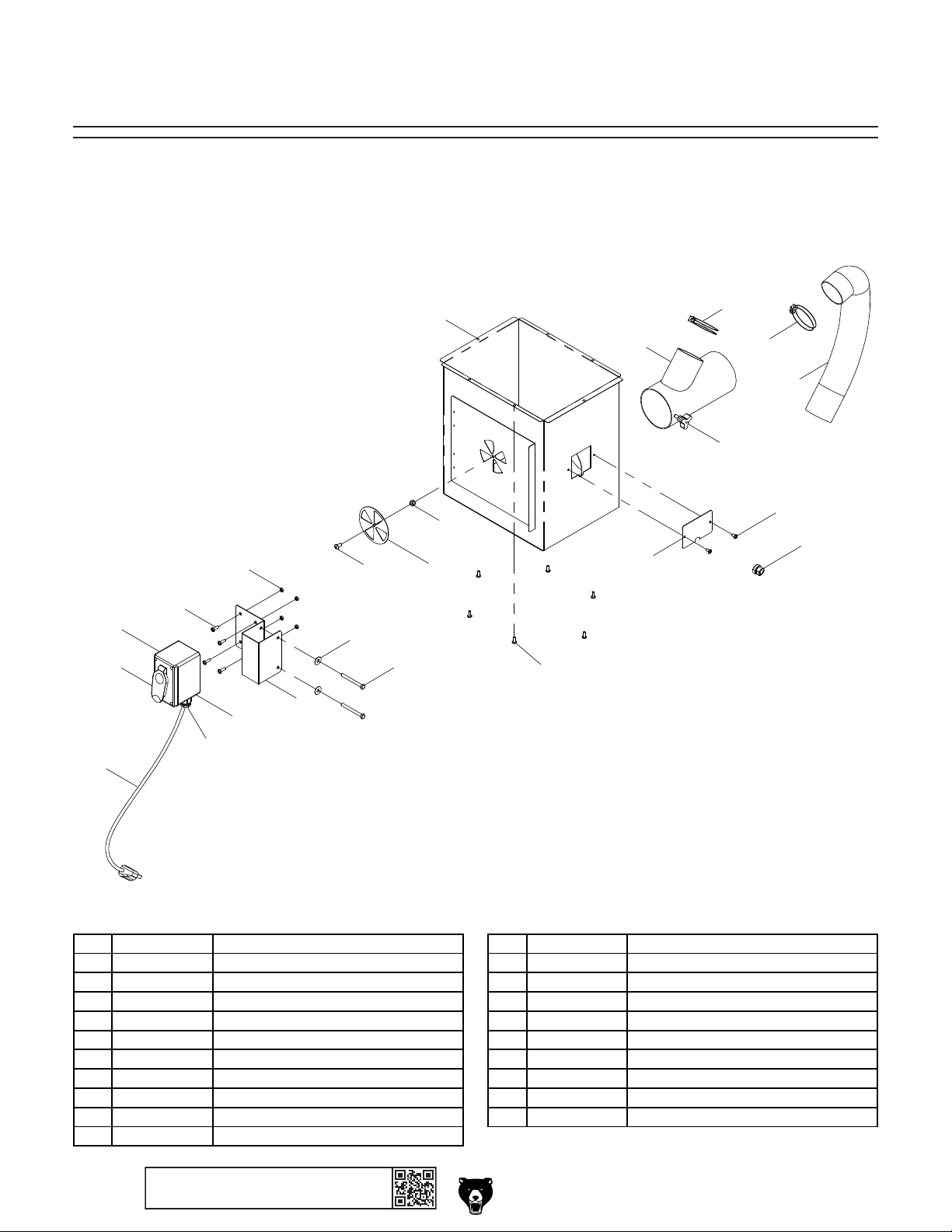

Main

13

20

12

15

19

16

21

14

17

1

6

2

11

18

3

10

4

8

8

7

9

10

5

REF PART # DESCRIPTION REF PART # DESCRIPTION

1 PT31639001 DUST ENCLOSURE 12 PT31639012 PADDLE SWITCH J1708W2 125VAC
2 PT31639002 LOCK NUT 1/4-20 13 PT31639013 POWER CORD 14G 3W 72" 5-15P
3 PT31639003 DUST BOX VENT PLATE 14 PT31639014 SWITCH BRACKET
4 PT31639004 BUTTON HD CAP SCR 1/4-20 X 1/2 15 PT31639015 PHLP HD SCR 10-24 X 5/8
5 PT31639005 STRAIN RELIEF TYPE-1 1/2 16 PT31639016 LOCK NUT 10-24
6 PT31639006 Y-FITTING 4" X 4" X 2-1/2" 17 PT31639017 FLAT WASHER 1/4
7 PT31639007 DUST HOSE 2-1/2" X 28" 18 PT31639018 HEX BOLT 1/4-20 X 2-1/2
8 PT31639008 WIRE HOSE CLAMP 3" 19 PT31639019 STRAIN RELIEF TYPE-3 M16-2
9 PT31639009 KNOB BOLT 1/4-20 X 1/2, 3-LOBE, D1 20 PT31639020 ELECTRICAL OUTLET 15A 125V
10 PT31639010 PHLP HD SCR 10-24 X 3/8 21 PT31639021 SWITCH BOX
11 PT31639011 CORD CLAMP PLATE

-16 -

BUY PARTS ONLINE AT GRIZZLY.C OM !

Scan QR code to visit our Par ts Store.

Model T31639 (Mfd. Since 04/20)

WARRANTY & RETURNS

Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from
the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse,
negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty
and any and all warranties that may be implied by law, including any merchantability or fitness, for any par­ticular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent
that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants.
In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and
any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.

We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special,
or consequential damages arising from the use of our products.

The manufacturers reserve the right to change specifications at any time because they constantly strive to
achieve better quality equipment. We make every effort to ensure that our products meet high quality and
durability standards and we hope you never need to use this warranty.

In the event you need to use this warranty, contact us by mail or phone and give us all the details. We will
then issue you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of
the carton. We will not accept any item back without this number. Proof of purchase must accompany the
merchandise.

Please feel free to write or call us if you have any questions about the machine or the manual.

Thank you again for your business and continued support. We hope to serve you again soon.

To

warranty-card

registration page

take advantage of this warranty, you must register it at https://www.grizzly.com/secureforms/

, or you can scan the QR code below to be automatically directed to our warranty

. Enter all applicable information for the product.

WARRANTY
