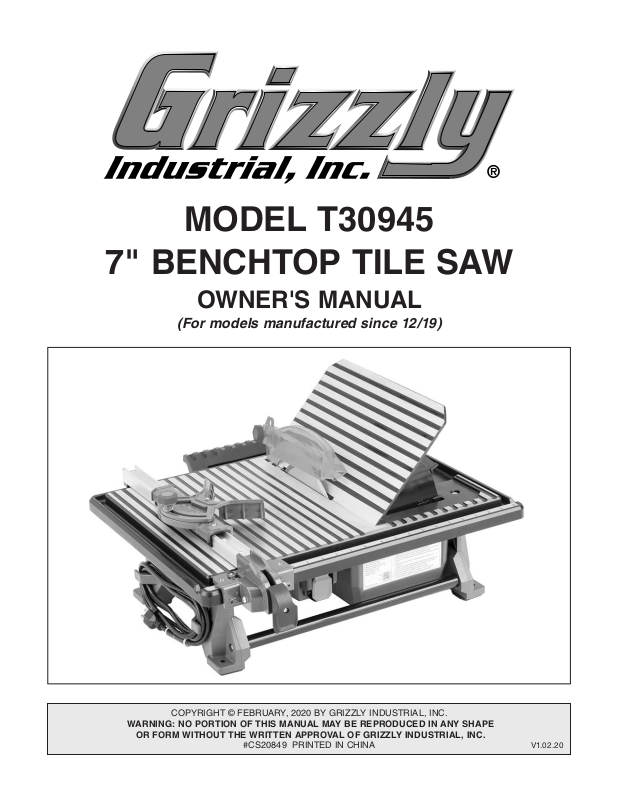

Grizzly T30945 User guide

MODEL T30945

7" BENCHTOP TILE SAW

OWNER'S MANUAL

(For models manufactured since 12/19)

COPYRIGHT © FEBRUARY, 2020 BY GRIZZLY INDUSTRIAL, INC.

WARNING : NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#CS20849 PRINTED IN CHINA

V1.0 2.20

This manual provides critical safety instructions on the proper setup,
operation, maintenance, and service of this machine/tool. Save this
document, refer to it often, and use it to instruct other operators.

Failure to read, understand and follow the instructions in this manual
may result in fire or serious personal injury—including amputation,
electrocution, or death.

The owner of this machine/tool is solely responsible for its safe use.
This responsibility includes but is not limited to proper installation in
a safe environment, personnel training and usage authorization,
proper inspection and maintenance, manual availability and compre­hension, application of safety devices, cutting/sanding/grinding tool
integrity, and the usage of personal protective equipment.

The manufacturer will not be held liable for injury or property damage
from negligence, improper training, machine modifications or misuse.

Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State
of California to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
Work in a well ventilated area, and work with approved safety equip­ment, such as those dust masks that are specially designed to filter
out microscopic particles.

Table of Contents

INTRODUCTION ............................................... 2

Contact Info.................................................... 2

Manual Accuracy
Identification
Controls & Components
Machine Data Sheet

SECTION 1: SAFETY

Safety Instructions for Machinery
Additional Safety for Tile Saws

SECTION 2: POWER SUPPLY

SECTION 3: SETUP

Unpacking
Needed for Setup

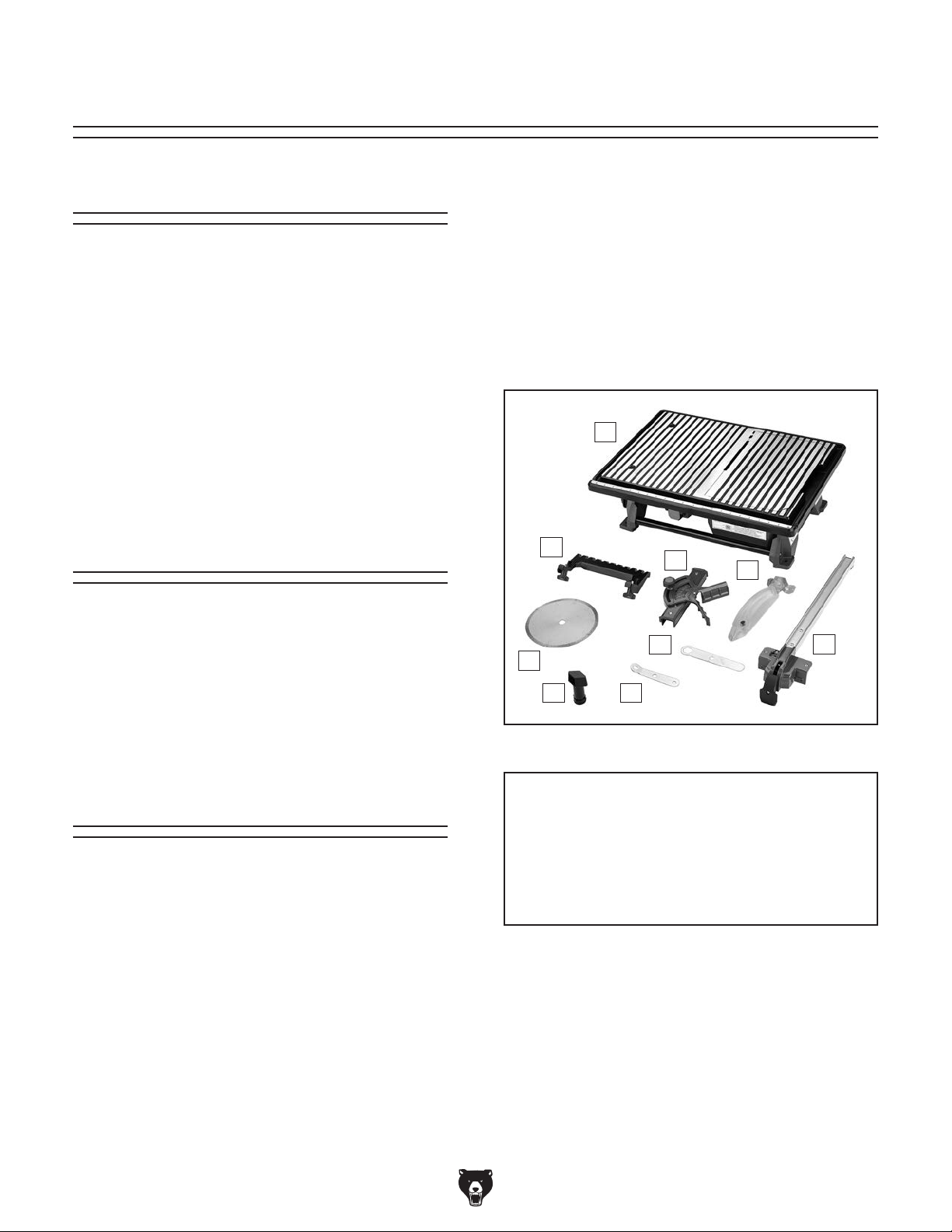

Inventory

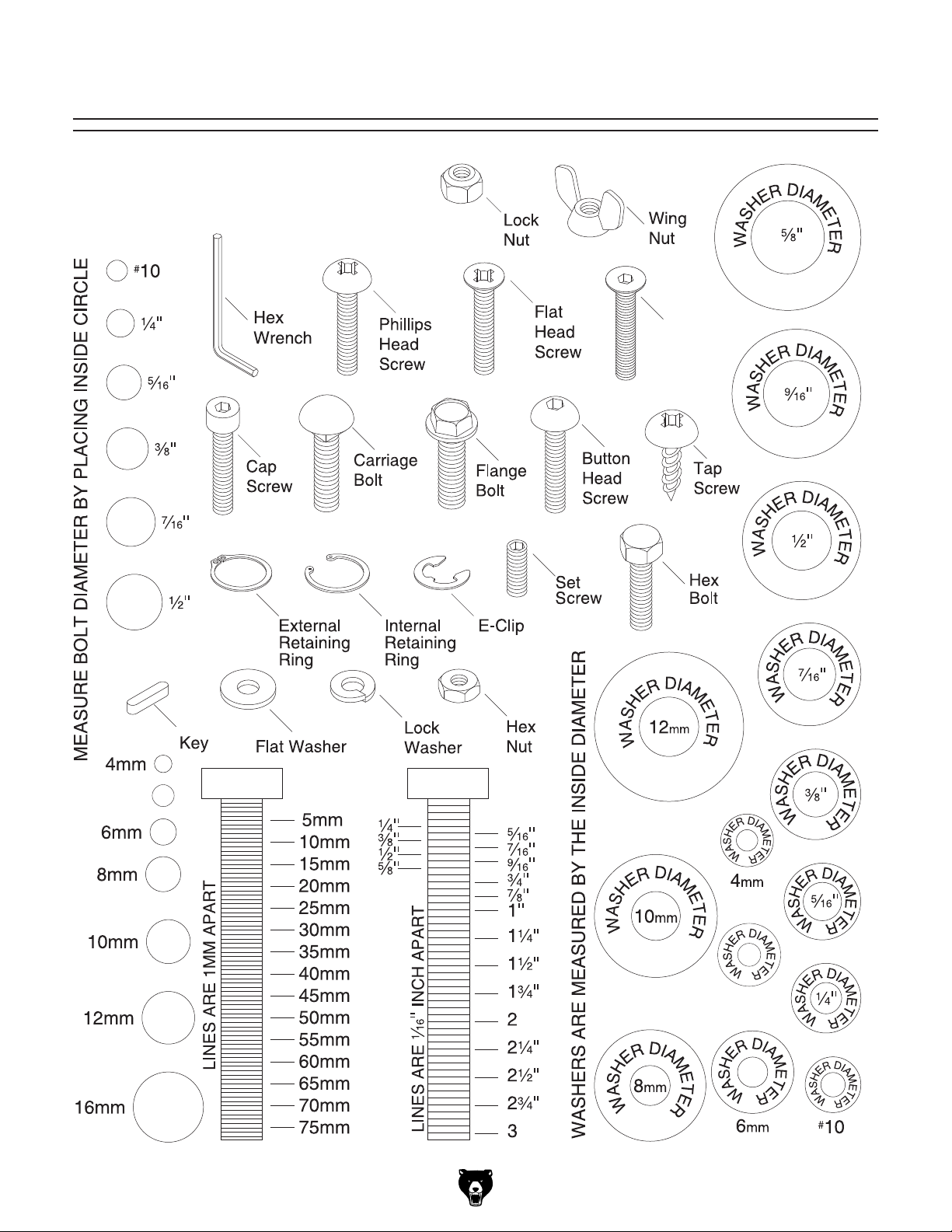

Hardware Recognition Chart
Assembly
Site Considerations
Bench Mounting

Power Connection........................................ 16

Lifting & Moving
Test Run

.................................................... 12

...................................................... 12

..................................................... 14

...................................................... 17

........................................... 2

................................................... 3

................................. 4

...................................... 5

....................................... 7

.................. 7

...................... 9

...................... 10

....................................... 12

......................................... 12

....................... 13

...................................... 15

........................................... 16

........................................... 17

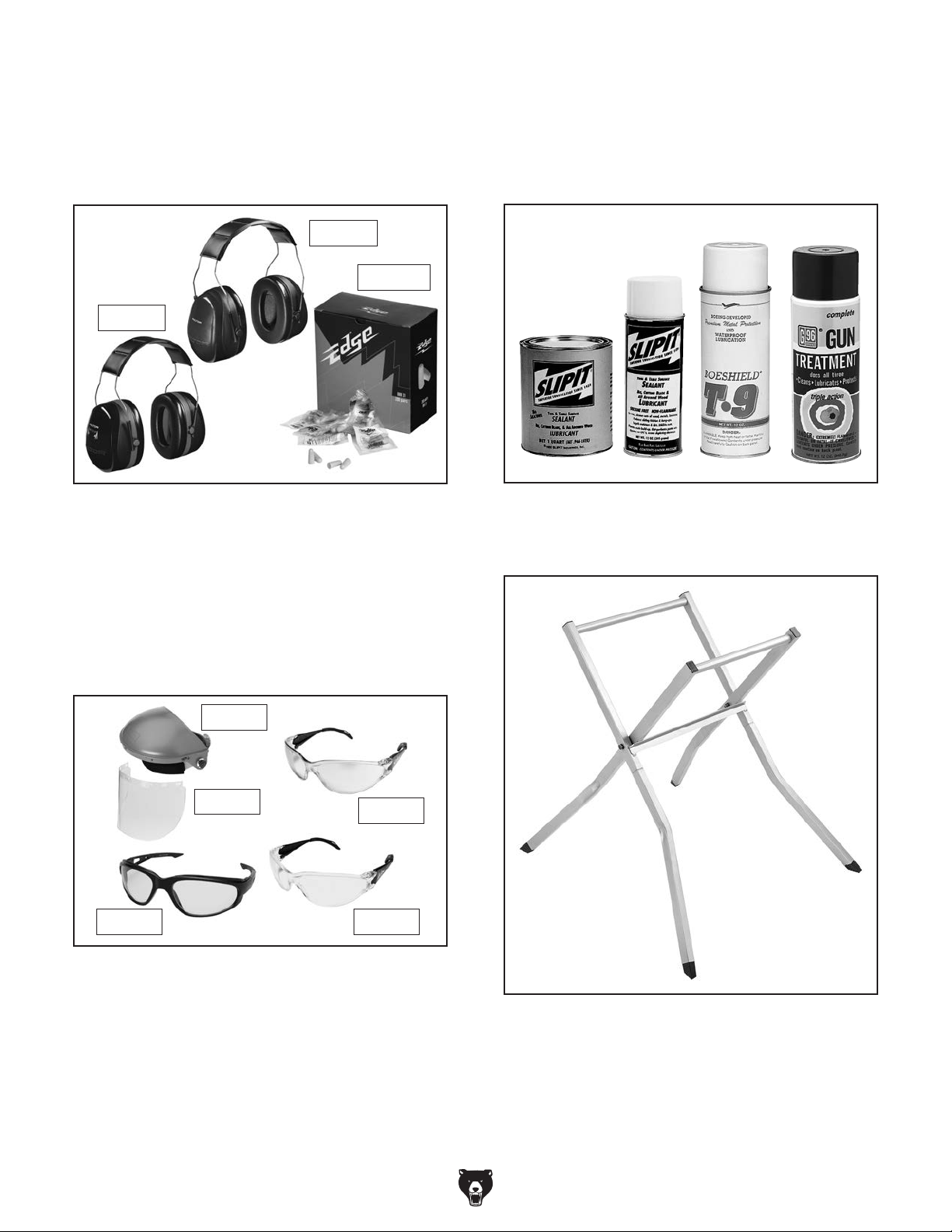

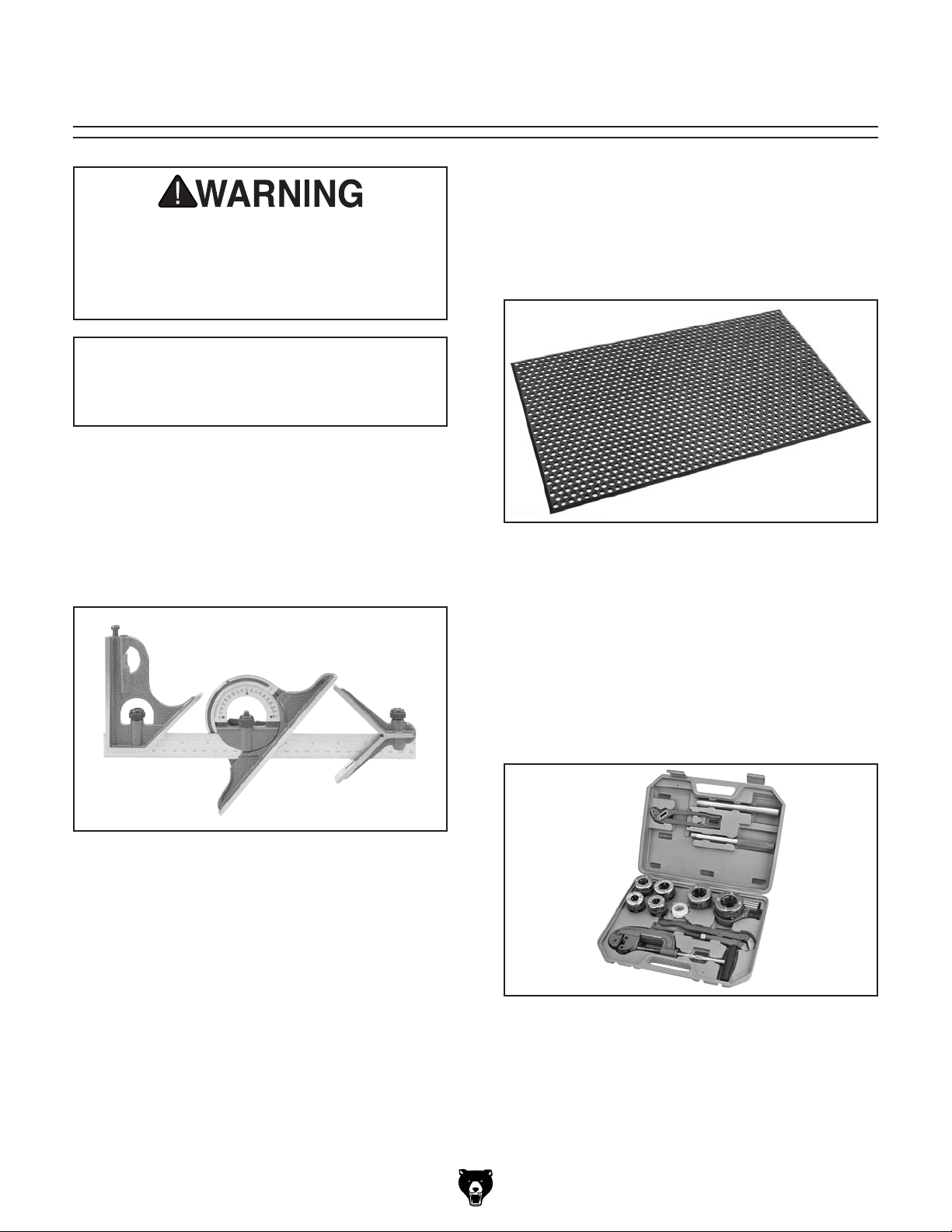

SECTION 5: ACCESSORIES

SECTION 6: MAINTENANCE

Schedule
Cleaning & Protecting
Lubrication

Dressing Blade............................................. 27

SECTION 7: SERVICE

Troubleshooting

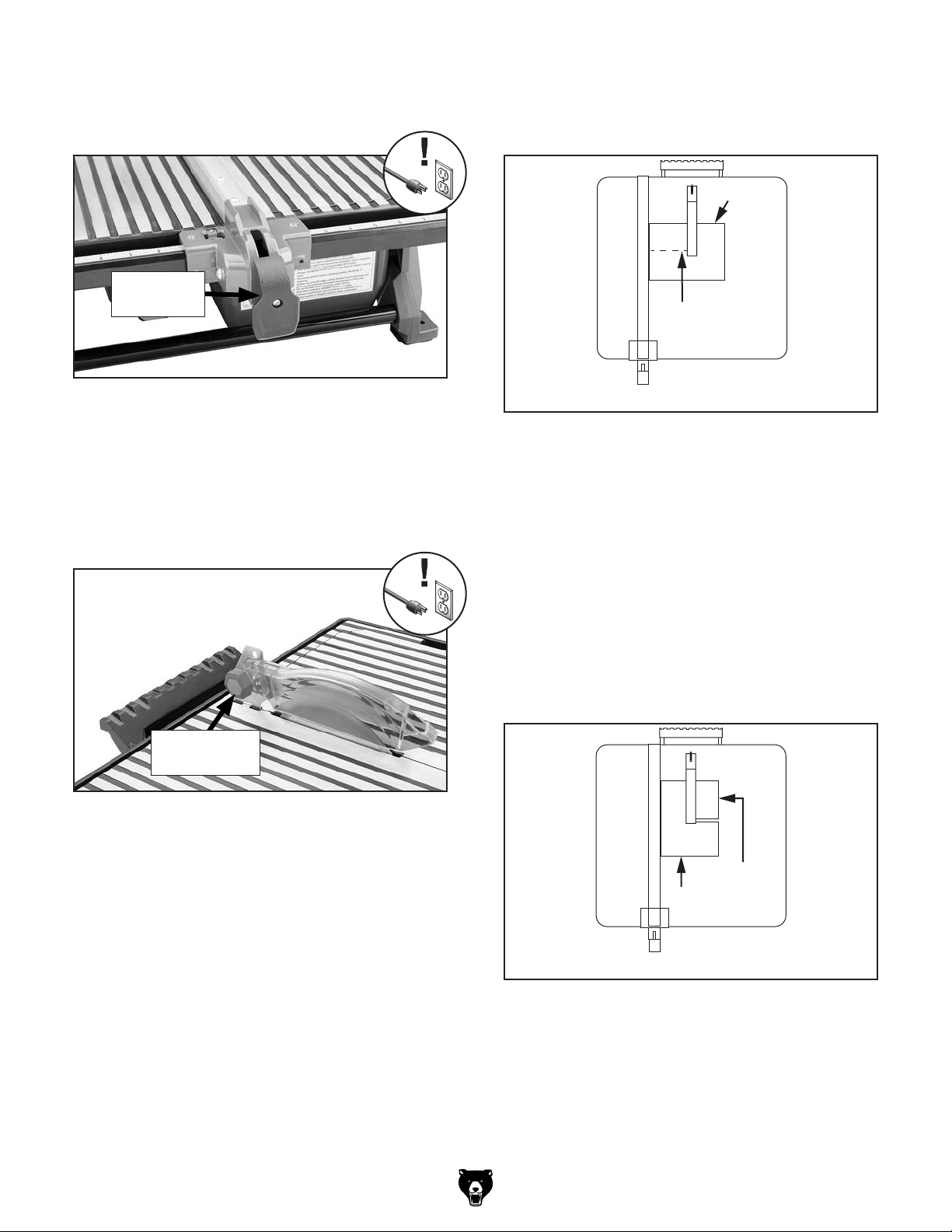

Squaring Fence to Blade
Adjusting Fence

SECTION 8: WIRING

Wiring Safety Instructions

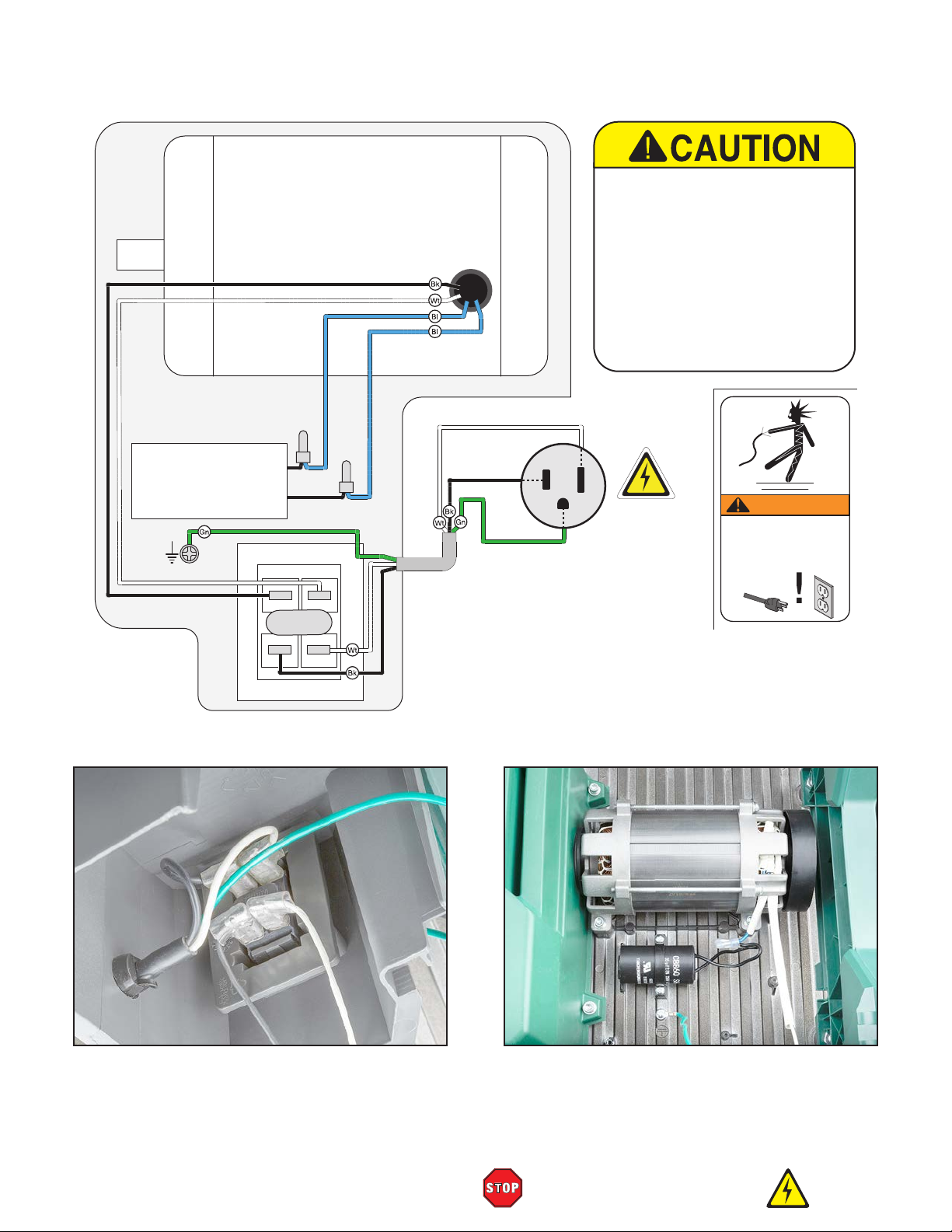

Wiring Diagram

SECTION 9: PARTS

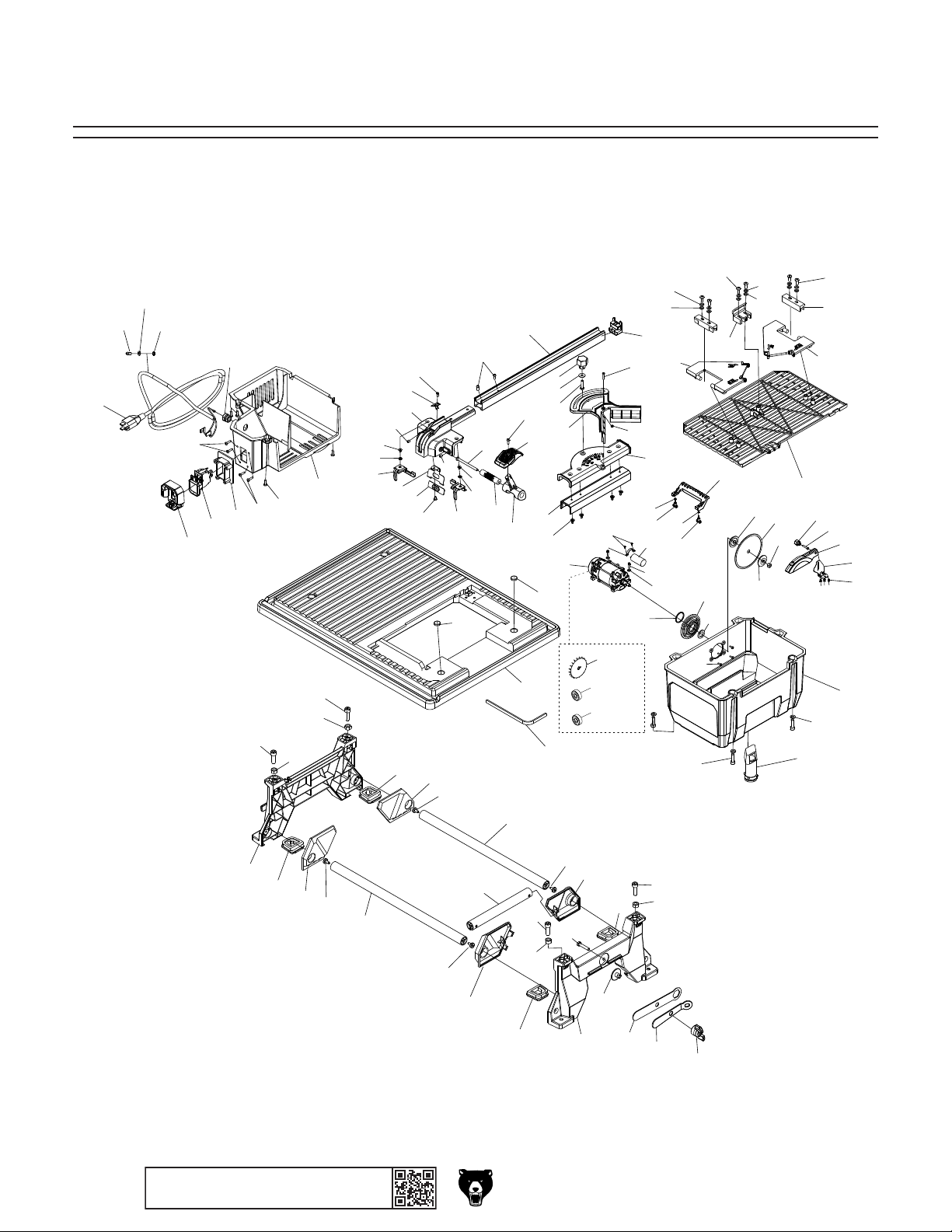

Main
Labels & Cosmetics

WARRANTY & RETURNS

...................................................... 27

................................................... 27

................................... 28

........................................... 28

........................................... 31

...................................... 32

............................................ 33

....................................... 34

............................................................. 34

..................................... 36

......................... 25

......................... 27

.................................. 27

............................. 30

............................ 32

............................. 37

SECTION 4: OPERATIONS

Operation Overview

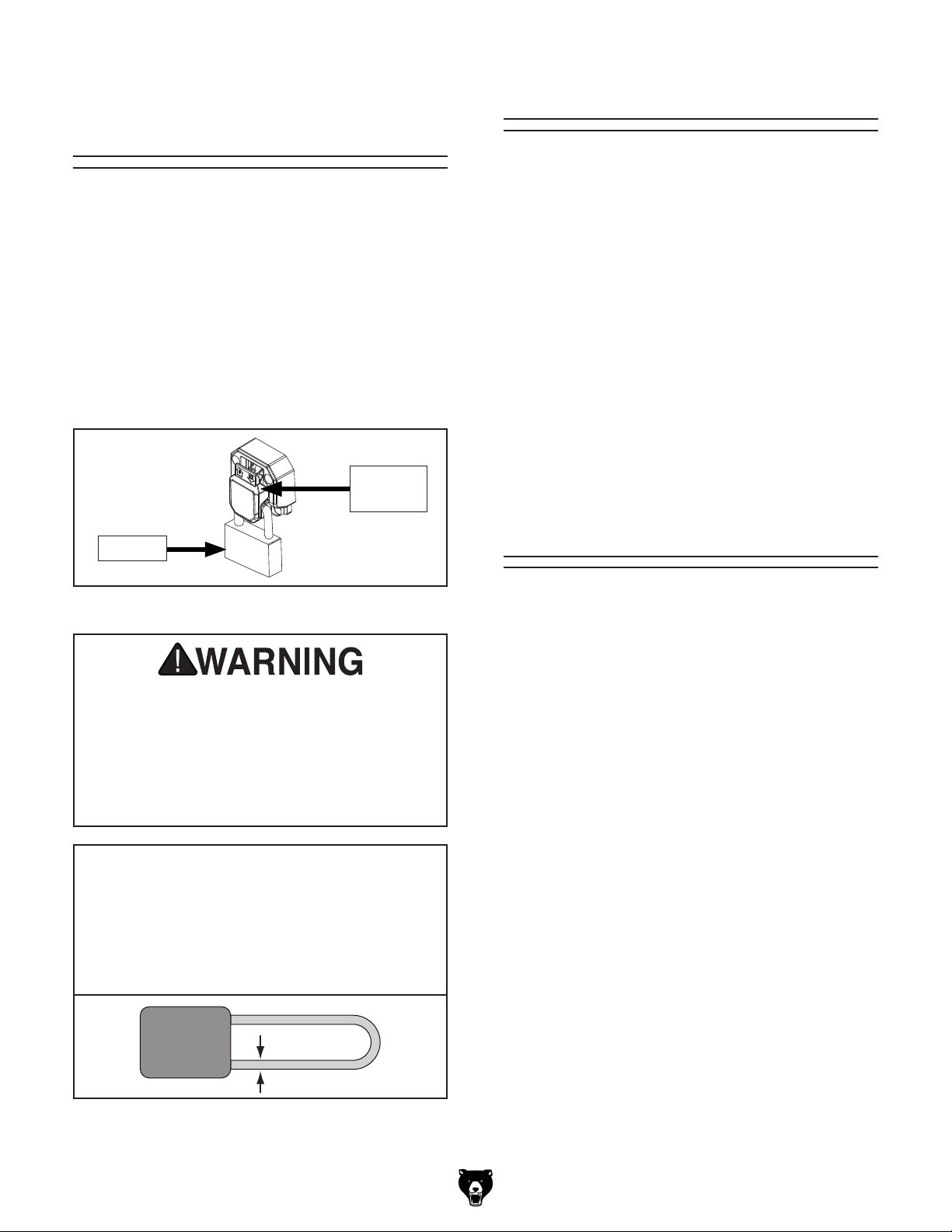

Disabling & Locking Switch.......................... 19

Cutting Tips
Changing Water
Making Rip Cuts
Making Miter Cuts
Making Bevel Cuts
Making L-Cuts

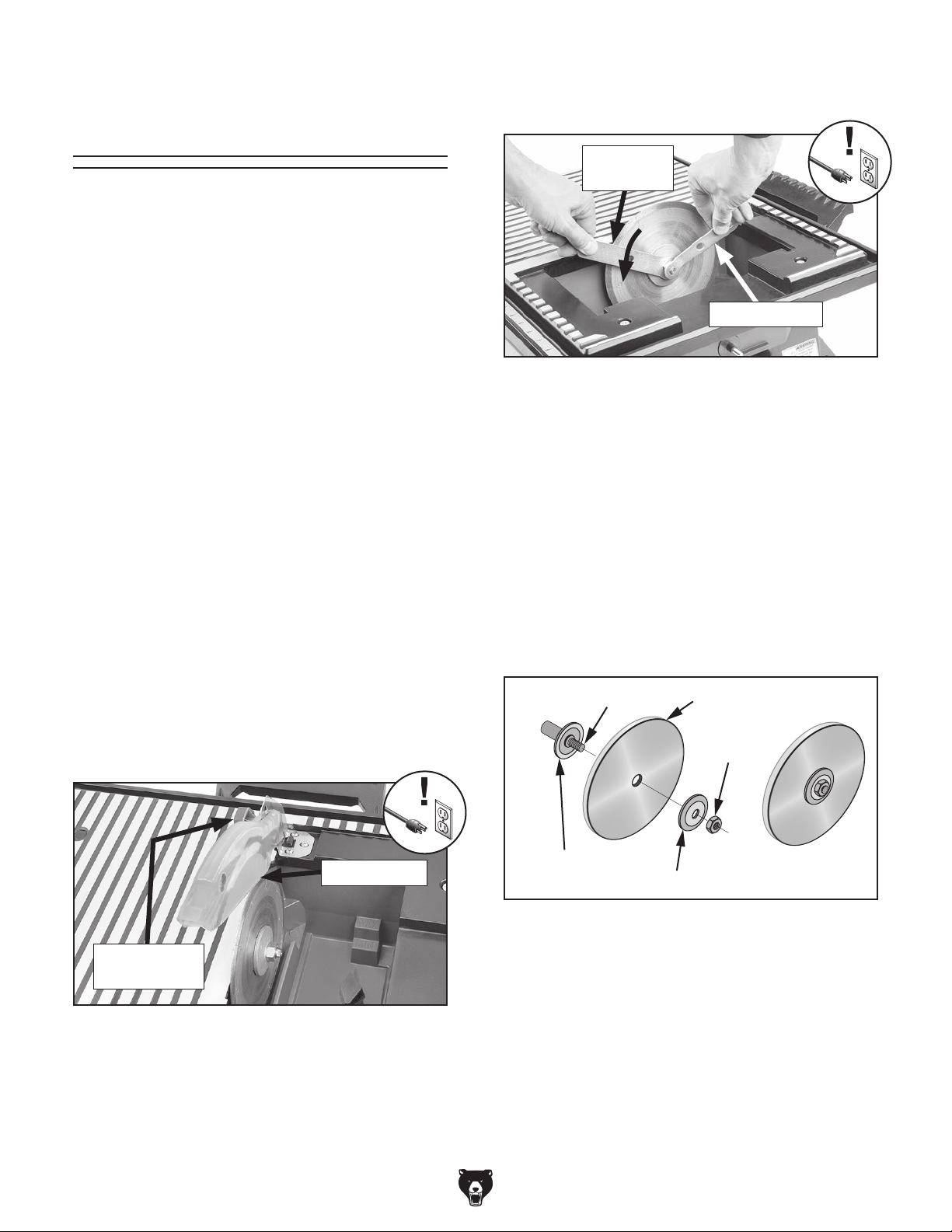

Removing & Installing Blade

.................................................. 19

........................................... 19

.......................................... 20

........................................ 20

....................................... 21

.............................................. 22

........................... 18

..................................... 18

........................ 24

We stand behind our machines! If you have ques­tions or need help, contact us with the information
below. Before contacting, make sure you get the

serial number

machine ID label. This will help us help you faster.

We want your feedback on this manual. What did
you like about it? Where could it be improved?
Please take a few minutes to give us feedback.

Email: [e-mail]

We are proud to provide a high-quality owner’s
manual with your new machine!

We

instruc­tions, specifications, drawings, and photographs
in this manual. Sometimes we make mistakes, but
our policy of continuous improvement also means
that

you receive is

slightly different than shown in the manual

If you find this to be the case, and the difference
between the manual and machine leaves you
confused or unsure about something

check our

website for an updated version. W

current

manuals and

on our web-

site at

Alternatively, you can call our Technical Support
for help. Before calling, make sure you write down
the

from
the machine ID label (see below). This information
is required for us to provide proper tech support,
and it helps us determine if updated documenta­tion is available for your machine.

INTRODUCTION

Contact Info

and manufacture date from the

Grizzly Technical Support

1815 W. Battlefield
Springfield, MO 65807
Phone: [phone]

Email: [e-mail]

Grizzly Documentation Manager

P.O. Box 2069

Bellingham, WA 98227-2069

Manual Accuracy

made every effort to be exact with the

sometimes the machine

.

,

e post

manual updates for free

www.grizzly.com.

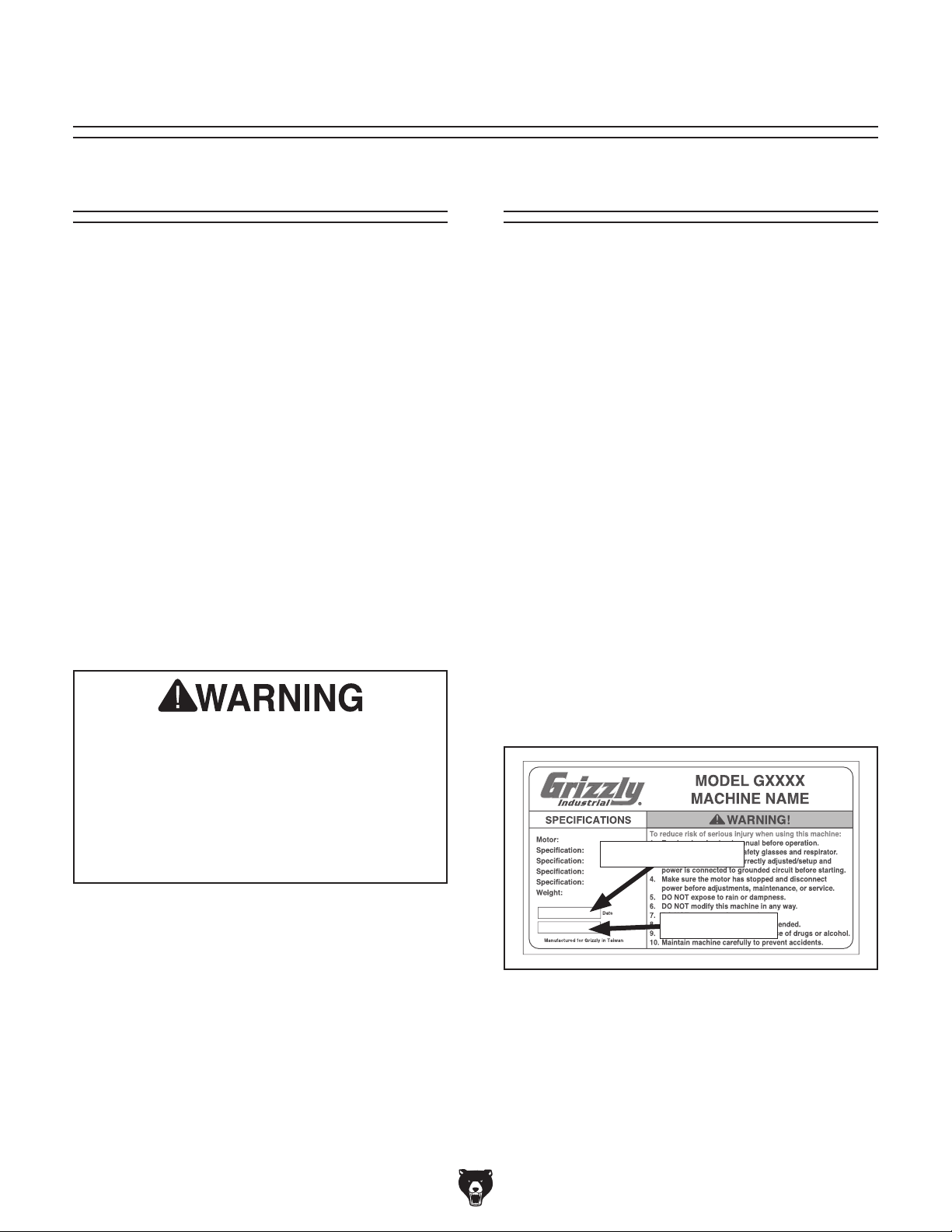

Manufacture Date and Serial Number

No list of safety guidelines can be com­plete. Every shop environment is different.
Always consider safety first, as it applies
to your individual working conditions. Use
this and other machinery with caution and
respect. Failure to do so could result in
serious personal injury, damage to equip­ment, or poor work results.

Manufacture Date

Serial Number

-2-

Model T30945 (Mfd. Since 12/19)

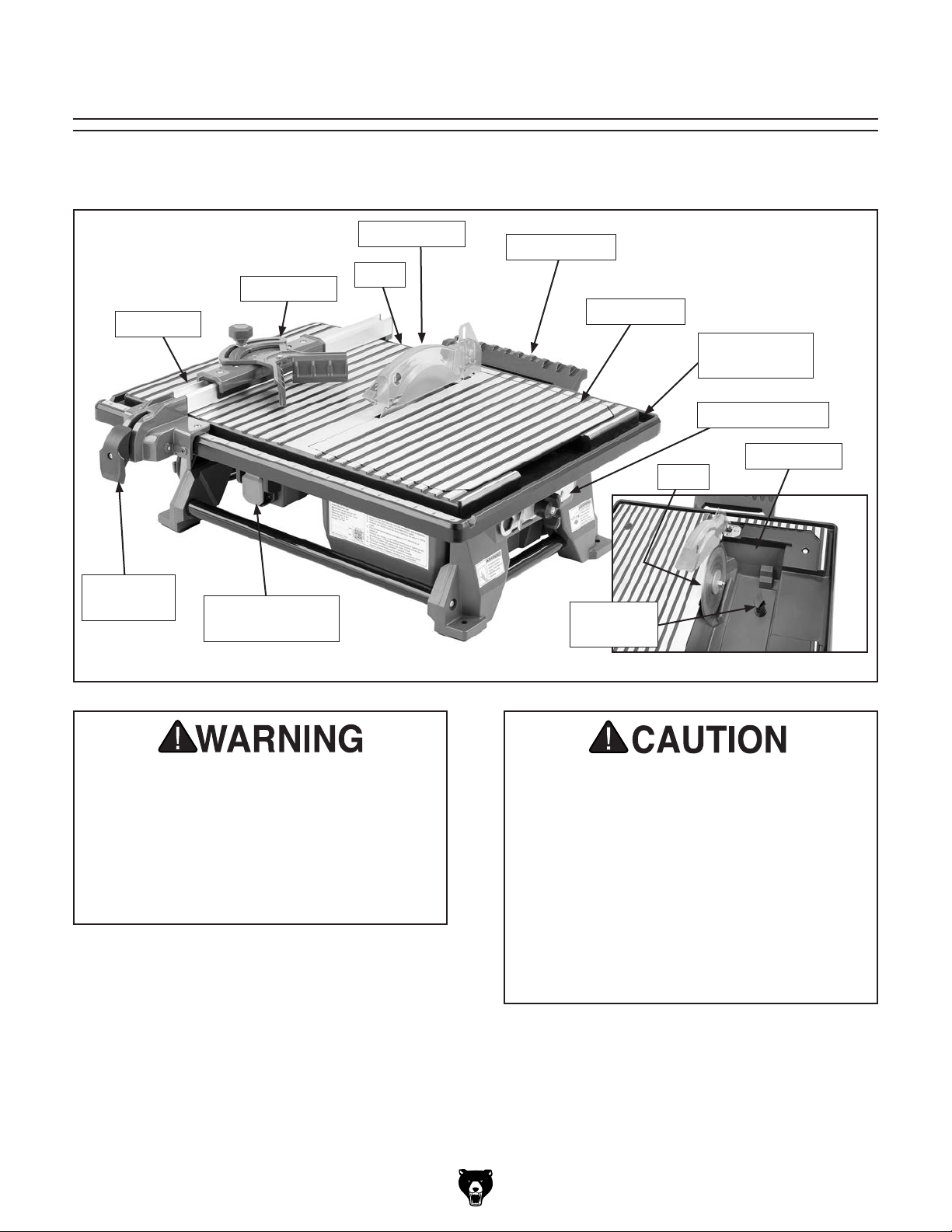

Identification

Become familiar with the names and locations of the controls and features shown below to better understand
the instructions in this manual.

Rip Fence

Rip Fence

Lock Lever

Miter Guide

ON/OFF Paddle

Switch

Splash Hood

Rear Support

Table

Bevel Table

Water Return

Trough

Wrench Storage

Water Bath

Blade

Overflow

Drain Plug

(Underneath bevel table)

Like all machinery there is potential danger
when operating this machine. Accidents
are frequently caused by lack of familiarity
or failure to pay attention. Use this machine
with respect and caution to decrease the
risk of operator injury. If normal safety pre­cautions are overlooked or ignored, seri­ous personal injury may occur.

Model T30945 (Mfd. Since 12/19)

For Your Own Safety Read Instruction

Manual Before Operating Saw

a) Wear eye protection.
b) Use splash hood for every operation for

which it can be used.

c) Disconnect saw before servicing, when

changing blades, and cleaning.

d) Use tool only with smooth edge blades

free of openings and grooves.
e) Replace damaged blades before operating.
f) Do not fill water bath above water fill line.

-3-

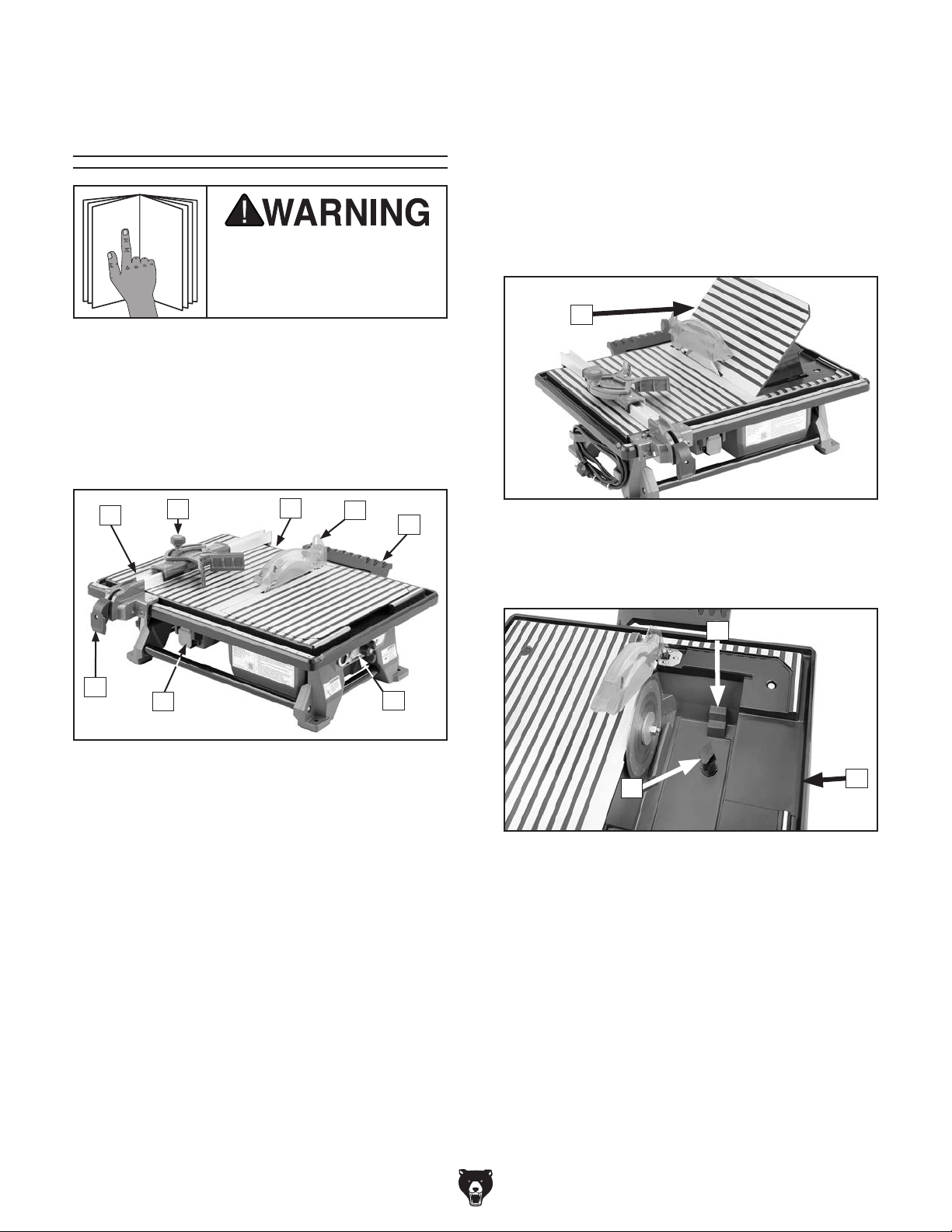

Controls &

To reduce your risk of
serious injury, read this
entire manual BEFORE

Components

F. Wrench Storage: Provides convenient stor-

age for arbor and arbor nut wrench for easy
blade replacement.

G. ON/OFF Paddle Switch: Turns motor ON

and OFF.

H. Rip Fence Lock: Secures rip fence in place

along front rail.

using machine.

Refer to the following figures and descriptions to
become familiar with the basic controls and com­ponents of this machine. Understanding these
items and how they work will help you understand
the rest of the manual and minimize your risk of
injury when operating this machine.

A

H

B

G

C

D

E

F

I

Figure 2. Bevel table in 45˚ position.

I. Bevel Table: Tilts to provide table support for

bevel cuts. Stops at 22.5˚ and 45˚.

J

Figure 1. Tile saw components (front).

A. Rip Fence: Provides straight edge to hold

workpieces against during cutting operations.

B. Miter Guide: Supports workpieces at precise

angles for repeatable miter cuts.

C. Main Table: Supports workpiece during cut-

ting operation.

D. Splash Hood: Protects user from rotating

blade and helps contain overspray.

E. Rear Support: Provides ripping support for

larger tiles up to 24".

-4-

L

Figure 3. Tile saw components (inside).

J. Water Fill Lines: Displays minimum and

maximum volume of water required to oper­ate saw.

K. Water Return Trough: Returns excess water

to water bath.

L. Overflow Drain Plug: Drains excess water

and removes to drain water bath.

Model T30945 (Mfd. Since 12/19)

K

Machine Data Sheet

Customer Service #: [phone] · To Order Call: [phone] · Fax #: [phone]

MODEL T30945

7" BENCHTOP TILE SAW

Product Dimensions:

Weight .............................................................................................................................................................................28 lbs.

Width (side-to-side) x Depth (front-to-back) x Height .................................................................................23 x 24 x 13-1/2 in.

Footprint (Length x Width) ......................................................................................................................................... 20 x 13 in.

Shipping Dimensions:

Type ................................................................................................................................................................... Cardboard Box

Content .......................................................................................................................................................................... Machine

Weight ..............................................................................................................................................................................32 lbs.

Length x Width x Height .......................................................................................................................................26 x 19 x 9 in.

Electrical:

Power Requirement ........................................................................................................................ 120V, Single-Phase, 60 Hz

Full-Load Current Rating ..................................................................................................................................................... 6.5A

Minimum Circuit Size ........................................................................................................................................................... 15A

Connection Type ..................................................................................................................................................... Cord & Plug

Power Cord Included ............................................................................................................................................................Yes

Power Cord Length ...............................................................................................................................................................6 ft.

Power Cord Gauge ....................................................................................................................................................... 18 AWG

Plug Included ........................................................................................................................................................................Yes

Included Plug Type ..............................................................................................................................................................5-15

Switch Type .........................................................................................................................................................Paddle Switch

Motor:

Main

Horsepower ...............................................................................................................................................................1 HP

Phase .......................................................................................................................................................... Single-Phase

Amps ......................................................................................................................................................................... 6.5A

Speed ...............................................................................................................................................................3450 RPM

Type ......................................................................................................................................................................... TEFC

Power Transfer ........................................................................................................................................................ Direct

Bearings .........................................................................................................................Shielded & Permanently Sealed

Main Specifications:

Operation Information

Blade Diameter ........................................................................................................................................................... 7 in.

Arbor Size ................................................................................................................................................................5/8 in.

Table Tilt Stops ............................................................................................................................................22.5, 45 deg.

Maximum Supported Length of Cut .........................................................................................................................24 in.

Maximum Depth of Cut ........................................................................................................................................1-1/4 in.

Diagonal Capacity .................................................................................................................................................... 12 in.

Required Blade Body Thickness ...........................................................................................................................0.05 in.

Model T30945 (Mfd. Since 12/19)

-5-

Fence Information

Fence Type .................................................................................................Extruded Aluminum w/Attached Miter Guide

Fence Length .....................................................................................................................................................17-1/2 in.

Fence Width .........................................................................................................................................................1-1/8 in.

Fence Height ..............................................................................................................................................................1 in.

Construction Information

Table ..................................................................................................................................................................Aluminum

Rear Support .....................................................................................................................................................Aluminum

Rip Fence ..........................................................................................................................................................Aluminum

Miter Guide ........................................................................................................................................................Aluminum

Splash Hood ........................................................................................................................................................... Plastic

Paint Type/Finish ...................................................................................................................................................Enamel

Other Related Info

Water Bath Capacity ..................................................................................................................................................2.3L

Other Specifications:

Country of Origin ............................................................................................................................................................. Taiwan

Warranty ...........................................................................................................................................................................1 Year

Serial Number Location ................................................................................................................................................ ID Label

ISO 9001 Factory ..................................................................................................................................................................Yes

Features:

0-90 Deg. Miter Guide

7" Diamond Blade
Ribbed Table w/Water Return Trough
10" Infeed/Outfeed Scale
Tilt Table w/22.5 & 45 Deg. Support Stops
Adjustable Splash Hood

2.3L Water Bath

Accessories:
7" Diamond Blade

8mm Arbor Wrench
19mm Closed-End Wrench

-6-

Model T30945 (Mfd. Since 12/19)

SECTION 1: SAFETY

For Your Own Safety, Read Instruction

Manual Before Operating This Machine

The purpose of safety symbols is to attract your attention to possible hazardous conditions.
This manual uses a series of symbols and signal words intended to convey the level of impor­tance of the safety messages. The progression of symbols is described below. Remember that
safety messages by themselves do not eliminate danger and are not a substitute for proper
accident prevention measures. Always use common sense and good judgment.

Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury. It may also be used to alert
against unsafe practices.

Alerts the user to useful information about proper operation of the

NOTICE

machine to avoid machine damage.

Safety Instructions for Machinery

OWNER’S MANUAL. Read and understand this

owner’s manual BEFORE using machine.

TRAINED OPERATORS ONLY. Untrained oper­ators have a higher risk of being hurt or killed.
Only allow trained/supervised people to use this
machine. When machine is not being used, dis­connect power, remove switch keys, or lock-out
machine to prevent unauthorized use—especially
around children. Make your workshop kid proof!

DANGEROUS ENVIRONMENTS. Do not use
machinery in areas that are wet, cluttered, or have
poor lighting. Operating machinery in these areas
greatly increases the risk of accidents and injury.

MENTAL ALERTNESS REQUIRED. Full mental
alertness is required for safe operation of machin­ery. Never operate under the influence of drugs or
alcohol, when tired, or when distracted.

ELECTRICAL EQUIPMENT INJURY RISKS.
You can be shocked, burned, or killed by touching
live electrical components or improperly grounded
machinery. To reduce this risk, only allow qualified
service personnel to do electrical installation or
repair work, and always disconnect power before
accessing or exposing electrical equipment.

DISCONNECT POWER FIRST.
nect machine from power supply BEFORE mak­ing adjustments, changing tooling, or servicing
machine. This prevents an injury risk from unin­tended startup or contact with live electrical com­ponents.

EYE PROTECTION. Always wear ANSI-approved
safety glasses or a face shield when operating or
observing machinery to reduce the risk of eye
injury or blindness from flying particles. Everyday
eyeglasses are NOT approved safety glasses.

Always discon-

Model T30945 (Mfd. Since 12/19)

-7-

WEARING PROPER APPAREL. Do not wear
clothing, apparel or jewelry that can become
entangled in moving parts. Always tie back or
cover long hair. Wear non-slip footwear to reduce
risk of slipping and losing control or accidentally
contacting cutting tool or moving parts.

HAZARDOUS DUST. Dust created by machinery
operations may cause cancer, birth defects, or
long-term respiratory damage. Be aware of dust
hazards associated with each workpiece mate­rial. Always wear a NIOSH-approved respirator to
reduce your risk.

HEARING PROTECTION. Always wear hear­ing protection when operating or observing loud
machinery. Extended exposure to this noise
without hearing protection can cause permanent
hearing loss.

REMOVE ADJUSTING TOOLS. Tools left on
machinery can become dangerous projectiles
upon startup. Never leave chuck keys, wrenches,
or any other tools on machine. Always verify
removal before starting!

USE CORRECT TOOL FOR THE JOB. Only use
this tool for its intended purpose—do not force
it or an attachment to do a job for which it was
not designed. Never make unapproved modifica­tions—modifying tool or using it differently than
intended may result in malfunction or mechanical
failure that can lead to personal injury or death!

AWKWARD POSITIONS. Keep proper footing
and balance at all times when operating machine.
Do not overreach! Avoid awkward hand positions
that make workpiece control difficult or increase
the risk of accidental injury.

CHILDREN & BYSTANDERS. Keep children and
bystanders at a safe distance from the work area.
Stop using machine if they become a distraction.

GUARDS & COVERS. Guards and covers reduce
accidental contact with moving parts or flying
debris. Make sure they are properly installed,
undamaged, and working correctly BEFORE
operating machine.

FORCING MACHINERY. Do not force machine.
It will do the job safer and better at the rate for
which it was designed.

NEVER STAND ON MACHINE. Serious injury
may occur if machine is tipped or if the cutting
tool is unintentionally contacted.

STABLE MACHINE. Unexpected movement dur­ing operation greatly increases risk of injury or
loss of control. Before starting, verify machine is
stable and mobile base (if used) is locked.

USE RECOMMENDED ACCESSORIES. Consult
this owner’s manual or the manufacturer for rec­ommended accessories. Using improper acces­sories will increase the risk of serious injury.

UNATTENDED OPERATION. To reduce the
risk of accidental injury, turn machine OFF and
ensure all moving parts completely stop before
walking away. Never leave machine running
while unattended.

MAINTAIN WITH CARE. Follow all maintenance
instructions and lubrication schedules to keep
machine in good working condition. A machine
that is improperly maintained could malfunction,
leading to serious personal injury or death.

DAMAGED PARTS. Regularly inspect machine
for damaged, loose, or mis-adjusted parts—or
any condition that could affect safe operation.
Immediately repair/replace BEFORE operating
machine. For your own safety, DO NOT operate
machine with damaged parts!

MAINTAIN POWER CORDS. When disconnect­ing cord-connected machines from power, grab
and pull the plug—NOT the cord. Pulling the cord
may damage the wires inside. Do not handle
cord/plug with wet hands. Avoid cord damage by
keeping it away from heated surfaces, high traffic
areas, harsh chemicals, and wet/damp locations.

EXPERIENCING DIFFICULTIES. If at any time
you experience difficulties performing the intend­ed operation, stop using the machine! Contact our
Technical Support at [phone].

-8-

Model T30945 (Mfd. Since 12/19)

Additional Safety for Tile Saws

Serious injury or death can occur from getting fingers, hair, or clothing entangled in rotating or
moving parts. Workpieces can be ejected by saw, striking operator or bystanders. Long-term
respiratory damage can occur from breathing dust created while cutting. To minimize risk of
injury, anyone operating this machine MUST completely heed hazards and warnings below.

ELECTRICAL HAZARDS. Electrocution may

occur due to water entering electrical connec­tions. Always connect this machine to a GFCI
circuit breaker to reduce chances of electrocution

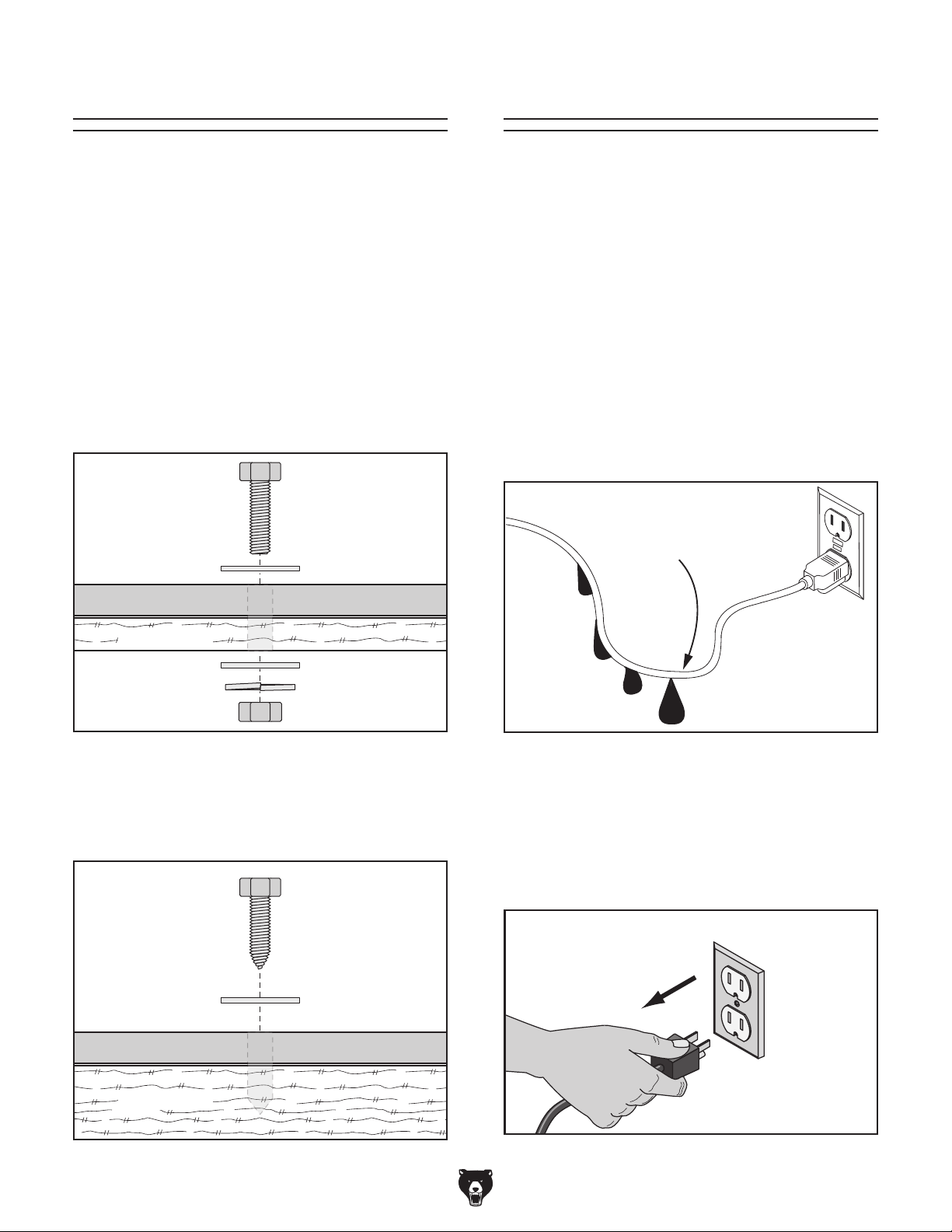

and form a "drip loop" so water will drip off cord
before reaching receptacle. Never touch any elec­trical connection while hands are wet.

HAND & BODY POSITIONING. Keep hands
away from blade and out of blade path during
operation so they cannot accidentally slip into
blade. Only operate at front of machine and
always stand to side of blade path. Never reach
behind or over blade, or under splash hood when
blade is spinning. Turn saw OFF and allow blade
to completely stop before removing cut-off pieces
near blade or trapped between blade and miter
guide or table.

SPLASH HOOD. The splash hood protects oper­ator from rotating blade and water displaced
by blade. Make sure splash hood is installed,
adjusted correctly, and used for all cuts. Make
sure splash hood mounting bracket is aligned and
positioned correctly. Promptly repair or replace
splash hood and bracket if damaged.

SIDE GRINDING. Never use side of blade to
grind tile. Doing so may cause tile to break or
explode, resulting in flying debris.

SMALL/NARROW WORKPIECES. Holding small
workpieces with fingers increases risk of work­piece and hands slipping and moving into blade.
Always support/feed small or narrow workpieces
with miter guide, push stick, push blocks, jig, vise,
or some type of clamping fixture.

FENCE. Make sure fence remains properly
adjusted and parallel with blade. Always lock
fence before using. Always lock miter guide when
in use.

DRY CUTTING. Cutting without water can pro­duce harmful airborne dust that can lead to
eye injury or respiratory illness. Reduce risk of
these hazards by ensuring water reservoir is
filled to minimum fill line during operations. Wear
approved eye and respiratory protection when
using saw.

CHANGING BLADES. Accidental startup while
changing blades can result in serious injury. To
reduce risk of accidental blade contact, always
disconnect power before changing blades. Always
check blade before operations and never use
damaged blade. Only use continuous rim wet
blades with this saw. Use of other blades could
result in flying debris or damage to machine.

FEEDING WORKPIECE. Feeding workpiece
incorrectly increases risk of chipping and opera­tor injury. Always allow blade to reach full speed
before cutting. Always feed workpiece from front
of saw, making sure workpiece is flat against
table, fence, or guide. Feed cuts through to com­pletion. Never start saw with workpiece touching
blade or pull workpiece from behind blade. Never
move workpiece sideways or perform a "free­hand" operation. Always wait for blade to come
to a complete stop before removing workpiece.
Do not force blade through workpiece as this
can cause chipping, flying debris, and damage
to machine. Reduce cutting force if you hear any
strain on motor.

Model T30945 (Mfd. Since 12/19)

-9-

SECTION 2: POWER SUPPLY

Before installing the machine, consider the avail­ability and proximity of the required power supply
circuit. If an existing circuit does not meet the
requirements for this machine, a new circuit must
be installed. To minimize the risk of electrocution,
fire, or equipment damage, installation work and
electrical wiring must be done by an electrician or
qualified service personnel in accordance with all
applicable codes and standards.

or equipment damage
may occur if machine is
not properly grounded
and connected to power

The full-load current rating is the amperage a
machine draws at 100% of the rated output power.
On machines with multiple motors, this is the
amperage drawn by the largest motor or sum of all
motors and electrical devices that might operate
at one time during normal operations.

The full-load current is not the maximum amount
of amps that the machine will draw. If the machine
is overloaded, it will draw additional amps beyond
the full-load rating.

If the machine is overloaded for a sufficient length
of time, damage, overheating, or fire may result—
especially if connected to an undersized circuit.
To reduce the risk of these hazards, avoid over­loading the machine during operation and make
sure it is connected to a power supply circuit that
meets the specified circuit requirements.

For your own safety and protection of

Note: Circuit requirements in this manual apply to

a dedicated circuit—where only one machine will
be running on the circuit at a time. If machine will
be connected to a shared circuit where multiple
machines may be running at the same time, con­sult an electrician or qualified service personnel to
ensure circuit is properly sized for safe operation.

A power supply circuit includes all electrical
equipment between the breaker box or fuse panel
in the building and the machine. The power sup­ply circuit used for this machine must be sized to
safely handle the full-load current drawn from the
machine for an extended period of time. (If this
machine is connected to a circuit protected by
fuses, use a time delay fuse marked D.)

This machine is prewired to operate on a power
supply circuit that has a verified ground and meets
the following requirements:

process. DO NOT connect to power until

Availability

Electrocution, fire, shock,

Serious injury could occur if you connect
machine to power before completing setup

instructed later in this manual.

120V Circuit Requirements

Nominal Voltage .................... 110V, 115V, 120V

..........................................................60 Hz

Cycle
Phase
Power Supply Circuit

........................................... Single-Phase

......................... 15 Amps

supply.

Full-Load Current Rating

Full-Load Current Rating at 120V ....6.5 Amps

-10 -

property, consult an electrician if you are
unsure about wiring practices or electrical
codes in your area.

Model T30945 (Mfd. Since 12/19)

Improper connection of the equipment-grounding
wire can result in a risk of electric shock. The
wire with green insulation (with or without yellow
stripes) is the equipment-grounding wire. If repair
or replacement of the power cord or plug is nec­essary, do not connect the equipment-grounding
wire to a live (current carrying) terminal.

Check with a qualified electrician or service per­sonnel if you do not understand these grounding
requirements, or if you are in doubt about whether
the tool is properly grounded. If you ever notice
that a cord or plug is damaged or worn, discon­nect it from power, and immediately replace it with
a new one.

We do not recommend using an extension cord
with this machine.
cord, only use it if absolutely necessary and only
on a temporary basis.

Extension cords cause voltage drop, which can
damage electrical components and shorten motor
life. Voltage drop increases as the extension cord
size gets longer and the gauge size gets smaller
(higher gauge numbers indicate smaller sizes).

Any extension cord used with this machine must
be in good condition and contain a ground wire
and matching plug/receptacle. Additionally, it must
meet the following size requirements:

Grounding & Plug Requirements

it will not fit the outlet, have a qualified
electrician install the proper outlet with a

This machine MUST be grounded. In the event
of certain malfunctions or breakdowns, grounding
reduces the risk of electric shock by providing a
path of least resistance for electric current.

This machine is equipped with a power cord that
has an equipment-grounding wire and a grounding
plug. Only insert plug into a matching receptacle
(outlet) that is properly installed and grounded in
accordance with all local codes and ordinances.
DO NOT modify the provided plug!

GROUNDED

5-15 RECEPTACLE

Grounding Pin

5-15 PLUG

Extension Cords

If you must use an extension

Neutral Hot

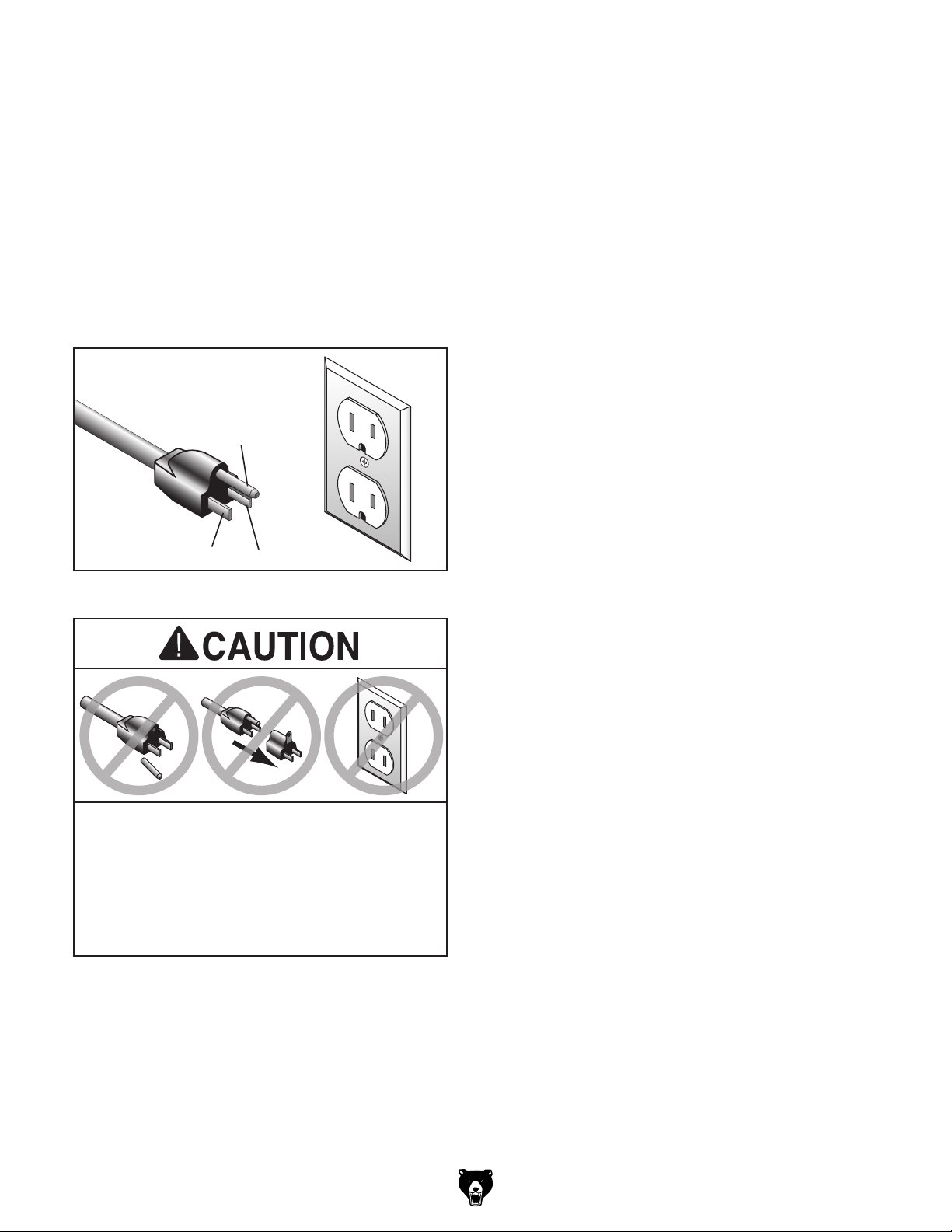

Figure 4. Typical 5-15 plug and receptacle.

SHOCK HAZARD!
Two-prong outlets do not meet the grounding
requirements for this machine. Do not modify
or use an adapter on the plug provided—if

verified ground.

Model T30945 (Mfd. Since 12/19)

Minimum Gauge Size ...........................16 AWG

Maximum Length (Shorter is Better).......50 ft.

-11-

SECTION 3: SETUP

This machine was carefully packaged for safe
transport. When unpacking, separate all enclosed
items from packaging materials and inspect them
for shipping damage.

,

please

at [phone].

IMPORTANT:

you are completely satisfied with the machine and
have resolved any issues between Grizzly or the
shipping agent. You MUST have the original pack-

aging to file a freight claim. It is also extremely
helpful if you need to return your machine later.

The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.

If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.

Unpacking

If items are damaged

call us immediately

Save all packaging materials until

Box 1 (Figure 5) Qty

A. Tile Saw ...................................................... 1

B. Rear Support .............................................. 1

C. Miter Guide ................................................. 1

D. Splash Hood Assembly .............................. 1

E. Rip Fence ................................................... 1

F. Blade 7" ...................................................... 1

G. Overflow Drain Plug ................................... 1

H. Closed-End Wrench 19mm ........................ 1

I. Arbor Wrench 8mm .................................... 1

A

Needed for Setup

The following items are needed, but not included,
for the setup/assembly of this machine.

Description Qty

• Safety Glasses ........................................... 1

• Phillips Screwdriver #2 ............................... 1

• Water ..................................................... 2.3L

Inventory

B

F

Figure 5. T30945 loose parts inventory.

C

H

IG

D

E

NOTICE

If you cannot find an item on this list, care­fully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpack­ing or they are pre-installed at the factory.

-12-

Model T30945 (Mfd. Since 12/19)

Hardware Recognition Chart

USE THIS CHART TO MATCH UP
HARDWARE DURING THE INVENTORY
AND ASSEMBLY PROCESS.

Flat
Head
Cap
Screw

5mm

Model T30945 (Mfd. Since 12/19)

5mm

-13-

Assembly

The machine must be fully assembled before it
can be operated. Before beginning the assembly
process, refer to
all
goes smoothly, first clean any
ered or coated in heavy-duty rust preventative (if
applicable).

Needed for Setup and gather

listed items. To ensure the assembly process

parts that are cov-

4. Remove (3) pre-installed flange screws
shown in Figure 7.

x 3

Serious injury could occur if you connect
machine to power before completing setup
process. DO NOT connect to power until
instructed later in this manual.

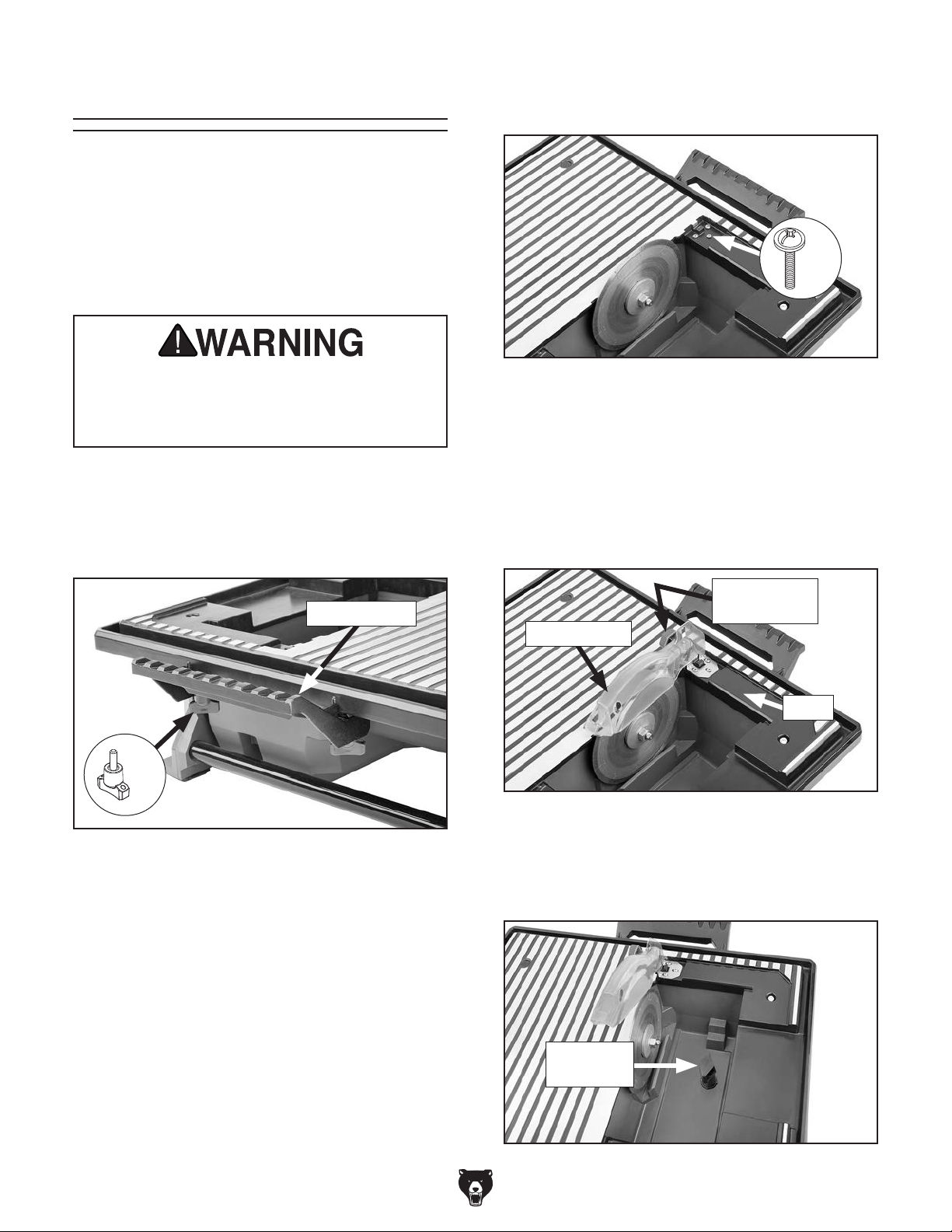

To assemble machine:

Attach rear support to back of saw with (2)

1.

pre-installed wing knob bolts (see Figure 6).

Rear Support

x 2

Figure 7. Splash hood flange screws location.

5.

Attach splash hood assembly to table with

flange screws so blade guard rests over
blade (see Figure 8).

Loosen splash hood lock knob (see Figure 8)

6.

and adjust hood until it is aligned with but does
not contact blade, then tighten to secure.

Splash Hood

Lock Knob

Splash Hood

Table

Figure 8. Splash hood attached to table.

Figure 6. Rear support installed.

2.

Lift and remove bevel table.

3. Install blade as instructed in Removing &
Installing Blade on Page 24.

-14-

Insert overflow drain plug into hole at bottom

7.

of water bath and push firmly to secure (see
Figure 9).

Overflow

Drain Plug

Figure 9. Overflow drain plug installed.

Model T30945 (Mfd. Since 12/19)

Install bevel table.

or disable start switch or

Refer to the Machine Data Sheet for the weight
and footprint specifications of your machine.
Some workbenches may require additional rein­forcement to support the weight of the machine
and workpiece materials.

Consider anticipated workpiece sizes and addi­tional space needed for auxiliary stands, work
tables, or other machinery when establishing a
location for this machine in the shop. Below is
the minimum amount of space needed for the

8.

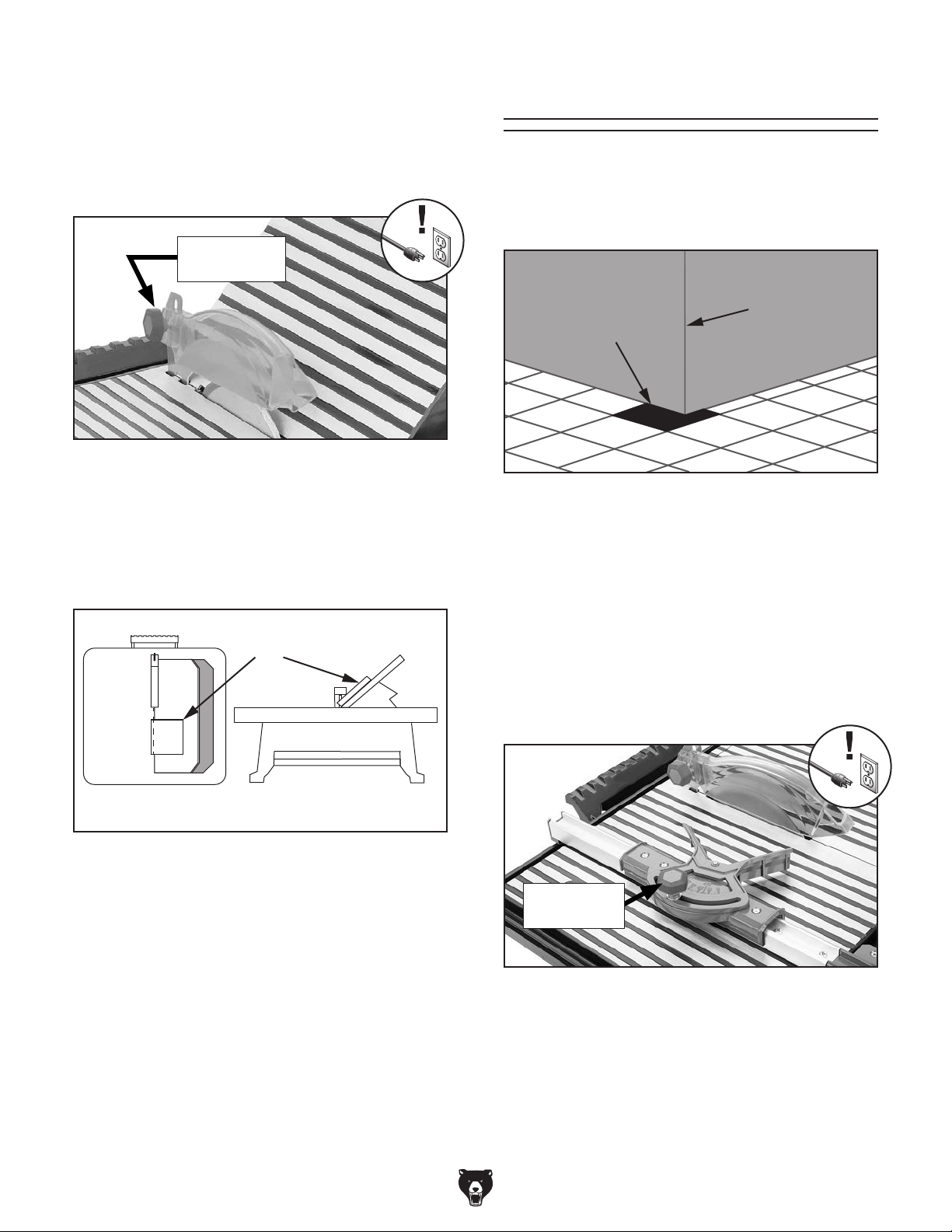

9. Place rip fence on table to left of blade so
indicator lines up with table scale (see Figure

10), then secure by pushing lock lever down.

Indicator

Site Considerations

Workbench Load

Rip Fence

Lock Lever

Table Scale

Figure 10. Rip fence attached to table.

10. Push miter guide onto rip fence with miter

angle facing blade (see Figure 11).

Miter Guide

Rip Fence

Figure 11. Miter guide attached to rip fence.

Placement Location

23"

24"

= Electrical Connection

Figure 12. Minimum working clearances.

Model T30945 (Mfd. Since 12/19)

Children and visitors may be
seriously injured if unsuper­vised around this machine.
Lock entrances to the shop

power connection to prevent
unsupervised use.

-15-

Drip Loop

After you have completed all previous setup
instructions and circuit requirements, the machine
is ready to be connected to the power supply.

To avoid unexpected startups or property dam­age, use the following steps whenever connect­ing or disconnecting the machine from the power
su pp ly.

1. Turn the machine power switch OFF.

2. Grasp the molded plug and pull it completely

out of the receptacle. DO NOT pull by the
cord as this may damage the wires inside.

Bench Mounting

Another option is a "direct mount" (see example
below) where the machine is secured directly to
the workbench with lag screws and washers.

The base of this machine has mounting holes
that allow it to be fastened to a workbench or
other mounting surface to prevent it from moving
during operation and causing accidental injury or
damage.

The strongest mounting option is a "Through
Mount" (see example below) where holes are
drilled all the way through the workbench—and
hex bolts, washers, and hex nuts are used to
secure the machine in place.

Power Connection

Number of Mounting Holes
Dia. of Mounting Hardware Needed

Machine Base

............................ 4

Hex
Bolt

Flat Washer

..........5⁄16"

Connecting Power

When connecting the plug to an outlet, ensure the
lowest point of the cord loop is lower than the out­let the plug is connected to. This helps to ensure
water will "drip" from the cord and not get into the
power receptacle.

Workbench

Flat Washer

Lock Washer

Figure 13. "Through Mount" setup.

Machine Base

Workbench

Hex Nut

Lag Screw

Flat Washer

Figure 15. Connecting to power with a drip loop.

Disconnecting Power

Turn the machine OFF. Grasp the plug and pull
it completely out of the receptacle. When discon­necting the plug from the outlet, ensure the plug,
receptacle, and your hands are dry.

-16 -

Figure 14. "Direct Mount" setup.

Figure 16. Disconnecting power.

Model T30945 (Mfd. Since 12/19)

Once assembly is complete, test run the machine
to ensure it is properly connected to power and
safety components are functioning correctly.

If you find an unusual problem during the test run,
immediately stop the machine, disconnect it from
power, and fix the problem BEFORE operating the
machine again. The

table in the

SERVICE section of this manual can help.

DO NOT start machine until all preceding
setup instructions have been performed.
Operating an improperly set up machine

Serious injury or death can result from

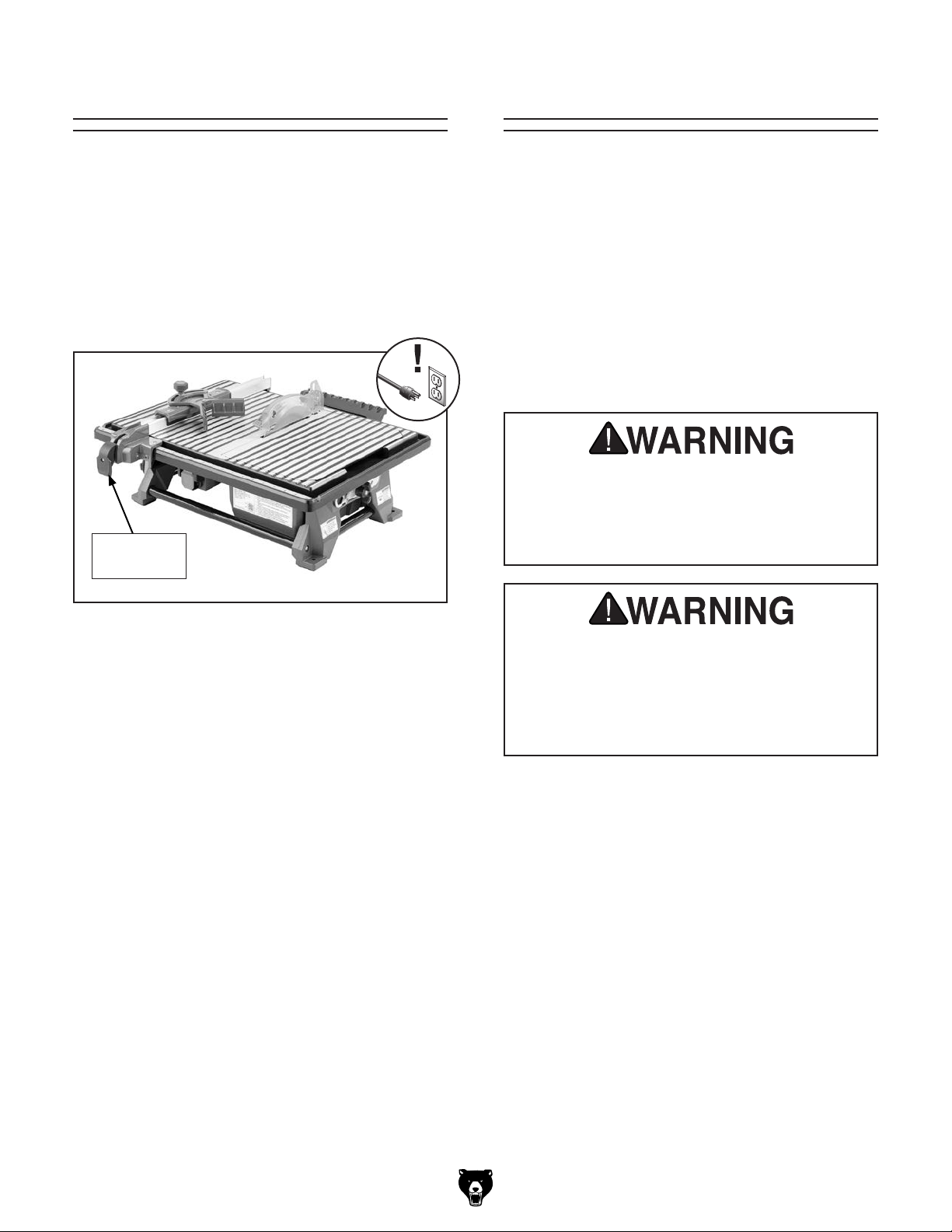

Lifting & Moving

The Model T30945 is light enough for one person
to lift and move a short distance.

To lift and move machine:

. DISCONNECT MACHINE FROM POWER!

1

Test Run

. Secure rip fence position with rip fence lock

2

lever (see

Rip Fence

Lock Lever

Figure 17. Rip fence lock location.

3. Lift machine by table edges and move to pre-

pared location.

Figure 17).

Troubleshooting

The Test Run consists of verifying the following: 1)
The motor powers up and runs correctly.

using this machine BEFORE understanding
its controls and related safety information.
DO NOT operate, or allow others to operate,
machine until the information is understood.

may result in malfunction or unexpect­ed results that can lead to serious injury,
death, or machine/property damage.

Model T30945 (Mfd. Since 12/19)

To test run machine:

1. Clear all setup tools away from machine.

2. Connect machine to power supply.

3. Turn machine ON by pulling switch paddle up,

verify motor operation, and then turn machine
OFF by pushing switch paddle down.

The motor should run smoothly and without

unusual problems or noises.

-17-

SECTION 4: OPERATIONS

To reduce your risk of
serious injury, read this
entire manual BEFORE

The purpose of this overview is to provide the nov­ice machine operator with a basic understanding
of how the machine is used during operation, so
the

discussed later

in this manual

Due to the generic nature of this overview, it is
not intended to be an instructional guide. To learn
more about specific operations,
manual,

training from experienced
machine operators
outside of this manual by reading "how-to" books,
trade magazines, or websites.

using machine.

Eye injuries, respiratory problems, or hear­ing loss can occur while operating this
tool. Wear personal protective equipment to
reduce your risk from these hazards.

Operation Overview

machine controls/components

are easier to understand.

read this entire

seek additional

, and do additional research

To complete a typical operation, the operator
does the following:

If you are not experienced with this type
of machine, WE STRONGLY RECOMMEND
that you seek additional training outside of
this manual. Read books/magazines or get
formal training before beginning any proj­ects. Regardless of the content in this sec­tion, Grizzly Industrial will not be held liable
for accidents caused by lack of training.

Fills tank with water past minimum fill line.

1.

Puts on safety glasses, respirator, hearing

2.

protection, and any other required protective
equipment.

Places tile on table firmly against fence or

3.

miter guide, or uses some other guiding fix­ture to guide tile while using bevel table.

Adjusts splash hood to height of tile.

4.

5. Connects machine to power.

6. Turns tile saw ON.

Applying light pressure, begins cut.

7.

8. Slowly and carefully pushes tile through

blade.

Turns tile saw OFF when cutting operation is

9.

complete.

-18-

Model T30945 (Mfd. Since 12/19)

Disabling & Locking

Children or untrained people can be

. This

To help prevent unsupervised operation,
disable and lock the switch before leaving

Switch

The switch can be disabled and locked by insert­ing a padlock through the ON/OFF paddle switch,
as shown. Locking the switch in this manner can
prevent unauthorized operation of the machine,
which is especially important if the machine is not
stored inside an access-restricted building.

IMPORTANT: Locking the switch with a padlock
only restricts its function. It is not a substitute
for disconnecting power from the machine when
adjusting or servicing.

ON/OFF

Switch

Cutting Tips

To ensure the best possible results from this saw,
use the following tips.

• Move tile slowly through the cut to reduce
chipping.

• Ensure blade is consistently wet at point of
cut.

• If blade becomes dry, stop cutting.

• If motor sounds as if it is slowing or strug­gling, stop or reduce cutting speed.

• Slow down and ensure tile is still well sup­ported as you near end of the cut.

• Replace water in bath frequently.

• Clean, dress blade with a dressing stone, or
replace the blade when abrasive portion is
worn away or glazed.

Padlock

Figure 18. Switch disabled by a padlock.

seriously injured by this machine
risk increases with unsupervised operation.

machine unattended! Place key in a well­hidden or secure location.

NOTICE

The padlock shaft diameter is important to
the disabling function of the switch. With
any padlock used to lock the switch, test
the switch after installation to ensure that it
is properly disabled.

Changing Water

Never cut tile dry. The water bath reduces dust,
heat buildup on the blade, and prevents tile break­age. Replace bath with fresh water whenever
it becomes discolored, or you notice debris on
blade during operations.

Waste water must be disposed of in accordance
to local regulations and laws.

To change water:

DISCONNECT MACHINE FROM POWER!

1.

Position saw over gallon bucket to catch

2.

water as it drains.

Remove bevel table and drain water from

3.

bath by pulling overflow drain plug.

Rinse tank, re-install drain plug, and replace

4.

with fresh water before connecting to power
and resuming operations.

6mm

Figure 19. Maximum lock shaft requirements.

Model T30945 (Mfd. Since 12/19)

-19-

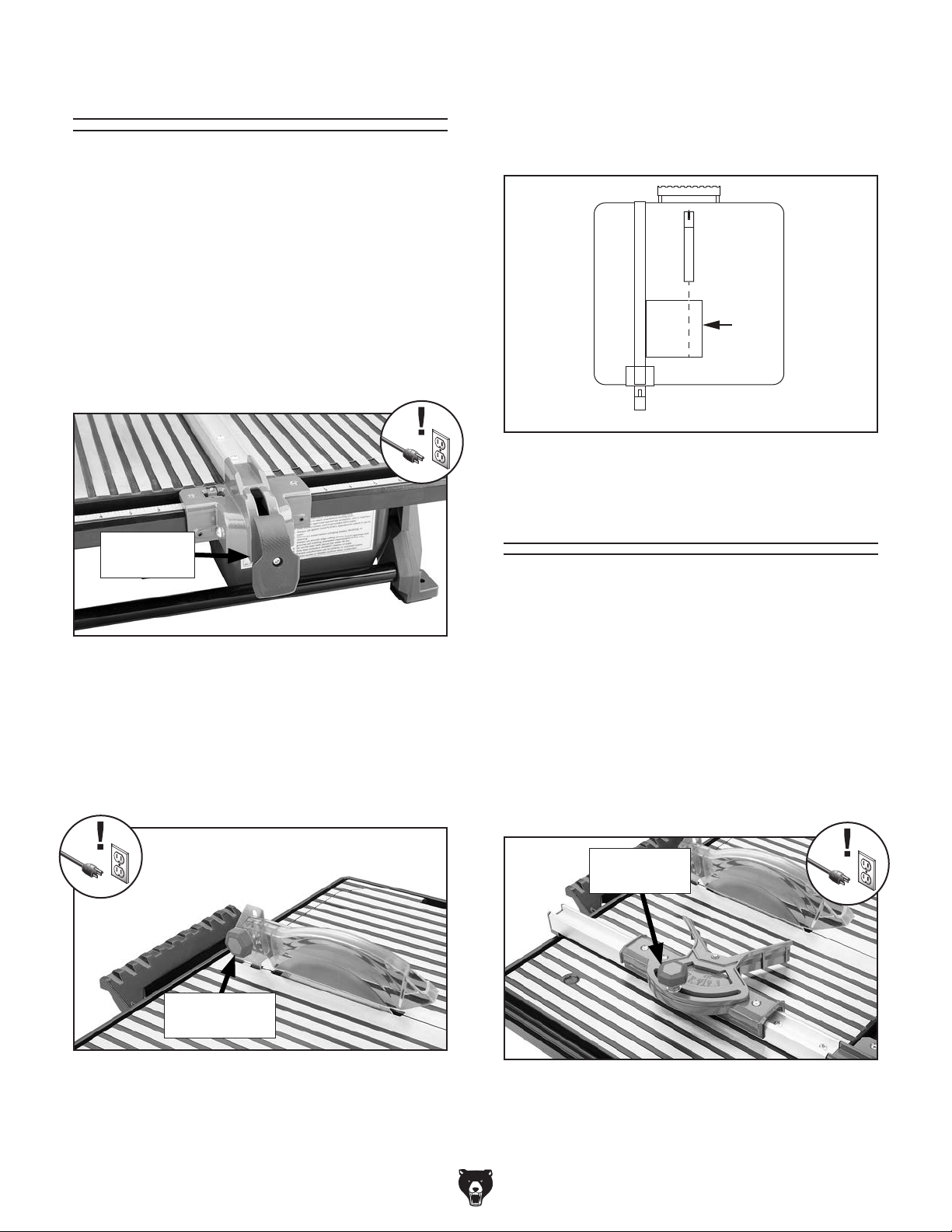

Making Rip Cuts

To trim a tile parallel to the existing edge, use the
rip fence to guide the tile through the cut.

To make a rip cut:

DISCONNECT MACHINE FROM POWER!

1.

Remove miter guide from rip fence.

2.

Connect machine to power and turn ON.

6.

7. Ensure blade is wet, then push tile through
cut (see Figure 22).

3. Unlock rip fence by lifting rip fence lock lever,

adjust to desired width on scale, and push
lock lever down to secure (see Figure 20).

Rip Fence

Lock Lever

Figure 20. Rip fence lock lever location.

Position tile against rip fence at front of saw.

4.

5. Loosen splash hood lock knob and adjust

hood to height of tile (see Figure 21). Hood
should be as close to tile as possible without
touching.

Tile

Top view

Figure 22. Tile ready for rip cut.

Making Miter Cuts

The included miter guide is used to make repeat­able angled cuts. The guide travels along the rip
fence to ensure the tile is pushed evenly through­out the cut.

To make a miter cut:

DISCONNECT MACHINE FROM POWER!

1.

Loosen miter guide lock knob, adjust to

2.

desired miter angle, and tighten to secure

Figure 23).

(see

Splash Hood

Lock Knob

Figure 21. Splash hood lock knob location.

-20-

Miter Guide

Lock Knob

Figure 23. Miter guide lock knob location.

Model T30945 (Mfd. Since 12/19)

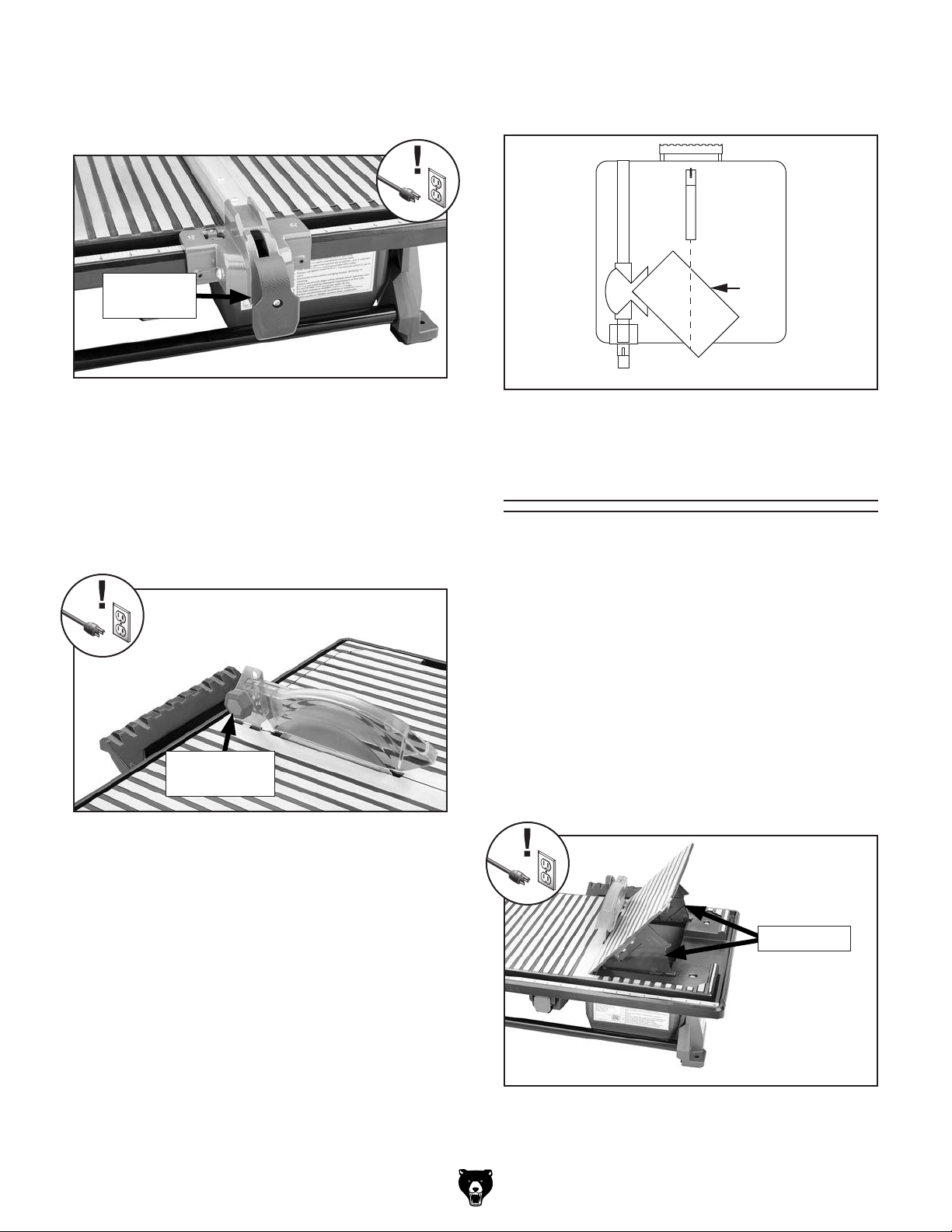

3. Unlock rip fence by lifting rip fence lock lever,
adjust to desired cut width on scale, and push
lock lever down to secure (see Figure 24).

7. Ensure blade is wet, then push tile through
cut (see Figure 26).

Rip Fence

Lock Lever

Figure 24. Rip fence lock lever location.

Position tile flush against miter guide at front

4.

of saw.

5.

Loosen splash hood lock knob and adjust

hood to height of tile (see Figure 25). Hood
should be as close to tile as possible without
touching.

Splash Hood

Lock Knob

Figure 25. Splash hood lock knob location.

Tile

Top view

Figure 26. Tile ready for miter cut.

Making Bevel Cuts

The bevel table allows for bevel cuts when adjust­ed up at a tilt. The two support legs have stops
at 22.5˚ and 45˚ for easy adjustment to common
bevel cuts.

To make a bevel cut:

DISCONNECT MACHINE FROM POWER!

1.

Unlock and remove rip fence and attached

2.

miter guide from saw table.

3.

Tilt bevel table up and adjust insert table legs

to desired angle stop (see Figure 27).

6. Connect machine to power and turn ON.

Model T30945 (Mfd. Since 12/19)

Table Legs

Figure 27. Bevel table set to 45˚.

-21-

Position tile against tilted table at front of saw.

4.

5. Loosen splash hood lock knob and adjust

hood to height of tile (see Figure 28). Hood
should be as close to tile as possible without
touching.

Splash Hood

Lock Knob

Figure 28. Splash hood lock knob location.

Making L-Cuts

For corners and other tough-to-fit places, you may
need to make an L-cut, or make two separate cuts
that do not extend the full length of the tile, as
shown in Figure 30.

Wall Corner

L-Cut Tile

6. Connect machine to power and turn ON.

7. Ensure blade is wet, then push tile through

cut with a push stick or some other type of
workpiece support (see Figure 29).

Tile

Top View

Figure 29. Tile ready for bevel cut.

Front View

Figure 30. Example of an L-cut.

To make an L-cut:

DISCONNECT MACHINE FROM POWER!

1.

Mark bottom of tile with area to be cut.

2.

If making an angled cut, loosen miter guide

3.

lock knob, adjust to desired miter angle, and
tighten to secure (see Figure 31). If rip cut­ting, remove miter guide.

Miter Guide

Lock Knob

-22-

Figure 31. Miter guide lock knob location.

Model T30945 (Mfd. Since 12/19)

4. Unlock rip fence by lifting rip fence lock lever,
adjust to first cut width on scale, and push
lock lever down to secure (see Figure 32).

Rip Fence

Lock Lever

8. Ensure blade is wet, then push tile through
cut until you contact second line drawn in
Step 2 (see Figure 34).

Tile

Stop
Line

Figure 32. Rip fence locked for first cut.

Position tile against rip fence at front of saw.

5.

6. Loosen splash hood lock knob and adjust

hood to height of tile (see Figure 33). Hood
should be as close to tile as possible without
touching.

Blade Guard

Lock Knob

Figure 33. Splash hood lock knob location.

Top view

Figure 34. First cut complete.

9.

Without removing tile, turn saw OFF.

10. Wait for blade to stop spinning, then remove
tile.

11. Adjust rip fence for width of second cut and
lock to secure.

Turn saw ON and make second cut, cut-

12.
ting until contacting first cut (see Figure

35). When contacted, cut-off piece should

separate.

7. Connect machine to power and turn ON.

Model T30945 (Mfd. Since 12/19)

Cut-Off

Tile

Top view

Figure 35. Second cut complete.

13.

Without removing tile, turn saw OFF.

14. Wait for blade to stop spinning, then remove
tile.

Piece

-23-

Removing &

Installing Blade

The Model T30945 uses abrasive continuous-rim
blades. This type of blade does not cut and wear
like typical "toothed" blades, instead they cut and
grind simultaneously, making them perfect for
ceramics. To maintain the optimal cutting capabil­ity of your tile saw, the blade should be changed
when the abrasive portion of it has worn away
or becomes glazed over and dressing is not an
option.

Items Needed Qty

Replacement Blade (#PT30945084)................. 1

Bucket 1-Gallon
Open-End Wrench 19mm
Arbor Wrench 8mm

Removing Blade

1.

DISCONNECT MACHINE FROM POWER!

................................................. 1

.................................. 1

........................................... 1

5. Use arbor wrench to secure arbor then remove
nut with open-end wrench (see Figure 37).

Open-End

Wrench

Arbor Wrench

Figure 37. Loosening arbor nut.

6. Remove outer flange and blade from arbor
(see Figure 38).

Installing Blade

1.

Place blade on arbor flush against inner

flange, being sure blade arrows point toward
front of saw (see Figure 38).

Position saw over bucket to catch water as it

2.

drains.

Remove bevel table and drain water from tray

3.

by pulling overflow drain plug.

4.

Loosen splash hood lock knob, lift hood

fully, and tighten lock knob to secure (see
Figure 36).

Splash Hood

Splash Hood

Lock Knob

Figure 36. Splash hood in up position.

Place outer flange on arbor and turn it until

2.

it rests flush against blade (see Figure 38).
Blade should spin freely without side-to-side
movement on arbor.

Arbor

Inner Flange

Outer Flange

Figure 38. Correct order of blade installation.

3.

Secure inner flange, blade, and outer flange

on arbor with arbor nut.

4. Replace overflow drain plug and bevel table.

Blade

Arbor Nut

-24-

5. Fill bath with water before resuming
operations.

Model T30945 (Mfd. Since 12/19)

SECTION 5: ACCESSORIES

Installing unapproved accessories may

T10456—Heavy-Duty Anti-Fatigue Mat 3' x 5'

This Heavy-Duty Anti-Fatigue Mat features bev­eled edges and no-slip tread for safety and
comfort. Open-hole design allows liquid to drain
through, so it's perfect for wet or oily conditions.
Measures 3' wide x 5' long x

order online at www.grizzly.com or call 1-800-523-4777

cause machine to malfunction, resulting in
serious personal injury or machine damage.
To reduce this risk, only install accessories
recommended for this machine by Grizzly.

NOTICE

Refer to our website or latest catalog for
additional recommended accessories.

G5726—4-Pc. Combination Square 12"

This four-piece Combination Square has cast iron
square, center heads, and 12" blade with gradu­ations down to 64ths. Square head features spirit
level and hardened scriber. Includes a direct read­ing double protractor head. Comes in a protective
plastic case.

3

⁄8" thick.

Figure 40. T10456 Anti-Fatigue Mat.

G8184—12-Pc. Plumbing/Threading Kit

A dozen industrial quality plumbing and pipe
threading tools ensure that your next plumbing
job will go without a hitch. In addition to a pair of
rugged adjustable wrenches and a heavy-duty
pipe and tubing cutter, this complete kit includes
a reversible ratcheting die handle and dies for

3

⁄8", 1⁄2 ", 3⁄4", 1" and 11⁄4" pipe. All are housed in a

high-impact plastic carrying case.

1

⁄4",

Figure 39. G5726 4-Pc. Combination Square

12".

Figure 41. G8184 12-Pc. Plumbing/Threading

Kit.

Model T30945 (Mfd. Since 12/19)

-25-

order online at www.grizzly.com or call 1-800-523-4777

H4978—Deluxe Earmuffs - 27dB
H4979—Twin Cup Hearing Protector - 29dB
T20446—Ear Plugs 200 Pair - 31dB

Protect your hearing before it’s too late. Especially
important if you or employees operate for hours at
a time.

H4978

T20446

H4979

G5562—SLIPIT® 1 Qt. Gel
G5563—SLIPIT® 12 Oz. Spray
G2871—Boeshield® T-9 12 Oz. Spray
G2870—Boeshield® T-9 4 Oz. Spray
H3788—G96® Gun Treatment 12 Oz. Spray
H3789—G96® Gun Treatment 4.5 Oz. Spray

Figure 42. Hearing protection assortment.

Basic Eye Protection

T20501—Face Shield Crown Protector 4"
T20502—Face Shield Crown Protector 7"
T20503—Face Shield Window
T20451—“Kirova” Clear Safety Glasses
T20452—“Kirova” Anti-Reflective S. Glasses
T20456—DAKURA Safety Glasses

T20502

T20503

T20452

T20451T20456

Figure 44. Recommended products for

protecting unpainted cast-iron and steel.

T30955—Stand for Model T30945

Figure 43. Assortment of basic eye protection.

Figure 45. Optional stand for Model T30945.

-26-

Model T30945 (Mfd. Since 12/19)

SECTION 6: MAINTENANCE

To reduce risk of shock or
accidental startup, always
disconnect machine from
power before adjustments,

maintenance, or service.

Schedule

For optimum performance from this machine, this
maintenance schedule must be strictly followed.

Ongoing

To maintain a low risk of injury and proper
machine operation, if you ever observe any of the
items below, shut down the machine immediately
and fix the problem before continuing operations:

• Loose mounting bolts.

• Damaged blade.
Worn or damaged wires.

•
Any other unsafe condition.

•

Cleaning &

Protecting

Cleaning the Model T30945 is relatively easy.
Wipe off tile dust with a wet cloth. If dust has built
up in the bath or splash hood, use a mild soap
and warm water to remove it.

Protect the unpainted portions of the table by wip­ing it clean after every use—this ensures moisture
from operations does not remain on bare metal
surfaces.

Lubrication

Sealed and pre-lubricated ball bearings require
no lubrication for the life of the bearings. All bear­ings are standard sizes, and replacements can be
purchased from our parts department or a bearing
supply store.

Weekly Maintenance

• Replace bath with fresh water.

• Clean table, rip fence, and miter guide.

• Check wear on blade and dress or replace as

necessary.

Monthly Check

• Thoroughly clean water bath.

Model T30945 (Mfd. Since 12/19)

Dressing Blade

The abrasive blade can dull over time but cannot
be sharpened like a normal saw blade. The abra­sive material of the blade can become covered by
adhesive material, dulling the blade prematurely.
Dressing the blade can re-expose the abrasive
and effectively "sharpens" the blade.

To dress the blade, slowly cut into a dressing
stone, as you would a tile, until the entire band
of abrasive passes through the stone. Repeat as
necessary.

-27-

Review the troubleshooting procedures in this section if a problem develops with your machine. If you need

the

serial number and manufacture date of your machine before calling.

SECTION 7: SERVICE

replacement parts or additional help with a procedure, call our Technical Support. Note: Please gather

Troubleshooting

Motor & Electrical

Symptom Possible Cause Possible Solution

Machine does
not start, or
power supply
breaker
immediately
trips after
startup.

Machine
stalls or is
underpowered.

Machine has
vibration or
noisy operation.

1. GFCI tripped.

2. Incorrect power supply voltage or circuit size.

3. Power supply circuit breaker tripped or fuse
blown.

4. Motor overheated.

5. Blade seized in workpiece.

6. ON/OFF paddle switch at fault.

7. Wiring broken, disconnected, or corroded.

8. Motor at fault.

1. Excessive feed rate/pressure.

2. Blade dull or installed backwards.

3. Insufficient water level in bath.

4. Improper size extension cord used.

5. Run capacitor at fault.

6. Motor overheated.

7. Motor or motor bearings at fault.

1. Blade damaged or warped.

2. Blade, motor, or other part loose.

3. Incorrectly mounted to workbench or stand
feet not adjusted properly.

4. Motor bearings at fault.

1. Unplug and reset GFCI.

2. Ensure correct power supply voltage and circuit size.

3. Ensure circuit is sized correctly and free of shorts.
Reset circuit breaker or replace fuse.

4. Clean motor, let cool, and reduce workload.

5. Unplug machine and free blade from workpiece.

6. Replace switch.

7. Fix broken wires or disconnected/corroded
connections.

8. Test/repair/replace.

1. Reduce feed rate/pressure against workpiece.

2. Dress blade (Page 27) or remove and install correctly
(Page 24).

3. Fill water bath to maximum fill line.

4. Use larger gauge or shorter extension cord.

5. Test/repair/replace.

6. Clean motor, let cool, and reduce workload.

7. Test/repair/replace.

1. Replace blade (Page 24).

2. Tighten loose hardware or replace if missing.

3. Adjust feet, shim, or tighten mounting hardware.

4. Test by rotating shaft; rotational grinding/loose shaft
requires bearing replacement.

-28-

Model T30945 (Mfd. Since 12/19)

Operations

Symptom Possible Cause Possible Solution

Kickback
occurs.

Machine makes
inaccurate cuts.

Tile chipping
along entire
edge of cut.

Tile chipping
only at one end
of cut.

Rip fence does
not securely
lock to table.

Rip fence
does not move
smoothly.

Tile moves
away from
fence when
ripping.

1. Rip fence not parallel with blade. Feeding tile
without fence/guide.

2. Splash hood mounting bracket not correctly
aligned with blade.

3. Blade warped/damaged/dull.

4. Letting go of tile before it is past blade. Tile
not held firmly against table and fence/guide.

1. Build-up on blade.

2. Fence not parallel with blade.

1. Excessive feed pressure or cutting speed.

2. Overly dirty water or lack of water for blade.

3. Type/quality of tile used is highly prone to
chipping.

4. Dull blade.

5. Blade warped or has excessive wobble.

6. Blade type not suitable for type of tile being
cut.

1. Tile not fed parallel with blade. 1. Ensure fence is parallel with blade, or ensure miter

1. Rip fence cam is loose. 1. Tighten cam (Page 31).

1. Rip fence mounted incorrectly.

2. Rip fence set screws need adjustment.

3. Rail dirty or sticky.

1. Improper feeding technique.

2. Fence not parallel with blade.

1. Adjust fence parallel with blade (Page 30). Install and
use fence/guide.

2. Adjust bracket into alignment with blade (Page 30).

3. Sharpen/dress blade with dressing stone (Page 27), or
replace blade (Page 24).

4. Move tile completely past blade before releasing. Hold
tile firmly against table and fence; use push stick if
necessary.

1. Sharpen/dress blade with dressing stone (Page 27), or
replace blade (Page 24).

2. Adjust fence parallel with blade (Page 30).

1. Reduce feed pressure and cut slower.

2. Ensure water is clean and tank is full.

3. Cut tile upside down. Apply waterproof tape over
cutting path when cuts cannot be made upside down.
Add a few drops of dish soap to water to increase
lubricity at cuts.

4. Sharpen/dress blade with dressing stone (Page 27), or
replace blade (Page 24).

5. Replace blade (Page 24).

6. Use a different blade more suited for workpiece
material. Use a blade stiffener.

guide pressure is consistently to one side or the other
on fence.

1. Remount rip fence.

2. Adjust set screws (Page 31).

3. Clean and wax rail.

1. Learn/use proper feeding technique.

2. Adjust fence parallel with blade (Page 30).

Model T30945 (Mfd. Since 12/19)

-29-

Squaring Fence to

accidental startup, always
disconnect machine from

4. Position rip fence so indicator reads 0" (see
Figure 47) and lock in place.

Blade

To reduce risk of shock or

power before adjustments,
maintenance, or service.

The following procedure aligns the rip fence par­allel to the blade. Once the fence is adjusted, the
bracket holding the blade to the table must also
be aligned.

Items Needed Qty

Phillips Screwdriver #2 ...................................... 1

To square fence to blade:

DISCONNECT MACHINE FROM POWER!

1.

5. Loosen both screws shown in Figure 47.

x 2

Indicator

Figure 47. Rip fence adjustment screw locations.

6. Adjust rip fence until it barely contacts blade.

There should be no gaps between blade and
fence.

7. Tighten screws loosened in Step 5.

Remove bevel table.

8.

2. Loosen splash hood lock knob, lift hood
fully, and tighten lock knob to secure (see
Figure 46).

Splash Hood

Lock Knob

Figure 46. Splash hood lifted for fence

adjustment.

3. Remove miter guide.

9. Loosen (3) screws shown in Figure 48.

x 3

Figure 48. Splash hood mounting screw

locations.

-30-

Model T30945 (Mfd. Since 12/19)

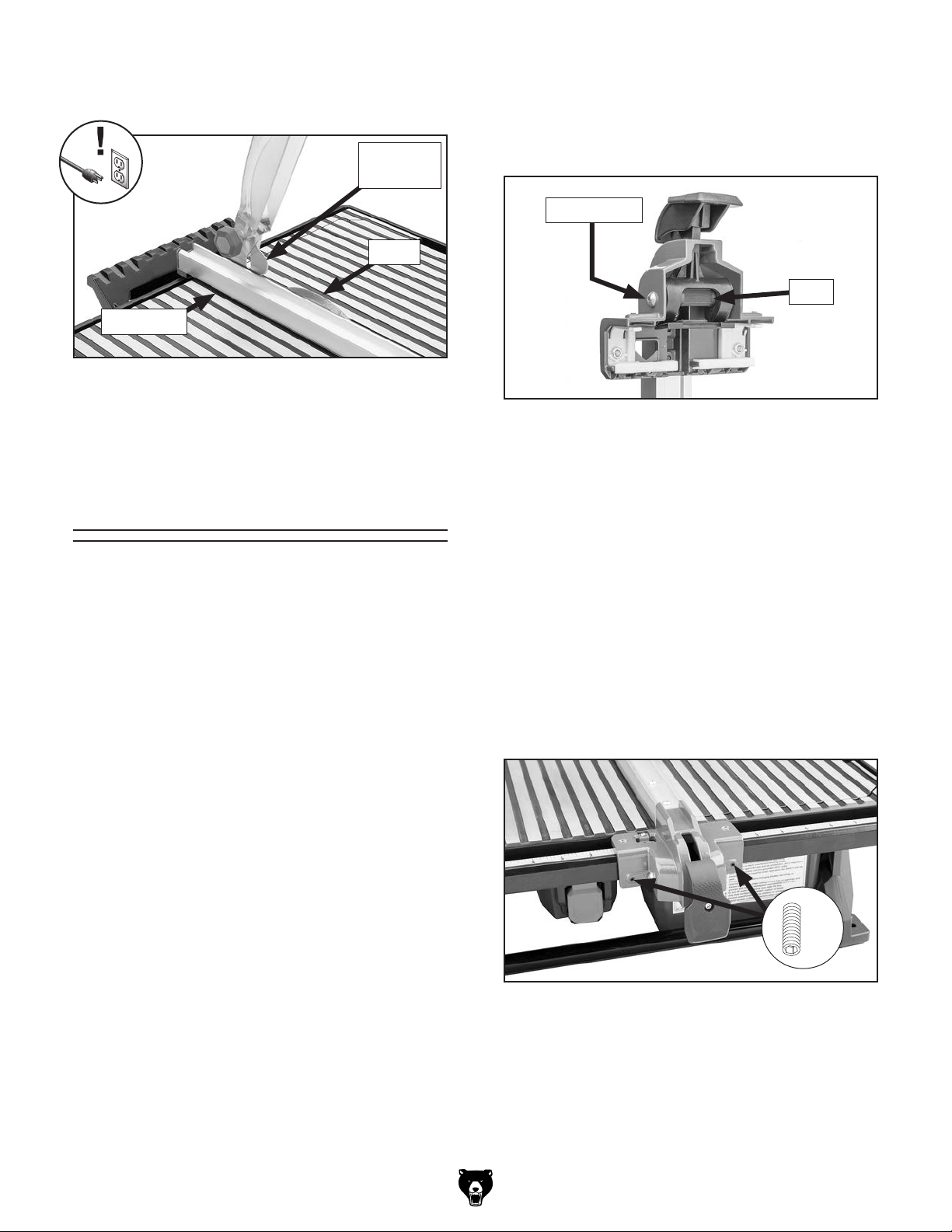

10. Use rip fence to align splash hood mounting
bracket to blade (see Figure 49).

Mounting

Bracket

Blade

Rip Fence

Figure 49. Bracket aligned with rip fence and

blade.

11.

Tighten screws loosened in Step 9.

3. Loosen cam screw shown in Figure 50.

4. Tighten cam by turning it towards lock lever

(see Figure 50).

Cam Screw

Cam

Figure 50. Cam and cam screw location.

Test cam by locking rip fence to table. Tighten

5.

cam screw to secure when satisfied.

Adjusting Fence

The factory has made all the necessary adjust­ments on your machine, but the rip fence may
get knocked loose during shipping or eventually
loosen over time.

If the rip fence will not securely lock to the table,
the cam in the locking mechanism may need to be
tightened. If you experience difficulty sliding the
fence across the width of the table, the fence set
screws may need to be adjusted.

Items Needed Qty

Hex Wrenches 2, 3mm ................................1 Ea.

Tightening Cam

1.

DISCONNECT MACHINE FROM POWER!

2. Remove miter guide from rip fence and
unlock and remove rip fence from table.

Adjusting Fence Set Screws

1.

DISCONNECT MACHINE FROM POWER!

2. Adjust set screws shown in Figure 51 to
adjust rip fence movement.

— Loosen set screws to allow rip fence

to glide more easily across table.

— Tighten set screws to cause rip

fence to glide less easily across table.

x 2

Model T30945 (Mfd. Since 12/19)

Figure 51. Rip fence adjustment set screws.

3. Test adjustment by unlocking rip fence and

sliding it along table width. Adjust set screws
until satisfied.

-31-

These pages are current at the time of printing. However, in the spirit of improvement, we may make chang­es to the electrical systems of future machines. Compare the manufacture date of your machine to the one

number and manufacture date of your

machine before calling. This information can be found on the main machine label.

machine

SECTION 8: WIRING

stated in this manual, and study this section carefully.

If there are differences between your machine and what is shown in this section, call Technical Support at
[phone] for assistance BEFORE making any changes to the wiring on your machine. An updated
wiring diagram may be available. Note: Please gather the serial

Wiring Safety Instructions

SHOCK HAZARD. Working on wiring that is con-

nected to a power source is extremely dangerous.
Touching electrified parts will result in personal
injury including but not limited to severe burns,
electrocution, or death. Disconnect the power
from the machine before servicing electrical com­ponents!

MODIFICATIONS. Modifying the wiring beyond
what is shown in the diagram may lead to unpre­dictable results, including serious injury or fire.
This includes the installation of unapproved after­market parts.

WIRE CONNECTIONS. All connections must
be tight to prevent wires from loosening during
machine operation. Double-check all wires dis­connected or connected during any wiring task to
ensure tight connections.

CIRCUIT REQUIREMENTS. You MUST follow
the requirements at the beginning of this manual
when connecting your machine to a power source.

WIRE/COMPONENT DAMAGE. Damaged wires
or components increase the risk of serious per­sonal injury, fire, or machine damage. If you notice
that any wires or components are damaged while
performing a wiring task, replace those wires or
components.

MOTOR WIRING. The motor wiring shown in
these diagrams is current at the time of printing
but may not match your machine. If you find this
to be the case, use the wiring diagram inside the
motor junction box.

CAPACITORS/INVERTERS. Some capacitors
and power inverters store an electrical charge for
up to 10 minutes after being disconnected from
the power source. To reduce the risk of being
shocked, wait at least this long before working on
capacitors.

EXPERIENCING DIFFICULTIES. If you are expe­riencing difficulties understanding the information
included in this section, contact our Technical
Support at [phone].

The photos and diagrams
included in this section are
best viewed in color. You
can view these pages in
color at www.grizzly.com.

-32-

Model T30945 (Mfd. Since 12/19)

Motor

Run Capacitor

35MFD

250VAC

Top

Wiring Diagram

Neutral

Hot

Ground

5-15 Plug

When servicing wiring, take
care not to damage rubber
gasket between motor and
switch. Otherwise, internal
wiring may be exposed to
water, causing machine
damage and increasing the
risk of electrical shock.

120 VAC

WARNING!

SHOCK HAZARD!

Disconnect power
before working on
wiring.

Bottom

Switch

Figure 53. Run capacitor.Figure 52. ON/OFF switch.

Model T30945 (Mfd. Since 12/19)

READ ELECTRICAL SAFETY

ON PAGE 32!

-33-

42

SECTION 9: PARTS

We do our best to stock replacement parts when possible, but we cannot guarantee that all parts shown
are available for purchase. Call [phone] or visit www.grizzly.com/parts to check for availability.

Main

64

66

65

67

71

69

68

63

70

44

71

62

45

44

45

61

28

26

29

31

23

33

30

49

32

24

25

47

31

50

27

74

34

29

28

22

21

20

35

18

72

19

16

17

74

9

10

11

14

104

73

87

88

104-1

104-2

104-3

13

12

78

36

15

2

3

89

86

91

90

92

38

37

76

39

5

92

42

40

8

4

6
7

75

91

90

41

1

85

2
3

79

81

80

77

84

82

83

51

50

56

55

52

57

48

59

44

45

58

60

Model T30945 (Mfd. Since 12/19)

43

48

46

50

51

-34-

BUY PARTS ONLINE AT GRIZZLY.COM !

Scan QR code to visit our Parts Store.

54

44

45

50

53

49

Main Parts List

REF PART # DESCRIPTION REF PART # DESCRIPTION

1 PT30945001 REAR SUPPORT 49 PT30945049 FOOT (RH)
2 PT30945002 INT TOOTH WASHER 5MM 50 PT30945050 TAP SCREW M4.8 X 16
3 PT30945003 KNOB BOLT M6-1 X 18, D32, WING 51 PT30945051 BASE TUBE
4 PT30945004 SPLASH HOOD 52 PT30945052 FOOT COVER (RR-RH)
5 PT30945005 KNOB M6-1, 6-LOBE, D32 53 PT30945053 FOOT COVER (FR-RH)
6 PT30945006 SPLASH HOOD MOUNTING BRACKET 54 PT30945054 FOOT TUBE
7 PT30945007 FLANGE SCREW M4-.7 X 6 55 PT30945055 BASE (RH)
8 PT30945008 HEX BOLT M6-1 X 30 56 PT30945056 HEX BOLT M6-1 X 30
9 PT30945009 KNOB M5-.8, 6-LOBE, D32 57 PT30945057 WRENCH SEAT
10 PT30945010 FLAT WASHER 5MM 58 PT30945058 ARBOR WRENCH 8MM
11 PT30945011 HEX BOLT M5-.8 X 20 59 PT30945059 WRENCH 19MM CLOSED-END
12 PT30945012 LOCK NUT M3-.5 60 PT30945060 KNOB M6-1, D46, WING
13 PT30945013 PHLP HD SCR M3-.5 X 20 61 PT30945061 MOTOR COVER
14 PT30945014 MITER GUIDE 62 PT30945062 PHLP HD SCR M4-.7 X 12
15 PT30945015 MITER GUIDE FIXED SEAT 63 PT30945063 STRAIN RELIEF TYPE-1 9/16
16 PT30945016 MITER GUIDE SLIDING SEAT 64 PT30945064 POWER CORD 18G 3W 86" 5-15P
17 PT30945017 TAP SCREW M4.2 X 9 65 PT30945065 LOCK WASHER 4MM
18 PT30945018 TAP SCREW M4.2 X 16 66 PT30945066 PHLP HD SCR M4-.7 X 8
19 PT30945019 FENCE LOCK HANDLE 67 PT30945067 FLAT WASHER 4MM
20 PT30945020 FENCE LOCK CAM 68 PT30945068 ON/OFF SWITCH KEDU HY18 20A 125/250V
21 PT30945021 ECCENTRIC SHAFT 69 PT30945069 SWITCH FRONT PANEL
22 PT30945022 BUTTON HD CAP SCR M5-.8 X 65 70 PT30945070 SWITCH REAR PANEL
23 PT30945023 FENCE LOCK CAM BRACKET 71 PT30945071 TAP SCREW M3.5 X 13
24 PT30945024 RUBBER PLATE 72 PT30945072 TABLE
25 PT30945025 PHLP HD SCR M4-.7 X 6 73 PT30945073 GASKET 320 X 20 X 8
26 PT30945026 SLIDING PLATE (LH) 74 PT30945074 SCREW COVER
27 PT30945027 SLIDING PLATE (RH) 75 PT30945075 WATER TRAY
28 PT30945028 HEX NUT M4-.7 76 PT30945076 OVERFLOW DRAIN PLUG
29 PT30945029 FLAT HD SCR M4-.7 X 6 77 PT30945077 CAP SCREW M6-1 X 16
30 PT30945030 FENCE FIXED SEAT 78 PT30945078 O-RING 54.5 X 3.55
31 PT30945031 SET SCREW M4-.7 X 6 79 PT30945079 WATER TRAY SEALING COVER
32 PT30945032 PHLP HD SCR M3-.5 X 8 80 PT30945080 TAP SCREW M2.9 X 8
33 PT30945033 POINTER 81 PT30945081 SEALING WASHER 27 X 17.5 X 2.5MM
34 PT30945034 PHLP HD SCR M4-.7 X 10 82 PT30945082 HEX NUT M12-1.5
35 PT30945035 RIP FENCE 83 PT30945083 OUTER BLADE FLANGE 56 X 8MM
36 PT30945036 RIP FENCE COVER 84 PT30945084 BLADE 7"
37 PT30945037 BEVEL TABLE 85 PT30945085 INNER BLADE FLANGE 56 X 14.6MM
38 PT30945038 BEVEL STOP BRACKET (LH) 86 PT30945086 CAP SCREW M6-1 X 25
39 PT30945039 BEVEL STOP BRACKET (RH) 87 PT30945087 PHLP HD SCR M4-.7 X 8
40 PT30945040 BEVEL BRACKET SEAT 88 PT30945088 CAPACITOR BRACKET
41 PT30945041 BEVEL LOCK PLATE 89 PT30945089 R CAPACITOR 35M 250V 1-3/8 X 2-5/8
42 PT30945042 PHLP HD SCR M5-.8 X 12 90 PT30945090 FLAT WASHER 5MM
43 PT30945043 BASE (LH) 91 PT30945091 LOCK WASHER 5MM
44 PT30945044 CAP SCREW M8-1.25 X 25 92 PT30945092 FLAT WASHER 6MM
45 PT30945045 HEX NUT M8-1.25 104 PT30945104 MOTOR 1HP 120V 1-PH
46 PT30945046 FOOT COVER (FR-LH) 104-1 PT30945104-1 MOTOR FAN
47 PT30945047 FOOT COVER (RR-LH) 104-2 PT30945104-2 BALL BEARING 6201-2RS (FRONT)
48 PT30945048 FOOT (LH) 104-3 PT30945104-3 BALL BEARING 6003-2RS (BACK)

Model T30945 (Mfd. Since 12/19)

BUY PARTS ONLINE AT GRIZZLY.COM !

Scan QR code to visit our Parts Store.

-35-

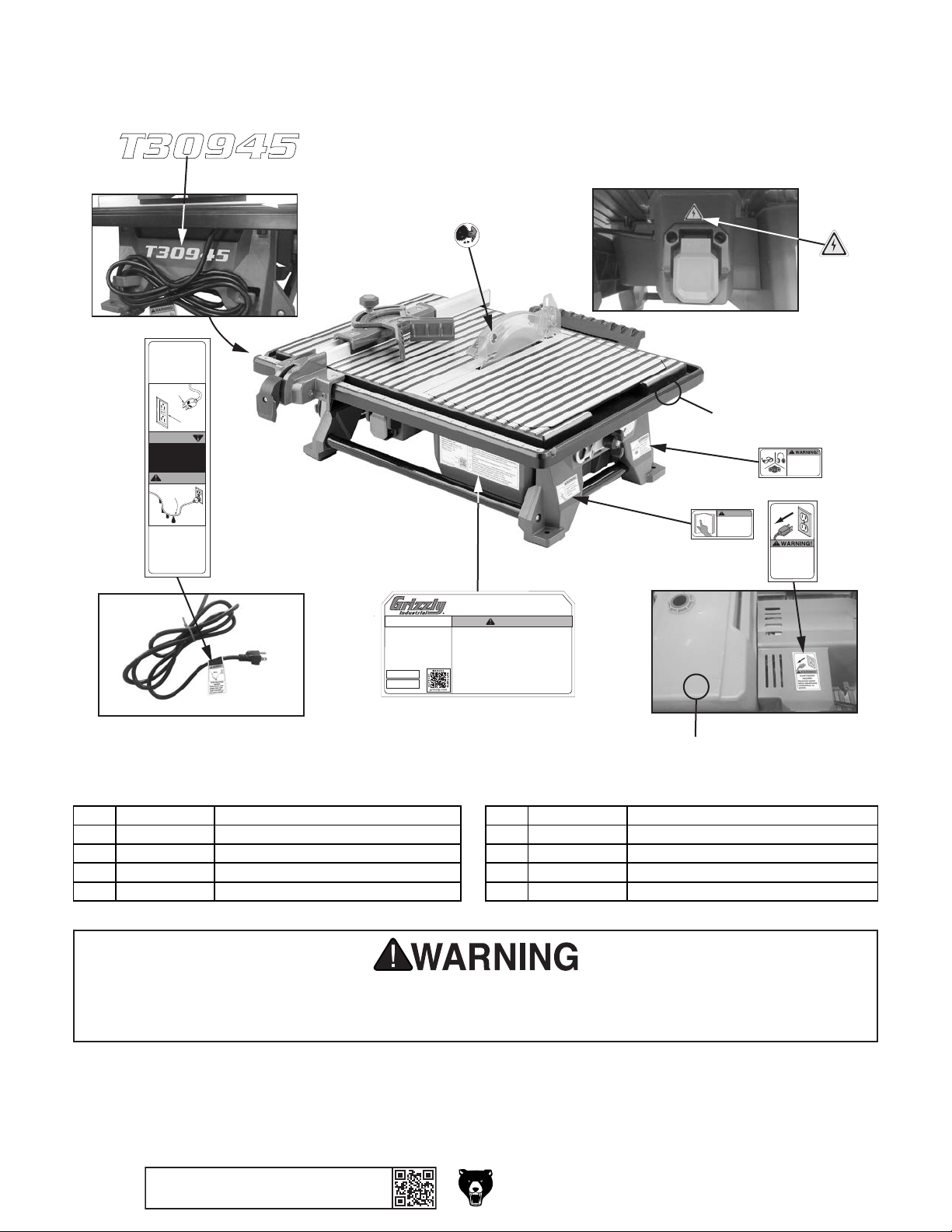

T30945

201

207

210

receptacle!
GFCI-protected
power cord to
Only connect this

HAZARD!

ELECTROCUTION

Pin

Grounding

T

S

E

T

SET

RE

Ground Fault

WARNING!

WARNING!

Drip Loop

ELECTROCUTION

HAZARD!
Ensure power cord
always has a "drip
loop" to prevent
water from running
into power supply!

Labels & Cosmetics

203

MODEL T30945

Specifications

Motor: 1 HP, 120V, 1-Ph, 60 Hz, 6.5A
Maximum Blade Diameter: 7"
Required Blade Thickness: 0.05"
Arbor Diameter: 5/8"
Maximum Length of Cut: 24"
Maximum Depth of Cut: 1-1/4"
Miter Range: 0°−90°
Bevel Tilt: 22.5°, 45°
Weight: 28 lbs.

Mfd. for Grizzly in China

7" BENCHTOP TILE SAW

To reduce risk of serious personal injury when using this machine:

1. Read and understand manual before using this machine.

2. Never touch or reach over/behind moving blade.

3. Always wear approved eye and ear protection, and a respirator.

4. Only connect power cord to grounded GFCI outlet.

5. Always use splash hood for every operation for which it can be
used.

6. Disconnect power before changing blades, servicing, or
cleaning.

7. Always use smooth edge cutting wheels free of openings and
grooves and meeting size/speed requirements of this saw.

Date

8. Do not fill water bath above max water fill line.

9. Only feed workpiece AGAINST rotation of blade.

S/N

10. Prevent unauthorized use by children or untrained users;
restrict access or disable machine when unattended.

209

WARNING!

204

WARNING!

To reduce risk of death
or serious injury, read
manual BEFORE using
machine.

206

INJURY HAZARD!

To reduce risk of short­and long-term injury,
wear eye, ear, and lung
protection when using
this machine.

205

INJURY/SHOCK

HAZARD!
Disconnect power
before adjustments,
maintenance, or
service.

202

208

REF PART # DESCRIPTION REF PART # DESCRIPTION

201 PT30945201 MODEL NUMBER LABEL 206 PT30945206 READ MANUAL LABEL
202 PT30945202 ELECTRICITY LABEL 207 PT30945207 TOUCH-UP PAINT, GRIZZLY GREEN
203 PT30945203 SPLASH HOOD LABEL 208 PT30945208 DISCONNECT POWER LABEL
204 PT30945204 TOUCH-UP PAINT, GRIZZLY BLACK 209 PT30945209 MACHINE ID LABEL
205 PT30945205 EYE/EAR/LUNG INJURY LABEL 210 PT30945210 DRIP LOOP/GFCI LABEL

Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes
off or becomes unreadable, the owner of this machine MUST replace it in the original location
before resuming operations. For replacements, contact [phone] or www.grizzly.com.

-36-

BUY PARTS ONLINE AT GRIZZLY.COM !

Scan QR code to visit our Parts Store.

Model T30945 (Mfd. Since 12/19)

WARRANTY & RETURNS

Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from
the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse,
negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty
and any and all warranties that may be implied by law, including any merchantability or fitness, for any par­ticular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent
that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants.
In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and
any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.

We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special,
or consequential damages arising from the use of our products.

The manufacturers reserve the right to change specifications at any time because they constantly strive to
achieve better quality equipment. We make every effort to ensure that our products meet high quality and
durability standards and we hope you never need to use this warranty.

In the event you need to use this warranty, contact us by mail or phone and give us all the details. We will
then issue you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of
the carton. We will not accept any item back without this number. Proof of purchase must accompany the
merchandise.

Please feel free to write or call us if you have any questions about the machine or the manual.

Thank you again for your business and continued support. We hope to serve you again soon.

To

warranty-card

registration page

take advantage of this warranty, you must register it at https://www.grizzly.com/secureforms/

, or you can scan the QR code below to be automatically directed to our warranty

. Enter all applicable information for the product.

WARRANTY
