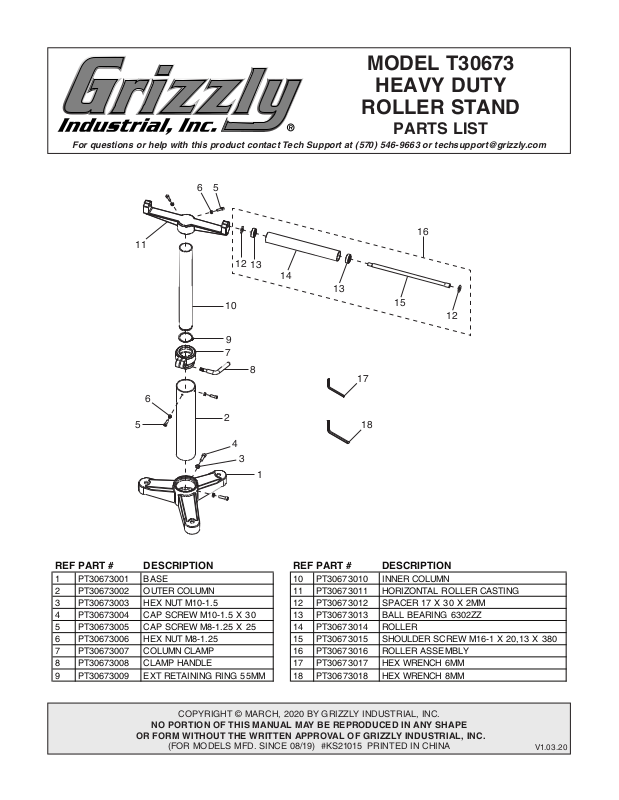

REF PART # DESCRIPTION REF PART # DESCRIPTION
MODEL T30673
HEAVY DUTY
ROLLER STAND
PARTS LIST
For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
56
16
11
12
13
14
13
10
9
7
15
12
8
6
5
1 PT30673001 BASE 10 PT30673010 INNER COLUMN
2 PT30673002 OUTER COLUMN 11 PT30673011 HORIZONTAL ROLLER CASTING
3 PT30673003 HEX NUT M10-1.5 12 PT30673012 SPACER 17 X 30 X 2MM
4 PT30673004 CAP SCREW M10-1.5 X 30 13 PT30673013 BALL BEARING 6302ZZ
5 PT30673005 CAP SCREW M8-1.25 X 25 14 PT30673014 ROLLER
6 PT30673006 HEX NUT M8-1.25 15 PT30673015 SHOULDER SCREW M16-1 X 20,13 X 380
7 PT30673007 COLUMN CLAMP 16 PT30673016 ROLLER ASSEMBLY
8 PT30673008 CLAMP HANDLE 17 PT30673017 HEX WRENCH 6MM
9 PT30673009 EXT RETAINING RING 55MM 18 PT30673018 HEX WRENCH 8MM
2
4
3
1
17
18
COPYRIGHT © MARCH, 2020 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
(FOR MODELS MFD. SINCE 08/19) #KS21015 PRINTED IN CHINA
V1.03.20
