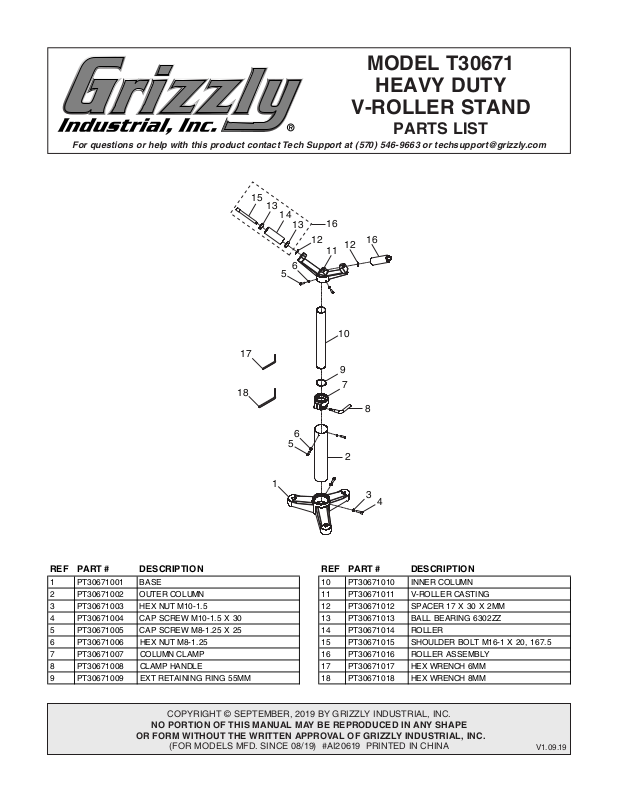

MODEL T30671
HEAVY DUTY
V-ROLLER STAND
PARTS LIST
For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
15
13
17
18
14
5
13
6
12
16
11
10
9
7
12
16
8
6
5
2
1
3
4
REF PART # DES CRIP TION REF PART # DES CRIP TION
1 PT30671001 BASE 10 PT30671010 I NNER CO LUMN
2 PT30671002 OUTER COL UMN 11 PT30671011 V-ROLLER CASTING
3 PT30671003 HEX NUT M10 -1 . 5 12 PT30671012 SPACER 17 X 30 X 2MM
4 PT30671004 CAP SCREW M10-1.5 X 30 13 PT30671013 BALL BEARING 6302ZZ
5 PT30671005 CAP SCREW M8-1.25 X 25 14 PT30671014 ROLLER
6 PT30671006 HEX NUT M8- 1. 25 15 PT30671015 SHOULDER BOLT M16-1 X 20, 167.5
7 PT30671007 COLUMN CLA MP 16 PT30671016 ROLLER ASSEMBLY
8 PT30671008 CLAMP HA NDLE 17 PT30671017 HEX WRENCH 6 MM
9 PT30671009 EXT RETA I NI NG RING 5 5MM 18 PT30671018 HEX WRENCH 8 MM
COPYRIGHT © SEPTEMBER, 2019 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
(FOR MODELS MFD. SINCE 08/19) #AI20619 PRINTED IN CHINA
V1.09.19
