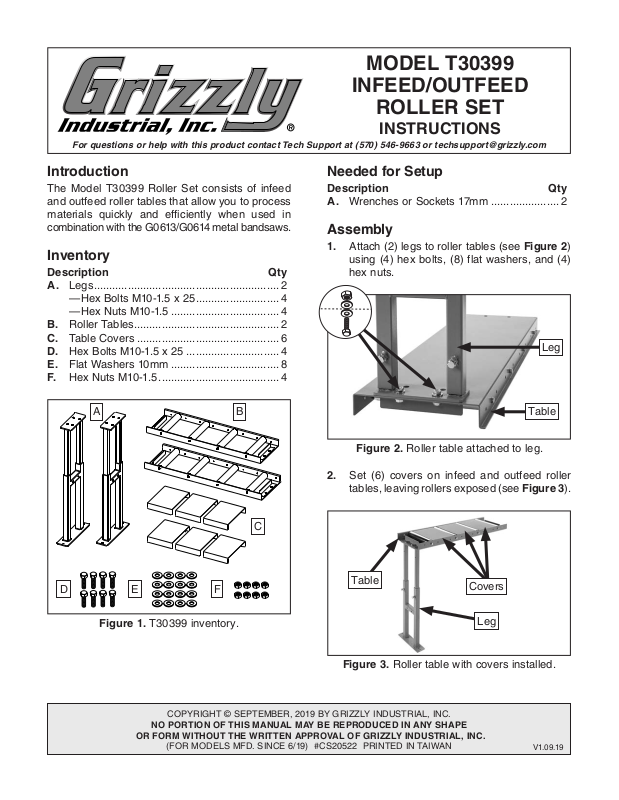

MODEL T30399
INFEED/OUTFEED
ROLLER SET
INSTRUCTIONS
For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction
The Model T30399 Roller Set consists of infeed
and outfeed roller tables that allow you to process
materials quickly and efficiently when used in
combination with the G0613/G0614 metal bandsaws.
Inventory
Description Qty
A. Legs ............................................................ 2
—Hex Bolts M10-1.5 x 25 ........................... 4
—Hex Nuts M10-1.5 ................................... 4
Roller Tables............................................... 2
B.
Table Covers .............................................. 6
C.
Hex Bolts M10-1.5 x 25 .............................. 4
D.
Flat Washers 10mm ................................... 8
E.
Hex Nuts M10-1.5 ....................................... 4
F.
A B
Needed for Setup
Description Qty
A. Wrenches or Sockets 17mm ...................... 2
Assembly
1. Attach (2) legs to roller tables (see Figure 2)
using (4) hex bolts, (8) flat washers, and (4)
hex nuts.
Leg
Table
Figure 2. Roller table attached to leg.
2. Set (6) covers on infeed and outfeed roller
tables, leaving rollers exposed (see Figure 3).
C
D
Figure 1. T30399 inventory.
E F
COPYRIGHT © SEPTEMBER, 2019 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
(FOR MODELS MFD. SINCE 6/19) #CS20522 PRINTED IN TAIWAN
Table
Figure 3. Roller table with covers installed.
Covers
Leg
V1.09.19
T30399 Parts Breakdown
Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here
are available for purchase. Call (800) 523-4777 or visit our online parts store at www.grizzly.com to check for availability.
5
1
6
2
7
3
1
3
4
REF P ART # DES CRIPTI ON REF P ART # DES CRIPTI ON
1 PT30399001 HEX BOLT M10-1.5 X 25 5 PT30399005 COVER
2 PT30399002 FLAT WASHER 10MM 6 PT30399006 ROLLER TABLE
3 PT30399003 HEX NUT M10 -1. 5 7 PT30399007 ROLLER
4 PT30399004 LEG
-2-
BUY PARTS ONLINE AT GRIZZLY.CO M!
Scan QR code to visit our Parts Store.
T30399 Infeed/Outfeed Roller Set (Mfd. 6/19+)
