Grizzly T30372 User guide

MODEL T30372
MOUNTING KIT

FOR G0613/G0614

INSTRUCTIONS

For questions or help with this product contact Tech Support at [phone] or [e-mail]

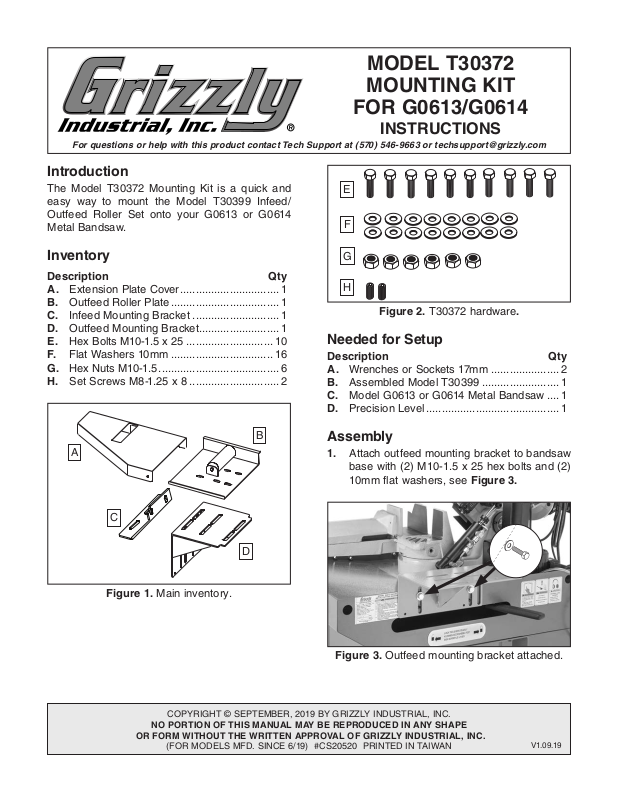

Introduction

The Model T30372 Mounting Kit is a quick and
easy way to mount the Model T30399 Infeed/
Outfeed Roller Set onto your G0613 or G0614
Metal Bandsaw.

E

F

Inventory

Description Qty

A. Extension Plate Cover ................................ 1

Outfeed Roller Plate ................................... 1

B.

Infeed Mounting Bracket ............................ 1

C.

Outfeed Mounting Bracket.......................... 1

D.

Hex Bolts M10-1.5 x 25 ............................ 10

E.

Flat Washers 10mm ................................. 16

F.

Hex Nuts M10-1.5 ....................................... 6

G.

Set Screws M8-1.25 x 8 ............................. 2

H.

B

A

C

G

H

Figure 2. T30372 hardware.

Needed for Setup

Description Qty

A. Wrenches or Sockets 17mm ...................... 2

Assembled Model T30399 ......................... 1

B.

Model G0613 or G0614 Metal Bandsaw .... 1

C.

Precision Level ........................................... 1

D.

Assembly

1. Attach outfeed mounting bracket to bandsaw

base with (2) M10-1.5 x 25 hex bolts and (2)
10mm flat washers, see Figure 3.

D

Figure 1. Main inventory.

Figure 3. Outfeed mounting bracket attached.

COPYRIGHT © SEPTEMBER, 2019 BY GRIZZLY INDUSTRIAL, INC.

NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

(FOR MODELS MFD. SINCE 6/19) #CS20520 PRINTED IN TAIWAN

V1.09.19

2. Attach outfeed roller plate to mounting
bracket with (2) M10-1.5 x 25 hex bolts, (4)

10mm flat washers, and (2) M10-1.5 hex nuts
(see Figure 4).

Figure 4. Outeed roller plate attached.

Attach infeed mounting bracket to rear vise

3.

bracket on bandsaw with (2) M10-1.5 x 25
hex bolts and (2) 10mm flat washers (see
Figure 5).

Bandsaw Vise

Brackets

Attach assembled Model T30399 outfeed

4.

roller table and leg to outfeed mounting
bracket with (2) M10-1.5 x 25 hex bolts, (4)
10mm flat washers, and (2) M10-1.5 hex nuts
(see Figure 6).

Figure 6. Outfeed roller set attached to mounting

bracket.

Attach assembled Model T30399 infeed roller

5.

table and leg to infeed mounting bracket
using (2) M10-1.5 x 25 hex bolts, (4) 10mm
flat washers, and (2) M10-1.5 hex nuts (see

Figure 7).

Figure 5. Infeed mounting bracket attached to

saw vise.

-2-

Figure 7. Infeed roller set attached to mounting

bracket.

6. Set extension plate cover on roller plate,
leaving roller exposed.

T30372 Mounting Kit for G0613/G0614 (Mfd. 6/19+)

7. Tops of all rollers should be level with vise
bracket work surface. Adjust heights of tables
by loosening, adjusting, then retightening
hardware of legs and mounting brackets (see
Figure 5 & 8).

Tops of

Rollers

Vise Bracket

Work Surface

If rollers and vise bracket are not quite level,

8.

insert (2) M8-1.25 x 8 set screws into mount­ing bracket and tighten until level (see Figure

9).

Figure 8. Rollers level with vise bracket.

T30372 Parts Breakdown & List

1

Figure 9. Location of leveling set screws.

2

3

6

5

4

REF PART # DES CRIP TION REF PART # DES CRIP TION

1 PT30372001 EXTENSION PLATE COVER 6 PT30372006 ROLLER
2 PT30372002 HEX BOLT M10-1.5 X 25 7 PT30372007 OUTFE ED MO UNTI NG BRA CKE T
3 PT30372003 ROLLER PLATE 8 PT30372008 SET SCREW M8-1.25 X 8
4 PT30372004 HEX NUT M10 -1. 5 9 PT30372009 FLAT WASHER 10MM
5 PT30372005 I NFEE D MOUNTI NG B RACK ET

T30372 Mounting Kit for G0613/G0614 (Mfd. 6/19)

7

8

9
