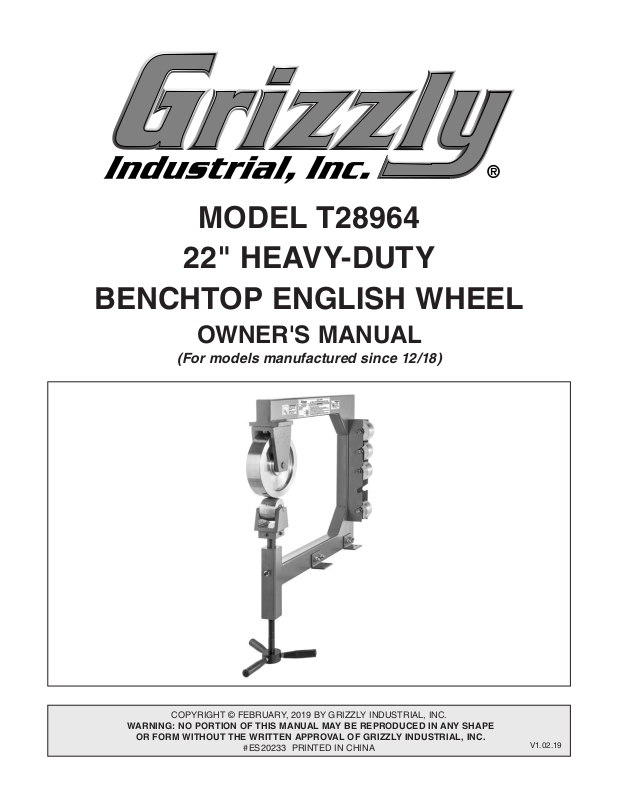

Grizzly T28964 User guide

MODEL T28964

22" HEAVY-DUTY

BENCHTOP ENGLISH WHEEL

OWNER'S MANUAL

(For models manufactured since 12/18)

COPYRIGHT © FEBRUARY, 2019 BY GRIZZLY INDUSTRIAL, INC.

WARNING : NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#ES20233 PRINTED IN CHINA

V1. 0 2.19

This manual provides critical safety instructions on the proper setup,
operation, maintenance, and service of this machine/tool. Save this
document, refer to it often, and use it to instruct other operators.

Failure to read, understand and follow the instructions in this manual
may result in fire or serious personal injury—including amputation,
electrocution, or death.

The owner of this machine/tool is solely responsible for its safe use.
This responsibility includes but is not limited to proper installation in
a safe environment, personnel training and usage authorization,
proper inspection and maintenance, manual availability and compre­hension, application of safety devices, cutting/sanding/grinding tool
integrity, and the usage of personal protective equipment.

The manufacturer will not be held liable for injury or property damage
from negligence, improper training, machine modifications or misuse.

Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State
of California to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
Work in a well ventilated area, and work with approved safety equip­ment, such as those dust masks that are specially designed to filter
out microscopic particles.

Table of Contents

INTRODUCTION ............................................................................................................................... 2

Contact Info
Manual Accuracy
Identification
Machine Data Sheet

................................................................................................................................ 2

........................................................................................................................ 2

............................................................................................................................... 3

................................................................................................................... 4

SECTION 1: SAFETY

Safety Instructions for Machinery
Additional Safety for English Wheels

SECTION 2: SETUP

Needed for Setup
Unpacking
Inventory
Site Considerations
Bench Mounting
Assembly

SECTION 3: OPERATIONS

Operation Overview.................................................................................................................. 13

Tracking Tips
Replacing Anvils

Rotating Wheel & Anvils........................................................................................................... 15

Tracking Patterns

SECTION 4: ACCESSORIES

SECTION 5: MAINTENANCE......................................................................................................... 20

Schedule
Cleaning & Protecting
Lubrication

.................................................................................................................................. 8

..................................................................................................................................... 9

.................................................................................................................................. 11

.................................................................................................................................. 20

................................................................................................................................ 20

....................................................................................................................... 5

............................................................................................... 5

......................................................................................... 7

......................................................................................................................... 8

....................................................................................................................... 8

.................................................................................................................. 10

....................................................................................................................... 10

........................................................................................................... 13

............................................................................................................................ 14

....................................................................................................................... 15

..................................................................................................................... 17

......................................................................................................... 19

.............................................................................................................. 20

SECTION 6: SERVICE

Troubleshooting

SECTION 7: PARTS

WARRANTY & RETURNS

................................................................................................................... 21

........................................................................................................................ 21

....................................................................................................................... 22

............................................................................................................. 25

We stand behind our machines! If you have ques­tions or need help, contact us with the information
below. Before contacting, make sure you get the

serial number

machine ID label. This will help us help you faster.

We want your feedback on this manual. What did
you like about it? Where could it be improved?
Please take a few minutes to give us feedback.

Email: [e-mail]

We are proud to provide a high-quality owner’s
manual with your new machine!

We

instruc­tions, specifications, drawings, and photographs
in this manual. Sometimes we make mistakes, but
our policy of continuous improvement also means
that

you receive is

slightly different than shown in the manual

If you find this to be the case, and the difference
between the manual and machine leaves you
confused or unsure about something

check our

website for an updated version. W

current

manuals and

on our web-

site at

Alternatively, you can call our Technical Support
for help. Before calling, make sure you write down
the

from
the machine ID label (see below). This information
is required for us to provide proper tech support,
and it helps us determine if updated documenta­tion is available for your machine.

INTRODUCTION

Contact Info

and manufacture date from the

Grizzly Technical Support

1815 W. Battlefield
Springfield, MO 65807
Phone: [phone]

Email: [e-mail]

Grizzly Documentation Manager

P.O. Box 2069

Bellingham, WA 98227-2069

Manual Accuracy

made every effort to be exact with the

sometimes the machine

.

,

e post

manual updates for free

www.grizzly.com.

Manufacture Date and Serial Number

Manufacture Date

Serial Number

-2-

Model T28964 (Mfd. Since 12/18)

Identification

To reduce your risk of
serious injury, read this
entire manual BEFORE

Become familiar with the names and locations of the controls and features shown below to better understand
the instructions in this manual.

Wheel

Bracket

Wheel

Anvil Storage

Rack

Anvil (1 of 5)

Anvil Bracket

Anvil Bracket

Shaft

Elevation Stop Jam

Nut & Set Screw

Mounting Brackets

(2 of 4)

Frame

Anvil Adjustment

Handwheel

Model T28964 (Mfd. Since 12/18)

using machine.

-3-

3, 4, 5, 6, 8 in. Radius

Machine Data Sheet

Customer Service #: [phone] · To Order Call: [phone] · Fax #: [phone]

MODEL T28964

22" HEAVY-DUTY BENCHTOP ENGLISH WHEEL

Product Dimensions:

Weight ...........................................................................................................................................................................100 lbs.

Width (side-to-side)/Depth (front-to-back)/Height ...............................................................................................6 x 29 x 33 in.

Shipping Dimensions:

Type ................................................................................................................................................................... Cardboard Box

Content .......................................................................................................................................................................Equipment

Weight ............................................................................................................................................................................110 lbs.

Width/Depth/Height ..............................................................................................................................................30 x 27 x 6 in.

Overall Dimensions:

Number of Wheels ....................................................................................................................................................................1

Wheel Diameter ................................................................................................................................................................... 8 in.

Number of Anvils .......................................................................................................................................................................5

Anvil Diameters ....................................................................................................................................................................3 in.

Anvil Contours .........................................................................................................................................

Throat ................................................................................................................................................................................. 22 in.

data sheet

Main Specifications:

Capacity ..................................................................................................................... 16 Gauge Mild Steel, Aluminum, Copper

Construction

Frame ........................................................................................................................................................... Steel Tubing

Wheels ......................................................................................................................................................Hardened Steel

Paint .........................................................................................................................................................Powder Coated

Other Specifications:

Country Of Origin .............................................................................................................................................................. China

Warranty ........................................................................................................................................................................... 1 Year

Assembly Time .........................................................................................................................................................10 Minutes

Features:

Quick-Release Lever
Bench Mount Brackets
1 Wheel, 5 Anvils
Wheel Storage Rack
Solid Welded Frame

-4-

Model T28964 (Mfd. Since 12/18)

SECTION 1: SAFETY

For Your Own Safety, Read Instruction

Manual Before Operating This Machine

The purpose of safety symbols is to attract your attention to possible hazardous conditions.
This manual uses a series of symbols and signal words intended to convey the level of impor­tance of the safety messages. The progression of symbols is described below. Remember that
safety messages by themselves do not eliminate danger and are not a substitute for proper
accident prevention measures. Always use common sense and good judgment.

Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury. It may also be used to alert
against unsafe practices.

Alerts the user to useful information about proper operation of the

NOTICE

machine to avoid machine damage.

Safety Instructions for Machinery

OWNER’S MANUAL. Read and understand this

owner’s manual BEFORE using machine.

TRAINED OPERATORS ONLY. Untrained oper­ators have a higher risk of being hurt or killed.
Only allow trained/supervised people to use this
machine. When machine is not being used, dis­connect power, remove switch keys, or lock-out
machine to prevent unauthorized use—especially
around children. Make your workshop kid proof!

DANGEROUS ENVIRONMENTS. Do not use
machinery in areas that are wet, cluttered, or have
poor lighting. Operating machinery in these areas
greatly increases the risk of accidents and injury.

MENTAL ALERTNESS REQUIRED. Full mental
alertness is required for safe operation of machin­ery. Never operate under the influence of drugs or
alcohol, when tired, or when distracted.

ELECTRICAL EQUIPMENT INJURY RISKS.
You can be shocked, burned, or killed by touching
live electrical components or improperly grounded
machinery. To reduce this risk, only allow qualified
service personnel to do electrical installation or
repair work, and always disconnect power before
accessing or exposing electrical equipment.

DISCONNECT POWER FIRST.
nect machine from power supply BEFORE mak­ing adjustments, changing tooling, or servicing
machine. This prevents an injury risk from unin­tended startup or contact with live electrical com­ponents.

EYE PROTECTION. Always wear ANSI-approved
safety glasses or a face shield when operating or
observing machinery to reduce the risk of eye
injury or blindness from flying particles. Everyday
eyeglasses are NOT approved safety glasses.

Always discon-

Model T28964 (Mfd. Since 12/18)

-5-

WEARING PROPER APPAREL. Do not wear
clothing, apparel or jewelry that can become
entangled in moving parts. Always tie back or
cover long hair. Wear non-slip footwear to reduce
risk of slipping and losing control or accidentally
contacting cutting tool or moving parts.

HAZARDOUS DUST. Dust created by machinery
operations may cause cancer, birth defects, or
long-term respiratory damage. Be aware of dust
hazards associated with each workpiece mate­rial. Always wear a NIOSH-approved respirator to
reduce your risk.

HEARING PROTECTION. Always wear hear­ing protection when operating or observing loud
machinery. Extended exposure to this noise
without hearing protection can cause permanent
hearing loss.

REMOVE ADJUSTING TOOLS. Tools left on
machinery can become dangerous projectiles
upon startup. Never leave chuck keys, wrenches,
or any other tools on machine. Always verify
removal before starting!

USE CORRECT TOOL FOR THE JOB. Only use
this tool for its intended purpose—do not force
it or an attachment to do a job for which it was
not designed. Never make unapproved modifica­tions—modifying tool or using it differently than
intended may result in malfunction or mechanical
failure that can lead to personal injury or death!

AWKWARD POSITIONS. Keep proper footing
and balance at all times when operating machine.
Do not overreach! Avoid awkward hand positions
that make workpiece control difficult or increase
the risk of accidental injury.

CHILDREN & BYSTANDERS. Keep children and
bystanders at a safe distance from the work area.
Stop using machine if they become a distraction.

GUARDS & COVERS. Guards and covers reduce
accidental contact with moving parts or flying
debris. Make sure they are properly installed,
undamaged, and working correctly BEFORE
operating machine.

FORCING MACHINERY. Do not force machine.
It will do the job safer and better at the rate for
which it was designed.

NEVER STAND ON MACHINE. Serious injury
may occur if machine is tipped or if the cutting
tool is unintentionally contacted.

STABLE MACHINE. Unexpected movement dur­ing operation greatly increases risk of injury or
loss of control. Before starting, verify machine is
stable and mobile base (if used) is locked.

USE RECOMMENDED ACCESSORIES. Consult
this owner’s manual or the manufacturer for rec­ommended accessories. Using improper acces­sories will increase the risk of serious injury.

UNATTENDED OPERATION. To reduce the
risk of accidental injury, turn machine OFF and
ensure all moving parts completely stop before
walking away. Never leave machine running
while unattended.

MAINTAIN WITH CARE. Follow all maintenance
instructions and lubrication schedules to keep
machine in good working condition. A machine
that is improperly maintained could malfunction,
leading to serious personal injury or death.

DAMAGED PARTS. Regularly inspect machine
for damaged, loose, or mis-adjusted parts—or
any condition that could affect safe operation.
Immediately repair/replace BEFORE operating
machine. For your own safety, DO NOT operate
machine with damaged parts!

MAINTAIN POWER CORDS. When disconnect­ing cord-connected machines from power, grab
and pull the plug—NOT the cord. Pulling the cord
may damage the wires inside. Do not handle
cord/plug with wet hands. Avoid cord damage by
keeping it away from heated surfaces, high traffic
areas, harsh chemicals, and wet/damp locations.

EXPERIENCING DIFFICULTIES. If at any time
you experience difficulties performing the intend­ed operation, stop using the machine! Contact our
Technical Support at [phone].

-6-

Model T28964 (Mfd. Since 12/18)

Additional Safety for English Wheels

Fingers can be broken or severely pinched if caught between wheels during operation. Severe
cuts can occur from sliding along or pushing against sharp workpiece edges. To minimize risk
of injury, anyone operating this machine MUST completely heed the hazards and warnings
below.

PINCHING/CRUSHING HAZARD. The roll-

ing momentum of wheels can pull your fingers
between them, resulting in pinching or crushing
injuries. Always keep your hands away from
wheel path when moving workpiece through
wheels.

METAL EDGES. The sharp edges of sheet metal
can quickly cut your fingers or hands. Always
wear heavy leather gloves when handling sheet
metal. Always chamfer and deburr sharp metal
edges before inserting them into English Wheel.

TOOL USAGE. This English Wheel was designed
only to form curves in sheet metal material such
as steel, aluminum, and copper. Do not attempt to
process any other material (e.g., glass, ceramic,
plastic, etc.) that could result in material or tool
breakage. Do not modify this tool in any way and
do not exceed the capacity listed in the Machine

Data Sheet.

CRUSHING HAZARD. If wheels or frame should

unexpectedly fall, crushing injuries could result.
Always make sure frame is correctly mounted
to workbench. Make sure anvils are properly
installed on support brackets or storage racks.
Wear steel-toed boots.

BODY POSITION. Losing your balance while
tracking could result in impact injuries or cuts from
sheet metal. Make sure your body and footing are
balanced and in a good position to support your
movement and momentum while tracking.

TOOL INSPECTION. Using English Wheel with
excessively worn or damaged parts could cause
tool to fail and present injury hazards, as well as
yield poor results. Always inspect each part of
English Wheel before beginning operations.

Like all machinery there is potential danger
when operating this machine. Accidents
are frequently caused by lack of familiarity
or failure to pay attention. Use this machine
with respect and caution to decrease the
risk of operator injury. If normal safety pre­cautions are overlooked or ignored, seri­ous personal injury may occur.

Model T28964 (Mfd. Since 12/18)

No list of safety guidelines can be com­plete. Every shop environment is different.
Always consider safety first, as it applies
to your individual working conditions. Use
this and other machinery with caution and
respect. Failure to do so could result in
serious personal injury, damage to equip­ment, or poor work results.

-7-

SECTION 2: SETUP

The following items are needed, but not included,
for the setup/assembly of this machine.

This machine was carefully packaged for safe
transport. When unpacking, separate all enclosed
items from packaging materials and inspect them
for shipping damage.

,

please

IMPORTANT:

you are completely satisfied with the machine and
have resolved any issues between Grizzly or the
shipping agent. You MUST have the original pack-

aging to file a freight claim. It is also extremely
helpful if you need to return your machine later.

Keep children and pets away
from plastic bags or packing
materials shipped with this

Needed for Setup

This machine presents
serious injury hazards
to untrained users. Read
through this entire manu­al to become familiar with
the controls and opera­tions before starting the
machine!

Wear safety glasses during
the entire setup process!

Lifting heavy machinery or
parts without proper assis­tance or equipment may
result in strains, back inju­ries, crushing injuries, or
property damage.

Description Qty

• Additional Person ....................................... 1

• Safety Glasses (per person) ....................... 1

• Flat Head Screwdriver ................................ 1

• Adjustable Wrench ..................................... 1

• Open-End or Socket Wrench 17mm........... 1

• Snap Ring Pliers......................................... 1

• "C" Clamp 4" (or Larger) ............................. 1

• Mounting Hardware (Page 10) ... As Needed

call us immediately at [phone].

Unpacking

If items are damaged

-8-

Save all packaging materials until

SUFFOCATION HAZARD!

machine.

Model T28964 (Mfd. Since 12/18)

Inventory

The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.

If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.

A

B

C

D

NOTICE

If you cannot find an item on this list, care­fully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpack­ing or they are pre-installed at the factory.

Inventory (Figures 1–2) Qty

A. Frame ......................................................... 1

Wheel ......................................................... 1

B.

Anvil Rack .................................................. 1

C.

Anvils w/Axle Shafts

D.

—3" Radius ................................................ 1

—4" Radius
—5" Radius
—6" Radius
—8" Radius

Mounting Brackets ...................................... 4

E.

Lock Nuts M10-1.5 ...................................... 4

F.

Flat Washers 10mm ................................... 8

G.

Hex Bolts M10-1.5 X 80 ............................. 4

H.

Wheel Axle Shaft 17 x 90mm ..................... 1

I.

External Retaining Rings 17mm ................. 2

J.

Adjustment Handwheel Handles ................ 3

K.

Button Head Cap Screws M6-1 x 10 .......... 2

L.

Hex Wrench 5mm ....................................... 1

M.

................................................ 1

................................................ 1

................................................ 1

................................................ 1

Figure 1. Frame, wheel, anvils, and rack.

E

I

J

Figure 2. Loose inventory.

F G

K

H

L

M

Model T28964 (Mfd. Since 12/18)

-9-

Site Considerations

vised around this machine.

or disable start switch or

Refer to the Machine Data Sheet for the weight
and footprint specifications of your machine.
Some workbenches may require additional rein­forcement to support the weight of the machine
and workpiece materials.

Consider anticipated workpiece sizes and addi­tional space needed for auxiliary stands, work
tables, or other machinery when establishing a
location for this machine in the shop. Below is
the minimum amount of space needed for the

Workbench Load

Placement Location

27"

9"

71/2"

Bench Mounting

mounting hardware

Number of Mounting Holes ............................ 8

Diameter of Mounting Hardware Needed

Lifting heavy machinery or
parts without proper assis­tance or equipment may
result in strains, back inju­ries, crushing injuries, or
property damage.

The forces exerted on the English wheel dur­ing operation are substantial. It must be firmly
secured to a workbench or table that will sup­port the weight and dynamic pressures of the
operation.

Make sure that you have a workbench set up
for the English wheel before performing the
Assembly instructions. Refer to
options from Grizzly.

Page 19 for

..3⁄8"

29"

Figure 3. Minimum working clearances.

Children and visitors may be
seriously injured if unsuper-

Lock entrances to the shop

power connection to prevent
unsupervised use.

Make sure the workbench or table that the
English wheel will be mounted on is stable
and can support the weight of the machine,
the workpiece, and the forces exerted dur­ing operation.

-10 -

Model T28964 (Mfd. Since 12/18)

Another option is a "direct mount" (see example
below) where the machine is secured directly to
the workbench with lag screws and washers.

The strongest mounting option is a "Through
Mount" (see example below) where holes are
drilled all the way through the workbench—and
hex bolts, washers, and hex nuts are used to
secure the machine in place.

Hex
Bolt

Assembly

The machine must be fully assembled before it
can be operated. Before beginning the assembly
process, refer to Needed for Setup and gather
all listed items.

Flat Washer

Machine Base

Workbench

Flat Washer

Lock Washer

Hex Nut

Figure 4. "Through Mount" setup.

Lag Screw

Flat Washer

Lifting heavy machinery or
parts without proper assis­tance or equipment may
result in strains, back inju­ries, crushing injuries, or
property damage.

To assemble English wheel:

1. Open cardboard box, and with help from

another person, place frame on workbench.

2. Attach (4) mounting brackets to frame with
(4) M10-1.5 x 80 hex bolts, (8) 10mm flat
washers, and (4) M10-1.5 lock nuts (see
Figure 6).

x 4

Machine Base

Workbench

Model T28964 (Mfd. Since 12/18)

Figure 5. "Direct Mount" setup.

x 4

Figure 6. Mounting brackets attached to frame.

-11-

3. Mount frame to workbench (refer to Bench
Mounting for instructions). If you are not

ready to permanently mount machine to
workbench, temporarily secure frame to
workbench with a "C" clamp (see

Frame

Workbench

Figure 7).

"C"

Clamp

5. Attach (3) adjustment handwheel handles
to handwheel hub, as shown in
Secure handles by tightening jam nuts.

Jam Nut

Handle

Hub

Figure 9. Adjustment handles attached to

handwheel hub.

Figure 9.

Figure 7. "C" clamp used to temporarily secure

frame to workbench.

4. Attach anvil storage rack to frame with (2)
M6-1 x 10 button head cap screws (see
Figure 8).

Frame

Figure 8. Anvil storage rack attached to frame.

6. Attach wheel to wheel bracket with (1) axle

shaft and (2) 17mm external retaining rings,
as shown in

Wheel

Bracket

Wheel

Figure 10. Attaching wheel to wheel bracket.

To avoid serious crushing injury and equip­ment damage, DO NOT operate English
wheel until it is properly mounted on a
workbench or table.

Figure 10.

Axle

Shaft

Retaining

Ring

-12-

Model T28964 (Mfd. Since 12/18)

SECTION 3: OPERATIONS

The purpose of this overview is to provide the nov­ice machine operator with a basic understanding
of how the machine is used during operation, so
the

discussed later

in this manual

Due to the generic nature of this overview, it is
not intended to be an instructional guide. To learn
more about specific operations, read this entire
manual,

training from experienced
machine operators
outside of this manual by reading "how-to" books,
trade magazines, or websites.

To reduce your risk of
serious injury, read this
entire manual BEFORE

Operation Overview

machine controls/components

are easier to understand.

seek additional

, and do additional research

To complete a typical operation, the operator
does the following:

Puts on steel toe footwear, leather gloves,

1.

and safety glasses.

Deburrs sharp edges.

2.

3. Cleans workpiece, wheel, and anvils thor-

oughly and removes all abrasive particles.

Installs anvil with greatest radius (least

4.

amount of curve).

Verifies bottom of wheel and top of anvil are

5.

about an inch apart, and adjusts distance
with anvil adjustment handwheel.

6. Marks approximate 1" frame around
workpiece (refer to
workpiece between wheel and anvil.

Page 14), then inserts

using machine.

Bodily injury could result from using this
machine. Always wear safety glasses,
leather gloves, and steel toe footwear when
operating machine or handling sheet metal.

If you are not experienced with this type
of machine, WE STRONGLY RECOMMEND
that you seek additional training outside of
this manual. Read books/magazines or get
formal training before beginning any proj­ects. Regardless of the content in this sec­tion, Grizzly Industrial will not be held liable
for accidents caused by lack of training.

Model T28964 (Mfd. Since 12/18)

Rotates anvil adjustment handwheel until

7.

there is just enough pressure to prevent
workpiece from skipping or slipping, and then
tightens elevation stop.

Moves workpiece back and forth through

8.

wheel and anvil using a tracking pattern (refer

Page 17), rolling it up to an edge, rotating

to
it slightly, then pulling it back.

When workpiece no longer stretches, rotates

9.

anvil adjustment handwheel clockwise to
slightly increase pressure.

When maximum pressure is reached and

10.

workpiece no longer moves through wheel
and anvil, changes anvil to next lower radius.

Repeats Steps 5–10 until curve is attained.

11.

-13-

Tracking Tips

• Stretching metal into a curve should be
a gradual process. Always start with just
enough pressure to prevent the workpiece
from skipping or slipping through the wheel
and anvil. After the initial curve has formed,
increase the pressure slightly and continue
stretching the metal. Repeat this process
until the desired curve is attained. Using too
much pressure will damage the workpiece
surface and produce poor results.

• Overlap each pass with the previous one in
a smooth, back-and-forth movement through
the wheel and anvil, as shown in
There are many patterns of tracking that will
produce different results. Refer to
for additional tracking patterns. Choosing the
correct pattern for your operation is a matter
of research and experience.

• Try using the lightest pressure possible to
shape the workpiece. Too much pressure
will crease or ruin the metal. Light pressure
is best for smoothing; higher pressure is best
for rough shaping.

Figure 11.

Page 17

• Start with the anvil that has the greatest radi­us (least amount of curve), then decrease the
anvil radius a step at a time until the desired
curve is reached.

• Mark the workpiece with a non-permanent
marker to make it easier to follow tracking
patterns or contour the metal.

• Practice with a scrap piece that is the same
material and thickness as the final workpiece.

• Leave a frame around the workpiece of
approximately 1" that does not go through
the wheel and anvil (see
center of the workpiece stretches and the
frame does not, the metal is forced to bend
into a curve. Some workpieces may need a
larger frame to accommodate expansion of
the metal and removal of excess material, if
needed.

Figure 11). As the

• Take your time. Start rolling slowly and
increase your speed. Many passes through
the wheel and anvil with gradual increases
in pressure and anvil radii will produce good
results and reduce the risk of damaging the
workpiece surface.

...and so on

Frame

Figure 11. Example of frame around workpiece

and basic back-and-forth tracking pattern.

-14-

Model T28964 (Mfd. Since 12/18)

Replacing Anvils

The Model T28964 comes with five (3", 4", 5", 6"
and 8" radius) crowned anvils that will accommo­date most curving operations.

Item(s) Needed Qty

Small Wood Block ............................................. 1

Hammer

To replace an anvil:

Loosen elevation stop jam nut and set screw

1.

............................................................. 1

(see Figure 12), and lower the anvil bracket
until it stops.

replacing lower wheels

Raise anvil bracket to operating position and

3.

set elevation stop.

Rotating Wheel &

Anvils

The wheel and anvils can be positioned parallel to
the frame (Figure 14, A) for wide workpieces or
perpendicular to the frame (Figure 14, B) for long
workpieces.

A B

Anvil

Figure 12. Anvil bracket lowered.

Remove anvil and replace it with another

2.

one.

Note: If needed, use a small wood block and

a hammer to tap anvil free from bracket, as
shown in

Figure 13.

Anvil

Anvil Bracket

in Lowest

Position

Elevation Stop
Jam Nut & Set

Screw

Figure 14. Wheel and anvil positioned to

accommodate different workpiece sizes.

PINCHING/CRUSHING HAZARD!
Avoid placing fingers in wheel/anvil path
during operation.

Item(s) Needed Qty

Snap Ring Pliers ................................................ 1

Small Wood Dowel

To rotate wheel:

............................................ 1

Wood Block

Hammer

Figure 13. Tapping anvil free from bracket.

Model T28964 (Mfd. Since 12/18)

1. Remove (1) 17mm external retaining ring
from wheel axle shaft.

-15-

2. While holding wheel, slide axle shaft (see
Figure 15) out of bracket and wheel. Wheel

will drop free when axle shaft is removed.

IMPORTANT: Wheel is heavy! Be prepared

to hold it once the axle shaft is removed.

Note: If needed, use a wood dowel to start

sliding shaft out.

Axle

Shaft

Wheel

Hold Wheel

Here

To rotate anvil:

1. Remove anvil (refer to Replacing Anvils on
Page 15 for instructions).

2. Loosen (4) set screws (see Figure 17) on

anvil bracket.

Anvil Bracket

x 4

Figure 17. Location of anvil bracket set screws.

Figure 15. Removing wheel.

3. While holding wheel bracket, remove hex

bolts (see

Frame

Wheel

Bracket

Figure 16. Location of wheel bracket hex bolts.

4. Re-install wheel bracket in new position. Two

sets of threaded holes in frame allow for
parallel or perpendicular positioning of wheel
bracket.

Figure 16) that secure it to frame.

3. Rotate anvil bracket to new position, then

tighten set screws.

4. Re-install anvil.

Raise anvil bracket to operating position and

5.

set elevation stop.

5. Re-install wheel.

-16 -

Model T28964 (Mfd. Since 12/18)

Tracking Patterns

B

B

B

Push workpiece forward to stop point.

2.

tracking

As metal passes between the wheel and anvil,
a "track" or shiny line is pressed into the metal.
Various tracking patterns can be used to shape
workpieces depending upon their shape or size.

Note: Most of the figures in this section are shown
without a frame for clarity, but we recommend
leaving about a 1" border around the workpiece
(see Figure 18) so the metal bends correctly.

Workpiece

Start

A

Panel

Movement

(Stop)

Figure 19. Starting zigzag pattern.

Turn workpiece counterclockwise slightly

3.
(see Figure 20).

Start

A

Frame

Figure 18. Example of frame around workpiece.

Zigzag Pattern

This pattern resembles the closely-spaced tracks
of a lawn mower cutting a lawn. It can be used for
a variety of workpiece shapes.

To use zigzag tracking pattern:

Insert workpiece between wheel and anvil at

1.

point A, and start rolling it along left edge, as
shown in Figure 19.

CAUTION: Move your hands out of pathway

so you do not pinch them!

(Stop)

Figure 20. Workpiece turned counterclockwise.

4.

Pull workpiece back until it reaches next point

near far edge, as shown in Figure 21.

A

Panel

Movement

Model T28964 (Mfd. Since 12/18)

Figure 21. Workpiece moved to next point.

-17-

5.

B

Turn workpiece clockwise (see Figure 22).

A

7. When wheels reach point B, reverse feed
direction (see Figure 24) and return to
point A.

Figure 22. Workpiece turned clockwise.

6.

Continue feeding workpiece to other side in

same manner, following pattern shown in
Figure 23.

A

Move
Panel
Along

Zigzags

Feed Direction

A

Feed Direction

Finish

B

Figure 24. Zigzagging while feeding workpiece

to right.

Star Pattern

The star pattern (see Figure 25) is useful for
shaping round workpieces.

Note: Avoid rolling directly over center of
workpiece, as too many passes could overstretch
metal.

Direction to Turn Workpiece

B

Figure 23. Zigzagging while feeding workpiece

to other side.

Note: Try keeping tracks close to each other.
Use a non-permanent marker to mark lines in a
consistent pattern.

-18-

Figure 25. Star pattern.

Model T28964 (Mfd. Since 12/18)

SECTION 4: ACCESSORIES

Installing unapproved accessories may

order online at www.grizzly.com or call 1-800-523-4777

T10456—Heavy-Duty Anti-Fatigue Mat 3' x 5'

This Heavy-Duty Anti-Fatigue Mat features bev­eled edges and no-slip tread for safety and
comfort. Open-hole design allows liquid to drain
through, so it's perfect for wet or oily conditions.
Measures 3' wide x 5' long x

Accessories

cause machine to malfunction, resulting in
serious personal injury or machine damage.
To reduce this risk, only install accessories
recommended for this machine by Grizzly.

NOTICE

Refer to our website or latest catalog for
additional recommended accessories.

T25091 - 84" x 26" Heavy-Duty Workbench

Measuring 7' long, this massive workbench is
perfect for any large assembly jobs. It features
4 drawers with ball-bearing slides and a storage
shelf for keeping tools close at hand. Solid birch
construction will stand up to decades of hard use.

H5503—Electric Sheet Metal Shear

• Motor: 1⁄2 HP, 110V, 2500 RPM, 3.8 Amp

• Swivel head adjust 360°

• Variable speed: 0–2500 RPM

• Cuts up to 14 gauge in mild steel and 18
gauge in stainless, at up to 150 in./min.

• Weighs 5 lbs.

Figure 26. T25091 84" x 26" Heavy-Duty

Workbench.

Figure 27. H5503 Electric Sheet Metal Shear.

3

⁄8" thick.

Figure 28. T10456 Anti-Fatigue Mat.

Model T28964 (Mfd. Since 12/18)

-19 -

SECTION 5: MAINTENANCE

Schedule

For optimum performance from this machine, this
maintenance schedule must be strictly followed.

Ongoing

To maintain a low risk of injury and proper
machine operation, if you ever observe any of the
items below, shut down the machine immediately
and fix the problem before continuing operations:

• Loose mounting bolts.

• Any other unsafe condition.

Weekly Maintenance

• Lubricate axle shafts and adjustment shaft.

• Apply corrosion protectant to wheel and
anvils.

Cleaning &

Lubrication

Axle Shafts & Anvil Bracket Shaft

Grease Type ......................NLGI#2 or Equivalent

Grease Amount
Lubrication Frequency

Apply a thin coat of grease to the wheel and
anvil axle shafts and the anvil bracket shaft (see
Figure 30).

Anvil Axle Shaft

Wheel Axle Shaft

....................................Thin Coat

..... Weekly, or As Needed

Anvil

Bracket

Shaft

Protecting

Use a brush to clear away any metal debris and
dust from the frame, brackets, wheel, and anvils.

Use a shop rag to apply a thin coat of quality
metal protectant to wheels to prevent corrosion.

cleaning protecting

G2870—T-9 Boeshield, 4 Oz.
G2871—T-9 Boeshield, 12 Oz.

This protective spray penetrates deep and holds
up the longest against corrosive environments.

Figure 30. Upper and lower wheel axle shafts.

T26419—Syn-O-Gen Synthetic Grease

Formulated with 100% pure synthesized hydrocar­bon base stocks that are compounded with spe­cial thickeners and additives to make Syn-O-Gen
non-melt, tacky, and water resistant. Extremely
low pour point, extremely high temperature oxida­tion, and thermal stability produce a grease that is
unmatched in performance.

-20-

Figure 29. T-9 Boeshield.

Figure 31. T26419 Syn-O-Gen Synthetic

Grease.

Model T28964 (Mfd. Since 12/18)

Review the troubleshooting procedures in this section if a problem develops with your machine. If you need

the

serial number and manufacture date of your machine before calling.

SECTION 6: SERVICE

replacement parts or additional help with a procedure, call our Technical Support. Note: Please gather

Troubleshooting

Operations

Symptom Possible Cause Possible Solution

Workpiece surface
is marred or
scratched.

Workpiece has
wrinkles.

Excessive force
required to move
workpiece through
wheel and anvil.

Workpiece curve is
too high.

Workpiece curve is
not high enough.

Workpiece curve will
not form.

Wheel does not
shape workpiece.

1. Too much anvil pressure.

2. Wheel/anvil dirty.

3. Wheel/anvil dinged or gouged.

1. Tracking pattern at fault.

2. Too much anvil pressure.

1. Too much anvil pressure.

2. Wheel/anvil bearings at fault.

1. Anvil radius is too small. 1. Use anvil with a larger radius (less crown).

1. Anvil radius is too large. 1. Start with anvil of largest radius (least curve) and

1. Not enough anvil pressure. 1. Gradually increase anvil pressure.

1. Workpiece is too thick.

2. Crown is too low; incorrect anvil selection.

3. Not enough anvil pressure.

1. Reduce anvil pressure.

2. Clean and protect wheel/anvil surfaces (Page 20).

3. Replace.

1. Use a consistent and smooth tracking pattern that
overlaps with each back-and-forth pass.

2. Start with least amount of pressure, then gradually
increase anvil pressure when curve stops forming.

1. Reduce anvil pressure.

2. Replace wheel/anvil bearings.

work up to correct radius for operation.

1. Use sheet metal of appropriate thickness (Page 4).

2. Use anvil with a smaller radius (more crown).

3. Gradually increase anvil pressure.

Model T28964 (Mfd. Since 12/18)

-21-

12

We do our best to stock replacement parts when possible, but we cannot guarantee that all parts shown
are available for purchase. Call [phone] or visit www.grizzly.com/parts to check for availability.

SECTION 7: PARTS

35

WARNING!

PINCH HAZARD!

Keep hands/fingers
clear of top and bottom
rollers when rolling to
reduce risk of pinch
injuries.

34

1

2

3

grizzly.com

32

4

29

5

WARNING!

To reduce risk of death
or serious injury, read
manual BEFORE using
machine.

To get a new manual, call
[phone] or go to
www.grizzly.com.

33

To reduce risk of death
or serious injury, read
manual BEFORE using
machine.

To get a new manual, call
[phone] or go to
www.grizzly.com.

Specifications

Max Capacity Mild Steel: 16 Ga.

Date

Throat Depth: 22"
Weight: 100 lbs.

S/N

Mfd. for Grizzly in China

WARNING!

6

MODEL T28964

WARNING!

22" HEAVY-DUTY BENCHTOP ENGLISH WHEEL

To reduce risk of serious personal injury when using this machine:

1. Read and understand manual before using.

2. Always wear ANSI-approved safety glasses, leather gloves, and steel-toed shoes.

3. Properly secure machine to bench before using.

4. Keep hands and fingers clear from rollers during operation.

5. DO NOT exceed rated capacity of machine.

6. DO NOT operate under influence of drugs or alcohol, or when tired.

7. Prevent unauthorized use by children or untrained users; restrict access when unattended.

Specifications

Max Capacity Mild Steel: 16 Ga.
Throat Depth: 22"
Weight: 100 lbs.

Mfd. for Grizzly in China

31

22" HEAVY-DUTY BENCHTOP ENGLISH WHEEL

To reduce risk of serious personal injury when using this machine:

1. Read and understand manual before using.

2. Always wear ANSI-approved safety glasses, leather gloves, and steel-toed shoes.

3. Properly secure machine to bench before using.

Date

4. Keep hands and fingers clear from rollers during operation.

5. DO NOT exceed rated capacity of machine.

S/N

6. DO NOT operate under influence of drugs or alcohol, or when tired.

7. Prevent unauthorized use by children or untrained users; restrict access when unattended.

28

WARNING!

PINCH HAZARD!

Keep hands/fingers
clear of top and bottom
rollers when rolling to
reduce risk of pinch
injuries.

MODEL T28964

WARNING!

29

26

6

26

7

26

16

27

24

25

8

9

10

11

30

13

15

26

27

14

17

18

19

20

21

15

22

23

Safety labels help reduce the risk of serious
injury caused by machine hazards. If any
label comes off or becomes unreadable,
the owner of this machine MUST replace
it in the original location before resuming
operations.

REF PART # DESCRIPTION REF PART # DESCRIPTION

1 PT28964001 FRAME 19 PT28964019 HANDLE HUB
2 PT28964002 WHEEL BRACKET 20 PT28964020 FLAT WASHER 8MM
3 PT28964003 WHEEL 21 PT28964021 CAP SCREW M8-1.25 X 16
4 PT28964004 HEX BOLT M10-1.5 X 25 22 PT28964022 HOLLOW HANDLE 25 X 100, ID 10
5 PT28964005 AXLE SHAFT 17 X 90 23 PT28964023 SLOTTED BOLT M10-1.5 X 120

6 PT28964006 EXT RETAINING RING 17MM 24 PT28964024 ANVIL STORAGE RACK
7 PT28964007 ANVIL 3" RADIUS 25 PT28964025 BUTTON HD CAP SCR M6-1 X 10
8 PT28964008 ANVIL 4" RADIUS 26 PT28964026 MOUNTING BRACKET
9 PT28964009 ANVIL 5" RADIUS 27 PT28964027 HEX BOLT M10-1.5 X 80
10 PT28964010 ANVIL 6" RADIUS 28 PT28964028 LOCK NUT M10-1.5
11 PT28964011 ANVIL 8" RADIUS 29 PT28964029 FLAT WASHER 10MM
12 PT28964012 ANVIL BRACKET 30 PT28964030 HEX WRENCH 5MM
13 PT28964013 SET SCREW M10-1.5 X 25 31 PT28964031 MACHINE ID LABEL
14 PT28964014 ANVIL BRACKET SHAFT 32 PT28964032 GRIZZLY.COM LABEL
15 PT28964015 HEX NUT M10-1.5 33 PT28964033 READ MANUAL LABEL
16 PT28964016 SET SCREW M10-1.5 X 30 34 PT28964034 PINCH WARNING LABEL
17 PT28964017 LEADSCREW 35 PT28964035 TOUCH-UP PAINT, GRIZZLY GREEN
18 PT28964018 KEY 6 X 6 X 25

-22-

BUY PARTS ONLINE AT GRIZZLY.COM !

Scan QR code to visit our Parts Store.

Model T28964 (Mfd. Since 12/18)

WARRANTY CARD

Name _____________________________________________________________________________

Street _____________________________________________________________________________

City _______________________ State _________________________ Zip _____________________

Phone # ____________________ Email _________________________________________________

Model # ____________________ Order # _______________________ Serial # __________________

The following information is given on a voluntary basis. It will be used for marketing purposes to help us develop
better products and services. Of course, all information is strictly confidential.

1. How did you learn about us?
____ Advertisement ____ Friend ____ Catalog
____ Card Deck ____ Website ____ Other:

2. Which of the following magazines do you subscribe to?

____ Cabinetmaker & FDM
____ Family Handyman
____ Hand Loader
____ Handy
____ Home Shop Machinist
____ Journal of Light Cont.
____ Live Steam
____ Model Airplane News
____ Old House Journal
____ Popular Mechanics

3. What is your annual household income?
____ $20,000-$29,000 ____ $30,000-$39,000 ____ $40,000-$49,000
____ $50,000-$59,000 ____ $60,000-$69,000 ____ $70,000+

CUT ALONG DOTTED LINE

4. What is your age group?
____ 20-29 ____ 30-39 ____ 40-49
____ 50-59 ____ 60-69 ____ 70+

5. How long have you been a woodworker/metalworker?
____ 0-2 Years ____ 2-8 Years ____ 8-20 Years ____20+ Years

6. How many of your machines or tools are Grizzly?
____ 0-2 ____ 3-5 ____ 6-9 ____ 10+

____ Popular Science
____ Popular Woodworking
____ Precision Shooter
____ Projects in Metal
____ RC Modeler
____ Rie
____ Shop Notes
____ Shotgun News
____ Today’s Homeowner
____ Wood

____ Wooden Boat
____ Woodshop News
____ Woodsmith
____ Woodwork
____ Woodworker West
____ Woodworker’s Journal
____ Other:

7. Do you think your machine represents a good value? _____Yes _____No

8. Would you recommend Grizzly Industrial to a friend? _____Yes _____No

9. Would you allow us to use your name as a reference for Grizzly customers in your area?
Note: We never use names more than 3 times. _____Yes _____No

10. Comments: _____________________________________________________________________
