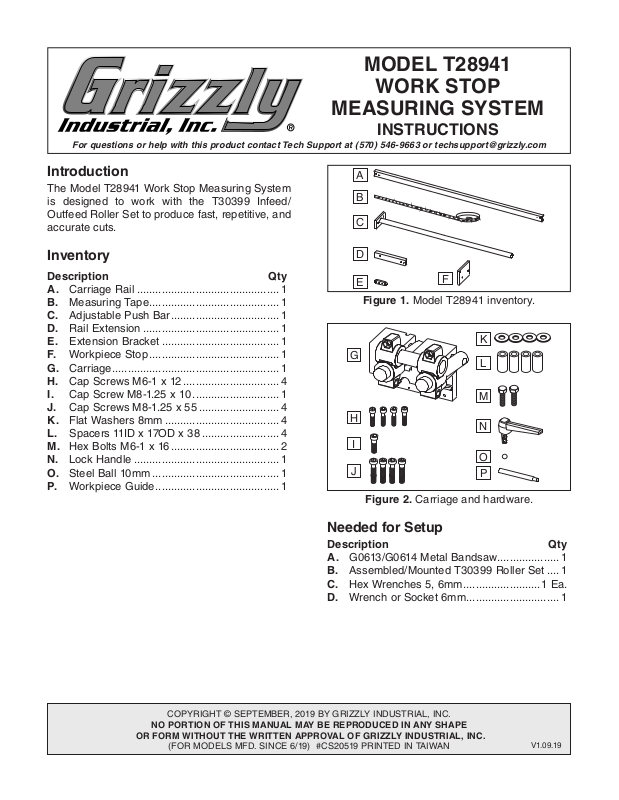

Grizzly T28941 User guide

MODEL T28941

WORK STOP

MEASURING SYSTEM

INSTRUCTIONS

For questions or help with this product contact Tech Support at [phone] or [e-mail]

Introduction

The Model T28941 Work Stop Measuring System
is designed to work with the T30399 Infeed/
Outfeed Roller Set to produce fast, repetitive, and
accurate cuts.

Inventory

Description Qty

A. Carriage Rail .............................................. 1

Measuring Tape .......................................... 1

B.

Adjustable Push Bar ................................... 1

C.

Rail Extension ............................................ 1

D.

Extension Bracket ...................................... 1

E.

Workpiece Stop .......................................... 1

F.

Carriage ...................................................... 1

G.

Cap Screws M6-1 x 12 ............................... 4

H.

Cap Screw M8-1.25 x 10 ............................ 1

I.

Cap Screws M8-1.25 x 55 .......................... 4

J.

Flat Washers 8mm ..................................... 4

K.

Spacers 11ID x 17OD x 38 ......................... 4

L.

Hex Bolts M6-1 x 16 ................................... 2

M.

Lock Handle ............................................... 1

N.

Steel Ball 10mm ......................................... 1

O.

Workpiece Guide ........................................ 1

P.

A

1

2

3

4

5

B

C

6

7

8

9

1

0

1

1

1

2

1

3

1

4

1

5

1

6

1

7

1

8

1

9

2

0

2

6

2

1

2

5

2

4

2

3

2

2

D

E

F

Figure 1. Model T28941 inventory.

K

G

L

M

H

N

I

O

J

P

Figure 2. Carriage and hardware.

Needed for Setup

Description Qty

A. G0613/G0614 Metal Bandsaw .................... 1

Assembled/Mounted T30399 Roller Set .... 1

B.

Hex Wrenches 5, 6mm .........................1 Ea.

C.

Wrench or Socket 6mm .............................. 1

D.

COPYRIGHT © SEPTEMBER, 2019 BY GRIZZLY INDUSTRIAL, INC.

NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

(FOR MODELS MFD. SINCE 6/19) #CS20519 PRINTED IN TAIWAN

V1.09.19

Assembly

1.

Attach rail extension to carriage rail with

extension bracket and (4) M6-1 x 12 cap
screws (see Figure 3). Attach rail extension
to side of carriage rail shown in Figure 4, as
it will need clearance when rail is attached to
machine.

Bracket

4.

Attach workpiece stop to end of push bar

using (2) M6-1 x 16 hex bolts (see Figure 5).

Workpiece

Stop

Push Bar

Extension

Carriage Rail

Figure 3. Rail extension attached to carriage rail.

Attach carriage rail to roller table using (4)

2.

M8-1.25 x 55 cap screws, (4) 8mm washers,
and (4) spacers (see Figure 4).

Measuring Tape

0"

x4

Rail Extension

Figure 5. Workpiece stop and push bar.

5.

Slide carriage onto measuring rail. Measure

gauge on carriage should depict measur­ing numbers, or carriage is backwards (see
Figure 6).

Measure

Gauge

Measuring Rail

Figure 6. Assembled carriage and rail (roller

table removed for clarity).

6. Thread M8-1.25 x 10 cap screw into end of
rail extension to secure (see Figure 7).

Figure 4. Roller table with extended rail.

3. Unroll measuring tape and affix to the full

measuring rail assembled in Step 2. Take
care to line up the edge, beginning at 0" (see
Figure 4).

-2-

Figure 7. Rail extension cap screw.

T28941 Work Stop Measuring System (Mfd. 6/19+)

7. Insert steel ball into hole at back of carriage
(see Figure 8) and secure by screwing in
lock handle. Use this handle to position and
lock carriage at different measurements.

Carriage

9. Align workpiece stop with workpiece where it
will contact bandsaw blade (see Figure 10).

Bandsaw

Blade

Steel Ball

(hidden)

Lock Handle

Figure 8. Steel ball secured by lock handle.

Set and lock measuring gauge at 0" then line

8.

up push bar mounts at base of carriage (see
Figure 9). Slide push bar through mounts
with workpiece stop positioned on bandsaw
side.

Push Bar

Mounts

Work Stop

Figure 10. Push bar aligned with workpiece

cutting point.

Tighten pre-installed hardware in bar mounts.

10.

11

. For cuts larger than 8", attach workpiece

guide to workpiece stop by screwing guide
threads into corner hole of stop (see Figure

11).

Stop

Guide

Figure 9. Push bar and mounts.

T28941 Work Stop Measuring System (Mfd. 6/19+)

Figure 11. Workpiece guide and stop. (Other

assembled parts removed for clarity).

-3-

T28941 Parts Breakdown

Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here

are available for purchase. Call [phone] or visit our online parts store at www.grizzly.com to check for availability.

14

6-8

6-16

6-9

6-15

6-10

6-19

6-11

6-12

6-13

6-14

6-15

6-16

6-18

6-24

6-29

6-28

6-30

6-2

6-1

6-17

6-12

6-26

6-22

6-3

6-18

6-4

6-21

6-7

6-5

6-6

6-20

6-17

6-23

6-27

6-26

6-25

6-24

2

13

1

2

3

4

5

6

7

8

9

1

0

12

11

1

1

1

2

1

3

1

4

1

5

1

6

1

7

1

8

1

9

2

0

2

1

2

2

2

3

2

4

10

1

3

4

2

5

2

6

2

7

2

8

2

9

3

0

3

1

3

2

3

3

3

4

3

5

3

6

3

7

3

8

3

9

4

0

5

6

9

8

7

REF PART # DES CRIP TION REF PART # DES CRIP TION

1 PT28941001 CARRI AGE RAIL 6-17 PT28941006-17 HEX NUT M5- . 8
2 PT28941002 CAP SCREW M6-1 X 12 6-18 PT28941006-18 BUTTON HD CAP S CR M5- . 8 X 20
3 PT28941003 EXTENSION BRACKET 6-19 PT28941006-19 BEARING BAR
4 PT28941004 RAIL EXTENSION 6-20 PT28941006-20 FLAT WASHE R 5MM
5 PT28941005 HEX BOLT M6-1 X 16 6-21 PT28941006-21 CAP SCREW M8-1.25 X 20
6 PT28941006 CARRI AG E 6-22 PT28941006-22 ROLL PIN 5 X 25
6-1 PT28941006-1 EXT TO OTH WA SHE R 5MM 6-23 PT28941006-23 CROSS BAR
6-2 PT28941006-2 MEASURI NG POINTER 6-24 PT28941006-24 LOCK NUT M8-1.25
6-3 PT28941006-3 PHLP HD SCR M5-. 8 X 6 6-25 PT28941006-25 CARRIAG E MO UNT BA R
6-4 PT28941006-4 MEAS URI NG WEDGE 6-26 PT28941006-26 CAP SCREW M8-1.25 X 25
6-5 PT28941006-5 SET SCREW M5-.8 X 6 6-27 PT28941006-27 CARRI AGE MOUNT
6-6 PT28941006-6 MEAS URI NG ROD 6-28 PT28941006-28 HEX BOLT M6-1 X 16
6-7 PT28941006-7 CARRI AGE BODY 6-29 PT28941006-29 HEX NUT M8-1. 25
6-8 PT28941006-8 SET SCREW M4-.7 X 6 6-30 PT28941006-30 HEX BOLT M8-1.25 X 45
6-9 PT28941006-9 ADJ HANDLE 25 X 80, M12-1.75 X 40 7 PT28941007 ADJ USTABLE PUSH BAR
6-10 PT28941006-10 STEEL BALL 10MM 8 PT28941008 WORKPIECE STOP
6-11 PT28941006-11 SET SCREW 8-32 X 1/4 9 PT28941009 WORKPIECE GUIDE
6-12 PT28941006-12 BALL BEARING 608-2RS 10 PT28941010 MEASURING TAPE
6-13 PT28941006-13 ROLL PIN 5 X 20 11 PT28941011 CAP SCREW M8-1.25 X 55
6-14 PT28941006-14 CARRIAG E CO NNECTI NG LO CK 12 PT28941012 FLAT WASHE R 8MM
6-15 PT28941006-15 FLAT WASHE R 8MM 13 PT28941013 SPACER 11ID X 17OD X 38
6-16 PT28941006-16 BALL BEARING 608-2RS 14 PT28941014 CAP SCREW M8-1.25 X 10

-4-

BUY PARTS ONLINE AT GRIZZLY.C OM!

Scan QR code to visit our Parts Store.

T28941 Work Stop Measuring System (Mfd. 6/19)
