Grizzly T28929 User guide

MODEL T28929

To reduce your risk of
serious injury, read this
entire manual BEFORE

2" PIPE/TUBE NOTCHER

INSTRUCTIONS

For questions or help with this product contact Tech Support at [phone] or [e-mail]

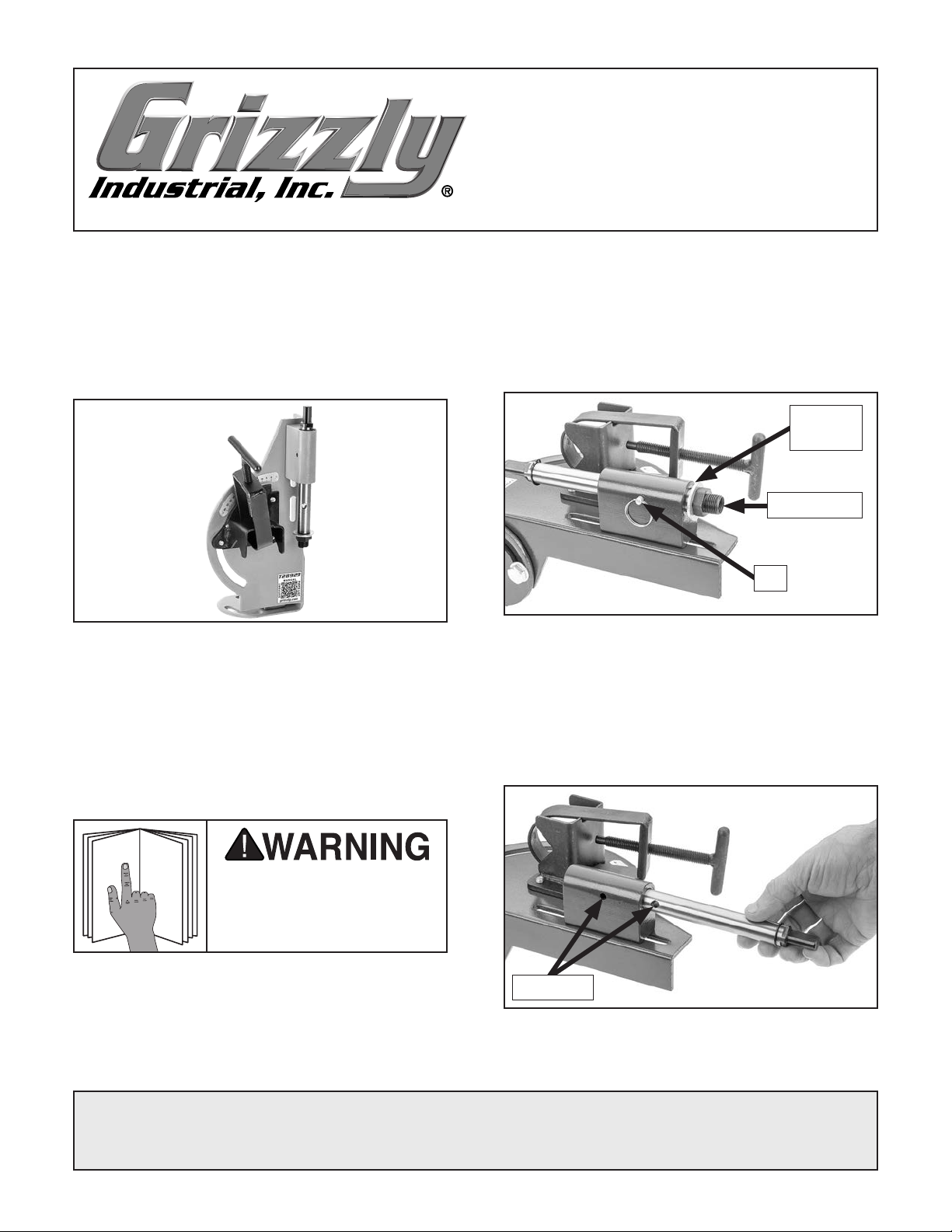

Introduction

The T28929 2" Pipe/Tube Notcher cuts notches in
pipe and tubing to make joints that fit together per­fectly. This notcher features a durable steel frame,
is capable of 0º–45º angle cuts, and works with
any standard drill press or slow-speed hand drill.

Figure 1. T28929 2" Pipe/Tube Notcher.

Specifications

Maximum Tube Diameter ................................. 2"

Chuck Dimension
Workpiece Degree Range
Req. Clearance Between Chuck and Table
Spindle Threads

............................................1⁄2 "

........................ 0º–45º

... 14"

.......................................1⁄2 ", 5⁄8"

To install spindle for use:

Pull pin shown in Figure 2 to release spindle.

1.

Remove 5⁄8" adapter and washer from spindle

2.

(see Figure 2).

Adapter
Washer

5

⁄8" Adapter

Pin

Figure 2. Spindle release components.

3. Re-insert spindle, threaded end first (see
Figure 3).

Align hole in side of spindle with hole in

4.
bracket and insert pin (see Figure 3).

using machine.

Assembly

The notcher comes from the factory with the
spindle inverted. Before use, the spindle must be
removed and turned around.

COPYRIGHT © MAY, 2020 BY GRIZZLY INDUSTRIAL, INC., REVISED DECEMBER 2020 (KS)

NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

(FOR MODELS MFD. SINCE 11/20) #CS21020 PRINTED IN CHINA

Pin Holes

Figure 3. Inserting spindle for operations.

V2.12.20

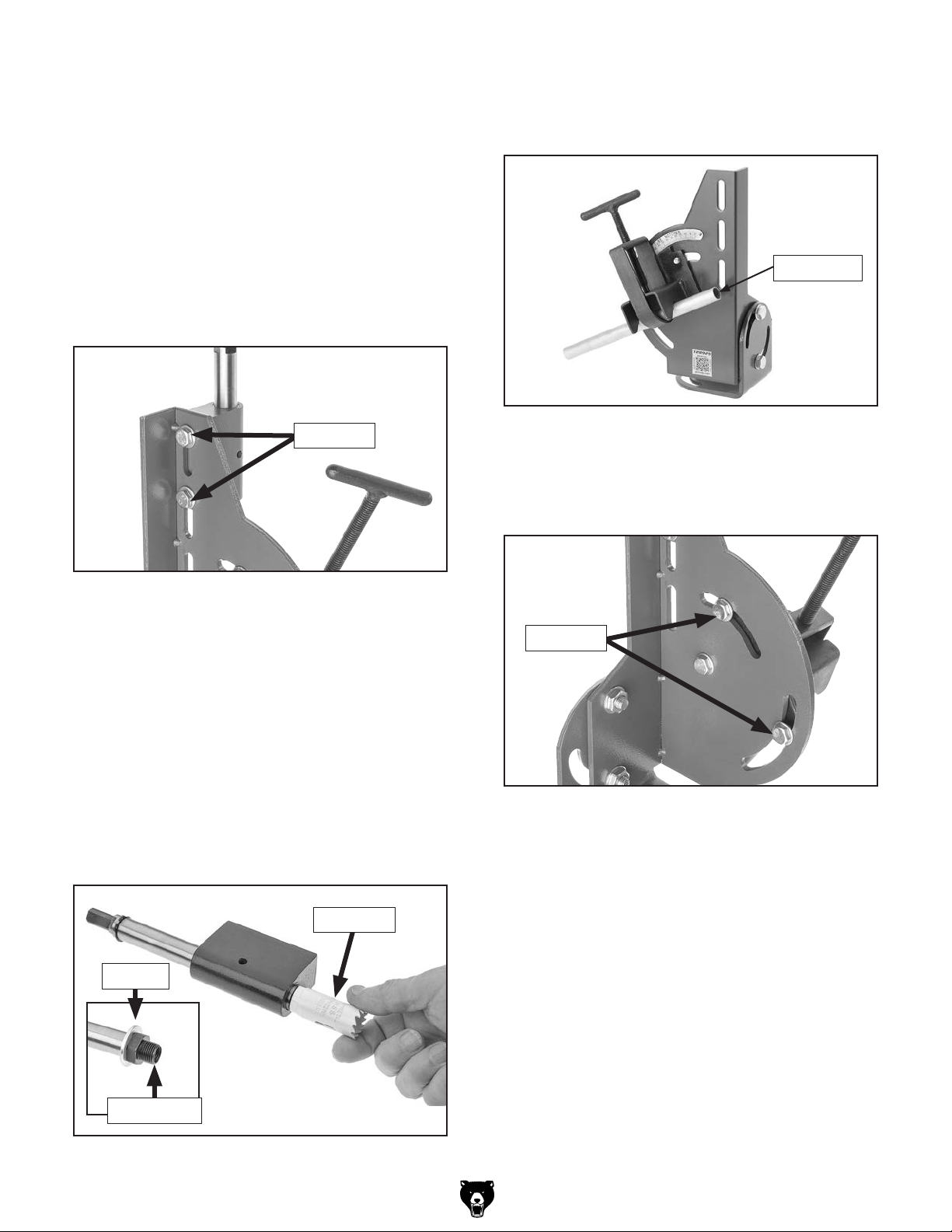

Installing Hole Saw and Workpiece

Hole saws attach to the notcher by threading them
onto the end of the spindle.

Items Needed Qty

Open-End or Socket Wrench 13mm ................. 1

Hole Saw with

To install hole saw and workpiece:

Remove (2) hex bolts shown in Figure 4 to

1.

remove spindle support from notcher.

1

⁄2 " or 5⁄8" Threads ...................... 1

Hex Bolts

4.

Place workpiece into clamp of notcher as

shown in Figure 6, then tighten clamp until
workpiece is secured.

Workpiece

Figure 6. Workpiece secured in notcher clamp.

5.

Loosen (2) hex bolts shown in Figure 7,

adjust clamp to desired angle, then tighten
hex bolts.

Figure 4. Location of spindle support hex bolts.

2. Remove spindle lock pin.

3. Thread hole saw onto spindle by hand.

Thread adapter washer and 5⁄8" adapter onto

5

spindle before hole saw if using

⁄8" hole saw

(see Figure 5).

Note: For cutting steel pipe and tubing, we

recommend bi-metal hole saws. These can
be operated at up to 500 RPM for most
diameters and should be operated at higher
speeds for thin wall tubing.

Hole Saw

Washer

Hex Bolts

Figure 7. Location of clamp angle hex bolts.

6.

Attach spindle support to notcher using hex

bolts removed in Step 1.

Note: We recommend that height of spindle

support be adjusted so hole saw is as close
as possible to workpiece without touching.
This will help minimize flex in notcher.

5

⁄8" Adapter

Figure 5. Hole saw installed on spindle.

-2-

Model T28929 (Mfd. Since 11/20)

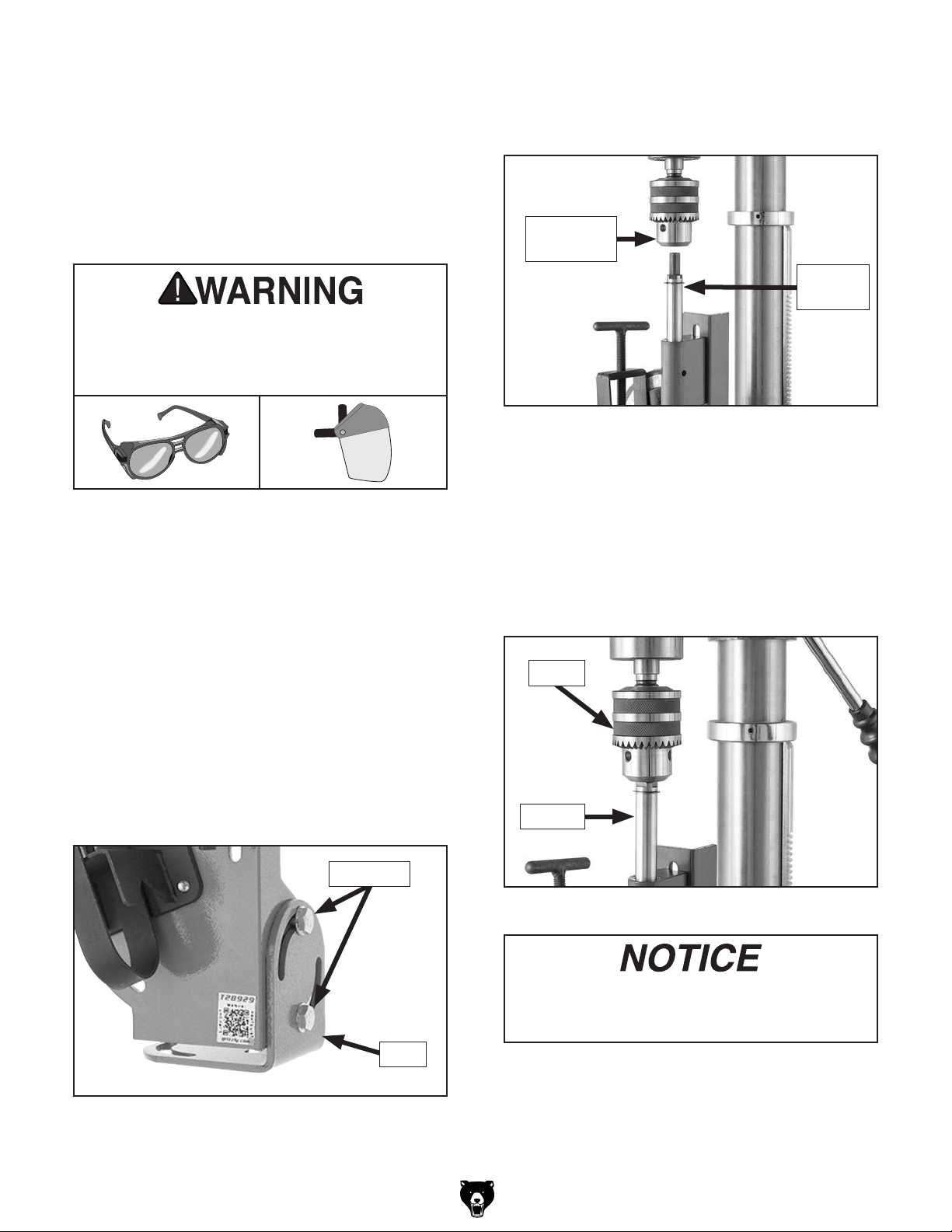

Drill Press Operations

To use the Model T28929 with a drill press, the
notcher must be clamped securely to the drill
press base. It is important that the notcher is
secure enough so it will not twist or come off
of the table during use. To ensure square cuts,
the jig must be square to the base before being
mounted to the drill press table.

To reduce risk of eye or face injury from
flying chips, always wear approved safety
glasses and a face shield when operating
drill press.

Items Needed Qty

Open-End or Socket Wrench 13mm ................. 1

Hole Saw with
Drill Press w/14" Between Chuck and Table
Open-End or Socket Wrench 17mm
Base-Fastening Hardware
Cutting Fluid

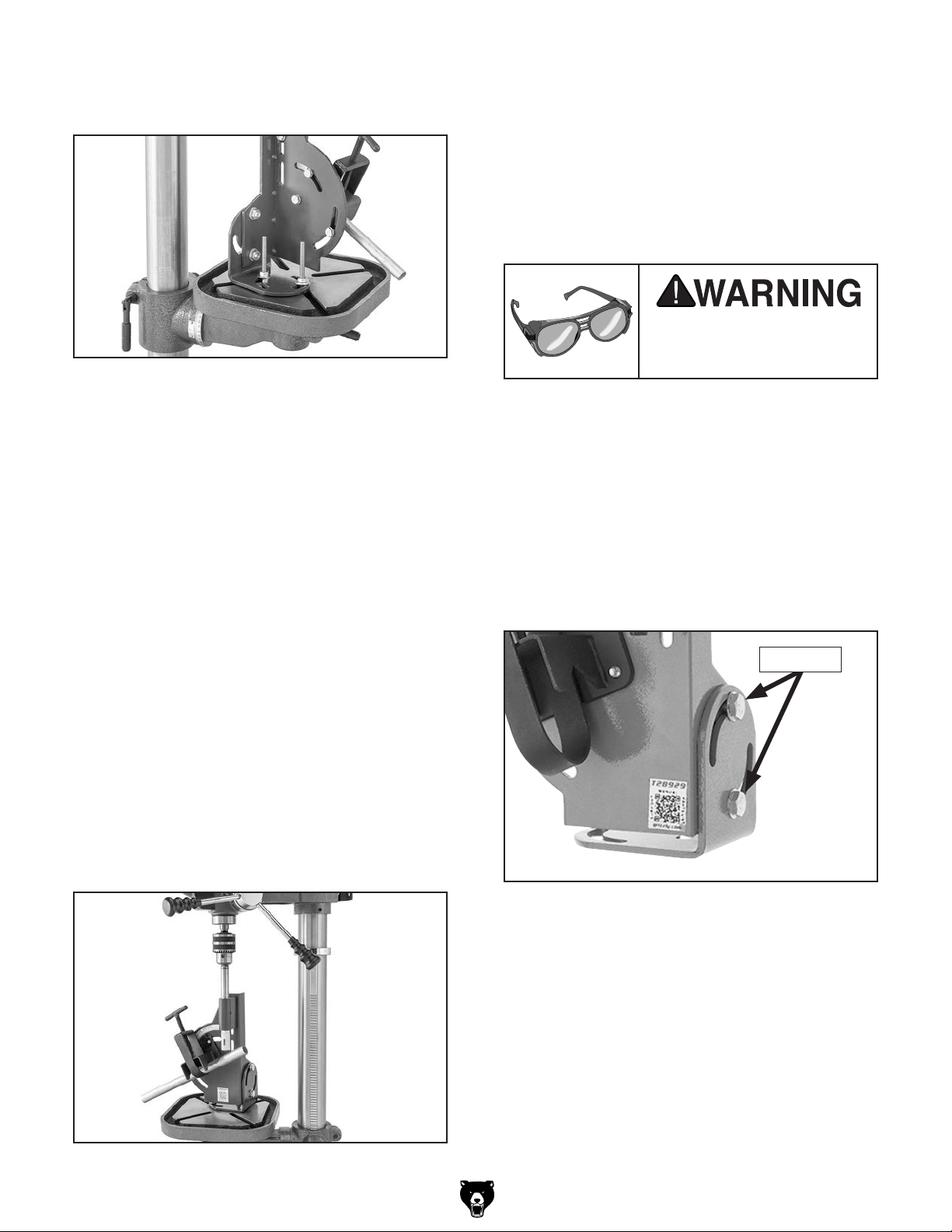

To operate notcher with drill press:

1

⁄2 " or 5⁄8" Threads ...................... 1

..... 1

.................. 2

................. As Needed

...................................... As Needed

Place notcher on drill press work table and

3.

adjust table until top of notcher spindle is 1⁄2"
lower than drill chuck (see Figure 9).

Drill Press

Chuck

Notcher

Spindle

Figure 9. Table adjusted correctly.

4. Loosen two hex bolts from Step 2 just enough

so notcher can be aligned with drill chuck.

Open drill chuck jaws and use downfeed

5.

handles to lower chuck onto notcher spindle,
aligning chuck jaws with flats of notcher
spindle (see Figure 10). Tighten chuck jaws
to secure.

Chuck

1.

Install hole saw and workpiece on notcher.

Loosen both hex bolts in Figure 8, then swiv-

2.

el base until square to frame, then tighten hex
bolts.

Hex Bolts

Base

Figure 8. Base squared to frame.

Spindle

Figure 10. Chuck attached to spindle.

Failure to align spindle flats properly with
chuck jaws may result in spindle coming
loose and damaging notcher and drill chuck.

6. Adjust base of notcher until it is flat to drill

press table, then tighten hex bolts from
Step 2.

Model T28929 (Mfd. Since 11/20)

-3-

7. Secure base to table with bolts, strap clamps,
or C-clamps (see Figure 11).

Figure 11. Example of notcher secured to table.

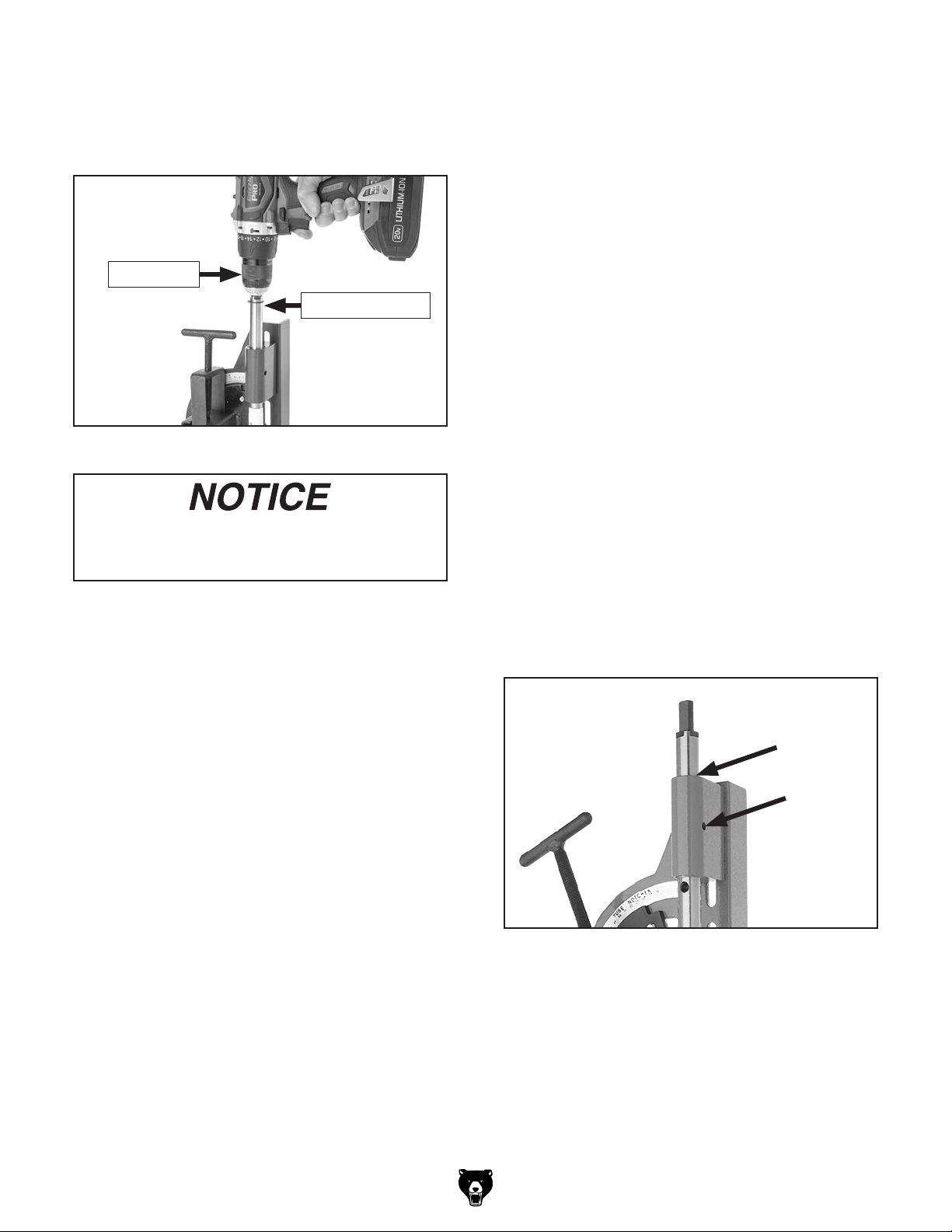

Hand Drill Operations

Items Needed Qty

Open-End or Socket Wrench 13mm ................. 1

Hole Saw with
Workbench Mounting Hardware
Hand Drill
Open-End or Socket Wrench 17mm
Cutting Fluid

1

⁄2 " or 5⁄8" Threads ...................... 1

........ As Needed

........................................................... 1

.................. 2

...................................... As Needed

Eye injury hazard! Always
wear safety glasses when
using hand drill.

8. Remove lock pin from spindle then rotate

drill chuck by hand to test how easily whole
assembly turns.

— If assembly turns with minimal effort, pro-

ceed to Step 10.

If assembly does not turn with minimal

—

effort, proceed to Step 9.

Loosen (2) hex bolts securing notcher base to

9.

frame, rotate spindle, then tighten hex bolts,
then return to Step 8. Repeat until assembly
turns with minimal effort.

Loosen bolts/clamps securing notcher to drill

10.

press table, rotate spindle, then tighten bolts/
clamps. Spindle should turn freely.

11.

When notcher is correctly installed on drill

press (see Figure 12), remove lock pin, apply
cutting fluid, turn drill press ON, and perform
notching operation.

To operate notcher with hand drill:

Install hole saw and workpiece on notcher.

1.

2. Mount notcher to workbench using mounting

hardware (not included).

Loosen both hex bolts in Figure 13, swivel

3.

base to desired drilling angle, and tighten hex
bolts.

Hex Bolts

Figure 12. Notcher installed on drill press.

-4-

Figure 13. Location of notcher angle hex bolts.

Model T28929 (Mfd. Since 11/20)

Open drill chuck jaws and place chuck onto

4.

notcher spindle, aligning chuck jaws with flats
of notcher spindle (see Figure 14). Tighten
chuck jaws to secure.

Drill Chuck

Notcher Spindle

Figure 14. Drill aligned to notcher spindle.

Cleaning & Protecting

Cleaning the Model T28929 is relatively easy.
Periodically brush away cuttings and debris,
especially around the spindle and bushings to
avoid scoring and binding.

Protect the notcher by wiping it clean after
every use and applying a light lubrication (see
Lubrication) to moving parts.

Before moving or storing tool, insert lock pin into
spindle to prevent movement. Store notcher cov­ered in a dry, dust free location.

Lubrication

During operation, the spindle bushings will require
lubrication. A few drops right before operation
will usually be adequate, but when using notcher
for long periods at a time, lubrication should be
applied several times per hour.

Failure to align spindle flats properly with
chuck jaws may result in spindle coming
loose and damaging notcher and drill chuck.

5. Remove lock pin from spindle then rotate

drill chuck by hand to test how easily whole
assembly turns.

— If assembly turns with minimal effort, pro-

ceed to Step 6.

If assembly does not turn with minimal

—

effort, adjust angle of drill until it does,
then proceed to Step 6.

With lock pin removed, apply cutting fluid,

6.

turn drill ON, and perform notching operation.

Grea s e Type .....Grizzly T26419 or NLGI#2 Equiv

Grease Amount
Lubrication Frequency

Apply a few drops of lubrication around spindle
shaft, above top bushing, and in spindle lock pin
hole (see Figure 15).

Figure 15. Lubrication locations.

....................................Thin Coat

..............Before Operation

Model T28929 (Mfd. Since 11/20)

-5-

15

19

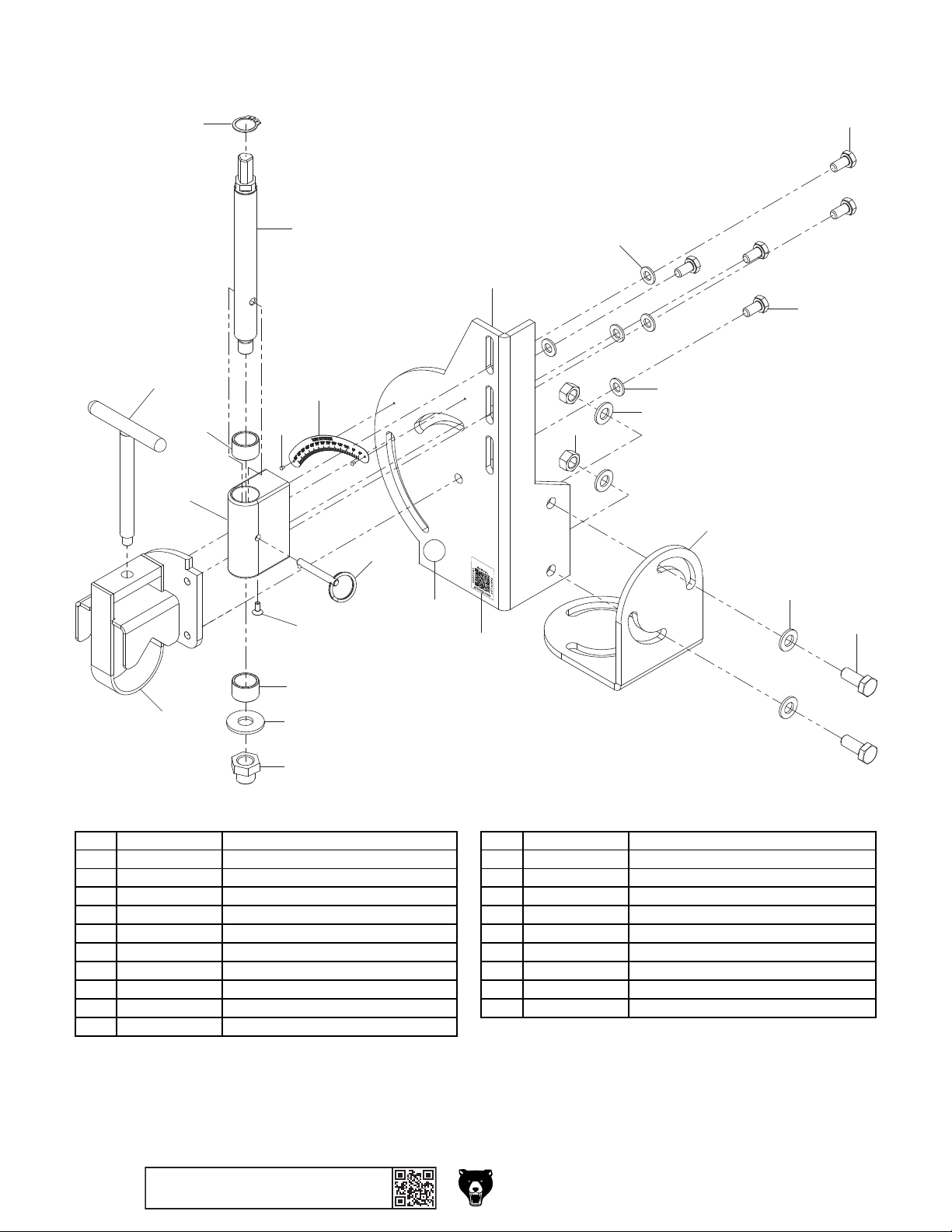

Parts Breakdown & List

REF PART # DES CRIP TION REF PART # DES CRIP TION

Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here
are available for purchase. Call [phone] or visit our online parts store at www.grizzly.com to check for availability.

7

12

13

15

2

10

12

18

5

8

11

6V2

17

14

T2892 9

18

22

20V2

16V2

23

5

1

4

3

1 PT28929001 CLAMP ASSEMBLY 13 PT28929013 BODY
2 PT28929002 T-HANDLE M12-1. 75 X 110 14 PT28929014 CLEVIS PIN 8 X 16
3 PT28929003 HOLE SAW ADAPTER 15 PT28929015 HEX BOLT M8-1.25 X 16
4 PT28929004 HOLE SAW ADAPTER WASHER 16V2 PT28929016V2 HEX BOLT M10-1.5 X 25
5 PT28929005 BUSHI NG 17 PT28929017 ADJUSTABLE ANGLE JOI NT PLATE
6V2 PT28929006V2 SPINDLE SUPPORT V2.11.20 18 PT28929018 FLAT WASHER 10MM
7 PT28929007 SPINDLE M12-1. 75 X 14, 204L 19 PT28929019 EXT RETA I NI NG RING 1 8MM
8 PT28929008 RIVET 2.5 X 8, NAMEPLATE 20V2 PT28929020V2 FLAT HD SCR M4 -. 7 X 10
10 PT28929010 ANGLE INDI CATOR 22 PT28929022 TOUCH- UP P AINT, GRI ZZL Y GREEN
11 PT28929011 HEX NUT M10 -1 . 5 23 PT28929023 QR CODE LABEL
12 PT28929012 FLAT WAS HER 8 MM

-6-

BUY PARTS ONLINE AT GRIZZLY.CO M!

Scan QR code to visit our Parts Store.

Model T28929 (Mfd. Since 11/20)

WARRANTY & RETURNS

Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from
the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse,
negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty
and any and all warranties that may be implied by law, including any merchantability or fitness, for any par­ticular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent
that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants.
In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and
any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.

We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special,
or consequential damages arising from the use of our products.

The manufacturers reserve the right to change specifications at any time because they constantly strive to
achieve better quality equipment. We make every effort to ensure that our products meet high quality and
durability standards and we hope you never need to use this warranty.

In the event you need to use this warranty, contact us by mail or phone and give us all the details. We will
then issue you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of
the carton. We will not accept any item back without this number. Proof of purchase must accompany the
merchandise.

Please feel free to write or call us if you have any questions about the machine or the manual.

Thank you again for your business and continued support. We hope to serve you again soon.

To
you can
applicable information for

take advantage of this warranty, you must register it at https://www.grizzly.com/forms/warranty, or

scan the QR code below to be automatically directed to our warranty registration page. Enter all

the product.

WARRANTY
