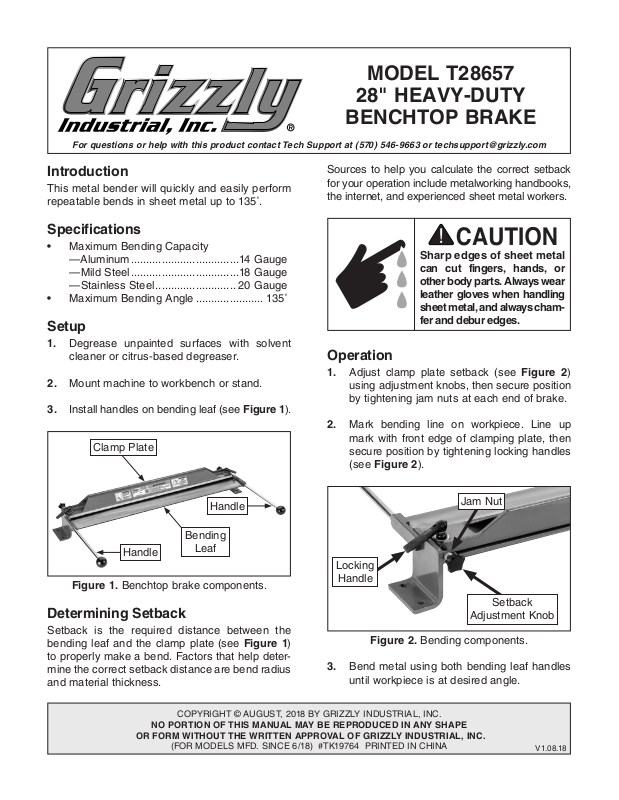

MODEL T28657

28" HEAVY-DUTY

BENCHTOP BRAKE

For questions or help with this product contact Tech Support at [phone] or [e-mail]

Introduction

This metal bender will quickly and easily perform
repeatable bends in sheet metal up to 135˚.

Specifications

• Maximum Bending Capacity

—Aluminum ...................................14 Gauge

—Mild Steel ...................................18 Gauge

—Stainless Steel .......................... 20 Gauge

• Maximum Bending Angle ...................... 135˚

Setup

1. Degrease unpainted surfaces with solvent

cleaner or citrus-based degreaser.

2. Mount machine to workbench or stand.

3. Install handles on bending leaf (see Figure 1).

Clamp Plate

Sources to help you calculate the correct setback
for your operation include metalworking handbooks,
the internet, and experienced sheet metal workers.

Sharp edges of sheet metal
can cut fingers, hands, or
other body parts. Always wear
leather gloves when handling
sheet metal, and always cham­fer and debur edges.

Operation

1. Adjust clamp plate setback (see Figure 2)

using adjustment knobs, then secure position
by tightening jam nuts at each end of brake.

2. Mark bending line on workpiece. Line up
mark with front edge of clamping plate, then
secure position by tightening locking handles
(see Figure 2).

Handle

Bending

Handle

Figure 1. Benchtop brake components.

Leaf

Determining Setback

Setback is the required distance between the
bending leaf and the clamp plate (see Figure 1)
to properly make a bend. Factors that help deter­mine the correct setback distance are bend radius
and material thickness.

COPYRIGHT © AUGUST, 2018 BY GRIZZLY INDUSTRIAL, INC.

NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

(FOR MODELS MFD. SINCE 6/18) #TK19764 PRINTED IN CHINA

Jam Nut

Locking

Handle

Setback

Adjustment Knob

Figure 2. Bending components.

3. Bend metal using both bending leaf handles

until workpiece is at desired angle.

V1.0 8.18

REF

PART # DESCRIPTION REF PART # DESCRIPTION

Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here
are available for purchase. Call [phone] or visit our online parts store at www.grizzly.com to check for availability.

Parts Breakdown & List

3

3

4

2

8

5

2

1

7

8

5

9

7

6

1 PT28657001 BED 6 PT28657006 HANDLE
2 PT28657002 FLAT WASHER 16MM 7 PT28657007 HEX NUT M8-1.25
3 PT28657003 LOCKING HANDLE M12-1.75 X 33 8 PT28657008 COMPRESSION SPRING 1.5 X 16 X 26
4 PT28657004 CLAMP PLATE 9 PT28657009 BENDING LEAF
5 PT28657005 SETBACK ADJUSTMENT KNOB

6

-2-

BUY PARTS ONLINE AT GRIZZLY.C OM!

Scan QR code to visit our Parts Store.

T28657 Benchtop Brake (Mfd. 8/18+)
