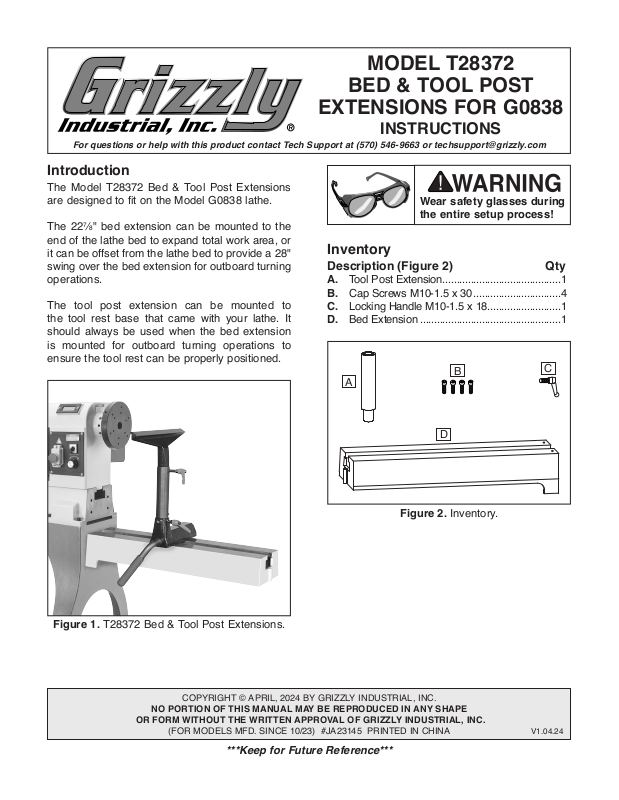

Grizzly T28372 User guide

MODEL T28372

BED & TOOL POST

EXTENSIONS FOR G0838

INSTRUCTIONS

For questions or help with this product contact Tech Support at [phone] or [e-mail]

Introduction

The Model T28372 Bed & Tool Post Extensions
are designed to fit on the Model G0838 lathe.

7

The 22
end of the lathe bed to expand total work area, or
it can be offset from the lathe bed to provide a 28"
swing over the bed extension for outboard turning
operations.

The tool post extension can be mounted to
the tool rest base that came with your lathe. It
should always be used when the bed extension
is mounted for outboard turning operations to
ensure the tool rest can be properly positioned.

⁄8" bed extension can be mounted to the

Inventory

Description (Figure 2) Qty

A. Tool Post Extension ..........................................1

Cap Screws M10-1.5 x 30 ...............................4

B.

Locking Handle M10-1.5 x 18 ..........................1

C.

Bed Extension ..................................................1

D.

A

Wear safety glasses during
the entire setup process!

B

C

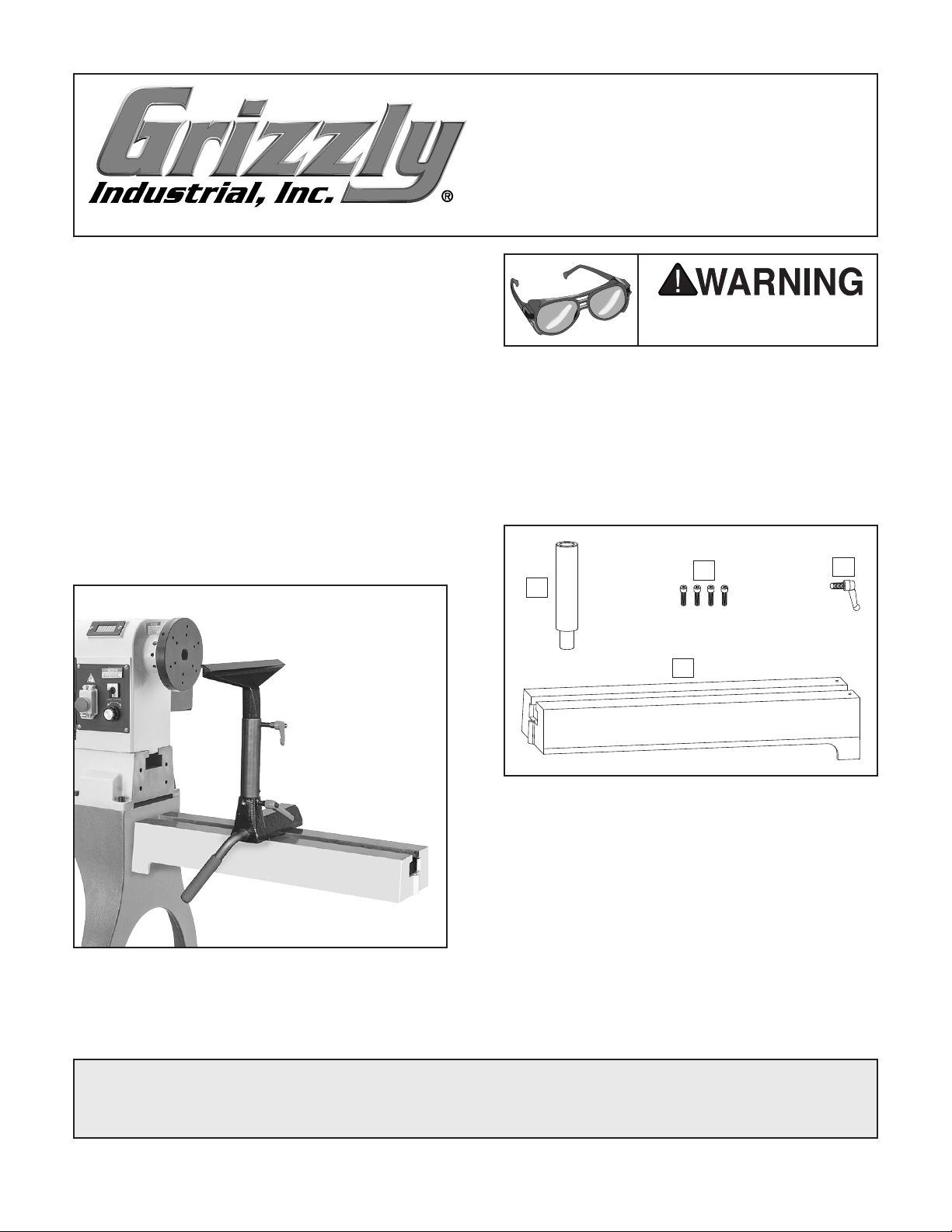

Figure 1. T28372 Bed & Tool Post Extensions.

COPYRIGHT © APRIL, 2024 BY GRIZZLY INDUSTRIAL, INC.

NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

(FOR MODELS MFD. SINCE 10/23) #JA23145 PRINTED IN CHINA

D

Figure 2. Inventory.

V1.0 4.24

***Keep for Future Reference***

Mounting Extension to Lathe Bed

Items Needed Qty

Hex Wrenches 3, 8mm ................................1 Ea.

48" Straightedge
Masking Tape

To mount extension to lathe bed:

................................................ 1

.................................... As Needed

— If bed extension sits above surface of

lathe bed, rotate set screws counterclock­wise to lower bed extension until edge of
bed extension is flush with lathe bed (see

Figure 5).

1.

Thread (4) M10-1.5 x 30 cap screws approxi-

mately halfway into tailstock end of lathe bed.

Align cap screws with bottom of keyhole slots

2.

(see Figure 3), then slide bed extension onto
cap screws.

Keyhole Slot

(1 of 4)

x 4

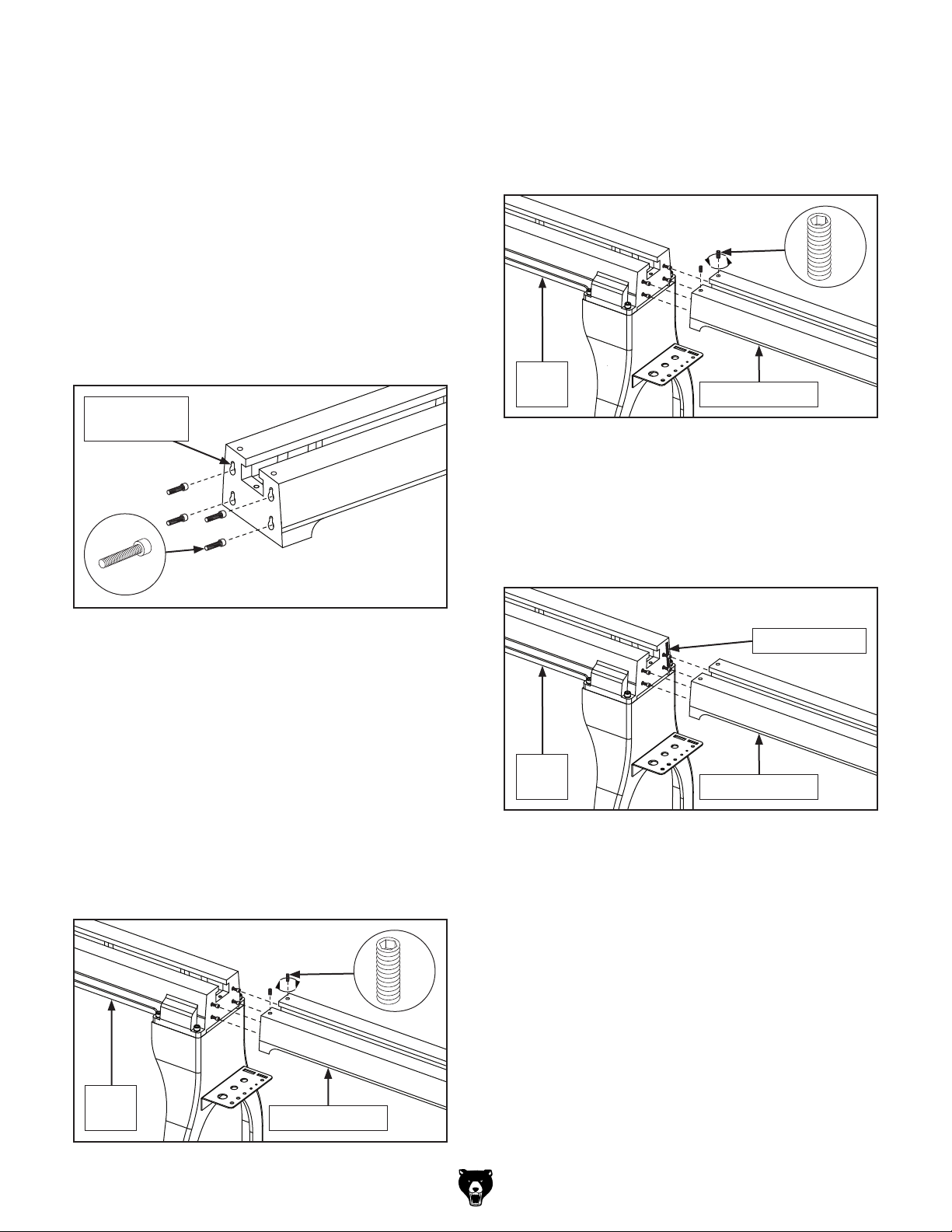

Figure 3. Attaching bed extension to lathe bed.

3. Gently lower bed extension so cap screws

slide into upper portion of keyhole slots.

x 2

x 2

Lathe

Bed

Figure 5. Lowering bed extension.

— If bed extension is skewed left or right,

use a vertical strip of masking tape along
corresponding edge of lathe bed to make
bed extension parallel with lathe bed (see
Figure 6).

Bed Extension

Masking Tape

4. Place straightedge across lathe bed and

bed extension to verify they are parallel and
aligned.

— If bed extension sits below surface of

lathe bed, rotate set screws clockwise
to raise bed extension until edge of bed
extension is flush with lathe bed (see
Figure 4).

x 2

Lathe

Bed

Figure 4. Raising bed extension.

Bed Extension

Lathe

Bed

Figure 6. Shimming bed extension left.

5.

Fully tighten cap screws from Step 1.

Refer to Model G0838 Owner's Manual for
instructions on operating lathe.

If you need help with your new bed & tool post
extensions, call tech support at [phone].

Bed Extension

-2-

Model T28372 (Mfd. Since 10/23)

Mounting Extension in Outboard
Position

To use the bed extension in the outboard posi­tion, the headstock must be rotated 180° so the
faceplate faces the stand leg with (4) pre-drilled
holes. This stand leg will be used to mount the
bed extension.

Items Needed Qty

Assistant(s) ........................................ As Needed

Flat Head Screwdriver
Hex Wrench 8mm

....................................... 1

.............................................. 1

HEAVY LIFT!
Straining or crushing injury
may occur from improperly
lifting machine or some of
its parts. To reduce this risk,
get help from other people
and use a forklift (or other
lifting equipment) rated for
weight of this machine.

To mount extension in outboard position:

1. DISCONNECT MACHINE FROM POWER!

Thread (4) M10-1.5 x 30 cap screws approxi-

2.

mately halfway into stand leg with (4) holes.

Align cap screws with bottom of keyhole slots

3.

(see Figure 7), then slide bed extension onto
cap screws.

x 4

Stand

Leg

w/ (4)

holes

6. Loosen headstock lock lever, then, with
assistance, carefully remove headstock from
lathe bed.

7. Rotate headstock 180°, slide it back onto
lathe bed with faceplate facing toward
bed extension (see Figure 8), and tighten
headstock lock lever.

Headstock

Faceplate

Bed Extension

Bed

Extension

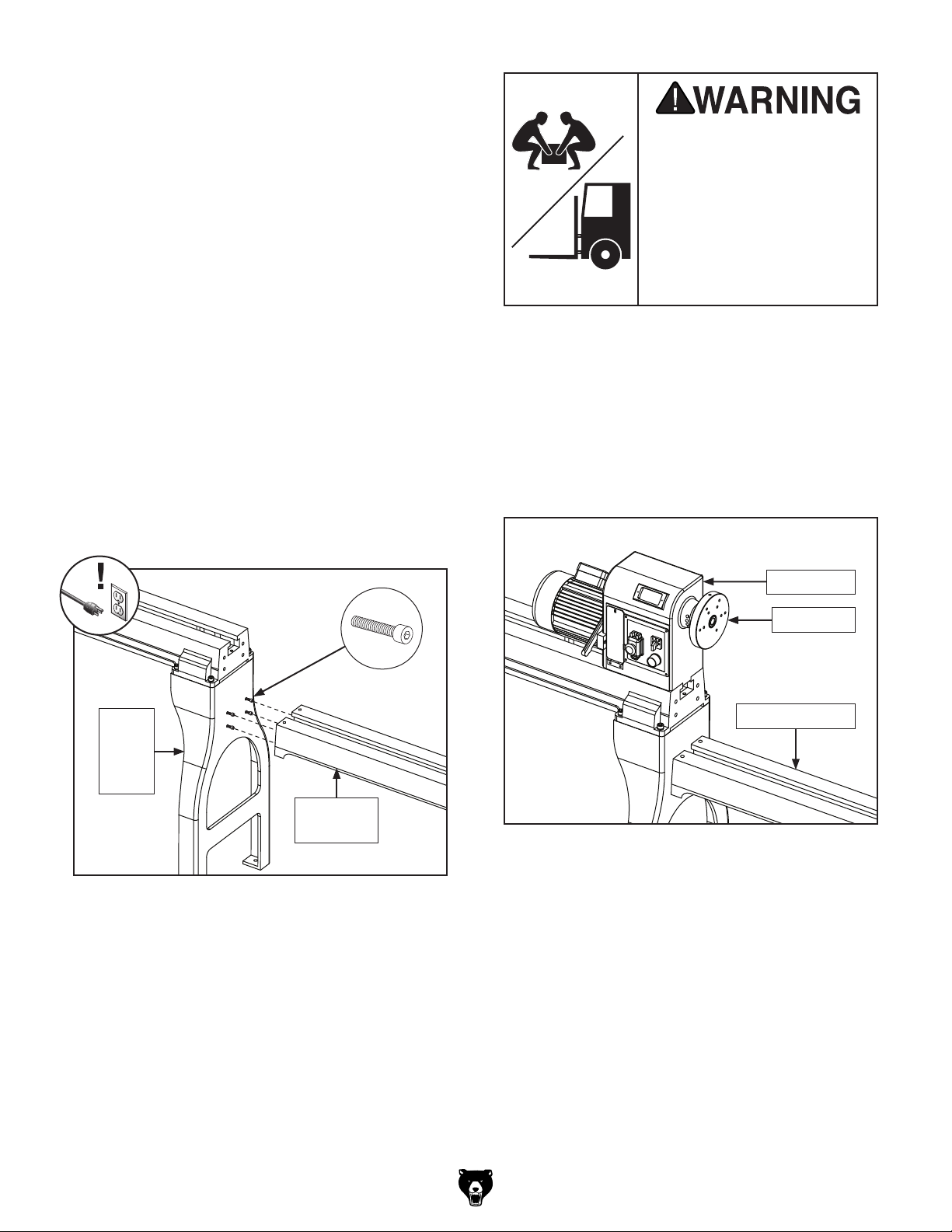

Figure 7. Attaching bed extension to left stand

leg.

4.

Fully tighten cap screws from Step 2.

5. Remove bed stop from headstock end of

lathe bed.

Model T28372 (Mfd. Since 10/23)

Figure 8. Headstock rotated 180°.

Re-install bed stop removed in Step 5.

8.

Refer to Model G0838 Owner's Manual for
instructions on operating lathe.

If you need help with your new bed & tool post
extensions, call tech support at [phone].

-3-

Installing Tool Post Extension

1.

Remove tool rest base from lathe bed, then

slide tool rest base onto bed extension (see
Figure 9). Clamp plate must be aligned with
bed extension to sit flush.

Use tool rest base lock lever to secure tool

2.
rest base on bed extension (see Figure 9).

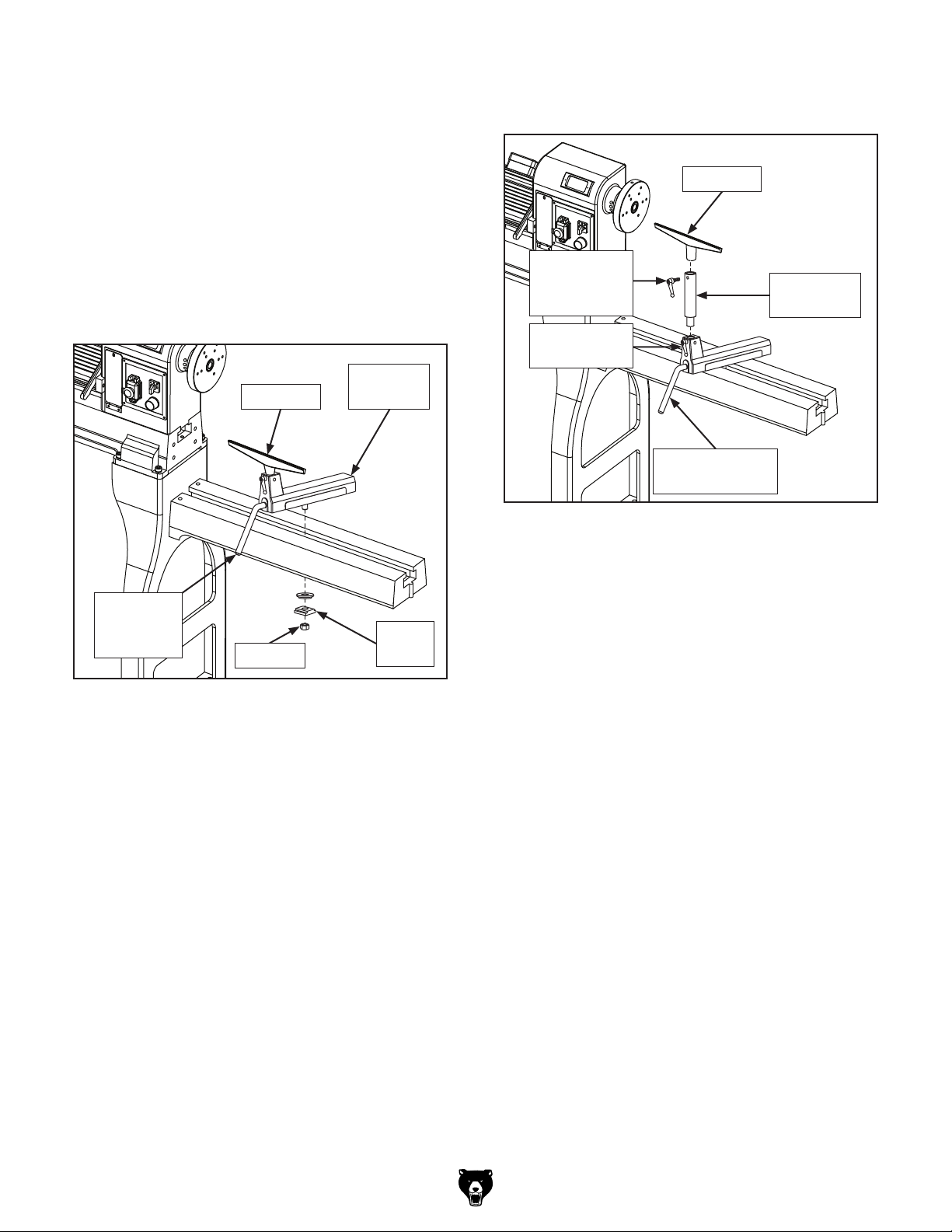

4. Install tool rest in tool post extension and

secure with lock handle (see Figure 10).

Tool Rest

Note: If lock lever does not secure tool rest
base, tighten hex nut securing clamp plate
until it does.

Tool Rest

Tool Rest

Tool Rest

Base Lock

Lever

Figure 9. Attaching tool rest base to bed

Hex Nut

extension.

Base

Clamp

Plate

Tool Post

Extension

Lock Handle

Tool Rest

Lock Handle

Tool Rest Base

Lock Lever

Figure 10. Attaching tool post extension to tool

rest base.

Refer to Model G0838 Owner's Manual for
instructions on operating lathe.

If you need help with your new bed/tool post
extension, call tech support at [phone].

Tool Post

Extension

3. Remove tool rest from tool rest base, install
tool post extension in tool rest base hole,
then secure with tool rest lock handle (see
Figure 10).

Note: Tool rest lock handle is pre-installed on

tool rest base.

-4-

Model T28372 (Mfd. Since 10/23)

Adjusting Tool Rest

The tool rest assembly consists of three compo­nents: the tool rest base (or banjo), the tool rest,
and the tool post extension. The tool rest base
moves forward/backward and along the length of
the lathe bed. The tool rest rotates and moves up
and down in the tool rest base or tool post exten­sion. The tool post extension can be added to
the tool rest assembly to allow for tool rest height
adjustment for outboard turning operations. Locks
for each component allow you to secure the tool
rest in position after making these adjustments.

When adjusting the tool rest, position it as close
as possible to the workpiece without actually
touching it. This maximizes support where the
cutting occurs and minimizes leverage, reducing
the risk of injury if a "catch" occurs.

To adjust tool rest:

1. Loosen tool rest base lock lever and move

tool rest assembly to desired position on bed
extension (see Figure 11).

Note: To maximize support, the tool rest base

should always be locked on both sides of the
bed. Never pull tool rest so far back that it is
only secured on one side.

Tool Rest

Tool Post

Extension

Lock Handle

Many woodturners typically set the height of the

1

tool rest

⁄8" above or below the centerline of the

workpiece, depending on their height, the type
of tool they're using, and the type of operation
they're performing.

As a rule of thumb: For most (spindle) turning
operations, the cutting tool should contact the
workpiece slightly above centerline. For most
inside (bowl) turning operations, the cutting tool
should contact the workpiece slightly below
centerline.

Keeping all these factors in mind, your main goal
when adjusting the tool rest should be providing
maximum support for the type of tool being used,
in a position that is safe and comfortable for you.

Improperly supported or positioned cutting
tools can "catch" on workpiece, ejecting
tool from your hands with great force. To
reduce this risk, always ensure tool rest is
properly positioned for each type of opera­tion, cutting tool is firmly supported against
tool rest BEFORE cutting, and cutting tool
is properly positioned to cut at the correct
angle for tool and operation type.

Tool Rest Base

Lock Lever

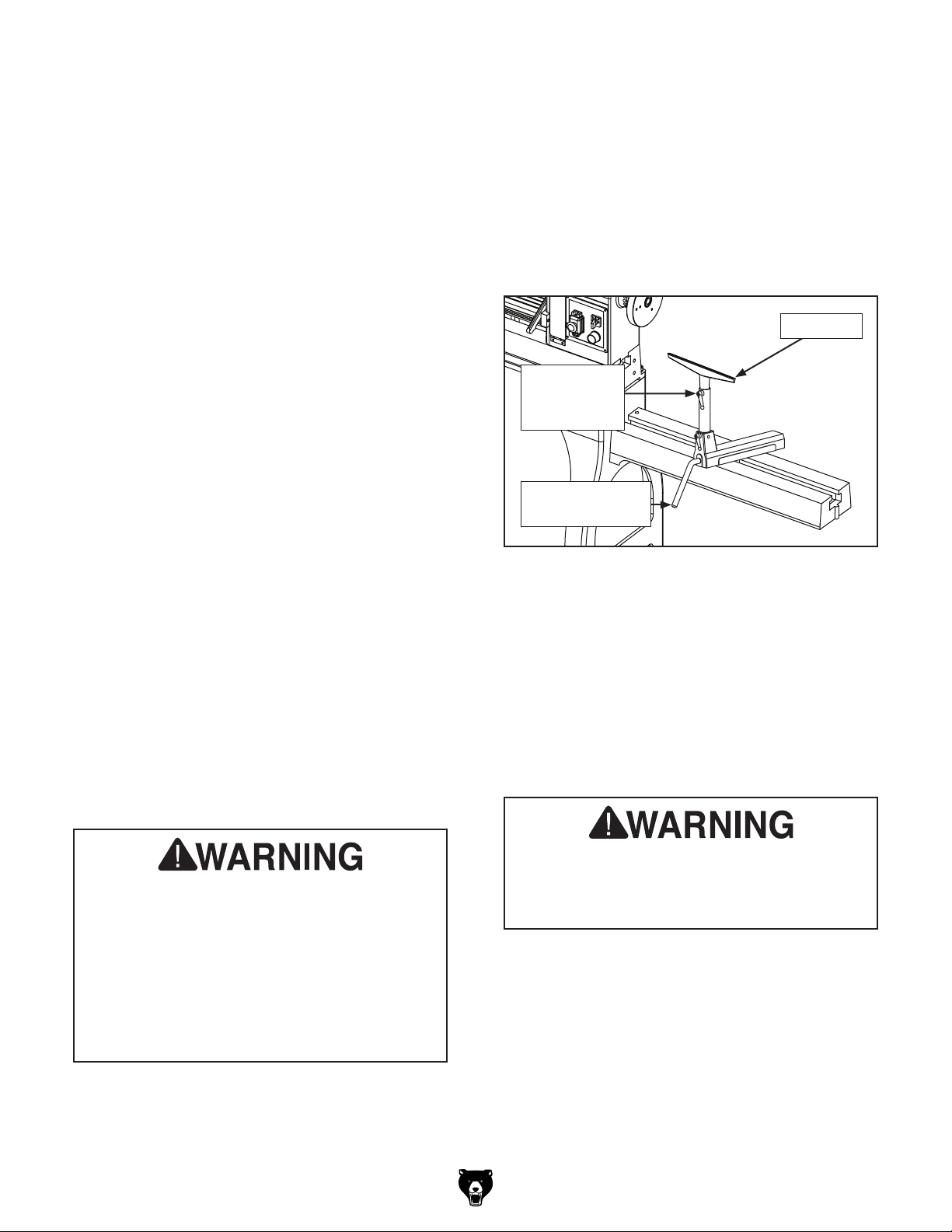

Figure 11. Tool rest controls.

Tighten tool rest base lock lever to secure

2.

tool rest assembly in position.

Note: Large clamping hex nut underneath

tool rest base requires occasional adjusting
to ensure proper clamping pressure of tool
rest assembly to bed extension. Turn this hex
nut in small increments to fine tune clamping
pressure as needed.

Always operate lathe with tool rest assem­bly firmly locked in position. Otherwise,
serious personal injury may occur by tool
being pulled from operator's hands.

3. Loosen tool post extension lock handle (see
Figure 11).

Position tool rest in desired location, then

4.

tighten tool post extension lock handle.

Model T28372 (Mfd. Since 10/23)

-5-

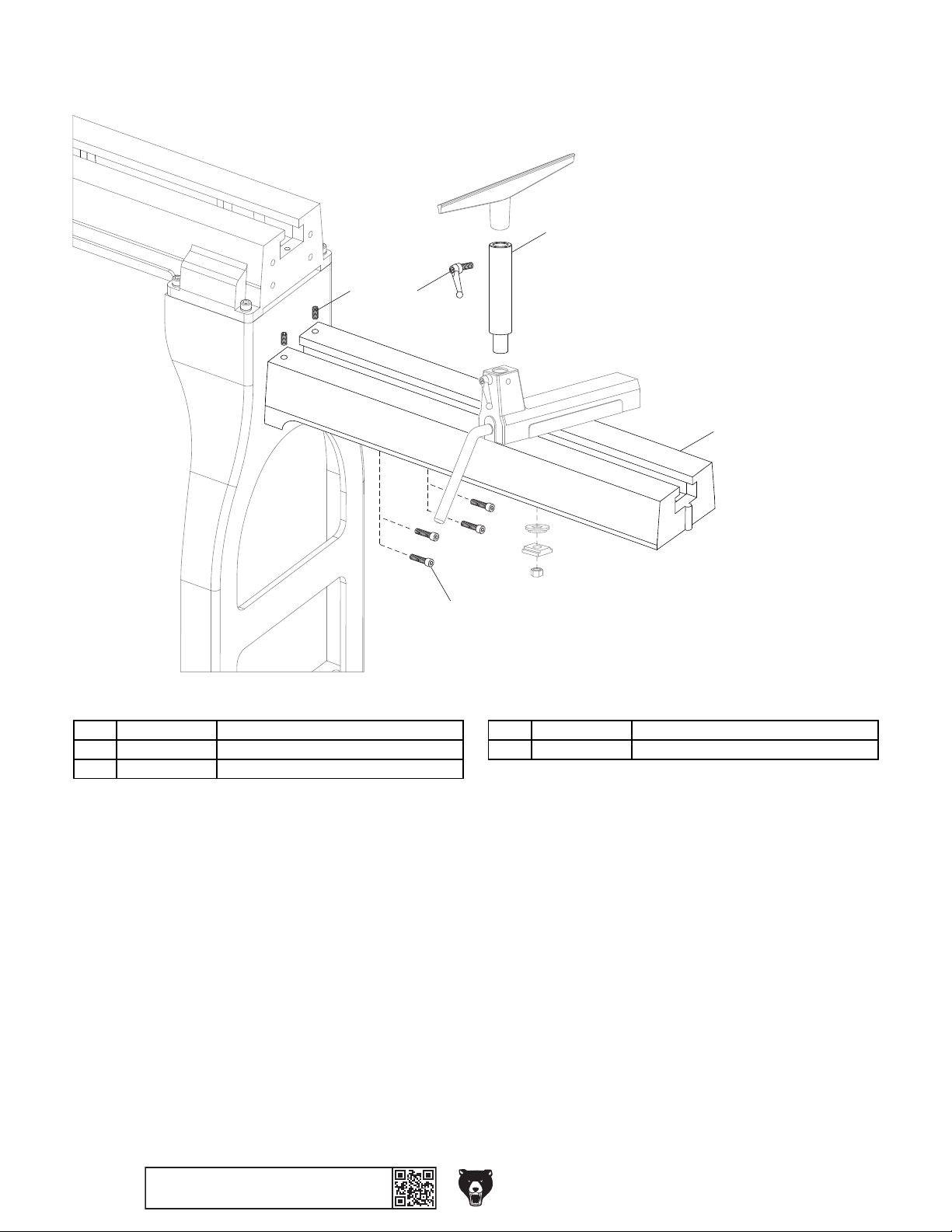

T28372 Parts Breakdown & List

4 PT28372004 EXTENSION BED

Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here
are available for purchase. Call [phone] or visit our online parts store at www.grizzly.com to check for availability.

1

8

2

4

5

REF PART # DES CRIPTI ON REF PART # DES CRIPTI ON

1 PT28372001 TOOL POST EXTENSION 5 PT28372005 CAP SCREW M10-1.5 X 30
2 PT28372002 ADJUSTABLE HANDLE M10-1.5 X 18 8 PT28372008 SET SCREW M6-1 X 10

-6-

BUY PARTS ONLI NE AT GRIZZLY.COM!

Scan QR code to visit our Parts Store.

Model T28372 (Mfd. Since 10/23)

Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from
the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse,

negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty

and any and all warranties that may be implied by law, including any merchantability or fitness, for any par­ticular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent
that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants.

In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and

any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.

We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special,
or consequential damages arising from the use of our products.

The manufacturers reserve the right to change specifications at any time because they constantly strive to
achieve better quality equipment. We make every effort to ensure that our products meet high quality and
durability standards and we hope you never need to use this warranty.

In the event you need to use this warranty, contact us by mail or phone and give us all the details. We will

then issue you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of

the carton. We will not accept any item back without this number. Proof of purchase must accompany the
merchandise.

Please feel free to write or call us if you have any questions about the machine or the manual.

Thank you again for your business and continued support. We hope to serve you again soon.

For further information about the

scan the QR

code below

WARRANTY & RETURNS

to be automatically directed to our warranty page.

warranty, visit https://www.grizzly.com/forms/warranty or

WARRANTY

-8-
