Grizzly T28347 User guide

MODEL T28347

MOBILE BASE EXTENSION KIT

INSTRUCTIONS

For Machines Mfd. Since 11/17

For questions or help with this product contact Tech Support at [phone] or [e-mail]

Introduction

This Mobile Base Extension Kit installs on the
Model T28000 Mobile Base to provide a stable
support platform for a machine with an extension
table, such as a table saw.

T28347

T28000

Figure 1. Assembled T28347 Extension Kit on

T28000 Mobile Base.

Specifications

• Minimum Extension Length ..................... 18"

• Maximum Extension Length .................... 44"

• Maximum Weight Capacity ............. 400 lbs.

Inventory

Description Qty

A. Leg Support Channel Bracket .................... 1

Extension Bar ............................................. 1

B.

Adapter Bracket .......................................... 1

C.

Extension Bar Bracket ................................ 1

D.

Foot Pedal Plungers ................................... 2

E.

Foot Pedal Springs ..................................... 2

F.

G. Foot Pedals ................................................ 2

Rubber Feet w/Hex Nuts M10-1.5 .............. 2

H.

I. 3" Swivel Casters ....................................... 2

Hardware (Not Shown)

J.

—Hex Bolts M8-1.25 x 16 ....................... 15

—Lock Nuts M8-1.25 ................................ 12

—Shoulder Screw M8-1.25 x 8, 8 x 50 ...... 2

—Flat Washers 8mm ................................. 2

A

Tools Needed for Assembly

• Open-End Wrench or Socket 13mm .......... 1

• Open-End Wrench or Socket 17mm........... 1

• Hacksaw or Metal-Cutting Bandsaw .......... 1

Operating machinery on an unsecured
mobile base may allow machine to shift
unexpectedly, which could result in kickback
or accidental contact with blade, cutter, or
other moving parts. Always secure all parts
of mobile base before operating machine.

COPYRIGHT © FEBRUARY, 2018 BY GRIZZLY INDUSTRIAL, INC.

NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#TK19453 PRINTED IN CHINA

B

D

C

E

F

Figure 2. Inventory.

G

I

H

V1.0 3 .18

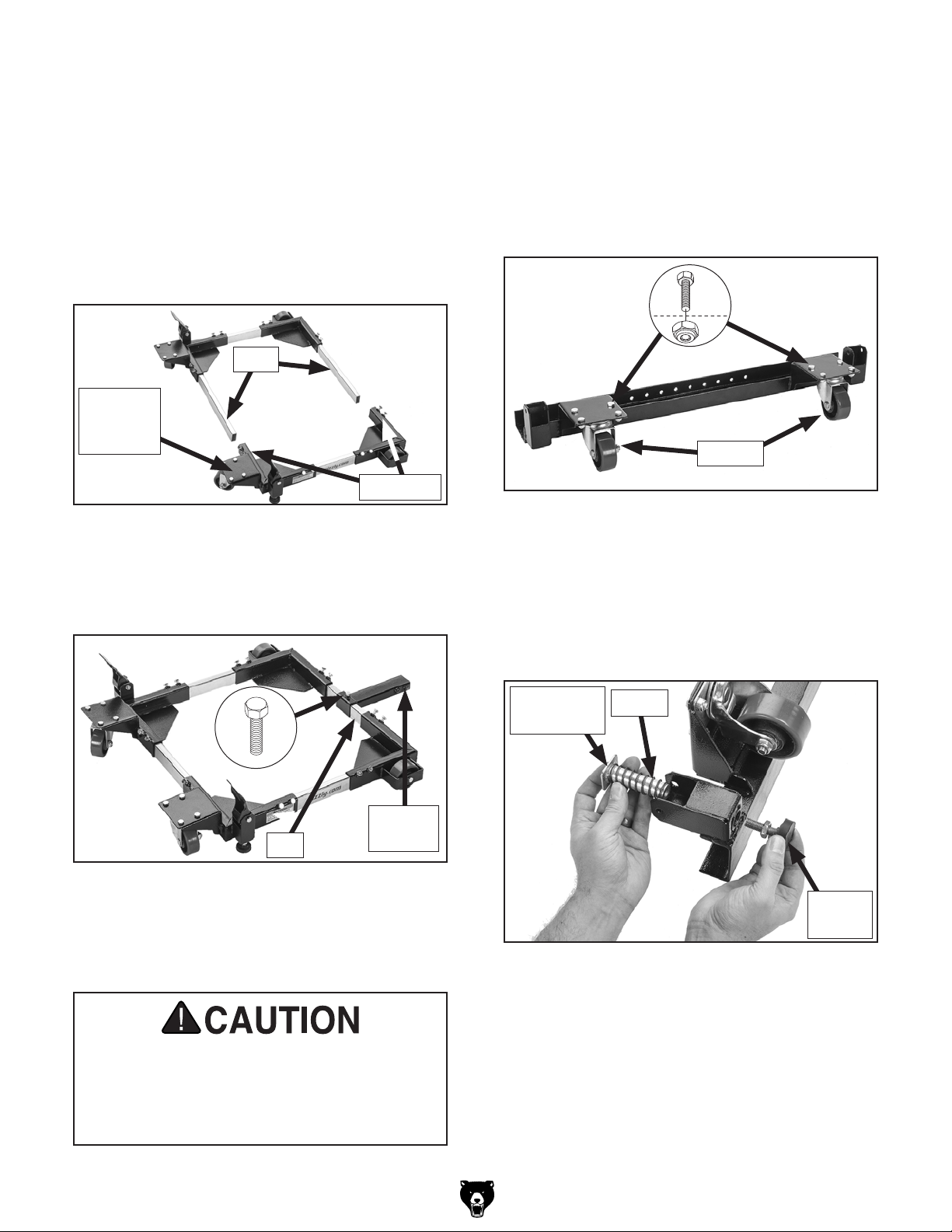

Assembling Extension Kit

Follow the assembly instructions that came with
your Model T28000 Mobile Base before preparing
and assembling the extension kit.

To assemble extension kit:

1.

Loosen (4) hex bolts to separate T28000

Mobile Base bracket assembly from side rails
(see Figure 3).

Rails

Base

Bracket

Assembly

Hex Bolts

Figure 3. Model T28000 frame separated.

Place machine on mobile base without exten-

4.

sion table. Refer to Model T28000 Instruction
Sheet for details.

5. Attach swivel casters to each side of leg
support channel bracket using (8) M8-1.25 x
16 hex bolts and (8) M8-1.25 lock nuts (see
Figure 5).

x 4

Casters

Figure 5. Swivel casters attached to leg support

channel bracket.

2. Slide adapter bracket over rail between fixed
wheels, then center and secure bracket with
M8-1.25 x 16 hex bolt (see Figure 4).

Adapter

Rail

Figure 4. Adapter bracket attached to rail

between fixed wheels.

3.

Re-assemble Model T28000 base and secure

together

Bracket

Install foot pedal plunger and foot pedal

6.

spring into each side of support bracket (see
Figure 6), and attach a rubber foot (with
M10-1.5 hex nut) to the bottom of each foot
pedal plunger.

Foot Pedal

Plunger

Figure 6. Installing foot pedal plunger, spring,

Spring

Rubber

Foot

and rubber foot.

DO NOT load machine onto mobile base until
all bolts are tightened. Improper tightening
or only using one bolt can lead to collapse
or tipping, resulting in crushing injuries or
property damage.

-2-

T28347 Extension Kit (Mfd. Since 11/17)

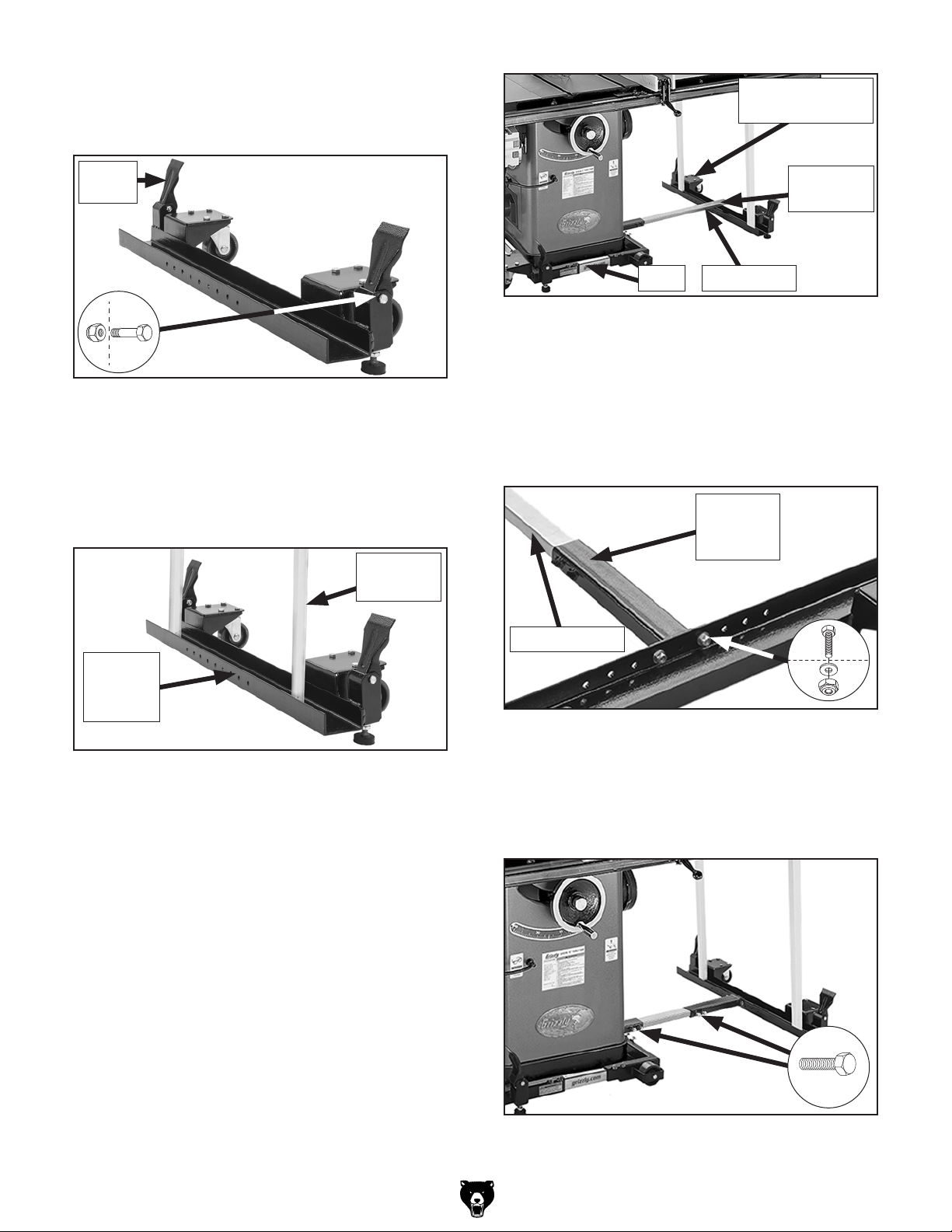

7. Attach foot pedal to each side of support
bracket using (1) M8-1.25 x 50 shoulder screw
and (1) M8-1.25 lock nut (see Figure 7).

Leg Support

Channel Bracket

Foot

Pedal

x2

Figure 7. Foot pedals attached to support

brackets.

Install extension table onto machine. Then

8.

place legs into support channel bracket and
center legs along length of channel (see
Figure 8).

Extension
Table Leg

Extension

Bar

Mark & CutBase

Figure 9. Extension bar and bracket placed

between base and leg support channel bracket.

10. Slide extension bar bracket over extension
bar, then attach bracket to center of leg
support channel bracket with (2) M8-1.25 x
16 hex bolts, (2) 8mm flat washers, and (2)
M8-1.25 lock nuts (see Figure 10).

Extension

Bar

Bracket

Support

Channel

Bracket

Figure 8. Extension table legs placed in support

channel bracket.

Slide extension bar into adapter bracket and

9.

lay it towards (or over the top of) leg support
channel bracket to determine if you need to
cut the extension bar (see Figure 9).

— If the extension bar does not overlap the

leg support channel bracket, proceed to
next step.

— If the extension bar overlaps the leg sup-

port channel bracket then it is too long and
must be cut to length. To do this, mark and
cut the bar exactly where it crosses the
channel support bracket. Leave enough
length so both ends of the bar engage
bolts in the adapter bracket and extension
bar bracket.

Extension Bar

Figure 10. Adapter bracket attached.

Center extension bar between both brackets

11.

and attach with (4) M8-1.25 x 16 hex bolts.
The extension kit should now look like the
one shown in Figure 11.

x 4

Figure 11. Extension kit attached to Model

T28000 Mobile Base.

x2

T28347 Extension Kit (Mfd. Since 11/17)

-3-

9

10

Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here
are available for purchase. Call [phone] or visit our online parts store at www.grizzly.com to check for availability.

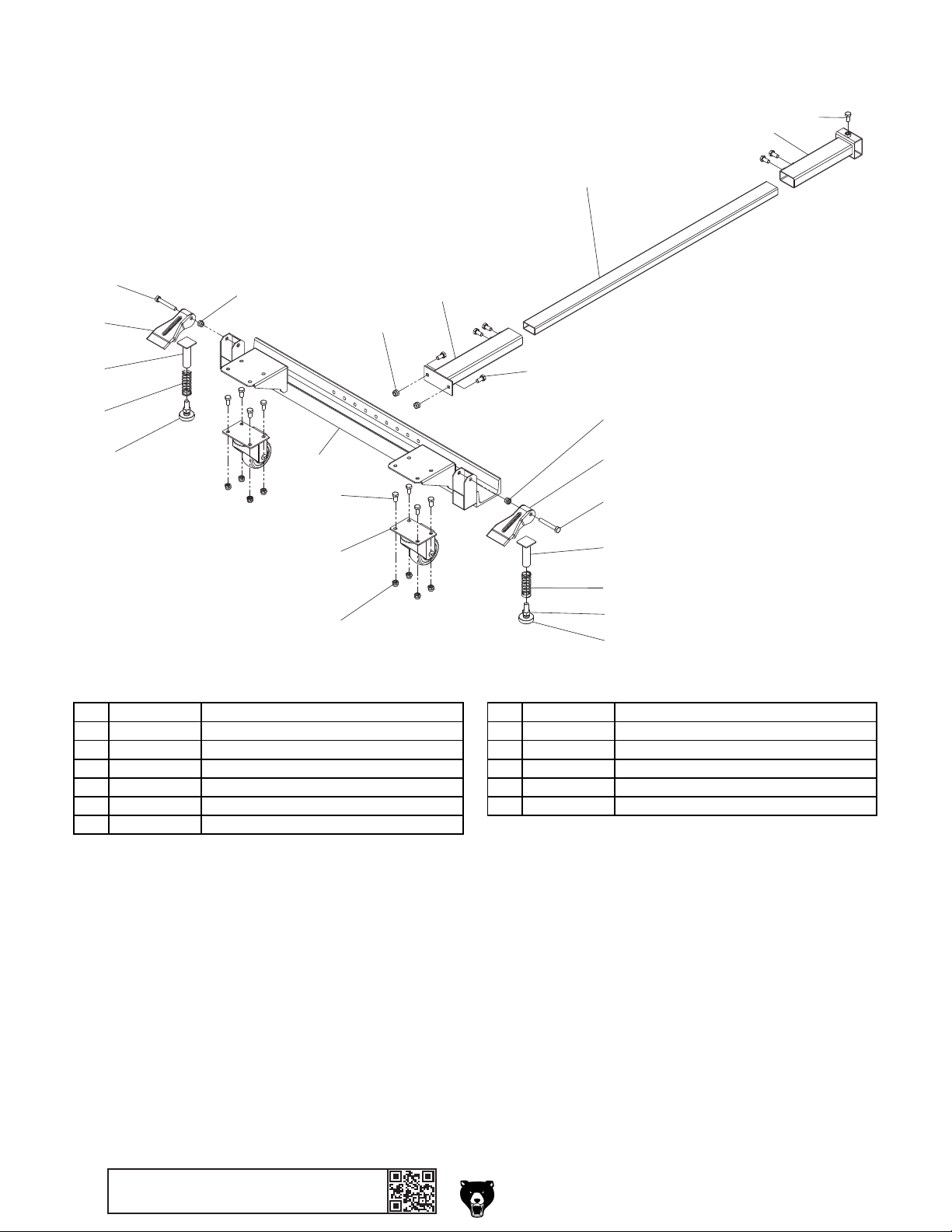

Parts Breakdown & List

4

3

12

6

7

8

9

11

2

11

10

11

1

10

5

6

12

7

8

11

REF PART # DESCRIPTION REF PART # DESCRIPTION

1 PT28347001 LEG SUPPORT CHANNEL BRACKET 8 PT28347008 COMPRESSION SPRING 1.5 X 22 X 61
2 PT28347002 EXTENSION BAR BRACKET 9 PT28347009 FOOT M10-1.5 X 30 (RUBBER)
3 PT28347003 ADAPTER BRACKET 10 PT28347010 HEX BOLT M8-1.25 X 16
4 PT28347004 EXTENSION BAR 11 PT28347011 LOCK NUT M8-1.25
5 PT28347005 SWIVEL CASTER 3" 12 PT28347012 SHOULDER SCREW M8-1.25 X 8, 8 X 50
6 PT28347006 FOOT PEDAL 13 PT28347013 HEX NUT M10-1.5
7 PT28347007 FOOT PEDAL PLUNGER

13

BUY PARTS ONLINE AT GRIZZLY.COM !

-4-

Scan QR code to visit our Parts Store.

T28347 Extension Kit (Mfd. Since 11/17)
