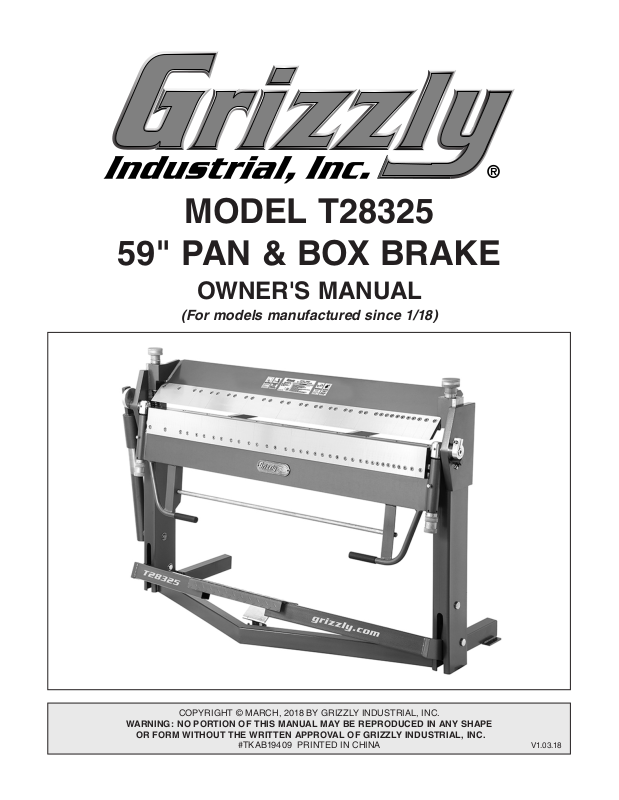

Grizzly T28325 User guide

MODEL T28325

59" PAN & BOX BRAKE

OWNER'S MANUAL

(For models manufactured since 1/18)

COPYRIGHT © MARCH, 2018 BY GRIZZLY INDUSTRIAL, INC.

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#TKAB19409 PRINTED IN CHINA

V1. 0 3 .18

This manual provides critical safety instructions on the proper setup,
operation, maintenance, and service of this machine/tool. Save this
document, refer to it often, and use it to instruct other operators.

Failure to read, understand and follow the instructions in this manual
may result in fire or serious personal injury—including amputation,
electrocution, or death.

The owner of this machine/tool is solely responsible for its safe use.
This responsibility includes but is not limited to proper installation in
a safe environment, personnel training and usage authorization,
proper inspection and maintenance, manual availability and compre­hension, application of safety devices, cutting/sanding/grinding tool
integrity, and the usage of personal protective equipment.

The manufacturer will not be held liable for injury or property damage
from negligence, improper training, machine modifications or misuse.

Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State
of California to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
Work in a well ventilated area, and work with approved safety equip­ment, such as those dust masks that are specially designed to filter
out microscopic particles.

Table of Contents

INTRODUCTION ............................................................................................................................... 2

Contact Info
Manual Accuracy
Identification
Controls & Components
Machine Data Sheet

................................................................................................................................ 2

........................................................................................................................ 2

............................................................................................................................... 3

............................................................................................................. 4

................................................................................................................... 5

SECTION 1: SAFETY

Safety Instructions for Machinery
Additional Safety for Pan & Box Brakes

SECTION 2: SETUP

Unpacking
Needed for Setup
Inventory
Cleanup

Cleaning Blocks........................................................................................................................ 10

Site Considerations
Assembly
Lifting & Placing
Anchoring to Floor
Leveling
Loosening Work Stop

SECTION 3: OPERATIONS

Operation Overview.................................................................................................................. 14

Spacing Fingers
Aligning Fingers & Blocks

Adjusting Setback..................................................................................................................... 16

Adjusting Clamping Pressure

Bend Allowance........................................................................................................................ 17

Adjusting Work Stop

.................................................................................................................................. 9

..................................................................................................................................... 9

.................................................................................................................................... 10

.................................................................................................................................. 12

.................................................................................................................................... 13

....................................................................................................................... 6

............................................................................................... 6

.................................................................................... 8

......................................................................................................................... 9

....................................................................................................................... 9

.................................................................................................................. 11

....................................................................................................................... 12

.................................................................................................................... 13

............................................................................................................... 13

........................................................................................................... 14

....................................................................................................................... 15

........................................................................................................ 15

................................................................................................... 16

................................................................................................................. 17

SECTION 4: ACCESSORIES

SECTION 5: MAINTENANCE......................................................................................................... 20

Schedule
Cleaning & Protecting
Lubrication

SECTION 6: SERVICE

Troubleshooting

SECTION 7: PARTS

Main Breakdown....................................................................................................................... 23

Main Parts List
Labels & Cosmetics

WARRANTY & RETURNS

.................................................................................................................................. 20

................................................................................................................................ 20

................................................................................................................... 22

........................................................................................................................ 22

....................................................................................................................... 23

......................................................................................................................... 24

......................................................................................................... 18

.............................................................................................................. 20

................................................................................................................. 25

............................................................................................................. 29

INTRODUCTION

We are proud to provide a high-quality owner’s
manual with your new machine!

We

instruc­tions, specifications, drawings, and photographs
in this manual. Sometimes we make mistakes, but
our policy of continuous improvement also means
that

you receive is

slightly different than shown in the manual

If you find this to be the case, and the difference
between the manual and machine leaves you
confused or unsure about something

check our

website for an updated version. W

current

manuals and

on our web-

site at

Alternatively, you can call our Technical Support
for help. Before calling, make sure you write down
the

from
the machine ID label (see below). This information
is required for us to provide proper tech support,
and it helps us determine if updated documenta­tion is available for your machine.

We stand behind our machines! If you have ques­tions or need help, contact us with the information
below. Before contacting, make sure you get the

serial number

machine ID label. This will help us help you faster.

We want your feedback on this manual. What did
you like about it? Where could it be improved?
Please take a few minutes to give us feedback.

Email: [e-mail]

Contact Info

and manufacture date from the

Grizzly Technical Support

1815 W. Battlefield
Springfield, MO 65807
Phone: [phone]

Email: [e-mail]

Grizzly Documentation Manager

P.O. Box 2069

Bellingham, WA 98227-2069

Manual Accuracy

made every effort to be exact with the

sometimes the machine

.

,

e post

manual updates for free

www.grizzly.com.

Manufacture Date and Serial Number

Like all machinery there is potential danger
when operating this machine. Accidents
are frequently caused by lack of familiarity
or failure to pay attention. Use this machine
with respect and caution to decrease the
risk of operator injury. If normal safety pre­cautions are overlooked or ignored, seri­ous personal injury may occur.

Manufacture Date

Serial Number

-2-

Model T28325 (Mfd. Since 1/18)

Identification

To reduce your risk of
serious injury, read this
entire manual BEFORE

Become familiar with the names and locations of the controls and features shown below to better understand
the instructions in this manual.

Front View

Bending

Blocks

Bending

Leaf

Bending

Leaf

Handle

Foot

Pedal

Clamping

Leaf

Clamping

Fingers

Pressure

Adjustment

Knob

(1 of 2)

Work Stop

Collar

Setback

Adjustment

Knob

(1 of 2)

Rear View

Machine

Mounting

Locations

Clamping

Strut

Foot

Pedal Lock

Model T28325 (Mfd. Since 1/18)

using machine.

-3-

To reduce your risk of
serious injury, read this
entire manual BEFORE

Controls &

Components

Refer to the following figures and descriptions to
become familiar with the basic controls and com­ponents of this machine. Understanding these
items and how they work will help you understand
the rest of the manual and minimize your risk of
injury when operating this machine.

Pressure

Adjustment

Knob

(1 of 2)

Bending Leaf

Handle

Clamping

Fingers

Work Stop

Collar

Bending

Blocks

Machine

Mounting

Points

Figure 2. Right side controls.

Bending

Leaf

Setback

Adjustment

Knob

(1 of 2)

Foot Pedal

Foot Pedal Lock

Figure 1. Left side controls.

Pressure Adjustment Knobs: Adjust the clamp-

ing pressure for different workpiece thicknesses.
Always set each adjustment knob equally.

Setback Adjustment Knobs: Adjust the distance
of the bending blocks from the clamping fingers.

Bending Leaf Handle: Allows the operator to lift
the bending leaf to produce the bend.

Foot Pedal: Controls the action of the clamping
fingers.

Work Stop Collar: Allows the operator to pro­duce repetitive bends at the same angle.

Machine Mounting Points: Locations for install­ing floor mounting hardware.

Clamping Fingers: Hold workpiece in place. Can
be individually removed to allow clearance for
workpiece.

Bending Blocks: Pivot with bending leaf to
produce bend in workpiece. Can be individually
removed to allow clearance for workpiece.

Sharp edges of sheet metal
can easily cut fingers,
hands, or other body parts.
Always wear leather gloves
when handling sheet metal,
and always chamfer and
debur the edges.

Foot Pedal Lock: Locks the clamping leaf in the

down position.

-4-

using machine.

Model T28325 (Mfd. Since 1/18)

Machine Data Sheet

MACHINE DATA

SHEET

Customer Service #: [phone] · To Order Call: [phone] · Fax #: [phone]

MODEL T28325 59" PAN AND BOX BRAKE

Product Dimensions:

Weight.............................................................................................................................................................. 980 lbs.

Width (side-to-side) x Depth (front-to-back) x Height............................................................... 71-1/2 x 40-1/2 x 46 in.

Footprint (Length x Width)............................................................................................................................ 65 x 31 in.

Shipping Dimensions:

Type.......................................................................................................................................................... Wood Crate

Content........................................................................................................................................................... Machine

Weight............................................................................................................................................................ 1080 lbs.

Length x Width x Height....................................................................................................................... 74 x 24 x 51 in.

Must Ship Upright................................................................................................................................................... Yes

Main Specifications:

Capacities

Maximum Width......................................................................................................................................... 59 in.

Maximum Thickness Mild Steel.......................................................................................................... 18 Gauge

Aluminum............................................................................................................................................ 16 Gauge

Soft Brass........................................................................................................................................... 16 Gauge

Annealed Phosphor Bronze................................................................................................................ 18 Gauge

Soft Copper......................................................................................................................................... 16 Gauge

Hard Copper....................................................................................................................................... 18 Gauge

Brake Range..................................................................................................................................... 0–135 deg.

Minimum Reverse Bend........................................................................................................................... 5/8 in.

Maximum Height of Pan/Box Brake Sides................................................................................................... 2 in.

Construction

Base........................................................................................................................................................... Steel

Bending Leaf.............................................................................................................................................. Steel

Clamping Leaf............................................................................................................................................ Steel

Fingers............................................................................................. Precision-Ground Steel, Hardened Edges

Other Specifications:

Country of Origin ................................................................................................................................................ China

Warranty ........................................................................................................................................................... 1 Year

Approximate Assembly & Setup Time ............................................................................................................. 30 Min.

Serial Number Location ................................................................................................................... Machine ID Label

Features:

135-Degree Maximum Bending Angle
2" Maximum Pan/Box Height
5/8" Minimum Reverse Bend Capability
18-Gauge Full Width Mild Steel Capacity
Removable Fingers for Box Bends
Removable Dies for Clearance

Model T28325 (Mfd. Since 1/18)

-5-

SECTION 1: SAFETY

For Your Own Safety, Read Instruction

Manual Before Operating This Machine

The purpose of safety symbols is to attract your attention to possible hazardous conditions.
This manual uses a series of symbols and signal words intended to convey the level of impor­tance of the safety messages. The progression of symbols is described below. Remember that
safety messages by themselves do not eliminate danger and are not a substitute for proper
accident prevention measures. Always use common sense and good judgment.

Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury. It may also be used to alert
against unsafe practices.

This symbol is used to alert the user to useful information about

NOTICE

proper operation of the machine.

Safety Instructions for Machinery

OWNER’S MANUAL. Read and understand this

owner’s manual BEFORE using machine.

TRAINED OPERATORS ONLY. Untrained oper­ators have a higher risk of being hurt or killed.
Only allow trained/supervised people to use this
machine. When machine is not being used, dis­connect power, remove switch keys, or lock-out
machine to prevent unauthorized use—especially
around children. Make your workshop kid proof!

DANGEROUS ENVIRONMENTS. Do not use
machinery in areas that are wet, cluttered, or have
poor lighting. Operating machinery in these areas
greatly increases the risk of accidents and injury.

MENTAL ALERTNESS REQUIRED. Full mental
alertness is required for safe operation of machin­ery. Never operate under the influence of drugs or
alcohol, when tired, or when distracted.

ELECTRICAL EQUIPMENT INJURY RISKS. You
can be shocked, burned, or killed by touching live
electrical components or improperly grounded
machinery. To reduce this risk, only allow qualified
service personnel to do electrical installation or
repair work, and always disconnect power before
accessing or exposing electrical equipment.

DISCONNECT POWER FIRST.
nect machine from power supply BEFORE making
adjustments, changing tooling, or servicing machine.
This prevents an injury risk from unintended startup
or contact with live electrical components.

EYE PROTECTION. Always wear ANSI-approved
safety glasses or a face shield when operating or
observing machinery to reduce the risk of eye
injury or blindness from flying particles. Everyday
eyeglasses are NOT approved safety glasses.

Always discon-

-6-

Model T28325 (Mfd. Since 1/18)

WEARING PROPER APPAREL. Do not wear
clothing, apparel or jewelry that can become
entangled in moving parts. Always tie back or
cover long hair. Wear non-slip footwear to reduce
risk of slipping and losing control or accidentally
contacting cutting tool or moving parts.

HAZARDOUS DUST. Dust created by machinery
operations may cause cancer, birth defects, or
long-term respiratory damage. Be aware of dust
hazards associated with each workpiece mate­rial. Always wear a NIOSH-approved respirator to
reduce your risk.

HEARING PROTECTION. Always wear hear­ing protection when operating or observing loud
machinery. Extended exposure to this noise
without hearing protection can cause permanent
hearing loss.

REMOVE ADJUSTING TOOLS. Tools left on
machinery can become dangerous projectiles
upon startup. Never leave chuck keys, wrenches,
or any other tools on machine. Always verify
removal before starting!

USE CORRECT TOOL FOR THE JOB. Only use
this tool for its intended purpose—do not force
it or an attachment to do a job for which it was
not designed. Never make unapproved modifica­tions—modifying tool or using it differently than
intended may result in malfunction or mechanical
failure that can lead to personal injury or death!

AWKWARD POSITIONS. Keep proper footing
and balance at all times when operating machine.
Do not overreach! Avoid awkward hand positions
that make workpiece control difficult or increase
the risk of accidental injury.

CHILDREN & BYSTANDERS. Keep children and
bystanders at a safe distance from the work area.
Stop using machine if they become a distraction.

GUARDS & COVERS. Guards and covers reduce
accidental contact with moving parts or flying
debris. Make sure they are properly installed,
undamaged, and working correctly BEFORE
operating machine.

FORCING MACHINERY. Do not force machine.
It will do the job safer and better at the rate for
which it was designed.

NEVER STAND ON MACHINE. Serious injury
may occur if machine is tipped or if the cutting
tool is unintentionally contacted.

STABLE MACHINE. Unexpected movement dur­ing operation greatly increases risk of injury or
loss of control. Before starting, verify machine is
stable and mobile base (if used) is locked.

USE RECOMMENDED ACCESSORIES. Consult
this owner’s manual or the manufacturer for rec­ommended accessories. Using improper acces­sories will increase the risk of serious injury.

UNATTENDED OPERATION. To reduce the
risk of accidental injury, turn machine OFF and
ensure all moving parts completely stop before
walking away. Never leave machine running
while unattended.

MAINTAIN WITH CARE. Follow all maintenance
instructions and lubrication schedules to keep
machine in good working condition. A machine
that is improperly maintained could malfunction,
leading to serious personal injury or death.

DAMAGED PARTS. Regularly inspect machine
for damaged, loose, or mis-adjusted parts—or
any condition that could affect safe operation.
Immediately repair/replace BEFORE operating
machine. For your own safety, DO NOT operate
machine with damaged parts!

MAINTAIN POWER CORDS. When disconnect­ing cord-connected machines from power, grab
and pull the plug—NOT the cord. Pulling the cord
may damage the wires inside. Do not handle
cord/plug with wet hands. Avoid cord damage by
keeping it away from heated surfaces, high traffic
areas, harsh chemicals, and wet/damp locations.

EXPERIENCING DIFFICULTIES. If at any time
you experience difficulties performing the intend­ed operation, stop using the machine! Contact our
Technical Support at [phone].

Model T28325 (Mfd. Since 1/18)

-7-

Additional Safety for Pan & Box Brakes

Fingers can be broken or severely pinched if caught between clamping fingers and bending
blocks during operation. Severe cuts can occur from sliding along or pushing against sharp
workpiece edges. To minimize risk of injury, anyone operating this machine MUST completely
heed the hazards and warnings below.

CRUSHING & AMPUTATION INJURIES. The

brake can quickly crush or amputate fingers,
hands, or body parts. Never place fingers, hands,
or body parts between or near the clamping fin­gers and bending blocks during operation.

SECURING BRAKE. Before using, secure the
brake to the floor so it can support the weight and
dynamic forces involved in bending sheet metal.
Otherwise, the brake may unexpectedly move
or tip during operation, causing serious injury or
property damage.

TOOLS IN POOR CONDITION. Using this tool
with loose hardware or damaged components
could result in sudden, unexpected movements
during use. Inspect the brake for cracked compo­nents, damaged linkage, levers, or loose fasten­ers. Correct any problems before use.

LEAVING UNATTENDED. To reduce the risk of
crushing or amputation injuries with children or
visitors, lower the clamping leaf and lock the foot
pedal down when not in use.

METAL EDGES. Sharp edges on sheet metal can
result in severe cuts. Always wear leather gloves
and chamfer/de-burr sharp sheet metal edges.

COMFORTABLE BODY POSITION. The required
body motion to operate the brake can result in
operator injury over time if proper ergonomics are
not used during operation. Always keep your body
centered with the machine and your back straight
when using the foot pedal.

HEATING METAL. Heating the workpiece with a
torch or welding it while clamped in the brake may
weaken the fingers, blocks, and frame. Do not use
a torch, welder, or other similar heating tool near
the brake.

CAPACITY. Exceeding the capacity of the brake
may result in sudden breakage that ejects danger­ous metal debris at the operator or bystanders, or
causes machine damage. Only use sheet metal
that is within the rated capacity of this brake (refer
to the Machine Data Sheet).

FOOTING. This brake requires you to apply mod­erate force to the foot pedal while bending. If your
foot slips, you could fall down and be injured.
Always stand with one foot comfortably on the
floor during operation. Never use both feet on
the foot pedal or jump on it. Never have one foot
under the foot pedal during operation.

No list of safety guidelines can be complete. Every shop environment is different. Always consider
safety first, as it applies to your individual working conditions. Use this and other machinery with
caution and respect. Failure to do so may result in serious personal injury or property damage.

-8-

Model T28325 (Mfd. Since 1/18)

SECTION 2: SETUP

This machine was carefully packaged for safe
transport. When unpacking, separate all enclosed
items from packaging materials and inspect them
for shipping damage.

,

please

IMPORTANT:

you are completely satisfied with the machine and
have resolved any issues between Grizzly or the
shipping agent. You MUST have the original pack-

aging to file a freight claim. It is also extremely
helpful if you need to return your machine later.

Keep children and pets away
from plastic bags or packing
materials shipped with this

The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.

If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.

Unpacking

If items are damaged

call us immediately at [phone].

Save all packaging materials until

SUFFOCATION HAZARD!

Inventory

Description Qty

A. Lower Braces ............................................. 2

Stock Supports ........................................... 2

B.

Hex Bolts M10-1.5 x 25 .............................. 4

C.

Lock Washers 10mm .................................. 4

D.

Flat Washers 10mm ................................... 4

E.

Cap Screws M8-1.25 x 25 .......................... 4

F.

Lock Washers 8mm.................................... 4

G.

Flat Washers 8mm ..................................... 4

H.

machine. Discard immediately.

Needed for Setup

The following are needed to complete the setup
process, but are not included with your machine.

Description Qty

• Additional People ....................................... 1

• Safety Glasses .................1 Pair Per Person

• Hex Wrench 6mm ....................................... 1

• Hex Wrench 8mm ....................................... 1

• Open-End Wrench or Socket 16 mm ......... 1

• Mounting Hardware (Page 13) ... As Needed

• Forklift ......................................................... 1

• Web Slings (rated for at least 1500 lbs.) .... 2

Model T28325 (Mfd. Since 1/18)

A

B

C

D

E

Figure 3. Assembly parts inventory.

F

G
H

NOTICE

If you cannot find an item on this list, care­fully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpack­ing or they are pre-installed at the factory.

-9-

Hardware Recognition Chart

USE THIS CHART TO MATCH UP
HARDWARE DURING THE INVENTORY
AND ASSEMBLY PROCESS.

Flat
Head
Cap
Screw

-10 -

5mm

5mm

Model T28325 (Mfd. Since 1/18)

Cleanup

The unpainted surfaces of your machine are
coated with a heavy-duty rust preventative that
prevents corrosion during shipment and storage.
This rust preventative works extremely well, but it
will take a little time to clean.

Be patient and do a thorough job cleaning your
machine. The time you spend doing this now will
give you a better appreciation for the proper care
of your machine's unpainted surfaces.

There are many ways to remove this rust preven­tative, but the following steps work well in a wide
variety of situations. Always follow the manufac­turer’s instructions with any cleaning product you
use and make sure you work in a well-ventilated
area to minimize exposure to toxic fumes.

Before cleaning, gather the following:

• Disposable rags

• Cleaner/degreaser (WD•40 works well)

• Safety glasses & disposable gloves

• Plastic paint scraper (optional)

Basic steps for removing rust preventative:

1.

2.

amount of cleaner/degreaser, then let it soak

3.

scrape off as much as you can first, then wipe

4.

then coat all unpainted surfaces with a quality

Avoid chlorine-based solvents, such as

Cleaning Blocks

The clamping fingers and bending blocks (see
Figure 4) are coated with rust preventative that
must be removed before beginning operation.

Put on safety glasses.

Coat the rust preventative with a liberal

for 5–10 minutes.

Wipe off the surfaces. If your cleaner/degreas-

er is effective, the rust preventative will wipe
off easily. If you have a plastic paint scraper,

off the rest with the rag.

Clamping

Fingers

Bending

Blocks

Figure 4. Location of bending blocks and

clamping fingers.

Although the rust preventative was applied only
to the visible surfaces of the clamping fingers
and bending blocks, some may have worked in
between and underneath them. We recommend
that you remove all clamping fingers and bending
blocks to thoroughly clean them.

If you do remove the clamping fingers and bend­ing blocks, properly align them as described in
Aligning Fingers & Blocks on Page 15 after
re-installing.

Repeat Steps 2–3 as necessary until clean,

metal protectant to prevent rust.

NOTICE

acetone or brake parts cleaner, that may
damage painted surfaces.

Model T28325 (Mfd. Since 1/18)

-11-

Site Considerations

Weight Load

for the weight

of your machine. Make sure that the surface upon

of the machine, additional equipment that may be

Physical Environment

The physical environment where the machine
is operated is important for safe operation and
longevity of components. For best results, oper­ate this machine in a dry environment that is
free from excessive moisture, hazardous chemi­cals, airborne abrasives, or extreme conditions.
Extreme conditions for this type of machinery are
generally those where the ambient temperature
range is outside 41°–104°F; the relative humidity
range is outside 20–95% (non-condensing); or
the environment is subject to vibration, shocks,
or bumps.

Shadows, glare, or strobe effects that may distract

Space Allocation

Consider the largest size of workpiece that will
be processed through this machine and provide
enough space around the machine for adequate
operator material handling or the installation of
auxiliary equipment. With permanent installations,
leave enough space around the machine to open
or remove doors/covers as required by the main­tenance and service described in this manual.

See below for required space allocation.

Refer to the Machine Data Sheet

which the machine is placed will bear the weight

installed on the machine, and the heaviest work­piece that will be used. Additionally, consider the
weight of the operator and any dynamic loading
that may occur when operating the machine.

Lighting

Lighting around the machine must be adequate
enough that operations can be performed safely.

or impede the operator must be eliminated.

Children or untrained people
may be seriously injured by
this machine. Only install in an
access restricted location.

401/2"

-12-

Figure 5. Working clearances.

71-1/2"

Model T28325 (Mfd. Since 1/18)

Assembly Lifting & Placing

This machine must be fully assembled before
it can be used or placed. Before beginning the
assembly process, refer to Needed for Setup
and gather all listed items.

To assemble pan and box brake:

Attach lower braces to mounting plates on

1.

bottom of machine with (4) M10-1.5 x 25 hex
bolts, (4) 10mm lock washers, and (4) 10mm
flat washers (see Figure 6).

Attach stock supports with (4) M8-1.25 x 25

2.

cap screws, (4) 8mm lock washers, and (4)
8mm flat washers (see Figure 6).

Stock

Supports

HEAVY LIF T!
Straining or crushing injury
may occur from improperly
lifting machine or some of
its parts. To reduce this risk,
get help from other people
and use a forklift (or other
lifting equipment) rated for
weight of this machine.

To lift and place pan and box brake:

1. Position pallet with assembled machine

attached as close as possible to installation
location.

Make sure foot pedal is locked in down posi-

2.

tion.

x 4

x 4

Figure 6. Lower brace and stock support

mounting locations.

The pan and box brake should now look like

3.

the one shown in Figure 7.

Lower

Braces

Wrap web slings around pan and box

3.

brake and attach them to lifting device
(see Figure 8).

Web

Slings

Figure 8. Example of web slings wrapped

around pan and box brake.

4. Unbolt brake from shipping pallet.

5. With an assistant helping to stabilize the

brake from swinging or rocking when lifted,
raise brake just enough to clear shipping pal­let, then remove pallet.

Figure 7. Pan and box brake fully assembled.

Model T28325 (Mfd. Since 1/18)

Lower brake into place and anchor to floor as

6.

recommended on Page 13.

-13-

Anchoring to Floor

Anchoring machinery to the floor prevents tipping
or shifting and reduces vibration that may occur
during operation, resulting in a machine that runs
slightly quieter and feels more solid.

If the machine will be installed in a commercial or
workplace setting, or if it is permanently connect­ed (hardwired) to the power supply, local codes
may require that it be anchored to the floor.

If not required by any local codes, fastening the
machine to the floor is an optional step. If you
choose not to do this with your machine, we rec­ommend placing it on machine mounts, as these
provide an easy method for leveling and they have
vibration-absorbing pads.

Lag shield anchors with lag screws (see below)
are a popular way to anchor machinery to a con­crete floor, because the anchors sit flush with the
floor surface, making it easy to unbolt and move
the machine later, if needed. However, anytime
local codes apply, you MUST follow the anchoring
methodology specified by the code.

Leveling

Number of Mounting Holes ............................ 4

Diameter of Mounting Hardware

.................1⁄2"

Anchoring to Concrete Floors

Leveling the brake helps the leafs and other
cast-iron components remain straight and flat
during the lifespan of the machine. Components
on an unlevel machine may slowly twist due to
the dynamic loads placed on the machine during
operation, which will negatively affect the ability of
the brake to produce accurate bends.

If needed, use metal shims between the base and
the floor when leveling the machine.

For best results, use a precision level that is at
least 12" long and sensitive enough to show a
distance movement when a 0.003" shim (approxi­mately the thickness of one sheet of standard
newspaper) is placed under one end of the level.

Loosening Work

Stop

Machine Base

Concrete

Figure 9. Popular method for anchoring

machinery to a concrete floor.

Lag Screw

Flat Washer

Lag Shield Anchor

Drilled Hole

The clamping cap screw on the work stop col­lar (see Figure 10) was tightened at the factory
before shipping to keep the bending leaf from
moving. Before beginning operation, use an 8mm
hex wrench to loosen the clamping cap screw so
that the bending leaf can rotate through its full arc.

Clamping

Cap Screw

Work Stop

Collar

Figure 10. Work stop collar and clamping cap

screw.

-14-

Model T28325 (Mfd. Since 1/18)

SECTION 3: OPERATIONS

The purpose of this overview is to provide the nov­ice machine operator with a basic understanding
of how the machine is used during operation, so
the

discussed later

in this manual

Due to the generic nature of this overview, it is
not intended to be an instructional guide. To learn
more about specific operations, read this entire
manual,

training from experienced
machine operators
outside of this manual by reading "how-to" books,
trade magazines, or websites.

To reduce your risk of
serious injury, read this
entire manual BEFORE

Operation Overview

machine controls/components

are easier to understand.

seek additional

, and do additional research

To complete a typical operation, the operator
does the following:

Examines workpiece to make sure it is suit-

1.

able for bending.

If required for the operation, adjusts clamping

2.

finger and bending block spacing.

Adjusts clamping pressure for workpiece

3.

thickness.

Correctly adjusts setback.

4.

5. Puts on safety glasses, leather boots, and

leather gloves.

Properly positions workpiece underneath

6.

clamping fingers and locks foot pedal in down
position to secure workpiece.

using machine.

Bodily injury could result from using this
machine. Always wear safety glasses,
leather work boots, and heavy duty leather
work gloves when operating this machine
or whenever handling sheet metal.

Using proper body position and both hands,

7.

raises bending leaf to form correct bend
angle.

Lowers bending leaf, then unlocks foot pedal

8.

to release and remove workpiece.

If you are not experienced with this type
of machine, WE STRONGLY RECOMMEND
that you seek additional training outside of
this manual. Read books/magazines or get
formal training before beginning any proj­ects. Regardless of the content in this sec­tion, Grizzly Industrial will not be held liable
for accidents caused by lack of training.

Model T28325 (Mfd. Since 1/18)

-15-

Spacing Fingers &

Aligning Fingers &

Blocks

The clamping fingers and bending blocks can be
spaced apart for clearance when making pans or
boxes. This requires removing one or more sets of
fingers or blocks and spacing the others to match
the width of your pan or box. See Figure 11 for
an example.

T-Nut

Blocks

To help ensure the bend is even along its length,
the clamping fingers and bending blocks must be
properly aligned with one another.

Item(s) Needed Qty

Hex Wrench 8mm .............................................. 1

Aligning Clamping Fingers

1. Loosen cap screws that secure each clamp-

ing finger, but do not remove them.

2. Apply upward pressure to clamping finger
until it stops, then re-tighten cap screw(s).

Examine entire row of clamping fingers to

3.

make sure upper edges are all aligned with
one another (see Figure 12). If necessary,
repeat Steps 1–2 until they are all aligned.

Figure 11. Example of finger spacing.

The T-nuts under the fingers and blocks that
secure them can be moved along their slots to
allow for any spacing configuration required.

As you space the fingers or blocks, make sure
that you properly align them, as described in the
next subsection.

Clamping Fingers

Bending Blocks

Figure 12. Clamping fingers and bending blocks

properly aligned.

Aligning Bending Blocks

The bending blocks are aligned in a similar man­ner as the clamping fingers except you apply
downward pressure (or toward the operator, if the
bending leaf is raised) to align the block edges
with one another.

-16 -

Model T28325 (Mfd. Since 1/18)

Adjusting Setback

Setback is the required distance between the
bending blocks and the clamping fingers to prop­erly make the bend (see Figure 13). A number of
factors determine the correct setback distance,
such as bend allowance, bend radius, and mate­rial thickness.

There are many sources to help you calculate the
correct setback for your operation, such as metal­working handbooks, the internet, or experienced
sheet metal workers.

Setback

Bending

Block

Clamping

Finger

2. Rotate one setback adjustment knob a small
amount, then rotate other knob same amount
and direction. This prevents bending leaf
from binding on setback shafts and keeps it
parallel with clamping leaf.

Repeat Step 2 until you have correct set-

3.

back, then re-tighten hex bolts.

Tip: Use calipers to precisely check the set-

back.

Adjusting Clamping

Pressure

When securing the workpiece with the foot pedal,
the correct clamping pressure depends on the
workpiece thickness. The ideal pressure locks the
workpiece firmly in position between the clamping
fingers and base without excessive compression
that could damage the workpiece or brake.

Clamping

Base

Figure 13. Identification of setback.

Item(s) Needed Qty

Open-End Wrench or Socket 14mm ................. 1

Calipers (Optional)

To adjust setback:

1. Loosen hex bolts (see Figure 14) on each

side of bending leaf.

Hex Bolt

(1 of 2)

............................................. 1

Graduated

Dial

Rotate one pressure adjustment knob (see
Figure 15) a small amount, then rotate the other
knob the same amount and direction. This pre­vents the clamping leaf from binding on the shafts
and keeps it parallel with the clamping base.

Pressure

Adjustment

Knob

Graduated

Scale

Collar

Figure 15. Pressure adjustment knob.

Setback

Adjustment

Knob

Figure 14. Setback controls.

Model T28325 (Mfd. Since 1/18)

-17-

When the clamping pressure is correctly adjusted,
the foot pedal lock plate (see Figure 16) will
spring forward and secure the foot pedal down
when it is fully depressed.

Foot Pedal

Lock Plate

Foot

Pedal

We recommend that the foot pedal always be
locked down after positioning the workpiece and
before making the bend. This will help ensure
the workpiece stays in the proper position during
bending.

Adjusting Work Stop

The work stop mechanism allows the operator to
produce repetitive bends at the same angle.

Item(s) Needed Qty

Hex Wrench 8mm .............................................. 1

Wrench 16mm

To adjust work stop:

................................................... 1

Figure 16. Using the foot pedal.

Make sure the clamping pressure is cor­rectly adjusted for the workpiece thickness
to prevent workpiece or machine damage
when the foot pedal is fully depressed.

Bend Allowance

When a bend is made in sheet metal, the inside
surface of the bend compresses and the outside
surface stretches. To bend metal objects accu­rately, you need to consider the length of each
bend, especially when more than one bend is
required. This is called bend allowance.

The bend allowance is added to the sum of the
outside dimensions of the workpiece flat surfaces
to obtain the overall length and width of the blank
needed to make a particular part.

Exact allowances can only be obtained by trial due
to differences in sheet metal hardness, whether
the bend is with or across the grain, and difficul­ties in making an exact bend radius. Formulas for
calculating the bend allowance can be found in
metalworking handbooks or the internet.

Loosen clamping cap screw on work stop col-

1.

lar (see Figure 17) so stop collar is loose on
shaft.

Work Stop Collar

Clamping

Cap Screw

Stop

Block

Scale

Adjustable

Bending

Leaf

Figure 17. Work stop controls.

Raise bending leaf to correct angle.

2.

Note: The scale on the work stop collar dis-

plays the relative angle of the bending leaf.

Rotate work stop collar clockwise until it rests

3.

on stop block, then re-tighten clamping cap
screw to secure setting.

Note: If needed, loosen the hex nut on the

adjustable stop cap screw, then use the cap
screw for additional adjustment.

Stop Cap

Screw

-18-

Model T28325 (Mfd. Since 1/18)

ACCESSORIES

Installing unapproved accessories may

order online at www.grizzly.com or call 1-800-523-4777

SECTION 4: ACCESSORIES

cause machine to malfunction, resulting in
serious personal injury or machine damage.
To reduce this risk, only install accessories
recommended for this machine by Grizzly.

T26685—Moly-D Machine Oil-ISO 32

NOTICE

Refer to our website or latest catalog for
additional recommended accessories.

Recommended Metal Protectants

®

G5562—SLIPIT
G5563—SLIPIT
G2871—Boeshield
G2870—Boeshield
H3788—G96
H3789—G96

1 Qt. Gel

®

12 Oz. Spray

®

T-9 12 Oz. Spray

®

®

Gun Treatment 12 Oz. Spray

®

Gun Treatment 4.5 Oz. Spray

T-9 4 Oz. Spray

Figure 19. Recommended product for machine

lubrication.

T25208—23-Piece Deburring Set

Includes: 380-0060 double burr; 2-piece 380­0088 handle; 380-0097, 380-0098, and 380-0091
holders; D25 and D40 scrapers; C20 countersink;
ES100 and ES200 blades (5 each); V13, and A13
blades; wrench and hex wrenches; case.

Figure 18. Recommended products for protect-

ing unpainted cast iron/steel parts on machinery.

Model T28325 (Mfd. Since 1/18)

Figure 20. Model T25208 Deburring Set.

-19 -

order online at www.grizzly.com or call 1-800-523-4777

H5503—Electric Sheet Metal Shear

• Motor: 1⁄2 HP, 110V, 2500 RPM, 3.8 Amp

• Swivel head adjust 360°

• Variable speed: 0–2500 RPM

• Cuts up to 14 gauge in mild steel and 18
gauge in stainless, at up to 150 in./min.

• Weighs 5 lbs.

T21321—Hand Punch

For repetitive hole punching, nothing beats the
speed of a hand punch. With a throat depth of
6 9⁄32", this versatile punch can make a hole in mild

3

steel up to

⁄16" thick. Measures 5 1⁄2 " wide by 31 1⁄2 "
tall (without handle). Approximate shipping weight:
192 lbs.

Figure 21. Model H5503 Electric Sheet Metal

Shear.

T10717—50" Deluxe Foot Shear

This 50" Deluxe Foot Shear has

7

⁄16" blades,
0"–35" front scale length, and 0"–24" rear stop
scale length with dual locks and micro-adjustable
dials. Will cut a maximum of 16-gauge mild steel
at half width and 18-gauge at full width. The
shear head sliding rails feature fully adjustable
gib plates.

Figure 23. Model T21321 Hand Punch.

T23085—Pneumatic Nibbler

Push-type Pneumatic Nibbler makes quick work
of sheet steel up to 16 gauge without leaving
burrs or deforming edges. Features 3800 strokes
per minute, and adjustable die can be turned to
suit various cutting positions.

Figure 24. Model T23085 Pneumatic Nibbler.

Figure 22. Model T10717 50" Deluxe Foot

Shear.

-20-

Model T28325 (Mfd. Since 1/18)

SECTION 5: MAINTENANCE

Schedule

For optimum performance from this machine, this
maintenance schedule must be strictly followed.

Ongoing

To maintain a low risk of injury and proper machine
operation, if you ever observe any of the items
below, stop operating the machine immediately
and fix the problem before continuing operations:

• Loose mounting bolts.

• Worn or damaged clamping fingers or bend-

ing blocks.

Any other unsafe condition.

•

Daily

• Lubricate clamping leaf slide shafts.

• Lubricate bending leaf pivot bushings.

Weekly Maintenance

• Lubricate bending leaf cam.

• Lubricate setback shafts.

Lubrication

Clamping Leaf Slide Shafts

Oil Type ................ SB1365 or ISO 32 Equivalent

Oil Amount
Lubrication Frequency

The slide shaft ball oilers (see Figure 25) provide
lubrication to the sliding surfaces between the
shafts and the frame.

Slide Shaft

..................................... 1 or 2 Squirts

................................. Daily

Ball

Oiler

Sliding Surface

Cleaning &

Protecting

Use a brush to clear away any metal debris and
dust from the clamping fingers, clamping base,
and bending blocks.

Use a shop rag to carefully apply a thin coat of
quality metal protectant (see Page 18 for offerings
from Grizzly) to all exposed unpainted surfaces to
prevent corrosion.

Figure 25. Clamping leaf slide shaft ball oiler.

Only lubricate these ball oilers with a pump-type
oil can that has a plastic or rubberized cone tip.
Do not use oil cans with a metal needle or lance
tip, as they can push the ball too far into the oiler,
break the spring seat, and lodge the ball in the oil
galley.

When lubricating the ball oilers, first clean the out­side surface to remove any dust or grime. Push
the tip of the oil can nozzle against the ball oiler
to create a hydraulic seal, then pump the oil can
once or twice to add oil.

Model T28325 (Mfd. Since 1/18)

-21-

Bending Leaf Pivot Bushings

Oil Type ................ SB1365 or ISO 68 Equivalent

Oil Amount
Lubrication Frequency

..................................... 1 or 2 Squirts

................................. Daily

Setback Shafts

Oil Type ................ SB1365 or ISO 68 Equivalent

Oil Amount
Lubrication Frequency

.................... 1 Drop at Each Location

..............................Weekly

The bending leaf rotates around the pivot shaft on
bushings that require lubrication. Use an oil can to
add lubricant to the hole shown in Figure 26 (one
on each side of the bending leaf), then raise and
lower the bending leaf several times to distribute
the lubricant.

Hole for Oil

(1 of 2)

Figure 26. Hole for lubricating bending leaf pivot

bushing.

Bending Leaf Cam

Grease .................. T26419 or NLGI#2 Equivalent

Amount
Lubrication Frequency

.................................................Thin Coat

..............................Weekly

Raise the bending leaf until it is parallel with the
floor, then add one drop of oil to the setback shaft
locations shown in Figure 28. Use the setback
adjustment knobs equally to move the bending leaf
back and forth along the shafts to distribute the
lubricant.

Lubrication Points

Figure 28. Example of setback shaft lubrication

locations.

Use mineral spirits and a shop rag to clean each
side of the cam (see Figure 27), then apply a
thin coat of grease to each side. Raise and lower
the bending leaf several times to distribute the
lubricant.

Bending Leaf Cam

Figure 27. Bending leaf cam location.

-22-

Model T28325 (Mfd. Since 1/18)

Review the troubleshooting procedures in this section if a problem develops with your machine. If you need

the

serial number and manufacture date of your machine before calling.

SECTION 6: SERVICE

replacement parts or additional help with a procedure, call our Technical Support. Note: Please gather

Troubleshooting

Symptom Possible Cause Possible Solution

Heavy resistance
during bends.

Bend radius is not
consistent across
workpiece.

Workpiece moves
while bending.

1. Machine capacities are exceeded.

2. Not enough setback.

1. Bending leaf not parallel with clamping
leaf.

2. Clamping fingers or bending blocks not
properly aligned.

3. Too much setback.

1. Clamping pressure not correctly adjusted.

2. Not enough pressure applied with foot
pedal.

1. Use sheet metal gauge/thickness size within
machine capacities (Page 5).

2. Properly calculate and adjust setback (Page 16).

1. Adjust bending leaf parallel with clamping leaf.

2. Properly align clamping fingers and bending blocks
(Page 15).

3. Properly calculate and adjust setback (Page 16).

1. Correctly adjust clamping pressure for workpiece
thickness (Page 16).

2. Lock foot pedal down so clamping leaf secures
workpiece (Page 16).

Model T28325 (Mfd. Since 1/18)

-23-

35

Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here
are available for purchase. Call (800) 523- 4777 or visit our online parts store at www.grizzly.com to check for availability.

24

41

41

23

42

22

SECTION 7: PARTS

Main Breakdown

14

7

13

6

8

10

61

10

5

60

4

27

44

3

26

9

2

17

54

62

21

46

47

20

36

44

19

45

10

57

51

14

32

49

34

53

59

58

55

38

15

8

31

30

48

37

29

36

57

39

56

50

16

44

28

11

18

14

25

35

56

12

1

63

43

52

40

33

-24-

BUY PARTS ONLINE AT GRIZZLY.C OM!

Scan QR code to visit our Parts Store.

Model T28325 (Mfd. Since 1/18)

Main Parts List

REF PART # DESCRIPTION REF PART # DESCRIPTION

1 PT28325001 FRAME 33 PT28325033 BENDING STOP COLLAR
2 PT28325002 CLAMPING LEAF 34 PT28325034 CONNECTOR ROD
3 PT28325003 CLAMPING FINGER 1.5" 35 PT28325035 EXT RETAINING RING 25MM
4 PT28325004 CLAMPING FINGER 2" 36 PT28325036 ROLL PIN 10 X 50
5 PT28325005 CLAMPING FINGER 3" 37 PT28325037 FOOT PEDAL LOCK PLATE
6 PT28325006 CLAMPING FINGER 4" 38 PT28325038 GROOVED CLEVIS PIN 52MM
7 PT28325007 CLAMPING FINGER 9" 39 PT28325039 EXT RETAINING RING 10MM
8 PT28325008 T-NUT M10-1.5 40 PT28325040 ANGLE INDICATOR
9 PT28325009 BALL OILER 10MM PRESS-IN 41 PT28325041 SPRING RETAINING NUT
10 PT28325010 CAP SCREW M10-1.5 X 20 42 PT28325042 COMPRESSION SPRING
11 PT28325011 BENDING LEAF 43 PT28325043 FLAT HD SCR M6-1 X 12
12 PT28325012 BENDING LEAF PIN 44 PT28325044 SET SCREW M6-1 X 10
13 PT28325013 SETBACK SHAFT 45 PT28325045 HEX BOLT M8-1.25 X 20 BRASS
14 PT28325014 GRADUATED DIAL 46 PT28325046 FLAT WASHER 12MM
15 PT28325015 FOOT PEDAL 47 PT28325047 HEX BOLT M12-1.75 X 100
16 PT28325016 CLAMPING LEAF CONNECTOR 48 PT28325048 RUBBER HANDLE
17 PT28325017 LEAF COMPRESSION SPRING 49 PT28325049 FLAT WASHER 20MM
18 PT28325018 FOOT PEDAL LEG PIN 50 PT28325050 LOCK WASHER 20MM
19 PT28325019 FOOT PEDAL PIVOT PIN 51 PT28325051 HEX NUT M20-2.5
20 PT28325020 FOOT PEDAL PIVOT PLATE 52 PT28325052 EXTENSION LEG (RIGHT)
21 PT28325021 CLAMPING LEAF LOWER STRUT 53 PT28325053 EXTENSION LEG (LEFT)
22 PT28325022 BENDING LEAF CAM 54 PT28325054 WORKPIECE SUPPORT
23 PT28325023 CLAMPING LEAF UPPER STRUT 55 PT28325055 CAP SCREW M10-1.5 X 30
24 PT28325024 BUSHING 56 PT28325056 COMPESSION SPRING
25 PT28325025 SETBACK ADJ KNURLED KNOB 57 PT28325057 SET SCREW M8-1.25 X 10
26 PT28325026 PRESSURE ADJ KNURLED KNOB 58 PT28325058 LOCK WASHER 10MM
27 PT28325027 CLAMPING BASE 59 PT28325059 FLAT WASHER 10MM
28 PT28325028 BENDING BLOCK 1.5" 60 PT28325060 LOCK WASHER 8MM
29 PT28325029 BENDING BLOCK 2" 61 PT28325061 FLAT WASHER 8MM
30 PT28325030 BENDING BLOCK 3" 62 PT28325062 CAP SCREW M8-1.25 X 25
31 PT28325031 BENDING BLOCK 4" 63 PT28325063 CAP SCREW M10-1.5 X 34
32 PT28325032 BENDING BLOCK 9"

Model T28325 (Mfd. Since 1/18)

BUY PARTS ONLINE AT GRIZZLY.C OM!

Scan QR code to visit our Parts Store.

-25-

Labels & Cosmetics

103

101 102

104 105

108

107

REF PART # DESCRIPTION REF PART # DESCRIPTION

101 PT28325101 READ MANUAL WARNING LABEL 106 PT28325106 GRIZZLY.COM LABEL
102 PT28325102 CRUSHING HAZARD WARNING LABEL 107 PT28325107 MODEL NUMBER LABEL
103 PT28325103 MACHINE ID LABEL 108 PT28325108 TOUCH-UP PAINT, GRIZZLY GREEN
104 PT28325104 EYE INJURY WARNING LABEL 109 PT28325109 GRIZZLY NAME PLATE
105 PT28325105 LACERATION CAUTION LABEL

109

106

Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes
off or becomes unreadable, the owner of this machine MUST replace it in the original location
before resuming operations. For replacements, contact [phone] or www.grizzly.com.

-26-

BUY PARTS ONLINE AT GRIZZLY.C OM!

Scan QR code to visit our Parts Store.

Model T28325 (Mfd. Since 1/18)

WARRANTY CARD

Name _____________________________________________________________________________

Street _____________________________________________________________________________

City _______________________ State _________________________ Zip _____________________

Phone # ____________________ Email _________________________________________________

Model # ____________________ Order # _______________________ Serial # __________________

The following information is given on a voluntary basis. It will be used for marketing purposes to help us develop
better products and services. Of course, all information is strictly confidential.

1. How did you learn about us?
____ Advertisement ____ Friend ____ Catalog
____ Card Deck ____ Website ____ Other:

2. Which of the following magazines do you subscribe to?

____ Cabinetmaker & FDM
____ Family Handyman
____ Hand Loader
____ Handy
____ Home Shop Machinist
____ Journal of Light Cont.
____ Live Steam
____ Model Airplane News
____ Old House Journal
____ Popular Mechanics

3. What is your annual household income?
____ $20,000-$29,000 ____ $30,000-$39,000 ____ $40,000-$49,000
____ $50,000-$59,000 ____ $60,000-$69,000 ____ $70,000+

CUT ALONG DOTTED LINE

4. What is your age group?
____ 20-29 ____ 30-39 ____ 40-49
____ 50-59 ____ 60-69 ____ 70+

5. How long have you been a woodworker/metalworker?
____ 0-2 Years ____ 2-8 Years ____ 8-20 Years ____20+ Years

6. How many of your machines or tools are Grizzly?
____ 0-2 ____ 3-5 ____ 6-9 ____ 10+

____ Popular Science
____ Popular Woodworking
____ Precision Shooter
____ Projects in Metal
____ RC Modeler
____ Rie
____ Shop Notes
____ Shotgun News
____ Today’s Homeowner
____ Wood

____ Wooden Boat
____ Woodshop News
____ Woodsmith
____ Woodwork
____ Woodworker West
____ Woodworker’s Journal
____ Other:

7. Do you think your machine represents a good value? _____ Yes _____No

8. Would you recommend Grizzly Industrial to a friend? _____ Yes _____No

9. Would you allow us to use your name as a reference for Grizzly customers in your area?
Note: We never use names more than 3 times. _____ Yes _____No

10. Comments: _____________________________________________________________________

_________________________________________________________________________________

_________________________________________________________________________________

_________________________________________________________________________________
