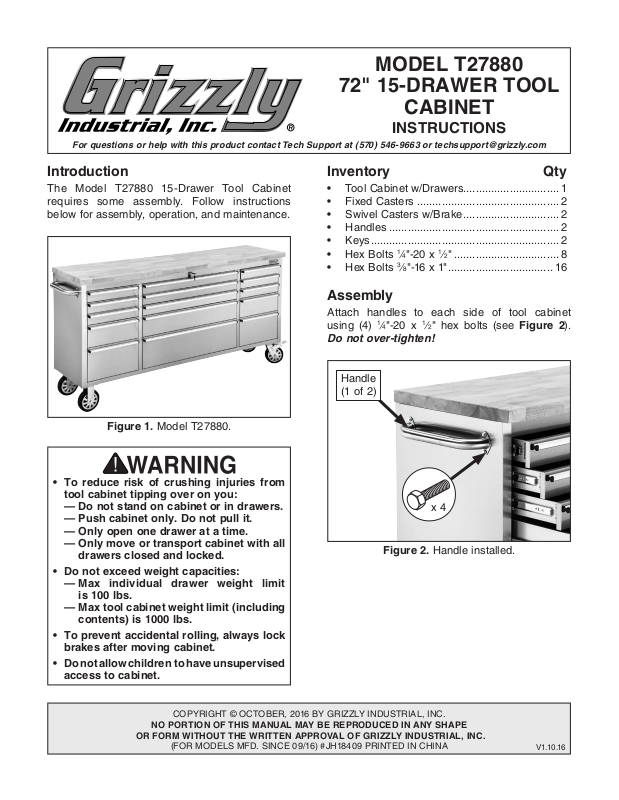

MODEL T27880

72" 15-DRAWER TOOL

CABINET

INSTRUCTIONS

For questions or help with this product contact Tech Support at [phone] or [e-mail]

Introduction

The Model T27880 15-Drawer Tool Cabinet
requires some assembly. Follow instructions
below for assembly, operation, and maintenance.

Figure 1. Model T27880.

Inventory Qty

• Tool Cabinet w/Drawers............................... 1

• Fixed Casters .............................................. 2

• Swivel Casters w/Brake ............................... 2

• Handles ....................................................... 2

• Keys ............................................................. 2

• Hex Bolts

• Hex Bolts

1

⁄4"-20 x 1⁄2 " .................................. 8

3

⁄8"-16 x 1" .................................. 16

Assembly

Attach handles to each side of tool cabinet
using (4)

Do not over-tighten!

Handle
(1 of 2)

1

⁄4"-20 x 1⁄2 " hex bolts (see Figure 2).

• To reduce risk of crushing injuries from
tool cabinet tipping over on you:
— Do not stand on cabinet or in drawers.
— Push cabinet only. Do not pull it.
— Only open one drawer at a time.
— Only move or transport cabinet with all

drawers closed and locked.

• Do not exceed weight capacities:
— Max individual drawer weight limit

is 100 lbs.

— Max tool cabinet weight limit (including

contents) is 1000 lbs.

• To prevent accidental rolling, always lock
brakes after moving cabinet.

• Do not allow children to have unsupervised
access to cabinet.

COPYRIGHT © OCTOBER, 2016 BY GRIZZLY INDUSTRIAL, INC.

NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

(FOR MODELS MFD. SINCE 09/16) #JH18409 PRINTED IN CHINA

x 4

Figure 2. Handle installed.

V1.10.16

To install casters:

1. Remove casters and hardware from bottom

drawer.

Removing and Installing Drawers

The drawers can be removed and re-installed if
necessary.

2. With help from another person, lay back of
cabinet flat on floor.

Note: We recommend sweeping the floor

clean and laying down a piece of cardboard
or blanket to prevent scratching the finish
during this step.

3

3. Attach each caster using (4)
bolts (see Figure 3).

Swivel
Caster

⁄8"-16 x 1" hex

x 4

To remove drawers:

1. Fully extend drawer and remove contents.

2. Push left locking tab down and hold, then pull
right locking tab up and hold (see Figure 5).

Note: Larger lower drawers feature two

guides per side.

Drawer Runner

Right Locking Tab

Left Locking Tabs

Figure 5. Location of drawer locking tabs.

Figure 3. Example of caster installation.

4. Return tool cabinet to upright position.

Locking Caster

To lock caster, press down on caster lock (see
Figure 4). Secure each corner caster to ensure
tool cabinet will not shift position.

Caster Lock

Unlock

Lock

Figure 4. Location of caster lock.

3. Pull drawer out to remove.

4. To re-install, insert drawer runners into slides

and push drawer completely in. The lock­ing tabs will automatically snap into place to
secure the drawer in the slides.

Locking Drawers

Use the included key to secure the drawers. Only
completely closed drawers will lock.

Maintenance

• Use soft, clean cloth and soapy water (use

regular dish soap) to remove grease, dirt, or
oil. Do not use solvents or flammable clean­ing liquids.

• Lubricate drawer slides as needed with dry

lubricant, such as Grizzly's G4682 Spraway
Dry Coating Lube.

• Use graphite to lubricate lock annually.

-2-

T27880 Tool Cabinet (Mfd. 09/16)

T27880 Parts Breakdown & List

Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here
are available for purchase. Call [phone] or visit our online parts store at www.grizzly.com to check for availability.

25

26

16

23

27

22

17

4

24

3

21

13

20

10

18

5

15

1

9

8

19

4

REF PART # DESCRIPTION REF PART # DESCRIPTION

1 PT27880001 DRAWER SLIDE SET 16 PT27880016 RIVET 4 X 6MM (ALUMINUM)
2 PT27880002 HEX BOLT 3/8-16 X 1 17 PT27880017 WOOD TOP
3 PT27880003 HEX BOLT 1/4-20 X 1/2 18 PT27880018 LOWER DRAWER (CENTER)
4 PT27880004 LOCK SET W/2 KEYS 19 PT27880019 LOWER DRAWER (OUTER)
5 PT27880005 CASTER, 6" FIXED 20 PT27880020 MIDDLE DRAWER (CENTER)
6 PT27880006 CASTER, 6" SWIVEL W/BRAKE 21 PT27880021 MIDDLE DRAWER (OUTER)
8 PT27880008 DRAWER LINER (OUTER) 22 PT27880022 UPPER DRAWER (CENTER)
9 PT27880009 DRAWER LINER (CENTER) 23 PT27880023 UPPER DRAWER (OUTER)
10 PT27880010 DRAWER PULL (CENTER) 24 PT27880024 GRIZZLY NAMEPLATE
11 PT27880011 DRAWER PULL (OUTER) 25 PT27880025 WARNING LABEL
12 PT27880012 CABINET BODY 26 PT27880026 QR CODE LABEL
13 PT27880013 HANDLE 27 PT27880027 GRIZZLY.COM LABEL (RED)
15 PT27880015 RIVET 3.8 X 6MM (ALUMINUM)

11

6

2

12

T27880 Tool Cabinet (Mfd. 09/16)

-3-
