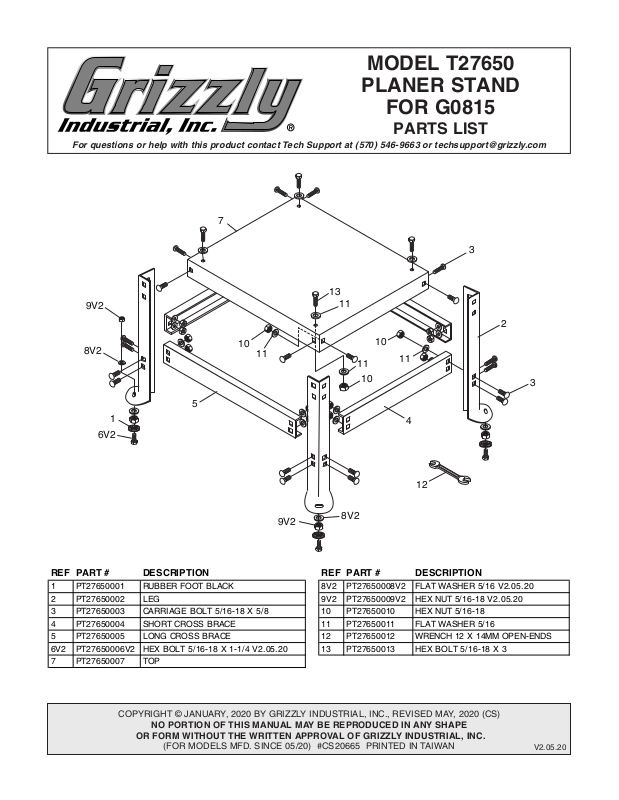

Page 1
MODEL T27650
PLANER STAND
FOR G0815
PARTS LIST
For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
7
3
13
9V2
11
2
11
10
10
11
3
4
12
8V2
5
1
6V2
REF PART # DES CRIP TION REF PART # DES CRIP TION
1 PT27650001 RUBBER FOOT BLACK 8V2 PT27650008V2 FLAT WASHER 5/16 V2. 05.20
2 PT27650002 LEG 9V2 PT27650009V2 HEX NUT 5/ 16-18 V2.05. 20
3 PT27650003 CARRIAGE BOLT 5/16-18 X 5/ 8 10 PT27650010 HEX NUT 5/ 16-18
4 PT27650004 SHO RT CROS S BRACE 11 PT27650011 FLAT WASHER 5/16
5 PT27650005 LONG CROSS BRACE 12 PT27650012 WRENCH 12 X 14MM OPEN-ENDS
6V2 PT27650006V2 HEX BOLT 5/ 16-18 X 1-1/4 V2. 05.20 13 PT27650013 HEX BOLT 5/16-18 X 3
7 PT27650007 TOP
10
11
9V2
8V2
COPYRIGHT © JANUARY, 2020 BY GRIZZLY INDUSTRIAL, INC., REVISED MAY, 2020 (CS)
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
(FOR MODELS MFD. SINCE 05/20) #CS20665 PRINTED IN TAIWAN
V2.05.20
