Grizzly T27630 User guide

MODEL T27630

LUMBER RACK

6-SHELF SYSTEM

INSTRUCTIONS

For questions or help with this product contact Tech Support at [phone] or [e-mail]

Introduction

The T27630 is a wall-mounted storage system
designed to organize your workshop. It can be
used for a variety of materials including lumber,
moldings, pipes, PVC, gutters, and more.

The T27630 provides 6 shelving levels. When
properly installed, each level has a maximum
weight capacity of up to 100 pounds. Always
ensure the rack is properly secured to the wall
by following all instructions. DO NOT exceed the
weight capacity listed.

Inventory

Description Qty

A. Horizontal Bars ......................................... 12

B. Vertical Bars ............................................... 2

C. Phillips Head Screws M5-.8 x 16.............. 12

D. Spacers 1

A

1

⁄4" x 1⁄2 " ....................................... 6

B

C

Installing Storage System

Find a location large enough to accompany the
material you wish to store. This storage system
must be secured to wall studs to support the load.

The storage system can be mounted to a vari­ety of wall surfaces, including dry wall, masonry
walls, and steel-stud walls.

5

The assembled rack is 1
minimum anchor bolt size of 2

Note: The long vertical bars can be used as a
template for pre-drilling holes prior to assembling
the rack.

To install storage system:

1. Locate small mounting hole ½-inch from
bottom of vertical bar (see Figure 2).

2. Thread (1) M5-.8 x 16 Phillips head screw

fully into hole, and slide a horizontal bar (with
notch-side-down) down vertical bar until it
rests on screw (see Figure 2).

⁄8" thick and requires a

3

⁄4".

D

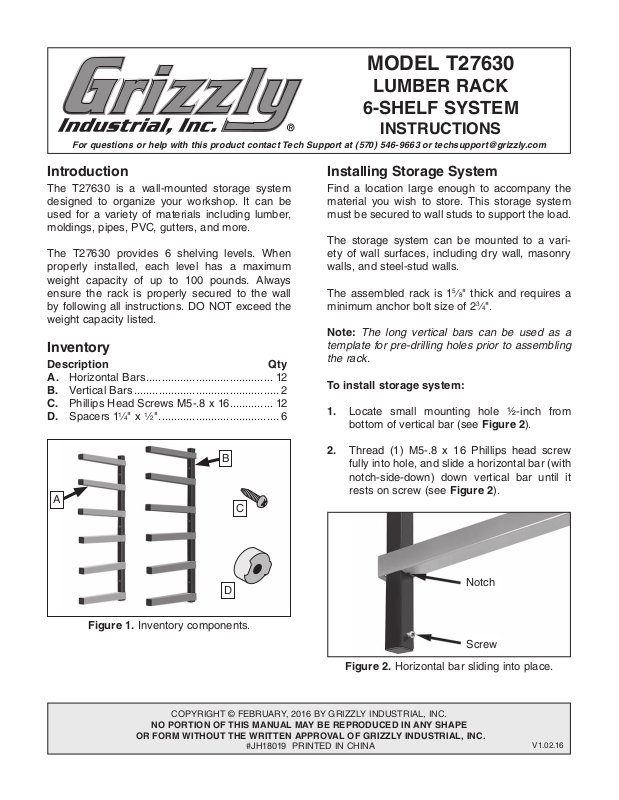

Figure 1. Inventory components.

COPYRIGHT © FEBRUARY, 2016 BY GRIZZLY INDUSTRIAL, INC.

NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

Figure 2. Horizontal bar sliding into place.

#JH18019 PRINTED IN CHINA

Notch

Screw

V1.02.16

3. Repeat Steps 1–2 for remaining pre-drilled
mounting holes on both vertical bars, working
your way up from bottom to top.

Note: To customize horizontal bar height, drill

3

⁄32" holes for mounting M5-.8 x 16 Phillips

head screw to vertical bars at desired height.

4. Locate a suitable wall mounting position,
ensuring each vertical bar will be centered on
a support stud.

Note: The weight capacity is rated for a

recommended distance of 4–6 feet between
each vertical bar (see Figure 3). For longer
materials, additional wood racks may be
required.

5. Place spacers behind each mounting hole (3
holes per vertical bar, see Figure 4), and fas­ten through wall and into a stud with appropri­ate mounting fastener (not included).

Spacer

Figure 4. Mounting wood rack to wall.

Material Stop Holes

A small material stop may be placed at the end of
each horizontal bar to prevent material from slid­ing off the rack.

4 – 6 Feet

Figure 3. Recommended space between vertical

bars.

Only secure vertical bars directly into wall
studs. Failure to do so will decrease rack
load capacity and could lead to rack failure,
resulting in personal injury or property
damage.

Place a bolt (not included) through the hole with
threads pointing up (see Figure 5). Secure with a
washer and nut (not included).

Figure 5. Material stop placed on horizontal bar.

-2-

Figure 6. Fully assembled wood rack.

T27630 Wood Rack (Mfd. 12/15)
