MODEL T27621

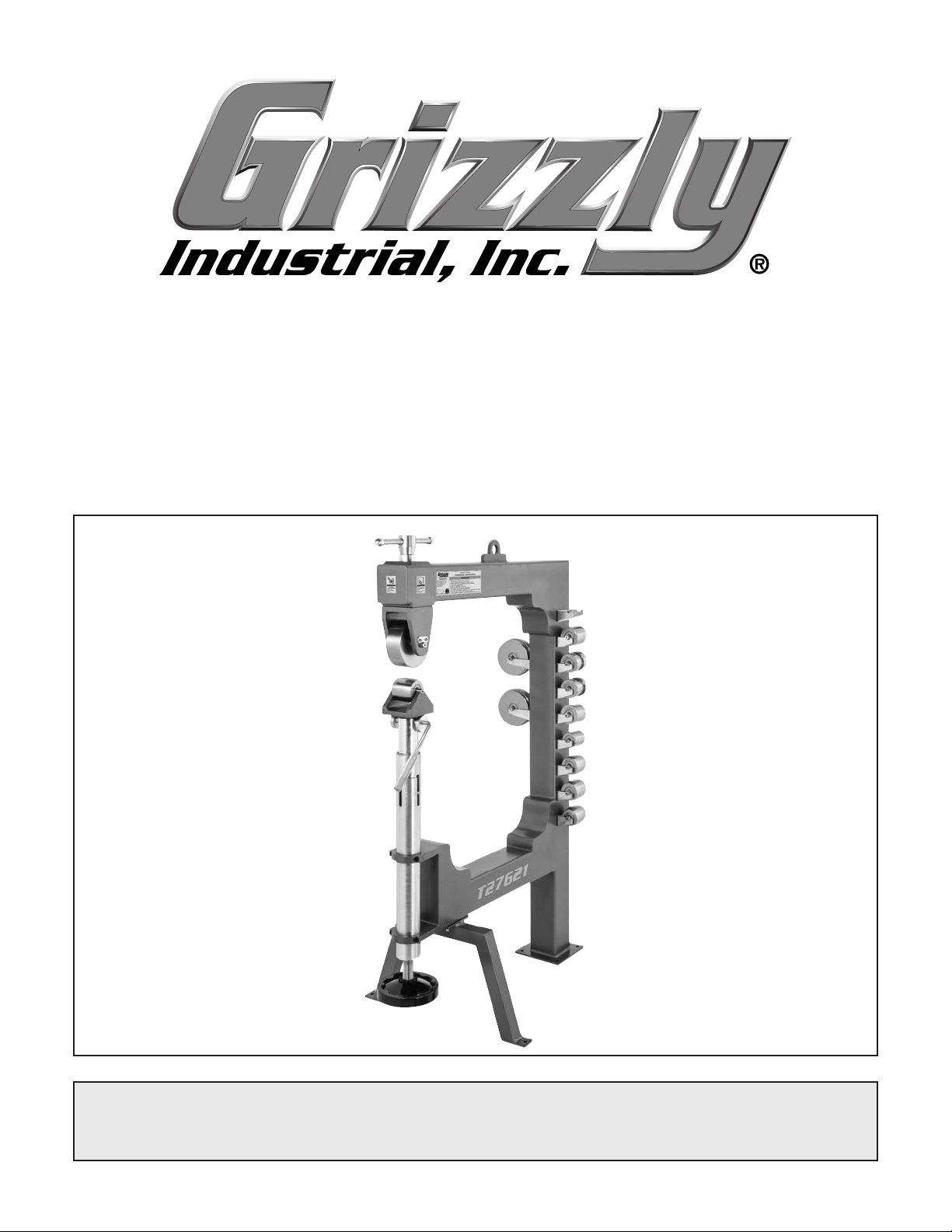

PROFESSIONAL ENGLISH WHEEL
OWNER'S MANUAL
(For models manufactured since 02/16)
COPYRIGHT © MAY, 2016 BY GRIZZLY INDUSTRIAL, INC.
WARNING : NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#BL18156 PRINTED IN CHINA
V1. 05.16
Page 2
This manual provides critical safety instructions on the proper setup,
operation, maintenance, and service of this machine/tool. Save this
document, refer to it often, and use it to instruct other operators.
Failure to read, understand and follow the instructions in this manual
may result in fire or serious personal injury—including amputation,
electrocution, or death.
The owner of this machine/tool is solely responsible for its safe use.
This responsibility includes but is not limited to proper installation in
a safe environment, personnel training and usage authorization,
proper inspection and maintenance, manual availability and comprehension, application of safety devices, cutting/sanding/grinding tool
integrity, and the usage of personal protective equipment.
The manufacturer will not be held liable for injury or property damage
from negligence, improper training, machine modifications or misuse.
Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State
of California to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement and other masonry products.
• Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
Work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter
out microscopic particles.
Page 3
Table of Contents
INTRODUCTION ............................................................................................................................... 2
Contact Info ................................................................................................................................ 2
Manual Accuracy ........................................................................................................................ 2
Identification ............................................................................................................................... 3
Machine Data Sheet ................................................................................................................... 4
SECTION 1: SAFETY ....................................................................................................................... 5
Safety Instructions for Machinery ............................................................................................... 5
Additional Safety for English Wheels ......................................................................................... 7
SECTION 2: SETUP ......................................................................................................................... 8
Needed for Setup ....................................................................................................................... 8
Unpacking .................................................................................................................................. 8
Inventory ..................................................................................................................................... 9
Cleanup .................................................................................................................................... 10
Site Considerations .................................................................................................................. 11
Assembly .................................................................................................................................. 12
Anchoring to Floor .................................................................................................................... 13
SECTION 3: OPERATIONS ........................................................................................................... 14
Operation Overview.................................................................................................................. 14
Tracking Tips ............................................................................................................................ 15
Replacing Wheels .................................................................................................................... 16
Rotating Wheels ....................................................................................................................... 17
Adjusting Quick-Release Lever ................................................................................................ 18
Selecting Lower Wheels ........................................................................................................... 19
Tracking Patterns ..................................................................................................................... 20
SECTION 4: ACCESSORIES ......................................................................................................... 24
SECTION 5: MAINTENANCE......................................................................................................... 25
Schedule .................................................................................................................................. 25
Cleaning & Protecting .............................................................................................................. 25
Lubrication ................................................................................................................................ 25
SECTION 6: SERVICE ................................................................................................................... 27
Troubleshooting ........................................................................................................................ 27
SECTION 7: PARTS ....................................................................................................................... 28
Main Breakdown....................................................................................................................... 28
Labels & Cosmetics Parts List ................................................................................................. 30
WARRANTY & RETURNS ............................................................................................................. 33
Page 4
We stand behind our machines! If you have questions or need help, contact us with the information
below. Before contacting, make sure you get the
serial number
machine ID label. This will help us help you faster.
We want your feedback on this manual. What did
you like about it? Where could it be improved?
Please take a few minutes to give us feedback.
Email: manuals@grizzly.com
We are proud to provide a high-quality owner’s
manual with your new machine!
We
instructions, specifications, drawings, and photographs
in this manual. Sometimes we make mistakes, but
our policy of continuous improvement also means
that
you receive is
slightly different than shown in the manual
If you find this to be the case, and the difference
between the manual and machine leaves you
confused or unsure about something
check our
website for an updated version. W
current
manuals and
on our web-
site at
Alternatively, you can call our Technical Support
for help. Before calling, make sure you write down
the
from
the machine ID label (see below). This information
is required for us to provide proper tech support,
and it helps us determine if updated documentation is available for your machine.
INTRODUCTION
Contact Info
and manufacture date from the
Grizzly Technical Support
1815 W. Battlefield
Springfield, MO 65807
Phone: (570) 546-9663
Email: techsupport@grizzly.com
Grizzly Documentation Manager
P.O. Box 2069
Bellingham, WA 98227-2069
Manual Accuracy
made every effort to be exact with the
sometimes the machine
.
,
e post
manual updates for free
www.grizzly.com.
Manufacture Date and Serial Number
Manufacture Date
Serial Number
-2-
Model T27621 (Mfd. Since 2/16)
Page 5
Identification
To reduce your risk of
serious injury, read this
entire manual BEFORE

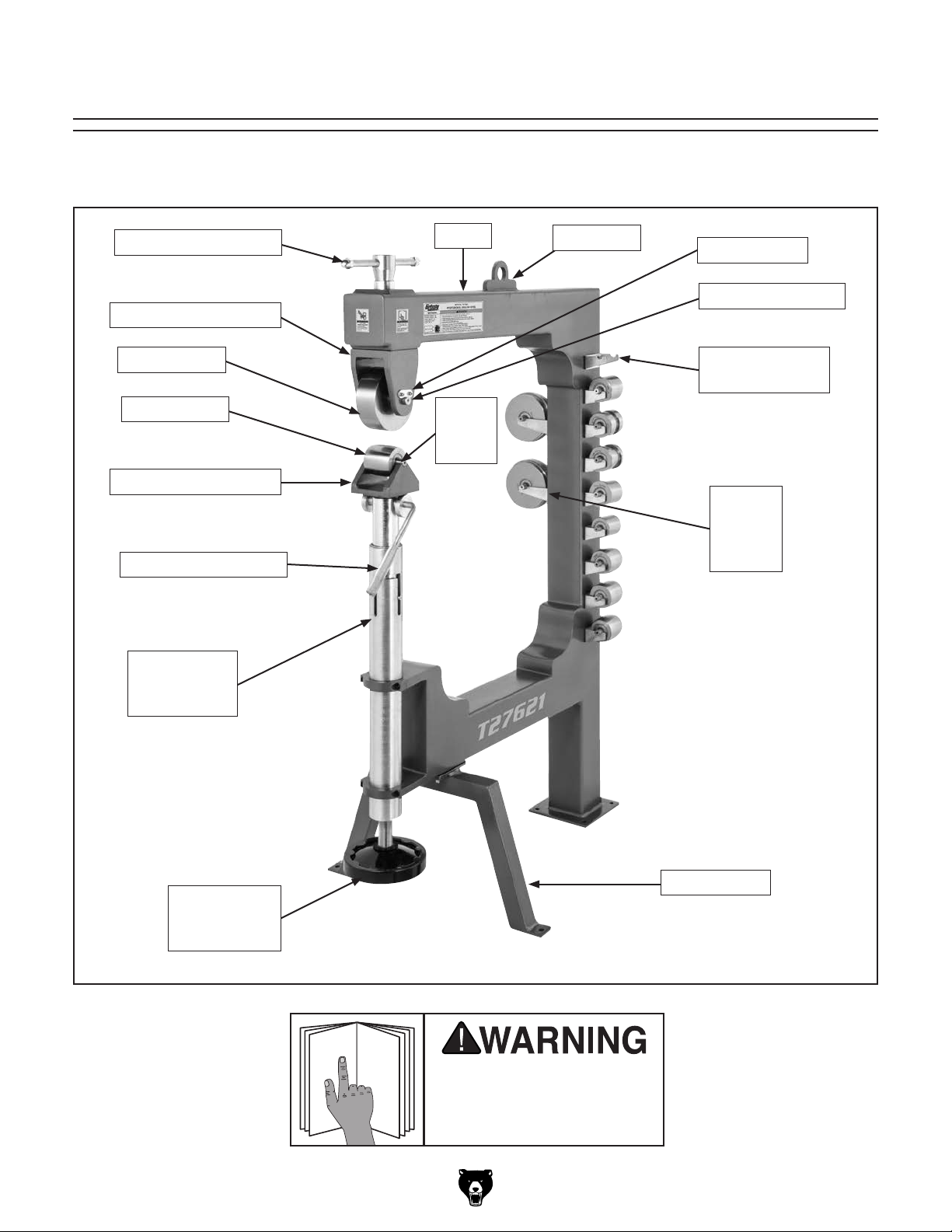

Become familiar with the names and locations of the controls and features shown below to better understand
the instructions in this manual.
Upper Wheel Handle
Upper Wheel Bracket
Upper Wheel
Lower Wheel
Lower Wheel Bracket
Quick-Release Lever
Lower Wheel
Adjustment
Shaft
Frame
Lower
Wheel
Axle
Lifting Eye
Locking Plate
Upper Wheel Axle
Lower Wheel
Storage Bracket
Upper
Wheel
Storage
Bracket
Lower Wheel
Adjustment
Handwheel
Model T27621 (Mfd. Since 2/16)
Support Legs
using machine.
-3-
Page 6
Machine Data Sheet
MODEL T27621
PROFESSIONAL ENGLISH WHEEL
Product Dimensions:
Weight ........................................................................................................................................................................... 396 lbs.
Width (side-to-side) x Depth (front-to-back) x Height .......................................................................... 26-1/2 x 49-1/2 x 65 in.
Footprint (Length x Width) ...................................................................................................................................26-1/2 x 32 in.
Shipping Dimensions:
Type ........................................................................................................................................................................ Wood Crate
Weight ............................................................................................................................................................................ 470 lbs.
Length x Width x Height .....................................................................................................................................69 x 45 x 14 in.
Must Ship Upright .................................................................................................................................................................. No
Main Specifications:
Operation Information
Number of Upper Wheels ................................................................................................................................................3
Upper Wheel Diameter ...............................................................................................................................................6 in.
Number of Lower Wheels ................................................................................................................................................9
Lower Wheel Diameters .................................................................................................................(1) 2-7/16 in., (8) 3 in.
Maximum Workpiece Capacity (Mild Steel) ......................................................................................................16 Gauge
Maximum Workpiece Capacity (Aluminum, Copper) ........................................................................................14 Gauge
Throat Depth ......................................................................................................................................................32-1/2 in.
Construction
Frame ........................................................................................................................................................... Steel Tubing
Kick Wheel ................................................................................................................................................................Steel
Wheels ......................................................................................................................................................Hardened Steel
Paint Type/Finish ......................................................................................................................................Powder Coated
Other Specifications:
Country of Origin ............................................................................................................................................................... China
Warranty ........................................................................................................................................................................... 1 Year
Approximate Assembly & Setup Time ...................................................................................................................... 30 Minutes
Serial Number Location ................................................................................................................................................ ID Label
ISO 9001 Factory ..................................................................................................................................................................Yes
Certified by a Nationally Recognized Testing Laboratory (NRTL) ......................................................................................... No
Features:
Quick-Release Lower Wheel Cam Lever
Locking Ram
Upper and Lower Wheels Can be Rotated and Locked at 90°
Auxiliary Wheel Storage Rack Mounted to Frame
Accessories:
(3) 6 in. Upper Wheels: Flat, Wide Ridge, and Narrow Ridge
(8) 3 in. Lower Wheels: Flat, Step Roller, Wide Groove, Narrow Groove, Dome 1/8, 1/4, 1/2, and 3/4 in.
(1) 2-7/16 in. Lower Wheel: Flat
-4-
Model T27621 (Mfd. Since 2/16)
Page 7
SECTION 1: SAFETY
For Your Own Safety, Read Instruction
Manual Before Operating This Machine
The purpose of safety symbols is to attract your attention to possible hazardous conditions.
This manual uses a series of symbols and signal words intended to convey the level of importance of the safety messages. The progression of symbols is described below. Remember that
safety messages by themselves do not eliminate danger and are not a substitute for proper
accident prevention measures. Always use common sense and good judgment.
Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury. It may also be used to alert
against unsafe practices.
This symbol is used to alert the user to useful information about
NOTICE
proper operation of the machine.
Safety Instructions for Machinery
OWNER’S MANUAL. Read and understand this
owner’s manual BEFORE using machine.
TRAINED OPERATORS ONLY. Untrained operators have a higher risk of being hurt or killed.
Only allow trained/supervised people to use this
machine. When machine is not being used, disconnect power, remove switch keys, or lock-out
machine to prevent unauthorized use—especially
around children. Make workshop kid proof!
DANGEROUS ENVIRONMENTS. Do not use
machinery in areas that are wet, cluttered, or have
poor lighting. Operating machinery in these areas
greatly increases the risk of accidents and injury.
MENTAL ALERTNESS REQUIRED. Full mental
alertness is required for safe operation of machinery. Never operate under the influence of drugs or
alcohol, when tired, or when distracted.
ELECTRICAL EQUIPMENT INJURY RISKS. You
can be shocked, burned, or killed by touching live
electrical components or improperly grounded
machinery. To reduce this risk, only allow qualified
service personnel to do electrical installation or
repair work, and always disconnect power before
accessing or exposing electrical equipment.
DISCONNECT POWER FIRST.
nect machine from power supply BEFORE making
adjustments, changing tooling, or servicing machine.
This prevents an injury risk from unintended startup
or contact with live electrical components.
EYE PROTECTION. Always wear ANSI-approved
safety glasses or a face shield when operating or
observing machinery to reduce the risk of eye
injury or blindness from flying particles. Everyday
eyeglasses are NOT approved safety glasses.
Always discon-
Model T27621 (Mfd. Since 2/16)
-5-
Page 8
WEARING PROPER APPAREL. Do not wear
clothing, apparel or jewelry that can become
entangled in moving parts. Always tie back or
cover long hair. Wear non-slip footwear to reduce
risk of slipping and losing control or accidentally
contacting cutting tool or moving parts.
HAZARDOUS DUST. Dust created by machinery
operations may cause cancer, birth defects, or
long-term respiratory damage. Be aware of dust
hazards associated with each workpiece material. Always wear a NIOSH-approved respirator to
reduce your risk.
HEARING PROTECTION. Always wear hearing protection when operating or observing loud
machinery. Extended exposure to this noise
without hearing protection can cause permanent
hearing loss.
REMOVE ADJUSTING TOOLS. Tools left on
machinery can become dangerous projectiles
upon startup. Never leave chuck keys, wrenches,
or any other tools on machine. Always verify
removal before starting!
USE CORRECT TOOL FOR THE JOB. Only use
this tool for its intended purpose—do not force
it or an attachment to do a job for which it was
not designed. Never make unapproved modifications—modifying tool or using it differently than
intended may result in malfunction or mechanical
failure that can lead to personal injury or death!
AWKWARD POSITIONS. Keep proper footing
and balance at all times when operating machine.
Do not overreach! Avoid awkward hand positions
that make workpiece control difficult or increase
the risk of accidental injury.
CHILDREN & BYSTANDERS. Keep children and
bystanders at a safe distance from the work area.
Stop using machine if they become a distraction.
GUARDS & COVERS. Guards and covers reduce
accidental contact with moving parts or flying
debris. Make sure they are properly installed,
undamaged, and working correctly BEFORE
operating machine.
FORCING MACHINERY. Do not force machine.
It will do the job safer and better at the rate for
which it was designed.
NEVER STAND ON MACHINE. Serious injury
may occur if machine is tipped or if the cutting
tool is unintentionally contacted.
STABLE MACHINE. Unexpected movement during operation greatly increases risk of injury or
loss of control. Before starting, verify machine is
stable and mobile base (if used) is locked.
USE RECOMMENDED ACCESSORIES. Consult
this owner’s manual or the manufacturer for recommended accessories. Using improper accessories will increase the risk of serious injury.
UNATTENDED OPERATION. To reduce the
risk of accidental injury, turn machine OFF and
ensure all moving parts completely stop before
walking away. Never leave machine running
while unattended.
MAINTAIN WITH CARE. Follow all maintenance
instructions and lubrication schedules to keep
machine in good working condition. A machine
that is improperly maintained could malfunction,
leading to serious personal injury or death.
DAMAGED PARTS. Regularly inspect machine
for damaged, loose, or mis-adjusted parts—or
any condition that could affect safe operation.
Immediately repair/replace BEFORE operating
machine. For your own safety, DO NOT operate
machine with damaged parts!
MAINTAIN POWER CORDS. When disconnecting cord-connected machines from power, grab
and pull the plug—NOT the cord. Pulling the cord
may damage the wires inside. Do not handle
cord/plug with wet hands. Avoid cord damage by
keeping it away from heated surfaces, high traffic
areas, harsh chemicals, and wet/damp locations.
EXPERIENCING DIFFICULTIES. If at any time
you experience difficulties performing the intended operation, stop using the machine! Contact our
Technical Support at (570) 546-9663.
-6-
Model T27621 (Mfd. Since 2/16)
Page 9
Additional Safety for English Wheels
Fingers can be broken or severely pinched if caught between wheels during operation. Severe
cuts can occur from sliding along or pushing against sharp workpiece edges. To minimize risk
of injury, anyone operating this machine MUST completely heed the hazards and warnings
below.
PINCHING/CRUSHING HAZARD. The roll-
ing momentum of wheels can pull your fingers
between them, resulting in pinching or crushing
injuries. Always keep your hands away from
wheel path when moving workpiece through
wheels.
METAL EDGES. The sharp edges of sheet metal
can quickly cut your fingers or hands. Always
wear heavy leather gloves when handling sheet
metal. Always chamfer and deburr sharp metal
edges before inserting them into English Wheel.
TOOL USAGE. This English Wheel was designed
only to form curves in sheet metal material such
as steel, aluminum, and copper. Do not attempt to
process any other material (e.g., glass, ceramic,
plastic, etc.) that could result in material or tool
breakage. Do not modify this tool in any way and
do not exceed the capacity listed in the Machine
Data Sheet.
CRUSHING HAZARD. If wheels or frame should
unexpectedly fall, crushing injuries could result.
Always make sure frame is correctly mounted to
floor. Make sure wheels are properly installed on
support brackets or storage racks. Wear steeltoed boots.
BODY POSITION. Losing your balance while
tracking could result in impact injuries or cuts from
sheet metal. Make sure your body and footing are
balanced and in a good position to support your
movement and momentum while tracking.
TOOL INSPECTION. Using English Wheel with
excessively worn or damaged parts could cause
tool to fail and present injury hazards, as well as
yield poor results. Always inspect each part of
English Wheel before beginning operations.
Model T27621 (Mfd. Since 2/16)
-7-
Page 10
SECTION 2: SETUP
This machine was carefully packaged for safe
transport. When unpacking, separate all enclosed
items from packaging materials and inspect them
for shipping damage.
,
please
IMPORTANT:
you are completely satisfied with the machine and
have resolved any issues between Grizzly or the
shipping agent. You MUST have the original pack-
aging to file a freight claim. It is also extremely
helpful if you need to return your machine later.
Keep children and pets away
from plastic bags or packing
materials shipped with this
get help from other people
The following items are needed, but not included,
for the setup/assembly of this machine.
Needed for Setup
This machine presents
serious injury hazards
to untrained users. Read
through this entire manual to become familiar with
the controls and operations before starting the
machine!
Wear safety glasses during
the entire setup process!
Description Qty
• Additional People ....................................... 2
• Safety Glasses ................ 1 for Each Person
• Cleaner/Degreaser (Page 10) .... As Needed
• Disposable Shop Rags ............... As Needed
• Hex Wrench 6mm ....................................... 1
• Steel Pipe 1" x 12" ...................................... 1
• Forklift ......................................................... 1
• Web Slings (rated for at least 1000 lbs.)..... 1

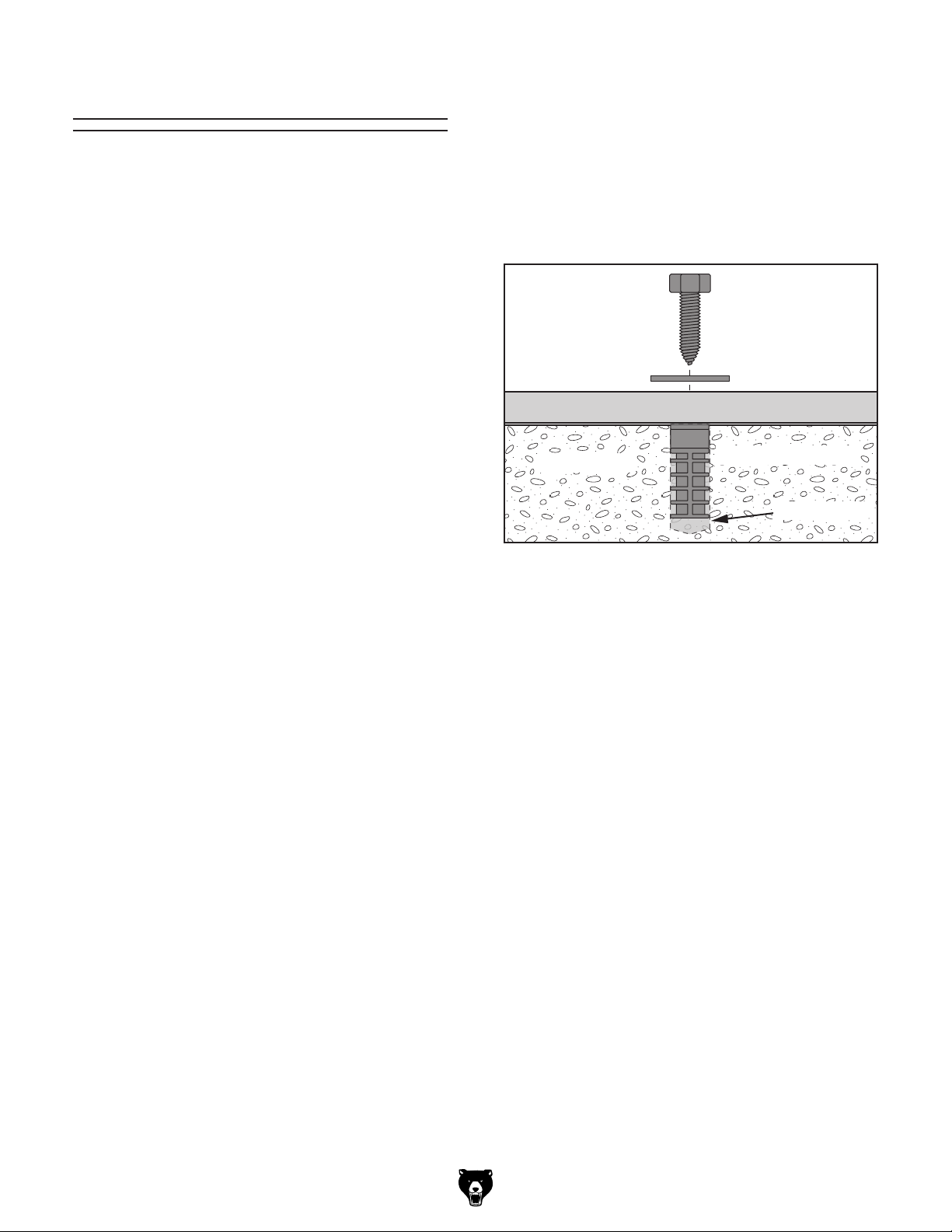

• Mounting Hardware (Page 13) ... As Needed
HEAVY LIF T!
Straining or crushing injury
may occur from improperly
lifting machine or some of
its parts. To reduce this risk,
and use a forklift (or other
lifting equipment) rated for
weight of this machine.
Unpacking
If items are damaged
call us immediately at (570) 546-9663.
Save all packaging materials until
SUFFOCATION HAZARD!
machine. Discard immediately.
-8-
Model T27621 (Mfd. Since 2/16)
Page 11
Inventory
The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.
If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.
G. Lower Wheel Storage Brackets .................. 9
H. Upper Wheel Storage Brackets .................. 2
G
NOTICE
If you cannot find an item on this list, carefully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpacking or they are pre-installed at the factory.

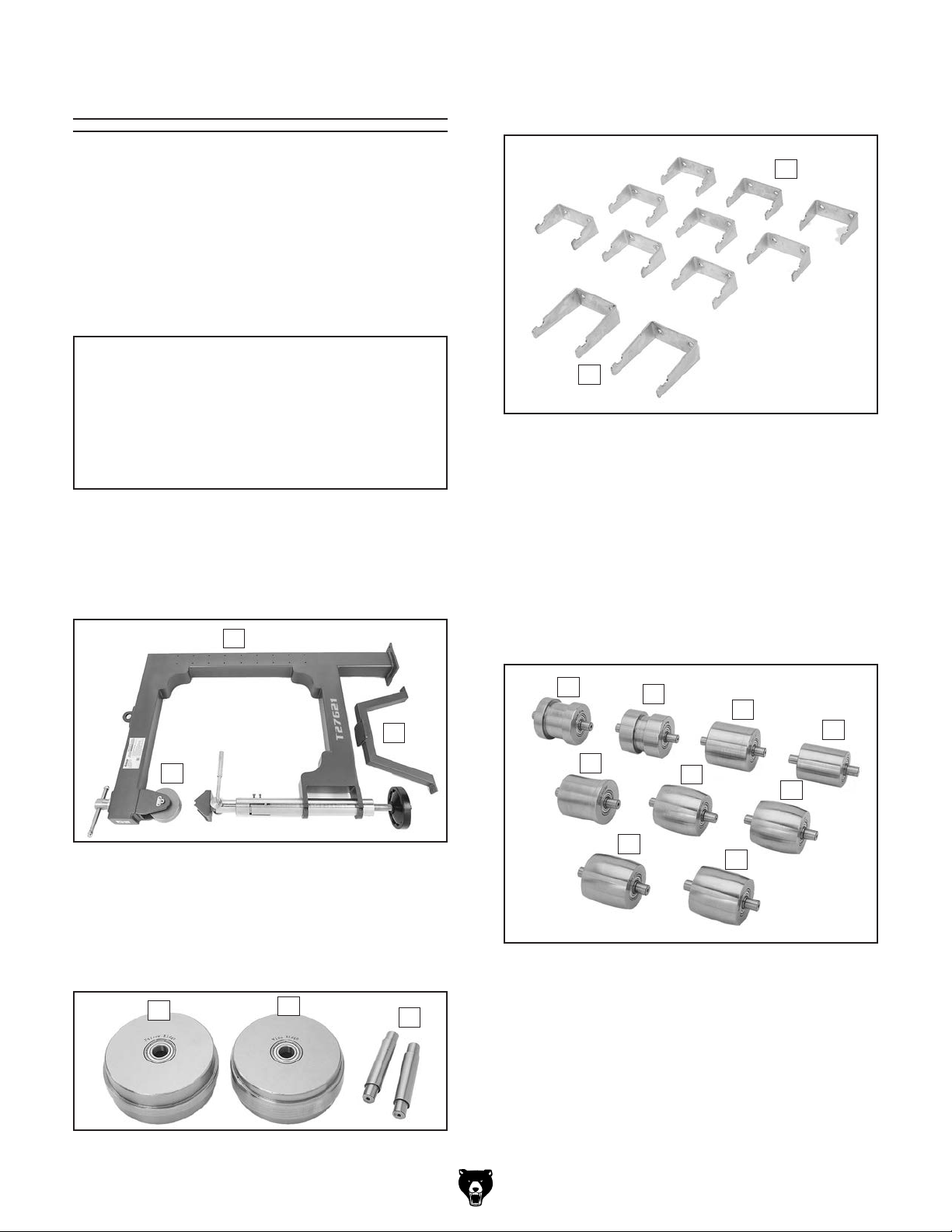

Crate 1 (Figure 1) Qty
A. English Wheel ............................................ 1
B. Upper Wheel, Flat ...................................... 1
C. Support Legs .............................................. 1
A
C
B
H
Figure 3. Box 1 contents, storage brackets.
I. Lower Wheel, Wide Groove ....................... 1
J. Lower Wheel, Narrow Groove .................... 1
K. Lower Wheel, Flat, 3" Diameter.................. 1
L. Lower Wheel, Flat, 2.43" Diameter ............. 1
M. Lower Wheel, Step Roller ........................... 1
N. Lower Wheel,
O. Lower Wheel,
P. Lower Wheel,
Q. Lower Wheel,
I
M
1
⁄8" Dome, 6" Radius ............ 1
1
⁄4" Dome, 6" Radius ............ 1
1
⁄2 " Dome, 6" Radius ............ 1
3
⁄4" Dome, 6" Radius ............ 1
J
K
L
N
O
Figure 1. Crate inventory.
Box 1 (Figures 2–4) Qty
D. Upper Wheel, Narrow Ridge ...................... 1
E. Upper Wheel, Wide Ridge.......................... 1
F. Upper Wheel Mounting Shafts ................... 2
D
Figure 2. Box 1 contents, upper wheels.
Model T27621 (Mfd. Since 2/16)
E
P
Q
Figure 4. Box 1 contents, lower wheels.
Hardware Bag (Not Shown)
F
• Cap Screws M8-1.25 x 25 (Support Legs) . 4
• Lock Washers 8mm (Support Legs) ........... 4
• Flat Washers 8mm (Support Legs) ............ 4
• Cap Screws M8-1.25 x 15 (Storage Brkt) . 22
• Lock Washers 8mm (Storage Bracket) .... 22
• Flat Washers 8mm (Storage Bracket) ...... 22
-9-
Page 12
The unpainted surfaces of your machine are
coated with a heavy-duty rust preventative that
prevents corrosion during shipment and storage.
This rust preventative works extremely well, but it
will take a little time to clean.
Be patient and do a thorough job cleaning your
machine. The time you spend doing this now will
give you a better appreciation for the proper care
of your machine's unpainted surfaces.
There are many ways to remove this rust preventative, but the following steps work well in a wide
variety of situations. Always follow the manufacturer’s instructions with any cleaning product you
use and make sure you work in a well-ventilated
area to minimize exposure to toxic fumes.
Before cleaning, gather the following:
• Disposable rags
• Cleaner/degreaser (WD•40 works well)
• Safety glasses & disposable gloves
• Plastic paint scraper (optional)
Basic steps for removing rust preventative:
1.
2.
3.
4.
Many cleaning solvents
work in a well-ventilated
Avoid chlorine-based solvents, such as
Cleanup
Gasoline and petroleum
products have low flash
points and can explode
or cause fire if used to
clean machinery. Avoid
using these products
to clean machinery.
Put on safety glasses.
Coat the rust preventative with a liberal
amount of cleaner/degreaser, then let it soak
for 5–10 minutes.
Wipe off the surfaces. If your cleaner/degreas-
er is effective, the rust preventative will wipe
off easily. If you have a plastic paint scraper,
scrape off as much as you can first, then wipe
off the rest with the rag.
Repeat Steps 2–3 as necessary until clean,
then coat all unpainted surfaces with a quality
metal protectant to prevent rust.
are toxic if inhaled. Only
area.
NOTICE
acetone or brake parts cleaner, that may
damage painted surfaces.
T23692—Orange Power Degreaser
A great product for removing the waxy shipping grease from the non-painted parts of the
machine during clean up.
Figure 5. T23692 Orange Power Degreaser.
-10 -
Model T27621 (Mfd. Since 2/16)
Page 13
Site Considerations
Weight Load
for the weight
of your machine. Make sure that the surface upon
of the machine, additional equipment that may be
Physical Environment
The physical environment where the machine
is operated is important for safe operation and
longevity of components. For best results, operate this machine in a dry environment that is
free from excessive moisture, hazardous chemicals, airborne abrasives, or extreme conditions.
Extreme conditions for this type of machinery are
generally those where the ambient temperature
range is outside 41°–104°F; the relative humidity
range is outside 20–95% (non-condensing); or
the environment is subject to vibration, shocks,
or bumps.
Shadows, glare, or strobe effects that may distract
Space Allocation
Consider the largest size of workpiece that will
be processed through this machine and provide
enough space around the machine for adequate
operator material handling or the installation of
auxiliary equipment. With permanent installations,
leave enough space around the machine to open
or remove doors/covers as required by the maintenance and service described in this manual.
See below for required space allocation.
Refer to the Machine Data Sheet
which the machine is placed will bear the weight
installed on the machine, and the heaviest workpiece that will be used. Additionally, consider the
weight of the operator and any dynamic loading
that may occur when operating the machine.
Lighting
Lighting around the machine must be adequate
enough that operations can be performed safely.
or impede the operator must be eliminated.
Children or untrained people
may be seriously injured by
this machine. Only install in an
access restricted location.
261/2"
491/2"
Model T27621 (Mfd. Since 2/16)
Figure 6. Working clearances.
-11-
Page 14
Assembly
get help from other people
The machine must be fully assembled before it
can be operated. Before beginning the assembly
process, refer to
all
cess goes smoothly, clean all
that have any
heavy-duty rust preventative
tory (if applicable).
HEAVY LIF T!
Straining or crushing injury
may occur from improperly
lifting machine or some of
its parts. To reduce this risk,
and use a forklift (or other
lifting equipment) rated for
weight of this machine.
Needed for Setup and gather
listed items. To make sure the assembly pro-
parts
applied by the fac-
3. With help of assistants, raise main frame to
upright position on floor.
Tip: For additional leverage, slide 1" diameter
pipe into lifting eye (see Figure 7) and hold it
while lifting frame.
4. Attach each upper wheel storage bracket to
left side of main frame with (2) M8-1.25 x 15
cap screws, (2) 8mm lock washers, and (2)
8mm flat washers, as shown in Figure 8.
Upper Wheel
Storage Bracket
x 4
To assemble English Wheel:
1. With help of two assistants, lay English Wheel
frame on its back, as shown in Figure 7.
Note: Place piece of cardboard under frame
to protect paint.
2. Attach support legs to main frame with (4)
M8-1.25 x 25 cap screws, (4) 8mm lock washers, and (4) 8mm flat washers, as shown in
Figure 7.
Upper Wheel
Lifting
Eye
-12-
Main Frame
Figure 7. Support legs attached.
Support
Legs
x 4
Figure 8. Upper wheel storage brackets
attached to main frame.
5. Attach each of nine lower wheel storage
brackets to right side of main frame with (2)
M8-1.25 x 15 cap screws, (2) 8mm lock
washers, and (2) 8mm flat washers (see
Figure 9).
Lower
Wheel
Storage
Bracket
x 18
Figure 9. Lower wheel storage brackets
attached to main frame.
6. Mount English Wheel to floor using fasteners
appropriate for floor type (refer to Anchoring
to Floor on Page 13).
Model T27621 (Mfd. Since 2/16)
Page 15
Anchoring to Floor
Lag shield anchors with lag screws (see below)
are a popular way to anchor machinery to a concrete floor, because the anchors sit flush with the
floor surface, making it easy to unbolt and move
the machine later, if needed. However, anytime
local codes apply, you MUST follow the anchoring
methodology specified by the code.
Anchoring to Concrete Floors
Number of Mounting Holes ............................ 6
Diameter of Mounting Hardware .................
We strongly recommend anchoring the English
Wheel to the floor to prevent it from tipping or
shifting. Because this is an optional step and floor
materials may vary, anchoring hardware is not
included.
1
⁄2"
Lag Screw
Flat Washer
Machine Base
Concrete
Figure 10. Popular method for anchoring
machinery to a concrete floor.
Lag Shield Anchor
Drilled Hole
Model T27621 (Mfd. Since 2/16)
-13-
Page 16
SECTION 3: OPERATIONS
The purpose of this overview is to provide the novice machine operator with a basic understanding
of how the machine is used during operation, so
the
discussed later
in this manual
Due to the generic nature of this overview, it is
not intended to be an instructional guide. To learn
more about specific operations, read this entire
manual and
rienced
research outside of this manual by reading "howto" books, trade magazines, or websites.
To reduce your risk of
serious injury, read this
entire manual BEFORE
Operation Overview
To complete a typical operation, the operator
does the following:
1. Puts on safety glasses, leather boots, and
leather gloves.
machine controls/components
are easier to understand.
seek additional training from expe-
machine operators, and do additional
using machine.
Bodily injury could result from using this
machine. Always wear safety glasses,
leather gloves, and steel toe footwear when
operating machine or handling sheet steel.
2. Deburrs sharp edges (see Accessories on
Page 24 for optional deburring tool).
3. Cleans workpiece and wheels thoroughly and
removes all abrasive particles.
4. Turns upper wheel handle clockwise to raise
upper wheel bracket against frame.
5. Installs lower wheel with greatest radius
(least amount of curve).
6. Verifies distance between bottom of upper
wheel and top of lower wheel are about an
inch apart, and adjusts distance with height
handwheel.
7. Engages quick-release lever to raise lower
wheel to operating position.
8. Marks approximate 1" frame around
workpiece (refer to Page 15), then inserts
workpiece between wheels.
9. Rotates lower adjustment handwheel until
there is just enough pressure to prevent
workpiece from skipping or slipping.
If you are not experienced with this type
of machine, WE STRONGLY RECOMMEND
that you seek additional training outside of
this manual. Read books/magazines or get
formal training before beginning any projects. Regardless of the content in this section, Grizzly Industrial will not be held liable
for accidents caused by lack of training.
-14-
10. Moves workpiece back and forth through
wheels using a tracking pattern (refer to Page
20), rolling it up to an edge, rotating it slightly,
then pulling it back.
11. When workpiece no longer stretches, rotates
adjustment handwheel clockwise to slightly
increase pressure.
12. When maximum wheel pressure is reached
and workpiece no longer moves through
wheels, disengages quick-release lever, and
changes lower wheel to next lower radius.
13. Repeat Steps 3–12 until curve is attained.
Model T27621 (Mfd. Since 2/16)
Page 17
Tracking Tips
• Stretching metal into a curve should be
a gradual process. Always start with just
enough wheel pressure to prevent the
workpiece from skipping or slipping through
the wheels. After the initial curve has formed,
increase the pressure slightly and continue
stretching the metal. Repeat this process
until the desired curve is attained. Using too
much pressure will damage the workpiece
surface and produce poor results.
• Overlap each pass with the previous one in
a smooth, back-and-forth movement through
the wheels, as shown in Figure 11. There
are many patterns of tracking that will produce different results. Refer to Page 20 for
additional tracking patterns. Choosing the
correct pattern for your operation is a matter
of research and experience.
• Try using the lightest wheel pressure possible
to shape the workpiece. Too much pressure
will crease or ruin the metal. Light pressure
is best for smoothing; higher pressure is best
for rough shaping.
• Start with the lower wheel that has the greatest radius (least amount of curve), then
decrease the wheel radius a step at a time
until the desired curve is reached.
• Mark the workpiece with a non-permanent
marker to make it easier to follow tracking
patterns or contour the metal.
• Practice with a scrap piece that is the same
material and thickness as the final workpiece.
• Leave a frame around the workpiece of
approximately 1" that does not go through
the wheels (see Figure 11). As the center of
the workpiece stretches and the frame does
not, the metal is forced to bend into a curve.
Some workpieces may need a larger frame
to accomodate expansion of the metal and
removal of excess material, if needed.
• Take your time. Start rolling slowly and
increase your speed. Many passes through
the wheels with gradual increases in pressure and lower wheel radii will produce good
results and reduce the risk of damaging the
workpiece surface.
...and so on

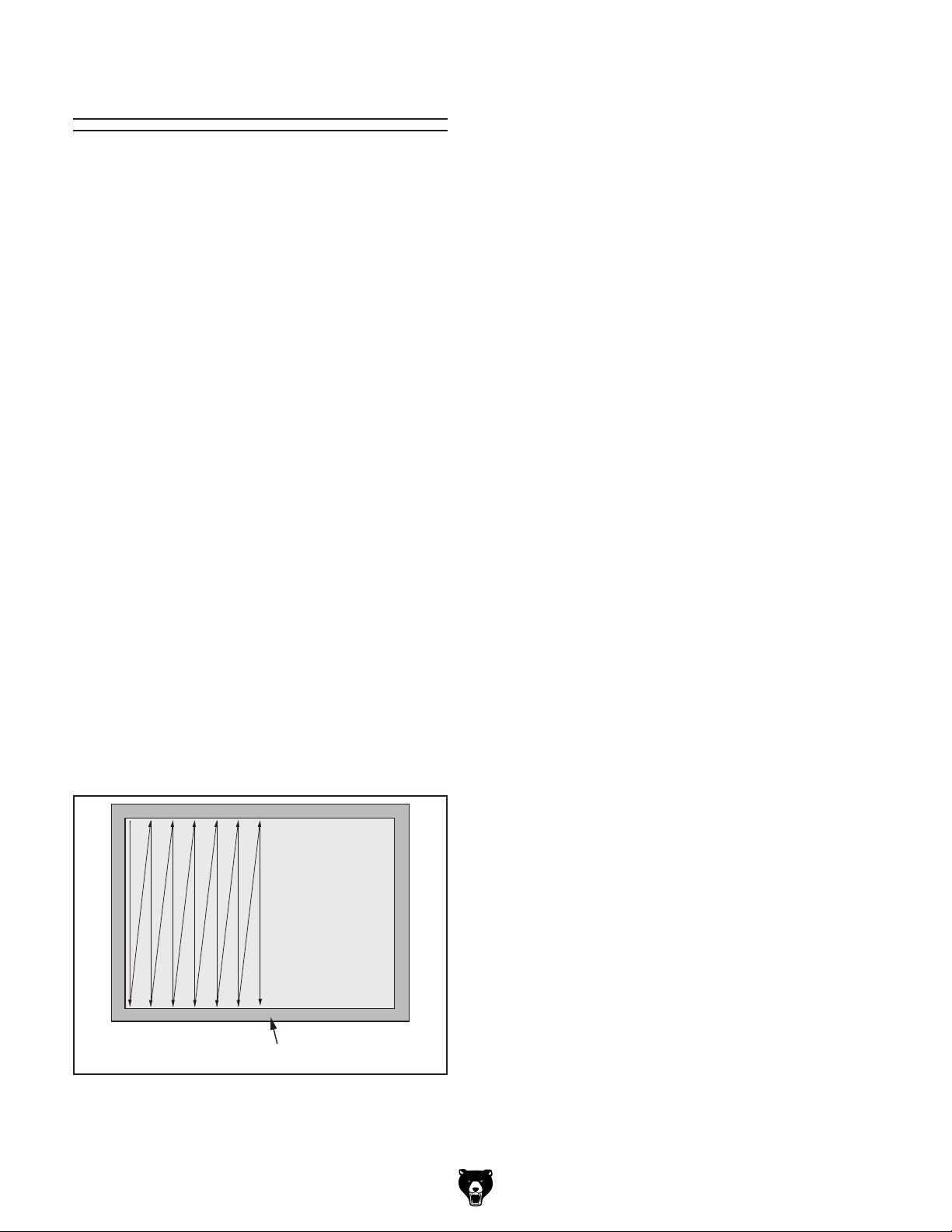

Frame
Figure 11. Example of frame around workpiece
and basic back-and-forth tracking pattern.
Model T27621 (Mfd. Since 2/16)
-15-
Page 18

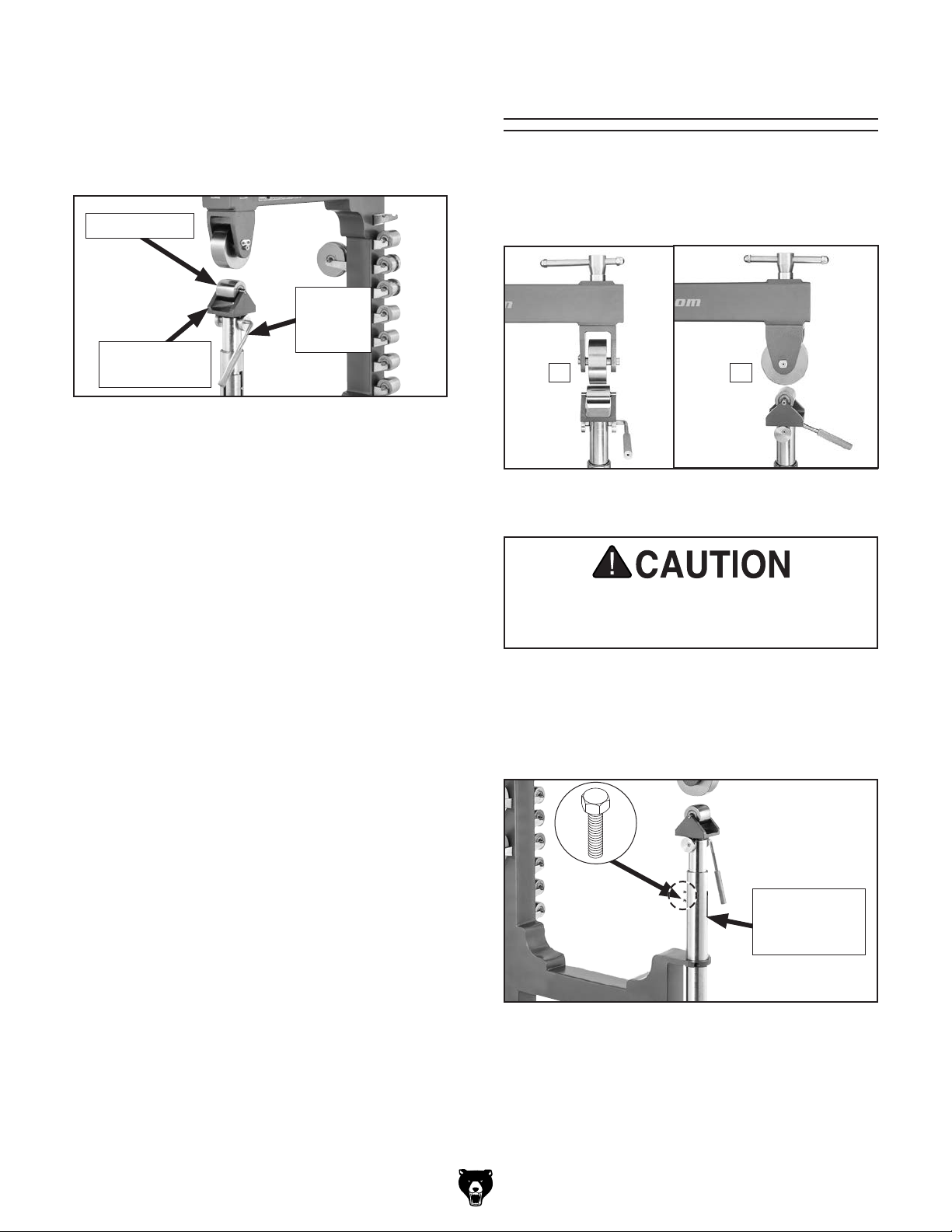

Replacing Wheels
A flat upper wheel is pre-installed on the English
wheel. It can be replaced with either of the two
grooved upper wheels. Also, any of the nine lower
wheels can be replaced.
CRUSHING HAZARD! Hold an upper wheel
securely when installing or removing it
or it may fall on your foot! Wear steel toe
footwear to protect your feet.
4. While an assistant holds upper wheel, remove
upper wheel axle and spacers, as shown in
Figure 13.
Arms
Upper
Wheel Axle
Tools Needed Qty
Hex Wrench 4mm .............................................. 1
Brass Punch ...................................................... 1
Hammer ............................................................. 1
To replace upper wheel:
1. Raise lower wheel until both wheels touch.
This ensures upper wheel is supported.
2. Remove two cap screws and locking plate
shown in Figure 12.
3. Turn upper wheel handle (see Figure 12)
clockwise to lock upper wheel bracket against
frame so upper wheel will not move.
Note: Use one hand to steady bracket to pre-
vent it from rotating while turning handle.
Upper Wheel Handle
Figure 13. Using punch and hammer to remove
upper wheel axle.
5. Carefully remove upper wheel, install included mounting shaft in wheel, and place wheel
on upper wheel rack.
6. Place new upper wheel between upper wheel
bracket arms (see Figure 13).
Note: Adjust lower wheel height if you have
difficulty replacing upper wheel.
7. Align wheel bearing hole and spacers with
upper wheel bracket mounting holes, then
drive axle through components (in reverse of
Figure 13). Make sure detent on right side
of axle faces up (see Figure 14) so it can be
secured properly.
Detent
Locking
Plate
Figure 12. Location of cap screws and plate that
secure upper wheel axle.
-16 -
Axle
Figure 14. Axle re-installed with detent facing
up.
8. Re-install locking plate and cap screws
removed in Step 2.
Model T27621 (Mfd. Since 2/16)
Page 19
To replace lower wheel:
1. Disengage quick-release lever (see
Figure 15) and lower the lower wheel bracket
until it stops.
Lower Wheel
Quick-
Release
Lever
Lower Wheel
Bracket
Figure 15. Quick-release lever disengaged.
2. Remove lower wheel and replace it with
another one.
3. Engage quick-release lever and raise lower
wheel to operating position.
Rotating Wheels
The wheels can be positioned perpendicular to
the frame (Figure 16, A) for long workpieces
or parallel to the frame (Figure 16, B) for wide
workpieces.
A B
Figure 16. Wheels positioned to accommodate
different workpiece sizes.
PINCHING/CRUSHING HAZARD! Avoid
placing fingers in wheel path during
operation.
To rotate wheels:
1. Loosen two hex bolts (see Figure 17) on
lower wheel adjustment shaft several turns.
Lower Wheel
Adjustment
Shaft
Figure 17. Location of hex bolts on lower wheel
adjustment shaft.
Model T27621 (Mfd. Since 2/16)
2. Disengage quick-release lever, lower the
lower wheel bracket, then remove lower
wheel.
-17-
Page 20
3. Lift lower wheel bracket until screw shown in
Figure 18 reaches top of groove in adjust-
ment shaft.
Lower
Wheel
Bracket
Groove
Screw
Figure 18. Screw at top of groove with lower
wheel bracket lifted.
4. Rotate lower wheel bracket counterclockwise
until it reaches opposite end of groove, as
shown in Figure 19.
8. Re-install lower wheel, engage quick-release
lever, and raise lower wheel to operating
position.
Adjusting Quick-
Release Lever
The quick-release lever is adjusted at the factory.
However, due to variables involved with shipping,
it may need to be adjusted.
If the set screws on the steel cams do not engage
the detents on the quick-release lever, the lever
shaft will slip in the cams, causing it to malfunction.
Tools Needed:
Hex Wrench 3mm .............................................. 1
To adjust quick-release lever:
Screw
Groove
Figure 19. Rotating lower wheel bracket.
5. Lower the lower wheel bracket until it comes
to a stop.
6. Turn upper wheel handle counterclockwise
several turns to lower upper wheel bracket.
1. Examine detents (see Figure 20) on both
sides of quick-release lever.
Detent
Detent
(1 of 2)
Figure 20. Tightening cam set screw.
2. If set screws do not contact all four detents,
loosen set screws, turn cams to align set
screws with detents, then tighten set screws.
Cam Set
Screws
Note: Use one hand to steady bracket to pre-
vent it from rotating while turning handle.
7. Rotate upper wheel 90º (see Figure 16, A
on Page 17), then raise upper wheel bracket
until it is seated against frame, making sure
edges of bracket and frame are flush.
-18-
Model T27621 (Mfd. Since 2/16)
Page 21
Selecting Lower
Wheels
Roll a workpiece between a grooved lower wheel
(see Figure 21, C) and a ridged upper wheel to
emboss metal, as shown in Figure 22.
Choose a lower wheel (see Figure 21) that will
produce the contour you desire.
B
A
Flat
D
C
Figure 21. Lower wheels.
Flat lower wheels (see Figure 21, A) are good for
adding gentle curves to large metal panels; these
wheels have large flat surfaces and square ends.
Domed lower wheels (see Figure 21, B) create
tighter curves; flat areas at the center range from
3
⁄4" to 1⁄8" wide. The wider the flat area, the wider
the track produced on the workpiece.
Ridged
Wheel
Grooved
Wheel
Figure 22. Example photo of embossing metal
with grooved and ridged wheels.
The step roller (see Figure 21, D) can be used
with the flat upper wheel to add a small crease in
a metal panel.
See Figure 23 for more detailed specifications for
each wheel.
WHEEL
DESIGNATION
Upper Wheels
Flat 6" 2.25" 6" — 0.098" — — — —
Wide Ridge 1. 25" 6" — 0.125" 0.375" — — 0.19"
Narrow Ridge 0.55" 6" — 0.12 5" 0.375" — — 0.19"
Lower Wheels
Flat 3" 3" 3" — 0.125" — — — —
Domed
Domed
Domed
Domed
Flat 3" 3" 2.43" — 0.094" — — — —
Narrow Groove 1.0 9" 3" — 0.094" — 0.031" 0.82" —
Wide Groove 1.10" 3" — 0.094" — 0.031" 1.53" —
Step Roller 2.65" 3" — 0.098" — 0.031" — —
Model T27621 (Mfd. Since 2/16)
1
⁄8" 0.125" 3" 6" 0.039" — — — —
1
⁄4" 0.25" 3" 6" 0.039" — — — —
1
⁄2 " 0.50" 3" 6" 0.039" — — — —
3
⁄4" 0.75" 3" 6" 0.039" — — — —
FLAT DIA. CROWN
RADIUS
Figure 23. Upper and lower wheel specifications.
EDGE
RADIUS
FORMING
RADIUS
INSIDE
RADIUS
GROOVE
WIDTH
GROOVE
DEPTH
-19 -
Page 22
Tracking Patterns
B
B
B
As metal passes between the upper and lower
wheels, a "track" or shiny line is pressed into the
metal. Various tracking patterns can be used to
shape workpieces depending upon their shape
or size.
Note: Most of the figures in this section are shown
without a frame for clarity, but we recommend
leaving about a 1" border around the workpiece
(see Figure 24) so the metal bends correctly.
Workpiece
2. Push workpiece forward to stop point.
Start
A
Panel
Movement
(Stop)
Figure 25. Starting zigzag pattern.
3. Turn workpiece counterclockwise slightly
(see Figure 26).
Start
A
Frame
Figure 24. Example of frame around workpiece.
Zigzag Pattern
This patterns resembles the closely-spaced tracks
of a lawn mower cutting a lawn. It can be used for
a variety of workpiece shapes.
To use zigzag tracking pattern:
1. Insert workpiece between wheels at point A,
and start rolling it along left edge, as shown
in Figure 25.
CAUTION: Move your hands out of wheel
pathway so you do not pinch them!
(Stop)
Figure 26. Workpiece turned counterclockwise.
4. Pull workpiece back until it reaches next point
near far edge, as shown in Figure 27.
A
Panel
Movement
-20-
Figure 27. Wheels moved to next point.
Model T27621 (Mfd. Since 2/16)
Page 23
5. Turn workpiece clockwise (see Figure 28).
B
A
7. When wheels reach point B, reverse feed
direction (see Figure 30) and return to
point A.
Figure 28. Workpiece turned clockwise.
6. Continue feeding workpiece to other side in
same manner, following pattern shown in
Figure 29.
Feed Direction
A
Move
Panel
Along
Zigzags
A
Feed Direction
Finish
B
Figure 30. Zigzagging while feeding workpiece
to right.
Star Pattern
The star pattern (see Figure 31) is useful for
shaping round workpieces.
Note: Avoid rolling directly over center of
workpiece, as too many passes could overstretch
metal.
Direction to Turn Workpiece
B
Figure 29. Zigzagging while feeding workpiece
to other side.
Note: Try keeping tracks close to each other.
Use a non-permanent marker to mark lines in a
consistent pattern.
Model T27621 (Mfd. Since 2/16)
Figure 31. Star pattern.
-21-
Page 24

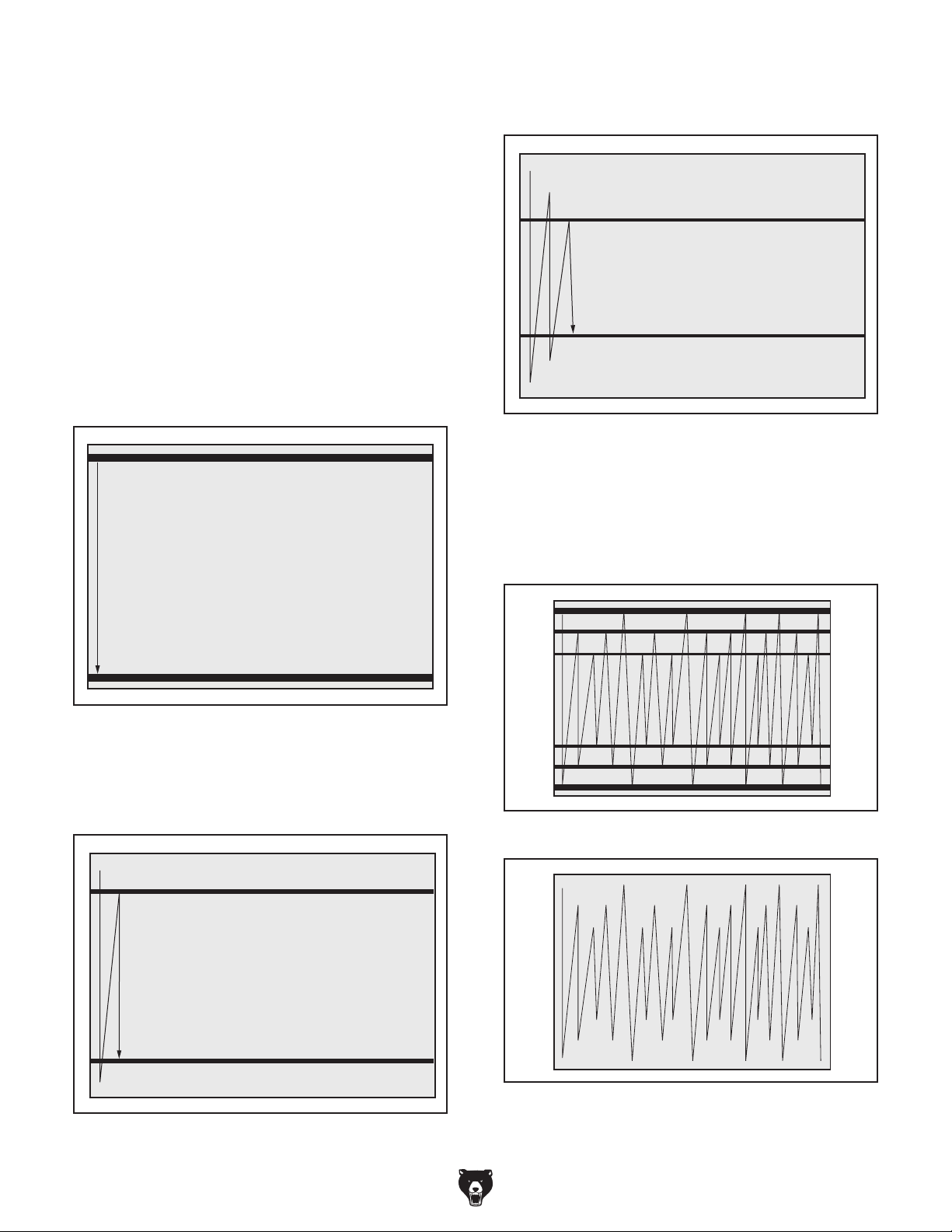

Staggered Stop Pattern
With this pattern, the track alternates between
three different sets of lines, helping reduce ridges
that may form at the stopping point of tracks. This
technique is useful on larger workpieces.
Note: It may help to draw lines on the workpiece
with a non-permanent marker so you can see the
outside, middle, and inside lines more clearly.
Clean the wheels and workpiece when finished.
To use staggered stop pattern:
1. From starting point, roll workpiece from outside line on one side to outside line on
opposite side (see Figure 32).
3. Roll workpiece from inside line on one side to
inside line on opposite side (see Figure 34).
Figure 34. Example of rolling inside to inside
line.
4. Repeat Steps 1–3, as you move across
workpiece, randomly alternating between
outside, middle, and inside lines, as shown in
Figures 35–36.
Figure 32. Example of rolling outside to outside
line.
2. Roll workpiece from middle line on one side to
middle line on opposite side (see Figure 33).
Figure 33. Example of rolling middle to middle
line.
Figure 35. Staggered pattern, showing line sets.
Figure 36. Staggered pattern shown without line
sets.
-22-
Model T27621 (Mfd. Since 2/16)
Page 25

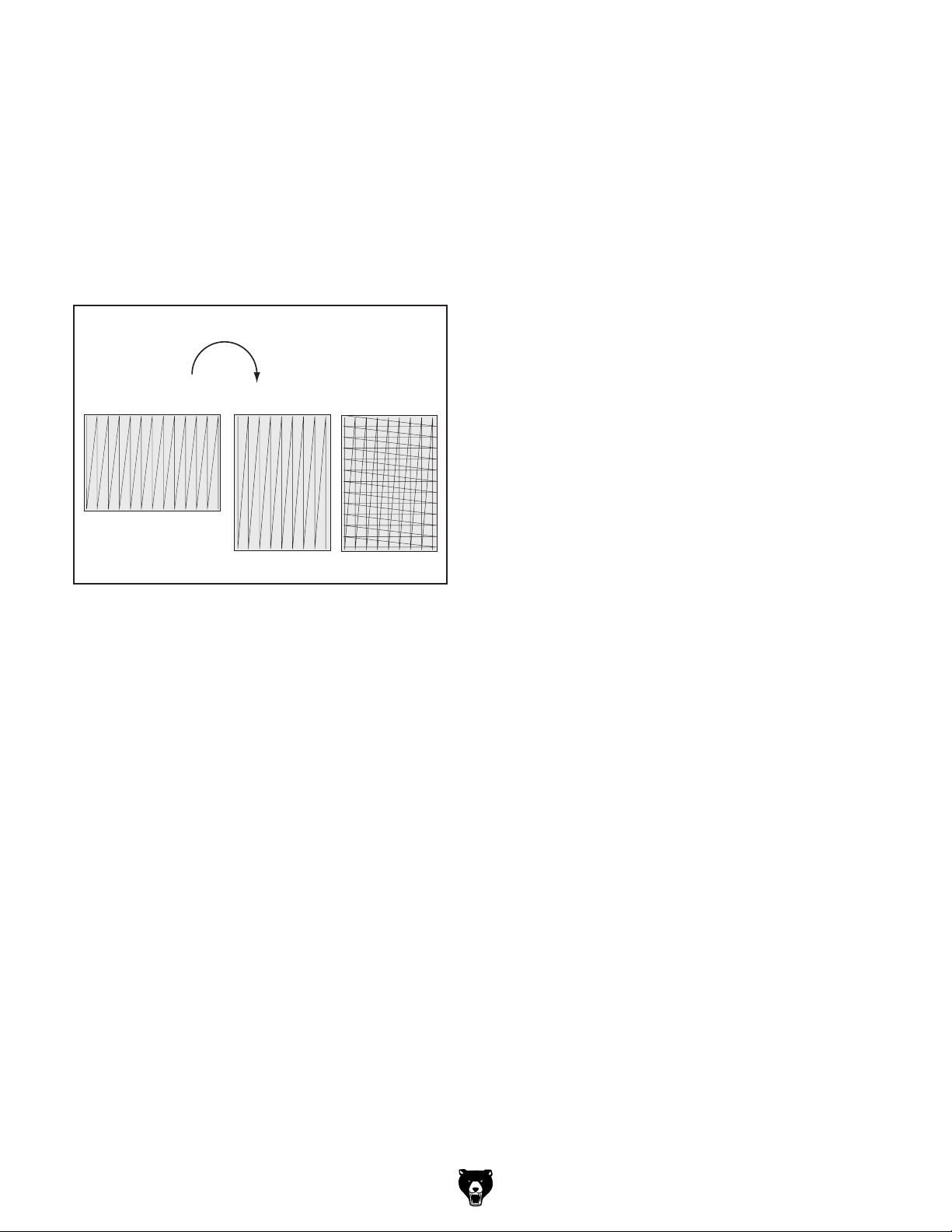

Crisscrossing Tracks
Crisscrossing tracks can help produce smoother
curves in your workpiece when using the zigzag
or staggered stop pattern.
After running tracks along one length of the
workpiece (see Figure 37, 1), turn the metal sheet
90° and run tracks along the opposite length (see
Figure 37, 2) so the workpiece is equally covered
by both sets of tracks (see Figure 37, 3).
90°
Figure 37. Crisscrossing tracks.
2 31
Model T27621 (Mfd. Since 2/16)
-23-
Page 26
ACCESSORIES
Installing unapproved accessories may
order online at www.grizzly.com or call 1-800-523-4777
SECTION 4: ACCESSORIES
cause machine to malfunction, resulting in
serious personal injury or machine damage.
To reduce this risk, only install accessories
recommended for this machine by Grizzly.
NOTICE
Refer to our website or latest catalog for
additional recommended accessories.
G5618—Deburring Tool with Two Blades
The quickest tool for smoothing freshly machined
metal edges. Pivoting blades follow irregular
edges for consistent results. Comes with two
blades, one for steel and aluminum and one for
brass and cast iron. Spare blades store in handle.
®
G5562—SLIPIT
G5563—SLIPIT
G2871—Boeshield
G2870—Boeshield
H3788—G96
H3789—G96
Figure 40. Recommended products for protect-
ing unpainted cast iron/steel part on machinery.
1 Qt. Gel
®
12 Oz. Spray
®
T-9 12 Oz. Spray
®
®
Gun Treatment 12 Oz. Spray
®
Gun Treatment 4.5 Oz. Spray
T-9 4 Oz. Spray
Figure 38. G5618 Deburring Tool.
T27620—Professional Planishing Hammer
Enjoy complete shaping control and smooth finishes on your sheet metal projects with our
T27620 Planishing Hammer.
T26419—Syn-O-Gen Synthetic Grease
Formulated with 100% pure synthesized hydrocarbon basestocks that are compounded with special
thickeners and additives to make Syn-O-Gen
non-melt, tacky, and water resistant. Extremely
low pour point, extremely high temperature oxidation, and thermal stability produce a grease that is
unmatched in performance.
Figure 41. T26419 Syn-O-Gen Synthetic
Grease.
Figure 39. T27620 Planishing Hammer.
-24-
Model T27621 (Mfd. Since 2/16)
Page 27

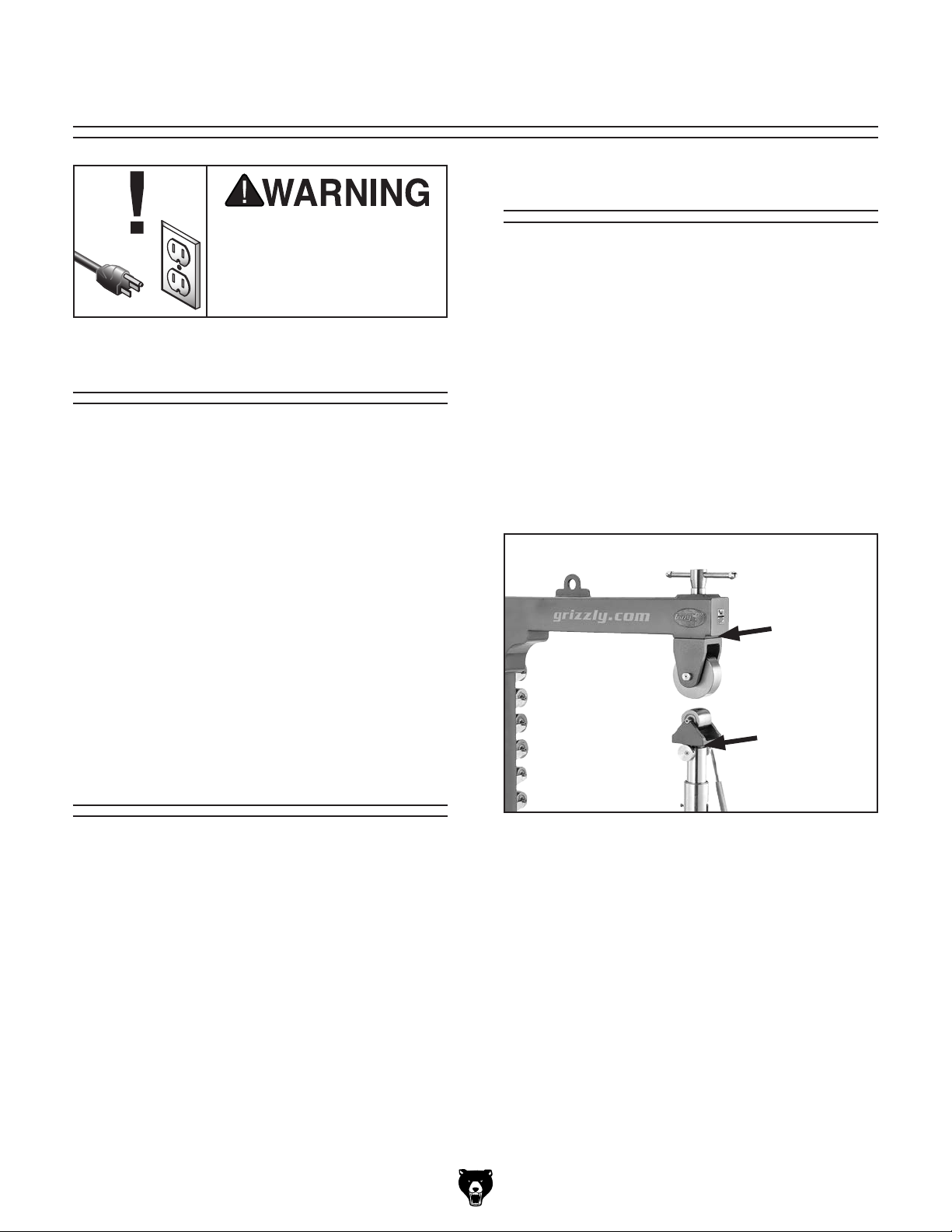

SECTION 5: MAINTENANCE
accidental startup, always
disconnect machine from
Lubrication
To reduce risk of shock or
The wheel bearings are factory lubricated and
power before adjustments,
maintenance, or service.
Schedule
sealed, and do not require lubrication. Merely
leave them alone unless they need replacement.
Upper and Lower Wheel Brackets
Gre ase Type ......................... NLGI#2 Equivalent
Grease Amount ....................................Thin Coat
Check/Add Frequency .....................Occasionally
For optimum performance from your machine,
follow this maintenance schedule and refer to any
specific instructions given in this section.
Daily Check:
• Damaged or dirty wheels.
• Damaged or cracked frame.
• Mounting and component hardware and fasteners; adjust/tighten as necessary.
• Any other unsafe condition.
Daily Maintenance:
• Clean and protect wheels.
Cleaning &
Protecting
Use clean shop rags to clean all wheel surfaces
and the wheel axle rods. Apply a metal protectant
(see Page 24), then wipe off any excess to leave
a thin coat.
Clean wheel bracket surfaces with mineral spirits
and shop rags, then wipe them dry and apply
a coating of grease to brackets, as shown in
Figure 42.
Figure 42. Locations to lubricate upper and
lower brackets.
Model T27621 (Mfd. Since 2/16)
-25-
Page 28
Handwheel Adjustment Leadscrew
Gre ase Type ......................... NLGI#2 Equivalent
Grease Amount ....................................Thin Coat
Check/Add Frequency .....................Occasionally
Cams
Gre ase Type ......................... NLGI#2 Equivalent
Grease Amount ....................................Thin Coat
Check/Add Frequency .....................Occasionally
Use mineral spirits to clean any debris and builtup grime from leadscrew shown in Figure 43,
then wipe it dry. Brush a thin coat of grease on
threads of leadscrew, then rotate it through its full
path to distribute the grease.
Figure 43. Location to lubricate handwheel
leadscrew.
Pivot Points
Gre ase Type ......................... NLGI#2 Equivalent
Grease Amount ....................................Thin Coat
Check/Add Frequency .....................Occasionally
Apply a thin coat of grease to the pivot points
indicated in Figure 44.
Apply a thin coat of grease to the cams where they
contact the bottom of the lower wheel bracket, as
shown in Figure 45.
Figure 45. Location to lubricate cams.
Wheels
Oil Typ e .................................. Light Machine Oil
Oil Amount ............................................Thin Coat
Check/Add Frequency .....................Occasionally
Apply a thin coat of oil to the upper and lower
wheels when not being used, or before storing
to prevent rust. Remove the oil before using the
wheels.
Figure 44. Pivot point lubrication locations.
-26-
Model T27621 (Mfd. Since 2/16)
Page 29
Review the troubleshooting and procedures in this section if a problem develops with your machine. If
you need replacement parts or additional help with a procedure, call our Technical Support.
gather the serial number and manufacture date of your machine before calling.
SECTION 6: SERVICE
Troubleshooting
Operation
Symptom Possible Cause Possible Solution
Workpiece surface
is marred or
scratched.
Workpiece has
wrinkles.
Excessive force
required to move
workpiece through
wheels.
Workpiece curve is
too high.
Workpiece curve is
not high enough.
Workpiece curve will
not form.
Wheel does not
shape workpiece.
Upper wheel
swivels.
Quick-release lever
will not engage,
or has trouble
engaging.
1. Too much wheel pressure.
2. Wheels are dirty.
3. Wheel is dinged or gouged.
1. Tracking pattern at fault.
2. Too much wheel pressure.
1. Too much wheel pressure.
2 Wheel bearings at fault.
1. Lower wheel radius is too small. 1. Use a lower wheel with a larger radius (less crown).
1. Lower wheel radius is too large. 1. Start with lower wheel of largest radius (least curve)
1. Not enough wheel pressure.
2. Lower wheel has flat surface.
1. Workpiece is too thick.
2. Crown is too low; incorrect wheel selection.
3. Incorrect pressure.
1. Upper wheel is not secured by frame. 1. Turn upper wheel handle clockwise to raise upper
1. Lower wheel bracket and cams bind.
2. Set screws on cams loose and not
contacting quick-release lever detents.
1. Reduce wheel pressure.
2. Clean and protect all wheel surfaces (Page 26).
3. Replace.
1. Use a consistent and smooth tracking pattern that
overlaps with each back-and-forth pass.
2. Start with least amount of pressure, then gradually
increase pressure when curve stops forming.
1. Reduce adjustment wheel pressure.
2. Replace wheel bearings.
and work up to correct radius for operation.
1. Gradually increase adjustment wheel pressure.
2. Use lower wheel(s) with a radius (crown).
1. Use sheet metal of appropriate thickness (Page 4).
2. Use a lower wheel with a higher crown.
3. Increase pressure on workpiece.
wheel bracket so it is snug against frame bracket.
1. Lubricate top of cams where they contact bracket
(Page 26).
2. Align set screws over lever detents and tighten
(Page 18).
Note: Please
Model T27621 (Mfd. Since 2/16)
-27-
Page 30
SECTION 7: PARTS
We do our best to stock replacement parts when possible, but we cannot guarantee that all parts shown
are available for purchase. Call (800) 523-4777 or visit www.grizzly.com/parts to check for availability.

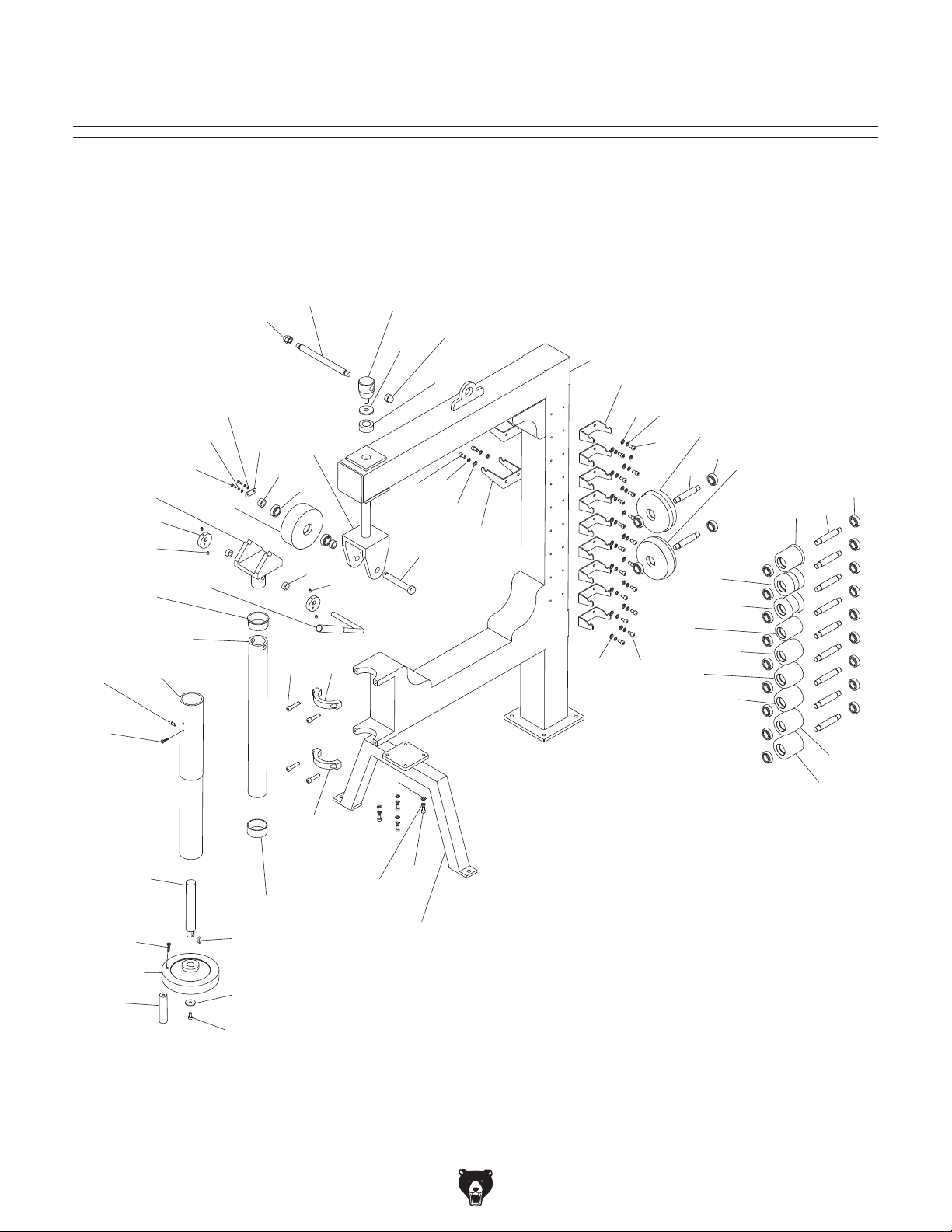

Main Breakdown
23
51
11
46
41
42
43
44
45
6
12
8
9
7
14
36
16
50
5
17
13
46
3
40
21
25
15
48
20
42
24
39
24
1
4
48
24
27
25
25
35
19
31
34
17
29
30
32
26
28
17
19
24
3
49
48
2
Model T27621 (Mfd. Since 2/16)
-28-
52
53
22
10
38
37
47
25
33
18
Page 31
Main Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 PT27621001 MAIN FRAME 28 PT27621028 LOWER WHEEL, STEP ROLLER
2 PT27621002 SUPPORT LEGS 29 PT27621029 LOWER WHEEL, WIDE GROOVE
3 PT27621003 CLAMP 30 PT27621030 LOWER WHEEL, 1/8" DOME
4 PT27621004 LOWER WHEEL STORAGE BRACKET 31 PT27621031 LOWER WHEEL, 1/4" DOME
5 PT27621005 UPPER WHEEL BRACKET M16-2 32 PT27621032 LOWER WHEEL, 1/2" DOME
6 PT27621006 LOWER WHEEL BRACKET 33 PT27621033 LOWER WHEEL, 3/4" DOME
7 PT27621007 OUTER TUBE 34 PT27621034 LOWER WHEEL, NARROW GROOVE
8 PT27621008 OUTER TUBE BUSHING (TOP) 35 PT27621035 LOWER WHEEL, FLAT 2.43" DIA.
9 PT27621009 INNER TUBE 36 PT27621036 LOCKING BRACKET
10 PT27621010 OUTER TUBE BUSHING (BOTTOM) 37 PT27621037 HANDWHEEL TYPE-27 200D X 25B-K X M6-1
11 PT27621011 CAM 38 PT27621038 KEY 8 X 4 X 25
12 PT27621012 QUICK-RELEASE LEVER 39 PT27621039 UPPER WHEEL SUPPORT BRACKET
13 PT27621013 CAM SHAFT SPACER 12 X 25 X 5 40 PT27621040 ADJUSTMENT SCREW M16-2
14 PT27621014 UPPER WHEEL, FLAT 41 PT27621041 ADJUSTMENT HANDLE M16-2, 20 X 220MM
15 PT27621015 UPPER WHEEL AXLE 20 X 126MM 42 PT27621042 ACORN NUT M16-2
16 PT27621016 UPPER WHEEL SPACER 13 X 28 43 PT27621043 FLAT WASHER 5MM
17 PT27621017 BALL BEARING 6004Z 44 PT27621044 LOCK WASHER 5MM
18 PT27621018 LOWER WHEEL, FLAT 3" DIA. 45 PT27621045 CAP SCREW M5-.8 X 10
19 PT27621019 LOWER WHEEL RESTING SHAFT 46 PT27621046 SET SCREW M6-1 X 10
20 PT27621020 ADJ. SCREW SPACER 20 X 50 X 10MM 47 PT27621047 FENDER WASHER 8MM
21 PT27621021 FLAT WASHER 16MM 48 PT27621048 LOCK WASHER 8MM
22 PT27621022 HANDWHEEL LEADSCREW M33-1.5 49 PT27621049 CAP SCREW M8-1.25 X 25 (SS)
23 PT27621023 FILLISTER HEAD SCREW M8-1.25 X 8 50 PT27621050 CAP SCREW M10-1.5 X 30 (SS)
24 PT27621024 FLAT WASHER 8MM 51 PT27621051 HEX BOLT M8-1.25 X 20 (BRASS)
25 PT27621025 CAP SCREW M8-1.25 X 16 (SS) 52 PT27621052 HANDWHEEL HANDLE M6-1 X 16, 27 X 80MM
26 PT27621026 UPPER WHEEL, WIDE RIDGE 53 PT27621053 FLAT HD SCR M6-1 X 16
27 PT27621027 UPPER WHEEL, NARROW RIDGE
Model T27621 (Mfd. Since 2/16)
-29-
Page 32
101

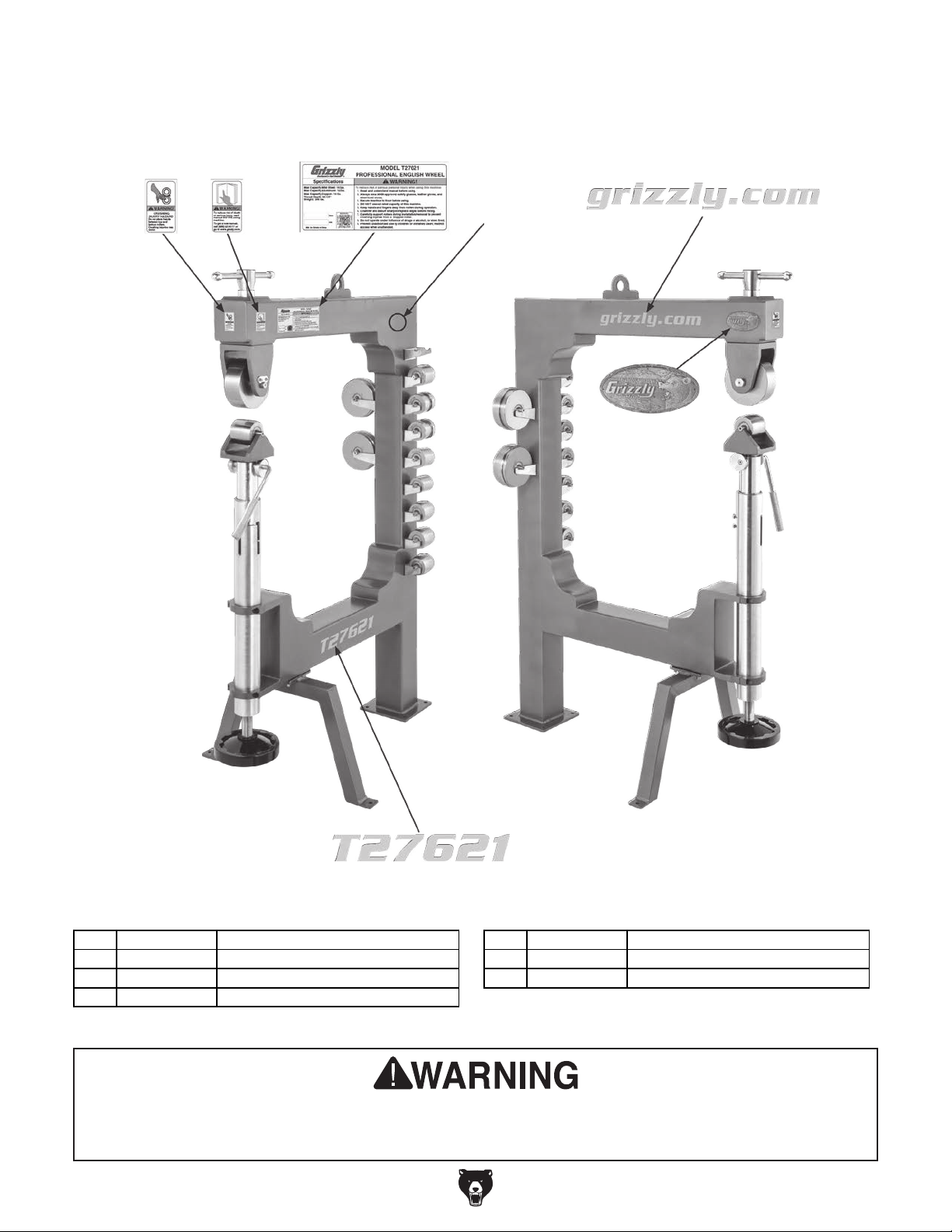

Labels & Cosmetics Parts List
103
102
104
105
106
107
REF PART # DESCRIPTION REF PART # DESCRIPTION
101 PT27621101 CRUSHING INJURY HAZARD LABEL 105 PT27621105 GRIZZLY.COM LABEL
102 PT27621102 READ MANUAL LABEL 106 PT27621106 GRIZZLY NAMEPLATE
103 PT27621103 MACHINE ID LABEL 107 PT27621107 MODEL NUMBER LABEL
104 PT27621104 TOUCH-UP PAINT, GRIZZLY GREEN
Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes
off or becomes unreadable, the owner of this machine MUST replace it in the original location
before resuming operations. For replacements, contact (800) 523-4777 or www.grizzly.com.
-30-
Model T27621 (Mfd. Since 2/16)
Page 33
WARRANTY CARD
Name _____________________________________________________________________________
Street _____________________________________________________________________________
City _______________________ State _________________________ Zip _____________________
Phone # ____________________ Email _________________________________________________
Model # ____________________ Order # _______________________ Serial # __________________
The following information is given on a voluntary basis. It will be used for marketing purposes to help us develop
better products and services. Of course, all information is strictly confidential.
1. How did you learn about us?
____ Advertisement ____ Friend ____ Catalog
____ Card Deck ____ Website ____ Other:
2. Which of the following magazines do you subscribe to?
____ Cabinetmaker & FDM
____ Family Handyman
____ Hand Loader
____ Handy
____ Home Shop Machinist
____ Journal of Light Cont.
____ Live Steam
____ Model Airplane News
____ Old House Journal
____ Popular Mechanics
3. What is your annual household income?
____ $20,000-$29,000 ____ $30,000-$39,000 ____ $40,000-$49,000
____ $50,000-$59,000 ____ $60,000-$69,000 ____ $70,000+
CUT ALONG DOTTED LINE
4. What is your age group?
____ 20-29 ____ 30-39 ____ 40-49
____ 50-59 ____ 60-69 ____ 70+
5. How long have you been a woodworker/metalworker?
____ 0-2 Years ____ 2-8 Years ____ 8-20 Years ____20+ Years
6. How many of your machines or tools are Grizzly?
____ 0-2 ____ 3-5 ____ 6-9 ____10+
____ Popular Science
____ Popular Woodworking
____ Precision Shooter
____ Projects in Metal
____ RC Modeler
____ Rie
____ Shop Notes
____ Shotgun News
____ Today’s Homeowner
____ Wood
____ Wooden Boat
____ Woodshop News
____ Woodsmith
____ Woodwork
____ Woodworker West
____ Woodworker’s Journal
____ Other:
7. Do you think your machine represents a good value? _____Yes _____No
8. Would you recommend Grizzly Industrial to a friend? _____Yes _____No
9. Would you allow us to use your name as a reference for Grizzly customers in your area?
Note: We never use names more than 3 times. _____Yes _____No
10. Comments: _____________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
Page 34
FOLD ALONG DOTTED LINE
FOLD ALONG DOTTED LINE
Place
Stamp
Here
GRIZZLY INDUSTRIAL, INC.
P.O. BOX 2069
BELLINGHAM, WA 98227-2069
Send a Grizzly Catalog to a friend:
Name_______________________________
Street_______________________________
City______________State______Zip______
TAPE ALONG EDGES--PLEASE DO NOT STAPLE
Page 35
WARRANTY & RETURNS
Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from
the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse,
negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty
and any and all warranties that may be implied by law, including any merchantability or fitness, for any particular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent
that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants.
In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and
any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.
We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special,
or consequential damages arising from the use of our products.
To take advantage of this warranty, contact us by mail or phone and give us all the details. We will then issue
you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of the carton. We
will not accept any item back without this number. Proof of purchase must accompany the merchandise.
The manufacturers reserve the right to change specifications at any time because they constantly strive to
achieve better quality equipment. We make every effort to ensure that our products meet high quality and
durability standards and we hope you never need to use this warranty.
Please feel free to write or call us if you have any questions about the machine or the manual.
Thank you again for your business and continued support. We hope to serve you again soon.
