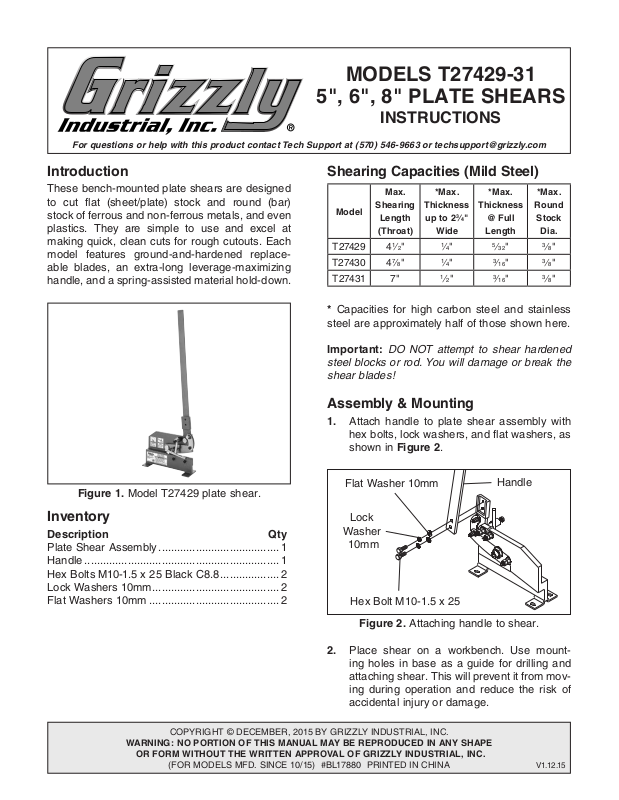

MODELS T27429-31
5", 6", 8" PLATE SHEARS
INSTRUCTIONS
For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction
These bench-mounted plate shears are designed
to cut flat (sheet/plate) stock and round (bar)
stock of ferrous and non-ferrous metals, and even
plastics. They are simple to use and excel at
making quick, clean cuts for rough cutouts. Each
model features ground-and-hardened replaceable blades, an extra-long leverage-maximizing
handle, and a spring-assisted material hold-down.
Shearing Capacities (Mild Steel)
Max.
Model
T27429 4 1⁄2 "
T2743 0 4 7⁄8 "
T27431 7 "
Shearing
Length
(Throat)
*Max.
Thickness
Wide
1
⁄4"
1
⁄4"
1
⁄2 "
3
⁄4"
up to 2
*Max.
Thickness
@ Full
Length
5
⁄32"
3
⁄16 "
3
⁄16 "
* Capacities for high carbon steel and stainless
steel are approximately half of those shown here.
Important: DO NOT attempt to shear hardened
steel blocks or rod. You will damage or break the
shear blades!
*Max.
Round
Stock
Dia.
3
⁄8 "
3
⁄8 "
3
⁄8 "
Assembly & Mounting
1. Attach handle to plate shear assembly with
hex bolts, lock washers, and flat washers, as
shown in Figure 2.
Figure 1. Model T27429 plate shear.
Inventory
Description Qty
Plate Shear Assembly ....................................... 1
Handle ............................................................... 1
Hex Bolts M10-1.5 x 25 Black C8.8 ................... 2
Lock Washers 10mm ......................................... 2
Flat Washers 10mm .......................................... 2
COPYRIGHT © DECEMBER, 2015 BY GRIZZLY INDUSTRIAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
(FOR MODELS MFD. SINCE 10/15) #BL17880 PRINTED IN CHINA
Flat Washer 10mm
Handle
Lock
Washer
10mm
Hex Bolt M10-1.5 x 25
Figure 2. Attaching handle to shear.
2. Place shear on a workbench. Use mount-
ing holes in base as a guide for drilling and
attaching shear. This will prevent it from moving during operation and reduce the risk of
accidental injury or damage.
V1.12.15
Another option is a "direct mount" (see example
below) where the machine is secured directly to
the workbench with lag screws and washers.
The base of this machine has mounting holes
that allow it to be fastened to a workbench or
other mounting surface to prevent it from moving
during operation and causing accidental injury or
damage.
The strongest mounting option is a "Through
Mount" (see example below) where holes are
drilled all the way through the workbench—and
hex bolts, washers, and hex nuts are used to
secure the machine in place.
The strongest mounting option is a "Through
Mount" (see example below) where holes are
drilled all the way through the workbench—and
hex bolts, washers, and hex nuts are used to
secure the shear in place.
Hex
Bolt
Basic Operation
1. Raise hold-down using hex bolt shown in
Figure 5 to allow room for workpiece.
Shearing Port
(Remove Safety
Pin to Access)
Hex Bolt
Flat Washer
Machine Base
Workbench
Flat Washer
Lock Washer
Hex Nut
Figure 3. "Through Mount" setup.
Another option is a "Direct Mount" (see example
below) where the shear is secured directly to the
workbench with lag screws and washers.
Lag Screw
Machine Base
Workbench
Figure 4. "Direct Mount" setup.
Flat Washer
Hold-
Down
Figure 5. Plate shear hold-down.
2. Place workpiece between blades or through
shearing port.
— If shearing flat workpiece, position and
secure hold-down so it firmly presses
workpiece against lower blade.
3. Using slow and even pressure, pull handle
down to cut workpiece.
Note: If material seems too thick or too hard,
do not force shear! Instead, use metal-cutting
bandsaw or other tool to cut workpiece.
Maintenance
• Always keep blades lubricated with light oil.
• Keep pivot points tight.
• Check all shear hardware before every use
for loose or worn components.
AMPUTAT I ON HAZ ARD !
To reduce risk of serious personal injury:
• Keep fingers, hands, and all body parts
away from blades and cutting area during
use.
• Prevent unauthorized use by children or untrained users. Keep children
and bystanders at safe distance while
shearing.
-2-
T27429-31 Plate Shears (Mfd. 10/15+)
T27429 & T27430 Breakdown
Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here
are available for purchase. Call (800) 523 - 4777 or visit our online parts store at www.grizzly.com to check for availability.
(T27429)
29
(T27430)
29
21
30 31 32
22
23
24
18
9
10
20
19
T27429 Parts List
REF PART # DESCRIPTION
1 PT27429001 SHEAR BODY
2 PT27429002 PIVOT BOLT M12-1.75 X 30
3 PT27429003 UPPER BLADE 5"
4 PT27429004 LOWER BLADE 5"
5 PT27429005 SHEARING PORT SCREW M22-1.5 X 30
6 PT27429006 HANDLE BRACKET
7 PT27429007 REAR PIVOT ARM
8 PT27429008 HEX BOLT M12-1.75 X 60 BLK C8.8
9 PT27429009 FLAT WASHER 12MM
10 PT27429010 HEX NUT M12-1.75
11 PT27429011 PIVOT BOLT W/SPRING CAPTURE M10-1.5 X 25
12 PT27429012 FLAT WASHER 16MM
13 PT27429013 BUSHING, COPPER
14 PT27429014 PIVOT BOLT M12-1.75 X 35
15 PT27429015 SPRING SUPPORT ROD
16 PT27429016 LOCK WASHER 12MM
17 PT27429017 HEX BOLT M12-1.75 X 25 BLK C8.8
18 PT27429018 FLAT WASHER 22MM
19 PT27429019 HEX NUT M22-1.5
20 PT27429020 CLEVIS PIN 10 X 60MM
21 PT27429021 HANDLE
22 PT27429022 FLAT WASHER 10MM
23 PT27429023 LOCK WASHER 10MM
24 PT27429024 HEX BOLT M10-1.5 X 25 BLK C8.8
25 PT27429025 WORK STOP
26 PT27429026 COTTER PIN 3 X 90, HAIRPIN
27 PT27429027 TORSION SPRING
28 PT27429028 HEX BOLT M10-1.5 X 20 BLK C8.8
29 PT27429029 MACHINE ID LABEL
30 PT27429030 AMPUTATION HAZARD LABEL
31 PT27429031 READ MANUAL LABEL
32 PT27429032 SAFETY GLASSES LABEL
716
12
14
11 8
13
9
28
15
27
26
2
25
5
17
16
4
9
3
T27430 Parts List
REF PART # DESCRIPTION
1 PT27430001 SHEAR BODY
2 PT27430002 PIVOT BOLT M12-1.75 X 30
3 PT27430003 UPPER BLADE 4-7/8"
4 PT27430004 LOWER BLADE 4-7/8"
5 PT27430005 SHEARING PORT SCREW M22-1.5 X 30
6 PT27430006 HANDLE BRACKET
7 PT27430007 REAR PIVOT ARM
8 PT27430008 HEX BOLT M12-1.75 X 60 BLK C8.8
9 PT27430009 FLAT WASHER 12MM
10 PT27430010 HEX NUT M12-1.75
11 PT27430011 PIVOT BOLT W/SPRING CAPTURE M10-1.5 X 25
12 PT27430012 FLAT WASHER 16MM
13 PT27430013 BUSHING, COPPER
14 PT27430014 PIVOT BOLT M12-1.75 X 35
15 PT27430015 SPRING SUPPORT ROD
16 PT27430016 LOCK WASHER 12MM
17 PT27430017 HEX BOLT M12-1.75 X 25 BLK C8.8
18 PT27430018 FLAT WASHER 22MM
19 PT27430019 HEX NUT M22-1.5
20 PT27430020 CLEVIS PIN 10 X 60MM
21 PT27430021 HANDLE
22 PT27430022 FLAT WASHER 10MM
23 PT27430023 LOCK WASHER 10MM
24 PT27430024 HEX BOLT M10-1.5 X 25 BLK C8.8
25 PT27430025 WORK STOP
26 PT27430026 COTTER PIN 3 X 90, HAIRPIN
27 PT27430027 TORSION SPRING
28 PT27430028 HEX BOLT M10-1.5 X 20 BLK C8.8
29 PT27430029 MACHINE ID LABEL
30 PT27430030 AMPUTATION HAZARD LABEL
31 PT27430031 READ MANUAL LABEL
32 PT27430032 SAFETY GLASSES LABEL
T27429-31 Plate Shears (Mfd. 10/15+)
-3-
T27431 Breakdown
21
28
MODEL T27431
To reduce the risk of serious injury with this machine:
1. Read and understand the manual before operating.
2. Always wear eye protection and leather gloves.
3. Do not exceed rated capacity of this shear.
4. Do not shear hardened or stainless-steel material.
5. Chamfer and deburr sharp metal edges.
Date
6. Always keep hands and fingers out of blade path.
7. Do not operate when tired or under the influence of drugs
or alcohol.
S/N
8. Securely mount shear to stable workbench or stand.
9. Prevent unauthorized use by children or untrained users.
8" PLATE SHEAR
WARNING!
Specifications
Blade Length: 7-7/8"
Max Thickness Up To 2-3/4" Wide: 1/2"
Max Thickness at Full Width: 3/16"
Round Capacity: 3/8"
Weight: 44 lbs.
Mfd. for Grizzly in China
29 30 31
19
20
24 23
22
14
6
7
11
8
25
13
16
12
15
10
9
26
27
2
9
3
5
17
18
1
4
T27431 Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 PT27431001 SHEAR BODY 17 PT27431017 LOCK WASHER 12MM
2 PT27431002 PIVOT BOLT M12-1.75 X 30 18 PT27431018 HEX BOLT M12-1.75 X 25
3 PT27431003 UPPER BLADE 7-7/8" 19 PT27431019 FLAT WASHER 22MM
4 PT27431004 LOWER BLADE 7-7/8" 20 PT27431020 HEX NUT M22-1.5
5 PT27431005 SHEARING PORT SCREW M22-1.5 X 30 21 PT27431021 CLEVIS PIN 10 X 60MM
6 PT27431006 HANDLE BRACKET 22 PT27431022 HANDLE
7 PT27431007 REAR PIVOT ARM 23 PT27431023 FLAT WASHER 10MM
8 PT27431008 HEX BOLT M12-1.75 X 60 BLK C8.8 24 PT27431024 LOCK WASHER 10MM
9 PT27431009 FLAT WASHER 12MM 25 PT27431025 HEX BOLT M10-1.5 X 25 BLK C8.8
10 PT27431010 HEX NUT M12-1.75 26 PT27431026 COTTER PIN 3 X 90, HAIRPIN
11 PT27431011 PIVOT BOLT W/SPRING CAPTURE M10-1.5 X 25 27 PT27431027 TORSION SPRING
12 PT27431012 FLAT WASHER 16MM 28 PT27431028 MACHINE ID LABEL
13 PT27431013 BUSHING, COPPER 29 PT27431029 AMPUTATION HAZARD LABEL
14 PT27431014 PIVOT BOLT M12-1.75 X 35 30 PT27431030 READ MANUAL LABEL
15 PT27431015 BUSHING 31 PT27431031 SAFETY GLASSES LABEL
16 PT27431016 WORK STOP
Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes
off or becomes unreadable, the owner of this machine MUST replace it in the original location
before resuming operations. For replacements, contact (800) 523-4777 or www.grizzly.com.
-4-
T27429-31 Plate Shears (Mfd. 10/15+)
