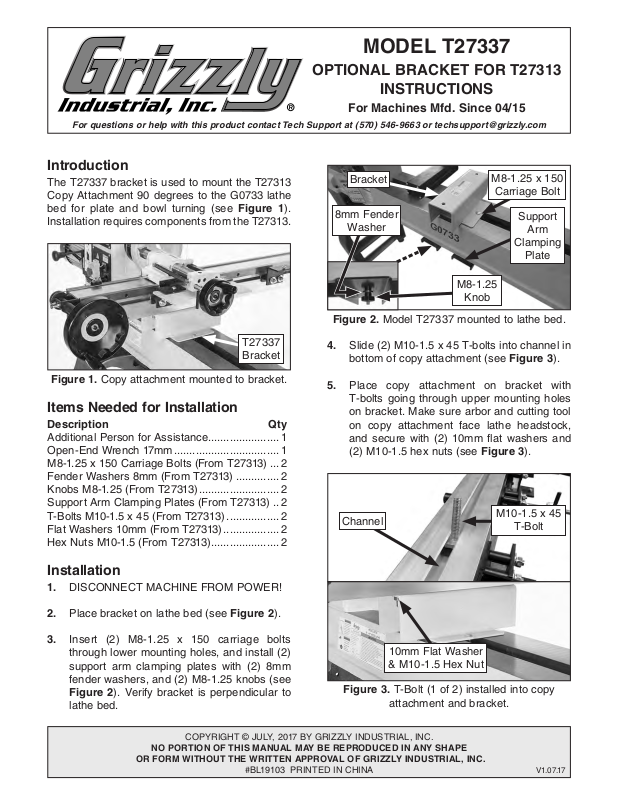

MODEL T27337
OPTIONAL BRACKET FOR T27313
INSTRUCTIONS
For Machines Mfd. Since 04/15
For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction
The T27337 bracket is used to mount the T27313
Copy Attachment 90 degrees to the G0733 lathe
bed for plate and bowl turning (see Figure 1).
Installation requires components from the T27313.
Bracket
8mm Fender
Washer
M8-1.25
Knob
Figure 2. Model T27337 mounted to lathe bed.
M8-1.25 x 150
Carriage Bolt
Support
Arm
Clamping
Plate
T27337
Bracket
Figure 1. Copy attachment mounted to bracket.
Items Needed for Installation
Description Qty
Additional Person for Assistance....................... 1
Open-End Wrench 17mm
M8-1.25 x 150 Carriage Bolts (From T27313)
Fender Washers 8mm (From T27313)
Knobs M8-1.25 (From T27313)
Support Arm Clamping Plates (From T27313)
T-Bolts M10-1.5 x 45 (From T27313)
Flat Washers 10mm (From T27313)
Hex Nuts M10-1.5 (From T27313)
.................................. 1
... 2
.............. 2
.......................... 2
.. 2
................. 2
.................. 2
...................... 2
Installation
1. DISCONNECT MACHINE FROM POWER!
2. Place bracket on lathe bed (see Figure 2).
4. Slide (2) M10-1.5 x 45 T-bolts into channel in
bottom of copy attachment (see Figure 3).
5.
Place copy attachment on bracket with
T-bolts going through upper mounting holes
on bracket. Make sure arbor and cutting tool
on copy attachment face lathe headstock,
and secure with (2) 10mm flat washers and
(2) M10-1.5 hex nuts (see Figure 3).
Channel
M10-1.5 x 45
T-Bolt
Insert (2) M8-1.25 x 150 carriage bolts
3.
through lower mounting holes, and install (2)
support arm clamping plates with (2) 8mm
fender washers, and (2) M8-1.25 knobs (see
Figure 2). Verify bracket is perpendicular to
lathe bed.
COPYRIGHT © JULY, 2017 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#BL19103 PRINTED IN CHINA
10mm Flat Washer
& M10-1.5 Hex Nut
Figure 3. T-Bolt (1 of 2) installed into copy
attachment and bracket.
V1.07.17
