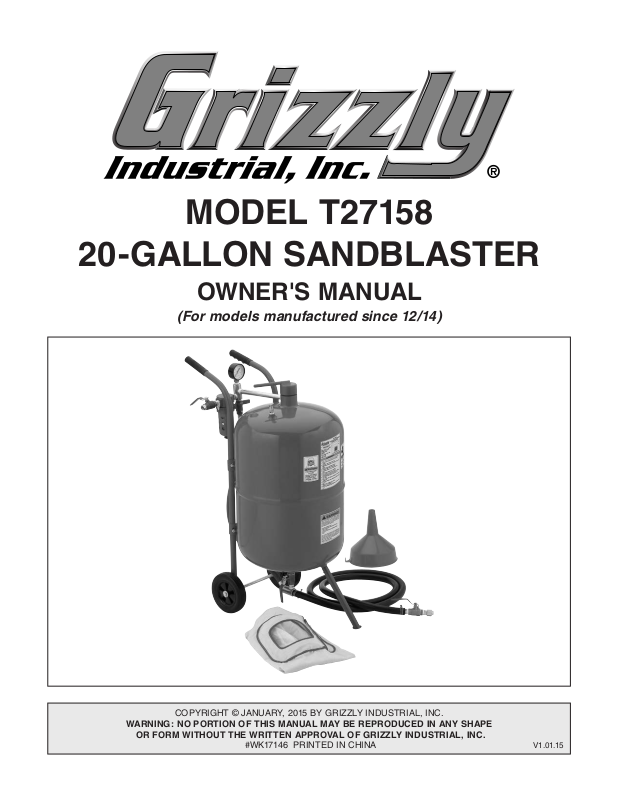

Grizzly T27158 User guide

MODEL T27158

20-GALLON SANDBLASTER

OWNER'S MANUAL

(For models manufactured since 12/14)

COPYRIGHT © JANUARY, 2015 BY GRIZZLY INDUSTRIAL, INC.

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#WK17146 PRINTED IN CHINA

V1.01.15

This manual provides critical safety instructions on the proper setup,
operation, maintenance, and service of this machine/tool. Save this
document, refer to it often, and use it to instruct other operators.

Failure to read, understand and follow the instructions in this manual
may result in fire or serious personal injury—including amputation,
electrocution, or death.

The owner of this machine/tool is solely responsible for its safe use.
This responsibility includes but is not limited to proper installation in
a safe environment, personnel training and usage authorization,
proper inspection and maintenance, manual availability and compre­hension, application of safety devices, cutting/sanding/grinding tool
integrity, and the usage of personal protective equipment.

The manufacturer will not be held liable for injury or property damage
from negligence, improper training, machine modifications or misuse.

Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State
of California to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
Work in a well ventilated area, and work with approved safety equip­ment, such as those dust masks that are specially designed to filter
out microscopic particles.

Table of Contents

INTRODUCTION ............................................................................................................................... 2

Manual Accuracy ........................................................................................................................ 2

Machine Data Sheet ................................................................................................................... 2

Contact Info ................................................................................................................................ 2

SECTION 1: SAFETY ....................................................................................................................... 3

Additional Safety for Sandblasters ............................................................................................. 5

SECTION 2: SETUP ......................................................................................................................... 6

Unpacking .................................................................................................................................. 6

Needed for Setup ....................................................................................................................... 6

Assembly .................................................................................................................................... 6

SECTION 3: OPERATIONS ............................................................................................................. 8

Operation Safety ........................................................................................................................ 8

Basic Operation .......................................................................................................................... 8

Abrasive Options ...................................................................................................................... 11

Nozzle Options ......................................................................................................................... 11

SECTION 4: MAINTENANCE......................................................................................................... 12

Maintenance ............................................................................................................................. 12

SECTION 5: PARTS ....................................................................................................................... 13

Main Parts Breakdown ............................................................................................................. 13

WARRANTY & RETURNS ............................................................................................................. 14

INTRODUCTION

We are proud to offer this document with your
new machine! We've made every effort to be
exact with the instructions, specifications, draw­ings, and photographs of the machine we used
when writing this manual. However, sometimes
we still make an occasional mistake.

Also, owing to our policy of continuous improve­ment, your machine may not exactly match

the manual

the difference between the manual and machine
leaves you in doubt, immediately call our techni­cal support for updates or clarification.

For your convenience, we post all available docu­mentation on our website at

.
Any updates to this document will be reflected on
our website as soon as complete.

We stand behind our machines. If you have
any questions or need help, use the information
below to contact us. Before contacting, please get
the serial number and manufacture date of your
machine. This will help us help you faster.

We want your feedback on this manual. What did
you like about it? Where could it be improved?
Please take a few minutes to give us feedback.

Manual Accuracy

. If you find this to be the case, and

www.grizzly.com

Contact Info

Grizzly Technical Support

1203 Lycoming Mall Circle

Muncy, PA 17756

Phone: [phone]

Email: [e-mail]

Grizzly Documentation Manager

P.O. Box 2069

Bellingham, WA 98227-2069

Email: [e-mail]

Customer Service #: [phone] • To Order Call: [phone] • Fax #: [phone]

-2-

MODEL T27158 20-GALLON SANDBLASTER

Design Type ..............................................................Portable Floor Model

General Specifications:

Width ...............................................................................................15"

Height ........................................................................................... 35

Depth ............................................................................................ 27

Operating Air Pressure Range ........................................... 65-125 PSI

Recommended Air Supply .................................................... 6-25 CFM

Hose Length ................................................................................. 10 ft.

Tank Size ................................................................................... 20 gal.

Abrasive Capacity .......................................................................80 lbs.

Abrasive Type ......................................................................... Dry Only

Weight ........................................................................................55 lbs.

Specifications, while deemed accurate, are not guaranteed.

MACHINE DATA

SHEET

1

⁄2"

1

⁄2"

Model T27158 (Mfd. Since 12/14)

SECTION 1: SAFETY

For Your Own Safety, Read Instruction

Manual Before Operating This Machine

The purpose of safety symbols is to attract your attention to possible hazardous conditions.
This manual uses a series of symbols and signal words intended to convey the level of impor­tance of the safety messages. The progression of symbols is described below. Remember that
safety messages by themselves do not eliminate danger and are not a substitute for proper
accident prevention measures. Always use common sense and good judgment.

Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury. It may also be used to alert
against unsafe practices.

This symbol is used to alert the user to useful information about

NOTICE

proper operation of the machine.

Safety Instructions for Machinery

OWNER’S MANUAL. Read and understand this

owner’s manual BEFORE using machine.

TRAINED OPERATORS ONLY. Untrained oper­ators have a higher risk of being hurt or killed.
Only allow trained/supervised people to use this
machine. When machine is not being used, dis­connect power, remove switch keys, or lock-out
machine to prevent unauthorized use—especially
around children. Make workshop kid proof!

DANGEROUS ENVIRONMENTS. Do not use
machinery in areas that are wet, cluttered, or have
poor lighting. Operating machinery in these areas
greatly increases the risk of accidents and injury.

MENTAL ALERTNESS REQUIRED. Full mental
alertness is required for safe operation of machin­ery. Never operate under the influence of drugs or
alcohol, when tired, or when distracted.

ELECTRICAL EQUIPMENT INJURY RISKS. You
can be shocked, burned, or killed by touching live
electrical components or improperly grounded
machinery. To reduce this risk, only allow qualified
service personnel to do electrical installation or
repair work, and always disconnect power before
accessing or exposing electrical equipment.

DISCONNECT POWER FIRST.
nect machine from power supply BEFORE making
adjustments, changing tooling, or servicing machine.
This prevents an injury risk from unintended startup
or contact with live electrical components.

EYE PROTECTION. Always wear ANSI-approved
safety glasses or a face shield when operating or
observing machinery to reduce the risk of eye
injury or blindness from flying particles. Everyday
eyeglasses are NOT approved safety glasses.

Always discon-

Model T27158 (Mfd. Since 12/14)

-3-

WEARING PROPER APPAREL. Do not wear
clothing, apparel or jewelry that can become
entangled in moving parts. Always tie back or
cover long hair. Wear non-slip footwear to avoid
accidental slips, which could cause loss of work­piece control.

HAZARDOUS DUST. Dust created while using
machinery may cause cancer, birth defects, or
long-term respiratory damage. Be aware of dust
hazards associated with each workpiece material,
and always wear a NIOSH-approved respirator to
reduce your risk.

HEARING PROTECTION. Always wear hear­ing protection when operating or observing loud
machinery. Extended exposure to this noise
without hearing protection can cause permanent
hearing loss.

REMOVE ADJUSTING TOOLS. Tools left on
machinery can become dangerous projectiles
upon startup. Never leave chuck keys, wrenches,
or any other tools on machine. Always verify
removal before starting!

USE CORRECT TOOL FOR THE JOB. Only use
this tool for its intended purpose—do not force
it or an attachment to do a job for which it was
not designed. Never make unapproved modifica­tions—modifying tool or using it differently than
intended may result in malfunction or mechanical
failure that can lead to personal injury or death!

AWKWARD POSITIONS. Keep proper footing
and balance at all times when operating machine.
Do not overreach! Avoid awkward hand positions
that make workpiece control difficult or increase
the risk of accidental injury.

CHILDREN & BYSTANDERS. Keep children and
bystanders at a safe distance from the work area.
Stop using machine if they become a distraction.

FORCING MACHINERY. Do not force machine.
It will do the job safer and better at the rate for
which it was designed.

NEVER STAND ON MACHINE. Serious injury
may occur if machine is tipped or if the cutting
tool is unintentionally contacted.

STABLE MACHINE. Unexpected movement dur­ing operation greatly increases risk of injury or
loss of control. Before starting, verify machine is
stable and mobile base (if used) is locked.

USE RECOMMENDED ACCESSORIES. Consult
this owner’s manual or the manufacturer for rec­ommended accessories. Using improper acces­sories will increase the risk of serious injury.

UNATTENDED OPERATION. To reduce the
risk of accidental injury, turn machine OFF and
ensure all moving parts completely stop before
walking away. Never leave machine running
while unattended.

MAINTAIN WITH CARE. Follow all maintenance
instructions and lubrication schedules to keep
machine in good working condition. A machine
that is improperly maintained could malfunction,
leading to serious personal injury or death.

CHECK DAMAGED PARTS. Regularly inspect
machine for any condition that may affect safe
operation. Immediately repair or replace damaged
or mis-adjusted parts before operating machine.

MAINTAIN POWER CORDS. When disconnect­ing cord-connected machines from power, grab
and pull the plug—NOT the cord. Pulling the cord
may damage the wires inside. Do not handle
cord/plug with wet hands. Avoid cord damage by
keeping it away from heated surfaces, high traffic
areas, harsh chemicals, and wet/damp locations.

GUARDS & COVERS. Guards and covers reduce
accidental contact with moving parts or flying
debris. Make sure they are properly installed,
undamaged, and working correctly.

-4-

EXPERIENCING DIFFICULTIES. If at any time
you experience difficulties performing the intend­ed operation, stop using the machine! Contact our
Technical Support at [phone].

Model T27158 (Mfd. Since 12/14)

Additional Safety for Sandblasters

USE CORRECT ABRASIVES. Never use wet

abrasives in this sandblaster, it is designed for
dry abrasives only.

PROTECT LUNGS. Make sure that you always
use an NIOSH approved respirator when using or
cleaning the sandblaster.

PROTECT EYES. Make sure that you always
use the dust hood when using or cleaning the
sandblaster.

PROTECT ENVIRONMENT. Always sandblast
in an area where the spread of abrasive dust can
be contained.

MAINTAIN COMPONENTS. Replace noz­zles, hoses, lenses, and safety gear when they
become worn.

MAINTAIN EQUIPMENT. Check air lines and
fittings for any leaks, and replace lines and reseal
fittings immediately.

USE SAFETY WHEN SANDBLASTING. Always
secure the workpiece before sandblasting and
do not use system over the rated PSI.

USE CORRECT LIGHTING. Always make sure
that you have adequate lighting when sandblast­ing.

USE SAFETY LOADING & UNLOADING. Close
the air supply ball valve and discharge the air
tank before disconnecting the air supply line.

USE SAFETY DURING MAINTENANCE.

Disconnect` air supply and electrical before
doing maintenance.

MAINTAIN WORK AREA SAFETY. Clean com­pressor and equipment air filters often, and repair
any air hose leaks immediately.

LEAVING THE AREA. Always disconnect air
supply when leaving the sandblaster.

Serious personal injury may occur when
operating this machine! Accidents happen
most frequently when the operator is not
familar with machine or does not pay care­ful attention. To minimize your risk, under­stand ALL machine controls and safety
precautions BEFORE operating. Always
use machine with respect and caution.

Model T27158 (Mfd. Since 12/14)

No list of safety guidelines can be com­plete. Every shop environment is different.
Always consider safety first, as it applies
to your individual working conditions. Use
this and other machinery with caution and
respect. Failure to do so could result in
serious personal injury, damage to equip­ment, or poor work results.

-5-

SECTION 2: SETUP

Your machine was carefully packaged for safe
transportation. Remove the packaging materials
from around your machine and inspect it. If you
discover any damage, please call us immediately

at [phone]

Save the containers and all packing materials for
possible inspection by the carrier or its agent.

Otherwise, filing a freight claim can be difficult.

When you are completely satisfied with the condi­tion of your shipment, inventory the contents.

Keep children and pets away
from plastic bags or packing
materials shipped with this

Unpacking

for advice.

SUFFOCATION HAZARD!

Assembly

To assemble the sandblaster:

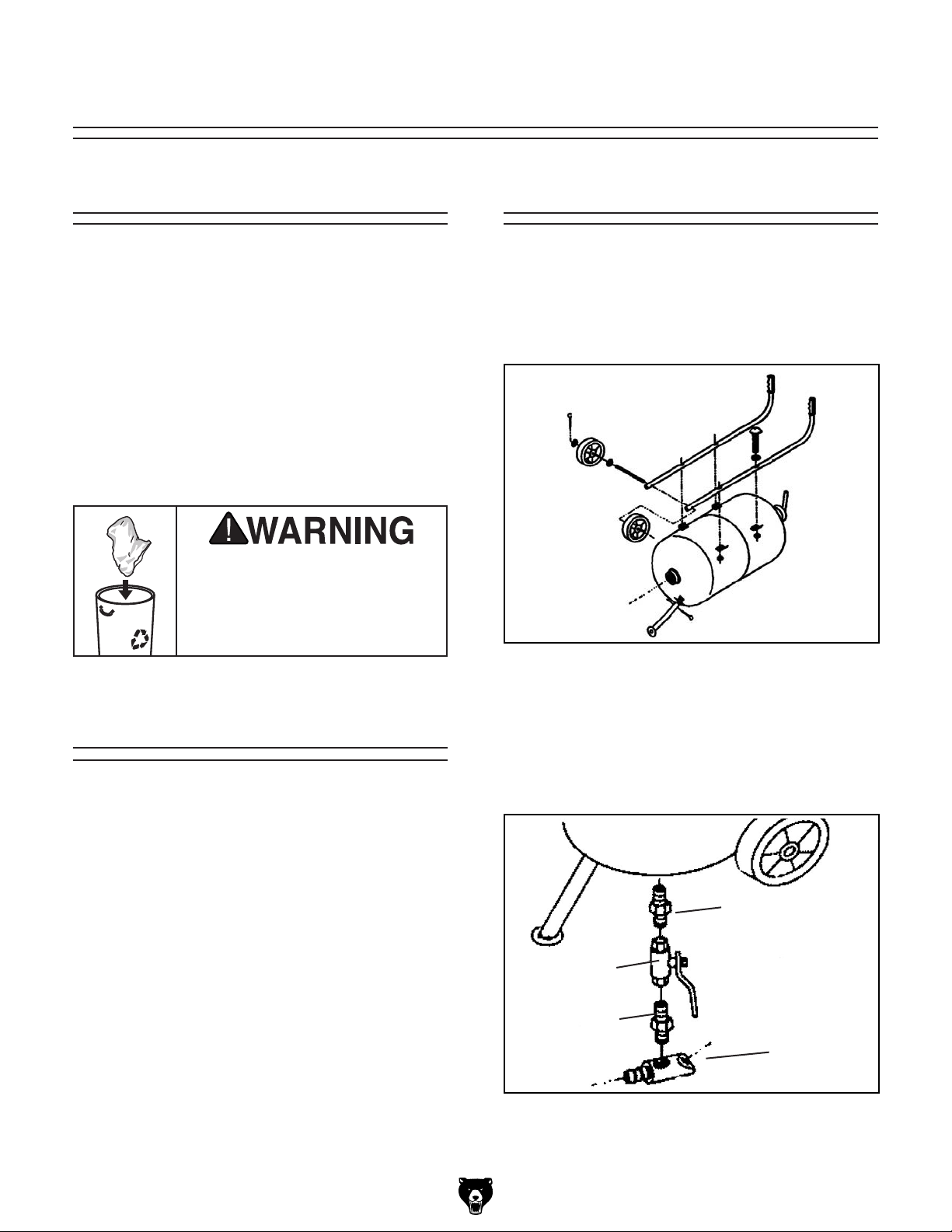

1. Install the wheels, handles, and leg to the

tank with the screws, washers, nuts, and
cotter pins, as shown in Figure 1.

machine. Discard immediately.

Needed for Setup

The following are needed to complete the setup
process, but are not included with your machine.

Description Qty

• Phillips Head Screwdriver #2 ..................... 1

• Standard Screwdriver #2 ............................ 1

• Teflon Tape ................................................ 1

• Wrench 10mm ............................................ 1

• Wrench 17mm ............................................ 1

• Wrench 22mm ............................................ 1

Figure 1. Wheel and handle installation.

2. Seal all pipe threads with thread-seal tape,

and assemble and install one of the four ball
valves to the bottom of the tank with two
nipples, and the sand outlet elbow, as shown
in Figure 2.

Tank

3

⁄8" Nipple

Ball Valve

3

⁄8" Nipple

Sand
Outlet
Elbow

3

⁄8"

-6-

Figure 2. Sand outlet control installation.

Model T27158 (Mfd. Since 12/14)

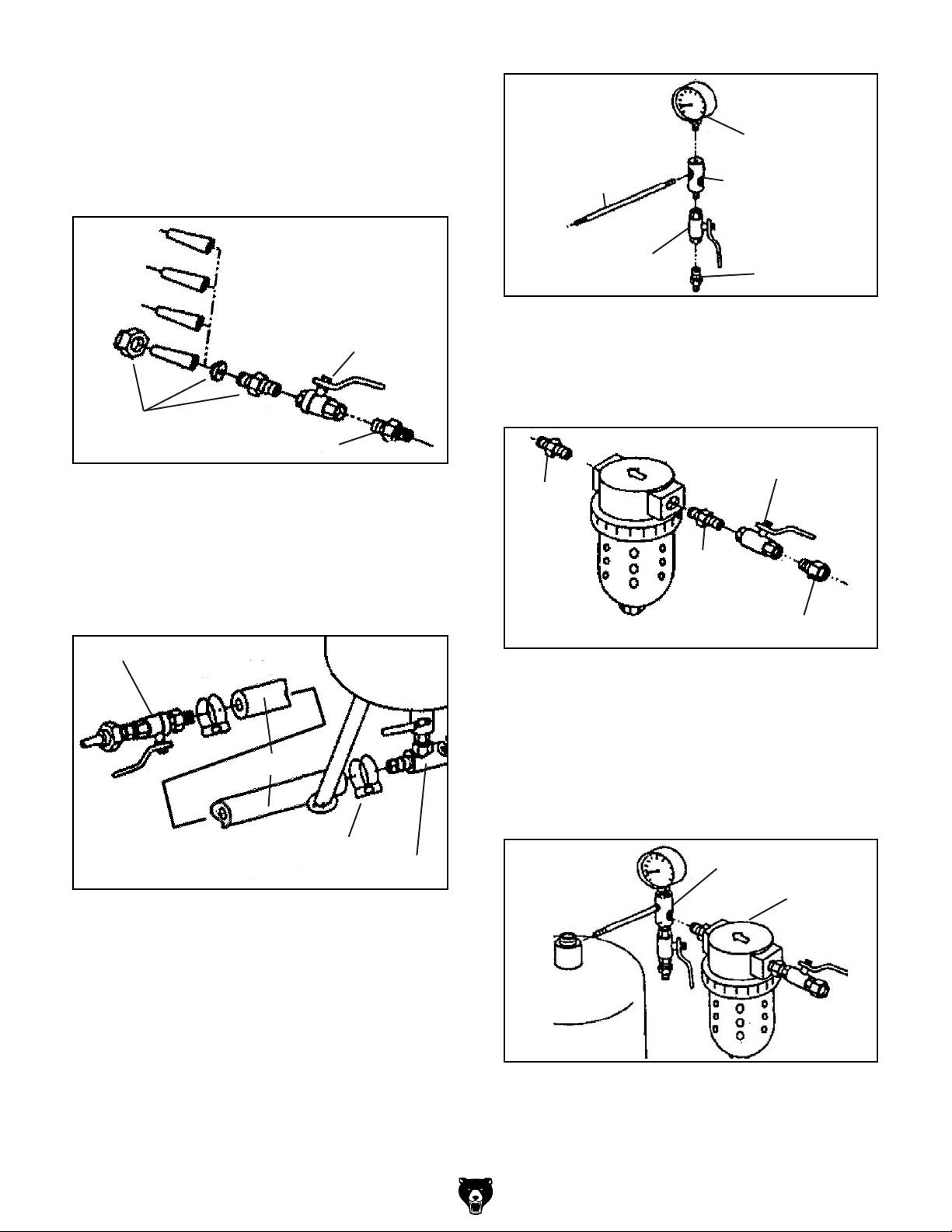

3. Assemble one of the remaining three ball
valves with a

3

⁄8" hose nipple, and the nozzle

arbor, as shown in Figure 3.

4. Install one of four sandblasting nozzles into
the nozzle arbor, as shown in Figure 3.

Pipe

Air Pressure Gauge

Manifold

Nozzles

Ball Valve

Nozzle
Arbor

3

⁄8" Hose Nipple

Figure 3. Sandblaster handle and nozzle

assembly.

5. With the two hose clamps, secure the
sandblaster hose to the sand outlet elbow
and the sandblaster nozzle assembly, as
shown in Figure 4.

Sandblaster Nozzle Assembly

Ball Valve

Nipple

Figure 5. Gauge/air supply control installation.

7. Install the remaining ball valve to the water

3

separator with two

⁄8" nipples, and the 3⁄8"

female nipple, as shown in Figure 6.

Ball Valve

Nipple

Nipple

Female Nipple

Figure 6.

Water separator assembly.

8. Connect the water separator assembly to the
air supply manifold, as shown in Figure 7.

Hose

Hose Clamp

Outlet Elbow

Figure 4. Sandblaster hose installation.

6. Attach to the manifold one of the remaining

3

ball valves and

⁄8" hose nipple, the red hose,
pressure gauge, and the pipe, as shown in
Figure 5.

Model T27158 (Mfd. Since 12/14)

9. Connect the gauge and water separator
assembly to the top of the tank, as shown in
Figure 7.

Air Supply

Manifold

Water
Separator
Assy.

Tank

Figure 7. Air supply control system installation.

10. Connect the air supply hose to the sand outlet

elbow at the bottom of the tank, and the other
end to the air pressure gauge valve nipple.

-7-

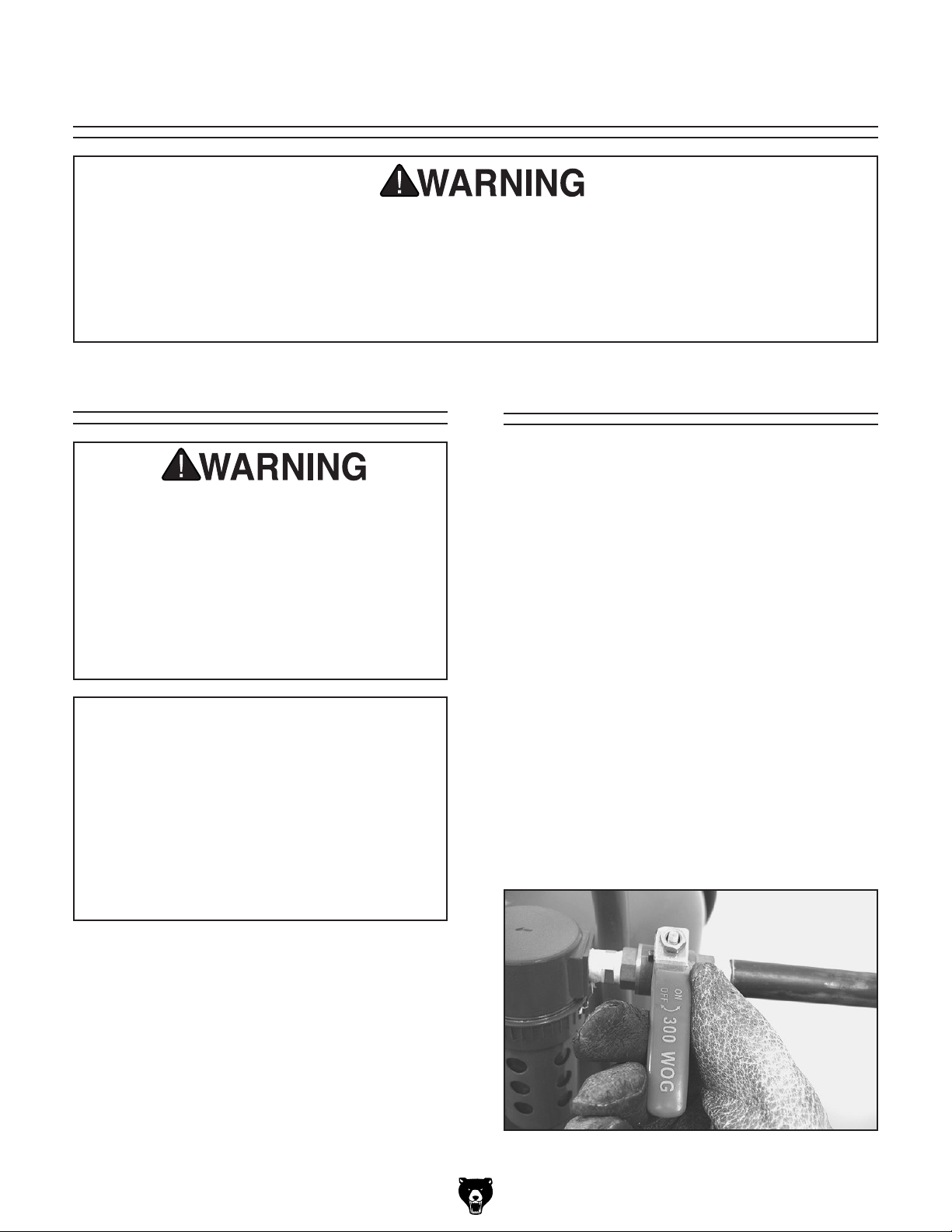

SECTION 3: OPERATIONS

Sandblasting presents a real hazard of silicosis and other lung contamination injuries! These
Injuries are permanent and can get worse over time. If you use sandblasting equipment without
the proper headgear, eye protection, and respirator, your lungs and eyes may become irreversibly
contaminated. DO NOT use this sandblaster unless you know how to use it, protect yourself
correctly, and keep all unprotected bystanders away. For latest types of protective equipment and
acceptable respirator types, contact your local OSHA or NIOSH office.

Operation Safety

NEVER sand blast with the doors open,
point the gun at yourself or anyone else, or
attempt to service any part of this machine
while it is plugged in or connected to air
pressure. ALWAYS disconnect the blast
cabinet from power and air pressure when
not in use, or during maintenance or adjust­ments. Ignoring this warning may lead to
severe injur y.

NOTICE

If you have never used this type of equip­ment before, WE STRONGLY RECOMMEND
that you read books, trade magazines, or
get formal training before beginning any
projects. Regardless of the content in this
section, Grizzly Industrial will not be held
liable for accidents caused by lack of train­ing.

Basic Operation

The Model T27158 Sandblaster is equipped with
an industrial-duty blast nozzle, tank, ball valves,
hoses, pressure gauge, and water separator.

To use the sandblaster:

1. PUT ON safety glasses, gloves, and
respirator. Always wear these protective
items when operating and while servicing
your sandblaster!

2. Select the appropriate abrasive for your
sandblaster. Refer to Page 12 for types.

3. Install the correct nozzle into the arbor for

the abrasive type hose size, air pressure
and CFM you will use. Refer to Page 12 for
options.

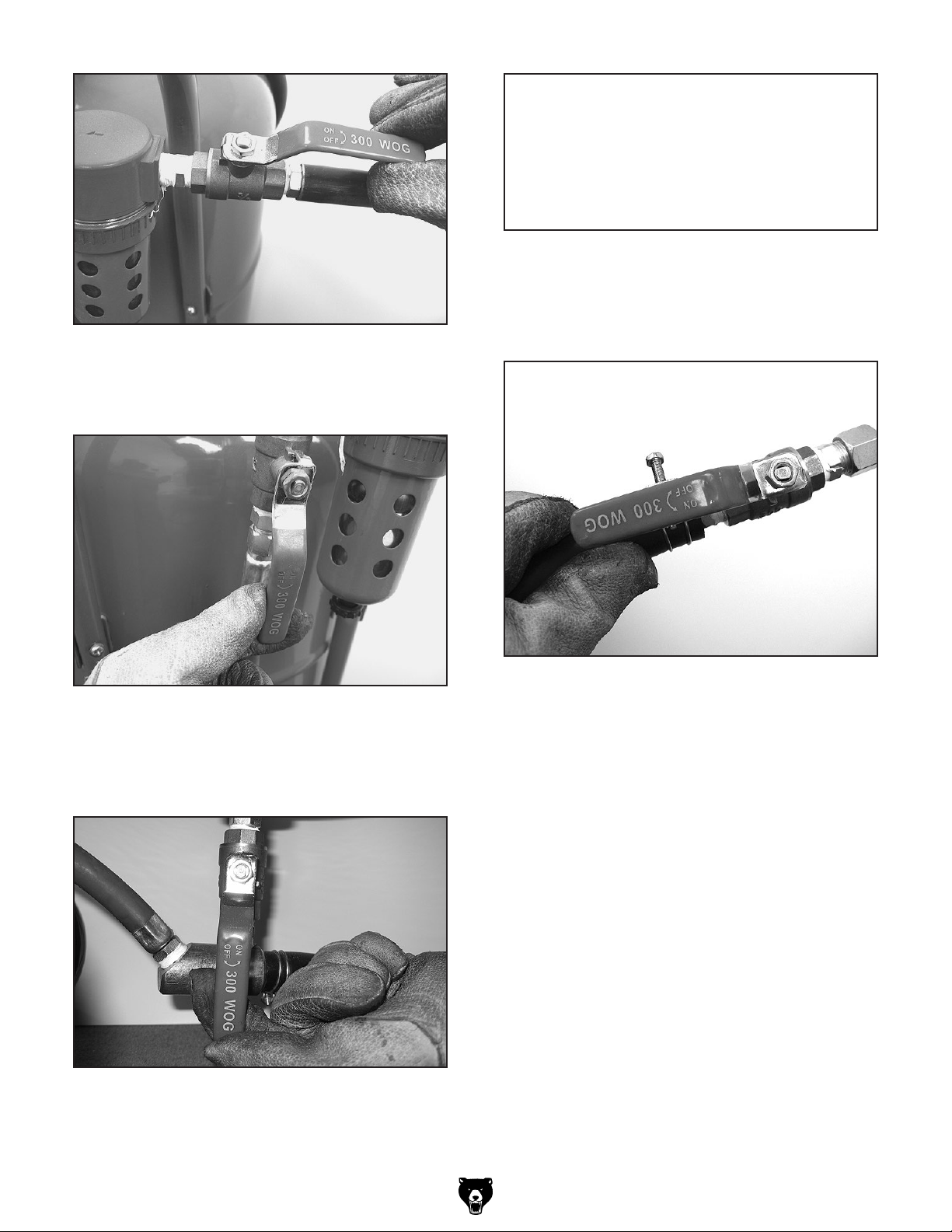

4. Move the tank air supply lever to the OFF or
closed position (see Figure 8).

-8-

Figure 8. Tank air supply valve, closed.

Model T27158 (Mfd. Since 12/14)

5. Move the blast hose air supply lever to the

OFF or the closed position (see Figure 9).

Figure 9. Blast hose air supply valve, closed.

8. Remove the filler cap, insert the funnel, and

carefully—without causing a hazardous dust
cloud—pour or spade-in the abrasive into the
sandblaster. Use only enough abrasive for
your project.

3

Note: If you fill the tank to

⁄4 full, and the local

humidity is 90-100%, the water trap will not
be able to trap all of the moisture from the
compressed air. So you must reduce the load
of abrasive and fill the tank more often and
empty the water trap more often. Otherwise,
the sand will clog in the tank outlet and in the
blast hose.

9. Brush sand away from the sealing cap and
O-ring, and close the filler cap.

6. Point the blast nozzle in a safe direction, and
slowly move the blast nozzle lever to the ON
or open position to exhaust any air from the
tank (see Figure 10).

7. Make sure the air pressure gauge reads zero
(see Figure 10).

Figure 10. Tank air pressure at zero PSI.

10. Close the blast nozzle lever, and turn the
compressor on (see Figure 11).

Figure 11. Blast nozzle valve, closed.

11. Adjust the air supply line regulator to an air

pressure between 65-125 PSI, depending on
your requirements.

Model T27158 (Mfd. Since 12/14)

12. Move the tank air supply lever to ON or the
open position (Figure 12), and the tank will
pressurize to your regulated air pressure
indicated by the tank gauge.

Note: If the tank relief valve trips open and

exhausts air, immediately turn the compressor
off and correct the over-pressurization
problem with the compressor. If the tank
exceeds its rated pressure, it may explode,
causing severe injury or death.

-9-

Figure 12. Tank air supply valve, opened.

13. Move the blast nozzle air supply lever to ON
or the open position (see Figure 13).

NOTICE

Only sandblast with the blast nozzle valve
in the fully OPEN position. Sandblasting
with a partially open blast nozzle valve can
lead to premature wear and cause machine
damage.

15. Point the blast nozzle at the workpiece and
slowly move the blast nozzle valve (Figure

15) to the ON or open position. Sand blasting

will begin.

Figure 13. Blast nozzle air supply valve, opened.

14. Move the sand metering valve lever to your

required sand flow volume requirement (see

Figure 14).

Figure 14. Sand metering valve in the full-open

position.

Figure 15. Blast nozzle valve, open.

16. Move the blast nozzle in a slow circular

motion.

Note: A good starting point for tip distance is

four inches away from the workpiece. Start
out with a low air pressure setting to avoid
excess peening and abrasive wear.

Note: Experiment with different pressures,

abrasives, sand flow, and tips to gain practical
experience.

Note: Keep the sandblasting abrasives

moisture-free; otherwise, the sand elbow and
the sand flow valve at the bottom of the tank
will clog frequently.

17. When sandblasting is complete, ALWAYS
close the air supply lever before you disconnect
the air supply line. Otherwise the residual air
in the tank will expel sand backwards through
the water separator and out of the air supply
fitting, damaging the water separator.

-10 -

Model T27158 (Mfd. Since 12/14)

Nozzle OptionsAbrasive Options

Hose Hose Nozzle Compressor CFM at Sand Use

ID Length ID HP 125 PSI Per-Hour

3/8" 50 ft 3/32" 2 6 60 lbs
3/8" 25 ft 7/64" 4 12 100 lbs
1/2" 50 ft 1/8" 7 20 150 lbs
1/2" 25 ft 9/64" 10 25 200 lbs

Grizzly Blasting Media Part #

G6535: 15 lbs. Aluminum Oxide 220 Grit.
G6536: 15 lbs. Aluminum Oxide 120 Grit.
G6537: 15 lbs. Aluminum Oxide 60 Grit.
G6538: 15 lbs. Glass Bead 50-Micron Grit.

Some common blasting abrasives are listed
below. All abrasives have benefits and drawbacks
such as quality of surface finish, abrasive life,
toxicity, and what precautions you must take to
prevent environmental damage or personal injury
to your respiratory system.

Steel Type Abrasives

This aggressive abrasive creates a rough finish
that accepts paint well. The abrasive is very dura­ble and has a long life; however, it MUST be kept
very dry to prevent rusting.

Alumina Type Abrasives

This multi-purpose abrasive creates a smoother
finish than the steel abrasives, but has a short­er life span. Less of the workpiece surface is
removed with this more forgiving abrasive.

Grizzly Blast Nozzles Part #

PT27158002: Nozzle Set (9⁄64",1⁄8",7⁄64",3⁄32" ID).
PT27158002-1: #1 Nozzle (

PT27158002-2: #2 Nozzle (
PT27158002-3: #3 Nozzle (
PT27158002-4: #4 Nozzle (

Sandblasting requires a high volume of com­pressed air. The quality of sandblasting can be
reduced by using the incorrect combination of
nozzle, hose size, air pressure and CFM. Use the
chart below as an estimate to get you started.
Experimentation will lead you to your optimum
settings for your particular sandblasting task.

9

⁄64" ID).

1

⁄8" ID).

7

⁄64" ID).

3

⁄32" ID).

Glass and Garnet Type Abrasives

Typically this abrasive works well for soft metals
and addressing surface issues with equipment
parts where tolerances cannot be affected. The
life of this abrasive is limited and not well suited
for repetitive recycling.

Sand Type Abrasives

This abrasive is easy to find and gives an average
finish that is acceptable for most projects. Sand

has a good recycling life and is very economical.

Other Types of Abrasives Available

Plastic beads.
Ground walnut or peanut shells.
Ground corn cob.
Sodium bicarbonate.
Wheat starch.

Model T27158 (Mfd. Since 12/14)

-11-

SECTION 4: MAINTENANCE

Maintenance

Always disconnect power
and the air supply to the
machine before perform­ing maintenance. Failure
to do this may result in
serious personal injury.

Depressurize the sandblaster, and check
the following items each time you use the
sandblaster and replace any parts immediately
if found to be worn:

• Look for excessively worn or cracked noz-

zles.

• Look for leaking thread fittings with soapy

water and a spray bottle.

• Look at the sand blasting hose for thin walls

and bubbling.

• Look for worn or leaking ball valves with

soapy water and a spray bottle.

-12-

Model T27158 (Mfd. Since 12/14)

SECTION 5: PARTS

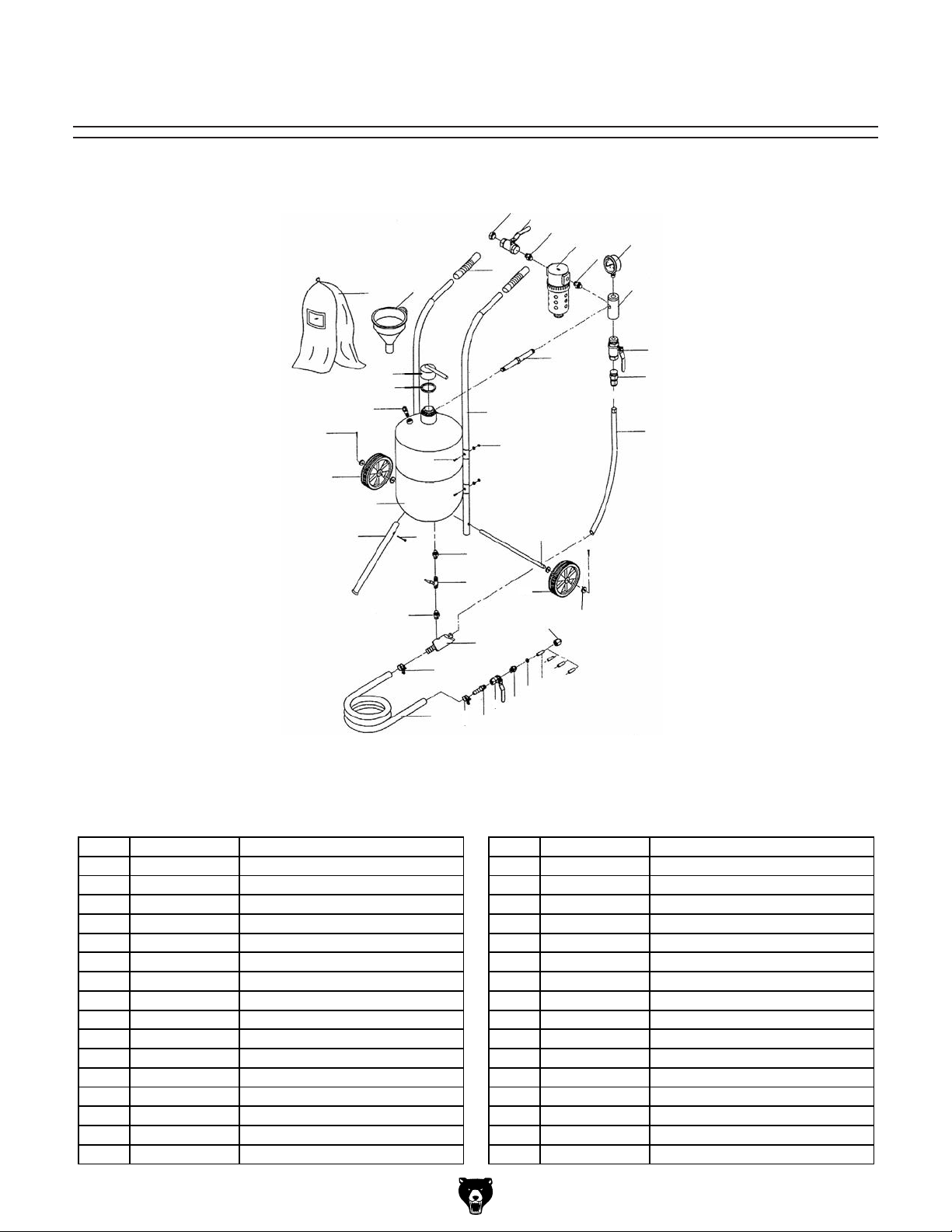

Main Parts Breakdown

9

5

29

8

10

34

28

11

8

36

27
26

17

18

23

25

32

24

17

8

19

20

19

30

31

8

5

18

21

3

8

5

38

Main Parts List

14

33

35

1

2

5

9

15

REF PART # DESCRIPTION REF PART # DESCRIPTION

1 PT27158001 NOZZLE ARBOR NUT 23 PT27158023 LEG
2 PT27158002 NOZZLE SET 20 PT27158020 BLAST HOSE 1" THICK
2-1 PT27158002-1 NOZZLE 9/64" 21 PT27158021 SAND ELBOW
2-2 PT27158002-2 NOZZLE 1/8" 24 PT27158024 TANK 20 GALLON
2-3 PT27158002-3 NOZZLE 7/64" 25 PT27158025 SAFETY RELIEF VALVE
2-4 PT27158002-4 NOZZLE 3/32" 26 PT27158026 SPECIAL O-RING
3 PT27158003 GASKET 27 PT27158027 FILLER CAP
5 PT27158005 BALL VALVE 3/8" 28 PT27158028 FUNNEL
8 PT27158008 NOZZLE ARBOR 29 PT27158029 HOOD W/LENSE
9 PT27158009 FEMALE CONNECTOR 3/8" 30 PT27158030 HANDLEBAR
10 PT27158010 WATER TRAP FILTER 31 PT27158031 HEX NUT M6-1
11 PT27158011 PRESSURE GAUGE 32 PT27158032 PHLP HD SCR M6-1 X 30
14 PT27158014 AXLE 33 PT27158033 PIPE
15 PT27158015 AIR HOSE 34 PT27158034 HANDLE GRIP
17 PT27158017 COTTER PIN 1/8" X 1" 35 PT27158035 FLAT WASHER 12MM
18 PT27158018 WHEEL 36 PT27158036 MANIFOLD
19 PT27158019 HOSE CLAMP 1" 38 PT27158038 PUSH-ON HOSE NIPPLE 3/8"

Model T27158 (Mfd. Since 12/14)

-13-

WARRANTY & RETURNS

Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from
the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse,
negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty
and any and all warranties that may be implied by law, including any merchantability or fitness, for any par­ticular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent
that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants.
In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and
any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.

We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special,
or consequential damages arising from the use of our products.

To take advantage of this warranty, contact us by mail or phone and give us all the details. We will then issue
you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of the carton. We
will not accept any item back without this number. Proof of purchase must accompany the merchandise.

The manufacturers reserve the right to change specifications at any time because they constantly strive to
achieve better quality equipment. We make every effort to ensure that our products meet high quality and
durability standards and we hope you never need to use this warranty.

Please feel free to write or call us if you have any questions about the machine or the manual.

Thank you again for your business and continued support. We hope to serve you again soon.
