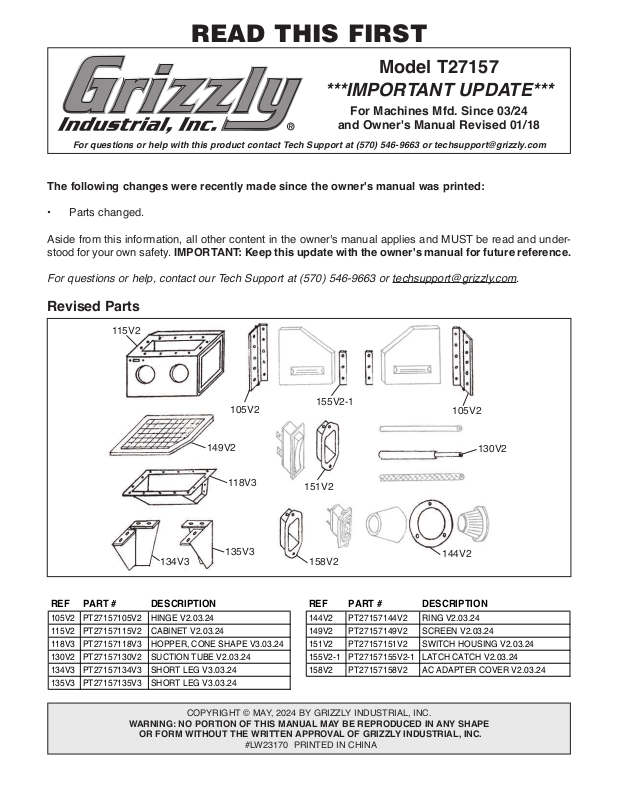

Grizzly T27157 User guide

READ THIS FIRST

REF PART # DES CRIPTIO N REF PART # DES CRIPTIO N

105V2 PT27157105V2 HINGE V2.03.24 144V2 PT27157144V2 RING V2.03.24
115V2 PT27157115V2 CABINET V2.03.24 149V2 PT27157149V2 SCREEN V2.03.24
118V3 PT27157118V3 HOPPER, CONE SHAPE V3.03.24 151V2 PT27157151V2 SWITCH HOUSING V2.03.24
130V2 PT27157130V2 SUCTION TUBE V2.03.24 155V2-1 PT27157155V2-1 LATCH CATCH V2.03.24
134V3 PT27157134V3 SHORT LEG V3.03.24 158V2 PT27157158V2 AC ADAPTER COVER V2.03.24
135V3 PT27157135V3 SHORT LEG V3.03.24

Model T27157

***IMPORTANT UPDATE***

For Machines Mfd. Since 03/24

and Owner's Manual Revised 01/18

For questions or help with this product contact Tech Support at [phone] or [e-mail]

The following changes were recently made since the owner's manual was printed:

• Parts changed.

Aside from this information, all other content in the owner's manual applies and MUST be read and under­stood for your own safety. IMPORTANT: Keep this update with the owner's manual for future reference.

For questions or help, contact our Tech Support at [phone] or [e-mail].

Revised Parts

115V2

134V3

149V2

135V3

105V2

118V3

155V2-1

105V2

130V2

151V2

144V2

158V2

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

COPYRIGHT © MAY, 2024 BY GRIZZLY INDUSTRIAL, INC.

#LW23170 PRINTED IN CHINA

MODEL T27157

SANDBLASTING CABINET

OWNER'S MANUAL

(For models manufactured since 01/18)

COPYRIGHT © JANUARY, 2015 BY GRIZZLY INDUSTRIAL, INC. REVISED JANUARY, 2018 (HE)

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#WK17149 PRINTED IN CHINA

V1.0 1.18

This manual provides critical safety instructions on the proper setup,
operation, maintenance, and service of this machine/tool. Save this
document, refer to it often, and use it to instruct other operators.

Failure to read, understand and follow the instructions in this manual
may result in fire or serious personal injury—including amputation,
electrocution, or death.

The owner of this machine/tool is solely responsible for its safe use.
This responsibility includes but is not limited to proper installation in
a safe environment, personnel training and usage authorization,
proper inspection and maintenance, manual availability and compre­hension, application of safety devices, cutting/sanding/grinding tool
integrity, and the usage of personal protective equipment.

The manufacturer will not be held liable for injury or property damage
from negligence, improper training, machine modifications or misuse.

Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State
of California to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
Work in a well ventilated area, and work with approved safety equip­ment, such as those dust masks that are specially designed to filter
out microscopic particles.

Table of Contents

INTRODUCTION ............................................................................................................................... 2

Manual Accuracy ........................................................................................................................ 2

Machine Data Sheet ................................................................................................................... 2

Contact Info ................................................................................................................................ 2

SECTION 1: SAFETY ....................................................................................................................... 3

Safety Instructions for Machinery ............................................................................................... 3

Additional Safety for Sandblasters ............................................................................................. 5

SECTION 2: SETUP ......................................................................................................................... 6

Unpacking .................................................................................................................................. 6

Needed for Setup ....................................................................................................................... 6

Assembly .................................................................................................................................... 7

SECTION 3: OPERATIONS ............................................................................................................. 8

Operation Safety ........................................................................................................................ 8

Basic Operation .......................................................................................................................... 8

Abrasive Options ........................................................................................................................ 9

Nozzle/Jet Options ..................................................................................................................... 9

SECTION 4: MAINTENANCE......................................................................................................... 10

Maintenance ............................................................................................................................. 10

SECTION 5: PARTS ....................................................................................................................... 11

Main Parts Breakdown ............................................................................................................. 11

WARRANTY AND RETURNS ........................................................................................................ 13

INTRODUCTION

We are proud to offer this document with your
new machine! We've made every effort to be
exact with the instructions, specifications, draw­ings, and photographs of the machine we used
when writing this manual. However, sometimes
we still make an occasional mistake.

Also, owing to our policy of continuous improve­ment, your machine may not exactly match

the manual

the difference between the manual and machine
leaves you in doubt, immediately call our techni­cal support for updates or clarification.

For your convenience, we post all available docu­mentation on our website at

.
Any updates to this document will be reflected on
our website as soon as complete.

We stand behind our machines! If you have ques­tions or need help, contact us with the information
below. Before contacting, make sure you get the

serial number

from the

machine ID label. This will help us help you faster.

We want your feedback on this manual. What did
you like about it? Where could it be improved?
Please take a few minutes to give us feedback.

Manual Accuracy

. If you find this to be the case, and

www.grizzly.com

Contact Info

and manufacture date

Grizzly Technical Support

1815 W. Battlefield
Springfield, MO 65807
Phone: [phone]

Email: [e-mail]

Grizzly Documentation Manager

P.O. Box 2069

Bellingham, WA 98227-2069

Email: [e-mail]

Customer Service #: [phone] • To Order Call: [phone] • Fax #: [phone]

-2-

MODEL T27157 SANDBLASTING CABINET

Design Type ..................................................................... Benchtop Model

General Specifications:

Width ............................................................................................ 271⁄2"

Height ..............................................................................................24"

Depth ............................................................................................ 221⁄2"

Operating Air Pressure Range ........................................... 60-100 PSI

Recommended Air Supply .................................................... 5-14 CFM

Net Weight ..................................................................................50 lbs.

Abrasive Capacity .......................................................................10 lbs.

Abrasive Type ......................................................................... Dry Only

Lighting Type .................................................................... 15 Watt LED

Load & Unload Access ................................................................ Sides

Power Supply ..................................... 110VAC w/12VDC Transformer

Specifications, while deemed accurate, are not guaranteed.

MACHINE DATA

SHEET

Model T27157 (Mfd. Since 01/18)

SECTION 1: SAFETY

For Your Own Safety, Read Instruction

Manual Before Operating This Machine

The purpose of safety symbols is to attract your attention to possible hazardous conditions.
This manual uses a series of symbols and signal words intended to convey the level of impor­tance of the safety messages. The progression of symbols is described below. Remember that
safety messages by themselves do not eliminate danger and are not a substitute for proper
accident prevention measures. Always use common sense and good judgment.

Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury. It may also be used to alert
against unsafe practices.

Alerts the user to useful information about proper operation of the

NOTICE

machine to avoid machine damage.

Safety Instructions for Machinery

Safety Instructions for Machinery

OWNER’S MANUAL. Read and understand this

owner’s manual BEFORE using machine.

TRAINED OPERATORS ONLY. Untrained oper­ators have a higher risk of being hurt or killed.
Only allow trained/supervised people to use this
machine. When machine is not being used, dis­connect power, remove switch keys, or lock-out
machine to prevent unauthorized use—especially
around children. Make your workshop kid proof!

DANGEROUS ENVIRONMENTS. Do not use
machinery in areas that are wet, cluttered, or have
poor lighting. Operating machinery in these areas
greatly increases the risk of accidents and injury.

MENTAL ALERTNESS REQUIRED. Full mental
alertness is required for safe operation of machin­ery. Never operate under the influence of drugs or
alcohol, when tired, or when distracted.

ELECTRICAL EQUIPMENT INJURY RISKS.
You can be shocked, burned, or killed by touching
live electrical components or improperly grounded
machinery. To reduce this risk, only allow qualified
service personnel to do electrical installation or
repair work, and always disconnect power before
accessing or exposing electrical equipment.

DISCONNECT POWER FIRST.
nect machine from power supply BEFORE mak­ing adjustments, changing tooling, or servicing
machine. This prevents an injury risk from unin­tended startup or contact with live electrical com­ponents.

EYE PROTECTION. Always wear ANSI-approved
safety glasses or a face shield when operating or
observing machinery to reduce the risk of eye
injury or blindness from flying particles. Everyday
eyeglasses are NOT approved safety glasses.

Always discon-

Model T27157 (Mfd. Since 01/18)

-3-

WEARING PROPER APPAREL. Do not wear
clothing, apparel or jewelry that can become
entangled in moving parts. Always tie back or
cover long hair. Wear non-slip footwear to reduce
risk of slipping and losing control or accidentally
contacting cutting tool or moving parts.

HAZARDOUS DUST. Dust created by machinery
operations may cause cancer, birth defects, or
long-term respiratory damage. Be aware of dust
hazards associated with each workpiece mate­rial. Always wear a NIOSH-approved respirator to
reduce your risk.

HEARING PROTECTION. Always wear hear­ing protection when operating or observing loud
machinery. Extended exposure to this noise
without hearing protection can cause permanent
hearing loss.

REMOVE ADJUSTING TOOLS. Tools left on
machinery can become dangerous projectiles
upon startup. Never leave chuck keys, wrenches,
or any other tools on machine. Always verify
removal before starting!

USE CORRECT TOOL FOR THE JOB. Only use
this tool for its intended purpose—do not force
it or an attachment to do a job for which it was
not designed. Never make unapproved modifica­tions—modifying tool or using it differently than
intended may result in malfunction or mechanical
failure that can lead to personal injury or death!

AWKWARD POSITIONS. Keep proper footing
and balance at all times when operating machine.
Do not overreach! Avoid awkward hand positions
that make workpiece control difficult or increase
the risk of accidental injury.

CHILDREN & BYSTANDERS. Keep children and
bystanders at a safe distance from the work area.
Stop using machine if they become a distraction.

GUARDS & COVERS. Guards and covers reduce
accidental contact with moving parts or flying
debris. Make sure they are properly installed,
undamaged, and working correctly BEFORE
operating machine.

FORCING MACHINERY. Do not force machine.
It will do the job safer and better at the rate for
which it was designed.

NEVER STAND ON MACHINE. Serious injury
may occur if machine is tipped or if the cutting
tool is unintentionally contacted.

STABLE MACHINE. Unexpected movement dur­ing operation greatly increases risk of injury or
loss of control. Before starting, verify machine is
stable and mobile base (if used) is locked.

USE RECOMMENDED ACCESSORIES. Consult
this owner’s manual or the manufacturer for rec­ommended accessories. Using improper acces­sories will increase the risk of serious injury.

UNATTENDED OPERATION. To reduce the
risk of accidental injury, turn machine OFF and
ensure all moving parts completely stop before
walking away. Never leave machine running
while unattended.

MAINTAIN WITH CARE. Follow all maintenance
instructions and lubrication schedules to keep
machine in good working condition. A machine
that is improperly maintained could malfunction,
leading to serious personal injury or death.

DAMAGED PARTS. Regularly inspect machine
for damaged, loose, or mis-adjusted parts—or
any condition that could affect safe operation.
Immediately repair/replace BEFORE operating
machine. For your own safety, DO NOT operate
machine with damaged parts!

MAINTAIN POWER CORDS. When disconnect­ing cord-connected machines from power, grab
and pull the plug—NOT the cord. Pulling the cord
may damage the wires inside. Do not handle
cord/plug with wet hands. Avoid cord damage by
keeping it away from heated surfaces, high traffic
areas, harsh chemicals, and wet/damp locations.

EXPERIENCING DIFFICULTIES. If at any time
you experience difficulties performing the intend­ed operation, stop using the machine! Contact our
Technical Support at [phone].

-4-

Model T27157 (Mfd. Since 01/18)

Additional Safety for Sandblasters

precautions are overlooked or ignored,

USE CORRECT ABRASIVES. Never use wet

abrasives in this sandblaster, it is designed for dry
abrasives only.

PROTECT LUNGS. Make sure that you always
use a respirator when using or cleaning the sand­bla ster.

LEAVING THE AREA. Always disconnect air
supply when leaving the sandblaster.

PROTECT EYES. Make sure that you always use
safety glasses when using or cleaning the sand­bla ster.

PROTECT ENVIRONMENT. Always close and
latch shut the sandblaster doors when not in use.

MAINTAIN COMPONENTS. Prior to each use,
inspect nozzles, hoses, lenses, and gloves. To
reduce the risk of respiratory damage or sand
penetrating skin, all components MUST be free of
cracks, leaks, or unacceptable wear. Immediately
replace worn or leaking components.

MAINTAIN MACHINE. Check cabinet for any
leaks, and reseal immediately.

USE SAFETY WHEN SANDBLASTING. Do not
use system over the rated PSI. Always secure the
door(s) before beginning sandblasting operations.

USE CORRECT LIGHTING. Do not use a light
that uses over 60 watts.

USE SAFETY LOADING & UNLOADING.

Disconnect the air supply before loading or unload­ing the workpiece from the sandblaster cabinet.

USE SAFETY DURING MAINTENANCE.

Disconnect air supply and electrical before doing
maintenance.

MAINTAIN WORK AREA SAFETY. Clean dust
collector and filters often, and repair any suction
hose leaks immediately.

Like all machinery there is potential danger
when operating this machine. Accidents
are frequently caused by lack of familiarity
or failure to pay attention. Use this machine
with respect and caution to decrease the
risk of operator injury. If normal safety

serious personal injury may occur.

Model T27157 (Mfd. Since 01/18)

No list of safety guidelines can be com­plete. Every shop environment is different.
Always consider safety first, as it applies
to your individual working conditions. Use
this and other machinery with caution and
respect. Failure to do so could result in
serious personal injury, damage to equip­ment, or poor work results.

-5-

SECTION 2: SETUP

This machine was carefully packaged for safe
transport. When unpacking, separate all enclosed
items from packaging materials and inspect them
for shipping damage.

,

please

IMPORTANT:

you are completely satisfied with the machine and
have resolved any issues between Grizzly or the
shipping agent. You MUST have the original pack-

aging to file a freight claim. It is also extremely
helpful if you need to return your machine later.

Keep children and pets away
from plastic bags or packing
materials shipped with this

Unpacking

If items are damaged

call us immediately at [phone].

Save all packaging materials until

SUFFOCATION HAZARD!

Needed for Setup

The following are needed to complete the setup
process, but are not included with your machine.

Description Qty

• Phillips Screwdriver #2 ............................... 1

• Standard Screwdriver #2 ............................ 1

• Wrench 19mm ............................................ 1

• Wrench 14mm ............................................ 1

• Wrench 10mm ............................................ 1

• Wrench 7mm .............................................. 1

machine.

-6-

Model T27157 (Mfd. Since 01/18)

Assembly

To assemble the sandblaster:

3. Install the bulkhead fitting with gasket. Attach

the air supply hose and suction hose to the
bulkhead fittings and suction pipe with hose
clamps (see Figure 3).

1. Install the filter assembly with the screws and

nuts (see Figure 1).

Figure 1. Filter installation.

2. Install the gloves as shown in Figure 2.

Hose
Clamps

Suction
Hose

Supply

Suction
Pipe

4. Plug in the AC/DC adapter (see Figure 4).

Hose

Washer

Figure 3. Blast gun assembly.

Seal

Bulkhead

Fitting

Washer

Figure 2. Glove installation.

Figure 4. Light assembly.

Model T27157 (Mfd. Since 01/18)

-7-

SECTION 3: OPERATIONS

Sandblasting presents a real hazard of silicosis and other lung contamination injuries! These
Injuries are permanent and can get worse over time. If you use sandblasting equipment without
the proper protection, your lungs and eyes may become irreversibly contaminated. DO NOT
use this sandblaster unless you know how to use it and protect yourself correctly. For types of
protective equipment and acceptable respirator types, contact your local OSHA or NIOSH office.

4. Carefully, without causing a hazardous dust

Operation Safety

NOTICE

If you have never used this type of machine
or equipment before, WE STRONGLY REC­OMMEND that you read books, trade maga­zines, or get formal training before begin­ning any projects. Regardless of the con­tent in this section, Grizzly Industrial will
not be held liable for accidents caused by
lack of training.

Basic Operation

cloud, pour or spade-in 10 lbs of abrasive into
sandblaster. DO NOT over-fill, or sandblasting
will be sluggish and very cloudy inside of
cabinet.

5. Insert workpiece, close and lock loading door.

6. Adjust air supply regulator to 60-100 PSI at

5-14 CFM.

7. Turn ON your air compressor, insert your
hands in the gloves, and begin sand blasting
in a slow circular motion.

Note: A good starting point for tip distance is

two inches away from the workpiece. Start out
with a low air pressure setting to avoid excess
peening and abrasive wear.

The Model T27157 Sandblaster is equipped with
an industrial-duty blast gun with ceramic tip, a
siphon hose, a built-in light, large viewing win­dow, and sealed rubber gloves. The hopper recy­cles and stores the sandblasting media for reuse
or easy removal. Safely blast away paint and rust
without making a mess around your shop.

To use the sandblaster:

1. Wear safety glasses and respirator at all
times when running and maintaining your
sandblaster!

2. Plug in the AC/DC transformer and turn ON

the light.

3. Install the correct nozzle and air jet into the
gun for the abrasive type you will use. Refer
to Page 9 for options.

-8-

Note: Experiment with different pressures,

abrasives, tips and jets to gain practical
experience.

Note: Keep the sandblasting abrasives

moisture-free, otherwise; the blast gun tip will
frequently clog.

NEVER sand blast with the doors open,
point the gun at yourself or anyone else, or
attempt to service any part of this machine
while it is plugged in or connected to air
pressure. ALWAYS disconnect the blast
cabinet from power and air pressure when
not in use, or during maintenance or adjust­ments. Ignoring this warning may lead to
severe injury.

Model T27157 (Mfd. Since 01/18)

Abrasive Options

Blasting Media from Grizzly.Com

PART #
G6535: 15 lbs. Aluminum Oxide 220 Grit

G6536: 15 lbs. Aluminum Oxide 120 Grit
G6537: 15 lbs. Aluminum Oxide 60 Grit
G6538: 15 lbs. Glass Bead 50-Micron Grit

Below is a basic introduction to some of the most
common blasting abrasives. Refer to magazines,
trade articles, professionals, and the abrasive
manufacturer for the specific surfaces that can
be addressed with a type of abrasive. All abra­sives have benefits and drawbacks like quality of
surface finish, abrasive life, toxicity, and what pre­cautions you must take to prevent environmental
damage or personal injury to your respiratory
system.

Steel Type Abrasives

This aggressive abrasive creates a rough fin­ish that accepts paint well. The abrasive is very
durable and has a long life, however; it MUST be
kept very dry to prevent rusting.

Alumina Type Abrasives

This multi-purpose abrasive creates a smoother
finish than the steel abrasives, but has a shorter
life span. Less of the workpiece surface is
removed with this more forgiving abrasive.

Glass and Garnet Type Abrasives

Typically this abrasive works well for soft met­als and addressing surface issues with machine
parts where tolerances cannot be affected. The
life of this abrasive is limited and not well suited
for repetitively recycling.

Plastic Type Abrasives

Applied at low pressures of 30 to 50 PSI, plas­tic abrasives should be harder than the coating
being removed, but softer than the workpiece to
avoid damage. Plastic abrasive is excellent for
addressing surface issues on aluminum, mag­nesium, copper, brass, thin steel, titanium, and
composite surfaces and fiberglass.

Other Types of Abrasives Available

Ground walnut or peanut shells.
Ground corn cob.
Sodium bicarbonate.

Wheat starch.

Nozzle/Jet Options

Below is the suggested air jet and nozzle combi­nation for an approximate abrasive flow. Refer to
magazines, trade articles, professionals, and the
abrasive manufacturer for the best combination
that is required for your particular abrasive use.

#1 Air Jet Orifice Diameter:
Nozzle Orifice Diameter:

Abrasive Flow @ 60 PSI: 0.11 L/Min.

#2 Air Jet Orifice Diameter:
Nozzle Orifice Diameter:
Abrasive Flow @ 60 PSI: 0.18 L/Min.

#3 Air Jet Orifice Diameter:
Nozzle Orifice Diameter:
Abrasive Flow @ 60 PSI: 0.25 L/Min.

#4 Air Jet Orifice Diameter:
Nozzle Orifice Diameter:
Abrasive Flow @ 60 PSI: 0.36 L/Min.

5

⁄64"

3

⁄16"

7

⁄64"

13

⁄64"

1

⁄8"

15

⁄64"

5

⁄32"

9

⁄32"

Sand Type Abrasives

This abrasive is easy to find, and gives an aver­age finish that is acceptable for most projects.
Sand has a good recycling life and is very eco­nomical.

Model T27157 (Mfd. Since 01/18)

-9-

SECTION 4: MAINTENANCE

Maintenance

Always disconnect power
and the air supply to the
machine before perform­ing maintenance. Failure
to do this may result in
serious personal injury.

Depressurize the sandblaster, and check
the following items each time you use the
sandblaster and replace any parts immediately
if found to be worn:

• Look for excessively worn or cracked noz­zles.

• Look for leaking thread fittings with soapy
water and a spray bottle.

• Look at the sand blasting hose for thin walls
and bubbling.

• Look for worn or leaking ball valves with
soapy water and a spray bottle.

-10 -

Model T27157 (Mfd. Since 01/18)

148

SECTION 5: PARTS

Main Parts Breakdown

115

101

101-2

101-3

101-1

133

108

157

104

118V2

109

143

119

127

156

128

142

144

122V2

155

141

127-1

140

141

145

124

158

130

129

126

132

131

125

152

151

159

124

126

134V2

149

134V2-1

105

135V2-1

153

117

Model T27157 (Mfd. Since 01/18)

135V2

120

155-1

139

116

136

137

150

138

105

121

125

146

125

147

123

-11-

Main Parts List

REF PART # DESCRIPTION REF PART # DESCRIPTION

101 PT27157101 WINDOW FRAME AND SEAL 134V2 PT27157134V2 SHORT LEG (FRONT-LEFT REAR-RIGHT) V2.01.18
101-1 PT27157101-1 PLEXIGLASS WINDOW 134V2-1 PT27157134-1 RUBBER FOOT (FRONT-LEFT REAR-RIGHT)
101-2 PT27157101-2 WINDOW FRAME 135V2 PT27157135V2 SHORT LEG (FRONT-RIGHT REAR-LEFT) V2.01.18
101-3 PT27157101-3 WINDOW SEAL 135V2-1 PT27157135-1 RUBBER FOOT (FRONT-RIGHT REAR-LEFT)
104 PT27157104 FLAT WASHER 6MM 136 PT27157136 FLAT SPACER
105 PT27157105 HINGE 137 PT27157137 FLAT GASKET
108 PT27157108 PHLP HD SCR M6-1 X 12 138 PT27157138 BULKHEAD FITTING
109 PT27157109 HEX NUT M6-1 139 PT27157139 HOSE NIPPLE
115 PT27157115 CABINET 140 PT27157140 FLAT WASHER 4MM
116 PT27157116 DOOR (RIGHT) 141 PT27157141 HEX NUT M4-.7
117 PT27157117 DOOR (LEFT) 142 PT27157142 PHLP HD SCR M4-.7 X 10
118V2 PT27157118V2 HOPPER–CONE SHAPE V2.01.18 143 PT27157143 FOAM FILTER
119 PT27157119 LAMP CLAMP 144 PT27157144 RING
120 PT27157120 PHLP HD SCR M4-.7 X 10 145 PT27157145 FILTER ELEMENT
121 PT27157121 ZIP TIE 146 PT27157146 NOZZLE SET
122V2 PT27157122V2 LAMP ASSEMBLY LED V2.11.16 147 PT27157147 JET SET
123 PT27157123 AC/DC ADAPTER 148 PT27157148 JET SEAL NUT
124 PT27157124 PHLP HD SCR M4-.7 X 10 149 PT27157149 SCREEN
125 PT27157125 HEX NUT M4-.7 150 PT27157150 HOSE CLAMP
126 PT27157126 FLAT WASHER 4MM 151 PT27157151 SWITCH HOUSING
127 PT27157127 GLOVE (RIGHT) 152 PT27157152 SWITCH
127-1 PT27157127-1 GLOVE (LEFT) 153 PT27157153 TAP SCREW #10 X 5/8
128 PT27157128 HOSE CLAMP 155 PT27157155 LATCH
129 PT27157129 PRESSURE SUPPLY HOSE 155-1 PT27157155-1 LATCH CATCH
130 PT27157130 SUCTION TUBE 156 PT27157156 PHLP HD SCR M4-.7 X 10
131 PT27157131 SUCTION HOSE 157 PT27157157 HOPPER PLUG
132 PT27157132 BLAST GUN 158 PT27157158 AC ADAPTER RECEPTACLE COVER
133 PT27157133 CLEAR ADHESIVE FILM (4-PC) 159 PT27157159 AC ADAPTER RECEPTACLE

-12-

160

163

161

REF PART # DESCRIPTION

160 PT27157160 EYE/LUNG WARNING LABEL
161 PT27157161 DUST HAZARD LABEL
162 PT27157162 PSI LABEL 125 MAX
163 PT27157163 MACHINE ID LABEL

162

Model T27157 (Mfd. Since 01/18)

WARRANTY AND RETURNS

We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special,

WARRANTY AND RETURNS

Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from
the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse,
negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty
and any and all warranties that may be implied by law, including any merchantability or fitness, for any par­ticular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent
that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants.
In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and
any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.

or consequential damages arising from the use of our products.

To take advantage of this warranty, contact us by mail or phone and give us all the details. We will then
issue you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of the
carton. We will not accept any item back without this number. Proof of purchase must accompany the
merchandise.

The manufacturers reserve the right to change specifications at any time because they constantly strive to
achieve better quality equipment. We make every effort to ensure that our products meet high quality and
durability standards and we hope you never need to use this warranty.

Please feel free to write or call us if you have any questions about the machine or the manual.

Thank you again for your business and continued support. We hope to serve you again soon.
