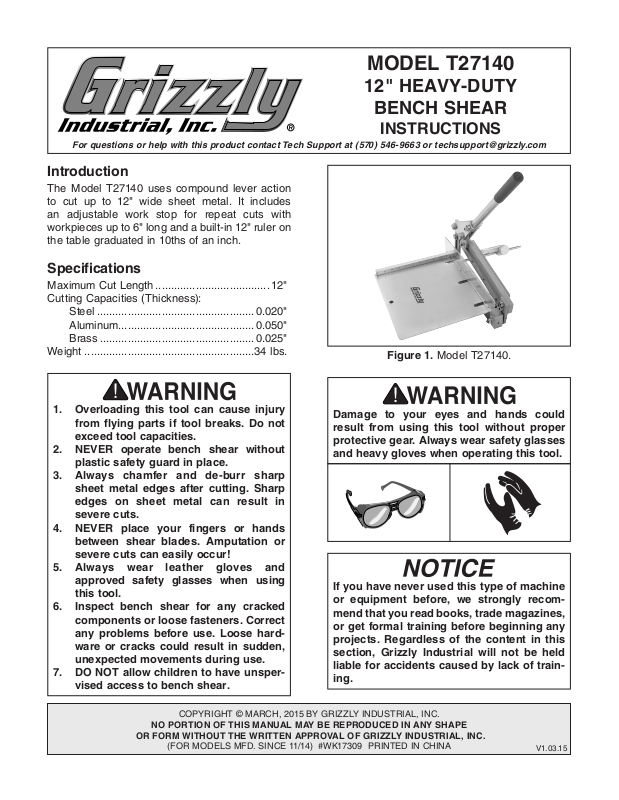

Page 1

MODEL T27140

12" HEAVY-DUTY

BENCH SHEAR

INSTRUCTIONS

For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com

Introduction

The Model T27140 uses compound lever action to cut up to 12" wide sheet metal. It includes an adjustable work stop for repeat cuts with workpieces up to 6" long and a built-in 12" ruler on the table graduated in 10ths of an inch.

Specifications

Maximum Cut Length ..................................... 12"

Cutting Capacities (Thickness):

Steel ................................................... 0.020"

Aluminum............................................ 0.050"

Brass .................................................. 0.025"

Weight .......................................................34 lbs.

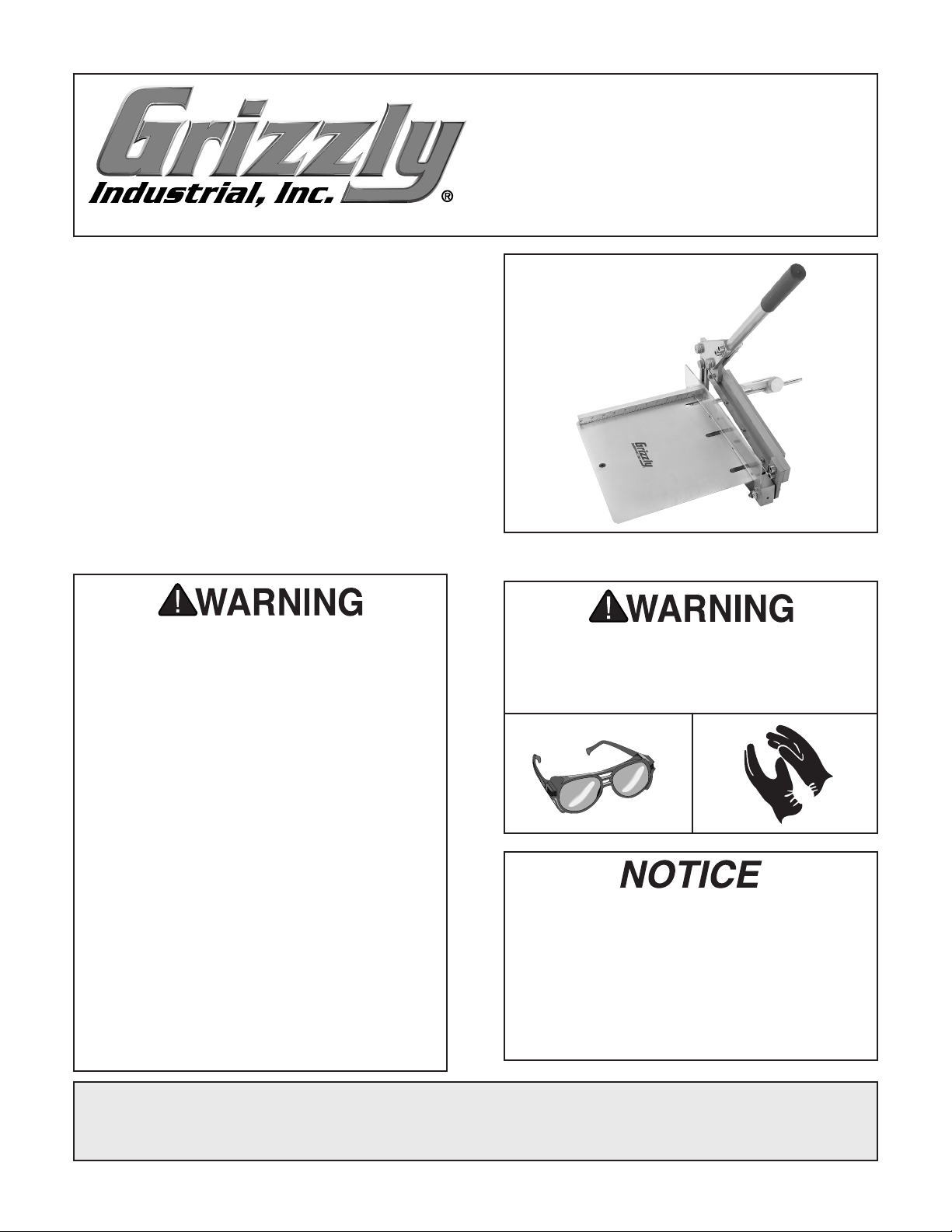

Figure 1. Model T27140.

1. Overloading this tool can cause injury from flying parts if tool breaks. Do not exceed tool capacities.

2. NEVER operate bench shear without plastic safety guard in place.

3. Always chamfer and de-burr sharp sheet metal edges after cutting. Sharp edges on sheet metal can result in severe cuts.

4. NEVER place your fingers or hands between shear blades. Amputation or severe cuts can easily occur!

5. Always wear leather gloves and approved safety glasses when using this tool.

6. Inspect bench shear for any cracked components or loose fasteners. Correct any problems before use. Loose hardware or cracks could result in sudden, unexpected movements during use.

7. DO NOT allow children to have unspervised access to bench shear.

Damage to your eyes and hands could result from using this tool without proper protective gear. Always wear safety glasses and heavy gloves when operating this tool.

If you have never used this type of machine or equipment before, we strongly recommend that you read books, trade magazines, or get formal training before beginning any projects. Regardless of the content in this section, Grizzly Industrial will not be held liable for accidents caused by lack of training.

NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

(FOR MODELS MFD. SINCE 11/14) #WK17309 PRINTED IN CHINA

V1.0 3.15

Page 2

Inventory

Description Qty

A. Bench Shear ............................................... 1

B. Work Stop Assembly .................................. 1

Assembly

The Model T27140 comes fully assembled, except for the optional work stop assembly.

3. Use left hand to hold workpiece steady on table and lower handle with right hand to perform cut.

Using Work Stop

The Model T27140 is equipped with a work stop that makes it quick and easy for you to make repeat cuts of the same size.

To install work stop, insert threaded end of work stop rod into mounting hole on bench shear, and tighten using 8mm wrench on flats of rod end (see Figure 2).

Work Stop

Rod

Mounting

Hole

Flats For Tightening

Figure 2. Work stop assembly installed.

Operations

1. Mark cut line on workpiece.

2. Lift handle to open shear blades, then align

shear blades with cut line.

To use work stop:

1. Lift handle to open shear blades, then align

shear blades with cut line marked on workpiece.

2. Slide work stop against workpiece and tighten work stop knob (see Figure 3).

Work Stop

Knob

Figure 3. Location of work stop and knob.

3. For subsequent cuts, place workpiece on

table and slide against work stop, then proceed with cut.

Injury to your hands and fingers could result from improper use of this tool. Never place your hands or fingers in path of blade while using this tool. Never use tool without safety guard in place.

-2-

T27140 12" Heavy-Duty Bench Shear (Mfd. 1/15)

Page 3

Cleaning

Periodically wipe down the tool with a cleaner, such as Grizzly Model T23692 Orange Power

Degreaser, to remove dust and oil.

Tools Needed: Qty

Hex Wrench 4mm .............................................. 1

Hex Wrench 2.5mm ........................................... 1

To adjust blade:

Lubrication

Lubricating the Model T27140 consists of applying oil to the pivoting and sliding surfaces.

To lubricate machine:

1. Apply 3–4 drops of lubricant, such as Grizzly Model T26685 Moly-D Multi-Function Machine Oil-ISO 32, to areas indicated in Figure 4 so that oil penetrates between slid-

ing surfaces. Raise and lower handle several times to disperse oil.

1. Remove blade guard.

2. Loosen, but do not remove, the four fixed

blade cap screws (see Figure 5).

Fixed Blade Cap Screws

Blade Adjustment

Set Screws

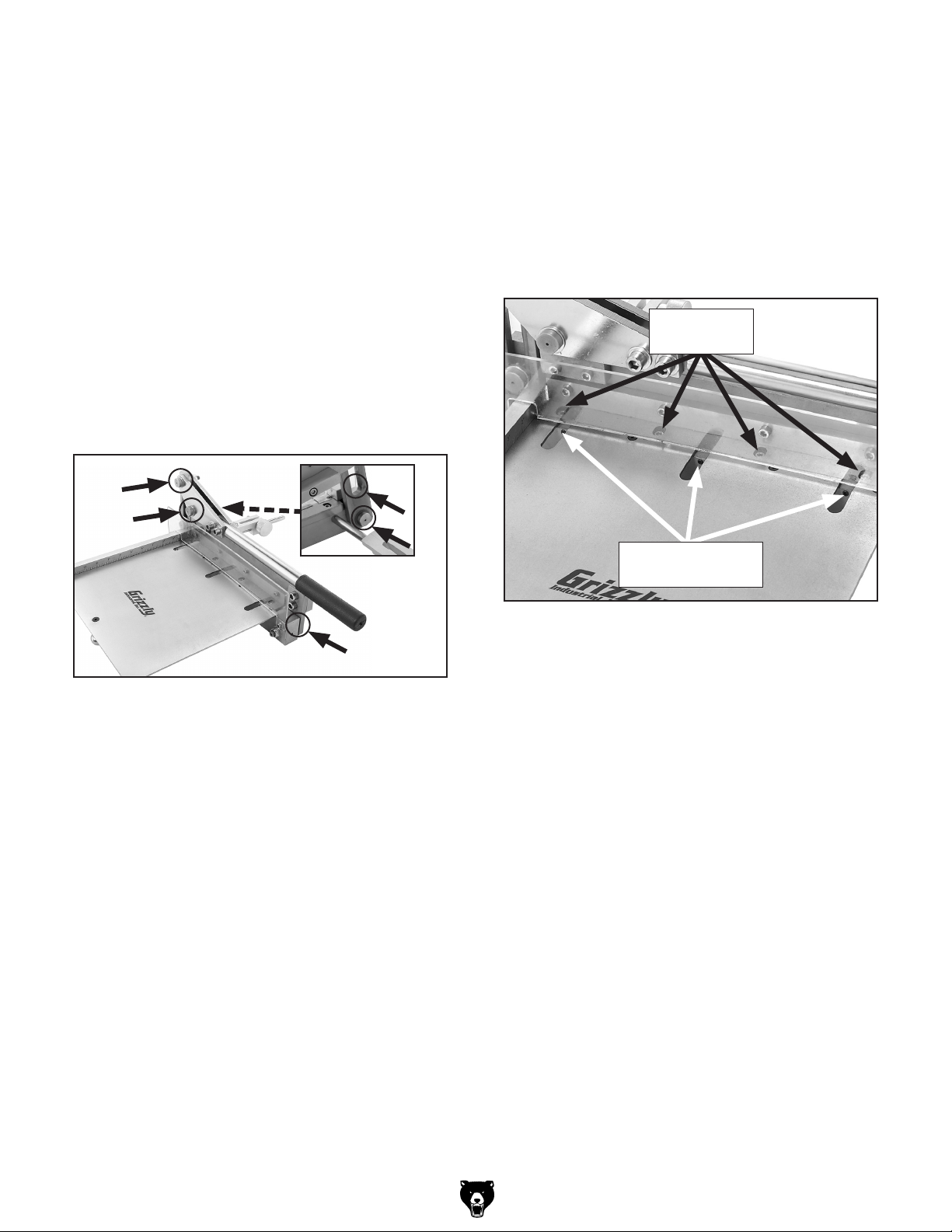

Figure 5. Blade adjustment components.

Figure 4. Lubrication locations (left side shown).

2. Wipe up any excess oil to prevent dust and

grime build-up.

Adjusting Blade

The fixed (lower) blade on the Model T27140 is adjustable to allow for different materials and to compensate for wear to the blades. The blade position is factory set and only needs to be adjusted if there is excessive binding between the fixed and moving blade or if a gap exists between the blades that causes the workpiece to bend, rather than shear between the blades.

The ideal blade adjustment will vary depending on the material and dimensions of your workpiece. Above all, make sure the fixed blade is parallel with the moving blade and contacts it evenly along the entire width.

3. Rotate blade adjustment set screws with

2.5mm hex wrench to fine-tune position of fixed blade (see Figure 5).

— Turning blade adjustment set screw clock-

wise moves fixed blade outward, toward moving blade.

— Turning blade adjustment set screw coun-

terclockwise moves fixed blade inward, away from moving blade.

4. Once fixed blade is set parallel to moving blade, tighten the four fixed blade cap screws, then re-install blade guard.

5. Test performance of shear on scrap workpiece.

— If results are satisfactory (producing a

clean cut with no bending), no further adjustment is necessary.

T27140 12" Heavy-Duty Bench Shear (Mfd. 1/15)

— If results are not satisfactory, repeat Steps

1–5 until results meet your standards.

-3-

Page 4

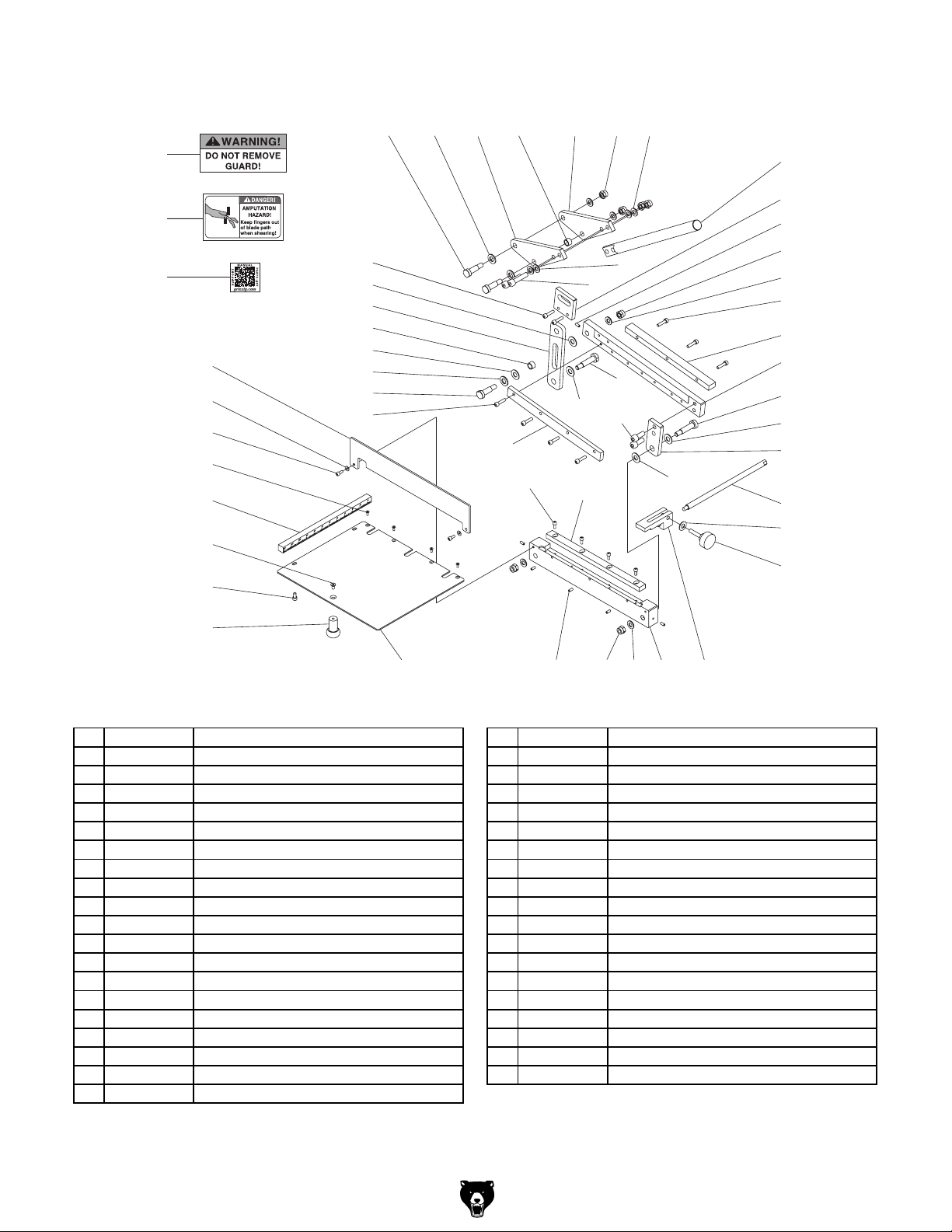

T27140 Parts Breakdown and List

REF

Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here are available for purchase. Call (800) 523-4777 or visit our online parts store at www.grizzly.com to check for availability.

25 23 10

19 23 27

2713

PART # DESCRIPTION

1 PT27140001 BLADE BASE (LOWER) 21 PT27140021 FLAT HD CAP SCR M4-.7 X 10 2 PT27140002 BLADE (LOWER) 22 PT27140022 PIVOT BUSHING 3 PT27140003 BLADE BASE (UPPER) 23 PT27140023 FLAT WASHER 12MM BRASS 4 PT27140004 BLADE (UPPER) 24 PT27140024 BLADE BRACE 5 PT27140005 BLADE PIVOT PLATE 25 PT27140025 CAP SCREW M6-1 X 25 6 PT27140006 HANDLE PIVOT PLATE 26 PT27140026 CAP SCREW M10-1.5 X 25 7 PT27140007 CONNECTING PLATE 27 PT27140027 FLAT WASHER 12MM 8 PT27140008 HANDLE 28 PT27140028 WORK STOP 9 PT27140009 SHOULDER SCREW M10-1.5 X 15, 12 X 43 29 PT27140029 FLAT HD CAP SCR M6-1 X 12 10 PT27140010 SLIDE PLATE 30 PT27140030 CAP SCREW M6-1 X 12 11 PT27140011 FLAT WASHER 10MM 31 PT27140031 FLAT WASHER 5MM 12 PT27140012 LOCK NUT M10-1.5 32 PT27140032 CAP SCREW M10-1.5 X 45 13 PT27140013 SHOULDER SCREW M10-1.5 X 18, 12 X 30 33 PT27140033 KNOB BOLT M8-1.25 X 45 14 PT27140014 TABLE 34 PT27140034 SET SCREW M5-.8 X 12 15 PT27140015 BLADE GUARD 35 PT27140035 CAP SCREW M5-.8 X 10 16 PT27140016 LEG 36 PT27140036 FLAT WASHER 8MM 17 PT27140017 TABLE STOP 37 PT27140037 DO NOT REMOVE GUARD LABEL 18 PT27140018 WORK STOP ROD 38 PT27140038 AMPUTATION HAZARD LABEL 19 PT27140019 SLIDE BUSHING 39 PT27140039 QR CODE LABEL 20 PT27140020 CAP SCREW M5-.8 X 12

PART # DESCRIPTION

-4-

T27140 12" Heavy-Duty Bench Shear (Mfd. 1/15)
