Page 1
MODEL T27139

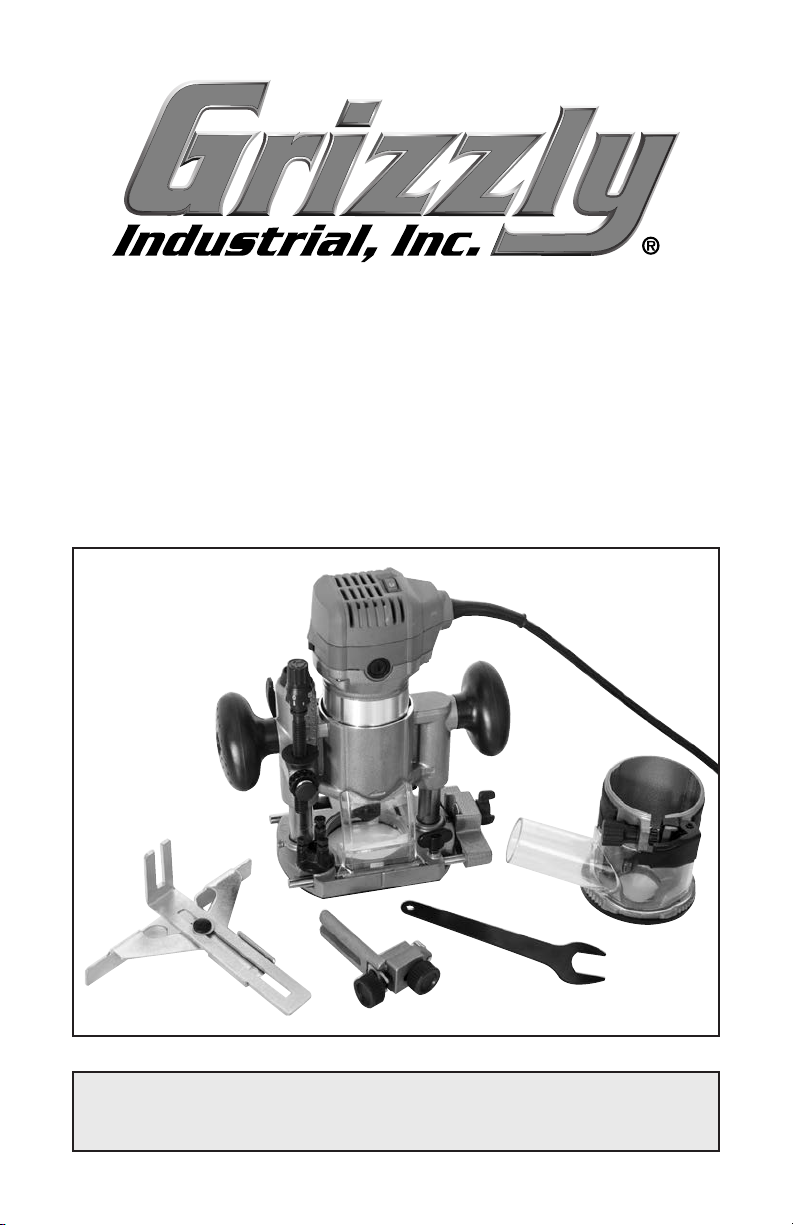

LAMINATE TRIM ROUTER
w/PLUNGE BASE
OWNER'S MANUAL
(For models manufactured since 3/16)
COPYRIGHT © DECEMBER, 2014 BY GRIZZLY INDUSTRIAL, INC. REVISED MARCH, 2016 (MN)
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#BB16943 PRINTED IN CHINA
V2 .03.1 6
Page 2
This manual provides critical safety instructions on the proper setup,
operation, maintenance, and service of this machine/tool. Save this
document, refer to it often, and use it to instruct other operators.
Failure to read, understand and follow the instructions in this manual
may result in fire or serious personal injury—including amputation,
electrocution, or death.
The owner of this machine/tool is solely responsible for its safe use.
This responsibility includes but is not limited to proper installation in
a safe environment, personnel training and usage authorization,
proper inspection and maintenance, manual availability and comprehension, application of safety devices, cutting/sanding/grinding tool
integrity, and the usage of personal protective equipment.
The manufacturer will not be held liable for injury or property damage
from negligence, improper training, machine modifications or misuse.
Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State
of California to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement and other masonry products.
• Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
Work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter
out microscopic particles.
Page 3
Table of Contents
SECTION 1: SAFETY .......................................................................................................1
Additional Safety Instructions for Laminate Trim Routers ..........................................3
SECTION 2: INTRODUCTION .........................................................................................4
Tool Description ..........................................................................................................4
Foreword .....................................................................................................................4
Contact Info ................................................................................................................4
Identification ................................................................................................................5
SECTION 3: SETUP .........................................................................................................8
Unpacking ...................................................................................................................8
Needed for Setup .......................................................................................................8
Inventory .....................................................................................................................9
Assembly ..................................................................................................................10
Power Connection ....................................................................................................11
Test Run ...................................................................................................................11
SECTION 4: OPERATIONS ...........................................................................................12
Removing/Installing Router Bit .................................................................................12
Adjusting Bit Depth ...................................................................................................12
Feed ..........................................................................................................................13
Direction ....................................................................................................................13
Routing Operations ...................................................................................................14
Curved Trim Guide ...................................................................................................15
Straight Guide ...........................................................................................................15
SECTION 5: ACCESSORIES .........................................................................................17
SECTION 6: MAINTENANCE ........................................................................................18
Cleaning & Protecting ...............................................................................................18
Replacing Brushes ....................................................................................................18
SECTION 7: SERVICE ...................................................................................................19
Troubleshooting ........................................................................................................19
SECTION 8: WIRING......................................................................................................20
Wiring Safety Instructions .........................................................................................20
Wiring Diagram .........................................................................................................21
SECTION 9: Parts ..........................................................................................................22
Main Breakdown .......................................................................................................22
Plunge Base Breakdown ..........................................................................................24
WARRANTY ...................................................................................................................28
Page 4
SECTION 1: SAFETY
Safety Instructions for Power Tools
OWNER’S MANUAL. Read and under-
stand this owner’s manual BEFORE using
machine.
TRAINED OPERATORS ONLY. Untrained
operators have a higher risk of being hurt
or killed. Only allow trained/supervised
people to use this power tool. When tool
is not being used, disconnect power, and
store in out-of-reach location to prevent
unauthorized use—especially around
children. Make workshop kid proof!
DANGEROUS ENVIRONMENTS. Do not
use tools in areas that are wet, cluttered,
or have poor lighting. Operating tools in
these areas greatly increases risk of accidents and injury.
MENTAL ALERTNESS REQUIRED. Full
mental alertness is required for safe operation of power tools. Never operate under
the influence of drugs or alcohol, when
tired, or when distracted.
DISCONNECT POWER FIRST. Always
disconnect tool from power supply
BEFORE making adjustments, changing tooling, or servicing machine. This
prevents an injury risk from unintended
startup or contact with live electrical components.
EYE PROTECTION. Always wear ANSIapproved safety glasses or a face shield
when operating or observing machinery to
reduce the risk of eye injury or blindness
from flying particles. Everyday eyeglasses
are not approved safety glasses.
For Your Own Safety Read Instruction Manual
Before Operating This Equipment
The purpose of safety symbols is to attract your attention to possible hazardous conditions. This manual uses a series of symbols and signal words which
are intended to convey the level of importance of the safety messages. The
progression of symbols is described below. Remember that safety messages by
themselves do not eliminate danger and are not a substitute for proper accident
prevention measures.
Indicates an imminent hazardous situation which, if
not avoided, WILL result in death or serious injury.
Indicates a potentially hazardous situation which, if
not avoided, COULD result in death or serious injury.
Indicates a potentially hazardous situation which, if
not avoided, MAY result in minor or moderate injury.
It may also be used to alert against unsafe practices.
NOTICE
This symbol is used to alert the user to useful information about proper operation of the equipment.
Model T27139 (Mfd. Since 3/16) -1-
Page 5
ELECTRICAL SAFETY. Tool plug must
in good work-
If at
match outlet. Double-insulated tools have
a polarized plug (one blade is wider than
the other), which must be plugged into a
polarized outlet. Never modify plug. Do
not use adapter for grounded tools. Use
a ground fault circuit interrupter if operation is unavoidable in damp locations.
Avoid touching grounded surfaces when
operating tool.
WEARING PROPER APPAREL. Do not
wear clothing, apparel or jewelry that
can become entangled in moving parts.
Always tie back or cover long hair. Wear
non-slip footwear to avoid accidental
slips, which could cause loss of workpiece
control. Wear hard hat as needed.
HAZARDOUS DUST. Dust created while
using tools may cause cancer, birth
defects, or long-term respiratory damage.
Be aware of dust hazards associated with
each workpiece material, always wear
a NIOSH-approved respirator, and connect tool to an appropriate dust collection
device to reduce your risk.
HEARING PROTECTION. Always wear
hearing protection when operating or
observing loud machinery. Extended
exposure to this noise without hearing
protection can cause permanent hearing
loss.
REMOVE ADJUSTING TOOLS. Never
leave adjustment tools, chuck keys,
wrenches, etc. in or on tool—especially
near moving parts. Verify removal before
starting!
INTENDED USAGE. Only use tool for its
intended purpose. Never modify or alter
tool for a purpose not intended by the
manufacturer or serious injury or death
may result!
AWKWARD POSITIONS. Keep proper
footing and balance at all times when
operating tool. Do not overreach! Avoid
awkward hand positions that make tool
control difficult or increase the risk of
accidental injury.
SAFE HANDLING. Firmly grip tool. To
avoid accidental firing, do not keep finger
on switch or trigger while carrying.
FORCING TOOLS. Use right tool for job,
and do not force it. It will do job safer and
better at rate for which it was designed.
SECURING WORKPIECE. When
required, use clamps or vises to secure
workpiece. This protects hands and frees
both of them to operate tool.
GUARDS & COVERS. Guards and covers reduce accidental contact with moving parts or flying debris. Ensure they
are properly installed, undamaged, and
working correctly.
CHILDREN & BYSTANDERS. Keep children and bystanders at a safe distance
from the work area. Stop using tool if they
become a distraction.
USE RECOMMENDED ACCESSORIES.
Consult this manual or manufacturer
for recommended accessories. Using
improper accessories will increase risk of
serious injury.
MAINTAIN WITH CARE. Keep cutting
tool edges sharp and clean. Follow all
maintenance instructions and lubrication
schedules to keep tool
ing condition. A tool that is improperly
maintained could malfunction, leading to
serious personal injury or death. Only
have tool serviced by qualified servicepersonnel using matching replacement
parts.
CHECK DAMAGED PARTS. Regularly
inspect tool for any condition that may
affect safe operation. Immediately repair
or replace damaged or mis-adjusted parts
before operating tool.
MAINTAIN POWER CORDS. When disconnecting cord-connected tools from
power, grab and pull the plug—NOT the
cord. Carrying or pulling the cord may
damage wires inside. Do not handle cord/
plug with wet hands. Avoid cord damage
by keeping it away from heated surfaces,
high traffic areas, harsh chemicals, sharp
edges, moving parts, and wet/damp locations. Damaged cords increase risk of
electrocution.
UNATTENDED OPERATION. Never
leave tool running while unattended. Turn
tool OFF and ensure all moving parts
completely stop before walking away.
EXPERIENCING DIFFICULTIES.
any time you experience difficulties performing the intended operation, stop
using the machine! Contact our Technical
Support at (570) 546-9663.
Model T27139 (Mfd. Since 3/16) -2-
Page 6
Additional Safety Instructions for
Laminate Trim Routers
READ ENTIRE MANUAL. This manual
contains proper operating instructions
for this router.
SAFETY EQUIPMENT. Wear safety
glasses, respirator, and hearing protection when operating a router.
POWER SOURCE. Unplug the router
and make sure the switch is OFF before
inserting or removing bit, making adjustments, or performing maintenance or
service. DO NOT make adjustments
while the router is connected to power.
ROUTER BITS. Inspect router bits
before use. DO NOT use router bits that
have been dropped, cracked, or damaged. The router bit may shatter, causing
serious injury.
INSTALLING BIT. Insert the bit to within
1
⁄8" of the bottom of the collet and tighten firmly. If the bit is not inserted far
enough, the bit may slip or come out,
causing injury. DO NOT use bits with a
diameter larger than 1
COLLET WRENCHES. Make sure the
collet wrenches are removed from the
router before turning it ON.
WORKPIECE. Check the workpiece for
nails or other foreign objects which may
cause the router to kickback or damage
the bit, possibly causing injury to the
operator.
1
⁄8".
HOLDING WORKPIECE. Secure the
workpiece with clamps or attach it to
an immovable object. DO NOT hold the
workpiece in your hand or across your
legs.
HOLDING ROUTER. Hold the router with
both hands to control torque twist and
kickback. Keep hands away from the spinning bit. Make sure the bit has come to a
complete stop before setting the router
down.
ROUTING. Always route with the base
flat upon the workpiece. DO NOT start
the router with the bit in contact with the
workpiece.

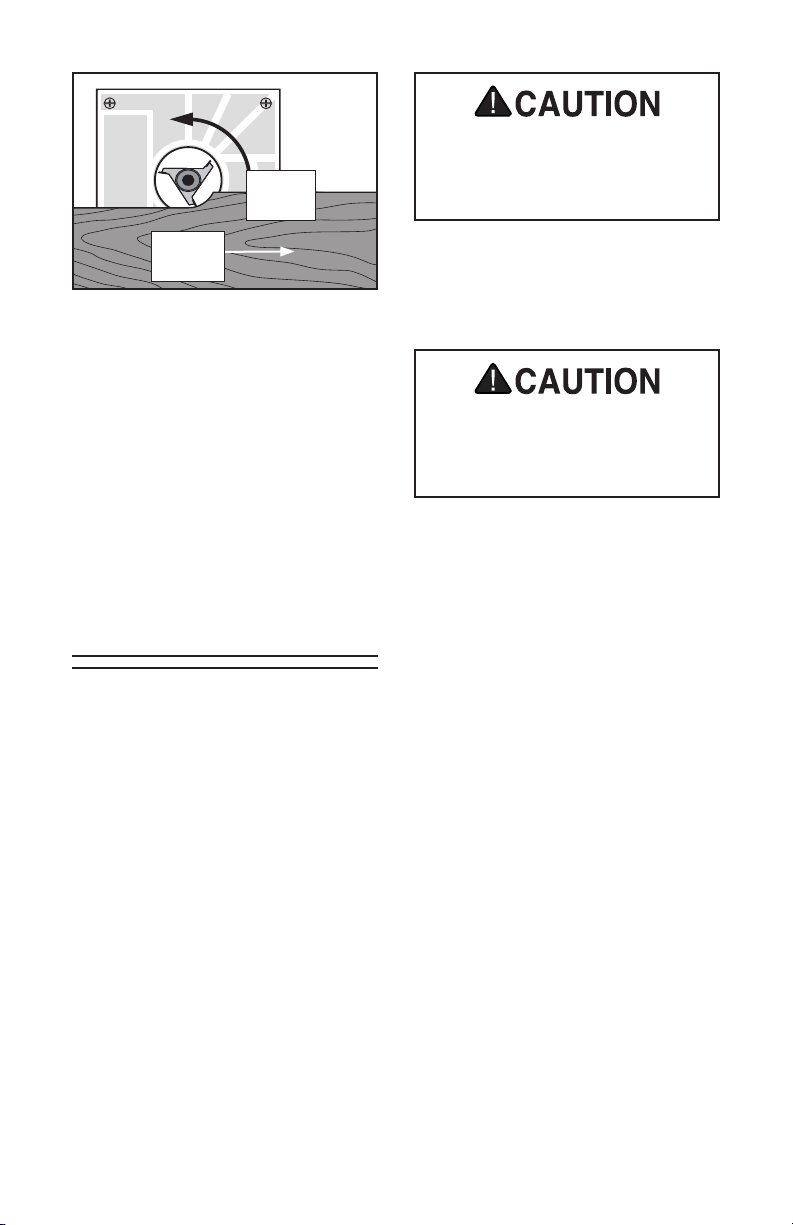

FEED DIRECTION. Always feed the router against the cutter rotation. DO NOT
start routing at a corner. Starting at a corner may cause the router to grab, damaging the workpiece, and possibly causing
personal injury.
REMOVING BIT. The bit is sharp and
will be hot after use. Use gloves when
removing.
WORK AREA. DO NOT use the router
in an area that may contain hidden live
wires. Disconnect all power leading to the
work area.
TOOL SERVICE. If the router is damaged, or not working correctly, repair it
before use.
No list of safety guidelines can be complete. Every shop environment is different.
Always consider safety first, as it applies to your individual working conditions.
Use this and other tools with caution and respect. Failure to do so could result in
serious personal injury, damage to equipment or poor work results.
Model T27139 (Mfd. Since 3/16) -3-
Page 7
SECTION 2: INTRODUCTION
Tool Description
The Model T27139 Laminate Trim Router
comes equipped with a plunge base and
a fixed base to accommodate the widest range of applications. The fixed base
allows for the attachment of a dust collection system, while the plunge base offers
maximum control.
Foreword
We are proud to offer this manual with your
new T27139 Laminate Trim Router! We've
made every effort to be exact with the
instructions, specifications, drawings, and
photographs of the trim router we used
when writing this manual. However, sometimes we still make an occasional mistake.
Also, owing to our policy of continuous
improvement, your trim router may not
exactly match the manual. If you find this
to be the case, and the difference between
the manual and trim router leaves you in
doubt, check our website for the latest
manual update or call technical support
for help.
Contact Info
We stand behind our machines! If you
have questions or need help, contact us
with the information below. Before contacting, make sure you get the serial number
and manufacture date from the machine
ID label. This will help us help you faster.
Grizzly Technical Support
1815 W. Battlefield
Springfield, MO 65807
Phone: (570) 546 -9663
Email: techsupport@grizzly.com
We want your feedback on this manual.
What did you like about it? Where could it
be improved? Please take a few minutes to
give us feedback.
Grizzly Documentation Manager
P.O. Box 2069
Bellingham, WA 98227-2069
Email: manuals@grizzly.com
For your convenience, we post all available manuals and manual updates for
free on our website at www.grizzly.com.
Any updates to your model of tool will be
reflected in these documents as soon as
they are complete.
Model T27139 (Mfd. Since 3/16) -4-
Page 8
Identification
To reduce your risk of
serious injury, read this
entire manual BEFORE
Become familiar with the names and locations of the controls and features shown below to
better understand the instructions in this manual.
E F
D
C
B
A

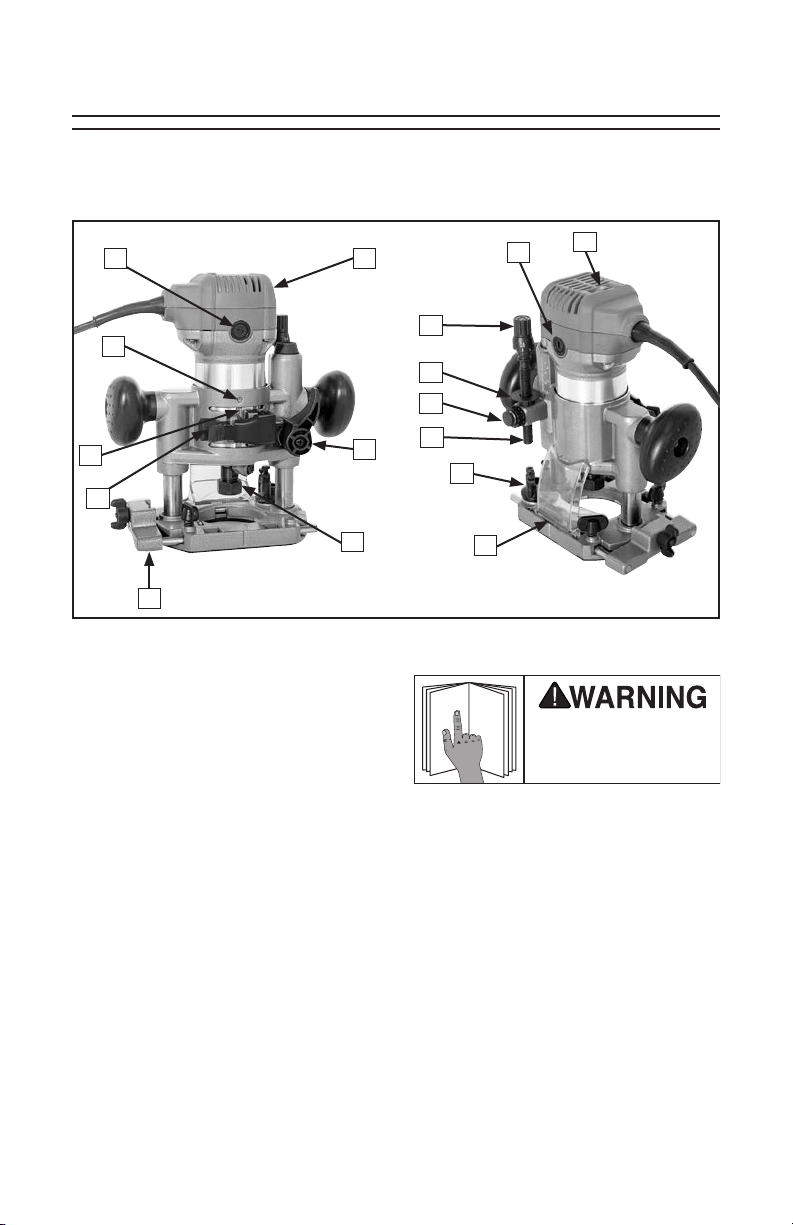

Figure 1. T27139 component identification.
A. Straight-Guide Holder
B. Clamping Lever
C. Guide Channel
D. Guide Pin
E. Motor Brush Cap
F. ON/OFF Switch
G. Plunger Locking Lever
H. Collet
I. Dust Shield
J. Three-Position Stop Block
K. Depth Stop
L. Depth-Stop Quick-Release Button
M. Depth Pointer
N. Depth-Stop Fine Adjustment Knob
O. Depth Scale
P. Variable-Speed Control
O
N
M
L
G
H
K
J
I
P
using machine.
Model T27139 (Mfd. Since 3/16) -5-
Page 9
MACHINE DATA
SHEET
Customer Service #: (570) 546-9663 · To Order Call: (800) 523-4777 · Fax #: (800) 438-5901
MODEL T27139 LAMINATE TRIM ROUTER WITH PLUNGE
BASE
Product Dimensions:
Weight.................................................................................................................................................................. 7 lbs.
Width (side-to-side) x Depth (front-to-back) x Height.............................................................. 8-3/4 x 4-1/4 x 9-1/2 in.
Footprint (Length x Width)........................................................................................................................... N/A x N/A
Shipping Dimensions:
Type..................................................................................................................................................... Cardboard Box
Content........................................................................................................................................................... Machine
Weight................................................................................................................................................................ 18 lbs.
Length x Width x Height......................................................................................................................... 11 x 9 x 12 in.
Must Ship Upright.................................................................................................................................................... No
Electrical:
Power Requirement........................................................................................................... 120V, Single-Phase, 60 Hz
Full-Load Current Rating....................................................................................................................................... 6.5A
Minimum Circuit Size.............................................................................................................................................. 15A
Connection Type....................................................................................................................................... Cord & Plug
Power Cord Included.............................................................................................................................................. Yes
Power Cord Length.......................................................................................................................................... 6-1/2 ft.
Power Cord Gauge......................................................................................................................................... 18 AWG
Plug Included.......................................................................................................................................................... Yes
Included Plug Type................................................................................................................................................ 1-15
Switch Type............................................................................................................................. Toggle Switch ON/OFF
Motors:
Main
Type........................................................................................................................................... DC Brush Type
Horsepower................................................................................................................................... 710W (1 HP)
Phase............................................................................................................................................ Single-Phase
Amps........................................................................................................................................................... 6.5A
Speed............................................................................................................................... 10,000—30,000 RPM
Power Transfer ............................................................................................................................... Direct Drive
Bearings....................................................................................................... Sealed & Permanently Lubricated
Other Specifications:
Country of Origin ............................................................................................................................................... China
Warranty ........................................................................................................................................................... 1 Year
Approximate Assembly & Setup Time ............................................................................................................ 10 min.
Serial Number Location .................................................................................................................................. ID Label
ISO 9001 Factory .................................................................................................................................................. Yes
Model T27139 (Mfd. Since 3/16) -6-
Page 10
SECTION 3: SETUP
Unpacking
You r tool was carefully packaged for
safe transportation. Remove the packaging materials from around your tool and
inspect it. If you discover the tool is damaged, please immediately call Customer
Service at (570) 546-9663 for advice.
Save the containers and all packing materials for possible inspection by the carrier or its agent. Otherwise, filing a freight
claim can be difficult.
When you are completely satisfied with
the condition of your shipment, inventory
the contents.
If any non-proprietary parts are missing
(e.g., a nut or a washer), we will gladly
replace them; or for the sake of expediency, replacements can be obtained at
your local hardware store.
This tool presents serious injury
hazards to untrained users. Read
through entire manual to become
familiar with controls and operations
before starting tool!
Needed for Setup
The following are needed to complete the
setup process:
Description Qty
• Safety Glasses (per person) .............. 1
• Solvent/Cleaner ................................. 1
• Shop Rags .........................................1
• Collet Wrench .................................... 1
Model T27139 (Mfd. Since 3/16) -7-
Page 11
Inventory
The following is a list of items shipped
with your tool. Before beginning setup, lay
these items out and inventory them.
If any non-proprietary parts are missing
(e.g. a nut or a washer), we will gladly
replace them; or for the sake of expediency, replacements can be obtained at
your local hardware store.
If you cannot find an item on this
list, carefully check around/inside
the tool and packaging materials.
Often, these items get lost in packaging materials while unpacking or
they are pre-installed at the factory.

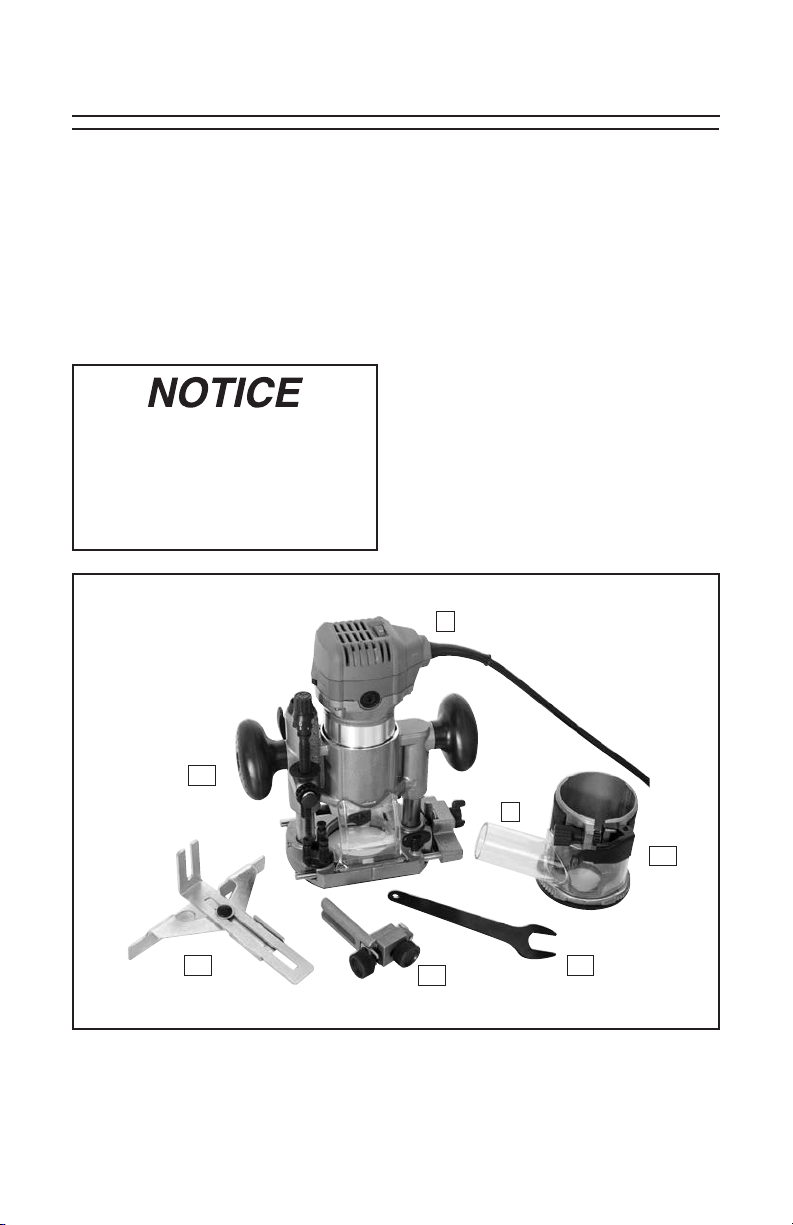

Box 1 (Figure 2) Qty
A. Laminate Trim Router Motor ..............1
B. Dust Shield/Port .................................1
C. Fixed Base .........................................1
D. Collet Wrench ....................................1
E. Curved Trimmer Guide ......................1
F. Straight Trimmer Guide .....................1
G. Plunge Router Base ...........................1
H. Bag 1 (not shown) ..............................1
— Replacement Motor Brushes .........2
I. Bag 2 (not shown) ..............................1
— Collet
— Thumb Screw ................................ 1
A
3
⁄8" ........................................1
G
B
C
F
Figure 2. T27139 inventory.
E
Model T27139 (Mfd. Since 3/16) -8-
D
Page 12
Assembly
The Model T27139 router is supplied with
a plun ge base, a fixed ba se, a st raigh t tr immer guide, and a curved trimmer guide.
Select the proper base and guide for the
intended use during assembly.
To assemble router:
1. Thoroughly wipe down all components
of trim router with a dr y shop rag.
2. Release clamping lever on router
base.
3. Attach router motor to base by aligning guide channel with guide pin (see
Figure 3).
— If using fixed base, engage adjust-
ment gear attached to clamping
lever assembly.

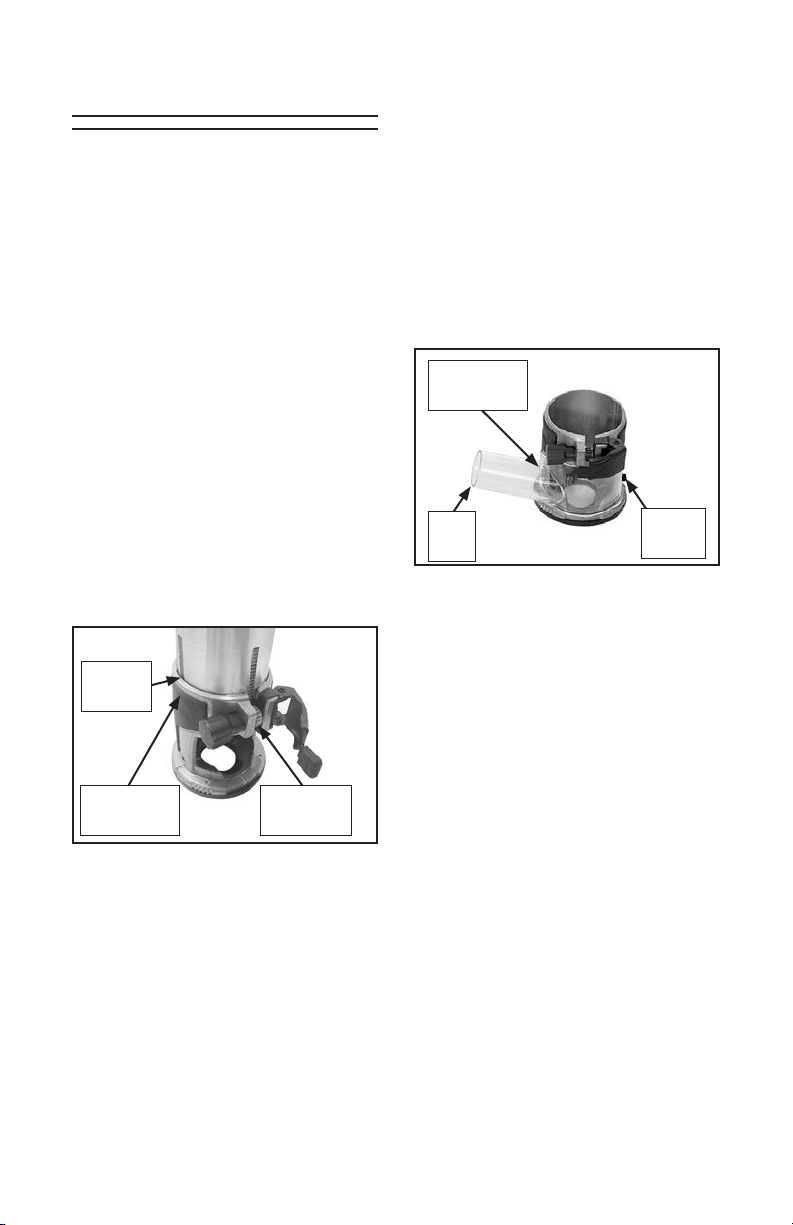

To attach dust collector/shop vacuum:
1. Place dust shield/port alignment pin
into fixed base.
2. Seat dust shield/port so thumb screw
hole and threads align.
3. Install and tighten thumbscrew (see
Figure 4).
1
4. Attach 1
Alignment
Pin (Hidden)
Dust
Port
Figure 4. Fixed base with dust port.
⁄4" vacuum hose to dust port.
Thumb
Screw
Guide
Channel
Guide
Pin (Hidden)
Figure 3. Fixed base with gear.
4. Tighten locking lever.
5. Verify that laminate trim motor is secure
in base and does not move.
Model T27139 (Mfd. Since 3/16) -9-
Adjustment
Gear
Page 13
Power Connection
After you have completed all previous
setup instructions the tool is ready to be
connected to the power supply.
To avoid unexpected startups or property
damage, use the following steps whenever
connecting or disconnecting the tool.
Connecting Power
1. Turn tool power switch OFF (O).
2. Insert power cord plug into a matching
power supply receptacle. Tool is now
connected to power source.
Test Run
DO NOT start tool until all preceding
setup instructions have been performed. Operating an improperly set
up tool may result in malfunction or
unexpected results that can lead to
serious injury, death, or tool/property damage.
Serious injury or death can result
from using tool BEFORE understanding its controls and related
safety information. DO NOT operate,
or allow others to operate, tool until
information is understood.
To test run tool:
1. Clear all setup tools away from tool.
Figure 5. Connecting power.
Disconnecting Power
1. Turn tool power switch OFF.
2. Grasp molded plug and pull it com-
pletely out of receptacle. Do not pull by
cord as this may damage wires inside.
Figure 6. Disconnecting power.
2. Remove collet nut and collet.
3. Connect tool to power supply.
4. Turn tool ON, verify motor operation,
and then turn tool OFF. Tool should
run smoothly and without unusual
problems or noises.
Model T27139 (Mfd. Since 3/16) -10-
Page 14
SECTION 4: OPERATIONS
Removing/Installing
Router Bit
5. Slide router bit to within
tom of collet, press lock button, then
securely tighten collet with wrench.
1
⁄8" of the bot-
This router is supplied with a 1⁄4" collet for
use with 1⁄4" shank router bits. Carefully
inspect router bits for cracks, chips, or
other damage before installing. DO NOT
use router bits that have been dropped,
cracked, or damaged. The router bit may
shatter, causing serious injury.
To remove or install router bit :
1. DISCONNECT TOOL FROM POWER!
2. To access collet, release clamping
lever and remove laminate trim router
from base.
3. Align spindle lock button pin with spindle shaft, and press lock button.
4. Use collet wrench to loosen collet nut,
and remove router bit (see Figure 7).
Router bit is sharp and will be hot
after use. Wear gloves to prevent
injury when removing bit.
Note: The collet can be damaged if it
is tightened without a bit.
Adjusting Bit Depth
Unplug router and make sure switch
is OFF before inserting or removing
bit, making adjustments, or performing maintenance or service. DO NOT
make adjustments while router is
connected to power. Serious injury
may occure if this is ignored.
To adjust bit depth using fixed base:
1. DISCONNECT TOOL FROM POWER!
2. Loosen clamping lever shown in
Figure 8, and adjust base to approxi-
mately desired height with the height
adjustment knob.
Spindle
Lock Button
Collet
Wrench

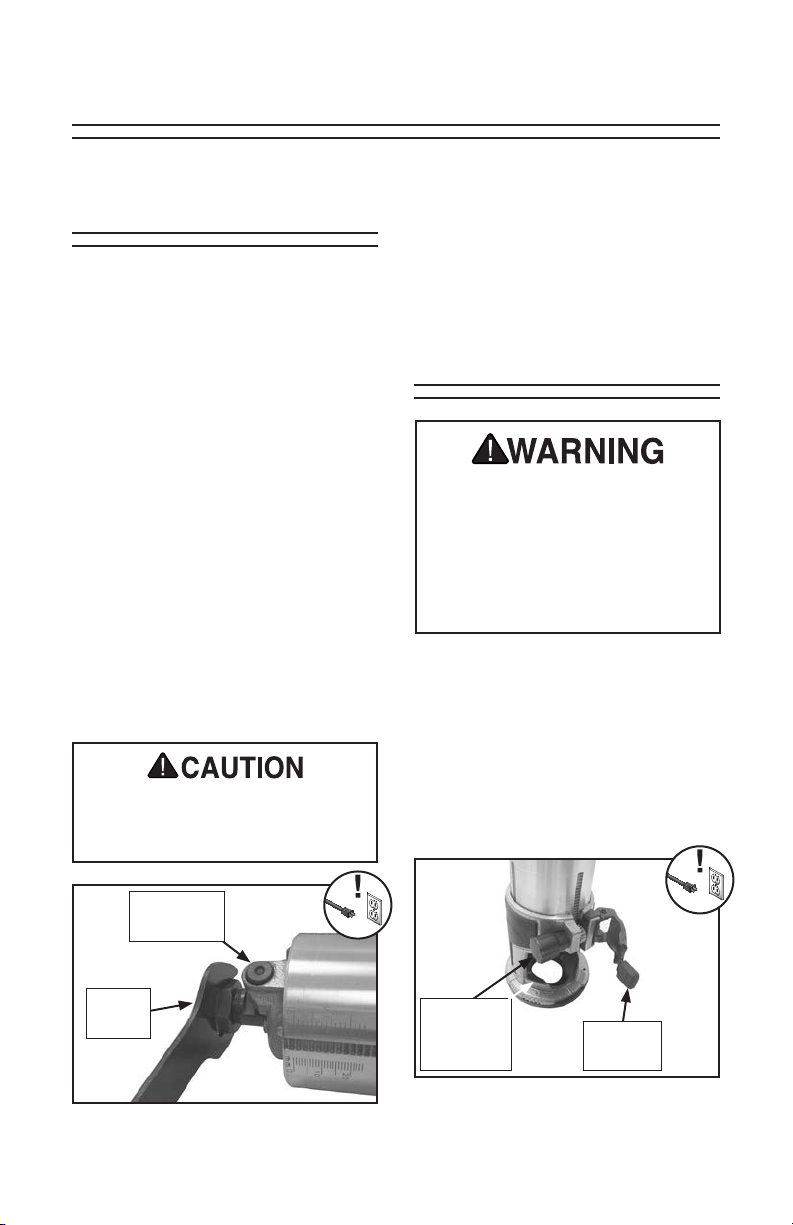

Figure 7. Collet wrench and lock button.
Model T27139 (Mfd. Since 3/16) -11-
Height
Adjustment
Knob
Figure 8. Height adjustment knob.
Clamping
Lever
Page 15
3. Fine-tune depth of router bit by using
a measuring device, such as a pair of
digital calipers.
Note: Scale is not calibrated to any
specific point. Only use it for reference
when making incremental changes.
4. Tighten clamping lever to secure base
plate.
To adjust bit depth using plunge base:
8. Move depth pointer to the "0" mark on
the depth scale (see Figure 10).
Depth-Stop
Adjustment
Knob
Depth Pointer
Depth-Stop
Quick
Release
1. DISCONNECT TOOL FROM POWER!
2. Loosen depth-stop lock nut.
3. Turn three-position stop block to low-
est setting (see Figure 9).
Depth Stop
Lock Nut
Three-Position
Stop Block
Figure 9. Depth-stop locking nut.
4. Push depth-stop quick-release button
and raise depth stop all the way (see
Figure 10).
5. With router base sitting on flat surface,
loosen plunge locking lever and push
down until bit is touching surface.
6. Tighten plunge locking lever.
7. Push depth-stop quick-release button,
and lower depth stop until it touches
three position stop block.
Figure 10. Depth-stop adjustment.
9. Adjust depth stop until depth pointer
indicates desired depth of cut.
10. Fine tune adjustment by turning depthstop adjustment knob.
11. Tighten depth-stop lock nut and loosen plunge locking lever.
Feed
Direction
Once the bit has been selected and
installed properly, and the depth has been
set, determine the proper feed direction of
the router across the workpiece:
To determine feed direction:
1. Examine top face of workpiece and
determine direction of grain. Feed router so bit is cutting with grain (cutting
along growth rings as shown in Figure
11). Cutting against grain chips wood
rather than cutting it, making a rougher
surface with more “chip out.”
Model T27139 (Mfd. Since 3/16) -12-
Page 16
Bit
Rotation
Router will "kick" when started. If it
comes in contact with workpiece it
could jump out of your hands and
cause injury.
Feed
Direction
Figure 11. Correct feed direction and
grain orientation (bottom view).
2. Pass router across workpiece with bit
rotating opposite the feed direction,
as shown in Figure 11. If cutters are
moving in same direction you are feeding the router, you are performing a
“climb cut.” This is a very dangerous
operation because router could lunge
forward out of your hands, causing serious personal injury.
Routing Operations
Once the router bit is installed, the depth is
set, and the feed direction is determined, it
is time to start routing.
To perform routing operations:
4. Smoothly move router in correct feed
direction along workpiece (see Figure
11).
DO NOT start routing at a corner.
Starting at a corner may cause router to grab, damaging workpiece corner, and possibly causing injury.
Note: Feed router along workpiece at
a consistent rate of speed. Be aware of
sound of router motor and sound of bit
cutting. If motor begins to bog down, or
sound pitch of router bit lowers, reduce
feed rate.
5. When finished routing, turn router
OFF, and allow it to come to a complete stop before setting it down.
1. Secure workpiece to a stable surface.
2. Place router flat on surface of
workpiece, making sure that bit is not
touching workpiece.
3. Firmly grasp router (fixed base) or
handles (plunge base) and turn router
switch ON (I).
— If using plunge base, slowly push
down on router handles to initiate
cut.
Model T27139 (Mfd. Since 3/16) -13-
Page 17
Curved Trim Guide Straight Guide
The curved trim guide is used for trimming
curved surfaces, such as adding a decorative edge to a round table or trimming
curved corners on a laminate counter top.
This guide is only used with the fixed base,
and with router bits that do not have guide
bearings.
To use curved trim guide:
1. DISCONNECT TOOL FROM POWER!
2. Slide trim guide onto base plate as
shown in Figure 12, set guide height,
and tighten height adjustment lock
knob.
Height
Adjustment
Lock Knob
Depth
Adjustment
Knob
Depth
Adjustment
Lock Knob
Figure 12. Curved trim guide adjustments.
The straight guide can be used for trimming, cutting dadoes, straight dovetails,
and for cutting circles.
Only use router bits with no guide bearings
when using the straight guide.
Using Straight Guide for
Trimming
1. DISCONNECT TOOL FROM POWER!
2. Slide straight guide onto base plate
as shown in Figure 13, then set guide
height and tighten lock knob.
— If using plunge base, straight guide
will attach to straight guide holder
(see Figure 1 on Page 5).
Lock
Knob
Figure 13. Typical straight guide
installation.
Wing
Nut
3. Loosen depth adjustment lock knob
and turn depth adjustment knob to
adjust depth of cut.
4. Follow instructions in Routing
Operations on Page 13. Make a test
cut by sliding guide bushing along
edge of a scrap piece of wood.
5. Repeat Steps 1– 4 until cut is correct
height and depth.
3. Loosen wing nut and position straight
guide at approximately desired depth.
4. Follow instructions in Routing
Operations on Page 13. Make a test
cut by sliding straight guide along
edge of a scrap piece of wood.
5. Repeat Steps 1– 4 until cut is correct.
Model T27139 (Mfd. Since 3/16) -14-
Page 18
Using Straight Guide for Interior
Cuts
1. Follow instructions for Straight Guide
setup on Page 14, but adjust to allow
bit to cut an interior slot.
Note: When cutting interior slots,
router will tend to follow wood
grain. Keep constant pressure, pulling straight guide into workpiece.
2. Make sure there is enough excess
material at end of cut to support
straight guide. If guide slips off end of
workpiece, it will wander off of desired
line. You may wish to add a longer
piece of wood to workpiece for straight
guide to follow.
3. Follow the instructions in Routing
Operations on Page 13 to make the
desired cut, as shown in Figure 14.
Using Straight Guide for Cutting
Circles
1. Set up straight guide with guide plate
facing up (see Figure 15).

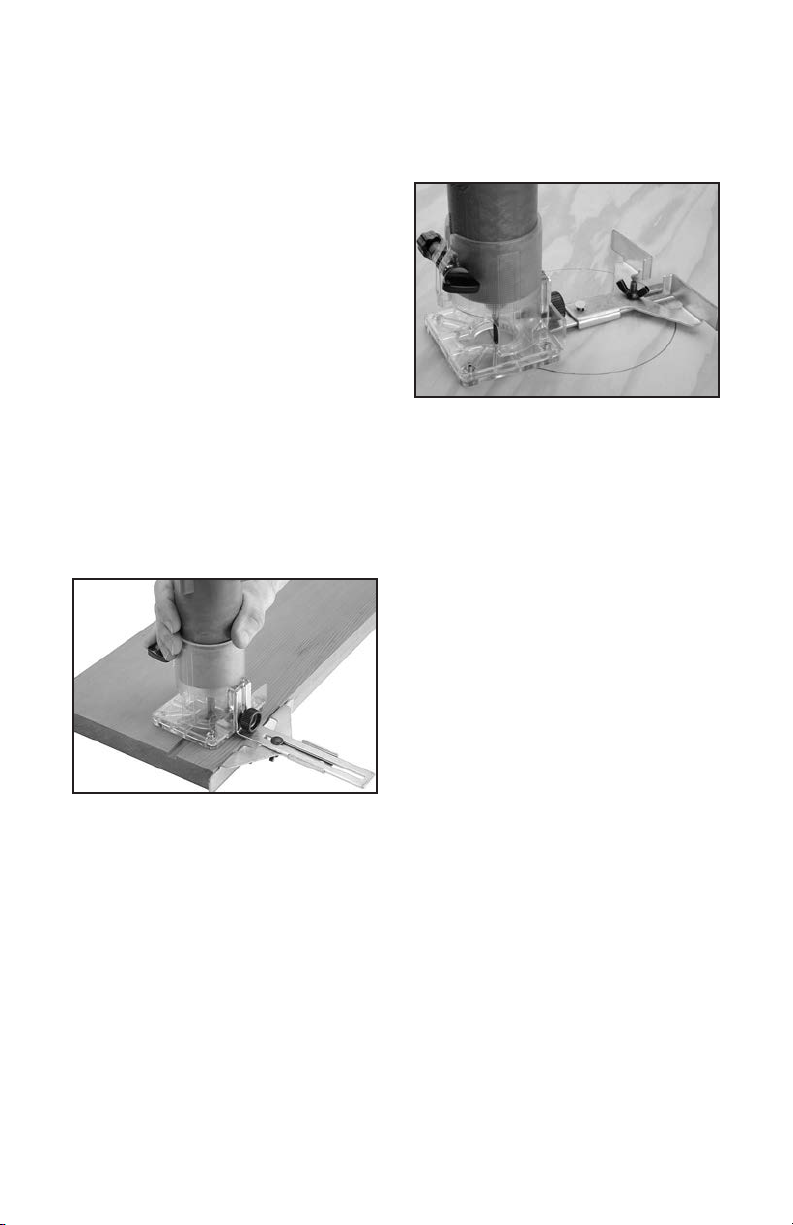

Figure 15. Example of guide setup for
cutting circles.
2. Use a compass to mark desired circle
on workpiece.
3. Place hole in straight guide over mark,
drive a small nail into workpiece at
center of circle, then loosen lock bolt
and adjust guide until outer bit aligns
with marked circle.
4. Adjust router bit to desired depth.
5. Lift router above surface, turn it
ON, and then carefully lower it into
workpiece.
Figure 14. Example of routing a slot.
Model T27139 (Mfd. Since 3/16) -15-
6. Rotate router in a clockwise direction,
using nail as pivot point.
Page 19
SECTION 5: ACCESSORIES
order online at www.grizzly.com or call 1-800-523-4777
Installing unapproved accessories may cause tool to malfunction,
resulting in serious personal injury or tool damage. To reduce this
risk, only install accessories recommended for this tool by Grizzly.
Refer to our website or latest catalog for additional recommended
accessories.
Basic Eye Protection
T20501—Face Shield 4"
T20502—Face Shield 7"
T20503—Face Shield Window
T20451—“Kirova” Clear Safety Glasses
T20452—“Kirova” Anti-Reflective S.
Glasses
H7194—Bifocal Safety Glasses 1.5
H7195—Bifocal Safety Glasses 2.0
H7196—Bifocal Safety Glasses 2.5
H5554—20 Pc. Carbide
Set
H3168—30 Pc. Carbide 1⁄4" Router Bit
Set
Grizzly Industrial carries an extensive
selection of 1⁄4" shank router bits. The
following router bit sets are a very small
portion of what Grizzly carries. For the latest models and pricing, check our website,
www.grizzly.com, our catalog, or call
1-800 -523 -4777.
Figure 17. Model H5554 20-Pc. 1⁄4" Shank
Router Bit Set.
1
⁄4" Router Bit
T20502
H7194
Figure 16. Assortment of basic eye pro-
tection.
T20452
Figure 18. Model H3168 30 pc. 1⁄4" Shank
Router Bit Set.
T20451
Model T27139 (Mfd. Since 3/16) -16-
Page 20
order online at www.grizzly.com or call 1-800-523-4777
H4978 —Deluxe Earmuffs - 27dB
H4979 —Twin Cup Hearing Protector 29dB
Protect yourself comfortably with a pair of
cushioned earmuffs. Especially important
if you or employees operate for hours at
a time.
H4978
H4979
Figure 19. Hearing Protection.
T23245—The Missing Shop Manual:
Router
In Router, woodworkers will find out how
to best utilize this essential workshop tool,
and how to get the most for their money
by getting the most from their equipment.
Filled with clear diagrams and instructions,
this pocket-sized, durable manual is ideal
for quick reference in the workshop.
Figure 20. The Missing Shop Manual:
Router.
Model T27139 (Mfd. Since 3/16) -17-
Page 21
SECTION 6: MAINTENANCE
!
Replacing Brushes
Motor brushes will become loaded with
carbon deposits or wear out over time.
Extend the life of the motor brushes by
removing them periodically and cleaning
off the carbon deposits.
Always DISCONNECT POWER
before servicing, adjusting, or doing
maintenance to reduce the risk of
accidental injury or electrocution.
Cleaning & Protecting
Cleaning the Model T2713 9 is relatively
easy. Vacuum excess wood chips and
sawdust, and wipe off the remaining dust
with a dry cloth. If any resin has built up,
use a resin dissolving cleaner to remove it.
Inspect the router for loose parts, damaged
cord or switch, and inspect the bits for
chips or cracks. Replace the bit if it is worn
or damaged. Continuous use of a worn or
damaged bit will not only decrease working efficiency, but also overload the motor,
so the bit must be frequently checked.
With the exception of the motor brushes,
the electrical components of this router are
not user serviceable.
If the motor will not run, makes squealing
or grinding noises, or performance is dramatically decreased, check to see if the
motor brushes need to be replaced. When
replacing the motor brushes, replace both
at the same time.
To replace motor brushes:
1. Remove motor brush caps on sides of
motor housing, as shown in Figure 21.
Figure 21. Example of replacing motor
brushes (1 of 2).
2. Replace motor brushes and re-install
caps.
Contact our Technical Support at (570)
546-9663 for any repair work that requires
op e nin g the mo tor ho usi n g and for re p lac e ment parts.
Model T27139 (Mfd. Since 3/16) -18-
Page 22
SECTION 7: SERVICE
Troubleshooting
Symptom Possible Cause Possible Solution
Tool does not start or
a breaker trips.
Tool stalls or is underpowered.
Tool has excessive
vibration or noisy
operation.
1. Wall circuit breaker tripped.
2. Plug/receptacle at fault/
wired wrong.
3. Wiring open/has high resistance.
4. Motor brushes at fault.
5. Motor at fault.
1. Workpiece material unsuitable for tool.
2. Workpiece crooked; guide
mis-adjusted.
3. Tool undersized for task;
wrong bit.
4. Plug/receptacle at fault.
5. Motor bearings at fault.
6. Motor overheated.
7. Motor brushes at fault.
8. Motor at fault.
1. Motor or component loose.
2. Bit at fault.
3. Motor mount loose/broken.
4. Tool incorrectly mounted.
5. Motor bearings at fault.
1. Ensure circuit size is correct/replace weak breaker.
2. Test for good contacts; correct the wiring.
3. Check/fix broken, disconnected, or corroded wires.
4. Replace brushes.
5. Test/repair/replace.
1. Only cut wood; ensure
moisture is below 20%.
2. Straighten or replace
workpiece; adjust guide.
3. Use correct bit; reduce feed
rate or depth of cut.
4. Test for good contacts/correct wiring.
5. Test/repair/replace.
6. Clean motor, let cool, and
reduce workload.
7. Replace brushes.
8. Test/repair/replace.
1. Inspect/replace damaged
bolts/nuts, and re-tighten
with thread locking fluid.
2. Replace broken bit;
resharpen dull bit.
3. Tighten/replace.
4. Re-install router motor into
base.
5. Test by rotating shaft; grinding/loose shaft requires
bearing replacement.
Model T27139 (Mfd. Since 3/16) -19-
Page 23
SECTION 8: WIRING
These pages are current at the time of printing. However, in the spirit of improvement, we
may make changes to the electrical systems of future tools. Compare the manufacture date
of your tool to the one stated in this manual, and study this section carefully.
If there are differences between your tool and what is shown in this section, call Technical
Support at (570) 546-9663 for assistance BEFORE making any changes to the wiring on
your tool. An updated wiring diagram may be available. Note: Please gather the serial
number and manufacture date of your tool before calling. This information can be found on
the main tool label.
Wiring Safety Instructions
SHOCK HAZARD. Working on wiring
that is connected to a power source is
extremely dangerous. Touching electrified
parts will result in personal injury including
but not limited to severe burns, electrocution, or death. Disconnect the power
from the tool before servicing electrical
components!
MODIFICATIONS. Modifying the wiring
beyond what is shown in the diagram
may lead to unpredictable results, including serious injur y or fire. This includes
the installation of unapproved aftermarket
parts.
WIRE CONNECTIONS. All connections
must be tight to prevent wires from loosening during tool operation. Double-check
all wires disconnected or connected during any wiring task to ensure tight connections.
CIRCUIT REQUIREMENTS. You MUST
follow the requirements at the beginning
of this manual when connecting your tool
to a power source.
The photos and diagrams
included in this section are
best viewed in color. You
can view these pages in
color at www.grizzly.com.
WIRE/COMPONENT DAMAGE.
Damaged wires or components increase
the risk of serious personal injury, fire, or
tool damage. If you notice that any wires
or components are damaged while performing a wiring task, replace those wires
or components.
MOTOR WIRING. The motor wiring
shown in these diagrams is current at
the time of printing but may not match
your tool. If you find this to be the case,
use the wiring diagram inside the motor
junction box.
CAPACITORS/INVERTERS. Some
capacitors
and power inver ters store an electrical
charge for up to 10 minutes after being
disconnected from the power source. To
reduce the risk of being shocked, wait at
least this long before working on capacitors.
EXPERIENCING DIFFICULTIES. If you
are experiencing difficulties understanding the information included in this section, contact our Technical Support at
(570) 546-9663.
Model T27139 (Mfd. Since 3/16) -20-
Page 24

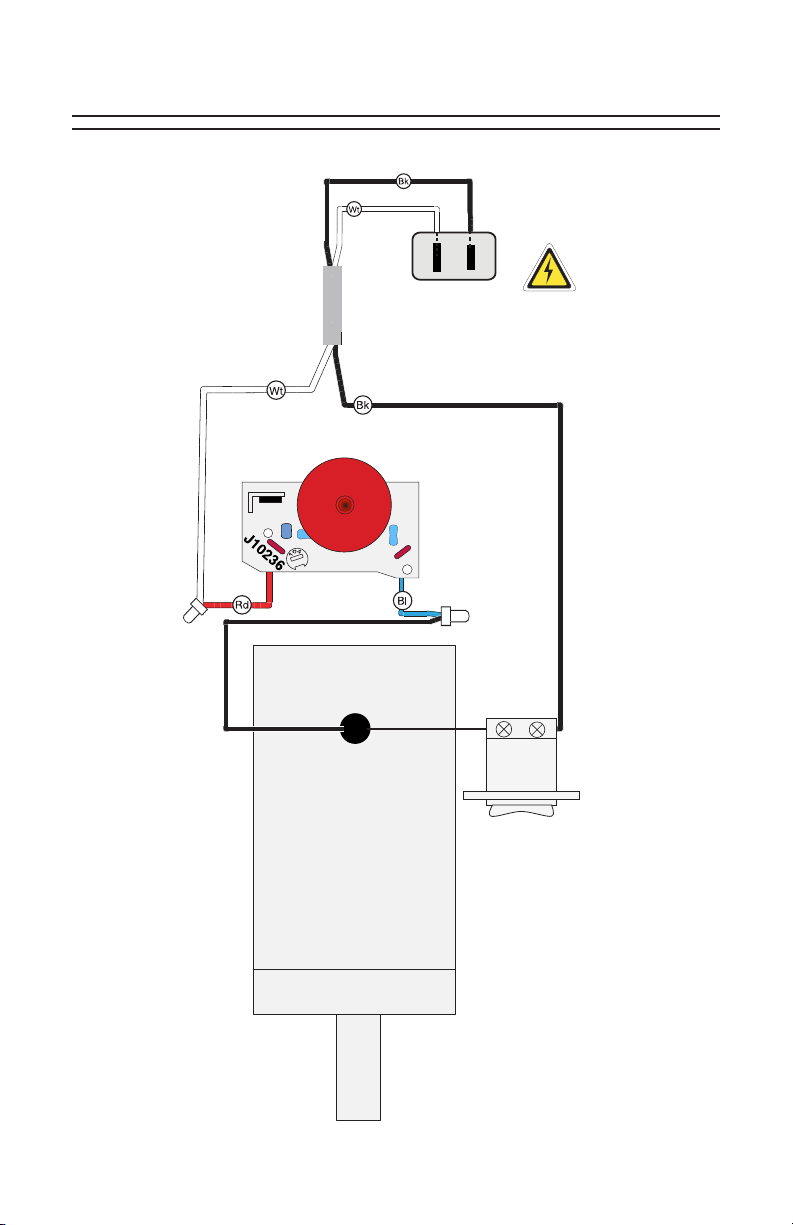

Wiring Diagram
HOT
NEUTRAL
AW
HLT - 210B
110 VAC
PLUG 1-15
(Included)
FB6-6/1
6(6)A
250V-SE4
Motor
120V, 6.5A, 60 Hz
10,000 – 30,000 RPM
Model T27139 (Mfd. Since 3/16) -21-
Page 25
SECTION 9: Parts

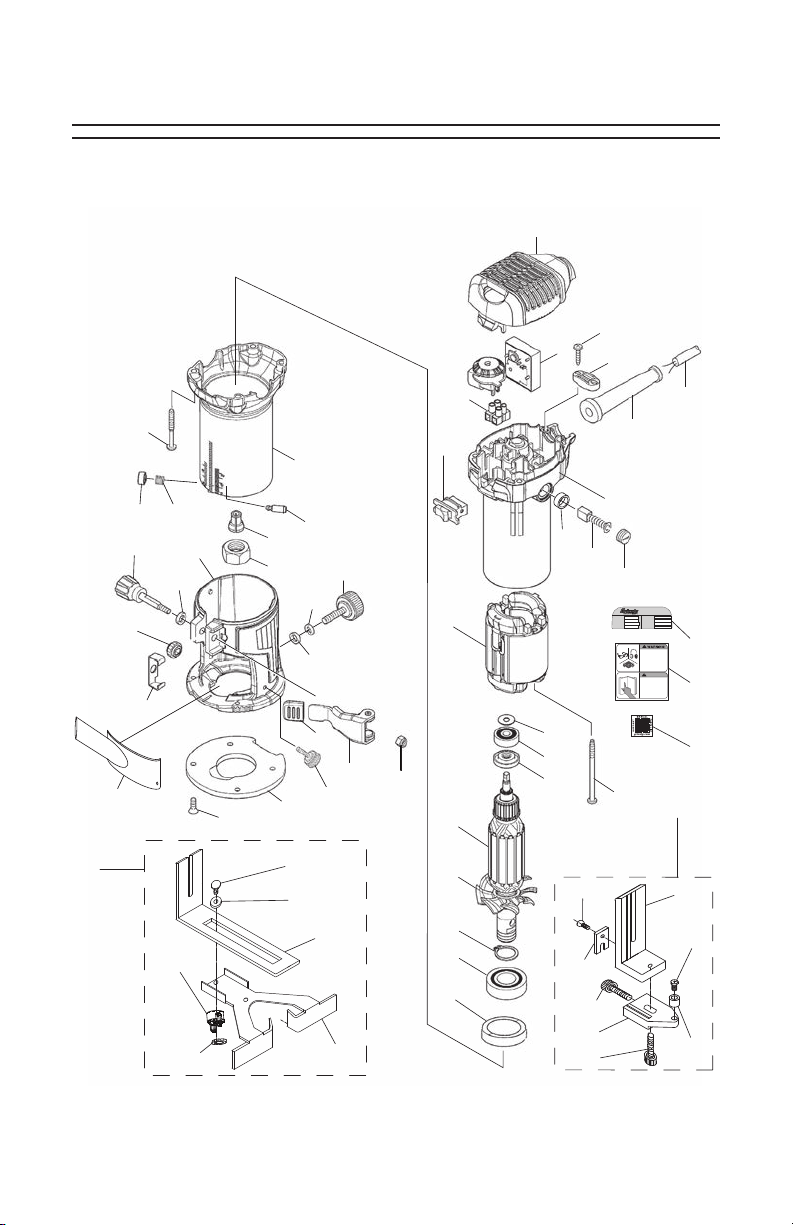

Main Breakdown
1
4
3
5
50
51
29
30 31
40
41
42
37
50-2
50-1
38
48
33
34
47
28
32
36
37
50-6
50-5
44
52
50-4
50-3
35
43
46
14
15
23
24
25
26
27
6
7
8
10
13
12
11
T27139
WEIGHT
OUTPUT
1 HP
7 lbs.
10,000 – 30,000
RPM
HZ
60
120
DATE
VOLT
6.5
SER. NO.
AMP
53
EYE/EAR/LUNG
HAZARD!
Always wear safety
glasses, ear
protection and a
respirator when
using this machine.
WARNING!
To reduce risk of death
or serious injury, read
manual BEFORE using
machine.
To get a new manual, call
54
(800) 523-4777 or go to
www.grizzly.com.
20
21
55
22
16V2
49
49-2
49-1
49-8
49-3
49-4
49-5
49-6
49-7
Model T27139 (Mfd. Since 3/16) -22-
Page 26
Main Breakdown Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 PT27139001 TOP COVER 37 PT27139037 FLAT WASHER 6MM
3 PT27139003 CONTROLLER 38 PT27139038 TRIMMER BASE
4 PT27139004 TAP SCREW M4 X 18 40 PT27139040 KNOB BOLT M5-.8 X 35
5 PT27139005 CABLE CLAMP 41 PT27139041 SPUR GEAR 16T
6 PT27139006 TERMINAL BLOCK 2P 42 PT27139042 CAM PLATE
7 PT27139007 POWER CORD 18G 2W 72" 1-15P 43 PT27139043 LOCK LATCH
8 PT27139008 CORD GUARD 44 PT27139044 RUBBER CAP
10 PT27139010 MOTOR HOUSING 46 PT27139046 LOCK NUT M5-.8
11 PT27139011 MOTOR CARBON BRUSH CAP 47 PT27139047 BASE PROTECTOR
12 PT27139012 MOTOR CARBON BRUSH 2-PC SET 48 PT27139048 FLAT HD SCR M4-.7 X 8
13 PT27139013 BRUSH HOLDER 49 PT27139049 CURVED GUIDE ASSEMBLY
14 PT27139014 ON/OFF SWITCH 49-1 PT27139049-1 GUIDE SEAT
15 PT27139015 STATOR 49-2 PT27139049-2 FLAT HD SCR M5-.8 X 6
16 PT27139016 TAP SCREW M4 X 65 49-3 PT27139049-3 KNOB BOLT BRACKET
20 PT27139020 WAVE WASHER 6MM 49-4 PT27139049-4 KNOB BOLT M6-1 X 15 GROOVED
21 PT27139021 BALL BEARING 627-2RS 49-5 PT27139049-5 GUIDE PLATE
22 PT27139022 BEARING WASHER 49-6 PT27139049-6 KNOB BOLT M6-1 X 16
23 PT27139023 ARMATURE ASSEMBLY 49-7 PT27139049-7 GUIDE WHEEL
24 PT27139024 MOTOR FAN 49-8 PT27139049-8 SHOULDER SCREW M5-.8 X 8, 5L
25 PT27139025 EXT RETAINING RING 17MM 50 PT27139050 STRAIGHT GUIDE ASSEMBLY
26 PT27139026 BALL BEARING 6003-2RS 50-1 PT27139050-9 HEX NUT M6-1
27 PT27139027 BEARING SLEEVE 50-2 PT27139050-2 KNOB HEX SEAT 6MM
28 PT27139028 OUTER HOUSING 50-3 PT27139050-3 STRAIGHT GUIDE BODY
29 PT27139029 TAP SCREW M4 X 40 50-4 PT27139050-4 STRAIGHT GUIDE BRACKET
30 PT27139030 SHAFT LOCK BUTTON 50-5 PT27139050-5 FLAT WASHER 6MM
31 PT27139031 COMPRESSION SPRING 50-6 PT27139050-6 CARRIAGE BOLT M6-1 X 20
32 PT27139032 SHAFT LOCK PIN 51 PT27139051 DUST SHIELD W/1-1/2" PORT
33 PT27139033 COLLET CONE 1/4" 52 PT27139052 DUST SHIELD KNOB M4-.7 X 20
34 PT27139034 COLLET NUT 5/8-20 53 PT27139053 MACHINE ID LABEL
35 PT27139035 THUMB SCREW M6-1 X 25 54 PT27139054 SAFETY WARNING LABEL
36 PT27139036 LOCK WASHER 6MM 55 PT27139055 QR CODE LABEL
Model T27139 (Mfd. Since 3/16) -23-
Page 27

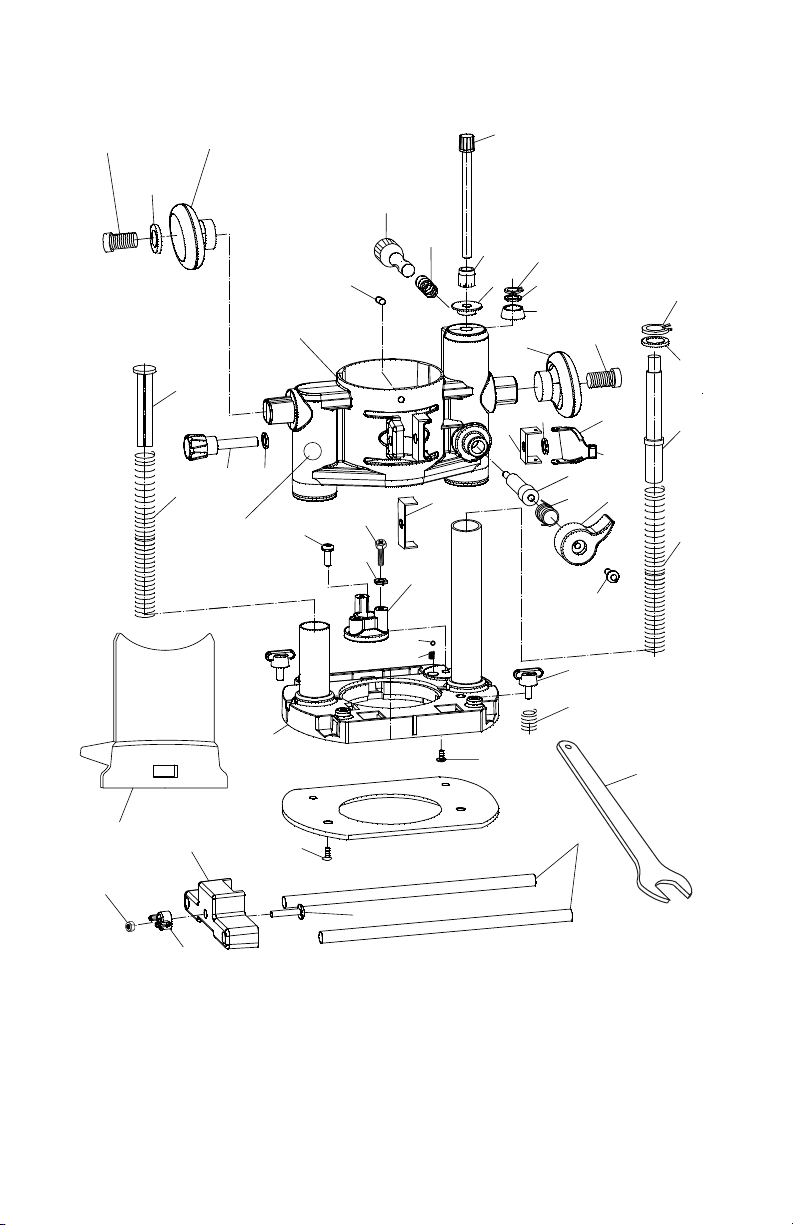

Plunge Base Breakdown
132
104
133
134
131
151
129130
146
145
128
123
125
126
106
144
143
107
127
124
148
102
141
101
108
110
103
104
105
111
114
115
117
121
122
109
112
113
116
118
142
119
120
150
147
149
137
138
140
135
136
Model T27139 (Mfd. Since 3/16) -24-
Page 28
Plunge Base Breakdown Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
101 PT27139101 DEPTH STOP SCREW M10-1.5 X 115 127 PT27139127 DEPTH SELECTOR PLATE
102 PT27139102 DEPTH INDICATOR RING 128 PT27139128 SHOULDER SCREW M6-1 X 10, 4L
103 PT27139103 EXT RETAINING RING 8MM 129 PT27139129 FLAT WASHER 6MM
104 PT27139104 FLAT WASHER 8MM 130 PT27139130 KNOB BOLT M5-.8 X 35
105 PT27139105 RUBBER BUSHING 131 PT27139131 HANDLE
106 PT27139106 DEPTH STOP LOCK BUTTON 132 PT27139132 PHLP HD SCR M8-1.25 X 25
107 PT27139107 COMPRESSION SPRING 133 PT27139133 SPRING SHAFT PLASTIC
108 PT27139108 HANDLE 134 PT27139134 COMPRESSION SPRING
109 PT27139109 PHLP HD SCR M8-1.25 X 25 135 PT27139135 EXTENSION ROD
110 PT27139110 CAM BRACKET 136 PT27139136 CARRIAGE BOLT M6-1 X 18
111 PT27139111 LOCK NUT M6-1 137 PT27139137 EXTENSION BASE
112 PT27139112 LOCK LEVER ASSEMBLY 138 PT27139138 KNOB HEX SEAT 6MM
113 PT27139113 RUBBER END CAP 139 PT27139139 BASE PLATE
114 PT27139114 SET BOLT M10-1.5 X 21 140 PT27139140 FLAT HD SCR M4-.7 X 10
115 PT27139115 TORSION SPRING 141 PT27139141 PHLP HD SCR M5-.8 X 12
116 PT27139116 PLUNGE LOCK LEVER 142 PT27139142 FLAT WASHER 10MM
117 PT27139117 PHLP HD SCR M5-.8 X 12 143 PT27139143 COMPRESSION SPRING
118 PT27139118 EXT RETAINING RING 15MM 144 PT27139144 STEEL BALL 7MM
119 PT27139119 PLUNGE ROD 145 PT27139145 PLUNGE BODY
120 PT27139120 COMPRESSION SPRING 146 PT27139146 PLUNGE BASE
121 PT27139121 KNOB BOLT M5-.8 X 14 147 PT27139147 HEX NUT M6-1
122 PT27139122 COMPRESSION SPRING 148 PT27139148 DEPTH INDICATOR DIAL
123 PT27139123 PLUNGE GUIDE PIN 4 X 4 149 PT27139149 DUST SHIELD
124 PT27139124 CAM SEAT 150 PT27139150 COLLET WRENCH OPEN-END 22MM
125 PT27139125 HEX BOLT M5-.8 X 18 151 PT27139151 GRIZZLY GREY TOUCH-UP PAINT
126 PT27139126 HEX NUT M5-.8
Model T27139 (Mfd. Since 3/16) -25-
Page 29
WARRANTY CARD
Name _____________________________________________________________________________
Street _____________________________________________________________________________
City _______________________ State _________________________ Zip _____________________
Phone # ____________________ Email _________________________________________________
Model # ____________________ Order # _______________________ Serial # __________________
The following information is given on a voluntary basis. It will be used for marketing purposes to help us develop
better products and services. Of course, all information is strictly confidential.
1. How did you learn about us?
____ Advertisement ____Friend ____ Catalog
____ Card Deck ____ Website ____ Other:
2. Which of the following magazines do you subscribe to?
____ Cabinetmaker & FDM
____ Family Handyman
____ Hand Loader
____ Handy
____ Home Shop Machinist
____ Journal of Light Cont.
____ Live Steam
____ Model Airplane News
____ Old House Journal
____ Popular Mechanics
3. What is your annual household income?
____ $20,000-$29,000 ____ $30,000-$39,000 ____ $40,000-$49,000
____ $50,000-$59,000 ____ $60,000-$69,000 ____ $70,000+
4. What is your age group?
CUT ALONG DOTTED LINE
____ 20-29 ____30-39 ____ 40-49
____ 50-59 ____60-69 ____ 70+
5. How long have you been a woodworker/metalworker?
____ 0-2 Years ____ 2-8 Years ____ 8-20 Years ____20+ Years
6. How many of your machines or tools are Grizzly?
____ 0-2 ____ 3-5 ____ 6-9 ____10+
7. Do you think your machine represents a good value? _____Yes _____No
8. Would you recommend Grizzly Industrial to a friend? _____ Yes _____No
9. Would you allow us to use your name as a reference for Grizzly customers in your area?
Note: We never use names more than 3 times. _____ Yes _____No
10. Comments: _____________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
____ Popular Science
____ Popular Woodworking
____ Precision Shooter
____ Projects in Metal
____ RC Modeler
____ Rie
____ Shop Notes
____ Shotgun News
____ Today’s Homeowner
____ Wood
____ Wooden Boat
____ Woodshop News
____ Woodsmith
____ Woodwork
____ Woodworker West
____ Woodworker’s Journal
____ Other:
Page 30
FOLD ALONG DOTTED LINE
FOLD ALONG DOTTED LINE
Place
Stamp
Here
GRIZZLY INDUSTRIAL, INC.
P.O. BOX 2069
BELLINGHAM, WA 98227-2069
Send a Grizzly Catalog to a friend:
Name_______________________________
Street_______________________________
City______________State______Zip______
TAPE ALONG EDGES--PLEASE DO NOT STAPLE
Page 31
WARRANTY
Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from
the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse,
negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty
and any and all warranties that may be implied by law, including any merchantability or fitness, for any particular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent
that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants.
In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and
any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.
We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special,
or consequential damages arising from the use of our products.
To take advantage of this warranty, contact us by mail or phone and give us all the details. We will then issue
you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of the carton. We
will not accept any item back without this number. Proof of purchase must accompany the merchandise.
The manufacturers reserve the right to change specifications at any time because they constantly strive to
achieve better quality equipment. We make every effort to ensure that our products meet high quality and
durability standards and we hope you never need to use this warranty.
Please feel free to write or call us if you have any questions about the machine or the manual.
Thank you again for your business and continued support. We hope to serve you again soon.
Page 32
Loading...
