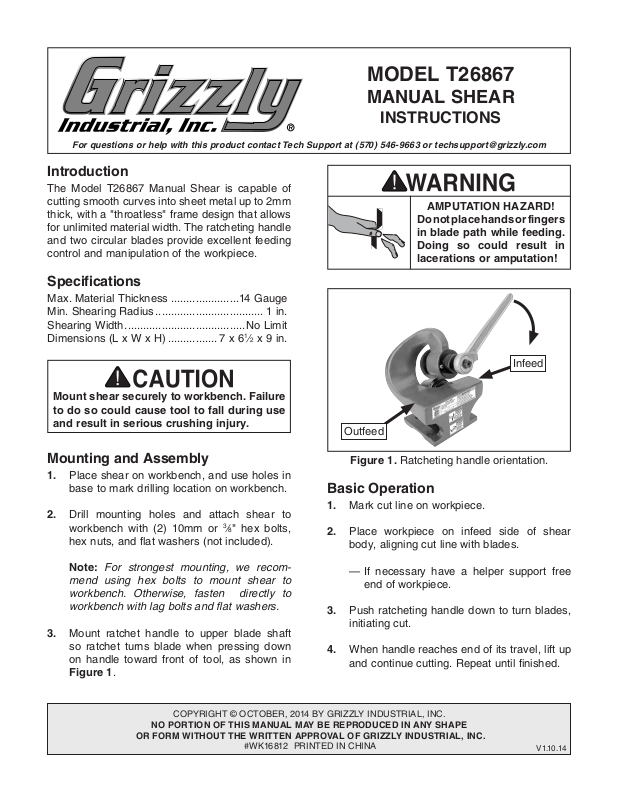

Page 1
MODEL T26867
MANUAL SHEAR
INSTRUCTIONS
For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction
The Model T26867 Manual Shear is capable of
cutting smooth curves into sheet metal up to 2mm
thick, with a "throatless" frame design that allows
for unlimited material width. The ratcheting handle
and two circular blades provide excellent feeding
control and manipulation of the workpiece.
Specifications
Max. Material Thickness ......................14 Gauge
Min. Shearing Radius ................................... 1 in.
Shearing Width .......................................No Limit
Dimensions (L x W x H) ................ 7 x 6
1
⁄2 x 9 in.
AMPUTATION HAZARD !
Do not place hands or fingers
in blade path while feeding.
Doing so could result in
lacerations or amputation!
Infeed
Mount shear securely to workbench. Failure
to do so could cause tool to fall during use
and result in serious crushing injury.
Mounting and Assembly
1. Place shear on workbench, and use holes in
base to mark drilling location on workbench.
2. Drill mounting holes and attach shear to
workbench with (2) 10mm or
hex nuts, and flat washers (not included).
Note: For strongest mounting, we recom-
mend using hex bolts to mount shear to
workbench. Otherwise, fasten directly to
workbench with lag bolts and flat washers.
3. Mount ratchet handle to upper blade shaft
so ratchet turns blade when pressing down
on handle toward front of tool, as shown in
Figure 1.
3
⁄8" hex bolts,
Outfeed
Figure 1. Ratcheting handle orientation.
Basic Operation
1. Mark cut line on workpiece.
2. Place workpiece on infeed side of shear
body, aligning cut line with blades.
— If necessary have a helper support free
end of workpiece.
3. Push ratcheting handle down to turn blades,
initiating cut.
4. When handle reaches end of its travel, lift up
and continue cutting. Repeat until finished.
COPYRIGHT © OCTOBER, 2014 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#WK16812 PRINTED IN CHINA
V1.10.14
Page 2
T26867 Parts Breakdown
Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here
are available for purchase. Call (800) 523-4777 or visit our online parts store at www.grizzly.com to check for availability.
1
3
4
5
6
7
8
9
2
10
11
12
13
20
19
21
22
23
24
18
17
16
15
14
REF PART # DESCRIPTION
1 PT26867001 RATCHETING WRENCH
2 PT26867002 PHLP HD SCR M5-.8 X 8
3 PT26867003 UPPER DUST COVER
4 PT26867004 UPPER SHAFT
5 PT26867005 BALL BEARING 6203ZZ
6 PT26867006 EXT RETAINING RING 17MM
7 PT26867007 BUSHING
8 PT26867008 ADJUSTABLE BUSHING
9 PT26867009 SHEAR BODY
10 PT26867010 UPPER BLADE
11 PT26867011 FLAT WASHER 14MM
12 PT26867012 LOCK WASHER 14MM
13 PT26867013 HEX NUT M14-2
14 PT26867014 LOWER DUST COVER
15 PT26867015 BUSHING
16 PT26867016 SPACER
17 PT26867017 LOWER SHAFT
18 PT26867018 KEY 5 X 5 X 10
19 PT26867019 LOWER BLADE
20 PT26867020 HEX NUT M14-2 THIN
21 PT26867021 MACHINE ID LABEL
22 PT26867022 AMPUTATION HAZARD WARNING LABEL
23 PT26867023 EYE INJURY HAZARD WARNING LABEL
24 PT26867024 GRIZZLY GREEN TOUCH-UP PAINT
-2-
T26867 Manual Shear (Mfg. 8/14+)
