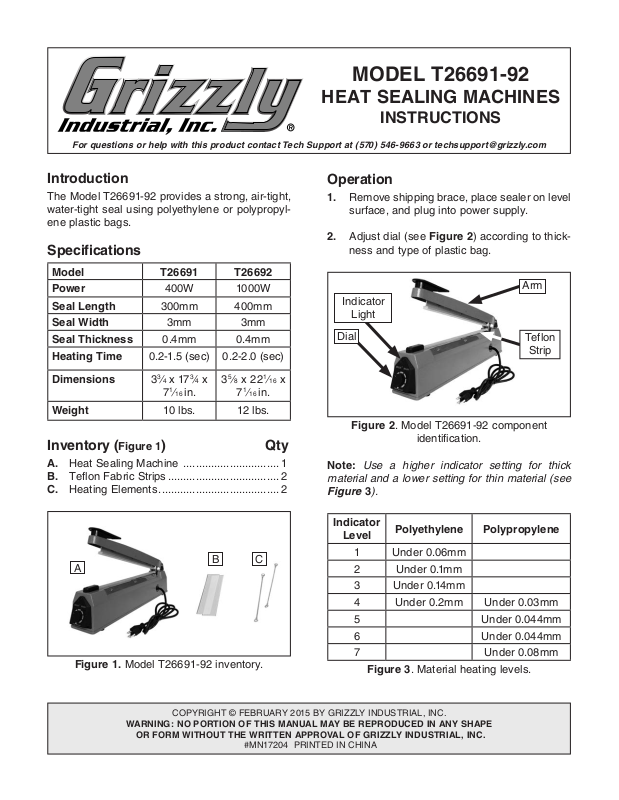

Grizzly T26691 User guide

MODEL T26691-92

HEAT SEALING MACHINES

INSTRUCTIONS

For questions or help with this product contact Tech Support at [phone] or [e-mail]

Introduction

The Model T26691-92 provides a strong, air-tight,
water-tight seal using polyethylene or polypropyl­ene plastic bags.

Specifications

Model T26691 T26692

Power

Seal Length

Seal Width

Seal Thickness

Heating Time

Dimensions

Weight

400W 1000W

300mm 400mm

3mm 3mm

0.4mm 0.4mm

0.2-1.5 (s ec) 0.2-2.0 (sec)

3

3

⁄4 x 17 3⁄4 x

1

⁄16 in.

7

10 lbs. 12 lbs.

5

3

⁄8 x 22 1⁄16 x

1

⁄16 in.

7

Inventory (Figure 1) Qty

A. Heat Sealing Machine ............................... 1

B. Teflon Fabric Strips .................................... 2

C. Heating Elements ....................................... 2

Operation

1. Remove shipping brace, place sealer on level

surface, and plug into power supply.

2. Adjust dial (see Figure 2) according to thick­ness and type of plastic bag.

Arm

Indicator

Light

Dial

Figure 2. Model T26691-92 component

identification.

Note: Use a higher indicator setting for thick
material and a lower setting for thin material (see
Figure 3).

Teflon

Strip

A

B C

Figure 1. Model T26691-92 inventory.

COPYRIGHT © FEBRUARY 2015 BY GRIZZLY INDUSTRIAL, INC.

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#MN17204 PRINTED IN CHINA

Indicator

Level

1 Under 0.06mm

2 Un d er 0 .1m m

3 Un de r 0 .14 m m

4 Under 0.2mm Under 0.03mm

5 Under 0.044mm

6 Under 0.044mm

7 Under 0.08mm

Polyethylene Polypropylene

Figure 3. Material heating levels.

3. Open arm, place shortest width of bag across

Teflon strip, and press arm down. Red indica­tor light will illuminate.

2. Remove front cover and push forward on ter­minal assembly to release heating element
(see Figure 4).

Note: Sealer will not turn ON until you press

arm down.

4. After red light turns off, wait for seal to cool,
then raise arm, and remove bag.

5. Check seal.

— If sealer leaves a 2-3mm wide band across

bag, dial setting is correct.

—If sealer does not leave an evenly melted

band across bag, see Troubleshooting.

Cleaning/Maintenance

1. DISCONNECT MACHINE FROM POWER!

2. Use eraser, dry cloth, or finger to remove

residue from Teflon strip and rubber strip on
arm. Do not use solvents.

Service

If the Teflon strips become torn, replace them and
the heating element.

Metal

Plates

Teflon

Strips

Figure 4. Components that must be removed

when replacing Teflon strips or heating element.

3. Install new Teflon strips and heating element.
Place element between strips, then reinstall
metal plates.

Heating

Element

Front

Cover

Troubleshooting

• If sealer creates a partial seal, select a higher
dial setting to increase heating time.

• If sealer melts through bag, or if bag sticks to
Teflon strip, select a lower dial setting.

To replace Teflon strips and heating element:

1. DISCONNECT MACHINE FROM POWER!

Electrical Schematic

FIgure 5. Model T26691-92 electrical schematic.

• If bag sticks to rubber strip on arm, hold arm
down longer after red light switches off to
increase cooling time.

If you need help with your new heat sealer, call
our Tech Support at: [phone].

-2-

T26691-92 (Mfd. 10/14)
