MODEL T26472Z/G4011Z/T26751Z
3-IN-1 SHEET METAL MACHINE
OWNER'S MANUAL
(For models manufactured since 02/14)
T26472Z
G4011Z
T26751Z
COPYRIGHT © MAY, 2014 BY GRIZZLY INDUSTRIAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#DMTS16143 PRINTED IN CHINA
V1. 0 5.14
This manual provides critical safety instructions on the proper setup,
operation, maintenance, and service of this machine/tool. Save this
document, refer to it often, and use it to instruct other operators.
Failure to read, understand and follow the instructions in this manual
may result in fire or serious personal injury—including amputation,
electrocution, or death.
The owner of this machine/tool is solely responsible for its safe use.
This responsibility includes but is not limited to proper installation in
a safe environment, personnel training and usage authorization,
proper inspection and maintenance, manual availability and comprehension, application of safety devices, cutting/sanding/grinding tool
integrity, and the usage of personal protective equipment.
The manufacturer will not be held liable for injury or property damage
from negligence, improper training, machine modifications or misuse.
Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State
of California to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement and other masonry products.
• Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
Work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter
out microscopic particles.
Table of Contents
INTRODUCTION ............................................... 2
Machine Description ...................................... 2
Contact Info.................................................... 2
Manual Accuracy ........................................... 2
Identification ................................................... 3
Machine Data Sheet ...................................... 4
SECTION 1: SAFETY ....................................... 5
Safety Instructions for Machinery .................. 5
Additional Safety for 3-in-1 Sheet Metal
Machines ........................................................ 7
SECTION 2: SETUP ......................................... 8
Unpacking ...................................................... 8
Needed for Setup ........................................... 8
Inventory ........................................................ 9
Cleanup ........................................................ 10
Cleaning Fingers .......................................... 10
Site Considerations ...................................... 11
Workbench Load .......................................................11
Placement Location ...................................................11
Bench Mounting ........................................... 12
Assembly ..................................................... 13
SECTION 4: ACCESSORIES ......................... 25
SECTION 5: MAINTENANCE ......................... 26
Schedule ...................................................... 26
Cleaning ....................................................... 26
Lubrication ................................................... 26
SECTION 6: SERVICE ................................... 27
Troubleshooting ........................................... 27
Replacing/Seating Fingers ........................... 28
Reversing/Replacing Shear Blade ............... 29
Adjusting Shear Blade Gap ......................... 30
Checking Shear Blade Gap ......................................30
Adjusting Shear Table ...............................................30
Adjusting Blade Bow (T26472Z) ...............................31
Adjusting Blade Bow (G4011Z & T26751Z) ..............31
Aligning Brake .............................................. 32
SECTION 7: PARTS ....................................... 33
G4011Z Breakdown ..................................... 33
T26472Z Breakdown.................................... 35
T26751Z Breakdown.................................... 37
WARRANTY & RETURNS ............................. 41
SECTION 3: OPERATIONS ........................... 14
Slip Roll Overview ........................................ 14
Slip Roll Tips ................................................ 15
Flat Rolling ................................................... 15
Rolling Curves.............................................. 16
Rolling Cylinders .......................................... 17
Removing Workpiece From Rollers ............. 19
Bending Wire/Rods ...................................... 20
Brake Overview............................................ 21
Bend Allowance ........................................... 21
Bending Sheet Metal ................................... 22
Pan/Box Bending ......................................... 23
Shearing ....................................................... 23
INTRODUCTION
We are proud to provide a high-quality owner’s
manual with your new machine!
We
instructions, specifications, drawings, and photographs
contained inside. Sometimes we make mistakes,
but
also
means that
you receive
will be slightly different than what is shown in
the manual
If you find this to be the case, and the difference
between the manual and machine leaves you
confused about a procedure
for an updated version. W
manuals
and
www.grizzly.com
Alternatively, you can call our Technical Support
for help. Before calling, please write down the
Manufacture Date
stamped
into the machine ID label (see below). This information helps us determine if updated documentation is available for your machine.
Email: manuals@grizzly.com
Machine Description
Models T26472Z/G4011Z/T26751Z are designed
to roll, bend, and cut sheet metal. Though each
m a c h i n e c a n c o m p l e t e e a c h o f t h e s e t a s k s ,
the capacities generally increase in relation to the
size of the machine. Additionally, as the machines
increase in size, so do the number of fingers,
creating more available options for box and pan
bending. Refer to the Machine Data Sheet on
Page 4 for individual model specifications.
The slip rollers straighten or form cylinders,
cones, and arcs in sheet metal. The brake creates
bends up to 90° and folds sheet metal into boxes,
pans, or trays. The shear blade moves down past
the fixed table blade to shear the workpiece.
Contact Info
Manual Accuracy
made every effort to be exact with the
our policy of continuous improvement
sometimes the machine
.
, check our website
e post current
manual updates for free on our website at
.
and Serial Number
Grizzly Technical Support
1203 Lycoming Mall Circle
Muncy, PA 17756
Phone: (570) 546-9663
Email: techsupport@grizzly.com
Grizzly Documentation Manager
P.O. Box 2069
Bellingham, WA 98227-2069
Manufacture Date
Serial Number
-2-
T26472Z/G4011Z/T26751Z (Mfd. Since 02/14)
To reduce your risk of
serious injury, read this
entire manual BEFORE
Slip Rollers
Brake Fingers
Brake Finger
Receiver
& Upper Shear
Blade
Identification
Top Roller
Adjustment Knobs
Slip Roll Cover
Hand Crank
Rear Roller
Adjustment
Knob
(1 of 2)
Brake & Shear
Adjustable
Work Stop
Shear
Hold-Down
Bar
Shear Table
Figure 1. Model T26472Z/ G4011Z/T26751Z identification.
Workbench
Mounting
Locations
Blade Bow
G4011Z/T26751Z
T26472Z
T26472Z/G4011Z/T26751Z (Mfd. Since 02/14)
using machine.
-3-
MODEL G4011Z/T26472Z/T26751Z
3-in-1 Sheet Metal Machines
Model Number T26472Z - 12" G4011Z - 30" T26751Z - 42"
Product Dimensions
Weight 155 lbs. 452 lbs. 690 lbs.
Width (side-to-side)/Depth
(front-to-back)/Height
25" x 16
Foot Print (Width/Depth) 14
Shipping Dimensions
Type Wood Crate
Weight 175 lbs. 475 lbs. 730 lbs.
Width (side-to-side)/Depth
(front-to-back)/Height
Main Specifications
Maximum Width 12" 30" 42"
Maximum Thickness Mild Steel 20 Gauge 22 Gauge 20 Gauge
Minimum Reverse Bend
Maximum Height of Pan/Box
Sides
Number of Fingers 4 7 8
Width of Fingers 1", 2", 3", 6" 1", 2", 3", 4", 4", 6", 10" 1", 1
Slip Roll Minimum Cylinder
Diameter
Slip Roll Roller Diameter 1
Slip Roll Wire Sizes
Front Stop Scale Range
Rear Stop Scale Range
Construction
Brake Steel
Frame Steel
Rollers Precision-Ground Hardened Steel
Table Steel
Shear Blades Precision-Ground Hardened Steel
Other Specifications
Country of Origin China
Warranty 1 Year
Serial Number Location Machine ID Label
1
⁄2" x 19" 45" x 28" x 26" 57" x 29" x 28"
1
⁄2" x 141⁄2" 17
1
⁄2" x 33" 451⁄4" x 201⁄8"
26" x 17" x 23" 20" x 46" x 32" 22" x 59" x 35"
3
⁄8"
3
1
⁄4" 23⁄8" 13⁄4"
3
1
⁄8" 15⁄8" 13⁄4"
1
⁄4" 11⁄2" 111⁄16"
1
⁄8", 3⁄16", 1⁄4"
1
⁄2"–16"
1
⁄2"
3
⁄16", 1⁄4", 5⁄16"
1
⁄2"–7"
1
⁄2"–18"
1
⁄2"
1
⁄2", 2", 21⁄2", 4", 6", 10", 15"
3
⁄16", 1⁄4", 5⁄16"
1
⁄2"–18"
-4-
T26472Z/G4011Z/T26751Z (Mfd. Since 02/14)
SECTION 1: SAFETY
For Your Own Safety, Read Instruction
Manual Before Operating This Machine
The purpose of safety symbols is to attract your attention to possible hazardous conditions.
This manual uses a series of symbols and signal words intended to convey the level of importance of the safety messages. The progression of symbols is described below. Remember that
safety messages by themselves do not eliminate danger and are not a substitute for proper
accident prevention measures. Always use common sense and good judgment.
Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury. It may also be used to alert
against unsafe practices.
This symbol is used to alert the user to useful information about
NOTICE
proper operation of the machine.
Safety Instructions for Machinery
OWNER’S MANUAL. Read and understand this
owner’s manual BEFORE using machine.
TRAINED OPERATORS ONLY. Untrained operators have a higher risk of being hurt or killed.
Only allow trained/supervised people to use this
machine. When machine is not being used, disconnect power, remove switch keys, or lock-out
machine to prevent unauthorized use—especially
around children. Make workshop kid proof!
DANGEROUS ENVIRONMENTS. Do not use
machinery in areas that are wet, cluttered, or have
poor lighting. Operating machinery in these areas
greatly increases the risk of accidents and injury.
MENTAL ALERTNESS REQUIRED. Full mental
alertness is required for safe operation of machinery. Never operate under the influence of drugs or
alcohol, when tired, or when distracted.
ELECTRICAL EQUIPMENT INJURY RISKS. You
can be shocked, burned, or killed by touching live
electrical components or improperly grounded
machinery. To reduce this risk, only allow qualified
service personnel to do electrical installation or
repair work, and always disconnect power before
accessing or exposing electrical equipment.
DISCONNECT POWER FIRST.
nect machine from power supply BEFORE making
adjustments, changing tooling, or servicing machine.
This prevents an injury risk from unintended startup
or contact with live electrical components.
EYE PROTECTION. Always wear ANSI-approved
safety glasses or a face shield when operating or
observing machinery to reduce the risk of eye
injury or blindness from flying particles. Everyday
eyeglasses are NOT approved safety glasses.
Always discon-
T26472Z/G4011Z/T26751Z (Mfd. Since 02/14)
-5-
WEARING PROPER APPAREL. Do not wear
clothing, apparel or jewelry that can become
entangled in moving parts. Always tie back or
cover long hair. Wear non-slip footwear to avoid
accidental slips, which could cause loss of workpiece control.
HAZARDOUS DUST. Dust created while using
machinery may cause cancer, birth defects, or
long-term respiratory damage. Be aware of dust
hazards associated with each workpiece material,
and always wear a NIOSH-approved respirator to
reduce your risk.
HEARING PROTECTION. Always wear hearing protection when operating or observing loud
machinery. Extended exposure to this noise
without hearing protection can cause permanent
hearing loss.
REMOVE ADJUSTING TOOLS. Tools left on
machinery can become dangerous projectiles
upon startup. Never leave chuck keys, wrenches,
or any other tools on machine. Always verify
removal before starting!
USE CORRECT TOOL FOR THE JOB. Only use
this tool for its intended purpose—do not force
it or an attachment to do a job for which it was
not designed. Never make unapproved modifications—modifying tool or using it differently than
intended may result in malfunction or mechanical
failure that can lead to personal injury or death!
AWKWARD POSITIONS. Keep proper footing
and balance at all times when operating machine.
Do not overreach! Avoid awkward hand positions
that make workpiece control difficult or increase
the risk of accidental injury.
CHILDREN & BYSTANDERS. Keep children and
bystanders at a safe distance from the work area.
Stop using machine if they become a distraction.
FORCING MACHINERY. Do not force machine.
It will do the job safer and better at the rate for
which it was designed.
NEVER STAND ON MACHINE. Serious injury
may occur if machine is tipped or if the cutting
tool is unintentionally contacted.
STABLE MACHINE. Unexpected movement during operation greatly increases risk of injury or
loss of control. Before starting, verify machine is
stable and mobile base (if used) is locked.
USE RECOMMENDED ACCESSORIES. Consult
this owner’s manual or the manufacturer for recommended accessories. Using improper accessories will increase the risk of serious injury.
UNATTENDED OPERATION. To reduce the
risk of accidental injury, turn machine OFF and
ensure all moving parts completely stop before
walking away. Never leave machine running
while unattended.
MAINTAIN WITH CARE. Follow all maintenance
instructions and lubrication schedules to keep
machine in good working condition. A machine
that is improperly maintained could malfunction,
leading to serious personal injury or death.
CHECK DAMAGED PARTS. Regularly inspect
machine for any condition that may affect safe
operation. Immediately repair or replace damaged
or mis-adjusted parts before operating machine.
MAINTAIN POWER CORDS. When disconnecting cord-connected machines from power, grab
and pull the plug—NOT the cord. Pulling the cord
may damage the wires inside. Do not handle
cord/plug with wet hands. Avoid cord damage by
keeping it away from heated surfaces, high traffic
areas, harsh chemicals, and wet/damp locations.
GUARDS & COVERS. Guards and covers reduce
accidental contact with moving parts or flying
debris. Make sure they are properly installed,
undamaged, and working correctly.
-6-
EXPERIENCING DIFFICULTIES. If at any time
you experience difficulties performing the intended operation, stop using the machine! Contact our
Technical Support at (570) 546-9663.
T26472Z/G4011Z/T26751Z (Mfd. Since 02/14)
Additional Safety for 3-in-1
Sheet Metal Machines
Serious injury or death can occur from getting body parts crushed or amputated by shear blades,
brake fingers, or rollers. Severe cuts can occur from contact with workpiece edges. To minimize
the risk of getting hurt or killed, anyone operating this machine MUST completely heed the
hazards and warnings below.
AMPUTATION/PINCHING HAZARD. This
machine can quickly crush or amputate fingers,
hands, or body parts. Never place fingers, hands,
or body parts between or near the rollers, brake
fingers, clamping bar, or shear blades when operating.
RATED CAPACITY. Only workpieces that are within the rated gauge capacity can be processed with
this machine (refer to the Machine Data Sheet on
Page 4). DO NOT use any sort of “cheater” bar or
pipe on the hand crank.
SHARP METAL EDGES. Sharp edges on sheet
metal workpieces can easily cause deep cuts
while handling. Wear leather gloves to help protect
your hands, and always chamfer and debur sharp
workpiece edges.
USAGE. To avoid personal injury or property
damage, always use each component of machine
for its intended purposes, and DO NOT modify
machine in any way.
SECURE MACHINE BEFORE USE. Before using,
fasten machine to a sturdy surface that can withstand the dynamic forces involved in cutting and
forming sheet metal. Otherwise, machine may
unexpectedly move or fall, causing serious injury
or property damage.
SHEAR BLADES/BRAKE FINGERS. If not properly aligned, shear blades or brake fingers can
ruin workpieces and machine parts or result in
unexpected movement of workpieces. ALWAYS
keep these parts properly adjusted and in good
working condition for best results and predictable
performance.
STABLE FOOTING. This machine requires operator to apply moderate force, especially while using
shear. Without stable footing, operator could slip or
fall, resulting in personal injury. Always stand with
both feet comfortably on a non-slip surface during
operation.
Like all machinery there is potential danger
when operating this machine. Accidents
are frequently caused by lack of familiarity
or failure to pay attention. Use this machine
with respect and caution to decrease the
risk of operator injury. If normal safety precautions are overlooked or ignored, serious personal injury may occur.
T26472Z/G4011Z/T26751Z (Mfd. Since 02/14)
No list of safety guidelines can be complete. Every shop environment is different.
Always consider safety first, as it applies
to your individual working conditions. Use
this and other machinery with caution and
respect. Failure to do so could result in
serious personal injury, damage to equipment, or poor work results.
-7-
SECTION 2: SETUP
Your machine was carefully packaged for safe
transportation. Remove the packaging materials
from around your machine and inspect it. If you
discover any damage, please call us immediately
at (570) 546-9663
Save the containers and all packing materials for
possible inspection by the carrier or its agent.
Otherwise, filing a freight claim can be difficult.
When you are completely satisfied with the condition of your shipment, inventory the contents.
Keep children and pets away
from plastic bags or packing
materials shipped with this
Unpacking
for advice.
SUFFOCATION HAZARD!
Needed for Setup
The following are needed to complete the setup
process, but are not included with this machine.
Description Qty
• Safety Glasses ........................................... 1
• Cleaner/Degreaser ..................... As Needed
• Disposable Shop Rags ............... As Needed
• Forklift ......................................................... 1
• Mounting Hardware (Page 12) ... As Needed
machine. Discard immediately.
-8-
T26472Z/G4011Z/T26751Z (Mfd. Since 02/14)
Inventory
The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.
If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.

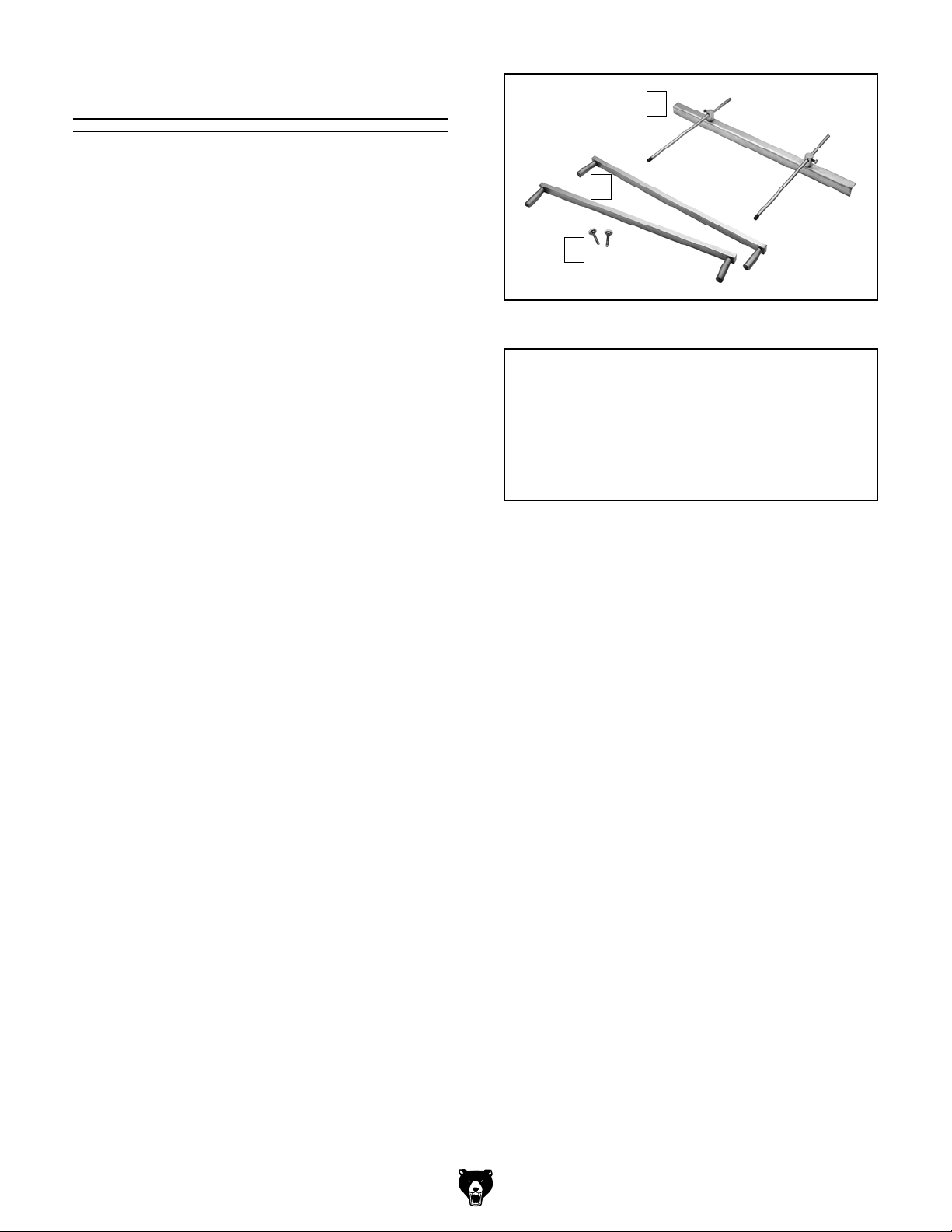

Machine Inventory (Figure 2) Qty
A. Shear & Brake Rear Work Stop ................. 1
B. Crank Handles ............................................ 2
C. Crank Handle Lock Knobs ......................... 2
D. Hex Wrenches: (Not Shown)
—4mm ........................................................ 1
—5mm ........................................................ 1
—6mm ........................................................ 1
—8mm (T26751Z Only) .............................. 1
—10mm ...................................................... 1
—12mm (G4011Z Only) .............................. 1
A
B
C
Figure 2. Component inventory.
NOTICE
If you cannot find an item on this list, carefully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpacking or they are pre-installed at the factory.
T26472Z/G4011Z/T26751Z (Mfd. Since 02/14)
-9-

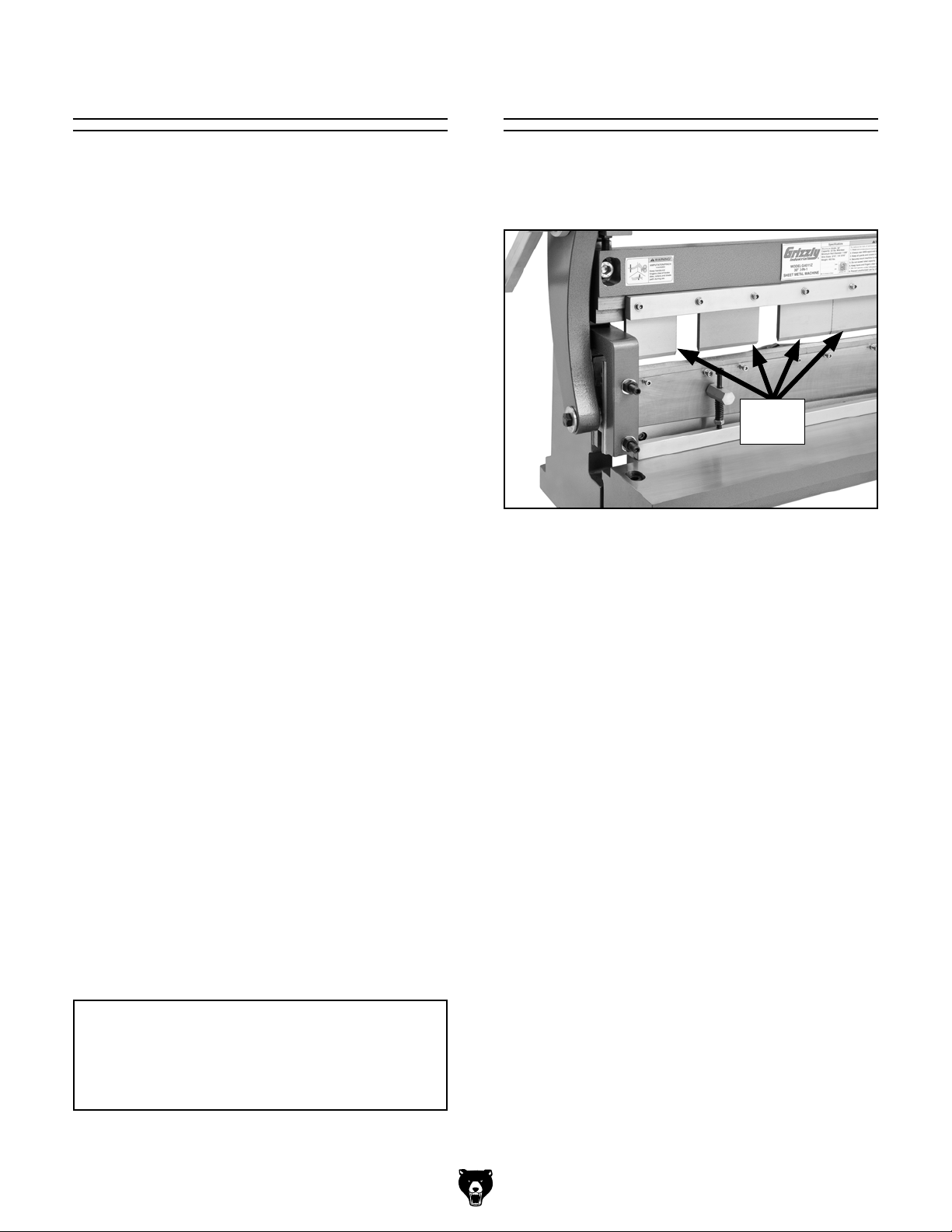

Cleanup
The unpainted surfaces of your machine are
coated with a heavy-duty rust preventative that
prevents corrosion during shipment and storage.
This rust preventative works extremely well, but it
will take a little time to clean.
Be patient and do a thorough job cleaning your
machine. The time you spend doing this now will
give you a better appreciation for the proper care
of your machine's unpainted surfaces.
There are many ways to remove this rust preventative, but the following steps work well in a wide
variety of situations. Always follow the manufacturer’s instructions with any cleaning product you
use and make sure you work in a well-ventilated
area to minimize exposure to toxic fumes.
Before cleaning, gather the following:
•
•
•
•
Basic steps for removing rust preventative:
1.
2.
amount of cleaner/degreaser, then let it soak
3. Wipe off the surfaces. If your cleaner/degreas-
off easily. If you have a plastic paint scraper,
scrape off as much as you can first, then wipe
4.
then coat all unpainted surfaces with a quality
Avoid chlorine-based solvents, such as
Cleaning Fingers
The brake fingers (see Figure 3) are coated with
rust preventative that should be removed before
beginning operation.
Disposable Rags
Cleaner/degreaser (WD•40 works well)
Safety glasses & disposable gloves
Plastic paint scraper (optional)
Put on safety glasses.
Coat the rust preventative with a liberal
for 5–10 minutes.
er is effective, the rust preventative will wipe
off the rest with the rag.
Brake
Fingers
Figure 3. Brake fingers.
Although the rust preventative was applied only to
the visible surfaces of the fingers, some may have
worked in-between and underneath them. We
recommend that you remove all of the fingers to
thoroughly clean them. In addition to being messy,
the rust preventative effects the precision of finger
adjusting and spacing, which may lead to slight
inaccuracies in finished workpieces.
If you do remove the fingers, make sure you properly align them as described in the Replacing/
Seating Fingers subsection on Page 28 after
re-installing.
Repeat Steps 2–3 as necessary until clean,
metal protectant to prevent rust.
NOTICE
acetone or brake parts cleaner, that may
damage painted surfaces.
-10 -
T26472Z/G4011Z/T26751Z (Mfd. Since 02/14)
Site Considerations
Refer to the Machine Data Sheet for the weight
and footprint specifications of your machine.
Some workbenches may require additional reinforcement to support the weight of the machine
and workpiece materials.
Consider anticipated workpiece sizes and additional space needed for auxiliary stands, work
tables, or other machinery when establishing a
location for this machine in the shop. Below is
the minimum amount of space needed for the
machine.
Workbench Load
Placement Location
HEAV Y LIFT!
Straining or crushing injury
may occur from improperly
lifting machine or some of
its parts. To reduce this risk,
get help from other people
and use a forklift (or other
lifting equipment) rated for
weight of this machine.
17"
25"

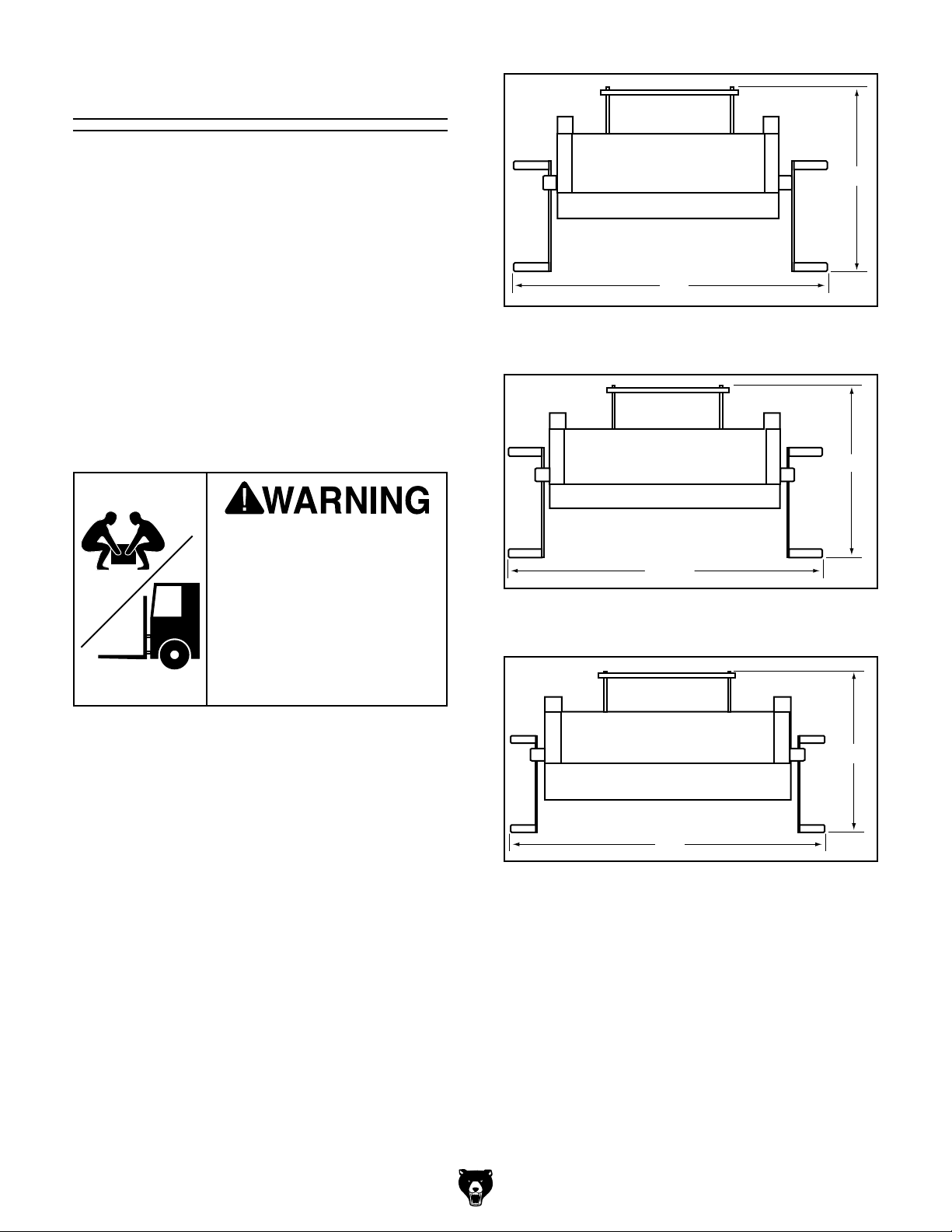

Figure 4. Model T26472Z minimum working
clearances.
31"
1
2
44
⁄
"
Figure 5. Model G4011Z minimum working
clearances.
T26472Z/G4011Z/T26751Z (Mfd. Since 02/14)
32"
57"
Figure 6. Model T26751Z minimum working
clearances.
-11-
Bench Mounting
Another option is a "Direct Mount" (see example
below) where the machine is secured directly to
the workbench with lag screws and washers.
The base of this machine has mounting holes
that allow it to be fastened to a workbench or
other mounting surface to prevent it from moving
during operation and causing accidental injury or
damage.
The strongest mounting option is a "Through
Mount" (see example below) where holes are
drilled all the way through the workbench—and
hex bolts, washers, and hex nuts are used to
secure the machine in place.
Number of Mounting Holes ............................ 4
Diameter of Mounting Hardware Needed:
G4011Z ...........................................................
T26472Z .........................................................
T26751Z .........................................................
3
⁄8"
1
⁄4"
3
⁄8"
Lag Screw
Flat Washer
Machine Base
Workbench
Figure 8. Example of "Direct Mount" setup.
Hex
Bolt
Flat Washer
Machine Base
Workbench
Figure 7. Example of "Through Mount" setup.
Flat Washer
Lock Washer
Hex Nut
-12-
T26472Z/G4011Z/T26751Z (Mfd. Since 02/14)

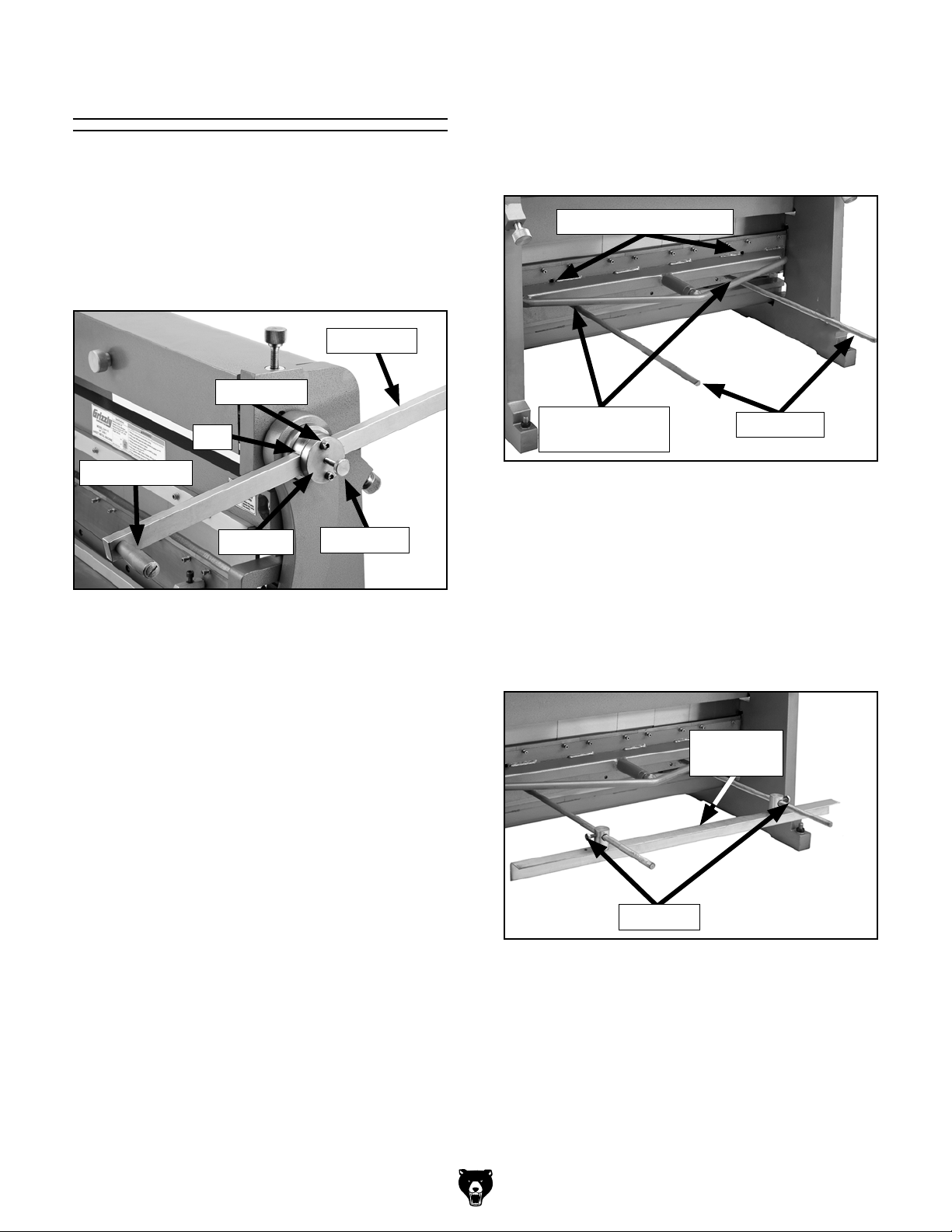

Assembly
Models T26472Z, G4011Z, and T26751Z are all
packaged, shipped, and assembled the same
way. The only difference during assembly is the
size of cap screws used to secure the end cap on
each model. Familiarize yourself with the components and fasteners shown in Figure 9 to assist
in machine assembly.
Crank Arm
Cap Screw
5. Thread work stop rods into either brake
or shear mounting holes (see Figure 10),
depending on operation to be performed.
Only hand-tighten these rods—over-tightening will make removal difficult.
Brake Mounting Holes
Hub
Crank Handle
End Cap
Figure 9. Crank assembly components and
fasteners identification.
To assemble machine:
1. Remove one cap screw from end cap, loosen
other cap screw, and rotate end cap out of
way. Back pre-installed lock knob out so that
it is flush with end cap.
2. Insert crank arm into slot in crank handle hub,
rotate end cap back into place, re-install cap
screw, then tighten both cap screws.
Lock Knob
Shear Mounting
Holes
Figure 10. Work stop rods secured in shear
mounting holes.
6. Loosen hex bolts threaded into rear support
bracket on work stop bar. Slide work stop bar
onto work stop rods.
7. Position work stop bar parallel with shear
blades and tighten hex bolts to secure it
(see Figure 11).
Stop Rods
Work Stop
Bar
3. Tighten lock knob.
4. Repeat Steps 1–3 to install remaining crank
handle on other side of machine.
T26472Z/G4011Z/T26751Z (Mfd. Since 02/14)
Hex Bolts
Figure 11. Workstop bar secured with hex bolts.
-13-
SECTION 3: OPERATIONS
To reduce your risk of
serious injury, read this
entire manual BEFORE
Eye injury hazard! Always
wear safety glasses when
Slip Roll Overview
The slip roll is used to flatten or form cylinders,
using machine.
cones, and arcs in mild sheet metal, as well as
wires and rods. Refer to the Machine Data Sheet
on Page 4 for individual machine specifications
and workpiece capacities.
Damage to your eyes and
hands could result from
using this machine without proper protective gear.
Always wear leather gloves
and safety glasses, when
operating this machine.
If you are not experienced with this type
of machine, WE STRONGLY RECOMMEND
that you seek additional training outside of
this manual. Read books/magazines or get
formal training before beginning any projects. Regardless of the content in this section, Grizzly Industrial will not be held liable
for accidents caused by lack of training.
The work of a slip roll is accomplished by feeding
the workpiece between steel rollers to produce
the desired results. Two of the three rollers can
be adjusted by the operator to accept different
workpiece thicknesses and produce a variety of
different work results. Refer to Figures 12–13 for
identification of slip roll components and controls.
Thickness Adjustment
Top Roller
Feed
Direction
Bottom
Roller

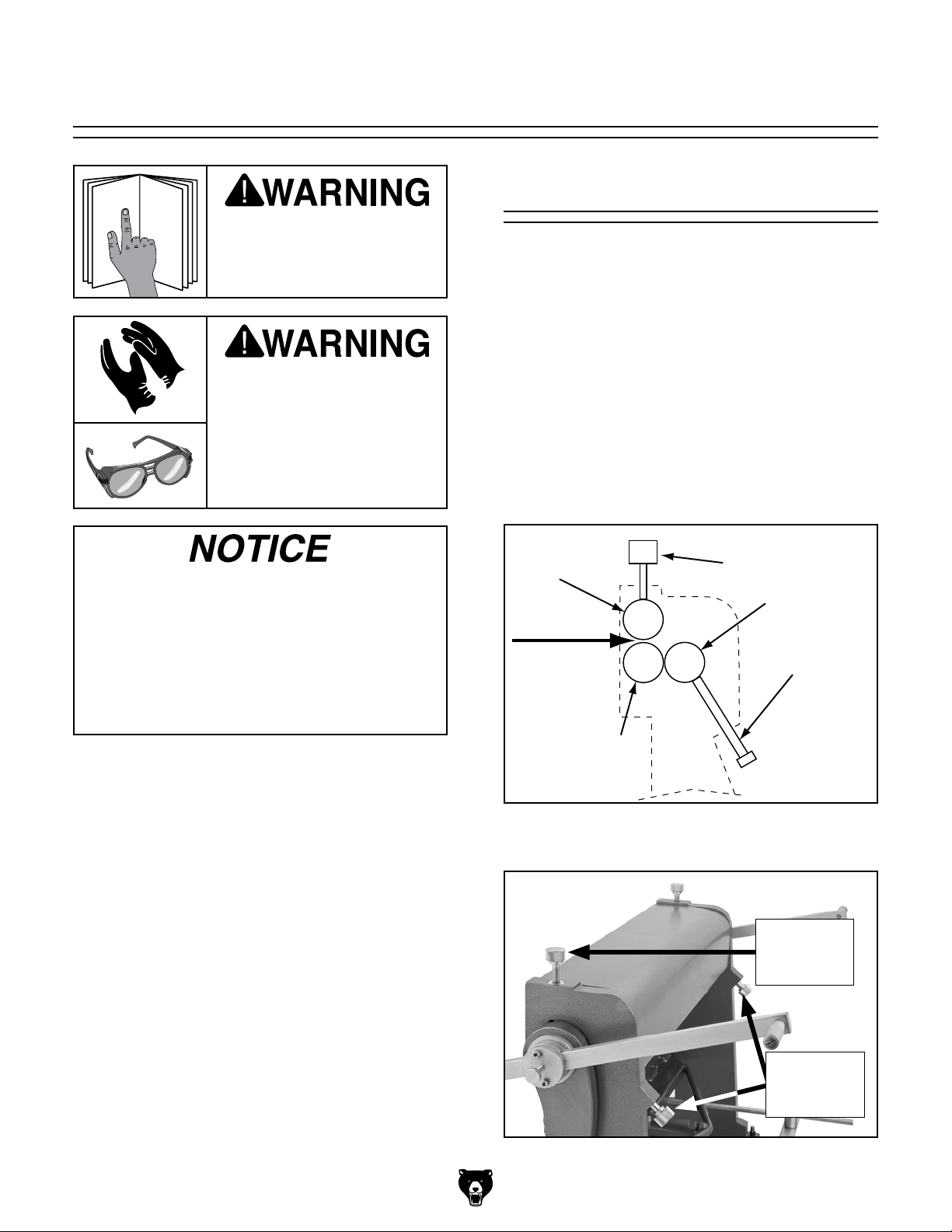

Figure 12. Identification of slip roll controls and
main components.
Knob
Rear Roller
Diameter
Adjustment
Knob
-14-
Thickness
Adjustment
Knobs
Diameter
Adjustment
Knobs
Figure 13. Slip roll adjustment controls.
T26472Z/G4011Z/T26751Z (Mfd. Since 02/14)

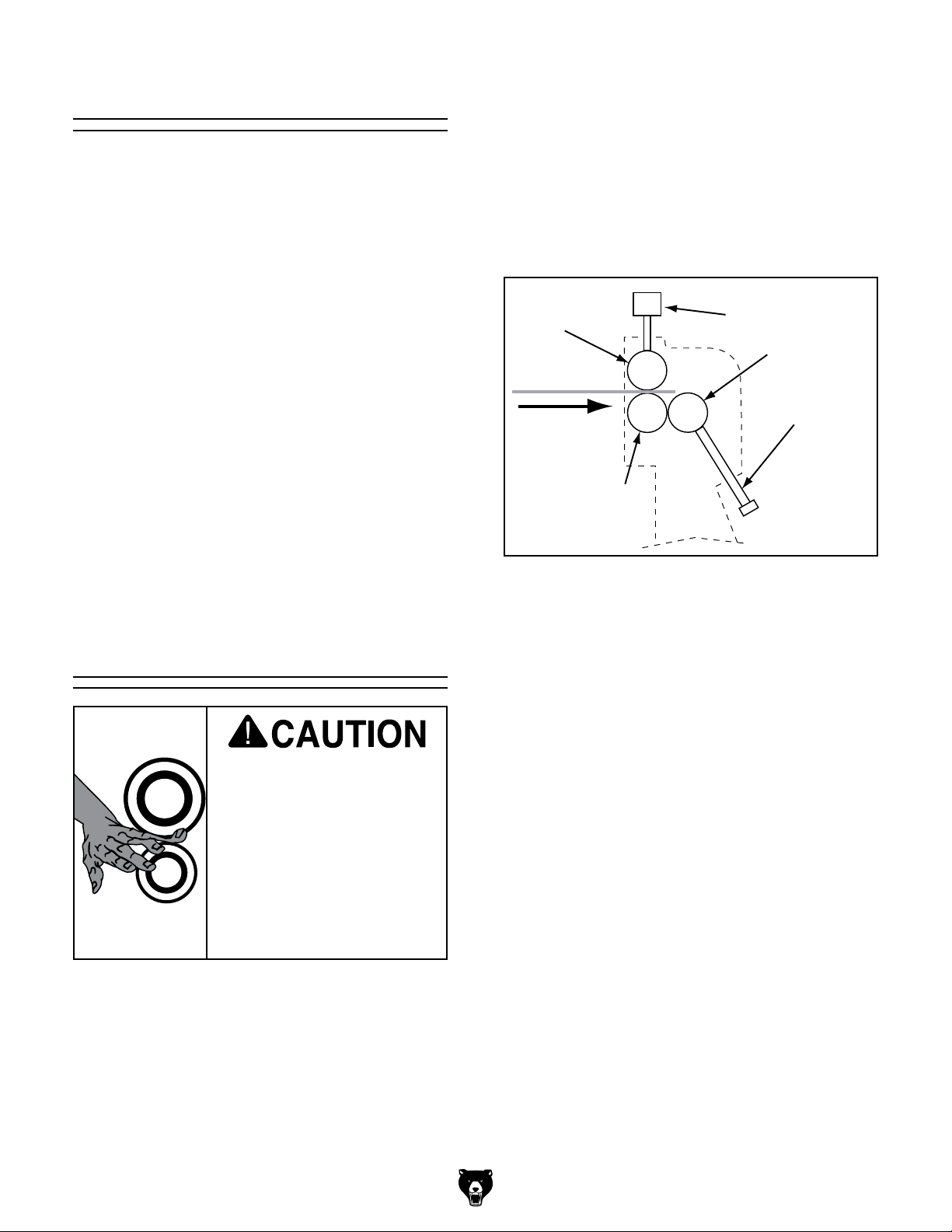

Slip Roll Tips
Note: Once a workpiece has been sharply
creased or bent, it cannot be straightened using
this slip roll.
• Due to the many variables of different sheet
metal types, no single configuration of the
rollers will create the same curve on all materials. Rolling sheet metal to achieve an exact
radius is a trial-and-error process.
• Best results are usually achieved by performing multiple passes while gradually reducing
the curve radius with each pass—rather than
trying to make the curve in one pass.
• To avoid pitted workpieces and damage to
roller surfaces, always make sure workpiece
and rollers are free of grit and any foreign
material before every use.
• When creating cylindrical workpieces, always
keep the rear roller parallel with front rollers
by rotating the diameter adjustment knobs
same amount. Otherwise, coned workpieces
will be formed that are difficult to straighten
out.

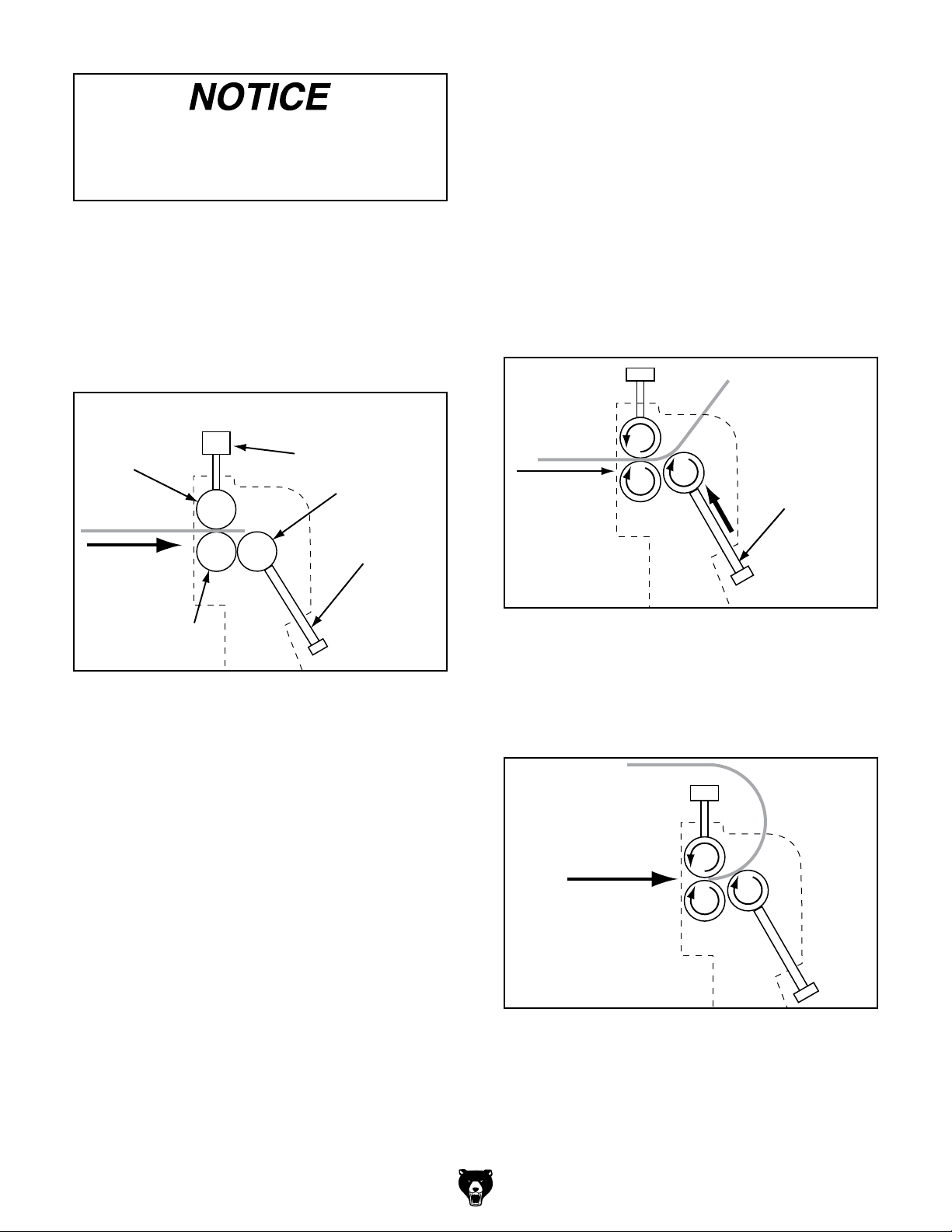

To flat roll a workpiece:
1. Use diameter adjustment knobs to lower rear
roller until it is level with bottom roller, as illustrated in Figure 14.
Thickness Adjustment
Top Roller
Workpiece
Feed
Direction
Bottom
Roller
Figure 14. Diameter adjustment knob.
Knob
Rear Roller
Diameter
Adjustment
Knob
Flat Rolling
The rollers present a serious pinching hazard.
Always keep hands/fingers
at least 6" away from rollers
during operation. Failure
to follow this warning may
result in fingers, hair, or
clothing being pulled into
the machine, causing personal injury.
This slip roll can be used to "flat roll" sheet metal.
This can be done to straighten sheet metal that is
slightly out of form.
2. Turn both thickness adjustment knobs counterclockwise until you can insert workpiece
between top and bottom rollers.
3. Evenly lower thickness adjustment knobs
until you feel resistance and workpiece is
held firmly between rollers.
4. Remove workpiece and evenly rotate thickness adjustment knobs
create additional pressure on workpiece.
5. Re-insert workpiece and use hand crank to
draw workpiece through machine.
Note: Have an assistant support long
workpieces as they leave machine so they do
not bend from sagging as they exit the rollers.
6. Repeat Steps 3–5 until desired results are
produced.
1
⁄4 turn clockwise to
Unless otherwise instructed, make all roller adjustments the same on each side to produce symmetrical workpieces.
T26472Z/G4011Z/T26751Z (Mfd. Since 02/14)
-15-
Rolling Curves
This machine can easily create symmetrical
or cone shaped curves. To create symmetrical
curves, make equal adjustments with diameter
adjustment knobs. For cones, rotate one adjustment knob more than the other. Refer to the
Machine Data Sheet on Page 4 for the maximum
thickness or gauge of material your particular
model can handle.
The method of creating a specific radius requires
a trial-and-error process. Due to the many variations among different types of sheet metal
workpieces, no single configuration of the rollers
will reproduce the same curve in all materials. We
recommend testing roller configurations on scrap
pieces that are the same dimension and material
as the final workpiece.

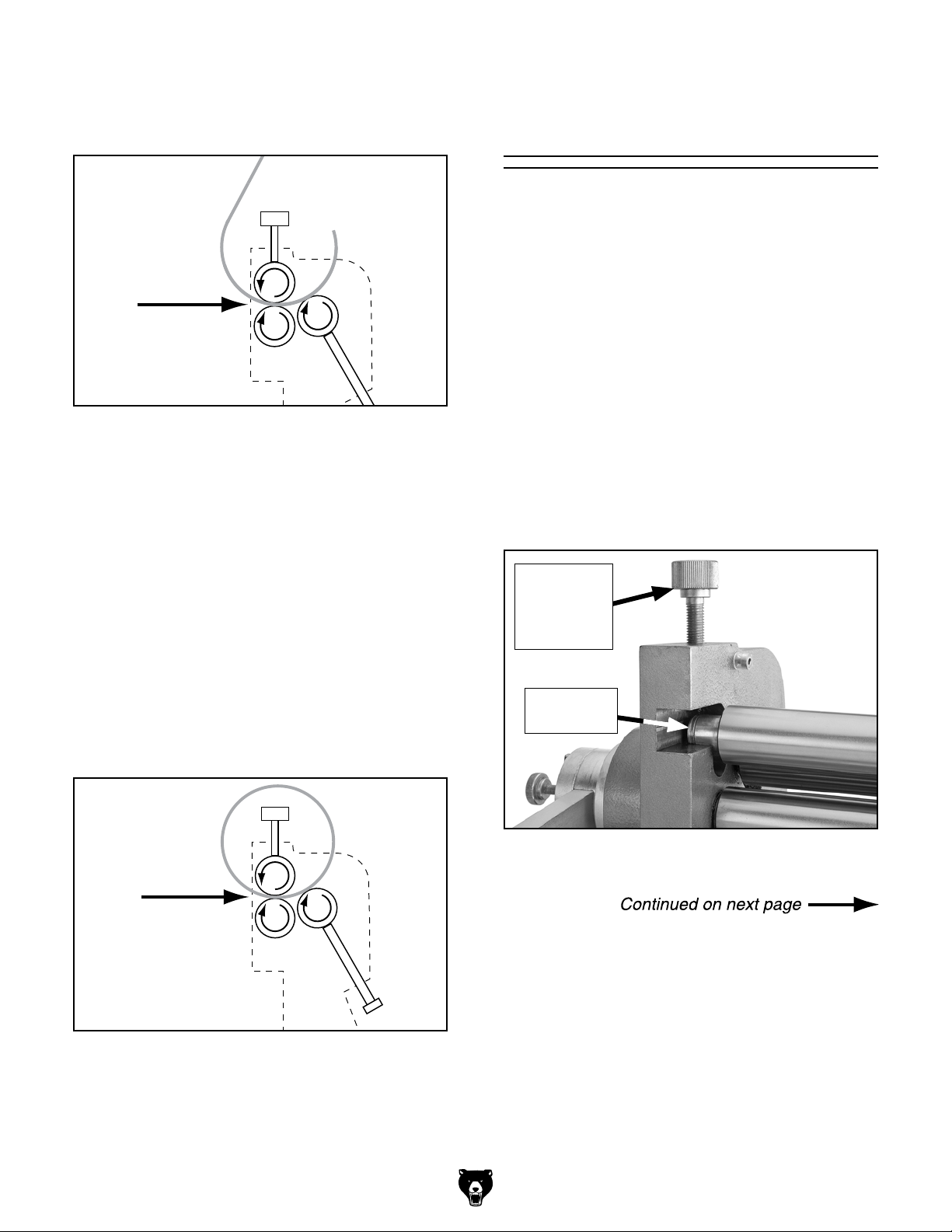

2. Insert workpiece between top and bottom
rollers and just over rear roller, as illustrated
in Figure 16.
Thickness Adjustment
Knob
Workpiece
Figure 16. Workpiece inserted between top and
bottom roller and centered over rear roller.
To create a curve in the workpiece:
1. Use diameter adjustment knobs to lower rear
roller until it is even with bottom roller (see
Figure 15). Rotate thickness adjustment
knobs counterclockwise until top roller can be
lifted enough to insert workpiece.
Thickness Adjustment
Top Roller
Workpiece
Feed
Direction
Bottom
Roller
Figure 15. Rear roller lowered so it is even with
bottom roller.
Knob
Rear Roller
Diameter
Adjustment
Knob
3. Evenly rotate both thickness adjustment
knobs clockwise until workpiece is firmly
secured.
4. Use diameter adjustment knobs to raise rear
roller (see Figure 17).
Workpiece
Diameter
Adjustment
Knob
Figure 17. Rear roller slightly raised to start
curve.
Performing multiple passes while gradually reducing curve radius produces better
results than trying to make curve in just one
or two passes.
-16 -
T26472Z/G4011Z/T26751Z (Mfd. Since 02/14)
5. Pass workpiece through machine using hand
crank to create curve (see Figure 18).
Rolling Cylinders
Note: For best results, make first bend
about 25% of final radius and increase bend
approximately 25% each successive pass
until final radius has been achieved.
Initial Flat
Workpiece
Figure 18. Workpiece fed through rollers to
create curved workpiece.
Note: If workpiece has an undesired initial
flat, as illustrated in Figure 18, you can
remove it by flipping workpiece around and
passing it through front of machine so initial
flat enters last.
This machine can roll flat workpieces into cylinders. Use the formula below to calculate the
length of material needed to create a cylinder from
a piece of flat stock.
C=Circumference
(Length of Material Needed)
π=Pi (Approximately 3.14)
D=Diameter
Example: To create a 6" diameter cylinder, use
the above formula as follows:
C=πD
C=3.14 x 6"
C=18
The result indicates that you need to start with
a piece of sheet metal approximately 18
in order to create a 6" diameter cylinder (see
Figure 19).
7
⁄8"
C=πD
7
⁄8" long
6. Slightly tighten diameter adjustment knobs in
even amounts, then pass workpiece through
rollers again.
Note: To make a cone, rotate one adjustment
knob more than the other.
7. Repeat Step 5 until you have produced
desired curve.
C=�D
C=3.14 x 6"
7
⁄8"
C=18
6" Dia.
Workpiece
187⁄8" Circumference
Figure 19. Calculating circumference example.
T26472Z/G4011Z/T26751Z (Mfd. Since 02/14)
-17-
Performing multiple passes while gradually reducing curve radius produces better
results than trying to make curve in just one
or two passes.
To create a cylinder:
1. Use diameter adjustment knobs to lower rear
roller even with bottom roller (see Figure 20).
Rotate thickness adjustment knobs counterclockwise until top roller is raised enough to
insert workpiece.
4. Turn diameter adjustment knobs clockwise
to lift rear roller until desired bend radius is
reached, as illustrated in Figure 21. Always
turn diameter adjustment knobs in equal
amounts so rear roller remains parallel with
front rollers, or there will be a larger radius
on one end of the workpiece than the other,
resulting in a cone shape.
Note: Always err on the side of making the
radius too large rather than too small. It is
easy to the decrease radius but very difficult
to increase it later.
Thickness Adjustment
Top Roller
Workpiece
Feed
Direction
Bottom
Roller
Knob
Rear Roller
Diameter
Adjustment
Knob

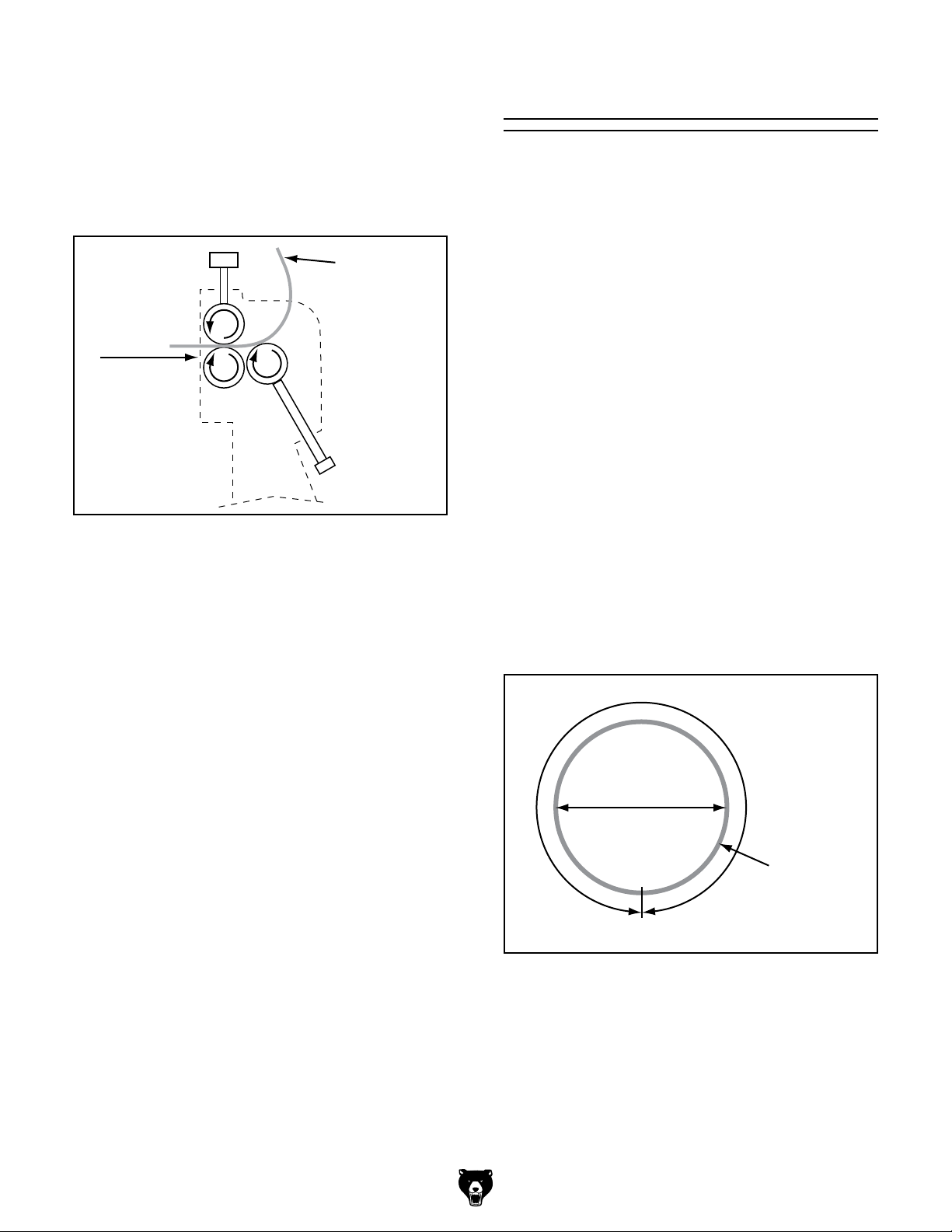

Figure 20. Rear roller lowered so it is even with
bottom roller.
2. Evenly lower thickness adjustment knobs
until you feel resistance and workpiece is
firmly held between rollers.
3. Turn hand crank clockwise to feed workpiece
through machine until it is approximately half
way through top and bottom rollers.
Workpiece
Diameter
Adjustment
Knob
Figure 21. Making initial bend to create cylinder.
5. Turn hand crank to feed material through
slip roll. Continue turning until workpiece is
completely through top and bottom rollers, as
illustrated in Figure 22.
Feed
Direction
-18-
Figure 22. Finishing first pass.
T26472Z/G4011Z/T26751Z (Mfd. Since 02/14)
6. Rotate workpiece 180°, insert curved end
into rollers, then feed it through machine, as
illustrated in Figure 23.
Feed
Direction
Figure 23. Curving workpiece by feeding
opposite end first.
7. Repeat Steps 4–6 until you have produced
the desired cylinder (see Figure 24).
—If ends of cylinder do not meet, raise rear
roller equally at both ends, then feed entire
cylinder through slip roll again. Repeat as
necessary.
—If ends of cylinder overlap, remove cylinder
as described in Removing Workpiece
From Rollers. Then, either attempt to
increase radius by manually bending it, or
scrap workpiece and start procedure again
with new blank.
Removing Workpiece
From Rollers
Once a curved piece has been formed, it can be
difficult to remove it from the top roller without
deforming the created curve. Additionally, it also
presents a safety hazard. To overcome this, all
these machines are equipped with a quick release
top roller to ease the removal of workpieces.
To remove workpiece from top roller:
1. Rotate left thickness adjustment knob coun-
terclockwise until top roller can be released,
as shown in Figure 25.
Model T26472Z Only: Both left and right
thickness adjustment knobs need to be rotated counterclockwise to release/secure top
roller.
Left
Thickness
Adjustment
Knob
Top Roller
Unlocked
Feed
Direction
Figure 24. Cylinder completed.
8. When cylinder is complete, refer to Removing
Workpiece From Rollers for detailed instruc-
tions on removing cylinder from top roller.
T26472Z/G4011Z/T26751Z (Mfd. Since 02/14)
Figure 25. Thickness adjustment knob rotated to
unlock top roller.
-19 -
2. Protect your hands from sharp edges of
workpiece, then grasp top roller and use
moderate force to pull loose end out
(see Figure 26).
Loose End

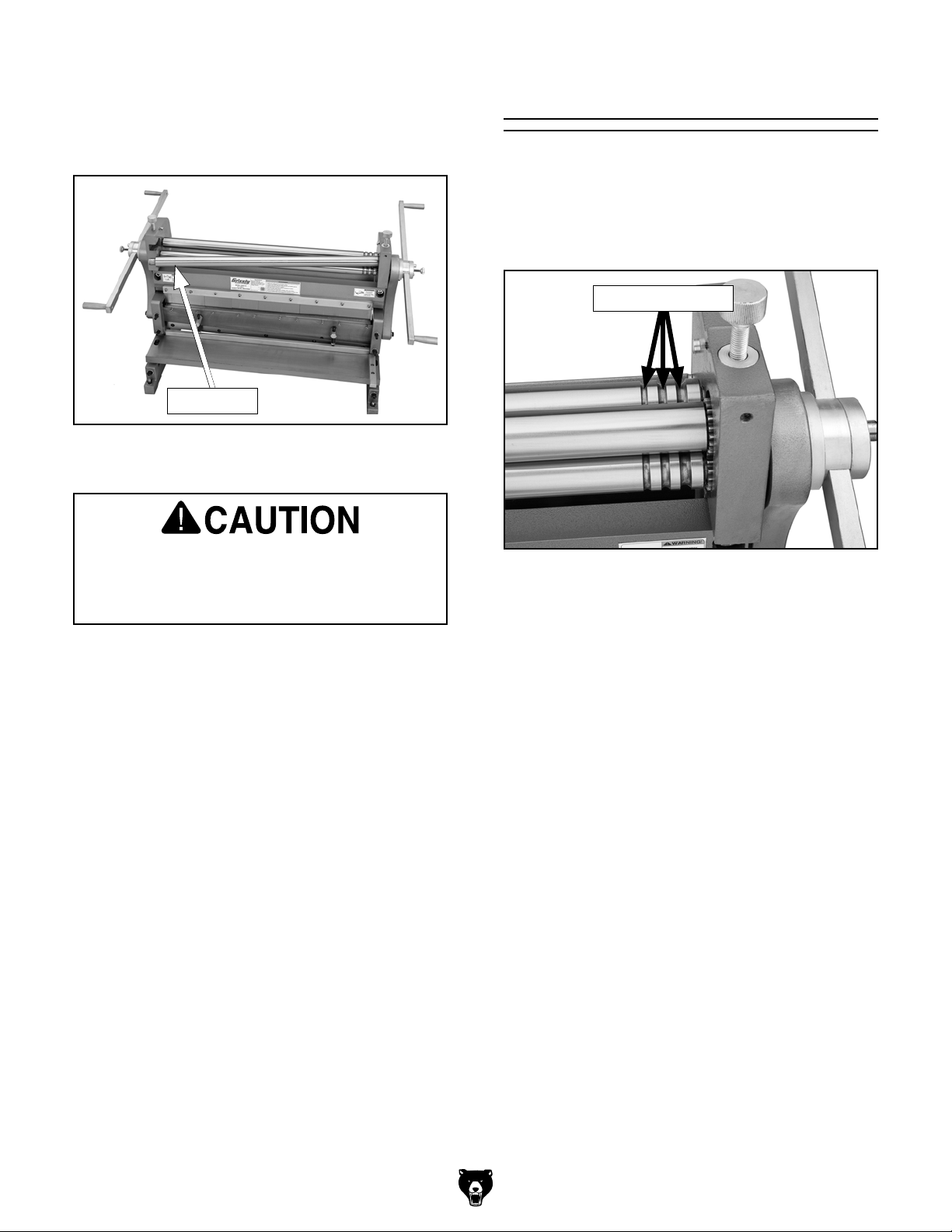

Figure 26. Top roller released (shown without a
workpiece for photo clarity).
Bending Wire/Rods
This machine can bend wires, rods, and smalldiameter tubing using built-in bending grooves on
the rollers (see Figure 27). Check the Machine
Data Sheet on Page 4 to determine the bending
groove sizes of your particular model.
Bending Grooves
Sharp edges of sheet metal can quickly cut
your hands. Always use caution and wear
heavy leather gloves when handling sheet
metal.
3. Remove workpiece.
4. Slide top roller back into place, then secure
roller by rotating left thickness adjustment
knob clockwise until top roller cannot pull out
of place.
Figure 27. Location of slip roller bending
grooves.
To ensure even pressure on the workpiece material, place it in the smallest possible groove. For
example, on Model G4011Z, an
into any of the bending grooves, however, you
would use the
possible groove that rod will fit into.
Feed the workpiece material through the machine
in the same manner described on the previous
pages for sheet metal.
Note: The bending grooves can also be used
when rolling sheet metal that has a wire bead on
the side.
3
⁄16" groove since it is the smallest
1
⁄8" rod would fit
-20-
T26472Z/G4011Z/T26751Z (Mfd. Since 02/14)
Bending Sheet Metal
This machine can make up to 90° bends in sheet
metal. Refer to the Machine Data Sheet on Page
4 to determine the workpiece capacities of your
particular model. When you use the hand crank,
the brake fingers force the workpiece into the
groove of the finger receiver to make the desired
bend (see Figures 28–29).
Brake
Finger
When metal is bent, the outside overall dimension
increases from its original length—this amount is
called the bend allowance. A typical bend allowance for a 90° bend in a 22-gauge mild steel
workpiece is approximately 0.050". That means
you need to start with a workpiece that is approximately 0.050" shorter than the desired outside
length of the finished workpiece, as illustrated in
Figure 30.
Desired Workpiece Length After Bend = 2"
2" - 0.050" = 1.950"
Length of Initial Blank
Workpiece
Finger
Receiver
Figure 28. Side profile of brake fingers and
receiver making 90° bend in workpiece.
Finger
Receiver
Figure 29. Identifying brake fingers and receiver
on machine (G4011Z shown).
0.050" Bend Allowance
To Be Subtracted from 2"
A
Finished Workpiece
B
Figure 30. Example of accounting for bend
allowance.
Calculating the bend allowance requires factoring in many variables, such as metal thickness,
type of material, radius of the bend, etc. Detailed
information for calculating the bend allowance can
be found in metalworking handbooks and on the
internet.
One way to calculate bend allowance for any
workpiece is to measure a piece of scrap material
that is the same material as the workpiece, create
the same bend intended for the workpiece, then
measure it again. The difference between the
two measurements is the bend allowance, which
you subtract from the dimension of the workpiece
blank before the bend.
A + B = 2"
T26472Z/G4011Z/T26751Z (Mfd. Since 02/14)
-21-
The brake fingers are a
pinch hazard. Keep hands/
fingers at least 6" away from
brake fingers when bending
sheet metal. Never reach
between brake fingers and
receiver unless they are
blocked from closing.
To bend sheet metal:
1. Mark a line on workpiece where it will be
bent.
2. Insert workpiece and use hand crank to lower
finger receiver, aligning line on workpiece
with tips of fingers, as shown in Figure 31.
Tip: To reduce the chance of scoring the workpiece
when using the brake, always keep the fingers
and receivers clean, lubricated, and free of burrs
or other blemishes. Also, apply a strip of sturdy
tape along the top and bottom of the bend line.
3. While holding workpiece steady, use hand
crank to perform bend (see Figure 32 for an
example).
Note: Use rear work stop to save time when
bending multiple workpieces that are the
same size.
Figure 32. Bending workpiece.
4. If a reverse bend is required, re-install
workpiece upside-down, as shown in Figure
33, and repeat Steps 2–3. (Refer to Machine
Data Sheet on Page 4 to determine minimum
reverse bend of your particular model.)
Figure 31. Positioning workpiece for bend.
-22-
Figure 33. Minimum reverse bend.
T26472Z/G4011Z/T26751Z (Mfd. Since 02/14)
Pan/Box Bending
Shearing
The fingers can be spaced apart for clearance when making pans or boxes. This requires
removing one or more of the fingers so that you
can space the others to match the width of the
pan or box, as shown in Figure 34. (Refer to the
Machine Data Sheet on Page 4 for the maximum height of pan/box sides of your particular
machine.)
Fingers Removed
Guide
This machine has a set of reversible blades that
shear mild steel. (Refer to the Machine Data
Sheet on Page 4 for the shearing capacity of your
particular machine.)
When you use the hand crank to shear, the upper
moveable shear blade lowers past the fixed shear
blade, creating a shearing action (see Figures
35–36). For repetitive cuts, use the adjustable
rear work stop.
Practice cuts should be taken on scrap-pieces
before making cuts on intended workpieces to
ensure correct blade gap. If the practice-piece
shows signs of bending, ripping, or tearing or
the blades are unable to pass by each other,
the blade gap will need to be adjusted. (Refer
to Adjusting Shear Blade Gap on Page 30 for
detailed instructions).
Hold-Down Bar
Figure 34. Fingers spaced apart for box/pan
bending.
Tools Needed Qty
5mm Hex Wrench .............................................. 1
To space fingers apart:
1. Loosen cap screws securing leaf fingers
needing to be removed.
2. Pull fingers off guide and set aside.
Note: Mix and match finger widths to equal
width of pan/box opening.
3. Loosen cap screws securing fingers needing to be moved, slide them across guide so
that there is adequate room for workpiece on
both sides, then retighten cap screws.
Moveable
Shear
Workpiece
Table
Figure 35. Side profile of shear components.
Hold-Down
Bar
Fixed
Shear
Blade
Blade
Fixed
Shear
Blade
Moveable
Shear
Blade
T26472Z/G4011Z/T26751Z (Mfd. Since 02/14)
Figure 36. Example of shearing components
(side view).
-23-

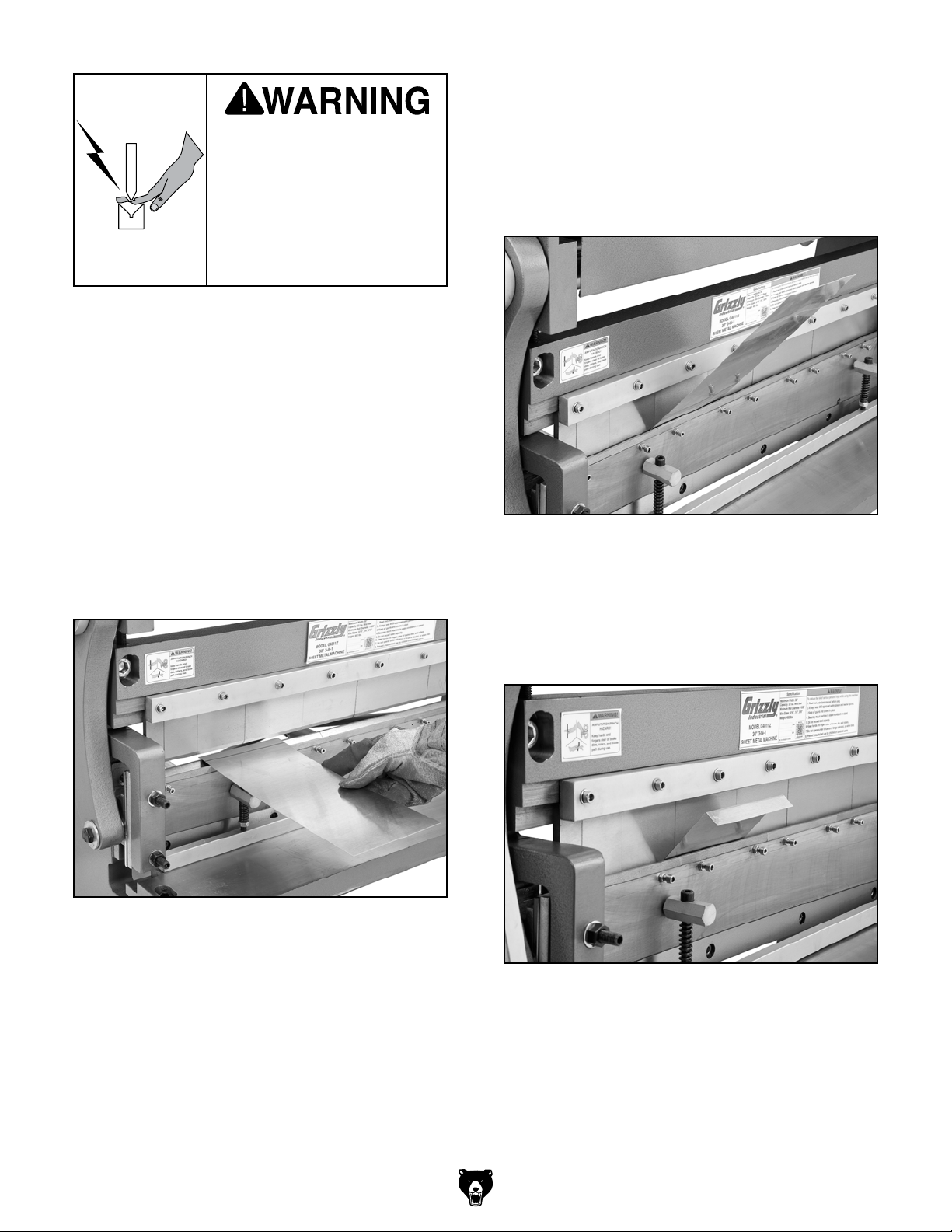

The shear blades are an
amputation hazard. Keep
hands/fingers at least 6"
away from blades when cutting. Never reach between
blades unless they are
blocked from closing.
To perform a shear cut:
1. Mark cut line across width of workpiece.
2. Make sure gap between shear blades is cor-
rect for workpiece material
If the workpiece shows signs of bending, ripping, or cutting, the blade gap may
need to be adjusted to accommodate the
workpiece. Refer to Adjusting Shear Blade
Gap subsection on Page 30 for detailed
instructions.
Note: If using rear work stop, adjust stop so
that at least one square edge of workpiece is
against it.
4. Use hold-down adjustment bolts to clamp
workpiece in place with hold-down. This will
prevent marking or denting workpiece.
3. Position workpiece against guide block on
right side of table, and align cut mark with
upper shear blade, as shown in Figure 37.
Note: Shearing action begins on right side of
machine and moves to the left.
Guide
Block
Figure 37. Positioning workpiece for shearing
cut.
5. Rotate hand crank with an even and steady
pressure to complete cut.
-24-
T26472Z/G4011Z/T26751Z (Mfd. Since 02/14)
ACCESSORIES
Installing unapproved accessories may
order online at www.grizzly.com or call 1-800-523-4777
SECTION 4: ACCESSORIES
cause machine to malfunction, resulting in
serious personal injury or machine damage.
To reduce this risk, only install accessories
recommended for this machine by Grizzly.
NOTICE
Refer to our website or latest catalog for
additional recommended accessories.
G5618—Deburring Tool with two Blades
The quickest tool for smoothing freshly sheared
metal edges. Comes with two blades, one for
steel and aluminum and one for brass and cast
iron.
T23094—Pneumatic Sheet Metal Shear
This heavy-duty pneumatic sheet metal shear
provides long life and reliable cutting with an
ergonomic grip for comfort and stability. Shears
most types of plastics and all types of aluminum,
tin, and steel.
Figure 39. T23094 Pneumatic Sheet Metal
Shear.
Figure 38. G5618 Deburring Tool.
H5503—Electric Sheet Metal Shear
This Electric Sheet Metal Shear features a 1⁄2 HP,
110V, 2500 RPM, 3.8 amp motor, a 360 degree
adjustable swivel head, and variable speeds from
0 to 2500 SPM. Cuts up to 14 gauge in mild steel
and 18 gauge in stainless, at up to 150 inches
per minute.
Figure 40. H5503 Electric Sheet Metal Shear.
T26472Z/G4011Z/T26751Z (Mfd. Since 02/14)
-25-
SECTION 5: MAINTENANCE
Schedule
For optimum performance, follow maintenance
schedule and refer to any specific instructions
given in this section.
Daily Check:
• Loose mounting bolts.
• Cracks or damage to rollers, fingers, and
blades.
• Any other unsafe condition.
Weekly Maintenance:
• Clean machine.
• Lubricate gears.
• Lubricate roller bushings.
Cleaning
Lubrication
Keep machine properly lubricated to help ensure
long life and smooth operation.
Gears
Using a stiff brush and mineral spirits, clean away
grease and built-up grime from top and bottom
roller gear teeth (see Figure 42).
Gear Teeth
Cleaning this machine is relatively easy.
Periodically wipe down all unpainted surfaces
to remove dust and debris—this ensures rustpromoting material does not remain on the bare
metal surfaces.
Treat all unpainted metal surfaces with quality
metal protectants like G96 Gun Treatment Spray
(see Figure 41).
Figure 42. Top and bottom roller gears.
When dry, apply a small amount of NLGI#2 (see
Figure 43) or equivalent grease to the teeth, then
use the hand crank to rotate the rollers and distribute the lubricant.
Figure 41. H3788 G96 Gun Treatment Spray.
-26-
Figure 43. T23964 Moly-D Multi-purpose
NLGI#2 Grease.
T26472Z/G4011Z/T26751Z (Mfd. Since 02/14)
Review the troubleshooting and procedures in this section if a problem develops with your machine. If you
need replacement parts or additional help with a procedure, call our Technical Support at (570) 546-9663.
Note: Please gather the serial number and manufacture date of your machine before calling.
SECTION 6: SERVICE
Troubleshooting
Slip Roll Operation
Symptom Possible Cause Possible Solution
Slip roll creates
cones when trying
to make a cylinder.
Creases or wrinkles
in the workpiece.
Workpiece is pitted
or scratched.
1. Top and rear rollers not parallel. 1. Use diameter adjustment knobs to make rollers
parallel.
1. Excessive pressure applied when rolling. 1. Reduce radius and perform bend in several light
passes.
1. Workpiece or rollers are dirty or damaged. 1. Thoroughly clean workpiece and rollers. Carefully
file down any nicks/burrs that stick out from rollers,
or replace them.
Brake Operation
Symptom Possible Cause Possible Solution
Heavy resistance
during bending.
Bend radius is not
consistent across
workpiece.
Tips of brake fingers
are chipping or
rolling.
Workpiece has
scoring marks.
1. Machine capacities are exceeded. 1. Operate within listed capacities of machine.
1. Machine capacities are exceeded.
2. Fingers and receiver not aligned.
1. Fingers and receiver not aligned.
2. Workpiece is too thick.
1. Fingers or receiver scratched. 1. Polish out scratches, and apply tape at bend
1. Operate within listed capacities of machine.
2. Properly align fingers and receiver (Page 32).
1. Properly align fingers and receiver (Page 32).
2. Operate within listed capacities of machine.
locations for further protection.
Shear Operation
Symptom Possible Cause Possible Solution
Machine will not cut
workpiece.
Cuts are not square. 1. Work stop is not parallel with shear blades.
Poor quality of
cuts with ripping or
tearing.
1. Cut exceeds machine capacities.
2. Not enough gap between blades.
2. Uneven contact with guide or work stop.
3. Incorrect blade gap setup.
4. Too much bow in blade.
5. Inadequate hold-down pressure.
1. Dull blades.
2. Incorrect blade gap setup.
3. Loose blades.
4. Too much bow in blade.
1. Operate within listed capacities of machine.
2. Increase blade gap (Page 30).
1. Adjust work stop parallel to shear blades.
2. Maintain proper contact with guide and work stop.
3. Properly adjust blade gap for material (Page 30).
4. Properly adjust blade bow (Page 31).
5. Properly adjust hold-down pressure.
1. Reverse/sharpen/replace blades (Page 29).
2. Properly adjust blade gap for material (Page 30).
3. Remove blades, clean thoroughly, and re-install.
4. Properly adjust blade bow (Page 31
).
T26472Z/G4011Z/T26751Z (Mfd. Since 02/14)
-27-

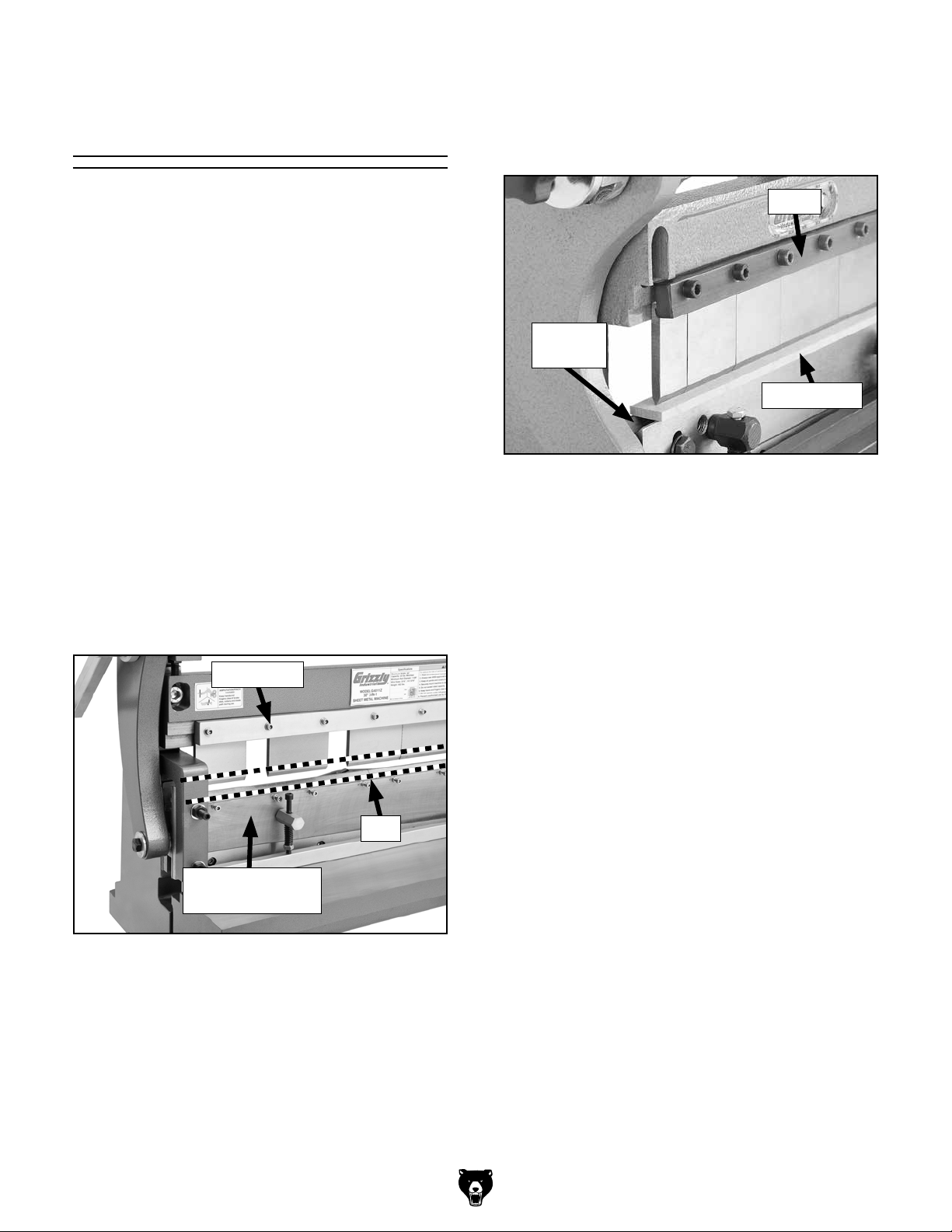

Replacing/Seating
Fingers
4. Place a
as the finger receiver onto the receiver (see
Figure 45). Wood must be perfectly flat on
each side for procedure.
1
⁄8"–1⁄4" piece of wood that is as long
Over the life of this machine, blade fingers may
become worn, damaged, or misaligned. If this
happens, they will need to be replaced or reseated.
T26472Z Tools Needed Qty
Hex Wrench 5mm .............................................. 1
Wood Slat 1⁄8"–1⁄4" x 12" ..................................... 1
G4011Z Tools Needed Qty
Hex Wrench 5mm .............................................. 1
Wood Slat
T26751Z Tools Needed Qty
Hex Wrench 5mm .............................................. 1
Wood Slat
To replace/seat brake fingers:
1. Lower finger receiver/shear blade to its lowest
point, leaving largest gap available between
fingers and finger receiver (see Figure 44).
1
⁄8"–1⁄4" x 30" ..................................... 1
1
⁄8"–1⁄4" x 42" .................................... 1
Cap Screw
Guide
Finger
Receiver
Wood Piece
Figure 45. Seating fingers with a piece of wood
that is flat on both sides.
5. Using hand crank, raise finger receiver until
wood piece is just below fingers.
6. Loosen cap screws that hold fingers in place.
7. Use hand crank to raise finger receiver, fully
seating fingers against casting behind guide.
8. Retighten cap screws.
Gap
Finger Receiver/
Shear Blade
Figure 44. Example of finger receiver fully
lowered.
2. Loosen cap screws and remove finger.
3. Insert replacement finger(s) and tighten cap
screw(s).
-28-
T26472Z/G4011Z/T26751Z (Mfd. Since 02/14)
Reversing/Replacing
Shear Blade
The shear blades are reversible, so when the first
cutting edge becomes dull, the blades can be
rotated to use the second cutting edge.
When both cutting edges of the blade become
dull, use wet grinding techniques for SK-4 tool
steel (or better) to sharpen the cutting face of
the blade. The upper shear blade uses a 5° relief
edge and the lower table blade does not.
If you are not comfortable sharpening blades
yourself, or you do not have access to a professional sharpening service, replacement blades
can be purchased from Grizzly. The part numbers
for these blades are located in the back of the
manual.
Tools Needed Qty
Hex Wrench 6mm .............................................. 1
The shear blades can easily cut your hands.
Always wear heavy leather gloves when
handling shear blades to avoid this cutting
hazard.
2. Remove shear blade cap screws (see
Figure 47) and carefully remove shear blade
from machine.
Tip: When removing or installing upper shear
blade, remove cap screw at one end, then
insert a small hex wrench or similar tool
through hole to keep blade in place as you
remove the remaining cap screws.
Shear Blade Cap
Screws
To reverse or replace either shear blade:
1. Remove cap screws and springs that secure
hold-down bar (see Figure 46).
Cap Screws
Hold-Down Bar
Figure 46. Location of cap screws securing hold-
down bar.
Shear Blade
Figure 47. Shear blade cap screws.
3. Inspect used shear blade cutting edge for
excessive wear, nicks, or burrs.
— If cutting edge shows excessive wear,
nicks, or burrs, and the other cutting edge
has not been used, rotate blade and reinstall.
— If both cutting edges are excessively worn,
nicked, or have burrs, either properly
sharpen or purchase a replacement blade.
4. Re-install blade and other components in the
reverse order they were removed.
5. Check that shear blade gap adjustment is
correct as instructed in Adjusting Shear
Blade Gap on Page 30.
T26472Z/G4011Z/T26751Z (Mfd. Since 02/14)
-29-
Adjusting Shear
Blade Gap
Adjusting Shear Table
G4011Z and T26751Z Tools Needed Qty
Hex Wrenches 5, 10mm ........................... 1 Each
Wrench or Socket 18mm ................................... 1
The gap between the upper and lower shear
blades (as they pass each other) must remain
even along the length of blades to produce clean
cuts. Initially, this adjustment has been made at
the factory. However, over time and with normal
wear, you may need to re-adjust this gap.
If the blade gap is too wide, the workpiece will
not cut correctly and show signs of bending, ripping, or tearing. If the blade gap is too narrow, it
will be difficult to lower the upper blade past the
lower blade and the cutting edges may become
damaged.
The shear blades on are
an amputation hazard.
Keep hands/fingers at
least 6" away from blades
when cutting to test blade
gap. Never reach between
blades unless they are
blocked from closing.
T26472Z Tools Needed Qty
Hex Wrenches 4, 10mm ........................... 1 Each
Wrench or Socket 13mm ................................... 1
To adjust shear table:
1. Loosen cap screws on both ends of shear
table that secure it to machine (see Figure 48).
Cap Screws
Table Adjustment
Screws
Figure 48. Table adjustment controls.
Checking Shear Blade Gap
Use a piece of paper to perform a shear cut test,
making cuts along the full length of the shear
blades. All cuts should be sharp without bending
or tearing the paper.
• If cut is clean at one end and not the other,
perform the Adjusting Shear Table procedure.
• If paper cuts cleanly on the ends but not in
the center, or it cuts cleanly in the center
but not on the ends, blade bow needs to be
adjusted (refer to Adjusting Blade Bow on
Page 31).
2. Evenly rotate table adjustment screws to
adjust position of shear table until blade gap
is even, then retighten cap screws to secure
table.
Note: Rotating table adjustment screws
clockwise moves table toward the upper
shear blade.
3. Perform shear test cut (refer to Checking
Blade Gap). If necessary, repeat Steps 1–3
until you are satisfied with shear cut test.
-30-
T26472Z/G4011Z/T26751Z (Mfd. Since 02/14)

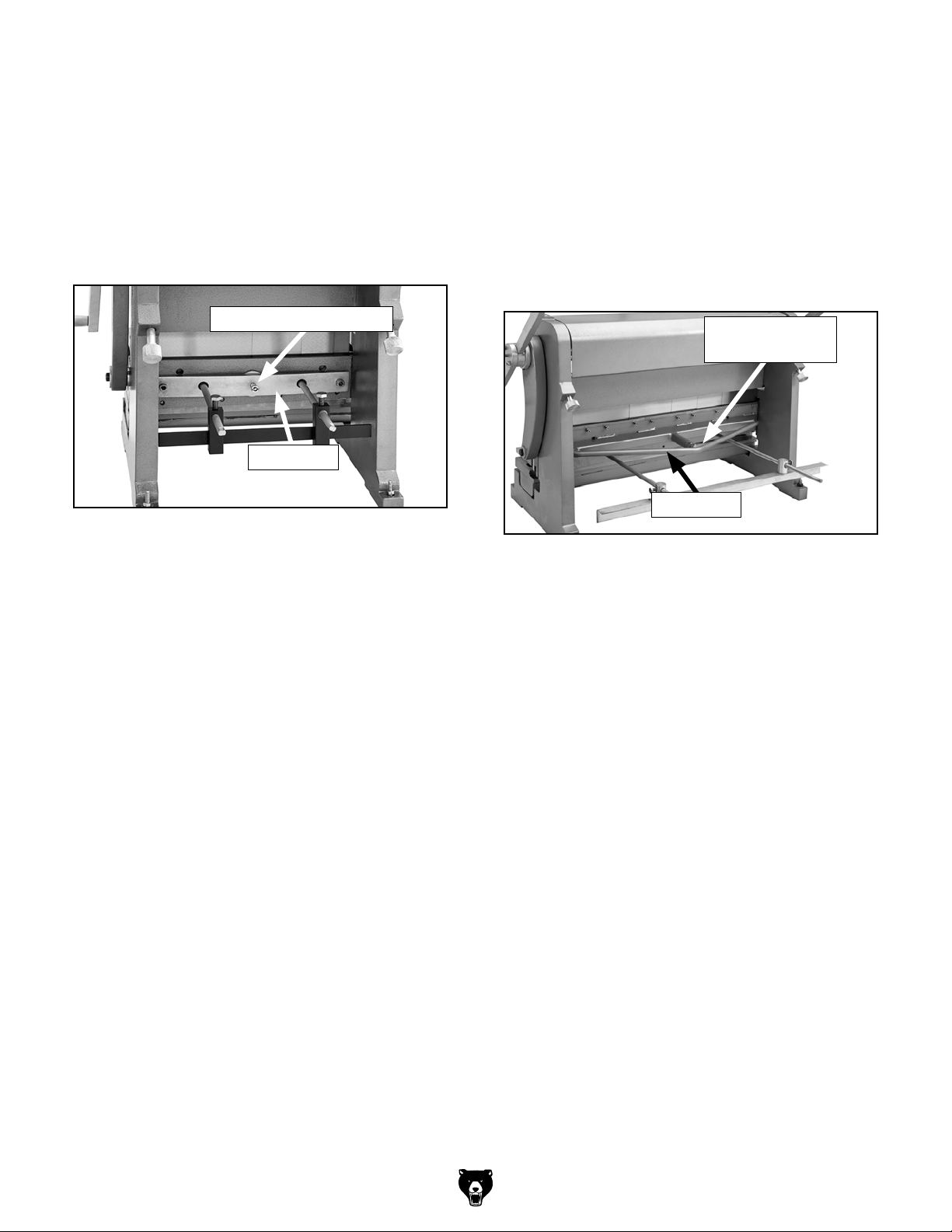

Adjusting Blade Bow (T26472Z)
The blade bow is used to remove any slight bow
in the cast-iron cross beam to which the brake finger receiver and upper shear blade are attached
(see Figure 49). It should be adjusted if the shear
blade does not cut evenly across its entire length.
Before adjusting the blade bow, perform the shear
test cut described in Checking Blade Gap on
Page 30.
Adjusting Blade Bow (G4011Z &
T26751Z)
The adjustment bolt of the blade bow is used to
remove any slight bow in the cast-iron cross beam
to which the brake finger receiver and upper shear
blade are attached (see Figure 50). It should be
adjusted if the shear blade does not cut evenly
across its entire length. Before adjusting the
blade bow, perform the shear test cut descibed in
Checking Blade Gap on Page 30.
Adjustment Cap Screw
Blade Bow
Figure 49. T26472Z blade bow adjustment
screw.
T26472Z Tools Needed Qty
Hex Wrench 6mm .............................................. 1
To adjust blade gap with blade bow:
1. If shear test cut was clean on ends of shear
blade but not in center, rotate adjustment cap
1
screw (see Figure 49) clockwise
⁄8 turn at a
time, then retest and re-adjust as necessary
until paper cuts cleanly along entire length of
blades.
Adjustment Bolt
& Jam Nut
Blade Bow
Figure 50. G4011Z and T26751Z blade bow
adjustment bolt.
G4011Z and T26751Z Tools Needed Qty
Wrench 24mm ................................................... 1
To adjust blade gap with blade bow:
1. If shear test cut was clean in center but not
on ends, rotate jam nut (see Figure 50)
1
clockwise
⁄8 turn at a time, then retest and readjust as necessary until paper cuts cleanly
along entire length of blades.
2. If shear test cut was clean in center but not
on ends, rotate cap screw counterclockwise
1
⁄8 turn at a time, then retest and re-adjust
as necessary until paper cuts cleanly along
entire length of blades.
T26472Z/G4011Z/T26751Z (Mfd. Since 02/14)
2. If shear test cut was clean on ends of shear
table but not in center, rotate jam nut counter-
1
clockwise
⁄8 turn at a time, then retest and readjust as necessary until paper cuts cleanly
along entire length of blades.
-31-

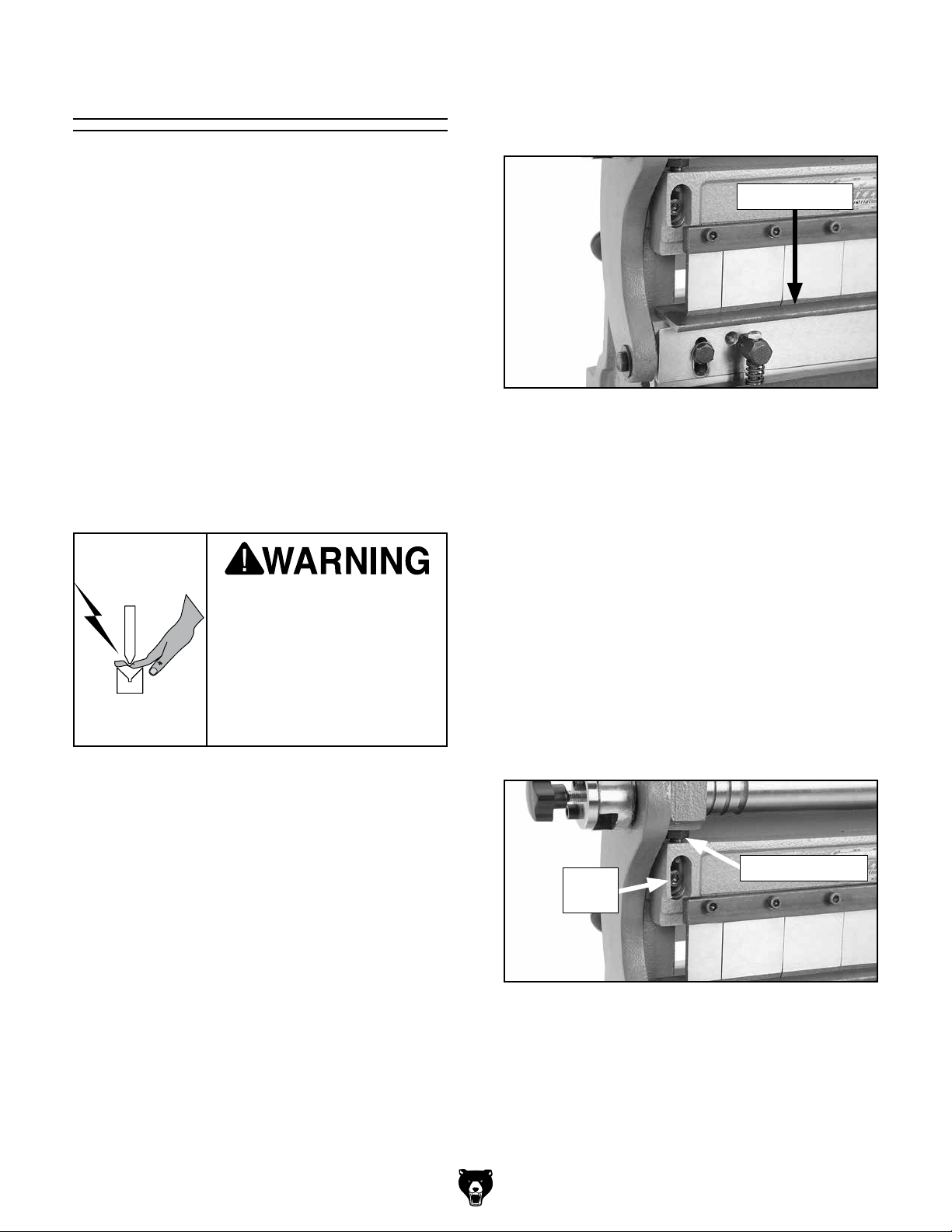

Aligning Brake
During the life of this machine, you may need to
align the brake fingers with the finger receiver
from side to side.
T26472Z Tools Needed Qty
Hex Wrench 6, 10mm ...............................1 Each
Wrench 16mm ................................................... 1
12" Flat Bar Stock or Heavy Metal Ruler .......... 1
G4011Z Tools Needed Qty
Hex Wrench 6, 12mm ...............................1 Each
Wrench 18mm ................................................... 1
30" Flat Bar Stock or Heavy Metal Ruler ......... 1
T26751Z Tools Needed Qty
Hex Wrench 6, 10mm ...............................1 Each
Wrench 18mm ................................................... 1
42" Flat Bar Stock or Heavy Metal Ruler .......... 1
3. Place a piece of flat bar stock or a heavy
metal ruler across finger receiver, as shown
in Figure 51.
Flat Bar Stock
Figure 51. Metal bar laid across receiver and
making contact with fingers.
4. Use hand crank to raise metal bar until
making contact with fingers, as shown in
Figure 51.
The brake fingers are a
serious pinching hazard.
Keep hands/fingers at least
6" away from brake fingers
when using. Never reach
between brake fingers and
finger receiver unless they
are blocked from closing.
To align brake fingers:
1. Clean and de-burr finger tips and receiver
groove. Inspect fingers and receiver for any
cracks or damage.
— If receiver brake fingers are damaged in
any way, DO NOT use brake until you have
replaced these parts with new ones.
2. Replace fingers and properly seat them
(refer to Steps 1–7 beginning on Page 28 for
detailed instructions).
5. Starting at one end, visually check gap
between brake fingers and metal bar.
—If there are no gaps, remove metal bar. No
adjustments are necessary.
—If there is a gap at one end of brake,
loosen cap screw closest to that end
(see Figure 52), then rotate adjustment
bolt on that end counterclockwise until gap
disappears.
Cap
Screw
Figure 52. Location of adjustment bolt and cap
screws securing brake fingers.
Adjustment Bolt
-32-
6. Retighten cap screw, remove metal bar, and
use hand crank to cycle machine 2–3 times.
7. Repeat Steps 3–6 until brake fingers rest
evenly on metal bar along its entire length.
T26472Z/G4011Z/T26751Z (Mfd. Since 02/14)
Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here
are available for purchase. Call (800) 523 -4777 or visit our online parts store at www.grizzly.com to check for availability.
3
SECTION 7: PARTS

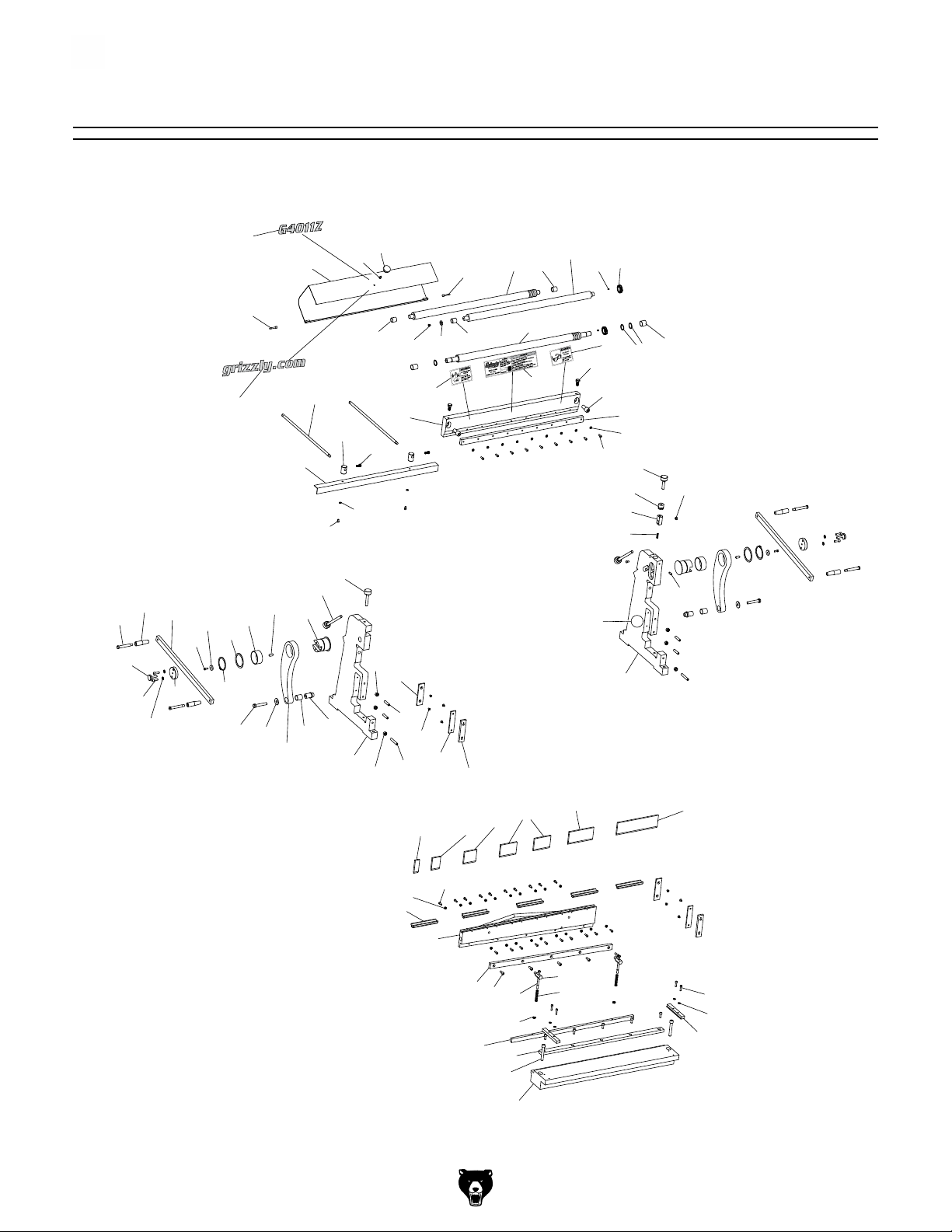

G4011Z Breakdown
33
36
32
35
34
30
31
35
29
40
83
39
49
82
10
53
48
38
52
74
76
28
23
72
21
11
42
73
70
78
1
50
58
75
16
16
77
60
4
15
18
19
15
80
43
56
8
41
10
9
58
59
79
58
22
54
26
84
69
37
81
12
24
55
20
2
67
68
71
7
25
27
57
13
50
61
21
62
5
45
14
63
17
47
51
5
64
65
44
46
66
78
68
6
T26472Z/G4011Z/T26751Z (Mfd. Since 02/14)
-33-
G4011Z Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 P4011Z001 SUPPORT FRAME (LH) 43 P4011Z043 FINGER RECEIVER
2 P4011Z002 SUPPORT FRAME (RH) 44 P4011Z044 HOLD-DOWN ARM
3 P4011Z003 WORK TABLE 45 P4011Z045 HOLD-DOWN
4 P4011Z004 BLADE SIDE PLATE (LOWER) 46 P4011Z046 COMPRESSION SPRING
5 P4011Z005 SHEAR BLADE 47 P4011Z047 CAP SCREW M8-1.25 X 110
6 P4011Z006 TABLE GUIDE 48 P4011Z048 FENDER WASHER 12MM
7 P4011Z007 BUSHING 49 P4011Z049 HEX BOLT M12-1.75 X 70
8 P4011Z008 BLADE SIDE PLATE (UPPER) 50 P4011Z050 HEX NUT M6-1
9 P4011Z009 CONNECTING PLATE 51 P4011Z051 HEX NUT M8-1.25
10 P4011Z010 HINGE PIN 52 P4011Z052 CONNECTING ARM
11 P4011Z011 KNOB BOLT M12-1.75 X 185, 14 53 P4011Z053 BUSHING
12 P4011Z012 CAP SCREW M16-2 X 35 54 P4011Z054 ROLLER (UPPER)
13 P4011Z013 SET SCREW M8-1.25 X 30 55 P4011Z055 THREADED SHAFT
14 P4011Z014 CAP SCREW M8-1.25 X 20 56 P4011Z056 UPPER ROLLER SPACER
15 P4011Z015 FLAT HEAD CAP SCR M6-1 X 10 57 P4011Z057 SHAFT BUSHING
16 P4011Z016 HEX NUT M10-1.5 58 P4011Z058 BUSHING (COPPER)
17 P4011Z017 CAP SCREW M12-1.75 X 80 59 P4011Z059 ROLLER (REAR)
18 P4011Z018 SET SCREW M10-1.5 X 45 60 P4011Z060 FINGER MOUNT
19 P4011Z019 SET SCREW M10-1.5 X 60 61 P4011Z061 FINGER 1"
20 P4011Z020 COMPRESSION SPRING 62 P4011Z062 FINGER 2"
21 P4011Z021 CAP SCREW M6-1 X 10 63 P4011Z063 FINGER 3"
22 P4011Z022 ROLLER (LOWER) 64 P4011Z064 FINGER 4"
23 P4011Z023 BUSHING 65 P4011Z065 FINGER 6"
24 P4011Z024 GEAR 19T 66 P4011Z066 FINGER 10"
25 P4011Z025 BUSHING 67 P4011Z067 FINGER RETAINER BAR
26 P4011Z026 KEY 4 X 4 X 8 68 P4011Z068 FLAT WASHER 6MM
27 P4011Z027 SPACER (COPPER) 69 P4011Z069 HEX BOLT M12-1.75 X 25
28 P4011Z028 ECCENTRIC SHAFT 70 P4011Z070 KNOB BOLT M12-1.75 X 90, 68
29 P4011Z029 FLAT WASHER 8MM (RUBBER) 71 P4011Z071 KNOB BOLT M12-1.75 X 75, 50
30 P4011Z030 CRANK ARM 72 P4011Z072 REAR SUPPORT ROD
31 P4011Z031 CRANK ARM HUB 73 P4011Z073 REAR SUPPORT BRACKET
32 P4011Z032 CRANK HANDLE 74 P4011Z074 REAR SUPPORT
33 P4011Z033 HANDLE STEP BOLT M10-1.5 X 95, 14 75 P4011Z075 HEX BOLT M8-1.25 X 20 (COPPER)
34 P4011Z034 FLAT WASHER 8MM 76 P4011Z076 ROLLER COVER
35 P4011Z035 CAP SCREW M8-1.25 X 25 77 P4011Z077 COVER KNOB M6-1
36 P4011Z036 LOCK KNOB BOLT M8-1.25 X 50, 35 78 P4011Z078 CAP SCREW M6-1 X 25
37 P4011Z037 CAP SCREW M6-1 X 16 79 P4011Z079 ID LABEL
38 P4011Z038 KEY 8 X 8 X 25 80 P4011Z080 PINCH/AMPUTATION WARNING LABEL
39 P4011Z039 SPACER 81 P4011Z081 EYE INJURY WARNING LABEL
40 P4011Z040 EXT RETAINING RING 65MM 82 P4011Z082 MODEL NUMBER LABEL P-7527C
41 P4011Z041 SHEAR BLADE HOLDER 83 P4011Z083 GRIZZLY.COM LABEL P-7527C
42 P4011Z042 THREADED BOLT BUSHING M12-1.75 84 P4011Z084 GRIZZLY GREEN TOUCH-UP PAINT
-34-
T26472Z/G4011Z/T26751Z (Mfd. Since 02/14)

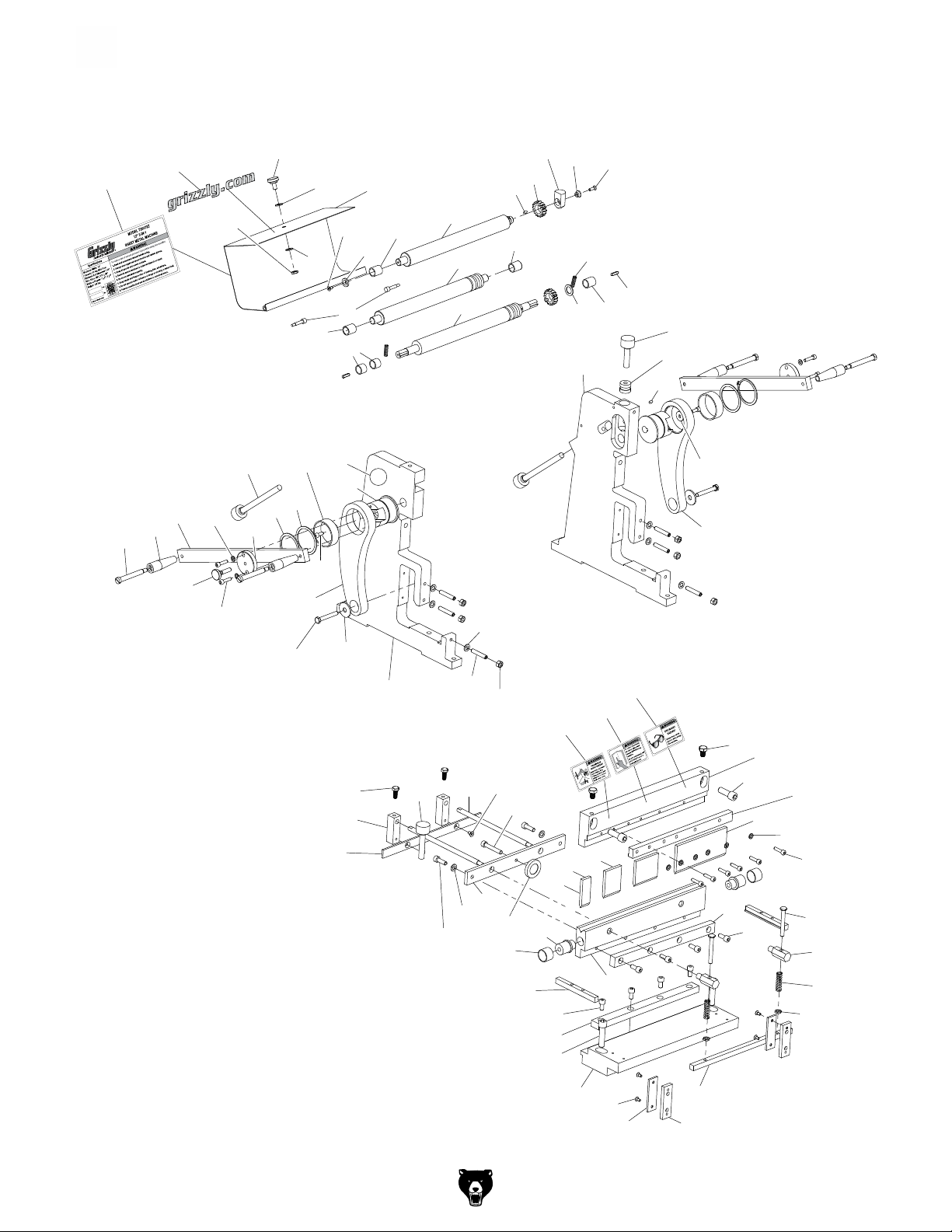

T26472Z Breakdown
81
52
51
85
50
75
23
57
80
53
49
74
72
42
73
41
79
38
79
8
86
33
71
76
36
12
70
9
32
6
68
2
33
35
76
77
10
34
37
39
5
4
8
11
8
7
3
23
45
61
44
63
60
57
25
59
23
56
24
62
43
55
84
58
28
27
40
78
21
18
22
20
1
54
29
82
13
16
15
83
66
17
18
48
14
26
31
30
46
47
65
19
64
69
67
T26472Z/G4011Z/T26751Z (Mfd. Since 02/14)
-35-
T26472Z Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 PT26472Z001 SUPPORT FRAME (LH) 44 PT26472Z044 CONNECTING ARM FLAT WASHER 8MM
2 PT26472Z002 SUPPORT FRAME (RH) 45 PT26472Z045 HEX BOLT M8-1.25 X 55
3 PT26472Z003 ROLLER (LOWER) 46 PT26472Z046 FLAT WASHER 6MM
4 PT26472Z004 KEY 4 X 4 X 10 47 PT26472Z047 CAP SCREW M6-1 X 25
5 PT26472Z005 GEAR 16T 48 PT26472Z048 HEX BOLT M10-1.5 X 16
6 PT26472Z006 SPACER (COPPER) 49 PT26472Z049 CRANK ARM HUB
7 PT26472Z007 ROLLER (REAR) 50 PT26472Z050 CRANK ARM
8 PT26472Z008 BUSHING (COPPER) 51 PT26472Z051 CRANK HANDLE
9 PT26472Z009 UPPER ROLLER BRACKET 52 PT26472Z052 STEP BOLT M8-1.25 X 90, 14
10 PT26472Z010 THREADED SHAFT 53 PT26472Z053 KNOB BOLT M12-1.75 X 175, 75
11 PT26472Z011 ROLLER (UPPER) 54 PT26472Z054 KNOB BOLT M12-1.75 X 80, 55 (LH)
12 PT26472Z012 UPPER ROLLER SPACER 55 PT26472Z055 SPACER
13 PT26472Z013 FLAT HD CAP SCR M5-.8 X 10 56 PT26472Z056 BOW ADJUSTMENT
14 PT26472Z014 FINGER MOUNT 57 PT26472Z057 CAP SCREW M8-1.25 X 25
15 PT26472Z015 BLADE SIDE PLATE (BOTTOM) 58 PT26472Z058 CAP SCREW M8-1.25 X 50
16 PT26472Z016 SHEAR BLADE HOLDER 59 PT26472Z059 REAR SUPPORT ROD
17 PT26472Z017 BLADE SIDE PLATE (TOP) 60 PT26472Z060 REAR SUPPORT BRACKET
18 PT26472Z018 SHEAR BLADE 61 PT26472Z061 REAR SUPPORT
19 PT26472Z019 CAP SCREW M8-1.25 X 16 (SS) 62 PT26472Z062 FLAT HD CAP SCR M6-1 X 10
20 PT26472Z020 WORK TABLE 63 PT26472Z063 HEX BOLT M8-1.25 X 20
21 PT26472Z021 CAP SCREW M8-1.25 X 16 (SS) 64 PT26472Z064 HOLD-DOWN ARM
22 PT26472Z022 CAP SCREW M12-1.75 X 50 65 PT26472Z065 HEX BOLT M8-1.25 X 65
23 PT26472Z023 FLAT WASHER 8MM 66 PT26472Z066 HOLD-DOWN
24 PT26472Z024 HEX NUT M8-1.25 67 PT26472Z067 HEX NUT M8-1.25
25 PT26472Z025 SET SCREW M8-1.25 X 45 68 PT26472Z068 COMPRESSION SPRING
26 PT26472Z026 CAP SCREW M12-1.75 X 35 69 PT26472Z069 COMPRESSION SPRING
27 PT26472Z027 FINGER 1" 70 PT26472Z070 ROLLER COVER
28 PT26472Z028 FINGER 2" 71 PT26472Z071 HINGE PIN
29 PT26472Z029 FINGER 3" 72 PT26472Z072 KNOB BOLT M8-1.25 X 22, 12
30 PT26472Z030 FINGER 6" 73 PT26472Z073 SPACER
31 PT26472Z031 FINGER RETAINER BAR 74 PT26472Z074 EXT RETAINING RING 55MM
32 PT26472Z032 BUSHING 75 PT26472Z075 HUB KNOB BOLT M8-1.25 X 40
33 PT26472Z033 FLAT HD CAP SCR M5-.8 X 16 76 PT26472Z076 BUSHING (COPPER)
34 PT26472Z034 SET SCREW M8-1.25 X 16 77 PT26472Z077 KNOB BOLT M12-1.75 X 65, 42
35 PT26472Z035 KEY 5 X 5 X 20 78 PT26472Z078 TABLE GUIDE
36 PT26472Z036 ECCENTRIC SHAFT 79 PT26472Z079 FLAT WASHER 8MM
37 PT26472Z037 SHAFT FLAT WASHER 6MM 80 PT26472Z080 HEX NUT M8-1.25 THIN
38 PT26472Z038 CAP SCREW M6-1 X 16 81 PT26472Z081 ID LABEL
39 PT26472Z039 CONNECTING ARM (RH) 82 PT26472Z082 READ MANUAL LABEL
40 PT26472Z040 THREADED BOLT BUSHING M8-1.25 83 PT26472Z083 EYE INJURY WARNING LABEL
41 PT26472Z041 CONNECTING ARM (LH) 84 PT26472Z084 PINCH/AMPUTATION WARNING LABEL
42 PT26472Z042 BUSHING 85 PT26472Z085 GRIZZLY.COM LABEL P-7527C
43 PT26472Z043 BUSHING 86 PT26472Z086 GRIZZLY GREEN TOUCH-UP PAINT
-36-
T26472Z/G4011Z/T26751Z (Mfd. Since 02/14)
10
82
89
87
30
34

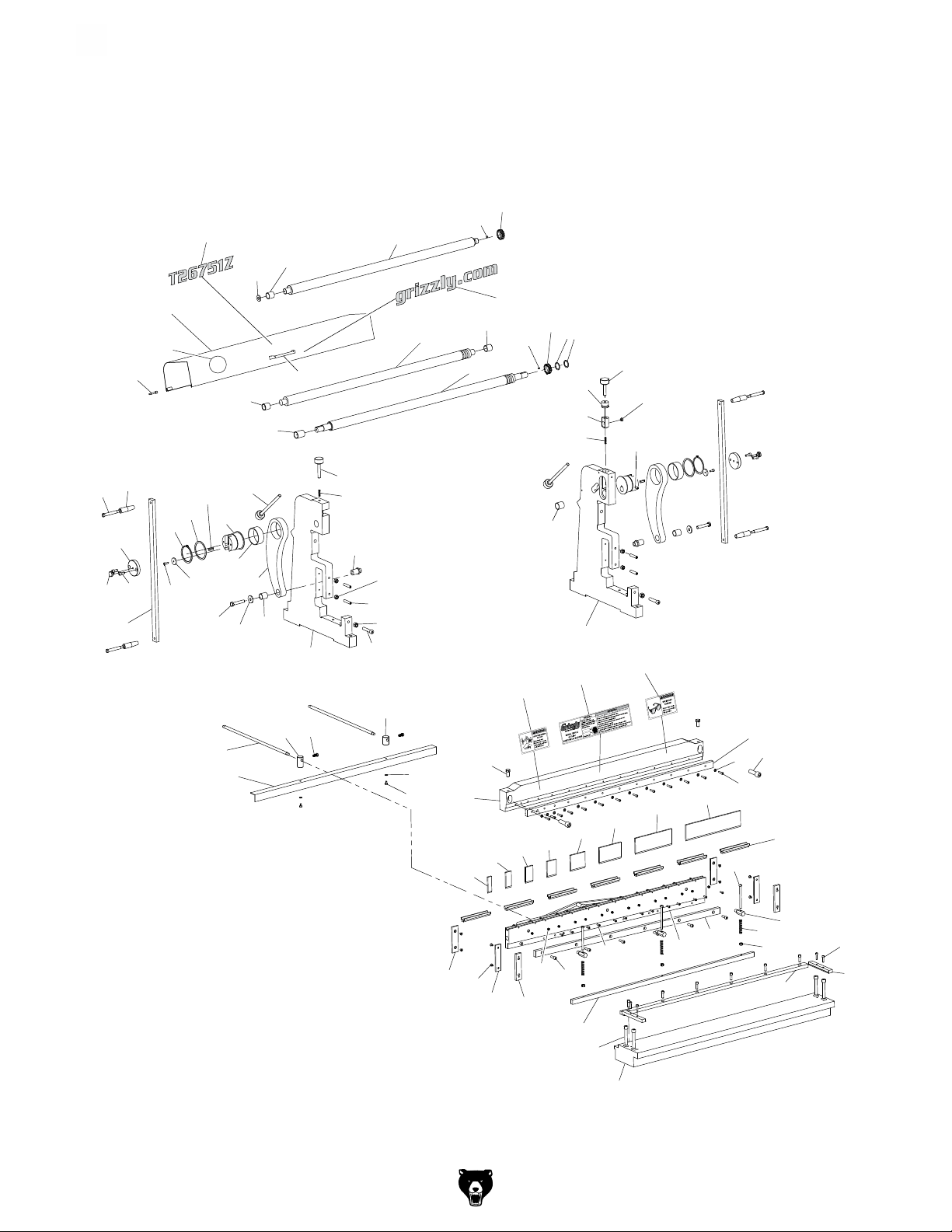

T26751Z Breakdown
24
28
31
30
88
24
28
26
83
29
30
23
25
32
17
74
11
33
18
39
45
37
36
40
41
43
19
44
38
42
69
76
35
73
78
68
7
71
72
81
2
80
75
17
61
14
20
12
15
77
79
58
27
3
66
52
85
53
59
54
55
56
58
22
60
63
62
4
65
70
21
9
4
67
50
84
51
21
64
13
86
57
46
49
48
47
8
16
6
5
T26472Z/G4011Z/T26751Z (Mfd. Since 02/14)
1
-37-
T26751Z Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 PT26751Z001 WORK TABLE 46 PT26751Z046 FINGER MOUNT
2 PT26751Z002 SUPPORT FRAME (LH) 47 PT26751Z047 FINGER 1"
3 PT26751Z003 SUPPORT FRAME (RH) 48 PT26751Z048 FINGER 1-1/2"
4 PT26751Z004 SHEAR BLADE 49 PT26751Z049 FINGER 2"
5 PT26751Z005 CONNECTING PLATE 50 PT26751Z050 FINGER 2-1/2"
6 PT26751Z006 BLADE SIDE PLATE (TOP) 51 PT26751Z051 FINGER 4"
7 PT26751Z007 KNOB BOLT M12-1.75 X 95, 12 52 PT26751Z052 FINGER 6"
8 PT26751Z008 BLADE SIDE PLATE (BOTTOM) 53 PT26751Z053 FINGER 10"
9 PT26751Z009 TABLE GUIDE 54 PT26751Z054 FINGER 15"
10 PT26751Z010 COVER HINGE PIN 55 PT26751Z055 FINGER RETAINER BAR
11 PT26751Z011 BUSHING 56 PT26751Z056 CAP SCREW M16-2 X 55
12 PT26751Z012 HEX NUT M10-1.5 57 PT26751Z057 HEX BOLT M12-1.75 X 25
13 PT26751Z013 CAP SCREW M12-1.75 X 80 58 PT26751Z058 FLAT WASHER 6MM
14 PT26751Z014 CAP SCREW M12-1.75 X 60 59 PT26751Z059 SHEAR BLADE HOLDER
15 PT26751Z015 HEX NUT M12-1.75 60 PT26751Z060 FINGER RECEIVER
16 PT26751Z016 FLAT HD CAP SCR M6-1 X 10 61 PT26751Z061 THREADED BOLT BUSHING M12-1.75
17 PT26751Z017 COMPRESSION SPRING 62 PT26751Z062 HOLD-DOWN ARM
18 PT26751Z018 SET SCREW M8-1.25 X 20 63 PT26751Z063 CAP SCREW M8-1.25 X 110
19 PT26751Z019 CAP SCREW M6-1 X 16 64 PT26751Z064 HOLD-DOWN
20 PT26751Z020 SET SCREW M10-1.5 X 50 65 PT26751Z065 COMPRESSION SPRING
21 PT26751Z021 CAP SCREW M8-1.25 X 25 66 PT26751Z066 CAP SCREW M5-.8 X 16
22 PT26751Z022 CAP SCREW M6-1 X 25 67 PT26751Z067 HEX NUT M5-.8
23 PT26751Z023 ROLLER (LOWER) 68 PT26751Z068 FENDER WASHER 12MM
24 PT26751Z024 GEAR 21T 69 PT26751Z069 HEX BOLT M12-1.75 X 70
25 PT26751Z025 SPACER (COPPER) 70 PT26751Z070 HEX NUT M8-1.25
26 PT26751Z026 BUSHING 71 PT26751Z071 CONNECTING ARM
27 PT26751Z027 BUSHING 72 PT26751Z072 BUSHING
28 PT26751Z028 KEY 4 X 4 X 8 73 PT26751Z073 BUSHING
29 PT26751Z029 ROLLER (REAR) 74 PT26751Z074 KNOB BOLT M12-1.75 X 80, 55
30 PT26751Z030 BUSHING (COPPER) 75 PT26751Z075 KNOB BOLT M12-1.75 X 95, 70
31 PT26751Z031 ROLLER (UPPER) 76 PT26751Z076 REAR SUPPORT ROD
32 PT26751Z032 THREADED SHAFT 77 PT26751Z077 REAR SUPPORT BRACKET (RH)
33 PT26751Z033 SHAFT BUSHING 78 PT26751Z078 REAR SUPPORT
34 PT26751Z034 UPPER ROLLER BUSHING 79 PT26751Z079 CAP SCREW M6-1 X 10
35 PT26751Z035 ECCENTRIC SHAFT 80 PT26751Z080 HEX BOLT M8-1.25 X 20 (COPPER)
36 PT26751Z036 CRANK ARM 81 PT26751Z081 REAR SUPPORT BRACKET (LH)
37 PT26751Z037 CRANK ARM HUB 82 PT26751Z082 ROLLER COVER
38 PT26751Z038 FLAT WASHER 6MM (RUBBER) 83 PT26751Z083 COVER HANDLE
39 PT26751Z039 STEP BOLT M10-1.5 X 95, 14 84 PT26751Z084 ID LABEL
40 PT26751Z040 CRANK HANDLE 85 PT26751Z085 EYE INJURY WARNING LABEL
41 PT26751Z041 CAP SCREW M8-1.25 X 20 86 PT26751Z086 PINCH/AMPUTATION WARNING LABEL
42 PT26751Z042 KEY 8 X 8 X 28 87 PT26751Z087 MODEL NUMBER LABEL P-7527C
43 PT26751Z043 EXT RETAINING RING 75MM 88 PT26751Z088 GRIZZLY.COM LABEL P-7527C
44 PT26751Z044 SPACER 89 PT26751Z089 GRIZZLY GREEN TOUCH-UP PAINT
45 PT26751Z045 LOCK KNOB M8-1,25 X 50, 35
-38-
T26472Z/G4011Z/T26751Z (Mfd. Since 02/14)
WARRANTY CARD
Name _____________________________________________________________________________
Street _____________________________________________________________________________
City _______________________ State _________________________ Zip _____________________
Phone # ____________________ Email _________________________________________________
Model # ____________________ Order # _______________________ Serial # __________________
The following information is given on a voluntary basis. It will be used for marketing purposes to help us develop
better products and services. Of course, all information is strictly confidential.
1. How did you learn about us?
____ Advertisement ____ Friend ____ Catalog
____ Card Deck ____ Website ____ Other:
2. Which of the following magazines do you subscribe to?
____ Cabinetmaker & FDM
____ Family Handyman
____ Hand Loader
____ Handy
____ Home Shop Machinist
____ Journal of Light Cont.
____ Live Steam
____ Model Airplane News
____ Old House Journal
____ Popular Mechanics
3. What is your annual household income?
____ $20,000-$29,000 ____ $30,000-$39,000 ____ $40,000-$49,000
____ $50,000-$59,000 ____ $60,000-$69,000 ____ $70,000+
CUT ALONG DOTTED LINE
4. What is your age group?
____ 20-29 ____ 30-39 ____ 40-49
____ 50-59 ____ 60-69 ____ 70+
5. How long have you been a woodworker/metalworker?
____ 0-2 Years ____ 2-8 Years ____ 8-20 Years ____20+ Years
6. How many of your machines or tools are Grizzly?
____ 0-2 ____ 3-5 ____ 6-9 ____10+
____ Popular Science
____ Popular Woodworking
____ Precision Shooter
____ Projects in Metal
____ RC Modeler
____ Rie
____ Shop Notes
____ Shotgun News
____ Today’s Homeowner
____ Wood
____ Wooden Boat
____ Woodshop News
____ Woodsmith
____ Woodwork
____ Woodworker West
____ Woodworker’s Journal
____ Other:
7. Do you think your machine represents a good value? _____Yes _____No
8. Would you recommend Grizzly Industrial to a friend? _____ Yes _____No
9. Would you allow us to use your name as a reference for Grizzly customers in your area?
Note: We never use names more than 3 times. _____ Yes _____No
10. Comments: _____________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
FOLD ALONG DOTTED LINE
FOLD ALONG DOTTED LINE
Place
Stamp
Here
GRIZZLY INDUSTRIAL, INC.
P.O. BOX 2069
BELLINGHAM, WA 98227-2069
Send a Grizzly Catalog to a friend:
Name_______________________________
Street_______________________________
City______________State______Zip______
TAPE ALONG EDGES--PLEASE DO NOT STAPLE
WARRANTY & RETURNS
Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from
the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse,
negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty
and any and all warranties that may be implied by law, including any merchantability or fitness, for any particular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent
that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants.
In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and
any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.
We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special,
or consequential damages arising from the use of our products.
To take advantage of this warranty, contact us by mail or phone and give us all the details. We will then issue
you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of the carton. We
will not accept any item back without this number. Proof of purchase must accompany the merchandise.
The manufacturers reserve the right to change specifications at any time because they constantly strive to
achieve better quality equipment. We make every effort to ensure that our products meet high quality and
durability standards and we hope you never need to use this warranty.
Please feel free to write or call us if you have any questions about the machine or the manual.
Thank you again for your business and continued support. We hope to serve you again soon.
Loading...
