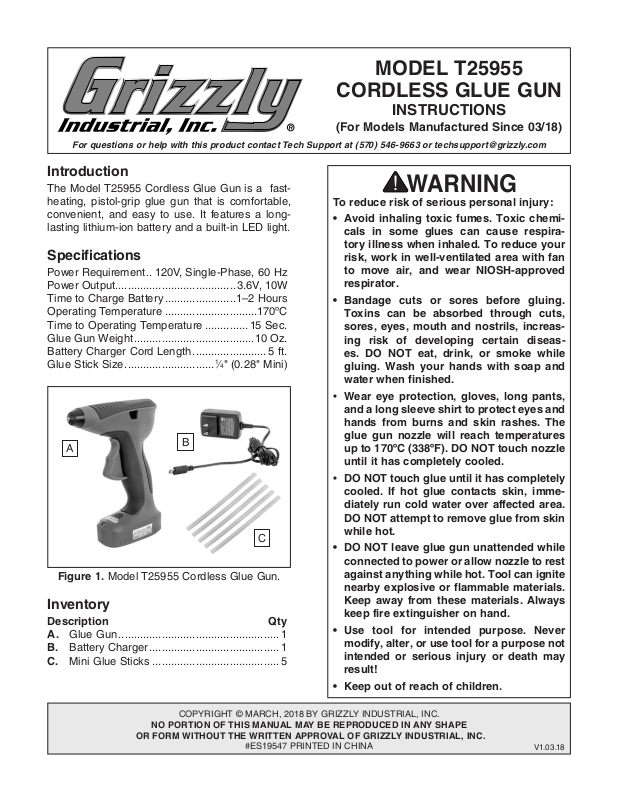

Page 1
MODEL T25955
CORDLESS GLUE GUN
INSTRUCTIONS
(For Models Manufactured Since 03/18)
For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction
The Model T25955 Cordless Glue Gun is a fastheating, pistol-grip glue gun that is comfortable,
convenient, and easy to use. It features a longlasting lithium-ion battery and a built-in LED light.
Specifications
Power Requirement . . 120V, Single-Phase, 60 Hz
Power Output .......................................3.6V, 10W
Time to Charge Battery .......................1–2 Hours
Operating Temperature ..............................170 ºC
Time to Operating Temperature ..............15 Sec.
Glue Gun Weight ....................................... 10 Oz.
Battery Charger Cord Length ........................ 5 ft.
Glue Stick Size .............................
A
Figure 1. Model T25955 Cordless Glue Gun.
B
1
⁄4" (0.28" Mini)
C
Inventory
Description Qty
A. Glue Gun .................................................... 1
B. Battery Charger .......................................... 1
C. Mini Glue Sticks ......................................... 5
To reduce risk of serious personal injury:
• Avoid inhaling toxic fumes. Toxic chemicals in some glues can cause respiratory illness when inhaled. To reduce your
risk, work in well-ventilated area with fan
to move air, and wear NIOSH-approved
respirator.
• Bandage cuts or sores before gluing.
Toxins can be absorbed through cuts,
sores, eyes, mouth and nostrils, increasing risk of developing certain diseases. DO NOT eat, drink, or smoke while
gluing. Wash your hands with soap and
water when finished.
• Wear eye protection, gloves, long pants,
and a long sleeve shirt to protect eyes and
hands from burns and skin rashes. The
glue gun nozzle will reach temperatures
up to 170ºC (338ºF). DO NOT touch nozzle
until it has completely cooled.
• DO NOT touch glue until it has completely
cooled. If hot glue contacts skin, immediately run cold water over affected area.
DO NOT attempt to remove glue from skin
while hot.
• DO NOT leave glue gun unattended while
connected to power or allow nozzle to rest
against anything while hot. Tool can ignite
nearby explosive or flammable materials.
Keep away from these materials. Always
keep fire extinguisher on hand.
• Use tool for intended purpose. Never
modify, alter, or use tool for a purpose not
intended or serious injury or death may
result!
• Keep out of reach of children.
COPYRIGHT © MARCH, 2018 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#ES19547 PRINTED IN CHINA
V1.0 3.18
Page 2
Charging
NOTICE
Operations
1. Make sure working surface is clear of any
combustible materials.
Additional safety for battery chargers:
• To reduce risk of fire and explosion,
DO NOT use battery charger to charge
devices other than Model T25955 Cordless
Glue Gun.
• To reduce risk of shock, keep battery
charger clean and DO NOT expose to rain
or damp conditions.
Before first use, charge the glue gun for 2–3 hours
to ensure battery reaches full capacity. After first
charging, the glue gun can be charged any time
without reducing battery life. When the battery is
discharged, the glue gun automatically turns off.
To charge glue gun:
1. Insert battery charger plug into 120V power
receptacle.
2. Plug battery charger cord into matching
socket on glue gun (see Figure 2) and wait
until glue gun is fully charged (1–2 hours).
Mode indicator light (see Figure 2) flashes
red when battery is charging and green when
battery is fully charged.
2. Press and hold
for 2–3 seconds until mode indicator light
turns red. A red light indicates glue gun is
heating up. After approximately 15 seconds,
light will turn green, indicating glue gun is
ready for use.
3. Insert glue stick into back of glue gun
(see Figure 3).
ON/OFF
Button
Figure 3. Inserting glue stick into glue gun.
4. Slowly squeeze trigger until melted material
begins to flow from nozzle.
button (see Figure 3)
Glue Stick
Cord
Plugged
Mode
Indicator
Light
Figure 2. Glue gun charging.
Some materials are heat sensitive and may
become damaged either by heated nozzle
or hot glue. Test temperature on a scrap
piece of material first.
Into
Socket
Important: When hot, rest glue gun upright
to prevent melted glue from escaping nozzle
and increasing risk of fire or personal injury.
5. After gluing operation is complete, release
trigger and press
OFF. Allow it to fully cool before storing. Glue
sticks may remain in glue gun when not in
use and be re-melted when used again.
Tip: Never pull glue stick out through back of
glue gun. Doing so may damage feed mechanism. Cut off extra portion of glue stick and
feed remainder through glue gun.
Note: Never pour water over glue gun, put
glue gun into water, or expose to rain. Only
use a damp cloth to clean glue gun.
button to turn glue gun
-2-
T25955 Cordless Glue Gun (Mfd. Since 03/18)
Page 3
Parts Breakdown & List
3.6V, 10W 3.6V, 10W
We do our best to stock replacement parts when possible, but we cannot guarantee that all parts shown
are available for purchase. Call (800) 523-4777 or visit www.grizzly.com/parts to check for availability.
29
6
7
8
5
4
3
25
10
9
2
1
18
15
14
13
12
11
24
19
20
21
28
27
22
16
23
26
17
30
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 PT25955001 GLUE GUN HOUSING (LEFT) 17 PT25955017 PHLP HD SCR M3-.5 X 10
2 PT25955002 CONNECTING BRACKET (LONG) 18 PT25955018 EXTENSION TRIGGER SPRING
3 PT25955003 CONNECTING BRACKET PIN 19 PT25955019 TRIGGER
4 PT25955004 GLUE STICK SEAT 20 PT25955020 SWITCH JINGHAN JHWD-1
5 PT25955005 RUBBER DETENT RING 21 PT25955021 MODE INDICATOR LIGHT LENS
6 PT25955006 NOZZLE COVER (LEFT) 22 PT25955022 PLASTIC BUTTON
7 PT25955007 CONDUCTOR CLIP 23 PT25955023 CIRCUIT BOARD FST-D126-101D W/ LED LIGHT
8 PT25955008 COPPER CONDUCTOR 24 PT25955024 CONNECTING BRACKET (SHORT)
9 PT25955009 HOUSING RETAINING RING 25 PT25955025 NOZZLE
10 PT25955010 SILICON NOZZLE SLEEVE 26 PT25955026 LI-ION BATTERY MINGYANG 1NR18650P
11 PT25955011 NOZZLE COVER (RIGHT) 27 PT25955027 WIRE 22G RED
12 PT25955012 RUBBER SEAL 28 PT25955028 WIRE 22G BLACK
13 PT25955013 SPRING RETAINING RING (SMALL) 29 PT25955029 BATTERY CHARGER INTERLOK X20500-1000
14 PT25955014 COMPRESSION FEED SPRING 30 PT25955030 TOOL ID LABEL (LEFT)
15 PT25955015 SPRING RETAINING RING (LARGE) 31 PT25955031 TOOL ID LABEL (RIGHT)
16 PT25955016 GLUE GUN HOUSING (RIGHT) 32 PT25955032 MINI GLUE STICK 0.28"
31
32
T25955 Cordless Glue Gun (Mfd. Since 03/18)
BUY PARTS ONLINE AT GRIZZLY.COM !
Scan QR code to visit our Parts Store.
-3-
