MODEL T25953
T-SLOT WORK TABLE
INSTRUCTIONS
For Models Mfd. Since 10/17
For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction
The Model T25953 T-Slot Work Table is designed
to support sanding, clamping, routing, assembly, and sawing projects. Workpieces can be
clamped virtually anywhere on the T-slot table
using Grizzly's T-Track Auto Adjust Clamps and
Fence Kits (not included). The T-slots (see inset
for dimensions) are compatible with
3
/8"
5
/16"
3
/16"
7
/16"

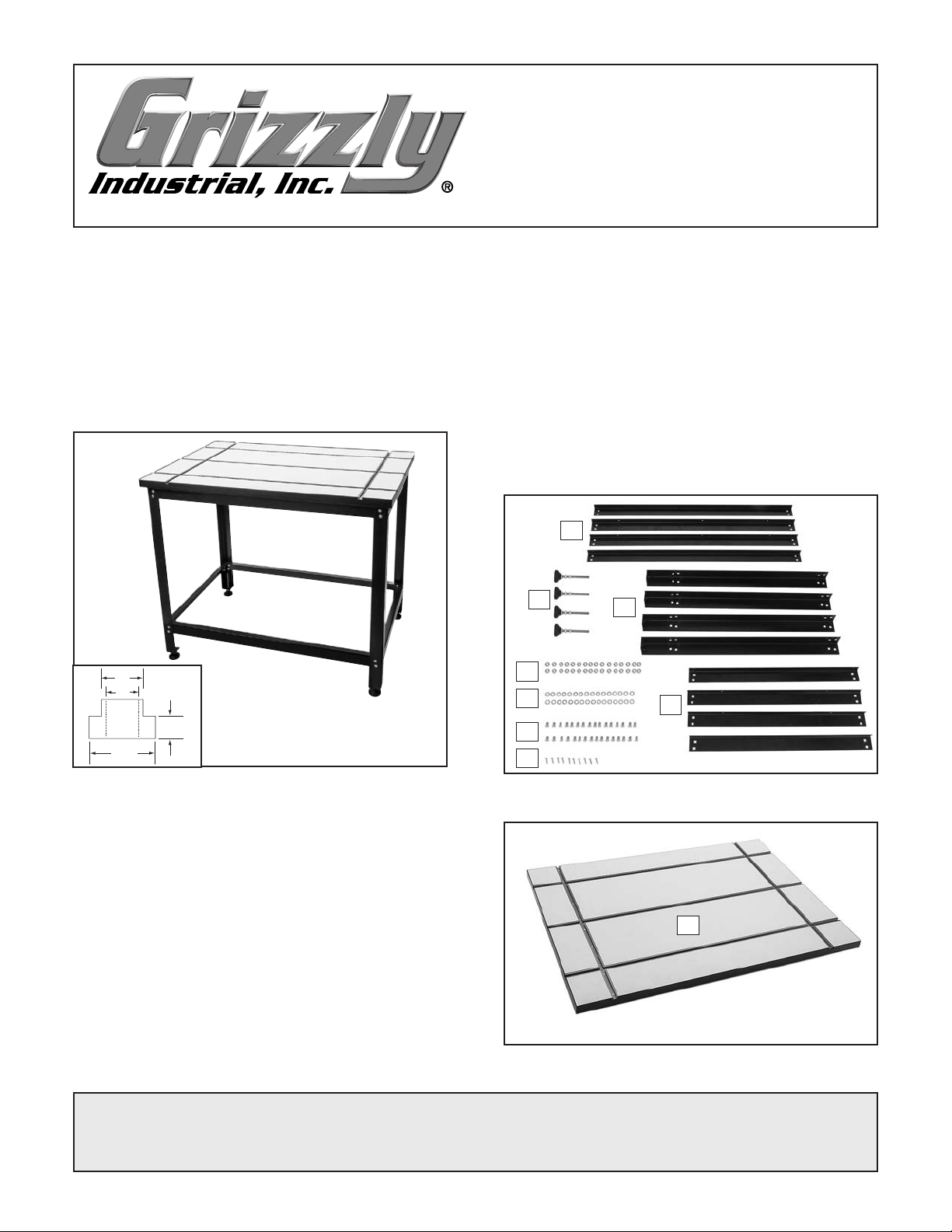

Figure 1. Model T25953 T-Slot Work Table.
5
⁄16" bolts.
Inventory
Description Qty
A. Legs ........................................................... 4
B. Feet M10-1.5 x 136 ..................................... 4
C. Long Braces 38" ......................................... 4
D. Hex Nuts M8-1.25 ..................................... 32
E. Flat Washers 8mm .................................. 32
F. Carriage Bolts M8-1.25 x 12 ..................... 32
G. Wood Screws M4 x 20 ............................ 10
H. Short Braces 26" ........................................ 4
I. T-Slot Table ................................................ 1
A
B
D
E
F
G
Figure 2. T25953 Stand Components.
C
H
Specifications
• Top Dimensions ..............................28" x 40"
• Footprint (Length x Width) .......... 38
• T-Track Dimensions ..................
• Maximum Weight Capacity ..............700 lbs.
1
⁄2 " x 27"
3
⁄4"W x 3⁄8"D
Needed for Setup
• Open-End Wrench or Socket 14mm .......... 1
• Phillips Head Screwdriver #2 ..................... 1
• Assistant ..................................................... 1
COPYRIGHT © JANUARY, 2018 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#BL19338 PRINTED IN CHINA
H
I
Figure 3. T25953 T-Slot Table.
V1.01.18
Assembly
Before beginning the assembly process, refer to
Needed for Setup and gather all listed items.
To assemble T-slot work table:

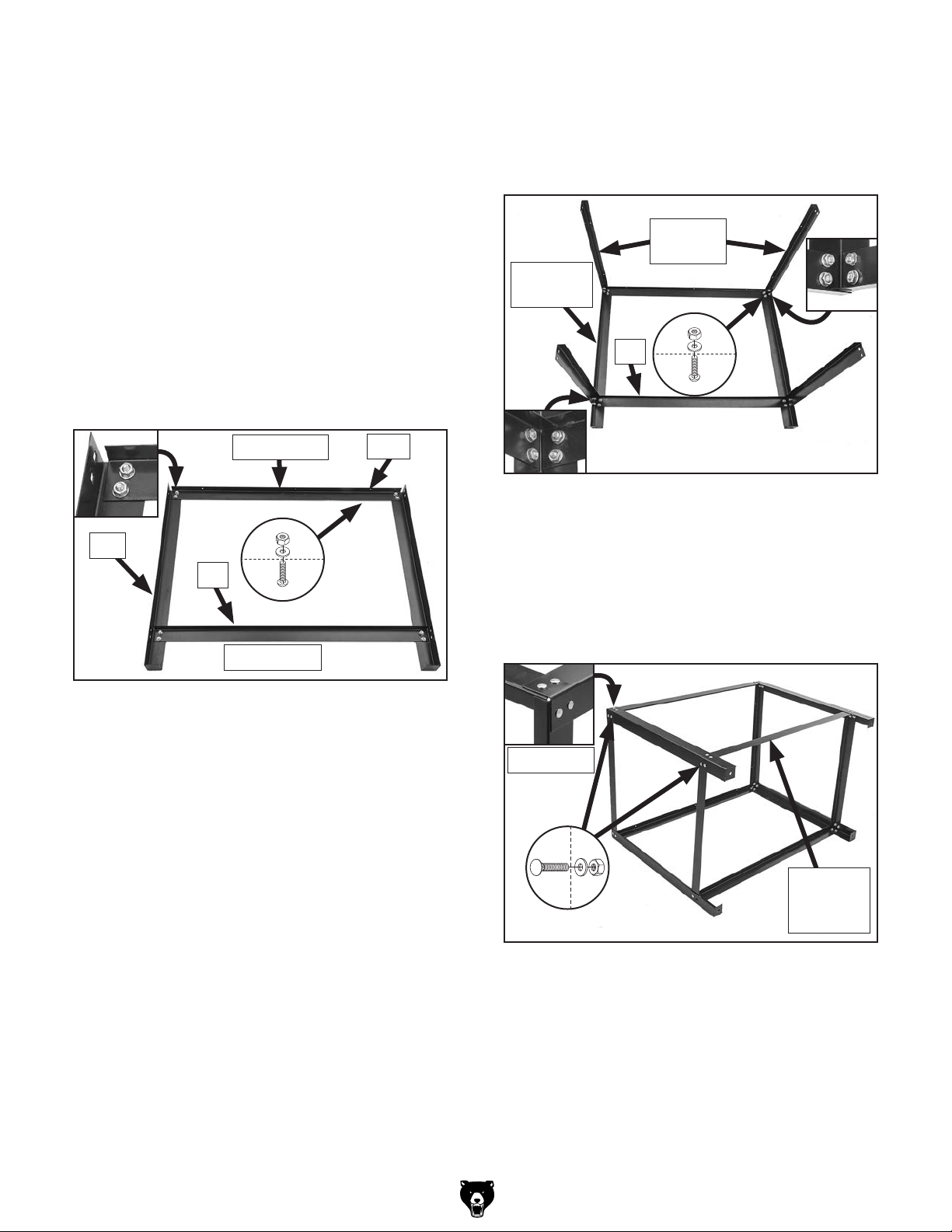

1. Build one side assembly for stand by
attaching (2) long braces to (2) legs with
(8) M8-1.25 x 12 carriage bolts,
(8) 8mm flat washers, and (8) M8-1.25 hex nuts
(see Figure 4). Finger-tighten hex nuts for
now.
3. Attach (4) short braces to side assembly with (8) M8-1.25 x 12 carriage bolts,
(8) 8mm flat washers, and (8) M8-1.25 hex
nuts (see Figure 5). Finger-tighten hex nuts
for now.
Short
Braces
Side
Assembly
Note: Orient lip of each long brace upward,
and secure long braces to inside edge of legs
(see inset).
Long Brace
Leg
Lip
(Each Side)
Figure 4. 1 of 2 side assemblies for stand.
2. Repeat Step 1 to build a second side
assembly.
x 8
Hole
Lip
x 8
Figure 5. Short braces attached to side
assembly.
4. Attach second side assembly to short braces with (8) M8-1.25 x 12 carriage bolts,
(8) 8mm flat washers, and (8) M8-1.25 hex
nuts (see Figure 6). The lips of the short
braces normally overlap the lips of the long
braces (see inset of Figure 6).
End View
-2-
x 8
Figure 6. Second side assembly attached to
short braces.
T25953 T-Slot Table (Mfd. Since 10/17)
Second
Side
Assembly

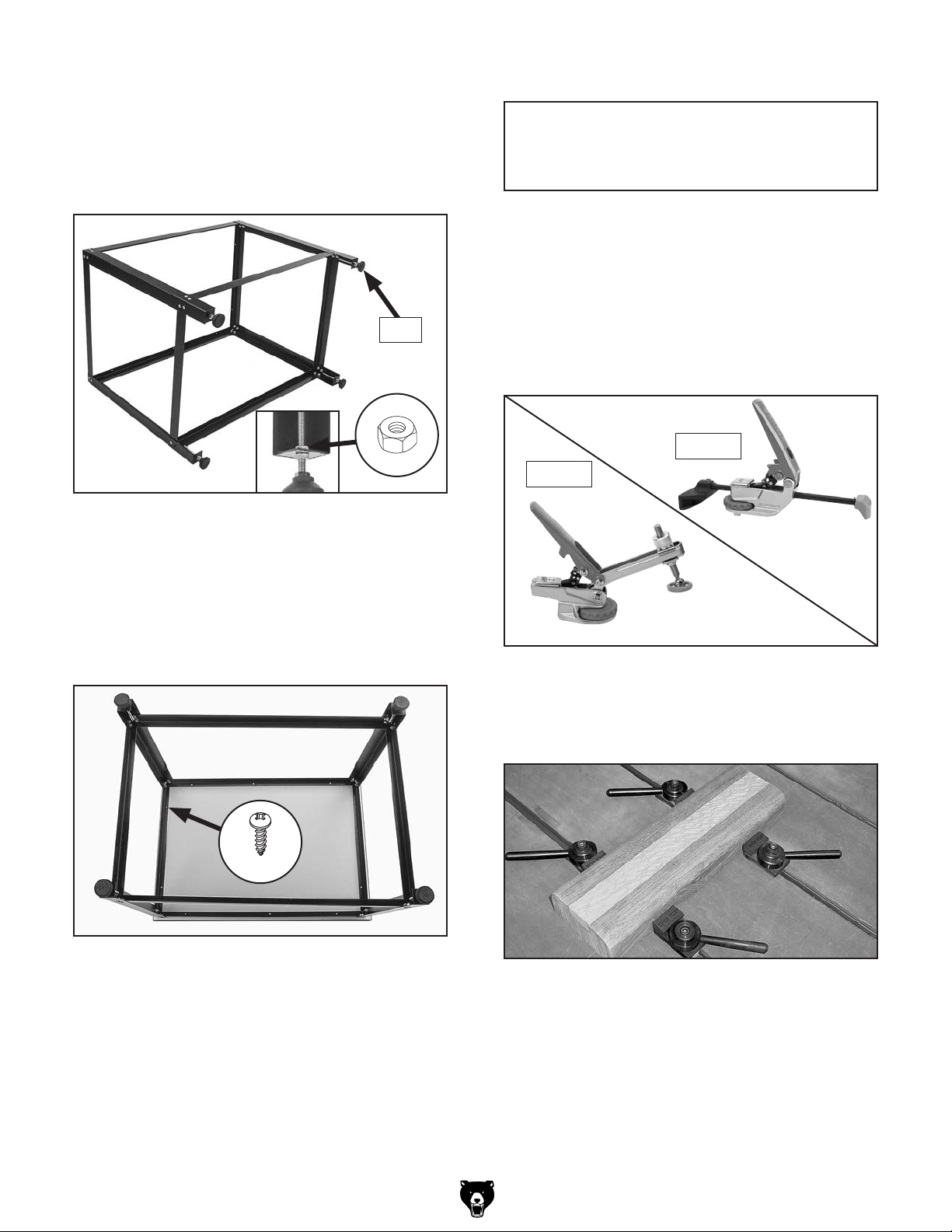

5. Remove (1) hex nut from top of each foot
stud, insert stud through hole in bottom of
each leg, then re-install each hex nut to
secure feet (see Figure 7). Bottom (2) hex
nuts should be positioned at same location
on all four studs.
Foot
Figure 7. Feet attached to stand assembly.
Accessories
NOTICE
Refer to our website or latest catalog for
additional recommended accessories.
T-Track Clamps
• Adjustable clamping force of 25-150 lbs.
(T28110) & 25-550 lbs. (T28111)
• Versatile
• Hardened steel push rod with non-marring
pad on In-Line Clamp
• Lock knob secures clamp to T-track
• Patented mechanism
T28110
5
⁄16" T-bolt fits standard 5⁄16" T-tracks
T28111
6. Place clean piece of cardboard on ground,
then lay T-slot table face down on cardboard.
7. Place stand assembly on table, align mounting holes, and attach with (10) M4 x 20 wood
screws (see Figure 8).
x 10
Figure 8. T-slot table installed.
8. With help of an assistant, turn work table right
side up. Position table so it is centered over
stand (not leaning to one side or the other).
Figure 9. Grizzly T-track clamps.
D3347–Heavy-Duty Cam Clamps for T-Tracks
Easy to set up and slides along on tracks. Fits
standard
Figure 10. D3347 Heavy-Duty Cam Clamp.
5
⁄16" T-tracks.
9. Final tighten all fasteners from Steps 1–4.
10. Loosen (4) M10-1.5 hex nuts on stand feet,
adjust feet to make sure table does not wobble, then tighten hex nuts to secure feet.
T25953 T-Slot Table (Mfd. Since 10/17)
-3-
Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here
are available for purchase. Call (800) 523-4777 or visit our online parts store at www.grizzly.com to check for availability.

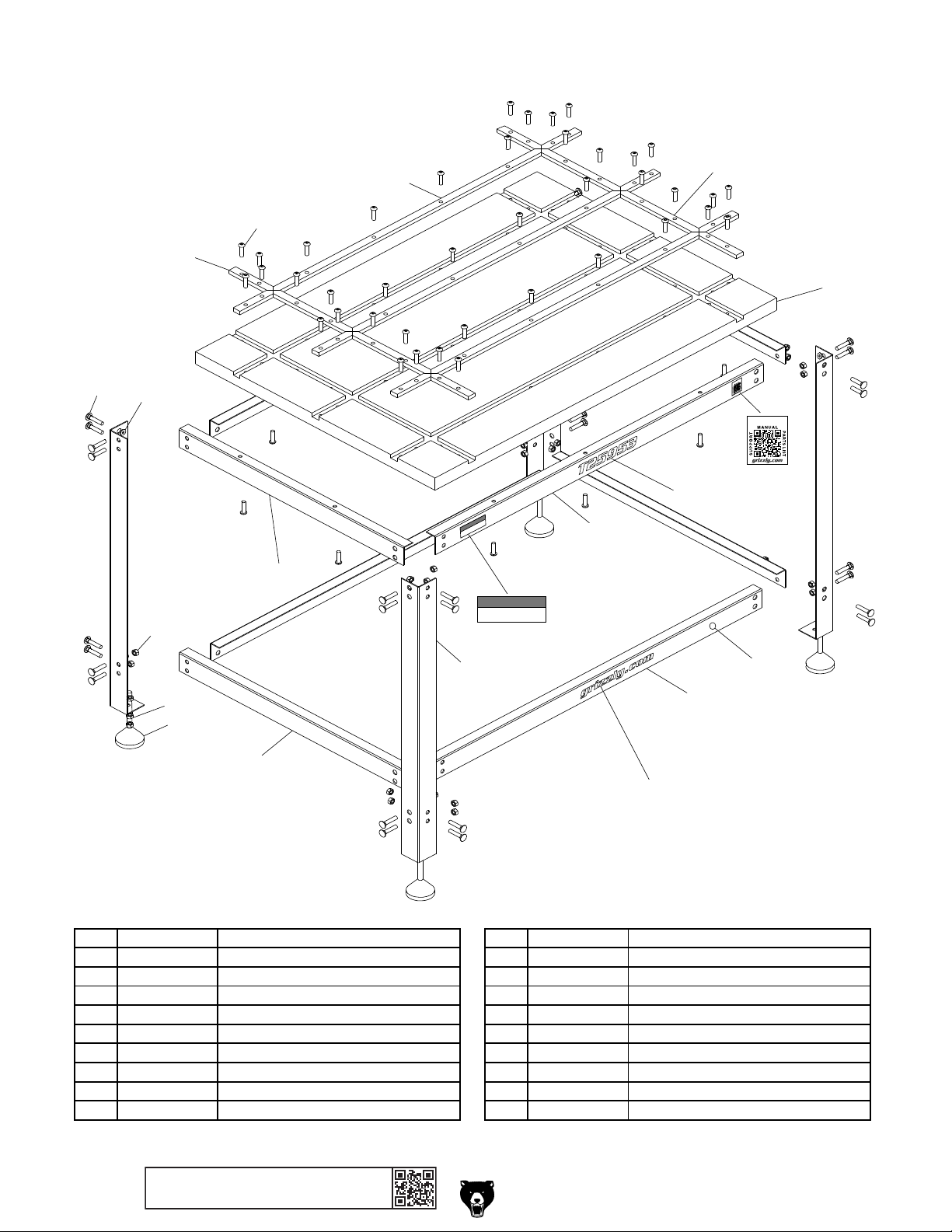

T25953 Parts Breakdown
8
7
4
6
9
1
2
T25953
T25953
15
T259 53
T25953
NOTICE
DO NOT exceed maximum
weight capacity of 700 lbs.
19
20
NOTICE
DO NOT exceed maximum
weight capacity of 700 lbs.
3
13
12
14
17
18
grizz ly .c om
10
5
11
grizzly.com
16
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 PT25953001 CARRIAGE BOLT M8-1.25 X 12 11 PT25953011 SHORT BRACE 26" (BOTTOM)
2 PT25953002 FLAT WASHER 8MM 12 PT25953012 LEG
3 PT25953003 HEX NUT M8-1.25 13 PT25953013 NOTICE LABEL
4 PT25953004 WOOD SCREW M4 X 20 14 PT25953014 MODEL NUMBER LABEL
5 PT25953005 FOOT M10-1.5 X 60D (RUBBER) 15 PT25953015 QR CODE LABEL
6 PT25953006 T-SLOT TRACK 120MM 16 PT25953016 GRIZZLY.COM LABEL
7 PT25953007 T-SLOT TRACK 235MM 17 PT25953017 TOUCH-UP PAINT, GLOSSY BLACK
8 PT25953008 T-SLOT TRACK 775MM 18 PT25953018 HEX NUT M10-1.5
9 PT25953009 TABLE TOP 19 PT25953019 LONG BRACE 38" (TOP)
10 PT25953010 LONG BRACE 38" (BOTTOM) 20 PT25953020 SHORT BRACE 26" (TOP)
-4-
BUY PARTS ONLINE AT GRIZZLY.CO M!
Scan QR code to visit our Parts Store.
T25953 T-Slot Table (Mfd. Since 10/17)
