For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
MODEL T23129
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 T23129 CANISTER FILTER V2.09.11 11 PW06 FLAT WASHER 1/4
2 P0583Z031-1V2 FOAM STRIP 6 X 20MM V2.09.11 12 PS68M PHLP HD SCR M6-1 X 10
3 P0583Z033 HANDLE 13 P0583Z050V2 FILTER V2.09.11
4 PS09M PHLP HD SCR M5-.8 X 10 14 P0583Z050-1 FOAM GASKET 10 X 15 MM
5 P0583Z038V2 PLASTIC FLAP BOARD V2.09.11 15 P0583Z051 METAL BELT CLAMP
6 PS68M PHLP HD SCR M6-1 X 10 16 PH5783005 THRUST BEARING 12 X 14 X 6
7 PS20M PHLP HD SCR M5-.8 X 15 17 PH5783006 BEARING PLATE
8 P0583Z044 BOTTOM PLATE 18 P0583Z054 HEX SPINDLE
9 P0583Z045 SUPPORT TAB 19 P0583Z056V2 FOAM STRIP 5 X 42MM V2.09.11
10 PN06M HEX NUT M5-.8 20 PW03M FLAT WASHER 6MM
2
1
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
16
17
Parts breakdown provided for reference only. Not all parts shown are available for purchase.

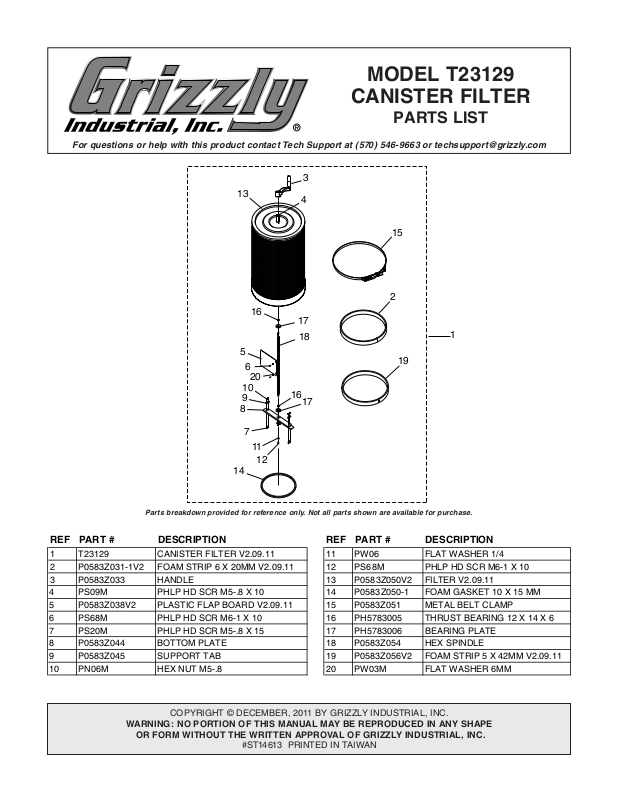

CANISTER FILTER
PARTS LIST
Copyright © DECEMBEr, 2011 By grizzly inDustrial, inC.
WARNINg: NO PORTION OF ThIS MANuAL MAy bE REPRODuCED IN ANy ShAPE
OR FORM WIThOuT ThE WRITTEN APPROvAL OF gRIzzLy INDuSTRIAL, INC.
#st14613 printED in ta iWa n
